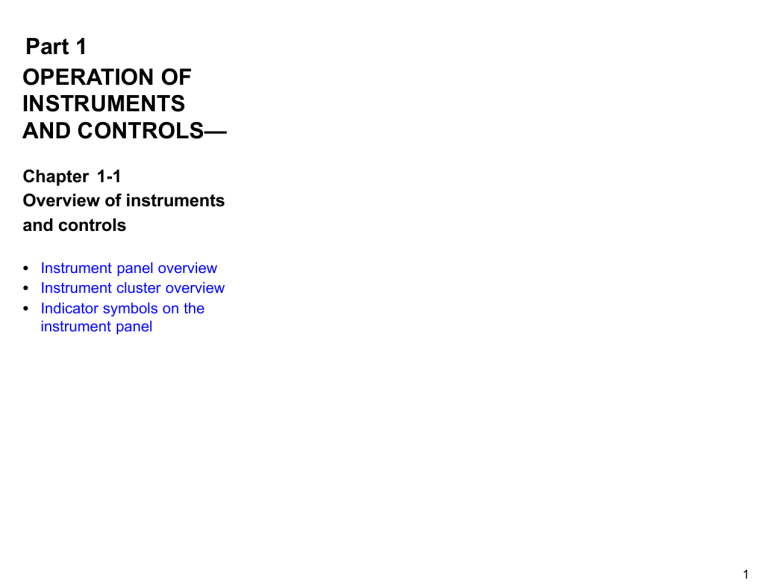

Part 1
OPERATION OF
INSTRUMENTS
AND CONTROLS—
Chapter 1-1
Overview of instruments
and controls
Instrument panel overview
Instrument cluster overview
Indicator symbols on the
instrument panel
1
Instrument panel overview
1.
2.
3.
4.
5.
6.
7.
8.
9.
Side vent
Instrument cluster
Center vents
Personal lights
Glovebox
Power door lock switch
Power window switches
Parking brake lever
Automatic transmission selector
lever or manual transmission
gear shift lever
10. Ashtray
11. Hood lock release lever
2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Instrument panel light control knob
Headlight and turn signal switch
Wiper and washer switches
Clock
Center differential lock button or
driving pattern selector button
Air conditioning controls
Emergency flasher switch
Rear window defogger switch
Car audio
Cigarette lighter
Ignition switch
Tilt steering lock release lever
Power rear view mirror control switch
3
Instrument cluster overview
1. Speedometer
2. Odometer
3. Fuel gauge
4
4. Service reminder indicators
or indicator lights
5. Engine coolant temperature gauge
6. Tachometer
7. Trip meter reset knob
8. Trip meter
Indicator symbols on the instrument panel
Brake system warning light*1
Automatic transmission fluid
temperature warning light*1
Seat belt reminder light*1
Turn signal indicator lights
Discharge warning light*1
Headlight high beam indicator light
Low oil pressure warning light*1
Overdrive-of f indicator light
Malfunction indicator lamp*1
ECT
PWR
Low fuel level warning light*1
C.DIFF
LOCK
Anti-lock brake system warning light*1
Open door warning light*1
SRS airbag warning light*1
CRUISE
“POWER” mode indicator light
Center differential lock indicator
light
Cruise control indicator light*2
*1: For details, see “Service reminder indicators and warning buzzers” in Chapter 1-5.
*2: If this light flashes, see “Cruise control” in Chapter 1-6.
5
6
