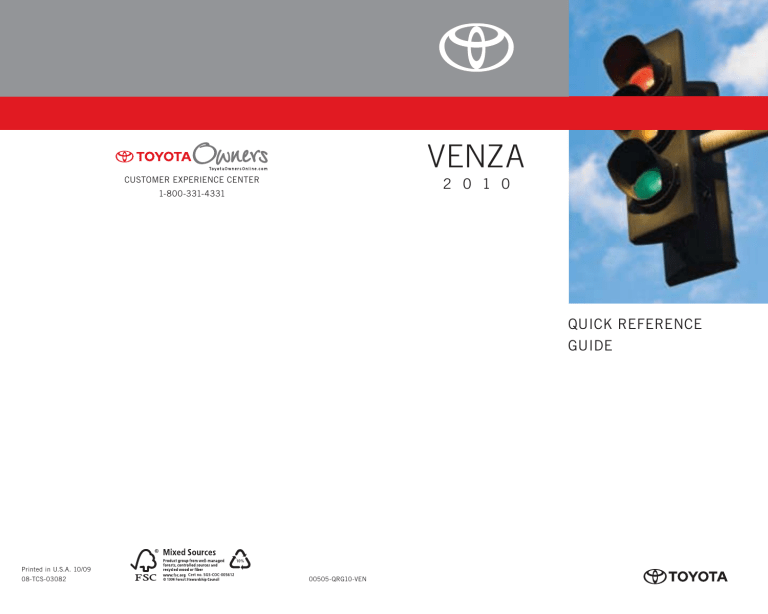

VENZA
CUSTOMER EXPERIENCE CENTER
2 0 1 0
1-800-331-4331
QUICK REFERENCE
GUIDE
10%
Printed in U.S.A. 10/09
08-TCS-03082
Cert no. SGS-COC-005612
00505-QRG10-VEN
2010
Venza
Doors-Child safety locks
Rear door
OVERVIEW
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Venza.
Spare tire & tools
Tool location
FEATURES/OPERATIONS
Jack
! A word about safe vehicle operations
Jack handle
This Quick Reference Guide is not a full description of Venza
operations. Every Venza owner should review the Owner’s
Manual that accompanies this vehicle.
Wheel nut wrench
Removing the spare tire
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
25
SAFETY AND EMERGENCY FEATURES
Loosen and remove the bolt
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
INDEX
Air Conditioning/Heating
Audio
Auto lock functions1
Automatic Transmission
Cruise control
Customizable features
Enhanced VSC OFF button
Garage door opener (HomeLink®)3
Hill-start Assist Control (HAC)
Lights1,2 & turn signals
Moonroof
Multi-information display (clock)2
Parking brake
Power outlets-12V DC
Power outlet-120V AC
Rear seat entertainment system
Seat adjustments-Front
Seat adjustments-Rear
Seat heaters
Seats-Head restraints
Seats-Folding rear row seats
Tilt and telescopic steering wheel
Telephone controls (Bluetooth®)
Windows-Power
Windshield wipers & washers
SAFETY AND
Door locks1,2
Doors-Child safety locks
Seat belts
Seat belts-Shoulder belt anchor
Spare tire & tools
Tire Pressure Monitoring (warning) System
EMERGENCY FEATURES
16-17
18-19
11
10
20
23
16
21
15
14-15
13
22
10
21
21
20
11
11
17
12
12
10
23
13
15
24
25
24
24
25
24
2
Visit your Toyota dealer for information on customizing this feature.
Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3
HomeLink® is a registered trademark of Johnson Controls, Inc.
1
1
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
9
8
8
4-5
4
2-3
6
9
7
FEATURES/OPERATIONS
Engine maintenance
Fuel tank door release and cap
Hood release
Indicator symbols
Instrument cluster
Instrument panel
Keyless entry1,2
Light control-Instrument panel
Smart Key system1,2
OVERVIEW
OVERVIEW
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls
Telephone controls1,2
Voice command button1,2
Cruise control
Ignition switch (standard key)1
Headlight, turn signal and front fog light1 controls
Wiper and washer controls
“ENGINE START STOP” switch (Smart Key)1
Multi-information display
Audio system2
Emergency flasher button
Multi-information display switches
2
Without navigation system
OVERVIEW
With navigation system
Automatic Air Conditioning system
1
2
If equipped
For vehicles with navigation system, refer to the “Navigation System
Owner’s Manual.”
3
SAFETY AND EMERGENCY FEATURES
Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button/Windshield
wiper de-icer1
Enhanced VSC/TRAC OFF switch
Power back door switch1
Power rearview mirror controls
Power back door main switch1
FEATURES/OPERATIONS
Manual Air Conditioning system
OVERVIEW
Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel
light control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Brake system warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Charging system warning1
AIR BAG ON and AIR BAG OFF indicator1
Malfunction/Check Engine indicator1
Active torque control 4WD system warning1
1
2
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
4
Electric power steering system warning1
Smart Key system warning
OVERVIEW
Low windshield washer fluid level warning1
Low fuel level warning
Open door warning
Airbag SRS warning1
Master warning
Low Tire Pressure Warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator1
Cruise control indicator2
FEATURES/OPERATIONS
Fog light indicator
Anti-lock Brake System warning1
Automatic high beam indicator3
Security indicator
Vehicle Stability Control OFF indicator1
Traction Control OFF indicator
Automatic headlight leveling system warning1
Engine oil replacement reminder1
3
For details, refer to “Headlight switch,” Section 2-3, 2010 Owner’s Manual.
5
SAFETY AND EMERGENCY FEATURES
Low Engine oil pressure warning1
OVERVIEW
Keyless entry
Locking operation
Without Smart Key system
With Smart Key system
Push
Unlocking operation
Without Smart Key system
With Smart Key system
Push ONCE: Driver door
TWICE: All doors
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Panic button
Push and hold
6
Smart Key system (if equipped)
Start function
OVERVIEW
Green indicator ON
Depress
brake pedal
Push
Carrying
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Power (without starting engine)
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
ACCESSORY
OFF
FEATURES/OPERATIONS
ON
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
Locking operation
Unlocking operation
Front door unlock*
Front door lock
Grasp
Touch
Carry remote to lock
Carry remote to unlock
Back door lock/unlock
Push
Lock
Push
Carry remote to lock/unlock
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
7
SAFETY AND EMERGENCY FEATURES
Unlock
OVERVIEW
Fuel tank door release and cap
Turn
Pull
Store
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Hood release
Pull
Pull up latch and raise hood
Engage support rod
8
Light control-Instrument panel
-
+
OVERVIEW
Brightness
control
Engine maintenance
FEATURES/OPERATIONS
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
9
SAFETY AND EMERGENCY FEATURES
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
FEATURES/OPERATIONS
Automatic Transmission
Park*
Reverse
Neutral
Drive
“D”
“S”
“S” mode
* The “ENGINE START STOP” switch/engine switch must be “ON” and the
brake pedal depressed to shift from Park.
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Parking brake
Set: Depress
Release: Depress again
Tilt and telescopic steering wheel
Angle
Lock release lever
Length
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
10
Auto lock functions
OVERVIEW
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the “ENGINE START STOP” switch or engine switch OFF.
Refer to the Owner’s Manual for more details.
Seat adjustments-Front
Power seat (if equipped)
Manual seat
FEATURES/OPERATIONS
Seat position (forward/backward)
Seatback angle
Height crank (driver side only)
Seat position; cushion angle and height (driver side only)
Lumbar support
Seat adjustments-Rear
SAFETY AND EMERGENCY FEATURES
Seatback angle
Refer to the Owner’s Manual for more details.
11
FEATURES/OPERATIONS
Seats-Head restraints
Rear center
Front and rear (excluding center) seats
Height
Lock release button
Lock release button
Seats-Folding rear row seats
(1)
(2)
(3) From inside
From outside
Pull
Pull
Left side remote
seat release
(1) Stow the seat belt buckles.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seatbacks.
12
Right side remote
seat release
Windows-Power
Down
Window lock
switch
OVERVIEW
Up
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Moonroof (if equipped)
Sliding operation
Tilting operation
FEATURES/OPERATIONS
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Recommended driving position to
minimize wind noise.
Tilt
Close
Close
Push once to open partway;
again to open completely.
13
SAFETY AND EMERGENCY FEATURES
Open
FEATURES/OPERATIONS
Lights & turn signals
Headlights
Headlights
Parking lights
Auto
DRL OFF
Without automatic high beam
Low beam
High beam flasher
High beam
-Daytime Running Light system (DRL) Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Automatic high beam (if equipped)
Activate*
Manual high beam ON
Deactivate
* Refer to the Owner’s Manual
for details on activating the
automatic high beams.
14
Front fog lights (if equipped)
Turn signals
Right turn
OVERVIEW
Lane change
Turn
Lane change
Left turn
Front fog lights come on only when
the headlights are on low beam.
Windshield wipers & washers
Front
Adjust frequency*
* Intermittent windshield
wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
Single wipe
Interval wipe
Pull to wash and wipe
Fast
Rear
Wash and wipe
Wipe
Interval wipe
FEATURES/OPERATIONS
Slow
Wash and wipe
Hill-start Assist Control (HAC)
HAC helps prevent rolling backwards on an incline. To engage, push
further down on brake pedal while at a complete stop until a beep sounds
and slip indicator illuminates. HAC holds for approximately 2 seconds after
releasing brake pedal.
Refer to the Owner’s Manual for more details.
15
SAFETY AND EMERGENCY FEATURES
Brake
pedal
FEATURES/OPERATIONS
Enhanced VSC OFF button
Enhanced VSC
OFF button
The Enhanced VSC OFF button is used to switch between modes related to
the TRAC and Enhanced VSC functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
Air Conditioning/Heating
Manual Air Conditioning
Temperature selector
Airflow vent
In “
” mode, use fresh air (“
” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Fan speed
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Fresh or recirculated cabin air
Rear window defogger/Windshield wiper de-icer (if equipped)
Windshield defogger
Select for maximum cooling. Air intake will automatically be set to
recirculate. It is not possible to change intake to fresh, or to turn
A/C OFF in this mode.
16
Automatic Air Conditioning (if equipped)
OVERVIEW
FEATURES/OPERATIONS
Push: Automatic climate control ON
Adjusting the temperature setting will cause the airflow
vents, air intake and fan to adjust automatically.
Turn: Temperature selector (driver side)
Fan speed
Airflow vent
In “
” mode, use fresh air (“
” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Push: Dual operation ON/OFF
Separate temperature setting or synchronize temperature
setting for driver and passenger.
Turn: Temperature selector (front passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Outside rearview mirror/Rear window defogger/Windshield wiper
de-icer (if equipped)
Windshield defogger
Climate control OFF
Seat heaters (if equipped)
Front passenger’s seat
Turn
On
17
SAFETY AND EMERGENCY FEATURES
Driver’s seat
FEATURES/OPERATIONS
Audio
Type 1
Preset buttons - functions in other
modes indicated above number
Push to turn
ON/OFF
Push to
adjust tone
& balance
Eject CD
Push to skip
up/down
folder and
radio
category
type
Seek station/
CD track
select
Mode
Station/CD
track scan
View CD
text
Type 2 additional function
Load CD(s)
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.FILE,” “TUNE.SCROLL” or
either side of “SEEK TRACK.”
To select a folder (MP3/WMA only) Push either side of “TYPE FOLDER.”
RADIO
To preset stations Tune in the desired station and hold down a preset
button (
or from
to
) until you hear a beep.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
18
AUX audio jack/USB adapter
OVERVIEW
By connecting to the AUX audio jack (or USB adapter), you can listen to
music from a portable audio device (or USB memory) through the vehicle’s
speaker system while in AUX or USB mode.
Steering wheel switches
FEATURES/OPERATIONS
Volume control
v
“v ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn audio system OFF.
SAFETY AND EMERGENCY FEATURES
19
FEATURES/OPERATIONS
Rear seat entertainment system
(if equipped)
Front audio system
Display
DVD player
Remote controller
A/V input adapter
120V AC Power outlet
Cruise control
Turning system ON/OFF
System ON/OFF
Functions
Resume2
Increase speed
Cancel1
Decrease speed
1
2
Set
The set speed may also be cancelled by depressing the brake pedal.
The set speed may be resumed once vehicle speed exceeds 25 mph.
20
Power outlets-12V DC
Instrument panel
Inside center console
Luggage compartment
OVERVIEW
NOTE: Designed for car accessories. Engine switch/“ENGINE START STOP”
switch must be in the ACCESSORY or ON position to be used.
Power outlet-120V AC (if equipped)
FEATURES/OPERATIONS
NOTE: Engine switch/“ENGINE START STOP” switch must be in the “ON”
position to be used.
Garage door opener (HomeLink®)*
(if equipped)
Refer to “Garage door opener,” Section 3-8 in the Owner’s Manual for
more details.
For programming assistance, contact HomeLink® at 1-800-355-3515, or
visit http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
21
SAFETY AND EMERGENCY FEATURES
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
FEATURES/OPERATIONS
Multi-information display (clock)
TFT type*
LCD type
Push “INFO” or “INFO-CLOCK” to change information in the following:
(1) Average fuel economy (AVERAGE ECON)
(2) Current fuel economy (CURRENT ECON)
(3) Distance to empty (RANGE)
(4) Average speed (AVERAGE SPEED)
(5) Trip timer (TFT type only)
Setting the clock
TFT type* (1) Press the “SETUP” button for the “Custom Settings” screen.
(2) Select “Clock” on the Display Settings screen, and press the “SELECT RESET”
button. (3) Press the “INFO” button to adjust the hours and the “SETUP” button
to adjust the minutes. (4) Press the “SELECT RESET” button to set the clock.
LCD type (1) Press and hold the “INFO-CLOCK” button until part of the display
begins to flash. (2) Press and hold the “RESET-H” button to adjust the hours and
the “US/M-M” button to adjust the minutes. (3) Press the “INFO-CLOCK” button to
complete the setting.
* On vehicles equipped with back-up camera
22
Telephone controls (Bluetooth®)
(if equipped)
OVERVIEW
Audio unit
Microphone
Steering wheel telephone switches
Volume
End call
FEATURES/OPERATIONS
Start call
Voice command button
Bluetooth® technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Customizable features
If your vehicle has a TFT type* multi-information display, you will be able
to customize certain electronic features. Press the “SETUP” button while
stopped to access the “Custom Settings” screen.
Please see the Owner’s Manual for details.
* On vehicles equipped with back-up camera
23
SAFETY AND EMERGENCY FEATURES
Refer to “Using the hands-free phone system (for cellular phone),” Section
3-5 in the Owner’s Manual for more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
SAFETY AND EMERGENCY FEATURES
Door locks
Unlock
Lock
Seat belts
Take up slack
Too high
Keep as low on
hips as possible
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Seat belts-Shoulder belt anchor
Push up, or squeeze
lock release to lower
Tire Pressure Monitoring (warning)
System
If tire pressure becomes critically low on any of the tires (excluding the
spare), “
” indicator will illuminate. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn off,
have the system checked by your Toyota dealer.
Refer to the Owner’s Manual for more details.
24
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
