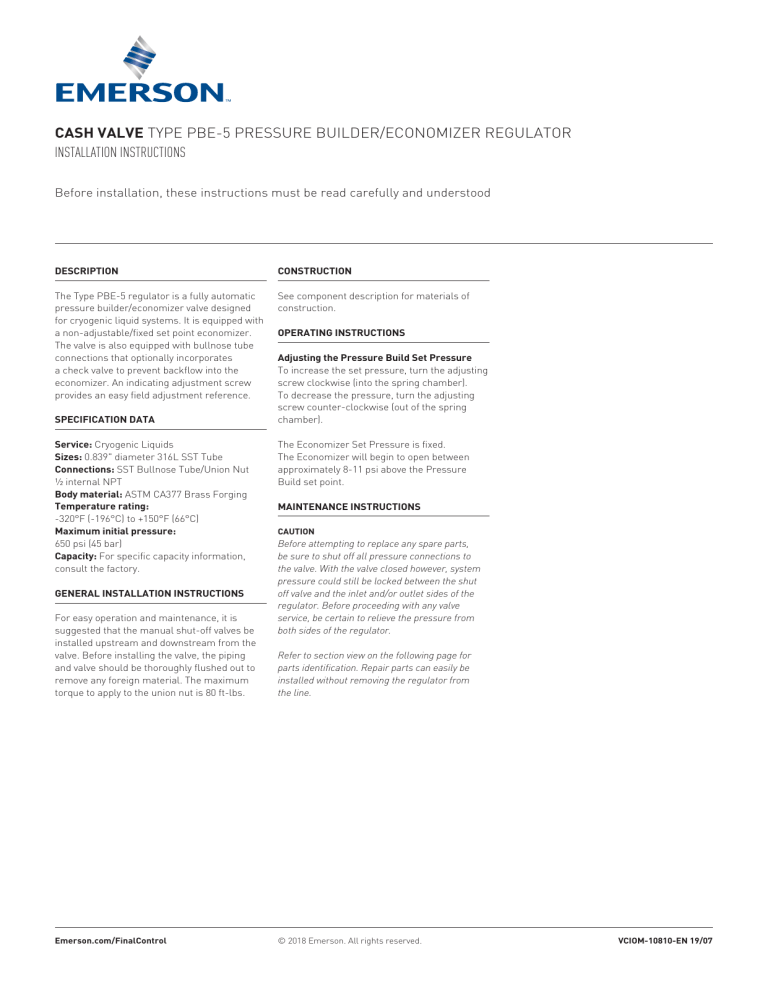

CASH VALVE TYPE PBE-5 PRESSURE BUILDER/ECONOMIZER REGULATOR
INSTALLATION INSTRUCTIONS
Before installation, these instructions must be read carefully and understood
DESCRIPTION
CONSTRUCTION
The Type PBE-5 regulator is a fully automatic
pressure builder/economizer valve designed
for cryogenic liquid systems. It is equipped with
a non-adjustable/fixed set point economizer.
The valve is also equipped with bullnose tube
connections that optionally incorporates
a check valve to prevent backflow into the
economizer. An indicating adjustment screw
provides an easy field adjustment reference.
See component description for materials of
construction.
SPECIFICATION DATA
Service: Cryogenic Liquids
Sizes: 0.839" diameter 316L SST Tube
Connections: SST Bullnose Tube/Union Nut
½ internal NPT
Body material: ASTM CA377 Brass Forging
Temperature rating:
-320°F (-196°C) to +150°F (66°C)
Maximum initial pressure:
650 psi (45 bar)
Capacity: For specific capacity information,
consult the factory.
GENERAL INSTALLATION INSTRUCTIONS
For easy operation and maintenance, it is
suggested that the manual shut-off valves be
installed upstream and downstream from the
valve. Before installing the valve, the piping
and valve should be thoroughly flushed out to
remove any foreign material. The maximum
torque to apply to the union nut is 80 ft-lbs.
Emerson.com/FinalControl
OPERATING INSTRUCTIONS
Adjusting the Pressure Build Set Pressure
To increase the set pressure, turn the adjusting
screw clockwise (into the spring chamber).
To decrease the pressure, turn the adjusting
screw counter-clockwise (out of the spring
chamber).
The Economizer Set Pressure is fixed.
The Economizer will begin to open between
approximately 8-11 psi above the Pressure
Build set point.
MAINTENANCE INSTRUCTIONS
CAUTION
Before attempting to replace any spare parts,
be sure to shut off all pressure connections to
the valve. With the valve closed however, system
pressure could still be locked between the shut
off valve and the inlet and/or outlet sides of the
regulator. Before proceeding with any valve
service, be certain to relieve the pressure from
both sides of the regulator.
Refer to section view on the following page for
parts identification. Repair parts can easily be
installed without removing the regulator from
the line.
© 2018 Emerson. All rights reserved.
VCIOM-10810-EN 19/07
CASH VALVE TYPE PBE-5 PRESSURE BUILDER/ECONOMIZER REGULATOR
INSTALLATION INSTRUCTIONS
BILL OF MATERIALS
Description
Body
Spring chamber
Union nut
Tube
Adjusting guide
Adjusting cap
Tube
Cap screw
Check spring
Ball
Spring button
Pressure spring
Piston spring
Adjusting screw
Adjusting spring
Diaphragm stop
Gasket
Diaphragm sub
Pressure plate
Hex nut
Gasket
Lock washer
Pusher post sub
Pusher post
Seat ring
5
/32" ball
Diaphragm
Piston sub
Piston sub
Piston
Seat disc
Adapter
Seal
Gasket
Bottom plug
Filter
Nameplate
Drive screw
Set label
FIGURE 1
Materials
Brass
Brass
Brass
SST
Brass
Brass
SST
SST
SST
SST
Brass
SST
SST
SST
SST
Brass
Gylon
Brass
SST
Gylon
SST
SST
Brass
SST
Bronze
Brass
Teflon
Brass
Teflon/SST
Gylon
Brass
SST
Aluminum
SST
-
Quantity
1
1
3
2
1
1
1
6
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
2
1
2
1
EC OUTLET
Item No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18A
18B
18C
18D
18E
18F
18G
18H
18I
19
19A
19B
19C
19D
19E
20
21
22
23
24
25
PB INLET
PRESSURE RANGE CHART
Item No.
1
2
3
4
5
6
Range
0-30
20-50
40-80
75-150
100-275
200-350
PB OUTLET
Set label
22861
22862
22863
22864
22790
22792
