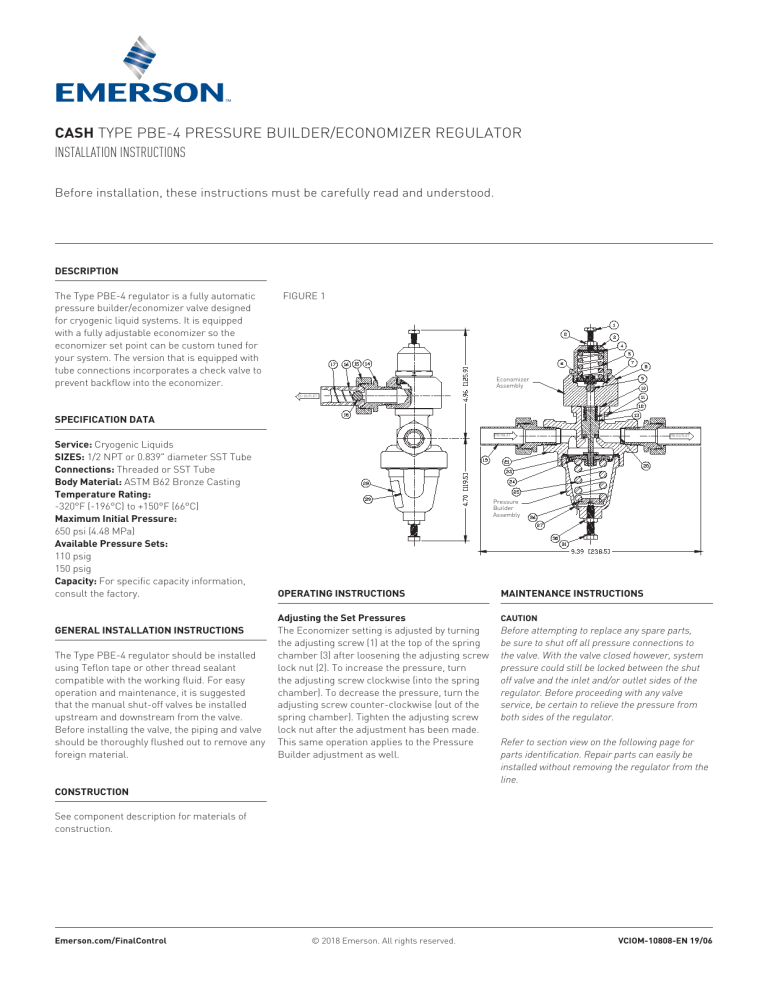

CASH TYPE PBE-4 PRESSURE BUILDER/ECONOMIZER REGULATOR
INSTALLATION INSTRUCTIONS
Before installation, these instructions must be carefully read and understood.
DESCRIPTION
The Type PBE-4 regulator is a fully automatic
pressure builder/economizer valve designed
for cryogenic liquid systems. It is equipped
with a fully adjustable economizer so the
economizer set point can be custom tuned for
your system. The version that is equipped with
tube connections incorporates a check valve to
prevent backflow into the economizer.
FIGURE 1
Economizer
Assembly
EC OUTLET
SPECIFICATION DATA
Service: Cryogenic Liquids
SIZES: 1/2 NPT or 0.839" diameter SST Tube
Connections: Threaded or SST Tube
Body Material: ASTM B62 Bronze Casting
Temperature Rating:
-320°F (-196°C) to +150°F (66°C)
Maximum Initial Pressure:
650 psi (4.48 MPa)
Available Pressure Sets:
110 psig
150 psig
Capacity: For specific capacity information,
consult the factory.
GENERAL INSTALLATION INSTRUCTIONS
The Type PBE-4 regulator should be installed
using Teflon tape or other thread sealant
compatible with the working fluid. For easy
operation and maintenance, it is suggested
that the manual shut-off valves be installed
upstream and downstream from the valve.
Before installing the valve, the piping and valve
should be thoroughly flushed out to remove any
foreign material.
PB INLET
PB OUTLET
Pressure
Builder
Assembly
OPERATING INSTRUCTIONS
MAINTENANCE INSTRUCTIONS
Adjusting the Set Pressures
The Economizer setting is adjusted by turning
the adjusting screw (1) at the top of the spring
chamber (3) after loosening the adjusting screw
lock nut (2). To increase the pressure, turn
the adjusting screw clockwise (into the spring
chamber). To decrease the pressure, turn the
adjusting screw counter-clockwise (out of the
spring chamber). Tighten the adjusting screw
lock nut after the adjustment has been made.
This same operation applies to the Pressure
Builder adjustment as well.
CAUTION
CONSTRUCTION
Before attempting to replace any spare parts,
be sure to shut off all pressure connections to
the valve. With the valve closed however, system
pressure could still be locked between the shut
off valve and the inlet and/or outlet sides of the
regulator. Before proceeding with any valve
service, be certain to relieve the pressure from
both sides of the regulator.
Refer to section view on the following page for
parts identification. Repair parts can easily be
installed without removing the regulator from the
line.
See component description for materials of
construction.
Emerson.com/FinalControl
© 2018 Emerson. All rights reserved.
VCIOM-10808-EN 19/06
CASH TYPE PBE-4 PRESSURE BUILDER/ECONOMIZER REGULATOR
INSTALLATION INSTRUCTIONS
Item
Quantity
Description
Material
Item
Quantity
Description
Material
1
1
Screw
SST
15
3
Nut
Brass
2
1
Nut
SST
16
1
Tube
SST
3
1
Spring Chamber
Brass
17
1
Spring
SST
4
1
Spring Button
Brass
18
1
Ball
SST
5
1
Economizer Spring
SST
19
2
Tube
SST
6
1
Diaphragm Sub
----
20
2
Screen
SST
6a
1
Pusher Post Button
SST
21
1
Body
Bronze
6b
1
Gasket
Teflon
22
1
Gasket
Teflon
6c
3
Diaphragm
Phosphor Bronze
23
1
Diaphragm Sub
----
6d
1
Pressure Plate
Brass
23a
1
Nut
SST
6e
1
Washer
SST
23b
1
Washer
SST
6f
1
Nut
Brass
23c
1
Pressure Plate
Brass
7
1
Gasket
Gylon
23d
4
Diaphragm
Bronze
8
1
Body
Brass
23e
1
Gasket
Teflon
9
1
Ball
SST
23f
1
P-Post Button
SST
10
1
Gasket
Gylon
24
1
Diaphragm Stop
Brass
11
4
Screw
SST
25
1
Pressure Spring
SST
12
1
Spring
SST
26
1
Spring Button
Brass
13
1
Piston Sub
----
27
1
Spring Chamber
Bronze
13a
1
Piston
Brass
28
1
Nameplate
Aluminum
13b
1
Seat Disc
Teflon
29
2
Drive Screw
SST
14
3
Fitting
Brass
30
1
Lock Nut
SST
31
1
Adjusting Screw
SST
Neither Emerson, Emerson Automation Solutions, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance of any product.
Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
Cash is a mark owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson and
the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be
construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by
our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such products at any time without
notice.
Emerson.com/FinalControl
2
