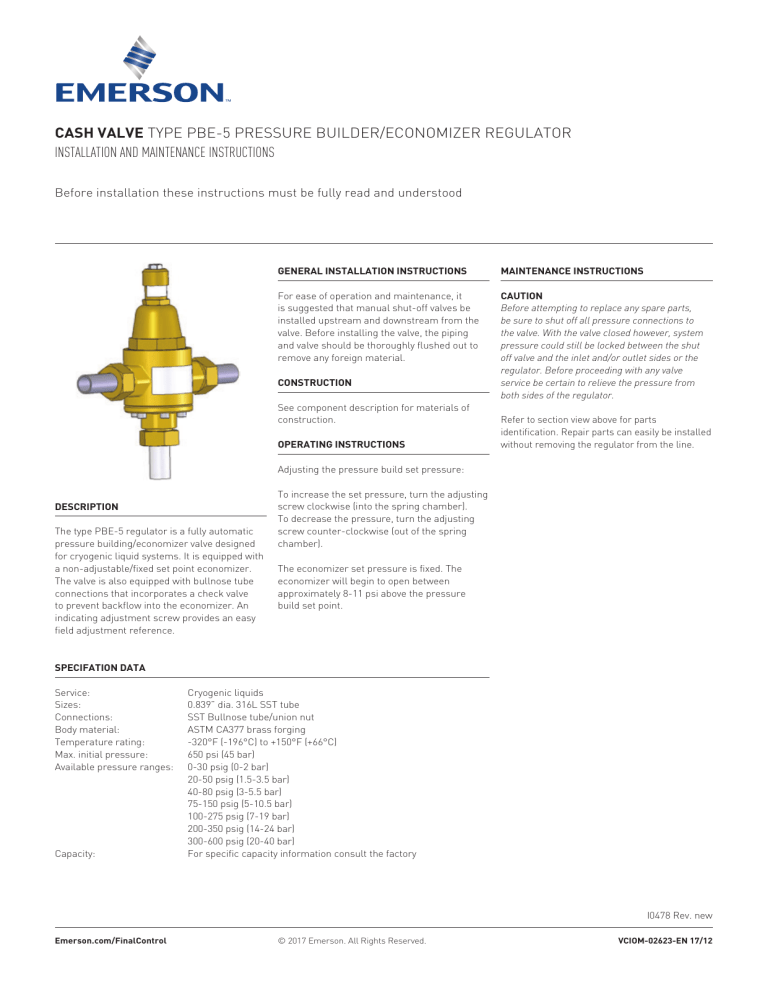

Cash Valve Type PBE-5 Pressure builder/economizer regulator
Installation and Maintenance Instructions
Before installation these instructions must be fully read and understood
General installation instructions
Maintenance instructions
For ease of operation and maintenance, it
is suggested that manual shut-off valves be
installed upstream and downstream from the
valve. Before installing the valve, the piping
and valve should be thoroughly flushed out to
remove any foreign material.
Caution
Before attempting to replace any spare parts,
be sure to shut off all pressure connections to
the valve. With the valve closed however, system
pressure could still be locked between the shut
off valve and the inlet and/or outlet sides or the
regulator. Before proceeding with any valve
service be certain to relieve the pressure from
both sides of the regulator.
Construction
See component description for materials of
construction.
Operating instructions
Refer to section view above for parts
identification. Repair parts can easily be installed
without removing the regulator from the line.
Adjusting the pressure build set pressure:
Description
The type PBE-5 regulator is a fully automatic
pressure building/economizer valve designed
for cryogenic liquid systems. It is equipped with
a non-adjustable/fixed set point economizer.
The valve is also equipped with bullnose tube
connections that incorporates a check valve
to prevent backflow into the economizer. An
indicating adjustment screw provides an easy
field adjustment reference.
To increase the set pressure, turn the adjusting
screw clockwise (into the spring chamber).
To decrease the pressure, turn the adjusting
screw counter-clockwise (out of the spring
chamber).
The economizer set pressure is fixed. The
economizer will begin to open between
approximately 8-11 psi above the pressure
build set point.
Specifation data
Service:Cryogenic liquids
Sizes:
0.839” dia. 316L SST tube
Connections:SST Bullnose tube/union nut
Body material:ASTM CA377 brass forging
Temperature rating:
-320°F (-196°C) to +150°F (+66°C)
Max. initial pressure:
650 psi (45 bar)
Available pressure ranges: 0-30 psig (0-2 bar)
20-50 psig (1.5-3.5 bar)
40-80 psig (3-5.5 bar)
75-150 psig (5-10.5 bar)
100-275 psig (7-19 bar)
200-350 psig (14-24 bar)
300-600 psig (20-40 bar)
Capacity:
For specific capacity information consult the factory
I0478 Rev. new
Emerson.com/FinalControl
© 2017 Emerson. All Rights Reserved.
VCIOM-02623-EN 17/12
Cash Valve Type PBE-5 Pressure builder/economizer regulator
Installation and Maintenance Instructions
Pressure spring and set label chart
Range
0-30
20-50
40-80
75-150
100-275
200-350
Parts list
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Part number
22770
22779
22182
22185
22766
22764
22183
22243
22184
22186
08225
22776
22763
22765
08243
12003
22768
22061
07999
Description
Body
Spring chamber
Union nut
Tube
Adjusting guide
Adjusting cap
Tube
Cap screw
Check spring
Ball
Spring button
Pressure spring
Piston spring
Adjusting screw
Adjusting spring
Diaphragm stop
Gasket
Diaphragm sub
Pressure plate
Hex nut
Material
Brass
Brass
Brass
SST
Brass
Brass
SST
SST
SST
SST
Brass
SST
SST
SST
SST
Brass
Gylon
Brass
SST
Qty.
1
1
3
2
1
1
1
6
1
1
1
1
1
1
1
1
1
1
1
1
No.
19
20
21
22
23
24
25
Part number
12002
10993
22789
22767
22787
22788
16586
22780
22771
22772
21510
22774
22773
21518
22775
22860
13399
02533
Description
Gasket
Lock washer
Pusher post sub
Pusher post
Seat ring
5/32” ball
Diaphragm
Piston sub
Piston sub
Piston
Seat disc
Adapter
Seal
Gasket
Bottom plug
Filter
Nameplate
Drive screw
Set label
Spring
08238
08239
08240
08241
08242
14272
Material
Gylon
SST
SST
Brass
SST
Bronze
Brass
PTFE
Brass
PTFE/SST
Gylon
Brass
SST
Aluminum
SST
Set label
22861
22862
22863
22864
22790
22792
Qty.
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
2
1
2
1
2
Cash Valve Type PBE-5 Pressure builder/economizer regulator
Installation and Maintenance Instructions
Oxygen
Nitrogen
Hydrogen
Helium
50
590
935
1315
1899
2736
559
883
1246
1792
2566
874
1427
1955
2766
3949
1008
1595
2241
3204
4541
588
934
1316
1902
100
785
1243
1744
2508
3586
744
1174
1654
2372
3378
1163
1900
2602
3681
5253
1343
2123
2982
4262
6034
783
1240
1744
2508
150
940
1488
2086
2996
4270
891
1406
1980
2836
4029
1394
2277
3118
4411
6292
1609
2544
3573
5105
7225
938
1484
2086
2994
200
1073
1698
2398
3414
4858
1018
1605
2259
3234
4589
1592
2599
3560
5035
7183
1837
2904
4079
5827
8246
1070
1694
2379
3411
250
1191
1885
2641
3787
5383
1130
1782
2508
3588
5088
1767
2886
3952
5590
7974
2039
3225
4528
6469
9154
1188
1880
2640
3783
20
2749
3592
4272
4857
5379
5855
6295
1
2.5
5
10
20
412
656
926
1339
1942
549
871
1226
1764
2531
657
1042
1466
2105
3007
750
1189
1672
2397
3418
833
1320
1855
2658
3784
908
1439
2022
2895
4118
977
1549
2176
3115
4427
C0 2
450
1578
2496
3496
5008
7104
1497
2360
3320
4748
6722
2342
3824
5237
7406
10563
2702
4273
5999
8570
12123
1574
2490
3494
5000
500
1661
2627
3679
5269
7473
1575
2484
3494
4996
7072
2465
4025
5511
7795
11116
2844
4497
6314
9019
12758
1656
2620
3677
5260
550
1740
2752
3853
5518
7824
1650
2602
3660
5232
7405
2581
4216
5773
8164
11643
2979
4710
6613
9447
13363
1735
2744
3851
5508
600
1815
2871
4020
5756
8160
1721
2714
3818
5458
7724
2693
4398
6023
8518
12148
3108
4914
6900
9856
13941
1810
2863
4017
5746
6706
7093
7461
7811
8145
1042
1651
2320
3320
4715
1103
1748
2455
3512
4987
1161
1839
2583
3695
5245
1216
1926
2706
3869
5491
1268
2009
2822
4036
5726
Max. liquid flow (V1)
0.79
1.25
1.77
2.50
3.54
TYPICAL
Argon
Tank pressure (psig)
300
350
400
1299
1398
1491
2055
2212
2358
2879
3099
3304
4126
4439
4732
5861
6303
6715
1232
1326
1414
1943
2091
2230
2734
2942
3137
3910
4208
4486
5542
5961
6353
1927
2075
2212
3147
3388
3613
4310
4639
4947
6095
6562
6997
8694
9358
9979
2224
2394
2553
3516
3785
4036
4937
5315
5668
7053
7593
8096
9980
10742
11143
1295
1394
1487
2050
2206
2352
2878
3097
3301
4121
4433
4725
Tank head (Ft.)
1
2.5
5
10
20
1
2.5
5
10
20
1
2.5
5
10
20
1
2.5
5
10
20
1
2.5
5
10
TYPICAL
Type PBE-5 pressure builder
* Capacity table for pressure building regulators (Q1)
* Base flows are based on gas temperatures of close to saturation or boiling temperatures of the fluids.
Capacity information for pressure building regulators and general cryogenic regulators
Column 1
Valve size and type
⅜, ½
Column 2
Cv rating
Column 3
Size factor (F1)
1.2
1.00
Instructions
For pressure building applications use the
table at the top to obtain the base flow. Using
the formula at next page, the size factor
from (Column 3) and the spring factor from
(Column 4), calculate the valve flow. Size the
valve according to the requirements.
Column 4
Spring factor (F2)
3.00
2.70
2.10
1.70
1.30
0.80
Column 5
Spring range
20-50
40-80
75-150
100-275
200-350
300-600
For other pressure reducing applications, using
the formula at next page, the Cv information
from (Column 2), and spring factor information
from (Column 4) to calculate the valve flow.
Size the valve per flow requirements. This data
applies only to valves built for cryogenic service.
3
Cash Valve Type PBE-5 Pressure builder/economizer regulator
Installation and Maintenance Instructions
Formula for pressure building applications
Flow formula for pressure reducing valves
Gas phase
Gas phase
Liquid phase
Liquid phase
Where:
Q=
Valve capacity (SCFH)
Q1 =
Base flow - from table (SCFH)
F1 =
Valve size factor (Column 3)
F2 =
% Maximum flow / psi rise (Column 4)
V=
Valve capacity (GPM)
V1 =
Base flow - from table (GPM)
ΔP =Amount, in psi, system pressure can be permitted to rise from
tight pressure shut-off
Where:
Q=
Valve capacity (SCFH) at 14.7 psia and 60°F
V=
Valve capacity (GPM)
P1 =Inlet pressure (psia)
P2 =Outlet pressure (psia)
G =Gas specific gravity (air = 1.0)
Gf =Specific gravity at flowing temperature
Tf =
Temperature °R or (°F + 460)
CVM =
Where:
Cv =Liquid Cv = GPM for 1.0 psi pressure drop (Column 2)
F2 =Spring factor for desired spring range (Column 4 and 5)
ΔP =Amount, in psi, regulated pressure can be permitted to rise
from tight pressure shut-off
Cash valve PBE-5 improvements from PBE-4
Indicating PB adjustment
screw (psi and bar)
Integrated Bullnose
fitting connection.
No threaded adapters as
with the PBE-4
Improved filter
installation
Economizer set-point linked
directly to pressure builder
set-point. It never gets out of
adjustment.
PBE-5 body is a brass
forging. PBE-4 is a
bronze casting.
Neither Emerson, Emerson Automation Solutions, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance of any product.
Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
Cash Valve is a mark owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions,
Emerson and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be
construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by
our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such products at any time without
notice.
Emerson.com/FinalControl
4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
