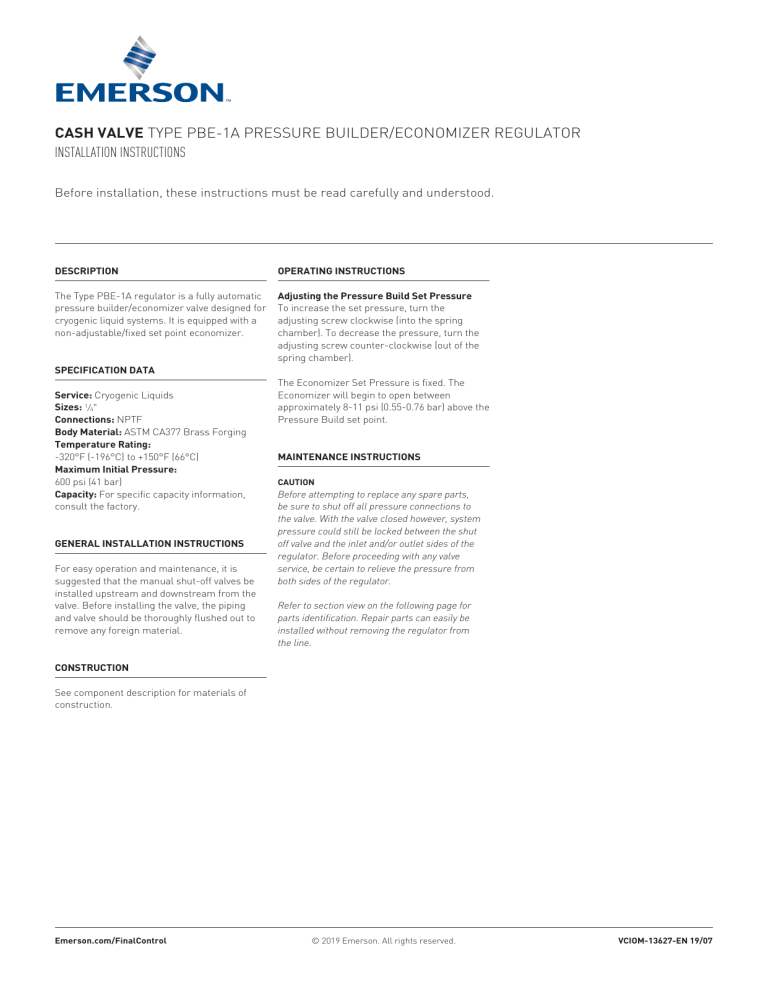

CASH VALVE TYPE PBE-1A PRESSURE BUILDER/ECONOMIZER REGULATOR
INSTALLATION INSTRUCTIONS
Before installation, these instructions must be read carefully and understood.
DESCRIPTION
OPERATING INSTRUCTIONS
The Type PBE-1A regulator is a fully automatic
pressure builder/economizer valve designed for
cryogenic liquid systems. It is equipped with a
non-adjustable/fixed set point economizer.
Adjusting the Pressure Build Set Pressure
To increase the set pressure, turn the
adjusting screw clockwise (into the spring
chamber). To decrease the pressure, turn the
adjusting screw counter-clockwise (out of the
spring chamber).
SPECIFICATION DATA
Service: Cryogenic Liquids
Sizes: 1/4"
Connections: NPTF
Body Material: ASTM CA377 Brass Forging
Temperature Rating:
-320°F (-196°C) to +150°F (66°C)
Maximum Initial Pressure:
600 psi (41 bar)
Capacity: For specific capacity information,
consult the factory.
GENERAL INSTALLATION INSTRUCTIONS
For easy operation and maintenance, it is
suggested that the manual shut-off valves be
installed upstream and downstream from the
valve. Before installing the valve, the piping
and valve should be thoroughly flushed out to
remove any foreign material.
The Economizer Set Pressure is fixed. The
Economizer will begin to open between
approximately 8-11 psi (0.55-0.76 bar) above the
Pressure Build set point.
MAINTENANCE INSTRUCTIONS
CAUTION
Before attempting to replace any spare parts,
be sure to shut off all pressure connections to
the valve. With the valve closed however, system
pressure could still be locked between the shut
off valve and the inlet and/or outlet sides of the
regulator. Before proceeding with any valve
service, be certain to relieve the pressure from
both sides of the regulator.
Refer to section view on the following page for
parts identification. Repair parts can easily be
installed without removing the regulator from
the line.
CONSTRUCTION
See component description for materials of
construction.
Emerson.com/FinalControl
© 2019 Emerson. All rights reserved.
VCIOM-13627-EN 19/07
CASH VALVE TYPE PBE-1A PRESSURE BUILDER/ECONOMIZER REGULATOR
INSTALLATION INSTRUCTIONS
BILL OF MATERIALS
SST
3
1
Spring Chamber
Brass
4
1
Spring Button
Brass
5
1
Pressure Spring
SST
6
1
Pressure Plate
Brass
7
1
Diaphragm Stop
Brass
8
1
Body
Brass
9
1
Piston
Brass
9A
1
Seat Disk
Teflon
10
1
Piston Spring
SST
11
1
Gasket
Copper
12
1
Bottom Plug
Brass
13
1
Nameplate
Aluminum
14
1
Gasket
Teflon
15
3
Diaphragm
Phos. Bronze
16
1
O-ring
Teflon
17
1
Seat
Brass
18
1
Pusher Post
Brass
2.26 [57.4] Dia.
7
1
15
2
14
13
3
4
5
3.16 [80.2]
Lock Nut
6
18
17
16
E.C. OUTLET
P.B. OUTLET
P.B. INLET
0.90 [22.9]
1
8
9
12
10
11
P.B.
IN
2
LEFT HAND
NPT (3 Places)
DN08
1/4
1.75 [44.5] Typ.
P.B.
IN
2
FIGURE 1
EC.
OUT
SST
P.B.
OUT
Adjusting Screw
EC.
OUT
3
RIGHT HAND
PB OUT LH
CASH VALVE
Material
1
OUT
Quantity
EC
OUT
Description
1
PB
OUT
Item
PB
IN
4
RIGHT HAND
NOTES
1. Dimensions are approximate.
2. Clean for oxygen service.
3. See catalog for pressure, temperature and any
other service limitations.
Neither Emerson, Emerson Automation Solutions, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance of any product.
Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
Cash Valve is a mark owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions,
Emerson and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be
construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by
our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such products at any time without
notice.
