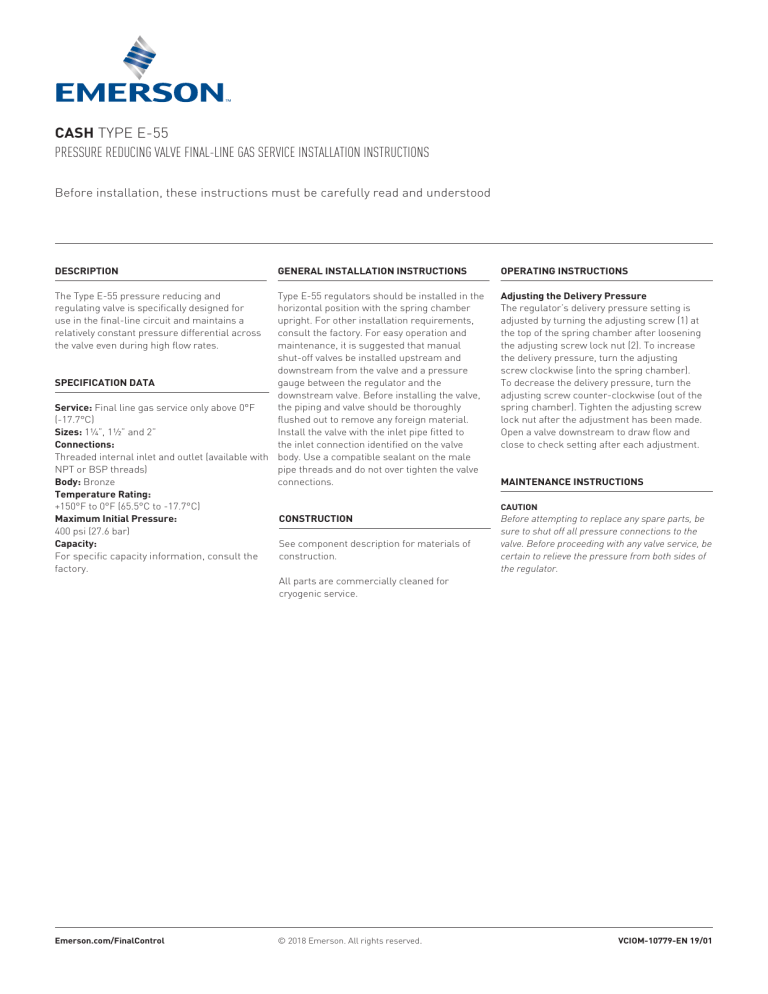

CASH TYPE E-55
PRESSURE REDUCING VALVE FINAL-LINE GAS SERVICE INSTALLATION INSTRUCTIONS
Before installation, these instructions must be carefully read and understood
DESCRIPTION
GENERAL INSTALLATION INSTRUCTIONS
The Type E-55 pressure reducing and
regulating valve is specifically designed for
use in the final-line circuit and maintains a
relatively constant pressure differential across
the valve even during high flow rates.
Type E-55 regulators should be installed in the
horizontal position with the spring chamber
upright. For other installation requirements,
consult the factory. For easy operation and
maintenance, it is suggested that manual
shut-off valves be installed upstream and
downstream from the valve and a pressure
gauge between the regulator and the
SPECIFICATION DATA
downstream valve. Before installing the valve,
the piping and valve should be thoroughly
Service: Final line gas service only above 0°F
flushed out to remove any foreign material.
(-17.7°C)
Install the valve with the inlet pipe fitted to
Sizes: 1¼”, 1½” and 2”
the inlet connection identified on the valve
Connections:
Threaded internal inlet and outlet (available with body. Use a compatible sealant on the male
pipe threads and do not over tighten the valve
NPT or BSP threads)
connections.
Body: Bronze
Temperature Rating:
+150°F to 0°F (65.5°C to -17.7°C)
Maximum Initial Pressure:
CONSTRUCTION
400 psi (27.6 bar)
Capacity:
See component description for materials of
For specific capacity information, consult the
construction.
factory.
All parts are commercially cleaned for
cryogenic service.
Emerson.com/FinalControl
© 2018 Emerson. All rights reserved.
OPERATING INSTRUCTIONS
Adjusting the Delivery Pressure
The regulator’s delivery pressure setting is
adjusted by turning the adjusting screw (1) at
the top of the spring chamber after loosening
the adjusting screw lock nut (2). To increase
the delivery pressure, turn the adjusting
screw clockwise (into the spring chamber).
To decrease the delivery pressure, turn the
adjusting screw counter-clockwise (out of the
spring chamber). Tighten the adjusting screw
lock nut after the adjustment has been made.
Open a valve downstream to draw flow and
close to check setting after each adjustment.
MAINTENANCE INSTRUCTIONS
CAUTION
Before attempting to replace any spare parts, be
sure to shut off all pressure connections to the
valve. Before proceeding with any valve service, be
certain to relieve the pressure from both sides of
the regulator.
VCIOM-10779-EN 19/01
CASH TYPE E-55
PRESSURE REDUCING VALVE FINAL-LINE GAS SERVICE INSTALLATION INSTRUCTIONS
No.
Component Description
Construction
1
Adjusting Screw
SST
SST
2
Lock Nut
3
Spring Chamber
Bronze
4
Spring Button
Brass
5
Pressure Spring
SST
6
Name Plate
Aluminum
7
Drive Screw
SST
8
Diaphragm Sub
8a
Nut
SST
8b
Washer
SST
8c
Pressure Plate
Brass
8d
Diaphragm
Neoprene
8e
Diaphragm Liner
Viton/Nomex
Brass
8f
Pusher Post
9
Screw
SST
10
Nut
SST
SST
11
Seat Ring
12
Seat Disc
Teflon or Viton
13
Piston
Brass
14
Body
Bronze
15
Screen
Monel
16
O-ring
Neoprene or Viton
Teflon
17
Gasket
18
Gasket
Teflon
19
Bottom Plug
Bronze
20
Screen
Monel
FIGURE 1
