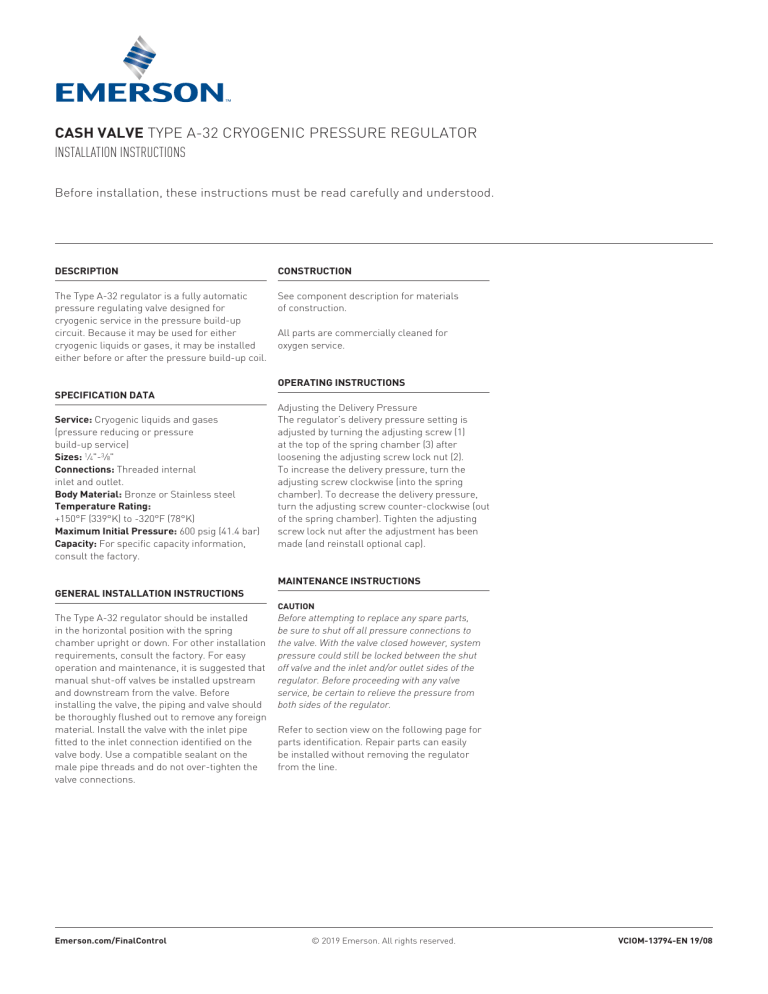

CASH VALVE TYPE A-32 CRYOGENIC PRESSURE REGULATOR
INSTALLATION INSTRUCTIONS
Before installation, these instructions must be read carefully and understood.
DESCRIPTION
CONSTRUCTION
The Type A-32 regulator is a fully automatic
pressure regulating valve designed for
cryogenic service in the pressure build-up
circuit. Because it may be used for either
cryogenic liquids or gases, it may be installed
either before or after the pressure build-up coil.
See component description for materials
of construction.
SPECIFICATION DATA
Service: Cryogenic liquids and gases
(pressure reducing or pressure
build-up service)
Sizes: 1/4"-3/8"
Connections: Threaded internal
inlet and outlet.
Body Material: Bronze or Stainless steel
Temperature Rating:
+150°F (339°K) to -320°F (78°K)
Maximum Initial Pressure: 600 psig (41.4 bar)
Capacity: For specific capacity information,
consult the factory.
GENERAL INSTALLATION INSTRUCTIONS
The Type A-32 regulator should be installed
in the horizontal position with the spring
chamber upright or down. For other installation
requirements, consult the factory. For easy
operation and maintenance, it is suggested that
manual shut-off valves be installed upstream
and downstream from the valve. Before
installing the valve, the piping and valve should
be thoroughly flushed out to remove any foreign
material. Install the valve with the inlet pipe
fitted to the inlet connection identified on the
valve body. Use a compatible sealant on the
male pipe threads and do not over-tighten the
valve connections.
Emerson.com/FinalControl
All parts are commercially cleaned for
oxygen service.
OPERATING INSTRUCTIONS
Adjusting the Delivery Pressure
The regulator’s delivery pressure setting is
adjusted by turning the adjusting screw (1)
at the top of the spring chamber (3) after
loosening the adjusting screw lock nut (2).
To increase the delivery pressure, turn the
adjusting screw clockwise (into the spring
chamber). To decrease the delivery pressure,
turn the adjusting screw counter-clockwise (out
of the spring chamber). Tighten the adjusting
screw lock nut after the adjustment has been
made (and reinstall optional cap).
MAINTENANCE INSTRUCTIONS
CAUTION
Before attempting to replace any spare parts,
be sure to shut off all pressure connections to
the valve. With the valve closed however, system
pressure could still be locked between the shut
off valve and the inlet and/or outlet sides of the
regulator. Before proceeding with any valve
service, be certain to relieve the pressure from
both sides of the regulator.
Refer to section view on the following page for
parts identification. Repair parts can easily
be installed without removing the regulator
from the line.
© 2019 Emerson. All rights reserved.
VCIOM-13794-EN 19/08
CASH VALVE TYPE A-32 CRYOGENIC PRESSURE REGULATOR
INSTALLATION INSTRUCTIONS
LIST OF MATERIALS
Item
Quantity
Description
Material
1
1A
2
1
1
1
3
1
Adjusting Screw
Adjusting Screw
Lock Nut
Spring Chamber
SST
Brass
SST
Aluminum or Brass,
Brass with Chrome
Brass
SST or Carbon Steel
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Spring Button
Pressure Spring
Diaphragm Sub
P-Post Button
Nut
Lock Washer
Diaphragm
Pressure Plate
Gasket
Diaphragm Stop
Gasket
Piston Sub
Piston
Seat Disc
Piston Spring
Body
Piston Spring
Gasket
Bottom Plug
Name Plate
1
7
2
6D
8
Brass or SST
Brass
SST
Buna, EPR, SST, Bronze
Brass
Gylon
Brass
Teflon
3
6A
4
6B
5
6C
7
6E
6F
9
10
INLET
11
L
4
5
6
6A
6B
6C
6D
6E
6F
7
8
9
9A
9B
9C
10
11
12
13
14
FIGURE 1
" or 3/8" Pressure Builder Valve Cryogenic
1/4
12
Brass
Teflon, Buna-N
SST
Brass
SST
Copper
Brass
Aluminum
NOTES
1. Dimensions are approximate. Unless otherwise
specified.
0.88 [22.3]
13
1.75 [44.5]
SCREEN: VARIATION 11, 12
NO SCREEN: VARIATION 01, 02
STANDARD 01, 11
1A
14
3.11
[79.1]
0.69
[17.6]
0.94
[24.0]
BALANCED PISTON
VARIATION 02, 12
2.26 [57.4]
OPTIONAL BALANCED
PISTON VARIATION 02, 12
