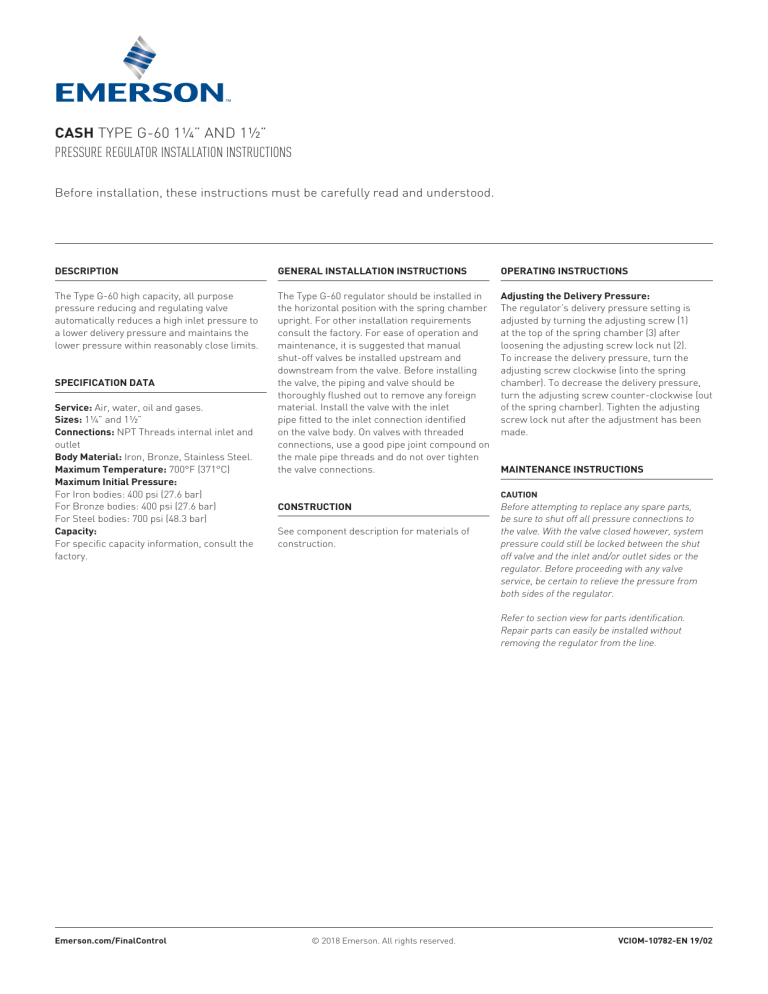

CASH TYPE G-60 1¼” AND 1½”
PRESSURE REGULATOR INSTALLATION INSTRUCTIONS
Before installation, these instructions must be carefully read and understood.
DESCRIPTION
GENERAL INSTALLATION INSTRUCTIONS
OPERATING INSTRUCTIONS
The Type G-60 high capacity, all purpose
pressure reducing and regulating valve
automatically reduces a high inlet pressure to
a lower delivery pressure and maintains the
lower pressure within reasonably close limits.
The Type G-60 regulator should be installed in
the horizontal position with the spring chamber
upright. For other installation requirements
consult the factory. For ease of operation and
maintenance, it is suggested that manual
shut-off valves be installed upstream and
downstream from the valve. Before installing
the valve, the piping and valve should be
thoroughly flushed out to remove any foreign
material. Install the valve with the inlet
pipe fitted to the inlet connection identified
on the valve body. On valves with threaded
connections, use a good pipe joint compound on
the male pipe threads and do not over tighten
the valve connections.
Adjusting the Delivery Pressure:
The regulator’s delivery pressure setting is
adjusted by turning the adjusting screw (1)
at the top of the spring chamber (3) after
loosening the adjusting screw lock nut (2).
To increase the delivery pressure, turn the
adjusting screw clockwise (into the spring
chamber). To decrease the delivery pressure,
turn the adjusting screw counter-clockwise (out
of the spring chamber). Tighten the adjusting
screw lock nut after the adjustment has been
made.
SPECIFICATION DATA
Service: Air, water, oil and gases.
Sizes: 1¼” and 1½”
Connections: NPT Threads internal inlet and
outlet
Body Material: Iron, Bronze, Stainless Steel.
Maximum Temperature: 700°F (371°C)
Maximum Initial Pressure:
For Iron bodies: 400 psi (27.6 bar)
For Bronze bodies: 400 psi (27.6 bar)
For Steel bodies: 700 psi (48.3 bar)
Capacity:
For specific capacity information, consult the
factory.
CONSTRUCTION
See component description for materials of
construction.
MAINTENANCE INSTRUCTIONS
CAUTION
Before attempting to replace any spare parts,
be sure to shut off all pressure connections to
the valve. With the valve closed however, system
pressure could still be locked between the shut
off valve and the inlet and/or outlet sides or the
regulator. Before proceeding with any valve
service, be certain to relieve the pressure from
both sides of the regulator.
Refer to section view for parts identification.
Repair parts can easily be installed without
removing the regulator from the line.
Emerson.com/FinalControl
© 2018 Emerson. All rights reserved.
VCIOM-10782-EN 19/02
CASH TYPE G-60 1¼” AND 1½”
PRESSURE REGULATOR INSTALLATION INSTRUCTIONS
No.
Component Description
Construction
1
Adjusting Screw
316 SST
2
Lock Nut
Brass
3
Spring Chamber
Bronze, Iron or
SST
4
Spring Button
Brass
5
Pressure Spring
SST
6
Name Plate
Aluminum
7
Drive Screw
SST
8
Pressure Plate
Brass
9
Screw
Steel
10
Diaphragm
Buna-N
11
Pusher Post Button
Brass or SST
12
Guide Bushing
303 SST
13
Nozzle
Brass or SST
14
Pusher Post
Brass or SST
15
Seat Ring
303 SST
16
Seat Disc
Buna-N or Teflon
17
Piston
Brass, SST or
Monel
18
O-ring
Buna-N
19
Body
20
Gasket
21
Piston Spring
302 SST
22
Bottom Plug
Brass or SST
FIGURE 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
19
16
20
17
22
18
21
9
Bronze, Iron or
SST
Aramid Fiber or
Teflon
