Indesit ID60G2W 60cm Double Oven Gas Cooker Instruction Manual

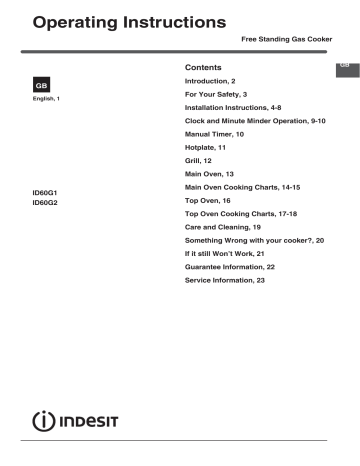

Operating Instructions
Free Standing Gas Cooker
Contents
GB
English, 1
Introduction, 2
For Your Safety, 3
Installation Instructions, 4-8
Clock and Minute Minder Operation, 9-10
Manual Timer, 10
Hotplate, 11
Grill, 12
Main Oven, 13
ID60G1
ID60G2
Main Oven Cooking Charts, 14-15
Top Oven, 16
Top Oven Cooking Charts, 17-18
Care and Cleaning, 19
Something Wrong with your cooker?, 20
If it still Won’t Work, 21
Guarantee Information, 22
Service Information, 23
GB
Introduction
GB
To help you make the best use of your cooker, PLEASE
READ THIS BOOKLET CAREFULLY.
Your new cooker is guaranteed and will give lasting
service.
The guarantee is only applicable if the cooker has
been installed in accordance with the Installation
Instructions.
The cooker is designed specifically for domestic use
and responsibility will not be accepted for use in any
other installation.
When first using the cooker ensure that the room is
well ventilated (e.g. open a window or use an extractor
fan) and that persons who may be sensitive to the
odour avoid any fumes. It is suggested that any pets
be removed from the room until the smell has ceased.
This odour is due to any temporary finish and also any
moisture absorbed by the insulation.
Our policy is one of continual improvement in design
2
and development, therefore strict accuracy of
illustrations and descriptions cannot be guaranteed.
This appliance conforms to the following EEC Directive:
2006/95/EC of 12/12/06 (Low Voltage) and
subsequent modifications;
2004/108/EC of 15/12/04 (Electromagnetic
Compatibility) and subsequent modifications;
2009/142/EC of 30.11.09
(Gas) and subsequent modifications (only for models
which use gas);
93/68/EEC of 22/07/93 and subsequent
modifications.
2002/96/EC
-1275/2008 (Stand-by/ Off mode)
For your Safety
Please read the precautions below before using your
cooker.
NEVER
NEVER
make sure you understand the controls before NEVER
using the cooker.
check that all controls on the cooker are turned NEVER
off after use.
stand back when opening an oven door to allow
NOTE: The use of a gas cooking appliance results in the
heat to disperse.
production of heat and moisture in the room
use dry, good quality oven gloves when removing
in which it is installed. Always ensure that the
items from the ovens.
kitchen is well ventilated; keep natural ventitake care when removing items from the top oven/
lation holes open or install a mechanical vengrill when the main oven is on, as the contents
tilation device (mechanical extractor hood).
may be hot.
keep the oven and grill doors closed when the
In particular when using the grill or more than
cooker is not in use.
one hotplate burner, open a window if a meplace pans centrally over the hotplate burners
chanical ventilation device is not operating.
and position them so that the handles cannot
accidentally be caught or knocked or become
! The appliance should not be operated by
heated by other burners.
people (including children) with reduced
keep the cooker clean, as a build up of grease
physical, sensory or mental capacities, by
or fat from cooking can cause a fire.
inexperienced individuals or by anyone who
allow the cooker to cool before cleaning.
is not familiar with the product. These indivifollow the basic principles of food handling and
duals should, at the very least, be supervised
hygiene to prevent the possibility of bacterial
by someone who assumes responsibility for
growth.
their safety or receive preliminary instructions
keep ventilation slots clear of obstructions.
relating to the operation of the appliance.
turn off the electricity supply before cleaning or
replacing an oven lamp.
refer servicing to CORGI registered appliance
service engineers.
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
The appliance must be used by adults only for the
preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the
appliance (e.g. for heating the room) constitutes
improper use and is dangerous. The manufacturer
may not be held liable for any damage resulting
from improper, incorrect and unreasonable use of
the appliance.
NEVER . . .
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
leave children unsupervised where the cooker is
installed as all surfaces will get hot during and
after use.
allow anyone to sit or stand on any part of the
cooker.
store items that children may attempt to reach
above the cooker.
heat up unopened food containers as pressure
can build up causing the container to burst.
store chemicals, food stuffs, pressurised containers in or on the cooker, or in cabinets immediately above or next to the cooker.
fill a deep fat frying pan more than 1/3 full of oil,
and never use a lid. DO NOT LEAVE UNATTENDED WHILE COOKING.
place flammable or plastic items on or near the
! VERY HOT SURFACES
FOOD OR GREASE ON THESE
SURFACES COULD CAUSE
SMOKE AND POSSIBLY EVEN BURN
YOU MUST KEEP THE OVEN
AND GRILL CAVITIES CLEAN
! ATTENTION
DURING INSTALLATION
THE FEET OF THE APPLIANCE
MUST BE LOWERED SO THAT
AN AIR GAP OF AT LEAST
10MM (1CM) IS LEFT BETWEEN
THE BASE OF THE APPLIANCE
AND THE FLOOR.
10 mm
ALWAYS . . .
ALWAYS
hotplate.
use proprietary spillage collectors on the
hotplate.
use the cooker as a room heater.
dry clothes or place other times over or near
to the hotplate or oven/gril doors.
wear garments with long flowing sleeves
whilst cooking.
! ATTENTION
WHEN USING THE MAIN OVEN
YOU MUST ENSURE THAT THE
BASE OF THE CAVITY IS NOT
COVERED WITH ALUMINUM
FOIL, UTENSIL OR ANY OTHER
FORM OF COVERING. FAILURE
TO DO THIS MAY RESULT IN
THE CAVITY BEING DAMAGED.
3
GB
Installation
GB
Prior to installation, ensure that the local distribution
conditions (nature of the gas and gas pressure)
and the adjustment conditions are compatible. The
adjustment conditions for this appliance are stated on
the data badge which is fitted on the back panel.
This appliance is not designed to be connected to a
combustion products evacuation device. It must be
installed and connected in accordance with current
installation regulations. particular attention should
be given to the relevant requirements regarding
ventilation.
MODEL NUMBERS ID60G1; ID60G2
Category II2H3+ (GB)
These models are set to burn NATURAL GAS (G20)
at 20 mbar but can be converted for use on BUTANE
(G30) at 28-30mbar or PROPANE (G31) at 37mbar with
the use of the LPG conversion kit that can be obtained
free of charge, if you contact our Genuine Parts and
Accessories department (see Key Contacts, back
page).
GAS SAFETY (INSTALLATION & USE)
REGULATIONS
It is the law that all gas appliances are installed by
competent persons in accordance with the current
edition of the above regulations. It is in your interest
and that of safety to ensure compliance with the
law. In the UK,gas safe registered installers work to
safe standards of practice. The cooker must also be
installed in accordance with BS 6172. Failure to install
the cooker correctly could invalidate the warranty
liability claims and could lead to prosecution.
or a bed-sitting room, but not in a room containing a
bath or shower. The cooker must not be installed in a
bed-sitting room of less than 20m3.
When adjusted for use on Butane (G30) or Propane
(G31), the cooker must not be installed in a room or
internal space below ground level, e.g. in a basement.
PROVISION FOR VENTILATION
The room containing the cooker should have an air
supply in accordance with BS 5440: Part 2.
The room must have an opening window or equivalent;
some rooms may also require a permanent vent. If the
room has a volume between 5 and 10m3, it will require
an air vent of 50cm2 effective area unless it has a
door which opens directly to outside. If the room has
a volume of less than 5m3, it will require an air vent of
100cm2 effective area. If there are other fuel burning
appliances in the same room, BS 5440: Part 2 should
be consulted to determine air vent requirements.
TECHNICAL DATA
Gas connection
Pressure test point
injector
Gas rate adjustment
Aeration adjustment
Electrical connection
Rp ½ (½” BSP female)
Front left hotplate
None
None
Flexible cord fitted with a
3 pin 13 amp plug
230/240V a.c. 50x60 Hz.
13A fuse.
LOCATION
The cooker may be located in a kitchen, kitchen/diner
G30 at 28-30mbar
G31 at 37mbar
G20 at 20mbar
Heat Input
Injector
Heat Input
Injector
Hotplate
Front Left
3.0 kW
116
3.0 kW (218g/h)
86
Hotplate
Rear Left and Rear Right
2.0 kW
103
2.0 kW (145g/h)
70
Hotplate
Front Right
1.1 kW
79
1.0 kW (73g/h)
50
Grill
3.7 kW
150 (X)
3.4 kW (243g/h)
91
Main Oven
2.5 kW
115
2.3 kW (167g/h)
71
Top Oven
1.9 kW
100
1.9 kW (138g/h)
66
Burner
4
Installation
SPACE FOR FIXING
750mm
Min
840 mm Min
400 mm Min
The cooker can be close fitted below hotplate level.
This requires a minimum distance of 600mm between
cupboard units of hotplate height.
When installing next to a tall cupboard, partition or wall,
for a minimum distance of 400mm above hotplate level,
allow a side clearance of at least 65mm.
The diagram below illustrates the minimum clearance
between the cooker and adjacent walls, cupboards
etc.
The wall behind the cooker, 50mm below and 450mm
above, and the width of the cooker, must be a noncombustible material such as ceramic wall tiles.
If the cooker is to be fitted close to a corner on the left
hand side, ensure that there is a clearance of at least
50mm to allow the main oven door to open fully for
when removing oven shelves.
65 mm Min
600 mm Min
COOKER HOODS
If a cooker hood is to be installed, refer to the cooker
hood manufacturers’ instructions regarding fixing
height.
UNPACKING THE COOKER
Unpack the components from inside the grill and oven.
Check that the following parts are present:
Grill pan and grid
shield
Top oven/grill shelf heat
GB
Pan supports
Main oven shelves (2)
Enamelled
burner caps (4) Top oven/grill shelf (1)
Aluminium
burner bodies(4) Literature
LEVELLING
Four skid feet are fitted which can be adjusted up or
down to level the cooker.
CONVERSION FOR USE ON BUTANE
(G30) OR PROPANE (G31)
Each burner requires the injector to be replaced and
bypass screws adjusted or replaced as follows:
1. Remove the loose hotplate burner parts.
2. Using a 7mm socket, replace the hotplate injectors
as appropriate (see table on previous page).
3. Re-position the loose burner parts.
4. Remove the enamelled baffle at the front of the grill
(2 screws).
5. Remove the screw on the right hand side of the
burner and gently slide the burner off the injector.
6. Using a 7mm socket, replace the grill injector as
appropriate (see table on previous page).
7. Re-assemble the burner and baffle.
8. Inside the top oven, remove the central screw securing the burner retainer. Slide the retainer to the
right slightly and lift away.
9. Lift the burner assembly and place on the floor of
the oven to the right of the burner opening.
10.Using a 7mm socket, replace the oven injector as
appropriate (see table on previous page).
11.Re-assemble the oven burner and retainer.
12.Replace the main oven injector following the same
procedure as for the top oven.
13.Carefully pull off the control knobs.
14.Using a narrow flat bladed screwdriver rotate the
bypass screws fully clockwise. The main oven
thermostat bypass screw is located on the body
of the thermostat below the spindle, the top oven
thermostat bypass screw is located on the body of
the thermostat to the right of the spindle and the
hotplate tap bypass screws are located down the
centre of the spindle.
15.Re-assemble the control panel parts.
16.Secure the self-adhesive LPG conversion label over
the gas details on the data badge.
5
Installation
STABILITY CHAIN
A hole in the gas inlet valve bracket can be used to
engage a stability chain.
CONNECTING TO GAS SUPPLY
300
670
GB
Connection to the cooker should be made with an
approved appliance flexible connection to BS 669. A
length of 0.9 to 1.25m is recommended. The length of
hose chosen should be such that when the cooker is in
situ, the hose does not touch the floor.
Those cookers converted to use on LPG should be
connected with a hose suitable for LPG and capable of
withstanding a pressure of 50 mbar.
An adaptor backplate should be fitted within the
shaded area shown, to allow the cooker to be pushed
fully to the wall and to ensure that the flexible hose is
only likely to come into contact with areas at the rear
of the cooker that do not exceed a temperature rise of
70°C.
6
Electrical Connection
WARNING THIS APPLIANCE MUST BE
EARTHED.
CONNECT TO A 230-240V A.C. SUPPLY ONLY.
Connection to the electricity supply should be made
via a properly earthed, readily accessible wall socket
which is adjacent to but not directly above, and not
more than 1.25m away from the appliance and capable
of electrical isolation.
The mains lead should be routed such that it cannot
touch hot parts of the cooker i.e. the back panel above
a height of 650mm from the floor.
Should this plug not fit the socket outlet in your home it
should be cut off and replaced with a suitable plug as
outlined below.
NOTE: The removed plug cannot be used for any other
appliance and should therefore be properly disposed
of and not left where children might find it and plug
it into a supply socket - with the obvious consequent
danger.
IF THE FITTED PLUG IS REMOVED
The flexible mains lead must be correctly connected
as below to a three pin plug of not less than 13 amp
capacity. If a B.S. 1363 fused plug is used, it must be
fitted with a fuse which is approved to B.S. 1362.
IMPORTANT: The wires in the mains lead fitted to
this appliance are coloured in accordance with the
following code:
GREEN AND YELLOW
BLUE
BROWN
- EARTH
- NEUTRAL
- LIVE
Green &
Yellow to
Earth
Brown
to Live
Blue to
Neutral
Cord
Clamp
13 Amp
Fuse
GB
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured green and yellow must
be connected to the terminal in the plug which is
or
marked with the letter E or by the earth symbol
coloured green or green and yellow.
The wire which is coloured blue must be connected
to the terminal which is marked with the N or coloured
black.
The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.
When wiring the plug, ensure that all strands of wire
are securely retained in each terminal. Do not forget to
tighten the mains lead clamp on the plug.
As the appliance must be earthed, do not use 2-pin
sockets outlets, if you are in doubt, consult a
qualified electrician.
Should the mains lead ever require replacement, it
is essential that this operation be carried out by a
qualified electrician and should only be replaced with
a flexible cord of the same size i.e. 1.0mm2 cross
sectional area PVC cable, available from our parts
department (see Back Cover).
IF A MOULDED PLUG IS FITTED
In the event of replacing a fuse in the plug supplied an
ASTA approved fuse to BS1362 must be fitted.
NOTE: The fuse cover must be refitted when changing
the fuse. In the event of losing the fuse cover the plug
must not be used until a replacement fuse cover has
been obtained and fitted. A new fuse cover can be
obtained from your local Electricity Board. The colour
of the correct replacement fuse cover is that of the
coloured marks or inserts in the base of the plug.
Make sure that the cable does not become trapped
when pushing the cooker into position.
WARNING.
If the electric supply fails to this appliance you must
not use the grill or ovens.
7
Installation
GB
INSTALLATION AND OPERATIONAL CHECKS
After installation, check for gas soundness. The supply
pressure can be checked at the front left hotplate
burner injector.
Fit the hotplate burner bodies and caps, pan supports
and shelf shield(s).
Referring to the instructions for use where necessary,
1. Check that the hotplate burners ignite and crosslight to all ports. Check for a steady flame on the
low setting.
2. Check that the grill burner ignites and cross-lights
to all ports and that the flames remain when the
control is released 3 seconds later, Check for a
steady flame on the low setting.
3. Check that with the main oven set to mark 9, the
burner ignites and that tha flames remain when
the control is released 3 seconds later. Leave the
oven full on with the door closed for 10 minutes,
and check that when the control is turned to mark
1 that the flame reduces.
4. Check that with the top oven set to mark 8, the
burner ignites and that the flames remain when
the control is released 3 seconds later. Leave the
oven full on with the door closed for 10 minutes,
and check that when the control is turned to mark
1 that the flame reduces.
5. Check the operation of the timer and oven light.
Instruct the user on operation of the cooker.
On those models adjusted for use with LPG, it is normal
for the oven and grill burners to burn with yellow tips.
Control Panel
Top oven
knob
Timer knob*
Main oven
knob
Top oven
knob
Main oven
knob
*Available only on certain models
8
Hob knobs
Electronic
Timer *
Hob knobs
Clock and Minute Minder*
GB
CLOCK OPERATION
00.00
12.00
To Set Time of Day
Step 1
Check that the electricity supply to the
cooker is turned on.
Step 2
When switched on the display will show
0.00 flashing intermittently.
Step 3
„ button and
Press the „
then press either the „+” or „-” buttons to
set the correct time of day.
Note: If the electricity supply has been off, the „+”
button must be pressed once before the „-” button, if it
is required to reduce the time of day.
THE TIME OF DAY IS NOW SET.
MINUTE MINDER OPERATION
00.20
To Set the Minute Minder
Step 1
Press the „+” button until the required time
is set. A „Bell” symbol will light up. During
setting the time adjusts in 10 second intervals up to a maximum of 99mins 50secs.
It can also be adjusted by pressing the „-” button.
At the end of the set time, a bleeping sound will be
heard and the „Bell” will disappear.
*Available only on certain models
9
Clock and Minute Minder
GB
The bleeper can be cancelled by pressing the „+”
button.
1 3.23
BLEEPER SOUND
To adjust the pitch of the bleeper, press the „-” button
while the bleeper is sounding.
For example:-
(a) Press the „+” button and set 10 seconds.
(b) When the bleeper sounds, press and release the
„-” button, until preferred pitch is set.
(c) Press and release the „+” button to cancel the
bleeper.
NOTE: If the sound of the bleeper appears to be
different, it is most likely that the pitch of the bleeper
has been inadvertently adjusted.
Manual Timer* (ID60G1 only)
To use the timer, the buzzer must be wound up by
turning the knob one full turn clockwise; then turn it
back to the desired time so that the number of minutes
on the knob matches the reference mark on the panel.
*Available only on certain models
10
Hotplate
The hotplate lid is fitted with a safety device which cuts
off the gas supply to the hotplate burners unless the lid
is fully open. Do not use the safety device as a means
of controlling the hotplate burners.
GB
SAFETY REQUIREMENTS FOR DEEP FAT FRYING
The hotplate has one high speed burner, two normal
simmering burners and one small simmering burner
which will accommodate pans between 120mm (5”)
and 260mm (10”) diameter. Locate the pan support
trivet above one of the simmering burners if a very
small pan is being used.
All pans should be positioned centrally over the
burners.
1. Never fill chip pans more than one third full with oil
or fat.
2. Never leave oil or fat unattended during the heating
or cooling period.
3. Never heat fat or fry with a lid on the pan.
4. Always dry food thoroughly before frying, and lower it slowly into the hot oil or fat. Frozen foods in
particular will cause frothing and spitting if added
too quickly.
5. Always keep the outside of the pan clean and free
from streaks of oil or fat.
TO USE THE HOTPLATE
HOW TO DEAL WITH A FAT FIRE
1. Remove any items or spillage from the top of the
lid and then raise it to its fully open position.
2. Press in the ignition button and then push in and
turn the control knob fully anti-clockwise. Continue
to push in the control knob for a further 3 seconds
after the gas has lit to allow time for the safety
device to operate. If the burner extinguishes when
the control knob is released, repeat the procedure
ensuring the control knob is fully depressed and
allowing more time for the safety device to operate.
3. Turn the control knob anti-clockwise to reduce the
heat input. Only turn the control knob between the
large flame symbol and the small flame symbol
when adjusting the setting.
4. To turn off, turn the control knob fully clockwise to
the symbol O.
1. Do not move the pan.
2. Turn off the hotplate burners.
3. Smother the flames with a fire blanket or damp
cloth to extinguish the fire. Do not use water or a
fire extinguisher as the force of it may spread the
burning fat or oil over the edge of the pan.
4. Leave the pan for at least 60 minutes before moving
it.
DO NOT
DO NOT
DO NOT
DO NOT
use the hotplate unless all pan supports
are in position.
use mis-shapen pans which may be unstable.
use round base woks directly on the pan
supports.
use the glass lid as a working surface.
Each burner is fitted with a spark ignitor for lighting the
gas. To ensure rapid lighting of the burners every time
they are used, the ignitors must be kept clean and dry.
Remove any food spillage or cleaning materials from
the ignitor using a small nylon brush such as a tooth
brush. Access to the ignitor can be achieved by lifting
off the loose burner parts carefully when the burners
are cool.
When the hotplate burner bodies and caps are
removed for cleaning, be careful not to drop any food
particles or cleaning materials into the burner bases, to
avoid the possibility of blocking the gas jets.
If aluminium based pans are used, a silvery deposit
may appear on the top edge of the pan support
fingers. See ‚Care and Cleaning’ section for cleaning
information.
11
Grill
GB
CAUTION - ACCESSIBLE PARTS MAY BECOME
HOT WHEN THE GRILL IS USED.
YOUNG CHILDREN SHOULD BE KEPT AWAY.
The grill is fitted with a safety device that will cut off the
gas supply to the burner if the flame is extinguished
for any reason. Each time the grill is used, the safety
device has to be activated by pushing and holding in
the control knob for 3 seconds after the gas has lit.
A gentle flow of air will be blown from underneath the
control panel when the grill or top oven is in use. If the
fan fails to blow air when the grill is in use, you must
stop using and switch off the grill burner immediately
and contact our service department.
WARNING – DO NOT USE THE GRILL WITHOUT AN
ELECTRICAL SUPPLY TO THE COOKER
STANDARD GRILL PAN
The food must be placed on the rack in the grill pan.
Position the grill pan on top of the oven rack. The best
results are achieved by placing the oven rack on the
uppermost shelves. Pouring a little water into the grill
pan will make the collection of grease particles more
efficient and prevent the formation of smoke.
TO USE THE GRILL
1. Open the top oven/grill door and remove the grill
pan.
2. Remove the heat shield from the rear of the shelf
for maximum grilling area.
3. Place the shelf in the appropriate position.
4. Ensure that the appliance is connected to the
correct electrical supply and and that the supply is
switched on.
5. Press the ignition button and then push in and
turn the control knob clockwise to the large flame
symbol. Continue to push in the control knob for
a further 3 seconds after the gas has lit, to allow
time for the safety device to operate. If the burner
extinguishes when the control knob is released,
repeat the procedure ensuring the control knob
is fully depressed and allowing more time for the
safety device to operate.
6. Slide the grill pan along the shelf towards the rear
of the grill compartment until it stops.
7. Turn the control knob anti-clockwise to reduce the
heat input. Only turn the control knob between the
large flame symbol and the small flame symbol
when adjusting the setting.
8. To turn off, turn the control knob anti-clockwise to
the symbol O.
12
The grill cannot be used at the same time as the top
oven. If for any reason the grill burner has not lit after
15 seconds, turn the control knob to the off position,
leave the grill door open and wait for at least a minute
before attempting to light the burner again. An odour
may be noticed when first using the grill - this should
cease after a short period of use.
DO NOT
DO NOT
use the grill with the door closed.
cover the grill pan or grid with aluminium
foil as this can hold fat, intensify the heat
and create a fire hazard.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally
extinguished, turn off the burner control and do not
attempt to re-ignite the burner for at least one minute.
Grilling can be started from cold but for best results
preheat for approximately two minutes. Most cooking
is done with the heat on full, but it may be desirable to
reduce it for thicker pieces of meat or for keeping food
warm. For au gratin dishes eg. Macaroni Cheese and
meringue toppings eg. Baked
Alaska, place the dish on the
floor of the grill compartment.
The base of the grill pan can
be used for warming fruit
garnishes on the reduced
setting.
REMOVE HEAT SHIELD FROM SHELF WHEN
GRILLING FOR MAXIMUM GRILLING AREA.
NOTE: Strong detergents used in dishwashers may
damage the grill pan grid finish; clean in soapy water
as described in CARE AND CLEANING section.
Main Oven
WARNING – DO NOT USE THE MAIN OVEN WITHOUT
AN ELECTRICAL SUPPLY TO THE COOKER
The main oven is fitted with a safety device that will
cut off the gas supply to the burner if the flame has
been extinguished for any reason. Each time the main
oven is used, the safety device has to be activated by
pushing and holding in the control knob for 3 seconds
after the gas has lit.
The oven has different heat zones - the thermostat
settings refer to the temperature on the middle shelf
position; above this shelf it is hotter and below it is
cooler. Two shelves provide five possible cooking
levels enabling full use of the different temperatures
inside the oven.
Each shelf has a safety stop to prevent if from being
pulled out too far when attending to food. Shelves are
removed from the oven by pulling them out to the stop
and then lifting them at the front to withdraw.
The maximum size of baking tray that should be used
is 325mm x 350mm (13” x 14”).
TO USE THE MAIN OVEN
1. Place the oven shelves in the appropriate positions
(refer to cooking charts).
2. Press in the ignition button and then push in and
turn the control knob fully anti-clockwise. Continue
to push in the control knob for a further 3 seconds
after the gas has lit to allow time for the safety
device to operate. If the burner extinguishes when
the control knob is released, repeat the procedure
ensuring the control knob is fully depressed and
allowing more time for the safety device to operate.
3. Turn the control knob clockwise to the required
setting (refer to cooking chart).
4. Ensure that the appliance is connected to the
correct electrical supply and that the supply is
switched on.
5. To turn off, turn the control knob fully clockwise the
the symbol O.
Anything requiring long slow cooking such as
casseroles and rich fruit cakes can be put into a cold
oven. Satisfactory results can also be obtained with
creamed mixture, rich pastries or yeast mixtures, but
for perfection we recommend preheating the oven
for about 15 minutes at the gas mark you require for
cooking.
ROASTING OF LARGE POULTRY
The maximum weight of poultry that can be
accommodated is 11.5kg (25 lbs) of suitable shape.
It is important to check that the bird DOES NOT
overhang the burner at the back of the oven.
STORAGE AND RE-HEATING OF FOOD
It is vitally important to strictly adhere to the basic
principles of food handling and hygiene to prevent the
possibility of bacterial growth.
1. If food is to be frozen or not served immediately,
cool it in a clean container as quickly as possible.
2. Completely thaw frozen food in the refrigerator
before re-heating.
3. Re-heat food thoroughly and quickly either on the
hotplate or in a hot oven, Mk. 6, and then serve
immediately.
4. Only re-heat food once.
‚COOK CHILL’ DISHES
These should always be placed in a pre-heated oven
ideally on the first or second shelf position. Follow the
packet instructions for cooking time.
ALUMINIUM FOIL
If using Aluminium Foil:
1. Remember that it is important to increase the cooking time by one third.
2. Never allow the foil to touch the sides of the oven.
3. Never cover the oven interior with foil.
4. Never cover the oven shelves with foil.
If for any reason the oven burner has not lit after 15
seconds, turn the control knob to the OFF position.
Leave the main oven door open and wait for at least 1
minute before attempting to light the burner again.
Never place dishes over the burner.
An odour may be noticed when first using the oven this should cease after a short period of use.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally
extinguished, turn off the burner control and do not
attempt to re-ignite the burner for at least one minute.
COLD START COOKING
13
GB
Main Oven Cooking Chart
GB
The following times and setting are for guidance
only. You may wish to alter the setting to give a result
more to your satisfaction. When a different setting
to that shown below is given in a recipe, the recipe
instructions should be followed.
Allow 15 minutes preheat for best results.
Always turn the thermostat knob to Mark 9 first, before
turning back to the required Gas Mark.
Shelf position 1 is the highest.
Gas
Mark
Shelf
Positions
3 or 4
4
1 ½ - 2 hrs
Oily Fish (whole)
4 or 5
3
25 mins - 1 hr, depending on recipe and size of fish.
White Fish (fillets &
steaks
4 or 5
3
25 - 30 mins.
Veal
5
4
25 mins per lb (450g) + 25 mins.
Beef
4 or 5
4
25 - 30 mins per lb (450g) + 25 mins.
Ham
5
4
40 mins per lb (450g) covered in foil + 40 mins per lb (450g) uncovered.
Lamb
5
4
30 - 35 mins per lb (450g) + 30 mins.
Pork
5
4
40 mins per lb (450g) + 40 mins.
Chicken
5
4
25 mins per lb (450g) + 25 mins.
Duckling & gosling
5
4
25 mins per lb (450g) + 25 mins.
4 or 5
4 or 5
Game birds
6
4
Casseroles
3
3 or 4
1 ½ - 6 hrs. (depending on type of meat)
Milk Puddings
3
3 or 4
2 ¼ - 2 ½ hrs stand dish on a baking tray and started with warm milk
Baked Custard
3
3 or 4
45 mins in bain-marie
Baked sponges
4
3
40 - 45 mins
Baked Apples
3
4
30 - 45 mins depending on the size and type of apples
Meringue puddings
1
4 or 5
Apple Pie 1x9” (230 mm)
6
3
45 - 55 mins stand dish on a baking tray
5 or 6
3
35 - 45 mins
Food
Approx. Cooking Time and Comments
STARTERS
Patés and Terrines
FISH
MEAT AND POULTRY
Turkey
15 - 20 mins per lb (450g) + 20 mins.
50 mins Removed bacon for last 15 mins. Add extra 15 mins if roasting brace
PUDDINGS
Fruit crumbles
14
15 mins or until ‚tinged’ with brown
Main Oven Cooking Chart
GB
Food
Gas
Mark
Shelf
Positions
5
2&4
Approx. Cooking Time and Comments
CAKES, PASTRIES AND BISCUITS
Small cakes - 2 trays
17 - 25 mins
2 or 3
only
Small cakes - 1 tray
Victoria sandwich 2x8” (205mm)
4
Fatless sponge 2x7” (180mm) - 3 egg mix
5
2
20 - 25 mins. 2 tins side by side
Christmas cake
2
3 or 4
4 - 6½ hrs depending on recipe
Madeira cake 7”
4
3
1¼ - 1½ hrs.
Rich Fruit cake 9” (230mm)
2
3
3 - 3½ hrs.
Shortcrust pastry
6
2 or 3
15 mins - 1 hr depending on recipe
Rich Shortcrust pastry - 1 tray
5
2
20 - 40 mins. depending on recipe
Flaky & puff pastry - 2 trays
7
1&3
10 - 30 mins. depending on recipe
Flaky & puff pastry - 2 trays
2&4
2 or 3
25 - 35 mins.
„
„
Choux pastry - éclairs 1 tray
6
2
35 - 40 mins
Scones - 2 trays
7
2&4
10 - 15 mins
Scones - 1 trays
2 or 3
Shortbread - 7” (180mm) round
2
4
Biscuits - 2 trays
4
1 and 3
Biscuits - 1 trays
2 or 3
„
„
„
55 - 1hr depending on thickness
15 - 20 mins depending on recipe
„
„
„
„
YEAST MIXTURES
Bread
7 or 8
3 or 4
45 - 50 mins
Rolls
7 or 8
2 or 3
15 - 20 mins
5
2 or 3
30 - 40 mins
Yorkshire Pudding - large
7
1 or 2
45 - 50 mins
Yorkshire Pudding - individual
7
1 or 2
25 - 30 mins
Soufflés
4
3
Chelsea buns
MISCELLANEOUS
Meringues
Slow
Cook
Baked Potatoes
4 or 5
30 mins
4 & base- 2 - 5 hrs starting on shelf 4 until ‚set’ and then on
plate
the baseplate until dried out - turn when necessary.
3
When baking with two trays or tins on two levels, the
top tray is removed first and the lower tray moved up to
the top position for a few minutes longer.
1½ - 3 hrs until soft, depending on size
Soft Margarine - Use the oven settings recommended
by the margarine manufacturer and not those indicated
on the cooking chart.
15
Top Oven
GB
The top oven can be used to cook small quantities
of food or used in conjunction with the main oven to
provide additional cooking space.
The top oven is fitted with a safety device that will
cut off the gas supply to the burner if the flame is
extinguished for any reason. Each time the top oven is
used, the safety device has to be activated by pushing
and holding in the control knob for 3 seconds after the
gas has lit.
A gentle flow of air will be blown from underneath the
control panel when the grill or top oven is in use.
If the fan fails to blow air when the top oven is in use,
you must stop using and switch off the oven burner
immediately and contact our service department.
The shelf in the top oven has a heat shield fitted at
the rear. The shield can be removed for cleaning
and grilling, but should be
replaced when using the oven
for best cooking results. It has
a safety stop to prevent it from
being pulled out too far when
attending to food.
The shelf is removed from the
oven by pulling it out to the
stop and then lifting at the front
to withdraw.
The maximum size of baking tray that should be used
is 300mm x 350mm (12” x 14”).
TO USE THE TOP OVEN
1. Check that the heat shield is fitted to the shelf.
2. Place the top oven shelf in the appropriate position
(refer to cooking chart).
3- Ensure that the appliance is connected to the
correct electrical supply and switched on
4. Press in the ignition button and then push in and
turn the control knob fully anti-clockwise. Continue
to push in the control knob for a further 3 seconds
after the gas has lit to allow time for the safety
device to operate. If the burner extinguishes when
the control knob is released, repeat the procedure
ensuring the control knob is fully depressed and
allowing more time for the safety device to operate.
5. Turn the control knob clockwise to the required
setting. (refer to cooking chart).
6. To turn off, turn the control knob clockwise to the
symbol O.
Always push the door firmly closed to ensure that there
is no loss of heat through the door seal.
16
If for any reason the oven burner has not lit after 15
seconds, turn the control knob to the OFF position.
Leave the top oven door open and wait for at least 1
minute before attempting to light the burner again.
GUIDANCE ON USING THE TOP OVEN
1. Best results are obtained by pre-heating the oven
for about 15 minutes.
2. Food which is higher than or will rise above 125mm
(5”) cannot be cooked in the top oven.
Never place dishes over the burner.
An odour may be noticed when first using the oven this should cease after a short period of use.
Top Oven Cooking Chart
The following times and setting are for guidance
only. You may wish to alter the setting to give a result
more to your satisfaction. When a different setting
to that shown below is given in a recipe, the recipe
instructions should be followed.
Food
Gas
Mark
Allow 15 minutes preheat for best results. Always turn
the thermostat knob to Mark 8 first, before turning back
to the required Gas Mark.
Shelf
Approx. Cooking Time and Comments
Positions
STARTERS
Oily and white fish
5
2
20 - 30 mins.
4 or 5
3
25 - 30 mins per lb + 25 - 30 mins.
Ham (covered in foil)
5
3
40 mins per lb + 40 mins
Lamb
5
3
30 - 35 mins per lb + 30 mins.
Pork
5
3
40 mins per lb + 40 mins.
Chicken
5
3
25 mins per lb + 25 mins.
Duckling & Goose
5
3
25 mins per lb + 25 mins.
Turkey
4
3
15 - 20 mins per lb + 15 - 20 mins.
Casseroles
3
3
2 - 4 hrs. depending on meat used
5
2
1 ½ hrs.
Milk Puddings
(500ml/1pt)
3
2
1 ½ hrs.
Baked Custard
(500ml/1pt)
3
2
45 mins - 1 hr. in bain-marie of cold water
Baked Sponge Puddings
4
2
30 - 45 mins
Baked Apples
3
2
45 mins - 1 hr. depending on size
Meringue Topped Puddings
1
2
25 mins until tinged with brown
Apple Tart (1x205
mm)/8”)
6
2
60 mins
Fruit Crumble
5
2
45 - 50 mins
MEAT AND POULTRY
Beef (medium)
VEGETABLES
Baked jacket potatoes
PUDDINGS
If using aluminium foil:
1. Remember it is important to increase the cooking
time by one third.
2. Do not allow the foil to touch the sides of the oven.
3. Do not cover the oven interior with foil.
4. Do not cover the oven shelves with foil.
17
GB
Top Oven Cooking Chart
GB
Food
Gas
Mark
Shelf
Approx. Cooking Time and Comments
Positions
CAKES, PASTRIES AND BISCUITS
Small Cakes (16 per tray)
5
2
20 - 25 mins
Victoria sandwich (2x180mm / 7 „)
4
2
25 - 30 mins.
Swiss Roll (3 egg quantity)
6
2
10 - 12 mins.
Christmas cake (1 x 205mm / 8”)
2
2 or 3
Madeira cake (1 x 180mm / 7”)
4
2
Rich Fruit cake (1 x 180mm / 7”)
2
2 or 3
2¼ - 2½ hrs.
Gingerbread
3
2
1½ - 1¾ hrs.
Scones - 16 per tray
7
2
12 - 15 mins.
Shortbread (1 x 180mm / 7”)
2
2
45 mins. - 1hr depending on thickness
4-6
2
15 - 25 mins.
Shortcrust Pastry
6
2
15 mins. - 1 hr. depending on recipe
Rich Short Crust
5
2
20 - 30 mins.
Flaky/Puff Pastry
7
2
10 - 30 mins. depending on recipe
Choux Pastry
6
2
25 - 35 mins.
Bread - rolls, plait
7
2 or 3
25 - 35 mins
Tea breads etc.
5
2
25 - 30 mins
Yorkshire Pudding - small
7
2
20 - 25 mins
Yorkshire Pudding - large
7
2
30 - 40 mins
Meringues
1
2
2½ - 4 hrs turn when necessary.
Biscuits
4 - 5 hrs depending on recipe
1 hr.
YEAST MIXTURES
MISCELLANEOUS
Soft Margarine - Use the oven settings recommended by the margarine manufacturer and not those indicated on the
cooking chart.
18
Care and Cleaning
! Never use steam cleaners or pressure cleaners on
the appliance.
! Clean the glass part of the oven door using a sponge
and a non-abrasive cleaning product, then dry
thoroughly with a soft cloth. Do not use rough abrasive
material or sharp metal scrapers as these could
scratch the surface and cause the glass to crack.
! The accessories can be washed like averyday
crockery (even in your dishwasher).
! Switch off the electricity supply and allow to cool
before cleaning the cooker.
! Clean the cooker regularly and wipe up spills soon
after they occur to prevent them from becoming
burnt on. Never use biological washing powder,
caustic cleaners, harsh abrasives, scouring pads,
steam cleaners, aerosol cleaners or oven chemical
cleaners of any kind.
! If it is necessary to remove the cooker for
cleaning, ensure that it is cool and beware that it is
heavy (approximately 70 kg 155 lbs).
! To move the cooker forward, open the top oven/grill
door and with both hands positioned under the roof
of the compartment, lift and pull forward. Replace by
pushing the cooker backwards.
Oven Shelf Supports*
Supports
The shelf supports are removable and dishwasher
safe.
To remove hold the support at the front lift and pull
a sink or a dishwasher. When removed it allows
access to the oven side, which can be cleaned with
warm soapy water.
To refit the support, insert the longer leg into the
rear fixing hole and push in the front leg.
REPLACEMENT OF OVEN LIGHT BULB
CAUTION: DISCONNECT THE APPLIANCE FROM
THE ELECTRICITY SUPPLY BEFORE
REPLACING THE LAMP TO AVOID THE
POSSIBILITY OF AN ELECTRIC SHOCK.
Light bulbs are not covered by the manufacturer’s
guarantee.
A new 25W, 300°C rated SES bulb can be obtained
from your cooker supplier or any major electrical
retailer.
1. Remove the shelves from the oven.
2. Unscrew the lens using a thick cloth to protect your
fingers in the unlikely event of a lens fracture.
3. Unscrew bulb.
4. Fit new bulb and refit lens.
! Check that the cooker is level. Take care not to
damage any floor coverings.
COOKER FINISH
CLEANING METHOD
Vitreous Enamel
Door inner panels, pan supports, burner caps,
roasting dish, grill pan, main oven base, inside of
grill compartment.
Hotplate
Cloth wrung out in warm soapy water. Stubborn stains can be removed with a cream paste, liquid cleaner or by rubbing with fine steel
wool soap pads.
Check that the cleaning agent is approved by the Vitreous Enamel
Association.
Paint
Side panels.
Control panel, lid front trim
Wash with a cloth wrung out in warm soapy water only.
DO NOT USE ABRASIVES.
Aluminium
Hotplate burner bodies, lid rear trim.
Similar to paint cleaning above. Use a nylon brush to remove any
cleaning materials, water or dirt from the hotplate burner bodies.
Glass
As for enamel cleaning. Polish with a clean dry cloth or kitchen roll.
Chromium Plating
Oven shelves, grill pan grid, grill pan handle
support.
Wipe with a cloth wrung out in warm soapy water. A fine steel wool
soap pad e.g. Brillo, Ajax, or a chrome or stainless steel cleaner
may be used.
Plastic
Control knobs.
Wipe with a cloth wrung out in warm soapy water.
Stainless Steel
Hotplate, control panell, grill pan handle,
Wipe with a cloth wrung out in warm soapy water. Polish with a clean dry cloth or kitchen towel. For stubborn stains, use a proprietary
stainless steel cleaner and follow the instructions on the container.
*Concerns certain models only
19
GB
CARE AND CLEANING
GB
BURNER MAINTANANCE INSTRUCTIONS
Before cleaning the burners ensure the appliance is switch off and isolated from the electriacl supply and the
appliance is cold.
MAIN OVEN
When the main oven is used regularly, its burner is susceptible to being covered with grease and dirt.
This might result in problems with the burner’s ignition as well as the uneven or disappearing flame.
To solve the problem clean the burner with a small amount of water- diluted cleaner (e.g. CIF) using a small brush
(e.g. a toothbrush). After cleaning wipe the burner with a cloth to remove the detergent waste and let it dry for at least
2 hours.
WARNING!
1. Brush the burner in the directions indicated below.
2. DO NOT re-ignite the burner with the detergent residue.
TOP OVEN/GRILL
When the Top oven/grill is used regularly, its burner is susceptible to being covered with grease and dirt.
This might result in problems with the burner’s ignition as well as the uneven or disappearing flame.
To solve the problem clean the burner with a small amount of water- diluted cleaner (e.g. CIF) using a small brush
(e.g. a toothbrush). After cleaning wipe the burner with a cloth to remove the detergent waste and let it dry for at least
2 hours.
WARNING!
1. Brush the burner in the directions indicated below.
2.
20
DO NOT re-ignite the burner with the detergent residue.
Something Wrong
with your Cooker
GB
Before contacting your Service Centre or Installer,
check the problem guide below, there may be
nothing wrong with your cooker.
PROBLEM
CHECK
Burner will not light:
If all burners fail to ignite:
Check that sparks appear at the burners; a clicking noise should
be heard.
If not;
Check that the electricity supply is turned on.
If the electricity supply has failed, you can only use the hotplate
burners, which can be lit by a match.- DO NOT USE THE GRILL
OR OVEN(S) WITHOUT AN ELECTRICAL SUPPLY BEING CONNECTED TO THE COOKER
Hotplate burner:
If only one burner fails to ignite:
Check that the burner is dry and that spillage of food or cleaning
fluid remains are not affecting the ignitor or burner ports.
Clean away any debris with a dry nylon brush such as an old
toothbrush. If a wire wool pad has been used for cleaning around
the burner ensure the ignitor is free from any stray strands. Any
water on the burner should be dried with a cloth or kitchen towel.
Burner ports
Ignitor
On the hotplate make sure that all the burner parts are correctly
seated.
Slight odour or small amount of smoke when grill
/ oven used first time.
This is normal and should cease after a short period.
Oven cooks too fast or too slow.
Check that the gas mark and shelf positions are as recommended in the Oven Cooking Charts. However, it may be necessary
to increase or decrease the recommended setting slightly to suit
your taste.
Oven lamp does not work.
The oven lamp is not covered by the guarantee. The part is easily
changed (see the section on oven lamp replacement).
A new lamp may be obtained from our Parts department, (see
back page).
21
If it Still Won’t Work
GB
Contact the Service Office
If something is still wrong with your appliance after you
have been through the ‚Something Wrong’ list:
1. Switch off and unplug the appliance from the mains.
2. Call your nearest Service Office or local importer.
When you contact us we will want to know the
following:
Your name, address and postcode.
Your telephone number.
Clear and concise details of the fault.
The Model number and the Serial number of your
appliance.
5. The date of purchase (please keep the receipt as
evidence will be required when an engineer calls)
enter the date here:
Disposal of your product
To minimise the risk of injury to children please dispose
of your product carefully and safely. Remove all doors
and lids. Remove the mains cable (where fitted) by
cutting off flush with the appliance and always ensure
that no plug is left in a condition where it could be
connected to the electricity supply.
To help the environment, Local Authority instructions
should be followed for the disposal of your product.
1.
2.
3.
4.
.............................................................................
Please make sure you have all these details ready
when you call.
Spare Parts
Please remember your new appliance is a complex
piece of equipment.
‚DIY’ repairs or unqualified and untrained service
people may put you in danger, could damage the
appliance and might mean you lose cover under the
Parts Guarantee.
If you do experience a problem with the appliance
don’t take risks, call in our Service Engineer. Our Parts
are designed exclusively to fit your appliance. Do not
use them for any other purpose as you may create a
safety hazard.
22
Disposal of old electrical appliances
The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE), requires
that old household electrical appliances must not be
disposed of in the normal unsorted municipal waste
stream. Old appliances must be collected separately
in order to optimise the recovery and recycling of
the materials they contain and reduce the impact on
human health and the environment.
The crossed out „wheeled bin” symbol on the product
reminds you of your obligation, that when you dispose
of the appliance it must be separately collected.
Consumers should contact their local authority or
retailer for information concerning the correct disposal
of their old appliance.
Guarantee
GB
12 months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturer’s guarantee, which covers the cost of
breakdown repairs for twelve months from the date of purchase.
This gives you the reassurance that if, within that time, your appliance is proven to be defective
because of either workmanship or materials, we will, at our discretion, either repair or replace
the appliance at no cost to you.
The guarantee is subject to the following conditions:
- The appliance has been installed and operated correctly and in accordance with our operating
and maintenance instructions.
- The appliance is only used on the electricity or gas supply printed on the rating plate.
- The appliance has been used for normal domestic purposes only.
- The appliance has not been altered, serviced, maintained, dismantled or otherwise interfered
with by any person not authorised by us.
- Any repair work must be undertaken by us or our appointed agent.
- Any parts removed during repair work or any appliance that is replaced become our property.
- The appliance is used in the United Kingdom or Republic of Ireland.
The guarantee does not cover:
- Damage resulting from transportation, improper use, neglect or interference or as a result of
improper installation.
- Replacement of any consumable item or accessory. These include but are not limited to: plugs,
cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.
- Replacement of any removable parts made of glass or plastic.
THE GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL
OR NON-DOMESTIC PREMISES.
5 Year Parts Guarantee
Cannon also offers you a FREE 5 year parts guarantee. This additional guarantee is conditional
on you registering your appliance with us and the parts being fitted by one of our authorised
engineers. There will be a charge for our engineer’s time. To activate the extra parts warranty
on your appliance, simply call our registration line on 08448 24 24 24 (ROI 01 230 0800)
Extended Guarantees
We offer a selection of protection plans that enable you to fully cover yourself against the
expense of repair bills for the life of your policy. To find the ideal plan for you please call our
advice line on
08448 226 226 (ROI 01 230 0233)
Free Helpdesk Service
We have a dedicated team who can provide free advice and assistance with your appliance if
you experience any technical difficulties within the first 90 days of ownership.
Simply call our Indesit Service Hotline on 08448 224 224 (ROI 0818 313 413) for telephone
assistance, or, where necessary, to arrange for an engineer to call.
23
12/2012 - 195090135.05
XEROX FABRIANO
After Sales Service
GB
No one is better placed to care for your Indesit appliance during the course of its
working life than us - the manufacturer.
Essential Contact Information
Indesit Service
We are the largest service team in the country offering you access to 400 skilled
telephone advisors and 1100 fully qualified engineers on call to ensure you receive
fast, reliable, local service.
UK: 08448 224 224
Republic of Ireland: 0818 313 413
www.indesitservice.co.uk
Please note: Our advisors will require the following information:
Model number
Serial number
Parts & Accessories
We supply a full range of genuine replacement parts as well as accessory products
that protect and hygienically clean your appliance to keep it looking good and
functioning efficiently throughout its life.
UK: 08448 225 225
Republic of Ireland: 0818 313 413
www.indesitservice.co.uk
Appliance Registration
We want to give you additional benefits of Indesit ownership. To activate your FREE 5
year parts guarantee you must register your appliance with us.
UK: 08448 24 24 24
Republic of Ireland: 01 230 0800
www.indesitservice.co.uk
As part of Indesit’s continued commitment to helping the environment, Indesit reserves
the right to use quality, recycled components to keep down customer costs and
minimise material wastage.
Indesit Company UK Limited, Morley Way, Peterborough, PE2 9JB
Indesit Company, Unit 49 Airways Industrial Estate, Dublin 17
24

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
