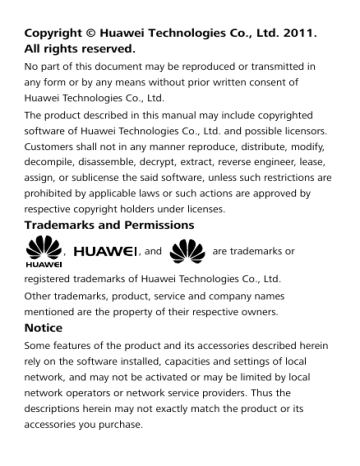

Copyright © Huawei Technologies Co., Ltd. 2011.
All rights reserved.
No part of this document may be reproduced or transmitted in
any form or by any means without prior written consent of
Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted
software of Huawei Technologies Co., Ltd. and possible licensors.
Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease,
assign, or sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved by
respective copyright holders under licenses.
Trademarks and Permissions
,
, and
are trademarks or
registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names
mentioned are the property of their respective owners.
Notice
Some features of the product and its accessories described herein
rely on the software installed, capacities and settings of local
network, and may not be activated or may be limited by local
network operators or network service providers. Thus the
descriptions herein may not exactly match the product or its
accessories you purchase.
Huawei Technologies Co., Ltd. reserves the right to change or
modify any information or specifications contained in this manual
without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT
AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN
NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE
FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA,
GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws
and regulations and will obtain all necessary governmental permits
and licenses in order to export, re-export or import the product
mentioned in this manual including the software and technical
data therein.
Contents
1 Installing the UIM Card and the Battery ........................... 1
2 Charging the Battery ........................................................ 2
3 Your Phone ...................................................................... 3
4 Keys and Functions .......................................................... 4
5 Screen Icons ..................................................................... 6
6 Call Function .................................................................... 8
Making a Call ............................................................................8
Answering a Call .......................................................................9
7 Text Input ........................................................................ 9
Entering an English Word (in "En" Mode) ..................................9
Entering English Letters (in "Abc" Mode) ...................................9
Entering a Hindi Word (in "िहन्दी" Mode).................................10
Entering a Number ..................................................................10
Entering a Symbol ...................................................................10
8 Creating and Sending a Text Message............................ 11
9 Creating a Contact ......................................................... 11
10 Profiles......................................................................... 11
11 Locking and Unlocking the Keypad .............................. 12
12 Enabling the Phone Lock ............................................. 12
13 PIN and PUK ................................................................ 13
14 Warnings and Precautions ........................................... 14
i
1 Installing the UIM Card and the
Battery
Install your User Identity Module (UIM) card before using your
phone. Remove the UIM card and the battery only after powering
off the phone.
When installing the UIM card, ensure that the gold contact area
on the UIM card faces down, and that the beveled edge of the
UIM card aligns with that of the UIM card slot.
b
a
1
2 Charging the Battery
1. Connect the charger to the phone's charger jack.
2. Plug the charger into a power outlet.
3. Wait until the battery is fully charged.
While the battery is charging, the charging icon blinks. When
the charging icon stops blinking, the battery is fully charged.
4. Unplug the charger from the power outlet and from the phone.
2
3 Your Phone
1. Earpiece
2. Navigation keys
3. Left soft key
4. Call/Answer key
5. Number keys
6. * key
7. Microphone
8. # key
9. Charger jack
10. End/Power key
11. Right soft key
12. Confirm key
13. Screen
14. Strap hole
The preceding figure is provided for your reference only. The appearance
of the actual product that you have purchased may differ slightly from that
shown.
3
4 Keys and Functions
In this guide, your phone's navigation keys are indicated by the following
icons:
,
,
and
.
Press...
Call/Answer
key
To...

Make a call.

Answer a call.

View the call log in standby mode.

Power the phone on or off (press and hold the
key for about 3 seconds).
End/Power

End or reject a call.

Turn the phone backlight on or off in standby
key
mode.

Return to standby mode.
Select the option displayed directly above the key,
Left soft key in the lower left corner of the screen.
Right soft
key
Select the option displayed directly above the key,
in the lower right corner of the screen.
4
Press...
To...


Scroll through menu options.
Increase the volume (press
or
) or
decrease the volume (press
or
)
during a call.

Navigation
keys
Access the corresponding functions assigned
to the navigation keys in standby mode.
To customize the function shortcuts assigned to
the navigation keys, select Menu > Settings >
Phone Settings > Shortcuts.
Confirm key

Confirm a selection.

Access My Tata Planet in standby mode.

Enter numbers, letters, and symbols.

Call your voicemail in standby mode (press and
hold

key).
Speed-dial phone numbers in standby mode
(press and hold
through
–
keys for about 3
seconds if speed dial numbers are assigned).

Number keys
Access TATA Apps Store (press and hold
key for about 3 seconds).

Select an option labeled with the
corresponding number.
5
Press...
To...

Enter *, +, P or T before dialing a phone
number.

Enable or disable the Meeting profile in
standby mode (press and hold the key for
* key
about 3 seconds).

Display the symbol list in editing mode.

Enter #.

Lock the keypad in standby mode (press and
hold the key for about 3 seconds).
# key

Switch between text input methods in editing
mode.
5 Screen Icons
Icon
Indicates...
Icon
Signal strength.
Indicates...
Battery level.
Code division multiple
access (CDMA) 1X
Calling state.
network.
6
Icon
Indicates...
Icon
Indicates...
International roaming
Domestic roaming state.
state.
Memory for messages
Message received
full (orange icon).
(yellow icon).
Voice mail message
Urgent message
received.
received.
General profile
Alarm enabled.
activated.
Meeting profile
Silence profile activated.
activated.
Outdoor profile
My Profile 1 profile
activated.
activated.
My Profile 2 profile
Keypad locked.
activated.
7
6 Call Function
If the keypad is locked, you can only dial emergency numbers and answer
incoming calls. To make a call, first unlock the keypad.
Making a Call
1. In standby mode, press the number keys to enter a phone
number.

To make an international call, press
twice to enter a
plus sign (+). Then enter the country or region code, area
code, and phone number.

To call an extension number, enter the phone number, press
three times to enter P or four times to enter T, and
enter the extension number.
2. Press
to dial the number.
3. Press
to end the call or cancel the dialing.
You can also make a call from Call Log, Phone Book, or Messages.


to access Call Log, select a desired
In standby mode, press
number, and press
to dial the number.
In Phone Book, select a desired number, and press
to dial
the number.

In Messages > SMS > Inbox, select a desired message, and press
to call the message sender.
8
Answering a Call
When there is an incoming call, press
to answer the call
to reject it. If Answer Mode is set to By Any Key,
or
you can press any key except
and
to answer the
call.
7 Text Input
In editing mode, press
to switch between text input
methods.
Entering an English Word (in "En" Mode)
To enter an English word in "En" mode:
1. Press each number key only once according to the spelling
sequence of the desired word. The phone displays candidate
words containing the entered letters.
2. Press
or
3. Press
to enter the desired word or press
to scroll to the desired word.
key to enter
the desired word followed by a space.
Entering English Letters (in "Abc" Mode)
In "Abc" mode, you can press the number key labeled with the
desired letter once to enter the first letter on the key, twice to
enter the second letter on the key, and so on.
If the letter that you want to enter is on the same key as the
previous letter, enter the desired letter after the cursor appears
again or after you press
to move the cursor to the right of
the previous letter.
9
Entering a Hindi Word (in "िहन्दी" Mode)
You can enter Hindi words in "िहन्दी" text input mode.
The "िहन्दी" text input mode is similar to the English text input
mode. For details, see "Entering an English Word (in "En" Mode)".
Entering a Number

In "123" mode, press the number key labeled with the desired
number.

In "Abc" mode, press and hold the number key labeled with
the desired number, or repeatedly press it until the number
appears on the screen.

In "En" mode, press the number key labeled with the desired
number, and press
or
until the number appears on
the screen.
In "En" mode, press
to enter a space. In "Abc" mode, press
once
to enter a space, twice to enter 0, and three times to start a new line.
Entering a Symbol
1. In any text input mode, press
2. Press
to display the symbol list.
to scroll to the desired symbol, and press
to
enter it. You can also press the number key corresponding to
the desired symbol to enter it.
10
8 Creating and Sending a Text
Message
1. In standby mode, select Menu > Messages > SMS > Create
Message.
2. Write the message. Then select Options > Send.
3. Enter the message recipient(s).
4. Press
to send the message.
9 Creating a Contact
1. In standby mode, select Menu > Phone Book > Add New.
2. Enter the contact information.
3. Press
(Save) to save the contact.
10 Profiles
You can customize the profiles and other sound or vibrationrelated features on the phone. The phone provides six profiles:
General, Silence, Meeting, Outdoor, My Profile 1 and My
Profile 2.
1. In standby mode, select Menu > Profiles.
2. Select a profile.
3. Select Options > Edit to modify Volume, Alert Type and
Sound Settings of the selected profile.
11
11 Locking and Unlocking the
Keypad
To prevent unintentional operations, press and hold
in
standby mode to lock the keypad. When the keypad is locked, you
can press
to answer an incoming call and dial an
emergency number.
then
To unlock the keypad, press
.
If the Auto Keyguard function is enabled and the phone is idle
for a preset period in standby mode, the keypad locks
automatically.
12 Enabling the Phone Lock
The phone lock protects your phone from unauthorized use. By
default, the phone lock is disabled.
To enable the phone lock, select Menu > Settings > Security
Settings > Phone Lock. You can then choose:

Immediate: to enable the phone lock immediately.

Power On: to enable the phone lock when the phone is
powered on next time.
When you enable the phone lock, you are prompted to enter the
phone code. The default phone code is 0000. You can change the
code to any numeric string of one to eight digits.
12
13 PIN and PUK
The personal identification number (PIN) protects your UIM card
from unauthorized use.
If you enter the PIN incorrectly 3 times consecutively, the PIN is
blocked and the phone prompts you to enter the PIN unblocking
key (PUK). If this occurs, enter the PUK to unlock the blocked PIN.
If you enter the PUK incorrectly 10 times consecutively, the UIM
card will become permanently invalid, and you must contact your
service provider for a new UIM card.
Both the PIN and the PUK are provided with the UIM card. For
details, contact your service provider.
13
14 Warnings and Precautions
This section contains important information pertaining to the
operating instructions of your device. It also contains information
about how to use the device safely. Read this information carefully
before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not use
the device when using the device causes danger or interference
with electronic devices.
Medical Device

Follow rules and regulations set forth by hospitals and health
care facilities. Do not use your device when using the device is
prohibited.

Pacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potential interference with the
pacemaker. If you are using a pacemaker, use the device on the
opposite side of the pacemaker and do not carry the device in
your front pocket.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive
atmosphere, and comply with all signs and instructions. Areas that
may have potentially explosive atmospheres include the areas
where you would normally be advised to turn off your vehicle
engine. Triggering of sparks in such areas could cause an
14
explosion or a fire, resulting in bodily injuries or even deaths. Do
not power on your device at refueling points such as service
stations. Comply with restrictions on the use of radio equipment in
fuel depots, storage, and distribution areas, and chemical plants.
In addition, adhere to restrictions in areas where blasting
operations are in progress. Before using the device, watch out for
areas that have potentially explosive atmospheres that are often,
but not always, clearly marked. Such locations include areas below
the deck on boats, chemical transfer or storage facilities, and areas
where the air contains chemicals or particles such as grain, dust,
or metal powders. Ask the manufacturers of vehicles using
liquefied petroleum gas (such as propane or butane) whether this
device can be safely used in their vicinity.
Traffic Security
Observe local laws and regulations while using the device. In
addition, if using the device while driving a vehicle, comply with
the following guidelines:
 Concentrate on driving. Your first responsibility is to drive safely.

Do not talk on the device while driving. Use hands-free
accessories.

When you have to make or answer a call, park the vehicle at
the road side before using your device.

RF signals may affect electronic systems of motor vehicles. For
more information, consult the vehicle manufacturer.

In a motor vehicle, do not place the device over the air bag or
15
in the air bag deployment area. Otherwise, the device may hurt
you owing to the strong force when the air bag inflates.

Do not use your device while flying in an aircraft. Power off
your device before boarding an aircraft. Using wireless devices
in an aircraft may cause danger to the operation of the aircraft
and disrupt the wireless telephone network. It may also be
considered illegal.
Operating Environment

Do not use or charge the device in dusty, damp, and dirty
places or places with magnetic fields. Otherwise, it may result
in a malfunction of the circuit.

The device complies with the RF specifications when the device
is used near your ear or at a distance of 1.5 cm from your body.
Ensure that the device accessories such as a device case and a
device holster are not composed of metal components. Keep
your device 1.5 cm away from your body to meet the
requirement earlier mentioned.

On a stormy day with thunder, do not use your device when it
is being charged, to prevent any danger caused by lightning.

When you are on a call, do not touch the antenna. Touching
the antenna affects the call quality and results in increase in
power consumption. As a result, the talk time and the standby
time are reduced.

While using the device, observe the local laws and regulations,
and respect others' privacy and legal rights.
16

Keep the ambient temperature between 0°C and 40°C while
the device is being charged. Keep the ambient temperature
between 0°C to 40°C for using the device powered by a battery.
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To
reduce the risk of damage to hearing, lower the headset volume
to a safe and comfortable level.
Safety of Children
Comply with all precautions with regard to children's safety.
Letting the child play with your device or its accessories, which
may include parts that can be detached from the device, may be
dangerous, as it may present a choking hazard. Ensure that small
children are kept away from the device and accessories.
Accessories
Choose only batteries, chargers, and accessories approved for use
with this model by the device manufacturer. The use of any other
type of battery, charger, or accessory may invalidate any warranty
for the device, may be in violation of local rules or laws, and may
be dangerous. Please contact your dealer for information about
the availability of approved batteries, chargers, and accessories in
your area.
Battery and Charger

Unplug the charger from the electrical plug and the device
when not in use.

The battery can be charged and discharged hundreds of times
17
before it eventually wears out. When the standby time and the
talk time are shorter than the normal time, replace the battery.

Use the AC power supply defined in the specifications of the
charger. An improper power voltage may cause a fire or a
malfunction of the charger.

Do not connect two poles of the battery with conductors, such
as metal materials, keys, or jewelries. Otherwise, the battery
may be short-circuited and may cause injuries and burns on
your body.

Do not disassemble the battery or solder the battery poles.
Otherwise, it may lead to electrolyte leakage, overheating, fire,
or explosion.

If battery electrolyte leaks out, ensure that the electrolyte does
not touch your skin and eyes. When the electrolyte touches
your skin or splashes into your eyes, wash your eyes with clean
water immediately and consult a doctor.

If there is a case of battery deformation, color change, or
abnormal heating while you charge or store the battery,
remove the battery immediately and stop using it. Otherwise, it
may lead to battery leakage, overheating, explosion, or fire.

If the power cable is damaged (for example, the cord is
exposed or broken), or the plug loosens, stop using the cable
at once. Otherwise, it may lead to an electric shock, a short
circuit of the charger, or a fire.

Do not dispose of batteries in fire as they may explode.
18
Batteries may also explode if damaged.

Danger of explosion if battery is incorrectly replaced. Recycle or
dispose of used batteries according to the local regulations or
reference instruction supplied with your device.
Cleaning and Maintenance

The device, battery, and charger are not water-resistant. Keep
them dry. Protect the device, battery, and charger from water
or vapor. Do not touch the device or the charger with a wet
hand. Otherwise, it may lead to a short circuit, a malfunction of
the device, and an electric shock to the user.

Do not place your device, battery, and charger in places where
they can get damaged because of collision. Otherwise, it may
lead to battery leakage, device malfunction, overheating, fire,
or explosion.

Do not place magnetic storage media such as magnetic cards
and floppy disks near the device. Radiation from the device
may erase the information stored on them.

Do not leave your device, battery, and charger in a place with
an extreme high or low temperature. Otherwise, they may not
function properly and may lead to a fire or an explosion. When
the temperature is lower than 0°C, performance of the battery
is affected.

Do not place sharp metal objects such as pins near the earpiece.
The earpiece may attract these objects and hurt you when you
are using the device.
19

Before you clean or maintain the device, power off the device
and disconnect it from the charger.

Do not use any chemical detergent, powder, or other chemical
agents (such as alcohol and benzene) to clean the device and
the charger. Otherwise, parts of the device may be damaged or
a fire can be caused. You can clean the device and the charger
with a piece of damp and soft antistatic cloth.

Do not dismantle the device or accessories. Otherwise, the
warranty on the device and accessories is invalid and the
manufacturer is not liable to pay for the damage.
Emergency Call
You can use your device for emergency calls in the service area.
The connection, however, cannot be guaranteed in all conditions.
You should not rely solely on the device for essential
communications.
Certification Information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As
recommended by international guidelines, the device is designed
not to exceed the limits for exposure to radio waves. These
guidelines were developed by the independent scientific
organization International Commission on Non-Ionizing Radiation
Protection (ICNIRP) and include safety measures designed to
ensure safety for all users, regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of measurement for
20
the amount of radio frequency energy absorbed by the body when
using a device. The SAR value is determined at the highest
certified power level in laboratory conditions, but the actual SAR
level of the device when being operated can be well below the
value. This is because the device is designed to use the minimum
power required to reach the network.
The SAR limit adopted by USA and Canada is 1.6 watts/kilogram
(W/kg) averaged over one gram of tissue. The highest SAR value
reported to the FCC and IC for this device type when tested for
use at the ear is 0.909 W/kg, and when properly worn on the
body is 0.869 W/kg.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications made to this device not
expressly approved by Huawei Technologies Co., Ltd. may void the
FCC authorization to operate this device.
Version: C02_01
Part Number: 96720791
21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
