Micromax X353 User guide

Micromax X353 User guide

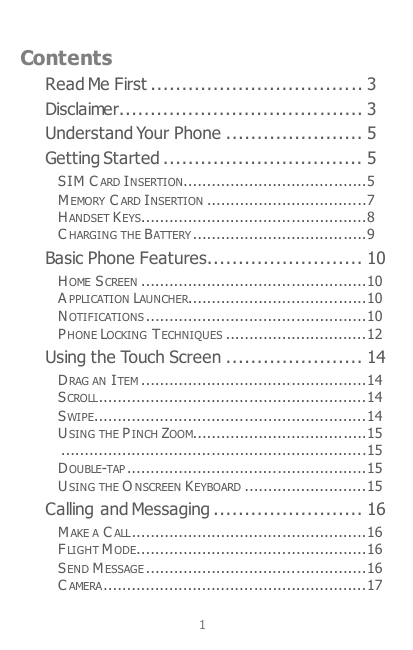

Contents
Read Me First ................................ .. 3
Disclaimer................................ ....... 3
Understand Your Phone ...................... 5
Getting Started ................................ 5
S IM C ARD I NSERTION .......................................5
M EMORY C ARD I NSERTION ..................................7
H ANDSET K EYS................................................8
C HARGING THE B ATTERY .....................................9
Basic Phone Features......................... 10
H OME S CREEN ................................................10
A PPLICATION LAUNCHER......................................10
N OTIFICATIONS ...............................................10
P HONE LOCKING T ECHNIQUES ..............................12
Using the Touch Screen ...................... 14
D RAG AN I TEM ................................................14
S CROLL .........................................................14
S WIPE..........................................................14
U SING THE P INCH ZOOM.....................................15
.................................................................15
D OUBLE-TAP ...................................................15
U SING THE O NSCREEN K EYBOARD ..........................15
Calling and Messaging ........................ 16
M AKE A C ALL ..................................................16
F LIGHT M ODE.................................................16
S END M ESSAGE ...............................................16
C AMERA ........................................................17
1
G ALLERY........................................................18
M USIC P LAYER ................................................18
F M R ADIO ....................................................20
Settings, Networks, and Applications ....... 21
C ONNECT TO THE I NTERNET .................................21
P AIR WITH B LUETOOTH D EVICES...........................21
Safety Precautions ............................ 22
Taking Care of your device ................... 24
B ATTERY R ECOMMENDATIONS ...............................25
R ECYCLE YOUR P HONE .......................................26
Copyright................................ ....... 26
2
Read Me First

Please read all safety precautions and this manual
carefully before using your device to ensure safe and
proper use.

The descriptions in this manual are based on the default
settings of your device.

Available features and additional services may vary by
device, software, or service provider.

Applications and their functions may vary based on the
country, region, software or hardware specifications.
Micromax is not liable for performance issues caused by
third-party applications.
Disclaimer

The colors, specifications, functions and graphics
shown/mentioned in the user manual may differ from
the actual product. In such a case, the latter shall
govern. Images shown are for representation purpose
only. Specifications are subject to change without prior
notice. Micromax keeps the right to modify the content
in this user guide without prior notice.

Upon first use of your device, your device will send
information related to your mobile, IMEI numbers,
location details and other software details through SMS*
automatically. This information may be used as further
specified in Micromax privacy policy**.

Talk and standby times are affected by network
preferences, type of SIM cards, connected accessories
3
and individual usage patterns. Services and some
features
may be dependent on the network,
service/content providers, SIM cards, compat ibility of the
devices used and the content formats supported.

Other product logos and company names mentioned
herein may be trademarks or trade names of their
respective owners.
*Operator tariff shall be applicable for SMS.
**Micromax
privacy
www.micromaxinfo.com.
policy
4
is
available
at
Understand Your Phone
Getting Started
SIM Card Insertion
Your X353 is a dual SIM phone. Switch off your phone before
SIM insertion/removal and insert the SIM card in the SIM slots
correctly. To insert your SIM card(s):
1. Switch off the mobile phone and remove the rear cover and
battery, as illustrated in the following image:
5
2. Insert the SIM card(s) correctly in the card slot(s), as shown
in the following image:
3. Finally, insert the battery and place the rear cover of the
mobile phone.
Please keep the SIM card out of the reach of
children.
The card and the contacts are vulnerable to
damage due to scratching or bending. Therefore,
be careful when using, inserting, or removing the
card.
6
Memory Card Insertion
To store additional multimedia files, you must insert a memory
card. To insert the memory card:
1. Switch off the phone and remove the rear cover and the
battery.
2. Insert the memory card in the card slot, as shown in the
following image:
3. Place back the battery and the rear cover of the mobile
phone.
Use only compatible memory cards approved by
Micromax with this device. Incompatible memory
cards may damage the card or the device and
corrupt the data stored in the card.
7
Handset Keys
Keys
Functions

Long press to switch on or
switch off the phone.

Press once to turn off the
screen or to wake up the
screen.

Adjust the phone volume
from the volume keys
available on the left side of
the device.

Opens a menu with items
that affect the current
screen or application.

If tapped when on the
home screen, opens
options to personalize the
home screen.

Opens the Home screen. If
you are viewing the left or
right extended Home
screen, opens the central
Home screen.
8

Opens the previous screen
you were working on.

If the onscreen keyboard is
open, closes the keyboard.
Charging the Battery
Before using the device for the first time, you must charge the
battery. You can charge the device with a travel adapter or
connecting the device to a PC with a USB cable.
You can also use a compatible USB charger to charge
your battery.
Use only Micromax approved chargers and cables.
Unapproved chargers or cables can cause battery to
explode or damage your device.
We suggest you charge the battery for 4 hours
continuously for the first time.
9
Basic Phone Features
Home Screen
You can personalize your home screen with shortcuts, wallpapers
and other items. To view quick options to change wallpaper or
open settings section, tap the
key. Swipe left or right on the
home screen to view the next extended home screen.
Application Launcher
Application launcher or Application menu is available right in the
middle of the home screen bottom pane.
Tap
to view all inbuilt and installed applications.
Notifications
Notification icons inform you of new messages and events as and
when it appears in the device.
Open Notification Panel
Close Notification Panel
10
When you receive a notification, its icon appears in the status
bar, along with a brief summary. You may clear each notification
separately by swiping it towards left or right.
Toolkit provides you shortcuts to manage basic phone features,
11
such as Airplane Mode, Bluetooth, and Brightness.
Phone Locking Techniques
You may need to draw a pattern or simply slide to unlock your
phone.
Slide unlock will be the default unlocking method in the phone.
To unlock the screen:
1.
2.
Press the power key to wake up the phone.
Hold and drag the lock icon towards the unlock icon.
Slide
Just wake up the
screen and slide the
lock icon towards the
unlock icon to unlock
your phone.
Slide from lock icon to unlock
icon!
You can set your own
pattern by connecting
the dots to prevent
your
phone
from
unauthorized access.
P atter n
12
Set and draw your desired
pattern!
13
Using the Touch Screen
Drag an Item
Tap and hold an item and move your finger
on the screen until you reach the target
position. The item follows your finger.
Also, you can delete items from the home
screen by holding the item and dragging it to
the Delete icon that becomes available only
when you hold the item on the Home screen.
Scroll
To scroll a list, slide your finger across the
surface of the screen upwards or downwards
(without dragging an item).
Swipe
Place a finger on the screen and steadily
slide your finger in the desired direction.
For example, when you are viewing a
picture, to view the next picture, swipe left.
14
Using the
Zoom
Pinch
You can open any image or
web page and then use your
thumb and index finger to
zoom the display through
the pinch gesture.
Double-tap
Tap quickly twice on a webpage, map, or
other screen to zoom. For example, doubletap a section of a webpage in the browser
to zoom that section.
Using the Onscreen Keyboard
Some applications display the keyboard by default. In others, you
will be required to tap a text field, where you want to enter text,
to open the keyboard.
After typing, press
button to close the keyboard.
Tap and hold the text field to open a menu and to
cut/copy/paste text.
15
Calling and Messaging
Make a Call
To make a call:
Tap
on the menu screen or the home screen to open the dial
pad for making calls.
By default, the dialer will display a list of contacts on which calls
have been made very often.
Open the call log by tapping the Call log tab and tap the number
to be dialed.
Flight Mode
Some locations may require you to disable all the wireless
features of your mobile. The Airplane Mode enables you to
disable all incoming and outgoing calls and Bluetooth
connections.
Go to
→
→ Network & connectivity → Flight mode.
Select the Flight mode option to turn Bluetooth On.
Send Message
To send a message:
1.
Tap
on the menu screen to go to the messaging
section.
2.
Tap the New msg. icon to compose a message.
16
3.
Select the desired type of multimedia files that can be
attached with the message.
4.
Tap to select the composition text box and enter your
message body in it.
5.
Enter the contact name (if it exists) or enter the phone
number. You can also view and select contact(s) from
the contact list.
6.
You can send the message after all the required fields
have been filled.
Multimedia
Camera
Go to
→
Open the
gallery
Flash
Capture/
Start video
recording
Swap
between
front and
back camera
Settings
17
You can share/copy/move/delete images and videos
from the gallery.
Gallery
Go to
→
You can use the Gallery to view pictures, play videos and share
files.
Music Player
Go to
→
Turn on/off shuffle
Turn on/off
repeat songs
Opens the
playlist
Play/Pause song
Play
Play next song in the
playlist
previously
played song
18
Press the phone’s volume up/down keys on the left
side of the mobile phone to adjust the volume.
You can use an SD card to enhance the storage
capacity for your multimedia files such as music,
photos, emails, and so on.
19
FM Radio
You can listen to your favorite FM channels using the inbuilt FM
receiver of your phone. Before starting the FM, you need to plugin the headset as it works as antenna for the FM radio. Use the
intuitive buttons and icons on the phone in the radio interface to
enjoy the features of your inbuilt FM radio.
Press the phone’s volume up/down keys on the left
side of the mobile phone to adjust the volume.
20
Settings, Networks, and
Applications
Your phone can connect to a variety of networks and devices,
including Internet, GPRS, Bluetooth, devices, such as headsets.
You can also transfer files to/from your PC through the data
cable.
Connect to the Internet
To configure Internet:
1.
Go to
→
→ Network & connectivity and
select the various modes of connection, such as GPRS,
Mobile network settings and Data accounts .
Pair With Bluetooth Devices
Go to
→
→ Network & connectivity → BT.
If Bluetooth is off, select the Bluetooth option to turn Bluetooth
On.
1.
If Bluetooth is off, turn it on.
2.
To pair your X353 with another Bluetooth device, tap
Paired devices and then tap the Search icon. Your
phone scans and displays the Bluetooth devices in
range.
3.
You will be prompted to confirm passcode on both
devices. Tap Yes to confirm the passcode and pair the
devices. On successful pairing, your phone connects to
21
the device.
Safety Precautions
Remember to comply with legal requirements and
local restrictions when using the phone.
Your Phone’s radio waves may interfere with
inadequately shielded medical devices. Consult a
physician or manufacturer of the medical device to
know whether they are adequately shielded from
external Radio Frequency. Switch off your device
when regulations require you to do so.
Always keep the phone and accessories out of
reach of small children. Small parts such as the
SIM card, dust cap, lens ring and lens cap as well
as the micro SD card can be dismantled and
swallowed by small children.
Do not place the phone near electromagnetic data
carriers such as credit/Debit cards. Information
stored on them could be lost.
Permanent hearing loss may occur if you use
earphones at high volume for prolonged periods.
Set your volume to a safe level. If you experience
discomfort in your ears, reduce the volume or
discontinue the use of your earphones.
Ring tones, info tones and hands -free talking are
reproduced through the loudspeaker. Do not hold
22
the phone to the ear when it rings or when you
have switched on the hands -free function.
The mains voltage (V) specified on the power
supply unit must not be exceeded to prevent
damage to the charging device. The power supply
must be plugged into an easily accessible AC
power socket when charging the battery.
You may only open the phone to replace the
battery, SIM and micro SD card. You must not
open the battery under any circumstances. All
other changes to this device are strictly prohibited
and will invalidate the warranty.
The phone may cause interference in the vicinity of
TV sets, radios and PCs.
Only use Micromax specified batteries and charging
devices.
All batteries can cause property damage, injury or
burns if a conductive material taps the exposed
terminals. Exercise care in handling any charged
battery, particularly when placing it inside your
pocket, purse or other container with metal
objects. Do not dispose of batteries in fire as they
may explode.
Do not use the phone while driving. When you
have to use the phone, please use the personal
hands-free kit.
Please put the phone safely in the phone stand. Do
23
not put it onto any passenger seat or any place
from which it may fall down in case of vehicular
collision or emergency braking.
Flight is influenced by interference caused by the
phone. It is illegal to use a phone on the airplane.
Please turn off your phone during a flight.
Professional service: The phone must be installed
or repaired by Micromax authorized personnel. You
are likely to suffer a huge risk when you install or
repair this phone by yourself, which also goes
against the warranty rules.
Taking Care of your device
Your device is a product of superior design and craftsmanship
and should be handled with care. The following suggestions will
help you protect your phone.

Keep the device dry. Precipitation, humidity, and all
types of liquids or moisture can rust the electronic
circuits. If your device gets wet, remove the battery,
wipe it with a dry cloth and take it to an authorized
service center.

Do not store the device in high or cold temperature.
High temperatures can shorten the life of electronic
devices and damage batteries.

Do not use or store the device in dusty, dirty areas. Its
moving parts and electronic components can get
damaged.
24

Do not attempt to open the device other than as
instructed in this guide. Repairing this phone by yourself
other than our authorized service agents/centers goes
against the warranty rules.

Do not drop, knock, or shake the device. Rough handling
can break internal circuit boards and fine mechanics.

Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device. Only use a soft, clean,
dry cloth to clean the surface of the device.

Do not store your device near magnetic fields or allow
your device to come in contact with magnetic fields for
extended period of time.
Battery Recommendations

Please put the battery in a cool and well-ventilated place
out of direct sunlight. We recommend you to charge the
battery at room temperature range.

Batteries have life cycles. If the time that the battery
powers equipment becomes much shorter than usual,
the battery life is at an end. Replace the battery with a
new battery of the same make and specification.

Use manufacturer
approved batteries, chargers,
accessories and supplies. Micromax will not be held
responsible for user’s safety when using unapproved
accessories or supplies.

Do not discard the battery with household trash. Please
dispose of used battery according to your local
environmental laws and guidelines.
25
Recycle your Phone
The WEEE logo (shown at the left) appears on the
product (battery, handset, and charger) to indicate
that this product must not be disposed off or
dumped with your other household wastes. You are
liable to dispose of all your electronic or electrical waste
equipment by relocating over to the specified collection point for
recycling of such hazardous waste.
Collection and proper recovery of your electronic waste
equipments at the time of disposal will allow us to help preserve
the environment. Recycling of the electronic waste equipment
will ensure safety of human health and environment. For more
information on best practices for disposal of electronic and
electrical
waste,
please
visit
to
our
web
site:
www.micromaxinfo.com/weee.php.
Note: Micromax will not bear any responsibility for any
incompliance with the above mentioned guidelines or improper
usage of the mobile phone.
Copyright
All rights reserved. Reproduction, transfer, distribution or storage
of part or all of the contents in this document in any form
without the prior written permission of Micromax is strictly
prohibited.
26
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
