Motorola i570 Harmony User guide

Motorola i570 Harmony User guide

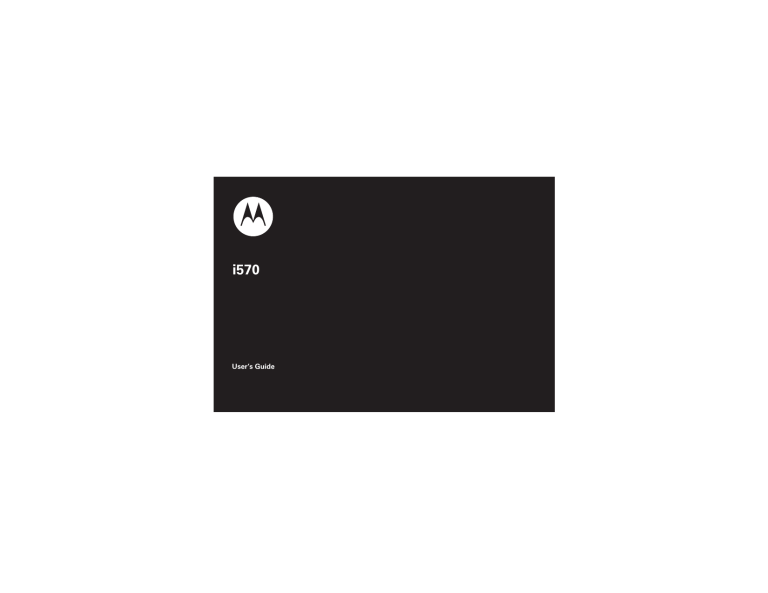

i570
User’s Guide
IMPORTANT NOTICE: PLEASE READ
PRIOR TO USING YOUR PHONE
The SIM card provided in this kit is intended for use
with the phone provided in this package.
Loss of certain features will result when using a SIM
card from one of the following models: i30sx, i35s,
i50sx, i55sr, i58s, i60c, i80s, i85s, i88s, i90c, i95cl
series, and the i2000 series.
For more information on SIM card compatibility, go to
www.motorola.com/iden.
Defects or damage to your Motorola phone that result
from the use of non-Motorola branded or certified
Accessories, including but not limited to replacement
housings and or other peripheral accessories, are
excluded from warranty coverage. Please refer to the
text of Motorola's Limited One Year warranty located
in this user’s guide for complete details.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola, Inc.
Address: 8000 West Sunrise Boulevard
Plantation, FL 33322 USA
Phone Number: 1 (800) 453-0920
Hereby declares that the product:
Product Name: i570
Model Number: H65XAN6RR4CN
Conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a),
15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device
complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
HELLOMOTO
Introducing your new Motorola i570 phone. Here’s a quick anatomy lesson.
Speaker On/Off Key
Left Soft Key
Perform function
in lower left
display.
Right Soft Key
Perform function
in lower right
display.
Menu Key
From home screen,
open main menu.
Power Key
Turns phone on.
Talk Key
Make &
answer calls.
4-Way
Navigation Key
End Key
End calls, exit
menu system.
OK Key
In menus & lists,
press to select
highlighted option.
Smart Key
Volume Keys
PTT Button
External Display
Audio Jack
Microphone
1
check it out
Home Screen
Main Menu
Main Menu
aq b
cd e
fo g
2 Customizable O key
3
that can be used
to open the
Settings screen
4
1 Press and hold the
Power Key W for a
few seconds, or until
the screen lights up,
to turn on your phone.
2
Press the Navigation Key
up, down, left or right ( )
to highlight a menu feature.
Press the O key
to select.
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Product Support:
www.motorola.com/iden
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
Caution: Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user's authority to
operate the equipment.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. Java and all other Java-
based marks are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
© Motorola, Inc., 2007.
Manual Number: NNTN7315A
Software Version: D8A.00.10
CP Version: 5F.03.00
USR Version: U8AA.32.02
Electrical Requirements:
Lithium Ion Battery 3.7V
Power Adapter: 100-240V ~ 50-60Hz, 0.3A
Output of the Adapter: 5V 850mA
3
contents
check it out . . . . . . . . . . . 2
contents . . . . . . . . . . . . . . 4
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
SIM card . . . . . . . . . . . 10
battery . . . . . . . . . . . . . 11
turn it on & off . . . . . . . 14
enable security . . . . . . 15
make a phone call . . . . 15
answer a phone call. . . 15
make a private call. . . . 15
answer a private call . . 16
store a phone
number or private ID . . 16
call a stored phone
number or private ID . . 17
4
find your phone number
and private ID . . . . . . . 18
text messages. . . . . . . 18
manage memory . . . . . 21
using your handset
as a modem. . . . . . . . . 22
main attractions . . . . . . 23
PTV Features . . . . . . . . 23
one touch PTT . . . . . . . 27
quick PTT. . . . . . . . . . . 27
MMS . . . . . . . . . . . . . . 28
surveillance profile. . . . 41
basics . . . . . . . . . . . . . . . 42
display . . . . . . . . . . . . . 42
text entry . . . . . . . . . . . 43
navigation key . . . . . . . 46
handsfree speaker. . . . 46
airplane mode . . . . . . . 46
features for the
hearing impaired . . . . .
calls. . . . . . . . . . . . . . . . .
recent calls . . . . . . . . .
caller ID . . . . . . . . . . . .
call forward . . . . . . . . .
voice name . . . . . . . . .
emergency calls . . . . .
international calls. . . . .
speed dial . . . . . . . . . .
voice mail . . . . . . . . . .
selective dynamic
group (SDG) calls. . . . .
MOTOtalkTM . . . . . . . .
customize. . . . . . . . . . . .
volume. . . . . . . . . . . . .
ring tones . . . . . . . . . .
wallpaper . . . . . . . . . . .
47
49
49
50
50
51
51
52
53
53
54
58
65
65
65
67
datebook. . . . . . . . . . . 67
hide or show location
information . . . . . . . . . 68
other features . . . . . . . . 69
advanced calling . . . . . 69
contacts . . . . . . . . . . . 70
datebook. . . . . . . . . . . 71
GPS . . . . . . . . . . . . . . 71
handsfree . . . . . . . . . . 72
pc applications . . . . . . 73
personalize . . . . . . . . . 73
TTY . . . . . . . . . . . . . . . 74
security. . . . . . . . . . . . 75
Safety and General
Information . . . . . . . . . . 78
Service & Repairs . . . . . 83
Specific Absorption
Rate Data . . . . . . . . . . . 84
Limited Warranty
Motorola Communications
Products (International) 86
Hearing Aid
Compatibility . . . . . . . .
Information From
the World Health
Organization . . . . . . . . .
Patent and Trademark
Information . . . . . . . . . .
Privacy and
Data Security . . . . . . . .
Smart Practices
While Driving . . . . . . . .
90
92
94
95
96
5
menu map
main menu
a Net
q Java Apps.
b
c
d
e
f
o
g
6
• Java System
Settings
• (see next page)
VoiceRecord
• [New VoiceRec]
Contacts
• [New Contact]
• [New SDG List]
Messages
• [Create Message]
• Voice Mail
• Inbox
• Drafts
• Sent Items
• Fax Mail
• Net Alert
• SMS
Call Forward
• Forward
• To
Datebook
• [New Event]
Memo
menu map
h
i
s
j
Call Timers
• Last Call
• Phone Reset
• Phone Lifetime
• Prvt/Grp Reset
• Prvt/Grp Lifetime
• Circuit Reset
• Circuit Lifetime
• Kbytes Reset
Recent Calls
Shortcuts
• [New Entry]
• 1)Shortcuts
• 2)Cntcs[New Contact]
• 3)Recent Calls
• 4)Contacts
• 5)Datebook
• 6)Messages
• 7)VoiceRecord
• 8)Net
• 9)Call Forward
My Info
• My Name
• Line 1
• Line 2
• Private ID
• Group ID:
• IP1 Address
• IP2 Address
• Circuit Data
p
Profiles
• New Profile
• Surveillance
• Standard
• Car
• Meeting
• Office
• Outdoors
• Headset
• PRVT Only
• CONTCS Only
k
l
Call Alert
m
[
Ring Tones
M
MOTOtalk
S
Quick PTT
GPS
• Position
• Privacy
• Interface
My Pictures
This is the standard main menu layout. Your
phone’s menu may be a little different.
settings menu
Display/Info
• Wallpaper
• Palette
• Text Size
• Home Icons
• Backlight
• Clock
• Menu View
• Large Dialing
• Contrast Ext
• Language
Phone Calls
• Set Line
• Any Key Ans
• Auto Redial
• Call Waiting
• Auto Ans
• Flip Activation
• Minute Beep
• Call Duration
• TTY
• Hearing Aid
• Notifications
2-Way Radio
• Tkgrp Silent
• Tkgrp Area
• One Touch PTT
• Alert Type
• PTT Picture: On/Off
Personalize
• Menu Options
• Up Key
• Down Key
• Left Key
• Right Key
• Center Key
• Left Sftkey
• Right Sftkey
• Power Up
Volume
• Line 1
• Line 2
• Messages
• Earpiece
• Speaker
• Keypad
• Java Earpiece
• Java Speaker
• Data
Security
• Phone Lock
• Keypad Lock
• SIM PIN
• GPS PIN
• Change Passwords
Advanced
• Alert Timeout
• Headset/Spkr
• Disco Lights
• Connectivity
• Reset Defaults
• Return to Home
• Airplane Mode
• Phone Only
• Baud Rate
menu map
7
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
8
liquids of any kind
Don’t expose your phone to
water, rain, extreme humidity,
sweat, or other moisture.
dust and dirt
Don’t expose your phone to
dust, dirt, sand, food, or other
inappropriate materials.
extreme heat or cold
Avoid temperatures below
-10°C/14°F or
above 45°C/113°F.
cleaning solutions
To clean your phone, use only a
dry soft cloth. Don’t use alcohol
or other cleaning solutions.
microwaves
Don’t try to dry your phone in a
microwave oven.
the ground
Don’t drop your phone.
Use and Care
essentials
Caution: Before using the phone for the first
time, read the Important Safety and Legal
information included in the gray edged pages
at the back of this guide.
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: M > Settings.
This means that, from the home screen:
1 Press the menu key M to open the
menu.
2 Press the navigation key
to scroll to
Settings, and press the center key O to
select it.
OK
symbols
This means a feature is network/
subscription dependent and may
not be available in all areas. Contact
your service provider for more
information.
This means a feature requires an
optional accessory.
essentials
9
SIM card
2 Carefully slide your SIM card into the
SIM card holder.
insert the SIM card
Turn off your phone and remove your battery
before you install or remove a SIM card.
1 Slide the latch and open the SIM card
holder.
3 Close the SIM card holder.
Warning: To avoid loss or damage, do not
remove your SIM chip from your phone
unless absolutely necessary.
10
essentials
battery
Battery or Unable to Charge, take the
following steps:
Battery Use & Battery Safety
• Remove the battery and inspect it to
confirm that it bears a Motorola
“Original Equipment” hologram;
• Motorola recommends you always
use Motorola-branded batteries and
chargers. The warranty does not cover
damage caused by non-Motorola
batteries and/or chargers.
Caution: Use of an unqualified battery
or charger may present a risk of fire,
explosion, leakage, or other hazard.
Improper battery use, or use of a
damaged battery, may result in a fire,
explosion, or other hazard.
• Battery usage by children should be
supervised.
• Important: Motorola mobile devices
are designed to work best with
qualified batteries. If you see a
message on your display such as Invalid
• If there is no hologram, the battery
is not a qualified battery;
• If there is a hologram, replace the
battery and retry charging it;
• If the message remains, contact a
Motorola Authorized Service Center.
• New batteries or batteries stored for a
long time may take more time to
charge.
• Charging precautions: When
charging your battery, keep it near
room temperature. Never expose
batteries to temperatures below 0°C
(32°F) or above 45°C (113°F) when
charging. Always take your mobile
essentials
11
device with you when you leave your
vehicle.
• When storing your battery, keep it in a
cool, dry place.
• It is normal over time for battery life to
decrease, and for the battery to exhibit
shorter runtime between charges or
require more frequent or longer
charging times.
• Avoid damage to battery and mobile
device. Do not disassemble, open,
crush, bend, deform, puncture, shred,
or submerge the battery or mobile
device. Avoid dropping the battery or
mobile device, especially on a hard
surface. If your battery or mobile
device has been subjected to such
damage, take it to a Motorola
Authorized Service Center before
using. Do not attempt to dry it with an
12
essentials
appliance or heat source, such as a hair
dryer or microwave oven.
• Use care when handling a charged
battery: particularly when placing it
inside a pocket, purse, or other
container with metal objects. Contact
with metal objects (e.g., jewelry, keys,
beaded chains) could complete an
electrical circuit (short circuit), causing
the battery to become very hot, which
could cause damage or injury.
Promptly dispose of used batteries in
accordance with local regulations.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
battery installation
1 Slide the release button back until it
releases the battery door.
2 Remove the battery door.
3 Push the battery down until it snaps in
place.
4 Replace the battery door and press it
gently until you hear a click.
essentials
13
battery charging
New batteries are not fully charged.
1 Insert the charger
into the connector
on your phone as
shown.
2 Plug the other end
of the charger into
the appropriate
electrical outlet.
3 When your phone
displays Charge
Complete, remove the
charger.
When you charge the battery, the battery
level indicator at the upper right of the screen
shows charging progress. At least one
segment of the indicator must be visible to
ensure full phone functionality while charging.
14
essentials
Tip: Motorola batteries have circuitry that
protects the battery from damage from
overcharging. Of course, unplugging the
charger from the wall will avoid current drain.
turn it on & off
To turn on your phone,
press and hold W for a
few seconds or until the
display turns on. If
prompted, enter your
four-digit unlock code.
To turn off your phone,
press and hold W for
two seconds.
enable security
answer a phone call
You must enable security the first time you
power on you phone or within 10 days of first
activation.
When your phone rings and/or vibrates, you
have the following options to answer the call:
1 Press - under Ok.
2 Your are prompted to enable security.
Press - under Yes.
3 Press o to return to the idle screen.
make a phone call
Enter a phone number and press O to make
a call or use a voice name. See “voice name”
on page 51.
Tip: For best performance avoid touching the
antenna with your fingers during the call.
To hang up, close the flip or press o.
1 If you want to talk on speaker phone,
press the speaker key t without
opening the flip. To hang up press the
smart key ..
2 If you want to answer the call using the
ear speaker, just open the flip and press
O. To hang up, close the flip or press
o.
Note: You must have the Flip Activation feature
On. See “advanced calling” on page 69.
make a private call
With Private calls service, you use your phone
as a long-range, digital 2-way radio using oneto-one Private calls or one-to-many group
calls.
essentials
15
Your Private ID is the number at which you
receive one-to-one Private calls.
Talkgroup numbers are numbers through
which you receive one-to-many group calls.
1 To make a private call enter the Private ID
you want to call.
2 Push and hold the PTT button. Begin
talking after your phone emits a chirping
sound.
3 Release the PTT button to listen.
To end the call press o, or press under Exit.
A Private call ends automatically if there is
no activity on the call for a few seconds.
Tip: To let someone know you want to talk to
them on a Private call, press - under Alert.
answer a private call
1 When your phone emits a chirping sound
or vibrates to indicate you are receiving a
Private call, wait for the caller to finish
speaking.
2 Push and hold the PTT button and begin
talking after your phone emits a chirping
sound.
3 Release the PTT button to listen.
To end the call press - under Exit.
store a phone number
or private ID
You can store a phone number or Private ID in
Contacts:
Find it: M > Contacts > [New Contact].
16
essentials
1 Enter a name for the new entry. Each
entry’s name can contain 20 characters.
2 Select a specific Ringer.
3 Select a type for the entry (Mobile, Private,
Work1, Work2, Home, Fax, Pager, or Other).
4 Enter the number for the entry.
5 Press - under Done when finished.
Tip: Before saving the entry, you can save
more information. You can choose a special
ringer, store an Email address, an IP address,
and SDG list or Talkgroup ID and more.
After you have saved the number, the new
Contacts entry is displayed.
call a stored phone
number or private ID
Shortcut: From the home screen press under Contcs.
or
Find it: M > Contacts.
1 Scroll to the Contacts entry.
Tip: In Contacts, enter the first letter of the
contact you want and your contact list will
jump to the first contact name starting
with the letter you typed.
2 If the Contacts entry contains more than
one number, press
left or right until
the type of number you want to call is
displayed (Mobile, Private, Work1, Work2, Home,
etc.)
OK
3 If you chose a phone number, press O
to call the entry.
or
If you chose a Private ID, Talkgroup ID, or SDG
list, push and hold the PTT button to call
the number.
essentials
17
Tip: If the Contacts entry you scrolled to
contains a Private ID, you can make an instant
Private call to that Private ID by pushing and
holding the PTT button, even if the Private ID
is not the type of number displayed.
find your phone number
and private ID
Find it: M > My Info.
Tip: Want to see your phone number or
Private ID while you’re on a call? Press M >
My Info.
text messages
If your service provider offers Text
Messaging, your phone is enabled to send
and receive text messages using MOSMS.
18
essentials
set it up
Before you begin using text messaging, you
may need to set up your signature, service
center number, and expiration information.
Shortcut: From the home screen press under Msgs > Inbox > M > Setup.
or
Find it: M > Messages > Inbox > M > Setup.
The following options become available:
option
Signature: Enter your signature (up to 11
characters long).
Srvc Cntr No: Enter the phone number of your
service center. If you do not know this
number, contact your service provider.
option
Expire After: This is the amount of time
messages you send are saved at the
service center if they cannot be delivered.
After this period, they are discarded.
Clean Up After: Set the number of days after
which sent messages are deleted or the
number of messages to be kept.
Press - under Done to save the options you
selected.
receive a text message
1 To view the message press - under
Read.
2 To dismiss the message notification press
- under Exit.
Note: If your phone is powered off when you
receive a text message, your phone notifies
you the next time you power it on. If you are
out of your coverage area, your phone alerts
you when you return to your coverage area.
Tip: While reading a text and numeric
message that contains a phone number, you
can press O to call that number.
read from the Message center
1 From the home screen press - under
Msgs > Inbox.
2 Select the message you want to read or
press the number of the message you
want to read. If the message fills more
than one screen, scroll to read it.
3 To save the message, press - under Ok
or to reply to the message, press under Reply or to see all other choices,
including forwarding and deleting the
message, calling the sender, or storing
the sender’s number in Contacts, press M.
essentials
19
create and send text messages
1 From the home screen press - under
Msgs > [Create Message].
or
Select Inbox, Sent Items, or Drafts.
2 To address the message use the keypad
to enter the phone number of the person
you want to send the message to and
press - under Back or press - under
Contcs, or press M > Recent Calls. Select the
number you want.
3 Select Mesg: and enter the text of the
message or to use a quick note press under Browse and scroll to the quick note
you want.
4 Press M > Set Send Method and select Text,
Fax, x400, Paging, Email, ERMES, or Voice.
20
essentials
5 If you want to send the message, press
- under Send or to delete the message
without sending it, press - under Cancel.
Note: If you want to request confirmation
of delivery press M > Send & Confirm.
use drafts
When you save a message as a draft, it is
saved in the drafts folder.
Shortcut: From the home screen press under Msgs > Drafts.
1 Select the draft you want to edit. You also
have the choice to create new text
messages from this menu.
2 To edit the fields you want to change,
follow step 2 through step 5 in “create
and send text messages” above.
resend text messages
1 Press M > Delete All.
Shortcut: From the home screen press under Msgs > Sent Items.
2 Press - under Yes to confirm.
1 Scroll to the message you want to resend
or press the number of the message you
want to resend.
2 Press - under Resend.
delete sent text messages
Shortcut: From the home screen press under Msgs > Sent Items.
1 Select the message you want to delete
and press O.
2 Press - under Delete.
3 Press - under Yes to confirm.
delete all unlocked sent messages
Shortcut: From the home screen press under Msgs > Sent Items.
manage memory
Your text inbox, outbox, and drafts folder have
a set amount of memory available for storing
messages.
The text inbox holds 20 messages. If the text
inbox is full, you cannot receive messages
until you delete some.
The outbox and drafts folder share memory
space. Together they can hold 30 messages.
If the outbox and drafts folder memory is full,
you cannot send messages or save drafts
until you delete some.
To view the amount of memory available in
your Inbox, Drafts or Sent Items:
Shortcut: From the home screen press under Msgs.
1 Select Inbox, Drafts or Sent Items.
essentials
21
2 Press M > Setup > Memory Size.
using your handset
as a modem
1 Pull out the connector
cover, and insert the
charger into the
connector on your phone
as shown.
You can use your handset as a modem with a
laptop, handheld device, or desktop
computer. In order to use your handset as a
modem, you must create a wired connection
between your handset and the other device.
2 Insert the data plug into
the data port of the other
device.
connect with a data cable
use a data cable to connect your handset to a
laptop, handheld device, or desktop
computer:
5 Press - under Select.
3 Press - under Change.
4 Scroll to the baud rate for your location.
When used as a modem, your handset is
enabled for Packet Data transfer mode, which is
used for small file transfers such as email.
Note: To use these services, you must install
the iDEN Wireless Data Services software
(available separately). For more information on
setting up your computer and your handset
for packet and circuit data calls, contact your
service provider.
22
essentials
main attractions
PTV Features
Push to View (PTV) features let you
send information through Private calls.
Your phone can send and receive the
following items through Private calls with
other phones that have this capability:1
• Pictures
1
• My Info
• Contact information
When you make or receive a Private call, your
phone automatically determines whether the
Private recipient is able to receive each of
these items. Your phone saves this
information for as long as the Private ID is on
your Recent Calls list or is saved in your Contacts.
Your phone updates the saved information
each time you make or receive a call to or
from that Private ID.
You can turn your phone’s ability to send and
receive pictures On and Off.
Note: You cannot send PTT items during
Talkgroup calls or SDG calls.
send pictures
You can send pictures stored in My Pictures
through Private calls. The picture you send
appears on the Private call recipient’s display.
1. Additional charges may apply.
main attractions
23
If the recipient accepts the picture, their
phone saves it.
send a picture during a private
call
Note: You cannot make or receive calls while
transmitting a picture.
1 While in a Private call press - under
Picture.
2 Select the picture you want to send.
3 Push the PTT button to send.
Note: The first time you send a stored picture
after turning the phone on, Picture Fees May Apply.
Continue? appears.
start a call by sending a picture
You can start a call by sending a picture that
you have previously received and is stored in
My Pictures.
24
main attractions
Find it: M > My Pictures.
1 Press M > Send Via PTT.
A list of Contacts and Recent Calls that have
Private IDs and are able to receive
pictures appears.
2 Select the name of the person you want
to send the picture to.
3 Push the PTT button to send the picture.
4 Wait while the picture is transmitted. The
Private call is temporarily interrupted
while a picture is transmitted.
5 When prompted, press the PTT button to
resume the Private call.
receive a picture
When someone sends you a picture, your
phone emits a tone or vibrates and a message
appears asking if you want to accept the
picture.
Pictures you receive are saved to your
phone’s memory. They are accessible
through My Pictures.
When you see a message asking if you want
to accept the picture, press - under Yes to
accept or - under No to decline.
To stop the transmission before it is finished,
press - under Cancel.
Note: The first time you accept a stored
picture after turning the phone on, Picture Fees
May Apply. Continue? appears and you are
prompted to respond. Press - under Yes to
accept the picture.
clear a picture from the display
If you want to remove a picture from your
phone’s display while still on a call, press M
> Clear Screen.
The picture will not appear on the display
again the next time you receive a call from the
person who sent it. This does not delete the
picture from your phone’s My Pictures.
turn PTT picture on and off
You can turn your phone’s ability to send and
receive pictures On and Off.
You cannot turn your phone’s ability to send
and receive My Info and contact information
on and off.
Find it: M > Settings > 2-Way Radio > PTT Picture >
On.
send My Info
1 While in a Private Call press M > Send via
PTT and push the PTT button to send.
or
2 From the home screen press M > My Info
> M > Send via PTT.
main attractions
25
3 Enter the Private ID of the person you
want to send your info to or press under Browse.
automatic sending
To control whether you send your information
automatically:
4 Select a contact number from your Recent
Calls, Contacts or Memo.
Find it: M > My Info > M > Send via PTT Setup >
Auto Send.
5 Push the PTT button to send your
information.
1 Select On or Off.
set my info sending option
You can control what portion of the
information in My Info is sent and whether it is
sent automatically in every call or only when
you choose to send it.
Find it: M > My Info > M > Send via PTT Setup >
Info To Send.
The information your phone sends always
includes My Name and Private. You may also send
Line 1, Line 2, and Carrier IP, depending on your
sending options.
26
main attractions
2 When you make a call in which your
information is sent automatically, the
name you entered in the My Name field of
My Info appears on the display of the
recipient’s phone, even if your name and
Private ID are not stored in the recipient’s
Contacts.
send Contact information
1 While in a Private Call press M > Send
Contact.
2 Press - under Browse.
3 Select a contact number from the Recent
Calls, Contacts or Memo.
4 Push the PTT button to send.
one touch PTT
Find it: M > Settings > 2-Way Radio > One Touch PTT
One Touch PTT sets your phone to do any of
the following each time you push the PTT
button:
option
Off: Nothing happens if you push the PTT
button when the phone is in idle mode.
Last Call: Call the most recent Private ID,
Group or SDG list on the recent calls list.
option
Assigned Number: Call a Private ID you assign.
Enter the number using your keypad, or
press - under Search. Select Contacts, Recent
Calls or Memo.
Note: If you are entering a Talkgroup
number, press # before the number.
quick PTT
Quick PTT lets you quickly access any Private
IDs on your phone so you can make a Private
call, or create an SDG list and make a SDG
call.
To view a list of Contacts and SDG lists with
Private IDs in Contacts:
Find it: M > Quick PTT.
To move between Contacts, Recent Calls, or
Memo, use the
left or right, or press *
OK
main attractions
27
or #.
MMS
make a Private call or SDG call
1 Select the entries you want and press under Done.
Multimedia Messaging Service (MMS) lets
you send and receive messages that may
include text, pictures, and audio recordings.
2 Push the PTT button.
M > Save SDG. For more information about
Depending on your service provider, your
phone may support Text Messages or MMS,
but they both cannot be activated at the same
time.
SDG lists, see on “selective dynamic group
(SDG) calls” on page 54.
create a message
If you want to assign a name to the SDG list,
enter the name.
Shortcut: From the home screen press under Msgs > [Create Message].
Note: If you do not assign a name, the SDG
list is named SDG followed by the number of
members in the SDG list. For example, SDG
(8) for a SDG list with 8 members.
or
To save your selections as a SDG list press
Find it: M > Messages > [Create Message].
You can also create a message from Contacts,
or Recent Calls.
address the message
1 Select To:
28
main attractions
2 Add the phone number or email address.
or
3 Select from Contacts or Recent Calls.
4 Press O.
Tip: To remove a phone number or email
address from the list of message recipients,
scroll to the phone number or email address
and press - under Remove.
When you are finished addressing the
message, press - under Back.
enter or edit the body of the message
1 Select Mesg:.
2 Enter text or use QNotes and press O.
3 Press - under Send.
The following options become available:
option
Subject: Create or edit the subject line.
Attach: Attach a picture, voice record or ring
tone.
Cc: Sends a copy of the message to other
recipients.
Auto Replies: Allows you to create a list of
possible short answers for the recipient to
choose when replying to your message.
Priority: Set priority Normal or High.
Report: Set receipt confirmation On Delivery.
Valid Until: Set a date after which attempts to
deliver the message end, or press - under
No Date.
more message options
View more message fields in a message you
are creating, select ...More...
main attractions
29
reply to a message
You can reply to a message while you are
viewing it, or while a previously viewed
message is highlighted in the message
center. You cannot reply to unread messages.
1 View the message you want to reply to.
2 To reply to the sender only, press under Reply or - under Reply All.
3 A list of short phrases appears. Select any
of these phrases to add it to your
messages or select [Create Reply].
4 Edit any message fields you want to
change.
5 Send the message.
quick notes
When you are filling in the Message and Subject
message fields, you can add ready-made
words or short phrases called Quick Notes.
30
main attractions
After you add these words or phrases, you
can edit them as you would any other text.
1 While you are creating a message, scroll
to or select Message or Subject.
2 Press - under QNotes.
3 Select the Quick Note you want to insert
into the message.
attach pictures, voice
recordings and ring tones
To attach an item while creating a message:
1 Select Attach > [New Attachment].
2 Select My Pictures, VoiceRecord, or Ring Tones.
A list of available pictures, voice records
or ring tones appears.
3 Select the picture, voice recording or ring
tone you want to attach.
Tip: To view or listen to the item before
attaching it, highlight it and press under View or Play.
If you want to attach more items, select
[New Attachment].
4 When you are finished, press - under
Done.
create a new voice record
You can create a new voice record to send
with a message:
The voice record is attached to the message
and saved to the list of voice records.
remove an attachment
To remove an attachment in a message you
are creating:
1 Select Attach.
2 Scroll to the attachment you want to
remove.
3 Press M > Unattach.
1 Press M or select Attach > [New Attachment].
drafts
2 Select VoiceRecord.
While you are creating a message, you can
save it in the Drafts folder before you send it.
3 Say the message you want to record into
the microphone.
4 When you are finished recording,
press O.
5 When you are finished, press Done.
You can view, edit, send, or delete saved
drafts.
save a message in the drafts folder
While composing a message you can press
M > Save In Drafts.
main attractions
31
You can continue to create the message. The
version you saved in the Drafts folder will not
change.
To delete a message in the Drafts folder
without sending it, scroll to the message you
want to delete and select Delete > Yes.
send a draft
Shortcut: From the home screen press under Msgs > Drafts.
sent items
1 Select the draft you want to send.
2 Press M > Send.
edit a draft
Shortcut: From the home screen press under Msgs > Drafts.
MMS messages you have sent or tried to
send are stored in the Sent Items.
forward items from the sent items
Shortcut: From the home screen press under Msgs > Sent Items.
1 Scroll to the message you want to
forward.
1 Select the draft you want to edit.
2 Press M > Forward.
2 Press O.
3 Edit and press - under Send.
delete a draft
When you send a draft, it is removed from the
Drafts folder.
resend
If a message was not sent from your handset,
you can resend it.
32
main attractions
Shortcut: From the home screen press under Msgs > Sent Items.
1 Scroll to the message you want to resend.
2 Press Resend.
Note: If your message was sent successfully,
Resend will not appear as an option.
check delivery status
If a message was successfully sent and you
set the message to give a report confirming
delivery, you can check the delivery status:
Shortcut: From the home screen press under Msgs > Sent Items.
Scroll to the message you want to view and
press O.
delete a message
1 Scroll to the message you want to delete.
2 Press M.
3 Select Delete Message.
4 Press Yes to confirm.
receive a message
When you receive an MMS message, a
message notification appears on the display.
1 To view the message press O.
2 If the message fills more than one screen,
scroll to read it.
embedded objects and
attachments
Messages may contain pictures, or audio
recordings as part of the body of the message
or as attachments.
If a message contains pictures, or audio
recordings in the body of the message,
highlight each picture, or audio recording to
view or play it.
main attractions
33
If a message contains a picture or an audio
recording as an attachment, open the
attachment to view the picture or play the
audio recording.
open attachments
1 View the message.
2 Highlight the attachment you want to
open. Attachments appear at the end of a
message.
3 Press O.
Note: Attachments that are of an unknown
type cannot be opened, but they can be
deleted.
view received messages from
the message center
Shortcut: From the home screen press under Msgs > Inbox.
34
main attractions
Select the message. If the message has not
yet been downloaded from the message
server, it is downloaded now.
delete unread messages
1 Scroll to the message you want to delete.
2 Press Delete.
3 Press Yes to confirm.
lock and unlock messages
Locked messages cannot be deleted until you
unlock them.
1 View the message you want to lock or
unlock.
2 Press M > Lock Message or Unlock Message.
call a number in a message
If a message you receive contains a phone
number, Private ID, or Talkgroup ID in the
From field, the To field, the Cc field, the
subject line, or the body of the message, you
can call or send a call alert to that number.
store message information to
contacts
2 Highlight the Private ID or Talkgroup ID
you want to alert.
If a message you receive contains a phone
number, Private ID, Talkgroup ID, or an email
address in the From field, the To field, the Cc
field, the subject line, or the body of the
message, you can store this information to
Contacts.
3 Press M > Alert.
1 View the message.
4 Push the PTT button.
2 Highlight the number or email address
you want to save.
send a call alert
1 View the message.
make a group call
1 View the message.
2 Press M.
3 Highlight the Talkgroup ID you want to
call.
4 Select Talkgroup.
5 Push the PTT button.
3 Press M > Save Number or Save Email.
4 To store the number or email address as a
new entry, select [New Contact].
To store the number or email address to
an existing entry, select the entry.
5 With the Contacts type field highlighted,
press
left or right to display the
OK
main attractions
35
Contacts type you want to assign the
number or email address.
6 Press - under Done.
go to a website
If a message contains one or more website
URLs, you can go to that website.
1 View the message.
2 Highlight the website URL you want to go
to.
3 Press M > Go To Website.
Note: The entire URL must appear in the
message to allow you to open the
website.
save an embedded picture or
audio recording
To save a picture or audio recording that is
part of the body of a message you receive:
36
main attractions
1 View the message.
2 Highlight the picture or audio recording
you want to save.
3 Press M.
4 Select Save Picture, or Save Audio.
The item will save in the default storage
location.
Note: Some types of pictures, and audio
recordings can be viewed or played, but
not saved.
delete an embedded picture, or
audio recording
To delete a picture, or audio recording that is
part of the body of a message you receive:
1 View the message.
2 Highlight the picture, or audio recording
you want to delete and press M.
3 Select Delete Picture or Delete Audio.
4 Press - under Yes to confirm.
save attachments
message transmission
1 View the message.
After you start to send a message you have
created or start to download a message you
have been sent, you can still stop the
message transmission from being completed:
2 Highlight the attachment you want to
save.
3 Press M > Save Attachment.
Selected items save to the default
storage location.
With the flip is closed, press the smart key on
the top .. Opening or closing the flip does
not interrupt message transmission.
Note: Some types of pictures and audio
recordings can be viewed or played, but
not saved.
delete attachments
1 View the message.
2 Highlight the attachment you want to
delete.
3 Press M > Delete Attachment.
main attractions
37
customize MMS
Find it: M > Messages > M > Setup.
This option is available from many contextsensitive menus when you are using MMS.
The Setup menu lets you customize MMS for
your handset with the following options:
option
Friendly Name: Enter text here to create a
friendly name. Your friendly name is the
name displayed in the From field on other
iDEN handsets when they receive
messages from you.
Signature: Enter text here to create a
signature. Your signature is text that is
automatically inserted at the end of all
messages you create. You can edit the text
before sending the message.
38
main attractions
option
Quick Notes: Lets you create new Quick Notes
and edit or delete Quick Notes you have
created.
Replies: Lets you create new reply phrases
and edit or delete reply phrases you have
created.
Cleanup: Controls how long messages remain
in the Inbox and Sent Items before they are
deleted.
Memory Size: Shows the total amount of Used,
Free:, and total Capacity of the phone’s
memory.
new quick notes and reply
phrases
Note: These Quick Notes are not the same as
the quick notes used with Text messages.
Each messaging service has its own quick
notes feature.
create quick notes
1 From the Setup menu, select Quick Notes or
Replies.
2 Scroll to the Quick Note or reply phrase
you want to delete.
2 Select [New QuickNote] or [New Reply].
4 Press - under Yes to confirm.
3 Enter text from the keypad and press O.
delete all Quick Notes or all reply
phrases you have created
1 From the Setup menu, select Quick Notes or
Replies.
edit quick notes
You can edit only Quick Notes and reply
phrases you have created.
1 From the Setup menu, select Quick Notes or
Replies.
2 Select the Quick Note or reply phrase you
want to edit.
3 Edit the text and press O.
delete only Quick Notes and reply
phrases you have created
1 From the Setup menu, select Quick Notes or
Replies.
3 Press - under Delete.
2 Press M > Delete All.
3 Press - under Yes to confirm.
cleanup options
The cleanup option controls how long
messages remain in the Inbox and Sent Items
before they are deleted. You set the clean-up
option for the Inbox and Sent Items
separately.
The cleanup option deletes only read,
unlocked messages.
main attractions
39
Find it: M > Messages > M > Setup > Cleanup.
1 Select Inbox or Sent Items.
2 Choose a clean up option from the
following list
option
Off: Messages are never automatically
deleted.
5 Messages: If you have more than 5
messages, messages are deleted in the
order they were received, starting with the
oldest, until 5 are left.
10 Messages: If you have more than 10
messages, messages are deleted in the
order they were received, starting with the
oldest, until 10 are left.
With these options, messages are deleted
in the order they were received, starting
with the oldest, until the selected number
are left.
40
main attractions
option
1 Day: Messages are deleted if they are older
than 1 day.
3 Days: Messages are deleted if they are
older than 3 days.
With these options, messages are deleted
when you exit the message center after
setting the option.
Custom: Lets you create a cleanup option of
up to 99 messages or 99 days.
3 Press - under Yes to automatically delete
messages now or press - under No to
delete messages later.
delete all messages
To delete all read, unlocked messages from
the Inbox, all messages in the Drafts folder, or
all successfully sent messages in the Sent
Items:
Find it: M > Messages.
1 Select Inbox, Drafts, or Sent Items.
2 Press M > Delete All.
3 Press - under Yes to confirm.
surveillance profile
When the unit is set to Surveillance
mode, it DOES NOT turn on its backlight,
make sounds or vibrate. This setting is
designed for public safety, the unit will only
ring through an earbud or headset and will
only show an incoming call message on the
screen.
Find it: M > Profiles > Surveillance.
1 Insert the earpiece or headset when
prompted to do so and press O.
Note: Surveillance profile works better
with a Motorola OriginalTM Surveillance
Earpiece for concealed hands-free
operation and high audio quality, sold
separately.
2 The phone is now operating in
surveillance mode.
main attractions
41
basics
See page 1 for a basic phone diagram.
status indicators
display
Status indicators are shown at the top of the
home screen:
The home screen shows when you turn on
the phone. To dial a number from the home
screen, press number keys and O.
1. 2. 3. 4.
5. 6. 7.
Note: Your home screen may look different.
Time &
Date
Left Soft
Key Label
Right Soft
Key Label
Soft key labels - show the current soft key
functions. For soft key locations, see page 1.
42
basics
1 Signal Strength Indicator: Vertical bars
show the strength of the network
connection. You can’t make or receive
calls when 1 or 0 shows.
2 Active Phone Line: 1 indicates phone line
1 is ready to make calls; 2 indicates phone
line 2 is ready to make calls.
text entry
3 Speaker Off: Sounds associated with
Private calls and group calls are set to
come through the earpiece rather than
through the speaker.
Your phone provides convenient ways to
enter words, letters, punctuation, and
numbers whenever you are prompted to
enter text (for example, when adding a
Contacts entry or when using SMS Text
Messaging).
4 Ringer Off: Your phone is set to not ring.
5 Message Indicator: Shows when
you receive a text message.
6 Packet Data: Your handset is ready to
transfer packet data or is transferring
packet data.
Some features let you enter text.
change the character input mode
1 When you see a screen where you can
enter text, press M to change the
character input mode.
7 Battery Charge Indicator: A fuller battery
indicates a greater charge. Recharge the
battery when your phone shows Low
Battery.
basics
43
2 Select one of the following options:
entry modes
Alpha
Press a key several times for
each characters.
Word
Enter words using a predictive
text entering system that lets
you enter a word with fewer
key presses.
Symbols
Enter symbols.
Numeric
Enter numbers by pressing the
numbers on the keypad.
Languages Select the language in which
you want to write the message.
Tip: When entering text, press and hold #
to change letter capitalization (Abc > ABC > abc).
44
basics
word mode
Word English Text Input lets you enter text
into your phone by pressing keys just once
per letter.
Word English Text Input analyzes the letters
you enter using an intuitive word database
and creates a suitable word in the language
you are using to type the message. (The word
may change as you type.)
enter a word using Word Character
Input
1 Select the Word character input mode.
2 Press the corresponding keys once per
letter to enter a word (for example, to
enter the word Bill, press 2 4 5 5).
(If you make a mistake, press - under
Delete to erase a single character. Press
and hold - under Delete to delete an
entire entry.)
automatically advances to the next space
after two seconds or when you enter a
character on a different key.
3 To accept a word and insert a space,
press #.
To accept a word completion (such as
Billion when you entered Bill), press
right.
OK
alpha mode
To enter characters by tapping the keypad:
1 Select the Alpha mode.
2 Press the corresponding keys repeatedly
until the desired letter appears. (For
example, to enter the word Bill, press 2
twice, 4 three times, 5 three times,
and 5 three times again. If you make a
mistake, press Delete or # to erase a
single character. Press and hold Delete to
erase an entire word.)
By default, the first letter of an entry is
capitalized and the following letters are lower
cased. After a character is entered, the cursor
Characters scroll in the following order:
characters
1
.?!,@&:;“-()‘¿ ¡%£ ¥
2
ABC2ÁÃÂÀÇ
3
DEF3ÉÊÈ
4
GHI4ÍÌ
5
JKL5
6
MNO6ÓÕÔÒ
7
PQRS7ß
8
TUV8ÚÜÛÙ
9
WXYZ9
0
+-0*/\[]=><#§
#
Space
*
Back
basics
45
navigation key
Press the navigation key
up, down, left, or
right to scroll to items in
the display. When you
scroll to something,
press O.
Note: The handsfree speaker won’t work
when your phone is connected to a handsfree
car kit or headset.
OK
handsfree speaker
You can use your phone’s handsfree speaker
to make calls without holding the phone to
your ear.
During a call (with the flip open), press under Speaker to turn the handsfree speaker
On.
The handsfree speaker stays on until you
press - under Speaker or close the flip.
46
basics
airplane mode
Note: Consult airline staff about the use of
Airplane Mode during flight. Turn off your
phone whenever instructed to do so by airline
staff.
Airplane mode turns off your phone’s calling
features in situations where wireless phone
use is prohibited. You can use the phone’s
other non-calling features when Airplane
Mode is activated.
Find it: M > Settings > Advanced > Airplane Mode >
On.
features for the hearing
impaired
may need to adjust your hearing aid (HA)
volume setting.
using your phone with a
hearing aid
For best results use the following
optimization procedures and handset setting.
They generally apply as well for users with
cochlear implants:
optimize your handset position and
orientation
While in a phone call slide your phone up and
down, then left and right until best
microphone coupling is obtained. You also
If your HA has a telecoil, activate its switch,
then also rotate the handset as illustrated to
align the telecoils.
Note: Some automatically switched hearing
aids may need an auxiliary switching magnet.
If you are unsure whether your HA is telecoil
equipped or needs an auxiliary magnet,
please refer to your HA user guide or contact
a hearing aid professional or supplier.
basics
47
Approximate telecoil location is within
6 -13 mm of this location.
Off - Shut off
M - Microphone
T - Telecoil
Approximate telecoil location is just
above the battery.
optimize your handset antenna
position
Your phone’s rating for Hearing Aid
compatibility is determined with the antenna
extended if it has an extendable antenna.
However, acceptable use might occur with
the antenna retracted. Test your handset in
both antenna positions when the handset is in
the optimum orientation.
48
basics
choose your hearing aid setting
Find it: M > Settings > Phone Calls > Hearing Aid.
1 Set this option to Microphone. Microphone
coupling is now optimized.
or
2 Set this option to Telecoil. Handset meets
US federal requirements for telecoil
coupling sound.
or
3 Set this option to Off (factory default). This
is the setting for non Hearing Aid users.
calls
To make and answer calls, see page 15.
2 Scroll through the list.
recent calls
store an item to contacts from
recent calls
The recent calls list contains information
associated with calls you have made and
received and call alerts you have received.
When you send or receive Private calls, the
recent call list contains the following PTV
items with those calls:
• Contact information received
• My Info received
• Pictures sent or received.
The recent calls list displays up to 20 of the
most recent calls and call alerts.
Phone calls, Private calls, My Info, or Contacts
entries received from other phones can be
stored to the Contacts list from the Recent Calls list.
Find it: M > Recent Calls.
1 Scroll to or select the item you want to
store.
2 Press - under Save to store the
information as a new entry in the
Contacts list.
or
1 Press M > Recent Calls.
calls
49
3 If Store is not one or your options, press
M > Update Contacts. And select the contact
you want to update.
4 Press - under Save to save your
changes.
2 Enter the number you want to call.
3 Press O.
To permanently block your number, call your
customer service provider.
redial
call forward
To redial your last outgoing call, press and
hold O.
Call forwarding sends calls to the phone
numbers you specify. You can forward all calls
to one number or forward missed calls to
different numbers depending on the reason
you missed the call. You can forward phone
lines 1 and 2 independently.
caller ID
Caller ID allows people to identify a
caller before answering the phone by
displaying the number of the incoming call. If
you do not want your number displayed when
you make a call, just follow these easy steps.
To block your phone number from being
displayed for a specific outgoing call:
1 Press * 6 7.
50
calls
Find it: M > Call Forward.
1 To forward all calls select All Calls and
select To: to enter the phone number you
want all your calls forwarded to.
or
2 You can specify a forwarding number for
each type of missed call by selecting
Detailed and choosing the following options:
If Busy: When your handset is on a call or
transferring data.
If No Answer: When you do not answer on
the first 4 rings.
If Unreachable: When your handset is out of
coverage or powered off.
2 Assign a name, phone number and select
[Options].
3 Select Voice Name and follow the prompt to
record the voice name.
4 Press - under Back and - under Save.
place a call using voice name
With the flip closed or open, press the
speaker key t until you are prompted to
say the voice name.
voice name
The handset will automatically place the call.
You can place calls by speaking commands to
your phone if you have previously assigned a
voice name to your contacts.
emergency calls
assign voice names to contacts
1 Press - under Contcs and select [New
Contact].
Your service provider programs one or more
emergency phone numbers that you can call
under any circumstances, even when your
phone is locked or the SIM card is not
inserted.
calls
51
Note: Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
Emergency phone calls can be made even
when your SIM card is blocked or not in your
phone.
Dial 911 or your local emergency number to
be connected to an emergency response
center. If you are on an active call, you must
end it before making an emergency call.
When you make an emergency call, your
phone’s GPS Enabled feature can help
emergency service personnel find you, if you
are in a location where your phone's GPS
antenna has established a clear view of the
open sky and your local emergency response
center has the equipment to process location
information. Because of the limitations of this
52
calls
feature, always provide your best knowledge
of your location to the emergency response
center when you make an emergency call.
Note: Emergency calls cannot be placed
while the keypad is locked.
Note: If you have not registered on the
network, emergency calls cannot be placed
while your SIM card is in your phone.
international calls
If your phone service includes international
dialing, press and hold 0 to insert your local
international access code (indicated by +).
Then, press the keypad keys to dial the
country code and phone number.
speed dial
voice mail
Each phone number stored in Contacts is
assigned a Speed Dial number, which you can
use to call that number.
Note: To receive voice mail messages, you
must first set up a voice mail account with
your service provider.
1 From the idle screen, use the keypad to
enter the Speed Dial number assigned to
the phone number you want to call.
receive a voice mail message
2 Press #.
3 Press O.
turbo dial
The first nine entries in your contacts are set
for turbo dial. They can be called by pressing
and holding the speed dial number
(1 through 9).
When you receive a voice mail message, New
VoiceMail Message appears on the display.
To call your service provider’s voice mail
system and listen to the message, press under Call.
To dismiss the message notification:
If the flip is closed, press the smart key . on
the top.
If the flip is open, press O, Back, or close the
flip.
If the caller leaves a message, this icon y
appears on the display, reminding you that
you have a new message.
calls
53
selective dynamic
group (SDG) calls
You can use Send via PTT to send SDG
lists to other phones that have this
capability.
A SDG call is similar to a Private call, but is
made to all members of a SDG list at once. A
SDG list is a group of Private IDs that you
create using your phone. A SDG list must
contain at least 2 members and can contain
up to 20 members.
create SDG lists in contacts
You can create a SDG list for one call only or
store it to Contacts so you can call it any time.
Note: In order to store SDG lists to your
phone, you must use a SDG-capable SIM
card. For more information about SDGcapable SIM cards, contact your service
provider. SDG lists created with your phone
are not readable by an older iDEN SIM-based
phone.
54
calls
Shortcut: From the home screen press under Contcs.
1 Select [New SDG List].
Tip: You can also create a SDG list by
selecting [New Contact] and assigning the
SDG contact type. See “store a phone
number or private ID” on page 16.
2 If you want to assign a name to the SDG
list, enter the name.
Note: If you do not assign a name, the
SDG list is named “SDG” followed by the
number of members in the SDG list. For
example, “SDG (8)” for a SDG list with 8
members.
3 Add Private IDs. See “Adding Private
Numbers” below.
4 If you want to create a voice name for the
SDG list, select [Options] > Voice Name. As
directed by the screen prompts, say and
repeat the voice name you want to assign
to the SDG list. Speak clearly into the
microphone.
5 Press - under Save.
add private numbers
You can also enter Private IDs from the
keypad.
add members from Contacts,
the recent calls list, or Memo
1 While creating a SDG list, select [Add
Member] or select [Add Number] and press under Browse.
Tip: To move between Contacts, the
recent calls list, and Memo, scroll
left
or right.
OK
You can add Private IDs to a SDG list by
selecting them from Contacts, the recent
calls list, or memo. You can add all members
in an existing SDG list by selecting the list.
2 Scroll to the members you want from
Contacts, the recent calls list, or Memo,
and press O. A check mark appears next
to each selected member.
You can select more than one member from
Contacts and the recent calls list. A check
mark appears next to each selected item.
Tip: To deselect a selected member, highlight
it and press O.
Tip: To deselect a selected item, highlight it
and press O.
3 Press - under Done.
calls
55
add members manually from
the keypad
1 While creating a SDG list, select [Add
Number].
remove all members from a SDG list
1 From Contacts, scroll to the SDG list you
want to delete the member from.
2 Press - under Edit.
2 Enter the Private number using the
keypad.
3 Press M > Remove All Members.
remove members or SDG lists
delete a SDG list from Contacts
1 Scroll to the SDG list you want to delete.
remove a member from a SDG list
1 From Contacts, scroll to the SDG list you
want to delete the member from.
2 Press - under Edit.
3 Scroll to the member you want to
remove.
4 Press M > Remove Member.
5 Press - under Save.
56
calls
4 Press - under Yes to confirm.
2 Press M > Delete SDG List.
make SDG Calls
1 From Contacts or the recent calls list,
scroll to or select the SDG list you want.
or
Press and hold t until a prompt appears
telling you to say the voice name. Say the
voice name assigned to the SDG list you
want.
or
From the home screen, press the number
on your keypad for the shortcut you
assigned to the SDG list you want.
or
Enter or select a Private ID and add more
Private IDs. “start a SDG call with a
private” below.
2 Push the PTT button.
start a SDG call with a private
You can start a SDG call with any Private ID
you want to call.
From the Contacts list, scroll to an entry
containing the Private ID.
or
From recent calls list, scroll to an entry
containing the Private ID.
2 Press M > Call SDG.
3 Add more Private IDs. See “add private
numbers” on page 55.
If you want to save the SDG list you have
created press M > Store SDG.
or
If you do not want to save the SDG list,
press - under Done.
Note: Choose the first Private ID that you
want in the SDG call:
4 Push the PTT button to make the call.
1 From the home screen, enter the Private
ID.
SDG call Information
or
While you are in a SDG call, the following
appears on the screen:
calls
57
• The name of the SDG list
• The name or the Private ID of the
person speaking
• The number of participants in the SDG
call
SDG Call Details
During a SDG call, you can view details about
the other SDG list members, such as their
name or Private ID, and their status on the
call. To view SDG call details, press - under
Details.
In the SDG Call Details view, these icons
appear next to member names or Private IDs:
T
A
58
The member of the SDG list
who is speaking.
A member of the SDG list who
is active on the SDG call, but not
speaking.
calls
O
U
u
A member of the SDG list who
has exited the call.
A member of the SDG list who
could not be reached on the
SDG call.
A member of the SDG list
whose status is unknown.
MOTOtalkTM
MOTOtalk allows direct two-way phone-tophone communications between two or more
phones equipped for MOTOtalk. You can
make and receive MOTOtalk calls even when
network service is not available. You can talk
to anyone on your code and channel within
your range.
Note: Range will vary based on terrain, manmade structures and atmospheric conditions.
MOTOtalk allows you to use code or private
mode operation, use up to 10 channels and
communicate with standalone MOTOtalk
radios.
Note: MOTOtalk is not compatible with older
Family Radio Services products.
The following features and main menu items
will not be available while in MOTOtalk mode:
• On-network phone calls
• On-network Private calls
• Data transmission
• Incoming message notification
• Musical ring tones
• Call forwarding
• Messages
• Call Timers
• Call alerts
• Voice records
set your phone to MOTOtalk
Find it: M > MOTOtalk > Go To MOTOtalk.
After a few seconds, the MOTOtalk idle screen
appears. The channel you are set to appears
on the first line of the display, the code you
are set to appears on the second line of the
display and MT Ready appears just above the
softkeys.
Note: When switching from the network to
MOTOtalk, the last channel and code that were
set appear on the MOTOtalk idle screen.
While in MOTOtalk, this icon m appears on the
display, indicating that there is no network
signal and MOTOtalk is active.
Phones used in MOTOtalk mode should be a
minimum of 6 feet apart to maximize
performance and improve transmission range.
calls
59
exit MOTOtalk
Find it: M > MT Options > Exit MOTOtalk.
The following message displays: Switching to
Network Please Wait displays. After a few
seconds, the network idle screen appears.
channels and codes
Your phone has 10 channels and 15 codes.
Channels are divided into sets of frequencies
that allow you to make and receive MOTOtalk
calls. Other parties may also be talking on the
same channel.
Codes help minimize interference from
unwanted messages and other disturbances
when you are on the same channel as others.
To have a conversation, all parties must be on
the same channel and code. For private
MOTOtalk calls, the person you are calling
60
calls
must be in MOTOtalk and set to the same
channel to receive your call.
Note: When making a code call, all parties
that are on your code and channel can hear
your conversation.
set a channel
1 From the MOTOtalk idle screen, press - under Edit.
2 Scroll to Channel and press - under Edit.
3 Select a channel number from 1 to 10.
4 When you are finished, press - under
Back to return to the MOTOtalk idle screen.
set a code
1 From the MOTOtalk idle screen, press under Edit.
2 Scroll to Code and press - under Edit.
3 Select a code number from 1 to 15 or one
of the following options:
option
Receive All
Sets your phone to receive MOTOtalk
transmissions from any phone that is set to
the same channel, regardless of the code
(1-15). When you receive transmissions
with the code set to Receive All, the display
changes from Receive All to the code on
which the transmission was received.
Tip: You can reply to an incoming call within
6 seconds after hearing the short ending
beep by pressing the PTT button.
Note: You cannot initiate a code call when
the code is set to Receive All. If you push the
PTT button with the code set to Receive All,
you will receive an error message.
option
Pvt Only
Allows you to have a private conversation
with another person using MOTOtalk.
When on a private MOTOtalk call, no other
parties can hear your conversation. In order
to make a private MOTOtalk Call, you must
use the valid 10-digit Personal Telephone
Number (PTN) of the person you are calling.
The person you are calling must be in
MOTOtalk and set to the same channel to
receive your call.
Note: An error message will occur if you
don’t use a valid PTN, or the person that
you are trying to reach is not in MOTOtalk,
or is set to a different channel or out of
range.
4 When you are finished, press - under
Back to return to the MOTOtalk idle screen.
calls
61
make and receive code calls in
MOTOtalk
Note: An incoming MOTOtalk call can be
terminated at any time by pressing o.
To make a code call in MOTOtalk:
make a private MOTOtalk call
1 Push and hold the PTT button. MT Transmit
appears on the first line of display. Begin
speaking after your phone emits the
MOTOtalk tone.
1 Enter the 10-digit PTN of the person you
want to call on your channel, or press under Contacts and select a contact, or scroll
to a number in the recent calls list.
2 Release the PTT button to listen.
2 Push and hold the PTT button. Begin
speaking after your phone emits the
MOTOtalk tone.
Note: The tone emitted from your phone
when using MOTOtalk is 4 beeps and
sounds different from the standard tone
heard with on-network Private and group
calls.
You could receive an error message if
there are no parties on your channel or
code, or if you are out of range.
When you receive a code call using
MOTOtalk, MT Receive appears on the first line
of the display.
62
calls
3 Release the PTT button to listen.
The number or name of the person you are
calling will appear in the first line of the
display.
receive a private MOTOtalk call
1 The number or name of the person who
initiated the call will appear in the first line
of the display.
2 You can reply within 6 seconds simply by
pushing the PTT button.
end a private MOTOtalk call
A private MOTOtalk call will end if there is no
communication for 6 seconds.
Note: A private MOTOtalk call may be
interrupted during the 6 second idle time by
another code call or private call.
make emergency calls while in
MOTOtalk mode
If you attempt to make an Emergency 911 call
while in MOTOtalk mode, your phone will
automatically exit MOTOtalk mode and
attempt to find a network signal.
You must wait until the phone reconnects to
the network before attempting to make an
emergency 911 cellular call.
setup options
MOTOtalk setup options are available in the
MT Options screen in both network and
MOTOtalk modes.
access Setup Options in network
Find it: M > MOTOtalk > Setup.
access Setup Options in MOTOtalk
Find it: M > MT Options > Setup.
Note: If you are out of network coverage your
phone will not be able to make an emergency
911 cellular call until you go back into the
network coverage area.
calls
63
The following options become available:
option
Direct Launch
Launchs your phone directly into MOTOtalk
when you select MOTOtalk from the Main
Menu. If Direct Launch is set to On, you will not
see MT Options when you select MOTOtalk from
the main menu. In order to have access to
your setup options, Direct Launch must be set
to Off. Or you can access setup options
while in MOTOtalk by pressing m and
selecting MT Options.
State Tone
Notifies you periodically with a tone that
you are in MOTOtalk mode. You can select a
time frame during which you want to be
notified that you are in MOTOtalk mode.
Select from 30 minutes, 1, 2, 3 or 4 hours.
64
calls
customize
volume
ring tones
Press the volume
keys to:
To set the ring tone your phone makes when
you receive phone calls, call alerts, message
notifications, pictures sent using Send via PTT
or Datebook reminders:
• turn off an
incoming call alert
• change the
earpiece volume
during calls
• change the ringer
volume from the
home screen
Tip: You can quickly set your ringer to
VibeAll by pressing and holding the
volume key down in the home screen.
Note: Only ring tones stored in your phone’s
memory are available in the ring tones list.
Not all audio files can be assigned as ring
tones.
Find it: M > Ring Tones.
1 Make sure VibeAll is set to Off.
2 Scroll through the list of ring tones and
select the one you want to assign. Vibrate
sets your phone to vibrate instead of
customize
65
making a sound; Silent sets your phone to
neither vibrate nor make a sound.
Tip: Highlighting a ring tone lets you hear
it.
3 Select the features you want to assign the
ring tone to.
4 When you are finished, press - under
Done.
Note: This icon M appears on the display if
you set your phone to Silent. This icon Q
appears on the display if you set the phone to
VibeAll.
setting your phone to vibrate
You can set your phone to vibrate instead of
making a sound when you receive all phone
calls, Private calls, group calls, SDG calls, call
alerts, messages notifications, pictures sent
using Send via PTT, and Datebook reminders.
Find it: M > Ring Tones > VibeAll > On.
66
customize
Shortcut: To set VibeAll to On using the volume
controls, press the volume controls to turn
down the volume as far as possible to set
VibeAll to On.
To set your phone to vibrate instead of
making a sound for some features but not
others:
1 From the main menu, select Ring Tones.
2 Make sure VibeAll is set to Off.
3 Select Vibrate from the list of ring tones.
4 Select the features you want to set to
vibrate.
5 When you are finished, press - under
Done.
wallpaper
Set a photo or picture as a wallpaper
(background) image in your phone’s home
screen or throughout all menu screens.
Find it: M > Settings > Display/Info > Wallpaper.
To select a wallpaper image scroll through the
list of pictures and press O to select the
picture of your choice.
Note: You can set the wallpaper to change
automatically after a certain period of time by
turning on the Auto Cycle feature located in the
Wallpaper menu.
datebook
Find it: M > Datebook > M > Setup.
You can view or change these options:
option
Start View: Sets Datebook to start in day view,
week view, or month view when you
access Datebook.
Daily Begin: Sets the beginning of your day.
This is the earliest time of day displayed in
week view, if you have a 12-hour day view.
Delete After: Sets the amount of time
Datebook waits to delete an event after it
occurs.
Time Shift: Lets you shift the times of all
Datebook events. This is useful if you are
traveling to a different time zone.
Alert Timeout: Sets the amount of time a tone
continues to sound when you receive a
Datebook reminder.
Clock: Controls whether the time and date
appear on the idle screen; sets time and
date format; sets year.
customize
67
hide or show
location information
Your phone is equipped with a Location
feature for use in connection with locationbased services that may be available in the
future.
The Location feature allows the network to
detect your position. Turning Location off will
hide your location from everyone except 911.
Note: Turning Location on will allow the
network to detect your position using GPS
technology, making some applications and
services easier to use. Turning Location off
will disable the GPS location function for all
purposes except 911, but will not hide your
general location based on the cell site serving
your call. No application or service may use
your location without your request or
permission. GPS-enhanced 911 is not
available in all areas.
68
customize
set your Privacy Options
Find it: M > GPS > Privacy.
Select Restricted to turn your location off.
other features
advanced calling
feature
call waiting
To accept the second
call and put the active
call on hold press - under
Yes.
To accept the second call
and end the active call press
O.
Your phone rings with the
second call for you to
answer.
feature
3-way call
Make or receive a
phone call and press
M > 3 Way. Enter the
second phone number,
press O and - under Join.
Tip: For quick ways to enter
the number, press M to
see the dialing menu.
You cannot make any other
calls after you have joined a
3-way call, even if one party
disconnects.
other features - advanced calling
69
feature
flip
activation
any key
answer
70
contacts
To make your handset to
answer and end calls by
opening and closing the flip
press M > Settings > Phone
Calls > Flip Activation.
Select Flip To Ans > On and Flip
to End > On.
To answer phone calls by
pressing any key on the
keypad press M > Settings >
Phone Calls > Any Key Ans > On.
other features—contacts
feature
edit/delete
contact
entry
Press - under Contacts.
Select a contact and press
- under Edit. Change the
desired content and press
- under Done.
set ringer ID Press - under Contacts.
Select a contact and press
- under Edit > Ringer.
Select desired ringer and
press - under Done.
datebook
feature
create
datebook
events
see datebook
event
GPS
Note: To improve GPS performance:
To create a new Datebook
event press M > Datebook >
[New Event].
To see a calendar event
press M > Datebook. Press
left or right to see the
day and
up or down to
see the events.
When an event reminder
occurs press - under View.
OK
OK
event
reminder
Press - under Back to close
the reminder.
• Stay in the open,
• Extend your phone's antenna
• Move away from other electrical or
electronic devices
• Remain stationary.
• Avoid touching the antenna with your
fingers.
feature
view
To see your approximate
approximate location press M > GPS >
location
Position. Scroll to view the
entire screen.
To recalculate position press
- under Rfrsh. This may
take several minutes.
other features - datebook
71
feature
set GPS
privacy
options
handsfree
To set the level of privacy
for your GPS system press
M > GPS > Privacy.
If your GPS PIN security
feature is enabled, enter
your GPS PIN and select the
privacy option you want.
change GPS Note: When you receive
PIN
your phone, your GPS PIN is
0000.
To change your GPS PIN
press M > Settings > Security
> Change Passwords > GPS PIN.
Enter the current GPS PIN
and enter the new 4- to 8digit GPS PIN. Re-enter the
new 4- to 8-digit GPS PIN to
confirm.
72
other features—handsfree
Note: The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can't concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
feature
speakerphone
To activate the
speakerphone while driving
press and hold the
speakerphone key t or
press - under Speaker.
feature
auto
answer
personalize
To automatically answer
calls when connected to a
car kit or headset press O
> Phone Calls > Auto Ans. Select
the amount of rings before
answering.
pc applications
feature
other PC
For a list of complete PC
applications applications visit
www.motorola.com/iden
feature
language
backlight
time length
menu style
clock
display
Set menu language:
Press M > Settings > Display/
Info > Language
Select how long the display
screen and keypad are
backlit:
Press M > Settings > Display/
Info > Backlight
Show the main menu as
graphic icons or a text-based
list:
Press M > Settings > Display/
Info > Menu View
Press M > Settings > Display/
Info > Clock > On
other features - pc applications
73
TTY
security
feature
turn On TTY From the home screen
feature
press M > Settings > Phone
Calls > TTY > Use TTY > On.
choose TTY From the home screen
mode
press M > Settings > Phone
Calls > TTY > Type.
change the
TTY baud
rate
Select from TTY, VCO or HCO.
From the home screen
press M > Settings > Phone
Calls > TTY > Baud.
Select 45.45 or 50.00
change TTY While in the TTY call, press
mode
M > In Call Setup > TTY > Type.
during a call Select from TTY, VCO or HCO.
feature
phone lock
To lock the phone press M
> Settings > Security > Phone Lock
> Lock Now or Auto Lock.
keypad lock To lock the keypad press M
> Settings > Security > Keypad Lock
> Lock Now or Auto Lock.
enable SIM
PIN
change SIM
PIN
Shortcut: To lock the
keypad press M > *
To enable SIM PIN, press
M > Settings > Security > SIM PIN
> On.
To change the SIM PIN,
press M > Settings > Security >
Change Passwords > SIM PIN.
Note: You can make emergency calls on a
locked phone (see page 51). A locked phone
74
other features—TTY
still rings or vibrates for incoming calls or
messages, but you need to unlock it to
answer.
other features - security
75
76
other features—security
Important Safety and
Legal Information
77
Safety and General Information
This section contains important information on the safe and
efficient operation of your phone. Read this information
before using your integrated multi-service portable radio.*
Safety Information
Exposure to Radio Frequency (RF)
Energy
Your phone contains a transmitter and receiver. When it is ON, it
receives and transmits RF energy. When you communicate with
your phone, the system handling your call controls the power level
at which your phone transmits.
Your Motorola phone is designed to comply with local regulatory
requirements in your country concerning exposure of human beings
to RF energy.
Portable Radio Product Operation and
EME Exposure
Your Motorola radio product is designed to comply with the
following national and international standards and guidelines
regarding exposure of human beings to radio frequency
electromagnetic energy (EME):
78
Safety Information
• United States Federal Communications Commission, Code
of Federal Regulations; 47 CFR part 2 sub-part J.
• American National Standards Institute (ANSI) / Institute of
Electrical and Electronics Engineers (IEEE). C95. 1-1992.
• Institute of Electrical and Electronics Engineers (IEEE).
C95. 1-2005 Edition.*
• International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998.
• Ministry of Health (Canada). Safety Code 6. Limits of
Human Exposure to Radio frequency Electromagnetic
Fields in the Frequency Range from 3 kHz to 300 GHz,
1999.
• Australian Communications Authority Radio
communications (Electromagnetic Radiation - Human
Exposure) Standard 2003.
• ANATEL, Brazil Regulatory Authority, Resolution 303 (July
2, 2002) "Regulation of the limitation of exposure to
* The information provided in this document supersedes
the general safety information in user’s guides
published prior to May 1, 2006
electrical, magnetic, and electromagnetic fields in the
radio frequency range between 9 kHz and 300 GHz."
"Attachment to Resolution 303 from July 2, 2002."
Operational Precautions
To assure optimal radio product performance and to be sure that
human exposure to RF does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions:
Phone Operation
When placing or receiving a phone call, hold your radio product as
you would a wireline telephone. Speak directly into the
microphone.
Two-way radio operation
Your radio product has been designed and tested to comply with
national and international standards and guidelines regarding
human exposure to RF electromagnetic energy, when operated in
the two-way mode (at the face, or at the abdomen when using an
audio accessory) at usage factors of up to 50% talk/50% listen.
Transmit no more than the rated duty factor of 50% of the time. To
transmit (talk), push the PTT button. To receive calls, release the
PTT button. Transmitting 50% of the time or less, is important
because this radio generates measurable RF energy only when
transmitting (in terms of measuring for standards compliance).
When using your radio product as a traditional
two-way radio, hold the radio product in a
vertical position with the microphone one
to two inches (2.5 to 5 cm) away from the
lips.
If you wear a radio product on your body when
transmitting, always place the radio product in a Motorola
approved clip, holder, holster, case or body harness. If you do not
use a body-worn accessory supplied or approved by Motorola and
are not using the radio product in the intended use positions along
side the head in the phone mode or in front of the face in the
two-way radio mode, or if you hang your device from a lanyard
around your neck, keep the device at least 2.5 centimeters (1 inch)
from your body when transmitting.
Approved Accessories
For a list of approved Motorola accessories call 1-800-453-0920, or
visit our website at www.motorola.com/iden.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed or
otherwise configured for RF energy compatibility. In some
circumstances your handset may cause interference with other
devices.
Safety Information
79
Follow Instructions to Avoid Interference
Problems
your wireless phone with your implantable medical device, consult
your health care provider.
Turn OFF your radio product where posted notices instruct you to
do so.
In an aircraft, turn off your radio product whenever instructed to do
so by airline staff. If your radio product offers an airplane mode or
similar feature, consult airline staff about using it in flight.
Hearing Aids
Implantable Medical Devices
If you have an implantable medical devices, such as a pacemaker
or defibrillator, consult your physician before using this radio
product.
Persons with implantable medical devices should observe the
following precautions:
• ALWAYS keep the phone more than 20 centimeters (8
inches) from the implantable medical device when the
phone is turned ON.
• DO NOT carry the phone in a breast pocket;
• Use the ear opposite the implantable medical device to
minimize the potential for interference.
• Turn OFF the phone immediately if you have any reason to
suspect that the interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
80
Safety Information
Some phones may interfere with some hearing aids. In the event of
such interference, you may want to consult your hearing aid
manufacturer or physician to discuss alternatives.
Other Medical Devices and Health Care Facilities
If you use any other personal medical devices, consult your
physician or the manufacturer or your device to determine if it is
adequately shielded from RF energy. Turn off your radio product
when instructed to do so in hospitals or health care facilities that
may be using equipment that is sensitive to external RF energy.
Driving Precautions
Check the laws and regulations on the use of radio products in the
area where you drive. Always obey them.
When using your radio product while driving, please:
• Give full attention to driving and to the road. Using a
phone may be distracting. Discontinue a call if you can’t
concentrate on driving.
• Use hands free operation, if available.
• Pull off the road and park before making or answering a
call if driving conditions so require.
• Do not place a handset in the airbag deployment area.
Responsible driving practices can be found in the “Smart Practices
While Driving” section at the end of this guide and/or at the
Motorola Web site: www.motorola.com/callsmart.
Note: The use of wireless phones while driving may cause
distraction. Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Operational Warnings
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use and Battery Safety”
section in this user’s guide.
Your battery, charger, or portable radio may contain symbols,
defined as follows:
Symbol
032374o
Obey all posted signs when using phones in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted, and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain, dust
or metal powders.
When you are in such area, turn off your handset, and do not
remove, install, or charge batteries unless it is a radio product type
especially qualified for use in such areas as “Intrinsically Safe” (for
example, Factory Mutual, CSA, or UL approved). In such areas,
sparks can occur and cause an explosion or fire.
032376o
032375o
Definition
Important safety information
follows.
Do not dispose of your battery
or phone in a fire.
Your battery or phone may
require recycling in
accordance with local laws.
Contact your local regulatory
authorities for more
information.
Do not throw your battery or
phone in the trash.
Li Ion BATT
032378o
Your phone contains an
internal lithium ion battery.
Safety Information
81
Symbol
Definition
Do not let your battery,
charger, or phone get wet.
Listening at full volume to
music or voice through a
headset may damage your
hearing.
Choking Hazards
Your portable radio or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your device and its accessories away from small children.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your phone.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Glass Parts
Some parts of your phone may be made of glass. This glass could
break if the product is dropped on a hard surface or receives a
substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your phone until the glass is replaced by a
qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
82
Safety Information
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Service & Repairs
If you have questions or need assistance, we’re here to help.
Go to www.motorola.com/iden, where you can select from a
number of customer care options. You can also contact the
Motorola Customer Support Center at 1-800-453-0920 (United
States), 1-877-483-2840 (TTY/TDD United States for hearing
impaired).
Export Law Assurances
Export Law
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Export Law
83
Specific Absorption Rate Data
ALL MODELS WITH FCC ID AZ489FT5844 MEET THE
GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO
WAVES.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted
levels of RF energy for the general population. The guidelines are
based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of
age and health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.1 Tests for SAR are
conducted using standard operating positions reviewed by the FCC
with the phone transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels
so as to use only the power required to reach the network. In
84
Export Law
general, the closer you are to a wireless base station antenna, the
lower the power output.
Before a phone model is available for sale to the public, it must be
tested and certified to the FCC that is does not exceed the limit
established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g.,
at the ear and worn on the body) as required by the FCC for each
model. The highest SAR value for this model phone when tested
for use at the ear is 1.05 W/kg and when tested on the body, as
described in this user guide, is 1.15 W/kg during packet data
transmission. (Body-worn measurements differ among phone
models, depending upon available accessories and FCC
requirements.)2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications Industry Association
(CTIA) web-site at http://www.ctia.org or the Canadian Wireless
Telecommunications Association (CWTA) Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kg (W/kg) averaged over
one gram of tissue. The standard incorporates a substantial margin
of safety to give additional protection for the public and to account
for any variations in measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for
this product.
Export Law
85
Limited Warranty Motorola Communications Products
(International)
What Does this Warranty Cover?
MOTOROLA warrants the MOTOROLA manufactured iDEN
Communication Products listed below (“Product”) against defects
in material and workmanship under normal use and service for a
period of time from the date of purchase as scheduled below:
Products Covered
Length of Coverage
iDEN Suscriber
Digital Mobile and
Portable Units
One (1) year from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Product Accesories
(manufactured by or
under license from
MOTOROLA).
One (1) year from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Batteries.
One (1) year from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
86
Export Law
Rechargeable Batteries will be replaced during the applicable
warranty period if:
• the battery capacity falls below 80% of rated capacity, or
• the battery develops leakage.
MOTOROLA, at its option, will at no charge either repair the
Product (with new or reconditioned parts), replace it (with a new or
reconditioned Product), or refund the purchase price of the Product
during the warranty period provided it is returned in accordance
with the terms of this warranty. Replaced parts or boards are
warranted for the balance of the original applicable warranty
period. All replaced parts of Product shall become the property of
MOTOROLA.
This express limited warranty is extended by MOTOROLA to the
original end user purchaser only and is not assignable or
transferable to any other party. This is the complete warranty for
the Product manufactured by MOTOROLA. MOTOROLA assumes
no obligations or liability for additions or modifications to this
warranty unless made in writing and signed by an officer of
MOTOROLA. Unless made in a separate agreement between
MOTOROLA and the original end user purchaser, MOTOROLA does
not warrant the installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary
equipment not furnished by MOTOROLA which is attached to or
used in connection with the Product, or for operation of the Product
with any ancillary equipment, and all such equipment if expressly
excluded from this warranty. Because each system which may use
the Product is unique, MOTOROLA disclaims liability for range,
coverage, or operation of the system as a whole, or any portion of
the system not produced by MOTOROLA, under this warranty.
General Provisions:
This warranty sets forth the full extent of MOTOROLA’S
responsibilities regarding the Product, Repair, replacement or
refund of the purchase price, at MOTOROLA’S options, is the
exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,
INLCUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY TO
THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. IN NO
EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS
OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF
USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST
PROFITS OR SAVINGS OR OTHER INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH
MAY BE DISCLAIMED BY LAW.
How to Get Warranty Service:
You must provide proof of purchase (bearing the date of purchase
and Product item serial number) in order to receive warranty
service and, also, deliver or send the Product item, transportation
and insurance prepaid, to an authorized warranty service location.
Warranty service will be provided by MOTOROLA through one of
its authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or
communication service provider), it can facilitate your obtaining
warranty service.
What This Warranty Does Not Cover:
• Defects or damage resulting from use of the Product in
other than its normal and customary manner.
• Defects or damage from misuse, accident, water, or
neglect.
• Defects or damage from improper testing, operation,
maintenance, installation, alteration, modification, or
adjustment.
• Breakage or damage to antennas unless caused directly by
defects in material workmanship.
Export Law
87
• A Product subjected to unauthorized Product
modifications, disassembles or repairs (including, without
limitation, the audition to the Product of non-MOTOROLA
supplied equipment).
• Product which has had the serial number removed or made
illegible.
• Rechargeable batteries if:
Any of the seals on the battery enclosure of cells are
broken or show evidence of tampering.
The damage or defect is caused by charging or using the
battery in equipment or service other than the Product for
which it is specified.
• Freight costs to the repair depot.
• A Product which, due to illegal or unauthorized alteration
of the software/firmware in the Product, does not function
in accordance with MOTOROLA’S published specifications
or the local type acceptance labeling in effect for the
Product at the time the Product was initially distributed
from MOTOROLA.
• Scratches or other cosmetic damage to Product surfaces
that does not effect the operation of the Product.
• Normal and customary wear and tear.
• Exclusion for defects or damage arising from use of the
products in connection with non-MOTOROLA equipment.
88
Export Law
Patent and Software Provisions:
MOTOROLA will defend, at its own expense, any suit brought
against the end user purchaser to the extent that it is based on a
claim that the Product or parts infringe a patent, and Motorola will
pay those costs and damages finally awarded against the end user
purchaser in any such suit which are attributable to any such
claim, but such defense and payments are conditioned on the
following:
• That MOTOROLA will be notified promptly in writing by
such purchaser of any notice of such claim;
• That MOTOROLA will have sole control of the defense of
such suit and all negotiations for its settlement or
compromise; and
• Should the Product or parts become, or in MOTOROLA’S
opinion be likely to become, the subject of a claim of
infringement of a patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to procure
for such purchaser the right to continue using the Product
or parts or to replace or modify the same so that it
becomes non-infringing or to grant such purchaser a credit
for the Product or parts as depreciated and accept its
return. The depreciation will be an equal amount per year
over the lifetime of the Product or parts as established by
MOTOROLA.
MOTOROLA will have no liability with respect to any claim of
patent infringement which is based upon the combination of the
Product or parts furnished hereunder with software, apparatus or
devices not furnished by MOTOROLA, nor will MOTOROLA have
any liability for the use of ancillary equipment or software not
furnished by MOTOROLA which is attached to or sued in
connection with the Product or any parts thereof. In no event shall
MOTOROLA be liable for any incidental, special or consequential
damages arising from any claim of patent infringement or alleged
infringement.
Laws in the United States and other countries preserve for
MOTOROLA certain exclusive rights for copyrighted MOTOROLA
software, such as the exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software. MOTOROLA
software may be used in only the Product in which the software
was originally embodied and such software in such Product may
not be replaced, copied, distributed, modified in any way, or used
to produce any derivative thereof. No other use including, without
limitation, alteration, modification, reproduction, distribution, or
reverse engineering of such MOTOROLA software or exercise or
rights in such MOTOROLA software is permitted. No license is
granted by implication, estoppel or otherwise under MOTOROLA
patent rights or copyrights.
Export Law
89
Hearing Aid Compatibility
A number of Motorola phones have been tested for hearing aid
compatibility. When some wireless phones are used with certain
hearing aids, users may detect a noise which can interfere with
the effectiveness of the hearing aid.
Some hearing aids are more “immune” than others to this
interference noise, and phones can also vary in the amount of
interference noise they may generate. ANSI standard C63.19 was
developed to provide a standardized means of measuring both
mobile phone and hearing aids to determine usability rating
categories for both.
Ratings have been developed for mobile phones to assist hearing
aid users find phones that may be compatible with their hearing
aid. Not all phones have been rated for compatibility with hearing
aids. Phones that have been rated have a label with the rating(s)
located on the box, and at www.motorola.com/accessibility.
These ratings are not guarantees of compatibility. Results will vary
depending on the user's hearing aid and individual type and degree
of hearing loss. If a hearing aid is particularly vulnerable to
interference, even a phone with a higher rating may still cause
unacceptable noise levels in the hearing aid Trying out the phone
with your hearing aid is the best way to evaluate it for your
personal needs.
90
Export Law
“M” Rating: Phones rated M3 or M4 meet FCC requirements for
hearing aid compatibility and are likely to generate less
interference to hearing aids than unrated phones. (M4 is the
“better” or higher of the two ratings.) On those models with an
extendable antenna, this rating is determined only with the
antenna extended.
“T” Rating: Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing aid's telecoil (“T Switch” or
“Telephone Switch”) than unrated phones. (T4 is the “better” or
higher of the two ratings.) On those models with a telecoil mode
setting, this rating is determined only with the phone so set. For
setting instructions, see “Features for the Hearing Impaired” in the
section entitled “Advanced Calling Features”. Note that not all
hearing aids have telecoils in them.
Hearing aids may also be measured for immunity to interference
from wireless phones and may have ratings similar to wireless
phones. Ask your hearing health care professional for the rating of
your hearing aid. Add the rating of your hearing aid and your phone
to determine the estimated usability:
• Any combined rating equal to or greater than six offers
excellent use.
• Any combined rating equal to five is considered normal
use.
• Any combined rating equal to four is considered usable.
Thus, if you use an M3 phone with a M3 hearing aid you will have
a combined rating of six for “excellent use.” This methodology
applies equally for T ratings.
More information about hearing aid compatibility may be found at:
www.motorola.com/accessibility, www.fcc.gov, www.fda.gov, and
www.hearingloss.org/learn/cellphonetech.asp
Export Law
91
Information From the World Health Organization
WHO Information
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
Product Registration
Registration
Online Product Registration:
http://direct.motorola.com/hellomoto/
Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
92
WHO Information
exposure by limiting the length of calls or by using hands-free
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information: http://www.who.int./peh-emf
Wireless: The New Recyclable
Recycling
Your wireless phone can be recycled. Recycling your phone
reduces the amount of waste disposed in landfills and allows
recycled materials to be incorporated into new products.
The Cellular Telecommunications Industry Association (CTIA) and
its members encourage consumers to recycle their phones and
have taken steps to promote the collection and environmentally
sound recycling of end-of-life devices.
As a phone user, you have an important role in ensuring that this
device is recycled properly. When it comes time to give this phone
up or trade it in for a new one, please remember that the phone,
the charger, and many of its accessories can be recycled. It's easy.
To learn more about CTIA's Recycling Program for Used Wireless
Devices, please visit us at:
http://recycling.motorola.young-america.com/ index.html
California Perchlorate Label
Perchlorate Label
Some mobile phones use an internal, permanent backup battery on
the printed circuit board that may contain very small amounts of
perchlorate. In such cases, California law requires the following
label:
“Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.”
There is no special handling required by consumer.
Recycling
93
Patent and Trademark Information
Patent and Trademark
MOTOROLA, the Stylized M Logo and all other trademarks
indicated as such herein are trademarks of Motorola, Inc. ® Reg.
U.S. Pat. & Tm. Off. © 2007 Motorola, Inc. All rights reserved.
Microsoft and Microsoft Internet Explorer are registered
trademarks of Microsoft Corporation.
T9 is a trademark owned by Tegic Communications.
T9® Text Input Patent and Trademark Information.
This product is covered by U.S. Pat. 5,818,437, U.S. Pat. 5,953,541,
U.S. Pat. 6,011,554 and other patents pending.
Java and all other Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other
countries.
All other product names or services mentioned in this manual are
the property of their respective trademark owners.
94
Patent and Trademark
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third
party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Privacy and Data Security
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your phone may affect your
privacy or data security, please follow these recommendations to
enhance protection of your information:
• Monitor access: Keep your phone with you and do not
leave it where others may have unmonitored access. Lock
your device’s keypad where this feature is available.
• Keep software up to date: If Motorola or a
software/application vendor releases a patch or software
fix for your phone which updates the device’s security,
install it as soon as possible.
• Erase before recycling: Delete personal information or
data from your phone prior to disposing of it or turning it in
for recycling. For step-by-step instructions on how to
delete all personal information from your device, please
contact your local service provider.
• Understanding AGPS: In order to comply with
emergency caller location requirements of the FCC, certain
Motorola phones incorporate Assisted Global Positioning
System (AGPS) technology. AGPS technology also can be
used in non-emergency applications to track and monitor a
user’s location, for example, to provide driving directions.
Users who prefer not to permit such tracking and
monitoring should avoid using such applications.
If you have further questions regarding how use of your phone may
impact your privacy or data security, please contact Motorola at
[email protected], or contact your service provider.
Privacy and Data Security
95
Smart Practices While Driving
Drive Safe, Call Smart SM
Check the laws and regulations on the use of phones and
their accessories in the areas where you drive. Always
obey them. The use of these devices may be prohibited or
restricted in certain areas. Go to www.motorola.com/callsmart
for more information.
Your phone lets you communicate by voice and data, almost
anywhere, anytime, wherever wireless service is available and
safe conditions allow. When driving a car, driving is your first
responsibility. If you choose to use your phone while driving,
remember the following tips:
• Get to know your Motorola phone and its features
such as speed dial and redial. If available, these
features help you to place your call without taking your
attention off the road.
• When available, use a hands-free
device. If possible, add an additional
layer of convenience to your phone with
one of the many Motorola Original
hands-free accessories available today.
• Position your phone within easy reach. Be able to
access your phone without removing your eyes from the
Driving Safety
96
Driving Safety
•
•
•
•
•
road. If you receive an incoming call at an inconvenient
time, if possible, let your voice mail answer it for you.
Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
Do not take notes or look up phone numbers while
driving. Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility, driving safely.
Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic. If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
Do not engage in stressful or emotional
conversations that may be distracting. Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
Use your phone to call for help. Dial 911 or other local
emergency number in the case of fire, traffic accident, or
medical emergencies.**
• Use your phone to help others in emergencies. If you
see an auto accident, crime in progress, or other serious
emergency where lives are in danger, call 911 or other
local emergency number, as you would want others to do
for you.**
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary. If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
Driving Safety
97
index
A
C
D
accessories 9, 41
active phone line 43
advanced calling 69
3-way calls 69
call waiting 69
airplane mode 46
alert
set 65, 66
turn off 65
answer a call 15
call
answer 15
any key answer 70
end 15
make 15
call forward 50
caller ID 50
Calls
SDG, see SDG calls
center key 46
center select key 9
cleanup options 40
clock 73
contacts 70
edit/delete 70
set ringer ID 70
datebook 71
create events 71
customize 67
see events 71
view reminders 71
dial a phone number 15
dialed calls 49
display 42
Drafts 20
see also text messages,
drafts
B
backlight 73
battery 13, 14
battery indicator 43
98
E
earpiece volume 65
emergency number 51
end a call 15
end key 15
export regulations 83
F
flip 15
flip activation 70
frequently asked questions
service and repairs 83
G
GPS 71
approximate location 71
privacy options 72
GPS enabled
emergency calls 52
GPS, see GPS enabled
handsfree speaker 46
Hearing Aid
using your phone with 47
Hearing Aid Compatibility 90
home screen 42
I
Icons
SDG 58
incoming call message 50
international calls 52
iTAP text entry mode 44
L
language 73
low battery message 43
H
M
handsfree 72
auto answer 73
speaker-phone 72
make a call 15
Memory
text messages 21
menu style 73
Menus
SDG list 54
Message center
text messages 19
message indicator 43
MMS 28
modem
using your handset
as a 22
MOTOtalk
channels 60
codes 60
emergency calls 63
private MOTOtalk calls 62
setup options 63
N
navigation key 9, 46
99
O
R
one touch PTT 27
optional accessory 9, 41
optional feature 9
radio frequency 78
received calls 49
recent calls 49
recycling 93
redial 50
ring style indicator 43
ring style, setting 65
ring tones
off 65, 66
setting 65
vibrate 65, 66
ring tones, setting 65
ringer volume 65
P
packet data 43
PC applications 73
personalize 73
phone number 18
picture ID 50
power key 14
private calls
answer 16
PTV features 23
send My Info 25
send pictures 23
Q
quick PTT 27
100
S
safety
radio frequency 78
RF energy interference 79
safety information 78
safety tips 96
SDG calls
icons 58
lists, adding numbers 55
lists, creating 54
lists, deleting 56
lists, removing
members 56
making 56
making calls 56
starting 57
security 75
Selective Dynamic Group
Calls, see SDG calls
send key 15
set 18
signal strength indicator 42
SIM card 10
change SIM PIN 75
enable SIM PIN 75
soft keys 42
speaker 43
speed dial 53
store your number 18
surveillance profile 41
U
T
V
tap text entry mode 45
text 18
text entry 43
text messages 18
creating 20
deleting 21
drafts 20
memory 21
message center 19
receiving 19
resend messages 21
sending 20
sent messages 21
setting up 18
TTY calls 74
turn on/off 14
using 47
voice mail
receiving 53
setting up 53
voice names 51
voicemail 53
voicemail message
indicator 53
volume 65
W
wallpaper 67
WHO information 92
Y
your phone number 18
101
102
www.motorola.com
NNTN7315A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
