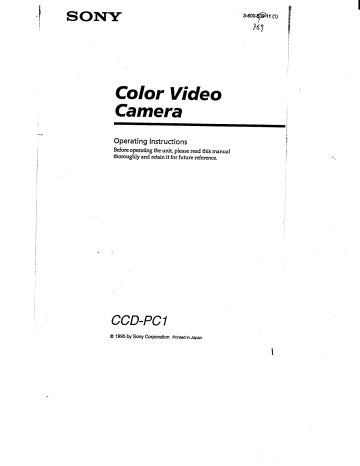

SONY
Color Video
Camera
Operating Instructions
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
CCD-PCT
© 1995 by Sony Corporation Printed in Japan
| 3800-0011 (1)
363
mW er Mw tm
a ol MO I >
mr A A km
A RA AAA RAB a na eA tes
Owner's Record
_ The model number and the serial number are
located on the bottom exterior.
Record the serial number in the space
provided below. Refer to these numbers
whenever you call upon your Sony dealer
regarding this product.
Model No. CCD-PCI
Serial No.
— + == AL A
=
a
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generat<s, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur ina
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference ;
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment
and receiver. |
— Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
— Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
j
+
i
;
04200 a 004 Se
E A
Features
Wide-angle lens and a high resolution CCD imager (270,000 pixels) give you wide views with
high resolution. |
* Compact design and flexible arm enable versatile shooting positions.
* Manual focus allows sharp image from less than half inch (10mm) to infinity.
e Manual iris allows good image in various lighting.
* Rotating camera head allows flexible angle of the picture.
Connections
Connect your Color Video Camera to a personal computer, TV or VCR equipped with an audio/
video input. Some connections may require extra cables. Refer to the instruction manual of the
equipment to be connected.
to $-VIDEO to S-Video input
S-Video cable to Video input EE
to VIDEO (yellow) — (notsupplied) (yellow) р | e
ersonal computer,
+ / = TV or VCR with an
Neue | audio/video input
|
to AUDIO — audio/video cable a Audio input
(black) (supplied) (black)
AC power adaptor * to AC outlet
toDCIN (Supplied) — -
es
If your equipment has an S-Video input
It is recommended to use S-Video cable (not supplied) for the connection of the video signal for
higher picture quality. |
Notes
* You cannot connect this product to a personal computer that is not equipped with a video or
S-Video input. Some computers may require a video capture board and/or sound board and
+ software in order to use this product. For details, consult your computer dealer.
* Use only the supplied AC power adaptor. Do not use any other AC power adaptor.
Polarity of the plug
= TR ER Ee my wn TT
eee ch RAISE
Anat yo
How to use
Adjusting the iris
10 mm Ç/1 in)
You can take a close-up at a distance
of 10mm (7/1 in).
=>
When objects are displayed at an
angle, rotate the camera head so
that the image appears horizontally.
Flexible arm
Power switch
Monaural microphone
Notes
* Do not hold the camera head when
- carrying.
* Do not turn up the volume on the
connected equipment too high. If you do
so, howling may occur or sound may be
distorted.
TNA ES PE me
* Do not apply too much force when turning
the camera head, focus ring or iris ring, Or
the camera may be damaged. |
* Do not apply too much force when bending
the flexible arm, or the flexible arm may be
damaged. о
* When bending the flexible arm, depending
on the angle, the arm may not remain in the
position you want.
ed
E PEI RES
Precautions
* If the light exceeds the illumination range,
the image may not be displayed clearly.
* Do not focus on a stationary object or bright
object for too long, or the color filter may be
damaged. a.
Precaution on copyright
Television programs, pictures, magazines,
and other materials may be copyrighted.
Unauthorized recording or storing of such
materials violates the provision of the
copyright laws.
Maintenance
e Clean the lens with a blower brush to
remove dust. If there are fingerprints on it,
remove them with a soft cloth.
* Clean the Color Video Camera body with a
dry soft cloth, or a soft cloth lightly
moistened with a mild detergent solution.
* Do not use any type of solvent which may
damage the finish.
Troubleshooting
Symptom Remedy
The picture does not appear on» Make sure the connections are made correctly.
the TV or computer screen. * Connect to other equipment for example a TV, to check if the camera is
damaged.
The picture and sound quality e Depending on the computer brand, you may not be able to obtain the
on the computer screen is not same quality of picture as a TV.
good as that on a TV. For more detail, consult your computer retailer.
Strong sound beat occurs. * Turn down the volume of the TV or computer.
7 * Move the camera away from the speaker and change the direction of the
microphone.
rails di hgh a e An Ae a Tg ae ne LE TEE Wet ки
Specifications
System Supplied accessories
Video signal NTSC color, ELA standards AC power adaptor (AC 120V, 60 Hz) (1)
Image device 1/4 inch color CCD (270,000 pixels) Audio/ video cable (1)
Lens f=3.9 mm, F=1.8 Operating instructions (1)
Macro Approx. 7/1 in (10 mm) |
Minimum illumination Design and specificaticne 2=e subject to change
9 lux | without notice.
Illumination range
9 to 10,000 lux
White balance Auto
Iris Manual
Electronic shutter
| 1/60 fixed
Focus adjustment
Manual
a
a
wm TW wo,
General |
Power requirements €
DC 6.0V
Power consumption
18W
Video output 1 Vp-p, 75Q, unbalanced, sync
| negative
S video output 4-pin mini DIN
Audio output Output 327 mV (monaural),
impedance less than 2.2 kQ
Operating temperature
41°F to 104°F (5°C to 40°C)
Storage temperature
~4°F to 140°F (20°C to +60°C)
Dimensions (w x h x d)
Base: approx.3%/sx1%/1sx51/4
wm ym ema Mmm eC a LLL inl
A
Em wy ae pp пл
in (91 x 45 x 132 mm) Do
Camera: approx. 1 x7/e x 27/s in
(25 x 22 x 73 mm)
Arm length: approx. 111/4in (285
mm) ; |
Mass Approx. 11b7 0z (650 g)
Microphone Monaural
DC jack 6.0 V
