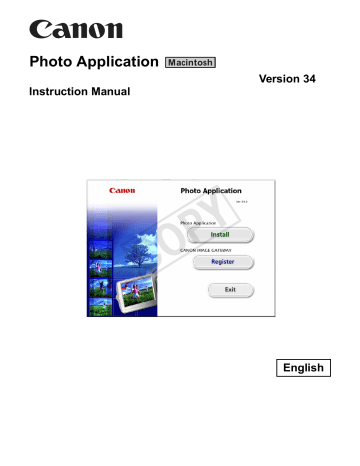

Photo Application
Version 34
Instruction Manual
Y
P
O
C
English
Contents
Read This First ........................................................................................................... 4
Checking Supplied Accessories ............................................................................ 4
System Requirements ............................................................................................... 5
What is Photo Application? ...................................................................................... 6
Windows ..................................................................................................................... 7
CameraWindow ..................................................................................................... 7
[Import Images from Camera] Window ............................................................. 7
[Organize Images on Camera] Window ............................................................ 8
[Import Images from Camera] Window ............................................................. 9
[Organize Images on Camera] Window .......................................................... 10
Browser Window...................................................................................................11
[Image Viewer] Window ....................................................................................... 15
[Trim Image] Window ...................................................................................... 16
[Color/Brightness Adjustment] Window ........................................................... 16
[Red Eye Correction] Window ......................................................................... 17
[Insert Text] Window ........................................................................................ 17
[Level Adjustment] Window ............................................................................. 18
[Tone Curve Adjustment] Window ................................................................... 18
[Sharpness] Window ....................................................................................... 19
[Auto Adjustment] Window .............................................................................. 19
Installing Photo Application.................................................................................... 20
Before Downloading Still Images ........................................................................... 23
Connecting the Camcorder to a Computer .......................................................... 23
Settings on the Camcorder ............................................................................. 23
Connecting the Camcorder ............................................................................. 24
Downloading Still Images........................................................................................ 25
Downloading Still Images to the Computer.......................................................... 26
Downloading Untransferred Images ............................................................... 26
Downloading Selected Images ....................................................................... 27
Downloading All the Images on the Camcorder .............................................. 29
Using a Card Reader/Writer ................................................................................ 30
Auto-downloading ........................................................................................... 31
Applying Auto-downloading Settings .............................................................. 31
Downloading the Selected Still Images from ImageBrowser .......................... 32
Printing Still Images................................................................................................. 34
[Photo Print] .................................................................................................... 34
[Index Print] ..................................................................................................... 36
[Layout Print] ................................................................................................... 38
Organizing Images ................................................................................................... 40
Applying Star Rating ............................................................................................ 40
Specifying the Keywords...................................................................................... 41
Classifying the Images......................................................................................... 42
Sort by the Shooting Date ............................................................................... 42
Sort by the Star Rating .................................................................................... 43
Renaming Multiple Files ...................................................................................... 45
Searching for Images........................................................................................... 46
Exporting Images ..................................................................................................... 48
Changing the File Type and Saving..................................................................... 48
Uploading Still Images to the Camcorder ............................................................ 51
Y
P
O
C
2
Contents
Deleting Still Images on the Camcorder .............................................................. 52
Organizing Images on the Camcorder ............................................................ 52
Using Various Functions ......................................................................................... 53
Attaching Images to E-mail Messages ................................................................ 53
Running a Slide Show ......................................................................................... 55
Adding Sound to a Still Image.............................................................................. 56
Reviewing and Changing the Owner Name of the Camcorder............................ 57
Uninstalling the Software ........................................................................................ 58
Uninstalling ImageBrowser .................................................................................. 58
Troubleshooting ....................................................................................................... 59
Macintosh
Y
P
O
C
Contents
3
Read This First
„ Disclaimer
• While every effort has been made to ensure that the information contained in this
guide is accurate and complete, no liability can be accepted for any errors or
omissions. Canon reserves the right to change the specifications of the hardware
and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in any form, by any means,
without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data
due to mistaken operation or malfunction of the camcorder, the software, memory
cards (SD and SDHC Cards), personal computers, or peripheral devices, or due
to use of a memory card not initialized by a Canon camcorder.
„ Trademark Acknowledgments
• Macintosh, Mac OS and iPhoto are trademarks of Apple Inc., registered in the
U.S. and other countries.
• The SD logo is a trademark. The SDHC logo is a trademark.
• Intel is a trademark or a registered trademark of Intel Corporation or its
subsidiaries in the United States and other countries.
• Other names and products not mentioned above may be registered trademarks
or trademarks of their respective companies.
Y
P
O
C
© Canon Inc. 2010 All rights reserved.
„ Safety Precautions
Do not play the supplied CD-ROM(s) in any CD player that does not support data
CD-ROMs. Playing the CD-ROM(s) in an audio CD player (music player) could
damage the speakers. It is also possible to suffer from hearing loss from listening
with headphones to the loud sounds of a CD-ROM played on a music CD player.
Checking Supplied Accessories
Use the following accessories to download recorded still images from the camcorder
to your computer.
• Supplied USB cable
•
/
/
/
/
/
The cable supplied with your
Instruction Manual/Photo Applications
camcorder may be different from the Ver. 34/Music Data Disc
one described in this manual.
•
/
/
Photo Applications Ver. 34/Music Data
Disc
The explanations in this manual use mainly Mac OS X version 10.5 screen shots.
The steps and windows may vary depending on your computer.
4
Read This First
System Requirements
OS:
Computer Model:
CPU:
RAM:
Interface:
Free Hard Disk Space:



Proper operation is not guaranteed on any particular system, even if it meets
the requirements outlined above.
ImageBrowser can only be used on disks formatted in the Mac OS Extended
(journaled) format.
A CD-ROM drive is required to install the software.
Y
P
O
C
Macintosh
Display:
Mac OS X (v10.4 - v10.6)
Computers that come with above OS preinstalled
PowerPC G4/G5, or Intel processor
Mac OS X v10.6
1 GB or more
Mac OS X v10.4 - v10.5
512 MB or more
USB
Canon Utilities
- ImageBrowser
300 MB or more
1024 × 768 pixels/32,000 colors or better
System Requirements
5
What is Photo Application?
Photo Application allows you to download still images you recorded with the
camcorder to a computer and manage, print, and edit them.
„ ImageBrowser
•
•
•
•
•
•
•
•
•
Viewing still images as thumbnails
Managing by shooting date folders with still images
Categorizing, organizing, and searching large volumes of still images
Printing still images
Editing still images
Changing the data for still images and save them as new files
Attaching still images to e-mail
Viewing still images in a slide show
Adding sound to a still image
„ CameraWindow
• Downloading still images to your computer
• Viewing still images saved on the camcorder and deleting them
This instruction manual explains how to install the software, what you can do with the
main features and how to operate them. For more detailed operational instructions,
refer to the Help menu of each software program.
Y
P
O
C
Your camcorder may not support some features of the software.
6
What is Photo Application?
Windows
CameraWindow
After you connect the camcorder to your computer, you can use CameraWindow to
download still images to the computer. Furthermore, you can delete still images saved
on the camcorder, without having to download them to the computer, and you can
upload still images from the computer to the camcorder (
51). You can also confirm
and change the owner’s name of the camcorder you specify (
57). Refer to
Downloading Still Images to the Computer (
26) for launching the software.


Click the [CameraWindow] icon in the Dock (the bar at the bottom of the
desktop) if the CameraWindow menu screen does not appear.
When the [CameraWindow] icon is not in the Dock, double click the [Canon
Utilities] folder on the drive where the program was installed, followed by the
[CameraWindow] folder and the [CameraWindow] icon.
„ [Import Images from Camera] Window
After you connect the camcorder to your computer, use this window to download still
images to the computer.
Download selected images.
Y
P
O
C
Macintosh
Download only the images not yet imported to the computer.
Download all images.
Windows
7
„ [Organize Images on Camera] Window
Delete still images saved on the camcorder, without having to download them to the
computer, and upload still images from the computer to the camcorder.
Y
P
O
C
8
Windows
„ [Import Images from Camera] Window
Return to the CameraWindow menu screen.
Display the Help menu.
Configure Preferences settings
(camcorder owner's name and download destination, etc.).
Adjust the size of the thumbnails.
Toggle the shooting date/time and file name displays.
Y
P
O
C
Select all still images.
Clear still image selections.
Macintosh
Download images to the computer.
Windows
9
„ [Organize Images on Camera] Window
Return to the CameraWindow menu screen.
Display the Help menu.
Configure Preferences settings
(camcorder owner's name and download destination, etc.).
Adjust the size of the thumbnails.
Toggle the shooting date/time and file name displays.
Y
P
O
C
Upload selected still images to the camcorder.
Delete still images on the camcorder.
10
Windows
Browser Window
ImageBrowser is a software program used for organizing, printing and editing the
downloaded still images. To start ImageBrowser, click the [ImageBrowser] icon in the
Dock. If the ImageBrowser icon is not in the Dock, double-click the [Canon Utilities]
folder on the drive on which the program was installed, followed by the
[ImageBrowser] folder and the [ImageBrowser] icon.
1 Explorer View
3
2
Y
P
O
C
4
5
In the [Last Acquired Images] panel, the newly downloaded still images are placed
into virtual folders classified by recording date. In the panel below, the folders that
the downloaded still images are actually saved in are displayed. Selecting the
[Favorite Folders] tab shows only the folders that are registered as favorites. The
[All Folders] tab shows all available folders.
indicates that newly downloaded
still images are in the folder.
Clicking the triangle symbol besides the folder name displays/hides the folder
contents. To register a folder as Favorites, follow the instructions below.
When you have selected the [Favorite Folders] tab:
Click [Add] and specify a folder.
When you have selected the [All Folders] tab:
Select a folder and click [Add to Favorites].
Macintosh
1
To remove the registered folder, select the folder, and click [Remove].
2 Browser Area
This area displays the images contained in the selected folder.
Windows
11
3 View Mode
You can select a view mode of images in the Browser Area.
[Preview Mode]: The thumbnails are displayed at the bottom of the Browser Area,
and the Information Panel is displayed in the upper part.
Preview Image
Information Panel
Selected Thumbnail
[List Mode]: The images are displayed as thumbnails. The thumbnails can be
enlarged/reduced by selecting [Enlarge] or [Reduce] from the [View] menu.
Y
P
O
C
Context Menu
When you click on a thumbnail while pressing the [control] key on the keyboard,
a context menu will appear. The context menu allows you to select several
functions directly without using the menu bar located on top of the window.
Context menu
12
Windows
[File Information]
When the view mode is set to [List Mode], select [Get Info] from the [File] menu
to display the following window.
You can rename files.
Hides the information display at the right.
Shooting information
Input a comment.
Sets a star rating.
Y
P
O
C
You can switch and view the shooting
information of the next or previous
image by clicking these buttons.
Histogram
Sets a keyword.
Placing a check mark here prevents the image from being overwritten or deleted.
Macintosh
You can play sounds if they are attached to images.
Windows
13
4 Image display control panel
1
2
1 Filter Tool
3
4
Allows you to select which still images to display
according to the star rating. When you download the
images, the star rating is set to two stars as a default. To
change the star rating, refer to Applying Star Rating
(
40).
2
Enlarge/Reduce
Enlarges/Reduces the thumbnails in the Browser Window.
3
Selecting Images
Allows you to select all images and deselects images.
4
Display Pattern
Allows you to change the appearance of the Browser
Window.
5 Control panel
1
1 Canon Camera
14
2
3
4
5
6
Y
P
O
C
Opens CameraWindow.
2
View Image
Displays a selected image in the [Image Viewer] window.
3
SlideShow
Displays still images in a slide show.
4
CANON iMAGE
GATEWAY
Use this to connect to CANON iMAGE GATEWAY.
5
Print & Email
After you download still images to a computer, use this to
print them or to attach them to e-mail messages.
6
Send to Trash
Deletes the selected images.
Windows
[Image Viewer] Window
The [Image Viewer] window appears when you select an image and click [View Image]
or double click an image.
Changes
the star rating.
Changes the
zoom ratio of
the image.
1 Back/Next
2
3
4
5
6
7
8
Displays the previous/next image in the current folder.
Y
P
O
C
2
Save
Allows saving the edited image.
3
Edit
Allows you to perform the following operations: red-eye
correction, auto correct, color and brightness correction,
sharpness adjustment, trimming, inserting text, or
registering external image editing applications. Unable to
use when the multiple images are selected.
4
Number of
Displays
Allows you to display multiple images at the same time.
5
Synchronize
Synchronizes View functions across all displayed images.
6
Full Screen
Displays an image in full screen size. To return to Browser
Window, click the full screen sized image or press any
key.
7
Print
Prints the selected still image. Refer to [Photo Print]
(
34).
8
Show Shooting
Information
The shooting information of the image will be displayed.
[Show AF Frame] cannot be used for the images recorded
by the camcorder.
Windows
Macintosh
1
15
„ [Trim Image] Window
Select [Trim Image] from the
icon located at the bottom of the [Image Viewer]
window. Specify the area in the still image to crop and click [Trim Image] to trim the
image.
„ [Color/Brightness Adjustment] Window
Y
P
O
C
Select [Color/Brightness Adjustment] from the
icon located at the bottom of
the [Image Viewer] window. Use this to change the image’s properties by adjusting
the RGB intensity, saturation and brightness.
16
Windows
„ [Red Eye Correction] Window
Select [Red Eye Correction] from the
icon located at the bottom of the [Image
Viewer] window. Use this to correct still images in which people’s eyes appear red.
„ [Insert Text] Window
Select [Insert Text] from the
icon located at the bottom of the [Image Viewer]
window. Use this to write text on still images.
Macintosh
Y
P
O
C
Windows
17
„ [Level Adjustment] Window
Select [Level Adjustment] from the
icon located at the bottom of the [Image
Viewer] window. Use this to adjust the levels in a still image to change its
appearance.
„ [Tone Curve Adjustment] Window
Select [Tone Curve Adjustment] from the
icon located at the bottom of the
[Image Viewer] window. Use this to adjust the tone curve for a still image to change
its appearance.
18
Windows
Y
P
O
C
„ [Sharpness] Window
Select [Sharpness] from the
icon located at the bottom of the [Image Viewer]
window. Use this to emphasize and clarify the outlines of people and objects.
„ [Auto Adjustment] Window
Select [Auto Adjustment] from the
icon located at the bottom of the [Image
Viewer] window. Use this to automatically correct the color balance of the still
image.
Macintosh
Y
P
O
C
Windows
19
Installing Photo Application
Before you connect the camcorder to the computer with the USB cable for the
first time, you must install Photo Application.
Your digital video camcorder is equipped with the standard Picture Transfer
Protocol (PTP). This protocol enables you to download still images by simply
connecting the camcorder to a computer with the USB cable (using software
such as iPhoto or Image Capture preinstalled on Mac OS X).
However, note that there are several limitations to downloading still images
with this method.
 It may take a few minutes, after connecting the camcorder, until you can
download still images.
 Still images protected on the camcorder may lose this setting once they are
downloaded to the computer.
 When downloading the still images by Image Capture that comes with Mac
OS, the Exif version may change to 2.1 and image information may be
modified. Either install ImageBrowser to download the still images or use the
following procedure.
1) Connect the camcorder to the computer, and start Image Capture.
2) Click [Options].
3) Remove the checkmark from [Embed Colorsync profile] in the
[Download Options] tab and click [OK].
1
2
3
4
20
Y
P
O
C
Close all programs that are running, and check that the
camcorder is not connected to the computer.
Set the
/
/
/
/
/
Instruction Manual/
Photo Applications Ver. 34/Music Data Disc
/
/
Photo Applications Ver. 34/Music Data Disc in the
computer’s CD-ROM drive.
Double click the CD-ROM icon and the [Canon Photo
Application Installer] icon.
Select your country or region.
Installing Photo Application
5
Click [Install] under Photo Application.
Installer Panel
6
Select an installation type and click [Next].
Y
P
O
C
Read the license agreement and click [Agree] to accept the
terms.
If you selected [Custom Installation] in step 6, the [Selecting Items to be
Installed] window will appear. Make sure the settings are correct and then click
[Next].
Installing Photo Application
Macintosh
7
21
8
9
Review the installation settings and click [Next].
When the “Installation has finished.” message appears,
click [Finish].
After the installation is complete, restart the computer as prompted.
Y
P
O
C
10 Remove the
/
/
/
/
/
Instruction
Manual/Photo Applications Ver. 34/Music Data Disc
/
Photo Applications Ver. 34/Music Data Disc
/
When installation is complete, remove the
/
/
/
/
/
Instruction Manual/Photo Applications Ver. 34/Music Data Disc
/
/
Photo Applications Ver. 34/Music Data Disc before you connect
the camcorder to the computer.
22
Installing Photo Application
Before Downloading Still Images
Connecting the Camcorder to a Computer








Be sure to install Photo Application before you connect the camcorder to the
computer.
Make sure the camcorder is being powered using the power adapter before
connecting it to a computer.
Connect the USB cable directly to one of the computer’s main USB ports.
The interface may not function correctly if the camcorder is connected via a
USB hub.
The connection may not operate correctly if you are using other USB
devices, excluding USB mice or keyboards, at the same time. If this occurs,
disconnect the other devices from the computer and try reconnecting the
camcorder.
Do not connect two or more camcorders to the same computer via the USB
interface. The connections may not operate correctly.
Never allow the computer to go into standby (sleep) mode while a
camcorder is connected via the USB interface.
Refer to your computer manual for the location of the computer’s USB ports.
For details about changing settings on the camcorder and connecting the
camcorder to the computer, see the camcorder’s instruction manual.
Y
P
O
C
„ Settings on the Camcorder
Macintosh
Before connecting the camcorder to the computer, change the following camcorder
settings in advance.
• In the still images index screen, select which still images to play back (built-in
memory or memory card).
• In the [SYSTEM SETUP] menu, set [USB SETTING] to one of the following options.
- [PC/PRINTER]:
To simply connect the camcorder to the computer without further operations.
- [CONNECT&SET]:
Select [PC/PRINTER] on the camcorder every time you connect it to a computer.
Before Downloading Still Images
23
„ Connecting the Camcorder
1
2
3
4
Connect the compact power adapter to the camcorder.
If downloading images from a memory card, insert the
memory card into the camcorder.
Set the camcorder to still image playback mode.
Wait until the ACCESS indicator stops flashing.
Attach the supplied USB cable to the computer’s USB port
and the camcorder’s USB Terminal.
USB Cable
USB Terminal
on the Camcorder
Camcorder End
Computer End
USB Port on
the Computer
Y
P
O
C
24
Before Downloading Still Images
Downloading Still Images
Below explains the procedure for connecting a camcorder to a computer using the
USB cable. For connecting a card reader/writer, see Using a Card Reader/Writer
(
30).




You may not be able to download images with ImageBrowser or OS
standard software (depending on the computer you are using and the
installed OS) if the built-in memory or the memory card contains more than
approximately 1000 images. In such case, copy the images in the built-in
memory to a memory card and then use a card reader/writer to download the
images to the computer.
If the built-in memory or the memory card contains a large number of
images, the correct connection to the computer may not be possible. The
maximum number of images depends on the camcorder used, so please
refer to the relevant chapter in your camcorder’s Instruction Manual.
In such case, copy the images from the built-in memory to a memory card
and then use a card reader/writer to transfer the images to the computer.
Observe the following precautions when the camcorder’s access indicator is
flashing. Failure to do so may cause data to become corrupted.
- Do not remove the memory card or detach the USB cable.
- Do not turn off the camcorder or the computer.
- Do not switch between the shooting and playback modes.
The still images you recorded and/or downloaded to the hard disk are
important original data files. Create a copy of the file first before working on it
on your computer.
The memory capacity that appears in the CameraWindows menu screen will
differ from the capacity that appears on the camcorder’s screen.
Y
P
O
C
Macintosh

Downloading Still Images
25
Downloading Still Images to the Computer
You can select a downloading method in the [Import Images from Camera] window.
„ Downloading Untransferred Images
Download only the images not yet imported to the computer.
1
2
3
Connect the camcorder to the computer.
• The CameraWindow menu screen will be displayed. If it does not appear
automatically, click the [CameraWindow] icon in the Dock (the bar at the
bottom of the desktop).
• If you do not want the CameraWindow menu screen to open automatically
when you connect the camcorder, click the [File] menu and clear the check
mark from [Displays this screen when the camera is connected].
Click [Import Images from Camera] in the CameraWindow
menu screen.
Y
P
O
C
Click [Import Untransferred Images].
When the download completion screen appears, click [OK] to close the
CameraWindow screen. The downloaded images will appear in the main
window of ImageBrowser.
26
Downloading Still Images
„ Downloading Selected Images
Download only the images that you select.
2
Click [Import Images from Camera] in the CameraWindow
menu screen.
Click [Select Images to Import].
Y
P
O
C
Macintosh
1
Downloading Still Images
27
3
Select images for download in the [Import Images from
Camera] window, and click the [Import] button.
When the download completion screen appears, click [OK] to close the
CameraWindow screen. The downloaded images will appear in the main
window of ImageBrowser.
Y
P
O
C
28
Downloading Still Images
„ Downloading All the Images on the Camcorder
Download all the images saved on the camcorder.
2
Click [Import Images from Camera] in the CameraWindow
menu screen.
Click [Import All Images].
Y
P
O
C
When the download completion screen appears, click [OK] to close the
CameraWindow screen. The downloaded images will appear in the main
window of ImageBrowser.
Downloading Still Images
Macintosh
1
29
Using a Card Reader/Writer
Select a download method in the image download window.
The basic operations are the same as when you connect the camcorder to the
computer. Follow the procedure below to open the CameraWindow. For instructions
on how to connect the card reader/writer, refer to its manual.
If you are using SDHC cards, you need to use a card reader/writer compatible
with SDHC cards.
1
2
Insert a memory card containing images recorded with the
camcorder into the card reader/writer and connect it to the
computer.
Select a method to download the images.
• [Download Images]: A progress bar will be displayed and images will be
downloaded to the computer, and ImageBrowser starts. To apply autodownloading settings, refer to Applying Auto-downloading Settings (
31).
• [Lets you select and download images]: ImageBrowser opens, displaying the
still images on the memory card as thumbnails (small images).
Y
P
O
C
30
Downloading Still Images
„ Auto-downloading
1
Click [Download Images].
Click [Exit] to close the window after downloading images.
„ Applying Auto-downloading Settings
This task allows you to apply auto-downloading settings. You can specify the types of
still images and the destination folder.
Click [Preferences].
Y
P
O
C
Macintosh
1
Downloading Still Images
31
2
Configure the settings and click [OK].
Y
P
O
C
„ Downloading the Selected Still Images from ImageBrowser
1
32
Click [Lets you select and download images].
Downloading Still Images
Select images you wish to download and click [Download
Images].
• Clicking on 2 images while holding down the [option] + [shift] key selects also
all images between the 2 images.
• Clicking on different images while holding down the [shift] key selects multiple
images.
A blue frame appears
around the selected image.
Y
P
O
C
Macintosh
2
Downloading Still Images
33
Printing Still Images
You can select one of the following 3 methods to print still images.
• [Photo Print]
- Prints one still image per page.
• [Index Print]
- Prints selected images in rows with file names and image information.
• [Layout Print]
- Allows you to lay out the selected still images in special arrangements and add text
and decorations, printing them as one page in a fancy album.
„ [Photo Print]
1
Select the still images you wish to print and click [Print &
Email] [Photo Print] from the displayed menu.
Y
P
O
C
34
Printing Still Images
Specify the print settings and click [Print].
Sets the paper settings.
Selects the printer.
Y
P
O
C
Sets the shooting date/time
imprint and color settings.
Sets the number of print copies
of the displayed image.
Click this button to switch between still images
if multiple images are selected.
Macintosh
2
Printing Still Images
35
3
4
When the print window opens, click [Print].
When the printing finishes, click
to close the window.
„ [Index Print]
1
Select still images you wish to print and click [Print & Email]
[Index Print] from the displayed menu.
Y
P
O
C
36
Printing Still Images
2
Specify the print settings and click [Print].
Sets the paper size and orientation.
Selects the printer.
Click these buttons to switch between pages.
Y
P
O
C
Sets the print settings for shooting information,
comments, headers, footers and page numbers.
Rotates still images.
Sets the number of print copies of the contact sheets.
3
4
When the print window opens, click [Print].
When the printing finishes, click
Macintosh
Sets the number of rows and columns.
Click this to use the trimming
function (crops a portion of
the still image).
to close the window.
Printing Still Images
37
„ [Layout Print]
• You can select one of the following 3 layout print methods.
- [Custom layout printing]:
Allows you to specify the size and location of the still images freely.
- [Fixed photo size printing]:
Allows you to specify the size of the all still images.
- [Tiled photo printing]:
Allows you to have the program lay out and print the specified number of images
per page with no gaps between still images on the page.
• Selecting [Edit] [Add Text] allows you to write some text on a still image. You can
move added text boxes on the still image by dragging them.
• Selecting [Edit] [Edit Header] allows you to insert a header.
1
Select still images you wish to print and click [Print & Email]
[Layout Print].
Y
P
O
C
38
Printing Still Images
3
4
Select a print style from the pull-down menu and click [Print]
after specifying the print settings.
Y
P
O
C
When the print window opens, click [Print].
When the printing finishes, click
to close the window.
Macintosh
2
Printing Still Images
39
Organizing Images
Applying Star Rating
• This task allows you to apply ratings to your images from one star to three stars. The
star rating can be used as one of the search conditions, or for the selection of
images to be displayed in the Browser Window.
• The default setting of the star rating is two stars.
1
2
Select the image to which you wish to apply the Star Rating.
Select [Change Star Rating] from the [Edit] menu.
The default setting of the star rating is two stars.
Y
P
O
C
40
Organizing Images
Specifying the Keywords
You can use keywords when searching for images.
3
Select an image to which you wish to apply the keyword.
Select [Keyword] [Settings] from the [Edit] menu.
Place a check mark next to the keyword you wish to apply
and click [OK].
Y
P
O
C
You can add and delete keywords, or change the keyword list in the [Manage
Keywords] window by selecting [Keyword] [Manage] from the [Edit] menu.
Organizing Images
Macintosh
1
2
41
Classifying the Images
This task allows you to sort images into a folder according to the shooting date or star
rating.
„ Sort by the Shooting Date
1
2
42
Select the images you wish to classify and select [Organize
Image] [Sort Images] from the [File] menu.
Y
P
O
C
Select [The files will be separated into folders for each
shooting date.] and click [Next].
Organizing Images
3
Specify the sort settings and click [OK].
The selected images are classified into the specific folder.
Y
P
O
C
„ Sort by the Star Rating
Select the images you wish to classify and select [Organize
Image] [Sort Images] from the [File] menu.
Macintosh
1
Organizing Images
43
2
3
Select [The files will be organized by Star Rating.] and click
[Next].
Specify the sort settings and click [OK].
Y
P
O
C
44
Organizing Images
Renaming Multiple Files
This task allows you to rename multiple files at the same time, or to rename and copy
multiple files.
2
Select the images you wish to rename and select [Organize
Image] [Rename] from the [File] menu.
Y
P
O
C
Specify the settings and click [OK].
The images are renamed according to the settings specified.
Placing a check mark
here makes copies of
images with new names.
The name of the original
images will not be changed.
Macintosh
1
Organizing Images
45
Searching for Images
This task allows you to search for images by star rating, modification date, shooting
date, comment or keywords.
1
2
3
Select a folder in the explorer view.
Select [Search] from the [File] menu.
• The search results are displayed as thumbnails.
• Select at least one search condition.
• Clicking the
icon discloses the parameters of settings.
Clicking this button allows
you to specify a folder.
46
Y
P
O
C
Specify the search conditions and click [Search Now].
Organizing Images
Click [Finish].
• To change the search parameters and perform another search, click [Back]
and repeat steps 3-4.
• The images of the search result are displayed in the [Search Results] folder.
You can print or copy these images to another folder.
Y
P
O
C
Explorer View
The searched images will remain in this folder until ImageBrowser is closed or
another search is performed, but if you delete an image in this folder, the
corresponding original image will be deleted as well.
Macintosh
4
Organizing Images
47
Exporting Images
Changing the File Type and Saving
This task allows you to change the size, resolution or data of selected still images and
save them as new files and allows saving the shooting properties of the still image to a
text file or copying the still images with new names. Furthermore, you can export still
images for use as a screen saver or a wallpaper.
1
2
48
Select an image you wish to export and [Export Image] from
the [File] menu.
Y
P
O
C
Select exporting type and click [Next].
Exporting Images
3
Specify the export settings and click [Finish].
The window varies depending on the selected export type in step 2.
When you have selected [Edit and Save Image]:
You can convert still images to another file type, resize and save them as new files.
You can select the file type from BMP, PICT, JPEG and TIFF. You can also specify a
prefix to be added to the exported still images.
Y
P
O
C
Macintosh
When you have selected [Export Shooting Properties]:
You can select information you wish to export and save as a text file.
Exporting Images
49
When you have selected [Export as a Screensaver]:
You can export and save the image as a screen saver.
When you have selected [Export an Image as Wallpaper]:
You can export and save the image as a desktop wallpaper. This task cannot be
performed if you have selected multiple images.
Y
P
O
C
50
Exporting Images
Uploading Still Images to the Camcorder
You can copy still images saved on the computer to the camcorder.
2
3
4
Connect the camcorder to the computer (
23).
The still images will be added to the memory selected for the playback of still
images (built-in memory or memory card).
Click [Organize Images on Camera][Organize Images] in
the CameraWindow menu screen.
Click [Upload].
Y
P
O
C
Select the still image you wish to add and click [Open].
You can check the selected image by clicking the file name.
Macintosh
1
• If the camcorder is already connected to the computer and the main window of
ImageBrowser is displayed (immediately after download, for example), you
can start CameraWindow and display the CameraWindow menu screen by
clicking the [Canon Camera] task button.
Exporting Images
51
Deleting Still Images on the Camcorder
„ Organizing Images on the Camcorder
1
2
52
Click [Organize Images on Camera][Organize Images] in
the CameraWindow menu screen.
Click the still image you want to delete, and click [Delete].
Y
P
O
C
• Still images cannot be restored once they are deleted.
Exporting Images
Using Various Functions
Attaching Images to E-mail Messages
You can attach selected images to an e-mail message. If necessary, you can make the
image file size smaller.
3
Select the images you wish to send in the Browser Area.
From the [Internet] menu, select [Create Image for Email].
Specify the image size and click [Finish].
Y
P
O
C
Macintosh
1
2
Using Various Functions
53
• If you select [Using custom settings.], change the settings in [Custom Settings]
and click [OK].
• The image will be saved to the [Email Images] folder in the explorer view
section.
Y
P
O
C
Explorer View



54
Note that some e-mail software may not start automatically. For details, refer
to the Help menu of the OS you are using.
You can also set the e-mail software that starts automatically after the image
is created. To do so, click the [Applications] folder on the drive where the OS
was installed and then double click the [Mail] icon. Next, in Mail preferences,
click [General] and then configure [Default Email Reader].
The images in the [Email Images] folder are saved in the following location:
Open the [Users] folder, followed by [User login name], [Library],
[Preferences], [ImageBrowserUserData], and [Mail].
Using Various Functions
Running a Slide Show
1
From the [View] menu, select [Slide Show Options].
2
Select the slide show settings and click [OK].
• [Auto Play]: Select the interval by sliding the control under [Play Interval] (from
1 to 30 seconds).
• [Control with Mouse or Keypad]: Advances the slide show manually with the
mouse or keyboard.
• [Repeat Continuously]: Runs the slide show in a loop.
• [Hides buttons]: Hides the buttons during the slide show.
• [Transition Effect]: Select the transition effect to be used when moving from
one slide to another. When you select an effect, you can check the effect in
the preview window.
3
Select the images and select [Slide Show] from the [View]
menu.
Click
Macintosh
Y
P
O
C
on the lower right of the screen to end the slide show.
Using Various Functions
55
Adding Sound to a Still Image
• To add sound to still images, use the Mac OS recording function. Depending on the
computer, you may need to connect peripherals such as microphones. Check if your
computer settings allow recording.
• The sound cannot be played back on the camcorder.
1
In the Browser Area, select a still image and select [Sound]
[Record] from the [File] menu.
The recording window appears.
2
3
Click
and start recording when the [Save] button is
enabled.
Y
P
O
C
Click [Save] to stop recording.
•
appears on the still image.
• The sound file will be copied in AIFF type (extension “.aif”) to the same folder
as the still image.
• To play back the sound, select an image with a sound icon and select [Sound]
[Play] from the [File] menu.


56
To remove sound from a still image, select [Sound] [Send to Trash] from
the [File] menu.
disappears and the copied sound file will be deleted.
While playing back the sound, select [Sound] [Pause] or [Stop] to control
the status.
Using Various Functions
Reviewing and Changing the Owner Name of the
Camcorder
You can change and confirm the owner’s name of the camcorder.
4
Connect the camcorder to the computer (
Click [
23).
Preferences] in the CameraWindow menu screen.
Click the [General] tab, and then click the [Connected
Camera] tab.
Y
P
O
C
Click [Edit] and enter the camcorder’s owner’s name and
click [Set][OK].
Input the camcorder’s owner’s name
here (up to 31 characters).
Macintosh
1
2
3
Using Various Functions
57
Uninstalling the Software
Uninstall the software when you wish to delete it from your computer or when
reinstallation is required to fix corrupted files.
Uninstalling ImageBrowser
Move the program’s folder and subfolders into the Trash to uninstall programs such as
ImageBrowser.


If the program folders contain subfolders into which images have been
saved, be careful not to accidentally delete those subfolders.
For more details on how to uninstall ImageBrowser, refer to Read Me.
Y
P
O
C
58
Uninstalling the Software
Troubleshooting
Connection
Camcorder is not recognized when connected to the computer.
Î There is no memory card in the camcorder.
Insert a memory card into the camcorder.
Î The camcorder is not set to the correct mode.
Set the camcorder to still image playback mode.
Î Camcorder is not correctly connected to the computer.
Read Connecting the Camcorder to a Computer (
23) and check the
connection.
Ensure that you are using the correct cable and that its connectors are in good
shape.
Î If you are experiencing operational problems, detach the USB cable from
the camcorder and computer and terminate the connection. Restart the
computer and then reconnect the camcorder.
ImageBrowser Operation
Cannot download still images.
Î The camcorder is not set to the correct mode.
Set the camcorder to still image playback mode.
Image files or folders do not appear in ImageBrowser.
Î Images or folders shown in ImageBrowser and the actual file contents
may be different.
Click the [View] menu and select [Refresh].
Macintosh
Y
P
O
C
Troubleshooting
59
CANON INC.
U.S.A. –––––––––– Canon U.S.A., Inc.
Canon Customer Care Center
Tel (US): 1-800-828-4040
(Mon.-Fri., 9 AM to 8 PM Eastern Time)
CANADA –––––––– Canon CANADA Inc.
Tel (Canada): 1-800-OK-CANON (1-800-652-2666)
ASIA ––––––––––– Canon Hongkong Co., Ltd.
19/F., The Metropolis Tower, 10 Metropolis Drive,
Hunghom, Kowloon, Hong Kong
Tel: 852-3191-2333
Fax: 852-2428-3963
Y
P
O
C
The information in this manual is verified as of 1 January 2010.
DIE-0350-000M
© CANON INC. 2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
