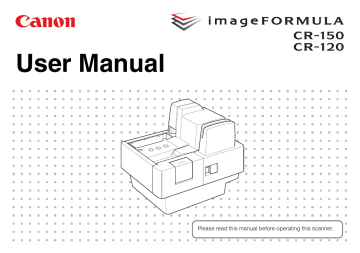

User Manual

Please read this manual before operating this scanner.

FCC REGULATIONS (For 120V model)

Check Reader, Model M112010/M112020/M112030/M112040/M112050/M112060/M112100/M112120

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canon U.S.A. Inc.

One Canon Park, Melville, NY 11747, U.S.A.

Tel. No. (800)652-2666

RADIO INTERFERENCE REGULATIONS (For 120V models)

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the

Industry Canada.

RÈGLEMENT SUR LE BROUILLAGE RADIOÉLECTRIQUE (For

120V models)

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”,

NMB-003 édictée par l’Industrie Canada.

ENERGY STAR

®

Office Equipment Program

This program is for U.S.A and Canada.

As an ENERGY STAR

®

Partner, CANON ELECTRONICS INC. has determined that this machine meets the ENERGY STAR

®

Program guidelines for energy efficiency.

The ENERGY STAR

®

Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment, such as computers, monitors, printers, fax, machine, copiers, and scanners.

The standards and logos are uniform among participating nations.

This model doesn’t provide “setting options” for power management.

European Union (and EEA) only.

This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive (2002/96/EC) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, approved WEEE scheme or your household waste disposal service. For more information regarding return and recycling of WEEE products, please visit www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

Für EMVG

Dieses Produkt ist zum Gebrauch im Wohnbereich, Geschäfts-und Gewerbebereich sowie in

Kleinbetrieben vorgesehen.

Model Names

The following names may be provided for the safety regulations in each sales region of the Check Reader.

CR-150: Model M112010/M112030

CR-150N: Model M112020

CR-120: Model M112040/M112060

CR-120N: Model M112050

CR-120 UV: Model M112100/M112120

2

Trademarks

• Canon and the Canon logo are registered trademarks, of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.

• imageFORMULA is a trademark of CANON ELECTRONICS INC.

• Microsoft, Windows, Windows 7, Windows 8.1 and Windows 10 are registered trademarks or trademarks of Microsoft Corporation in the

United States and other countries.

• Microsoft product screen shot(s) reprinted with permission from

Microsoft Corporation.

• Adobe, Acrobat, and Adobe Reader are registered trademarks or trademarks of Adobe Systems Incorporated in the United States and other countries.

• Other product and company names herein are, or may be, the trademarks of their respective owners.

• Ranger is a trademark of Silver Bullet technology, Inc.

• ISIS is a registered trademark of Open Text in the United States.

Copyright

Copyright 2016 by CANON ELECTRONICS INC. All rights reserved.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of CANON ELECTRONICS INC.

Reproduction Warning

This device is designed to be used in a legal manner, in accordance with all applicable laws, including, but not limited to, counterfeit and copyright laws, as well as laws pertaining to national security.

Any person(s) found to have reproduced any of the following materials (regardless of whether such reproduction was intentional or not) for the purpose of misrepresenting such material as the original may be prosecuted in accordance with the applicable laws and regulations.

• Paper money or bank notes (domestic and foreign)

• Postage stamps, revenue stamps, or other similar stamps

• Stock certificates, bond certificates, promissory notes, cheques, or other valuable certificates

• Passports, licenses, or other certificates or documents issued by government officials or agencies

This is not an exhaustive list.

Canon is not responsible for how this scanner is used by an individual.

Please note that certain intellectual property is protected by copyright law, and copyrighted items may not be reproduced without the express permission of the copyright holder except for personal or household use under limited circumstances.

Disclaimers

The information in this document is subject to change without notice.

CANON ELECTRONICS INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL,

EITHER EXPRESS OR IMPLIED, EXPECT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION,

THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OF USE OR NON-INFRINGEMENT. CANON ELECTRONICS INC. SHALL NOT BE LIABLE FOR

ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR

EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

CANON ELECTRONICS INC. IS NOT LIABLE FOR THE STORAGE AND HANDLING OF DOCUMENTS

SCANNED WITH THIS PRODUCT, OR THE STORAGE AND HANDLING OF THE RESULTING SCANNED

IMAGE DATA.

IF YOU INTEND TO DISCARD THE ORIGINALS OF THE SCANNED DOCUMENTS, YOU ARE

RESPONSIBLE FOR INSPECTING THE SCANNED IMAGES AND VERIFYING THAT THE DATA IS INTACT.

THE MAXIMUM LIABILITY OF CANON ELECTRONICS INC. UNDER THIS WARRANTY IS LIMITED TO THE

PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY.

About Open Source Licenses

This product includes open source software.

For details on the license conditions for each open source software, refer to the OpenSource.txt file stored in the LICENSE folder on the disc.

3

Packaging: What Is in the Box?

Make sure that you have everything shown below. Check every item you have removed from the box. If any items are missing, contact your local authorized Canon dealer.

Disc

AC Adapter

Card Guard Power Cord

*1

CR-150/CR-120

Warranty Card

*2

USB Cable

Setup & Operation Guide

*1 The power cord varies, according to the country of purchase.

*2 For the United States and Canada only.

4

Preparation Before Use

This chapter describes how to prepare the scanner to scan documents.

Setting Up the Scanner

Perform the following steps to set up the CR-150/CR-120. Refer to the section for each step for details about that step.

A

Check your operating environment. (See “Checking Your

Operating Environment” on p. 6.)

B

Install the software. (See “Installing the Software” on p. 7.)

Install the Scanning Utility provided with the CR-150/CR-120.

C

Connect the scanner to a computer. (See “Connecting the Scanner to a Computer” on p. 8.)

D

Turn ON the power. (See “Turning ON the Power” on p. 10.)

E

Automatically installing the device driver. (See p. 10.)

The device driver is installed automatically when Windows recognizes the CR-150/CR-120.

IMPORTANT

To have the device drivers installed automatically when the computer recognizes the CR-150/CR-120, the software needs to be installed before the CR-150/CR-120 is connected to the computer.

If you connect the computer and turn ON the CR-150/CR-120 before installing the software, the following wizard screen appears. If this happens, click [Cancel], turn OFF the CR-150/CR-120, and then install the software.

The following wizard screen is an example in Windows 7. When a similar wizard screen appears in Windows 8.1/10, click [Cancel].

Wizard Screen (Windows 7)

5

Checking Your Operating Environment

The following computer system requirements are recommended for using the CR-150/CR-120.

Operating Systems:

• Microsoft Windows 7 (32/64bit) SP1 or later

• Microsoft Windows 8.1 (32/64bit)

• Microsoft Windows 10 (32/64bit)

• Microsoft Windows Server 2008 R2 Service Pack 1 or later

• Microsoft Windows Server 2012 R2

• Microsoft Windows Server 2016

• Microsoft Windows Server 2019

This is the environment as of December 2018.

For the latest software support information, go to the Products page on the Canon website.

Specifications:

• CPU: Intel Core2 Duo 1.6 GHz or faster

• Memory: 1 GB or more

• USB 2.0 interface

Interface Cable

• Use the cable provided or a Hi-Speed USB 2.0 interface cable to connect to the computer’s USB port.

IMPORTANT

If you use the USB interface that was provided as standard with your computer:

Use the most recently available USB 2.0 driver provided by Microsoft.

Contact your local authorized Canon dealer for more detailed information.

Not all USB interfaces provided as standard with personal computers are guaranteed. Contact your local authorized Canon dealer for more detailed information.

Scanning speeds are slower if your computer’s standard USB interface is USB 1.1.

You should use the USB cable originally bundled with the scanner or a

Hi-Speed USB 2.0 compatible cable.

If the CPU, memory, interface card, and other specifications do not satisfy the installation requirements, the scanning speed may be greatly reduced and transmission may take longer.

Even if the computer satisfies the system requirements, the scanning speed may vary, depending on the specifications and operating environment of the computer and the specified scan settings.

6

Installing the Software

The following software applications are provided on the website.

There are 3 usable software applications.

For the latest software support information, go to the Products page on the Canon website.

ISIS / TWAIN / Canon Driver

The ISIS/TWAIN Driver is the driver conforming to the ISIS/TWAIN standard.

The Canon Driver is the Canon original standard driver. You need this driver to use the Scanning Utility.

Scanning Utility

Canon Scanning Utility is an application that provides scanning, file saving, image viewing, printing, and various other functions. A dedicated scanner driver is installed after you install the utility software.

Ranger

Ranger is an API software. For details, see “About the Ranger” on p. 31.

IMPORTANT

The Scanning Utility includes a device driver so that Windows can recognize the CR-150/CR-120. Be sure to install the Scanning Utility before connecting the CR-150/CR-120 to the computer.

Some functions mentioned in this manual may not be operated in some applications.

Installing the Scanning Utility

Follow the instructions below to install the Scanning Utility and the dedicated driver.

NOTE

The dedicated scanner driver is installed after the Scanning Utility has been installed.

A

Turn ON your computer, and Log On to Windows.

IMPORTANT

Be sure to Log On as the Administrator.

B

Download usable software from the Canon Website.

After executing the downloaded file, follow the instructions on the screen to complete the installation.

IMPORTANT

The displayed screen, type, file name, and folder name will differ depending on your environment or purpose. These items should be replaced as necessary.

The computer may need to be restarted, after the installation, depending on the operating system. If this is necessary, make sure to restart the computer.

7

Connecting the Scanner to a Computer

The way to connect the scanner to your computer is with a USB cable.

CAUTION

Do not turn OFF the scanner or remove the interface cable when an application is running.

Turn OFF the computer and the scanner before changing the cable.

USB Connections

Connect to 1 computer

Connect the scanner and the computer with the USB cable provided or a Hi-Speed USB 2.0 cable.

Type A Plug Type B Plug

Connect the scanner and the computer peripherals

Connect the scanner and the computer peripherals with the USB cable provided or a Hi-Speed USB 2.0 cable.

USB Hub*

Type B Plug

USB Cable

USB Connector

USB Cable

NOTE

Connect the type B plug (square) to the scanner and connect the type A plug

(flat) to the USB port on the computer.

8

Type A Plug

• *This port is not found on certain models.

For details, see p. 23.

• *This USB port can only be used when connected to the network.

• *USB Port (CR-150N/120N only)

The scanner can be connected to a dedicated port of an optional device. Refer to the manual of the optional device for details.

Wired LAN Connection

Ethernet connection (CR-150N/120N only)

Allows the use of this scanner from other computers connected to the network.

Prepare a LAN cable separately.

LAN Port

Connecting the Power Cord

Connect the power cord.

Make sure to use only the power cord provided with the scanner.

NOTE

If connecting to the computer through this scanner confirm if the computer is able to connect to the network.

The settings method and configuration of network devices such as routers vary depending on the environment in which they are being used. Refer to the manual of the network device for details.

WARNING

When connecting the power cord, follow these precautions. Failure to do so may cause a fire or electrical shock.

Never grasp the power plug when your hands are wet.

Never plug the scanner into a multiplug power strip.

Never bundle or tie the power cord around itself or another object.

Connect the power plug securely into the power outlet.

Use only the power cord and power plug provided with the scanner.

Connect only to a power outlet of the rated voltage and power supply frequency (either 100-120 V, 60 Hz or 220-240 V, 50/60 Hz, depending on your region).

Do not plug the scanner into a power outlet shared with another device. If you use an extension cord, make sure that the extension cord is rated for the current requirements of the scanner.

9

Turning ON and OFF the Power

Follow the procedures below to turn the scanner power ON and OFF.

Turning ON the Power

A

To turn ON the scanner, press the Power Button.

B

C

Turn ON your computer.

Windows recognizes the CR-150/CR-120 as new hardware, and installation starts automatically.

(Windows 7)

NOTE

The CR-150/CR-120 will be registered as “CANON CR-150 USB” or “CANON

CR-120 USB” in the Imaging Device directory.

When you turn ON the power, the Power Button flashes slowly and then turns solid blue.

IMPORTANT

If the scanner does not work, or the power LED continues to flash, there is a problem with the scanner. Turn OFF the power, and contact your local authorized Canon dealer or service representative to have the scanner serviced.

WARNING

If you hear strange sounds, detect smoke or abnormal heat, sense a vibration, or smell odd odors around the scanner, turn OFF the power immediately and disconnect the power cord from the power outlet.

Contact your local authorized Canon dealer or service representative to have the scanner serviced.

10

Turning OFF the Power

A

Press and hold the Power Button to turn off the power.

CAUTION

For your safety, disconnect the power plug from the power outlet if you are not using the scanner for a long period of time.

NOTE

The scanner’s auto power off setting is enabled by default, and the scanner will turn off automatically if it is not operated for 4 hours.

For details on how to disable this setting, see “Auto Power OFF

Settings” on p. 54

11

INTRODUCTION

Thank you for purchasing the Canon Check Reader CR-150/CR-120.

Please read this manual thoroughly before using the machine in order to familiarize yourself with its capabilities, and to make the most of its many functions. Unless otherwise noted, CR-150 is used for both the

CR-150 and the CR-150N models, and CR-120 is used for the CR-120,

CR-120N, and the CR-120 UV models, throughout this manual.

Manuals for the CR-150/CR-120

The following manuals are provided with the CR-150/CR-120. Be sure to read these manuals thoroughly before using the scanner. (The Setup

& Operation Guide is extracted from the User Manual.) Electronic manual is stored as a PDF file on the supplied Disc and requires Adobe

Reader to open. (You can download Adobe Reader from the Adobe

Web site.)

Setup & Operation Guide (Supplied with the scanner/Electronic

Manual)

Describes the procedure for setting up the CR-150/CR-120 for scanning. Set up the CR-150/CR-120 in accordance with the Setup &

Operation Guide. For details on the CR-150/CR-120, refer to the

User

Manual

(electronic manual).

User Manual (Electronic Manual): This Manual

Describes how to use the scanner, and includes instructions for configuring the scanner settings, as well as handling, maintenance, and troubleshooting information.

Symbols Used in This Manual

The following symbols are used in this manual to explain procedures, restrictions, handling precautions, and instructions that should be observed for safety.

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons, or damage to property if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly, and avoid damaging the machine.

NOTE

Indicates a clarification of an operation, or contains additional explanations for a procedure. Reading these notes is highly recommended.

12

Table of Contents

Packaging: What Is in the Box? ..................................................... 4

Preparation Before Use ....................................................................... 5

Setting Up the Scanner .................................................................. 5

Checking Your Operating Environment ......................................... 6

Installing the Software.................................................................... 7

Installing the Scanning Utility ................................................... 7

Connecting the Scanner to a Computer......................................... 8

USB Connections ..................................................................... 8

Wired LAN Connection............................................................. 9

Connecting the Power Cord ..................................................... 9

Turning ON and OFF the Power .................................................. 10

Turning ON the Power ........................................................... 10

Turning OFF the Power.......................................................... 11

INTRODUCTION ............................................................................... 12

Manuals for the CR-150/CR-120............................................ 12

Symbols Used in This Manual................................................ 12

Important Safety Instructions ............................................................. 15

Handling ................................................................................. 15

Installation Location ............................................................... 16

Power Supply ......................................................................... 17

Moving the Scanner ............................................................... 18

Introduction to the CR-150/CR-120 ................................................... 19

Features of the CR-150/CR-120 .................................................. 19

Features ................................................................................. 19

Part Names .................................................................................. 21

Front View .............................................................................. 21

13

Rear View............................................................................... 23

Exterior Dimensions ..................................................................... 24

Remove and attach the Eject Stopper ......................................... 24

Preparing the Ink Cartridge .......................................................... 25

About the Ink Cartridge .......................................................... 25

Setting the Ink Cartridge ........................................................ 25

Software............................................................................................. 28

How to Use the Software ............................................................. 28

How to Use the Scanning Utility ............................................. 28

How to Download the Ranger ................................................ 31

Uninstalling the Software ............................................................. 32

Network Settings (CR-150N/120N only) ............................................ 34 imageFORMULA Utility ................................................................ 34

How to confirm the IP address ..................................................... 36

How to import the SSL Server certificate file ............................... 37

WEB MENU ................................................................................. 39

How to import the SSL Server certificate file for WEB MENU...... 43

Document Feeding and Scanning...................................................... 47

Documents ................................................................................... 47

Document ............................................................................... 47

Envelope ................................................................................ 48

Cards (plastic cards) .............................................................. 48

Using Ultrasonic Double Feed Detection ............................... 49

Placing Documents ................................................................ 49

Document Feeding and Scanning................................................ 50

Scan Procedure ..................................................................... 50

Loading cards......................................................................... 52

Magnetic card scanning (Option) ........................................... 53

Separation OFF Mode............................................................ 54

Auto Power OFF Settings ...................................................... 54

Language settings for Magnetic Swipe Reader (MSR):(Option)

56

Troubleshooting ................................................................................. 58

When the Scanner Is Not Recognized ......................................... 58

Network Trouble........................................................................... 58

Clearing Paper Jams ................................................................... 59

Feeding Trouble ........................................................................... 61

When the Scanned Image Is Not Normal .................................... 63

........................................................................................................... 64

Maintenance ...................................................................................... 64

Daily Cleaning .............................................................................. 64

Cleaning the Main Unit ........................................................... 64

Cleaning the Feed Path ......................................................... 64

Cleaning the Scanning Glass and Rollers.............................. 66

Cleaning the Magnetic Head .................................................. 69

Cleaning the Ink Jet Nozzles.................................................. 70

Cleaning with the Cleaning Cards (United States Only) ........ 71

Maintenance ................................................................................ 74

Replacing the Ink Cartridge.................................................... 74

Replacing the Ink Disposal Tank............................................ 75

Replacing the Rollers ............................................................. 77

Adjusting the Separation Roller Gap ...................................... 80

Specifications ............................................................................... 81

Scanner Specifications........................................................... 81

Network Specifications ........................................................... 82

AC Adapter Specifications ..................................................... 82

Replacement parts ................................................................. 82

Option..................................................................................... 83

Index .................................................................................................. 84

14

Important Safety Instructions

Handling

WARNING

Never install and operate the scanner near flammable substances, such as alcohol, paint thinner, benzene, or any other type of volatile solution.

Never damage or modify the power cord, and never place heavy objects on the power cord.

Always make sure that your hands are dry when you are handling the power cord or power plug. Never grasp the power plug when your hands are wet.

Never plug the scanner into a multiplug power strip.

Never bundle, wrap, or tie the power cord around itself or another object. Connect the power plug securely into the power outlet.

Use only the power cord and power plug provided with the scanner.

Never attempt to disassemble or modify the scanner.

Never use flammable aerosol products near the scanner.

Before you clean the scanner, turn the power OFF and disconnect the power cord from the power outlet.

To clean the scanner’s exterior, use a firmly wrung cloth, moistened slightly with water. Never use any type of volatile solution, such as alcohol, benzene or paint thinner.

If you hear strange sounds, detect smoke or abnormal heat, sense vibration, or smell odd odors around the scanner, turn OFF the

Power immediately and disconnect the power cord from the power outlet. Contact your local authorized Canon dealer or service representative to have the scanner serviced.

Handle the scanner with care. Avoid shock and vibration to the scanner caused by reckless handling. If you suspect the scanner has been accidentally damaged, turn OFF the Power immediately and disconnect the power cord from the power outlet. Contact your local authorized Canon dealer or service representative to have the scanner serviced.

Before you move the scanner, always turn OFF the power and disconnect the power cord from the power outlet.

This product emits low level magnetic flux. If you use a cardiac pacemaker and feel abnormalities, please be away from this product and consult your doctor.

CAUTION

To avoid damage to the scanner, never place the scanner on an unstable or vibrating surface. The scanner may tip or fall over, causing injury.

To avoid overheating and causing a fire, never block the air vents on the left side of the scanner.

Keep all liquids, beverages, or any type of liquid, and clips, staples, necklaces, or other metal objects away from the scanner. If you accidentally spill liquid or drop a metal object into the scanner, turn

OFF the power immediately and disconnect the power cord from the power outlet. Contact your local authorized Canon dealer or service representative to have the scanner serviced.

Never install the scanner in humid or dusty locations. Doing so may cause a fire or electrical shock.

Never place heavy objects on top of the scanner, as these objects may tip or fall over, and cause injury.

15

When you remove the power cord, grip it by the power plug head.

Never attempt to disconnect the power cord from the power outlet by pulling on the power cord. Doing so may damage or expose the cord’s internal wiring, and cause a fire or electrical shock.

Keep the area around the power outlet clear of all obstacles so you can disconnect the power cord easily at all times.

Never spill water or volatile solutions (alcohol, benzene, paint thinner) into the scanner. Doing so may cause a fire or electrical shock.

When the scanner is not being used for a long period of time, disconnect the power cord from the power outlet.

Avoid wearing loose fitting clothing, dangling jewelry, long ties, or long hair that could become entangled with moving parts, especially the rollers that feed paper into the scanner. If such objects become entangled, immediately disconnect the power plug from the power outlet to stop the scanner.

Be careful when you are loading a document or clearing a paper jam. It is possible that the paper edges may cut your fingers.

Do not open the Maintenance Cover while the scanner is operating.

Doing so may result in a malfunction or injury.

Do not touch the pins and contacts on the scanner’s connector with your hands. Doing so may result in a malfunction.

Do not touch anything except the operation buttons when documents are being fed.

Do not turn the scanner upside down. The ink may leak from the ink disposal tank.

It is prohibited to run scanning operations near electronic equipment.

Installation Location

100 mm (3.9")

100 mm (3.9")

100 mm (3.9")

100 mm (3.9")

For operation, maintenance, and ventilation, make sure that there is enough space around the scanner, as shown in the illustration above.

Avoid placing the scanner in the following places. It may cause a malfunction and adversely affect the scanner or your computer.

• Places exposed to direct sunlight

If installation in such places is unavoidable, provide a curtain or similar object to shade the scanner.

• Places subject to dust and fumes

Dust and cigarette fumes adversely affect the components inside the scanner.

• Near running water, a heat source, water vapor, or in an area, such as a laboratory exposed to ammonia gas, paint thinner, or other volatile chemicals

• Places subject to excessive vibration and shock

16

• Places subject to rapid changes in temperature or humidity

Condensation occurring inside the scanner may impair image quality. Place the scanner in a room that is within the following range:

Room temperature: 10°C to 32.5°C (50°F to 90.5°F)

Relative humidity: 20% to 80% RH

Use the recommended operating environment for the ink cartridge when using the imprinter.

• Near electronic equipment or heavy equipment that generates a strong magnetic field, such as a speaker, TV, and radio

Power Supply

• Connect only to a power outlet of the rated voltage and power supply frequency (either 100-120 V, 60 Hz or 220-240 V, 50/60 Hz, depending on your region).

• Make sure that the scanner is connected to an independent power outlet. Do not plug the scanner into an outlet shared with another device. If you use an extension cord, make sure that the extension cord is rated for the current requirements of the scanner.

• If you are unsure of anything relating to the power supply, contact your local authorized Canon dealer or service representative for further information.

• Never place an object on top of the power cord or step on the power cord.

• Never bundle the power cord or wrap the cord around an object, such as a table leg.

• Do not tug on the power cord. When you remove the power cord, grip it by the power plug head.

• Keep the area around the power outlet free of obstacles.

• Do not connect to power outlets with other electrical devices. Also, when using an extension cord, make sure that the extension cord is rated for the current requirements of the scanner.

• Disassembling and/or reassembling the AC adapter is extremely dangerous and should not be attempted under any circumstances.

17

• Do not place heavy objects on the AC adapter or power cord. Do not place the adapter or cords in an area where they are likely to be stepped on.

• Do not use the power cord while it is bundled.

• Never pull directly on the power cord. To remove the plug from the outlet, grasp the plug directly and remove it from the outlet.

• Keep the area around the power plug clear of articles so that the power plug can be disconnected in an emergency.

• Use only the AC adapter provided with the product. Do not use the scanner’s AC adapter with any other product.

• If you have any questions about the AC adapter, contact your local authorized Canon dealer or service representative for further information.

Moving the Scanner

When you move the CR-150/CR-120, hold it firmly with both hands and carry it carefully. Do not hold the scanner by the eject stopper or the

Card Guard. The scanner weighs approximately 3.2 kg (7.05 lb) .

WARNING

When moving the scanner, the warnings below should be observed

- Turn off the power of the scanner

- Push the Eject Stopper to be stored and be sure to close the

Document Feed Tray

- Remove the following parts

(Card Guard, the interface cables, and the AC adapter)

18

Introduction to the CR-150/CR-120

This chapter describes the features of the CR-150/CR-120 scanner, what comes packaged in the box, and the names and functions of parts on the scanner.

Features of the CR-150/CR-120

The Canon Check Reader CR-150/CR-120 is a scanner with magnetic heads that can read checks and other documents that are printed with

MICR (Magnetic Ink Character Recognition) compatible fonts, and is capable of OCR (Optical Character Recognition).

Features

High-Speed Scanning (200 dpi Personal Check - 152 x 70 mm (5.98" x 2.76"))

CR-150: 150 cpm

CR-150N: 150 cpm

CR-120: 120 cpm

CR-120N: 120 cpm

CR-120 UV: 120 cpm (UV Scan mode)

Supports Large Documents

Documents up to 108 mm x 245 mm (4.3" x 9.6") can be scanned.

High Durability

The scanner has a high durability of 19 million scans.

Compact Size

Supports Black-and-White (Binary) and Grayscale Output

Reads MICR Characters

A magnetic head is used to scan MICR characters.

Supports OCR (Optical Character Recognition)

Character images, such as E13B, OCR-A, OCR-B, and check writer are recognized as characters by the OCR function.

Supports UV scanning (UV models only)

CR-120 UV can scan images that are printed with UV fluorescent ink.

This function only scans the front side of documents.

Easy to Maintain

Large Maintenance Covers make handling paper jams and cleaning easy.

Separation OFF Mode

You can scan the following documents:

• Thick documents

• Documents that contain two or more pages together as one document

• Documents that have a rough surface

• Duplicate forms that have sticky edges

Paper Thickness Adjustment Mechanism

Adjust the Separation Roller gap to the thickness of the paper being fed.

19

Drop-Out Color

This function enables drop-out scanning of a specific color in the document.

Imprinter Is Standard Equipment

An imprinter mechanism, which prints text (5 lines) or a bitmap on documents as they are scanned, comes standard equipped with the scanner. The imprinter’s ink cartridge is not included, and must be

purchased separately. (See “About the Ink Cartridge,” on p. 25.)

Placing Additional Documents

You can place additional documents while the machine is scanning.

Replaceable rollers and ink disposal tank

You can replace the rollers (Pickup Roller, Feed Roller, and Separation

Roller) and the ink disposal tank.

Dedicated Card Slot

The scanner includes a dedicated slot for scanning plastic cards.

Magnetic Swipe Reader (MSR) (Option)

The scanner includes a dedicated slot for scanning a magnetic card.

20

Part Names

This section describes the names and functions of each part. Before you connect the CR-150/CR-120, familiarize yourself with its parts and their functions.

Front View

Left Maintenance Cover

Open this cover to clear paper jams or to clean the scanner.

Operation Buttons

Power Button

Press this button to turn on the scanner.

Press and hold this button to turn off the power.

Function Button

You can assign this button to any function from an application. When using the accompanying Scanning

Utility for CR-120/CR-150, switches the double feed detection ON/OFF.

Start Button

Starts scanning operations. Press and hold this button during a paper jam to eject the jammed document.

Top Cover

21

Magnetic Swipe Reader (MSR)

(Option)

Right Maintenance Cover

Open this cover to clear paper jams or to clean the scanner.

Separation OFF Mode Button

Use this button when you want to scan in

Separation OFF Mode. (See “Separation

OFF Mode,” on p. 54.)

Scanner Unit

This unit scans the documents.

Built-in Nozzle Cleaning Unit

Eject Pocket

Card Slot

Eject Stopper

Pull out the Eject Stopper to prevent documents from falling off the output tray.

Document Feed/Eject Tray

Document Feeder

Adjustment Dial Cover

22

Ultrasonic Sensor

When this sensor detects overlapping documents and spacing between documents, the scanner judges that double feed occurred.

Magnetic Head for MICR

Reads MICR characters that have been printed with magnetic ink.

Ink Cartridge

Ink cartridge is not included.

Purchase the ink cartridge

separately. (See “About the Ink

Cartridge,” on p. 25.)

Roller Cover

Adjustment Dial

Adjust the Separation Roller gap if feeding errors

occur too frequently. (See “Adjusting the

Separation Roller Gap,” on p. 80.)

Rear View

Ink Disposal Tank Pocket

Rear Card Slot

LAN Port

(CR-150N/120N only)

Used for Ethernet connection.

USB Hub

Connect a Hi-Speed USB 2.0 compatible cable.

This port is not found on certain models.

In the case of bus power, it is capable of supplying up to 250mA per port.

(See “Connect the scanner and the computer peripherals,” on p. 8.)

Air Vent

Power Connector

Connect the power cord provided with the scanner to this connector.

USB Connector (Type B)

Use this connector to connect the scanner to a computer. (See “USB

Connections,” on p. 8.)

USB Port (CR-150N/120N only)

The scanner can be connected to a dedicated port of an optional device.

Refer to the manual of the optional device for details.

CAUTION

To avoid overheating and causing a fire, never block the air vents on the back of the scanner.

23

Exterior Dimensions

Units: millimeters (units in parenthesis are inches)

360.4 mm (14.2") (with the eject stopper open)

298.5 mm (11.8")

238.2 mm (9.4") 56 mm (2.2")

Remove and attach the Eject Stopper

The Eject Stopper can be extended or removed as shown in the figure.

Adjust the stopper in accordance with the document.

If the document exceeds 228 mm

(8.98"), remove the eject stopper.

Press here to remove the stopper.

When scanning is finished, push the Eject Stopper into the joint portion of the stopper to attach.

24

Preparing the Ink Cartridge

This section describes how to prepare the ink cartridge so that you can use the imprinter to print text or a bitmap on scanned documents.

About the Ink Cartridge

The ink cartridge is not included with the scanner. Purchase an ink cartridge separately, as shown below.

Compatible ink cartridges:

Region

North America/

South America

EU

Asia/ Oceania

Canon Ink Cartridge

PG-145/ 145XL, 245/ 245XL

PG-445/ 445XL, 545/ 545XL

PG-645/ 645XL, 745/ 745XL

IMPORTANT

These ink cartridges are available for 5 years after production has stopped.

Setting the Ink Cartridge

The ink cartridge needs to be set to print. Set the ink cartridge according to the following procedure.

IMPORTANT

To set the ink cartridge, turn the scanner OFF before removing the Top

Cover. After the ink cartridge is set, replace the Top Cover, and then turn the scanner back ON.

Finish up the unpacked ink cartridge as soon as possible. More frequent cleaning of the ink cartridge is required if long time elapses after unpacking.

25

A

Remove the Top Cover.

B

When you open the Nozzle Cleaning Unit, and you can see the cartridge holder.

C

Remove the ink cartridge from its bag.

Ink Jet Nozzle

Tag

Contacts

IMPORTANT

Do not touch the ink cartridge contacts. This can cause a bad electrical contact and reduced print quality.

D

Grasp the tag and then peel off the tape covering the ink jet nozzle.

E

Place the ink cartridge shown in the diagram below.

IMPORTANT

Do not touch the ink jet nozzle or contacts after peeling off the tag and tape.

CAUTION

Do not touch the electrical contact on the carriage. Doing so may cause a malfunction.

NOTE

Do not use more than one cartridge by rotation. If you do so, applications cannot check the ink level precisely.

26

F

Push the ink cartridge in the direction of the arrow until it clicks into place.

IMPORTANT

Make sure that the ink cartridge is securely in place.

G

Close the Nozzle cleaning Unit.

H

Carefully replace the Top Cover.

27

Software

This chapter describes how to use the Scanning Utility and the Ranger.

How to Use the Software

This section describes how to start up the Scanning Utility so that you can use the scanner. Read the Help files for the Scanning Utility for information on how to use it.

How to Use the Scanning Utility

This section describes the procedure for using the Scanning Utility.

Read the [Help] file in [Scanning Utility] for more information.

Start the Scanning Utility

A

Click the Start button, and then click [All Programs].

The procedure in Windows 8.1/10 is different from the ones described in this manual. Refer to the Windows 8.1/10 “Help and

Support Center” to select [Run].

B

Click [Scanning Utility for CR-120&150].

C

Start the Scanning Utility.

28

NOTE

The basic operation of the Scanning Utility is noted in the Scanning Utility help file. On the [Help] menu, click [Help] to view the explanation.

IMPORTANT

Confirm that your scanner is correctly connected to the computer, and that the scanner and computer are both turned on.

B

Select a connection method.

Select Scanner

A

Select [Select Scanner] from the [File] menu.

The Select Scanner dialog box appears.

29

[Auto]

Searches for a scanner and connects to the first scanner found.

[Specified scanner]

Searches for scanners and displays them on a list.

[IP Address]

Specifies the IP address of the scanner to be used. Input the IP address in the dialog box.

C

Click the OK button.

The Select Scanner dialog box closes and scanner selection is complete.

Scanning Methods

A

Select [Scanner Setting] from the [File] menu.

NOTE

For information about the settings for the scan conditions, click [Help] on the

Settings dialog box to open the Help file.

C

Select the scanning method from the [File] menu and start scanning.

The Settings dialog box appears.

B

Set the scan conditions and click [OK].

30

D

When scanning is finished, click [Exit] on the [File] menu to quit the Scanning Utility.

How to Download the Ranger

About the Ranger

Silver Bullet Technology’s Ranger

Transport API software, allowing it to be easily integrated into existing systems or be mixed and matched with a wide range of leading check processing software.

A

Turn ON your computer, and start Windows.

IMPORTANT

Be sure to Log On as the administrator.

B

Download usable software from the Canon Website.

After executing the downloaded file, follow the instructions on the screen to complete the installation.

IMPORTANT

The displayed screen, type, file name, and folder name will differ depending on your environment or purpose. These items should be replaced as necessary.

The computer may need to be restarted, after the installation, depending on the operating system. If this is necessary, make sure to restart the computer.

31

Uninstalling the Software

This section describes how to uninstall the Scanning Utility and the

Ranger.

IMPORTANT

Be sure to Log On as the Administrator.

The procedure in Windows 8.1/10 is different from the ones described in this manual. Refer to the Windows 8.1/10 “Help and Support Center” to uninstall the software.

A

Click the Start button, and then click [Control Panel].

B

Click [Uninstall a program].

The [Programs and Features] dialog box appears.

C

Select the software that you want to remove from the list in the dialog box, and then click [Uninstall].

32

NOTE

When the [User Account Control] dialog box appears, click [Continue].

IMPORTANT

If you uninstall the “Scanning Utility for CR-120/CR-150” you also need to uninstall the “Canon Driver for CR-120/CR-150.”

If you uninstall the Ranger, select the “Ranger for CR-120/CR-150.”

D

The Confirm File Deletion dialog box appears.

If you selected “Canon Driver for CR-120/CR-150,” the above dialog box appears.

E

Click [Yes], and the uninstaller starts.

Follow the instructions on the screen to finish uninstalling the software.

33

Network Settings (CR-150N/120N only)

Network settings can be configured in the settings screen of this scanner.

NOTE

[IP Address]

This is an identifier assigned to each computer, network device, and other devices that are connected to the network.

[DHCP]

Automatically assigns an IP address to a computer connecting to the network.

[Subnet Mask]

The value specifies the range of the network.

[Default Gateway]

The address of the device required to send data to an IP address on a different network.

[MAC Address]

A unique fixed number (physical address) assigned to all network devices (hardware).

A

Click the Start button, and then click [All Programs], [Canon

CR-150] or [Canon CR-120], and [Canon imageFORMULA

Utility].

imageFORMULA Utility starts.

B

Click [CANON CR-150 (or CR-120) USB] and click

[Properties].

Scanner properties are displayed.

imageFORMULA Utility

The imageFORMULA Utility network settings are displayed when the scanner and the computer are connected via USB.

IMPORTANT

Log On to Windows as an Administrator.

34

[Scanner Name]

Set an original name for the scanner so that it can be correctly identified on the network.

NOTE

• Scanner Name must be 1 to 15 characters in length.

The following arbitrary characters can be entered.

Numerals: 0 to 9*

Alphabetic characters: A to Z , a to z and hyphen (-) *

* The scanner name must start with 'a-z' or 'A-Z' and cannot end with '-'

• When searching for scanners on the network to select a scanner with

Scanning Utility, the Scanner Name is displayed here. For details,

see “How to Use the Scanning Utility” on p. 28

[Password Setting]

Set the admin password for logging into WEB MENU.

NOTE

Password must be 0 to 32 characters in length using alphanumeric characters and symbols.

[IP Address]

Set the IP address of the scanner.

[DHCP]

If DHCP is checked, the IP address is assigned automatically.

NOTE

If DHCP is checked, the automatically assigned IP address is displayed in the IP address field.

If DHCP is not checked, you can input and configure the IP address,

Subnet Mask, and Default Gateway.

[Subnet Mask]

Set the Subnet Mask of the scanner.

[Default Gateway]

Set the Default Gateway of the scanner.

[MAC Address]

A unique fixed number (physical address) assigned to all network devices (hardware).

[MAC Address Filtering]

Up to 5 computers can be registered when limiting the number of computers which can control the scanner.

[Use mDNS]

Checking this (ON) allows the scanner to be found when searching for devices on the network using "Scanning Utility".

NOTE

If not checked (OFF), enter the IP address of the scanner when selecting a scanner in Scanning Utility.

Network settings can be configured in the settings screen of this scanner.

[Import Certificate]

Import the SSL server certificate to the scanner.

[Initialize]

The scanner's network settings are reset to initial values

(factory default).

35

NOTE

The initial values of the items related to Network Settings in Scanner

[Properties] is as follows.

Scanner Name

Password Setting

IP Address

DHCP

Subnet Mask

Default Gateway

MAC Address Filtering

Use mDNS

The first two characters are displayed as

"CR" and the "CR" is followed by "MAC

Address".

EX. CR112233445566

"112233445566" is the examples of MAC

Address.

canoncr150

---

ON

---

---

OFF

ON

How to confirm the IP address

The imageFORMULA Utility network settings are displayed when the scanner and the computer are connected via USB.

IMPORTANT

Log On to Windows as an Administrator.

A

Click the Start button, and then click [All Programs], [Canon

CR-150] or [Canon CR-120], and [Canon imageFORMULA

Utility].

imageFORMULA Utility starts.

36

B

Click [CANON CR-150 (or CR-120) USB] and click

[Properties].

Scanner properties are displayed.

How to import the SSL Server certificate file

You can import the SSL server certificate to the scanner.

A

Click [Import Certificate].

C

The IP address can be confirmed in the IP address field.

NOTE

If a Warning dialog is displayed, click [Yes].

37

B

When the [Import Certificate] screen is displayed click

[Browse].

D

Enter the password.

C

The Import screen will display.

Select the SSL server certificate file (xxxx.pfx) from the displayed list, and then click [Open].

NOTE

Password must be 1 to 128 characters in length.

IMPORTANT

Make sure that the correct values for [Server certificate file] and

[Password setting] are entered.

E

Click [Import].

The import of the SSL server certificate to the scanner will start.

NOTE

Only SSL server certificate files in .pfx format can be used.

38

IMPORTANT

Import will not start if there are incorrect values in [Server certificate file] and [Password setting].

If an error message is displayed, confirm if the correct certificate file and file format for [Server certificate file] are selected, and then click [Import] again.

F

After the SSL server certificate is successfully uploaded to the scanner, the scanner will automatically restart.

WEB MENU

Network settings can be viewed and changed by connecting to the scanner's "WEB MENU" Network Settings Screen.

How to open the WEB MENU and Log On

A

Access the "WEB MENU" website from the browser screen.

URL: http://xxx.xxx.xxx.xxx

(<xxx.xxx.xxx.xxx> indicates an IP address.)

NOTE

For details on how to check the IP address of the scanner, see “How to confirm the IP address” on p. 36.

B

When the [Login] screen is displayed, enter the admin password and click [Login].

NOTE

For details on the admin password, see “imageFORMULA Utility

[Password Setting]” on p. 35.

C

The Home screen is displayed.

[Scanner Name Setting]

[Scanner Name Setting] screen is displayed.

[Network Setting]

[Network Setting] screen is displayed.

[mDNS Setting]

[mDNS Setting] screen is displayed.

[MAC Address Filtering]

[MAC Address Filtering] screen is displayed.

[Password Setting]

[ Password Setting ] screen is displayed.

39

[Maintenance Setting]

[Maintenance Setting] screen is displayed.

[Scanner Name Setting]

A

• When searching for scanners on the network to select a scanner with

Scanning Utility, the Scanner Name is displayed here. For details,

see “How to Use the Scanning Utility” on p. 28

[Network Setting]

A

B

C

D

B

[

Scanner Name

]

A

Set an unique name for the scanner that will be used so that it can be correctly identified on the network.

[OK]

B

Click [OK] to send settings to the scanner.

NOTE

• Scanner Name must be 1 to 15 characters in length.

The following arbitrary characters can be entered.

Numerals: 0 to 9*

Alphabetic characters: A to Z , a to z and hyphen (-) *

* The scanner name must start with 'a-z' or 'A-Z' and cannot end with '-'

40

E

[DHCP]

A

Check (ON) to automatically assign the IP address of the scanner.

[IP Address]

B

Set the IP address of the scanner.

[Subnet Mask]

C

Set the Subnet Mask of the scanner.

[Default Gateway]

D

Set the Default Gateway of the scanner.

[OK]

E

Click [OK] to send settings to the scanner.

[mDNS Setting]

A

B

[mDNS]

A

Check (ON) to automatically search scanners.

NOTE

If not checked (OFF), enter the IP address of the scanner when selecting a scanner in Scanning Utility.

[OK]

B

Click [OK] to send settings to the scanner.

[MAC Address Filtering]

A

B

C

[

MAC Address Filtering

]

A

Check (ON) to enable MAC Address Filtering, and to register a computer for controlling the scanner.

[

MAC Address

]

B

Up to 5 computers can be registered.

[OK]

C

Click [OK] to send settings to the scanner.

41

[Password Setting]

A

B

C

D

The admin password for logging into "WEB MENU" can be set and changed.

[Current Password]

A

Enter the current admin password.

[New Password]

B

Enter the new password.

[New Password(Confirmation)]

C

Enter the new password again for confirmation.

[OK]

D

Click [OK] to send settings to the scanner.

NOTE

Password must be 0 to 32 characters in length using alphanumeric characters and symbols.

[Maintenance Setting]

A

B

[Initialize]

A

The scanner's network settings are reset to initial values

(factory default).

42

NOTE

The initial values of each item in WEB MENU are as follows.

Scanner Name

DHCP

IP Address

Subnet Mask

Default Gateway

Password Setting

MAC Address Filtering

mDNS

The first two characters are displayed as

"CR" and the "CR" is followed by "MAC

Address".

EX. CR112233445566

"112233445566" is the examples of MAC

Address.

ON

---

---

---

canoncr150

OFF

ON

[Import]

B

Import the SSL server certificate to the scanner.

For details on how to import the certificate, see “How to import the SSL Server certificate file for WEB MENU” on p. 43

How to import the SSL Server certificate file for WEB MENU

You can import the SSL server certificate to the scanner.

A

Click [Import].

NOTE

When the dialog displays, click [OK].

43

B

When the [Import certificate] screen is displayed click

[Browse].

D

Enter the password.

C

The Import screen will display.

Select the SSL server certificate file (xxxx.pfx) from the displayed list, and then click [Open].

NOTE

Password must be 1 to 128 characters in length.

IMPORTANT

Make sure that the correct values for [Server certificate file] and

[Password Setting] are entered.

NOTE

Only SSL server certificate files in .pfx format can be used.

44

E

Click [Send].

The import of the SSL server certificate to the scanner will start.

How to check the version information

You can check the version information of the scanner.

A

Click button while the Home screen is displayed.

see “How to open the WEB MENU and Log On” on p. 39

IMPORTANT

Import will not start if there are incorrect values in [Server certificate file] and [Password Setting].

If an error message is displayed, confirm if the correct certificate file and file format for [Server certificate file] are selected, and then click [Send] again.

F

After the SSL server certificate is successfully uploaded to the scanner, the scanner will automatically restart.

NOTE

• Click button to proceed to the next page.

• Click button to return to the previous page.

45

B

Version information is on page. 3.

A

B

[Version]

A

The scanner's device version information is displayed.

[No.]

B

The serial number of the scanner is displayed.

46

Document Feeding and Scanning

This chapter describes precautions regarding documents that can be handled on this scanner and scanning operations.

Documents

This section describes the types of documents that can be used and how to place them.

CAUTION

Treat the documents carefully. The paper edges may cut your fingers.

Document

The CR-150/CR-120 can feed a wide variety of document sizes. The ranges of height and length for a document are:

Height : 60 to 108 mm (2.4" to 4.3")

Length : 90 to 245 mm (3.5" to 9.6")

Thickness : 0.08 to 0.20 mm (0.003" to 0.008")

Weight : 64 to 157 g/m

2

(17 to 40 lb bond)

Length

Height

Follow these guidelines when you prepare a document for scanning:

• If the document exceeds 228 mm (8.98"), remove the eject stopper.

(See “Remove and attach the Eject Stopper,” on p. 24.)

• Before scanning documents that contain pasted artwork, make sure that the ink or paste is thoroughly dry. If the documents are scanned with wet ink or paste, the inside of the scanner may become dirty and it may cause a malfunction.

• If you scan a document written in pencil, the letters may not be scanned properly or the pencil may rub off onto the rollers and stain subsequent documents. Before you scan this kind of document, make a copy, and then scan the copy. After scanning a document written in pencil or some other soft writing material, be sure to clean

the scanning rollers. (See “Cleaning the Scanning Glass and

Rollers,” on p. 66.)

• If you scan thin paper in the Duplex mode, the ink printed on the back side may be scanned. If this happens, adjust the scanning density.

• Scanning documents with a rough surface may not feed easily, and may cause friction between the documents, resulting in a feeding error. If this happens, feed the documents one by one.

• To avoid paper jams, damage to documents, and a scanner malfunction, do not feed the following types of paper into the scanner. If you want to scan these types of paper, first make a copy, and then scan the copy.

47

Wrinkled or creased paper

Curled paper

Torn paper

Carbon backed paper

Coated paper or fax recording paper

Extremely thin paper

Paper with clips or staples

Paper with binding holes

NOTE

Note that mixing documents of different thickness may cause a malfunction during feeding.

Curled, wrinkled, or folded documents may cause an error. If this happens, straighten out the curls, or reduce the number of documents loaded.

Envelope

You can also scan the envelope. When using separation OFF mode, you can scan an envelope with thickness up to 0.5 mm (0.02") or weight up to 413 g/m

2

(111 lb bond).

NOTE

Disable the double feed detection function. (See “Using Ultrasonic Double

Feed Detection,” on p. 49.)

If the envelope is not the first document in the batch, it may cause a feeding error or a paper jam.

Some type of envelope may cause a feeding error or a paper jam.

Cards (plastic cards)

You can also scan cards. To scan a card, use the card slot. With embossed cards, you can scan both sides. The number of cards that can be loaded is 1. The condition of the embossment may prevent you from getting an appropriate image. The specifications for cards that can be scanned are as follows:

Size : 86 mm (3.39") x 54 mm (2.13") (ISO/IEC standard)

Orientation : Horizontal feeding only.

For embossed cards : Up to 1.4 mm (0.055")

NOTE

If you try to transfer a check while a card is loaded in the card slot, the card is ejected because the feeding path is blocked.

48

Using Ultrasonic Double Feed Detection

The double feed detection function that the scanner is equipped with uses the penetration of ultrasonic waves to detect when two or more documents are fed at the same time.

If false detections happen too often, disable the double feed detection function.

NOTE

When Using the Accompanying Scanning Utility for CR-120/CR-150:

You can disable the double feed detection function to push the Function

Button. When the function is disabled, the light of the Function Button is off.

Placing Documents

Note the following points when placing documents on the scanner.

• Place the document so that the side to be scanned faces the side shown in the figure below.

• A maximum of 150 documents can be loaded at one time (80 g/ m

2

(21 lb bond)). Make sure stacks do not exceed 15 mm (0.59") in height (including curling).

• Additional documents can be placed while the machine is scanning.

IMPORTANT

Align the documents and set the bottom of the documents level in the document tray (Document Feed/Eject Tray).

Do not exceed the load capacity when placing documents.

Removing the Eject Stopper

If the document exceeds 228 mm (8.98"), remove the eject stopper. (See

“Remove and attach the Eject Stopper,” on p. 24 .

)

49

Document Feeding and Scanning

This section describes how to load and scan documents.

CAUTION

• Avoid wearing loose fitting clothing, dangling jewelry, long ties, or long hair that could become entangled with moving parts, especially the rollers that feed paper through the scanner. If such objects become entangled, immediately disconnect the power plug from the power outlet.

• Check the paper stack and remove all clips, staples, pins, or any other type of metal or plastic fastener. These objects may cause damage to the document, a paper jam, or a scanner malfunction.

• Do not touch anything except the operation buttons when documents are being fed.

• Do not touch documents that are being fed under any circumstances. The documents that are being fed may cut your hand.

Scan Procedure

A

Open the Document Feed / Eject Tray.

B

Carefully align the edges of the document.

C

Loads the documents with their front sides facing right and without exceeding the load capacity.

D

E

Adjust the Eject Stopper in accordance with the document.

Instruct scanning to start from the software application.

NOTE

When Using the Accompanying Scanning Utility for CR-120/CR-150:

There are three scanning methods as follows. Follow the each instruction.

Scan 1 page

Click [Scan Page] from the [File] menu.

Scan Batch to File

A

Click [Scan Batch to File] from the [File] menu.

B

Input the File name, and then click [Save].

C

Select Simplex or Duplex, and then click [Start Scanning].

50

Scan Batch to Printer

A

Click [Scan Batch to Printer] from the [File] menu.

B

Select Simplex or Duplex, and then click [Start Scanning].

You can also start scanning with pressing the Start Button.

F

Scanning starts.

When printing with the imprinter, ink may get on the leading edge of the document because the documents are ejected onto the printed surface.

Ink residue

Printed text or bitmap

(back side)

IMPORTANT

If you configure scanning conditions that consume a large amount of the computer’s memory, scanning may stop because of insufficient memory. If an error message appears due to insufficient memory while scanning is in progress, exit the application, change the scanning conditions, and then try scanning again.

51

Loading cards

About the Card Guard

When scanning plastic cards, use of card guard is recommended.

Attach the card guard to the back of the unit (Rear Card Slot) as shown in the figure below.

A

Orient the front side of the card toward the left, and insert the card straight into the card slot.

Use the card slot when scanning plastic cards. Scan the cards one at a time according to the following procedure:

52

B

When the scanner detects the card, release the card, and use the application program to start scanning.

When you use an application program to start scanning, the card is fed and scanning starts.

During scanning, a portion of the card will protrude from the rear card slot at the rear of the scanner.

CAUTION

• Keep the area around the rear card slot clear of objects.

• When you want to insert a card in the card slot, remove any documents from the feed tray.

• Embossed cards may not be scanned correctly, depending on the type of embossment.

C

After a plastic card is scanned, it is ejected into the eject pocket.

Magnetic card scanning (Option)

When scanning a magnetic card, use the Magnetic Swipe Reader

(MSR).

Compatible Magnetic Swipe Reader (MSR): 1732C003

Scan the cards one at a time according to the following procedure:

Place the magnetic stripe of the magnetic card against the reading area of the magnetic sensor, and swipe the card in the direction of the arrow. Use the application program to check the scanning results.

IMPORTANT

You can swipe the card in either direction, but when you swipe the card, make sure that the magnetic stripe on the card is facing the sensor logo

[ ] on the scanner.

53

Separation OFF Mode

Use this separation OFF mode when you want to scan the following documents:

• Thick documents

• Documents that contain two or more pages together as one document

• Documents that have a rough surface

• Duplicate forms that have sticky edges

Feed these documents one by one and press the Separation OFF

Mode Button.

Separation OFF

Mode Button

Auto Power OFF Settings

The CR-150/CR-120 includes an Auto Power OFF function. When this function is enabled, the scanner will turn OFF automatically if no operations are performed for 4 hours.

To enable or disable this setting, follow the procedure below.

IMPORTANT

Log On to Windows as an Administrator.

A

Click the Start button, and then click [All Programs], [CANON

CR-150] or [CANON CR-120], and [Canon imageFORMULA

Utility].

imageFORMULA Utility starts.

B

Click [CANON CR-150(or CR-120) USB] and click

[Properties].

Scanner properties are displayed.

IMPORTANT

For duplicate forms, load the side with the sticky edges toward the feeding entry point.

54

C

Select or clear the [Turn off automatically after 4 hours] check box.

Example (CR-150/120/120UV):

Example (CR-150N/120N):

55

D

Click [OK] to close the scanner properties.

Language settings for Magnetic Swipe

Reader (MSR):(Option)

The CR-150/CR-120 includes the Magnetic Swipe Reader (MSR) function (Option).

When this function is enabled, you can select the MSR language.

To enable or disable this setting, follow the procedure below.

IMPORTANT

Log On to Windows as an Administrator.

A

Click the Start button, and then click [All Programs], [CANON

CR-150] or [CANON CR-120], and [Canon imageFORMULA

Utility].

imageFORMULA Utility starts.

B

Click [CANON CR-150 USB] and click [Properties].

Scanner properties are displayed.

C

When [HID] check box is selected, you can select the language from the following [English] (factory set default),

[French], [Italy], [Spanish], or [Turkey].

*HID (Human Interface Device)

Example (CR-150/120/120UV):

56

Example (CR-150N/120N):

NOTE

The [HID] check box is displayed when you are using a USB connection.

D

Click [OK] to close the scanner properties.

57

Troubleshooting

This chapter describes the problems that might occur in the CR-150/

CR-120 and how to remedy them.

When the Scanner Is Not Recognized

The following causes and remedies describe why your computer may not recognize the scanner.

Cause The Scanning Utility is not installed.

Remedy Install the Scanning Utility before connecting the scanner to

the computer. (See “Setting Up the Scanner,” on p. 5.)

Cause The scanner is not correctly connected to the computer.

Remedy

Connect the scanner to the computer correctly. (See

“Connecting the Scanner to a Computer,” on p. 8.)

Cause The CR-150/CR-120 is not recognized by your computer.

Remedy • Restart your computer.

• If your computer has multiple USB ports, try using a different USB port.

• Disconnect the USB cable, make sure the computer and scanner are turned ON, and then reconnect the cable.

Cause The USB interface provided as standard with your computer is not compatible with the scanner.

Remedy Not all USB interfaces provided as standard with personal computers are guaranteed. Contact your local authorized

Canon dealer for more detailed information. (See “Checking

Your Operating Environment,” on p. 6.)

Cause USB cable is not compatible with the scanner.

Remedy

Use the USB cable provided with the scanner. (See

“Checking Your Operating Environment,” on p. 6.)

58

Cause USB hub is not compatible with the scanner.

Remedy

Remove the USB hub to use the scanner. (See “Checking

Your Operating Environment,” on p. 6.)

Cause The CR-150/CR-120 turns OFF automatically.

Remedy Check whether the Auto Power OFF function of the CR-150/

CR-120 is enabled. If it is enabled, disable it.

Network Trouble

Common errors that occur while connecting to the network as well as their causes and remedies are explained here.

Condition Network connection error has occurred

Cause The scanner and computer are not properly connected through the network.

Remedy Check the computer and the network device settings, and confirm whether the computer is able to connect to the network.

For information regarding setting methods for the computer and the network device, please refer to the manual of each device.

If the power of the scanner or the network device is turned off, turn it on. If the power is already on, turn off the power and turn it back on again.

Condition Error occurs after starting Scanning Utility.

Cause and

Remedy

If messages such as "Scanner is not ready" or "Scanner cannot be found" are displayed, check the network cable. If the network cable is not properly plugged in, make sure it is firmly connected.

Cause and

Remedy

Other

Causes

Check Canon imageFORMULA Utility and set the correct

IP address.

The IP address might already be in use by another device. Check Canon imageFORMULA Utility and set the correct IP Address.

For details on how to confirm the IP address of the

scanner, see “How to confirm the IP address,” on p. 36

Condition When the [Select Scanner] dialog menu is displayed by selecting [Select Scanner] from the Scanning

Utility file menu, there are no scanners displayed in the [Specified scanner] list box.

Cause and

Remedy

Confirm Network Settings and check (ON) for mDNS.

Condition An error occurs in Scanning Utility while scanning.

Cause and

Remedy

If a message such as "Currently in use by another user" is displayed, check the network cable. If it is not properly plugged in, make sure it is firmly connected, then turn off the power and turn it back on again.

Condition The "WEB MENU" does not display, or a message saying "This page cannot be displayed" is displayed.

Cause and

Remedy

Check Canon imageFORMULA Utility and set the correct IP address.

Clearing Paper Jams

If paper has jammed, open the Maintenance Cover and remove the jammed paper.

CAUTION

Be careful when you clear a paper jam. You may be injured unexpectedly. For example, the paper edges may cut your fingers, or the document may be damaged.

Remove all jammed sheets of paper. Paper scraps left inside the scanner may cause a paper jam or malfunction.

A

Remove scanned documents from the Eject Pocket.

B

Press and hold the Start Button.

The jammed document is ejected into the Eject Pocket.

59

D

Press the Open Button, and push the Left Maintenance Cover open to the left.

NOTE

If the above procedure does not clear the paper jam, perform the following to remove the jammed document.

C

Pull the Open Button, and pull the Right Maintenance Cover open to the right.

E

F

Remove the paper that has jammed.

Close the Left Maintenance Cover. Make sure that it is completely closed until you hear a click.

60

G

Close the Right Maintenance Cover. Make sure that it is completely closed until you hear a click.

Feeding Trouble

If the document is not fed properly or the detection functions do not work properly, remedy the problem by checking the following conditions.

Condition A paper jam has occurred.

Cause and

Remedy

• Check to make sure that the size and thickness of the document are within the supported range of the scanner, and if the quality of the paper is appropriate.

For cautions on handling documents, (See

“Documents,” on p. 47.)

• Documents with rough surfaces may cause a paper feed error.

Scan one sheet at a time in the separation OFF mode.

(See “Separation OFF Mode,” on p. 54.)

• Dirty or worn rollers inside the scanner may cause a paper jam.

Clean the rollers if they are dirty. (See “Cleaning the

Scanning Glass and Rollers,” on p. 66.) Worn rollers

must be replaced. Some rollers are replaceable. (See

“Replacing the Rollers,” on p. 77.) If the rollers are not

replaceable, contact your local authorized Canon dealer or service representative to have the scanner serviced.

• The Separation Roller gap is too wide. Adjust the

Separation Roller gap. (See “Adjusting the Separation

Roller Gap,” on p. 80.)

61

Condition Card Jam.

Cause and

Remedy

• Open the Left Maintenance Cover to remove the card.

• Press and hold the Start button, then jammed card will be ejected.

Condition A double feed error often occurs.

Cause and

Remedy

A double feed error may occur when documents with different thicknesses are mixed. Adjust the Separation

Roller gap. (See “Adjusting the Separation Roller Gap,” on p. 80.)

Condition MICR characters are not recognized correctly.

Cause and

Remedy

• The scanner cannot correctly read MICR characters if the magnetic head is dirty. Clean the MICR magnetic

head. (See “Cleaning the Magnetic Head,” on p. 69.)

• If MICR characters cannot be recognized correctly after cleaning the head, the MICR head may be worn.

Contact your local authorized Canon dealer or service representative to have the scanner serviced.

• The MICR text is on the back of the document. Load the side with the MICR characters facing right in the document tray.

Other

Causes

• Some of the MICR characters are scratched or missing.

Splattered MICR ink or toner may also be the problem.

Condition The imprinter is not printing correctly (missing imprint dots).

Cause and

Remedy

Other

Causes

Ink is clogged in the ink jet nozzle. Clean the ink jet nozzle. Cleaning the ink jet nozzle is recommended

before using the CR-150/CR-120. (See “Cleaning the Ink

Jet Nozzles,” on p. 70.)

The ink cartridge may be empty.

Condition Documents get dirty when using the imprinter.

Cause and

Remedy

Ink from the imprinter has been placed on the feed path.

Clean the ink off the feed path. (See “Cleaning the Ink Jet

Nozzles,” on p. 70 and “Cleaning the Feed Path,” on p. 64.)

Condition Scanning speed had reduced suddenly.

Cause and

Remedy

Processing may be slowed when scanning in the long period of time and continuously to avoid overheat inside the scanner. Wait a while before scanning again.

62

When the Scanned Image Is Not

Normal

If there is a problem with the scanned image (the image is not sharp or stripes appear), one of the following conditions may be a probable cause. Check the following conditions, and take the appropriate action.

The scanning glass or rollers are dirty.

If the scanning glass or rollers are dirty, the dirt will appear on the scanned image.

Clean the scanning glass and rollers. For details, see “Cleaning the Scanning Glass and Rollers,” on p. 66.

The scan conditions are inappropriate.

If the scan conditions are inappropriate, the scanned image will not be sharp or will appear as dark.

Check the brightness and other scanner settings.

If the scanned image is blurry or the document has not been scanned at all, the brightness may be set too high.

If the scanned image appears dark, the brightness may be set too low.

Check the basic Scanning Conditions. (UV models only)

If other than [16-level Gray] or [256-level Gray] is selected for Mode menu in the scanner driver, the scanned image may not be appropriate.

Also, check the settings on the driver and the software application.

The driver or application does not run correctly.

If the document cannot be scanned correctly even if the scan conditions are adjusted, the driver or the application may not be functioning correctly.

Reinstall the driver or application.

For details on how to install the driver, see “Installing the Software,” on p. 7.

For details on how to install the application, see the applications instruction manual.

Memory becomes insufficient and scanning stops.

If you configure scanning conditions that use a large amount of the computer’s memory, scanning may stop because of insufficient memory. Although this depends on the computer’s memory size, the possibility of insufficient memory increases if any of the following scanning conditions overlap.

• The page size is set to [Scanner’s Maximum].

• A high resolution (300dpi etc.) is specified for [Dots per inch].

If an error message appears due to insufficient memory while scanning is in progress, exit the application, change the scanning conditions (e.g. reduce the resolution or page size) and then try scanning again.

Other Causes

Even if the computer may be recognizing the scanner correctly, and the driver and the application is installed correctly, scanning may not be performed correctly. If this happens, the interface card is not compatible. Use the recommended interface card.

If the above remedies do not rectify the problem, contact your local authorized Canon dealer or service representative to have the scanner serviced.

63

Maintenance

This chapter describes how to clean and maintain the scanner.

Daily Cleaning

To ensure high-quality image scanning, regularly clean your CR-150/

CR-120 as described below.

CAUTION

Before you clean the scanner, turn OFF the scanner and computer, and disconnect the power cord from the power outlet. Otherwise, it may cause an electrical shock.

Never clean the scanner with any kind of organic solvent, such as alcohol, benzene, or paint thinner. This may cause a fire and electrical shock, or cause the exterior of the scanner to disfigure or discolor.

Never spray mild detergent or water directly on the scanning glass.

The spray could penetrate below the glass and contaminate the internal light source and lenses.

Cleaning the Main Unit

Wipe the scanner with a firmly wrung cloth, moistened slightly with water. Then, wipe off with a clean, dry cloth.

Cleaning the Feed Path

If dirt appears on scanned documents, clean the feed path. Clean the feed path regularly.

A

Pull the Open Button, and pull the Right Maintenance Cover open to the right.

64

IMPORTANT

If you notice paper dust in the feed path when you open the Maintenance

Cover, clean it out with a clean dry cloth or cotton swabs.

B

Press the Open Button, and push the Left Maintenance Cover open to the left.

D

Close the Left Maintenance Cover. Make sure that it is completely closed until you hear a click.

C

Wipe the feed path with a firmly wrung cloth, moistened slightly with water. Then, wipe off with a clean, dry cloth.

E

Close the Right Maintenance Cover. Make sure that it is completely closed until you hear a click.

Feed Path

65

Cleaning the Scanning Glass and Rollers

If stripes appear on scanned images or if dirt appears on scanned documents, clean the scanning glass and rollers. Clean the scanning glass and rollers regularly.

A

Remove the Top Cover.

C

Press the Open Button, and push the Left Maintenance Cover open to the left.

B

Pull the Open Button, and pull the Right Maintenance Cover open to the right.

D

Remove the Roller Cover.

IMPORTANT

If you notice paper dust in the feed path when you open the Maintenance

Cover, clean it out with a clean dry cloth or cotton swabs.

66

IMPORTANT

As shown in the figure, release hook

A

(left bottom) and hook

B

(right top toward the back) of the roller cover, and then lift up the cover. This will allow you to remove the cover.

E

Spin the rollers while wiping them clean with a firmly wrung cloth dampened with water.

There are 14 roller positions, as shown in the diagram below.

F

Use a clean dry cloth to clean the entire scanning glass.

Scanning Glass

ձ չ ո վ ս ճ ղ պ ջ ռ մ շ ն յ

G

Close the Left Maintenance Cover.

NOTE

Use cotton swabs to clean the rollers.

Rollers in positions

J

,

M

, and

N

are turned by the roller in position

L

.

Turn the roller in position

L

to wipe the rollers.

Rollers in positions

A

to

C

are replaceable. Replace rollers when cleaning

them. (See “Replacing the Rollers,” on p. 77.)

67

H

Replace the Roller Cover.

I

Close the Right Maintenance Cover.

J

Carefully replace the Top Cover.

IMPORTANT

If paper jams and double feeds (two papers being fed at the same time) still occur after cleaning the rollers, the rollers may be worn. The rollers need to

be changed. Some rollers are replaceable. (See “Replacing the Rollers,” on p. 77.) If the rollers are not replaceable, contact your local authorized Canon

dealer or service representative to have the scanner serviced.

68

Cleaning the Magnetic Head

If the magnetic head is dirty, then MICR characters cannot be scanned correctly. Periodically, clean the magnetic head with a commercially available audio head cleaner.

A

Pull the Open Button, and pull the Right Maintenance Cover open to the right.

B

Use a commercially available audio head cleaner to clean the magnetic head.

The magnetic head is located in the positions shown in the diagram below.

Magnetic Head

IMPORTANT

If you notice paper dust in the feed path when you open the Maintenance

Cover, clean it out with a clean dry cloth or cotton swabs.

C

Close the Right Maintenance Cover.

69

Cleaning the Ink Jet Nozzles

Ink that collects around the ink jet nozzles may stain your documents or cause the text or bitmap to appear as scratched. Clean the area around the ink jet nozzles periodically. Cleaning the ink jet nozzles is also efficient action when the printed text or bitmap becomes faint.

A

Remove the Top Cover.

B

Use the Built-in Nozzle Cleaning Unit to remove the ink from around the ink jet nozzles.

Swipe the ink cartridge 2 or 3 times on the Built-in Nozzle

Cleaning Pad shown in the diagram below. If the text or bitmap still appear faint after this operation, replace the ink cartridge

(See “Replacing the Ink Cartridge,” on p. 74.)

For more information, see “Replacing the Ink Cartridge,” on p. 74.

Built-in Nozzle Cleaning Pad

C

Set the ink cartridge.

For more information, see “Setting the Ink Cartridge,” on p. 25.

D

Carefully replace the Top Cover.

70

Cleaning with the Cleaning Cards

(United States Only)

If a black stripe appears on the back-side of scanned images or if dirt appears on the paper documents upon scanning or for preventative measures, we recommend that you clean your Canon CR-Series scanner as needed with a cleaning card. Using a cleaning card will minimize the frequent cleaning as instructed in this manual.

It is best to perform a cleaning at beginning or end of the day. A cleaning card does not clean the ink jet nozzles, so please remove the ink cartridge and

perform a nozzle cleaning (See “Cleaning the Ink Jet Nozzles,” on p. 70.)

IMPORTANT

• This operation is for the Cleaning cards that are available only in the

United States.

• Contact your local authorized Canon dealer or service representative for the available cleaning card.

Prepare for the Cleaning mode

If you perform cleaning with the cleaning cards, follow the procedures below to set the scanner to the cleaning mode.

A

Turn OFF the scanner.

B

Open the Document Feed / Eject Tray.

C

Pull the Eject Stopper.

D

As shown in the figure, while pressing the Start and Function buttons, press the Power Button once.

Confirm that the power lamp is blinking more than twice before releasing fingers from the buttons (Start and Function button).

71

If the scanner turned ON properly, the power LED continues to blink.

(FUNCTION LED and the Start LED is ON.)

Check Path Cleaning

Follow the procedures below to perform check path cleaning.

A

B

Confirm that the scanner is set to the cleaning mode. (See

“Prepare for the Cleaning mode,” on p. 71)

Press the Separation OFF Mode Button.

Separation OFF

Mode Button

C

Place the cleaning card (for Check Path Cleaning) in the document tray.

NOTE

Allow 1 to 2 minutes for the moisture on the Canon CR-Series scanner from the cleaning card to thoroughly dry before scanning documents.

Card Path Cleaning

Follow the procedures below to perform card path cleaning.

NOTE

When insert the cleaning card (for Card Path Cleaning), use of card guard is

recommended. See “About the Card Guard,” on p. 52

A

Confirm that the scanner is set to the cleaning mode. (See

“Prepare for the Cleaning mode,” on p. 71)

B

Press and hold the FUNCTION Button.

Press and hold the Function button for at least 2 seconds, and then release it.

D

E

Press the Start Button to start cleaning.

Please repeat steps 3 and 4.

A typical cleaning is feeding the cleaning card 3 to 7 times. If the scanner is extremely dirty, you may need to use another cleaning card.

F

Turn OFF the scanner.

72

If the scanner is set to the Card Path Cleaning mode properly, the

POWER LED and the Start LED continues to blink.

NOTE

If you press the Function Button shortly in Step 2, the scanner is set to the

Check Path Cleaning mode. In this case, the POWER LED is blinking and the

Start LED is ON.

(The light of the Function Button is off.)

C

Insert the cleaning card (for Card Path Cleaning) into the Card slot

.

If you do not press and hold the Function Button long enough, the scanner recognizes that the button is pressed just once. (For details on how to Check

Path Cleaning, see “Check Path Cleaning,” on p. 72)

If you want to continue the Card Path Cleaning, press and hold the Function

Button long enough again and confirm that the POWER LED and the

StartLED continues to blink.

D

E

Press the Start Button to start cleaning.

Please repeat steps 3 and 4.

A typical cleaning is feeding the cleaning card 3 to 7 times. If the scanner is extremely dirty, you may need to use another cleaning card.

F

Turn OFF the scanner.

NOTE

Allow 1 to 2 minutes for the moisture on the Canon CR-Series scanner from the cleaning card to thoroughly dry before scanning documents.

73

Maintenance

Make the following adjustments to maintain scanning quality.

Replacing the Ink Cartridge

The ink cartridge needs to be replaced if the printed text becomes scratchy or faint even if you have cleaned the ink jet nozzle. Replace the ink cartridge according to the following procedure below.

IMPORTANT

• The ink disposal tank must be replaced when the ink cartridge is replaced.

( See “Replacing the Ink Disposal Tank,” on p. 75

.)

• To replace the ink cartridge, turn the scanner OFF before removing the Top Cover. After the ink cartridge is set, replace the Top Cover, and then turn the scanner back ON.

• Finish up the unpacked ink cartridge as soon as possible. More frequent cleaning of the ink cartridge is required if long time elapses after unpacking.

NOTE

Use a Canon ink cartridge. (See “About the Ink Cartridge,” on p. 25.)

Do not use more than one cartridge by rotation. If you do so, applications cannot check the ink level precisely.

A

Remove the Top Cover.

B

Open the Nozzle Cleaning Unit.

74

C

Push the ink cartridge backward, and then remove the ink cartridge.

Replacing the Ink Disposal Tank

When the following conditions appear, you have to replace the ink disposal tank according to the following procedure.

When the ink cartridge is replaced.

When clumpy ink appears on the ink disposal tank as shown below.

CAUTION

Do not touch the ink jet nozzle right after imprinting. The nozzle may be very hot.

D

Set the ink cartridge.

For more information, see “Setting the Ink Cartridge,” on p. 25.

E

Carefully replace the Top Cover.

The replacement ink disposal tank is not included with the scanner.

Purchase an ink disposal tank, as shown below.

Compatible ink disposal tank: 1732C002

A

Open the Ink Disposal Tank Pocket.

75

B

Remove the ink disposal tank.

C

Attach the ink disposal tank.

Ink Disposal Tank

WARNING

Do not print without the ink disposal tank. Doing so may cause a malfunction.

NOTE

Be careful not to get dirty with ink.

When you discard the ink disposal tank, put it in the plastic bag in the box of the ink disposal tank.

D

Close the Ink Disposal Tank Pocket.

76

Replacing the Rollers

When rollers are worn, paper jams and double feeds tend to occur. You can replace the rollers (Pickup Roller, Feed Roller, and Separation

Roller) according to the following procedure.

The exchange roller kit is not included with the scanner. Purchase an exchange roller kit separately, as shown below.

Compatible exchange roller kit: 1732C001

A

Pull the Open Button, and pull the Right Maintenance Cover open to the right.

.

IMPORTANT

As shown in the figure, release hook

A

(left bottom) and hook

B

(right top toward the back) of the roller cover, and then lift up the cover. This will allow you to remove the cover.

C

Push up the Separation OFF Lever in the direction of the arrow.

B

Remove the Roller Cover.

Separation OFF Lever

77

D

While pushing up the Separation OFF Lever, pinch the edge of the Feed Roller and the fixing lever, and then remove the roller.

Fixing Lever

E

Pinch the Separation Roller at the rim and the fixing lever, and then remove it.

Fixing Lever

NOTE

If the Feed Roller (Separation Roller) is not removed easily because of the fixing lever position, turn the Feed Roller in clockwise direction by hand.

F

Pinch the Pickup Roller at the rim and the fixing lever, and then remove it.

Fixing Lever

78

NOTE

If the Pickup Roller is not removed easily because of the fixing lever position, turn the Pickup Roller by hand.

G

Attach the Pickup Roller. Align the notch on the roller axis with the hole on the roller.

I

Attach the Feed Roller. Align the notch on the roller axis with the hole on the roller.

IMPORTANT

Push down the roller until it clicks into place.

H

Attach the Separation Roller. Align the notch on the roller axis with the hole on the roller.

IMPORTANT

Push down the roller until it clicks into place.

J

Adjust the Adjustment Dial to 6.

For more information, see “Adjusting the Separation Roller Gap,” on p. 80.

K

Replace the Roller Cover.

IMPORTANT

Push down the roller until it clicks into place.

79

Adjusting the Separation Roller Gap

If double feed should occur too often, adjust the Separation Roller gap according to the following procedure.

A

Pull up the Adjustment Dial Cover.

CAUTION

Do not use the Adjustment Dial any other time except when adjusting the Separation Roller gap. Turning the Adjustment Dial too much may damage the scanner.

Adjustment Dial

Turn the dial to the left to widen the gap, and turn it to the right to narrow the gap.

B

Adjust the Adjustment Dial.

Turn the Adjustment Dial clockwise 3 clicks (to the direction in which the number decreases) to narrow the Separation Roller

Gap. If documents are not fed after the above operation, turn the

Adjustment Dial counterclockwise 1 click (to the direction in which the number increases) to widen the Separation Roller Gap.

C

Close the Adjustment Dial Cover.

80

Specifications

Scanner Specifications

Type

Document size

Card

Document feeding

Scanning method

Light source

Scanning side

Scanning mode

Desktop sheet feed

Height: 60 to 108 mm (2.4" to 4.3")

Length: 90 to 245 mm (3.5" to 9.6") (You can scan documents up to 2,000 mm

(78.7") long by setting the scanner to the

Long Document mode.)

Thickness: 0.08 to 0.20 mm (0.003" to

0.008")

Weight: 64 to 157 g/m

2

(17 to 40 lb bond)

Size: 86 mm x 54 mm (3.39" x 2.13")(ISO

/ IEC standard)

For embossed cards: Up to 1.4 mm

(0.055")

Loading capacity: 1 card

Automatic / Not separate

Contact image sensor (CMOS)

RGB LED ( UV model : UV LED + RGB

LED )

Simplex/Duplex

Black-and-white, Fine text filtering, Error diffusion, 256 level grayscale, 16 level grayscale, 24-bit Color (Card Scan only)

Scanning resolution (primary scan lines x secondary scan lines)

Document type

Color mode Resolutions

In the case of a check

In the case of a card

Black and

White

Grayscale

Color,

Grayscale

Scanning 200 x 200 dpi, 300 x 300 dpi

Output

100 x 100 dpi, 120 x 120 dpi,

150 x 150 dpi, 200 x 200 dpi,

240 x 240 dpi, 300 x 300 dpi

Scanning 300 x 300 dpi, 600 x 600 dpi

Output

100 x 100 dpi, 120 x 120 dpi,

150 x 150 dpi, 200 x 200 dpi,

240 x 240 dpi, 300 x 300 dpi,

600 x 600 dpi

Scanning speed

(200 dpi Personal Check

- 152 x 70 mm (5.98" x

2.76"))

Automatic feeder capacity

Automatic document feed capacity

CR-150: 150 cpm

CR-120: 120 cpm

CR-120UV: 120 cpm (UV Scan mode)

Load limit of less than 15 mm (0.59")

Network Connector

(CR-150N/120N only

Interface

Up to 150 sheets

(80 g/m

2

(21 lb bond))

Make sure stacks do not exceed 15 mm

(0.59") in height (including curling).

RJ-45 (10Base-T/100Base-TX/

1000Base-T)

Hi-Speed USB 2.0 (Type A x 1, Type B x

1)

(The model with USB HUB option has additional ports.)

81

Other functions

Dimensions

Weight

Power requirement

Automatic paper size detection, Ultrasonic double feed detection, Dropout color,

Deskew

203.6 mm (H) x 170 mm (W) x 238.2 mm

(D) (8.0" (H) x 6.7" (W) x 9.4" (D))

CR-150: Approximately 3.2 kg (7.05 lb)

CR-120: Approximately 3.2 kg (7.05 lb)

AC 100-120V (60 Hz) or AC 220-240V

(50/60 Hz)

Power consumption

CR-150

CR-150N/CR-120N

CR-120/CR-120UV

Scanning Sleep mode

120V

220-240V

120V

220-240V

120V

220-240V

23W or less 2.1W or less

23W or less 2.2W or less

23W or less 2.1W or less

Noise

Operating environment

Less than 72 dB

Temperature: 10°C to 32.5°C (50°F to

90.5°F)

Humidity: 20% to 80% RH

Network Specifications

Protocol

IP Address

Other

TCP/IP

Obtained automatically (DHCP supported) or fixed address

Active Directory (NTLM authentication) and OpenLDAP (simple authentication) supported

82

AC Adapter Specifications

Model number

Input

Output

Weight

MG1-5039

AC 100-240V 50/60Hz 1.06-0.6 A

DC24V 2.0A

Approximately 0.2 kg (0.44 lb) (excluding power cord)

Use the recommended operating environment for the ink cartridge when using the imprinter.

You can use the functions noted above if your software supports them.

These functions may not work depending on your computer’s capabilities and the software you are using.

Specifications are subject to change without notice.

Replacement parts

Exchange roller kit (product code: 1732C001)

Kit to replace the rollers (Pickup Roller, Feed Roller, and Separation

Roller).

(See “Replacing the Rollers,” on p. 77)

Ink cartridge

This ink cartridge is used by the imprinter.

(See “About the Ink Cartridge,” on p. 25)

Ink Disposal Tank (product code: 1732C002)

This ink disposal tank is used by the imprinter.

(See “Replacing the Ink Disposal Tank,” on p. 75)

• Contact your local authorized Canon dealer or service representative for detailed information about the replacement parts.

Option

Magnetic Swipe Reader (MSR) (Product code: 1732C003)

This is the optional item to scan the magnetic card.

83

Index

A

Adjustment Dial ......................................................... 22, 80

Adjustment Dial Cover .................................................... 22

Air Vent ........................................................................... 23

Amount loaded ................................................................ 49

B

Built-in Nozzle Cleaning Pad .......................................... 70

Built-in Nozzle Cleaning Unit .......................................... 22

C

Card Slot ......................................................................... 22

Cleaning

Feed path ................................................................. 64

Main unit ................................................................... 64

Cleaning Card ................................................................. 71

D

Daily Cleaning ................................................................. 64

Disc ................................................................................... 4

Document Feed/Eject Tray ............................................. 22

Document Feeder ........................................................... 22

Documents ...................................................................... 47

Document ................................................................. 47

Envelope ................................................................... 48

How to place documents .......................................... 49

Double Feed Detection ................................................... 49

E

Eject Pocket .................................................................... 22

84

Eject Stopper ................................................................... 22

Exterior Dimensions ........................................................ 24

F

Features of the CR-150/CR-120 ...................................... 19

Feeding Trouble .............................................................. 61

I

H

Handling .......................................................................... 15

imageFORMULA Utility ................................................... 34

Ink Cartridge ........................................................ 22, 25, 74

Ink Disposal Tank Pocket ..........................................23, 75

Ink Jet Nozzle .................................................................. 70

Installation Location ......................................................... 16

IP address ....................................................................... 36

L

Left Maintenance Cover .................................................. 21

M

Magnetic head ................................................................. 69

Magnetic Head for MICR ................................................. 22

Maintenance .................................................................... 74

Moving the Scanner ......................................................... 18

N

Number of pages loaded ................................................. 49

O

Operating Environment ..................................................... 6

Operation Buttons ........................................................... 21

P

Power Button .................................................................. 21

Power Cord ................................................................... 4, 9

Power Cord Connector ................................................... 23

Power Supply .................................................................. 17

R

Ranger ............................................................................ 31

Rear Card Slot ................................................................ 23

Recognizing the scanner ................................................ 10

Right Maintenance Cover ............................................... 21

Roller Cover .................................................................... 22

Rollers ....................................................................... 66, 77

S

Scanner Unit ................................................................... 22

Scanning Glass ............................................................... 66

Scanning Utility ........................................................... 7, 28

Separation OFF Mode .................................................... 54

Separation OFF Mode Button ............................. 21, 54, 72

Software

How to Use the Software .......................................... 28

Install .......................................................................... 7

Uninstall .................................................................... 32

Specifications .................................................................. 81

T

Top Cover ....................................................................... 21

85

Troubleshooting ............................................................... 58

Turning OFF the Power ................................................... 11

Turning ON the Power ..................................................... 10

U

Ultrasonic Sensor ............................................................ 22

Unpacking the scanner ...................................................... 4

USB Connections ........................................................ 8, 58

USB Connector ................................................................ 23

USB Hub .......................................................................... 23

USB Port .......................................................................... 23

UV scanning .................................................................... 19

W

Web menu ....................................................................... 39

Wired LAN Connection ...................................................... 9

Safety-related markings on the machine

Marquages de sécurité sur la machine

Marcature di sicurezza sulla macchina

Sicherheitshinweise auf der Maschine

Marcas de la máquina relacionadas con la seguridad

Veiligheidsmarkeringen op de machine

Makine üzerindeki güvenlik i

ġ

aretleri

[English]

[Français]

Switch (On)

Commutateur (Marche)

[Italiano]

[Deutsch]

Interruttore (On)

Schalter (Ein)

[Español] Interruptor (encendido)

[Nederlands] Schakelaar (On)

[Türkçe] Anahtar (Açık)

[English]

[Français]

[Italiano]

Switch (Off)

Commutateur (Arrêt)

Interruttore (Off)

[Deutsch]

[Español]

Schalter (Aus)

Interruptor (apagado)

[Nederlands] Schakelaar (Off)

[Türkçe] Anahtar (Kapalı)

[English]

[Français]

[Italiano]

[Deutsch]

Switch (Standby)

Commutateur (Veille)

Interruttore (Standby)

Schalter (Standby)

[Español] Interruptor (en espera)

[Nederlands] Schakelaar (Standby)

[Türkçe] Anahtar (Bekleme)

Power on

Sous tension

Alimentazione presente

Eingeschaltet

Máquina encendida

Aan

Güç açık

Power off (no standby current)

Hors tension (pas de courant de veille)

Alimentazione assente (nessuna corrente di standby)

Ausgeschaltet (ohne Ruhestromaufnahme)

Máquina apagada (sin corriente en espera)

Uit (geen stand-byverbruik)

Güç kapalı (bekleme akımı yok)

Power on/off (standby current on)

Sous/hors tension (courant de veille activé)

Alimentazione on/off (corrente di standby presente)

Ein- und Ausschalten (mit Ruhestromaufnahme)

Máquina apagada/encendida (con corriente en espera)

Aan-uit (stand-byverbruik aan)

Güç açık/kapalı (bekleme akımı açık)

[English]

[Français]

[Italiano]

[Deutsch]

[Español]

[Nederlands]

[Türkçe]

Switch (Push-On/Push-Off)

Commutateur (Appuyer pour mettre en marche/Appuyer pour arrêter)

Interruttore a pulsante bistabile (On/Off)

Schalter (Ein- und Ausschalten durch Drücken)

Interruptor (pulsado para encendido/apagado)

Schakelaar (Push-On/Push-Off)

Anahtar (Bas-Aç/Bas-Kapa)

Power on/off (no standby current)

Sous/hors tension (pas de courant de veille)

Alimentazione on/off (nessuna corrente di standby)

Ein- und Ausschalten (ohne Ruhestromaufnahme)

Encendido/apagado (sin corriente en espera)

Aan-uit (geen stand-byverbruik)

Güç açık/kapalı (bekleme akımı yok)

[English]

[Français]

[Italiano]

[Deutsch]

[Español]

[Nederlands]

[Türkçe]

Heat hazard

Danger de chaleur

Pericolo: temperature elevate

Überhitzungsgefahr

Peligro de calentamiento

Verbrandingsgevaar

Isı tehlikesi

Heat hazard

Danger de chaleur

Pericolo: temperature elevate

Überhitzungsgefahr

Peligro de calentamiento

Verbrandingsgevaar

Isı tehlikesi

[English]

[Français]

[Italiano]

[Deutsch]

[Español]

[Nederlands]

[Türkçe]

Class II equipment

Équipement de classe II

Apparecchio classe II

Gerät der Schutzklasse II

Equipo de clase II

KlasseII-apparatuur

Sınıf II ekipman

Indicates this is Class II equipment

Indique qu’il s’ agit d’un équipement de classe II

Indica che questo è un apparecchio di classe II

Gibt an, dass das Gerät der Schutzklasse II entspricht

Indica que se trata de un equipo de clase II

Geeft aan dat deze apparatuur in Klasse II hoort

Bunun Sınıf II ekipman oldu ğ unu gösterir

[English]

[Français]

[Italiano]

[Deutsch]

[Español]

[Nederlands]

[Türkçe]

DC symbol

Symbole CC

Indicates direct current

Indique qu’il s’agit de courant continu

Simbolo corrente continua (C.C.) Indica la corrente continua

Gleichstrom-Symbol Kennzeichnet Gleichstrom

Símbolo CC

DC-pictogram

DC sembolü

Indica corriente continua

Geeft gelijkstroom aan

Düz akımı gösterir

[English]

[Français]

[Italiano]

[Deutsch]

[Español]

[Nederlands]

[Türkçe]

DC polarity

Polarité CC

Polarità C.C.

Gleichstrompolarität

Polaridad de CC

DC-polariteit

DC polaritesi

Indicates the power plug polarity

Indique la polarité de la fiche d’alimentation

Indica la polarità dello spinotto di alimentazione

Gibt die Polarität des Netzsteckers an

Indica la polaridad del conector de alimentación

Geeft de polariteit van de stekker aan

Fi ş

polaritesini gösterir

[English]

[Français]

[Italiano]

[Deutsch]

[Español]

[Nederlands]

[Türkçe]

Electrostatic precaution

Précaution électrostatique

Protezione dalle cariche elettrostatiche

Warnung vor elektrostatischer

Aufladung

Precaución electroestática

Elektrostatische voorzorgen

Elektrostatik önlemi

Avoid applying static electricity to the machine

Évitez de soumettre cette machine à de l’éléctricité statique

Evitare di applicare cariche elettrostatiche alla macchina

Elektrostatische Aufladung der Maschine vermeiden

No aplique electricidad electroestática

Voorkom statische elektriciteit op de machine

Makineye statik elektrik vermeyin

CANON ELECTRONICS INC.

3-5-10 SHIBAKOEN, MINATO-KU, TOKYO 105-0011, JAPAN

CANON U.S.A. INC.

ONE CANON PARK, MELVILLE, NY 11747, U.S.A.

CANON CANADA INC.

8000 MISSISSAUGA ROAD, BRAMPTON, ONTARIO L6Y 5Z7, CANADA

CANON EUROPA N.V.

BOVENKERKERWEG 59, 1185 XB AMSTELVEEN, THE NETHERLANDS

CANON AUSTRALIA PTY. LTD.

BUILDING A, THE PARK ESTATE, 5 TALAVERA ROAD, MACQUARIE PARK, NSW 2113, AUSTRALIA

CANON SINGAPORE PTE. LTD.

1 FUSIONOPOLIS PLACE, #15-10, GALAXIS, SINGAPORE 138522

CANON INDIA PVT. LTD

7TH FLOOR, TOWER B DLF CYBER TERRACES DLF PHASE III GURGAON-122002 HARYANA, INDIA

PUB. CE-IM-0987-E1.40

© CANON ELECTRONICS INC. 2017

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
