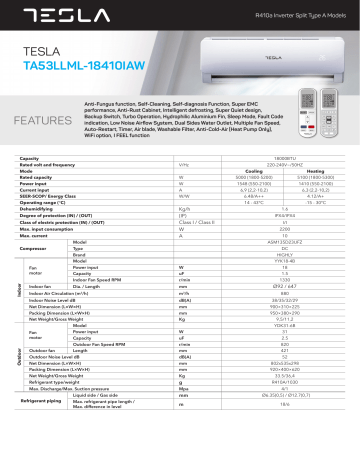

Tesla TA53LLML-18410IAW Specification

Tesla TA53LLML-18410IAW Specification
R410a Inverter Split Type A Models
TESLA
TA53LLML-18410IAW
Anti-Fungus function, Self-Cleaning, Self-diagnosis Function, Super EMC
performance, Anti-Rust Cabinet, Intelligent defrosting, Super Quiet design,
Backup Switch, Turbo Operation, Hydrophilic Aluminium Fin, Sleep Mode, Fault Code
indication, Low Noise Airflow System, Dual Sides Water Outlet, Multiple Fan Speed,
Auto-Restart, Timer, Air blade, Washable Filter, Anti-Cold-Air (Heat Pump Only),
WiFi option, I FEEL function
FEATURES
Capacity
18000BTU
Rated volt and frequency
V/Hz
Mode
220-240V~/50HZ
Cooling
Heating
Rated capacity
W
5000 (1800-5200)
5100 (1800-5300)
Power input
W
1548 (550-2100)
1410 (550-2100)
Current input
A
6,9 (2,2-10,2)
6,3 (2,2-10,2)
SEER-SCOP/ Energy Class
W/W
Operating range (°C)
Dehumidifying
Degree of protection (IN) / (OUT)
Class of electric protection (IN) / (OUT)
Max. input consumption
Max. current
Kg/h
(IP)
Class I / Class II
W
A
Model
Compressor
Indoor
Indoor fan
-15 - 30°C
1.6
IPX4/IPX4
I/I
2200
10
Type
DC
Brand
HIGHLY
YYK18-4B
Power input
W
18
Capacity
uF
1.5
Indoor Fan Speed RPM
r/min
Dia. / Length
mm
1330
Ø92 / 647
Indoor Air Circulation (m3/h)
m3/h
880
Indoor Noise Level dB
dB(A)
38/35/32/29
Net Dimension (L×W×H)
mm
900×310×225
Packing Dimension (L×W×H)
mm
950×380×290
Net Weight/Gross Weight
Kg
Model
Fan
motor
Outdoor
4.12/A+
14 - 43°C
ASM135D23UFZ
Model
Fan
motor
6.48/A++
Outdoor fan
9,5/11,2
YDK31-6B
Power input
W
31
Capacity
uF
2.5
Outdoor Fan Speed RPM
r/min
820
Length
mm
421
Outdoor Noise Level dB
dB(A)
Net Dimension (L×W×H)
mm
802x535x298
Packing Dimension (L×W×H)
mm
920×400×620
Net Weight/Gross Weight
Kg
Refrigerant type/weight
g
Max. Discharge/Max. Suction pressure
Refrigerant piping
52
33.5/36,4
R410A/1030
Mpa
4/1
Liquid side / Gas side
mm
Ø6.35(0,5) / Ø12.7(0,7)
Max. refrigerant pipe length /
Max. difference in level
m
18/6
