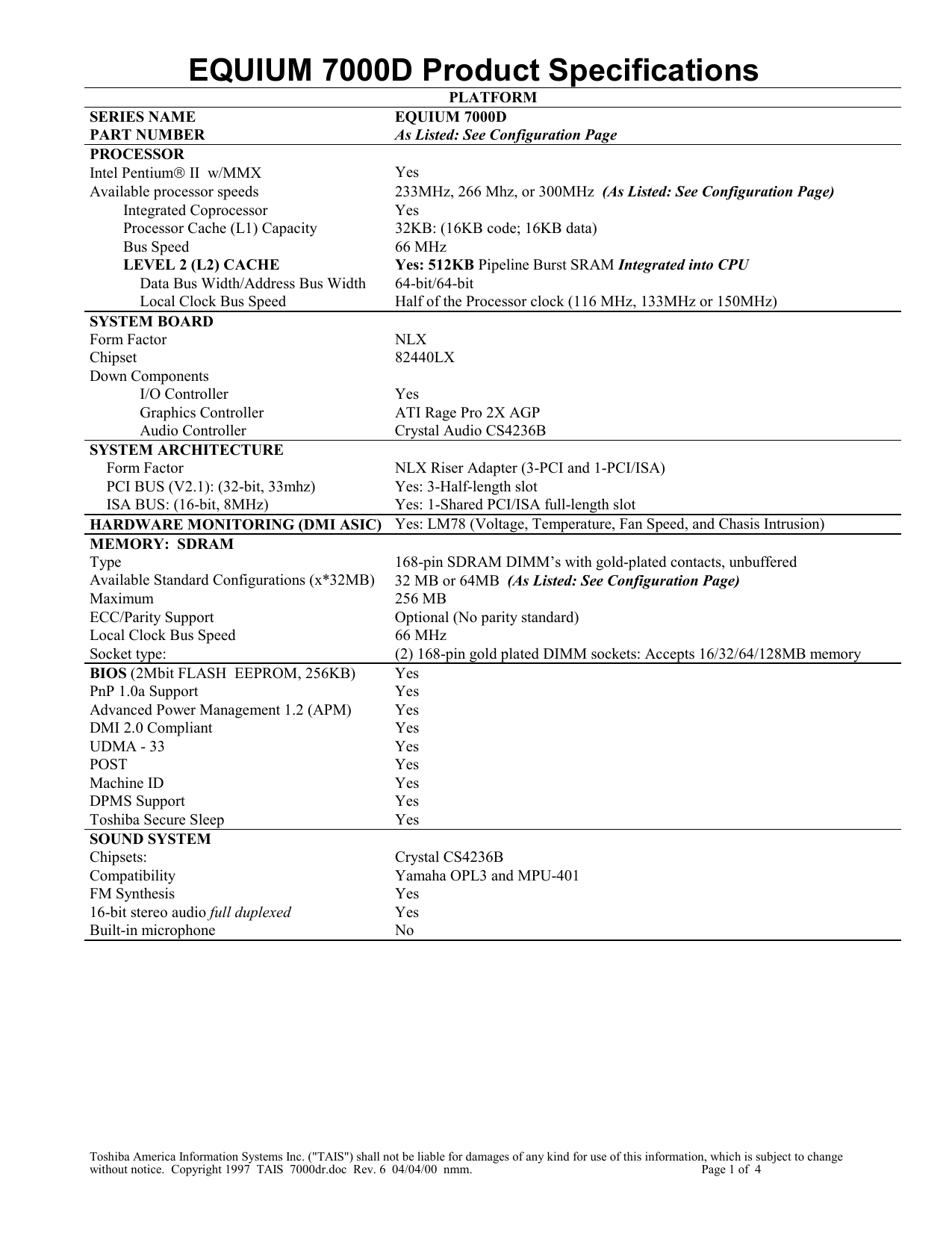

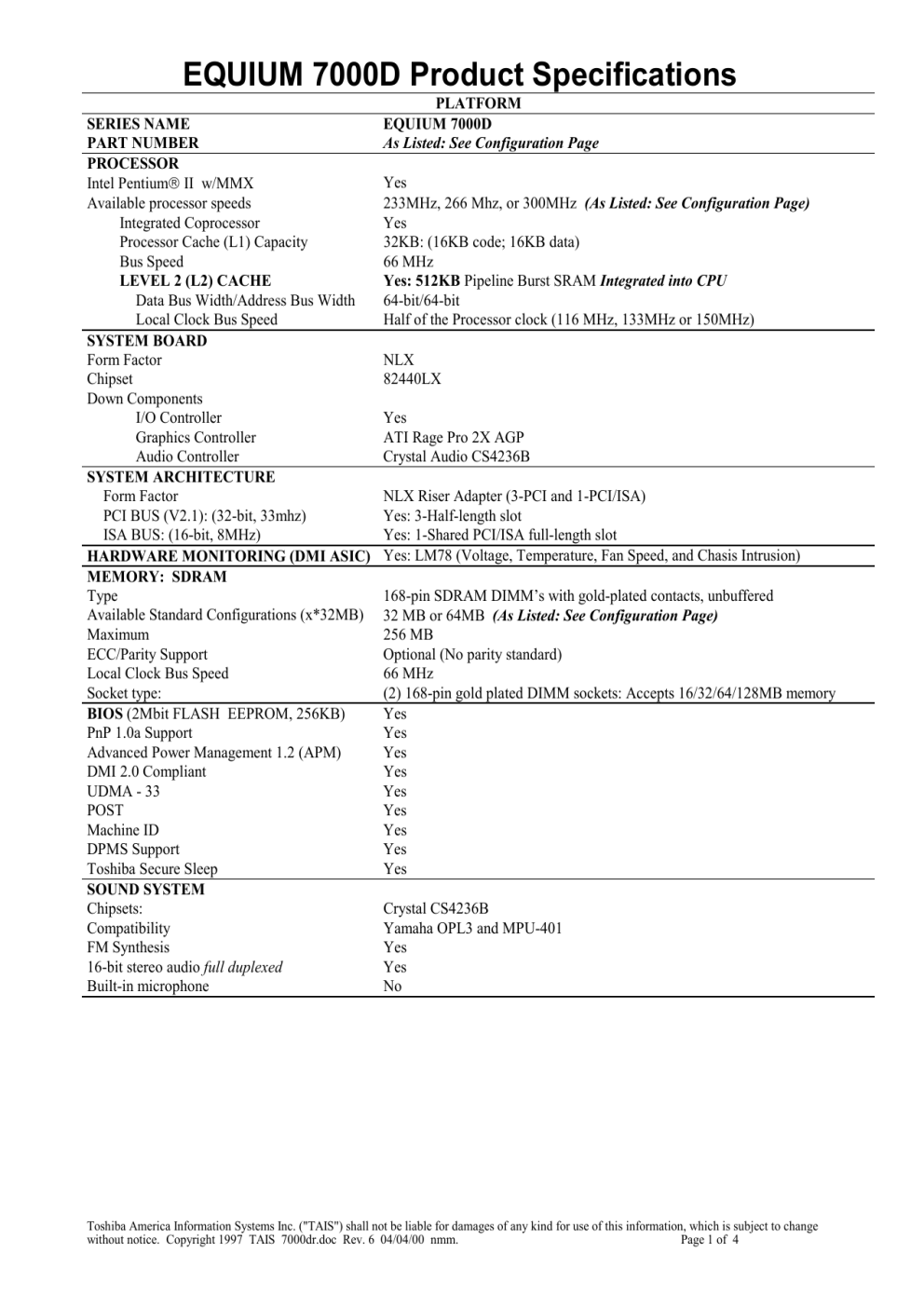

EQUIUM 7000D Product Specifications
PLATFORM
SERIES NAME
PART NUMBER
PROCESSOR
Intel Pentium
II w/MMX
Available processor speeds
Integrated Coprocessor
Processor Cache (L1) Capacity
Bus Speed
LEVEL 2 (L2) CACHE
Data Bus Width/Address Bus Width
Local Clock Bus Speed
EQUIUM 7000D
As Listed: See Configuration Page
Yes
233MHz, 266 Mhz, or 300MHz (As Listed: See Configuration Page)
Yes
32KB: (16KB code; 16KB data)
66 MHz
Yes: 512KB Pipeline Burst SRAM Integrated into CPU
64-bit/64-bit
Half of the Processor clock (116 MHz, 133MHz or 150MHz)
SYSTEM BOARD
Form Factor
Chipset
Down Components
I/O Controller
Graphics Controller
Audio Controller
NLX
82440LX
Yes
ATI Rage Pro 2X AGP
Crystal Audio CS4236B
SYSTEM ARCHITECTURE
Form Factor
PCI BUS (V2.1): (32-bit, 33mhz)
ISA BUS: (16-bit, 8MHz)
NLX Riser Adapter (3-PCI and 1-PCI/ISA)
Yes: 3-Half-length slot
Yes: 1-Shared PCI/ISA full-length slot
HARDWARE MONITORING (DMI ASIC) Yes: LM78 (Voltage, Temperature, Fan Speed, and Chasis Intrusion)
MEMORY: SDRAM
Type 168-pin SDRAM DIMM’s with gold-plated contacts, unbuffered
Available Standard Configurations (x*32MB) 32 MB or 64MB (As Listed: See Configuration Page)
Maximum 256 MB
ECC/Parity Support
Local Clock Bus Speed
Socket type:
Optional (No parity standard)
66 MHz
(2) 168-pin gold plated DIMM sockets: Accepts 16/32/64/128MB memory
BIOS (2Mbit FLASH EEPROM, 256KB)
PnP 1.0a Support
Advanced Power Management 1.2 (APM)
DMI 2.0 Compliant
UDMA - 33
POST
Machine ID
DPMS Support
Toshiba Secure Sleep
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
SOUND SYSTEM
Chipsets:
Compatibility
Crystal CS4236B
Yamaha OPL3 and MPU-401
FM Synthesis Yes
16-bit stereo audio full duplexed Yes
Built-in microphone No
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Copyright 1997 TAIS 7000dr.doc Rev. 6 04/04/00 nmm.
Page 1 of 4
EQUIUM 7000D Product Specifications
SERIES NAME
PART NUMBER
PLATFORM (con.)
EQUIUM 7000D
As Listed: See Configuration Page
EXTERNAL INTERFACES All ports color coded for easy installation
Two 9/25-Pin Serial (16550 UART compliant) Yes
Two Universal Serial Bus ports
1
Supports 2 USB peripherals without external hub
One 25-Pin Parallel (IEEEP1284 compliant) Yes: EPP/ECP compliant
One 15-Pin RGB (SVGA video)
One (PS/2) Mouse Port
One (PS/2) 104 Keyboard
One External Microphone jack
Yes
Yes
Yes
Yes
Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes
AC IN (Standard 2 prong ) Yes
VIDEO
Video Memory: SGRAM
Speed
Data Bus Width
Clock Speed
Graphic Controller
Standards Supported
Local Bus support
Controller Chip
Connected Bus type
Bus Speed
64-bit BitBLT Engine
2D Supported Features
3D Supported Features
AGP Support
Triangle Setup
Modeling
Shading
Rendering
Alpha-blending
Direct3D support
QuickDraw 3D RAVE support
Open GL support
Digital Video Accelerator
YUV Color Space Conversion
2 MB expandable to 6MB (via SO-DIMM socket)
40ns
64-bit
100 MHz
DPMS Power Managment, DDC1, DDC2B+, PnP Compliant
Yes: PCI Bus (33 Mhz, 32-bit)
ATI 3D Rage Pro 2X (AGP -- Accelerated Graphics Port)
AGP 1.0
133 MHz
Yes
BitBLT, Hardware Cursor (up to 64 x 64 x 2), DirectDraw,
Retangle Fill,Line Draw, Polygon Fill, Panning/Scrolling, Bit Masking,
Monochrome Expansion, Scssoring and full ROP support
Yes: supports 24-bit color
Yes: (133mhz with sidebands and pipelining 64-bit PCI Graphics Accelerator)
Yes
Fogging, lighting
Gouraud shading
Texture mapping: Bilinear,Trilinear, Anti-aliasing, MIP mapping, Z-Buffering
Yes
Yes
Yes
Yes
Scaling/ Interpolation
Direct Video, DirectMPEG
Motion Compensation
SUPPORTED VIDEO RESOLUTIONS
(Non-interlaced unless otherwise specified)
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
Yes: Off-loads conversion from CPU for higher performance full motion video without compromising picture quality or frame rate.
Yes: vertical & horizontal
Yes
Yes
Colors/ Refresh Rate
2MB Memory
32-bit
32-bit
16-bit (64K)
16-bit (64K)
8-bit (256)
160 Hz
160 Hz
140 Hz
120 Hz
100 Hz
Colors/ Refresh Rate
4MB Memory
32-bit
32-bit
32-bit
32-bit
24-bit (16.7M)
160 Hz
160 Hz
140 Hz
100 Hz
85 Hz
1. Both ports operate from a single controller allowing 128 devices total, not per port. Throughput for the Universal Serial
Bus (UBS) is 12Mbits/sec.
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Copyright 1997 TAIS 7000dr.doc Rev. 6 04/04/00 nmm.
Page 2 of 4
EQUIUM 7000D Product Specifications
SERIES NAME
PART NUMBER
EXPANSION BAY
EXPANSION SLOTS
PCI: Half-Length
PCI/ISA Shared: Full-length
Internal 3.5”
5.25”
External 3.5”
As Listed: See Configuration Page 5.25”
CHASSIS (DESKTOP DESIGN)
EQUIUM 7000D
As Listed: See Configuration Page
TOTAL
2
0
1
2
TOTAL
3
1
AVAILABLE
1
0
0
1
AVAILABLE
3
1
CONFIGURED
0
1 (FDD)
1 (CD-ROM)
CONFIGURED
0
0
POWER SUPPLY (200W)
Input (Voltage/Frequency)
SUPPORTED SAFETY STANDARDS
US/Canada
115-230V; 50-60Hz, Switch Selectable
Europe
UL 1950 - CSA950-95, 3rd Edition, 7/28/95
CSA22.2 No.950-93, 3rd Edition
ICES-003, Issue 2
FCC Class B
EN 60950 w/Nordic deviation
CE Mark
EN61000-4-2 (IEC 801-2), EN61000-4-3 (IEC 801-3), EN61000-4-4
TUV/GS Mark
EN61000-4-5, VCCI Class 2 (ITE) Japan
CERTIFICATIONS: Windows 95 & Windows NT logo, Novell Client, Energy Star
HARDWARE COMPLIANT: PC97, PC98, Wired For Management (WfM)
SECURITY
Hardware
Keyboard/Mouse Lock
Miscellaneous
Password Support
Chasis Lock (key mechanism/padlock) -- Lock not included
Secure sleep
Screen blank
Power-on, Supervisor/Administrator, User, Sleep
DIMENSIONS 17.5”W x 17.0”D x 5.5”H
BUNDLED SOFTWARE: Windows 95 or Windows NT Workstation v4.0 w/WindowsNT Service Pack 3 (optional);
Intel LanDesk Client Manager 3.1; Microsoft Internet Explorer 4.0.; Expert Intelligent Help(SystemWizard v1.4)
Online User’s Guide
CD’s Included: Backup CD, Recovery CD
WARRANTY: 3 Yr. Parts/One Yr. Labor (First Yr. On-site); 24 x 7 Dedicated technical support
ENVIRONMENTAL SPECIFICATIONS
Temperature:
Packaged: -30°C to 70°C
Relative Humidity:
Shock:
Vibration (5~150Hz f/30 minutes, each axis)
Packaged: 1.0G
Operating
50
°
F (10
°
C) to 95
°
F (35
°
C)
--
30
%
to 80
%
non-condensing
10G; 1.5G w/CD-ROM installed
0.3G
--
-4
10
°
%
Non-operating
F (-20
°
to 90
C) to 140
%
--
0.6G
--
°
F (60
°
C)
non-condensing
60G; 10G w/CD-ROM installed
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Copyright 1997 TAIS 7000dr.doc Rev. 6 04/04/00 nmm.
Page 3 of 4
EQUIUM 7000D Product Specifications
SERIES NAME
PART NUMBER
STORAGE
FDD
HDD (3.5”Half-height Enhanced IDE)
Type
Capacity options
Buffer
Access Time
Ultra DMA
Burst Data Transfer Rate
Certifications
Controller
CD-ROM :
Available options
CD-ROM speed
Interface
Random Access Time
Sustained Data Transfer Rate
Supported Disk Formats
ETHERNET SUPPORT
Form Factor
Model
Chipset
Support Network
Port
Wake on LAN
KEYBOARD (PS/2)
Enhanced 104-key keyboard
Windows 95 support
Total Number of Hot Keys
Application Launch keys
CD keys
Volume keys
Sleep keys
3.5mm Travel
12 dedicated function keys
Numeric keypad
Keyboard tilt
Detatchable palm rest
Scroll Lock, CapsLock, NumLock Indicators
POINTING DEVICE
PS/2 Mouse
COMPONENT
EQUIUM 7000D
As Listed: See Configuration Page
3.5” 1.44MB Floppy Disk Drive
As Listed: See Configuration Page
Removable, SMART, Ultra-DMA
2.1GB; 3.2GB; 4.3GB (As Listed: See Configuration Page)
256KB
<9.7 msec
Yes
Ultra DMA Mode2 (33.0MB/sec); PIO Mode 4 (16.7MB/sec)
SMART, UDMA-33, Energy Star
Integrated (ATA-4)
As Listed: See Configuration Page
No CD-ROM, 32X CD-ROM or DVD-ROM
32X
ATAPI ( Enhanced IDE )
85 ms
16,700 KB/sec (16.7MB/sec DMA Mode 1)
Multisession Photo-CD, CD-Extra, CD-ROM XA, CD-I, Video CD, CD-G,
CD-I Ready, MPC-3 Compliant, Red Book, Yellow Book, Plug and Play
As Listed: See Configuration Page
NSX Riser
Intel
EtherExpress
PRO PCI i82558
100Base-TX, 10Base T
RJ 45 (with Connection Status LED and Ethernet Speed LED)
Yes
As Listed: See Configuration Page
Mult-function Keyboard Option Value Keyboard Option
Yes
Yes
14
Yes
Yes
None
6
4
3
Not Applicable
Not Applicable
Not Applicable
1
Yes
Yes
Yes
Yes
Yes
Yes
Not Applicable
Yes
Yes
Yes
Yes
No
Yes
Yes: 2 Button with 6 foot cable
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Copyright 1997 TAIS 7000dr.doc Rev. 6 04/04/00 nmm.
Page 4 of 4
