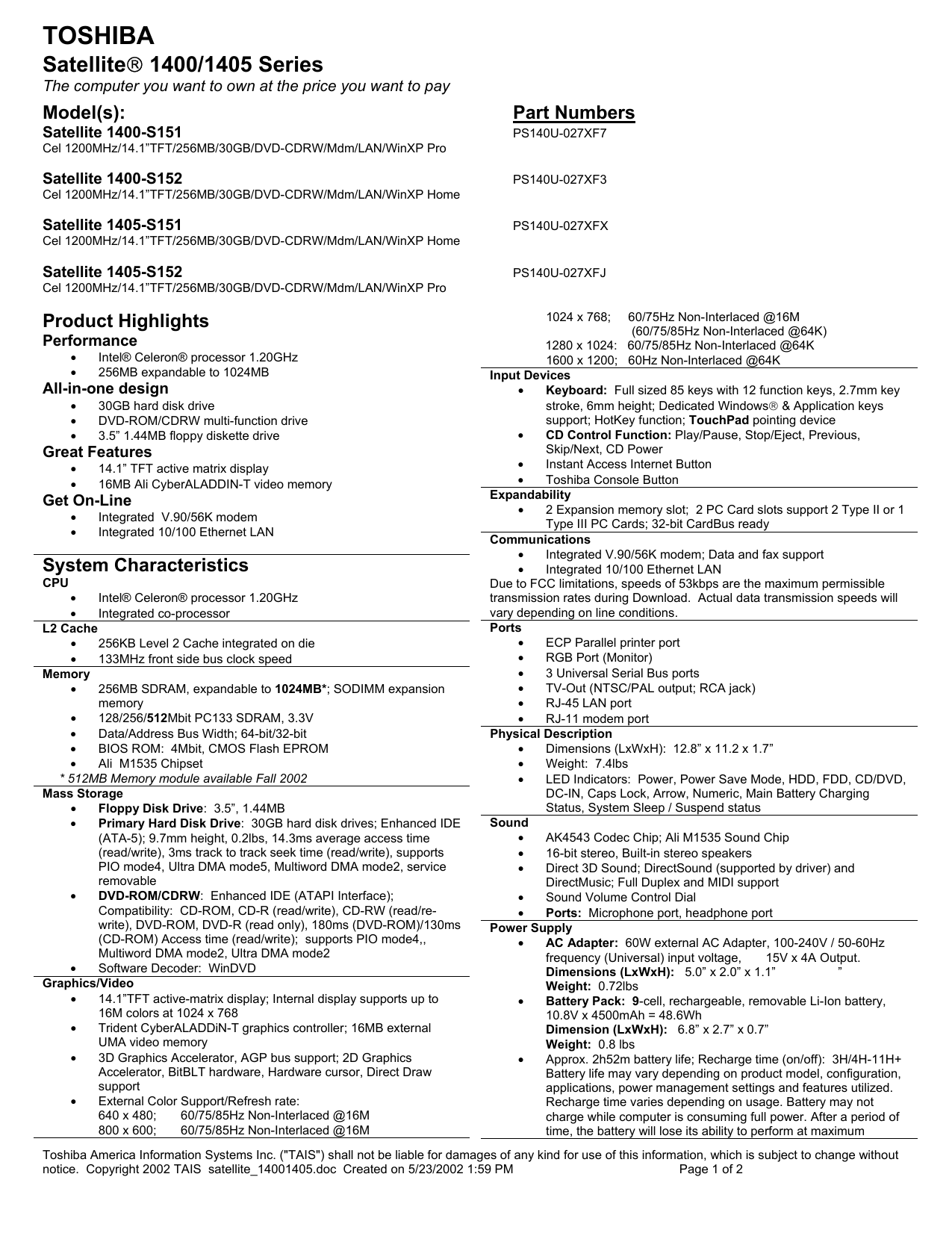

Toshiba 1405-S152 Laptop Specification

TOSHIBA
Satellite 1400/1405 Series
The computer you want to own at the price you want to pay
Model(s):
Part Numbers
Satellite 1400-S151
PS140U-027XF7
Cel 1200MHz/14.1”TFT/256MB/30GB/DVD-CDRW/Mdm/LAN/WinXP Pro
Satellite 1400-S152
PS140U-027XF3
Cel 1200MHz/14.1”TFT/256MB/30GB/DVD-CDRW/Mdm/LAN/WinXP Home
Satellite 1405-S151
PS140U-027XFX
Cel 1200MHz/14.1”TFT/256MB/30GB/DVD-CDRW/Mdm/LAN/WinXP Home
Satellite 1405-S152
PS140U-027XFJ
Cel 1200MHz/14.1”TFT/256MB/30GB/DVD-CDRW/Mdm/LAN/WinXP Pro
Product Highlights
Performance
•
•
Intel® Celeron® processor 1.20GHz
256MB expandable to 1024MB
•
•
•
30GB hard disk drive
DVD-ROM/CDRW multi-function drive
3.5” 1.44MB floppy diskette drive
•
•
14.1” TFT active matrix display
16MB Ali CyberALADDIN-T video memory
•
•
Integrated V.90/56K modem
Integrated 10/100 Ethernet LAN
All-in-one design
Great Features
Get On-Line
System Characteristics
CPU
•
Intel® Celeron® processor 1.20GHz
•
Integrated co-processor
L2 Cache
•
256KB Level 2 Cache integrated on die
•
133MHz front side bus clock speed
Memory
•
256MB SDRAM, expandable to 1024MB*; SODIMM expansion
memory
•
128/256/512Mbit PC133 SDRAM, 3.3V
•
Data/Address Bus Width; 64-bit/32-bit
•
BIOS ROM: 4Mbit, CMOS Flash EPROM
•
Ali M1535 Chipset
* 512MB Memory module available Fall 2002
Mass Storage
•
Floppy Disk Drive: 3.5”, 1.44MB
•
Primary Hard Disk Drive: 30GB hard disk drives; Enhanced IDE
(ATA-5); 9.7mm height, 0.2lbs, 14.3ms average access time
(read/write), 3ms track to track seek time (read/write), supports
PIO mode4, Ultra DMA mode5, Multiword DMA mode2, service
removable
•
DVD-ROM/CDRW: Enhanced IDE (ATAPI Interface);
Compatibility: CD-ROM, CD-R (read/write), CD-RW (read/rewrite), DVD-ROM, DVD-R (read only), 180ms (DVD-ROM)/130ms
(CD-ROM) Access time (read/write); supports PIO mode4,,
Multiword DMA mode2, Ultra DMA mode2
•
Software Decoder: WinDVD
Graphics/Video
•
14.1”TFT active-matrix display; Internal display supports up to
16M colors at 1024 x 768
•
Trident CyberALADDiN-T graphics controller; 16MB external
UMA video memory
•
3D Graphics Accelerator, AGP bus support; 2D Graphics
Accelerator, BitBLT hardware, Hardware cursor, Direct Draw
support
•
External Color Support/Refresh rate:
640 x 480;
60/75/85Hz Non-Interlaced @16M
800 x 600;
60/75/85Hz Non-Interlaced @16M
1024 x 768;
60/75Hz Non-Interlaced @16M
(60/75/85Hz Non-Interlaced @64K)
1280 x 1024: 60/75/85Hz Non-Interlaced @64K
1600 x 1200; 60Hz Non-Interlaced @64K
Input Devices
•
Keyboard: Full sized 85 keys with 12 function keys, 2.7mm key
stroke, 6mm height; Dedicated Windows & Application keys
support; HotKey function; TouchPad pointing device
•
CD Control Function: Play/Pause, Stop/Eject, Previous,
Skip/Next, CD Power
•
Instant Access Internet Button
•
Toshiba Console Button
Expandability
•
2 Expansion memory slot; 2 PC Card slots support 2 Type II or 1
Type III PC Cards; 32-bit CardBus ready
Communications
•
Integrated V.90/56K modem; Data and fax support
•
Integrated 10/100 Ethernet LAN
Due to FCC limitations, speeds of 53kbps are the maximum permissible
transmission rates during Download. Actual data transmission speeds will
vary depending on line conditions.
Ports
•
ECP Parallel printer port
•
RGB Port (Monitor)
•
3 Universal Serial Bus ports
•
TV-Out (NTSC/PAL output; RCA jack)
•
RJ-45 LAN port
•
RJ-11 modem port
Physical Description
•
Dimensions (LxWxH): 12.8” x 11.2 x 1.7”
•
Weight: 7.4lbs
•
LED Indicators: Power, Power Save Mode, HDD, FDD, CD/DVD,
DC-IN, Caps Lock, Arrow, Numeric, Main Battery Charging
Status, System Sleep / Suspend status
Sound
•
AK4543 Codec Chip; Ali M1535 Sound Chip
•
16-bit stereo, Built-in stereo speakers
•
Direct 3D Sound; DirectSound (supported by driver) and
DirectMusic; Full Duplex and MIDI support
•
Sound Volume Control Dial
•
Ports: Microphone port, headphone port
Power Supply
•
AC Adapter: 60W external AC Adapter, 100-240V / 50-60Hz
frequency (Universal) input voltage,
15V x 4A Output.
Dimensions (LxWxH): 5.0” x 2.0” x 1.1”
”
Weight: 0.72lbs
•
Battery Pack: 9-cell, rechargeable, removable Li-Ion battery,
10.8V x 4500mAh = 48.6Wh
Dimension (LxWxH): 6.8” x 2.7” x 0.7”
Weight: 0.8 lbs
•
Approx. 2h52m battery life; Recharge time (on/off): 3H/4H-11H+
Battery life may vary depending on product model, configuration,
applications, power management settings and features utilized.
Recharge time varies depending on usage. Battery may not
charge while computer is consuming full power. After a period of
time, the battery will lose its ability to perform at maximum
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS satellite_14001405.doc Created on 5/23/2002 1:59 PM
Page 1 of 2
capacity and will need to be replaced. This is normal for all
batteries. To purchase a new battery pack, see the accessories
information that shipped with your computer or visit
www.accessories.toshiba.com
Security
•
Slot for computer lock, Main Battery Pack (sliding lock), HDD and
memory (by screw only), Built-in Modem/LAN (screw only), User
Power-on password, Setup Security, HDD Password, Keyboard
Lock (by HotKey), Screen Blank (by Hotkey), Screen Saver by
software
Bios
•
TSETUP, APM, ACPI, PnP, VESA, DPMS, DDC, SM BIOS, PC
BIOS support
Operating System
•
Microsoft WindowsXP Home (1405-S151; 1400-S152) preinstalled
•
Microsoft® WindowsXP Pro (1400-S151; 1405-S152) preinstalled
•
Windows 2000 component drivers on the web
Additional Software
•
Lotus SmartSuite Millennium Edition (1405-S151 & 1405-S152
only)
•
Intuit Quicken Basic 2001
•
Norton AntiVirus 2002
•
AOL (3 –Month offer)
•
Adobe Acrobat Reader
•
Microsoft Internet Explorer
•
Toshiba Custom Utilities
•
Satellite Series Online Documentation
•
Toshiba Great Software Offer: Receive your choice of two
software titles. The software selection includes titles
from the follow categories; productivity, education/reference,
creativity and entertainment
Warranty
•
1 year parts, labor and battery
Environmental Specifications
•
Temperature: Operating: 5° to 35°C (41° to 95°F); Nonoperating: -20° to 65°C (-4° to 149°F)
•
Thermal gradient: Operating: 15°C per hour maximum; Nonoperating: 20°C per hour maximum
•
Relative Humidity: Operating: 20% to 80% non-condensing;
Non-operating: 10% to 95% non-condensing
•
Altitude (relative to sea level): Operating: -60 to 3000 meters;
Non-operating: -60 to 10,000 meters
•
Shock: Operating: 10G; Non-operating: 50G
•
Vibration: Operating: 0.1G; Non-operating: 1.0G
Satellite 1405-S151 (Win XP Home)
Satellite 1400-S151 (Win XP Pro)
Satellite 1405-S152 (Win XP Pro)
Satellite 1400-S152 (Win XP Home)
PS140U-027XFX
PS140U-027XF7
PS140U-027XFJ
PS140U-027XF3
* Central Processing Unit (“CPU”) Performance Disclaimer:
CPU performance in your computer product may vary from specifications
under the following conditions:
•
•
•
•
•
•
•
use of certain external peripheral products
use of battery power instead of AC power
use of certain multimedia games or videos with special effects
use of standard telephone lines or low speed network connections
use of complex modeling software, such as high end computer
aided design applications
use of computer in areas with low air pressure (high altitude >1,000
meters or >3,280 feet above sea level)
use of computer at temperatures outside the range of 5°C to 35°C
(41°F to 95° F) or >25°C (77°F) at high altitude (all temperature
references are approximate).
CPU performance may also vary from specifications due to design
configuration.
Under some conditions, your computer product may automatically shutdown. This is a normal protective feature designed to reduce the risk of lost
data or damage to the product when used outside recommended
conditions. To avoid risk of lost data, always make back-up copies of data
by periodically storing it on an external storage medium. For optimum
performance, use your computer product only under recommended
conditions. Read additional restrictions under “Environmental Conditions” in
your product Resource Guide. Contact Toshiba Technical Service and
Support for more information.
Return Policy
TAIS does not accept the return of component parts, or bundled software,
which have been removed from the PC system. Pro-rata refunds on
individual PC components or bundled software, including the operating
system, will not be granted. If you wish to return a complete PC system,
contact the TAIS dealer where you purchased the product, and comply with
the dealer’s standard return policies and procedures.
Accessories
Kingston Memory
KTT-SO133/128
KTT-SO133/256
128MB PC133 SDRAM Memory
256MB PC133 SDRAM Memory
Cases (Targus)
NWCTM1
NWCSS1
NWCEB1
NWCER1
Metropolitan Carrying Case (koskin)
Suburban Carrying Case (nylon)
Expedition Backpack
Excursion Roller
Other Accessories
PA3083U-1ACA
PA3107U-1BRS
PA2488U
PA3079U-1PCC
PA450U
75W Universal AC adapter
Li-Ion Battery Pack
Battery Charger
2GB Type II PC Card HDD
Targus Defcon Key Lock
Wi-Fi (Agere)
8484415560
8485582350
8485878380
8485463880
8485893390
Orinoco Wireless LAN PC Card (Gold)
Orinoco AP-1000 Access Point
Orinoco AP-500 Access Point
Orinoco RG-1000 Residential Gateway
Orinoco Range Extending Antenna
Product/Part Numbers/UPC
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS satellite_14001405.doc Created on 5/23/2002 1:59 PM
Page 2 of 2
