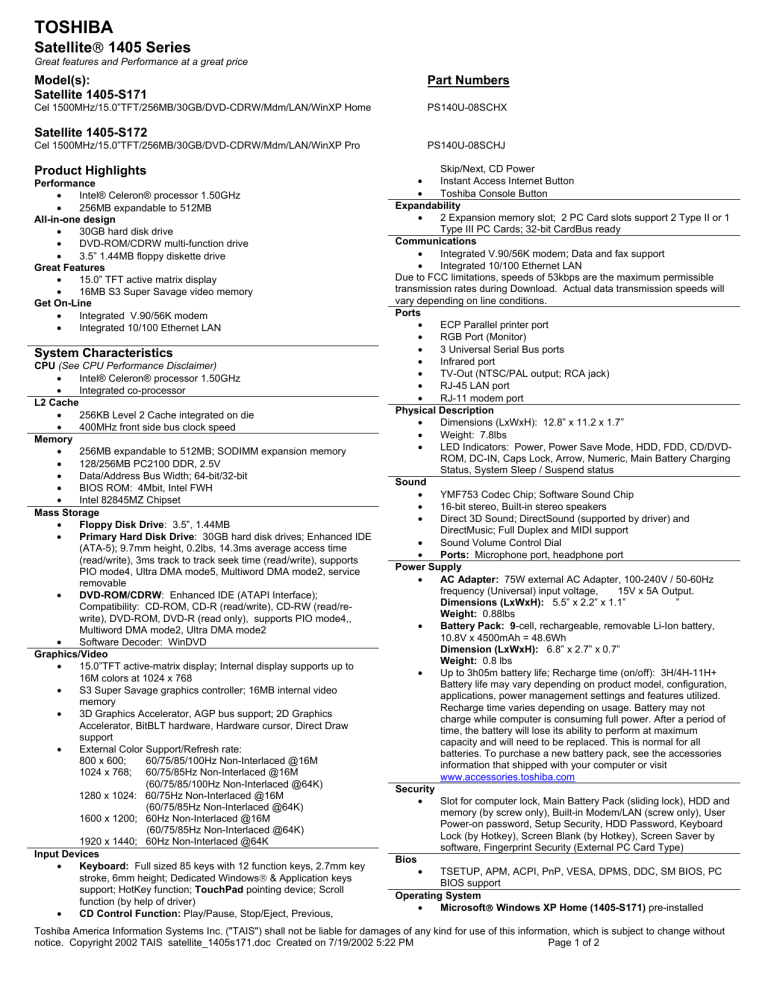

Satellite 1405 Series
Great features and Performance at a great price
Satellite 1405-S171
Part Numbers
Cel 1500MHz/15.0”TFT/256MB/30GB/DVD-CDRW/Mdm/LAN/WinXP Home
Satellite 1405-S172
Cel 1500MHz/15.0”TFT/256MB/30GB/DVD-CDRW/Mdm/LAN/WinXP Pro
Product Highlights
Intel® Celeron® processor 1.50GHz
256MB expandable to 512MB
All-in-one design
30GB hard disk drive
DVD-ROM/CDRW multi-function drive
3.5” 1.44MB floppy diskette drive
Great Features
15.0” TFT active matrix display
16MB S3 Super Savage video memory
Get On-Line
Integrated V.90/56K modem
Integrated 10/100 Ethernet LAN
System Characteristics
CPU (See CPU Performance Disclaimer)
Intel® Celeron® processor 1.50GHz
Integrated co-processor
L2 Cache
256KB Level 2 Cache integrated on die
400MHz front side bus clock speed
256MB expandable to 512MB; SODIMM expansion memory
128/256MB PC2100 DDR, 2.5V
Data/Address Bus Width; 64-bit/32-bit
BIOS ROM: 4Mbit, Intel FWH
Intel 82845MZ Chipset
Mass Storage
Floppy Disk Drive: 3.5”, 1.44MB
Primary Hard Disk Drive: 30GB hard disk drives; Enhanced IDE
(ATA-5); 9.7mm height, 0.2lbs, 14.3ms average access time
(read/write), 3ms track to track seek time (read/write), supports
PIO mode4, Ultra DMA mode5, Multiword DMA mode2, service
DVD-ROM/CDRW: Enhanced IDE (ATAPI Interface);
Compatibility: CD-ROM, CD-R (read/write), CD-RW (read/rewrite), DVD-ROM, DVD-R (read only), supports PIO mode4,,
Multiword DMA mode2, Ultra DMA mode2
Software Decoder: WinDVD
15.0”TFT active-matrix display; Internal display supports up to
16M colors at 1024 x 768
S3 Super Savage graphics controller; 16MB internal video
3D Graphics Accelerator, AGP bus support; 2D Graphics
Accelerator, BitBLT hardware, Hardware cursor, Direct Draw
External Color Support/Refresh rate:
800 x 600;
60/75/85/100Hz Non-Interlaced @16M
1024 x 768; 60/75/85Hz Non-Interlaced @16M
(60/75/85/100Hz Non-Interlaced @64K)
1280 x 1024: 60/75Hz Non-Interlaced @16M
(60/75/85Hz Non-Interlaced @64K)
1600 x 1200; 60Hz Non-Interlaced @16M
(60/75/85Hz Non-Interlaced @64K)
1920 x 1440; 60Hz Non-Interlaced @64K
Input Devices
Keyboard: Full sized 85 keys with 12 function keys, 2.7mm key
stroke, 6mm height; Dedicated Windows & Application keys
support; HotKey function; TouchPad pointing device; Scroll
function (by help of driver)
CD Control Function: Play/Pause, Stop/Eject, Previous,
Skip/Next, CD Power
Instant Access Internet Button
Toshiba Console Button
2 Expansion memory slot; 2 PC Card slots support 2 Type II or 1
Type III PC Cards; 32-bit CardBus ready
Integrated V.90/56K modem; Data and fax support
Integrated 10/100 Ethernet LAN
Due to FCC limitations, speeds of 53kbps are the maximum permissible
transmission rates during Download. Actual data transmission speeds will
vary depending on line conditions.
ECP Parallel printer port
RGB Port (Monitor)
3 Universal Serial Bus ports
Infrared port
TV-Out (NTSC/PAL output; RCA jack)
RJ-45 LAN port
RJ-11 modem port
Physical Description
Dimensions (LxWxH): 12.8” x 11.2 x 1.7”
Weight: 7.8lbs
LED Indicators: Power, Power Save Mode, HDD, FDD, CD/DVDROM, DC-IN, Caps Lock, Arrow, Numeric, Main Battery Charging
Status, System Sleep / Suspend status
YMF753 Codec Chip; Software Sound Chip
16-bit stereo, Built-in stereo speakers
Direct 3D Sound; DirectSound (supported by driver) and
DirectMusic; Full Duplex and MIDI support
Sound Volume Control Dial
Ports: Microphone port, headphone port
Power Supply
AC Adapter: 75W external AC Adapter, 100-240V / 50-60Hz
frequency (Universal) input voltage,
15V x 5A Output.
Dimensions (LxWxH): 5.5” x 2.2” x 1.1”
Weight: 0.88lbs
Battery Pack: 9-cell, rechargeable, removable Li-Ion battery,
10.8V x 4500mAh = 48.6Wh
Dimension (LxWxH): 6.8” x 2.7” x 0.7”
Weight: 0.8 lbs
Up to 3h05m battery life; Recharge time (on/off): 3H/4H-11H+
Battery life may vary depending on product model, configuration,
applications, power management settings and features utilized.
Recharge time varies depending on usage. Battery may not
charge while computer is consuming full power. After a period of
time, the battery will lose its ability to perform at maximum
capacity and will need to be replaced. This is normal for all
batteries. To purchase a new battery pack, see the accessories
information that shipped with your computer or visit
Slot for computer lock, Main Battery Pack (sliding lock), HDD and
memory (by screw only), Built-in Modem/LAN (screw only), User
Power-on password, Setup Security, HDD Password, Keyboard
Lock (by Hotkey), Screen Blank (by Hotkey), Screen Saver by
software, Fingerprint Security (External PC Card Type)
BIOS support
Operating System
Microsoft Windows XP Home (1405-S171) pre-installed
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS satellite_1405s171.doc Created on 7/19/2002 5:22 PM
Page 1 of 2
Microsoft® Windows XP Pro (1405-S172) pre-installed
Windows 2000 component drivers on the web
Additional Software
Lotus SmartSuite Millennium Edition
Intuit Quicken Basic 2001
Norton AntiVirus 2002
AOL (3 –Month offer)
Adobe Acrobat Reader
Microsoft Internet Explorer
Toshiba Custom Utilities
Satellite Series Online Documentation
Toshiba Great Software Offer: Receive your choice of two
software titles. The software selection includes titles
from the follow categories: productivity, education/reference,
creativity and entertainment
1 year parts, labor and battery
Environmental Specifications
Temperature: Operating: 5° to 35°C (41° to 95°F); Nonoperating: -20° to 65°C (-4° to 149°F)
Thermal gradient: Operating: 15°C per hour maximum; Nonoperating: 20°C per hour maximum
Relative Humidity: Operating: 20% to 80% non-condensing;
Non-operating: 10% to 95% non-condensing
Altitude (relative to sea level): Operating: -60 to 3000 meters;
Non-operating: -60 to 10,000 meters
Shock: Operating: 10G; Non-operating: 50G
Vibration: Operating: 0.1G; Non-operating: 1.0G
Kingston Memory
* Central Processing Unit (“CPU”) Performance Disclaimer:
CPU performance in your computer product may vary from specifications
under the following conditions:
use of certain external peripheral products
use of battery power instead of AC power
use of certain multimedia games or videos with special effects
use of standard telephone lines or low speed network connections
use of complex modeling software, such as high end computer
aided design applications
use of computer in areas with low air pressure (high altitude >1,000
meters or >3,280 feet above sea level)
use of computer at temperatures outside the range of 5°C to 35°C
(41°F to 95° F) or >25°C (77°F) at high altitude (all temperature
references are approximate).
CPU performance may also vary from specifications due to design
Under some conditions, your computer product may automatically shutdown. This is a normal protective feature designed to reduce the risk of lost
data or damage to the product when used outside recommended
conditions. To avoid risk of lost data, always make back-up copies of data
by periodically storing it on an external storage medium. For optimum
performance, use your computer product only under recommended
conditions. Read additional restrictions under “Environmental Conditions” in
your product Resource Guide. Contact Toshiba Technical Service and
Support for more information.
128MB PC2100 DDR Memory
256MB PC2100 DDR Memory
Return Policy
Cases (Targus)
Suburban Carrying Case (nylon)
Expedition Backpack
Other Accessories
75W Universal AC adapter
Li-Ion Battery Pack
Battery Charger
Targus Defcon Key Lock
Wi-Fi (Agere)
Orinoco Wireless LAN PC Card (Gold)
Orinoco AP-1000 Access Point
Orinoco AP-500 Access Point
Orinoco Range Extending Antenna
TAIS does not accept the return of component parts, or bundled software,
which have been removed from the PC system. Pro-rata refunds on
individual PC components or bundled software, including the operating
system, will not be granted. If you wish to return a complete PC system,
contact the TAIS dealer where you purchased the product, and comply with
the dealer’s standard return policies and procedures.
Product/Part Numbers/UPC
Satellite 1405-S171 (Win XP Home)
Satellite 1405-S172 (Win XP Pro)
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS satellite_1405s171.doc Created on 7/19/2002 5:22 PM
Page 2 of 2
