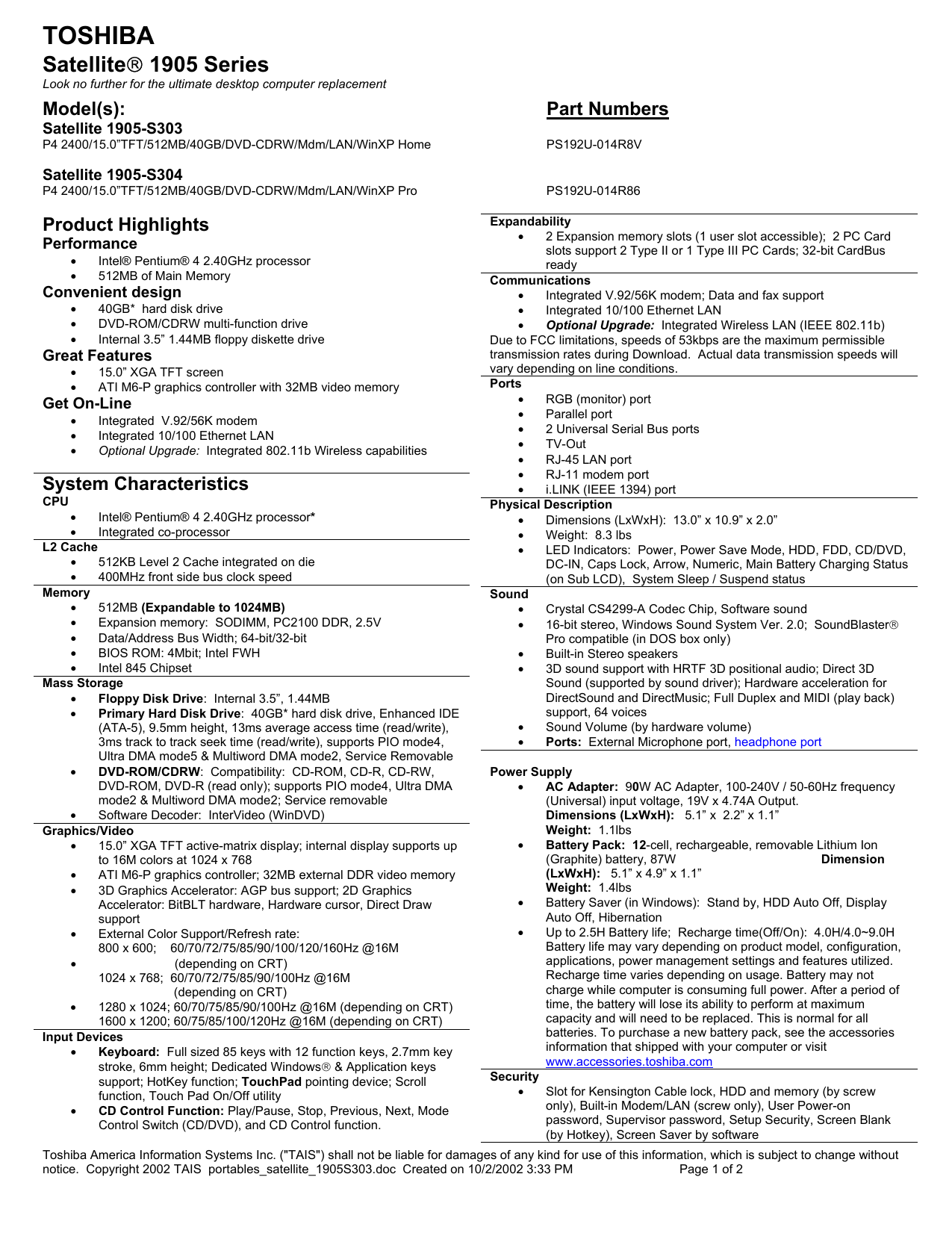

Toshiba 1905-S304 Laptop Specification

TOSHIBA
Satellite 1905 Series
Look no further for the ultimate desktop computer replacement
Model(s):
Part Numbers
Satellite 1905-S303
P4 2400/15.0”TFT/512MB/40GB/DVD-CDRW/Mdm/LAN/WinXP Home
PS192U-014R8V
Satellite 1905-S304
P4 2400/15.0”TFT/512MB/40GB/DVD-CDRW/Mdm/LAN/WinXP Pro
Product Highlights
Performance
•
•
Intel® Pentium® 4 2.40GHz processor
512MB of Main Memory
•
•
•
40GB* hard disk drive
DVD-ROM/CDRW multi-function drive
Internal 3.5” 1.44MB floppy diskette drive
•
•
15.0” XGA TFT screen
ATI M6-P graphics controller with 32MB video memory
•
•
•
Integrated V.92/56K modem
Integrated 10/100 Ethernet LAN
Optional Upgrade: Integrated 802.11b Wireless capabilities
Convenient design
Great Features
Get On-Line
System Characteristics
CPU
•
Intel® Pentium® 4 2.40GHz processor*
•
Integrated co-processor
L2 Cache
•
512KB Level 2 Cache integrated on die
•
400MHz front side bus clock speed
Memory
•
512MB (Expandable to 1024MB)
•
Expansion memory: SODIMM, PC2100 DDR, 2.5V
•
Data/Address Bus Width; 64-bit/32-bit
•
BIOS ROM: 4Mbit; Intel FWH
•
Intel 845 Chipset
Mass Storage
•
Floppy Disk Drive: Internal 3.5”, 1.44MB
•
Primary Hard Disk Drive: 40GB* hard disk drive, Enhanced IDE
(ATA-5), 9.5mm height, 13ms average access time (read/write),
3ms track to track seek time (read/write), supports PIO mode4,
Ultra DMA mode5 & Multiword DMA mode2, Service Removable
•
DVD-ROM/CDRW: Compatibility: CD-ROM, CD-R, CD-RW,
DVD-ROM, DVD-R (read only); supports PIO mode4, Ultra DMA
mode2 & Multiword DMA mode2; Service removable
•
Software Decoder: InterVideo (WinDVD)
Graphics/Video
•
15.0” XGA TFT active-matrix display; internal display supports up
to 16M colors at 1024 x 768
•
ATI M6-P graphics controller; 32MB external DDR video memory
•
3D Graphics Accelerator: AGP bus support; 2D Graphics
Accelerator: BitBLT hardware, Hardware cursor, Direct Draw
support
•
External Color Support/Refresh rate:
800 x 600; 60/70/72/75/85/90/100/120/160Hz @16M
•
(depending on CRT)
1024 x 768; 60/70/72/75/85/90/100Hz @16M
(depending on CRT)
•
1280 x 1024; 60/70/75/85/90/100Hz @16M (depending on CRT)
1600 x 1200; 60/75/85/100/120Hz @16M (depending on CRT)
Input Devices
•
Keyboard: Full sized 85 keys with 12 function keys, 2.7mm key
stroke, 6mm height; Dedicated Windows & Application keys
support; HotKey function; TouchPad pointing device; Scroll
function, Touch Pad On/Off utility
•
CD Control Function: Play/Pause, Stop, Previous, Next, Mode
Control Switch (CD/DVD), and CD Control function.
PS192U-014R86
Expandability
•
2 Expansion memory slots (1 user slot accessible); 2 PC Card
slots support 2 Type II or 1 Type III PC Cards; 32-bit CardBus
ready
Communications
•
Integrated V.92/56K modem; Data and fax support
•
Integrated 10/100 Ethernet LAN
•
Optional Upgrade: Integrated Wireless LAN (IEEE 802.11b)
Due to FCC limitations, speeds of 53kbps are the maximum permissible
transmission rates during Download. Actual data transmission speeds will
vary depending on line conditions.
Ports
•
RGB (monitor) port
•
Parallel port
•
2 Universal Serial Bus ports
•
TV-Out
•
RJ-45 LAN port
•
RJ-11 modem port
•
i.LINK (IEEE 1394) port
Physical Description
•
Dimensions (LxWxH): 13.0” x 10.9” x 2.0”
•
Weight: 8.3 lbs
•
LED Indicators: Power, Power Save Mode, HDD, FDD, CD/DVD,
DC-IN, Caps Lock, Arrow, Numeric, Main Battery Charging Status
(on Sub LCD), System Sleep / Suspend status
Sound
•
Crystal CS4299-A Codec Chip, Software sound
•
16-bit stereo, Windows Sound System Ver. 2.0; SoundBlaster
Pro compatible (in DOS box only)
•
Built-in Stereo speakers
•
3D sound support with HRTF 3D positional audio; Direct 3D
Sound (supported by sound driver); Hardware acceleration for
DirectSound and DirectMusic; Full Duplex and MIDI (play back)
support, 64 voices
•
Sound Volume (by hardware volume)
•
Ports: External Microphone port, headphone port
Power Supply
•
AC Adapter: 90W AC Adapter, 100-240V / 50-60Hz frequency
(Universal) input voltage, 19V x 4.74A Output.
Dimensions (LxWxH): 5.1” x 2.2” x 1.1”
Weight: 1.1lbs
•
Battery Pack: 12-cell, rechargeable, removable Lithium Ion
(Graphite) battery, 87W
Dimension
(LxWxH): 5.1” x 4.9” x 1.1”
Weight: 1.4lbs
•
Battery Saver (in Windows): Stand by, HDD Auto Off, Display
Auto Off, Hibernation
•
Up to 2.5H Battery life; Recharge time(Off/On): 4.0H/4.0~9.0H
Battery life may vary depending on product model, configuration,
applications, power management settings and features utilized.
Recharge time varies depending on usage. Battery may not
charge while computer is consuming full power. After a period of
time, the battery will lose its ability to perform at maximum
capacity and will need to be replaced. This is normal for all
batteries. To purchase a new battery pack, see the accessories
information that shipped with your computer or visit
www.accessories.toshiba.com
Security
•
Slot for Kensington Cable lock, HDD and memory (by screw
only), Built-in Modem/LAN (screw only), User Power-on
password, Supervisor password, Setup Security, Screen Blank
(by Hotkey), Screen Saver by software
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS portables_satellite_1905S303.doc Created on 10/2/2002 3:33 PM
Page 1 of 2
Bios
•
TSETUP, ACPI, PnP, VESA, DPMS, DDC, SM BIOS, PCI BIOS
support
Operating System
•
Microsoft Windows XP Home pre-installed (1905-S303)
•
Microsoft Windows XP Pro pre-installed (1905-S304)
•
Windows 2000 component drivers on the web
Additional Software
•
Microsoft® Works
•
Intuit Quicken Basic 2001
•
Norton AntiVirus 2002
•
AOL (3.-month offer)
•
Adobe Acrobat Reader
•
AT&T Worldnet® Service – 1 Month Free
Telephone access and other charges and other terms and
conditions may apply. Offer available to new customers only.
Offer expires 4/30/04.
•
Microsoft Internet Explorer
•
Toshiba Custom Utilities
•
Satellite Series Online Documentation
•
Toshiba Great Software Offer: Receive your choice of two
software titles. The software selection includes titles from the
follow categories; productivity, education/reference, creativity and
entertainment
Warranty
•
1 year parts, labor and battery
Environmental Specifications
•
Temperature: Operating: 5° to 35°C (41° to 95°F); Nonoperating: -20° to 65°C (-4° to 149°F)
•
Thermal gradient: Operating: 15°C per hour maximum; Nonoperating: 20°C per hour maximum
•
Relative Humidity: Operating: 20% to 80%; Non-operating:
10% to 95%
•
Altitude (relative to sea level): Operating: 0 to 3000 meters;
Non-operating: 0 to 10,000 meters
•
Shock: Operating: 10G; Non-operating: 60G
•
Vibration: Operating: 0.5G; Non-operating: 1.0G
Accessories
Toshiba Accessories
PA3165U-1ACA
PA3166U-1BRS
90W Universal AC Adapter
Battery Pack
* GB = 1 billion bytes
* Central Processing Unit (“CPU”) Performance Disclaimer:
CPU performance in your computer product may vary from specifications
under the following conditions:
•
•
•
•
•
•
•
use of certain external peripheral products
use of battery power instead of AC power
use of certain multimedia games or videos with special effects
use of standard telephone lines or low speed network connections
use of complex modeling software, such as high end computer
aided design applications
use of computer in areas with low air pressure (high altitude >1,000
meters or >3,280 feet above sea level)
use of computer at temperatures outside the range of 5°C to 35°C
(41°F to 95° F) or >25°C (77°F) at high altitude (all temperature
references are approximate).
CPU performance may also vary from specifications due to design
configuration.
Under some conditions, your computer product may automatically shutdown. This is a normal protective feature designed to reduce the risk of lost
data or damage to the product when used outside recommended
conditions. To avoid risk of lost data, always make back-up copies of data
by periodically storing it on an external storage medium. For optimum
performance, use your computer product only under recommended
conditions. Read additional restrictions under “Environmental Conditions” in
your product Resource Guide. Contact Toshiba Technical Service and
Support for more information.
Return Policy
TAIS does not accept the return of component parts, or bundled software,
which have been removed from the PC system. Pro-rata refunds on
individual PC components or bundled software, including the operating
system, will not be granted. If you wish to return a complete PC system,
contact the TAIS dealer where you purchased the product, and comply with
the dealer’s standard return policies and procedures.
Kingston Memory
KTT3614/128
KTT3614/256
KTT3614/512
128MB PC2100 DDR SDRAM
256MB PC2100 DDR SDRAM
512MB PC2100 DDR SDRAM
Wi-Fi (Agere)
8484415560
8485878380
7000011030
PA450U
Wireless LAN PC Card (Gold)
AP-500 (802.11b) Access Point
AP-2000 (802.11a/b) Access Point
Targus Defcon Key Lock
Cases
NWCGV1
Targus Global Traveler Carrying Case
(Only case suitable for this unit)
Product/Part Numbers/UPC
Satellite 1905-S303 (Win XP Home pre-installed)
Satellite 1905-S304 (Win XP Pro pre-installed)
PS192U-014R8V
PS192U-014R86
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS portables_satellite_1905S303.doc Created on 10/2/2002 3:33 PM
Page 2 of 2
