Toshiba 2505CDS Laptop Specification

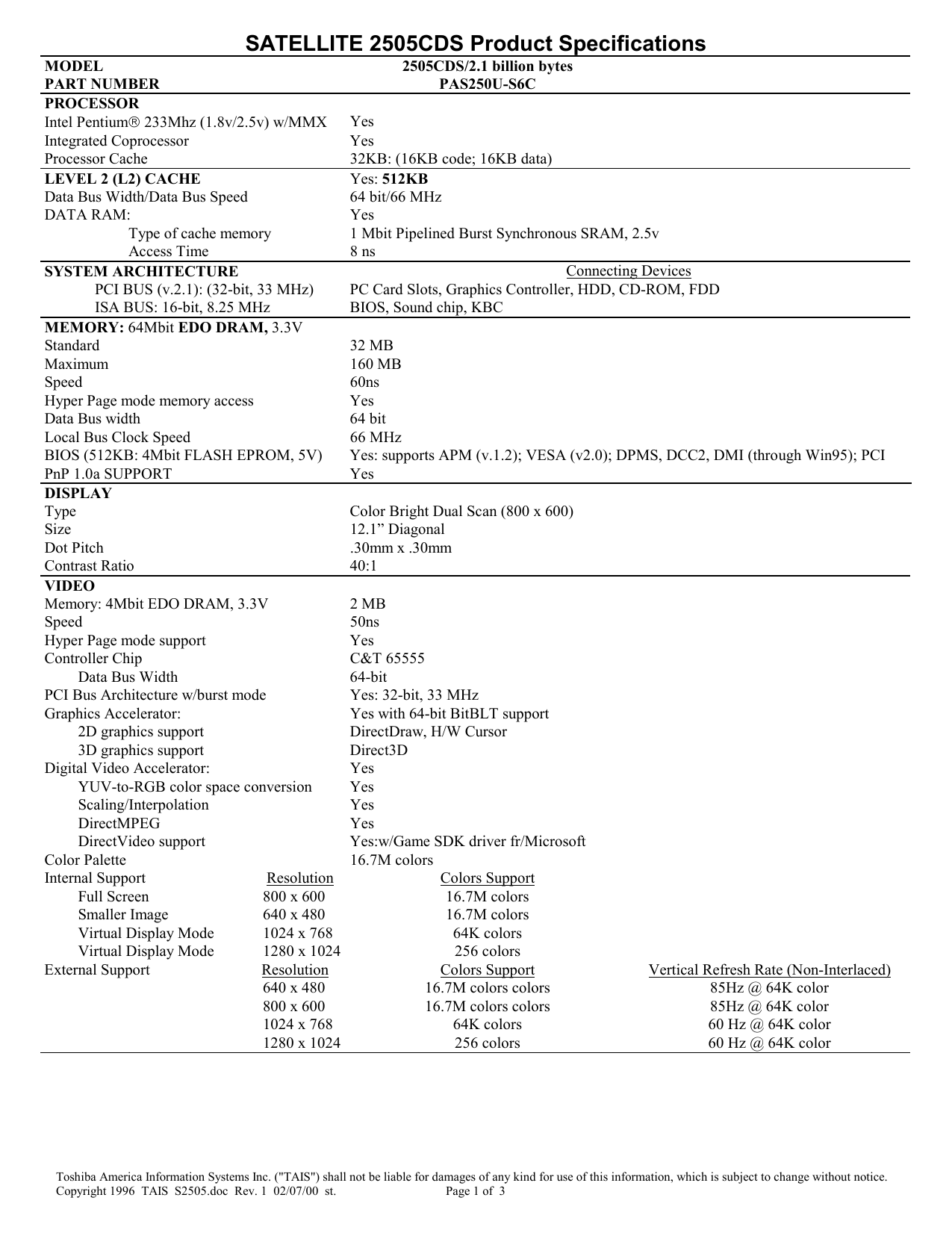

SATELLITE 2505CDS Product Specifications
MODEL
PART NUMBER
PROCESSOR
Intel Pentium 233Mhz (1.8v/2.5v) w/MMX
Integrated Coprocessor
Processor Cache
LEVEL 2 (L2) CACHE
Data Bus Width/Data Bus Speed
DATA RAM:
Type of cache memory
Access Time
SYSTEM ARCHITECTURE
PCI BUS (v.2.1): (32-bit, 33 MHz)
ISA BUS: 16-bit, 8.25 MHz
MEMORY: 64Mbit EDO DRAM, 3.3V
Standard
Maximum
Speed
Hyper Page mode memory access
Data Bus width
Local Bus Clock Speed
BIOS (512KB: 4Mbit FLASH EPROM, 5V)
PnP 1.0a SUPPORT
DISPLAY
Type
Size
Dot Pitch
Contrast Ratio
VIDEO
Memory: 4Mbit EDO DRAM, 3.3V
Speed
Hyper Page mode support
Controller Chip
Data Bus Width
PCI Bus Architecture w/burst mode
Graphics Accelerator:
2D graphics support
3D graphics support
Digital Video Accelerator:
YUV-to-RGB color space conversion
Scaling/Interpolation
DirectMPEG
DirectVideo support
Color Palette
Internal Support
Resolution
Full Screen
800 x 600
Smaller Image
640 x 480
Virtual Display Mode
1024 x 768
Virtual Display Mode
1280 x 1024
External Support
Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
2505CDS/2.1 billion bytes
PAS250U-S6C
Yes
Yes
32KB: (16KB code; 16KB data)
Yes: 512KB
64 bit/66 MHz
Yes
1 Mbit Pipelined Burst Synchronous SRAM, 2.5v
8 ns
Connecting Devices
PC Card Slots, Graphics Controller, HDD, CD-ROM, FDD
BIOS, Sound chip, KBC
32 MB
160 MB
60ns
Yes
64 bit
66 MHz
Yes: supports APM (v.1.2); VESA (v2.0); DPMS, DCC2, DMI (through Win95); PCI
Yes
Color Bright Dual Scan (800 x 600)
12.1” Diagonal
.30mm x .30mm
40:1
2 MB
50ns
Yes
C&T 65555
64-bit
Yes: 32-bit, 33 MHz
Yes with 64-bit BitBLT support
DirectDraw, H/W Cursor
Direct3D
Yes
Yes
Yes
Yes
Yes:w/Game SDK driver fr/Microsoft
16.7M colors
Colors Support
16.7M colors
16.7M colors
64K colors
256 colors
Colors Support
16.7M colors colors
16.7M colors colors
64K colors
256 colors
Vertical Refresh Rate (Non-Interlaced)
85Hz @ 64K color
85Hz @ 64K color
60 Hz @ 64K color
60 Hz @ 64K color
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS S2505.doc Rev. 1 02/07/00 st.
Page 1 of 3
SATELLITE 2505CDS Product Specifications
MODEL
PART NUMBER
STORAGE
Removable1 HDD (2.5” Enhanced IDE)
DRIVE BAY DEVICES
FDD (3.5” 1.44MB; 12.7mm high)
Simultaneous FDD & CD-ROM Support
CD-ROM: (5.25” ; 12.7mm high)
Weight
Interface
Random Access Time
Average Sustained Transfer Rate
Burst Data Transfer Rate
Supported Disc formats
KEYBOARD
84/86 keys, 3mm Travel
Cursor control (8 Keys, Inverted “T”)
Numeric keypad (Integrated Overlay)
Integrated Pointing Device
EXPANSION SLOTS
Two Stacked PC Card Slots
Support Standards
Internal Memory Slot (One only)
EXPANSION PORTS
One 9-Pin Serial (16550 UART compliant)
One 25-Pin Parallel (8 bit ECP)
One 15-Pin RGB (SVGA video)
Fast Infrared port (Back only)
One (PS/2) 101 Keyboard/Mouse port
Universal Serial Bus (USB) port
Microphone (3.5mm mini jack, stereo)
Headphone (3.5mm mini jack, stereo)
Line-in (3.5mm mini jack, stereo, 2V rms)
Noteworthy security lock port
PC Card MODEM (Bundled)
Data support
Protocols supported
Error correction
Data compression
Fax support
Protocols supported
Command Set
2505CDS/2.1 billion bytes
PAS250U-S6C
2.1 billion bytes (13msec read/14msec write)
Yes
Yes: two independent units
20X Maximum Speed (14X-Average speed)
.62 lbs.
.ATAPI (Enhanced IDE)
135 ms
2,400 KB/sec
PIO Mode 4 (16.7MB/sec)
CD-DA, CD-ROM, CD-ROM XA, CD-Bridge (Photo-CD, Video-CD),
CD-I, CD-I Ready, CD-G, Multisession (Photo-CD, CD-Plus)
Yes with Windows 95 key support & 12 dedicated function keys
Yes
Yes
AccuPoint
Yes: Holds two - 5mm PC Cards Type II or one - 10.5mm PC Card Type III.
Yes: Supports 32-bit, 3.3V PC CardBus cards and 16-bit, 5.0V PC card standards
Yes
Yes
Yes
Yes
Yes: IrDA 1.1:4Mbps compatible
Yes: “Y”connector supported
Yes: Supports 127devices. Throughput Rate: 12Mbits/sec.
Yes
Yes
Yes
Yes
Xircom Credit Card Modem 56
Bell-212A, V.23, V.22, V.22bis, V.32, V.32bis, V.34, K56flex
V.42/MNP 2-4
MNP 5, CCITT V.42 bis
Group 3, EIA/TIA, Fax class 1
V.17, V.27 ter, V.29
Hayes, Microcom compatible AT commands
1. One Screw Service removable.
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS S2505.doc Rev. 1 02/07/00 st.
Page 2 of 3
SATELLITE 2505CDS Product Specifications
MODEL
2505CDS/2.1 billion bytes
PART NUMBER
PAS250U-S6C
POWER (All models)
3.94”L x 1.96”W x 0.98”H --- .46 lbs.
Autosensing External AC Adapter
Input (Voltage/Frequency)
100-240V; 50-60Hz
Output (Voltage/Amps)
15 VDC; 2A (max)
Power Output (Watts)
30W
Battery Type: Li-Ion (10.8V, 3600mAH)
Yes (one standard): Part# PA2487URN
Battery Life: (Full Power)
2.5+ hrs.
Recharge Time (Computer Off/On)
3 - 5 hrs. depending on the computer function performed
Yes
MaxTime Power Management
SOUND SYSTEM
Chipset:
Yamaha OPL3-SA3
16-bit stereo audio playback/record
Yes
Maximum sampling ratge
48 kHz
FM Synthesis support
Yes (Soft Wave Table included)
Full duplex function
Yes
Sound formats supported:
SoundBlaster Pro V3.01, Windows Sound System V2.0
3D Sound Support
Yes
Direct3DSound, DirectSound support
Yes: with Windows 95 Game SDK driver from Microsoft
Speaker system
Two top-mounted stereo speakers (28mm, 8 Ω)
DIMENSIONS
Dimensions
Weight
Notebook
11.96”W x 9.4”D x 2.1”H
6.7 lbs.
AC Adapter
3.94”L x 1.96”W x 0.98”H
.46 lbs.
Battery (Standard)
6.87”L x 2.76”W x .73”H
.88 lbs.
BUNDLED SOFTWARE
Windows®98; Yamaha Audio Rack; Puma Intellisync97 (infrared software), Ring Zero Ring Central Dialer application,
Mediamatics Arcade Pak; Symantec Norton Antivirus Scanner 4.0; Prodigy Internet; Intel Indeo Video, Fn-esse,
Microsoft Works 4.5; Microsoft Money 98; Microsoft Outlook; Intuit Quicken Basic 98; Disney Daily Blast, Online documentation
CD’s Included: Windows 95 Companion CD; Recovery/Backup CD; Microsoft Encarta 98 MPEG version (2 CD package);
Microsoft Golf Multimedia CD; Microsoft Works/Money/Outlook CD; Sony Music Videos CD
Cable Lock slot, PC Card lock slot, screen blank, keyboard lock
SECURITY
Hardware
Password
Power-on, Supervisor, & HDD password (both drives)
1 YR Parts / 1 YR. Labor / 1 YR. Battery
WARRANTY
ENVIRONMENTAL SPECIFICATIONS
(All models)
Operating
Non-operating
Temperature:
41°F (5°C) to 95°F (35°C)
-4°F (-20°C) to 149°F (65°C)
Thermal Gradient: 20º C per hour (max.)
N/A
N/A
Relative Humidity: Operating
20% to 80% non-condensing
10% to 90% non-condensing
Altitude:
Operating
-197 to 9,843ft. (-60 to 3000m)
-197 to 32,808ft. (-60 to 10,000m)
Shock:
Operating
10G; 1.5G w/CD-ROM installed
60G; 50G w/CD-ROM installed
Vibration:
Operating
0.5G; 0.25G w/CD-ROM installed
1G; 1G w/CD-ROM installed
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS S2505.doc Rev. 1 02/07/00 st.
Page 3 of 3
