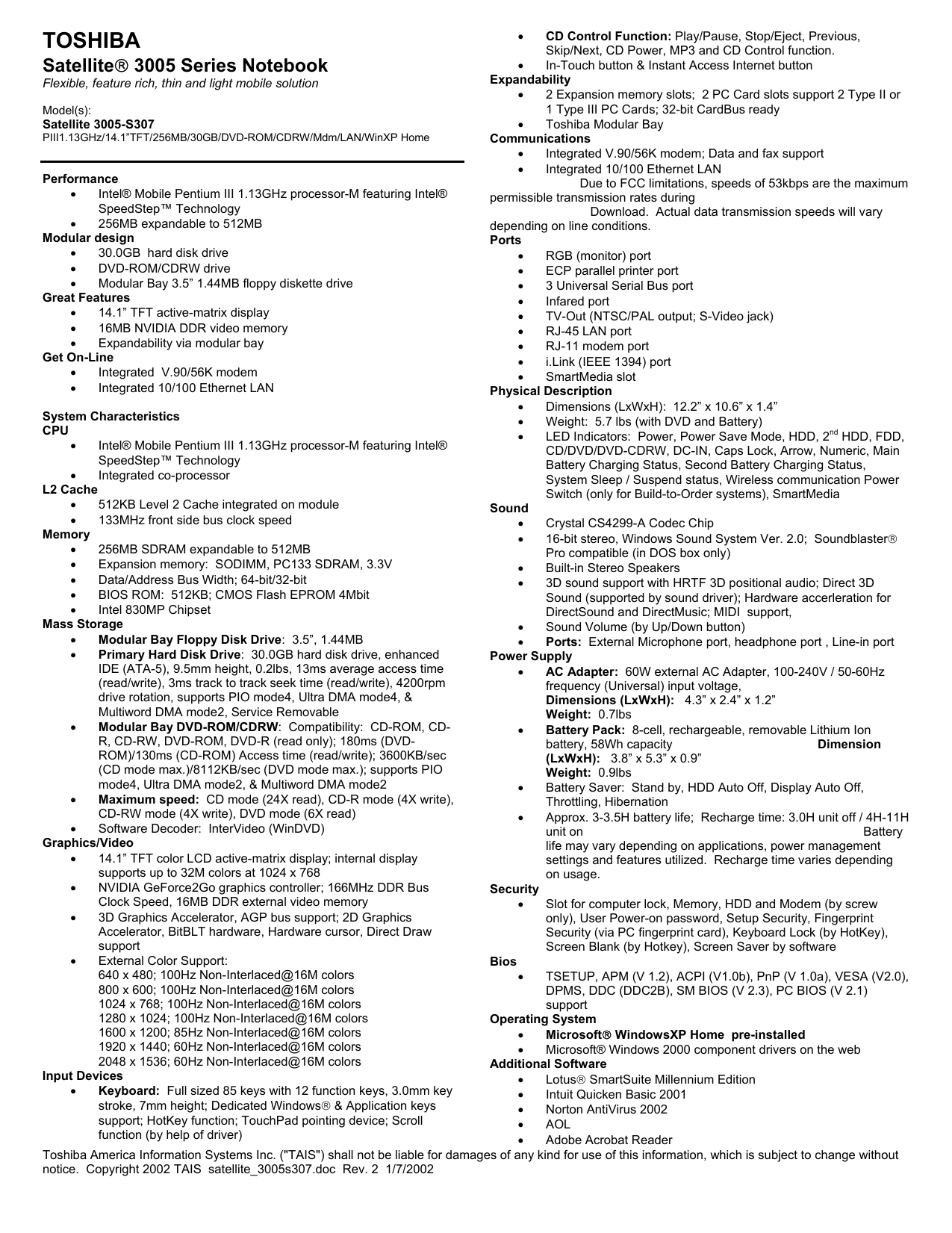

Toshiba 3005-S308 Laptop Specification

TOSHIBA
•
CD Control Function: Play/Pause, Stop/Eject, Previous,
Skip/Next, CD Power, MP3 and CD Control function.
•
In-Touch button & Instant Access Internet button
Satellite 3005 Series Notebook
Expandability
Flexible, feature rich, thin and light mobile solution
•
2 Expansion memory slots; 2 PC Card slots support 2 Type II or
1 Type III PC Cards; 32-bit CardBus ready
Model(s):
Satellite 3005-S307
•
Toshiba Modular Bay
PIII1.13GHz/14.1”TFT/256MB/30GB/DVD-ROM/CDRW/Mdm/LAN/WinXP Home
Communications
•
Integrated V.90/56K modem; Data and fax support
•
Integrated 10/100 Ethernet LAN
Performance
Due to FCC limitations, speeds of 53kbps are the maximum
•
Intel® Mobile Pentium III 1.13GHz processor-M featuring Intel®
permissible transmission rates during
SpeedStep™ Technology
Download. Actual data transmission speeds will vary
•
256MB expandable to 512MB
depending on line conditions.
Modular design
Ports
•
30.0GB hard disk drive
•
RGB (monitor) port
•
DVD-ROM/CDRW drive
•
ECP parallel printer port
•
Modular Bay 3.5” 1.44MB floppy diskette drive
•
3 Universal Serial Bus port
Great Features
•
Infared port
•
14.1” TFT active-matrix display
•
TV-Out (NTSC/PAL output; S-Video jack)
•
16MB NVIDIA DDR video memory
•
RJ-45 LAN port
•
Expandability via modular bay
•
RJ-11 modem port
Get On-Line
•
i.Link (IEEE 1394) port
•
Integrated V.90/56K modem
•
SmartMedia slot
•
Integrated 10/100 Ethernet LAN
Physical Description
•
Dimensions (LxWxH): 12.2” x 10.6” x 1.4”
System Characteristics
•
Weight: 5.7 lbs (with DVD and Battery)
nd
CPU
•
LED Indicators: Power, Power Save Mode, HDD, 2 HDD, FDD,
•
Intel® Mobile Pentium III 1.13GHz processor-M featuring Intel®
CD/DVD/DVD-CDRW, DC-IN, Caps Lock, Arrow, Numeric, Main
SpeedStep™ Technology
Battery Charging Status, Second Battery Charging Status,
•
Integrated co-processor
System Sleep / Suspend status, Wireless communication Power
L2 Cache
Switch (only for Build-to-Order systems), SmartMedia
•
512KB Level 2 Cache integrated on module
Sound
•
133MHz front side bus clock speed
•
Crystal CS4299-A Codec Chip
Memory
•
16-bit stereo, Windows Sound System Ver. 2.0; Soundblaster
•
256MB SDRAM expandable to 512MB
Pro compatible (in DOS box only)
•
Expansion memory: SODIMM, PC133 SDRAM, 3.3V
•
Built-in Stereo Speakers
•
Data/Address Bus Width; 64-bit/32-bit
•
3D sound support with HRTF 3D positional audio; Direct 3D
•
BIOS ROM: 512KB; CMOS Flash EPROM 4Mbit
Sound (supported by sound driver); Hardware accerleration for
•
Intel 830MP Chipset
DirectSound and DirectMusic; MIDI support,
Mass Storage
•
Sound Volume (by Up/Down button)
•
Modular Bay Floppy Disk Drive: 3.5”, 1.44MB
•
Ports: External Microphone port, headphone port , Line-in port
•
Primary Hard Disk Drive: 30.0GB hard disk drive, enhanced
Power Supply
IDE (ATA-5), 9.5mm height, 0.2lbs, 13ms average access time
•
AC Adapter: 60W external AC Adapter, 100-240V / 50-60Hz
(read/write), 3ms track to track seek time (read/write), 4200rpm
frequency (Universal) input voltage,
drive rotation, supports PIO mode4, Ultra DMA mode4, &
Dimensions (LxWxH): 4.3” x 2.4” x 1.2”
Multiword DMA mode2, Service Removable
Weight: 0.7lbs
•
Modular Bay DVD-ROM/CDRW: Compatibility: CD-ROM, CD•
Battery Pack: 8-cell, rechargeable, removable Lithium Ion
R, CD-RW, DVD-ROM, DVD-R (read only); 180ms (DVDbattery, 58Wh capacity
Dimension
ROM)/130ms (CD-ROM) Access time (read/write); 3600KB/sec
(LxWxH): 3.8” x 5.3” x 0.9”
(CD mode max.)/8112KB/sec (DVD mode max.); supports PIO
Weight: 0.9lbs
mode4, Ultra DMA mode2, & Multiword DMA mode2
•
Battery Saver: Stand by, HDD Auto Off, Display Auto Off,
•
Maximum speed: CD mode (24X read), CD-R mode (4X write),
Throttling, Hibernation
CD-RW mode (4X write), DVD mode (6X read)
•
Approx. 3-3.5H battery life; Recharge time: 3.0H unit off / 4H-11H
•
Software Decoder: InterVideo (WinDVD)
unit on
Battery
Graphics/Video
life may vary depending on applications, power management
•
14.1” TFT color LCD active-matrix display; internal display
settings and features utilized. Recharge time varies depending
supports up to 32M colors at 1024 x 768
on usage.
•
NVIDIA GeForce2Go graphics controller; 166MHz DDR Bus
Security
Clock Speed, 16MB DDR external video memory
•
Slot for computer lock, Memory, HDD and Modem (by screw
•
3D Graphics Accelerator, AGP bus support; 2D Graphics
only), User Power-on password, Setup Security, Fingerprint
Accelerator, BitBLT hardware, Hardware cursor, Direct Draw
Security (via PC fingerprint card), Keyboard Lock (by HotKey),
support
Screen Blank (by Hotkey), Screen Saver by software
•
External Color Support:
Bios
640 x 480; 100Hz Non-Interlaced@16M colors
•
TSETUP, APM (V 1.2), ACPI (V1.0b), PnP (V 1.0a), VESA (V2.0),
800 x 600; 100Hz Non-Interlaced@16M colors
DPMS, DDC (DDC2B), SM BIOS (V 2.3), PC BIOS (V 2.1)
1024 x 768; 100Hz Non-Interlaced@16M colors
support
1280 x 1024; 100Hz Non-Interlaced@16M colors
Operating System
1600 x 1200; 85Hz Non-Interlaced@16M colors
•
Microsoft WindowsXP Home pre-installed
1920 x 1440; 60Hz Non-Interlaced@16M colors
•
Microsoft® Windows 2000 component drivers on the web
2048 x 1536; 60Hz Non-Interlaced@16M colors
Additional Software
Input Devices
•
Lotus SmartSuite Millennium Edition
•
Keyboard: Full sized 85 keys with 12 function keys, 3.0mm key
•
Intuit Quicken Basic 2001
stroke, 7mm height; Dedicated Windows & Application keys
•
Norton AntiVirus 2002
support; HotKey function; TouchPad pointing device; Scroll
•
AOL
function (by help of driver)
•
Adobe Acrobat Reader
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS satellite_3005s307.doc Rev. 2 1/7/2002
•
•
•
•
•
Microsoft Internet Explorer
Toshiba Custom Utilities
Satellite Series Online Documentation
Virtual Tech
Toshiba Great Software Offer: Receive your choice of two
software titles. The software selection includes titles from the
follow categories; productivity, education/reference, creativity and
entertainment
Warranty
•
1 year parts, labor and battery
Environmental Specifications
•
Temperature: Operating: 5° to 35°C (41° to 95°F); Nonoperating: -20° to 65°C (-4° to 149°F)
•
Thermal gradient: Operating: 15°C per hour maximum; Nonoperating: 20°C per hour maximum
•
Relative Humidity: Operating: 20% to 80% non-condensing;
Non-operating: 10% to 95% ono-condensing
•
Altitude (relative to sea level): Operating: 0 to 3000 meters;
Non-operating: 0 to 10,000 meters
•
Shock: Operating: 10G; Non-operating: 60G
•
Vibration: Operating: 0.5G; Non-operating: 1.0G
Accessories
Kingston Memory
KTT-SO133/128
KTT-SO133/256
Targus (Cases)
NWCTM1
NWCSS1
NWCEB1
NWCER1
Wi-Fi (Agere)
8484415560
8485582350
128MB Memory
256MB Memory
Metropolitan Carrying Case (koskin)
Suburban Carrying Case (nylon)
Expedition Backpack
Excursion Roller
8485878380
8485463880
8485893390
Orinoco Wireless LAN PC Card (Gold)
Orinoco AP-1000 Access Point
w/128wep Gold Card
Orinoco AP-500 Access Point
Orinoco RG-1000 Residential Gateway
Orinoco Range Extending Antenna
Other Accessories
PA3097U-1ACA
PA3098U-1BRS
PA3099U-1BRS
PA3100U-1H15
PA3101U-1H30
PA3102U-1DVD
PA3103U-2CD1
PA3104U-2CD2
PA3079U-1PCC
PA3053U-1PCC
PA3066U-1PCCC
PA450U
CMDO900
Universal AC Adapter
Battery Pack
nd
Modular Bay 2 Battery Pack
Modular Bay 15GB HDD
Modular Bay 30GB HDD
Modular Bay DVD Drive
Modular Bay CD-R/RW Drive
Modular Bay CD-RW/DVD-ROM Drive
2GB Type II PC Card Hard Disk Drive
Bluetooth PC Card
PC Card Fingerprint Reader
Targus Defcon Key Lock
Targus Keep You Connected Kit
Product/Part Numbers/UPC
Satellite 3005-S307
PS302U-019XDX
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS satellite_3005s307.doc Rev. 2 1/7/2002
TOSHIBA
Satellite® 3000-S304 & 3005-S304
Flexible, feature rich, thin and light mobile solution.
Model(s):
Satellite 3000–S304
PIII 1000/14.1”TFT/256MB/20GB/DVDCDRW/Modem/ LAN
Satellite 3005–S304
PIII 1000/14.1”TFT/256MB/20GB/DVDCDRW/Modem/ LAN
Product Highlights
•
•
•
•
Performance
•
Intel Pentium III 1000MHz (1GHz) processor
featuring Intel® SpeedStep™ Technology
•
256MB expandable to 512MB
Flexible Modular Design
•
20.0GB hard disk drive
•
DVD-ROM/CD-RW
•
Modular bay swappable 3.5” 1.44MB floppy
diskette drive included
Great Features
•
14.1” TFT active-matrix display
•
16MB NVIDIA DDR video memory
•
Expandability via modular bay
Connectivity
•
Integrated V.90 56K modem
•
Integrated 10/100 Ethernet LAN
System Characteristics
Processor
Intel Pentium III 1000MHz (1GHz) processor featuring Intel®
SpeedStep™ Technology
Integrated co-processor
L2 Cache Memory
512KB Level 2 cache integrated in module
133MHz front side bus clock speed
Main Memory
256MB SDRAM expandable to 512MB
Expansion Memory
PC133 SDRAM
3.3V, TSOP, SODIMM
Data/Address Bus Width: 64-bit/32-bit
BIOS ROM
512KB, CMOS Flash EPROM 4Mbit
Intel 830MP Chipset
MASS STORAGE
Modular Bay Floppy Disk Drive
3.5”, 1.44MB
Primary Hard Disk Drive
20.0GB, 9.5mm height, 0.2lbs, 2.5”
Enhanced IDE (ATA-5)
Service Removable
4200rpm drive rotation
Supports PIO mode4, Ultra DMA mode4, Multiword DMA mode2
Modular Bay DVD-ROM/CD-RW
Access Time (read/write): 180ms (DVD-ROM)/130ms (CDROM)
Enhanced IDE Interface (ATAPI)
Data Transfer Rate (min/max):
•
CD mode (KB/s)- max. 3600 (KB/s)
•
DVD mode (KB/s)- max. 8112 (KB/s)
Compatibility: CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-R
(read only)
Maximum speed: CD mode (24X read), CD-R mode (4X write),
CD-RW mode (4X write), DVD mode (6X read)
Software Decoder: InterVideo (WinDVD)
Graphics/Video
Display
14.1” TFT color LCD active-matrix display (XGA)
Internal display supports up to 32M colors at 1024 x 768
Graphics Controller
NVIDIA GeForce2Go graphics controller
•
166MHz DDR Bus Clock Speed
•
16MB DDR external video memory
3D Graphics Accelerator, AGP bus support
2D Graphics Accelerator, BitBLT hardware, Hardware cursor,
Direct Draw support
External Color Support
640 x 480; 100Hz Non-Interlaced @ 16M colors
800 x 600; 100Hz Non-Interlaced @ 16M colors
1024 x 768; 100Hz Non-Interlaced @ 16M colors
1280 x 1024; 100Hz Non-Interlaced @ 16M colors
1600 x 1200; 85Hz Non-Interlaced @ 16M colors
1920 x 1440; 60Hz Non-Interlaced @ 16M colors
2048 x 1536; 60Hz Non-Interlaced @ 16M colors
Input Devices
Keyboard
Full sized 85 keys with 12 function keys
3.0mm key stroke, 7mm height
Hot Key Function
Dedicated Windows® & Application key support
Touchpad pointing device
•
Scroll function by software driver
CD Control Function:
•
Play/Pause, Stop/Eject, Previous, Skip/Next, CD
Power
•
MP3 and CD Control Function
Instant Internet access button
Expandability
2 memory slots
2 PC Card slots support two Type II or one Type III PC Cards;
32-bit CardBus ready
Selectable Bay via Toshiba Modular Bay
Ports
•
ECP parallel printer port
•
Video-Out (Monitor) port
•
Infrared port
•
3 Universal Serial Bus port
•
TV-Out (NTSC/PAL output; S-Video jack)
•
RJ-45 LAN port
•
RJ-11 modem port
•
i.Link (IEEE 1394) port
•
SmartMedia slot
Sound
Crystal CS4299-A Codec Chip
16-bit stereo, Windows Sound System Ver.2.0, Sound Blaster®
Pro compatible (in DOS box only)
MIDI Support
3D sound support (HRTF 3D positional audio)
•
Direct3DSound (supported by sound driver)
•
Hardware acceleration for DirectSound and
DirectMusic
Ports
•
External Microphone port, Headphone port, Line In
Sound Volume (by Up/Down button)
Built-in Stereo Speakers
Communication
Integrated (controller-less) V.90 56K modem
•
Data and fax support
Integrated 10/100 Ethernet LAN
Due to FCC limitations, speeds of 53kbps are the maximum
permissible transmission rates during download. Actual data
transmission speeds will vary depending on line conditions.
Physical Description
Dimensions (LxWxH):
•
12.2” x 10.6” x 1.4”
Weight:
•
5.7lbs (with DVD and battery)
LED Indicators
•
Power, DC-IN, Power Save Mode, Primary HDD,
Secondary HDD, FDD, CD/DVD/DVD-CDRW,
Caps Lock, Arrow Mode, Numeric Mode, Main
Battery Charging Status, Second Battery Charging
Status, System Sleep / Suspend status, Wireless
communication Power Switch (only for Build-toOrder systems) beside main power switch,
SmartMedia
Power Supply
AC Adapter
60W external AC Adapter
100-240V / 50-60Hz frequency (Universal) input voltage
Dimension (LxWxH):
•
4.3” x 2.4” x 1.2”
Weight: 0.7 lbs
Battery Pack
8 cell, rechargeable, removable Lithium Ion (Li-Ion) battery,
58Wh capacity
3-3.5H Battery life
Recharge time: 3.0H unit off / 4H-11H unit on
Dimensions (LxWxH):
•
3.8” x 5.3” x 0.9”
Weight: 0.9 lbs
Batter Saver
•
Stand by, HDD Auto Off, Display Auto Off,
Throttling, Hibernation
Battery life may vary depending on applications, power
management settings and features utilized. Recharge time varies
depending on usage.
Security
Physical Security
•
Slot for computer lock, Memory, HDD and Modem
(by screw only)
Password Security
•
User Power-on password, Setup Security
Fingerprint Security (via PC fingerprint card)
Keyboard Lock (by Hotkey)
Screen Blank (by Hotkey)
Screen Saver by software
Bios
TSETUP, APM (V 1.2), ACPI (V 1.0b), PnP (V 1.0a), VESA (V
2.0), DPMS, DDC (DDC2B), SM BIOS (V 2.3), PC BIOS (V 2.1)
Support
Operating System
Microsoft® XP Home pre-installed (Satellite 3005-S304)
Microsoft® XP Pro pre-installed (Satellite 3000-S304)
Microsoft® Windows 2000 component drivers on the web
Additional Software
Lotus® SmartSuite Millennium Edition (Satellite 3005-S304)
Intuit Quicken Basic 2001
Norton AntiVirus 2002
AOL
Adobe Acrobat v5.0
Microsoft Internet Explorer
Toshiba Custom Utilities
Satellite Series Online Documentation
VirtualTech
Toshiba Great Software Offer: Receive your choice of two
software titles. The software selection includes titles from the
follow categories: productivity, education/reference, creativity
and entertainment.
Warranty
International 1 year parts, labor and battery
Environmental Specifications
Temperature:
Operating: 5O to 35O C (41O to 95O F)
Non-operating: -20O to 65O C (-4O to 149O F)
Maximum Thermal gradient:
Operating: 15O C per hour
Non-operating: 20O C per hour
Relative Humidity:
Operating: 20% to 80% non-condensing
Non-operating: 10% to 95% non-condensing
Altitude (relative to sea level):
Operating: 0 to 3000 meters
Non-operating: 0 to 10,000 meters
Shock:
Operating: 10G
Non-operating: 60G
Vibration:
Operating: 0.5G
Non-operating: 1.0G
Accessories
KINGSTON Memory
KTT-SO133/128
128MB Memory
KTT-SO133/256
256MB Memory
Other Accessories
PA3097U-1ACA
PA3098U-1BRS
PA3099U-1BRS
PA3100U-1H15
PA3101U-1H30
PA3102U-1DVD
PA3103U-2CD1
PA3104U-2CD2
PA3079U-1PCC
PA3053U-1PCC
PA3066U-1PCCC
PA450U
CMDO900
Universal AC Adaptor
Battery Pack
Modular Bay 2nd Battery Pack
Modular Bay 15GB HDD
Modular Bay 30GB HDD
Modular Bay DVD Drive
Modular Bay CD-R/RW Drive
Modular Bay CD-RW/DVD-ROM Drive
2GB Type II PC Card Hard Disk Drive
Bluetooth PC Card
PC Card Fingerprint Reader
Targus Defcon Key Lock
Targus Keep You Connected Kit
Cases (Targus)
NWCTM1
NWCSS1
NWCEB1
NWCER1
Metropolitan Carrying Case (koskin)
Suburban Carrying Case (nylon)
Expedition Backpack
Excursion Roller
Wi-Fi (Agere)
8484415560
8485582350
Orinoco Wireless LAN PC Card (Gold)
Orinoco AP-1000 Access Point w/128wep
Gold Card
8485878380
Orinoco AP-500 Access Point
8485463880
Orinoco RG-1000 Residential Gateway
8485893390
Orinoco Range Extending Antenna
Product/Part Number
Satellite 3005-S304
PS302U-00QZ3X
Satellite 3000-S304
PS302U-00QZ37
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Copyright 2001 TAIS
satellite_30003005.doc Rev. 4 12/17/2001

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
