Toshiba 4010CDS Laptop Specification

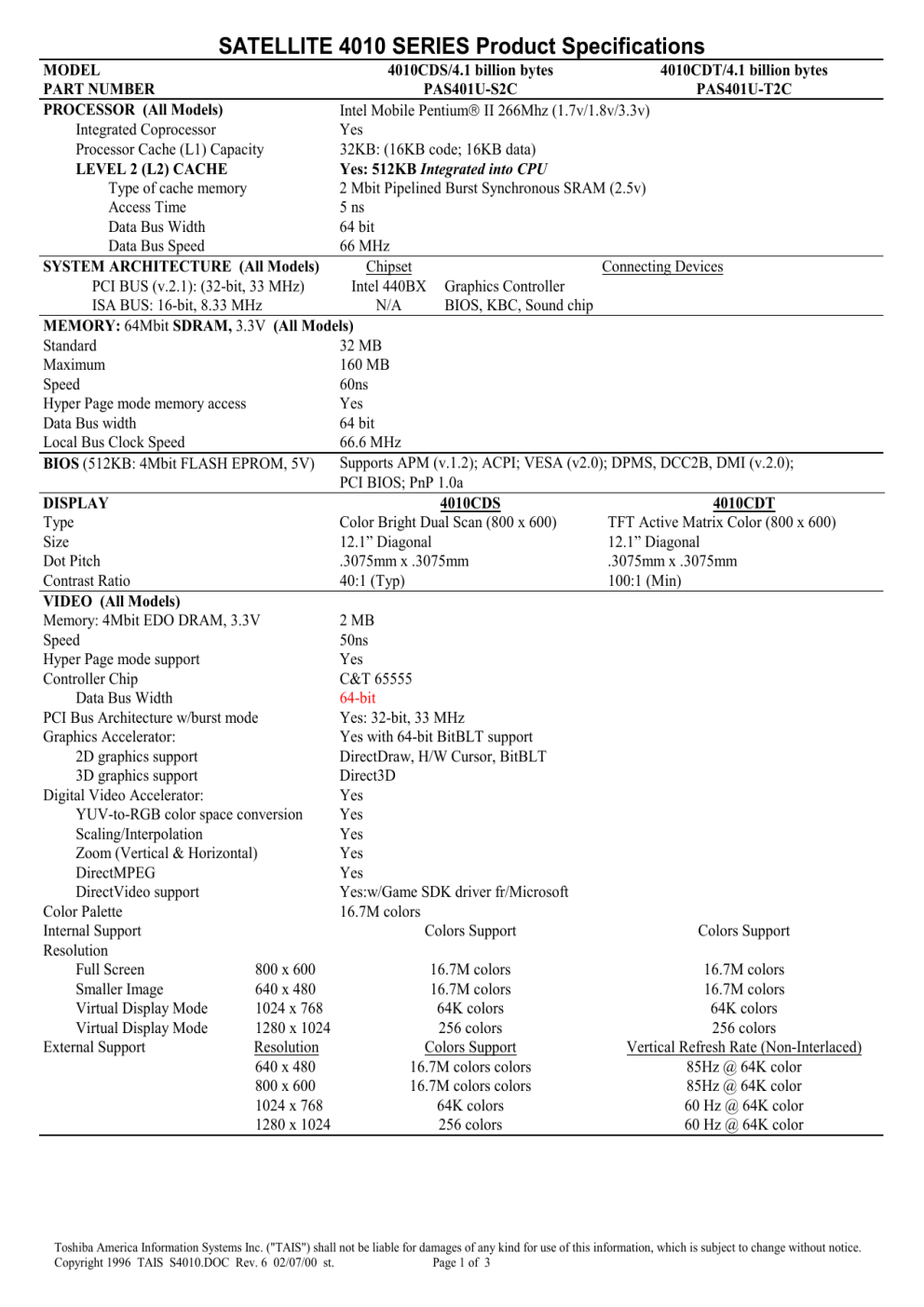

SATELLITE 4010 SERIES Product Specifications
MODEL
4010CDS/4.1 billion bytes
4010CDT/4.1 billion bytes
PART NUMBER
PAS401U-S2C
PAS401U-T2C
PROCESSOR (All Models)
Intel Mobile Pentium II 266Mhz (1.7v/1.8v/3.3v)
Integrated Coprocessor
Yes
Processor Cache (L1) Capacity
32KB: (16KB code; 16KB data)
LEVEL 2 (L2) CACHE
Yes: 512KB Integrated into CPU
Type of cache memory
2 Mbit Pipelined Burst Synchronous SRAM (2.5v)
Access Time
5 ns
Data Bus Width
64 bit
Data Bus Speed
66 MHz
Chipset
Connecting Devices
SYSTEM ARCHITECTURE (All Models)
PCI BUS (v.2.1): (32-bit, 33 MHz)
Intel 440BX Graphics Controller
ISA BUS: 16-bit, 8.33 MHz
N/A
BIOS, KBC, Sound chip
MEMORY: 64Mbit SDRAM, 3.3V (All Models)
Standard
32 MB
Maximum
160 MB
Speed
60ns
Hyper Page mode memory access
Yes
Data Bus width
64 bit
Local Bus Clock Speed
66.6 MHz
Supports APM (v.1.2); ACPI; VESA (v2.0); DPMS, DCC2B, DMI (v.2.0);
BIOS (512KB: 4Mbit FLASH EPROM, 5V)
PCI BIOS; PnP 1.0a
DISPLAY
4010CDS
4010CDT
Type
Color Bright Dual Scan (800 x 600)
TFT Active Matrix Color (800 x 600)
Size
12.1” Diagonal
12.1” Diagonal
Dot Pitch
.3075mm x .3075mm
.3075mm x .3075mm
Contrast Ratio
40:1 (Typ)
100:1 (Min)
VIDEO (All Models)
Memory: 4Mbit EDO DRAM, 3.3V
2 MB
Speed
50ns
Hyper Page mode support
Yes
Controller Chip
C&T 65555
Data Bus Width
64-bit
PCI Bus Architecture w/burst mode
Yes: 32-bit, 33 MHz
Graphics Accelerator:
Yes with 64-bit BitBLT support
2D graphics support
DirectDraw, H/W Cursor, BitBLT
3D graphics support
Direct3D
Digital Video Accelerator:
Yes
YUV-to-RGB color space conversion
Yes
Scaling/Interpolation
Yes
Zoom (Vertical & Horizontal)
Yes
DirectMPEG
Yes
DirectVideo support
Yes:w/Game SDK driver fr/Microsoft
Color Palette
16.7M colors
Internal Support
Colors Support
Colors Support
Resolution
Full Screen
800 x 600
16.7M colors
16.7M colors
Smaller Image
640 x 480
16.7M colors
16.7M colors
Virtual Display Mode
1024 x 768
64K colors
64K colors
Virtual Display Mode
1280 x 1024
256 colors
256 colors
External Support
Resolution
Colors Support
Vertical Refresh Rate (Non-Interlaced)
640 x 480
16.7M colors colors
85Hz @ 64K color
800 x 600
16.7M colors colors
85Hz @ 64K color
1024 x 768
64K colors
60 Hz @ 64K color
1280 x 1024
256 colors
60 Hz @ 64K color
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS S4010.DOC Rev. 6 02/07/00 st.
Page 1 of 3
SATELLITE 4010 SERIES Product Specifications
MODEL
PART NUMBER
ALL-IN-ONE DESIGN (All Models)
STORAGE
Removable HDD (2.5” Enhanced IDE)
Height
Burst Data Transfer Rate
FDD (3.5” 1.44MB; 12.7mm high)
Simultaneous FDD & CD-ROM Support
CD-ROM: (5.25” ; 12.7mm high)
Weight
Interface
Random Access Time
Average Sustained Transfer Rate
Burst Data Transfer Rate
Supported Disc formats
PC Card MODEM (Bundled) -- (All Models)
Data support
Protocols supported
Error correction
Data compression
Fax support
Protocols supported
Command Set
SOUND SYSTEM (All Models)
Chipset:
16-bit stereo audio playback/record
Maximum sampling ratge
FM Synthesis support
Full duplex function
Sound formats supported:
3D Sound Support
Direct3DSound, DirectSound support
Speaker system
KEYBOARD (All Models)
84/86 keys, 3mm Travel
Cursor control (8 Keys, Inverted “T”)
Numeric keypad (Integrated Overlay)
Integrated Pointing Device (All Models)
EXPANSION SLOTS (All Models)
Two Stacked PC Card Slots
Support Standards
Internal Memory Slot (One only)
EXPANSION PORTS (All Models)
One 9-Pin Serial (16550 UART compliant)
One 25-Pin Parallel (8 bit ECP)
One 15-Pin RGB (SVGA video)
Fast Infrared port (Back only)
One (PS/2) 101 Keyboard/Mouse port
Universal Serial Bus (USB) port
Microphone (3.5mm mini jack, stereo)
Headphone (3.5mm mini jack, stereo)
Line-in (3.5mm mini jack, stereo, 2V rms)
Noteworthy security lock port
4010CDS/4.1 billion bytes
PAS401U-S2C
4010CDT/4.1 billion bytes
PAS401U-T2C
4.1 billion bytes (13msec) with 512KB Buffer --- 1 screw service removable
12.7mm
Ultra DMA Mode 2 (33.3MB/s); PIO Mode 4 (16.7MB/s)
Yes
Yes: two independent units
24X Maximum Speed (14X-Average speed)
.66lbs.
.ATAPI (Enhanced IDE)
130 ms
3,600 KB/sec
PIO Mode 4 (16.7MB/sec); Multi-Word DMA Mode 2 (16.6MB/sec)
CD-DA, CD-ROM, CD-R, CD-ROM XA, CD-I FMV, Photo CD (Multi-session)
Video CD, CD Extra (CD Plus), CD-G, CD-RW (read only)
3Com-Noteworhty 56K PC Card Modem
Bell-103,& 212A, V.23, V.22, V.22bis, V.32, V.32bis, V.34, V.34+, V.90
V.42/MNP 2-5
MNP 5, CCITT V.42 bis
Group 3, EIA/TIA, Fax class 1
V.17, V.21 Channel 2, V.27 ter, V.29, V.33
Hayes, Microcom compatible AT commands
Yamaha OPL3-SA3
Yes
48 kHz
Yes (Soft Wave Table included)
Yes
SoundBlaster Pro V3.01, Windows Sound System V2.0
Yes
Yes: with Windows 95 Game SDK driver from Microsoft
Two top-mounted stereo speakers (28mm, 8 Ω)
Yes with Windows 95 key support & 12 dedicated function keys
Yes
Yes
AccuPoint
Yes: Holds two - 5mm PC Cards Type II or one - 10.5mm PC Card Type III.
Yes: Supports 32-bit, 3.3V PC CardBus cards and 16-bit, 5.0V PC card standards
Yes
Yes
Yes
Yes
Yes: IrDA 1.1:4Mbps compatible
Yes: “Y”connector supported
Yes: Supports 127devices. Throughput Rate: 12Mbits/sec.
Yes
Yes
Yes
Yes
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS S4010.DOC Rev. 6 02/07/00 st.
Page 2 of 3
SATELLITE 4010 SERIES Product Specifications
MODEL
PART NUMBER
POWER (All models)
Autosensing External AC Adapter
Input (Voltage/Frequency)
Output (Voltage/Amps)
Power Output (Watts)
Battery Type: Li-Ion (10.8V, 4000mAH)
Battery Life: (Full Power/Low Power)
Recharge Time (Computer Off/On)
Power Saving Features
4010CDS/4.1 billion bytes
PAS401U-S2C
4010CDT/4.1 billion bytes
PAS401U-T2C
6.87”L x 2.75”W x 0.73”H --- .86 lbs.
100-240V; 50-60Hz
15 VDC; 3A (max)
45W
Yes (one standard): Part# PA2487URG
2.8 hrs./3.5 hrs.
3.1 hrs./3.5 hrs.
2.5hrs./10 hrs. depending on the computer function performed
APM v.1.2 BIOS, Processing speed change, CPU Sleep mode, Display Auto Off
Hibernation, LCD Brightness switch (software)
Dimensions
Weight
11.96”W x 9.4”D x 2.12”H
6.7 lbs.
4.92”L x 2.48”W x 1”H
.46 lbs.
6.87”L x 2.76”W x .69”H
.88 lbs.
DIMENSIONS (All Models)
Notebook
AC Adapter
Battery (Standard)
BUNDLED SOFTWARE (All Models)
Windows®98; Yamaha Audio Rack; Prodigy Internet; Symantec Norton Antivirus Scanner 4.0; Mediamatics Arcade Pak;
Ring Zero Ring Central Dialer application, Puma Intellisync97 (infrared software), Intel Indeo Video, Fn-esse, Online documentation
CD’s Included: Recovery/Backup CD; Windows 98 Companion CD
Cable Lock slot, PC Card lock slot, Main HDD (by screw only)
SECURITY
Hardware
Password
Power-on, Supervisor, & HDD password
Miscellaneous Screen blank, Keyboard lock
1 YR Parts / 1 YR. Labor / 1 YR. Battery
WARRANTY
ENVIRONMENTAL SPECIFICATIONS
(All models)
Operating
Non-operating
Temperature:
41°F (5°C) to 95°F (35°C)
-4°F (-20°C) to 149°F (65°C)
Thermal Gradient: 20º C per hour (max.)
N/A
N/A
Relative Humidity:
Altitude:
Shock:
Vibration:
Operating
Operating
Operating
Operating
20% to 80% non-condensing
-197 to 9,843ft. (-60 to 3000m)
10G; 1.5G w/CD-ROM installed
0.5G; 0.25G w/CD-ROM installed
10% to 90% non-condensing
-197 to 32,808ft. (-60 to 10,000m)
60G; 50G w/CD-ROM installed
1G; 1G w/CD-ROM installed
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS S4010.DOC Rev. 6 02/07/00 st.
Page 3 of 3
