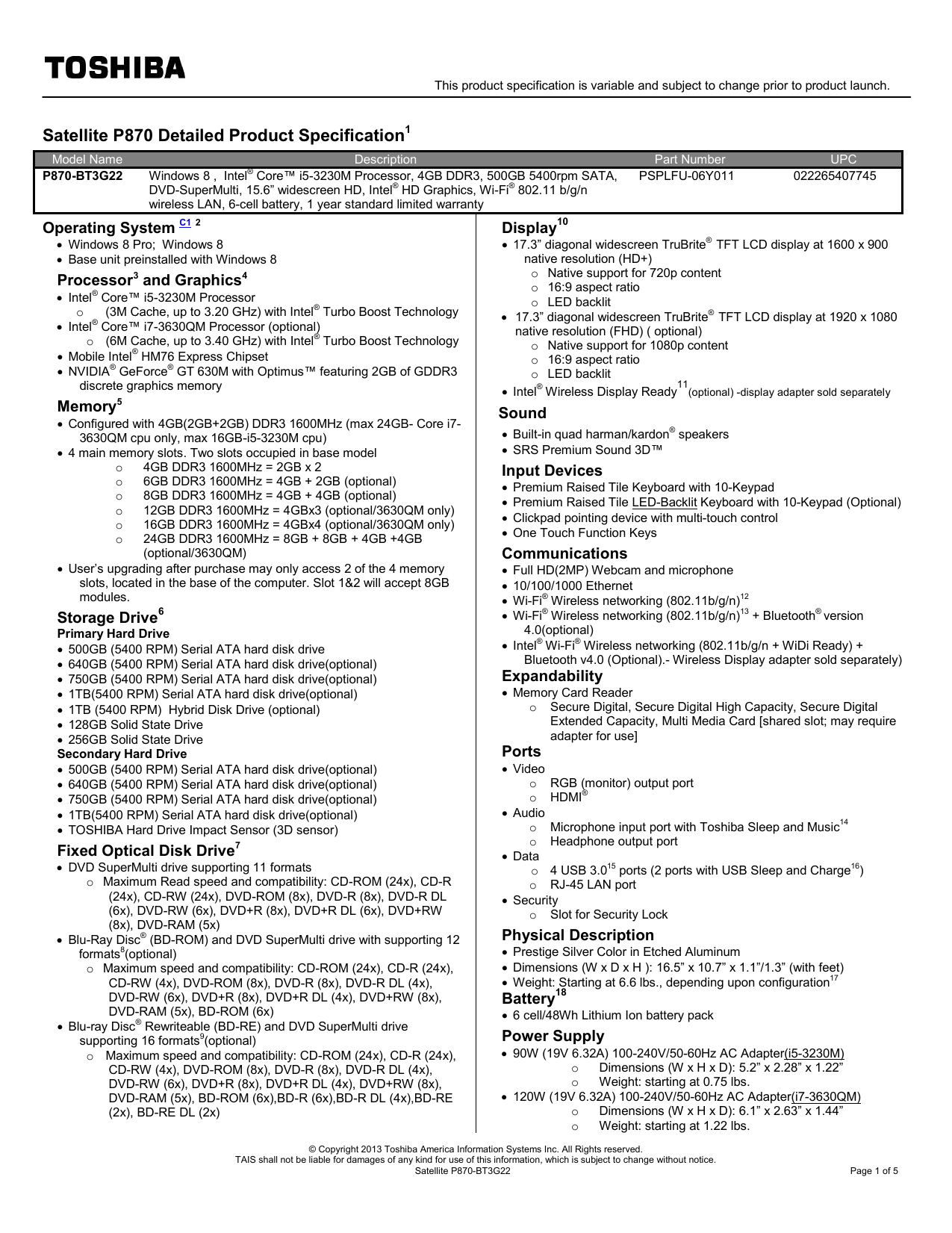

Toshiba P870-BT3G22 Laptop Specification

This product specification is variable and subject to change prior to product launch. Satellite P870 Detailed Product Specification1 Model Name P870-BT3G22 Description Windows 8 , Intel® Core™ i5-3230M Processor, 4GB DDR3, 500GB 5400rpm SATA, DVD-SuperMulti, 15.6” widescreen HD, Intel® HD Graphics, Wi-Fi® 802.11 b/g/n wireless LAN, 6-cell battery, 1 year standard limited warranty Operating System C1 2 Display Windows 8 Pro; Windows 8 Base unit preinstalled with Windows 8 Processor3 and Graphics4 Intel® Core™ i5-3230M Processor o (3M Cache, up to 3.20 GHz) with Intel® Turbo Boost Technology ® Intel Core™ i7-3630QM Processor (optional) o (6M Cache, up to 3.40 GHz) with Intel® Turbo Boost Technology Mobile Intel® HM76 Express Chipset NVIDIA® GeForce® GT 630M with Optimus™ featuring 2GB of GDDR3 discrete graphics memory Memory5 Configured with 4GB(2GB+2GB) DDR3 1600MHz (max 24GB- Core i73630QM cpu only, max 16GB-i5-3230M cpu) 4 main memory slots. Two slots occupied in base model o 4GB DDR3 1600MHz = 2GB x 2 o 6GB DDR3 1600MHz = 4GB + 2GB (optional) o 8GB DDR3 1600MHz = 4GB + 4GB (optional) o 12GB DDR3 1600MHz = 4GBx3 (optional/3630QM only) o 16GB DDR3 1600MHz = 4GBx4 (optional/3630QM only) o 24GB DDR3 1600MHz = 8GB + 8GB + 4GB +4GB (optional/3630QM) User’s upgrading after purchase may only access 2 of the 4 memory slots, located in the base of the computer. Slot 1&2 will accept 8GB modules. Storage Drive 6 Primary Hard Drive 500GB (5400 RPM) Serial ATA hard disk drive 640GB (5400 RPM) Serial ATA hard disk drive(optional) 750GB (5400 RPM) Serial ATA hard disk drive(optional) 1TB(5400 RPM) Serial ATA hard disk drive(optional) 1TB (5400 RPM) Hybrid Disk Drive (optional) 128GB Solid State Drive 256GB Solid State Drive Secondary Hard Drive 500GB (5400 RPM) Serial ATA hard disk drive(optional) 640GB (5400 RPM) Serial ATA hard disk drive(optional) 750GB (5400 RPM) Serial ATA hard disk drive(optional) 1TB(5400 RPM) Serial ATA hard disk drive(optional) TOSHIBA Hard Drive Impact Sensor (3D sensor) Fixed Optical Disk Drive7 DVD SuperMulti drive supporting 11 formats o Maximum Read speed and compatibility: CD-ROM (24x), CD-R (24x), CD-RW (24x), DVD-ROM (8x), DVD-R (8x), DVD-R DL (6x), DVD-RW (6x), DVD+R (8x), DVD+R DL (6x), DVD+RW (8x), DVD-RAM (5x) Blu-Ray Disc® (BD-ROM) and DVD SuperMulti drive with supporting 12 formats8(optional) o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x), CD-RW (4x), DVD-ROM (8x), DVD-R (8x), DVD-R DL (4x), DVD-RW (6x), DVD+R (8x), DVD+R DL (4x), DVD+RW (8x), DVD-RAM (5x), BD-ROM (6x) Blu-ray Disc® Rewriteable (BD-RE) and DVD SuperMulti drive supporting 16 formats9(optional) o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x), CD-RW (4x), DVD-ROM (8x), DVD-R (8x), DVD-R DL (4x), DVD-RW (6x), DVD+R (8x), DVD+R DL (4x), DVD+RW (8x), DVD-RAM (5x), BD-ROM (6x),BD-R (6x),BD-R DL (4x),BD-RE (2x), BD-RE DL (2x) Part Number PSPLFU-06Y011 UPC 022265407745 10 17.3” diagonal widescreen TruBrite® TFT LCD display at 1600 x 900 native resolution (HD+) o Native support for 720p content o 16:9 aspect ratio o LED backlit 17.3” diagonal widescreen TruBrite® TFT LCD display at 1920 x 1080 native resolution (FHD) ( optional) o Native support for 1080p content o 16:9 aspect ratio o LED backlit 11 Intel® Wireless Display Ready (optional) -display adapter sold separately Sound Built-in quad harman/kardon® speakers SRS Premium Sound 3D™ Input Devices Premium Raised Tile Keyboard with 10-Keypad Premium Raised Tile LED-Backlit Keyboard with 10-Keypad (Optional) Clickpad pointing device with multi-touch control One Touch Function Keys Communications Full HD(2MP) Webcam and microphone 10/100/1000 Ethernet Wi-Fi® Wireless networking (802.11b/g/n)12 Wi-Fi® Wireless networking (802.11b/g/n)13 + Bluetooth® version 4.0(optional) Intel® Wi-Fi® Wireless networking (802.11b/g/n + WiDi Ready) + Bluetooth v4.0 (Optional).- Wireless Display adapter sold separately) Expandability Memory Card Reader o Secure Digital, Secure Digital High Capacity, Secure Digital Extended Capacity, Multi Media Card [shared slot; may require adapter for use] Ports Video o RGB (monitor) output port o HDMI® Audio o Microphone input port with Toshiba Sleep and Music14 o Headphone output port Data o 4 USB 3.015 ports (2 ports with USB Sleep and Charge16) o RJ-45 LAN port Security o Slot for Security Lock Physical Description Prestige Silver Color in Etched Aluminum Dimensions (W x D x H ): 16.5” x 10.7” x 1.1”/1.3” (with feet) Weight: Starting at 6.6 lbs., depending upon configuration17 Battery 18 6 cell/48Wh Lithium Ion battery pack Power Supply 90W (19V 6.32A) 100-240V/50-60Hz AC Adapter(i5-3230M) o Dimensions (W x H x D): 5.2” x 2.28” x 1.22” o Weight: starting at 0.75 lbs. 120W (19V 6.32A) 100-240V/50-60Hz AC Adapter(i7-3630QM) o Dimensions (W x H x D): 6.1” x 2.63” x 1.44” o Weight: starting at 1.22 lbs. © Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved. TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Satellite P870-BT3G22 Page 1 of 5 This product specification is variable and subject to change prior to product launch. Software C1 19 Toshiba Software and Utilities o TOSHIBA App Place® o TOSHIBA BookPlace™ o TOSHIBA Disc Creator o TOSHIBA eco Utility™ o TOSHIBA HDD Protection o TOSHIBA HW Setup Utility o TOSHIBA PC Health Monitor o TOSHIBA Media Player by sMedio Truelink+ o TOSHIBA Maintenance Utility o TOSHIBA Recovery Media Creator o TOSHIBA Service Station o TOSHIBA Resolution+® Upconvert Technology for Media Player20 o TOSHIBA Video Player Third-party Software o Internet Explorer® 10 o Office Home & Student 2013 (If purchased at time of system configuration) o Office Home & Business 2013 (If purchased at time of system configuration) o Office Professional 2013 (If purchased at time of system configuration) o Norton™ Internet Security 2013 (12-month subscription, if purchased at time of system configuration) o Windows Essentials Photo Gallery Movie Maker Skydrive desktop o Norton™ PC Checkup o Origin powered by EA Game Console o WildTangent® Games Console Special Offers and Trial Software o 1 month trial for new Office 365 customers21 o Norton™ Internet Security (30-day trial subscription) o Norton™ Online Backup (30-day Trial) o Norton™ Anti-Theft (30-day Trial) 22 1 YEAR STANDARD LIMITED WARRANTY 23 2 YEAR STANDARD LIMITED WARRANTY (optional) 24 3 YEAR STANDARD LIMITED WARRANTY (optional) Environmental Specifications This product is RoHS25 compatible ENERGY STAR® Qualified EPEAT® Gold Rated Operating Temperature26 5° to 35° C Relative Humidity 20% to 90% (non-condensing) Thermal Gradient 15° C per hour (max) Altitude 0 to 10,000 meters (relative to sea level) Shock 10G Vibration 0.5G Non-operating -20° to 60° C 10% to 95% 20° C per hour (max) 0 to 40,000 meters 60G 1.0G Service Upgrades and Extensions Toshiba offers many different enhanced services such as SystemGuard®, On-Site Repair, and ServiceExpress to provide additional support to your notebook PC. For a full description and complete list of programs and program terms and conditions, please visit www.support.toshiba.com. Accessories For additional and most updated accessories, please visit www.accessories.toshiba.com Memory Upgrade NOTE: User’s upgrading after purchase may only access 2 of the 4 memory slots, located in the base of the computer. Slot 1&2 will accept 8GB modules. Part Number Description PA5037U-1M2G Toshiba 2GB PC3-12800 DDR3-1600MHz Memory Module PA5037U-1M4G Toshiba 4GB PC3-12800 DDR3-1600MHz Memory Module PA5037U-1M8G Toshiba 8GB PC3-12800 DDR3-1600MHz Memory Module Power Part Number PA3717U-1ACA PA5027U-1BRS Description Toshiba 120W Global AC Adapter Toshiba Primary Li Ion Battery Pack (6 Cell, 67 Wh) Expansion Part Number PA5082U-1PRP PA3927U-1PRP Description dynadock V3.0 Universal USB 3.0 Docking Station dynadock U3.0 Universal USB 3.0 Docking Station Storage Part Number PA3879U-1M4S PA3879U-1M8S PA3879U-1MAS Description Toshiba 4GB Micro Swivel USB Flash Drive Toshiba 8GB Micro Swivel USB Flash Drive Toshiba 16GB Micro Swivel USB Flash Drive HDTC605XW3A1 Toshiba 500GB Canvio 3.0 USB Portable Hard Drive, White Toshiba 750GB Canvio 3.0 USB Portable Hard Drive, Black Toshiba 1TB Canvio 3.0 USB Portable Hard Drive, Silver HDTC607XK3A1 HDTC610XS3B1 Bluetooth Part Number Description PA3847U-1ETB Toshiba Bluetooth Laser Mouse, Gloss Black(for units with Bluetooth only) PA3847U-1ETC Toshiba Bluetooth Laser Mouse, Magnesium Black(for units with Bluetooth only) PA3710U-1BTM Toshiba Bluetooth 2.1EDR USB Nano Adapter(for units without Bluetooth) Carrying Case Part Number PA1453U-1BG8 PA1500U-1BS8 PA1521U-1EC7 Description Toshiba 18.4" Gaming BackPack (Fits up to 18.4") Toshiba 18.4" Extreme Backpack(Fits ups to 18.4”) Toshiba 17" Lightweight Carrying Case(Fits ups to 17.3”) Subject to Change While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice. For the most up-to-date product information about your computer, or to stay current with the various computer software or hardware options, visit Toshiba’s Web site at http://www.support.toshiba.com Return Policy © Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved. TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Satellite P870-BT3G22 Page 2 of 5 This product specification is variable and subject to change prior to product launch. Notwithstanding anything to the contrary in any third party License Agreement or product documentation supplied with your PC, Toshiba America Information Systems, Inc. (“TAIS”) does not accept the return of component parts, or bundled software, that have been removed from the PC system. Pro-rata refunds on individual PC components or bundled software, including the operating system, will not be granted. If you wish to return a complete PC system, contact the TAIS dealer where you purchased the product, and comply with the dealer’s standard return policies and procedures. Toshiba America Information Systems, Incorporated (“TAIS”) 9740 Irvine Boulevard Irvine CA 92618 ToshibaDirect website: http://www.toshibadirect.com TAIS website for resellers: http://sell.toshiba.com TAIS PC Support website: http://support.toshiba.com Qosmio and SystemGuard are registered trademarks of Toshiba America Information Systems, Inc. and/or Toshiba Corporation. All other products and names mentioned are the property of their respective owners. C1 64-bit computing: 64-bit computing requires that the following hardware and software requirements are met: - 64-bit Operating System - 64-bit CPU, Chipset and BIOS (Basic Input/Output System) - 64-bit Device drivers - 64-bit applications Certain device drivers and/or applications may not be compatible with a 64-bit CPU and therefore may not function properly. See "Detailed Specs" for more information. 1 Product Series Legal Footnote. The product specifications and configuration information are designed for a product Series. Your particular model may not have all the features and specifications listed or illustrated. For more detailed information about the features and specifications on your particular model, please visit Toshiba's Web site at pcsupport.toshiba.com. Product Offering Legal Footnote. Toshiba America Information Systems, Inc. reserves the right to modify or withdraw this offer at anytime without notice 2 Operating System. Also see 64-Bit Computing Legal Footnote, if applicable. Certain Microsoft® software product(s) included with this computer may use technological measures for copy protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE PRODUCT IF YOU DO NOT FULLY COMPLY WITH THE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and Microsoft’s privacy policy will be detailed during initial launch of the product, or upon certain reinstallations of the software product(s) or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply). Some software may differ from its retail version (if available), and may not include user manuals or all program functionality. Offers. Offer terms, duration and product availability all subject to change without notice 3 Processor (Central Processing Unit). Also see 64-Bit Computing Legal Footnote, if applicable. CPU performance in your computer product may vary from specifications under the following conditions: 1. use of certain external peripheral products 2. use of battery power instead of AC power 3. use of certain multimedia, computer generated graphics or video applications 4. use of standard telephone lines or low speed network connections 5. use of complex modeling software, such as high end computer aided design applications 6. use of several applications or functionalities simultaneously 7. use of computer in areas with low air pressure (high altitude >1,000 meters or >3,280 feet above sea level) 8. use of computer at temperatures outside the range of 5°C to 30°C (41°F to 86° F) or >25°C (77°F) at high altitude (all temperature references are approximate and may vary depending on the specific computer model – please visit the Toshiba website at www.pcsupport.toshiba.com for details). CPU performance may also vary from specifications due to design configuration. Under some conditions, your computer product may automatically shut-down. This is a normal protective feature designed to reduce the risk of lost data or damage to the product when used outside recommended conditions. To avoid risk of lost data, always make back-up copies of data by periodically storing it on an external storage medium. Use your computer product only under recommended conditions. Read additional restrictions under “Environmental Conditions” in your product “Detailed Specs.” Contact Toshiba Technical Service and Support for more information. 4 Graphics (Graphics Processing Unit). GPU performance may vary depending on product model, design configuration, applications, power management settings and features utilized. GPU performance is only optimized when operating in AC power mode and may decrease considerably when operating in battery power mode. Total Available Graphics Memory is the total of, as applicable, Dedicated Video Memory, System Video Memory and Shared System Memory. Shared System Memory will vary depending on system memory size and other factors. 5 Memory (Main System). Part of the main system memory may be used by the graphics system for graphics performance and therefore reduce the amount of main system memory available for other computing activities. The amount of main system memory allocated to support graphics may vary depending on the graphics system, applications utilized, system memory size and other factors. Computers configured with a 32-bit operating system can address up to 3GB of system memory. Only computers configured with a 64-bit operating system can address 4 GB or more of system memory. 6 Storage Drive (Internal HDD Capacity). One Gigabyte (GB) means 109 = 1,000,000,000 bytes and One Terabyte (TB) means 1012 = 1,000,000,000,000 bytes using powers of 10. The computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 230 = 1,073,741,824 bytes and 1TB = 240 = © Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved. TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Satellite P870-BT3G22 Page 3 of 5 This product specification is variable and subject to change prior to product launch. 1,099,511,627,776 bytes, and therefore shows less storage capacity. Available storage capacity will also be less if the computer includes one or more pre-installed operating systems, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary. 7 Optical Drive. Due to manufacturing and quality variations in third party optical media (e.g., CD or DVD) or optical media players/recorders, in certain cases, your Toshiba optical drive may not record on certain optical media that bear the applicable logo, or playback optical media recorded by other PCs or optical media recorders. Additionally, certain optical media recorded on your optical drive may not playback or operate properly on other PCs or optical media players. These problems are not due to any defect in your Toshiba PC or optical drive. Please refer to your PC's product specification for listing of specific format compatibilities. Recording or viewing of certain optical media may be limited or prevented in accordance with applicable copy protection standards. 8 Blu-Ray Disc™ Player Technology. Compatibility and/or performance issues are possible. Certain interactive features may not be supported due to compatibility, network settings or other conditions. Advanced Access Content System (AACS) keys are integrated into your computer for copy protection purposes. Occasional renewal is required and will initially be provided at no charge. After the initial period, Corel Corporation will provide AACS key renewals pursuant to its then current terms and conditions. For more information on AACS key, visit www.aacsla.com/home. Depending on Blu-ray Disc content, you may experience “frame dropping” or lower performance. Viewing on external display requires a RGB/HDCP supported HDMI port. External power required for viewing of Blu-ray content. Dual view feature not supported. You must close all other applications during Blu-ray Disc playback. . 9 Blu-Ray Disc™ Player Technology. Compatibility and/or performance issues are possible. Certain interactive features may not be supported due to compatibility, network settings or other conditions. Advanced Access Content System (AACS) keys are integrated into your computer for copy protection purposes. Occasional renewal is required and will initially be provided at no charge. After the initial period, Corel Corporation will provide AACS key renewals pursuant to its then current terms and conditions. For more information on AACS key, visit www.aacsla.com/home. Depending on Blu-ray Disc content, you may experience “frame dropping” or lower performance. Viewing on external display requires a RGB/HDCP supported HDMI port. External power required for viewing of Blu-ray content. Dual view feature not supported. You must close all other applications during Blu-ray Disc playback. . 10 Display. Small bright dots may appear on your screen display when you turn on your PC. Your display contains an extremely large number of thin-film transistors (TFT) and is manufactured using high-precision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology. Over a period of time, and depending on the usage of the computer, the brightness of the screen will deteriorate. This is also an intrinsic characteristic of the screen technology. When the computer is operated on battery power, the screen with dim and you may not be able to increase the brightness of the screen while on battery power. 11 Intel® Wireless Display. Copy protection technology, if any, associated with the content may prevent or limit viewing of content. 12 Wireless May require purchase of additional software, external hardware, or services. Transmission speeds may vary. Certain optional features within the wireless-n specifications (if available on your system) may not be supported. 13 Wireless May require purchase of additional software, external hardware, or services. Transmission speeds may vary. Certain optional features within the wireless-n specifications (if available on your system) may not be supported. 14 Sleep & Music: In this mode, the headphone jack and mute functions are disabled. The volume and sound quality will diminish as the speakers not tuned in Windows® mode. Use the volume control on your audio device to adjust sound. Audio line-in cable is not included 15 USB 3.0. 5Gbps is the maximum theoretical interface transfer rate per the specifications of the Universal Serial Bus 3.0. Actual transfer rate will vary depending on your system configuration and other factors. 16 USB Sleep & Charge. The "USB Sleep & Charge function" may not work with certain external devices even if they are compliant with the USB specification. In those cases, turn the power of the computer ON to charge the device. 17 Weight. Weight may vary depending on product configuration, vendor components, manufacturing variability and options selected. 18 Battery Life Rating. Measured by MobileMark® 2007 for models preinstalled with Microsoft® Windows 7. Benchmark rules for Mobile Mark™ 2007: Wireless connectivity = Off, Screen brightness = 60nits, Predefined workloads. Measured by MobileMark® 2012 for models preinstalled with Microsoft® Windows 8. Benchmark rules for Mobile Mark™ 2012: Wireless connectivity = On, Screen brightness = 150nits, Predefined updated workloads. Details of MobileMark® 2007 and MobileMark® 2012 testing protocols are available at www.bapco.com MobileMark is a trademark of the Business Applications Performance Corporation. Rating is for comparison purposes only, and does not indicate the battery life that will be obtained by any individual user. Actual battery life may vary considerably from specifications depending on product model, configuration, applications, power management settings and features utilized, as well as the natural performance variations produced by the design of individual components. The battery life rating is only achieved on the select models and configurations tested by Toshiba under the specific test settings at the time of publication and is not an estimate of a system’s battery life under any conditions other than the specific test settings. After a period of time, the battery will lose its ability to perform at maximum capacity and will need to be replaced. This is normal for all batteries. 19 Software. Also see 64-Bit Computing Legal Footnote, if applicable. Certain Microsoft® software product(s) included with this computer may use technological measures for copy protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE PRODUCT IF YOU DO NOT FULLY COMPLY WITH THE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and Microsoft’s privacy policy will be detailed during initial launch of the product, or upon certain reinstallations of the software product(s) or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply). Some software may differ from its retail version (if available), and may not include user manuals or all program functionality. 20 Upconverter/UpconversionTechnology (Resolution+® Technology). Viewing enhancements may vary depending upon content quality and display device capability/functionality/settings. Depending on the quality of the content, some video noise may be visible. © Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved. TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Satellite P870-BT3G22 Page 4 of 5 This product specification is variable and subject to change prior to product launch. 21 ® ® Microsoft Officetrial Buy Microsoft Office to use full-featured Office software on this PC. ® Microsoft Software (if included in your PC; e.g., Microsoft Home and Student 2010, Microsoft Office Home and Business 2010, Microsoft Office Professional 2010) ® The version of Microsoft Office included in this computer is only available in and can only be activated within the region in which you purchased it. ® Certain Microsoft software products included with this computer may use technological measures for copy protection. In such case, you will not be able to use the Product if you do not activate it with Microsoft. Activation may be completed by Internet or telephone (toll charges may apply). Product Activation procedures and Microsoft’s privacy policy will be detailed during initial launch of the Product, or upon certain reinstallations of the software products or reconfiguration of the computer. 22 Warranty. The terms and conditions of Toshiba’s standard limited warranty are available at www.warranty.toshiba.com. 23 Warranty. The terms and conditions of Toshiba’s standard limited warranty are available at www.warranty.toshiba.com. 24 Warranty. The terms and conditions of Toshiba’s standard limited warranty are available at www.warranty.toshiba.com. 25 RoHS. This notebook is compatible with European Union Directive 2002/95/EC, Restriction of the use of certain Hazardous Substances in electrical and electronic equipment (RoHS), which restricts use of lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. Toshiba requires its notebook component suppliers to meet RoHS requirements and verifies its suppliers' commitment to meeting RoHS requirements by conducting component sampling inspections during the product design approval process. 26 Temperature (Environmental) Conditions. All temperature references are approximate and the performance of your computer may vary from specifications even when operating within the recommended temperature range. © Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved. TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Satellite P870-BT3G22 Page 5 of 5
