Toshiba 3025CT Laptop Specification

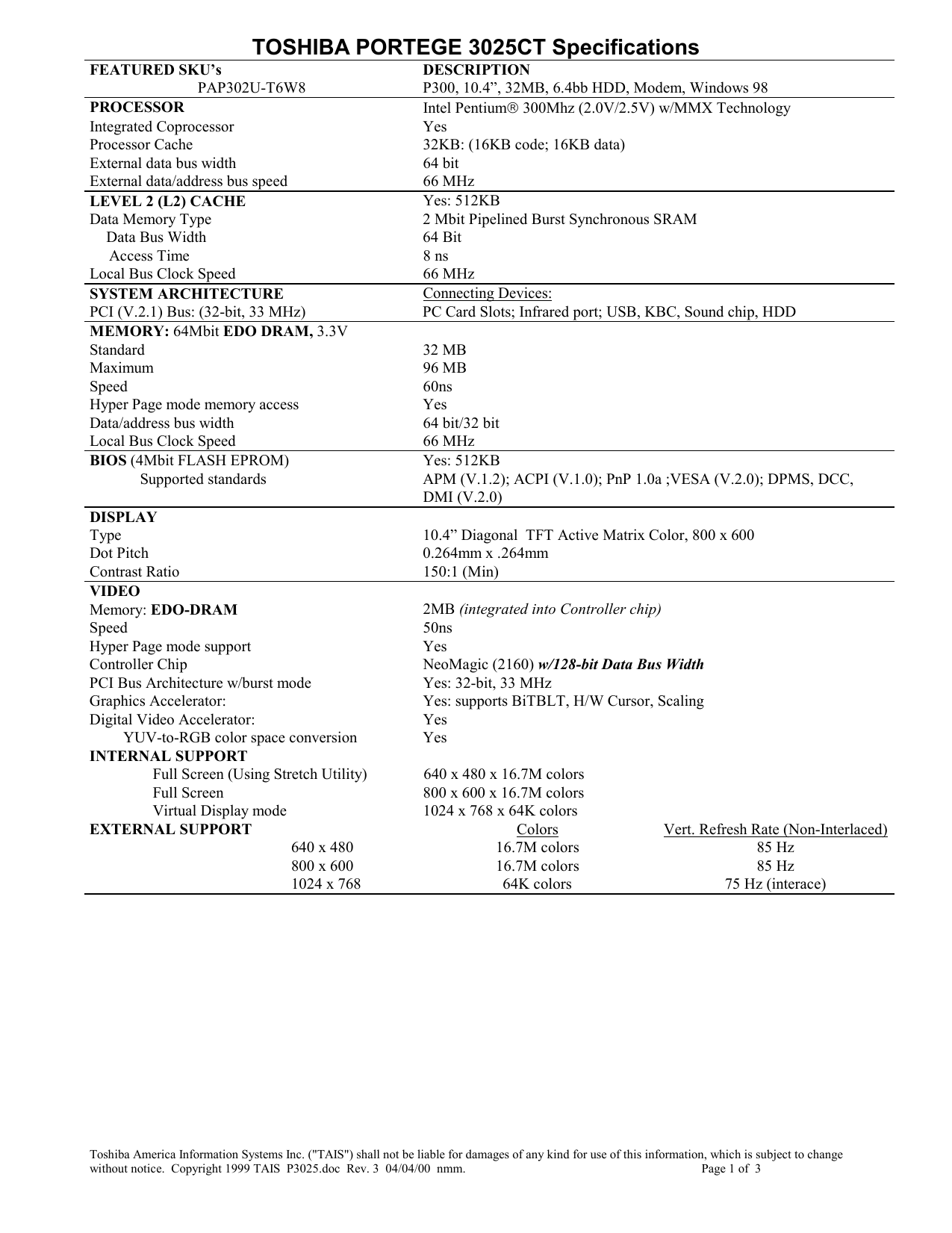

TOSHIBA PORTEGE 3025CT Specifications
FEATURED SKU’s
PAP302U-T6W8
PROCESSOR
Integrated Coprocessor
Processor Cache
External data bus width
External data/address bus speed
LEVEL 2 (L2) CACHE
Data Memory Type
Data Bus Width
Access Time
Local Bus Clock Speed
SYSTEM ARCHITECTURE
PCI (V.2.1) Bus: (32-bit, 33 MHz)
MEMORY: 64Mbit EDO DRAM, 3.3V
Standard
Maximum
Speed
Hyper Page mode memory access
Data/address bus width
Local Bus Clock Speed
BIOS (4Mbit FLASH EPROM)
Supported standards
DISPLAY
Type
Dot Pitch
Contrast Ratio
VIDEO
Memory: EDO-DRAM
Speed
Hyper Page mode support
Controller Chip
PCI Bus Architecture w/burst mode
Graphics Accelerator:
Digital Video Accelerator:
YUV-to-RGB color space conversion
INTERNAL SUPPORT
Full Screen (Using Stretch Utility)
Full Screen
Virtual Display mode
EXTERNAL SUPPORT
640 x 480
800 x 600
1024 x 768
DESCRIPTION
P300, 10.4”, 32MB, 6.4bb HDD, Modem, Windows 98
Intel Pentium 300Mhz (2.0V/2.5V) w/MMX Technology
Yes
32KB: (16KB code; 16KB data)
64 bit
66 MHz
Yes: 512KB
2 Mbit Pipelined Burst Synchronous SRAM
64 Bit
8 ns
66 MHz
Connecting Devices:
PC Card Slots; Infrared port; USB, KBC, Sound chip, HDD
32 MB
96 MB
60ns
Yes
64 bit/32 bit
66 MHz
Yes: 512KB
APM (V.1.2); ACPI (V.1.0); PnP 1.0a ;VESA (V.2.0); DPMS, DCC,
DMI (V.2.0)
10.4” Diagonal TFT Active Matrix Color, 800 x 600
0.264mm x .264mm
150:1 (Min)
2MB (integrated into Controller chip)
50ns
Yes
NeoMagic (2160) w/128-bit Data Bus Width
Yes: 32-bit, 33 MHz
Yes: supports BiTBLT, H/W Cursor, Scaling
Yes
Yes
640 x 480 x 16.7M colors
800 x 600 x 16.7M colors
1024 x 768 x 64K colors
Colors
16.7M colors
16.7M colors
64K colors
Vert. Refresh Rate (Non-Interlaced)
85 Hz
85 Hz
75 Hz (interace)
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1999 TAIS P3025.doc Rev. 3 04/04/00 nmm.
Page 1 of 3
TOSHIBA PORTEGE 3025CT Specifications
FEATURED SKU’s
PAP302U-T6W8
STORAGE
HDD (2.5” Enhanced IDE)
Height
Buffer
Burst Data Transfer Rate
FDD (3.5” 1.44MB) -- External
CD-ROM (Optional)
5.25” 20X Max. speed
KEYBOARD
84 keys with Windows 95/98 support
Key Pitch
12 dedicated function keys
Cursor control (8 Keys, Inverted "T")
Numeric keypad (Integrated Overlay)
Integrated Pointing Device
EXPANSION SLOTS
Two PC Card Slots
32-bit, 3.3V PC CardBus Support
16-bit, 5.0V PC Card Support
Internal Memory Slot (One only)
EXPANSION PORTS
One Power-in Jack
One 132-pin expansion bus
One Universal Serial Bus (USB) port
One Fast Infrared port (IrDA2.0: 4Mbps)
One External Floppy Drive port
Microphone (3.5mm mini jack, monoaural)
One Headphone (3.5mm mini jack, stereo)
One Noteworthy security lock port
I/O BAR (Port Expander)
One 15-Pin RGB (SVGA video)
One 9-Pin Serial (16550 UART compliant)
One 25-Pin Parallel (8 bit ECP)
One (PS/2) 101 Keyboard/Mouse port
Portege "Mini" I/O BAR Adapter
One (PS/2) 101 Keyboard/Mouse port
One 15-Pin RGB (SVGA video)
POWER
Autosensing External AC Adapter: PA2501U
Input (Voltage/Frequency)
Output (Voltage/Amps)
Power Output (Watts)
Battery Type: Li-Ion
Part Number
Capacity
Battery Life (Full/Low)
Recharge Time (Computer Off/On)
Dimensions
Power Saving Features
DESCRIPTION
P300, 10.4”, 32MB, 6.4bb HDD, Modem, Windows 98
6.4 billion bytes (13msec)
8.45mm
512KB
Ultra DMA, PIO Mode 4
Bundled
External using PC Card
Yes (full-size key caps; 2mm Travel)
18mm
Yes
Yes
Yes
AccuPoint
Yes: 1-right side & 1-left side
Yes
Yes
Yes
LOCATION
Yes: Rear of unit
Yes: Left side
Yes: Right side (Supports 127devices. Throughput Rate: 12Mbits/sec.)
Yes: Right side
Yes: Right side
Yes: Right side
Yes: Right side
Yes: Right side
(1) Standard: Connects to 132-pin expansion bus -- rear of unit
Yes
Yes
Yes
Yes: Supports use of Y-cable
Connects to 132-pin expansion bus -- rear of unit
Yes: Supports use of Y-cable
Yes
3.94’’L x 1.97’’W x .98’’D--- .46 lbs
100-240V; 50-60Hz
15 VDC; 2.0A
30W
High Capacity Battery (Bundled)
Lightweight Battery (Optional)
PA2458UR
PA2457UR
10.8V, 2600mAh
10.8V, 1300mAh
2.6 hrs./3.8 hrs
1.3 hrs./1.9 hrs
6 hrs./12 hrs.
3 hrs./6 hrs.
8.16”(L)x1.6”(H)x.79”(W)
8.16”(L)x.86”(H)x.79”(W)
APM v.1.2 BIOS, Processing speed change, Auto Resume,
Hibernation, LCD Brightness switch (software)
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1999 TAIS P3025.doc Rev. 3 04/04/00 nmm.
Page 2 of 3
TOSHIBA PORTEGE 3025CT Specifications
FEATURED SKU’s
PAP302U-T6W8
PC Card MODEM (Bundled) -- (All Models)
Data support
Protocols supported
DESCRIPTION
P300, 10.4”, 32MB, 6.4bb HDD, Modem, Windows 98
3Com-Noteworhty 56K PC Card Modem (XJ1560)
Bell-103 & 212A, V.21, V.23, V.22, V.22bis, V.32, V.32bis,
V.34, V.34+, V.90
Error correction
V.42
Data compression
V.42 bis
Fax support
Group 3, EIA Class 1, EIA Class 2.0
Protocols supported
V.17, V.21 Channel 2, V.27 ter, V.29
Features
X-Jack Connector, Flash DSP/Flash ROM, Digital Line Guard,
Hot Swapping, Intelligent Auto Install
Yamaha Sound System
SOUND SYSTEM
Chipsets:
Yamaha OPL3-SA3
16-bit stereo audio playback/record
Yes
Maximum Sampling Rate
44.1 kHz
FM Synthesis support
Yes
Full duplex support
Yes
Built-in Speaker
Yes (monaural, located on left side under palm rest)
Built in Microphone
Yes (monaural, located on right side)
3D Sound support
Yes: when connected to stereo speakers
Sound formats supported:
SoundBlaster Pro V3.01, MIDI, Windows Sound System V2.0
10.12"W x .78"H x 8.5"D
DIMENSIONS
2.9 lbs. (with Enhanced battery)
WEIGHT
BUNDLED SOFTWARE
(Windows 98 models)
Windows 98; Ring Zero Ring Central; Toshiba Controls (Power Saver, Hibernation, Quick Hibernation, Hotkey, HW Setup);
Direct X 6.0; America On Line Update; AT&T Internet Offer; Yahoo; Quicken Basic 99; Intel Indeo Video;
Microsoft NetMeeting; Symantec Norton Antivirus Scanner; User’s Guide
CD’s Included: Windows 98 Configuration Builder CD with Boot Disk
CUSTOMER CHOICE SOFTWARE: BROCHURE ENCLOSED IN BOX
Choice of a Total of 5 Additional Software Titles
Lotus SmartSuite Millenium Edition (counts as 5 selections)
Mobile Productivity
K-6 Education
Laplink
Math Blaster 6-9
Rand McNally Trip Planner
The Way Things Work
USA 98: Streets & Destinations
Ultimate Creativity & Writing Center
Print Artist 4.0
Eyewitness Children’s Encyclopedia
Freddi Fish 2: The Case of the Haunted Schoolhouse
7-12 Education
Entertainment
Algebra Blaster
Don’t Know Jack 3
Encyclopedia of Science
Sierra Front Page Sports Skiing
Student Writing Center
Abe’s Oddysee
Higher Score Guaranteed ACT/SAT/PSAT
Total Annihilation
Screen blank (by Hotkey), keyboard (by Hotkey)
SECURITY
Miscellaneous
Lock mechanisms
Noteworthy cable lock
Password security
Power-on, supervisor, HDD
1 YR Parts & Labor (1 YR Battery)
WARRANTY
ENVIRONMENTAL SPECIFICATIONS
Operating
Non-operating
Temperature
41°F (5°C) to 95°F (35°C)
-4°F (-20°C) to 149°F (65°C)
Thermal Gradient: 20º C per hour (max.)
N/A
N/A
Relative Humidity
20% to 80% non-condensing
10% to 90% non-condensing
Altitude:
-197 to 9,843ft. (-60 to 3000m)
-197 to 32,808ft. (-60 to 10,000m)
Shock:
10G; 1.5G w/CD-ROM installed
60G; 50G w/CD-ROM installed
Vibration:
0.5G; 0.25G w/CD-ROM installed
1G; 1G w/CD-ROM installed
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1999 TAIS P3025.doc Rev. 3 04/04/00 nmm.
Page 3 of 3
