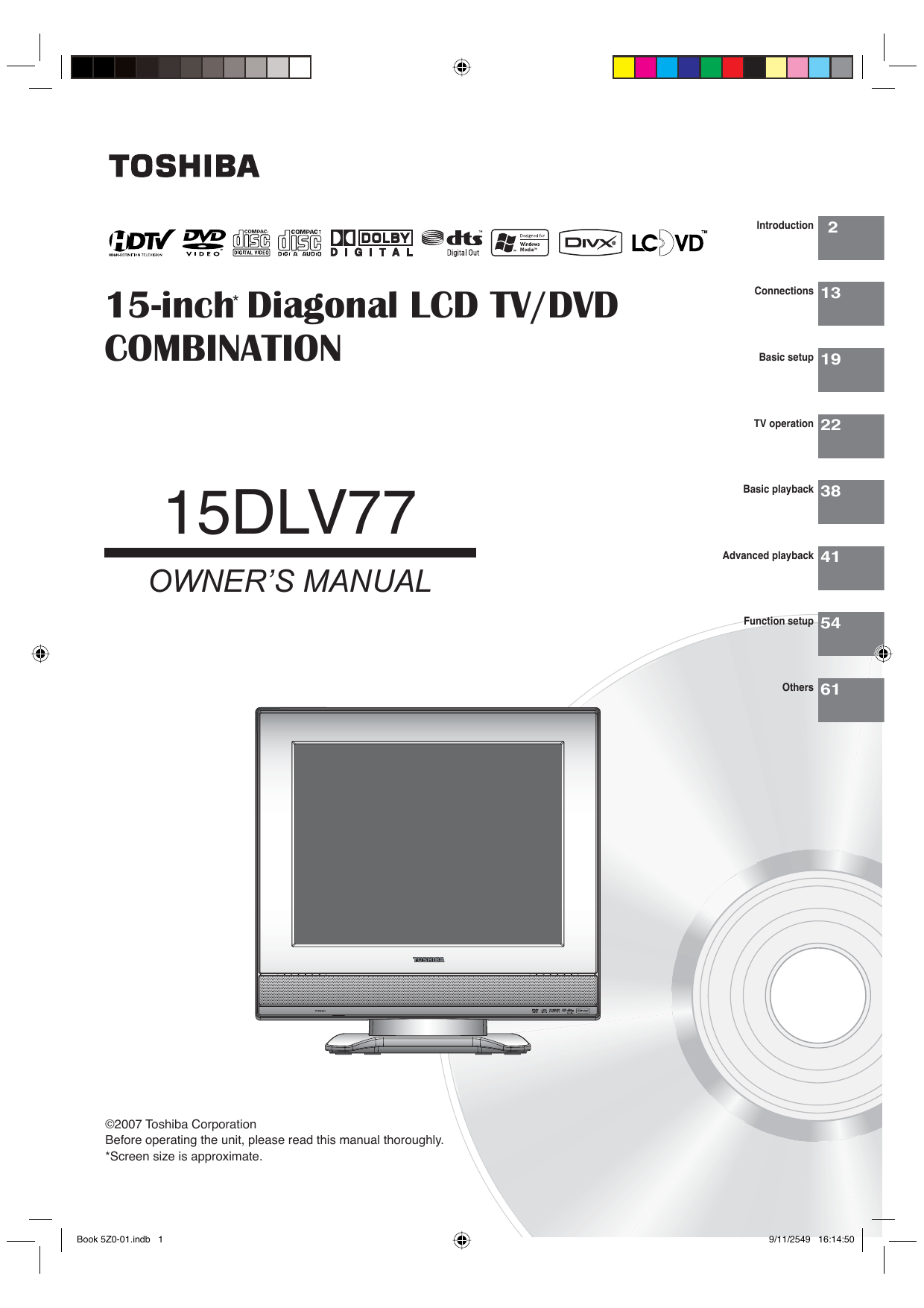

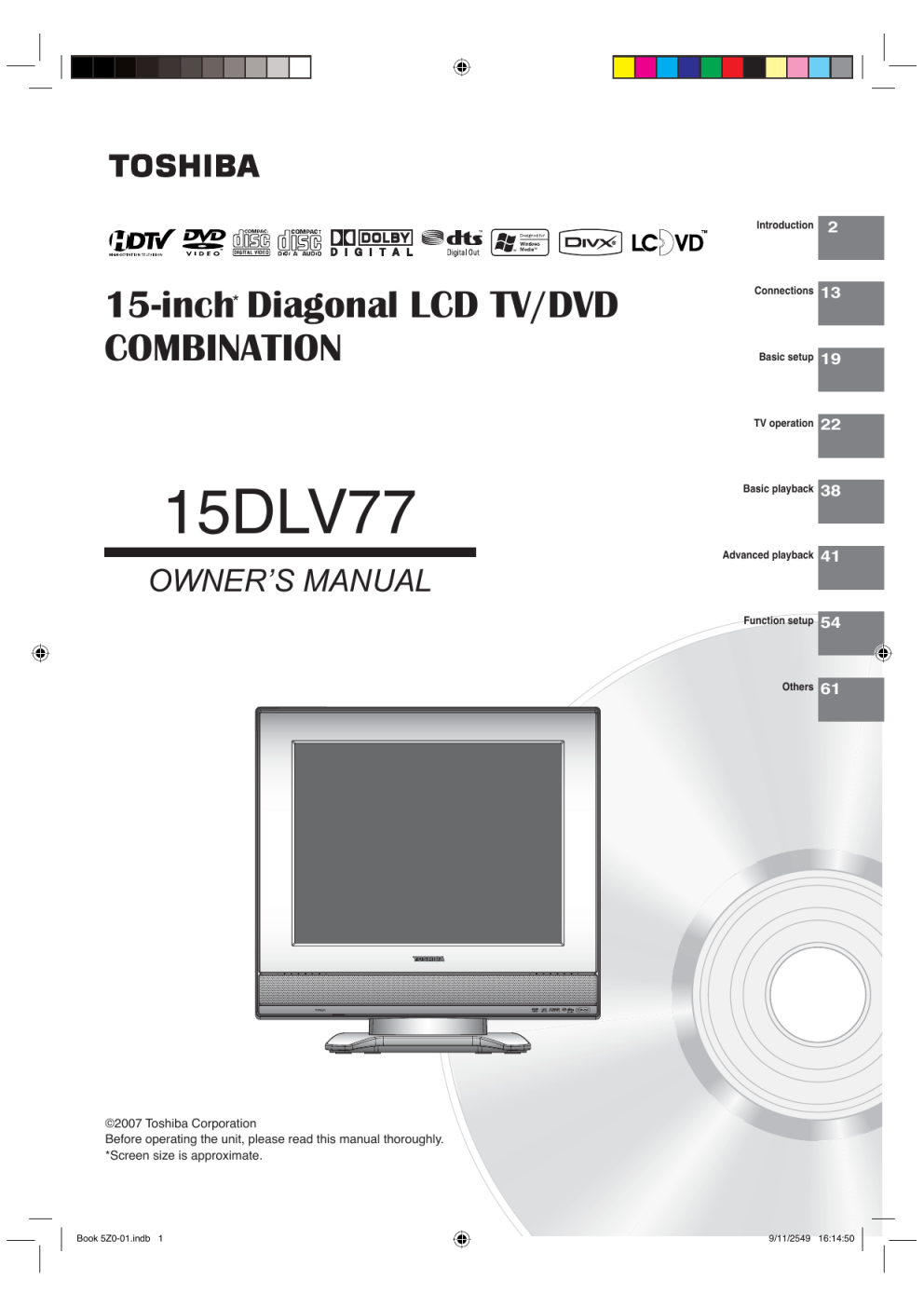

Toshiba 15DLV77B Television User Guide

15-inch Diagonal LCD TV/DVD
COMBINATION
*
15DLV77
Introduction
2
Connections
13
Basic setup
19
TV operation
22
Basic playback
38
Advanced playback
41
Function setup
54
Others
61
OWNER’S MANUAL
©2007 Toshiba Corporation
Before operating the unit, please read this manual thoroughly.
*Screen size is approximate.
Book 5Z0-01.indb 1
9/11/2549 16:14:50
Introduction
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING:
CAUTION :
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of
uninsulated dangerous voltage within the product's
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
FCC NOTICE :
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with
the FCC (Federal Communications Commission) Rules could void the user's authority to operate
this equipment.
WARNING: Handling the cord on this product or cords associated with accessories sold with this product will
expose you to lead, a chemical known to the State of California to cause birth defects or other
reproductive harm. Wash hands after handling.
Location of the required Marking
CAUTION:
The rating sheet and the safety
THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
caution are on the rear of the unit.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS
OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED
SERVICE LOCATION.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO
OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT
WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.
NOTE TO CATV INSTALLERS
This is a reminder to call the CATV system installer’s attention to Article 820-40
of the NEC, which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to grounding system of the
building, as close to the point of cable entry as practical. For additional antenna
grounding information, see item 26 on page 4.
ON DISPOSAL
The lamp(s) inside this product contain mercury. Disposal may be
regulated due to environmental considerations. For disposal or recycling
information, contact your local authorities or the Electronic Industries
Alliance (www.eiae.org).
CERTIFICATION: COMPLIES WITH
FDA RADIATION PERFORMANCE
STANDARDS, 21 CFR SUBCHAPTER J.
WARNING: If you decide to wall mount this television, always use a UL Listed wall bracket appropriate for the
size and weight of this television. The use of any wall bracket other than a UL Listed wall bracket appropriate
for the size and weight of this television for wall mounting this television could result in serious bodily injury
and/or property damage.
2
Book 5Z0-01.indb 2
14/11/2549 9:38:44
SAFETY INSTRUCTIONS
Installation, Care, and Service
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Installation
Follow these recommendations and precautions and
heed all warnings when installing your TV:
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
16) Never modify this equipment. Changes or modifications
may void: a) the warranty, and b) the user’s authority to
operate this equipment under the rules of the
Federal Communications Commission.
8)
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has
two blades and a third grounding prong.
The wide blade or the third prong Wide plug
are provided for your safety. If
the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked
on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Additional Safety Precautions
14a) CAUTION: If the TV is dropped and the cabinet or
enclosure surface has been damaged or the TV does
not operate normally, take the following precautions:
• ALWAYS turn off the TV and unplug the power
cord to avoid possible electric shock or fire.
• NEVER allow your body to come in contact with
any broken glass or liquid from the damaged
television. The LCD panel inside the TV contains
glass and a toxic liquid. If the liquid comes in contact
with your mouth or eyes, or your skin is cut by
broken glass, rinse the affected area thoroughly with
water and consult your doctor.
15) To avoid damage to this product, never place or
store the TV in direct sunlight; hot, humid areas;
or areas subject to excessive dust or vibration.
17)
Introduction
Important Safety Instructions
1)
2)
3)
4)
DANGER: RISK OF SERIOUS
PERSONAL INJURY, DEATH, OR
EQUIPMENT DAMAGE! Never place
the TV on an unstable cart,
stand, or table. The TV may fall, causing
serious personal injury, death, or serious
damage to the TV.
18) Never place items such as vases, aquariums, or
candles on top of the TV.
19) Always place the TV on the floor or a sturdy, level,
stable surface that can Sturdy tie (as short as possible; min. 1 in.)
Clip
support the weight
of the unit. Use a
Hooks
sturdy tie between
Screw
the TV’s rear hook
and the rear wall, pillar,
Band
TV top
etc., to secure the TV. TV side
If you use a TV stand, fasten the TV to the stand using
the attached band (under the TV pedestal).
20) Never expose the apparatus to dripping or splashing
liquid or place items such as vases, aquariums, any
other item filled with liquid, or candles on top of the TV.
21) Never block or cover the slots or openings in the TV
cabinet back, bottom, and sides.
Never place the TV:
• on a bed, sofa, rug, or similar surface;
• too close to drapes, curtains,
or walls; or
• in a confined space such as
a bookcase, built-in cabinet,
or any other place with poor ventilation.
The slots and openings are provided to protect the TV from
overheating and to help maintain reliable operation of the TV.
Leave a space of at least 4 inches around the TV.
22) Always place the back of the television at least one
(1) inch away from any vertical surface (such as a
wall) to allow proper ventilation.
23) Never allow anything to rest on or roll over the power
cord, and never place the TV where the power cord
is subject to wear or abuse.
24) Never overload wall outlets and extension cords.
25) Always operate the TV with a 120V AC, 60Hz power source only.
CAUTION: To reduce the risk of electric shock, do not use
the polarized plug with an extension cord, receptacle, or
other outlet unless the blades can be inserted completely
with three-wire grounding type to prevent blade exposure.
3
Book 5Z0-01.indb 3
9/11/2549 16:14:59
Introduction
SAFETY INSTRUCTIONS (Continued)
Installation (cont. from previous page)
Care (cont. from previous column)
26) Always make sure the antenna system is properly
grounded to provide adequate protection against
voltage surges and built-up static charges (see
Section 810 of the National Electric Code.)
33) Keep your fingers well clear of the disc slot as it is closing.
Failure to do so may cause serious personal injury.
Antenna
lead-in wire
Ground clamp
Electric service
equipment
Antenna discharge unit
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
27)
DANGER: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
• Use extreme care to make sure you
are never in a position where your body
(or any item you are in contact with,
such as a ladder or screwdriver) can
accidentally touch overhead power lines.
Never locate the antenna near overhead
power lines or other electrical circuits.
• Never attempt to install any of the following during
lightning activity: a) an antenna system; or b) cables,
wires, or any home theater component connected
to an antenna or phone system.
Care
For better performance and safer operation of your
TOSHIBA TV, follow these recommendations and precautions:
28) Always unplug the TV before cleaning.
Wipe the display panel surface
gently using only a soft cloth
(cotton, flannel, etc.) A hard
cloth may damage the surface
of the panel. Avoid contact
with alcohol, thinner, benzene,
acidic or and alkaline solvent
cleaners, abrasive cleaners, or chemical cloths, as the
surface may be impaired.
29)
34) When you use headphones, keep the volume at a
moderate level. Using headphones continuously
at a high volume may cause hearing damage.
35) NEVER look directly into the disc slot or ventilation
slots at the source of the laser beam. Doing so
may cause sight damage.
36) NEVER use a cracked, deformed, or repaire disc.
Such discs are easily broken and may cause serious
personal injury or product damage. SUCH DAMAGE
IS NOT COVERED UNDER YOUR WARRANTY.
37) WARNING: RISK OF SERIOUS PERSONAL
INJURY OR EQUIPMENT DAMAGE!
• Never strike the screen with a sharp or heavy
object.
• Never touch, press, or place anything on the
LCD screen. These actions will damage the LCD
screen If you need to clean the LCD screen,
follow the instructions in item 28 on this page.
Service
38)
WARNING: RISK OF ELECTRIC SHOCK!
Never attempt to service the TV
yourself.
Opening and removing the covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to a Toshiba Authorized Service Center.
39) If you have the TV serviced:
• Ask the service technician to use only replacement
parts specified by the manufacturer.
• Upon completion of service, ask the service
technician to perform routine safety checks to
determine that the TV is in safe operating condition.
40) When the TV reaches the end of its useful life,
ask a qualified service technician to properly
dispose of the TV.
WARNING: RISK OF ELECTRIC SHOCK!
Never spill liquids or push objects of
any kind into the TV cabinet slots.
30) While it is thundering, do not touch the connecting
cables or apparatus.
31) For added protection of your TV from lightning and
power surges, always unplug the power cord and
disconnect the antenna from the TV if you leave the
TV unattended or unused for long periods of time.
32) During normal use, the TV may make occasional snap
ping or popping sounds. This is normal, especially when
the unit is being turned on or off. If these sounds become
frequent or continuous, unplug the power cord and
contact a Toshiba Authorized Service Center.
4
Book 5Z0-01.indb 4
9/11/2549 16:15:00
Precautions
Important notes about your LCD TV
■ To Display your LCD TV on the included Pedestal
Stand:
The following symptoms are technical limitations
of LCD Display technology and are not an indication
of malfunction; therefore, Toshiba is not responsible
for perceived defects resulting from these symptoms.
Observe the following safety precautions:
1) Place the TV on a sturdy, level surface that can
support the weight of the TV.
2) Be sure to secure the TV to a wall, pillar, surface,
or other immovable structure. To secure the TV in this
manner, use the included strap located at the rear of
pedestal stand. (see item 19, page 3).
■ To Display your LCD TV using a Wall Bracket:
If you decide to wall mount your LCD TV, always use
a UL Listed wall bracket appropriate for the size and
weight of the LCD TV (see page 2):
1) CAUTION: Two people are required for installation.
2) Unplug and remove any cables and/or other
component connectors from the rear of the TV.
3) Follow the instructions provided with your wall
bracket. Before proceeding, make sure the
appropriate bracket(s) are attached to the wall and
the back of the TV as described in the instructions
provided with the wall bracket.
4) After attaching the appropriate bracket(s) to the wall
and the back of the TV, remove the pedestal stand
from the TV as described below.
■ Removing the Pedestal Stand
1) Carefully lay the front of the unit face down on a flat,
cushioned surface such as a quilt or blanket. Leave
the stand protruding over the edge of the surface.
NOTE: Extreme care should always be used when
removing the pedestal stand to avoid damage to
the LCD panel.
2) Remove the three screws shown in the diagram
below. This will allow removal of the pedestal stand.
3) Once you have removed all three screws holding the
pedestal stand in place, remove the pedestal stand
from the TV by sliding the pedestal stand away from
the TV.
1) An after image (ghost) may appear on the screen if a
fixed, non-moving image is displayed for a long
period of time. The after image is not permanent and
will disappear in a short period of time.
2) The LCD panel contained in this TV is manufactured
using an extremely high level of precision technology;
however, there may be an occasional pixel (dot of light)
that does not operate properly (does not light, remains
constantly lit, etc.). This is a structural property of LCD
technology, is not a sign of malfunction, and is not
covered under your warranty. Such pixels are not
visible when the picture is viewed from a normal
viewing distance.
Note: Interactive video games that involve shooting a
“gun” type of joystick at an on-screen target may not
work on this TV.
Introduction
Choosing a location for your LCD TV
Notes on handling
■ Do not subject the LCD panel to physical shock, such
as dropping it. It may cause unit damage and malfunction.
■ When shipping the unit, the original shipping carton
and packing materials come in handy. For fully
protection, repack the unit as it was originally packed
at the factory.
■ Do not use volatile liquids, such as insecticide, near
the unit. Do not leave rubber or plastic products in
contact with the unit for prolonged periods of time.
Doing so will leave marks on the finish.
■ The top and rear panels of the unit may become warm
after a long period of use. This is not a malfunction.
■ When the unit is not in use, always remove the disc
and turn off the power.
Notes on locating the unit
■ When you place this unit near a TV, radio, or VCR,
the playback picture may become poor and the sound
may be distorted. In this case, place the unit away
from the TV, radio, or VCR.
■ To avoid damage to this product, never place or store
the TV/DVD in direct sunlight; hot, humid areas; or
areas subject to excessive dust or vibration.
Three screws
5
Book 5Z0-01.indb 5
14/11/2549 9:38:45
Introduction
Prcautions (Continued)/Notes on discs
Notes on moisture condensation
Moisture condensation damages the unit. Please
read the following carefully.
Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day and drops
of water form on the outside of the glass. In the same
way, moisture may condense on this unit’s internal optical
pick-up lens, one of the most crucial internal parts of the unit.
On handling discs
Do not touch the playback side of the disc.
For example, handle the disc so that it is shown in
figure below.
Do not attach paper or tape to discs.
Playback side
le of mo
Examp ensat isture
ion!
cond
Optical pick-up
lens
■ Moisture condensation may occur in the following
situations:
On cleaning discs
Fingerprints and dust on the disc cause picture and
sound deterioration. Wipe the disc from the center
outwards with a soft cloth. Always keep the disc
clean.
When you move the unit from a cold area to a warm area.
When you use the unit in a room in which the heat
was just turned on.
When you use the unit in an area where cold air from
an air conditioner directly hits the unit.
When you use the unit in a humid area.
Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or antistatic
spray for vinyl LPs. It may damage the disc.
On storing discs
Do not store discs in a place subject to direct sunlight
or near heat sources.
Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.
Structure of disc contents
■ Never use the unit when moisture condensation
may occur
Using the unit when moisture condensation exists may
damage discs and internal parts. Connect the power
cord of the unit to the wall outlet, turn on the unit,
remove the disc, and leave it for two or three hours.
After two or three hours, the unit will have warmed up
and evaporated any moisture. Leaving the TV
connected to the wall outlet will help prevent moisture
condensation in the TV or DVD Player.
Normally, DVD video discs are divided into titles, and
the titles are sub-divided into chapters. Video CDs and
Audio CDs are divided into tracks.
DVD video disc
DVD video disc
Title 1
Chapter 1
Title 2
Chapter 2
Chapter 1
Chapter 2
Chapter 3
Video CD/Audio CD
Video CD/Audio CD
Wa
it!
Track 1
Track 2
Track 3
Track 4
Track 5
Wall outlet
6
Book 5Z0-01.indb 6
Each title, chapter or track is assigned a number, which
is called “title number”, “chapter number” or “track
number” respectively.
There may be discs that do not have these numbers.
9/11/2549 16:15:00
Notes on copyright
This product incorporates copyright protection technology
that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by
Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
This unit can play the following discs.
Disc Mark
This owner’s manual explains the basic instructions of this
unit. Some DVD video discs are produced in a manner
that allows specific or limited operation during playback. As
such, the unit may not respond to all operating command.
This is not a defect in the unit. Refer to instruction notes of
discs.
The following symbol may appear on the TV screen during
operation.
It means that the operation is not permitted by the TV/DVD
or the disc.
For example, sometimes it is unable to stop the playback
of copyright message of the disc when the STOP (■)
button is pressed. Alternatively, this symbol may also
indicate that the feature is not available for the disc.
Notes on region numbers
The region number of this unit is 1. If region numbers,
which stand for their playable area, are printed on your
DVD video disc and you do not find 1 or ALL , disc
playback will not be allowed by the player. (In this case,
the unit will display a message on-screen.)
Some DVDs that have no region code label may still be
subject to area restrictions and therefore not playable.
On Video CDs
This unit supports Video CDs equipped with the PBC
(Version 2.0) function. (PBC is the abbreviation of
Playback Control.) You can enjoy two playback variations
depending on types of discs.
• Video CD not equipped with PBC function (Version 1.1)
Sound and movie can be played on this unit in the same
way as a DVD.
• Video CD equipped with PBC function (Version 2.0)
In addition to operation of a Video CD not equipped with
the PBC function, you can enjoy playback of interactive
software with search function by using the menu
displayed on the TV screen (Menu Playback). Some of
the functions described in this owner’s manual may not
work with some discs.
Book 5Z0-01.indb 7
Audio
+
Video
(moving
pictures)
DVD
video
discs
Video
CDs
About this owner’s manual
DIGITAL VIDEO
Audio
CDs
DivX
®
Contents
Audio
+
Video
(moving
pictures)
Disc
Size
12 cm
8 cm
Approx. 4 hours
(single sided disc)
Approx. 8 hours
(double sided disc)
Approx. 80 minutes
(single sided disc)
Approx. 160 minutes
(double sided disc)
12 cm
Approx. 74 minutes
(single sided disc)
8 cm
Approx. 20 minutes
(single sided disc)
12 cm
Approx. 74 minutes
(single sided disc)
8 cm
Approx. 20 minutes
(single sided disc)
Audio
Audio
+
Video
(moving
pictures)
Maximum
playback time
Introduction
The unauthorized recording, use, distribution, or revision
of copyrighted materials including, without limitation,
television programs, videotapes, and DVDs, is prohibited
under the Copyright Laws of the United States and other
countries, and may subject you to civil and criminal liability.
Playable discs
12 cm
It depends on DivX®
quality
8 cm
The following discs are also available.
DVD-R/RW discs of DVD video format
CD-R/CD-RW discs of CD-DA, Video CD, MP3, WMA,
JPEG or DivX® format
Kodak Picture CD and FUJICOLOR CD format
Some of these discs may be incompatible.
• You cannot play discs other than those listed above.
• You cannot play discs of DVD-RAM, DVD-ROM, CDROM, Photo CD, etc., or non standardized discs even
if they may be labeled as above.
• Some CD-R/RWs cannot be played back depending
on the recording conditions.
• This unit uses the NTSC color system, and cannot
play DVD video discs recorded in any other color
system (PAL, SECAM, etc.).
• This unit can play an 8cm disc. Please do not use a
disc adapter. It may cause trouble.
• Please do not insert any disc of an irregular shape into
the unit, as it may interfere with the function of the unit.
You may not be able to remove it.
• Please do not use after market accessories, such as a
ring protector, as this may cause trouble with the
operation of the unit.
Because of problems and errors that can occur during the
creation of DVD and CD Software and/or the manufacture
of DVD and CD discs, Toshiba cannot assure that the
DVD player contained in this TV will successfully play
every disc bearing the DVD and CD logos.
If you happen to experience any difficulty playing a DVD
and/or CD disc on the DVD player contained in this TV,
please contact Toshiba Customer Service.
is a trademark of DVD Format/Logo Licensing
Corporation.
7
9/11/2549 16:15:00
Introduction
Contents
Introduction
Basic playback
SAFETY INSTRUCTIONS................................ 3
Precautions....................................................... 5
Notes on discs .................................................. 6
Contents ........................................................... 8
Identification of controls .................................... 9
Playing a disc ................................................. 38
Connections
Antenna connections ...................................... 13
Cable TV connections .................................... 14
Connecting to optional equipment .................. 15
Power source.................................................. 18
Basic setup
Starting setup ................................................. 19
Setting the language....................................... 20
To memorize channels.................................... 21
TV operation
TV operation ................................................... 22
Programming your favorite channels .............. 24
Setting the closed captions (analog caption/
digital caption)................................................. 25
Setting the CC advanced................................ 26
Setting the V-Chip........................................... 27
Viewing the wide-screen picture formats ........ 30
Selecting the cinema mode ............................ 32
Picture control adjustment .............................. 33
Adjusting the picture mode ............................. 33
Using the CableClear® feature........................ 34
Selecting the color temperature...................... 34
Sound control adjustment ............................... 35
Stereo and Second Audio Program (SAP) ..... 35
Selecting the audio languages ....................... 36
Selecting the digital output ............................. 36
Checking the signal meter .............................. 37
Using the auto shut off feature ....................... 37
Advanced playback
Zooming.......................................................... 41
Locating desired scene................................... 41
Marking desired scenes.................................. 42
Repeat playback ............................................. 43
A-B Repeat playback ...................................... 43
Program playback........................................... 44
Random playback ........................................... 44
Changing angles..............................................45
Title selection ...................................................45
DVD menu .......................................................45
Changing soundtrack language .......................46
Subtitles ...........................................................46
Disc status .......................................................47
To turn off the PBC ..........................................47
MP3/WMA/JPEG/DivX®
and Audio CD operation ..................................48
Repeat, random and program playback
using file browser.............................................52
Function setup
Customizing the function settings ....................54
Temporary cancel the rating level
by DVD disc .....................................................60
Others
Language code list ..........................................61
Troubleshooting ...............................................62
Reception disturbances ...................................64
Specifications ..................................................65
Limited United States Warranty .......................66
8
Book 5Z0-01.indb 8
9/11/2549 16:15:01
Identification of controls
Introduction
Top
Front
Speaker
Remote sensor
POWER indicator
9
Book 5Z0-01.indb 9
9/11/2549 16:15:01
Introduction
Identification of controls (Continued)
Side
Left Side
Adjusting the angle of the base
Right Side
Approx. 10°
S-VIDEO IN (LINE 1 IN) jack
AUDIO IN (L/R)
(LINE 1 IN) jacks
VIDEO IN (LINE 1 IN) jack
Approx. 3°
Disc slot
You can adjust the
angle of the
TV-screen for 3°
forward or for 10°
backward from
vertical angle.
Hold the base of the
TV while adjusting
the angle.
COAXIAL DIGITAL AUDIO
OUT jack
HEADPHONE jack
CHANNEL (
/
) buttons
VOLUME (+/-) buttons
POWER ( ) button
EJECT ( ) button
PLAY ( ) button
STOP (■) button
Rear
Antenna jack
VIDEO IN (LINE 2 IN) jack
ColorStream HD VIDEO IN (Y, PB, PR) jacks
AUDIO IN (L/R) (LINE 2 IN) jacks
10
Book 5Z0-01.indb 10
9/11/2549 16:15:01
Introduction
Remote control
The instructions in this manual describe the function on the remote control. See the page in
EJECT button 39
TV/DVD button 38
for details.
POWER button 19
SLEEP button 23
Direct channel selection
buttons (0-9) 22
Numbered buttons (0-9) 27
JUMP button 41
Direct channel selection button (100/-) 22
DISPLAY button 23 47
SUBTITLE button
CH / button
INPUT button
ZOOM button
PLAY MODE button 43 44
46
AUDIO SELECT button 46
VOL +/- button 22
MUTE button 23
22
15
41
47
*DVD MENU button 45
FAV ( ) button 24
FAV ( ) button 24
MENU button 20
SETUP button 54
Direction buttons ( / / / ) 20
PLAY button
PAUSE button
CH RTN button
SKIP ( ) button
REV button
FF button
SLOW ( ) button
ENTER button 20
EXIT/CANCEL button 20
38
39
23
40
STOP button 39
CLOSED CAPTION button 25
SKIP ( )button 40
40
40
SLOW ( ) button 40
MARKER button 42
ANGLE button 45
40
TOP MENU button 45
RETURN button 49 54
GAME button 23
REPEAT A-B button 43
PIC SIZE button 30
DC-LWB1
*DVD MENU button
Use the DVD MENU button to
display the menu included on
many DVD video discs.
To operate a menu, follow the
instructions in “DVD menu.” 45
11
Book 5Z0-01.indb 11
9/11/2549 16:15:02
Introduction
Identification of controls (Continued)
Inserting batteries
1
Open the battery compartment
cover in the direction of the
arrow.
2
Install two “R03/AAA” batteries
(supplied), paying attention to
the polarity indicated in the
battery compartment.
3
Replace the compartment
cover.
Operation
•
•
Aim the remote control at the remote sensor and press control buttons to operate.
Operate the remote control within 30° angle on either side of the remote sensor, up to a distance of approx. 5 meters.
Approx. 5 meters
Caution:
• Never throw batteries into a fire.
Notes:
• Be sure to use AAA size batteries.
• Dispose of batteries in a designated disposal area.
• Batteries should always be disposed of with the environment in mind. Always dispose of batteries in accordance with
applicable laws and regulations.
• If the remote control does not operate correctly, or if the operating range becomes reduced, replace batteries with
new ones.
• When necessary to replace batteries in the remote control, always replace both batteries with new ones.
Never mix battery types or use new and used batteries in combination.
• Always remove batteries from remote control if they are dead or if the remote control is not to be used for an extended
period of time. This will prevent battery acid from leaking into the battery compartment.
12
Book 5Z0-01.indb 12
9/11/2549 16:15:02
Connections
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system.
If you are using a cable TV service (CABLE), see page 14 for Cable TV connections.
Combination VHF/UHF antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Antenna
jack
Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack on the back
of the TV/DVD.
If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, use the 300-75 ohm matching
transformer (not supplied).
75 ohm coaxial cable
(not supplied)
Connections
Antenna
jack
300-75 ohm matching
transformer (not supplied)
Combination VHF/UHF antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Antenna
jack
300-75 ohm matching
transformer (not supplied)
Connect the UHF 300 ohm twin-lead wire to the
combiner (not supplied). Connect the VHF 300 ohm
twin-lead wire to the 300-75 ohm matching transformer
(not supplied). Attach the transformer to the combiner,
then attach the combiner to the antenna jack on the
back of the TV/DVD.
Combiner
(not supplied)
UHF 300 ohm
twin-lead wire
(not supplied)
VHF 300 ohm
twin-lead wire
(not supplied)
Separate VHF/UHF antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire to the combiner (not supplied).
Attach the combiner to the antenna jack on the back
of the TV/DVD.
Antenna
jack
VHF 75 ohm
(not supplied)
Combiner
(not supplied)
UHF 300 ohm
twin-lead wire
(not supplied)
13
Book 5Z0-01.indb 13
9/11/2549 16:15:02
Connections
Cable TV connections
This TV/DVD has an extended tuning range and can tune most cable channels without using a Cable TV converter box.
Some cable companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for
normal viewing requires the use of a descrambler device which is generally provided by the cable company.
For subscribers to basic cable TV service
Antenna
jack
For basic cable service not requiring a converter/descrambler
box, connect the Cable TV 75 ohm coaxial cable directly to the
Antenna jack on the back of the TV/DVD.
75 ohm
coaxial cable
For subscribers to scrambled cable TV service
If you subscribe to a cable TV service which requires the use of a converter/descrambler box, connect the
incoming 75 ohm coaxial cable to the converter/descrambler box. Using another 75 ohm coaxial cable, connect
the output jack of the converter/descrambler box to the antenna jack on the TV/DVD. Follow the connections
shown below. Set the TV/DVD to the output channel of the converter/descrambler box (usually channel 3 or 4)
and use the converter/descrambler box to select channels.
Incoming 75 ohm
Cable TV
75 ohm cable to
TV/DVD
Converter/
descrambler
Antenna
jack
For subscribers to unscrambled basic cable TV service with scrambled
premium channels
If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require
the use of a converter/descrambler box, you may wish to use a signal splitter and an A/B Switch box (available
from the cable company or an electronics supply store). Follow the connections shown below. With the switch in
the “B” position, you can directly tune any nonscrambled channels on your TV/DVD. With the switch in the “A”
position, tune your TV/DVD to the output of the converter/descrambler box (usually channel 3 or 4) and use the
converter/descrambler box to tune scrambled channels.
Incoming
75 ohm
Cable TV
Converter/
descrambler
Splitter
A/B switch
A
75 ohm cable
to TV/DVD
Antenna
jack
B
14
Book 5Z0-01.indb 14
9/11/2549 16:15:03
Connecting to optional equipment
You can enjoy VCR, camcorder or TV game with connection to external input.
0-3
CH /
INPUT
GAME
Using the audio/video inputs
Connections
Press INPUT to view a signal from another device connected to your TV, such as
a VCR or DVD player. You can select ANT, VIDEO1 (on the left side), VIDEO2 (on
the back panel) or ColorStream HD (on the back panel) depending on which input
jacks you used to connect your devices.
Press INPUT on the remote control to display the current signal source.
To change the input source, press INPUT again or press 0-3.
Connecting to a VCR
To playback from the VCR, connect the VCR to the TV/DVD as shown.
Select the “VIDEO1” by pressing INPUT repeatedly.
: Signal flow
VCR
Left side (LINE 1 IN)
(white)
(red)
The LINE 2 IN
terminals can be used
in the same way.
(yellow)
To Audio/Video OUT
Audio/Video cable (not supplied)
To AUDIO(L/R)/VIDEO IN
Connecting to a camcorder
To playback from the camcorder, connect the camcorder to the TV/DVD as shown.
Select the “VIDEO1” by pressing INPUT repeatedly.
Left side (LINE 1 IN)
: Signal flow
Camcorder
(white)
(red)
(yellow)
The LINE 2 IN
terminals can be used
in the same way.
To Audio/Video OUT
Audio/Video cable (not supplied)
To AUDIO(L/R)/VIDEO IN
Connecting to a TV Game
You can enjoy playing a TV game on the screen by adjusting to the suitable brightness for your eyes.
1. Connect a TV Game to the TV/DVD.
2. Select the “GAME” by pressing GAME.
The GAME mode screen appears.
Left side (LINE 1 IN)
• This TV/DVD has the GAME mode function (see page 23).
: Signal flow
(white)
(red)
(yellow)
To Audio/Video OUT
Only the LINE 1
IN terminals can
be used with the
GAME mode.
Audio/Video cable (not supplied)
Notes:
To AUDIO(L/R)/VIDEO IN
• You can also change the TV screen to the desired mode by pressing the CH / buttons.
• The TV/DVD can also be used as a display device for many video games. However, due to the wide variety of different types of signal
generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection
diagrams. You’ll need to consult each component’s Owner’s Manual for additional information.
• Interactive video games that involve shooting a “gun” type of joystick at on-screen target may not work on this TV/DVD.
15
Book 5Z0-01.indb 15
9/11/2549 16:15:03
Connections
Connecting to optional equipment (Continued)
Connecting to an optional equipment with S-video output
If you connect a VCR with an S-VIDEO cable to the S-VIDEO IN jack on the left side of the TV/DVD, you must
also connect the audio cables to the AUDIO IN (LINE 1 IN) jacks on the left side of the TV/DVD. The S-VIDEO
cable only carries the video signal. The audio signal is separated.
Left side (LINE 1 IN)
Select the “VIDEO1” by pressing INPUT repeatedly.
(white)
(red)
: Signal flow
Ex. VCR with S-Video
To AUDIO (L/R) IN
(playback)
To S-VIDEO OUT
To Audio (L/R) OUT
To S-VIDEO IN
Audio cable (not supplied)
S-Video cable (not supplied)
Note: When the S-VIDEO cable and the standard video cable are connected at the same time, the S-video cable takes precedence.
Connecting an optional equipment with ColorStream® (Component video) output
Your TV/DVD is capable of using ColorStream® (component video). Connecting your TV/DVD to a component
video compatible DVD player, such as a Toshiba DVD player with ColorStream® can greatly enhance picture
quality and performance.
Select the “ColorStream HD” by pressing INPUT repeatedly.
Rear lower right of the TV
Ex. DVD player with Component video
: Signal flow
To AUDIO (L/R) IN
To Component
Video OUT
To Audio (L/R) OUT
To ColorStream HD
(Y, PB, PR) IN
Audio cable (not supplied)
Component video cable (not supplied)
When using the Component video cable,
an Audio cable must be connected to
AUDIO IN (L/R) (LINE 2 IN) jacks.
Notes:
• The ColorStream® inputs on this unit are for use with devices that output 480i, 1080i interlaced signals and
480p, 720p progressive signals.
• Refer to the owner’s manual of the connected equipment as well.
• When you connect the unit to other equipment, be sure to turn off the power and unplug all of the equipment
from the wall outlet before making any connections.
• If you place the unit near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the
unit away from the tuner and radio.
16
Book 5Z0-01.indb 16
9/11/2549 16:15:03
You can enjoy high quality dynamic sounds by connecting the
TV/DVD to optional audio equipment.
* This section uses the following reference mark.
: Center speaker
: Signal flow
: Front speaker
: Rear speaker
: Sub woofer
Connecting to an amplifier equipped with a Dolby® Digital decoder
Connections
Dolby Digital
Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce
this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs encoded via the Dolby Digital
recording system with this dynamic realistic sound by connecting the TV/DVD to a 6 channel amplifier equipped with a Dolby
Digital decoder or Dolby Digital processor. If you have a Dolby Surround Pro Logic decoder, you will obtain the full benefit of
Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the
Dolby Surround mark.
Left side (LINE 1 IN)
Amplifier equipped with a
Dolby Digital decoder
To COAXIAL
type digital
audio input
To COAXIAL DIGITAL
AUDIO OUT
75 Ω coaxial cable (not supplied)
Manufactured under license
from Dolby Laboratories.
Dolby and the double-D symbol
are trademarks of Dolby
Laboratories.
Connecting to an amplifier equipped with a DTS® decoder
Digital Theater Systems (DTS)
DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs.
If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS encoded sound tracks on DVD
video discs or audio CDs.
Left side (LINE 1 IN)
Amplifier equipped with
a DTS decoder
To COAXIAL
type digital
audio input
To COAXIAL DIGITAL
AUDIO OUT
75 Ω coaxial cable (not supplied)
“DTS” and “DTS Digital Out”
are registered trademarks of
DTS, Inc.
17
Book 5Z0-01.indb 17
9/11/2549 16:15:03
Connections
Connecting to optional equipment (Continued)/Power source
* This section uses the following reference mark.
: Front speaker
: Rear speaker
: Sub woofer
: Center speaker
: Signal flow
Connecting to an amplifier equipped with an MPEG audio decoder
MPEG2 sound
You can enjoy motion picture and live concert DVD video discs encoded via the MPEG2 recording system with dynamic
realistic sound by connecting an amplifier equipped with an MPEG2 audio decoder or MPEG2 audio processor.
Left side (LINE 1 IN)
Amplifier equipped with an
MPEG2 audio decoder
To COAXIAL
type digital
audio input
To COAXIAL DIGITAL
AUDIO OUT
75 Ω coaxial cable (not supplied)
Connecting to an amplifier equipped with a digital audio input
2 channel digital stereo
You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier equipped with a digital audio input and
speaker system (right and left front speakers).
Left side (LINE 1 IN)
Note: PCM audio is limited to DVD or CD playback.
Amplifier equipped with a
Digital audio input
To COAXIAL
type digital
audio input
To COAXIAL DIGITAL
AUDIO OUT
75 Ω coaxial cable (not supplied)
Notes:
• DO NOT connect the COAXIAL DIGITAL AUDIO OUT jack of the TV/DVD to the AC-3 RF input of a Dolby Digital Receiver.
This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the COAXIAL DIGITAL AUDIO
OUT jack of the TV/DVD.
• Connect the COAXIAL DIGITAL AUDIO OUT jack of the TV/DVD to the “COAXIAL” input of a Receiver or Processor.
• Refer to the owner’s manual of the connected equipment as well.
• When you connect the TV/DVD to other equipment, be sure to turn off the power and unplug all of the equipment from the
wall outlet before making any connections.
• The output sound of the TV/DVD has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level.
Otherwise, the speakers and your hearing may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the TV/DVD’s power cord. If you leave the amplifier’s power on, the
speakers may be damaged.
Power source
Wider Hole
and Blade
AC Outlet
Polarized AC Cord Plug
(One blade is wider than the other.)
18
Book 5Z0-01.indb 18
TO USE AC POWER SOURCE
Use the AC polarized line cord provided for operation on AC. Insert the AC cord plug
into a standard 120V 60Hz polarized AC outlet.
Notes:
• Never connect the AC line cord plug to other than the specified voltage (120V 60Hz).
Use the attached power cord only.
• If the polarized AC cord does not fit into a non-polarized AC outlet, do not attempt to
file or cut the blade. It is the user’s responsibility to have an electrician replace the
obsolete outlet.
• If you cause a static discharge when touching the unit and the unit fails to function, simply unplug
the unit from the AC outlet and plug it back in. The unit should return to normal operation.
• If the AC cord plug is plugged in for the first time, wait for approx. 5 seconds before
pressing the POWER button.
9/11/2549 16:15:04
Basic setup
Starting setup
POWER
The STARTING SETUP function helps to install your unit easily.
It leads you the Language selection, TV/CABLE selection and auto
channel memory automatically.
IMPORTANT: Make sure that the antenna or cable TV system
connection is made!
/
ENTER
EXIT/CANCEL
Starting setup
To turn on the TV/DVD, press POWER.
The Power indicator on the front of the main unit
will light.
2
The starting setup function begins and the
Language setup menu appears on the screen.
Press or to select your desired language,
then press ENTER.
5
Now the “CH PROGRAM” starts.
After the starting setup is completed,
the TV channel appears on the screen.
Basic setup
1
Notes:
• The starting setup function will work only when you
press POWER for the first time.
• The process of “CH PROGRAM” may take 15 to 30
minutes to complete, depending on your regional cable
service.
• If you press EXIT/CANCEL in the process of “CH
PROGRAM”, starting setup function is canceled.
3
Press or to select “TV” or “CABLE”, then
press ENTER.
4
Press or
ENTER.
to select “START”, then press
If you select “CANCEL” and press
ENTER, the STARTING SETUP
stops and changes to the TV screen.
19
Book 5Z0-01.indb 19
9/11/2549 16:15:04
Basic setup
Setting the language
This TV/DVD can display the on screen language in English, Spanish or French
in the TV mode.
Select the language you prefer first, then proceed with the other menu options.
ENTER
/ / /
EXIT/CANCEL
MENU
Setting the language
1
Press MENU in the TV mode, then press
to display the “SETUP” menu.
or
2
3
Press EXIT/CANCEL to clear the menu screen.
Notes:
• If the unit does not operate properly, or No key
operation (by the unit and/or the remote control):
Static electricity, etc., may affect the TV/DVD’s
operation. In such case, disconnect the AC cord once,
then connect it again.
• The TV section has its own menu and DVD section also
has its own menu 54 .
20
Book 5Z0-01.indb 20
9/11/2549 16:15:04
To memorize channels
This TV/DVD is equipped with a channel memory feature which allows
channels to skip up or down to the next channel set into memory, skipping
over unwanted channels. Before selecting channels, they must be
programmed into the TV/DVD’s memory. To use this TV/DVD with an
antenna, set the TV/CABLE selection to the TV position. When shipped from
the factory, this selection is in the CABLE position.
TV/CABLE selection
2
Press
3
4
Press
or
or
To ADD/ERASE channels
or
1
Press MENU in the TV mode, then press
display the “SETUP” menu.
Press or to select “ADD/ERASE”.
2
Press or .
The “ADD/ERASE” menu will appear.
Press or
to select “ADD/ERASE”, then
press or .
3
Press or
then press
4
5
Repeat steps 3 for other channel you want to
add or erase.
or
to
Basic setup
1
Press MENU in the TV mode, then press
to display the “SETUP” menu.
/ / /
EXIT/CANCEL
MENU
to select “TV/CABLE”.
to select “TV” or “CABLE”.
TV - VHF/UHF
channels
CABLE - Cable
TV channels
to select the channel you want and
or to select “ADD” or “ERASE”.
Press EXIT/CANCEL to clear the menu screen.
Automatic memory tuning
Press MENU in the TV mode, then press
or
to
display the “SETUP” menu. Press or to select the
“CH PROGRAM”, then press or .
The TV will begin memorizing all the channels available
in your area.
Press EXIT/CANCEL to clear the menu screen.
To add a digital channel you are watching:
Select a channel you want to add. Then select “ADDING
CHANNEL” in step 2, then press or .
21
Book 5Z0-01.indb 21
20/11/2549 15:24:55
TV operation
POWER
TV operation
0–9,100/-
VOL +/CH /
TV operation
1
To turn on the TV/DVD, press POWER.
The power indicator on the front of the main unit
will light.
2
Adjust the volume level by pressing VOL +/–.
The volume level will be indicated on the screen by
white bars. As the volume level increases, so do
the number of bars. If the volume decreases, the
number of white bars also decreases.
4
Press direct channel selection (0–9, 100/-) or
CH or to select the channel.
TO SELECT ANALOG CHANNELS
When the TV/CABLE selection is in the CABLE
position, channels can be selected as follows:
TO SELECT CABLE TV CHANNELS:
1-9:
Press 0 twice, then 1-9 as needed.
Example, to select channel 2, press 002.
10-99: Press 0, then the remaining 2 digits.
Example, to select channel 12, press 012.
100-125: Press the 3 digits in order. Example, to
select channel 120, press 120.
TO SELECT DIGITAL CHANNELS
Press the first 3 digits, then press the “100/-”
button, followed by the remaining 3 digits.
Example, to select channel 015-001, press 015 001.
3
Set the TV/CABLE selection to the appropriate
position 21 .
TV
- VHF/UHF channels
CABLE - Cable TV channels
TV
CATV
VHF
2-13
VHF
2-13
UHF
14-69
STD/HRC/IRC
14-36
(A) (W)
37-59
(AA) (WW)
60-85
(AAA) (ZZZ)
86-94
(86) (94)
95-99
(A-5) (A-1)
100-125
(100) (125)
01
(5A)
Notes:
• If a channel with no broadcast is selected, the sound will
automatically be muted.
• Digital channels may be represented by channel
numbers that include a “dash” (e.g., 85–002). These
digital channel numbers may not match the numbers in
the channel line-up provided by your cable company.
This is not a malfunction.
22
Book 5Z0-01.indb 22
9/11/2549 16:15:05
SLEEP
DISPLAY
VOL +/MUTE
CH RTN
GAME
TV operation
■ DISPLAY
Press DISPLAY to display the information on the TV
screen.
To cancel the display, press DISPLAY again.
(Analog channel)
■ CH RETURN
This button allows you to go back to the last channel
selected by pressing CH RTN. Press CH RTN again to
return to the last channel you were watching.
■ MUTE
Press MUTE to switch off the sound. The TV/DVD’s
sound will be silenced and “MUTE” will appear briefly
on the screen. The sound can be switched back on by
pressing this button again or VOL +/–.
TV operation
(Digital channel)
■ SLEEP
To set the TV/DVD to turn off after a preset amount of
time, press SLEEP on the remote control. The clock
will count up 10 minutes for each press of SLEEP
(OFF, 0h10m,... 1h50m, 2h00m). After the sleep
time is programmed, the display will appear briefly
every ten minutes to remind you that the sleep timer
is operating. To confirm the sleep timer setting, press
SLEEP and the remaining time will be displayed for a
few seconds. To cancel the sleep timer, press SLEEP
repeatedly until the display turns to OFF.
■ GAME MODE
After connecting a TV Game to the unit (see page 15),
press GAME. The TV screen changes to the Game mode.
• The Game mode screen is adjusted to the suitable
brightness for your eyes.
• If GAME is pressed during standby mode, the unit
turns on automatically and the Game mode screen
appears on the screen.
• Interactive video games that involve shooting a
“gun” type of joy-stick at an on-screen target may
not work on this TV/DVD.
■ HEADPHONES
Insert a stereo headphones (not supplied) with a 1/8” mini
plug into the HEADPHONE jack on the front panel.
If you connect headphones, the sound from TV speakers
is muted.
23
Book 5Z0-01.indb 23
14/11/2549 15:16:33
TV operation
Programming your favorite channels
TV/DVD
0–9, 100/-
You can preset up to 12 of your favorite channels using the Favorite
Channel Programming feature. Because this feature scans through
only your favorite channels, it allows you to skip other channels you
do not normally watch.
You can still use CH / to scan through all the channels you
programmed in the TV’s memory or the Channel Numbers to directly
tune a channel.
CH
/
FAV
ENTER
/ / /
EXIT/CANCEL
MENU
To program your favorite channels
To clear your favorite channels
1
Press TV/DVD to select the TV mode, then select a
channel you want to program.
1
Press TV/DVD to select the TV mode, then select
a channel you want to clear.
2
Press MENU, then press
“OPTION” menu.
2
Press MENU, then press
“OPTION” menu.
3
Press or to display the “FAVORITE CH”
menu. SET/CLEAR will be highlighted.
3
Press or to display the “FAVORITE CH”
menu. SET/CLEAR will be highlighted.
4
Press
4
Press
5
Press EXIT/CANCEL to return to normal viewing.
5
Press ENTER until “0” replaces the channel
number you want to erase.
6
Press EXIT/CANCEL to return to normal viewing.
or
or
to display the
to highlight “SET” and press ENTER.
Note:
Repeat steps 1-5 for up to 12 channels.
To select your favorite channels
Press the FAV / buttons on
the remote control to select your
favorite channels.
The FAV / buttons will not
work until you have programmed
you favorite channels.
or
or
to display the
to highlight “CLEAR”.
Note:
Repeat steps 1-6 for the other channels.
24
Book 5Z0-01.indb 24
9/11/2549 16:15:06
Setting the closed captions (analog caption/
digital caption)
WHAT IS CLOSED CAPTIONING?
This television has the capability to decode and display closed captioned
television programs. Closed captioning will display text on the screen for
hearing impaired viewers or it will translate and display text in another
language.
To set the analog caption
2
Press
3
Press or to select the desired Closed
Caption mode.
or
To set the digital caption
or
to highlight “ANALOG CAPTION”.
• To view captions, select C1 or C2 (C1 displays
translation of the primary language in your area.)
Note: If the program or video you selected is not
closed captioned, no captions will display
on-screen.
• To view text, select T1 or T2.
4
Press EXIT/CANCEL to return to normal viewing.
1
Press MENU in the TV mode, then press
to display the “SETUP” menu.
2
Press
3
Press or to select the desired Closed
Caption mode.
or
or
to highlight “DIGITAL CAPTION”.
TV operation
1
Press MENU in the TV mode, then press
to display the “SETUP” menu.
/ / /
EXIT/CANCEL
MENU
CLOSED CAPTION
You can choose from CS1, CS2, CS3, CS4, CS5,
CS6 and OFF.
4
Press EXIT/CANCEL to return to normal viewing.
Notes:
• You can also display the ANALOG CAPTION menu screen by pressing CLOSED CAPTION on the remote control.
• Digital caption feature is not available for analog channel.
Important Note:
If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set
the Closed Caption feature to OFF.
25
Book 5Z0-01.indb 25
9/11/2549 16:15:07
TV operation
Setting the CC advanced
This feature is designed to customize digital captions only.
ENTER
/ / /
EXIT/CANCEL
MENU
To set the CC advanced feature
1
Press MENU in the TV mode, then press
to display the “SETUP” menu.
2
Press or
then press
or
4
Press or to select the desired setting, then
press ENTER.
to highlight “CC ADVANCED”,
or .
You can select from among the following items and
parameters.
AUTO, SMALL, STANDARD, LARGE
AUTO, DEFAULT, MONO W.
SERIF, PROP. W. SERIF, MONO
W/O SERIF, PROP. W/O SERIF,
CASUAL, CURSIVE, SMALL
CAPITALS
TEXT COLOR: AUTO, BLACK, WHITE, RED,
GREEN, BLUE, YELLOW,
MAGENTA, CYAN
TEXT EDGE: AUTO, NONE, RAISED,
DEPRESSED, UNIFORM,
LEFT DROP SHADOW, RIGHT
DROP SHADOW
BACKGROUND COLOR: AUTO, BLACK, WHITE,
RED, GREEN, BLUE, YELLOW,
MAGENTA, CYAN
TEXT SIZE:
TEXT TYPE:
3
Press or to select the desired item to
adjust, then press or .
5
Press EXIT/CANCEL to return to normal
viewing.
Note:
It is impossible to select the same color with TEXT COLOR
and BACKGROUND COLOR.
26
Book 5Z0-01.indb 26
9/11/2549 16:15:08
Setting the V-Chip
An age limitation can be set to forbid children to see and hear violent scenes or
pictures for adults, etc. The TV/DVD corresponds to “TV RATING” and “MOVIE
RATING”. To use the V-Chip function, you must register a password.
Notess:
If you forget the password, press DISPLAY four times within
five seconds while the TV is in password entering mode. This
allows you to reset your password.
To register password
0–9
DISPLAY
ENTER
/ / /
EXIT/CANCEL
MENU
To change password
1
Press MENU in the TV mode, then press
to display the “LOCKS” menu.
2
Press or
appears.
3
Enter the password (4 digits) using Number
buttons (0–9), then press ENTER.
or
2
Enter the new password using Number buttons
(0–9), then press ENTER.
3
Enter the same password again using Number
buttons (0–9) for safety, then press ENTER.
4
Press EXIT/CANCEL to clear the menu screen.
TV operation
1
Repeat steps 1 ~ 3 in “To register password”
on left, then press or to select “NEW
PASSWORD”, then press or .
. New password entering screen
“ ” appears instead of the number.
4
Enter the password (4 digits) using Number
buttons (0–9) again for the safety, then press
ENTER.
Now the password is registered and LOCKS setting
menu will appear on the display.
Note:
The V-Chip feature is available only for the U.S. V-Chip system.
The Canadian V-Chip system is not supported.
27
Book 5Z0-01.indb 27
9/11/2549 16:15:08
TV operation
Setting the V-Chip (Continued)
DISPLAY
MUTE
ENTER
/
/ /
EXIT/CANCEL
To set the V-Chip
1
Repeat steps 1 ~ 3 in “To register password”
on page 27, then press or to highlight
“V-CHIP SET”.
2
Press
3
Press
or
OFF :
TV-Y :
TV-Y7 :
TV-G :
TV-PG :
TV-14 :
TV-MA :
TV RATING is not set
All children
7 years old and above
General audience
Parental guidance
14 years old and above
17 years old and above
or
4
Press or to select the desired rating, then
press or to select “ON” or “OFF”. Press
ENTER twice.
to display “V-CHIP” menu.
ON
OFF
to select the desired rating.
G
:
PG
:
PG-13 :
R
:
NC-17 :
X
:
All ages
Parental guidance
Parental guidance less than 13 years old
Under 17 years old Parental guidance suggested
17 years old and above
Adult only
6
Press
or
7
Press or to highlight “ON”.
Now your settings are set into the memory.
8
Press EXIT/CANCEL to clear the menu screen.
When you select
TV- Y7, TV-PG, TV14 or TV-MA, press
DISPLAY to show
the contained rating.
Press / / /
to select the desired
item you want.
Press
press
5
or to select “MOVIE RATING”, then
or .
: MOVIE RATING is set
: MOVIE RATING is not set
to select “V-CHIP”.
To use after the TV is protected
When you try to view a program with a ratings block, a message
will appear listing the program’s ratings. The program can still
be viewed if you press MUTE and then enter your password to
temporarily bypass the block.
28
Book 5Z0-01.indb 28
Note:
The V-Chip function is activated only on programs that have
the rating signal.
9/11/2549 16:15:09
As a supplement to the standard V-Chip rating system, your Toshiba Television
will be able to download an additional rating system, if such a system becomes
available in the future.
/
/ /
To download the additional V-Chip rating system (when available)
Repeat steps 1~3 in “To register password” on
page 27, then press or to higlight “V-CHIP
SET (DTV)”, then press or .
(You cannot select this feature if the TV is not
receiving a digital signal for the current station.)
PLEASE NOTE THE FOLLOWING:
• You can only download the additional V-Chip rating
system when your TV is receiving a digital signal.
• When you download the additional rating system,
it may take some time for the download to occur.
• The V-Chip rating information and system are
not determined or controlled by the TV or Toshiba.
• The standard V-Chip rating system is available
whether your TV is receiving a digital signal or not,
and will block both analog and digital programs.
To set program blocking using the standard V-Chip
rating system, select V-CHIP SET in step 1 above
(see page 28 for details).
2
If the TV is not storing the additional rating
system, the TV will begin downloading it, which
may take some time to be completed.
The downloadable V-Chip rating system is an
evolving technology, and availability, content, and
format may vary.
3
Press or to select “RRT SET”, then press
or , and set your preferred content rating
limits for the additional rating system.
TV operation
1
29
Book 5Z0-01.indb 29
9/11/2549 16:15:10
TV operation
TV/DVD
Viewing the wide-screen picture formats
0-2
You can view programs in a variety of picture sizes—NATURAL (4:3),
COMPRESSION (16:9), ZOOM. The way the image displays in any of the
picture sizes will vary depending on the format of the program you are viewing.
Select the picture size that displays the current program the way that looks
best to you.
/
PIC SIZE
To select the picture size
1
Press TV/DVD to select the TV mode.
About the picture size
Press PIC SIZE repeatedly on the remote control
to cycle among the three picture sizes, as
described below.
NATURAL
2
COMPRESSION
Press PIC SIZE on the remote control.
ZOOM
NATURAL (4:3) picture size
3
Press the corresponding number button (0-2)
or / button to select the desired picture
size, as described on the right and on page 31.
• If receiving a 4:3 format (analog or digital) program,
select NATURAL PIC SIZE will typically display the
image in its original formatted proportion.
• If receiving a 16:9 format (analog or digital)
program, select NATURAL PIC SIZE will typically
display the image stretched taller (squeezed.)
30
Book 5Z0-01.indb 30
9/11/2549 16:15:10
About the picture size
COMPRESSION (16:9) picture size
• If receiving a 4:3 format (analog or digital)
program, select COMPRESSION PIC SIZE will
typically display the image stretched wider with
bars at the top and bottom.
TV operation
• If receiving a 16:9 format (analog or digital)
program, select COMPRESSION PIC SIZE will
typically display the image in its original
formatted proportion with bars at the top and
bottom.
ZOOM picture size (for 16:9 format programs)
• If receiving a 16:9 format (analog or digital)
program, select ZOOM PIC SIZE will typically
enlarge the image, retaining the original formatted
proportion, but with the sides edges hidden.
31
Book 5Z0-01.indb 31
9/11/2549 16:15:11
TV operation
Selecting the cinema mode
When you view a DVD movie (3:2 pulldown processed) smoother
and more natural motion can be obtained by setting the CINEMA
MODE to FILM.
If you view a DVD movie from a DVD player connected to the
ColorStream (component video) inputs on the TV/DVD, the
CINEMA MODE feature may not work. This is not a malfunction.
/ / /
EXIT/CANCEL
MENU
To set the CINEMA MODE
or
1
Press MENU in the TV mode, then press
display the “SETUP” menu.
2
Press
or
to highlight “CINEMA MODE”.
3
Press
or
to select “FILM” or “VIDEO”.
4
Press EXIT/CANCEL to return to normal
to
viewing.
32
Book 5Z0-01.indb 32
9/11/2549 16:15:11
Picture control adjustment/
Adjusting the picture mode
Picture controls are factory preset but you can adjust them individually as follows:
And also you can select four picture modes— Sports, Standard, Movie, and
Memory—as described in the following table:
/ / /
EXIT/CANCEL
MENU
Picture control adjustment
To adjust the picture mode
1
Press MENU in the TV mode, then press
to display the “PICTURE” menu.
2
Press or to select the item you want to
adjust, then press or to adjust the setting.
or
1
Press MENU in the TV mode, then press
to display the “PICTURE” menu.
2
Press or to select “MODE”, then press
or to select the desired picture mode.
or
TV operation
Selection
BRIGHTNESS
CONTRAST
COLOR
TINT
SHARPNESS
Pressing
darker
lower
paler
reddish
softer
lighter
higher
deeper
greenish
sharper
Note:
The CONTRAST default setting is set to maximum
(+50) at the factory.
3
Press EXIT/CANCEL to clear the menu screen.
Mode
Picture quality
SPORTS
STANDARD
MOVIE
MEMORY
Bright and dynamic picture (factory-set)
Standard picture quality (factory-set)
Movie-like picture setting (factory-set)
Your personal preferences (set by you;
see “Picture control adjustment” as left)
3
Press EXIT/CANCEL to clear the menu screen.
Note:
You cannot select “MODE” in the Game mode.
■ To return your picture adjustments to the factory preset levels
Press or to select “RESET”, then press .
The RESET function returns your picture quality adjustments
to the following factory settings:
Mode .......................... sports Tint ....................... center (0)
Brightness .......... center (25) Sharpness .......... center (25)
Contrast ................ max (50) Color temperature ........ cool
Color .................. center (25)
33
Book 5Z0-01.indb 33
9/11/2549 16:15:11
TV operation
Using the CableClear® feature/
Selecting the color temperature
CableClear® reduces visible interference in your TV picture. This is
useful when receiving a broadcast with a weak signal (especially
a Cable channel) or playing a video cassette or disc damaged by
repeated use.
Change the picture quality by selecting from three preset color
temperatures—cool, medium or warm.
To use the CableClear® feature
1
Press MENU in the TV mode, then press
to display the “PICTURE” menu.
2
Press
or
3
Press
or
4
Press EXIT/CANCEL to return to normal
viewing.
/ / /
EXIT/CANCEL
MENU
To use the color temperature
1
Press MENU in the TV mode, then press
to display the “PICTURE” menu.
to highlight “Cable Clear”.
2
Press
or
to select “COLOR TEMPERATURE”.
to highlight “ON” or “OFF”.
3
Press
or
to select the desired color mode.
or
Mode
Picture quality
COOL
MEDIUM
WARM
Bluish
Neutral
Reddish
4
or
Press EXIT/CANCEL to clear the menu screen.
Note:
You cannot select “COLOR TEMPERATURE” in the Game
mode.
34
Book 5Z0-01.indb 34
9/11/2549 16:15:12
Sound control adjustment/
Stereo and Second Audio Program (SAP)
Sound controls are factory preset but you can adjust them individually as follows:
The TV/DVD is equipped with a feature known as multi-channel TV sound or MTS.
MTS broadcasts greatly enhance TV viewing by bringing you programs with high
fidelity stereo sound.
MTS also provides an extra channel called the Second Audio Program or SAP
which broadcasters can use to transmit a second language for bilingual
transmission or for other purposes.
Sound control adjustment
1
Press MENU in the TV mode, then press
to display the “AUDIO” menu.
/ / /
EXIT/CANCEL
MENU
Listening to stereo sound
or
• If the broadcast signal is not strong enough or clear
stereo sound is not available, select “MONO”. The
noise should be eliminated.
2
Press or to select the item you want to
adjust, then press or to adjust the setting.
MTS
Press
or
to select “STR” (STEREO), “SAP” or
“MONO”.
BASS:
Press or to adjust the bass sound.
TREBLE:
Press or to adjust the treble sound.
BALANCE:
Press or to obtain an equal sound level from
both speakers.
STABLE SOUND:
Press or to select “ON” or “OFF”.
ON: The StableSound® feature limits the highest
volume level to prevent extreme changes in
volume when the signal source is changed.
OFF: Normal sound.
SURROUND:
Press or to select “ON” or “OFF”.
ON: The dynamic presence and sound created offers
a thoroughly enjoyable listening experience.
OFF: Normal sound.
3
TV operation
Repeat step 1 in “Sound control adjustment” on
left, then press or to select “MTS”.
Then press or to select “STR”.
You can enjoy stereo sound from the left and right
speakers.
Listening to SAP (Second Audio Program)
Repeat step 1 in “Sound control adjustment” on
left, then press or to select “MTS”.
Then press or to select “SAP”.
Press EXIT/CANCEL to clear the menu screen.
■ To return BASS/TREBLE/BALANCE control
adjustments to the factory preset levels
Press or to select “RESET”, then press .
The RESET function returns your audio adjustments to
the following factory settings:
Bass ................. center (25) Treble ............... center (25)
Balance .............. center (0)
Book 5Z0-01.indb 35
35
9/11/2549 16:15:13
TV operation
Selecting the audio languages/
Selecting the digital output
/ / /
EXIT/CANCEL
MENU
To select the audio languages
To select the digital output
When two or more audio languages are included in a digital
signal, you can select one of the audio language.
1
Press MENU in the TV mode, then press
to display the “AUDIO” menu.
2
Press or to select “AUDIO LANGUAGE”,
then press .
3
Press
4
Use this feature to select the digital audio output format when
you connect a Dolby Digital decoder or other digital audio
system to the coaxial digital audio output on the TV.
or
1
Press MENU in the TV mode, then press
to display the “AUDIO” menu.
2
Press
to select your desired language.
3
Press or
DIGITAL”.
Press EXIT/CANCEL to clear the menu screen.
4
Press EXIT/CANCEL to clear the menu screen.
or
Note:
Audio language feature is not available for analog channel.
or
or
to select “DIGITAL OUTPUT”.
to select “PCM” or “DOLBY
Notes:
• Digital output feature is available for only digital channel.
• Digital audio output is effective for only digital source (digital
channel or DVD playback).
36
Book 5Z0-01.indb 36
20/11/2549 16:43:58
Checking the signal meter/
Using the auto shut off feature
/ / /
EXIT/CANCEL
MENU
To check the signal meter
To use the auto shut off feature
You can check the strength of the digital signal by viewing the
digital signal meter.
In case of “AUTO SHUT OFF” is “ON”, if a station being
viewed stops broadcasting, the TV will automatically shut itself
off after 15 minutes.
or
1
Press MENU in the TV mode, then press
to display the “SETUP” menu.
to highlight “SIGNAL METER”.
2
Press
or
3
Press
or
4
Press EXIT/CANCEL to return to the normal
screen.
Press MENU in the TV mode, then press
to display the “SETUP” menu.
2
Press
or
3
Press
or
4
Press EXIT/CANCEL to return to the normal
screen.
to check the digital signal strength.
or
TV operation
1
to highlight “AUTO SHUT OFF”.
to highlight “ON”.
Notes:
• Signal meter feature is not available for analog channels.
• After approximately 4 minutes, SIGNAL METER screen will
return to normal TV-opreation automatically.
• When you select a vacant channel, the signal meter may react.
37
Book 5Z0-01.indb 37
9/11/2549 16:15:14
Basic playback
Playing a disc
TV/DVD
POWER
EJECT
This section shows you the basics on how to play a disc.
PLAY
STOP
VOL +/–
CAUTION
Keep your fingers well clear of the disc slot when disc is
loading or unloading. Neglecting to do so may cause serious
personal injury.
DVD
VCD
CD
ENTER
VOLUME +/–
/ / /
PLAY
STOP
POWER
Basic playback
Preparations:
• When connecting to other equipment, turn the power off.
1
2
3
Press POWER on the unit or on the remote control
to turn on the unit.
The Power indicator on the front of the main unit will light.
• Every time you press POWER, the TV/DVD starts
from TV mode.
• When using an amplifier, switch on the amplifier.
4
On the TV screen, “ ” changes to “Reading” and
then playback commences.
Reading
A menu screen will appear on the TV screen if the
disc has a menu feature.
Press
/ or / on the remote control to
select title, then press ENTER. Title is selected and
play commences.
Press TV/DVD on the remote control to select DVD
mode.
The DVD startup screen will appear on the TV screen.
5
Press VOLUME + or – to adjust the volume.
6
Press STOP to end playback.
Load a disc in the disc slot.
Load the disc in the disc slot with the label side facing
forward. (If the disc has a label.) Hold the disc without
touching either of its surfaces, align it with the guides,
and place it in position.
■ Resuming facility
• The unit records the stopped
point, depending on the disc.
“ ” appears on the screen.
Press PLAY to resume playback
(from the scene point).
• If you press STOP again
(“■” appears on the TV screen.),
the unit will clear the stopped
point.
■ To start playback in the stop mode
Press PLAY.
Note:
If the unit does not operate properly:
Static electricity, etc., may affect the TV/DVD’s operation. In such
case, disconnect the AC cord, then connect it again.
38
Book 5Z0-01.indb 38
9/11/2549 16:15:15
EJECT
To obtain a higher quality picture
Occasionally, some picture noise may appear on the TV screen while playing a
DVD video disc because the high resolution pictures on these discs include a lot
of information. In such case, you may reduce the SHARPNESS with the Picture
control adjustment menu (see page 33).
About
DVD
VCD
CD
The DVD VCD CD icons on the heading bar show the playable discs for the
function described under that heading.
: You can use this function with DVD video discs.
VCD : You can use this function with Video CDs.
CD : You can use this function with Audio CDs and CD-R/RW CDs.
DVD
VCD
CD
PLAY
STOP
PAUSE
Basic playback
To pause playback (still mode)
Press PAUSE during playback.
To resume normal playback,
press PLAY.
Remove the disc after the disc comes
out.
Basic playback
• The sound is muted during still
mode.
To remove the disc
Press EJECT.
To stop playback
Press STOP.
Notes:
• If a non-compatible disc is loaded, “Incorrect Disc”, “Region Code Error” or “Parental Error” will appear on the TV screen
according to the type of loaded disc. In this case, check your disc again (see pages 7 and 58).
• Some discs may take a minute or so to start playback.
• When you set a single-faced disc label downwards (ie. the wrong way up), “Reading” will appear on the display for a few
minutes and then “Incorrect Disc” will continue to be displayed.
• Some discs may not work the resuming facility.
• Resuming cannot function when you play a PBC-featured Video CD while the PBC is on. To turn off the PBC, see page 47.
• Some playback operations of DVDs may be intentionally fixed by software producers. Since this unit plays DVDs according
to the disc contents the software producers designed, some playback features may not be available. Also refer to the
instructions supplied with the DVDs.
• Do not move the unit during playback. Doing so may damage the disc.
• Use the EJECT button to unload and eject the disc.
• Do not put any objects other than discs on the disc slot. Doing so may cause the unit to malfunctions.
• There may be a slight delay between the button is pressed and the function activates.
39
Book 5Z0-01.indb 39
9/11/2549 16:15:16
Basic playback
Playing a disc (Continued)
PAUSE
PLAY
SKIP
/
REV
/ FF
SLOW
DVD
VCD
CD
/
Playing in fast reverse or fast forward directions
Press REV or FF during playback.
To resume normal playback
Press PLAY.
REV: Fast reverse playback
FF: Fast forward playback
Each time you press REV or FF
button, the playback speed changes.
DVD
VCD
Notes:
• The TV/DVD mutes sound during reverse and forward scan
of DVD and Video CD discs. However, the TV/DVD plays
sound during fast forward or fast reverse play of audio CDs.
• The playback speed may differ depending on the disc.
Playing frame by frame
Press PAUSE during still playback.
Each time you press PAUSE, the
picture advances one frame.
To resume normal playback
Press PLAY.
Note:
The sound is muted during frame by frame playback.
DVD
VCD
Playing in slow-motion
Press SLOW (REVERSE) or
during playback.
(FORWARD)
Each time you press the button, the
slow-motion speed changes.
DVD
VCD
CD
To resume normal playback
Press PLAY.
Notes:
• The sound is muted during slow-motion playback.
• The Video CD cannot play Reverse Slow.
Locating a chapter or track
Press SKIP
or
repeatedly to display the chapter or track number you want.
Playback starts from the selected chapter or track.
To locate succeeding chapters or tracks.
Playback starts from the beginning of
the current chapter or track.
When you press twice in quick successions,
playback starts from the beginning of
the preceding chapter or track.
Note:
A “Prohibition” symbol “✕” may appear at the upper right of the screen. This symbol means either the feature you tried is not
available on the disc, or the TV/DVD cannot access the feature at this time. This does not indicate a problem with the TV/DVD.
40
Book 5Z0-01.indb 40
9/11/2549 16:15:16
Advanced playback
Zooming/Locating desired scene
0–9
JUMP
DISPLAY
ZOOM
/ / /
ENTER
EXIT/CANCEL
DVD
VCD
CD
DVD
VCD
CD
Zooming
This unit will allow you to zoom in on the frame image.
You can then make selections by switching the position
of the frame.
1
Press ZOOM during playback.
The center part of the image will be
zoomed in.
Each press of ZOOM will change the
ZOOM 1 (x 1.3), 2 (x 1.5) and
3 (x 2.0).
Use the title, chapter and time recorded on the DVD disc to
locate the desired point to playback. In the case of VCD/Audio
CD discs, time and track are used to locate the desired point
to playback.
To check the title, chapter/track and time, press DISPLAY.
1
Press JUMP during playback or resume stop mode.
Jump
Title
Chapter
Time
2
Press
or
to select the “Time”, “Title/Track”
or “Chapter”.
Jump
Title
Chapter
Time
2
Press
frame.
/ / /
to view a different part of the
You may move the frame from
the center position to UP, DOWN,
LEFT or RIGHT direction.
3
Press Number buttons (0–9) to input the number.
Jump
Title
Chapter
Time
3
Advanced playback
1
Locating desired scene
In the zoom mode, press ZOOM repeatedly to
return to a 1:1 view ( Off).
Notes:
• You can select the Pause, Slow or Search playback in the
zoom mode.
• Some discs may not respond to zoom feature.
12
• If you input a wrong number, press
EXIT/CANCEL.
• Refer to the package supplied with
the disc to check the numbers.
4
Press ENTER. Playback starts.
• When you change the title,
playback starts from Chapter 1 of
the selected title.
• Some discs may not work in the
above operation.
Note:
In case of the Video-CD playback with PBC, the JUMP does not
work. To turn off PBC, see page 47 .
41
Book 5Z0-01.indb 41
9/11/2549 16:15:17
Advanced playback
Marking desired scenes
The unit stores the points that you want to watch again up to 3 points.
You can resume playback from each scene.
ENTER
/
EXIT/CANCEL
MARKER
DVD
VCD
CD
Marking the scenes
DVD
VCD
CD
Returning to the scenes
1
Press MARKER during playback.
1
Press MARKER during playback or stop mode.
2
Select the blank Marker using
or .
Then press ENTER to mark the desired scene.
2
Press
3
Press ENTER.
or
to select the Marker 1-3.
• Repeat this procedure to mark the
other 2 scenes.
3
Press MARKER to clear the display.
Playback starts from the marked
scene.
Notes:
■ To cancel the Marker
• Some discs may not work with the marking operation.
Follow the above steps 1~2, then press EXIT/CANCEL.
• The marking is canceled when you eject the disc or turn the
power off.
• Some subtitles recorded around the marker may fail to
appear.
• In case of Video CD with PBC, Marker function is prohibited.
• Marker function does not work with MP3/WMA/JPEG/DivX®
CD.
42
Book 5Z0-01.indb 42
9/11/2549 16:15:17
Repeat playback/A-B Repeat playback
PLAY MODE
ENTER
PLAY
SKIP
/
REPEAT A-B
DVD
VCD
1
DVD
VCD
CD
Repeat playback
Press PLAY MODE during playback or stop
mode.
A-B Repeat playback
A-B repeat playback allows you to repeat a section between
two selected points.
1
Press REPEAT A-B during playback.
The start point is selected.
A
2
[DVD]
Press ENTER repeatedly to select “Chapter”
or “Title”.
The unit automatically starts
repeat playback after finishing
the current title or chapter.
: Off
2
Press REPEAT A-B again.
The end point is selected. Playback
starts at the point that you selected.
Playback stops at the end point and
returns to Point A automatically, then
starts again.
[Video CD]
to select “Repeat”.
Press
Press ENTER repeatedly to select “Track” or
“All”.
Advanced playback
Play Mode
Repeat
A B
The unit automatically starts
repeat playback after finishing
the current track.
Play Mode
Mode
: Off
Repeat
: Off
• If you set the repeat mode during stop mode,
press PLAY to start Repeat playback.
[Audio CD and MP3/WMA CD]
Please see “Repeat playback (CD)” 52 .
3
Press PLAY MODE again to clear the screen.
To resume normal playback
Select Repeat : “Off” in step 2.
Notes:
• Some discs may not work with the repeat operation.
• In case of Video CD with PBC, Repeat function is
prohibited during playback.
• Chapter/Track repeat function is canceled whenever SKIP
or
is pressed.
To resume normal playback
Press REPEAT A-B again.
“
Off ” appears on the screen.
Notes:
• In A-B Repeat mode, subtitles near the A or B locations
may not be displayed.
• You cannot set the A-B Repeat for the scenes that include
multiple angles.
• A-B Repeat playback does not work when Repeat playback
is activated.
• You may not be able to set A-B Repeat during certain
scenes of the DVD.
• A-B Repeat does not work with an interactive DVD, MP3/
WMA/JPEG CD.
• In case of Video CD with PBC, A-B Repeat is prohibited.
43
Book 5Z0-01.indb 43
9/11/2549 16:15:18
Advanced playback
Program playback/Random playback
0–9
You can arrange the playback order of tracks on the disc. And the
unit can also select tracks at random and playback them. These
features work for Video CD.
PLAY MODE
ENTER
For Audio CD and MP3/WMA CD, please see “Random playback
(CD)” 52 and “Program playback (CD)” 53 .
VCD
VCD
1
Program playback
4
Press PLAY MODE in the stop mode.
Play Mode
Mode
: Off
Repeat
: Off
Program Playback
2
1
2
3
–––
–––
–––
Press / to return to the left column, then
press / to select the “Program Playback”
and press ENTER.
The programs you selected will start to playback in order.
• To resume normal playback,
select Mode: “Off” in step 2.
Press or to select “Mode”, then press
ENTER repeatedly to select “Program”.
Play Mode
Play Mode
Mode
: Program
Repeat
: Off
Program Playback
3
1
2
–––
–––
3
–––
Press / to select the programming position.
Press / and then use Number buttons (0–9)
to input the track.
• To program others, repeat this step.
• If you input a wrong number, press
EXIT/CANCEL.
Play Mode
Mode
: Program
Repeat
: Off
Program Playback
CD
VCD
/ / /
EXIT/CANCEL
PLAY
1
2
9
–––
3
–––
Mode
: Program
Repeat
: Off
Program Playback
1
2
9
3
3
11
■ To change the program
1. Select Mode to “Program” (as step 2), press / / /
to select the track number you want to change, then
press EXIT/CANCEL.
2. Press Number buttons (0–9) to input the new track
number.
■ To clear the program one by one
Select Mode to “Program”, press / / / to select the
track number. Then press EXIT/CANCEL.
■ To clear all the programs
At the left column, press / to select “Clear Program”.
Then press ENTER.
Notes:
• In playing back the Video CD with PBC, you cannot set
Program playback.
• The program is canceled when you eject the disc or turn the
power off.
Random playback
1
Press PLAY MODE during playback or stop
mode.
2
Press / to select “Mode”, then press
ENTER repeatedly to select “Random”.
Play Mode
Mode
: Random
Repeat
: Off
Program Playback
1
2
–––
–––
3
–––
3
Press PLAY.
The Random Playback will start.
• If you set “Random” during playback mode,
Random playback will begin after the track that is
currently being played has ended.
• To resume normal playback,
select Mode: “Off” in step 2.
Note:
In case of Video CD with PBC, you cannot set Random
function during playback.
44
Book 5Z0-01.indb 44
9/11/2549 16:15:19
Changing angles/Title selection/DVD menu
DVD MENU
/ / /
ENTER
PLAY
ANGLE
TOP MENU
Changing angles
When playing back a disc recorded with multi-angle facility, you can change the angle that you are viewing the scene from.
1
2
Press ANGLE during playback.
The current angle will appear.
Press ANGLE repeatedly until the desired angle
is selected.
1/2
Note:
Depending on the DVD, you may not be able to change the
angles even if multi-angles are recorded on the DVD.
Two or more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the desired title.
1
2
Press TOP MENU during playback.
Title menu appears on the screen.
Press
/
/
/
3
Press ENTER or PLAY.
The playback of the selected title will
start.
Advanced playback
Title selection
to select the desired title.
Notes:
• Depending on the DVD, you may not be able to select the title.
• Depending on the DVD, a “title menu” may simply be called a
“menu” or “title” in the instructions supplied with the disc.
DVD menu
Some DVDs allow you to select the disc contents using the menu.
When you playback these DVDs, you can select the subtitle language and soundtrack language, etc. using the menu.
1
Press DVD MENU during playback.
2
Press
The DVD menu appears on the TV
screen.
• Press DVD MENU again to resume
playback at the scene when you
pressed DVD MENU.
/
/
/
to select the desired item.
3
Press ENTER.
The menu continues to another
screen. Repeat steps 2 and 3 to set
the item completely.
Note:
Depending on the DVD, you may not be able to resume playback
from the scene point when you press the DVD MENU button.
45
Book 5Z0-01.indb 45
9/11/2549 16:15:20
Advanced playback
Changing soundtrack language/Subtitles
DVD
VCD
Changing soundtrack language
AUDIO SELECT
SUBTITLE
Subtitles
You can select the language when you play a multilingual disc. When playing back a disc recorded with subtitles, you can
select the subtitle language or turn the subtitle off.
1
Press AUDIO SELECT during playback.
The current soundtrack language will
appear.
1
1/5 Eng
1/2 Eng Dolby Digital
2
Press AUDIO SELECT repeatedly until the
desired language is selected.
Press SUBTITLE repeatedly during playback until
the desired language is selected.
2
To turn off the subtitle, press SUBTITLE until
“Off” appears.
Off
2/2 Fre Dolby Digital
• The on screen display will disappear after a few
seconds.
In case of Video CD playback
Audio type changes as follows each time you press AUDIO
SELECT.
LR
L
R
• The on screen display will disappear after a
few seconds.
Notes:
• Depending on the DVD, you may not be able to change
subtitles, or to turn subtitles on or off.
• While playing a DVD, the subtitle may change when
you loaded or eject the disc.
• In some cases, a selected subtitle language may not
be changed immediately.
Notes:
• If the desired language is not heard after pressing the
button several times, the language is not recorded on
the disc.
• The selected soundtrack language is canceled when
you eject the disc. The initial default language or
available language will be heard if the disc is played
back again.
• If you select DTS in playing DTS-encoded disc, no
sound will be heard from the TV/DVD’s speakers.
46
Book 5Z0-01.indb 46
9/11/2549 16:15:20
Disc status/To turn off the PBC
1
DISPLAY
PLAY MODE
/
ENTER
DVD
VCD
Disc status
VCD
To turn off the PBC
(see page 7)
With press of DISPLAY, the status of the disc
will appear on the screen.
To cancel the display, press DISPLAY again.
1
Press PLAY MODE in the stop mode.
DVD
2
Press / to select “Mode”, then press
ENTER repeatedly until “Off” appear.
ELAPSED
TIME
DISC OPERATION
Play Mode
TOTAL
TIME
Mode
: Off
Repeat
: Off
Program Playback
TITLE NO.
ANGLE NO.
00:15:25 01:41:39
Chapter 2/24
1/2 Eng
–––
CHAPTER
NO.
SUBTITLE LANGUAGE
AUDIO LANGUAGE
–––
–––
3
3
Press PLAY MODE again to clear the screen.
A KIND OF AUDIO
■ To turn on the PBC
Follow the above steps 1~2, then press ENTER repeatedly
until “PBC” appear.
Video CD
DISC OPERATION
VCD
Track 3/15
ELAPSED
TIME
TOTAL
TIME
Advanced playback
DVD
Title 1/3
1/1 Eng Dolby Digital
1/1
1
2
Note:
You can also turn off the PBC by pressing number button 1
and ENTER in the stop mode.
00:08:32 00:51:03
TRACK NO.
47
Book 5Z0-01.indb 47
9/11/2549 16:15:21
Advanced playback
MP3/WMA/JPEG/DivX® and Audio CD operation
This player can playback the MP3/WMA/JPEG/DivX®-data which has been recorded on CD-R or CD-RW. To produce
the MP3/WMA/JPEG/DivX®-data, you need a Windows-PC with CD-RW drive and a MP3/WMA/JPEG/DivX®-encoding
Software (not supplied). The Apple-HFS-System cannot be played.
This player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality.
There are many different types of recordable disc formats (including CD-R containing MP3/WMA files). Not all
recordable discs will produce optimal playback quality. The technical criteria set forth in this owner’s manual are meant
only as a guide. Use of CD-RW for MP3 files is not recommended.
You must obtain any required permission from copyright owners to download or use copyrighted content.
Toshiba cannot and does not grant such permission.
CD
Audio CD/MP3/WMA/JPEG/DivX® CD information
Limitations on MP3/WMA/JPEG/DivX® CD playback
• MP3/WMA/JPEG/DivX® CD is the disc that is standardized by ISO9660, its file name must include 3-digits extension
letters, “.mp3”, “.wma”, “.jpg”, “.div”, “.divx”, “.avi”.
• MP3/WMA/JPEG/DivX® CD must be corresponded to the ISO standardized files.
• This unit can read 600 files per directory. If one directory has more than 600 files, it reads up to 600 files, the remaining
files will be omitted.
• The unit is able to recognize up to a maximum of 50 directories per disc.
• MP3/WMA/JPEG/DivX® CDs cannot be used for the purpose of recording.
• If the CD has both CDA audio tracks and MP3/WMA/JPEG/DivX® files, only the CDA audio tracks will be played.
• It may take more than one minute for this unit to read MP3/WMA/JPEG/DivX® files depending on its structure.
• Music recorded by “Joliet Recording Specification” can be played back, the file name is displayed (within 15 letters) on
the screen. Long file names will be condensed.
• The music files recorded by “Hierarchical File System” (HFS) cannot be played.
Limitations on display
• The maximum number for display is 15 letters.
Available letters for display are the following:
capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).
• Other letters than those above are replaced in hyphen.
Notes on MP3/WMA/JPEG/DivX® files
To playback MP3/WMA/JPEG/DivX® CD in the recorded order,
1. Use MP3/WMA/JPEG/DivX® software that records data alphabetically or numerically.
2. Name each file including two-digit or three-digit number (ex. “01” “02” or “001” “002”).
3. Refrain from making too many sub-folders.
CAUTION:
• Some MP3/WMA/JPEG/DivX® CDs cannot be played back depending on the recording conditions.
• The CD-R/RW that has no music data or non MP3/WMA/JPEG/DivX® files cannot be played back.
Standard, sampling frequency and the bit rate:
MP3 CD
MPEG-1 Audio
32kHz, 44.1kHz, 48kHz
32kbps ~ 320kbps (constant bit rate or variable bit rate)
The recommend recording setting for a high-quality sound is 44.1kHz of sampling frequency and 128kbps of constant
bit rate.
WMA CD
WMA version 7 and 8
32kHz/48kbps, 44.1kHz/48kbps~192kbps, 48kHz/128kbps~192kbps
The file recorded by mono, 48kHz, 48 kbps is not available to this unit.
DivX® video
DivX® version: DivX® 3, 4, 5, and 6 (specifically 3.1.1, 4.1.2, 5.0.2, 5.0.5, 5.1.1, 5.2.1, 6.0 at Home Theater profile).
Audio format: MPEG1 Layer2 (MP2), MPEG1 Layer3 (MP3)
Sampling frequencies: 32kHz, 44.1kHz, 48kHz
Bit rate: 32kbps ~ 320kbps
Resolution: Max 720 x 576 (at 25fps), Max 720 x 480 (at 30fps)
Microsoft, Windows Media, and Windows Logo are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
48
Book 5Z0-01.indb 48
9/11/2549 16:15:21
/ / /
ENTER
STOP
PLAY
RETURN
TOP MENU
CD
1
2
MP3/WMA CD playback
Load a disc on which MP3 or WMA files have
been recorded in the disc slot.
A file browser screen will appear on the screen.
Press
/
to select file.
3/15 00:00:00
/WMA-11.WMA
MP3-5
MP3-6
WMA-11
WMA-12
Picture-1
Picture-2
Movie-1
Movie-2
Select Files
Repeat
:Off
Mode
:Off
Music Playing
/MP3-2.MP3
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
Select Files
Repeat
:Off
Mode
:Off
JPEG Preview
• In case the current directory includes more than 8
files, press or to scroll in the file list.
• To see contents in folder, select the folder and then
press ENTER. To return to the parent directory, select
“ Go Up ...” then press ENTER.
• When PLAY is pressed after the file browser
displayed, playback begins automatically starting
from the first file. In this case, if the first file is an
MP3/WMA file, only MP3/WMA files are played back
in order. If the first file is a JPEG file, the first JPEG
file is played back. If the first file is a DivX® file, the
first DivX® file is played back. If there is no file at a
root directory, playback does not begin automatically.
4
Press ENTER.
The selected file starts playing back.
5
Press STOP to end playback.
• The unit records the stopped point. “ ” appears
on the TV screen. Press PLAY to resume playback
(from the scene point).
• If you press STOP again or unload the disc, the unit
will clear the stopped point.
Notes:
• The thumbnail list is displayed when the FUJICOLOR CD
or the Kodak Picture CD are played. To display the file
browser, press TOP MENU.
• In the case of a CD containing a mixture of MP3, WMA,
JPEG and DivX® files, the files are played back by
selecting them from the file browser.
• MP3 or WMA file on the Kodak Picture CD is not
recognized on this unit.
Advanced playback
3
About file menu
Notes:
• During MP3/WMA/JPEG/DivX® Playback, you cannot use
JUMP and A-B Repeat functions.
• You can use Repeat (Track or All), Random functions and
Program playback for Audio CD/MP3/WMA/JPEG/DivX® CD
Playback 52 53 .
■ Select Files
The file type to make it display in the file browser can
be chosen.
1. Press or to highlight “Select Files” at right
column in the file browser.
2 Press ENTER, then press or to select file type
from the list (Music, Picture or Movie).
3. Press ENTER to add/remove check mark.
Checked file type will be displayed in the file browser.
4. Press RETURN to save the setting.
49
Book 5Z0-01.indb 49
9/11/2549 16:15:21
Advanced
Advanced playback
playback
MP3/WMA/JPEG/DivX® and Audio CD
operation (Continued)
You can select your desired JPEG file on the file menu and picture menu.
The selected JPEG file is automatically adjusted to the TV screen. (When
the aspect ratio of the JPEG file is different to the TV screen, the black bar
will appear at the top and bottom, or the both sides of the TV screen.)
CD
1
2
JPEG CD playback
CD
/Picture-01.JPG
Picture-01
Picture-02
Picture-03
Picture-04
Picture-05
Picture-06
Picture-07
Picture-08
3
ENTER
/ / /
PAUSE
STOP
PLAY
SKIP
ANGLE
TOP MENU
Slide show playback
The slide show enables you to view pictures (files) one after
another automatically.
Load a JPEG disc in the disc slot.
A file browser screen
will appear on the
screen.
DVD MENU
Select Files
Repeat
:Off
Mode
:Off
JPEG Preview
W: 2048 H: 1536
Press / to select the file.
To display a thumbnail list, press DVD MENU.
Press / / / to select the desired file.
(To return to the file browser, press TOP MENU.)
Preparation:
• Set “JPEG Interval” setting to “5 Seconds”, “10 Seconds”
or “15 Seconds” 57 .
1
2
Select your desired starting file for the slide
show in the step 3 on left.
Press ENTER or PLAY to start slide show from
the selected file.
• If you press PAUSE during the slide show, the slide
• When PLAY is pressed after displaying the
file browser, playback begins automatically
starting from the first file. In this case, if the first
file is a JPEG file, the first JPEG file is played
back. If the first file is a DivX® file, the first
DivX® file is played back.
If the first file is an MP3/WMA file, only MP3/
WMA files are played back in order. If there is
no file at a root directory, playback does not
begin automatically.
4
Press ENTER or PLAY. The selected picture
appears on the screen.
show stops temporary. “❙❙” appears briefly on the TV
screen.
If the picture appears upside down or sideways, press
ANGLE repeatedly until it’s right side up.
”, “ ”, “
” or “ ” appears on the TV screen.
“
Press PLAY or SKIP
again to resume the slide show.
• When the slide show playback finished, the file list
appears.
• To stop the slide show, press STOP. The file list appears.
Notes:
• Zoom function can also be used in viewing JPEG files.
See “Zooming” 41 .
• During JPEG playback, you cannot use Jump and A-B
Repeat functions.
Rotating an image
You can rotate an image by 90 degrees.
Press ANGLE during playback of the image.
“
5
”, “
”, “
” or “
” appears on the screen.
Press STOP to end playback.
The file browser appears on the screen. If you
want to watch the other file, repeat steps 3 ~ 4.
50
Book 5Z0-01.indb 50
9/11/2549 16:15:22
ENTER
/
STOP
PLAY
CD
DivX® CD playback
CD
Playing DivX® VOD content
DivX® VOD content is protected by DRM (Digital Rights
Management) system. This restricts playback of content
to specific registered devices.
2
A file browser screen will appear on the TV
screen.
If the incorrect DRM file
is loaded, “Authorization
View DivX® VOD Rental
Error This player is not
This rental has 5 views left.
authorized to play this
Do you want to use one
of your 5 views now?
video.” will appear on the
TV screen.
Yes
No
When you attempt to play
®
DivX VOD, the number
of plays is limited and the
right message will appear on the TV screen. If you wish
to play it, select “Yes”.
/Movie-01.DIVX
Movie-01
Movie-02
Movie-03
Movie-04
Movie-05
Movie-06
Movie-07
Movie-08
3
Press
/
Select Files
Repeat
:Off
Mode
:Off
JPEG Preview
to select file.
• If the number of plays goes over the limit, then “Rental
Expired” will be displayed. In this case the file will not
be played.
• When PLAY has been pressed after displaying
the file browser, playback begins automatically
starting from the first file. In this case, if the
first file is a JPEG file, the first JPEG file is
played back. If the first file is a DivX® file,
the first DivX® file is played back. If the first
file is an MP3/WMA file, only MP3/WMA file
are played back in order. If there is no file
at a root directory, playback does not begin
automatically.
4
Press ENTER or PLAY. The selected DivX®
movie will be played back on the TV screen.
5
Press STOP to end playback.
Notes:
• In order to play DivX® VOD content on this unit, you first
need to register the unit with registration code. See page
Advanced playback
1
Load a disc on which DivX® files have been
recorded in the disc slot.
59 .
• Depending on the recording conditions of DivX® file, you
may not be able to use FF, REV or JUMP function.
The file browser appears on the
TV screen. If you want to watch the
other file, repeat steps 3 ~ 4.
51
Book 5Z0-01.indb 51
9/11/2549 16:15:22
Advanced playback
Repeat, random and program playback
using file browser
/ / /
ENTER
PLAY
SKIP
CD
Repeat playback (CD)
1
In the file browser, press / /
“Repeat” during stop mode.
Folder-1
Folder-2
MP3-1
MP3-2
CD
/
to select
1
Random playback (CD)
In the file browser, press /
“Mode” during stop mode.
Select Files
Repeat
:Off
Mode
:Off
MP3-3
2
Press ENTER repeatedly to select “Track” or
“All”.
Folder-1
Folder-2
MP3-1
MP3-2
2
:Track
Mode
:Off
MP3 3
3
Press PLAY.
The unit automatically starts repeat
playback after finishing the current
track.
To resume normal playback
Select Repeat : “Off” in step 2.
3
/
/
to select
Press ENTER to select “Random”.
Select Files
Repeat
/
!
Press PLAY.
The Random playback will start.
To resume normal playback
Select Mode : “Off” in step 2.
Notes:
• The repeat or randam function is canceled when you eject
the disc or turn the power off.
• In case of Audio CD, the function of A-B Repeat can be
used. See “A-B Repeat playback” 43 .
• Track repeat function is canceled whenever SKIP
or
is pressed.
52
Book 5Z0-01.indb 52
9/11/2549 16:15:23
/ / /
ENTER
PLAY
CD
1
Program playback (CD)
In the file browser, press / / /
“Edit Mode”, then press ENTER.
Folder-1
Folder-2
MP3-1
MP3-2
MP3 3
to select
Repeat
:Off
Mode
:Off
4
Folder-1
Folder-2
MP3-1
MP3-2
Edit Mode
When “Edit Mode” is black
color, you can mark the files
which you want to add into
Program list.
Press / / / to select file you want to
add into the program list.
MP3-1
MP3-2
MP3-3
WMA-3
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA 2
Repeat
:Off
Mode
:Off
Clear Program
JPEG Preview
Edit Mode
Program View
Add To Program
MP3-2
MP3-3
WMA-1
WMA 2
Edit Mode
Browser View
Program View
Press / / / to select “Add To Program”.
Then press ENTER. All marked files are added
into the program list.
Folder-1
Folder-2
MP3-1
JPEG Preview
JPEG Preview
Edit Mode
Press ENTER. Selected file
was marked.
Repeat this procedure to
select the other files.
3
Browser View
MP3-3
WMA-1
WMA-2
WMA-3
Edit Mode
Program View
Add To Program
Advanced playback
2
Press / / / to select “Program View”, then
press ENTER. Program View shows only the
programed files that you have added in step 2.
5
In the Program View, press PLAY. The files
start to playback in programed order that were
added by you.
To remove file from program list in stop mode
In the Edit Mode, switch to Program View. Select file
you want to remove, then press ENTER. Select “Clear
Program” and press ENTER. Marked file is removed
from program list.
Note:
The program function is canceled when you eject the disc or
turn the power off.
JPEG Preview
When you finish storing the files
which you want into the Program
list, select “Edit Mode” and press
ENTER to release edit mode.
53
Book 5Z0-01.indb 53
9/11/2549 16:15:23
Function setup
Customizing the function settings
You can change the default settings of the DVD mode to customize
performance to your preference.
/ / /
ENTER
SETUP
RETURN
DVD
VCD
CD
1
Setting procedure
Press SETUP during stop mode.
The following on-screen display appears.
4
Then press or ENTER. The selectable
settings will appear.
Parental
DRC
Menu
TV
Screen
: 4:3
Off
English
QSoundSet Password
Subtitle
Display
: 4:3
On
English
Parental
DRC
E.B.L.
Menu
: Off
English
Output Mode
Audio
QSound
TV
Subtitle
Screen
Set Password
: On
4:3
English
Output
Display
Audio
: Auto
Interlace
English
JPEG Interval
DivX(R) :VOD
Off
: Interlace
On
English
Picture Mode
DivX(R) :VOD
Auto
2
Press or
press .
JPEG Interval
: 5 Seconds
Screen Saver
: On
to select the desired section, then
Parental
DRC
Menu
TV
Screen
5
: 4:3
Off
English
• Repeat steps 3 and 5 to change
QSoundSet Password
Subtitle
Display
: On
English
Output Mode
Audio
Change the selection using or , by referring
to the corresponding pages 56 ~ 59 .
Press ENTER to save the setting.
: Auto
Interlace
English
other option.
JPEG Interval
DivX(R) :VOD
Off
• To select another section, go
back to step 2 by pressing
repeatedly.
3
First option will be highlighted. Press
to select the desired option.
Parental
DRC
Menu
TV
Screen
or
6
To clear SETUP screen, press SETUP or
RETURN.
: 4:3
Off
English
QSoundSet Password
Subtitle
Display
: On
English
Output Mode
Audio
: Auto
Interlace
English
JPEG Interval
DivX(R) :VOD
Off
54
Book 5Z0-01.indb 54
9/11/2549 16:15:24
Setting details
Section
Option
Details
Page
Menu
Subtitle
Audio
To select the language of “Menu”, “Subtitle” and “Audio”
if more than one language are available on the disc.
TV Screen
To select a picture size according to the aspect ratio of
your TV.
Display
To turn On or Off the operational status display on the TV
screen.
Picture Mode
To select a preferred picture mode from “Video”, “Film” or
“Auto”.
JPEG Interval
To select a preferred setting for the slide show playback.
DRC
To select On or Off for DRC (Dynamic Range Control).
58
Parental
To select a preferred parental level for the parental setting.
58
Password
To change the password.
59
DivX(R) VOD
To display your 8-character registration code.
59
56
56
57
Function setup
55
Book 5Z0-01.indb 55
9/11/2549 16:15:25
Function setup
Customizing the function settings (Continued)
Setting details
Parental
DRC
E.B.L.
Menu
: Off
English
Parental
DRC
Menu
TV
Screen
: 4:3
Off
English
QSound
TV
Subtitle
Screen
Set Password
: 4:3
On
English
QSoundSet Password
Subtitle
Display
: English
On
Output
Display
Audio
Output Mode
Audio
: On
Interlace
English
Picture Mode
DivX(R) :VOD
Auto
JPEG Interval
: 5 Seconds
Screen Saver
: On
Menu, Subtitle, Audio
You can select the language of “Menu”, “Subtitle” and
“Audio” if more than one languages are recorded onto
the disc.
TV Screen
You have the following screen sizes to choose from:
(Letter box):
4:3
When playing back a wide screen-DVD disc, it
displays the wide picture with black bands at the
top and bottom of screen.
English, Francais, Espanol:
The selected language will be heard or seen.
Other:
Other language can be selected (see “Language
code list” 61 ).
Original (Audio):
The unit will select the first priority language of
each disc.
Off (Subtitle):
Subtitles do not appear.
Notes:
• If the selected language is not recorded on the disc, the
first-priority language is selected.
• If you want to change the on screen display language, you
can perform it by TV SETUP MENU 20 .
: Auto
Interlace
English
JPEG Interval
DivX(R) :VOD
Off
(Pan & scan):
4:3
It displays the wide picture on the whole screen
with left and right edges automatically cut off.
Note:
If the DVD disc is not formatted in the Pan & scan style,
it will display 4:3 style.
Display
On screen display can be switched on or off when you
press any buttons.
On: On screen displays appear when you press
the buttons (factory setting).
Off: On screen displays do not appear when you
press any buttons.
56
Book 5Z0-01.indb 56
9/11/2549 16:15:25
Setting details
Picture Mode
There are two types of source content in pictures
recorded in DVD video discs: film content (pictures
recorded from films at 24 frames per second) and
video content (video signals recorded at 30 frames per
second). Make this selection according to the type of
content being viewed.
Auto:
Film:
Select this selection normally.
The DVD player automatically detects
source content, film or video of
playback source, and converts that
signal in an appropriate method.
The DVD player converts film content
pictures appropriately. Suitable for
playback of film content pictures.
You can continuously playback all JPEG files
automatically.
After the selection below, the disc will start playback on
JPEG files which have been recorded.
Off:
Plays back one file at a time.
5 Seconds:
Plays back images in the form of a slide show at
5 second intervals.
10 Seconds:
Plays back images in the form of a slide show at
10 second intervals.
15 Seconds:
Plays back images in the form of a slide show at
15 second intervals.
Function setup
Video: The DVD player filters video signal and
converts it appropriately.
Suitable for playback of video content
pictures.
JPEG Interval
Note:
Depending on the disc, pictures may be cut off or
doubled. In this case, select “Video”.
57
Book 5Z0-01.indb 57
9/11/2549 16:15:25
Function setup
Customizing the function settings (Continued)
Setting details
DRC
Menu
E.B.L.
Parental
: Off
English
TV Screen
Set Password
: 4:3
QSound
Subtitle
TV
Password
Screen
: 4:3
On
English
Change
Output
Display
Audio VOD
Display
DivX(R)
: On
Display
English
Picture Mode
DivX(R) :VOD
Auto
Picture Mode
: Auto
JPEG Interval
: 5 Seconds
JPEG Interval
: 5 Seconds
Screen Saver
: On
Screen Saver
: On
Parental
E.B.L.
DRC
: Off
: On
Interlace
DRC
DRC (Dynamic Range Control) enables you to control
the dynamic range so as to achieve a suitable sound
for your equipment.
Off:
It plays back at the recording level on the disc.
On:
Loud sound such as explosion is toned down
slightly when played back. This is suitable when
it is connected to a stereo.
Notes:
• This function works only during playback of Dolby Digital
recorded discs.
• The level of Dynamic Range Reduction may differ
depending on DVD video disc.
Parental control setting
Some discs are specified as not suitable for children.
Such discs can be limited not to playback with the unit.
1) Press or to select “Parental”, then press
ENTER. “Enter Password” screen will appear.
2) Press “0000” using Number buttons (0–9).
(Please note, this is pre-setting password of this
unit). Then press ENTER. The parental level list
will appear.
• Level Off: The parental control setting does not
function.
• Level 8: All DVD software can be played back.
• Level 1: DVD software for adults cannot be
played back.
3) Press or to select from the level 1 to level 8.
The limitation will be more severe as the level
number is lower. Then press ENTER.
Notes:
• The parental control level is equivalent to the following
USA movie ratings.
Level 1: G
Level 2:
Level 3: PG
Level 4: PG-13
•
•
•
•
Level 5:
Level 6: R
Level 7: NC-17
Level 8:
The parental control levels for other countries/area
than U.S. are included for future use. Check the
appropriate parental control level when you buy a DVD
video disc equipped with the parental control feature
in the future.
Depending on the discs, the unit cannot limit playback.
Some discs may not be encoded with specific rating
level information though its disc jacket says “adult.”
For those discs, the age restriction will not work.
The password is required every time when you
change the parental level.
If you input a wrong number, press EXIT/CANCEL.
58
Book 5Z0-01.indb 58
9/11/2549 16:15:25
Setting details
■ Set the new password
1) Press or to select “Password”, then press
ENTER. “Enter Current Password” screen will
appear.
2) Press Number buttons (0–9) to input the current
password (If the password has not been set yet
after you purchase this unit, it is “0000”).
3) Then press ENTER. “Enter New Password” screen
will appear. Press Number buttons (0–9) to input
the new password.
4) Press ENTER. Now your new password has been
set. Be sure to remember this number!
If you forget the password
Function setup
1) Press EJECT to remove the disc.
2) While holding 7 down on the remote control and
then press STOP on the unit. “Password Clear”
appears on the screen. Now the password
has been returned to the initial value (“0000”).
■ DivX® VOD
In order to play DivX® VOD (Video On Demand) content
on this unit, you first need to register the unit with your
DivX® VOD content provider. You do this by generating
a DivX® VOD registration code, which you submit to
your provider.
Press or to select “DivX(R) VOD”. Then press
ENTER. Your 8-character registration code is
displayed. Make a note of the code as you will need
it when you register with a DivX® VOD provider.
Then press ENTER to select Done.
Note:
If each setup (pages 56 ~ 59 ) has completed, the unit can
always work under the same condition (especially with DVD
discs).
Each setup will be retained in the memory even if you turn the
power off.
59
Book 5Z0-01.indb 59
9/11/2549 16:15:25
Function setup
EJECT
Temporary cancel the rating level by DVD disc
0–9
Depending on the DVD disc, the disc may try to temporarily cancel the rating level
that you have set.
It is up to you to decide whether to cancel the rating level or not.
ENTER
RETURN
DVD
Temporary cancel the rating level by DVD disc
Note:
This temporary cancellation of rating level will be kept until
the disc is ejected.
When the disc is ejected, the original rating level will be set
again automatically.
1
Load a DVD disc.
2
If the DVD disc has been designed to
temporarily cancel the Rating level, the screen
which follows the “Reading” screen will
change, depending on which disc is played.
If you select “YES” with the ENTER key,
password input screen will then appear.
• If “NO” is selected, press EJECT to remove
the disc.
3
Enter the password with Number buttons (0–9).
Then press ENTER.
To exit from the entry, press
RETURN.
4
Playback will commence if the entered
password is correct.
60
Book 5Z0-01.indb 60
9/11/2549 16:15:26
Others
Language code list
Enter the appropriate code number for the initial settings “Menu”, “Subtitle” and/or “Audio” 56 .
Language Name
Code
Language Name
Code
Language Name
Code
Language Name
Code
Abkhazian
1112
Fiji
1620
Lingala
2224
Singhalese
2919
Afar
1111
Finnish
1619
Lithuanian
2230
Slovak
2921
Afrikaans
1116
French
1628
Macedonian
2321
Slovenian
2922
Albanian
2927
Frisian
1635
Malagasy
2317
Somali
2925
Amharic
1123
Galician
1722
Malay
2329
Spanish
1529
Arabic
1128
Georgian
2111
Malayalam
2322
Sundanese
2931
Armenian
1835
German
1415
Maltese
2330
Swahili
2933
Assamese
1129
Greek
1522
Maori
2319
Swedish
2932
Aymara
1135
Greenlandic
2122
Marathi
2328
Tagalog
3022
Azerbaijani
1136
Guarani
1724
Moldavian
2325
Tajik
3017
Bashkir
1211
Gujarati
1731
Mongolian
2324
Tamil
3011
Basque
1531
Hausa
1811
Nauru
2411
Tatar
3030
Bengali; Bangla
1224
Hebrew
1933
Nepali
2415
Telugu
3015
Bhutani
1436
Hindi
1819
Norwegian
2425
Thai
3018
Bihari
1218
Hungarian
1831
Oriya
2528
Tibetan
1225
Breton
1228
Icelandic
1929
Panjabi
2611
Tigrinya
3019
Bulgarian
1217
Indonesian
1924
Pashto, Pushto
2629
Tonga
3025
2335
Interlingua
1911
Persian
1611
Turkish
3028
Byelorussian
1215
Irish
1711
Polish
2622
Turkmen
3021
Cambodian
2123
Italian
1930
Portuguese
2630
Twi
3033
Catalan
1311
Japanese
2011
Quechua
2731
Ukrainian
3121
Chinese
3618
Javanese
2033
Rhaeto-Romance
2823
Urdu
3128
Corsican
1325
Kannada
2124
Romanian
2825
Uzbek
3136
Croatian
1828
Kashmiri
2129
Russian
2831
Vietnamese
3219
Czech
1329
Kazakh
2121
Samoan
2923
Volapük
3225
Danish
1411
Kirghiz
2135
Sanskrit
2911
Welsh
1335
Dutch
2422
Korean
2125
Scots Gaelic
1714
Wolof
3325
English
1524
Kurdish
2131
Serbian
2928
Xhosa
3418
Esperanto
1525
Laothian
2225
Serbo-Croatian
2918
Yiddish
2019
Estonian
1530
Latin
2211
Shona
2924
Yoruba
3525
Faroese
1625
Latvian, Lettish
2232
Sindhi
2914
Zulu
3631
Others
Burmese
61
Book 5Z0-01.indb 61
9/11/2549 16:15:26
Others
Troubleshooting
Use the following check list for troubleshooting when you have problems with your unit. Consult your local dealer or
service outlet if problems persist.
Be sure all connections are properly made when using with other units.
SYMPTOMS
POSSIBLE SOLUTIONS
PAGE
POWER
• Make sure the connection of AC cord is secured.
• Try another AC outlet.
• Unplug unit, then plug it back in.
18
Poor sound or No sound.
• Station or Cable TV may have problems, try another station.
• Check Volume adjustments.
• Check for sources of possible interference.
22
22
64
Poor picture or No picture.
• Station or Cable TV may have problems, try another station.
• Check antenna or Cable TV connections, reorient antenna.
• Check for sources of possible interference.
• Check picture control adjustments.
22
13,14
64
33
Poor reception on some
channels.
• Station or Cable TV may have problems, try another station.
• Station signal is weak, reorient antenna to receive weaker station.
• Check for sources of possible interference.
Poor color or no color.
• Station or Cable TV may have problems, try another station.
• Make sure channels are set into memory.
• Check picture control adjustments.
• Check antenna or Cable TV connections, reorient antenna.
• Check for sources of possible interference.
22
21
33
13,14
64
Picture wobbles or drifts.
• Station or Cable TV may have problems, try another station.
• Make sure channels are set into memory.
• Cable TV company is scrambling signal.
• Check antenna or Cable TV connections, reorient antenna.
22
21
13,14
No CATV reception.
• Check all Cable TV connections.
• Set TV/CABLE selection to the CABLE position.
• Station or Cable TV system problems, try another station.
Horizontal or diagonal bars on
screen.
• Check antenna or Cable TV connections, reorient antenna.
• Check for sources of possible interference.
No reception above channel 13.
• Make sure TV/CABLE selection is in the appropriate position.
• If antenna is used, check UHF antenna connections.
21
13
TV shuts off.
• No broadcast on station tuned.
• Auto shut off feature worked.
• Sleep Timer is set.
• Power interrupted.
22
37
23
-
Closed - Caption is not
activated.
• TV station experiencing problems or program tuned is not closed
captioned. Try another channel.
• Check Cable TV connection or VHF/UHF antenna, reposition or
rotate antenna.
• Press CLOSED CAPTION button to turn on the closed caption
decoder.
TV/DVD does not operate.
TV BROADCAST RECEPTION
Display is not shown in your
language.
• Select proper language in the menu options.
22
13
64
14
21
22
13,14
64
22
13,14
25
20
62
Book 5Z0-01.indb 62
9/11/2549 16:15:26
SYMPTOMS
POSSIBLE SOLUTIONS
PAGE
DVD
Playback doesn’t start.
• No disc is loaded.
• The disc may be dirty. Clean up the disc.
• The unit cannot play CD-ROMs, etc.
38
6
7
No picture.
• TV/DVD selector is not set correctly.
38
No sound.
• Check the input selector of the amplifier is set properly.
• The unit is in the special playback mode.
• Select the correct Audio Input/Output position on AV amplifier.
Picture is distorted during fast
reverse/forward playback.
• The picture will be distorted occasionally.
-
Stopping playback, search,
slowmotion play, repeat play, or
program play, etc. cannot be
performed.
• Some discs may not do some of the functions.
-
No on-screen display.
• Set Display to On.
The unit or remote operation key
is not functioning.
• Turn off the unit and unplug the AC power cord for several minutes,
then replug it.
Playback does not start when
the title is selected.
• Check the RATING LEVEL setup.
58
Audio soundtrack and/or subtitle
language is not changed when
you playback a DVD.
• Multilingual language is not recorded on the DVD disc.
46
No subtitle.
• Some discs have no subtitles.
• Subtitles are cleared. Press the SUBTITLE button.
46
Angle cannot be changed.
• Multi-angles are not recorded on the DVD disc.
45
“✕” appears on the screen.
• The function is prohibited with the unit or the disc.
40
• Aim the remote control at the remote sensor.
• Operate within approx. 5 meters or reduce the light in the room.
• Clear the path of the beam.
• The batteries are weak. Replace the batteries.
• Check the batteries are inserted correctly.
12
40
17, 18
56
-
Others
REMOTE CONTROL
The remote control does not
function.
63
Book 5Z0-01.indb 63
9/11/2549 16:15:26
Others
Reception disturbances
Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna.
Outdoor antennas are recommended for best results. The most common types of television interference are shown
below. If one of these symptoms appear when the TV/DVD is connected to a Cable TV system, the disturbance may
be caused by the local Cable TV company broadcast.
IGNITION
Black spots or horizontal streaks may appear, the picture may flutter or
drift. Usually caused by interference from automobile ignition systems,
neon lamps or AC powered tools and appliances such as drills or hair
dryers.
GHOSTS
Ghosts are caused by the television signal following two paths. One is
the direct path and the other is reflected by tall buildings, hills or other
large objects. Changing the direction or position of the antenna may
improve the reception.
SNOW
If the TV/DVD is located far from the TV station, in a fringe reception
area where the signal is weak, small dots may appear in the picture.
If the signal is extremely weak, the installation of a larger external
antenna may be necessary.
RADIO FREQUENCY INTERFERENCE (RFI)
Caused by two-way radios, this type of interference produces moving
ripples or diagonal streaks in the picture. Some cases may cause a
loss of contrast in the picture. Changing the direction and position of
the antenna or installing an RFI filter may improve the picture.
CARE AND MAINTENANCE
To prevent fire or shock hazard, disconnect the TV/DVD from the power source before cleaning.
Use caution when cleaning or wiping the plastic parts.
64
Book 5Z0-01.indb 64
9/11/2549 16:15:26
Specifications
General
Power supply
AC 120V 60Hz
Power consumption
Operation: 50 W, Stand by: 1 W
Weight
12.1 lbs (5.5 kg)
Dimensions
Width: 15-1/2 inches (394 mm)
Height: 15-1/16 inches (381.8 mm)
Depth: 7-1/2 inches (190 mm)
Operating temperature
5°C-40°C (41°F-104°F)
Operating humidity
Less than 80% RH (No condensation)
Television
LCD panel
15-inch diagonal (Screen size is approximate.)
Display method
Color TFT LCD
Number of pixels
1024 (Horizontal) x 768 (Vertical)
Television system
NTSC standard, ATSC standard (8VSB), QAM
Receiving channels
VHF: 2-13
UHF: 14-69
CATV: 1-125 (4A, A-5~A-1, A~I, J~W, W+1~W+84)
Antenna input
VHF/UHF 75 Ω
Speaker
1-1/2 x 2-11/16 inches (38.1 x 68.6 mm), 8 Ω x 2
Audio output power
1.0W + 1.0W
DVD/CD Player
NTSC
Applicable disc
1. DVD (12cm, 8cm)
2. CD (12cm, 8cm)
Pickup
1-Lens, 2-Beams System
Others
Signal system
Input/Output
S-Video input
(Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1
(C) 1.0 V (p-p), 75 Ω
ColorStream video input
(Y) 1.0 V (p-p), 75 Ω, negative sync., pin jack x 1
(PB, PR) 0.7 V (p-p), 75 Ω, pin jack x 2
Video input
1.0 V (p-p), 75 Ω, negative sync., pin jack x 2
Audio input
–8dBm, 50 kΩ, negative sync., pin jack (L/R) x 2
Digital audio output (Coaxial)
0.5 V (p-p), 75 Ω, pin jack x 1
Headphone
ø3.5mm stereo mini jack x 1
Accessories
Remote control (DC-LWB1) ............................................. 1
Batteries (R03/AAA) ........................................................ 2
Owner’s manual (this booklet) ......................................... 1
• This model complies with the above specifications.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.
65
Book 5Z0-01.indb 65
9/11/2549 16:15:27
Others
Limited United States Warranty
LCD TV/DVD Combination - Depot Repair Warranty
Toshiba America Consumer Products, L.L.C. (“TACP”) makes the following limited warranties to original
consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER
PURCHASER OR ANY PERSON RECEIVING THIS LCD TV/DVD COMBINATION AS A GIFT FROM THE
ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.
LCD TV/DVD COMBINATIONS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE
OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA AND MEXICO, ARE NOT COVERED
BY THESE WARRANTIES.
LCD TV/DVD COMBINATIONS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING,
WITHOUT LIMITATION, CANADA AND MEXICO, AND USED IN THE U.S.A., ARE NOT COVERED
BY THESE WARRANTIES.
Limited One (1) Year Warranty on Parts and Labor
TACP warrants this LCD TV/DVD Combination
and its parts against defects in materials or
workmanship for a period of one (1) year after
the date of original retail purchase. DURING
THIS PERIOD, TACP WILL, AT TACP’S OPTION,
REPAIR OR REPLACE A DEFECTIVE PART WITH
A NEW OR REFURBISHED PART WITHOUT
CHARGE TO YOU.
Rental Units
The warranty for LCD TV/DVD Combination rental
units begins on the date of the first rental or thirty
(30) days after the date of shipment to the rental
firm, whichever comes first.
Commercial Units
LCD TV/DVD Combinations sold and used for
commercial purposes have a limited warranty for all
parts and labor, which warranty begins on the date
of original retail purchase and ends on the date that
is ninety (90) days thereafter.
Owner’s Manual and Product Registration Card
Read this owner’s manual thoroughly before operating
this LCD TV/DVD Combination.
Complete and mail the enclosed product registration
card or register your LCD TV/DVD Combination
online at www.tacp.toshiba.com/service as soon as
possible. By registering your LCD TV/DVD
Combination you will enable TACP to bring you
new products specifically designed to meet your
needs and help us to contact you in the unlikely
event a safety notification is required under the
U.S. Consumer Product Safety Act. Failure to
complete and return the product registration card
does not diminish your warranty rights.
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO
THE FOLLOWING CONDITIONS:
(1) You must retain your bill of sale or provide
other proof of purchase.
(2) All warranty servicing of this LCD TV/DVD
Combination must be made by the Depot
Warranty Repair Center specified by the TACP
Consumer Solutions Center.
(3) The warranties from TACP are effective only
if the LCD TV/DVD Combination is purchased
and operated in the Continental U.S.A. or
Puerto Rico.
(4) Labor service charges for set installation,
setup, adjustment of customer controls, and
installation or repair of antenna systems are not
covered by this warranty. Reception problems
caused by inadequate antenna systems are
your responsibility.
(5) Warranties extend only to defects in materials
or workmanship as limited above, and do not
extend to any LCD TV/DVD Combination or
parts that have been lost or discarded by you
or to damage to the LCD TV/DVD Combination
or parts caused by fires, misuse, accident,
Acts of God (such as lightning or fluctuations in
electric power), improper installation, improper
maintenance, or use in violation of instructions
furnished by TACP; use or malfunction
through simultaneous use of this LCD TV/DVD
Combination and connected equipment; or to
units that have been modified or had the serial
number removed, altered, defaced, or rendered
illegible.
66
Book 5Z0-01.indb 66
9/11/2549 16:15:27
How to Obtain Warranty Services
If, after following all of the operating instructions
in this manual and checking the section
“Troubleshooting,” you find that service is needed:
(1) For instructions on how to obtain warranty
service for your LCD TV/DVD Combination,
contact TACP’s Consumer Solution Center toll
free at 1-800-631-3811.
(2) You must include a copy or original bill of
sale or other proof of purchase along with
the entire LCD TV/DVD Combination to the
Depot Warranty Repair Center specified by
the TACP Consumer Solutions Center. You
are responsible for all inbound transportation
and insurance charges for the LCD TV/DVD
Combination to the Depot Warranty Repair
Center specified by the TACP Consumer
Solutions Center.
For additional information, visit TACP’s website:
www.tacp.toshiba.com
No person, agent, distributor, dealer, or company
is authorized to change, modify, or extend
the terms of these warranties in any manner
whatsoever. The time within which an action must
be commenced to enforce any obligation of TACP
arising under the warranty or under any statute
or law of the United States or any state thereof is
hereby limited to ninety (90) days from the date
you discover, or should have discovered, the
defect. This limitation does not apply to implied
warranties arising under state law.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH MAY VARY FROM STATE TO
STATE IN THE U.S.A. SOME STATES OF THE
U.S.A. DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, WHEN
AN ACTION MAY BE BROUGHT, OR THE
EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE PROVISIONS MAY NOT APPLY TO YOU
UNDER SUCH CIRCUMSTANCES.
Others
ALL WARRANTIES IMPLIED BY THE LAW OF
ANY STATE OF THE U.S.A., INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY LIMITED TO THE DURATION
OF THE LIMITED WARRANTIES SET FORTH
ABOVE. WITH THE EXCEPTION OF ANY
WARRANTIES IMPLIED BY THE LAW OF ANY
STATE OF THE U.S.A. AS HEREBY LIMITED,
THE FOREGOING WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES,
GUARANTEES, AGREEMENTS, AND SIMILAR
OBLIGATIONS OF TACP WITH RESPECT TO
THE REPAIR OR REPLACEMENT OF ANY
PARTS. IN NO EVENT SHALL TACP BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
LOST PROFITS, BUSINESS INTERRUPTION, OR
MODIFICATION OR ERASURE OF RECORDED
DATA CAUSED BY USE, MISUSE OR INABILITY
TO USE THIS LCD TV/DVD COMBINATION).
67
Book 5Z0-01.indb 67
9/11/2549 16:15:27
CableClear, ColorStream and StableSound are registered trademarks of Toshiba America Consumer Products, L.L.C.
is a trademark of Toshiba America Consumer Products, L.L.C.
J5Z00101A SH 06/11 N
Book 5Z0-01.indb 68
Printed in Thailand
9/11/2549 16:15:27

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
