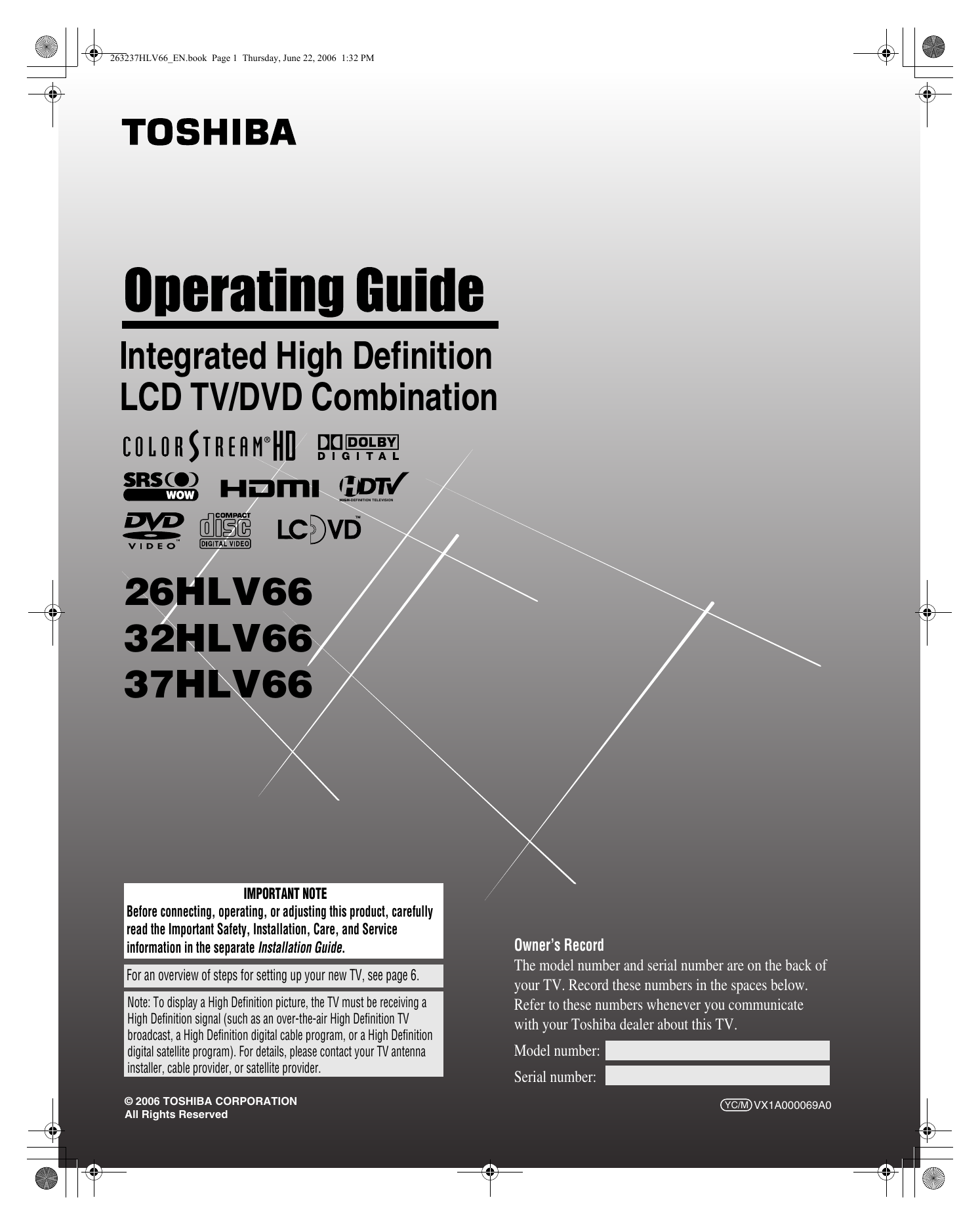

Toshiba 37HLV66 Television User Guide

263237HLV66_EN.book Page 1 Thursday, June 22, 2006 1:32 PM
Integrated High Definition
LCD TV/DVD Combination
HIGH-DEFINITION TELEVISION
26HLV66
32HLV66
37HLV66
IMPORTANT NOTE
Before connecting, operating, or adjusting this product, carefully
read the Important Safety, Installation, Care, and Service
information in the separate Installation Guide.
For an overview of steps for setting up your new TV, see page 6.
Note: To display a High Definition picture, the TV must be receiving a
High Definition signal (such as an over-the-air High Definition TV
broadcast, a High Definition digital cable program, or a High Definition
digital satellite program). For details, please contact your TV antenna
installer, cable provider, or satellite provider.
© 2006 TOSHIBA CORPORATION
All Rights Reserved
Owner’s Record
The model number and serial number are on the back of
your TV. Record these numbers in the spaces below.
Refer to these numbers whenever you communicate
with your Toshiba dealer about this TV.
Model number:
Serial number:
YC/M VX1A000069A0
HL66 (E/F) Web 213:276
263237HLV66_EN.book Page 2 Thursday, June 22, 2006 1:32 PM
FCC Declaration of Conformity
Compliance Statement
(Part 15):
The Toshiba 26HLV66, 32HLV66, and 37HLV66 Televisions
comply with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
The party responsible for compliance to these rules is:
Toshiba America Consumer Products, L.L.C.
82 Totowa Rd. Wayne, NJ 07470.
Ph: 1-800-631-3811
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
removing and applying power to the equipment, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Caution: Changes or modifications to this equipment not
expressly approved by Toshiba could void the user’s authority
to operate this equipment.
Important notes about your LCD
TV/DVD combination
The following symptoms are technical limitations of LCD
Display technology and are not an indication of malfunction;
therefore, Toshiba is not responsible for perceived issues
resulting from these symptoms.
1) An afterimage (ghost) may appear on the screen if a fixed,
non-moving image is displayed for a long period of time. The
afterimage is not permanent and will disappear in a short
period of time.
2) The LCD panel contained in this TV is manufactured using
an extremely high level of precision technology; however,
there may be an occasional pixel (dot of light) that does not
operate properly (does not light, remains constantly lit, etc.).
This is a structural property of LCD technology, is not a sign
of malfunction, and is not covered under your warranty. Such
pixels are not visible when the picture is viewed from a
normal viewing distance.
Note: Interactive video games that involve shooting a “gun”
type of joystick at an on-screen target may not work with this
TV.
About this Guide (DVD player
section)
This Guide explains the basic instructions for using the internal
DVD player. Some DVDs are produced in a manner that allows
specific or limited operation during playback. As such, the DVD
player may not respond to all operating commands. This is not a
defect in the DVD player.
Refer to the instructions provided with your DVDs.
If the symbol “E” appears on-screen during DVD operation, it
means that the operation or feature is not permitted or available for
the DVD player or disc.
For example, sometimes the DVD player is unable to stop
playback of the DVD’s copyright message when the D button is
pressed.
Trademark Information
• WOW, SRS and l symbol are trademarks of SRS Labs, Inc.
WOW technology is incorporated under license from SRS Labs, Inc.
• Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
•
is a trademark of DVD Format/Logo Licensing Corporation.
2
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 3 Thursday, June 22, 2006 1:32 PM
Contents
Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Welcome to Toshiba . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features of your new TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Overview of steps for installing, setting up, and using
your new TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TV front and side panel controls and connections . . . . . . . . . 7
TV back panel connections. . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 2: Using the remote control . . . . . . . . . . . . . . . . . . . 9
Preparing the remote control for use. . . . . . . . . . . . . . . . . . . . 9
Installing the remote control batteries . . . . . . . . . . . . . . . . . . 9
Remote control effective range. . . . . . . . . . . . . . . . . . . . . . . . 9
Learning about the remote control . . . . . . . . . . . . . . . . . . . . 10
Using the remote control to control your other devices . . . . 11
Remote Control functional key chart . . . . . . . . . . . . . . . . . . 12
Programming the remote control to control your other
devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Remote control codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Chapter 3: Menu layout and navigation . . . . . . . . . . . . . . . . .16
Main menu layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setup/Installation menu layout . . . . . . . . . . . . . . . . . . . . . . . 17
THINC menu layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Navigating the menu system. . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 4: Setting up your TV. . . . . . . . . . . . . . . . . . . . . . . .18
Selecting the menu language . . . . . . . . . . . . . . . . . . . . . . . . 18
Configuring the antenna input source for the ANT
terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Programming channels into the TV’s channel memory . . . . 19
Programming channels automatically . . . . . . . . . . . . . . 19
Manually adding and deleting channels in the channel
memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Programming your favorite channels . . . . . . . . . . . . . . . . . . 20
Setting the HDMI™ audio mode . . . . . . . . . . . . . . . . . . . . . . 21
Viewing the digital signal meter . . . . . . . . . . . . . . . . . . . . . . 21
Viewing the system status. . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Chapter 5: Using the TV’s features . . . . . . . . . . . . . . . . . . . .23
Selecting the video input source to view . . . . . . . . . . . . . . . 23
Labeling the video input sources . . . . . . . . . . . . . . . . . . . . . 23
Tuning channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Tuning channels using the Channel Browser™ . . . . . . . 24
Tuning your favorite channels . . . . . . . . . . . . . . . . . . . . 26
Tuning to the next programmed channel . . . . . . . . . . . . 26
Tuning to a specific channel (programmed or
unprogrammed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Switching between two channels using Channel
Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Switching between two channels using SurfLock™ . . . . 26
Selecting the picture size . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Scrolling the TheaterWide® picture
(TheaterWide 2 and 3 only) . . . . . . . . . . . . . . . . . . . . . . 28
Using the auto aspect ratio feature . . . . . . . . . . . . . . . . . . . . 29
Selecting the cinema mode (480i signals only) . . . . . . . . . . 29
Adjusting the picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Selecting the picture mode . . . . . . . . . . . . . . . . . . . . . . . 30
Adjusting the picture quality . . . . . . . . . . . . . . . . . . . . . 30
Using the closed caption mode . . . . . . . . . . . . . . . . . . . . . . . 31
Closed Caption Advanced . . . . . . . . . . . . . . . . . . . . . . . 31
Digital closed captions . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Adjusting the audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Muting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Using the digital audio selector . . . . . . . . . . . . . . . . . . . 32
Selecting stereo/SAP broadcasts . . . . . . . . . . . . . . . . . . 33
Adjusting the audio quality . . . . . . . . . . . . . . . . . . . . . . 33
Using the StableSound® feature . . . . . . . . . . . . . . . . . . . 34
Selecting the optical audio output format . . . . . . . . . . . 34
Using the Locks menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Entering the PIN code . . . . . . . . . . . . . . . . . . . . . . . . . . 34
If you cannot remember your PIN code. . . . . . . . . . . . . 35
Changing your PIN code . . . . . . . . . . . . . . . . . . . . . . . . 35
Blocking TV programs and movies by rating
(V-Chip) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Blocking TV programs and movies
by additional ratings . . . . . . . . . . . . . . . . . . . . . . . . 36
Blocking channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Unlocking programs temporarily . . . . . . . . . . . . . . . . . . 37
Using the input lock feature . . . . . . . . . . . . . . . . . . . . . . 38
Using the control panel lock feature . . . . . . . . . . . . . . . 38
Using the PC setting feature . . . . . . . . . . . . . . . . . . . . . . . . . 39
PC Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting the sleep timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Displaying TV setting information on-screen using
RECALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Understanding the auto power off feature . . . . . . . . . . . . . . 41
Understanding the last mode memory feature . . . . . . . . . . . 41
Chapter 6: Using the TV’s advanced features . . . . . . . . . . . . . 42
Using the advanced picture settings features . . . . . . . . . . . . 42
Using dynamic contrast . . . . . . . . . . . . . . . . . . . . . . . . . 42
Using CableClear® digital noise reduction. . . . . . . . . . . 42
Using MPEG noise reduction. . . . . . . . . . . . . . . . . . . . . 42
Selecting the color temperature . . . . . . . . . . . . . . . . . . . 43
Using the Game Mode feature . . . . . . . . . . . . . . . . . . . . 43
Using the advanced audio settings features . . . . . . . . . . . . . 44
Using the SRS WOW™ surround sound feature . . . . . . 44
Chapter 7: Using the THINC™ home network feature . . . . . . . . 45
A. Connecting the TV to your home network . . . . . . . . . . . 45
B. Setting up the network address . . . . . . . . . . . . . . . . . . . . 45
Automatically setting up the network address . . . . . . . . 45
Manually setting up the network address. . . . . . . . . . . . 46
Resetting the network address . . . . . . . . . . . . . . . . . . . . 47
C. Setting up file sharing on your PC . . . . . . . . . . . . . . . . . . 47
Compatible operating systems . . . . . . . . . . . . . . . . . . . . 47
Setting up file sharing on a PC with Microsoft®
Windows® XP Service Pack 1
or Service Pack 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Setting up file sharing on a PC with Microsoft®
Windows® 2000. . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
D. Setting up file sharing on the TV. . . . . . . . . . . . . . . . . . . 49
About the Software Upgrade feature . . . . . . . . . . . . . . . 50
E. Viewing/playing shared files on the TV. . . . . . . . . . . . . . 50
Media specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Using the Picture Viewer . . . . . . . . . . . . . . . . . . . . . . . . 51
Using the Audio Player . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 8: DVD Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Playing a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Basic playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Using the DVD aspect ratio feature . . . . . . . . . . . . . . . . . . . 55
Playing in fast reverse or fast forward . . . . . . . . . . . . . . . . . 56
To pause playback (still playback) . . . . . . . . . . . . . . . . . . . 56
Playing frame by frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Playing in slow motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Locating a chapter or track . . . . . . . . . . . . . . . . . . . . . . . . . 56
Changing angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Title selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Changing soundtrack language . . . . . . . . . . . . . . . . . . . . . . 57
Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Disc status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
(continued)
3
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 4 Thursday, June 22, 2006 1:32 PM
MP3/JPEG CD operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
MP3/JPEG CD information . . . . . . . . . . . . . . . . . . . . . 58
MP3 CD playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
JPEG CD playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Chapter 9: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .60
General troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Home network troubleshooting . . . . . . . . . . . . . . . . . . . . . . 62
DVD Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
LED indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Chapter 10: Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Limited United States Warranty
for LCD TV/DVD Combinations 26” and Larger . . . . . 66
Limited Canada Warranty
for LCD TV/DVD Combination . . . . . . . . . . . . . . . . . . 67
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
4
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 5 Thursday, June 22, 2006 1:32 PM
Chapter 1: Introduction
Welcome to Toshiba
Features of your new TV
Thank you for purchasing this Toshiba LCD TV/DVD
combination, one of the most innovative LCD TVs on the
market. This digital television is capable of receiving analog
basic, digital basic, and digital premium cable television
programming by direct connection to a cable system providing
such programming. A security card provided by your cable
operator is required to view encrypted digital programming.
Certain advanced or interactive digital cable services (such as
video-on-demand, a cable operator's enhanced program guide,
and data-enhanced television services) may require the use of
a set-top box. For more information call your local cable
operator.
We have provided two separate Guides to facilitate the
installation and operation of your TV.
Please use the Guides in the order shown below to get the
most enjoyment from your new TV.
1) The Installation Guide explains how to connect your TV to
your antenna and equipment.
2) The Operating Guide (this Guide) provides step-by-step
instructions for using your TV’s many features.
The following are just a few of the many exciting features of
your new Toshiba widescreen, integrated HD, LCD TV:
• Integrated digital tuning (8VSB ATSC and QAM)
eliminates the need for a separate digital converter set-top
box (in most cases).
• HDMI™ digital, high-definition multimedia interface
(- Installation Guide).
• Two sets of ColorStream® HD high-resolution component
video inputs (- Installation Guide).
• SRS WOW™ audio technologies (- page 44).
• Digital Audio Out optical audio connection with Dolby®
Digital optical output format (- page 34; also see
Installation Guide).
• CableClear® digital picture noise reduction
(- page 42).
• PC IN (Analog RGB) computer terminal (- Installation
Guide).
• DVD video (and Video CD, Audio CD) player (- page
54).
• Ethernet (RJ-45) (THINC™) port for connecting the TV
to a home network to enable file sharing (JPEG, MP3)
(- Chapter 7 and Installation Guide).
(continued)
5
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 6 Thursday, June 22, 2006 1:32 PM
Chapter 1: Introduction
Overview of steps for installing,
setting up, and using your new TV
Follow these steps to set up your TV and begin using its many
exciting features.
1
2
Carefully read the important safety, installation, care, and
service information in the separate Installation Guide.
Keep this manual for future reference.
Observe the following when choosing a location for the
TV:
• Read the separate Installation Guide.
• Read “Important notes about your LCD TV/DVD
combination” (- page 2).
• Place the TV on the floor or a sturdy, level, stable
surface that can support the weight of the unit. Secure
the TV to a wall, pillar, or other immovable structure as
described in the Installation Guide.
• Place the TV in a location where light does not reflect
on the screen.
• Place the TV far enough from walls and other objects to
allow proper ventilation. Inadequate ventilation may
cause overheating, which will damage the TV. THIS
TYPE OF DAMAGE IS NOT COVERED UNDER
THE TOSHIBA WARRANTY.
3
Do not plug in any power cords until AFTER you have
connected all cables and devices to your TV.
4
BEFORE connecting cables or devices to the TV, learn
the functions of the TV’s connections and controls
(- pages 7–8).
5
Connect your other electronic device(s) to the TV
(- Installation Guide).
6
7
Install the batteries in the remote control (- page 9).
10 See “Menu layout and navigation” for a quick overview of
navigating the TV’s menu system (- page 16).
11 Program channels into the TV’s channel memory
(- page 19).
12 For details on using the TV’s features, see Chapters 5
and 6.
13 For details on connecting the TV to a home network to
enable file sharing, see Chapter 7.
14 For details on using the DVD's features, see Chapter 8.
15 For help, refer to the Troubleshooting Guide, Chapter 9.
16 For technical specifications and warranty information, see
Chapter 10.
17 Enjoy your new TV/DVD!
See “Learning about the remote control” (- page 10) for
an overview of the buttons on the remote control.
8
Program the remote control to operate your other
device(s) (- pages 11–15).
9
AFTER connecting all cables and devices, plug in the
power cords for your TV and other devices. The yellow
LED will blink until the TV goes into standby mode.
When the TV is in standby mode, press POWER on the
TV control panel or remote control to turn on the TV.
If the TV stops responding to the controls on the remote
control or TV control panel and you cannot turn the TV
off or on, press and hold the POWER button for 5
seconds to reset the TV.
6
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 7 Thursday, June 22, 2006 1:32 PM
Chapter 1: Introduction
TV front and side panel controls and connections
Left side panel
Right side panel
TV front
10
11
15
12
13
14
8
TV top
9
Control panel
7
6*
5
4
3
1
1
Remote sensor — Point the remote control toward this
remote sensor (- “Remote control effective range” on
page 9).
2
Blue and Yellow LEDs
Blue = Power indicator
Yellow = Disc indicator
See “LED indications” on page 64 for additional
information.
3
4
POWER — Press to turn the TV on and off.
If the TV stops responding to the controls on the remote
control or TV control panel and you cannot turn off the
TV, press and hold the POWER button on the TV control
panel for 5 or more seconds to reset the TV.
CHANNEL Bb — When no menu is on-screen, these
buttons change the channel (programmed channels only;
- page 19). When a menu is on-screen, these buttons
function as up/down menu navigation buttons.
5
VOLUME C c — When no menu is on-screen, these
buttons adjust the volume level. When a menu is onscreen, these buttons function as left/right menu
navigation buttons.
6
*MENU (ENTER) — Press to access the menu system
(- pages 16–17). When a menu is on-screen, the MENU
button on the TV’s control panel functions as the ENTER
button.
2
7
INPUT — Repeatedly press to change the source you are
viewing (ANT 1, Built-In DVD, VIDEO 1, VIDEO 2,
ColorStream HD-1, ColorStream HD-2, HDMI,
PC).
8
EXIT — Press to instantly close an on-screen menu.
9
ARROWS BbC c — When a menu is on-screen, these
buttons function as up/down/left/right menu navigation
buttons.
10 PLAY — Press to play a DVD video disc, or other
playable disc.
11 STOP — Press to stop a DVD video disc, or other
playable disc.
12 SKIP — Press to skip DVD chapter, or CD track.
13 OPEN/CLOSE — Press to eject a disc.
14 DVD disc slot — Insert a playable disc to play.
15 VIDEO-2 IN — The side panel A/V connections are
referred to as “VIDEO 2” and include standard A/V
connections.
7
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 8 Thursday, June 22, 2006 1:32 PM
Chapter 1: Introduction
TV back panel connections
For an explanation of cable types and connections, see the Installation Guide.
TV back
3
2
1
Power cord
Cable Clamper
4
5
1
6
VIDEO-1 IN — Standard (composite) video and standard
audio inputs plus optional S-video inputs for connecting
devices with composite video or S-video output.
7
ColorStream® HD-1 and ColorStream® HD-2 —
Two sets of ColorStream® high-definition component
video inputs (with standard stereo audio inputs) for
connecting devices with component video output, such as
a Toshiba DVD player with ColorStream®.
Note: Component video cables carry only video
information; separate audio cables are required for a
complete connection.
3
PC/HDMI (AUDIO) IN — PC audio input terminals are
shared with HDMI analog audio input terminals, and their
use can be configured in the Setup menu (- page 39).
4
A/V OUT — Standard composite video and analog audio
outputs for connecting a VCR for editing and dubbing.
5
PC IN — For use when connecting a personal computer.
6
ANT — Antenna input that supports analog (NTSC) and
digital (ATSC) off-air antenna signals and analog and
digital Cable TV (QAM) signals.
7
HDMI™ IN — High-Definition Multimedia Interface
input receives digital audio and uncompressed digital
9
video from an HDMI device or uncompressed digital
video from a DVI device. Also see item 3.
8
Digital Audio OUT — Optical audio output in Dolby
Digital or PCM (pulse-code modulation) format for
connecting an external Dolby Digital decoder, amplifier,
A/V receiver, or home theater system with optical audio
input.
9
RJ-45 (Ethernet) (THINC™ system*) — Allows you
to connect the TV to your home network. See boxed note
below.
Note: Standard (composite) video and S-video cables
carry only video information; separate audio cables are
required for a complete connection.
2
8
*THINC™ system
(Toshiba Home Interactive Network Connection)
The RJ-45 (Ethernet) port allows your Toshiba TV to
connect to your home network. This revolutionary home
entertainment networking system lets you access MP3
audio files and JPEG picture files that are stored on a
networked PC (as shared files) and play/display them on
your TV.
You also can play your shared MP3 audio files through a
connected audio system.
See Installation Guide and Chapter 7 for details.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.
8
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 9 Thursday, June 22, 2006 1:32 PM
Chapter 2: Using the remote control
Preparing the remote control
for use
• Always remove batteries from the remote control if they are
dead or if the remote control is not to be used for an
extended period of time. This will prevent battery acid from
leaking into the battery compartment.
Your TV remote control can operate your TV and many other
devices such as cable converter boxes, satellite receivers,
VCRs, DVD players, and HTIBs (home theater in a box), even
if they are different brands.
Remote control effective range
If you have a Toshiba device:
For optimum performance, aim the remote control directly at
the TV and make sure there is no obstruction between the
remote control and the TV.
Your TV remote control is preprogrammed to operate most
Toshiba devices (- page 13).
If you have a non-Toshiba device or a Toshiba device
that the remote control is not preprogrammed to
operate:
Point remote control
toward remote sensor
on front of TV.
You can program the TV remote control so it will operate the
other device (- pages 11–15).
Installing the remote control
batteries
16.4 ft (5m)
1
Remove the battery cover from the back of the remote
control.
Squeeze tab
and lift cover.
2
Install two “AAA” size batteries, making sure to match
the + and – signs on the batteries to the signs on the battery
compartment.
3
Reinsert the battery cover in the remote control until the
tab snaps.
Caution: Never throw batteries into a fire.
Note:
• Be sure to use AAA size batteries.
• Dispose of batteries in a designated disposal area.
• Batteries should always be disposed of with the
environment in mind. Always dispose of batteries in
accordance with applicable laws and regulations.
• If the remote control does not operate correctly, or if the
operating range becomes reduced, replace batteries with
new ones.
• When necessary to replace batteries in the remote control,
always replace both batteries with new ones. Never mix
battery types or use new and used batteries in combination.
9
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 10 Thursday, June 22, 2006 1:32 PM
Chapter 2: Using the remote control
Learning about the remote control
The buttons used for operating the TV only are described here.
For a complete list of the remote control’s functions, see the
remote control functional key chart (- page 12).
1
POWER turns the TV on and off. When the TV is on, the
blue LED indicator on the TV front will be illuminated.
2
FREEZE freezes the picture. Press again to restore the
moving picture.
3
SLEEP accesses the sleep timer (- page 40).
4
PIC SIZE cycles through the five pictures sizes: Natural,
TheaterWide 1/2/3, and Full (- page 27).
5
Channel Numbers (0–9, –/100) directly tune
channels. The = button is used to tune digital channels
(- page 26) or to display the favorite channel list
(- page 20).
6
INPUT selects the video input source (- page 23).
7
CH Bb cycles through programmed channels when no
menu is on-screen (- page 19), and functions as page up/
down when a menu is on-screen.
8
VOL + – adjusts the volume level.
9
THINC accesses the THINC menu (- page 17).
10 RECALL displays TV setting information on-screen
(- page 40).
11 CH RTN returns to the last viewed channel (- page 26),
or stops the Picture Viewer slide show (- page 52). Also
can be used to go between the song select and file select
view in the Audio Player (- page 53).
12 MUTE reduces or turns off the sound (- page 32).
13 3 C / # c While watching TV, these buttons open the
Channel Browser™ banner and tune to the previous/next
channel in the channel history (- page 25). (Also see
“Arrow buttons.”)
14 Arrow buttons (BbC c) When a menu is on-screen,
these buttons select or adjust programming menus. (Also
see 3 C / # c.)
15 FAV Bb tunes to the next higher/lower favorite channel
(- page 21).
16 ENTER activates highlighted items in the main menu
system.
17 MENU accesses the main TV menu system (- pages 16
and 17).
18 EXIT closes on-screen menus.
19 HOME (~) accesses the Home function of the Channel
Browser™ feature (- page 26).
20 MODE SELECT switch switches between TV/DVD,
CABLE/SAT, VCR, and AUX modes (- page 11). Set to
“TV/DVD” to control the TV.
Note: The error message “NOT AVAILABLE” may appear if
you press a key for a function that is not available.
You can also control the built-in DVD when the MODE
SELECT switch on the remote control is in TV/DVD
mode. For DVD operation the following buttons are used:
TOP MENU, DVD RTN, SET UP, DVD CLEAR,
PAUSE, PLAY, STOP, SKIP, REW, FF, SEARCH,
REC, SLOW, ANGLE, SUB TITLE, AUDIO, and
EJECT (- Chapter 8).
10
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 11 Thursday, June 22, 2006 1:32 PM
Chapter 2: Using the remote control
Using the remote control to control
your other devices
If you have a non-Toshiba device or a Toshiba device that the
remote control is not preprogrammed to operate, you must first
program the remote control to recognize the device (if you
have not already done so) (- pages 13–15).
1
POWER Turns the selected device on and off.
2
Channel Numbers (0-9) Press to directly access
channels (as opposed to < ,).
3
+10 Press to directly access DVD chapters higher than 10.
4
TOP MENU Accesses a DVD’s top menu.
5
CH Bb For channels programmed into the channel
memory (- page 26):
B selects the next higher channel.
b selects the next lower channel.
6
GUIDE Displays the channel guide in the CABLE/SAT
mode.
SET UP Accesses a DVD’s setup menu in the AUX
mode.
7
INFO Displays TV status information on-screen.
8
BbC c Press to navigate DVD menus (may not work on
some DVD players).
9
ENTER Required by some satellite receivers and DVD
players to activate certain functions.
To use your TV remote control to operate a:
• Cable converter box or satellite receiver, set the MODE
SELECT switch to CABLE/SAT.
• VCR, set the MODE SELECT switch to VCR.
• DVD player or HTIB, set the MODE SELECT switch to
AUX.
Note: Even after the TV remote control is programmed, it may
not operate certain features on your other device. If this
happens and you wish to use those features, you will need to
use the device’s original remote control.
Point the remote control
directly at the device.
10 DVD CLEAR Press to reset the title and chapter number.
11 PLAY Begins playback of a tape or DVD.
12 PAUSE Press during play or record mode to pause the
picture; press again to restart.
13 STOP Stops the tape or DVD.
14 SKIP z Skips forward to locate later DVD chapters.
15 FF Fast-forwards the tape or DVD. (Press during play
mode to view the picture moving rapidly forward.)
16 SKIP Z Skips back to beginning of current DVD
chapter, or locates previous chapters.
17 REW Rewinds/reverses the tape or DVD. (Press during
play mode to view the picture moving rapidly backward.)
18 TV/VCR To view one program while recording another,
press to select TV mode.
16
17
18
19
19 REC Starts tape recording.
20 SLOW X Slow-forwards the DVD.
21 SLOW x Slow-reverses the DVD.
22 MODE SELECT switch Set to “TV/DVD” to control
the TV; “CABLE/SAT” to control a cable converter box
or satellite receiver; “VCR” to control a VCR; “AUX” to
control a DVD player or HTIB.
11
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 12 Thursday, June 22, 2006 1:32 PM
Chapter 2: Using the remote control
Remote Control functional key chart
Note:
• “---” = key does not send a signal in that remote control mode.
• sTV = key will affect the TV, even when the remote control is not in the “TV/DVD” device mode.
REMOTE CONTROL KEY
POWER
SLEEP
PIC SIZE
FREEZE
1-9
0
100/–/+10
INPUT
THINC/TOP MENU
MUTE
SET UP/GUIDE
VOL + –
CHBb
RECALL
CH RTN/DVD RTN
INFO
ENTER
Bb/FAVBb
C3
c#
MENU
EXIT/DVD CLEAR
PAUSE/STEP
PLAY
STOP
SKIP Z
SKIP z
REW
FF
HOME/
TV/VCR/
SEARCH
REC
SLOW –
SLOW +
ANGLE
SUB TITLE
AUDIO
EJECT
Toshiba TV/
Built-in DVD
Power
Sleep timer
Picture size
Freeze picture
Digit 1-9
Digit 0
– (Digital separator)
TV/Video select
THINC Menu
DVD TOP Menu
Sound mute
DVD setup
Volume up/down
Channel
up/down
RECALL
Previous channel
DVD previous menu
--Enter
Menu select/
FAV up/down
Menu select/
Channel Browser™
Menu select/
Channel Browser™
Menu
Exit
DVD clear
Pause
Play
Stop
Skip REV
Skip FWD
Rewind
Fast FWD
CABLE
SAT (satellite)
VCR
AUX
Power
s TV
s TV
s TV
Digit 1-9
Digit 0
--s TV
Power
s TV
s TV
s TV
Digit 1-9
Digit 0
– (sub CH)
s TV
Power
s TV
s TV
s TV
Digit 1-9
Digit 0
100
s TV
Power
s TV
s TV
s TV
Digit 1-9
Digit 0
– (Digital separator)
s TV
s TV
s TV
s TV
Top Menu
s TV
--s TV
Channel
up/down
s TV
s TV
SAT Guide
s TV
Channel
up/down
s TV
s TV
--s TV
Channel
up/down
s TV
s TV
DVD Setup
s TV
---
---
---
---
-----
-----
Display
Enter
---
Info
Select Enter
Menu
up/down
---
Menu up/down
---
Menu left
---
Menu left
---
Menu right
---
Menu right
---
Menu
---
DVD Menu
---
Exit
---
DVD Clear
---------------
---------------
Pause
Play
Stop
----Rewind
Fast FWD
Pause
Play
Stop
Skip REV
Skip FWD
Rewind
Fast FWD
Channel Browser™ Home/
DVD search
---
---
TV/VCR
DVD search
--SLOW REW
SLOW FWD
Angle
Sub title
Audio
Eject
---------------
---------------
Record (2 click)
-------------
------Angle
Sub title
Audio
Eject
--s TV
12
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 13 Thursday, June 22, 2006 1:32 PM
Chapter 2: Using the remote control
Programming the remote control
to control your other devices
Your Toshiba TV remote control is preprogrammed to operate
most Toshiba devices. To program your TV remote control to
operate a non-Toshiba device (or a Toshiba device that it is not
preprogrammed to operate), follow the steps below. For details
on using the remote control to operate the device, see page 11.
1
In the remote control code table (- page 14), find the
code for your device. If more than one code is listed, try
each one separately until you find one that works.
2
Set the MODE SELECT switch to the type of device
you are programming the remote control to operate —
CABLE/SAT (for a cable converter box or satellite
receiver), VCR (for a VCR or TV/VCR combo), or AUX
(for a DVD player or HTIB [home theater in a box]).
3
While holding down E, press the Channel Number
buttons to enter the 3-digit code for your device.
4
To test the code, turn on the device, point the remote
control at it, and press p. See notes below.
• If the correct code was entered, the device will turn off.
• If the device does not respond, repeat steps 1–4 using
another code.
• If the device does not respond to another code, you will
need to use the remote control that came with the
device.
5
Remember to set the MODE SELECT switch back to
“TV” to control the TV.
6
For future reference, write down the code(s) you used:
DEVICE
CODE
DEVICE
CODE
Note:
• In addition to POWER, confirm that all necessary keys on the
TV remote control operate your device. If some keys are not
operational, repeat the device code setup using another
code (if other codes are listed for your device). If, after trying
all listed codes, the necessary keys do not operate your
device, use the device’s original remote control.
• Every time you change the batteries, you will need to
reprogram the remote control.
• Some newer VCRs respond to either of two codes. These
VCRs have a switch labeled “VCR1/VCR2.” If your VCR has
this kind of switch and does not respond to the codes for
your VCR brand, set the switch to the other position (“VCR1”
or “VCR2”) and reprogram the remote control.
13
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 14 Thursday, June 22, 2006 1:32 PM
Chapter 2: Using the remote control
Remote control codes
In some cases you may not be able to
operate your device with the TV
remote control. Your other device may
use a code that is not recognized by the
TV remote control. If this happens, use
the device’s remote control.
Cable converter box
ABC
Archer
Cableview
Century
Citizen
Contec
Diamond
Eagle
GE
Gemini
Hamlin
Hitachi
Jasco
Magnavox
Memorex
Motorola/GI/Jerrold
Multi Canal
Novavision
Panasonic
Philco
Philips
Pioneer
Proscan
Radio Shack
RCA
Realistic
Recoton
Samsung
Scientific Atlanta
Sears
Signature
Signature 2000
Sprucer
Starcom
Stargate
Sylvania
TeleView
Texscan
Tocom
U. S. Electronics
United Cable
Universal
Wards
061, 062, 063, 082,
084, 087, 091, 092,
096, 098
065, 092, 097, 099
064, 094
092
090, 092, 097
083, 085, 086, 088,
093, 098
093
091
061, 062
069, 070, 094
093
062, 095, 096
097
072, 096
091, 092, 104
062, 069, 071, 082,
086, 089, 091, 096
090
101
081, 083, 085
087
066, 067, 068, 070,
072, 073, 074, 075,
091, 092
076, 077
061, 062
092, 097, 099
064, 081
065
102
077, 090
063, 078, 079, 080,
088, 098, 101, 105
095
062
096
081, 085
069, 082, 087, 096,
103, 104
069, 090
095, 100
090
100
071, 084, 085
087, 096, 098
082
065, 092, 097, 099,
102, 103
096
Echostar
Express Vu
Fujitsu
GE
General Instruments
Hitachi
Hughes
Hughes Network
Systems
Intersat
Janeil
JVC
Kenwood
Magnavox
Optimus
Pansat
Primestar
Proscan
Radio Shack
RCA
Realistic
Samsung
Sony
Star Choice
Star Trak
STS
Toshiba
Uniden
Zenith
020, 040, 044, 046,
050, 053
018, 041, 051
057
027
008, 009, 013
010, 011, 012, 022,
023, 031, 049
033
033
019
048
027
017, 057
029
060
058
036, 052
015, 042
008, 009, 013
022, 023, 030
008, 009, 013, 016
030
059
014, 055
057
025, 026, 037, 054
024
000, 001, 002, 003,
004, 005, 006, 007,
020, 031, 056
021, 028, 030, 032,
035, 039, 043, 045,
047, 058
027
TV/VCR Combo
Action
GE
Goldstar
Panasonic
Precision
Quasar
Realistic
Sony
Toshiba
Totevision
Zenith
078
059, 062
065
065
078
065
079
074
057
009, 010, 065
065
DVD/VCR Combo
Go Video
JVC
RCA
Samsung
Sanyo
Zenith
DVD=087,
VCR=081
DVD=088,
VCR=082
DVD=089,
VCR=083
DVD=090,
VCR=084
DVD=091,
VCR=085
DVD=092,
VCR=086
DVD player
Satellite receiver
Alphastar
Chaparral
DISH Network
Drake
038, 059
034
057
Aiwa
Apex
BOSE
Broksonic
006, 015
016, 017
097
018
Clarion
Classic
Daewoo
Denon
Emerson
Fisher
Funai
GE
Go Video
GPX
Hitachi
JVC
Kenwood
Konka
Magnavox
Memorex
Mintek
NAD
Nakamichi
Norcent
Onkyo
Oritron
Panasonic
Philips
Pioneer
Proscan
Qwestar
RCA
Sampo
Samsung
Sansui
Sanyo
Sharp
Sherwood
Sony
Sylvania
Teac
Technics
Techwood
Toshiba
Yamaha
Zenith
019
020
021
022, 023, 024, 025
026, 027
028
027
001, 029, 030
087
031
005, 032, 033, 034,
035
003, 007, 036, 042,
088
037
008, 009
004, 038
039
040
026
041
043
044
058
010, 045, 046, 047,
048, 049, 050
004, 051
052, 053, 054, 055
001, 056
057, 058
001, 002, 059, 089
060
061, 062, 086, 090
073
063, 091
064, 067
074
011, 012, 065, 066,
068, 069, 070
027
071
072
075
000, 013, 076, 077,
078
079, 080, 081
014, 082, 092
Portable DVD player
Aiwa
Audiovox
Panasonic
RCA
093
094, 095
024, 096, 099
098
VCR
Admiral
Aiko
Aiwa
Akai
Audiovox
Bell & Howell
Broksonic
Calix
Carver
CCE
Citizen
Colortyme
049
019
018
003, 004, 037, 038,
039, 058, 069
010
007, 068
008, 017
010
026
019
009, 010, 011, 012,
013, 014, 015, 019,
057, 073
005
14
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 15 Thursday, June 22, 2006 1:32 PM
Chapter 2: Using the remote control
Craig
Curtis Mathes
Daewoo
Daytron
Denon
Dimensia
Electrohome
Emerson
Fisher
Fuji
Funai
Garrard
GE
Go Video
Goldstar
Gradiente
Harman Kardon
Hitachi
JBL
JC Penney
Jensen
JVC
Kenwood
Kodak
LG
Lloyds
Logik
LXI
Magnasonic
Magnavox
Marantz
Memorex
MGA
MGN
Minolta
Mitsubishi
Montgomery Ward
Motorola
MTC
Multitech
NEC
Nikko
Noblex
Optimus
Optonica
009, 010, 016, 061,
065, 079
001, 005, 009, 012,
014, 040, 048, 053,
056, 057
011, 013, 015, 017,
018, 019, 057, 078
078
063
001, 048
010, 020, 065
003, 008, 010, 011,
017, 018, 020, 028,
039, 054, 057, 062,
065, 068, 072
007, 016, 021, 022,
023, 057, 064, 068,
070, 071, 079
004, 041
018, 073
018
001, 002, 009, 040,
042, 048, 056
056, 059, 061, 081
005, 010, 014, 054,
056, 065, 067
018, 065
005
024, 025, 035, 037,
042, 063, 070, 080
076
005, 006, 007, 008,
009, 010, 023, 024,
025, 026, 035, 056,
061, 063, 065
024, 025, 037
005, 006, 007, 014,
037, 043, 062, 063,
068, 082
005, 006, 007, 012,
014, 037, 043, 053,
068, 071
010
010
053, 073, 079
061
010
061, 065, 078
026, 027, 034, 044,
057, 061, 072
005, 006, 007, 012,
014, 026, 053, 067
007, 009, 010, 016,
018, 034, 049, 063,
065, 066, 068, 075,
079
020, 028, 039
056
024, 025, 035, 063
020, 024, 025, 028,
039, 043, 065
049
049
009, 046, 061
009, 012, 018
005, 006, 007, 012,
014, 037, 043, 053,
054, 067, 070
010
009
010, 049, 065
031
Orion
Panasonic
Pentax
Pentex Research
Philco
Philips
Pioneer
Portland
Proscan
Proton
Quasar
Radio Shack
Radio Shack/Realistic
Radix
RCA
Realistic
Ricoh
Runco
Samsung
Sansui
Sanyo
Scott
Sears
Sharp
Shintom
Signature
Signature 2000
Singer
Sony
STS
Sylvania
Symphonic
Tandy
Tashiko
Tatung
Teac
Technics
Teknika
Toshiba
Totevision
Unitec
Unitech
Vector Research
054, 057, 062, 065,
068, 072
036, 045, 046, 057,
061, 072, 079
012, 024, 025, 035,
042, 053, 063
014
026, 027, 063
026, 031, 044, 057
006, 024, 043, 055
012, 013, 015
001, 002, 048
061
045
010, 031, 065
007, 009, 010, 016,
018, 020, 021, 022,
031, 049
010
001, 002, 003, 009,
024, 025, 029, 035,
040, 042, 045, 048,
055, 056, 063, 071,
083
007, 009, 010, 011,
016, 018, 020, 021,
022, 031, 049, 051,
056, 060, 065, 075,
079
047
034
009, 011, 038, 056,
073, 084
006, 037, 043, 061
007, 009, 016, 054,
064, 068, 071, 075,
079, 085
008, 011, 017, 028,
030, 057, 065, 072
007, 010, 016, 021,
022, 023, 024, 025,
035, 053, 057, 063,
064, 065, 068, 071,
075, 079
013, 020, 031, 049,
051, 060, 066
004, 025, 032, 061
049
075
047, 061
004, 032, 033, 041,
052, 058, 070, 074,
076, 077, 080
035
018, 026, 027, 028,
044, 072
018, 051, 053, 073,
079
007
010
037
018, 029, 037
036
010, 018, 065
000, 011, 021, 023,
024, 028, 030, 039,
057, 074, 078, 079
009, 010, 065
073
009
005, 006, 011, 012,
053
Video Concepts
Wards
White Westinghouse
XR-1000
Yamaha
Zenith
005, 006, 011, 012,
039, 053
009, 010, 011, 016,
018, 020, 024, 025,
031, 035, 049, 051,
056, 057, 060, 065,
066, 079
073
018
005, 006, 007, 014,
037, 053
004, 032, 034, 041,
047, 069, 086
HTIB
Lasonic
Panasonic
Venturer
083
084
085
15
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 16 Thursday, June 22, 2006 1:32 PM
Chapter 3: Menu layout and navigation
Main menu layout
The tables below and on the next page provide a quick overview of your TV’s menu system.
To open the main menus (illustrated below), press Y on the remote control or TV control panel.
Icon
Applications
Item
Picture Viewer
Audio Player
Channel Browser
Picture Settings
Advanced Picture Settings
Option
S [Launches the JPEG Picture Viewer]
S [Launches the MP3 Audio Player]
S [Launches the Channel Browser™]
S [Launches the ATSC Digital CC Selector]
(This option is not available if you are not on a digital channel.)
S [Opens Picture Settings menu]
S [Opens Advanced Picture Settings menu]
Theater Settings
S [Opens Theater Settings menu]
Audio Settings
Advanced Audio Settings
S [Opens Audio Settings menu]
S [Opens Advanced Audio Settings menu]
Audio Setup
S [Opens Audio Setup menu]
Favorite Channels
Closed Caption Mode
Closed Caption Advanced
Input Labeling
Menu Language
Channel Browser Setup
Enable Rating Blocking
Edit Rating Limits
Channels Block
Input Lock
Front Panel Lock
New PIN Code
Installation
Sleep Timer
PC Settings
PC Audio
HDMI Audio
Slide Show Interval
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
Digital CC/Audio Selector
Video
Audio
Preferences
Locks
Setup
[Opens Favorite Channels menu]
Off/CC1/CC2/CC3/CC4/T1/T2/T3/T4
[Opens Closed Caption Advanced menu]
[Opens Input Labeling menu]
English / Français / Español
[Opens Channel Browser Setup menu]
Off/On
[Opens Edit Rating Limits menu]
[Opens Channels Block menu]
Off/Video/Video+
Off/On
[Opens New PIN Code entry screen]
[Opens the Installation menu (- page 17)]
[Opens Sleep Timer menu]
[Opens PC Settings menu]
No/Yes
Auto/Digital/Analog
2 Sec/5 Sec/10 Sec/15 Sec/20 Sec
16
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 17 Thursday, June 22, 2006 1:32 PM
Chapter 3: Menu layout and navigation
Setup/Installation menu layout
The Installation menu contains the Terrestrial, Network, and System Status menus.
To open the Installation menu (illustrated below), press Y on the remote control or TV control panel, open the Setup menu,
select Installation, and press T.
Icon
Press Y,
Terrestrial
open the
Setup menu,
and then
open the
Installation Network
sub-menu.
Item
Input Configuration
Channel Program
Channel Add/Delete
Signal Meter
Basic Network Setup
Home File Server Setup
Option
S [Opens Input Configuration menu]
S [Scans for new channels on ANT 1]
S [Opens Channel Add/Delete menu]
S [Opens Signal Meter menu]
S [Opens Basic Network Setup menu]
S [Opens Home File Server Setup menu]
Software Upgrade
System Status
System Information
THINC menu layout
The THINC menu will not be part of the main menu, but will
be viewable by pressing C on the remote control. It will
contain a list of special features offered by the TV; Picture
Viewer, Audio Player, and Channel Browser.
S [Opens the System Information window]
• To close a menu instantly, press O.
Note: The menu background may sometimes appear black,
depending on the signal the TV is receiving. This is not a sign
of malfunction.
Applications
Picture Viewer
THINC Applications
Picture Viewer
Audio Player
Audio Player
Channel Browser
Digital CC/Audio Selector
Channel Browser
Navigate ENTER Select
CH RTN Back
EXIT Exit
Navigating the menu system
You can use the buttons on the remote control or TV control
panel to access and navigate your TV’s on-screen menu
system.
• Press Y to open the menu system.
• When a menu is open, use the up/down/left/right arrow
buttons (BbC c) on the remote control or TV control panel
to move in the corresponding direction in the menu.
• Press T to save your menu settings or select a highlighted
item. (A highlighted menu item appears in a different color
in the menu.)
• All menus close automatically if you do not make a selection
within 60 seconds, except the signal meter menu, which
closes automatically after about 5 minutes.
17
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 18 Thursday, June 22, 2006 1:32 PM
Chapter 4: Setting up your TV
Selecting the menu language
You can choose from three different languages (English,
French and Spanish) for the on-screen display of menus and
messages.
To select the menu language:
1
2
3
Press Y and open the Preferences menu.
Configuring the antenna input
source for the ANT terminal
To configure the ANT input source:
1
2
Press Y and open the Setup menu.
Highlight Installation and press T.
Highlight Menu Language and press c.
Press B or b to select your preferred menu language and
press T.
Setup
Installation
Sleep Timer
PC Settings
No
PC Audio
HDMI Audio
Slide Show Interval
Preferences
Closed Caption Mode
Off
Closed Caption Advanced
Français
Navigate ENTER Select
Español
Input Labeling
3
English
Channel Browser Setup
Navigate ENTER Select
4
2 Sec
English
Favorite Channels
Menu Language
Auto
CH RTN Back
EXIT Exit
CH RTN Back
EXIT Exit
(A new set of Installation menu icons will appear onscreen, as shown below.) Open the Terrestrial menu,
highlight Input Configuration, and press T.
Press O to close the Preferences menu.
Terrestrial
Input Configuration
Channel Program
Channel Add/Delete
Signal Meter
Navigate ENTER Select
4
CH RTN Back
EXIT Exit
Press C or c to select the input source (Cable or
Antenna) for the ANT input on the TV.
Input Configuration
Antenna 1 In
Cable
Cancel
5
Done
To save your new settings, highlight Done and press T.
To revert to your original settings, highlight Cancel and
press T.
18
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 19 Thursday, June 22, 2006 1:32 PM
Chapter 4: Setting up your TV
Programming channels into the
TV’s channel memory
4
When you press < or , on the remote control or TV control
panel, your TV will stop only on the channels you programmed
into the TV’s channel memory.
Follow the steps below to program channels into the TV’s
channel memory.
Programming channels automatically
Your TV can automatically detect all active channels in your
area and store them in its memory. After the channels are
programmed automatically, you can manually add or erase
individual channels in the channel memory.
Note:
• You must configure the antenna input source before
programming channels (- page 18).
• If the Antenna 1 input signal type is set to Cable, the
automatic channel programming process erases channels
that were previously programmed into the TV’s memory.
• If the Antenna 1 input signal type is set to Antenna, the
automatic channel programming process adds newly found
channels to the existing set of programmed channels (and
does NOT erase channels that were previously
programmed into the TV’s memory.) To remove an Antenna
source channel from the memory, you must manually delete
it.
• To tune the TV to a channel not programmed in the channel
memory, you must use the Channel Number buttons on the
remote control.
• Programming channels when the antenna input is
configured for Cable will take substantially longer than when
the antenna input is configured for Antenna. This is normal;
however, once channel programming is finished, you should
not have to repeat the programming process again unless
your Cable TV service lineup changes significantly.
To program channels automatically:
1
Make sure you have configured the antenna input source
(- page 18).
2
3
Press Y and open the Setup menu.
Highlight Installation and press T.
(A new set of Installation menu icons will appear onscreen, as shown below.) Open the Terrestrial menu,
highlight Channel Program, and press T.
Terrestrial
Input Configuration
Channel Program
Channel Add/Delete
Signal Meter
Navigate ENTER Select
5
CH RTN Back
EXIT Exit
Highlight ANT 1 and then press T to start automatic
channel programming.
ANT 1
Antenna
Scanning channels, please wait ...
52%
Abort
The TV will automatically cycle through all the antenna
channels, and store all active channels in the channel
memory. While the TV is cycling through the channels,
the message “Scanning channels, please wait” appears (as
shown above).
6
To cancel channel programming, either press O or
highlight Abort in the on-screen display and press T.
When channel programming is finished, press < or , to
view the programmed channels.
Manually adding and deleting channels
in the channel memory
After automatically programming channels into the channel
memory, you can manually add or delete individual channels.
To add or delete channels in the channel memory:
1
2
3
Press Y and open the Setup menu.
Highlight Installation and press T.
(A new set of Installation menu icons will appear onscreen, as shown below) Open the Terrestrial menu,
highlight Channel Add/Delete, and then press T.
Terrestrial
Input Configuration
Channel Program
Channel Add/Delete
Signal Meter
Setup
Installation
Sleep Timer
PC Settings
Slide Show Interval
Navigate ENTER Select
No
PC Audio
HDMI Audio
CH RTN Back
EXIT Exit
Auto
2 Sec
Navigate ENTER Select
CH RTN Back
EXIT Exit
19
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 20 Thursday, June 22, 2006 1:32 PM
Chapter 4: Setting up your TV
To add a channel to the channel memory:
Highlight the unchecked box next to the channel number you
want to add, and then press T to check the box.
To manually add digital subchannels on a physical
channel:
Use the Channel Numbers and the Dash (=) on the remote
control to enter the channel number (for example, 56–1).
If the channel is found, the number will be added to the list and
the box will be checked.
If the channel is not found, a message will appear.
To remove a channel from the channel memory:
Highlight the checked box next to the channel number you
want to remove, and then press T to uncheck the box.
Programming your favorite
channels
You can program up to nine antenna channels as favorite
channels. You can then scan through your favorite channels
only, skipping other channels you do not normally watch.
To add and delete channels in the Favorite
Channels list:
1
2
Press Y and open the Preferences menu.
3
Use Bb to select ANT 1 and press T (see illustration,
below right).
4
Highlight Edit and press T.
To save your new settings:
Highlight Done and press T.
Highlight Favorite Channels and press T (see
illustration, below left).
To revert to your original settings:
Highlight Cancel and press T before saving.
Favorite Channels
Preferences
ANT 1
Favorite Channels
ANT 1
Closed Caption Mode
Off
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Empty
Closed Caption Advanced
To remove all channels from the channel memory:
Input Labeling
Menu Language
Highlight Reset and press T, and then highlight Done and
press T.
English
Channel Browser Setup
Edit
Done
Navigate ENTER Select
CH RTN Back
EXIT Exit
5a To add a channel:
Channel Add/Delete
2
Analog
2-1
Digital
2-2
Digital
3
Analog
4
Analog
ANT 1
5
Digital
6
Analog
7
Analog
Reset
7-1
Digital
Cancel
8
Analog
Done
Use Bb to highlight an unchecked box next to a channel
you want to set as a favorite, and then press T to check
the box.
Note: You must first use Channel Program or Channel
Add/Delete to add channels to the channel memory
before setting up favorite channels.
5b To delete a channel:
Highlight a checked box and press T to uncheck it.
Edit Favorite Channels
ANT 1
2
3
4
Only 9 favorite channels are allowed,
please deselect other channels first.
OK
9
Reset
10
Cancel
11
Done
Note: If you try to add more than nine favorite channels
per input, an error message will appear. You will need to
delete (uncheck) a channel before you can add another.
6
When you are finished adding or deleting channels,
highlight Done and press T.
20
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 21 Thursday, June 22, 2006 1:32 PM
Chapter 4: Setting up your TV
To clear your Favorite Channels list:
1
2
3
4
Press Y and open the Preferences menu.
5
Highlight Done and press T.
Highlight Favorite Channels and press T.
Highlight Edit and press T.
Highlight Reset and press T. All channels in the
Favorite Channels list will be deleted (unchecked).
Edit Favorite Channels
Setting the HDMI™ audio mode
To set the HDMI audio mode:
1
2
3
ANT 1
2
2-1
Press Y and open the Setup menu.
Highlight HDMI Audio and press c.
Press b or B to select the HDMI audio mode (Auto,
Digital, or Analog) and press T. (Auto is the
recommended mode.) See “Connecting an HDMI or DVI
device to the HDMI input” in the Installation Guide.
2-2
4-1
5
17 - 1
Setup
17 - 2
28 - 1
Reset
Installation
Auto
28 - 2
Cancel
Sleep Timer
Digital
28 - 3
Done
PC Settings
Analog
No
PC Audio
HDMI Audio
To tune your favorite channels (antenna channels
only):
Slide Show Interval
2 Sec
Navigate ENTER Select
Press M / m.
To tune your favorite antenna channels using the
favorite channel list:
1
2
Auto
CH RTN Back
EXIT Exit
Note: The PC Audio switch setting influences the HDMI Audio
setting. If PC Audio is set to No, the HDMI Audio setting
changes to Auto. If PC Audio is set to Yes, the HDMI Audio
setting changes to Digital and will be grayed out.
Press = to display the favorite channel list.
Press the corresponding number button (1-9) to select
your desired channel.
1
2
3
4
5
6
CH
CH
CH
CH
CH
CH
7 CH
8 --9 ---
4-1
4-2
9
10
12
17
19
Viewing the digital signal meter
You can view the digital signal meter in the ANT 1 digital TV
input source only.
To view the digital signal meter:
1
2
3
Press Y and open the Setup menu.
Highlight Installation and press T.
A new set of Installation menu icons will appear onscreen, as shown in step 3 below.
Open the Terrestrial menu, highlight Signal Meter,
and press T.
Terrestrial
Input Configuration
Channel Program
Channel Add/Delete
Signal Meter
Navigate ENTER Select
CH RTN Back
EXIT Exit
(continued)
21
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 22 Thursday, June 22, 2006 1:32 PM
Chapter 4: Setting up your TV
4
Press BbC c to select the antenna input and digital
channel whose signal you want to check.
Note: The physical digital channel number listed in the
Signal Meter screen may not correspond to a virtual TV
channel number. Contact your local broadcasters to
obtain the RF channel numbers for your local digital
stations.
Signal Meter
Signal Locked
0
Antenna
Peak
0
To return to normal viewing:
Press O.
Reset Factory Defaults
To reset all settings and channels to their factory
default values:
1
2
Follow steps 1–3 under “Viewing the system status.”
3
4
Enter your PIN code (or 0000 if no PIN code has been set).
1
Physical Digital Channel
4
Virtual Digital Channel
4/1
Done
To close the screen and return to the Terrestrial
menu:
Highlight Done and press T.
Press C c to scroll through the menu bar to select
Factory Defaults.
Highlight Yes and press T. The TV will turn off
automatically after a few seconds. After the TV turns off,
unplug the TV power cord and then plug it in again to
complete the reset process.
System Information
To return to normal viewing:
Press O.
Press YES to confirm. After the TV
turns off, unplug it and plug it back
in to complete the reset.
No
Viewing the system status
Yes
To cancel the reset:
Highlight No and press T.
To view the system status:
1
2
Press Y and open the Setup menu.
3
Open the System Status menu, highlight System
Information, and press T.
Highlight Installation and press T. A new set of
Installation menu icons will appear on-screen, as shown
below right.
System Status
Setup
System Infomation
Installation
Sleep Timer
PC Settings
PC Audio
No
HDMI Audio
Auto
Slide Show Interval
2 Sec
Navigate ENTER Select
4
CH RTN Back
EXIT Exit
Navigate ENTER Select
CH RTN Back
EXIT Exit
Press C c to scroll through the menu bar to select either
the Product Information or Software Version and
view the related information.
System Information
System Information
Product Information
Brand: Toshiba
Model: 32HLV66
Done
Software Version
2.1.41.0
Apr 13 2006 - 11:24:47
FW: 33
Done
To close the screen and return to the Installation
menu:
Highlight Done and press T.
22
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 23 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Selecting the video input source
to view
To select the video input source to view:
1
Press + on the remote control or INPUT on the TV
control panel.
2
To select the input: Press 0–7 to select the input source
you want to view:
a) You can select the video input which will depend on the
input terminals you used to connect your devices
(- Installation Guide).
The current signal source displays in the top right
corner of the Input Selection screen.
Input Selection
0
1
2
3
4
5
6
7
ANT 1
ANT 1
Built-In DVD
Video 1
Video 2
ColorStream HD1
ColorStream HD2
HDMI
Labeling the video input sources
You can label each video input source according to the type of
device you connected to each source, from the following preset
list of labels:
• – – (default label)
• Cable
• DTV
• Satellite/DSS
• VCR
• Laser Disk
• DVD
• HD DVD
• Audio Receiver
• Compact Disc
• Video Recorder
• Game Console
• Hide (to hide an unused input in the Input Selection screen)
Note: If you select PC in the Input Selection screen, you can
choose only “– –,” “Hide,” or “Game Console” as the label.
PC
0 - 7 / INPUT to Select
b) Repeatedly press Bb on the remote control (or
CHANNEL Bb on the control panel) to change the
input; or
c) Repeatedly press + on the remote control or INPUT
on the TV control panel to change the input.
To label the video input sources:
1
2
3
Note:
• You can label the video input sources according to the
specific devices you have connected to the TV
(- “Labeling the video input sources” at right).
• The source can be “hidden” (- “Labeling the video input
sources” at right).
Press Y and open the Preferences menu.
Highlight Input Labeling and press T.
Press B or b to highlight the video source you want to
label.
Preferences
Favorite Channels
Closed Caption Mode
Off
Closed Caption Advanced
Input Labeling
Menu Language
English
Channel Browser Setup
Navigate ENTER Select
CH RTN Back
EXIT Exit
Input Labeling
Built-In DVD
--
Video 1
VCR
Video 2
Cable
ColorStream HD 1
Video Recorder
ColorStream HD 2
Hide
HDMI
DTV
--
PC
Reset
Done
4
Press C or c to select the desired label for that input
source. If a particular input is not used, you can select
Hide as the label, which will cause that input to be
“grayed out” in the Input Selection screen and skipped
over when you press + on the remote control.
5
To save the new input labels, highlight Done and press
T.
To revert to the factory default labels, highlight Reset
and press T.
23
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 24 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Input labeling example:
The screen below left shows the default Input Selection
screen (with none of the inputs labeled as a specific device).
The screen below right is an example of how you could label
the inputs if you connected a VCR to VIDEO 1, Cable TV to
VIDEO 2, a video recorder to ColorStream HD1, and a DTV
set-top box to HDMI. Also note that the ColorStream HD2
input is labeled “Hidden,” which means that input will be
skipped over when + is pressed.
Input Selection
0
1
2
3
4
5
6
7
ANT 1
Input Selection
0
1
2
3
4
5
6
7
ANT 1
Built-In DVD
Video 1
Video 2
ColorStream HD1
ColorStream HD2
HDMI
PC
0 - 7 / INPUT to Select
0 - 7 / INPUT to Select
Input Selection screen with
no inputs labeled.
Input Selection screen with
all inputs labeled except input 5,
which has been hidden.
To clear the input labels:
1
2
3
ANT 1
ANT 1
Built-In DVD
VCR
Cable
Video Recorder
ColorStream HD2 (Hidden)
DTV
PC
Press Y and open the Preferences menu.
Highlight Input Labeling and press T.
Highlight Reset and press T.
Tuning channels
Tuning channels using the
Channel Browser™
The Channel Browser™ stores the most recently viewed
channels or inputs in a history list. In addition, it provides a list
of all the available channels on the ANT1 input (up to 2000),
plus a list of all the inputs on the TV. This feature allows you
to:
• Keep a history of the last 32 channels or inputs viewed.
• Quickly surf and tune your recently viewed channels/inputs
from the Channel Browser™ banner (illustrated on the next
page).
• Surf via Browse mode (to immediately tune channels as you
highlight them in the Channel Browser™ banner) or Select
mode (to surf over channels in the Browser banner before
you select one to tune).
• Quickly change inputs from the Inputs List.
• Set a “HOME” source for an ANT1 channel or TV input.
To set up the Channel Browser™:
1
2
3
Press Y and open the Preferences menu.
Highlight Channel Browser Setup and press T.
Press B to highlight Navigation, and then press C or c
to select either Browse Mode or Select Mode.
Channel Browser Setup
Navigation
Select Mode
History List
Power Off Clear (On)
ANT1 List
On
Inputs List
On
Reset
4
Done
Press b to highlight History List, and then press C or c
to select the setting you prefer: either Power Off Clear
(On), On, or Off.
Note: When History List is set to On, the channels and
inputs stored in the list will be saved every power on/off
cycle. When History List is set to Power Off Clear (On),
the channels and inputs stored in the list will be cleared
with every power on/off cycle of the TV.
5
Press b to highlight ANT1 List, and then press C or c to
select On or Off.
6
Press b to highlight Inputs List, and then press C or c
to select On or Off.
7
To save your entries, highlight Done and press T.
To return to factory defaults, highlight Reset and press
T.
24
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 25 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Note: The Channel Browser™ banner will close
automatically if you do not make a selection within 30
seconds.
To open the Channel Browser™ banner:
• Either… press 3 C, # c, or i on the remote control.
Or… press C to open the THINC menu, highlight
Channel Browser and press T.
• Press 3 C to surf backward through the previously tuned 32
channels or inputs in the History list, the channels in the
ANT 1 channel list, or the inputs in the Inputs list.
• Press # c to surf forward through the channel/input History,
the ANT 1 channel list, or the Inputs list.
To tune to a channel or input in Select mode:
1
While watching TV, press 3 C or # c to open the
Channel Browser™ banner and surf back to a previous
item or surf forward to the next item in the list.
In Select mode, when you stop on an item in the browser
banner, it will be highlighted but the TV will not
automatically tune to the channel or input.
2
3
Press T to tune the TV to the highlighted item.
Elements of the Channel Browser™ banner
1 2
1
3
4
1
87-1
1
4
6
History
ANT 1
1
ClrStrmHD2
BLOCKED
CABLE
__
4
AAA
4-1
480i
Hold HOME key
3 sec to program
ANT 1(4)
Press O to close the Channel Browser™ banner.
Adding and clearing channels and inputs in the
channel history
Adding channels and inputs to the channel history:
5
6
7
8
9
10
11
1
Input type
2
Highlighted item (channel or input)
3
Channels stored in the channel history
4
Instructions for programming the HOME key (this will be
replaced by the 6th item in the History list, ANT 1 list, or
Inputs list).
5
Current list (History, ANT 1 or Inputs)
6
Current input
7
Current antenna type (cable or TV)
8
Active channel number
9
Channel call letters (if available)
As a channel or input is tuned, the Channel Browser™ adds it
to the History and displays it on the “right side” of the Browser
banner. Previously tuned channels/inputs are “shifted” to the
left, eventually moving off the left side of the Browser banner.
Press 3 C to surf backward through the previously tuned
channels/inputs. Any channel or input that is tuned repeatedly
will not be repeated in the History, but instead is moved to the
top of the list on the right side of the Browser banner.
The Channel Browser™ will store the following channels:
• All channels that are tuned using the numeric buttons on the
remote control.
• All channels that are tuned using < or ,, M or m on
the remote control.
• All inputs that are tuned to for at least 5 seconds.
10 Resolution
Note: Whenever an item is selected that cannot be tuned (for
various reasons), the TV will automatically tune to the
previously viewed channel or input.
11 Home source
Clearing channels from the channel history:
To toggle among the History, ANT 1, and Inputs lists:
After opening the Channel
banner, press B or b to
toggle between History, ANT 1 and Inputs.
Browser™
Browser™
Note: The Channel
banner opens in History list by
default. Once another list has been selected, the
Channel Browser™ will open in the last selected list.
To tune to a channel or input in Browse mode:
1
While watching TV, press 3 C or # c to open the
Channel Browser™ banner and surf back to a previous
item or surf forward to the next item in the list.
In Browse mode, when you stop on an item in the
Browser banner, it will be highlighted and the TV will
automatically tune to the channel or input.
2
Press O to close the Channel Browser™ banner.
• Reconfiguring the ANT 1 input will clear the channel
history.
Note: See page18 for details on configuring the antenna
input.
• Once 32 channels or inputs are stored in the history list, the
oldest item will be removed from the list when a new
channel or input is tuned.
• Turning off the TV will clear the channel history only if
History List in the Channel Browser Setup is set to
“Power Off Clear (On).”
25
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 26 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Using the Home feature
When you press i on the remote control, the TV will be
tuned to the channel or input you set as “Home.”
To set a channel or input as Home:
1
Tune the TV to the channel or input you would like to set
as the Home source.
Switching between two channels using
Channel Return
The Channel Return feature allows you to switch between two
channels without entering an actual channel number each time.
1
2
Select the first channel you want to view.
3
Press R on the remote control. The previous channel
will display. Each time you press R, the TV will switch
back and forth between the last two channels that were
tuned.
2
Press and hold i on the remote control for 3 seconds.
When HOME is saved, the Channel Browser™ banner will
appear at the bottom of the screen and the HOME icon will
flash green.
To tune to HOME:
Press the i button on the remote to tune to your HOME
channel or input. The Channel Browser™ banner will display
when HOME is tuned unless all lists have been set to “Off” in
the Channel Browser Setup.
If all lists are set to OFF:
a) you will not be able to set the Home channel/input, if it is not
already set; or
b) if the Home channel/input is already set, pressing i on the
remote control will tune to the Home source but will not
display the Channel Browser™.
Note: If you press R from a non-antenna input, the TV
will return to the last-viewed ANT input and channel.
Switching between two channels using
SurfLock™
The SurfLock™ feature temporarily “memorizes” one channel
in the R button, so you can return to that channel quickly
from any other channel by pressing R. To memorize a
channel in the R button:
1
Tune the TV to the channel you want to program into the
R button.
2
Press and hold R for about 2 seconds until the message
“Channel Memorized” appears on screen. The channel
has been programmed into the R button.
3
You can then change channels repeatedly, and when you
press R, the memorized channel will be tuned.
Tuning your favorite channels
To tune to the channels you programmed as Favorite Channels,
press M/m or = (- page 21).
Tuning to the next programmed channel
To tune to the next programmed channel:
Press < or , on the remote control or TV control panel.
Note:This feature will not work unless you program channels
into the TV’s channel memory (- page 19).
Select a second channel using the Channel Number
buttons (and the dash (=) button if selecting a digital
channel).
The TV will return to the memorized channel one time only.
Once you press R and then change channels again, the CH
RTN memory will be cleared and the button will function as
Channel Return, by switching back and forth between the last
two channels that are tuned.
Tuning to a specific channel (programmed
or unprogrammed)
Tuning analog channels:
Press the Channel Number buttons (0–9) on the remote
control. For example, to select channel 125, press 1, 2, 5.
Tuning digital channels:
Press the Channel Number buttons (0–9) on the remote
control, followed by the dash (=) button and then the subchannel number. For example, to select digital channel 125-1,
press 1, 2, 5, –, 1.
Note: If a digital channel is not programmed—either through
the automatic channel scan (- page 19) or the channel add/
delete function (- page 19)—you will have to tune the RF
channel using the Channel Number and dash (=) buttons on
the remote control.
26
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 27 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Selecting the picture size
You can view many program formats in a variety of picture
sizes—Natural, TheaterWide 1, TheaterWide 2,
TheaterWide 3, and Full.
The way the image displays in any of the picture sizes will vary
depending on the format of the program you are viewing.
Select the picture size that displays the current program the
way that looks best to you.
Your picture size preferences can be saved for each input on
your TV.
• The image is displayed close to its originally formatted
proportion. Some program formats will display with
sidebars and/or bars at the top and bottom.
Natural picture size example
TheaterWide 1 picture size (for 4:3 format programs)
To select the picture size:
1
2
Natural picture size
• The center of the picture remains close to its original
Press I on the remote control.
While the Picture Size screen is open, press the
corresponding number button (0–4) to select the desired
picture size.
proportion, but the left and right edges are stretched wider to
fill the screen.
Picture Size
0
1
2
3
4
Natural
TheaterWide 1
TheaterWide 2
TheaterWide 3
Full
TheaterWide 1 picture size example
0 - 4 / PIC SIZE to Select
Note:
• You also can repeatedly press I to select the desired
picture size (or press Bb on the remote control while the
Picture Size screen is open).
• Full may not be available for some program formats (it will
be “grayed out” in the Picture Size screen).
• You also can select the picture size using the menu system.
Select Picture Size in the Theater Settings menu. Select
the input for which you want to save your picture settings. To
save your settings, highlight Done and press T.
TheaterWide 2 picture size (for letter box programs)
• The picture is stretched wider to fill the width of the screen,
but only slightly stretched taller.
• The top and bottom edges of the picture are hidden. To view
the hidden areas, see “Scrolling the TheaterWide® picture”
(- page 28).
ABCDEFG----------------
Theater Settings
TheaterWide 2 picture size example
Picture Size
Natural
--
Picture Scroll
Cinema Mode
Film
Auto Aspect Ratio
On
DVD Aspect Ratio
16:9 Wide
Reset
Done
Using these functions to change the picture size (i.e.,
changing the height/ width ratio) for any purpose other than
your private viewing may be prohibited under the Copyright
Laws of the United States and other countries, and may
subject you to civil and criminal liability.
27
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 28 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
TheaterWide 3 picture size (for letter box programs
with subtitles)
• The picture is stretched wider to fill the width of the screen,
Scrolling the TheaterWide® picture
(TheaterWide 2 and 3 only)
but only slightly stretched taller.
• The top and bottom edges are hidden. To view the hidden
areas (such as subtitles or captions), see “Scrolling the
TheaterWide® picture.”
You can set separate scroll settings for the TheaterWide 2 and
TheaterWide 3 modes for each input.
To set the scroll settings:
1
2
ABCDEFG----------------
Press Y and open the Video menu.
Highlight Theater Settings and press T.
ABCDEFG--------------------------
TheaterWide 3 picture size example
Video
Picture Settings
Full picture size (for 16:9 [480i, 480p] source
programs only)
Advanced Picture Settings
Theater Settings
• If receiving a squeezed 4:3 format program, the picture is
stretched wider to fill the width of the screen, but not
stretched taller.
• None of the picture is hidden.
Navigate ENTER Select
CH RTN Back
EXIT Exit
3
In the Picture Size field, select either TheaterWide 2
or TheaterWide 3 (you cannot scroll in any other mode).
4
5
Press b to highlight the Picture Scroll field.
Press C or c to scroll the picture up and down as needed,
from –10 to +20.
Theater Settings
Picture Size
Full picture size example
Note:
• If you select one of the TheaterWide® picture sizes, the top
and bottom edges of the picture (including subtitles or
captions) may be hidden. To view the hidden edges, either
scroll the picture (TheaterWide 2 and 3 only) or try viewing
the program in Full or Natural picture size.
• The “picture size” illustrations are examples only. The format
of the image (in any of the pictures sizes) will vary
depending on the format of the signal you are currently
watching.
TheaterWide 2
Picture Scroll
-5
Cinema Mode
Film
Auto Aspect Ratio
On
DVD Aspect Ratio
16:9 Wide
Reset
6
Done
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
28
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 29 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Using the auto aspect ratio feature
When the auto aspect ratio feature is set to On, the TV will
automatically select the picture size when one of the following
input sources is received:
• A 480i signal from the VIDEO 1, VIDEO 2, ColorStream
HD-1, or ColorStream HD-2 input.
• A 1080i, 480i, 480p, or 720p signal from the HDMI input.
Aspect ratio of Automatic aspect size (automatically
signal source selected when Auto Aspect is On)
4:3 normal
Natural (with sidebars)
4:3 letter box
TheaterWide 2
16:9 full
Full
Not defined
(no ID-1 data
or HDMI
aspect data)
The current picture size you set under
“Selecting the picture size” on page 27.
Selecting the cinema mode
(480i signals only)
When you view a DVD (480i signal; 3:2 pulldown processed)
from a DVD player connected to the VIDEO 1, VIDEO 2,
ColorStream HD-1/ColorStream HD-2 (component
video), or HDMI inputs on the TV, smoother motion can be
obtained by setting the Cinema Mode to Film.
To set the Cinema Mode to Film:
1
2
3
Highlight Theater Settings and press T.
In the Cinema Mode field, select Film.
Theater Settings
Picture Size
Natural
Picture Scroll
--
Cinema Mode
Note: The auto aspect ratio feature is not applicable to
antenna or cable input sources.
To turn on the auto aspect ratio feature:
1
2
3
Press Y and open the Video menu.
Press Y and open the Video menu.
Highlight Theater Settings and press T.
In the Auto Aspect Ratio field, select On.
Film
Auto Aspect Ratio
On
DVD Aspect Ratio
16:9 Wide
Reset
4
Done
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
To set the Cinema Mode to Video:
Select Video in step 3 above.
Theater Settings
Picture Size
Natural
Picture Scroll
--
Cinema Mode
Film
Auto Aspect Ratio
DVD Aspect Ratio
Reset
4
On
16:9 Wide
Done
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
To turn off the auto aspect ratio feature:
Select Off in step 3 above.
29
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 30 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Adjusting the picture quality
Adjusting the picture
Selecting the picture mode
You can select your desired picture settings from four different
modes, as described below.
You can adjust the picture quality (contrast, back light,
brightness, color, tint, and sharpness) to your personal
preferences.
Selection
Pressing C
Pressing c
Contrast
lower
higher
Mode
Picture Quality
Back Light
darker
lighter
Sports
Bright and dynamic picture (factory setting)
Brightness
darker
lighter
Standard
Standard picture settings (factory setting)
Color
paler
deeper
Movie
Lower contrast for darkened room (factory
setting)
Tint
reddish
greenish
Sharpness
softer
sharper
Preference
Your personal preferences
To select the picture mode:
1
2
3
Press Y and open the Video menu.
Highlight Picture Settings and press T.
1
2
3
In the Mode field, select the picture mode you prefer.
Mode: Sports
Picture Settings
Mode
Sports
Contrast
100
Back Light
100
Brightness
50
Color
50
Tint
0
Sharpness
50
Reset
Picture Settings
Mode
4
To adjust the picture quality:
Press Y and open the Video menu.
Highlight Picture Settings and press T.
Press B or b to select the picture quality you want to
adjust (Contrast, Back Light, Brightness, Color,
Tint, or Sharpness), and then press C or c to adjust the
setting, as described in the table above.
Mode: Sports
Picture Settings
Mode
Done
Sports
Contrast
100
Back Light
100
Brightness
50
Color
50
Tint
0
Sharpness
50
Done
Reset
Mode: Standard
Standard
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
Note:
• The picture mode you select affects the current input
only. You can select a different picture mode for each
input.
• If you select one of the factory-set picture modes
(Sports, Standard, or Movie) and then change a
picture quality setting (for example, increase the
contrast or change the color temperature), the picture
mode automatically changes to Preference in the
Picture Settings menu.
Picture Settings
Contrast
4
Mode: Preference
70
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
The picture qualities you adjusted are automatically saved in
the Preference mode (- “Selecting the picture mode,”
above left).
30
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 31 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Using the closed caption mode
The closed caption mode has two options:
• Captions—An on-screen display of the dialogue, narration,
and sound effects of TV programs and videos that are closed
captioned (usually marked “CC” in program guides).
• Text—An on-screen display of information not related to
the current program, such as weather or stock data (when
provided by individual stations).
To view captions or text:
1
2
3
Press Y and open the Preferences menu.
Highlight Closed Caption Mode and press c.
Closed Caption Advanced
You can customize the closed caption display characteristics
by changing the background color, text size, type, edge, and
color.
Note:
• This feature is available for digital channels only.
• You cannot set the Caption Text and Background as the
same color.
To customize the closed captions:
1
2
3
Press B or b to select the desired closed caption mode and
press T.
Press Y and open the Preferences menu.
Highlight Closed Caption Advanced and press T.
Press B or b to highlight the characteristic you want to
change, and then press C or c to select the format for that
characteristic (see table below).
Closed Caption Advanced
Preferences
Favorite Channels
Off
Closed Caption Mode
Off
Caption Size
Auto
Caption Text Type
Auto
Caption Text Edge
Auto
CC1
Closed Caption Advanced
CC2
Caption Text Color
Auto
Input Labeling
CC3
Background Color
Auto
English
Menu Language
CC4
T1
Channel Browser Setup
Reset
Done
T2
Navigate ENTER Select
CH RTN Back
EXIT Exit
• To view captions:
Highlight CC1, CC2, CC3, or CC4. (CC1 displays
translation of the primary language in your area.)
Giant pandas eat leaves.
Note: If the program or video you selected is not closed
captioned, no captions will display on-screen.
• To view text:
Highlight T1, T2, T3, or T4.
WORLD WEATHER
LONDON
MOSCOW
PARIS
ROME
TOKYO
Temps
F
C
51
11
57
14
53
12
66
19
65
18
4
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
Caption Size
Auto, Small, Standard, Large
Caption Text
Type
Auto, Default, Mono w. Serif, Prop. w. Serif,
Mono w/o Serif, Prop. w/o Serif, Casual,
Cursive, Small Capitals
Caption Text
Edge
Auto, None, Raised, Depressed, Uniform,
Left Drop Shadow, Right Drop shadow
Caption Text
Color
Auto, Black, White, Red, Green, Blue,
Yellow, Magenta, Cyan
Background
Color
Auto, Black, White, Red, Green, Blue,
Yellow, Magenta, Cyan
Current
Weather
Clear
Cloudy
Clear
Cloudy
Rain
Note: If text is not available in your area, a black rectangle
may appear on screen. If this happens, set the Closed
Caption Mode to Off.
• To turn off the Closed Caption mode:
Select Off in step 3 above.
Note: A closed caption signal may not display in the following
situations:
• When a videotape has been dubbed
• When the signal reception is weak
• When the signal reception is non-standard
31
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 32 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Digital closed captions
You can use the Digital CC/Audio Selector to select digital
closed caption services (if available), which will temporarily
override closed captions for digital channels only.
When such services are not available, the Digital CC/Audio
Selector presents a default list of services. If the selected
service is not available, the next best service will be used
instead.
Adjusting the audio
Muting the sound
Press W to partially reduce (1/2 MUTE) or turn off (MUTE)
the sound. Each time you press W, the mute mode will change
in the following order:
1/2 Mute
To select digital closed captions:
1
2
Press Y and open the Applications menu.
Highlight Digital CC/Audio Selector and press T.
Applications
Mute
Volume
If the closed caption mode is set to Off when you select
“MUTE” mode, the closed caption feature is automatically
activated. To mute the audio without automatically activating
the closed caption feature, use Z to set the volume to 0. See
“Using the closed caption mode” (- page 31) for more
information on closed caption modes.
Picture Viewer
Audio Player
Using the digital audio selector
Channel Browser
Digital CC/Audio Selector
Navigate ENTER Select
3
4
CH RTN Back
EXIT Exit
Press B or b to select Closed Caption, and then press
C or c to select the desired service.
Press O.
Closed Caption
CC 1
Audio
None
You can use the Digital Audio Selector to conveniently
switch between audio tracks on a digital channel (for those
channels that have multiple audio tracks). This temporarily
overrides the audio track chosen by the language option under
Audio Setup (- “Selecting stereo/SAP broadcasts” on
page 33).
To use the digital audio selector:
1
2
Press Y and open the Applications menu.
Highlight Digital CC/Audio Selector and press T.
Applications
Picture Viewer
Audio Player
Channel Browser
Digital CC/Audio Selector
Navigate ENTER Select
3
4
CH RTN Back
EXIT Exit
Press B or b to select Audio, and then press C or c to
select the desired service.
Closed Caption
CC 1
Audio
None
Press O.
32
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 33 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Selecting stereo/SAP broadcasts
The multi-channel TV sound (MTS) feature allows you to
output high-fidelity stereo sound. MTS also can transmit a
second audio program (SAP) containing a second language,
music, or other audio information (when provided by
individual stations).
When the TV receives a stereo or SAP broadcast, the word
“STEREO” or “SAP” appears on-screen when E is pressed.
The MTS feature is not available when the TV is in VIDEO
mode.
To listen to stereo sound:
1
2
Press Y and open the Audio menu.
Highlight Audio Setup and press T.
To listen to a second audio program on an analog
station (if available):
Select SAP in step 3 above.
Note:
• A second audio program (SAP) can be heard only on those
TV stations that offer it. For example, a station might
broadcast another language as a second audio program. If
you have SAP on, you will see the current program on the
screen but hear the other language instead of the program’s
normal audio.
• If you have SAP on and the station you are watching is not
broadcasting a second audio program, the station’s normal
audio will be output. However, occasionally there is no
sound at all in SAP mode. If this happens, set the MTS
feature to Stereo mode.
Adjusting the audio quality
You can adjust the audio quality by adjusting the bass, treble,
and balance.
Audio
Audio Settings
Advanced Audio Settings
Audio Setup
3
To adjust the audio quality:
In the MTS field, select Stereo.
Audio Setup
MTS
Stereo
English
Language
Optical Output Format
DVD Audio
Stereo
Reset
4
Dolby Digital / Surround
1
2
3
Done
To listen to an alternate language on an ATSC digital
station (if available):
Highlight the Language field in step 3 above, and then press
C or c to select the language you prefer.
Highlight Audio Settings and press T.
Press b or B to highlight the item you want to adjust
(Bass, Treble, or Balance).
Audio Settings
To save the new settings, highlight Done and press T.
To reset the settings to the factory defaults, highlight
Reset and press T.
Note:
• You can typically leave the TV in Stereo mode because
it will automatically output the type of sound being
broadcast (stereo or monaural).
• If the stereo sound is noisy, select Mono to reduce the
noise.
Press Y and open the Audio menu.
Bass
100
Treble
100
Balance
0
StableSound
Off
Reset
4
Done
Press C or c to adjust the level.
• C makes the bass or treble weaker or increases the
balance in the left channel (depending on the item
selected).
• c makes the bass or treble stronger or increases the
balance in the right channel (depending on the item
selected).
5
To save the new settings, highlight Done and press T.
To reset the settings to the factory defaults, highlight
Reset and press T.
33
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 34 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Using the StableSound® feature
The StableSound® feature limits the highest volume level to
prevent extreme changes in volume when the signal source
changes (for example, to prevent the sudden increase in
volume that often happens when a TV program switches to a
commercial).
To turn on the StableSound® feature:
1
2
3
Press Y and open the Audio menu.
Highlight Audio Settings and press T.
Using the Locks menu
The Locks menu includes the Enable Rating Blocking, Edit
Rating Limits, Channels Block, Input Lock, Front (control)
Panel Lock, and New PIN Code features. You can use these
features after entering the correct PIN code.
Entering the PIN code
1
In the StableSound field, select On.
Audio Settings
Locks
Bass
100
Enable Rating Blocking
Treble
100
Edit Rating Limits
Balance
Input Lock
On
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
Note: The RESET function returns your audio adjustments
to the following factory settings:
center (50)
center (50)
center (0)
Off
Off
Off
Front Panel Lock
New PIN Code
Done
Reset
Bass . . . . . . . .
Treble . . . . . . .
Balance . . . . . .
StableSound . .
Off
Channels Block
0
StableSound
4
Press Y and highlight the Locks menu icon.
Navigate ENTER Select
2
CH RTN Back
EXIT Exit
Press b, which displays the PIN code entry screen.
• The Lock System screen (below) appears if a PIN
code has not been stored. Press the Channel Number
buttons to enter a new four-digit code, enter the code a
second time to confirm, and press T.
Lock System
Please enter a 4 digit PIN code
To turn off the StableSound feature:
Confirm PIN code
Select Off in step 3 above.
Selecting the optical audio output format
You can use this feature to select the optical audio output
format when you connect a Dolby Digital decoder or other
digital audio system to the Optical Audio Out terminal on
the TV (- “Connecting a digital audio system” in the
Installation Guide).
To select the optical audio output format:
Cancel
Done
• The Locks/Active screen (below) appears if the PIN
code is already stored. Use the Number buttons to enter
your four-digit code and press T.
Locks
Active
Please enter the 4 digit PIN code
* * * *
1
2
3
Press Y and open the Audio menu.
Cancel
Done
Highlight Audio Setup and press T.
In the Optical Output Format field, select either
Dolby Digital/Surround or PCM, depending on your
device.
If the wrong PIN code is entered, the message “Incorrect PIN
code, please try again!” appears. Highlight Retry and press
T. Enter the code again and press T.
Audio Setup
MTS
Stereo
Language
English
Optical Output Format
DVD Audio
Stereo
Reset
4
Dolby Digital / Surround
Done
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
34
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 35 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
When the correct PIN code is entered, the Locks menu opens.
Some TV programs and movies include signals that classify
the content of the program (violence, sex, dialog, language).
The V-Chip feature in this TV detects the signals and blocks
the programs according to the ratings you select. (For rating
descriptions, see the tables on the next page.)
Locks
Enable Rating Blocking
Off
Edit Rating Limits
Channels Block
Input Lock
Off
Off
Front Panel Lock
New PIN Code
Navigate ENTER Select
Blocking TV programs and movies
by rating (V-Chip)
EXIT Exit
MENU Back
Note: Rating blocking is a function of the V-Chip feature in this
TV, which supports the U.S. V-Chip system only.
If you cannot remember your PIN code
To block and unblock TV programs and movies:
While the PIN code entering screen is displayed, press E
four times within five seconds. The PIN code will be cleared
and you can enter a new PIN code.
1
2
3
4
5
Changing your PIN code
1
2
3
4
Press Y and highlight the Locks menu icon.
Press Y and highlight the Locks menu icon.
Press b to display the PIN code entering screen.
Enter your four-digit PIN code and press T.
Press b to highlight Enable Rating Blocking.
Press c and b to select On, and then press T.
Press b to display the PIN code entering screen.
Enter your four-digit PIN code and press T.
Locks
Enable Rating Blocking
Press b to highlight New PIN Code and press T.
Off
Off
Edit Rating Limits
On
Channels Block
Input Lock
Off
Off
Front Panel Lock
New PIN Code
Locks
Enable Rating Blocking
Off
Navigate ENTER Select
Edit Rating Limits
Channels Block
Input Lock
Off
Off
Front Panel Lock
EXIT Exit
Press b to highlight Edit Rating Limits and press T.
The Edit Rating Limits screen (below) appears.
7
Press BbC c and then press T to select the level of
blocking you prefer. A box with an “5” is a rating that will
be blocked. As you highlight a rating, a definition for the
rating appears at the bottom of the screen.
8
When done selecting the ratings you want to block,
highlight Done and press T.
MENU Back
5
Press the Number buttons to enter a new four-digit code.
Reenter the PIN code to confirm it.
6
Press T. The new PIN code is now active.
MENU Back
6
New PIN Code
Navigate ENTER Select
EXIT Exit
New PIN Code
Edit Rating Limits
Please enter a 4 digit PIN code
* * * *
Confirm PIN code
* * * *
Cancel
Done
TV (V-CHIP) FV D L
TV-Y
S
V
Movies
G
Children
TV-Y7
PG
TV-G
PG-13
TV-PG
R
TV-14
NC-17
Alt RS
TV-MA
X
Cancel
"None" Rated
Youth
Done
35
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 36 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Blocking TV programs and movies by
additional ratings
In the future, an additional rating system may become
available for use in selectively blocking programs.
Independent rating system for broadcasters
Ratings
Description and Content themes
Mature Audience Only (This program is specifically
designed to be viewed by adults and therefore may
be unsuitable for children under 17.)
L) Crude or indecent language S) Explicit sexual
activity V) Graphic violence
TV-MA
To download the additional rating system
(if available):
1
Repeat steps 1-6 under “To block and unblock TV
programs and movies” on the previous page.
Parents Strongly Cautioned (This program contains
some material that many parents would find
unsuitable for children under 14 years of age.)
D) Intensely suggestive dialog L) Strong, coarse
language S) Intense sexual situations V) Intense
TV-14
Note: The currently tuned station must be receiving a
digital signal before an additional rating system can be
downloaded.
2
Highlight Alt RS and press T. The Edit Alternate
Ratings screen will appear.
Note:
• The Alt RS button will only be available if an additional
rating system is currently available.
• Some period of time may be required to download the
additional rating system.
• The information displayed in the Alternate Ratings
screen will depend on the configuration of the
additional rating system available at the time of
download.
3
Press B b C c and then press T to select the level of
blocking you prefer. A box with an “5” is a rating that will
be blocked.
4
When you are finished selecting the ratings you want to
block, highlight Done and press T.
5
In the Edit Rating Limits screen, highlight Done and
press T.
Edit Alternate Ratings
Humor Level
violence
Parental Guidance Suggested (This program
contains material parents may find unsuitable for
younger children.)
D) Some suggestive dialog L) Infrequent coarse
language S) Some sexual situations V) Moderate
TV-PG
violence
TV-G
General Audience (Most parents would find this
program suitable for all ages.)
TV-Y7,
TV-Y7FV
Directed to Older Children (This program is designed
for children age 7 and above. Note: Programs in
which fantasy violence may be more intense or more
combative than other programs in this category are
designated TV-Y7FV.)
TV-Y
All Children (This program is designed to be
appropriate for all children.)
Independent rating system for movies
Ratings
Description and Content themes
X-rated (For adults only)
X
Not intended for anyone 17 and under
NC-17
R
Restricted (Under 17 requires accompanying parent
or adult)
PG-13
Parents Strongly Cautioned (Some material may be
inappropriate for children under 13)
PG
Parental Guidance Suggested (Some material may
not be suitable for children)
G
General Audience (Appropriate for all ages)
Intelligence level
DH
VL
MH
LL
H
NL
VH
HL
EH
VH
TEST-MAX
Cancel
Done
Note:
• The additional rating system can only be downloaded one
time. You will not be able to download any updates to the
rating system should such updates become available.
• The additional rating system is not designed, transmitted, or
controlled by the TV or Toshiba, nor is the availability of an
additional rating system determined or controlled by
Toshiba. Similarly, the rating of programs in an additional
rating system is not determined, transmitted, or controlled
by the TV or Toshiba.
• The additional rating system is an evolving technology;
therefore, availability, content, and format may vary.
Note:
• If you place an “5” in the box next to “ ‘None’ Rated,”
programs rated “None” will be blocked; however, programs
that do not provide any rating information will not be
blocked.
• To display the rating of the program you are watching, press
E on the remote control. If it is rated “None,” the word
“NONE” appears in the RECALL screen (as shown below
right). If rating information is not provided, no rating will
appear in the RECALL screen.
TV – PG
L
V
NONE
36
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 37 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Blocking channels
To block all channels at once:
With the Channels Block feature, you can block specific
channels. You will not be able to tune blocked channels unless
you unlock them.
To unblock all locked channels at once:
Highlight Allow All in step 6 at left, and then highlight Done
and press T.
To block channels:
1
2
3
4
Highlight Block All in step 6 at left, and then highlight Done
and press T.
Press Y and highlight the Locks menu icon.
Channels Block
Press b to display the PIN code entering screen.
ANT 1
1
ANT 1
2
Enter your four-digit PIN code and press T (- page 34).
3
4
Press b to highlight Channels Block and then press T.
5
6
Locks
Enable Rating Blocking
Off
7
Allow All
8
Block All
9
Cancel
10
Done
Edit Rating Limits
Channels Block
Input Lock
Front Panel Lock
Off
Off
Unlocking programs temporarily
New PIN Code
Navigate ENTER Select
5
6
EXIT Exit
MENU Back
Press BbC c to select the input for which you want to
change the rating limits and press T.
A list of the channels available for that input will be
displayed along with the call letters for each channel, if
available.
Press Bb to highlight the channel you want to block and
press T, which puts an “5” in the box next to that
channel.
Channels Block
1
ANT 1
ANT 1
2
3
4
5
6
7
8
7
Allow All
8
Block All
9
Cancel
10
Done
Repeat step 6 for other channels you want to block.
If you try to tune the TV to a program that exceeds the rating
limits you set, the TV will enter program lock mode and the
following message will appear on-screen:
This program exceeds the rating limit you set.
Push 'mute' to enter PIN.
You can either temporarily unlock the program or select an
unlocked program to watch.
To temporarily unlock the program:
1
2
Press W.
Enter your four-digit PIN code and press T. If the correct
code is entered, the program lock mode is released and the
normal picture appears. All locking is disabled until the
TV is turned off, and will be enabled when the TV is
turned on again.
Locks
Active
Enter PIN code to temporaily unblock.
* * * *
Highlight Done and press T.
Cancel
Done
To unblock individual channels:
In step 6 above, press Bb to highlight the channel you want to
unblock, press T to remove the “5” from the box, highlight
Done and press T.
37
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 38 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Using the input lock feature
Using the control panel lock feature
You can use the Input Lock feature to lock the video inputs
(Built-In DVD, VIDEO 1, VIDEO 2, ColorStream HD-1,
ColorStream HD-2, HDMI, and PC) and channels 3 and 4.
You will not be able to view the input sources or channels until
you unlock the inputs.
You can lock the control panel to prevent your settings from
being changed accidentally (by children, for example). When
the control panel lock is On, none of the controls on the TV
control panel will operate except POWER.
To lock the control panel:
To lock/unlock the video inputs:
1
2
3
4
5
Press Y and highlight the Locks menu icon.
Press b to display the PIN code entering screen.
Enter your four-digit PIN code and press T.
Press b to highlight Input Lock and press c.
Press B or b to select the level of video input locking you
prefer, as described below.
Video: Locks Built-In DVD, VIDEO 1, VIDEO 2,
ColorStream HD1/HD2, HDMI, and PC.
Video+: Locks Built-In DVD, VIDEO 1, VIDEO 2,
ColorStream HD1/HD2, HDMI, PC and channels 3 and 4.
• Select Video+ if you play video tapes via an ANT
input.
1
2
3
4
5
Press Y and highlight the Locks menu icon.
Press b to display the PIN code entering screen.
Enter your four-digit PIN code and press T.
Press b to highlight Front Panel Lock.
Press c and C or c to highlight On and press T. When
the control panel is locked and any button on the control
panel (except POWER) button is pressed, the message
“NOT AVAILABLE” appears.
Locks
Enable Rating Blocking
Off
Edit Rating Limits
Off
On
Channels Block
Input Lock
Front Panel Lock
Off
Off
New PIN Code
Locks
Navigate ENTER Select
Enable Rating Blocking
Off
Edit Rating Limits
MENU Back
Video
Channels Block
Video +
Input Lock
Off
Front Panel Lock
Off
New PIN Code
Navigate ENTER Select
EXIT Exit
Off
EXIT Exit
MENU Back
To unlock the control panel:
Highlight Off in step 5 above, or press and hold the
VOLUME – button on the TV control panel for about 10
seconds until the volume icon appears on-screen.
Off: Unlocks all video inputs and channels 3 and 4.
6
Press T.
38
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 39 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Using the PC setting feature
You can view the image from a PC on the TV screen. The PC
must be connected to the TV’s PC IN terminals
(- Installation Guide).
You can use the PC Settings feature to adjust the picture’s
horizontal position/width, vertical position/height, clock
phase, and sampling clock.
If the edges of the picture are cut off, readjust the Horizontal
Position/Width and Vertical Position/Height. If the
picture is affected by interference, readjust the Clock Phase
and Sampling Clock.
• Vertical Height:
Adjusts the height of the picture.
The adjustment range is within ±5 from center.*
• Clock Phase:
Helps to reduce noise and sharpen the picture.
The adjustment range is within ±2 from center.*
• Sampling Clock:
Helps to reduce noise and minimize periodic vertical stripes
on the screen.
The adjustment range is within ±15 from center.*
*
The range of adjustment may vary slightly.
PC Audio
To adjust the PC settings:
1
Repeatedly press + to select PC input mode
(- “Selecting the video input source to view” page 23).
2
3
Press Y and open the Setup menu.
This function allows you to output the sound from your PC (if
connected) or mute the sound from your PC and output the
sound from your HDMI connection. (- Installation Guide)
Highlight PC Settings and press T.
To set the PC Audio:
1
2
3
Setup
Installation
Sleep Timer
PC Settings
No
PC Audio
HDMI Audio
Slide Show Interval
Auto
2 Sec
Navigate ENTER Select
CH RTN Back
Highlight PC Audio.
Press c and then press b to select No or Yes.
Yes: Outputs the sound from your PC.
No: Mutes the sound from your PC, and outputs the
sound from the HDMI connection.
EXIT Exit
Note: If a PC is not connected, this feature will be grayed
out in the Setup menu.
4
5
Press Y and open the Setup menu.
Press B or b to highlight the item you want to adjust.
Press C or c to make the appropriate adjustments.
Setup
Installation
No
Sleep Timer
Yes
PC Settings
No
Auto
PC Audio
HDMI Audio
Slide Show Interval
2 Sec
PC Settings
Horizontal Position
0
Horizontal Width
0
Vertical Position
0
Vertical Height
0
Clock Phase
0
Sampling Clock
0
Reset
Navigate ENTER Select
Done
Note: The screen is disrupted momentarily when
adjusting the PC settings. This is not a sign of malfunction.
CH RTN Back
EXIT Exit
Note: The PC Audio switch setting influences the HDMI
Audio setting. If it is set to No, the HDMI Audio setting
changes to Auto. If it is set to Yes, the HDMI Audio
setting is set to Digital and will be grayed out.
• Horizontal Position:
Moves the picture left/right.
The adjustment range is within ±5 from center.*
• Vertical Position:
Moves the picture up/down.
The adjustment range is within ±5 from center.*
• Horizontal Width:
Adjusts the width of the picture.
The adjustment range is within ±5 from center.*
39
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 40 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Setting the sleep timer
You can set the sleep timer to turn off the TV after a set length
of time (maximum of 180 minutes).
To set the sleep timer using the remote control:
Press [ on the remote control to set the length of time until
the TV turns off. Repeatedly press [ to increase the time in
10-minute increments, or press B or b to increase or decrease
the time in 10-minute increments, to a maximum of 180
minutes.
To set the sleep timer using the on-screen menus:
1
2
Press Y and open the Setup menu.
Highlight Sleep Timer and press T.
To display TV setting information on-screen:
Press E on the remote control.
The following information will display on-screen
(if applicable):
• Current input (ANT 1, VIDEO 1, etc.)
• If ANT 1 is the current input, either “CABLE” (for cable
TV) OR “TV” (for over-the-air broadcasts)
• Channel number (if in ANT 1 mode)
• Digital signal strength indicator (bar graph in lower right
corner of screen; for ATSC signal only)
Note: The signal strength indicator will react to fading and
increasing signals.
• Remaining time on sleep timer (if set)
• Stereo or SAP audio status
Setup
Installation
Sleep Timer
• V-Chip rating status
• Picture size
• Video resolution
PC Settings
No
PC Audio
HDMI Audio
Auto
2 Sec
Slide Show Interval
Navigate ENTER Select
3
Displaying TV setting information
on-screen using RECALL
CH RTN Back
EXIT Exit
Press the Number buttons to enter the length of time in 10minute increments.
STEREO
NC-17
Sleep Timer: 18 min.
Sleep Timer
ANT 1
Enter total minutes until the TV
turns off automatically (Maximum
180 minutes)
Natural
480i
CABLE 81-1
Sample RECALL screen
1 2 0
To close the RECALL screen:
Cancel
4
Done
Press E again.
Highlight Done and press T.
Note: When a power failure occurs, the sleep timer setting
may be cleared.
To display the remaining sleep time:
Press [.
Sleep Timer
120 Minutes
Note: A message will display on-screen when there is one
minute remaining on the sleep timer.
To cancel the sleep timer:
Press [ until it is set to 0 minute.
40
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 41 Thursday, June 22, 2006 1:32 PM
Chapter 5: Using the TV’s features
Understanding the auto power off
feature
The TV will automatically turn itself off after approximately
15 minutes if it is tuned to a vacant channel or a station that
completes its broadcast for the day. This feature functions in
ANT 1 mode only.
Understanding the last mode
memory feature
If the power is cut off while you are viewing the TV, the
Last Mode Memory feature automatically turns on the TV
when the power is resupplied.
Note: You should unplug the TV’s power cord if it is possible
that you will be away from the TV for an extended period of time
after the power is restored.
41
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 42 Thursday, June 22, 2006 1:32 PM
Chapter 6: Using the TV’s advanced features
Note:
• If the current input is ANT 1, VIDEO 1, or VIDEO 2, the
menu will display the text “CableClear.” The available
selections are Off, Auto, Low, Middle, and High.
• If the current input is Built-In DVD, ColorStream HD1,
ColorStream HD2, or HDMI, the menu will display the
text “DNR.” The available selections are Off, Auto,
Low, Middle, and High. Auto will react proportionally
to the strength of the noise. Low, Middle, and High will
reduce the noise in varying degrees, from lowest to
highest, respectively.
Using the advanced picture settings
features
Using dynamic contrast
When dynamic contrast is set to On, the TV will detect
changes in the picture quality that affect the appearance of your
contrast settings and then automatically adjust the video.
When dynamic contrast is set to Off, the settings selected in the
Contrast field in the Picture Settings menu will be used
(- page 30).
4
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
To select dynamic contrast preferences:
1
2
3
Using MPEG noise reduction
Press Y and open the Video menu.
Highlight Advanced Picture Settings and press T.
In the Dynamic Contrast field, select either On or Off.
\
Advanced Picture Settings
Dynamic Contrast
Auto
CableClear
MPEG Noise Reduction
Low
Color Temperature
Cool
Game Mode
To select the MPEG noise reduction level:
Off
Reset
4
ANT 1
On
The MPEG noise reduction feature allows you to reduce
visible interference caused by MPEG compression. Choices
for MPEG noise reduction are Off, Low, Middle, and High.
Off is automatically selected when this feature is disabled
(“grayed out”).
Done
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
1
2
3
Note: If you select the Movie picture mode and then set
the dynamic contrast to On, the picture mode
automatically changes to Preference in the Picture
Settings menu (- page 30).
Press Y and open the Video menu.
Highlight Advanced Picture Settings and press T.
Press B or b to highlight the MPEG Noise Reduction
field, and then press C or c to select either Off, Low,
Middle, or High.
Advanced Picture Settings
Dynamic Contrast
Auto
CableClear
MPEG Noise Reduction
Low
Color Temperature
Cool
Game Mode
The CableClear® digital noise reduction feature allows you to
reduce visible interference in your TV picture. This may be
useful when receiving a broadcast with a weak signal
(especially a Cable channel) or playing a noisy video cassette
or disc.
Off
Reset
Using CableClear® digital noise reduction
4
ANT 1
On
Done
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
To change the CableClear settings:
1
2
3
Press Y and open the Video menu.
Highlight Advanced Picture Settings and press T.
In the CableClear field, select your desired setting.
Advanced Picture Settings
Dynamic Contrast
ANT 1
On
Auto
CableClear
MPEG Noise Reduction
Low
Color Temperature
Cool
Game Mode
Off
Reset
Done
42
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 43 Thursday, June 22, 2006 1:32 PM
Chapter 6: Using the TV’s advanced features
Selecting the color temperature
Using the Game Mode feature
You can change the quality of the picture by selecting from
three preset color temperatures (Cool, Medium, and Warm), as
described below.
You can use the Game Mode feature for shorter frame delays
when playing a video game requiring split-second timing
between the on-screen display and input from the controller
(such as music creation and high-action games).
Mode
Picture Quality
Cool
blueish
Medium
neutral
Warm
reddish
Note: To use the Game Mode feature, the current video input
must be Video 1, Video 2, ColorStream HD1,
ColorStream HD2, or HDMI. The Game Mode cannot be
turned on when any other video input is selected.
To turn on Game Mode:
To select the color temperature:
1
2
3
Press Y and open the Video menu.
Highlight Advanced Picture Settings and press T.
In the Color Temperature field, select the mode you
prefer (Cool, Medium, or Warm).
1
2
3
Press Y and open the Video menu.
Highlight Advanced picture settings and press T.
Press B or b to highlight the Game Mode field, and then
press C or c to select On.
Advanced Picture Settings
Advanced Picture Settings
Dynamic Contrast
On
Dynamic Contrast
Video 1
On
Auto
CableClear
CableClear
Auto
MPEG Noise Reduction
Low
MPEG Noise Reduction
Low
Color Temperature
Cool
Cool
Game Mode
Color Temperature
Game Mode
Off
Reset
4
ANT 1
On
Reset
Done
Done
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
Note: If you select one of the factory-set picture modes
(Sports, Standard, or Movie) and then change the color
temperature mode, the picture mode automatically
changes to Preference in the Picture Settings menu.
To turn off Game Mode:
Select Off in step 3 above, change the video input, or turn the
TV off and then on again.
Note: You can change the video input in any of the following
ways:
• Pressing + on the remote control (- page 23).
• Changing the channel using the Numbers or < / ,, R,
3 C, # c, or M / m.
43
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 44 Thursday, June 22, 2006 1:32 PM
Chapter 6: Using the TV’s advanced features
Using the advanced audio settings
features
Using the SRS WOW™ surround sound
feature
SRS WOW™ is a special combination of SRS Labs audio
technologies (SRS 3D, SRS FOCUS, and SRS TruBass) that
creates a thrilling surround sound experience with deep, rich
bass from stereo sound sources. Your TV’s audio will sound
fuller, richer, and wider.
To adjust the WOW™ settings:
1
Put the TV in STEREO mode (- “Selecting stereo/SAP
broadcasts” on page 33).
2
3
4
Press Y and open the Audio menu.
Highlight Advanced Audio Settings and press T.
Press b or B to highlight the WOW feature you want to
adjust, and then press C or c to adjust the item.
Advanced Audio Settings
WOW: SRS 3D
Off
WOW: SRS FOCUS
Off
WOW: SRS TruBass
Low
Reset
Done
• WOW: SRS 3D — To turn the surround sound effect
On or Off.
Note: If the broadcast is monaural, the SRS 3D effect will
not work.
• WOW: SRS Focus — To turn the vocal emphasis effect
On or Off.
• WOW: SRS TruBass — To select the desired bass
expansion level (Off, Low, or High).
5
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
WOW, SRS and l symbol are trademarks of SRS Labs, Inc.
WOW technology is incorporated under license from SRS Labs, Inc.
44
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 45 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
The Toshiba Home Interactive Network Connection
(THINC™) feature allows you to connect the TV to your home
network, which will enable access to file sharing features.
• File sharing
You can access JPEG and MP3 files that are stored on your
networked home PC and view/play them on the TV.
Note: Requires a home network* (- Installation Guide). Does
NOT require Internet/e-mail service.
Follow the steps in sections A through D (- pages 45–49)
to set up and use the TV’s home network features.
The THINC™ home network feature is compatible only with
Microsoft® Windows® 2000 and the Home and Professional
versions of Microsoft® Windows® XP Service Pack 1 and
Service Pack 2.
Microsoft and Windows are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or
other countries.
*
A. Connecting the TV to your home
network
1
2
Connect the TV to your home network via the TV’s
RJ-45 (Ethernet) port. See Installation Guide for
connection instructions.
Go to section B, “Setting up the network address,” at right.
For home network troubleshooting tips, see Chapter 9.
The unauthorized recording, use, distribution, or revision of
television programs, videotapes, DVDs, and other materials is
prohibited under the Copyright Laws of the United States and
other countries, and may subject you to civil and criminal
liability.
Note:
• If you used an Ethernet crossover cable to connect your PC
directly to the TV, you will not be able to use the automatic
setup, and must manually set up the network address.
• If you used a hub or switch to connect the TV to your home
network, you will not be able to use the automatic setup, and
must manually set up the network address.
• If you used a router with built-in DHCP functionality, use the
automatic setup. Manual setup may not work.
Router technology, like all new and emerging technology,
may from time to time cause compatibility issues because of
the differences in router systems implemented by the various
router manufacturers; however, most issues can be easily
resolved. If you think your Toshiba TV and router might have
compatibility problems, please contact the following:
• In the U.S., call TACP Consumer Solutions at
1-800-631-3811 or visit
http://www.tacp.com/customersupport/contact.asp.
• In Canada, call TCL Customer Service at
1-800-268-3404 or visit http://www.toshiba.ca.
Automatically setting up the network
address
1
2
3
4
Press Y and open the Setup menu.
Highlight Installation and press T. The Installation
menu appears.
Open the Network menu.
Highlight Basic Network Setup and press T.
Network
Basic Network Setup
Home File Server Setup
Software Upgrade
B. Setting up the network address
Navigate ENTER Select
To set up the network address:
1
First, try automatically setting up the network address
(below).
2
If the automatic setup is not successful, you can either
retry the automatic setup (below) or try manually setting
up the network address (- page 46).
5
CH RTN Back
EXIT Exit
The message “Obtain network address automatically?”
will display. Highlight Yes and press T.
Basic Network Setup
Obtain network address automatically?
Yes
No
(continued)
45
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 46 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
6
The message “Please wait…” will display while the TV is
attempting to load the network address information from
the DHCP server.
Basic Network Setup
Please wait...
If the automatic network address setup is successful,
go to step 7.
If the automatic network address setup is not
successful, go to step 8.
7
If the automatic network address setup is successful, the
following screen will appear:
Basic Network Setup
Done! Network address information has been found!
Manually setting up the network address
This setup requires the data listed below. You can get this
data from either your ISP or the configuration utility for
your DSL/cable modem or router.
IP address:
___ ___ ___ . ___ ___ ___ . ___ ___
Subnet mask:
___ ___ ___ . ___ ___ ___ . ___ ___
Gateway (Router) address:
___ ___ ___ . ___ ___ ___ . ___ ___
DNS (Domain Name Server) address:
___ ___ ___ . ___ ___ ___ . ___ ___
1
2
Exit
a) Press T to close the screen and return to the Network
menu.
b) Skip to section C, “Setting up file sharing on your PC”
(- page 47).
8
3
4
5
If the automatic network address setup is not successful,
the following screen will appear:
___ . ___ ___ ___
___ . ___ ___ ___
___ . ___ ___ ___
___ . ___ ___ ___
Press Y and open the Setup menu.
Highlight Installation and press T. The Installation
menu appears.
Open the Network menu.
Highlight Basic Network Setup and press T.
The message “Obtain network address automatically?”
appears.
Highlight No and press T.
Basic Network Setup
Obtain network address automatically?
Yes
6
a) Make sure all cables for your home network are
securely connected.
b) Make sure your home network is set up properly. See
Installation Guide for TV connection information.
Also consult the owner’s manuals for your other
components.
c) Make sure the DHCP and security settings on your
home router are correct. Consult the owner’s manual
for your router.
d) Retry the automatic network address setup by following
these steps:
(1) Highlight OK and press T.
If, after repeating steps 1–6, you receive the error
message shown in step 8:
Either…
a) Highlight OK and press T.
b) Go to “Manually setting up the network address”.
Or…
a) Highlight OK and press T.
b) Continue to sections C, D, and E (- pages 47–50)
(to set up and use file sharing).
If the file sharing feature works correctly, then the
automatic network address setup was successful (even
though the TV displayed the error message).
The Basic Network Setup menu appears.
Press B or b to highlight the IP Address field, and then
use the Number buttons on the remote control to input the
IP address.
Basic Network Setup
Please enter your Network Address Information
IP Address
Subnet Mask
Gateway (Router)
DNS (Domain Name Saver)
Cancel
0
0
0
225
225
225
0
0
0
0
0
0
0
0
0
0
Done
7
Press b to highlight the Subnet Mask field, and then use
the Number buttons to input the Subnet Mask.
8
Press b to highlight the Gateway (Router) field, and
then use the Number buttons to input the Gateway
(Router) address.
9
Press b to highlight the DNS (Domain Name Server)
field, and then use the Number buttons to input the DNS
address.
(2) Repeat steps 1–6. (If you have already repeated
this setup process, go to step 9.)
9
No
10 When finished, highlight Done and press T.
The Basic Network Setup menu closes and the
Network menu appears.
11 Go to section C, “Setting up file sharing on your PC”.
46
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 47 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
Resetting the network address
C. Setting up file sharing on your PC
1
2
Press Y and open the Setup menu.
Highlight Installation and press T. The Installation
menu appears.
Compatible operating systems
3
4
5
Open the Network menu.
The following operating systems are compatible for file
sharing with the TV:
• Microsoft® Windows® XP Service Pack 2
(Home Edition and Professional) [See setup details below]
• Microsoft® Windows® XP Service Pack 1
(Home Edition and Professional) [See setup details below]
• Microsoft® Windows® 2000 [See setup details on page 48]
No other operating systems are compatible with the TV.
Highlight Basic Network Setup and press T.
The message “Your Basic Network Setup is complete.
Would you like to start over?” will appear.
To continue, highlight Yes and press T.
To return to the Network menu, highlight No and
press T.
Basic Network Setup
Your Basic Network Setup is complete. Would you like to start over?
Yes
6
No
If you selected Yes in step 5, the message “Obtain
network address automatically?” will appear.
Basic Network Setup
Obtain network address automatically?
Yes
No
To obtain the network address automatically, go to step 5
under “Automatically setting up the network address”
(- page 45).
To manually enter the network address, go to “Manually
setting up the network address”.
For home network troubleshooting tips, see Chapter 9.
Note:
• The name of any directory/folder on your PC that you are
setting up for file sharing with the TV can have a maximum
of 12 characters and cannot contain any special characters.
• See “Media specifications” (- page 50) for details on
compatible JPEG and MP3 files.
• The network (NETBIOS) name of your PC that you are setting
up for file sharing must be 15 characters or less.
To determine which operating system and service
pack (if applicable) are on your PC:
1
2
3
4
On your PC, click the “Start” button.
Click “Settings | Control Panel”.
In the Control Panel, double-click “System”.
Select the “General” tab, which will display your PC’s
current operating system and service pack.
Setting up file sharing on a PC with
Microsoft® Windows® XP Service Pack 1 or
Service Pack 2
1
On your PC:
a) Right-click
the folder
to be shared.
b) Click “Sharing
and Security...”
(which will open
the Properties
window for the
selected folder.)
*
Microsoft product screen shot(s) reprinted with permission from
Microsoft Corporation.
(continued)
47
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 48 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
2
In the Properties window for the selected folder:
a) Click to display
the “Sharing” tab.
Setting up file sharing on a PC with
Microsoft® Windows® 2000
1
On your PC:
b) Click to select
“Share this folder.”
a) Right-click
the folder
to be shared.
c) Click “Permissions”
(which will open
the Permissions
window for the
selected folder).
Note: If the “Sharing” tab on your specific PC looks like
the one illustrated below (with no “Permissions” button),
follow the steps below. When you click “OK”, you are
finished setting up file sharing on your PC and can
proceed to section D.
b) Click “Sharing...”
(which will open
the Properties
window for the
selected folder).
2
a) Click to display
the “Sharing” tab.
a) Click to display
the “Sharing” tab.
b) Click to select
“Share this folder.”
b) Click to select
“Share this folder
on the network.”
c) Click “OK”
(which will close the
Permissions window
for the selected folder).
3
In the Permissions window for the selected folder:
a) Click “Add...”
and then select the
user to be given
sharing privileges.*
4
In the Properties window for the selected folder:
c) Click “Permissions”
(which will open
the Permissions
window for the
selected folder).
3
In the Permissions window for the selected folder:
a) Click “Add...”
and then select the
user to be given
sharing privileges.*
*This user must match
the user stored in the
TV’s “Home File Server
Setup” menu.
*This user must match
the user stored in the
TV’s “Home File Server
Setup” menu.
b) Click to check
“Allow” next to
“Full Control.”
b) Click to check
“Allow” next to
“Full Control.”
c) Click “Apply.”
c) Click “Apply.”
d) Click “OK”
to close the window.
d) Click “OK”
(which closes the
Permissions window).
Go to section D, “Setting up file sharing on the TV”.
48
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 49 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
4
3
In the Properties window:
Highlight Home File Server Setup and press T. The
Home File Server Setup window will appear.
After a few moments, the message “Please Wait...” will
appear until the network finds your networked PC.
The networked PC will act as the “Home Server” for file
sharing with the TV.
Home File Server Setup
Please enter your Home Server Setup Information.
Home Server Name
Password
*******
JPEG Picture Directory
JPEG
MP3 Music Directory
Software Upgrade Directory
Click “OK”
(which closes
the Properties
window).
5
Cancel
4
The shared folder will display with a “shared folder” icon
(a hand holding a folder).
ABCD
XYZ
User Name
MP3
-Done
Press Bb to highlight Home Server Name, and then
press C c to select the name of the PC you set up for file
sharing.
If you have multiple PCs on your home network that have
shared folders, press C c to select the PC (home server)
from which you want to access files.
Home File Server Setup
Please enter your Home Server Setup Information.
Home Server Name
Password
*******
JPEG Picture Directory
JPEG
MP3 Music Directory
Software Upgrade Directory
Cancel
5
ABCD
XYZ
User Name
MP3
-Done
a. Press Bb to highlight User Name and then press T
to open the on-screen keyboard for that field.
b. Enter the User Name for your PC using the on-screen
keyboard. See “Using the on-screen keyboard”.
Note: The User Name is case sensitive.
c. When finished entering all characters, highlight Done
and press T.
6
Go to section D, “Setting up file sharing on the TV”.
6
Note: The Password is case sensitive.
For home network troubleshooting tips, see Chapter 9.
7
D. Setting up file sharing on the TV
1
2
Repeat step 5 for the Password field.
Press Bb to highlight either JPEG Picture Directory
or MP3 Music Directory.
Note: The first time you highlight either of these fields, the
message “Please Wait...” will appear on-screen until the
field is populated with the files in your PC’s shared
folder(s).
Press Y and open the Setup menu.
Highlight Installation and press T. The Installation
menu will appear.
Open the Network menu.
Home File Server Setup
Please Wait...
Please enter your Home Server Setup Information.
Home Server Name
ABCD
XYZ
User Name
Password
*******
JPEG Picture Directory
--
MP3 Music Directory
--
Software Upgrade Directory
--
Network
Basic Network Setup
Cancel
Done
Home File Server Setup
8
Software Upgrade
Navigate ENTER Select
CH RTN Back
EXIT Exit
Press C c to select the shared folder (on your PC) that
contains the JPEG and/or MP3 files you want to view/play
on the TV.
Note: Make sure you select the correct folder in this step.
(continued)
49
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 50 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
9
To exit the window and save your settings, highlight
Done and press T.
To exit the window without saving your settings, highlight
Cancel and press T.
USING THE ON-SCREEN KEYBOARD
a) Press BbC c to highlight the desired letter, number,
or character, and then press T.
[email protected]_
1
q
2
w
a
3
e
s
z
4
r
d
x
5
t
f
c
6
y
g
v
7
u
h
b
n m
Shift
Done
8
i
j
9
o
k
0
p
l
,
[
;
.
=
]
'
/
BS
Clear
Cancel
b) Repeat step “a” until you have finished entering all
characters for the selected field.
Notes:
• To toggle between uppercase and lowercase
letters and between numbers and symbols,
highlight Shift and press T.
• To erase the last entered character, highlight BS
(backspace) and press T.
• To clear your entered characters, highlight Clear
and press T.
c) When you are finished entering all characters for the
selected field, highlight Done and press T.
You will return to the previous Setup window.
About the Software Upgrade feature
This feature allows you to download updated software to your
television from a shared folder on your home network. If you
experience any difficulties that can only be resolved by a
software update, your TACP/TCL customer service
representative will provide you with the appropriate upgrade
files, and assist you in the proper use of this feature.
E. Viewing/playing shared files on
the TV
You can use the Picture Viewer to view compatible JPEGformat photos on your TV’s screen.
You can use the Audio Player to play compatible MP3 files
on the TV.
The TV can access JPEG and/or MP3 files that are stored on a
networked PC (as described on pages 45–49, and Installation
Guide).
Note:
• If you are viewing/playing files stored on a networked PC, IT
IS RECOMMENDED THAT YOU BACK UP YOUR DATA.
Toshiba is not liable for any damage caused by the use of
any networked PC, or shared files with this TV. Toshiba will
not compensate for any lost data or recording(s) caused by
the use of such PCs, or data.
• The technical criteria set out in this Guide are meant as a
guide only.
• You must obtain any required permission from
copyright owners to download or use copyrighted
content. Toshiba cannot and does not grant such
permission.
Media specifications
File/folder name specifications
–
–
–
–
Maximum file name length: 255 characters.
Maximum shared folder* name length: 12 characters.
File names must contain US-ASCII characters only.
File and folder names cannot contain any special
characters, such as \ / : ? “ ” < > | .
*
The words “folder” and “directory” are used interchangeably.
Picture Viewer/JPEG file specifications
– Maximum JPEG file size: 8 MB
• JPEG files larger than 8 MB will not display.
– Maximum JPEG image resolution: 6000 5 4000 pixels
• Images with a resolution higher than 6000 5 4000 pixels
will not display.
– The Picture Viewer is designed to display only pictures
stored in compatible JPEG formats with a file extension of
“.jpg.”
– JPEG images processed and/or edited on a personal
computer (PC) may not display properly or at all.
– Some digital cameras may store images in a format that is
not compatible with the TV.
– JPEG files stored on a networked PC that are not in a file
and folder format compatible with the TV will not
display on the TV.
50
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 51 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
Audio Player/MP3 file specifications
Using the Picture Viewer
– Maximum MP3 file size: 50 MB
You can use the TV’s Picture Viewer to display your digital
photos (JPEG files) on your TV’s screen in thumbnail mode or
as a slide show.
• MP3 files larger than 50 MB will not play.
– The Audio Player is designed to play only music files
stored in compatible MP3 formats with a file extension of
“.mp3”.
– MP3 files processed and/or edited on a PC may not play
properly or at all. Some MP3 files may be in a format that is
not compatible with the TV.
– MP3 files must be in the following format:
• MPEG1 (ISO/IEC 11172-3) Layer3.
• Sampling frequency—MPEG1: 32 kHz, 44.1 kHz,
48 kHz.
• Bitrate—MPEG1: 32–320 kbps.
• Channels—Stereo, Joint stereo, Dual channel, Single
channel.
• ID3 Ver. 1, Ver. 2.
– The meta-data for MP3 files (e.g, artist name, album
name, song title, etc.) must be in the following format:
Note:
• You cannot use the Picture Viewer and Audio Player at the
same time.
• You must obtain any required permission from
copyright owners to download or use copyrighted
content. Toshiba cannot and does not grant such
permission.
Accessing JPEG files stored on a networked PC
1
Make sure you have correctly set up your home network
and file sharing (- Installation Guide and pages 45–49).
2
3
Press Y and open the Applications menu.
ISO-8859-1 (US-ASCII/ Western European) character
sets
Highlight Picture Viewer and press T.
Applications
Picture Viewer
Audio Player
– MP3 files stored on a networked PC that are not in a file
and folder format compatible with the TV will not play
on the TV.
Channel Browser
Digital CC/Audio Selector
Networked PC specifications
Navigate ENTER Select
• All JPEG files over the 1,000th in a shared folder will not
display.
EXIT Exit
If the network is available, it will retrieve its JPEG picture
list via the network.
Maximum number of files per shared folder:
– JPEG = 1,000
CH RTN Back
4
Press B or b to access the folder or directory which
contains the JPEG pictures you want to view.
Picture Viewer
– MP3 = 200
//BEARD-DESK/C
C
+
• All MP3 files over the 200th in a shared folder will not play.
+
+
+
+
+
Copy of isi mip
IQAWG_A
INCD
isiImip
WINNT
Documents and Settings
Maximum number of nested folder levels: 10 levels
• Files in folders more than 10 levels down from the top level
folder will not display/play.
CH RTN Image Select
• See pages 45–49, for details on networking your TV and PC
Navigate
ENTER Select
EXIT Exit
To expand a particular folder to view a list of images,
press c on the folder.
To close the folder or directory, press C on the folder or
directory.
Pressing C on a file will move the focus up to the folder
which contains the file.
Pressing c on a file will move the focus down to the next
folder.
Press T on a particular folder, then the thumbnail view
with the first image in the folder will be displayed. If you
press T on a particular file, the thumbnail view with that
file as the first file in the thumbnail list will be displayed.
for file sharing.
Note: You can use R to switch back and forth between
the thumbnail and folder views. The item last selected will
be highlighted upon return to the application.
5
Go to “Viewing JPEG files on the TV” on the next page.
51
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 52 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
Viewing JPEG files on the TV
To set the slide show interval:
1
1
2
3
4
After accessing your JPEG files from your networked PC,
the images automatically display on-screen, with one as a
large picture and six in thumbnail format.
Picture Viewer
//ALLENMPC/Pics/Directory3/Subdirectory1/shelby concept.jpg.
1 of 8
Nov 2 05
2 of 8
Jun 25 01
Press O to close the Picture Viewer (if it is open).
Press Y and open the Setup menu.
Highlight Slide Show Interval and press T.
Select the interval from the menu sidebar (2, 5, 10, 15, or
20 seconds).
3 of 8
Feb 10 05
4 of 8
Feb 8 05
5 of 8
Jun 25 01
Setup
6 of 8
Feb 10 05
CH RTN File Select
2
Rotate
Next
ENTER Slide Show
CH Page Up/Down
EXIT Exit
Press C to rotate the large picture 90° counterclockwise.
Installation
2 Sec
Sleep Timer
5 Sec
10 Sec
PC Settings
No
PC Audio
HDMI Audio
Picture Viewer
Slide Show Interval
//ALLENMPC/Pics/Directory3/Subdirectory1/shelby concept.jpg.
Auto
15 Sec
20 Sec
2 Sec
1 of 8
Nov 2 05
2 of 8
Jun 25 01
Navigate ENTER Select
CH RTN Back
EXIT Exit
3 of 8
Feb 10 05
4 of 8
Feb 8 05
To view your JPEG files in Native Resolution mode:
5 of 8
Jun 25 01
6 of 8
Feb 10 05
CH RTN File Select
3
Rotate
Next
ENTER Slide Show
CH Page Up/Down
EXIT Exit
Press c to rotate the large picture 90° clockwise.
Picture Viewer
//ALLENMPC/Pics/Directory3/Subdirectory1/shelby concept.jpg.
1 of 8
Nov 2 05
2 of 8
Jun 25 01
3 of 8
Feb 10 05
4 of 8
Feb 8 05
5 of 8
Jun 25 01
6 of 8
To enter Native Resolution mode, press < or , during the
slideshow. This will expand the image to its non-compressed
format. A help bar for this mode can be displayed by pressing
E. This help bar will indicate that the user can scroll to the
edges of the image by using B b C c. In order to exit Native
Resolution and return to the normal slideshow, press T. To
return to the thumbnail view, press either O or R. If an
image is too large to display in Native Resolution mode
(6MB), a warning message will be shown.
Feb 10 05
CH RTN File Select
4
5
Rotate
Next
ENTER Slide Show
CH Page Up/Down
EXIT Exit
Press B or b to select another picture as the large picture.
Press T to view your pictures in a slide show.
To close the Picture Viewer:
Press O to close the Picture Viewer and return to the regular
TV screen.
During the slide show:
To stop on an image during the slide show, press T.
To resume the slide show, press T again.
To rotate the picture, press C or c.
To select another image, press B or b.
To stop the slide show and return to the picture viewer, press
R.
• To stop the slide show and return to the regular TV screen,
press O.
•
•
•
•
•
52
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 53 Thursday, June 22, 2006 1:32 PM
Chapter 7: Using the THINC™ home network feature
Note: You can use R to switch back and forth between
the thumbnail and folder views with last memory applied
to the location of the focus in the folder tree or playlist.
Using the Audio Player
You can use the TV’s Audio Player to listen to MP3 files on
the TV.
Note:
• Make all desired adjustments to the TV’s audio features
(e.g., surround, bass, treble, balance) before starting the
Audio Player.
• You cannot use the Picture Viewer and Audio Player at the
same time.
• You must obtain any required permission from
copyright owners to download or use copyrighted
content. Toshiba cannot and does not grant such
permission.
5
Go to “Playing MP3 audio files on the TV”.
Playing MP3 audio files on the TV
1
After accessing your MP3 files from your networked PC,
the Audio Player will begin playing the first MP3 file in
the list.
Audio Player
//ALLENMPC/MP3's/Dir1/Sub1/03-Moonlight Sonata.mp3
Title
Ser No.1 in D, Op.11...
Rapsodie Espagnole:...
Accessing MP3 files stored on a networked PC
1
Make sure you have correctly set up your home network
and file sharing (- Installation Guide and pages 45–49).
2
3
Press Y and open the Applications menu.
Applications
Jesus Lopez-Cobo...
VOL
III. Sanctus: Sanctu...
Boston Baroque/M...
Piano Sonata, K. 545...
A-M Classical
Pathétique Sonata, m...
A-M Classical
Chopin Prelude No. ...
Andrys
Piano Sonata, K. 545...
A-M Classical
Moolight Sonata, movement
A-M Classical
Moolight Sonata, mo... A-M Classical
CH RTN File Select
2
Highlight Audio Player and press T.
Artist
SCO/Sir Charles...
Requiem, Op. 5: IV. R... Robert Shaw/Atla...
Navigate
ENTER Select
EXIT Exit
Press BbC c to navigate to the rewind, pause, fast
forward, skip backward, skip forward, volume, and mute
buttons—or to select another MP3 file—and then press
T.
Picture Viewer
To use the mute function:
Audio Player
Channel Browser
Digital CC/Audio Selector
Navigate ENTER Select
CH RTN Back
To change or mute the playback volume, use z Z / W on
your remote (see page 32 for details on muting the sound) or
navigate to the VOL and MUTE buttons on screen using Bb
C c on your remote and press T.
EXIT Exit
If the network is available, it will retrieve its MP3 files list
via the network.
4
Press B or b to access the folder or directory which
contains the MP3 files you want to play.
To close the Audio Player:
Press O to close the Audio Player and return to the regular
TV screen.
Audio Player
//ALLENMPC/MP3's/Dir1/Queen - pain Is Close to Pleasure.mp3
,
MP3 s
+
VOL
Dir 1
-
Sub 1
+
03 - Take Five.mp3
04 - Lá Breá Fán Dtuath.mp3
05 - An Tûll.mp3
Sub 2
Dir 2
Queen - A Kinnd of Magic.mp3
Queen - Forever.mp3
Queen - Gimme the Prize.mp3
Queen - One Vision.mp3
Queen - Pain is So Close to Pleasure.mp3
Simon and Garfunkel - Cecilial.mp3
CH RTN Song Select
Navigate
ENTER Select
EXIT Exit
To expand a particular folder to view a list of images,
press c on the folder. To close the folder or directory,
press C on the folder or directory. Pressing C on a file will
move the focus up to the folder which contains the file.
Pressing c on a file will move the focus down to the next
folder.
Press T on a particular folder, then the song select view
with the first image in the folder will be displayed. If you
press T on a particular file, the song select view will
display with that file as the first file in the list.
53
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 54 Thursday, June 22, 2006 1:32 PM
Chapter 8: DVD Playback
Resume feature
Playing a disc
• Depending on the disc you are playing, when you press D
Be sure to set the MODE SELECT switch on the remote
control to TV/DVD mode when using the built-in DVD.
Basic playback
1
2
DVD
VCD
CD
Press p on the TV or on the remote control to turn on
the TV.
Press + on the remote control or INPUT on the TV to
select the Built-In DVD mode.
one time, the TV memorizes the location where playback is
stopped. Press S to resume the playback from the stopped
location.
• If you press D again or eject the disc, the TV will clear the
stopped location.
Auto Play feature
If you load the disc in the TV off status, the TV is turned on
and playback commences automatically. However, loading the
disc may take 1-2 seconds.
The DVD startup screen will appear on the screen.
About the Parental Lock screen
OPEN
Welcome
3
Load the disc in the disc slot with the label side facing
forward. (If the disc has a label.) Hold the disc without
touching either of its surfaces, align it with the guides, and
place it in position.
Note: When inserting a disc into the DVD disc slot, do not
jam or force it strongly, otherwise the TV may malfunction
or the disc might be damaged. If left with half the disc
inserted, the disc will be loaded automatically.
4
“DISC LOADING” appears on the screen, then playback
starts.
DISC LOADING
Welcome
• A menu screen will appear on the TV screen, if the disc
has a title menu. Press B b C c to select title, then press
T. Title is selected and play commences.
5
Press z Z to adjust the volume.
Volume
16
Note: When using an amplifier, adjust the volume with the
amplifier.
6
Press D to end playback.
If the Parental Lock YES/NO screen appears after loading a
disc and you want to temporarily unlock the Parental Lock,
select “YES” and then input the PIN CODE following the onscreen menu.
THE PARENTAL LEVEL OF THE
PLAYER HAS BEEN SET.
PRESS "YES" TO CONTINUE.
YES
STOP
CAUTION
Never insert your finger into the disc hole when loading the
disc to the disc slot.
Keep your fingers well clear of the disc slot when disc is
loading or unloading. Neglecting to do so may cause
personal injury.
Because of problems and errors that can occur during the
creation of DVD and CD software and/or the manufacture
of DVD and CD discs, Toshiba cannot assure that the DVD
player contained in this television will successfully play
every disc bearing the DVD and CD logos. If you happen to
experience any difficulty playing a DVD and/or CD disc on
the DVD player contained in this television, please contact
Toshiba Customer Service.
Note: While a DVD is playing back, you cannot adjust the
following:
• Optical Output Format selection (- page 34)
• Audio Language selection (- page 33)
• DVD Audio selection (- page 57)
• Menu Language selection (- page 18)
• V-Chip (parental control) setting (- page 35)
• DVD aspect ratio (- page 55)
If you want to set up any of the above, stop the DVD by
pressing D twice, and then set up (- “Resume feature”).
Note: Strong static electricity may affect the DVD player’s
operation and cause it not to work properly. If this happens,
turn OFF the POWER, disconnect and then reconnect the AC
power cord, and turn ON the TV again.
54
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 55 Thursday, June 22, 2006 1:32 PM
Chapter 8: DVD Playback
About
DVD
VCD
CD
The DVD VCD CD icons on the heading bar show the playable
discs for the function described under that heading.
DVD : You can use this function with DVD video discs.
VCD : You can use this function with Video CDs.
CD
: You can use this function with Audio CDs and CD-R/
RW discs.
Using the DVD aspect ratio feature
When you view a DVD in built-in DVD, you can select the
DVD aspect ratio, as described below.
• 4:3 Pan Scan: Black bars are visible on right and left sides
of the screen.
To start playback in the stop mode:
Press S.
To pause playback (still mode):
Press A during playback.
To resume normal playback, press S.
Note: The sound is muted during still mode.
The picture that right and
left of background is hidden.
• 4:3 Letter Box: The picture is stretched wider and taller to
fill the screen.
To stop playback:
Press D.
To remove the disc:
1
2
Press d.
Remove the disc after the disc comes out.
ABCDEFG----------------
Letter box picture
• 16:9 Wide: The picture is stretched wider to fill the width
of the screen.
Note:
• If a non-compatible disc is loaded, “WRONG REGION” will
appear on the TV screen. In this case, check your disc again
(- Installation Guide).
• Some discs may take a minute or so to start playback.
• If you insert a single-sided disc the wrong way, “DISC
LOADING” will appear on the display for about 30-60
seconds and then “DISC NOT AVAILABLE” will display until
you remove the disc.
• Some discs may not resume playing the same scene after
stopping.
• Some playback operations of DVDs may be intentionally
fixed by software producers. Since this TV plays DVDs
according to the disc contents the software producers
designed, some playback features may not be available.
Also refer to the instructions supplied with the DVDs.
• Do not move the TV during playback. Doing so may damage
the disc. If you want to move the TV to other place or room,
be sure to eject the disc and turn off the power beforehand.
• If the disc is not loaded even if the disc is inserted into the
DVD disc slot, remove the disc once and try to load the disc
again.
• Do not put any objects other than discs in the disc slot.
Doing so may cause the TV to malfunction.
• When you press a button, there may be a slight delay before
the function activates.
Squeezed picture
To select the DVD aspect ratio:
1
2
3
Press Y and open the Video menu.
Highlight Theater Settings and press T.
In the DVD Aspect Ratio field, select the mode you
prefer (4:3 Pan Scan, 4:3 Letter Box, or 16:9 Wide).
Theater Settings
Picture Size
Natural
Picture Scroll
--
Cinema Mode
Film
Auto Aspect Ratio
On
DVD Aspect Ratio
16:9 Wide
Reset
4
Done
To save the new settings, highlight Done and press T.
To revert to the factory defaults, highlight Reset and
press T.
Note: To change the DVD aspect ratio you may not be viewing
a DVD at the same time (must be in FULL-STOP mode, not
RESUME-STOP mode).
55
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 56 Thursday, June 22, 2006 1:32 PM
Chapter 8: DVD Playback
Playing in fast reverse or fast
forward
DVD
VCD
CD
Press H or J during playback.
H: Fast reverse playback (DVD : 2X-64X, VCD/CD: 2X16X)
J : Fast forward playback (DVD : 2X-64X, VCD/CD: 2X16X)
Each time you press H or J , the playback speed changes.
To resume normal playback:
DVD
VCD
CD
Press S.
To pause playback (still playback)
VCD
DVD
VCD
Press v or V during playback.
Each time you press the button, the slow-motion speed
changes (DVD: 2X-8X, VCD: 1X-3X).
SF
8X
To resume normal playback:
Press S.
Note:
• The TV mutes sound and subtitles during reverse and
forward scan of DVD video discs. However, the TV plays
sound during fast forward or fast reverse play of audio CDs.
• The playback speed may differ depending on the disc.
DVD
Playing in slow motion
CD
Note: The sound is muted during slow-motion playback.
Locating a chapter or track
DVD
VCD
CD
Press F or G repeatedly to select the chapter or track you
want.
Playback starts from beginning of the selected chapter or track.
TITLE 01 / 06 CHAPTER 007 / 032
Press A during playback.
To resume normal playback:
Press S.
Note: The sound is muted during still playback.
Playing frame by frame
DVD
Note: A “Prohibition” symbol E may appear at the upper left of
the screen. This symbol means either the feature you tried is
not available on the disc, or the TV cannot access the feature
at this time. This does not indicate a problem with the TV.
VCD
Press A during still playback.
Each time you press A, the picture advances one frame.
PAUSE
STEP
To resume normal playback:
Changing angles
DVD
When playing back a disc recorded with multi-angle facility,
you can change the angle that you are viewing the scene from.
1
Press a during playback.
The current angle will appear.
2
Press a repeatedly until the desired angle is selected.
Note: Depending on the DVD, you may not be able to change
the angles even if multi-angles are recorded on the DVD.
Press S.
Note: The sound is muted during frame by frame playback.
56
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 57 Thursday, June 22, 2006 1:32 PM
Chapter 8: DVD Playback
Title selection
3
Highlight Audio Setup and press T.
DVD
Two or more titles are recorded on some discs. If the title menu
is recorded on the disc, you can select the desired title.
Press N during playback.
Title menu appears on the screen.
2
3
Press B b C c to select the desired title.
Advanced Audio Settings
4
Press T or S.
The playback of the selected title will start.
Note:
• Depending on the DVD, you may not be able to select the
title.
• Depending on the DVD, a “title menu” may simply be called
a “menu” or “title” in the instructions supplied with the disc.
• Depending on the DVD, the title menu may be displayed
automatically when the disc is loaded.
• Depending on the DVD, a chapter menu may be displayed
after you select a title.
Changing soundtrack language
VCD
You can select the language when you play a multilingual disc.
1
Audio Settings
Audio Setup
1
DVD
Audio
Press c during playback.
The current soundtrack language will appear.
AUDIO 1 / 4 :
D 5.1
ENGLISH
Press B or b to highlight DVD Audio, and then press C
or c to select the desired audio mode (Stereo, L-Mono,
R-Mono, or MIX-Mono).
Note: This item may not be selectable depending on the
disc.
Audio Setup
MTS
Stereo
Language
English
Optical Output Format
DVD Audio
Dolby Digital / Surround
Stereo
Reset
Done
Note:
• If the desired language is not heard after pressing the button
several times, the language is not recorded on the disc.
• Changing soundtrack language is cancelled when you eject
the disc. The initial default language or available language
will be heard if the disc is played back again.
• If you select DTS in playing DTS-encoded disc, no sound
will be heard from the TV’s speakers.
Subtitles
DVD
When playing back a disc recorded with subtitles, you can
select the subtitle language or turn the subtitle off.
1
Press b repeatedly during playback until your desired
language appears.
SUBTITLE 02 / 02 : JAPANESE
2
Press c repeatedly until the desired language is selected.
• The on screen display will disappear after a few
seconds.
AUDIO 2 / 4 :
D 5.1
JAPANESE
2
To turn off the subtitle, press b until “SUBTITLE OFF”
appears.
• The “SUBTITLE OFF” on screen display will
disappear after a few seconds.
SUBTITLE OFF
In case of Video CD playback
1
2
Stop the disc playback.
Press Y and open the Audio menu.
57
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 58 Thursday, June 22, 2006 1:32 PM
Chapter 8: DVD Playback
Note:
• Depending on the DVD, you may not be able to change
subtitles, or to turn subtitles on or off.
• While playing a DVD, the subtitle may change when you
loaded or eject the disc.
• In some cases, a selected subtitle language may not be
changed immediately.
Disc status
DVD
VCD
CD
With each press of E, the status of the disc will appear on
the screen and change as follows:
This TV can play MP3/JPEG-data which has been recorded on
CD-R or CD-RW.
To produce MP3/JPEG-data, you need a Windows-PC with
CD-R/RW drive and MP3/JPEG-encoding Software (not
supplied).
Files recorded on an Apple® HFS (hierarchical file system)
volume cannot be played.
Apple is a registered trademark of Apple Computer, Inc.
MP3/JPEG CD information
Display example
DVD
TITLE / CHAPTER
(time display)
MP3/JPEG CD operation
MP3/JPEG Files
CHAPTER ELAPSED
(time display)
VCD
Limitations on MP3/JPEG CD playback
• MP3/JPEG CDs must meet ISO9660 standards. Files must
have one of the following extensions: .mp3, or .jpg.
TITLE REMAIN
CHAPTER REMAIN
• MP3/JPEG CDs cannot be used for the purpose of
CHAPTER ELAPSED
OFF
• If the CD has both audio tracks and MP3/JPEG files, only
CHAPTER REMAIN
OFF
VCD CD
SINGLE ELAPSED
TRACK 01/18
(time display)
SINGLE REMAIN
TOTAL ELAPSED
TOTAL REMAIN
recording.
audio tracks are played.
• It may take more than 1 minute for this TV to read MP3/
JPEG files depending on its structure.
Note:
• Some MP3/JPEG CDs cannot be played back depending on
the recording conditions.
• The CD-R/RWs that has no music data or non MP3/JPEG
files cannot be played back.
MP3 CD playback
CD
1
Load a disc on which MP3 files have been recorded in the
disc slot.
2
A file menu screen will appear on the screen. Press BbC
c and then press S to select a folder.
OFF
SMART NAVI
ROOT
ROOT
..
0
100TOSHIBA
1
101TOSHIBA
2
58
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 59 Thursday, June 22, 2006 1:32 PM
Chapter 8: DVD Playback
3
Press Bb or the Number buttons (0-9) to select the
desired file.
• In case the folder includes more than 8 files, press F/
G to display the previous or next list.
00:00:46
00:00:46
SMART NAVI
4
5
SMART NAVI
0
..
..
001 TDCFILE.....
1
100TOSHIBA
008 TDCFILE
002 TDCFILE
2
009 TDCFILE
9
003 TDCFILE
3
010 TDCFILE
10
004 TDCFILE
4
011 TDCFILE
11
005 TDCFILE
5
012 TDCFILE
12
006 TDCFILE
6
013 TDCFILE
13
007 TDCFILE
7
014 TDCFILE
14
..
..
100TOSHIBA
0
8
Note:
• The picture menu is displayed when the FUJICOLOR CD or
the Kodak Picture CD is played. To display the file menu,
press N.
• MP3 file on the Kodak Picture CD are not recognized on this
TV.
• When displaying the SMART NAVI, use the Natural or Full
picture size (- page 27).
JPEG CD playback
CD
You can select your desired JPEG file from the file menu. The
slide show enables you to view pictures (files) one after
another automatically.
Press S.
The selected file starts playing back.
To display the previous list, press F.
For fast reverse playback, press H.
For fast forward playback, press J.
Press D to end playback.
• The TV records the stopped point where playback
ended. Press S to resume playback (from the same
point).
• If you press D again or unload the disc, the TV will
clear the stopped point.
Note:
• The DIGITAL AUDIO OUT terminal on the TV outputs MP3
sounds in the linear PCM format regardless of the current
“Optical Output Format” selection.
• The DVD player contained in this television requires discs/
recordings to meet certain technical standards in order to
achieve optimal playback quality. There are many different
types of recordable disc formats (including CD-R containing
MP3/WMA files). Not all recordable discs will operate or
produce optimal playback quality. The technical criteria set
forth in this owner's manual are meant only as a guide. Use
of CD-RW for MP3 files is not recommended.
• You must obtain any required permission from copyright
owners to download or use copyrighted content. Toshiba
cannot and does not grant such permission.
About the file menu
1
Load a disc on which JPEG files have been recorded in the
disk slot.
2
A file menu screen will appear. Press BbC c and then
press S to select a folder.
SMART NAVI
ROOT
3
ROOT
..
0
100TOSHIBA
1
101TOSHIBA
2
Press Bb or the Number buttons (0-9) to select the
desired file.
• To display the previous or next list, press F/G
00:00:46
00:00:46
SMART NAVI
SMART NAVI
0
..
..
0
001 TDCFILE
1
101TOSHIBA
008 TDCFILE
8
002 TDCFILE
2
009 TDCFILE
9
003 TDCFILE
3
010 TDCFILE
10
004 TDCFILE
4
011 TDCFILE
11
005 TDCFILE
5
012 TDCFILE
12
006 TDCFILE
6
013 TDCFILE
13
007 TDCFILE
7
014 TDCFILE
14
..
..
100TOSHIBA
4
Press S to start the slide show from the selected file.
5
Press D to end playback. The file menu will appear on
the screen. If you want to view another file, repeat
steps 3–4.
• If you press A during the slide show, the slide
show stops temporarily. “W” appears briefly on the
screen. Press S or G again to resume the slide show.
• When slide show playback has finished, the file list
appears.
• To stop the slide show, press D. The file list will
appear.
SMART NAVI
ROOT
ROOT
..
0
001HRSFILE
1
002HRSFILE
2
003HRSFILE
3
004HRSFILE
4
005YCMFILE
5
006YCMFILE
6
007YCMFILE
7
: Indicates MP3 file
: Indicates JPEG file
59
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 60 Thursday, June 22, 2006 1:32 PM
Chapter 9: Troubleshooting
General troubleshooting
Before calling a service technician, please check this chapter
for a possible cause of the problem and some solutions you can
try.
Black box on screen
• The Closed Caption feature is set to one of the Text
modes (T1, T2, T3, or T4). Set the Closed Caption
feature to Off (- page 31).
TV stops responding to controls
• If the TV stops responding to the controls on the remote
control or TV control panel and you cannot turn off the
TV, press and hold the POWER button on the TV control
panel for 5 or more seconds to reset the TV.
Other problems
• If your TV’s problem is not addressed in this
Troubleshooting section or the recommended solution
has not worked, use the Restore Factory Defaults
procedure (- page 22).
TV will not turn on
• Make sure the power cord is plugged in, and then press
p.
• The remote control batteries may be dead. Replace the
batteries or try the control panel buttons.
Picture problems
General picture problems
• Check the antenna/cable connections (- Installation
Guide).
• Press + on the remote control or TV and select a valid
video input source (- page 23). If no device is
connected to a particular input on the TV, no picture will
display when you select that particular input source. For
device connection details, see the Installation Guide.
• Antenna reception may be poor. Use a highly directional
outdoor antenna (if applicable).
• The station may have broadcast difficulties. Try another
channel.
• Adjust the picture qualities (- page 30).
• If you are using a VCR, make sure L on the remote
control is set correctly (- page 11).
• If you have two VCRs connected to your TV, make sure
you have not connected the same VCR to the TV’s output
and input connections at the same time (- Installation
Guide).
• Do not connect both a standard video cable and an Svideo cable to the VIDEO 1 input at the same time
(- Installation Guide).
Noisy picture
• If you are watching an analog channel (off-air broadcast
or Cable TV), you can set the CableClear®/DNR
feature to AUTO to reduce visible interference in the TV
picture (- page 42).
Video Input Selection problems
• If the Input Selection window does not appear when
you press + on the remote control or TV, press + a
second time, which will change to the next video input
source and display the Input Selection window.
Cannot view external signals or channel 3 or 4
• If you cannot view signals from external devices
connected to VIDEO 1, VIDEO 2, or ColorStream®, or
from channels 3 or 4, make sure the Input Lock is set to
Off (- page 38).
Poor color or no color
• The station may have broadcast difficulties. Try another
channel.
• Adjust the Tint and/or Color (- page 30).
• When the ColorStream® signal source is active, the
VIDEO OUT terminal does not output video. To receive
video from the VIDEO OUT terminal, a standard video
or S-video IN connection must be used instead of the
ColorStream® connections.
Poor composite or S-video picture
• If the TV is connected to an external A/V device (e.g.,
DVD player, video game system, set-top box, etc.) try
using a ColorStream or HDMI video connection
instead.
Picture and sound are out of sync
• As with all products that contain a digital display, in rare
instances, when viewing certain content (e.g.. television
broadcasts, video games, DVDs), you may notice that the
sound and picture are slightly out of sync. This
phenomenon can be caused by various factors including,
without limitation, video processing within the TV, video
processing in an attached gaming system, and video
processing or different compression rates used by
broadcasters in their programming. You may want to try
one or more of the following suggestions, which may
help to reduce the effect of this phenomenon:
– If the TV is connected to an A/V receiver that has a
programmable audio delay feature, use this feature to
help synchronize the sound to the picture.
– If you notice this phenomenon only on certain TV
channels, please contact your local broadcast, cable, or
satellite provider to inform them of this issue.
LED indications while in reboot from standby
• When you plug the power cord in, the yellow LED will
blink until the TV enters standby mode, (plugged in but
not powered on). This is normal and is not a sign of
malfunction.
60
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 61 Thursday, June 22, 2006 1:32 PM
Chapter 9: Troubleshooting
Sound problems
• Check the antenna/cable connections (- Installation
Guide).
• The station may have broadcast difficulties. Try another
channel.
• The sound may be muted. Press VOLUME.
• If you hear no sound, try setting the MTS feature to
Stereo mode (- page 33).
• If you are not receiving a second audio program from a
known SAP source, make sure the MTS feature is set to
SAP mode (- page 33).
• If you hear audio that seems “incorrect” for the program
you are watching (such as music or a foreign language),
the SAP mode may be on. Set the MTS feature to Stereo
mode (- page 33).
Remote control problems
• Make sure the remote control is set to the correct device
mode (- page 10).
• Remove all obstructions between the remote control and
the TV.
• The remote control batteries may be dead. Replace the
batteries (- page 9).
• Your TV remote control may not operate certain features
on your external device. Refer to the owner’s manual for
your other device to determine its available features. If
your TV remote control does not operate a specific
feature on another device, use the remote control that
came with the device (- pages 11–15).
• If the TV still does not act as expected, use the Reset
Factory Defaults procedure (- page 22).
Channel tuning problems
• Make sure the remote control is set to the correct device
mode (- page 10).
• The channel may have been erased from the channel
memory by the Channel Add/Delete feature. Add the
channel to the channel memory (- page 19).
• The channel may be blocked by the Channels Block
feature. Unblock the channel (- page 37).
• If you are unable to tune digital channels, check the
antenna configuration (- page 18). If you are still
unable to tune digital channels, clear all channels from
the channel list (- page 20) and reprogram channels into
the channel memory (- page 19). If you are still unable
to tune digital channels, use the Reset Factory Defaults
procedure (- page 22). Also see “TV stops responding
to controls” and “Other problems” (- page 60).
Closed caption problems
• If the program or video you selected is not closedcaptioned, no captions will display on-screen
(- page 31).
• If text is not available, a black rectangle may appear onscreen. If this happens, turn off the closed caption feature
(- page 31).
• A closed caption signal may not display correctly in the
following situations: a) when a videotape has been
dubbed; b) when the signal reception is weak; or c) when
the signal reception is nonstandard (- page 31).
Rating blocking (V-Chip) problems
• If you forget your PIN code: While the PIN code entering
screen is displayed, press E four times within 5
seconds. The PIN code you previously stored will be
cleared (- page 34).
• The V-Chip feature is available for the U.S. V-Chip
system only (- page 35).
Audio Player problems
The Audio Player stutters and/or stops when playing
files over the network
• The networked PC is not available, was removed from
the network, or is in "hibernation." The Ethernet cables
are not connected properly. Check all cables for proper
connection.
• Sufficient network band-width is not available. Turn off
any other file sharing programs, network-based games, or
other network-intensive operations while the Audio
Player is playing.
“No media found” message is displayed
• Sharing is not correctly set up on the networked PC.
Make sure you connected your home network correctly
(- Installation Guide) and set up the network address
properly (- Chapter 7).
• The MP3 files exceed the specified limits (- “Media
specifications” in Chapter 7).
Title or artist name is not displayed
• The MP3 file does not contain valid meta-data or does not
meet supported specifications (- “Media
specifications” in Chapter 7).
The Audio Player takes almost a minute to start
• Sufficient network band-width is not available. Turn off
any other file sharing programs, network-based games, or
other network-intensive operations while the Audio
Player is playing.
• The shared folder has too many files or sub-folders. If the
shared folder on the networked PC contains a large
number of files or nested directories, it may take over a
minute for the Audio Player to locate all playable files.
The File is displayed but is always skipped
• The file is not a valid or supported MP3 file.
Some files in the shared folder are not played
• Only the first 200 MP3 files found will be played. Folders
nested 10 or more levels below the shared folder are not
searched.
The Audio Player plays (progress bar and animation
change) but audio is not heard
• The volume level is not high enough or TV is muted.
61
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 62 Thursday, June 22, 2006 1:32 PM
Chapter 9: Troubleshooting
Picture Viewer problems
“No pictures found” message is displayed.
• Sharing is not correctly set up on the networked PC.
Make sure you connected your home network correctly
(- Installation Guide) and set up the network address
properly (- Chapter 7).
• The JPEG files exceed the specified limits (- “Media
specifications” in Chapter 7).
Picture viewer option in menu is disabled.
• There are no picture files in the networked PC's shared
folder(s).
• Basic network setup and Home server setup were not
successfully performed.
Picture is not displayed. Rectangle containing “X” is
displayed instead.
• The picture file does not meet the specifications for the
Picture Viewer (- “Media specifications” in Chapter
7).
Picture is not listed at all.
• There are no picture files in the networked PC’s shared
folder(s).
• The number of pictures files found is more than the TV
can display.
• The picture file does not have a valid “.jpg” extension.
• The file is too large or is otherwise not compatible with
the TV for display. See “Media specifications” in Chapter
7 for Picture Viewer and JPEG file specifications.
Home network troubleshooting
Basic network setup problems
Cannot connect to network
• Check the modem and splitter connections.
• Make sure the splitter is connected to the modem or TEL
correctly (- Installation Guide).
• Confirm your modem’s operation with this manual.
• Make sure your network address and is set up correctly
(- Chapter 7).
No network connection
• The Ethernet cables are not connected properly or at all.
Connect all cables (- Installation Guide).
• Make sure the modem’s power cord is plugged in.
• Make sure your network address is set up correctly (Chapter 7).
Automatic setup fails
• The Ethernet cables are not connected properly or at all.
Connect all cables (- Installation Guide).
• The DHCP service is not enabled on the router, or no
router is present. Refer to your router’s documentation
for instructions on enabling DHCP. If you do not have a
router, you must manually set up the network address
(- page 46).
• Internet service is not available. Check your cable/DSL
modem or contact your ISP for Internet service issues.
Manual setup fails
• The Ethernet cables are not connected properly or at all.
Connect all cables (- Installation Guide).
• The TV IP address is the same as the networked PC’s.
The TV IP address must be different from the PC’s IP
address.
• The TV IP address is not on the same subnet as the
networked PC’s. For example, if the PC has IP
192.168.0.100 with netmask 255.255.255.0, and the TV
has IP 192.168.0.200 with netmask 255.255.255.0, then
they are both on same subnet. Conversely, if the PC has
IP 192.168.1.100 with netmask 255.255.255.0, and the
TV has IP 192.168.0.200 with netmask 255.255.255.0,
then they are on DIFFERENT sub-nets.
Unstable network connection
• Unplug the Ethernet cables, and then connect them again.
62
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 63 Thursday, June 22, 2006 1:32 PM
Chapter 9: Troubleshooting
Home server setup problems
The PC (“Home Server”) name is not displayed
• The Ethernet cables are not connected properly or at all.
Connect all cables (- Installation Guide).
• The network setup on the PC is incorrect. Make sure both
the PC and TV are using the same network type (DHCP/
manual) and have compatible network settings.
• The networked PC does not have shared folders set up
correctly. See “Set up file sharing on your PC” in Chapter
7 for details.
• There are no master browsers on the network. To
configure your networked PC to be the master browser of
its subnet, refer to your operating system user guide or
consult an IT professional.
• Too many sharing devices are connected. You cannot
connect more than 16 sharing devices at one time.
The PC (“Home Server”) name is displayed but the
shared folder(s) are not displayed.
• The networked PC does not have shared folders set up
correctly. See “Set up file sharing on your PC” in Chapter
7 for details.
• The TV’s user name and password do not match the PC’s.
Make sure the user name and password settings in the TV
exactly match the settings in the networked PC. User
names and passwords are generally case sensitive.
DVD Troubleshooting
Playback doesn’t start
• The disc is reversed. Load the disc with the playback side
facing backward.
• No disc is loaded. Load the playable disc.
• The disc may be dirty. Clean the disc.
• The TV cannot play CD-ROMs, etc. Load the playable
disc.
No picture
• TV selector is not set correctly.
No sound
• The analog audio output terminals on the TV do not
output the sounds from the disc. Connect your digital
audio system to the DIGITAL AUDIO OUT terminal on
the TV.
• Make sure the input selector of the amplifier is set
properly.
• The TV is in the special playback mode.
Picture is distorted during fast reverse/forward playback
• The picture will be distorted occasionally.
Stopping playback, search, slow-motion play, or
changing angles, etc. cannot be performed
• Some discs may not perform certain functions.
No surround sound
• The setup may not match your stereo system.
The TV or remote operation key is not functioning
• Turn off the TV and unplug the AC power cord for
several minutes, then replug it.
Audio soundtrack and/or subtitle language is not
changed when you play back a DVD
• Multilingual language is not recorded on the DVD disc.
No subtitle
• Some discs have no subtitles.
• Subtitles are cleared. Press b.
Angle cannot be changed
• Multi-angles are not recorded on the DVD discs.
E appears on the screen
• The function is prohibited with the TV or the disc.
63
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 64 Thursday, June 22, 2006 1:32 PM
Chapter 9: Troubleshooting
LED indications
The blue and yellow LED lights on the TV front indicate the TV’s status, as described below.
Note: If the TV loses A/C power (e.g., a power outage occurs or the power cord is unplugged), when power is restored, the yellow
LED will blink while the TV is booting until the remote control is usable. This is normal and is not a sign of malfunction.
TV front
Blue LED
LED Indication
1) Blue is ON (solid).
Yellow LED
Condition
Solution
The TV is operating properly.
–
2) Yellow is ON (solid).
The disc is in the disc slot.
–
3) Yellow blinks three
times.
The TV is rebooting.
Wait several seconds until the yellow LED stops
blinking.
4) Blue blinks slowly.
Abnormal operation of BUS line.
5) Blue blinks quickly.
Power Protect Detection.
Turn OFF the TV and unplug the power cord.
Plug the power cord in again and turn ON the TV.
If, after trying the solutions, the problem still exists:
• In the U.S., call TACP Consumer Solutions at 1-800-631-3811.
• In Canada, locate the nearest Toshiba authorized service depot by directing your web browser to www.toshiba.ca; click
“Home Entertainment,” and then click “Support.”
64
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 65 Thursday, June 22, 2006 1:32 PM
Chapter 10: Appendix
HDMI™ INPUT:
HDMI compliant (type A connector)
HDCP compliant
E-EDID* compliant
Suggested formats: 1080i, 480p, 480i, 720p
HDMI Audio: 2-channel L-PCM; 32/44.1/48 kHz
sampling frequency; 16/20/24 bits per sample
VIDEO/AUDIO OUTPUT (also for recording):
VIDEO: 1 V(p-p), 75 ohm, negative sync.
AUDIO: 150 mV(rms) (30% modulation equivalent,
2.2 k ohm or less)
DIGITAL AUDIO OUTPUT:
Optical type
PC INPUT:
15-Pin D-sub Analog RGB
RJ-45 port:
Standard Ethernet (RJ-45)
Specifications
Note:
• This model complies with the specifications listed
below.
• Designs and specifications are subject to change
without notice.
• This model may not be compatible with features and/or
specifications that may be added in the future.
Television System
NTSC standard
ATSC standard (8VSB)
Digital Cable (64 QAM, 256 QAM; in-the-clear,
unencrypted)
Channel Coverage
VHF: 2 through 13
UHF: 14 through 69
Cable TV: Mid band (A-8 through A-1, A through I)
Super band (J through W)
Hyper band (AA through ZZ, AAA, BBB)
Ultra band (65 through 94, 100 through 135)
Power Source
120 V AC, 60 Hz
Power Consumption
26HLV66: 99 W (average)
19 W in standby mode
32HLV66: 121 W (average)
19 W in standby mode
37HLV66: 131 W (average)
19 W in standby mode
Audio Power
10 W + 10 W
Speaker Type
Two 2-3/8 × 4-3/4 inches (6 × 12 cm)
Video/Audio Terminals
S-VIDEO INPUT:
Y: 1 V(p-p), 75 ohm, negative sync.
C: 0.286 V(p-p) (burst signal), 75 ohm
VIDEO/AUDIO INPUT:
VIDEO: 1 V(p-p), 75 ohm, negative sync.
AUDIO: 150 mV(rms) (30% modulation equivalent, 22 k
ohm or greater)
ColorStream® (component video) HD INPUT:
VIDEO:Y: 1V(p-p), 75 ohm
PR: 0.7 V(p-p), 75 ohm
PB: 0.7 V(p-p), 75 ohm
Suggested formats: 1080i, 480p, 480i, 720p
AUDIO: 150 mV(rms), 22 k ohm or greater
DVD/CD Player
DVD signal system NTSC
DVD region number 1
Applicable disc 1. DVD (12cm, 8cm [with Disc adapter])
2. CD (12cm, 8cm [with Disc adapter])
Pickup
1-Lens, 2-Beams system
Dimensions
26HLV66: Width: 26 inches (660 mm)
Height: 21-1/16 inches (535 mm)
Depth: 10-25/32 inches (274 mm)
32HLV66: Width: 31-1/4 inches (794 mm)
Height: 24-1/16 inches (611 mm)
Depth: 11-13/16 inches (300 mm)
37HLV66: Width: 38-7/16 inches (916 mm)
Height: 27-3/22 inches (688 mm)
Depth: 11-13/16 inches (300 mm)
Weight
26HLV66: 34.0 lbs (15.4 kg)
32HLV66: 45.0 lbs (20.4 kg)
37HLV66: 58.0 lbs (26.3 kg)
Operating conditions
Temperature: 32ºF - 95ºF (0ºC - 35ºC)
Humidity: 20 - 80% (no moisture condensation)
Supplied Accessories
• Remote control with two size “AAA” batteries
• Installation Guide
• Operating Guide (this book)
• Lead clip
Use this clip to attach the TV to a wall, pillar, or other
immovable structure. See item 19 on page 3 of the separate
Installation Guide.
*
E-EDID = Enhanced-Extended Display Identification
65
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 66 Thursday, June 22, 2006 1:32 PM
Chapter 10: Appendix
Limited United States Warranty
for LCD TV/DVD Combinations 26” and Larger
Toshiba America Consumer Products, L.L.C. (“TACP”) makes the
following limited warranties to original consumers in the United States.
THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL
CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS LCD
TV/DVD COMBINATION AS A GIFT FROM THE ORIGINAL CONSUMER
PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.
LCD TV/DVD COMBINATIONS PURCHASED IN THE U.S.A. AND USED
ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT
LIMITATION, CANADA AND MEXICO, ARE NOT COVERED BY THESE
WARRANTIES.
LCD TV/DVD COMBINATIONS PURCHASED ANYWHERE OUTSIDE
OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA AND
MEXICO, AND USED IN THE U.S.A., ARE NOT COVERED BY THESE
WARRANTIES.
Limited One (1) Year Warranty on Parts and Labor
TACP warrants this LCD TV/DVD Combination and its parts against
defects in materials or workmanship for a period of one (1) year after the
date of original retail purchase. DURING THIS PERIOD, TACP WILL, AT
TACP’S OPTION, REPAIR OR REPLACE A DEFECTIVE PART WITH A
NEW OR REFURBISHED PART WITHOUT CHARGE TO YOU FOR
PARTS OR LABOR. During this period, TACP Authorized Service Station
personnel will come to your home when warranty service is required.
Depending on the type of repair required, the service will either be
performed in your home or the LCD TV/DVD Combination will be taken to
a TACP Authorized Service Station for repair and returned to your home at
no cost to you.
Rental Units
The warranty for LCD TV/DVD Combination rental units begins on the date
of the first rental or thirty (30) days after the date of shipment to the rental
firm, whichever comes first.
Limited Warranty for Commercial Units
TACP warrants LCD TV/DVD Combinations that are sold and used for
commercial purposes as follows: all parts are warranted against defects
in materials or workmanship for a period of ninety (90) days after the date
of original retail purchase. DURING THIS PERIOD, TACP WILL, AT
TACP’S OPTION, REPAIR OR REPLACE A DEFECTIVE PART WITH A
NEW OR REFURBISHED PART WITHOUT CHARGE TO YOU.
Owner’s Manual and Product Registration Card
Read this owner’s manual thoroughly before operating this LCD TV/DVD
Combination.
Complete and mail the enclosed product registration card or register your
LCD TV/DVD Combination online at www.tacp.toshiba.com/service
as soon as possible. By registering your LCD TV/DVD Combination you
will enable TACP to bring you new products specifically designed to meet
your needs and help us to contact you in the unlikely event a safety
notification is required under the U.S. Consumer Product Safety Act.
Failure to complete and return the product registration card
does not diminish your warranty rights.
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING
CONDITIONS:
not covered by this warranty. Reception problems caused by
inadequate antenna systems, misaligned satellite dishes, cable
television distribution, VCRs, DVD players/recorders, personal
computer level IEEE-1394 devices, and any other connected signal
source device are your responsibility.
(5) Warranties extend only to defects in materials or workmanship as
limited above, and do not extend to any LCD TV/DVD Combination or
parts that have been lost or discarded by you or to damage to the
LCD TV/DVD Combination or parts caused by fires, misuse, accident,
Acts of God (such as lightning or fluctuations in electric power),
improper installation, improper maintenance, or use in violation of
instructions furnished by TACP; use or malfunction through
simultaneous use of this LCD TV/DVD Combination and connected
equipment; or to units that have been modified or had the serial
number removed, altered, defaced, or rendered illegible.
How to Obtain Warranty Service
If, after following all of the operating instructions in this manual and
reviewing the section entitled “Troubleshooting,” you find that service is
needed:
(1) To find the nearest TACP Authorized Service Station, visit TACP’s
website at www.tacp.toshiba.com/service or contact TACP’s
Consumer Solution Center toll free at 1-800-575-5469.
(2) You must present your original bill of sale or other proof of purchase
to the TACP Authorized Service Station.
For additional information, visit TACP’s website:
www.tacp.toshiba.com
ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE
U.S.A., INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED
WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY
WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A.
AS HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES,
AGREEMENTS, AND SIMILAR OBLIGATIONS OF TACP WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PARTS. IN NO
EVENT SHALL TACP BE LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOST
PROFITS, BUSINESS INTERRUPTION, OR MODIFICATION OR
ERASURE OF RECORDED DATA CAUSED BY USE, MISUSE OR
INABILITY TO USE THIS LCD TV/DVD COMBINATION).
No person, agent, distributor, dealer, or company is authorized to change,
modify, or extend the terms of these warranties in any manner whatsoever.
The time within which an action must be commenced to enforce any
obligation of TACP arising under the warranty or under any statute or law
of the United States or any state thereof is hereby limited to ninety (90)
days from the date you discover, or should have discovered, the defect.
This limitation does not apply to implied warranties arising under the law
of any state of the U.S.A.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE
TO STATE IN THE U.S.A. SOME STATES OF THE U.S.A. DO NOT
ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED
WARRANTY, WHEN AN ACTION MAY BE BROUGHT, OR THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES. THEREFORE, THE ABOVE PROVISIONS MAY NOT APPLY
TO YOU UNDER SUCH CIRCUMSTANCES.
(1) You must retain your original bill of sale or provide other proof of
purchase.
(2) All warranty servicing of this LCD TV/DVD Combination must be
performed by an Authorized TACP Service Station.
(3) The warranties from TACP are effective only if this LCD TV/DVD
Combination is purchased and operated in the Continental U.S.A. or
Puerto Rico.
(4) Labor service charges for set installation, setup, adjustment of
customer controls, and installation or repair of antenna systems are
66
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 67 Thursday, June 22, 2006 1:32 PM
Chapter 10: Appendix
Limited Canada Warranty
for LCD TV/DVD Combination
Toshiba of Canada Limited (“TCL”) makes the following limited warranties
to original consumers in Canada.
LCD TV/DVD COMBINATIONS PURCHASED IN CANADA AND USED
ANYWHERE OUTSIDE OF CANADA, INCLUDING, WITHOUT
LIMITATION, THE U.S.A. AND MEXICO, ARE NOT COVERED BY
THESE WARRANTIES.
LCD TV/DVD COMBINATIONS PURCHASED ANYWHERE OUTSIDE
OF CANADA, INCLUDING, WITHOUT LIMITATION, THE U.S.A. AND
MEXICO, AND USED IN CANADA, ARE NOT COVERED BY THESE
WARRANTIES.
THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL
CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS LCD
TV/DVD COMBINATION AS A GIFT FROM THE ORIGINAL CONSUMER
PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.
Limited One (1) Year Warranty on Parts and Labor
TCL warrants this LCD TV/DVD Combination and its parts against defects
in materials or workmanship for a period of one (1) year after the date of
original retail purchase. DURING THIS PERIOD, TCL WILL, AT TCL’S
OPTION, REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW OR
REFURBISHED PART WITHOUT CHARGE TO YOU FOR PARTS OR
LABOR.
a) FOR LCD TV/DVD COMBINATIONS UNDER 37”:
To receive warranty service, you must return the LCD TV/DVD
Combination to a TCL Authorized Service Depot.
b) FOR LCD TV/DVD COMBINATIONS 37” AND LARGER:
During this period, TCL Authorized Service Depot personnel will come
to your home when warranty service is required. Depending on the
type of repair required, the service will either be performed in your
home or the LCD Television will be taken to a TCL Authorized Service
Depot for repair and returned to your home at no cost to you. INHOME SERVICE ONLY APPLIES WITHIN 100 KILOMETERS OF AN
AUTHORIZED TCL SERVICE DEPOT.
Rental Units
The warranty for rental units begins with the date of first rental or thirty (30)
days from the date of shipment to the rental firm, whichever comes first.
Commercial Units
LCD TV/DVD Combinations sold and used for commercial purposes have
a limited ninety (90) day warranty for all parts and labor.
Owner’s Manual and Product Registration
Read this owner ’s manual thoroughly before operating this LCD TV/DVD
Combination. If you purchased your LCD TV/DVD Combination in
Canada, register it online at www.toshiba.ca as soon as possible. By
registering your product you will enable TCL to bring you new products
specifically designed to meet your needs and help us to contact you in the
unlikely event a safety notification is required. Failure to register
online does not diminish your warranty rights.
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING
CONDITIONS:
(4) Labor charges for installation, setup, adjustment of customer
controls, and installation or repair of antenna systems are not covered
by these warranties. Reception problems caused by inadequate
antenna systems are your responsibility.
(5) Warranties extend only to defects in materials or workmanship as
limited above, and do not extend to any LCD TV/DVD Combination or
parts that have been lost or discarded by you or to damage to the
LCD TV/DVD Combination or parts caused by fires, misuse, accident,
Acts of God (such as lightning or fluctuations in electric power),
improper installation, improper maintenance, or use in violation of
instructions furnished by TCL; use or malfunction through
simultaneous use of this product and connected equipment; or to
units that have been modified or had the serial number removed,
altered, defaced, or rendered illegible.
How to Obtain Warranty Services
If, after following all of the operating instructions in this manual and
checking the “Troubleshooting” section, you find that service is needed:
(1) To find the nearest TCL Authorized Service Depot, visit TCL ’s web
site at www.toshiba.ca.
(2) Present your bill of sale or other proof of purchase to the Authorized
Service Depot.
For additional information, visit TCL’s web site:
www.toshiba.ca
ALL WARRANTIES IMPLIED BY THE LAW OF ANY PROVINCE OF
CANADA, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY LIMITED TO THE DURATION OF THE LIMITED
WARRANTIES SET FORTH ABOVE. WITH THE EXCEPTION OF ANY
WARRANTIES IMPLIED BY THE LAW OF ANY PROVINCE OF CANADA
AS HEREBY LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES, GUARANTEES,
AGREEMENTS, AND SIMILAR OBLIGATIONS OF TCL WITH RESPECT
TO THE REPAIR OR REPLACEMENT OF ANY PARTS. IN NO EVENT
SHALL TCL BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOST PROFITS,
BUSINESS INTERRUPTION, OR MODIFICATION OR ERASURE OF
RECORDED DATA) CAUSED BY USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT.
No person, agent, distributor, dealer, or company is authorized to change,
modify, or extend the terms of these warranties in any manner whatsoever.
The time within which action must be commenced to enforce any
obligation of TCL arising under this warranty or under any law of Canada
or of any province thereof is hereby limited to 90 days from the date you
discover, or should have discovered, the defect. This limitation does not
apply to implied warranties arising under the law of any province of
Canada.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY FROM
PROVINCE TO PROVINCE IN CANADA. SOME PROVINCES OF
CANADA DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN
IMPLIED WARRANTY, LIMITATIONS ON THE TIME WITHIN WHICH AN
ACTION MAY BE BROUGHT, OR THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES; THEREFORE, THE
ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU
UNDER SUCH CIRCUMSTANCES.
(1) You must provide your bill of sale or other proof of purchase.
(2) All warranty servicing of this LCD TV/DVD Combination must be made
by an Authorized TCL Service Depot.
(3) The warranties from TCL are effective only if the LCD TV/DVD
Combination is purchased in Canada from an authorized TCL dealer
and operated in Canada.
67
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 68 Thursday, June 22, 2006 1:32 PM
Chapter 10: Appendix
A copy of the GPL source code in this product may be obtained by
contacting Toshiba Consumer Solutions at (800)631-3811. There will be
a charge to cover the costs of providing the source code.
A copy of the LGPL source code in this product may be obtained by
contacting Toshiba Consumer Solutions at (800)631-3811. There will be
a charge to cover the costs of providing the source code.
USB Protocol Copyright © 2005 The NetBSD Foundation, Inc. All rights
reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
(1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
(2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
(3) Neither the name of The NetBSD Foundation nor the names of its
contributors may be used to endorse or promote products derived
from this software without specified prior written permission.
THIS SOFTWARE IS PROVIDED BY THE NETBSD FOUNDATION, INC.
AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
This product includes software developed by the OpenSSL Project for use
in the OpenSSL Toolkit (http://www.openssl.org).
This product includes cryptographic software written by Eric Young
([email protected]).
OpenSSL 0.9.7d Copyright © 1998-2000 the OpenSSL Project. All Rights
reserved. Redistribution and use in source and binary forms, with or
without modification, are permitted provided that the following conditions
are met:
(1) Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
(2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
(3) All advertising materials mentioning features or use of this software
must display the following acknowledgement: This product includes
software developed by the OpenSSL Project for use in the OpenSSL
Toolkit (http://openssl.org).
(4) The names “OpenSSL Toolkit” and “Open SSL Project” must not be
used to endorse or promote products derived from this software
without prior written permission. For written permission, please
contact [email protected].
(5) Products derived from this software may not be called “OpenSSL” nor
may “Open SSL” appear in their names without prior written
permission of the OpenSSL Project.
(6) Redistributions of any form whatsoever must retain the following
acknowledgement: “This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit (http://
www.openssl.org).”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS”
AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product
includes cryptographic software written by Eric Young
([email protected]). This product includes software written by Tim
Hudson ([email protected]).
Copyright © 1995-1998 Eric Young ([email protected]). All Rights
reserved. This package is an SSL implementation written by Eric Young
([email protected]). The implementation was written so as to conform
with Netscapes SSL. This library is free for commercial and noncommercial use so long as the following conditions are adhered to. The
following conditions apply to all code found in this distribution, be it the
RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL
documentation included with this distribution is covered by the same
copyright terms except that the holder is Tim Hudson ([email protected]).
Copyright remains Eric Young’s, and as such any Copyright notices in
the code are not to be removed. If this package is used in a product, Eric
Young should be given attribution as the author of the parts of the library
used. This can be in the form of a textual message at program startup
or in documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
(1) Redistributions of source code must retain the copyright notice, this
list of conditions and the following disclaimer.
(2) Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
(3) All advertising materials mentioning features or use of this software
must display the following acknowledgement: “This product includes
cryptographic software written by Eric Young ([email protected]).”
The word ‘cryptographic’ can be left out if the routines from the library
being used are not cryptographic related.
(4) If you include any Windows specific code (or derivative thereof) from
the apps directory (application code) you must include an
acknowledgement: “This product includes software written by Tim
Hudson ([email protected]).”
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. The license and distribution terms for any publicly available
version or derivative of this code cannot be changed, i.e. this code cannot
simply be copied and put under another distribution license (including the
GNU Public License).
68
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 69 Thursday, June 22, 2006 1:32 PM
Index
A
H
R
Antenna input configuration ............ 18
Audio Player................................... 53
Audio quality adjustments ............... 33
Auto aspect .................................... 29
Auto power off ................................ 41
HDMI audio mode ........................... 21
Home file server setup .................... 49
RECALL button ...............................40
Remote control
Battery installation ......................9
Device code table.....................14
Effective range ...........................9
Functional key chart .................12
Learning about the buttons .......10
Programming ...........................13
B
Back of the TV.................................. 8
Blocking channels .......................... 37
C
CableClear® ................................... 42
CH Bb buttons ................................ 26
CH RTN button............................... 26
Channel Browser Setup .................. 24
Channel Browser™ ......................... 24
Channel Browser™ banner .............. 25
Channel Number buttons ................ 26
Channel programming
Automatic programming ........... 19
Manually adding and deleting ... 19
Cinema mode ................................. 29
Closed captions .............................. 31
Color temperature .......................... 43
D
Defaults, restore TV factory ............ 22
Digital audio selector ...................... 32
Digital Noise Reduction .................. 42
Digital signal meter ......................... 21
DVD
DVD aspect ratio ..................... 55
Fast forward ............................ 56
Fast reverse ............................ 56
Frame by frame ....................... 56
MP3/JPEG CD operation ......... 58
Playback ................................. 54
Dynamic contrast............................ 42
F
Favorite channels ........................... 20
Features, TV .................................... 5
Front of the TV ................................. 7
I
INPUT button.................................. 23
Installation, setup .............................. 6
Integrated digital tuning ..................... 5
J
JPEG ................................ 50, 51, 59
L
Labeling video input ........................ 23
Language selection ......................... 18
Last mode memory feature ............. 41
LED indications............................... 64
LOCKS menu
Channels, blocking................... 37
Enable rating blocking .............. 35
New PIN code.......................... 35
Panel lock ................................ 38
Unlocking programs
temporarily ................. 37
Video inputs, locking ................ 38
Locks menu .................................... 34
M
S
SAP sound .....................................33
Scroll settings .................................28
Selecting Menu Language ...............18
Side panel control .............................7
Sleep timer .....................................40
Specifications .................................65
StableSound® .................................34
Stereo sound ..................................33
SurfLock™ .......................................26
System status .................................22
T
TheaterWide® picture size ...............27
THINC™ system ......................... 8, 45
Troubleshooting ..............................60
MP3 .................................. 51, 53, 58
MPEG noise reduction .................... 42
MTS feature ................................... 33
MUTE button .................................. 32
V
N
W
Network address, setup .................. 45
Warranty
Canada ....................................67
U.S. .........................................66
O
Optical audio output format ............. 34
P
PC setting ...................................... 39
Picture adjustment .......................... 30
Picture mode .................................. 30
Picture quality ................................. 30
Picture scroll ................................... 28
Picture size selection ...................... 27
Picture Viewer ................................ 51
POWER button ................................. 7
V-Chip blocking (Locks menu) .........34
Video input label .............................23
Video input lock ..............................38
WOW:SRS 3D ................................44
WOW:SRS Focus ...........................44
WOW:SRS TruBass ........................44
69
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 70 Thursday, June 22, 2006 1:32 PM
Notes
70
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 71 Thursday, June 22, 2006 1:32 PM
Notes
71
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 72 Thursday, June 22, 2006 1:32 PM
Notes
72
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 73 Thursday, June 22, 2006 1:32 PM
Notes
73
HLV66 (E/F) Web 213:276
263237HLV66_EN.book Page 74 Thursday, June 22, 2006 1:32 PM
Corporate Headquarters: 82 TOTOWA ROAD, WAYNE, NJ 07470, U.S.A.
NATIONAL SERVICE DIVISION: 1420-B TOSHIBA DRIVE, LEBANON, TN 37087, U.S.A.
HEAD OFFICE: 191 McNABB STREET, MARKHAM, ONTARIO, L3R 8H2, CANADA – TEL: (905) 470-5400
SERVICE CENTERS:
TORONTO: 191 McNABB STREET, MARKHAM, ONTARIO L3R 8H2, CANADA – TEL: (905) 470- 5400
MONTREAL: 18050 TRANS CANADA, KIRKLAND, QUEBEC, H9J 4A1, CANADA – TEL: (514) 390-7766
VANCOUVER: 13551 COMMERCE PARKWAY, SUITE 110, RICHMOND, B.C., V6V 2L1, CANADA – TEL: (604) 303-2500
MANUFACTURED BY
CableClear, ColorStream, StableSound, and TheaterWide are registered trademarks of Toshiba America Consumer Products, L.L.C.
Channel Browser, SurfLock, THINC, and LCDVD logo are trademarks of Toshiba America Consumer Products, L.L.C.
PRINTED IN USA
(06-07)
