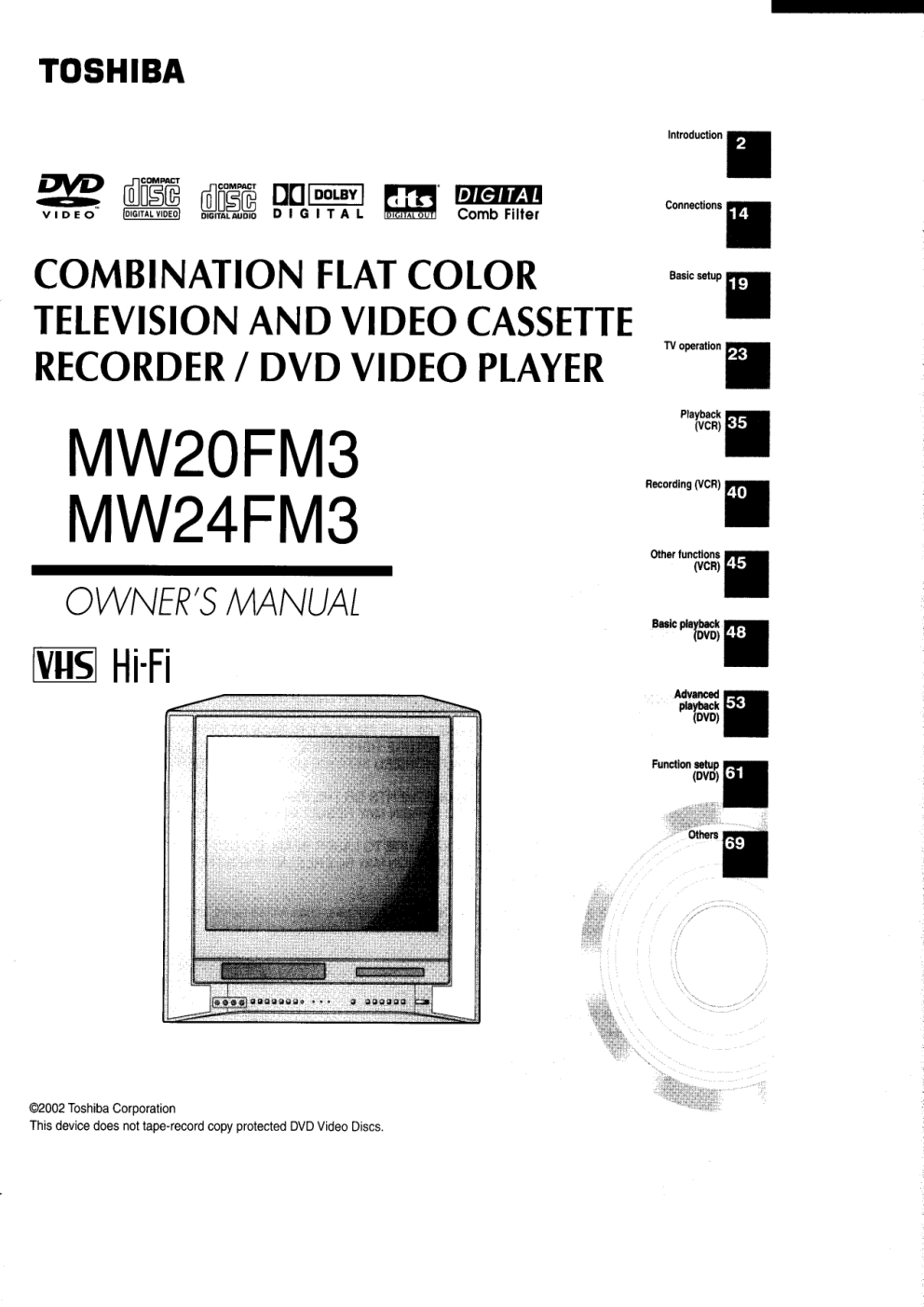

TOSHIBA
Introduction
22 IEE (rs Dams] prey comet
VIDEO (DIGITAL VIDEO) DIGITALAUDIO DIGITAL Comb Filter "
COMBINATION FLAT COLOR poco E
TELEVISION AND VIDEO CASSETTE
RECORDER / DVD VIDEO PLAYER
MWZ20FM3
MW24FM3
OWNER'S MANUAL
VHS Hi-Fi
TV operation
(VCR)
Playback a
Recording (VCR) §
Other functions
— (VCR)
Advanced
playback
(DVD)
Function setup
(DYD)
O2002 Toshiba Corporation
This device does not tape-record copy protected DVD Video Discs.
2
IMPORT
se
Fe Tee ee A A EE RE CE EE ER CEA SR EEE RSR RCA ALARME EEE EE GE AA CREER OR RASE em TA A EE a SS i i i mii rere:
The lightning flash with arrowhead symbol, within an
CAUTION equilateral triangle is intended to alert the user to the
rte es A presence of uninsulated dangerous voltage within the
product's enclosure that may be of sufficient magnitude
CAUTION; TO REDUCE THE RISK OF ELECTRIC to constitute a risk of electric shock to persons.
SHOCK, DO NOT REMOVE COVER The exclamation point within an equilateral triangle is
(OR BACK). NO USER-SERVICEABLE |
intended to alert the user to the presence of important
PARTS INSIDE. REFER SERVICING TO SU Ses
QUALIFIED SERVICE PERSONNEL. operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not expose this appliance to
rain or moisture.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the
FCC (Federal Communications Commission) Rules could void the user's authority to operate this
equipment.
CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CARE-
FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTE-
NANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLO-
SURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED.
DO NOT STARE INTO BEAM.
COPYRIGHT: It is permissible to record television programs, films, video tapes and other material only in the
event that third party copyrights and other rights are not violated.
Location of the required Marking
The rating sheet and the safety caution are on the rear of the unit.
CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE —— | “TT
STANDARDS, 21 CFR SUBCHAPTER J. sa
8A.
10.
11.
12.
13.
READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
ATTACHMENTS
Do not use attachments not recommended by the unit's manufacturer as they may cause hazards.
WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool.
ACCESSORIES PORTABLE CART WARNING
CC (symbol provided by RETAC)
3
=
©
o
©
©
=
о
3
Do not place this unit on an unstable cart, stand, tripod, bracket, or
table. The unit may fall, causing serious injury, and serious damage
to the unit. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer.
An appliance and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and cart
combination to overturn.
VENTILATION S3125A
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, and to ensure
reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or
covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar
surface. This unit should never be placed near or over a radiator or heat source. This unit should not be
placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
POWER SOURCES
This unit should be operated only from the type of power source indicated on the rating plate. If you are not
sure of the type of power supply to your home, consult your appliance dealer or local power company. For
units intended to operate from battery power, or other sources, refer to the respective pages on this Owner's
Manual for their operating instructions.
GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to
replace your obsolete outlet. Instead of the polarized alternating-current line plug, your unit may be
equipped with a 3-wire grounding-type plug (a plug having a third (grounding) pin). This plug will only fit into
a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the
outlet, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type plug.
POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the appliance.
LIGHTNING
To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the
unit due to lightning and power line surges.
3
4
E uu Eu ue o SE
ARDE BN AS A AECA AENA ENANA BONA CNA ES ANA Ce AE CCE A Ce as A A HORAS RS mm at mre
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall onto or against such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or circuits,
as contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short
out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and built-up static charges, Section 810
of the National Electrical Code (NEC), ANSI/NFPA 70, provides information with respect to proper grounding
of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
18. SERVICING
Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
For example:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an improper adjustment of other controls may result
in damage and will often require extensive work by a qualified technician to restore the unit to its
normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f. When the unit exhibits a distinct change in performance, this indicates a need for service.
19. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by
the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
20. SAFETY CHECK
Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
21. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
22. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
23. DISC TRAY
Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.
24. CONNECTING
When you connect the product to other equipment, turn off the power and unplug all of the equipment from
the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's
manual of the other equipment carefully and follow the instructions when making any connections.
25. LASER BEAM
Do not look into the opening of the disc tray or ventilation opening of the product to see the source of the
laser beam. it may cause sight damage.
26. DISC
Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious
personal injury and product malfunction.
IMPORTANT SAFE
27. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
UOILONPORUI па
EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
GROUND CLAMP ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
DI GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
NEC-NATIONAL ELECTRICAL CODE (NEC ART 250, PART H)
S2898A
| Power source |
TO USE AC POWER SOURCE
AC Outlet Use the AC polarized line cord provided for operation on AC. Insert
the AC cord plug into a standard 120V 60Hz polarized AC outlet.
Wider Hole
and Blade
Notes:
e Never connect the AC line cord plug to other than the specified
voltage (120V 60Hz). Use the attached power cord only.
o If the polarized AC cord does not fit into a non-polarized AC
outlet, do not attempt to file or cut the blade. lt is the users
responsibility to have an electrician replace the obsolete outlet.
e if you cause a static discharge when touching the unit and the
Polarized AC Cord Plug unit fails to function, simply unpiug the unit from the AC outlet
(One blade is wider than the other.) and plug it back in. The unit should return to normal operation.
e |f the AC cord plug is plugged in for the first time, wait for about 5
seconds before pressing the power button on the front panel. 5
6
| [ Notes on moisture condensation
E When shipping the unit, the original shipping carton
and packing materials come in handy. For maximum
protection, repack the unit as it was originally packed
at the factory.
B Do not use volatile liquids, such as insect spray, near
the unit. Do not leave rubber or plastic products in
contact with the unit for a long time. They will leave
marks on the finish.
EH The top and rear panels of the unit may become
warm after a long period of use. This is not a
malfunction.
E When the unit is not in use, be sure to remove the disc
and the video cassette turn off the power.
M If you do not use the unit for a long period, the unit
may not function properly in the future. Turn on and
use the unit occasionally.
M Place the unit on a level surface. Do not use it on a
shaky or unstable surface such as a wobbling table or
inclined stand. The loaded disc or the video tape may
come off the proper position and cause damage to
the unit.
E When you place this unit near a TV, radio, or VCR,
the playback picture may become poor and the sound
may be distorted. In this case, place the unit away
from the TV, radio, or VCR.
Use a soft, dry cloth for cleaning.
@ For stubborn dirt, soak the cloth in a weak detergent
solution, wring well and wipe. Use a dry cloth to wipe
it dry.
Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the unit.
O If you use a chemical saturated cloth to clean the unit,
follow that product's instructions.
clean
The unit is a high technology, precision device. If the
video head, the head dram, the optical pick-up lens and
disc drive parts are dirty or worn down, the picture
quality becomes poor. To obtain a clear picture, we
recommend regular inspection and maintenance
(cleaning or parts replacement) every 1,000 hours of
use depending on the operating environment. For
details, contact your nearest dealer.
Moisture condensation damages the unit. Please
read the following carefully.
Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day. Drops of
water form on the outside of the glass. In the same way,
moisture may condense on the head dram or the optical
pick-up lens inside this unit, one of the most crucial
internal parts of the unit.
ample of Moistu,
condensation;
Head dram
B Moisture condensation occurs during the
following cases.
@ When you bring the unit directly from a cold place to a
warm place.
@ When you use the unit in a room where you just
turned on the heater, or a place where the cold wind
from the air conditioner directly hits the unit.
O In summer, when you use the unit in a hot and humid
place just after you move the unit from an air
conditioned room.
@ When you use the unit in a humid place.
№ 5 100
a= 7 warm!
< —
>
*
4~ >= U
= Gi
«= =
> za]
E Do not use the unit when moisture condensation
may occur.
If you use the unit in such a situation, it may damage
discs and internal parts. Remove the disc or the video
tape, connect the power cord of the unit to the wall
outlet, turn on the unit, and leave it for two or three
hours. After two or three hours, the unit will have
warmed up and evaporated any moisture. Keep the
unit connected to the wall outlet and moisture
condensation will seldom occur.
‚ N Wall outlet
@ Do not touch the playback side of the disc.
Playback side
@ Do not attach paper or tape to discs.
| On cleaning discs 1
a
@ Fingerprints and dust on the disc cause picture and
sound deterioration. Wipe the disc from the center
outwards with a soft cloth. Always keep the disc
clean.
@ If you cannot wipe off the dust with a soft cloth, wipe
the disc lightly with a slightly moistened soft cloth and
finish with a dry cloth.
@ Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or antistatic
spray for vinyl LPs. it may damage the disc.
@ Do not store discs in a place subject to direct sunlight
or near heat sources.
@ Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
O Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.
Normally, DVD video discs are divided into titles, and
the titles are sub-divided into chapters. VIDEO CDs and
audio CDs are divided into tracks.
иоцэпроди a
DVD video disc
DVD video disc >
Title 1 >| Title 2
Chapter 1 Chapter2 | Chapter 1 Chapter2 Chapter 3
| | | | |
VIDEO CD/audio CD
VIDEO CD/audio CD
Track 1 Track 2 Track 3 Track 4 Track 5
| | |
мл lime ies dae] [haa
Each title, chapter or track is assigned a number, which
is called “title number”, “chapter number” or “track
number” respectively.
There may be discs that do not have these numbers.
Notes on copyright
It is forbidden by law to copy, broadcast, show,
broadcast on cable, play in public, and rent copyrighted
material without permission.
This device does not tape-record copy protected DVD
Video Discs.
The device is not to be used for copying copyrighted
content without the express written permission of the
copyright owner.
Obtaining such permission is the sole responsibility of
the user.
This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is
prohibited.
7
8
Dies on discs (continued)
About this owner's manual
This owners manual explains the basic instructions of
Playable discs
This unit can play the following discs.
this unit. Some DVD video discs are produced in a
manner that allows specific or limited operation during
playback. As such, the unit may not respond to all
operating commands. This is not a defect in the unit.
Refer to instruction notes of discs.
“SI” may appear on the TV screen during operation.
A “O” means that the operation is not permitted by the
unit or the disc.
Notes on region numbers
The region number of this unit is 1. If region numbers,
which stand for their playable area, are printed on your
DVD video disc and you do not find a} @| , disc
playback will not be allowed by the player. (In this case,
the unit will display a message on-screen.)
| OnVIDEO CDs
This unit supports VIDEO CDs equipped with the PBC
(Version 2.0) function. (PBC is the abbreviation of
Playback Control.) You can enjoy two playback
variations depending on types of discs.
VIDEO CD not equipped with PBC function
(Version 1.1)
; Disc Maximum
Disc Mark | Contents Size | playback time
Approx. 4 hours
(single sided disc)
12 cm
Audio Approx. 8 hours
, + ided di
DVD VIDEO Video (double sided disc)
video (moving
discs pictures) Approx. 80 minutes
(single sided disc)
7 8 cm
Approx. 160 minutes
(double sided disc)
. 12 cm | Approx. 74 minutes
COMPACT Audio
to UBER e
CDs
(DIGITAL VIDEO) red
p 8 cm | Approx. 20 minutes
| COMPACT 12 cm | Approx. 74 minutes
Audio Audio
CDs 8 cm
DIGITAL AUDIO
(CD | Approx. 20 minutes
single)
Sound and movie can be played on this unit in the
same way as an audio CD.
* VIDEO CD equipped with PBC function
(Version 2.0)
In addition to operation of a VIDEO CD not equipped
The following discs are also available.
e CD-R
e CD-RW
CD-R/RW discs recorded by CD-DA method can be
played. Some CD-R/RW discs may be incompatible.
with the PBC function, you can enjoy playback of
interactive software with search function by using the
menu displayed on the TV screen (Menu Playback).
Some of the functions described in this owner's
manual may not work with some discs.
You cannot play discs other than those listed above.
You cannot play discs of DVD-RAM, DVD-RW, etc., or
non standardized discs even if they may be labeled as
above.
This unit uses the NTSC color system, and cannot
play DVD video discs recorded in any other color
system (PAL, SECAM, etc.).
Introduction
IMPORTANT SAFEGUARDS .......... recen eence. 2
Power SOUFCE ..............e.-..e.mrereniecanre RDA 5
Precautions ...............e...e_eeeerererierenre AA 6
Notes on discCs...............—....errereseriererrereeerenenece.. 7
Contents. ...................resenieicereceracae ee eee 9
Identification of Controls.....................e..—.——.—... 10
Connections
Antenna connections................e..—.—e=——..._e...e—.... 14
Cable TV connections ee... 15
Connecting to an audio system...................... 16
Connecting to optional equipment.................. 17
Basic setup
Setting the language ........................e=serevemm.. 19
Clock setting ..................-....emieeeiereee KR 20
TV operation
TV operation ......................e..e.eimeeerecenen en 23
Tuner setting ......ccvvveriiiiiii 26
Setting the V-Chip ......................—......e.—.— 28
To set the on timer... 31
To set the off timer...................——.— ere. 32
Picture control adjustment.....................———.——... 33
Sound contro! adjustment ........................—...... 34
Playback (VCR)
Loading and unloading a cassette tape ......... 35
Cassette tape playbacK 36
Special playbacK …….…...….........….....….…ersererees 37
Convenient function .…….……..…....…..…..……….….….….…...……………. 38
Recording (VCR)
Recording a TV program essen era 40
One-touch Timer Recording (OTR) ................ 42
Timer recording ….….………............….…..…...….….ercornsares 43
Other functions (VCR)
Stereo recording and playback/
Separate Audio Program (SAP) 45
Duplicating a video tape 46
Recording a DVD/CD disc... 47
Basic playback (DVD)
Playing à diSC ….….…..................…ersssersrnneenersennce 48
Locationg a specific title, chapter, or track ..... 52
Advanced playback (DVD)
Repeat playback/Random playback............... 53
Playing in a favorite order 54
Zooming a picture ......................eresererereem 55
Selecting the camera angle ........................—.—... 56
Selecting subtitles ......................e-eeme.—— 57
Selecting a langUaQE 58
On-screen display operation ...................—... 59
Function setup (DVD)
Customizing the function settings .................. 61
Others
Table of languages renover 69
Before calling service personnel .................... 70
Reception disturbances......................e=-..e=e.... 72
Specifications ...................ermeimveeree ee 73
Limited warranty esse EEK EHER KORG 74
9
иоцэпродч| a
entification of Controls
See the page in [ _) for details.
E - È
“E LILLIE Ca ù acofbki wm о:
Cassette Loading Slot 35) — Remote sensor [13) Disc tray
HEADPHONE jack [24) ——— POWER button
AUDIO (L/R)/VIDEO IN (LINE IN 2) jacks TIMER REC |
REW (Rewind) button [38) — indicator SKIP >>1 button (52)
STOP/EJECT button [35) — POWER — PLAY button
PLAY button — indicator ——— STOP button
FF {Fast Forward) button — ——— SKIP ha button [52)
REC/OTR button RECIOTR VOLUME /v buttons (23)
CHANNEL ~/~ buttons 28) —————* indicator |__— OPEN/CLOSE button
„Rear panel 1
RF IN (UHF/VHF) jack
SERVICE jack
AC power cord [5) BITSTREAM/PCM COAXIAL
AUDIO OUT jack
AUDIO (L/R)/VIDEQ AUDIO(L/R)/VIDEO
IN (LINE IN1) jacks OUT jacks
10
Press DISPLAY to display the information on the screen.
To cancel the display, press DISPLAY again.
While watching TV
Day of the week
|
TV/VCR ——
Clock TYNCR |
8: 47AM MON cH 125 + Channel
Stereo and
separate
audio program
While operating a tape
Hi-Fi stereo
| operation“
4 Auto repeat
9] Tape in
| DVD operation Status
Each time you press DISPLAY, the on-screen display changes as follows.
4
O la
El El Y
Title number (Track number)
: Chapter number
: Elapsed (remaining) time of
the current title
: Audio setting
: Subtitle setting
: Angle setting
: To zoom a picture
: Audio Out Select setting
: To stop playback
: Playback starts from the
beginning of the current
chapter or track.
VCR operation*
Recording :
Rec/Pause :
Play :
Fast-forward :
Rewind :
Stop :
buÂâàiÿv=e
Eject :
: Fast reverse playback
: To start playback
: Fast forward playback
[2] [7] [Y] La]
: To locate succeeding
chapters or tracks.
: To begin slow motion
playback
: To pause playback
[El]: To turn off the display
Data transfer rate (Mbit/s)
CD TEXT
11
uoNnonpo nu IB
ntification of Controls (continued)
The instructions in this manual describe the functions on the remote control. See the page in[_) for details.
DVD button
TV/VCR button
Direct channel
selection buttons 23)
Number buttons
DISPLAY button [11)
SLEEP button
AUDIO SELECT button
REC buttons
TIMER REC buttons (43)
CHANNEL CLOSED
RETURN
CAPTION
PLAY button
REV button
CM SKIP button
MEMORY button
COUNTER RESET button
ANGLE button
SP/SLP button
RETURN button
MENU button
SET UP button
Direction buttons
(44 / «= =>)
CANCEL button [22)
CLEAR button (53)
"a * PAUSE/STILL
| INPUT
SELECT
E ZOOM
PROGRAM | D.TRACKING
REPEAT A-B TOP MENU
* DVD MENU button
POWER button
CHANNEL ~/~ buttons
MUTE button
VOLUME 4/ buttons [23)
CLOSED/CAPTION button [25)
SKIP »>'button (52)
SLOW button
CHANNEL RETURN button
SKIP re<button (52)
STOP button
FWD button
PAUSE/STILL button
ZERO RETURN button
SUBTITLE button
PROGRAM button
REPEAT A-B button (53)
INPUT SELECT button
ZOOM button (55)
D.TRACKING button
TOP MENU button (52)
TRK + button
DVD MENU button*(48)
TRK - button
PLAY MODE button (53)
ENTER button
Use the MENU button to display the menu included on
many DVD video discs. To operate a menu, follow the
instructions in “Locating a title using the top menu.” (52)
12
| Inserting Batteries | 2
balon sb E mu JUS Li ha F0 ER oh no Ce EL e Al ht A ros eT es Ta ааИВОЕ Ты eee TT Ep) a
Slide the battery compartment Install two "AAA" batteries Replace the compartment =
cover in the direction of the (supplied), paying attention to the cover. 5
arrow. polarity diagram in the battery
compartment.
Bc DP
Ÿ A
NA
DS DN
7
Battery precautions: |
The precautions below should be followed when using batteries in this device:
1.Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Re-
versed batteries may cause damage to the device. To avoid a potential short circuit, insert the “— end first.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from
possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery
manufacturers directions.)
Remote control basics o
Press POWER to turn the unit on or off.
Select your desired operating mode (TV/VCR or DVD) using TV/VCR or DVD.
Tap CH A or CH V to move through the channels one channel at a time.
The Direction buttons (4/4/=/=>) are also used to navigate on-screen menu system.
You can directly access specific channels using Direct channel selection buttons.
Operation:
* Aim the remote control at the remote sensor and press contro! buttons to
operate.
* Operate the remote control within 30° angle on either side of the remote
sensor, up to a distance of Approx. 7 meters.
13
tenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system.
If you are using a cable TV service (CATV), see page 15 for Cable TV connections.
r
N
Antenna
Jack
= (7)
Antenna
Jack
Num > (LD
75 ohm
Coaxial
Cable
300-75 ohm
Matching
Transformer
J
Connect the 75 ohm Cable from the Combination VHF/UHF
Antenna to the Antenna Jack.
If your Combination VHF/UHF Antenna has a 300 ohm
Twin-lead Wire, the use of the 300-75 ohm Matching
Transformer may be necessary.
Co
Pa
Ta Sie an
r
N
300-75 ohm
Matching
Transformer
Antenna
Jack
Vi
GA
Combiner
CO
VHF 300 ohm
UHF 300 ohm
N
Connect the UHF 300 ohm Twin-lead Wire to the
Combiner (not supplied). Connect the VHF 300 ohm
Twin-lead Wire to the 300-75 ohm Matching Trans-
former. Attach the Transformer to the Combiner, then
attach the Combiner to the Antenna Jack.
_ Separate VHF/UHF Antennas (75 ohm VHF Cable and 300 ohm UHF Twin-lead Wires) |
и
14
Antenna
Jack
Vi
77 VHF 75 ohm
Dre
Combiner
UHF 300 ohm
N
Connect the VHF 75 ohm cable and UHF 300 ohm Twin-
lead Wire to the Combiner (not supplied). Attach the
Combiner to the Antenna Jack.
ble TV Connections
This unit has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some
cable companies offer "premium pay channels" in which the signal is scrambled. Descrambling these signals for normal
viewing requires the use of a descrambler device which is generally provided by the cable company.
For subscriber to basic cable TV service)
4 N For basic cable service not requiring a Converter/Descrambler box,
Ant connect the CATV 75 ohm Coaxial Cable directly to the Antenna Jack
ack on the back of the unit.
E
75 0hm
Coaxial Cable
N J
_For subscriber to
SUO198UU07 N
V service
Вана EEG E Mitin nt nn nn Te eh
RT | вле к ное ERES A CDS EAS RR
If you subscribe to a cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm
Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the
Converter/Descrambler box to the Antenna Jack on the unit. Follow the connections shown below. Set the unit to the output
channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select chan-
nels.
4 NN
Incoming Antenna
> oom, y 75 ohm Cable to Jack
able
>| Converter/ the unit > OT)
| Descrambler
For subscribers to unscrambled basic cable TV service with scrambled
remium channels _ | |
If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the use of a
Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable company
or an electronics supply store). Follow the connections shown below. With the switch in the "B" position, you can directly tune
any nonscrambled channels on your unit. With the switch in the "A" position, tune your unit to the output of the Converter/
Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to tune scrambled channels.
4 A
Incoming ed Converter/
Descrambler |
Antenna
75 0hm 75 ohm Cable Jack
CATV Cable | to the unit
— > Splitter A/B Switch > OT
15
nnecting to an audio system
Connect the unit to your audio system.
For details of output sound, see (58).
(white)
To ANALOG AUDIO OUT
To audio inputs of
the amplifier
(white) El (red)
O kl) O * Make the following setting.
Olo:: СТО O
= | On-screen display Select: Page
o = CFA o “ ; я | « "
a = Audio Out Select” | “Analog 2ch
Audio system
Notes:
Refer to the owner's manual of the connected equipment as well.
* When you connect the unit to other equipment, be sure to turn off the power and unplug all of the equipment from the wall
outlet before making any connections.
* If you place the unit near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the unit away
from the tuner and radio.
* The output sound of the unit has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening level.
Otherwise, the speakers may be damaged by a sudden high volume sound.
e Turn off the amplifier before you connect or disconnect the unit's power cord. If you leave the amplifier power on, the
speakers may be damaged.
16
Pnnecting to optional equipment
You can enjoy high quality dynamic sounds of DVD video discs or audio CDs by
connecting the unit to optional audio equipment.
For details of output sound, see (58).
El: Front speaker [J : Center speaker
: Rear speaker EY : Signal flow
[] : Sub woofer
coder
Dolby Digital
Dolby Digital is the surround sound technology used in theaters showing the latest movies,
and is now available to reproduce this realistic effect in the home. You can enjoy motion
picture and live concert DVD video discs with this dynamic realistic sound by connecting the Dolby Laboratories. Confidential
unit to a 6 channel amplifier equipped with a Dolby Digital decoder or Doiby Digital unpublished works. ©1992-1997 Dolby
processor. If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of | Laboratories. All rights reserved.
Manufactured under ticense from Dolby
Laboratories. “Dolby” “Pro Logic” and
the double-D symbol are trademarks of
O.
©
=
=
®
O
=
о
-
on
Pro Logic from the same DVD movies that provide full 5.1
-channel Dolby Digital soundtracks, as well as from titles with
the Dolby Surround mark.
e Use DVD video discs encoded via
the Dolby Digital recording
Amplifier equipped with a system.
Dolby Digital decoder * Make the following setting.
а То COAXIAL On-screen display Select: Page
type digital
audio input “Audio Out Select” | “Bitstream” =
Recording system DO D
Connecting to an amplifier equipped with Dolby Pro
iii я
_ogic Surround
nitro Donn La Ее воде poesia eine Ea in En OT
Dolby Pro Logic Surround
You can enjoy the dynamic realistic sound of Dolby Pro Logic Surround by connecting an amplifier and speaker system (right and left
front speakers, a center speaker, and one or two rear speakers).
= With an amplifier equipped with Dolby Digital
Connect the equipment the same way as described in “Connecting to an amplifier * Make the following setting.
equipped with a Dolby Digital decoder” Refer to that amplifiers owners manual and set
the amplifier so you can enjoy Dolby Pro Logic Surround sound. On-screen display Select: Page
= With an amplifier not equipped with Dolby Digital
E . n | u ”
Connect the equipment as follows. Audio Out Select” | “Analog 2ch
Be sure to set “Audio Out Select”
to “Analog 2ch” when you enjoy
sounds of Dolby Pro Logic
Surround using this connection.
* Connect one or two rear speakers.
The output sound from the rear speakers will be
monaural even if you connect two rear speakers.
Amplifier equipped with
. Ф Dolby Pro Logic Surround < a
ES To audio input oe |
To ANALOG £
AUDIO OUT |
Audio cable ~~
~ Connecting to an amplifier eq S decoder
Digital Theater Systems (DTS)
. . , , “DTS” and “DTS Digital Surround” are
DTS is a high quality surround technology used in theaters and now available for home use, an 9 но
trademarks of Digital Theater Systems,
on DVD video discs or audio CDs. Inc.
If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS ;
encoded sound tracks on DVD video discs or audio CDs. * Use DVD video discs or audio
CDs encoded via the DTS
recording system.
* Make the following setting.
Amplifier equipped with
a DTS decoder
On-screen display Select: Page
aj To COAXIAL 0
7 type digital ; “Audio Out Select” | “Bitstream”
audio input
Recording system DTS
75 Q coaxial cable
17
Г Warning:
* When you are connecting (via the BITSTREAM/PCM AUDIO OUT jack) an AV decoder that does not have Dolby Digital,
Digital Theater Systems (DTS) or MPEG2 decoding function, be sure to set “Audio Out Select” to “PCM” from the on-
screen displays (63) (68). Otherwise, high volume sound may damage your hearing as well as the speakers.
* When playing DTS-encoded discs (unit), excessive noise may be output from the analog stereo jacks. To avoid possible
damage to the audio system, you should take proper precautions when the ANALOG AUDIO OUT (L/R) jacks of the unit
are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital
Surround™ decoder system must be connected to the BITSTREAM/PCM AUDIO OUT jack of the unit.
x
MPEG2 sound
You can enjoy motion picture and live concert DVD video discs with dynamic
realistic sound by connecting an amplifier equipped with an MPEG2 audio decoder
or MPEG? audio processor.
Amplifier equipped with an
1 MPEG2 audio decoder
* Use DVD video discs encoded via
the MPEG2 recording system.
* Make the following setting.
—
=
|
On-screen display Select: Page
“Audio Out Select” | “Bitstream”
audio input
75 Q coaxial cable Recording system MPEG
2 channel digital stereo
You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier
equipped with a digital audio input and speaker system (right and left front speakers).
Amplifier equipped with лили | * Make the following setting.
a digital audio input i mo On-screen display Select: Page
To COAXIAL : “Audio Out Select” “PCM”
J type digital
audio input
75 Q coaxial cable
Notes:
* DO NOT connect the BITSTREAM/PCM AUDIO OUT jack of the unit to the AC-3 RF input of a Dolby Digital Receiver. This
input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the BITSTREAM/PCM AUDIO OUT
jack of the unit.
* Connect the BITSTREAM/PCM AUDIO OUT jack of the unit to the “COAXIAL” input of a Receiver or Processor.
» Refer to the owner's manual of the connected equipment as well.
* When you connect the unit to other equipment, be sure to turn off the power and unplug all of the equipment from the wall
outlet before making any connections.
+ The output sound of the unit has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate listening level.
Otherwise, the speakers may be damaged by a sudden high volume sound.
* Turn off the amplifier before you connect or disconnect the unit's power cord. If you leave the amplifier power on, the
speakers may be damaged.
18
This unit can display the on screen language in English, Spanish or
French. Language selection (step 3) will automatically appear on the neal aD
screen when you press MENU initially. Select the language you prefer E
first, then proceed with the other menu options.
TV/VCR
POWER
* Press TV/VCR to select the TV/VCR mode.
2,3
1,4
2,3
o \ Notes:
Preparation: * Both the TV/VCR and the DVD have their own menu op-
* Press POWER to turn on the unit. tion (61).
Press MENU. Press # ог { to select “SYSTEM
SET-UP”, then press ENTER.
1
MENU
© MENU SL
SETUP
Press f or Ÿ to select “LANGUAGE”, then
press ENTER.
2
Press t or $ to select the desired language:
English (ENGLISH), Spanish (ESPANOL) or
French (FRANCAIS), then press ENTER.
Press MENU repeatedly until the MENU screen
is cleared.
4
MENU
SETUP
* If no buttons are pressed for more than 60 seconds, the
TV/VCR MENU screen will return to normal TV operation
automatically.
dnjas 91seg Ш
19
lock setting
Clock needs several minutes to set itself.
The Auto Clock function will automatically set the built-in clock (Month,
Day, Year and Time) when the unit is connected to an Antenna or Cable
system and it is turned off. As the unit searches for a receivable station
in your area and it receives a broadcast signal for Auto Clock, the Auto
Us TUNER
7. %“— POWER
~~. DISPLAY
Робот и, >
i TN .
“ zc :
— 2,4
_ Auto Clock sett
set Auto Clock to OF
When shipped from factory the AUTO CLOCK is set to “ON”.
ñ ``
Preparation: But if you do not want auto clock set (Adjustment):
* Connect the Antenna or Cable system. a Y
* |f you use a cable box, turn it on. 1 Press MENU.
+ Plug the AC Power cord to the AC outlet.
MENU
1 Make sure the unit is turned off.
SETUP
POWER * |f you press POWER, the Auto Clock
set is not effective.
Press $ or Y to select “SYSTEM SET-UP”,
then press ENTER.
2 Wait at least three minutes and press POWER. на
The POWER indicator will light.
POWER
718
Press DISPLAY to check the clock on the
screen. —B—
* DISPLAY
If the clock is not set, check the antenna
condition. The Auto Clock may not function
properly if the reception condition is not
good.
N. J
,
The Auto Clock adjustment will be performed at
12:00 PM everyday if you turn off the unit. 5 Press MENU repeatedly until the MENU
* |f you use a cable box and you want Auto Clock screen is cleared.
adjustment to be performed, the cable box must be left MENU * When the AUTO CLOCK is set to
on. “OFF”, the Auto Clock adjustment
* The Auto Clock adjustment is not effective when there SETUP does not function.
is a difference of more than 5 minutes exists between * Set the clock manually (22).
the built-in clock time and the actual time. DD
\. J
20
In the rare event that you live within broadcast range of two
stations in two different time zones, the unit may recognize
the wrong station for the Auto Clock set.
To correct the situation:
You can set the Daylight saving time automatically or
manually.
Pa
1 Press MENU.
MENU
SETUP
Press $ or $ to select “SYSTEM SET-UP”,
then press ENTER.
r
Press MENU.
Press t or § to select “SYSTEM SET-UP”,
then press ENTER.
dmjes aiseg B
Press $ or | to select “STANDARD TIME”,
then press ENTER.
Press $ or | to select “DAYLIGHT SAVING
TIME”, then press ENTER.
Press $ or $ to select your time zone, then
press ENTER.
ATLANTIC
< EASTERN
- GMT—4hours
: GMT-5hours
CENTRAL :GMT-6hours
MOUNTAIN : GMT-7hours
PACIFIC : GMT-8hours
ALASKA : GMT-—9hours
HAWAII : GMT—10hours
AUTO : AUTO SET
(GMT: Greenwich Mean Time)
3 Press $ or $ to select one of the options,
then press ENTER.
ON: for manual setting
(forward one hour)
OFF: for manual setting
(back one hour)
AUTO: for automatic setting
(read XDS in the signal)
When you want to set the Daylight
Saving Time manually, on the first
Sunday in April you set to “ON”, and
on the last Sunday in October you
set to “OFF”.
\.
5 Press MENU repeatedly until the MENU
screen is cleared.
MENU
SETUP
Note:
To be able to select the standard time, the clock must first
be set by “AUTO CLOCK" once.
Ne
4 Press MENU repeatedly until the MENU screen
is cleared.
MENU
SETUP
Notes:
» When shipped from factory, the DAYLIGHT SAVING
TIME is set to “AUTO” position.
* When the clock is not set, Daylight Saving Time setting
is not available.
* When there is no Daylight Saving Time in your area,
always select “OFF” position in step 3.
21
pck setting (continued)
process did not set them correctly.
You must set the date and time manually for Timer Recordings,
ON/OFF Timer and Daylight Saving Time if the Auto Clock
gr
EXAMPLE: Setting the clock to "8:30 AM", 29th. (FRI)
March, 2002.
(— N
1 Press MENU.
MENU
SETUP
Press $ or $ to select the "SYSTEM SET-UP",
then press ENTER.
After setting the clock, date and time starts
functioning automatically.
Press $ or Ÿ to select "CLOCK SET", then
press ENTER.
Press t or } to set the month, then press
ENTER.
22
H To make corrections any time during the process
Press CANCEL repeatedly until the item you want to
change blinks, then press $ or $.
Notes:
After a power failure or disconnection of the power, the timer
settings will be lost. In this case, reset the present time.
* When you set the minute, you can change in 10-minutes step
by holding down $ or +.
Operation
TV operation
~~
: Dina DIE
To turn on the unit, press POWER.
POWER
J
2 Press TV/VCR to select the TV/VCR mode.
|
VNC
0
0
3 Adjust the volume level by pressing VOLUME
А ог У.
The volume level will be indicated
on the screen by green bars. As
the volume level increases, so do
the number of bars. If the volume
decreases, the number of green
bars also decreases.
Set TV/CATV menu to the appropriate position
(See page 26).
Press the Direct channel selection buttons to
select the channel.
TV mode direct channel selection -
When TV/CATV menu is in the TV position, all
channels can be instantly selected by using two
buttons. (for example, to select channel 2, press
"O", then "2". H you press only "2", channel selection
will be delayed for two seconds.) For channels 10
and above, press the 2 digits in order.
CATV mode direct channel selection -
When TV/CATV menu is in the CATV position,
channels can be selected as follows:
TO SELECT CATV CHANNELS:
1-9 Press "0" twice, then 1-9 as needed.
Example, to select channel 2, press "002".
uonesado AL Ш
10-12 Press "O", then the remaining 2 digits.
Example, to select channel 12, press "012".
13-99 Press the 2 digits in order. Example, to
select channel 36, press "36".
100-125 Press the 3 digits in order. Example, to
select channel 120, press "120".
NOTE FOR CHANNELS 1-12:
If only 1 or 2 button is pressed, the corresponding
channel will be selected in 2 seconds.
SDD
© ©
© © ©
©
Notes: VHF/UHF/CATV CHANNELS
* |f a channel with no TV CATV
broadcast is selected, VHE VHF
the sound will 2-13 2-13
automatically be UHF | STD/HRC/IRC
muted. 14-69 14-36
® На station being (A) (W)
viewed stops 37-59
broadcasting, the TV (AR) WW)
will automatically shut (AAA) (ZZZ)
itself off after 15 86-94
minutes. (86) (94)
95-99
(A-5) (A-1)
100-125
(100) (125)
01
(5A)
23
Operation (continued)
To set the unit to turn off after a preset amount of time,
press SLEEP on the remote control.
The clock will count down 10 minutes for each press of
SLEEP (120, 110, ...10, 0). After the sleep time is
programmed, the display will appear briefly every ten
minutes to remind you that the sleep timer is operating.
To confirm the sleep timer setting, press SLEEP and the
remaining time will be display for a few seconds. To
cancel the sleep timer, press SLEEP repeatedly until the
display turns to O.
* SLEEP
Channel AIN
Press and release CHANNEL A or M.
The channel automatically stops at the next channel set
into memory. For proper operation, before selecting
channels, they should be set into the memory. See page
26 "Setting channels automatically”.
oO
CHANNEL
©
o — CHANNEL A/V
вт MUTE
— SLEEP
wo tid al WIAD ae ann A NAIL, in MIT На ИЦ МАЕ
и NM
Press MUTE to switch off the sound. The unit's sound will
be silenced and "MUTE" will briefly appear on the screen.
The sound can be switched back on by pressing this
button again or one of VOLUME A or V.
‘MUTE
,
This button allows you to go back to the last channel
selected by pressing CHANNEL RETUAN. Press this but-
ton again to return to the last channel you were watching.
CHANNEL
RETURN
taa SKIP
24
N „
Note:
“To listen through the headphone, insert a headphone (not
supplied) with a 1/8" mini plug into HEADPHONE jack on the
front. The sound from the TV speaker is muted. |
r
Close
Press this button to switch between normal TV and
the two closed caption modes (captions and full
screen text). Closed captioning will display text on the
screen for hearing impaired viewers.
CLOSED
CAPTION
SKIP >
WHAT IS CLOSED CAPTIONING? |
This television has the capability to decode and display
Closed Captioned television programs. Closed Captioning
will display text on the screen for hearing impaired viewers
or it will translate and display text in another language.
CLOSED CAPTIONING WITH AVCR
Closed Captioned programs can be recorded and played
back on a VCR with the Closed Captioned text intact.
The Closed Captioned text will disappear during Cue (Fast
Forward Search), Review (Rewind Search) and Pause
Modes or if the VCR tracking is not adjusted properly.
TO VIEW CLOSED CAPTIONS
Press CLOSED CAPTION on the remote control to switch
between normal TV and the two Closed Caption Modes
(Captions and Full Screen Text).
Captions: This Closed Caption Mode will display text
on the screen in English or another language (depending on
the setting of the Closed Captions CH. 1 or 2).
Generally, Closed Captions in English are transmitted
on Captions Channel 1 and Closed Captions in other
languages are transmitted on Captions Channel 2.
The Text Closed Caption Mode will usually fill the screen with
a programming schedule or other information.
After selecting a Closed Caption Mode, it will stay in effect
until it is changed, even if the channel is changed.
If the Captions signal is lost due to a commercial or a break in
the signal, the Captions will reappear when the signal is
received again.
If the channels are changed, the Captions will be delayed ap
proximately 10 seconds.
No
The Captions will appear in places on the screen where
they will least interfere with the picture, usually on the bottom
of the screen. News programs will usually show three-line
Closed Captions which scroll onto the screen.
Most other shows provide two or three lined Captions
placed near the character who is speaking so the viewer
can follow the dialogue.
Words in italics or underlined describe titles, words in
foreign languages or words requiring emphasis. Words
that are sung usually appear enclosed by musical notes.
For television programs broadcasting with Closed Captions,
look in your TV guide for the Closed Captions symbol (CC).
uonesado AL Ш
N
Notes:
* If using an indoor antenna or if TV reception is very poor, the
Closed Caption Decoder text may not appear.
In this case, adjust the antenna for better reception or use an
outdoor antenna.
When activating the Closed Captioned Decoder, there will be
a short delay before the Closed Captioned text appears on
the screen.
Closed Captioned text is only displayed in locations where it
is available.
If the Call display is on, the Closed Captioning text will not
appear,
If no caption signal is received, no captions will appear, but
the television will remain in the Caption Mode.
Misspellings or unusual characters may occasionally appear
during Closed Captioning. This is normal with Closed
Captioning, especially with live programs. This is because
during live programs, captions are also entered live. These
transmissions do not allow time for editing.
When Captions are being displayed, on-screen displays,
such as volume and mute may not be seen or may
interfere with Closed Captions.
Some cable systems and copy protection systems may
interfere with the Closed Captioned signal.
J
25
ner setting
This unit is equipped with a channel memory feature which allows
channels to skip up or down to the next channel set into memory,
skipping over unwanted channels. Before selecting channels, they must
be programmed into the unit's memory. In addition to normal VHF and
UHF channels, this unit can receive up to 113 Cable TV channels. To
use this unit with an antenna, set the TV/CATV menu option to the TV
mode. When shipped from the factory, this menu option is in the CATV
TET Не
mode.
TVICATVselection ~~ | Setting channels automatically
Preparation: |
* Press TV/VCR to select the TV/VCR mode.
UP”, then press ENTER.
MENU
1 Press MENU. Press $ or $ to select “CH SET-
SETUP
Press MENU. Press t or | to select “CH SET-
UP”, then press ENTER.
MENU
SETUP
2
2 Press $ or 1 to select “AUTO CH MEMORY”.
Press ENTER to select the "TV" or "CATV".
The arrow indicates the se-
lected mode.
3 Then press ENTER.
The unit will begin memorizing all the
channels available in your area.
Channel numbers will remain red until
auto memorizing is complete.
Press MENU repeatedly until the menu screen
is cleared.
MENU
SETUP
`.
Notes:
° If a station being viewed stops broadcasting, the TV will
automatically shut itself off after 15 minutes.
* You can't select “CH SET-UP” if you set the channel to
“LINE1” or “LINEZ”.
26
4 Press MENU repeatedly until the MENU screen
is cleared.
MENU
SETUP
- . - +i— Direct channel selection
r
ln
To ADD/DELETE channels =~
”
1
Press MENU. Press $ or Y to select “CH SET-
UP”, then press ENTER.
MENU
MENU
8 TIMERRECSET |
V/TY SET-UP ео
SETUP
—NCHSET-UP
AXAUTO RÉPEAT ONSOFF
. B SYSTEM SET-UP
- CANIENTERMENU)
2
Press 1 or $ to select “ADD/DELETE”, then
press ENTER.
| 1 TVRCATY |
| VWAUTO CH MEMORY —
MADOMELETE —
-(A/VIENTERMENO)
3
Select the desired channel to be added or
deleted using 4 or Y.
You can also select the channel
using the Direct channel selection
buttons (10 keys, 0-9).
— (0-0/4/VIENTERMENU)
4
Press ENTER to select “ADD” or “DEL”.
If you select an unmemorized
channel, the Channel indication will
be red. If you select “ADD”, the
Channel indication changes from red
to green and the channel will be
memorized. If you select a memo-
rized channel, the Channel indica-
tion will be green. If you select
“DEL”, the Channel indication
changes from green to red and the
channel will be deleted from the
memory.
uonesado AL
2
Press MENU repeatedly until the MENU screen
is cleared.
MENU
SETUP
27
pitting the V-Chip
An age limitation can be set to forbid children to watch programs
according to "US TV RATING" and "MOVIE RATING" level set. To
use the V-Chip function, you must register a password.
> — —— NUMBER buttons
To set the Vechip
-
Press MENU. Press $ or $ to select “TV SET-
UP”, then press ENTER.
MENU
~
Press # ог $ to select "V-CHIP SET” then
press ENTER. |
a créent KE ВЕ
Enter the password (4 digits) using the Number
buttons (0-9), then press ENTER.
DO
SO
DODD
©
| O-VENTER
“% "appears instead of the number.
Enter the same password again for safety, then
press ENTER.
ODO
D © ©
D ® ©
O
V-CHIP SET menu appears.
NN
/
IF YOU FORGET THE PASSWORD, YOU CANNOT SET THE V-CHIP.
TO AVOID FORGETTING THE PASSWORD, WRITE IT DOWN AND
KEEP IN A SAFE PLACE.
In “V-CHIP SET” menu, press $ or | to select
1 “US TV RATING”, then press ENTER.
OFF
TV-Y :
TV-Y7 :
TV-G :
TV-PG :
TV-14 :
TV-MA :
Press $ or $ to display the desired setting,
then press ENTER.
TV RATING is not set
All children
7 years old and above
General Audience
Parental guidance
14 years old and above
17 years old and above
* When you select TV-Y7, TV-PG, TV-14 or TV-MA, press
the DISPLAY button to explain the rating. Press $ or $ to
select the desired rating you want. Press the ENTER but-
ton to select the setting "ON" or "OFF".
28
Press $ or | to select the “MOVIE RATING”,
then press ENTER.
OFF
PG
PG-13 :
NC-17 :
f Press $ or $ to select desired rating, then
press ENTER.
7 Press MENU repeatedly until the MENU screen
is cleared.
MENU
SETUP
© (AWENTERMENG
MOVIE RATING is not set
All ages
Parental guidance
Parental guidance
less than 13 years old
Under 17 years old
Parental guidance suggested
17 years old and above
Adult only
5 Press À or Ÿ to select “V-CHIP”.
Note:
The V-Chip function is activated only on programs and tapes
that have the rating signal.
To use the TV after the TV is protected.
When the program applied to the V-Chip setting is received,
enter the password, then press the ENTER button.
When the password is entered correctly the protection will
be temporarily overridden.
uonesado AL
29
iting the V-Chip (continued)
— 3,5,6
1, 2, 4
—+ 1,7
Els
4 \ (1
Press MENU. Press $ or $ to select “TV SET- 5 Enter the new password using the Number
UP”, then press ENTER. buttons (0-9), then press ENTER.
MENU as
OD © ©
SETUP DD © ©
o
2 Press $ or $ to select “V-CHIP SET”,
then press ENTER.
Enter the same password again to confirm,
then press ENTER.
DOM
OO®
Enter the Password using the Number
buttons (0-9), then press ENTER.
DO
DO ©
DO
© 7 Press MENU repeatedly until the MENU screen
is cleared.
MENU
SETUP
x
Press $ or Y to select “CHANGE PASSWORD”,
4 then press ENTER.
30
set the on timer
This feature allows you to have the unit automatically turn on at - |
a predetermined time. If you program the ON TIMER once, the E em
unit will turn on on the programmed day (daily/weekly) at the От
same time to the same channel.
,
EXAMPLE: Turning on the TV to channel 12 at 7:00
AM, MONDAY-FRIDAY.
Press MENU. Press or $ to select “TV SET-
1 UP”, then press ENTER.
You can also select ON/OFF
TIMER by pressing PROGRAM
twice.
MENU
SETUP
5 Set the desired minute, channel and daily or
weekly timer date as in step 4.
2 Press $ or | to select “ON/OFF TIMER”, then
press ENTER.
Press # ог } 10 select “SET”, then press ENTER.
Now the ON TIMER is set.
3 Press t or § to select “ON TIMER”, then
pre
7 Press MENU repeatedly until the MENU
screen is cleared.
MENU
SETUP
Press Î or Ÿ to set the desired hour, then press
ENTER. |
N J
Notes:
* The unit will automatically turn off approximately 1 hour later
after the ON TIMER turns on if no OFF TIMER has been set.
To continue watching the TV, press any button to cancel the
one hour automatic shut off. |
* To cancel ON TIMER, follow above steps 1-5, then press $ or
$ button to select "CANCEL". Press the MENU button re-
peatedly to return to the normal screen.
* After setting the ON TIMER, "I" of the OFF TIMER will flash
on and off. If you wish to set the OFF TIMER, press the EN-
TER button then follow the steps 4-6 on page 32.
* If you want to correct the digits while setting, press the CAN-
CEL button until the item you want to correct, then press $ or
$ button to correct the desired setting.
uonesado AL Ш
31
set the off timer
This feature allows you to have the unit turn off automatically at a
predetermined time. If you program the OFF TIMER once, the unit will
automatically turn off at the same time everyday.
a te
„
7
EXAMPLE: Turning off the TV at 11:30 PM.
1 Press MENU. Press $ or $ to select “TV SET-
UP”, then press ENTER.
You can also select ON/OFF
TIMER by pressing PROGRAM
twice.
MENU
2 Press t or § to select “ON/OFF TIMER”, then
press ENTER.
Press $ or | to select “OFF TIMER”, then
press ENTER.
Press $ or $ to set the desired hour, then
press ENTER.
32
ñ
Press $ or $ to set the desired minute, then
press ENTER.
Press $ or $ to select “SET”.
Now the OFF TIMER is set.
7 Press MENU repeatedly until the MENU
screen is cleared.
MENU
SETUP
Notes:
* To cancel the OFF TIMER function:
To cancel OFF TIMER, follow above steps 1-5, then press
$ or $ button to select “CANCEL”. Press the MENU button
to return to the TV screen.
* To confirm the ON/OFF TIMER:
Press the PROGRAM button twice to indicate the
programs on the screen.
ture control adjustment
Picture controls are factory preset but you can adjust them individually
as follows:
Pa
_Plcture control adjustment
-
To display the picture adjustment screen,
press MENU. Press f or $ to select “TV SET-
UP”, then press ENTER.
MENU
SETUP
Press $ or | to select “PICTURE”, then press
ENTER.
BRIGHTNESS
Press ENTER until “BRIGHTNESS” appears on the
screen, then press <= or =» to adjust the brightness of
the picture. When the button is pressed, the darker
portions of the picture become lighter.
CONTRAST
Press ENTER until “CONTRAST” appears on the screen,
then press «= or => to adjust the contrast of the picture.
Pictures look sharpest in the daytime (bright light) by
increasing the contrast. At night (dim light), the sharpest
COLOR
Press ENTER until “COLOR” appears on the screen, then
press <= or =» to adjust the color intensity of the picture.
The control should be set when colors appear normal in
intensity and brilliance.
uonesado AL Ш
TINT
Press ENTER until “TINT” appears on the screen, then press
<= or = to adjust the tint of the picture. This determines
how accurately the colors are reproduced by the TV. Adjust-
ing the tint for natural facial tone is the best method of ob-
taining accurate color reproduction of the entire picture.
SHARPNESS
Press ENTER until “SHARPNESS” appears on the screen,
then press «= or = to adjust the sharpness of the
picture.
CANCEL
Pressing CANCEL while making picture adjustments will
return all adjustments to the factory preset levels.
CANCEL
CLEAR
ho J
Note:
The On-screen display will disappear 6 seconds after
finishing an adjustment or by pressing the MENU button three
times.
The settings can only be adjusted when they are displayed
on the TV screen.
33
kssette tape playback
To play a prerecorded tape.
"nn
REW I=
PLAY
STOP/EJECT
1 Load a prerecorded tape:
(When loading a cassette tape without the erase
prevention tab, playback will start automatically).
ñ N
( Preparation:
* Press TV/VCR to select the TV/VCR mode.
2 To start playback:
Press PLAY on the front panel or on
the remote.
Playback will start. " > " will appear
on the screen for about 4 seconds.
— To stop playback:
Press STOP/EJECT once on the front
panel or press STOP on the remote.
The tape will stop but remain fuliy
loaded and ready to play.
" IN" will appear on the screen for
about 4 seconds.
Stop the playback or recording with STOP.
To rewind the tape:
Press REW on the front panel or press
REV on the remote.
REW
e
To forward the tape:
Press FF on the front panel or press
FWD on the remote.
To stop the tape-winding, press STOP. To switch to play-
back directly (without STOP), press PLAY.
E Forward/Reverse picture search mode
When the tape is being winded, you can switch to picture
search mode (see next page). To do this, press REV or
FWD again and hold it down. The unit will resume the
tape winding as soon as the button is released.
STOP/
EJECT
No A
Notes:
* [f you play a prerecorded tape after the DVD playback, you
must set the unit to TV/VCR mode using the TV/VCR button.
» This unit selects the playback tape speed SP or SLP auto-
matically.
* When you select the TV/VCR mode during DVD playback, DVD
playback will change to the still mode, and after 5 minutes it
will change to the resuming playback mode automatically.
36
cial playback
CM SKIP
REV
SLOW
PLAY
FWD
PAUSE/STILL
STOP
D. TRACKING
TRK +/-
Reverse picture search function
Press REV once or twice during the playback.
Forward picture search function
Press FWD once or twice during the playback.
To return to playback, press PLAY.
SPEED SEARCH TIMES
4 PICTURE SEARCH SPEED )\
TAPE SPEED
PRESS ONCE | PRESS TWICE
SP (Standard Play) 3X 5X
SLP (Super Long Play) 9X 15 X
и
| _
Press PAUSE/STILL during playback.
To resume normal playback, press PLAY or PAUSE/STILL.
If the still picture jitters excessively, press TRK + / — to
stabilize the still picture.
\
re
Slow motion
During playback press SLOW.
To return to playback, press PLAY or SLOW.
E Slow tracking and vertical lock adjustment
If noise bars appear in the picture during slow motion,
press the TRK + / — to reduce the noise bars.
Press PAUSE/STILL during playback. |
Press SLOW one by one: The picture advances frame by
frame.
To return to playback, press PLAY or PAUSE/STILL.
Press CM SKIP during playback. The unit will search for-
ward through approximately 30 seconds of the tape (e.g.
unwanted commercial time) for each press of CM SKIP
(maximum six presses) and then resume normal playback.
For example : 1 press: 30 seconds of tape
2 press: 60 seconds of tape
3 press: 90 seconds of tape
acking controls
LEE du EE a Mei E el ih et Bh Tb Shin iii мы bed Cal Da TE Tn Th RE OR AT ERA a in
When a tape is played, the Digital Auto Tracking system
automatically adjusts the tracking to obtain the best
possible picture. If noise bars appear during playback,
adjust the tracking manually as follows:
e Press TRK + / — to obtain the best possible picture.
"MANUAL TRACK" will appear for 4 seconds on the
screen. To resume automatic tracking, press
D.TRACKING. "DIGITAL TRACK" will appear for 4
seconds on the screen.
(HIA) X9egÁeId Ш
Notes:
* “SP” is more appropriate as less noise appeared during
search and still playback for tape recorded in SP.
* The audio output is muted during SPEED SEARCH, STILL,
FRAME ADVANCE and SLOW MOTION.
* During picture search mode there will be noise bars which are
caused by the system.
* The Special Playback will automatically change to playback
after approx. 5 minutes to protect the video tape against
excessive wear.
37
nvenient function
COUNTER RESET
ENTER
automatically rewind to the beginning and the playback will be
repeated.
ning time in Hours, Minutes and Seconds. You can easily deter-
mine how long the tape has been running or how much time is
left on the tape.
Press MENU. Press $ or j to select “AUTO
REPEAT”.
MENU
1
SETUP
A
1
Press DISPLAY.
DISPLAY
O
Then press ENTER to select “ON” or “OFF”.
If “ON” is selected, the playback
will be repeated endlessly.
2
2
Press COUNTER RESET to set the counter to
“00:00:00”.
COUNTER
RESET
ANGLE
Press MENU until the menu screen is cleared.
If you press DISPLAY, "CD" will
appear on the screen (11).
3
MENU
SETUP
3
Begin Playback or Recording to start the tape,
the counter will display the elapsed time.
ref —™
To start the playback, press PLAY.
The playback will be repeated
endlessly.
4
``. A
To cancel repeat mode:
Follow the above step 1, then press ENTER to select “OFF”
position. Press MENU to return to the TV screen.
The repeat function is canceled automatically when the unit
is switched off.
38
When you wish to make the counter disappear,
press DISPLAY once again.
«DISPLAY
O
The zero return function provides a convenient method of rap-
idly returning to the starting point of recording or playback. The
starting point can be indexed for any location on the tape by
pressing COUNTER RESET and ZERO RETURN.
4 \
1 Press DISPLAY.
* DISPLAY
O
Before playback or recording, press COUNTER
RESET to set the counter to "00:00:00".
COUNTER
RESET
ANGLE
3 Begin playback or recording.
r— eREC —™
4 Press STOP.
Press ZERO RETURN. The tape will rewind
and automatically stop at the "00:00:00"
position.
ZERO
RETURN
SUBTITLE
Video head clogging
ll The video heads are the means by
which the unit reads the picture from
the tape during playback. In the un-
likely event that the heads become
dirty enough to be clogged, no picture
will be played back. This can easily be
determined if, during playback of a
known good tape, there is good sound,
but no picture (picture is extremely
snowy). If this is the case, have the
unit checked by qualified service per-
sonnel. Snowy Picture
Video head cleaning
H Video head cleaning is needed when the playback picture
becomes unclear. This signifies that the heads are getting
dirty and can occur when playing poor quality or damaged
tapes. If the heads require cleaning, use a equivalent high
quality chemical non-abrasive (wet) head cleaning tape or
have them cleaned professionally. If playing a head cleaning
tape in the unit once does not improve the picture, play it
several times before requesting service.
Notes:
e DO NOT ATTEMPT TO CLEAN THE VIDEO HEADS OR
SERVICE THE UNIT BY REMOVING THE REAR COVER.
e Video heads may eventually wear out and should be re-
placed when they fail to produce clear pictures.
e Tohelp prevent video head clogging, use only good qual-
ity VHS tapes. Discard worn out tapes.
(4OA) doegheld
39
cording a TV program
Recording and viewing the same TV program.
—
Load a cassette tape with the erase
prevention tab intact.
The unit will automatically turn on.
>
5 Press both REC at the same time.
" 8" will appear on the screen for
about 4 seconds and the REC/OTR
indicator on the front panel will light.
r— ®REC —™ REC(OTR
уг
Press SP/SLP to select the desired tape speed
SP or SLP.
The tape counter and SP or SLP will
appear on the screen for about 4
seconds.
SP/SLP
RETURN
3 Select “TV” or “CATV” to the appropriate
position (26).
Press Direct channel selection buttons or CH
AY to select the channel to be recorded.
cod Y
ФФФ ©
o
40
`. À
Notes:
* |f power is switched off during recording, the TV and the
DVD sections go off and the VCR continues to record.
Press the STOP button to halt the recording and turn off the
VCR.
* The unit channel cannot be changed during recording. -
* If you record the TV program after the DVD playback, you
must set the unit to TV/VCR mode using the TV/VCR button.
Press STOP to stop recording.
"M" will appear on screen for about
4 seconds.
—
Press PAUSE/STILL to avoid recording unwanted
material. "pI" will appear on the screen and the REC/
OTR indicator will blink on and off.
Press PAUSE/STILL or both REC at the same time to
continue the recording. _— TT
"n
*PAUSE/STILL |
(п) ==:
Notes:
The pause function will be released after 5 minutes to prevent
damage to the tape or the unit. The unit will change tothe STOP
mode.
TO Ни,
spar nt,
~~ STOP
S-— PAUSE/STILL
E Auto Rewind feature
This VCR will automatically rewind the tape when the tape
has ended (except during OTR and timer recording). It will
also eject the tape.
Note:
If the erase prevention tab is removed, the tape will eject when
both the REC buttons are pressed for recording.
41
(HOA) Buipiooay a
e-touch Timer Recording (OTR)
The One-touch Timer Recording feature provides a simple and
convenient way to make a timed recording.
EE
ae ME an,
а N (1
Example: One-touch Timer Recording for 30 minutes. 5 Press both REC at the same time to begin
Load a cassette tape with the erase recording. Press the buttons again to stop
prevention tab intact. recording after 30 minutes. Each additional
Lo . press of REC will increase recording time as
The unit will automatically turn on. .
shown below, up to a maximum of 5 hours.
— "OTR" will appear on the screen.
== Press ¡Recording time| Press |Recording time
DEZ once | NORMAL REC | 6 times 3:00
PP twice 0:30 7 times 4:00
3 times 1:00 8 times 5:00
| 4 times 1:30 9 times | NORMAL REC
Press SP/SLP to select the desired tape speed 5 times 2-00
SP or SLP.
The tape counter and SP or SLP will
appear on the screen for about 4 — ®REC —
seconds.
SP/SLP
\. J
RETURN ,
Set “TV” or “CATV” option to the appropriate
position (26).
3
Press Direct channel selection buttons or CH
AY to select the channel to be recorded.
4
ФФФ
D DO
CHANNEL
42
Press STOP.
"I" will appear on screen for about 4 seconds.
x
Notes:
* If you wish to watch the DVD playback during the recording
orthe OTR, press the DVD button to change to DVD mode and
perform the DVD playback [49).
* The channel cannot be changed during recording.
er recording
programs within 1 month.
Timer recording can be programmed on-screen with the remote control.
The built-in timer allows automatic unattended recording of up to 8
Timer recording ____
Preparation:
Press TV/VCR to select the TV/VCR mode.
Load a cassette tape with the erase prevention tab
intact.
* Check the time and date are correct (22).
Example:
Program a timer recording for 23rd day, channel 125
(CATV), 7:00 - 9:30 PM (Tape speed : SLP).
1 Press MENU. Press $ or } to select “TIMER
REC SET”, then press ENTER.
MENU
SETUP
Press $ or Jj to select one of the program line,
then press ENTER.
To set the timer for another program, press $
or } until the number of the second program
blinks, then press ENTER. Repeat steps 2 to 4
to set the second program.
Press both TIMER REC at the same time. The
6 TIMER REC indicator will light. The Timer is
programed, when the programed time is
reached, the recording is automatically
started.
TINER BEC To cancel timer recording, press both
™ — the buttons again and TIMER REC
TIMER
fr REC =
Press $ or § to select the d 5
ENTER. rT TTT
3
4 Set the start time, end time, channel and tape
speed as in step 3.
Notes:
e Press CANCEL to move cursor backward for correction.
To record from external source set the channel to "L.1" or
"La". "L1" or "L2" will appear next to CH 125 (or 69).
7 IN indicator will go out.
Ne À
Notes:
* The VCR section cannot be used while the TIMER REC
indicator is lit. If you want to use the VCR operation,
press both TIMER REC buttons at the same time to deactivate
the timer.
When the clock is not set, you cannot select “TIMER REC”.
In this case, set the clock (see pages 20-22).
* After a power failure or disconnection of the power plug,
all programmed recording setting and time display will be
lost upon resumption of power. In this case, reset the clock
(see pages 20-22) and reprogram any timer recordings.
If you want to correct the digits while setting, press
the CANCEL button until the item you want to correct, then
press $ or $ to correct the desired setting.
If programming is performed without a tape in the unit, or
with a tape without an erase prevention tab, the Timer
Recording is not possible. If a tape without an erase
prevention tab is in the unit, the tape will be ejected.
(HOA) Buipiodsy B
43
р
NC
Weekly (e.g. WKL-TUE: each Tuesday) or daily (e.g.
MON-SAT: Monday to Saturday) Timer recording
Follow the procedure of timer recording on the previous
page. At picture 3 press $ or 3 repeatedly until the desired
setting appears. Then press ENTER.
When you press § repeatedly, the
indicator at DATE will change as follows,
in this case the day is Friday.
The current day (Friday) — SUN-SAT (Sunday to Saturday)
Press PROGRAM once. The TV screen displays the
timer program list. Press PROGRAM again. The TV
screen displays the ON/OFF timer setting.
PROGRAM Press PROGRAM 3 times. The
screen returns to the normal screen.
REPEAT A-B
(once) (twice)
1
MON-SAT (Monday to Saturd
One month later О (Monday to Saturday)
minus one day MON-FRI (Monday to Friday)
WKL-WED <« WKL-THU (Weekly Thursday) | -
(Weekly Wednesday)
Do not overlap timer programs as portions of the
conflicting programs will be lost. The first recording
time has priority over the next recording time as shown
in the diagram below.
8:00 9:00 10:00 11:00
Program 1 == — |
Program 2 == ]
4 Deleted Parts —,
Program 3 =p
Non Recorded Portion Parts
Recording Prog.1 Prog.2 Prog.3
Control Settings wp
Ne J
Notes:
* The daily/weekly recording can be made continuously until the
recording is canceled or the tape reaches the end.
* During timer recording the automatic rewinding mechanism
does not function.
* You can correct or cancel the programed setting in program
confirm mode.
44
Press $ or } to select “TIMER REC SET” in the
MENU, then press ENTER.
Press $ or |} to select the unnecessary program, and
press CANCEL to cancel the program.
CANCEL
CLEAR
reo recording and playback 7
Separate Audio Program (SAP)
+ — AUDIO SELECT
Stereo r
. ecording and playba
The VHS Hi-Fi audio system permits high fidelity recording of
MTS STEREO TV broadcasts.
When a MTS STEREO broad- TS
cast is received, “STEREO” will |
appear on the screen and the |="
program can be viewed or re-
corded in stereo. | E
The Hi-Fi stereo recording proce- |. fo
dure is the same as for normal
recordings.
Note:
When using a CATV system, stereo TV programs may be
transmitted over a mono cable channel. In this case
"STEREO" will not appear and the sound will be in mono.
AUDIO
SELECT
Output selection
When viewing an MTS stereo TV program, or playing a
prerecorded VHS Hi-Fi stereo videotape, press AUDIO
SELECT to select how the audio will be heard through
the speakers. Normally set to the Hi-Fi stereo position,
this button can be set to the MONO position if the stereo
broadcast or videotape audio is of poor quality. The "R"
and "L" positions allow the audio from the Right or Left Hi-
Fi channel to be heard over both TV speakers. This
button has no effect when viewing a MONO videotape or
TV program. Each time when you press the button,
OUTPUT SELECTION display appears on the screen for
several seconds. Refer to the chart below.
ck ||
и N
OUTPUT SOUND HEARD ON BOTH
SELECTION | SPEAKERS
STEREO STEREO
L CH LEFT CHANNEL AUDIO
R CH RIGHT CHANNEL AUDIO
MONO MONO
\. и
Your unit is fitted with a SAP broadcast system which enables
you to switch to a Separate Audio Program when viewing a se-
lected channel.
This function applies only when the program is broadcast in multi-
languages through the SAP broadcast system.
( N
Press MENU. Press $ or } to select “TV SET-
1 UP”, then press ENTER.
Press $ or |} to select “SAP”. Then press
ENTER to select “ON”.
Then press MENU repeatedly until
the menu screen is cleared.
2
Listening to SAP
When the unit is turned on or a channel selection is made,
make certain the letters "SAP" appears on the screen.
This means that the "Separate Audio Program" broad-
casting is available.
„
Notes:
* When playing back a tape that is not recorded in Hi-Fi stereo
mode, the audio will automatically be monaural.
* When listening to a VHS Hi-Fi video tape or MTS broadcast
through the VHF/UHF jack (Audio/Video cord not connected),
the sound will be monaural.
(49A) suonsuny 19410 B
45
iplicating a video tape
If you connect the unit to another VCR or Camcorder, you can duplicate a
previously recorded tape. Make all connections before turning on the power.
| Duplicating a video tape
Preparation:
* Press TV/VCR to select the TV/VCR mode.
* Load a cassette tape with the erase prevention tab
intact.
* Load a previously recorded tape into the playback
VCR or Camcorder.
Press SP/SLP to select the desired tape speed
1
SP or SLP.
SP/SLP It is recommended that you set the
Speed to the SP mode on the
RETURN recording VCR for best results.
Press INPUT SELECT once or twice to select
AUDIO/VIDEO input position.
"LINE?" will appear on the screen.
2
INPUT
SELECT
ZOOM
LINE1: on the rear panel
LINE2: on the front panel
Press both REC at the same time, then press
PAUSE/STILL.
3
r— ®REC = *PAUSE/STILL
Press PLAY on the playback VCR, then press
PAUSE/STILL.
4
5 Release the recording pause and the playback.
Na
Note:
J
Unauthorized recording of copyrighted television programs, films,
video cassettes and other materials may infringe the rights of
copyright owners and be contrary to copyright laws.
46
—
Connection with second video recorder
Playback VCR
=
O
O
—
> 8
—
"To VIDEO OUT To AUDIO (R) OUT
AUDIO/VIDEO Cable (supplied) To AUDIO (L) OUT
Recording VCR
006) 353503 0 «
A
1
To VIDEO IN Br To AUDIO (R) IN
To AUDIO (L) IN
Me
Г Connection with Camcorder
Playback Camcorder
To AV Jack
Recording VCR
Ca
T
To AUDIO (R) IN
To AUDIO (L) IN
To VIDEO IN AUDIO/VIDEO Cable (not supplied)
For duplicating a previously recorded tape from a
camcorder, follow the camcorder manufacturers
instructions. A typical camcorder dubbing hookup is
shown above.
cording a DVD/CD disc
tape with this unit.
You can record disc material in DVD, Audio CD, etc. onto a video
(7
Preparation:
e Press TV/VCR to select the TV/VCR mode.
e | oad a cassette tape with the erase prevention tab intact.
e Load a DVD/CD disc.
~
Press SP/SLP to select the desired tape speed
SP or SLP.
SP/SLP
1
RETURN
“> Press DVD to select the DVD mode.
DVD
<>
3 Press PLAY to start playback.
Press both REC to start recording.
The unit will change to the VCR
mode automatically and the
playback picture or sound will be
duplicated on the video cassette
tape. |
4
r— ®REC —
Press STOP if you finish recording.
5 If you wish to stop a DVD/CD disc,
press unit to change the DVD mode,
then press STOP.
HL
Notes:
* You may not record the beginning of the disc, so start to
playback the disc, then start to record.
* You cannot record the disc with copy guard function. The
following icon and text will show up on the TV screen.
Gas
DISC IS COPY PROTECTED
(YIA) SUonOUN; JOUIO Ш
47
ying a disc
This section shows you the basics on how to play a disc.
Preparation:
When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected to
CAUTION
Keep your fingers well clear of the disc tray as it is closing.
Neglecting to do so may cause serious personal injury.
2,5 PLAY
the unit.
” NY 7 NM
1 Press POWER. 5 Press OPEN/CLOSE to close the disc tray.
POWER The unit tums on. Playback starts.
OPEN/CLOSE
=
2 Press DVD to select the DVD mode.
DVD
<>
Press OPEN/CLOSE.
The disc tray opens.
3
OPEN/CLOSE
A
[=]
If you insert a DVD video disc that contains a top
menu, a menu may appear. See “Locating a title
using the top menu.” (52)
* You may need to press TOP MENU or DVD MENU
to display disc menu (depending on the actual DVD
video disc.)
4 Place the disc on the disc tray.
With the playback side
down.
* There are two different disc sizes. Place the disc in
the correct guide on the disc tray. If the disc is out of
the guide, it may damage the disc and cause the unit
to malfunction.
* Do not place a disc which is unplayable in this unit.
48
N и
№ То start playback in the stop mode
Press PLAY.
on the unit.
EH PAUSE/STILL
IM To pause playback (still mode)
Press PAUSE/STILL during playback.
*PAUSE/STILL To resume normal playback, press
PLAY.
EH About Ov Ve Kc”
The BH Y > icons on the heading bar show the playable discs for the
function described under that heading.
Dv» : You can use this function with DVD video discs.
‘You can use this function with VIDEO CDs.
: You can use this function with audio CDs.
N H To obtain a higher quality picture
Occasionally, some picture noise not usually visible during a normal broadcast
may appear on the TV screen while playing a DVD video disc because the high
resolution pictures on these discs include a lot of information. While the amount of
noise depends on the unit, you should generally reduce the sharpness adjustment
E Playing a Disc while the VCR section is recording or
standing by for timer recording
1) Start to record.
Follow step 1-5 on page 40.
*|f the unit is standing by for recording, turn on the unit.
2) Press DVD to select DVD mode.
3) Play a disc.
Follow step 2 - step 5 on page 48.
* Press PLAY ¡f the unit does not start to play a disc
automatically.
4) Stop to play
Press STOP to stop play back a disc.
un
Æ To stop playback
Press STOP.
Hl To remove the disc
Press OPEN/CLOSE.
OPEN/CLOSE Remove the disc after the disc tray
A opens completely.
* The sound is muted during still
mode.
Be sure to press OPEN/CLOSE to close the disc tray
after you remove the disc.
(aa) xoeqgherd aiseg Ш
Nm About the screen saver
If you pause a picture of a DVD video disc and leave it
still for a long while, the screen saver of the unit
automatically appears (when “Screen Saver” is set to
“On” [66)). To turn off the screen saver, press PLAY.
Notes:
* Do not move the unit during playback. Doing so may damage the disc.
* Use the OPEN/CLOSE button to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may
cause the unit to malfunction.
* Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the unit to
malfunction. -
* In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen
menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press the
STOP button on your remote control once the movie is completed.
* During the DVD playback if you change the operating mode from DVD to TV/VCR, the DVD will change to the still mode. If
the user is in the TV/VCR mode for more than 5 minutes, DVD will change to "resuming" stop mode automatically.
49
ying a disc (continued)
You can play discs at various speeds, and resume playback from the location
where you stopped playback.
Press REV or FWD during playback.
3
REV: Fast reverse playback
FWD: Fast forward playback
Each time you press REV or FWD, the
playback speed changes.
S
Hl To resume normal playback
Press PLAY.
Notes:
* The unit mutes sound and subtitles during reverse and
forward scan of DVD video discs. However, the unit plays
sound during fast forward or fast reverse play of audio CDs.
* The playback speed may differ depending on the disc.
„
Press PAUSE/STILL during still playback.
Each time you press PAUSE/STILL,
the picture advances one frame.
*PAUSE/STILL
50
H To resume normal playback
Press PLAY.
Note:
The sound is muted during frame by frame playback.
”
—
H To resume normal playback
Press SLOW during playback. Press PLAY.
.isLow | Each time you press SLOW, the
slow-motion speed changes.
Note:
The sound is muted during slow-motion playback.
H To start playback from the beginning regardless of
the location where you stopped playback
1 Press STOP twice.
The unit memorizes the location where Th y sol я
playback is stopped. GP e unit's memory is cleared.
2 Press PLAY.
2 Press PLAY.
The unit resumes playback from the
location where you stopped playback.
1 Press STOP at the location where you want to
interrupt playback.
> Playback starts from the
beginning of the current title.
Playback starts from the
beginning of the disc.
* If you want to return to the beginning of a DVD video
disc, open and close the disc tray once with OPEN/
CLOSE before pressing PLAY.
Notes:
e The units memory is also cleared when:
— you change the parental lock setting or select a disc
menu language [64).
— you open the disc tray.
* There may be a difference in the location where playback
resumes depending on the disc.
* Settings you changed using the on-screen displays while the
unit keeps a location in the memory may function only after
the unit resumes playback.
(ала) хоеа/ен эсеа Ш
51
cating a specific title, chapter, or track
Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs
are divided into tracks. You can quickly locate any specific title, chapter, or track.
+ DVD video disc >
+——— Title 1 >| Title 2 - VIDEO CD/audio CD
Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3 Track 1 Track 2 Track 3 Track 4 Track 5
> | | | |
ASIEN
/ ) и N
1 Press TOP MENU. 3 Press ENTER.
The top menu appears on the TV Playback starts from chapter 1 of the
D.TRACKING screen. selected title.
~~ ео. ее не ||
Notes:
* The instructions above describe basic procedures which
may vary depending on the contents of the DVD video disc.
If different instructions appear on the TV screen, follow those
Press t / $ / «= / > to select the title you instructions.
want. * |f you display the top menu during playback and press the
TOP MENU button again without selecting any title, the unit
f the tries in the top menu ig | may resume playback from the point where you first pressed
— assigned a number, you can directiy the TOP MENU button (depending on the actual DVD video
> locate a specific title by pressing its disc.)
designated number with the number * This method of locating a title is available only on a disc that
buttons. contains a top menu. |
* instruction notes of discs may refer to the button that
displays the top menu as TITLE button.
DD
= Locating a specific chapter or track
С Y Notes:
Press SKIP << or »»i repeatedly to display the * Some titles may not display chapter numbers.
chapter or track number you want. * When you set “Title Stop” to “Off” (68), you can access
chapters in another title. If you go back to the preceding title
Playback starts from the selected chapter or track. by pressing the SKIP !<« button, the unit locates the first
CLOSED To locate succeeding chapters or tracks chapter of the title. When “Title Stop” is set to “On,” you can
CAPTION | access chapters only within the current title.
SKIP >
CHANNEL Playback starts from the beginning of the
RETURN
current chapter or track.
CD When you press twice, playback starts.
«SKIP from the beginning of the preceding
chapter or track.
52
ppeat playback / Random playback
You can play a specific title, chapter, track, or segment repeatedly.
And also you can play titles, chapters within a title, or tracks in random
order. PLAY
... Lame > = ... —— REPEAT A-B
a J | o
—[]— + PLAY MODE
— CLEAR
Repeat playback and Random playback í—._..
Press PLAY MODE.
Each time you press PLAY MODE, the
TRK — repeat mode changes as follows.
PLAY MODE
| ¡ET Repeat |
— COW Chapter Repeat Repeats the current chapter.
y
Title Repeat
ov» Repeats the current title.
ep T
rack Repeat Repeats the current track.
ED v
> All Repeat Repeats the entire disc.
Bv» Chapter Random Plays the chapters within the
current title in random order.
Press PLAY.
-
The unit starts repeat playback or
random playback.
Press PLAY within about 5 seconds
after you press PLAY MODE.
H To resume normal playback
Press CANCEL.
CANCEL
CLEAR
Notes:
« If you press the PLAY MODE button during playback, the
unit automatically starts repeat playback and random
y | | playback after finishing the current title, chapter or track.
DD Title Random Plays the titles in random order. | « Some discs may not permit repeat operation.
D y * You cannot use the random playback function in conjunction
Track Random Plays the tracks in random order. | with the memory playback function.
Of Resumes normal playback.
Press REPEAT A-B at the beginning of the
segment (point A) you want to play repeatediy.
1
PROGRAM
REPEAT A-B
~
Press REPEAT A-B again at the end of the
segment (point B).
The DVD video player automatically
returns to point A and starts repeat
playback of the selected segment (A-
B).
2
PROGRAM
REPEAT A-B
H To resume normal playback
Press CLEAR.
CANCEL
CLEAR
Notes:
* Some discs may not permit A-B repeat operation.
* You cannot set the A-B repeat function for a segment that
includes multiple camera angles [56).
* You can specify a segment only within the current title or
track (VIDEO CD).
* There may be a slight difference between point A and the
location where playback actually resumes depending on the
disc.
(AG) Y9egÁeId pasueapy B
53
hying in a favorite order
You can combine your favorite titles, chapters, or tracks and play them in the
order you determine. You can program up to 30 selections into the memory.
(Memory playback)
1 Press MEMORY.
during stop
CM SKIP/MEMORY
Press « / — to select “T” or “CT”. Use the
number buttons to input the favorite number.
T ¿Title number
CT : Chapter number or track number
e If you input a large number than the
number that is recorded on the disc,
the bar will be skipped.
* The input number into "T" for
2
o oO ©) CD/VCD is not effective.
DD
© @) during stop during playbac
Press $ or ENTER. Set the “T” and “CT” to bar
that you want to enter as in step 2.
3
* When you select another chapter in
the same title, you do not need to
+ select the title number.
during playback
during stop
4 Press PLAY to start MEMORY playback.
\.
| 54
Hl To cancel the programmed selections
1 While the display appears on the TV screen, press
$ / $ to move the highlighted bar to the item you
want to cancel.
2 Press CLEAR.
E To resume normal playback from memory playback
Press CLEAR.
The memory playback indicator
CANCEL disappears.
CLEAR
H To program during playback
If you press the MEMORY button during playback, a
programming display appears.
Follow steps 2 and 3.
Notes:
» Some discs may not permit memory playback operation.
* If you press the MEMORY or RETURN button while the
display appears on the TV screen, the display disappears.
» The programmed selections will be cleared when you turn
off the unit.
Joming a picture
You can magnify areas within a picture.
ве
o>
Zooming a picture
Press ZOOM during normal, slow or still playback.
INPUT
SELECT
ZOOM
The unit enters the zoom playback
mode and displays the icon.
e.g.
Ml : As you repeatedly press ENTER (or
CANCEL
CLEAR
ZOOM) while “ZOOM” is selected, the
magnification level changes.
Variation of the levels inciudes image
reduction.
: If you press ENTER while “EXIT” is
highlighted, you can turn off the icon,
keeping the current magnification level.
You can shift the highlight within the
icon by + / 4 / «= / =>.
If you press $ / $ / «= / =» the zoom
point shifts.
Pressing CLEAR restores the zoom
point to the center of the picture.
E To resume normal playback
While “ZOOM” is selected, press ZOOM repeatedly to
turn off the icon.
Picture restores the size when the icon disappears.
INPUT
SELECT
ZOOM
ENTER cannot cancel zoom playback if you have
turned off the icon by selecting “EXIT.” To restore
normal picture size, press ZOOM to display the icon,
then further press ZOOM until the icon turns off.
Notes:
* Some discs may not respond to zoom feature.
* During some scenes, the buttons may not work as
described.
* Zooming does not work on subtitles or menus included on
DVD video discs.
* The magnification level varies depending on the picture size
you select.
55
(ала) X9egÁeid pasueapy N
glecting the camera angle
the camera angle of the scene you are watching.
If the scene was recorded from multiple angles, you can easily change
Press ANGLE while playing a scene recorded
with multiple angles.
While playing a scene recorded with
COUNTER
RESET multiple angles, the angle icon (£3)
will appear on the screen.
ANGLE Press ANGLE while the angle icon is
flashing.
e.g.
displayed on the TV screen.
COUNTER Each time you press ANGLE, the
RESET camera angle changes.
2 Press ANGLE or t/} while the angle number is
ANGLE
You can change the camera angle
« directly by pressing the number
_ buttons corresponding to its angle
number instead of using the f/4
buttons.
56
IS To turn off the angle number display
Press CLEAR.
CANCEL
CLEAR
Notes:
* You can change the camera angle during still playback. The
camera angle changes to the new setting when you resume
normal playback.
* |f you pause a picture immediately after changing a camera
angle, the resumed playback picture may not display the new
camera angle.
Cl thew
[4 SUBTITLE
— CLEAR
ZERO
RETURN
1 Press SUBTITLE during playback.
The current subtitle setting is
displayed.
SUBTITLE
e
The abbreviation of the language appears instead of
the language name. Refer to the list of languages
and their abbreviations.
Press SUBTITLE or $ / $ while the subtitle
2 setting is displayed on the TV screen.
ZERO
RETURN To turn off the subtitle setting display,
press CLEAR or ENTER.
SUBTITLE
Notes:
) Hl To turn subtitles on or off
1 Press SUBTITLE during playback.
ZERO
RETURN
SUBTITLE
2 Press «+= / =» while the subtitle setting is displayed
on the TV screen, to select “On” or “Off.”
Notes:
* Some DVD video discs are set to display subtitles
automatically, and you cannot turn them off even if you set
the subtitle function to off.
* During some scenes, the subtitles may not appear
immediately after you select “On.”
Some DVD video discs will allow you to make subtitle
selections and turn subtitles on or off only via the disc menu.
* When you turn on the unit or replace a disc, the player returns to the initial default setting (65).
When you select a subtitle language which is not included on the disc, the unit plays a prior language programmed on the
disc.
* During some scenes, the subtitles may not appear immediately after you change the subtitle language.
(ала) жовален резиелру
57
You can select a preferred language and sound recording system from those
included on the DVD video disc.
—+— CLEAR
r
Press AUDIO SELECT during playback.
1
The current audio setting is displayed.
. AUDIO
SELECT . AUDIO Each time you press AUDIO SELECT,
SELECT the audio settings included on the DVD
eg video disc change.
N x
Press AUDIO SELECT or $ / $ while the audio
setting is displayed on the TV screen.
ENG PCM 2CH
the language name. Refer to the list of languages
and their abbreviations.
x
Hl Selecting sound channels of VIDEO CDs
You can switch left and right channels by pressing
AUDIO SELECT repeatedly during playback.
The abbreviation of the language appears instead of
If you press <= / =» you can select
output sound format.
To turn off the audio setting display, press CLEAR.
À X vy
Notes:
* When you turn on the unit or replace a disc, player returns to
the initial default setting (65).
If you select a sound track which is not included on the disc,
the unit plays a prior sound track programmed on the disc.
* Some discs allow you to change audio selections only via
the disc menu. If this is the case, press the DVD MENU
button and choose the appropriate language from the
selections on the disc menu.
E Output sound conversion table (sampling frequency/quantization bit)
Audio selection from the menu and output jacks on the rear panel
Discs Recording system Bitstream Analog 2ch PCM
BITSTREAM/PCM| ANALOG AUDIO [BITSTREAM/PCM | ANALOG AUDIO |BITSTREAM/PCM[| ANALOG AUDIO
jack OUT jacks jack OUT jacks jack OUT jacks
Dolby Digital Bitstream | 48 kHz/20 bit Bitstream | 48 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit
48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit
48 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit
DVD video 48 kHz/24 bit | 48 kHz/16 bit | 48 kHz/24 bit | 48 kHz/16 bit | 48 kHz/24 bit | 48 kHz/16 bit | 48 kHz/24 bit
discs Linear PCM | 96 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit — 96 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit
96 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit — 96 kHz/20 bit | 48 kHz/16 bit | 48 kHz/20 bit
96 kHz/24 bit | 48 kHz/16 bit | 48 kHz/24 bit — 96 kHz/24 bit | 48 kHz/16 bit | 48 kHz/24 bit
DTS Bitstream — Bitstream — — —
MPEG1, MPEG2 Bitstream | 48 kHz/16 bit | Bitstream | 48 kHz/16 bit | 48 kHz/16 bit | 48 kHz/16 bit
VIDEO CDs MPEG1 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit
Audio CD Linear PCM 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit | 44.1 kHz/16 bit
eos DTS Bitstream (Noise) Bitstream (Noise) Bitstream (Noise)
58
When you turn on the on-screen display, you can view information
on operational status and access features and settings.
Press DISPLAY.
The following display appears.
"DISPLAY Each time you press DISPLAY, the on-screen display changes as follows.
If you press <= / =» to select an icon, then press ENTER, you can access the specific feature.
When you select an icon (*), there is no need to press ENTER.
See the pages in [_) for details on the features.
e.g. When playing a DVD video disc
209 303) 0:08:16 OC. 34] PL
Press DISPLAY again.
209 3[@) 0:21:28 [mime DN
Press DISPLAY again.
: Title number (Track number)
Locate a title or track using the number buttons. [52)
: Chapter number
Locate a chapter using the number buttons. (52)
: Elapsed time of the current title
To enter the time to locate a desired location.
: Audio setting
: Subtitle setting
: Angle setting
: To turn off the display.
: Title number (Track number)
Locate a title or track using the number buttons. [52)
: Chapter number
Locate a chapter using the number buttons. {52)
: Remaining time of the current title
To enter the time to locate a desired location.
: To zoom a picture. [55)
: “Audio Out Select” setting
BST: Bitstream 2CH: Analog 2ch PCM: PCM
: To turn off the display.
(continued) |
(GAG) XoegAe|d paougapy B
59
-screen display operation (continued)
60
On-screen display operation (continued)
y
Press DISPLAY again.
FECES
To turn off the on-screen display, press
DISPLAY again.
ic 3 [30:08:16 or ey 9.6 Mbps
OFF
* : Title number (Track number)
Locate a title or track using the number buttons. [52)
: Chapter number
Locate a chapter using the number buttons. (52)
: To stop playback.
: Playback starts from the beginning of the
current chapter or track.
: Fast reverse playback
: To start playback.
: Fast forward playback
: To locate succeeding chapters or tracks. (52)
: To begin slow motion playback. (51)
: To pause playback.
: To turn off the display.
The on-screen display will vary depending on the disc.
<b> : Data transfer rate (Mbit/s)
= Amount of picture, sound and subtitle data in the
DVD video disc transferred per second.
The larger the value is, the more data processed,
but this does not necessarily insure better picture
quality.
: CD-Text
Displays CD-Text data if included on the audio
CDs. (Some letters may not be displayed properly
depending on the disc.)
ed : The on-screen display turns off.
stomizing the function settings
You can change the default settings to customize performance to your
preference.
Press SET UP during stop.
The following on-screen display
appears.
MENU
SETUP
2
Press + / = to select a symbol for the setting
you want to change.
(See the next page.)
Picture performance settings
Output sound settings
Language settings
Display settings
Operational settings
Initial setup
3
Press $ / $ to select the setting you want to
change, then press ENTER.
Change the selection by $ / $ or other
buttons, by referring to the corresponding
pages [62), then press ENTER.
4
Repeat steps 3 and 4 to change other settings.
To select another operation, go back to
2
step 2.
6 Press SET UP.
MENU The on-screen display disappears.
SETUP
Na
H To return to the previous display
Press RETURN.
SP/SLP
RETURN
Note:
The on-screen display disappears when you press the
SET UP button.
61
(ала) dmjes uonoung
62
Setting Details Page
TV Shape mm To select a picture size according to the aspect 63
ratio of your TV.
Audio Out Select e To select an output sound format corresponding 63
COD to your system connection.
Dynamic Range Control CD To turn on or off a function that makes faint 63
sounds easier to hear even if you lower the
volume during late hours playback.
Karaoke Vocal BW To turn on or off the vocal output during DVD 64
KARAOKE disc playback.
On-Screen Language e To select a preferred language for on-screen 64
ED displays.
Disc Menu Language ww To select a preferred language for disc menus. 64
Audio Language am To select a preferred language for the sound 65
track.
Subtitle Language do To select a preferred language for subtitles. 65
On-Screen Displays DD» To turn on or de-activate the operational status 66
Cvcn)
co display on the TV screen.
Background Cv) To select the background color or background 66
VCD
OD picture.
Screen Saver BD To turn the screen saver on or off. 66
Pause/Still сот» To select the resolution of still pictures. 66
(Field/Frame)
Parental Lock a> To turn the parental lock function on or off. 66
Title Stop BD To turn on or off a feature that automatically 68
stops playback after a title has been viewed.
PBC «we =— To use the menu screen when playing a PBC- 68
controllable VIDEO CD.
On-Screen Language DvD To install the initial system setting. 68
TV Shape ==
Audio Out Select
и N
A
Dymomi Ran Control On
Karaoke Vocal Off
4:3 Letterbox: Select when a standard 4:3 TV is Select the output sound format corresponding to your
connected. system connection.
Displays theatrical images with For details of sound recording systems, see (58).
masking bars above and below the
picture. Bitstream: Select when connected to an amplifier
equipped with a Dolby Digital, DTS,
MPEG1 or MPEG2 decoder.
Select wh vas a standard 4:3 TV is The unit outputs digital audio
Displavs ictures cropped to fill information in the bitstream format
our TV screen Either or both when you play a DVD video disc
4 des of the picture are cut off recorded on the Dolby Digital, DTS,
Р ; MPEG1 or MPEG?2 recording system.
16:9 Widescreen: Select when a 16:9 wide TV is Analog 2ch: Select when connected to a TV, or
connected. Dolby Pro Logic or stereo system via
the analog audio jacks.
Notes:
* The dispiayable picture size is preset on the DVD video PCM: Select when connected to a 2 channel
disc. Therefore, the playback picture of some DVD digital stereo amplifier.
video discs may not conform to the picture size you The unit outputs sounds in the PCM
select. ;
* When you play DVD video discs recorded in the 4:3 ach format when he play a DVD video
picture size only, the playback picture always appears у опа’,
in the 4:3 picture size regardless of the TV shape MPEG1 or MPEG2 recording system.
setting.
* |f you select “16:9 Widescreen” and you own a 4:3 TV
set, the DVD playback picture will be horizontally
o ado AMO bo Gio Malo т, Off: Full ynamic range is maintained
shape conforms to the actual TV in use. On: Dynamic range is reduced.
`. Notes:
* This function works only during playback of Dolby
Digital recorded discs.
* The level of Dynamic Range Reduction may differ
depending on the DVD video disc.
(ала) dnjes uonoun4
64
Off: The primary vocal is not output.
On: The primary vocal is output when it is recorded
on the disc.
Notes:
* The vocal output feature is used during playback of
Dolby Digital (multi-channel) recorded DVD KARAOKE
discs. This feature allows you to turn off vocal audio
tracks, or restore them for background
accompaniment.
* When playing KARAOKE, connect appropriate audio
equipment such as an amplifier to the unit.
Disc Menu Language ENG
Audio Language + ENG
Subtitle Language — ---
English: To view on-screen displays in English.
Francais: To view on-screen displays in French.
Español: To view on-screen displays in Spanish.
English: To display disc menus in English.
French: To display disc menus in French.
Spanish: To display disc menus in Spanish.
Others: To make a further choice.
After pressing the ENTER button, follow
steps 1) - 4) below.
1) Obtain the abbreviation of the preferred
language from the list (69).
2) Select the first character by pressing the 4 / $
buttons.
3) Press the «= / =» buttons to shift and select the
second character by pressing the $ / 4
buttons.
4) Press the ENTER button.
Note:
Some DVD video discs may not include your pre-
selected language. In this case, the unit automatically
displays disc menus consistent with the disc's initial
language setting.
J
English:
French:
To play sound tracks in English.
To play sound tracks in French.
Spanish: To play sound tracks in Spanish.
To make a further choice.
After pressing the ENTER button, follow
steps 1) - 4) below.
1) Obtain the abbreviation of the preferred
language from the list (69).
2) Select the first character by pressing the 4/4
buttons.
3) Press the «= / => buttons to shift and select the
second character by pressing the 4/4 buttons.
Others:
4) Press the ENTER button.
Note:
Some DVD video discs may be played in a different
language than you selected. A prior language may be
programmed on the disc.
To display subtities in English.
English:
French: To display subtitles in French.
Spanish: To display subtitles in Spanish.
No Subtitle: To disable subtitles.
Others: To make a further choice.
After pressing the ENTER button,
follow steps 1) - 4) below.
1) Obtain the abbreviation of the preferred
language from the list (69).
2) Select the first character by pressing the $/ 4
buttons.
3) Press the «= / => buttons to shift and select
the second character by pressing the 4/4
buttons.
Language
On-Screen Language ENG || English
Disc Menu Language ENG | | French
Audio language ENG || Spanish
4) Press the ENTER button.
Notes:
* Some DVD video discs may be set to display subtitles
in a different language than you selected. A prior
subtitle language may be programmed on the disc.
* Some DVD video discs allow you to change subtitle
selections only via the disc menu. If this is the case,
press the DVD MENU button and choose the
appropriate subtitle language from the selection on
the disc menu.
\
(QAA) dnjes uonoun-
65
stomizing the function settings (continued)
66
Off: Operational modes (e.g. “ 111”, “> ”) аге not
displayed.
On: Operational modes (e.g. “EE”, “pe ”) are
displayed on-screen.
Blue: Blue background.
Gray: Gray background.
Picture: To use the picture which appears when you
turn on the unit as a background.
Jacket: To use the jacket picture included on some
discs as a background. if it is not included,
a gray background will be substituted.
Off: The screen saver is disengaged.
On: The screen saver operates.
Auto: For normal use. Still and fast motion images
can be paused.
Frame: The resolution of still pictures is improved,
so that you can make a motionless picture
more clearer when you pause it.
DVD video discs equipped with the parental lock
function are rated according to their content. The
contents allowed by a parental lock level and the way
a DVD video disc can be controlled may vary from
disc to disc. For example, if the disc allowed, you
could edit out violent scenes unsuitable for children
and replace them with more suitable scenes, or lock
out playback of the disc altogether.
* DVD video discs may or may not respond to the
parental lock settings. This is not a detect in the unit.
Make sure this function works with your DVD video
discs.
Off: The parental lock feature does not function.
After pressing the ENTER button, follow step 1)
below.
On: To activate the parental lock feature or change
the settings.
After pressing the ENTER button, follow steps
1) - 3) below.
(Continued)
и
(Continued)
1) Press the number buttons to create a personal
4-digit security code, then press the ENTER
button.
If you make a mistake before pressing the
ENTER button, press the CANCEL button and
enter your 4-digit security code again.
LB
Enter the code of a country/area whose
standards were used to rate the DVD video
disc, referring to the list below.
Country/Area Code
AUSTRALIA AU
BELGIUM BE
CANADA CA
CHINA CN
CHINA HONG KONG HK
DENMARK DK
FINLAND FI
FRANCE FR
GERMANY DE
INDONESIA ID
ITALY IT
JAPAN JP
MALAYSIA MY
NETHERLANDS NL
NORWAY NO
PHILIPPINES PH
RUSSIAN FEDERATION RU
SINGAPORE SG
SPAIN ES
SWEDEN SE
SWITZERLAND CH
TAIWAN TW
THAILAND TH
UNITED KINGDOM GB
UNITED STATES US
a) Select the first character by pressing the
4/14 buttons. |
b) Press the <= / =» buttons to shift and select
the second character by pressing the $/ 4
buttons.
c) Press the ENTER button.
3) Press the 4/4 buttons to select the parental
lock level, then press the ENTER button.
You cannot play DVD video discs rated higher than
the level you selected unless you cancel the parental
lock function.
For example, when you select level 7, discs rated
higher than level 7 are locked out and cannot be
played.
The parental lock level is equivalent to the following
USA movie ratings.
Level 7: NC-17
Level 6: R
Level 4: PG 13
Level 3: PG
Level 1: G
The parental lock levels for other countries/areas
than U.S. are included for future use. Check the
appropriate parental lock level when you buy a DVD
video disc equipped with the parental lock feature in
the future.
@ To change the parental lock level
Follow steps 1) - 3).
Bl To change your 4-digit security code
1) After selecting “On” or “Off” press the STOP
button four times, then press the ENTER
button.
The 4-digit security code is cleared.
2) Press the number buttons to create a new
4-digit security code.
3) Press the ENTER button.
(dAG) dmpes uonoung
67
68
: The unit continues after playback of a title is
completed.
: The unit stops after playback of a title is
completed.
Off:
On:
When playing a VIDEO CD without using the
menu.
To use the menu when playing a PBC-featured
VIDEO CD.
1) Press the $/ 4 buttons to select “On-Screen
Language”, and press the ENTER button.
2) Select a language pressing the 4/4 buttons,
and press the ENTER button.
See page [64), “On-screen Language.”
3) Make your selection in the same manner as
step 1) then step 2).
See page (63), “TV Shape.”
See page (63), “Audio Out Select.”
Table of languages and their abbreviation
Abbreviation | Language Abbreviation | Language Abbreviation | Language
——— No alternate GN Guarani PT Portuguese
language GU Gujarati QU Quechua
CHI (ZH) Chinese HA Hausa RM Rhaeto-Romance
DUT (NL) Dutch HI Hindi RN Kirundi
ENG (EN) | English HR Croatian RO Rumanian
FRE (FR) French HU Hungarian RU Russian
GER (DE) | German HY Armenian RW Kinyarwanda
ITA (IT) Italian IA Interlingua SA Sanskrit
JPN (JA) Japanese IE Interlingue SD Sindhi
KOR (KO) | Korean IK Inupiak sa Sango
MAY (MS) | Malay IN Indonesian SH Serbo-Croatian
SPA (ES) Spanish IS Icelandic Si Singhalese
AA Afar IW Hebrew SK Slovak
AB Abkhazian Jl Yiddish SL Slovenian
AF Afrikaans JW Javanese SM Samoan
AM Amharic KA Georgian SN Shona
AR Arabic KK Kazakh SO Somali
AS Assamese KL Greenlandic SQ Albanian
AY Aymara KM Cambodian SR Serbian
AZ Azerbaijani KN Kannada SS Siswati
BA Bashkir KS Kashmiri ST Sesotho
BE Belorussian KU Kurdish su Sundanese
BG Bulgarian KY Kirghiz SV Swedish
BH Bihari LA Latin SW Swahili
Bl Bislama LN Lingala TA Tamil
BN Bengali, Bangla LO Laotian TE Telugu
BO Tibetan LT Lithuanian TG Tajik
BR Breton LV Latvian, Lettish TH Thai
CA Catalan MG Malagasy TI Tigrinya
CO Corsican MI Maori TK Turkmen
CS Czech MK Macedonian TL Tagalog
CY Welsh ML Malayalam TN Setswana
DA Danish MN Mongolian TO Tongan
DZ Bhutani MO Moldavian TR Turkish
EL Greek MR Marathi TS Tsonga
EO Esperanto MT Maltese TT Tatar
ET Estonian MY Burmese TW Twi
EU Basque NA Nauru UK Ukrainian
FA Persian NE Nepali UR Urdu
FI Finnish NO Norwegian UZ Uzbek
FJ Fiji OC Occitan Vi Vietnamese
FO Faroese OM (Afan) Oromo VO Volapük
FY Frisian OR Oriya WO Wolof
GA Irish PA Panjabi XH Xhosa
GD Scottish Gaelic PL Polish YO Yoruba
GL Galician PS Pashto, Pushto ZU Zulu
69
fore calling service personnel
Check the following guide for the possible cause of a problem before contacting service.
N
depressed.
to turn on the closed caption.
(SYMPTOMS CAUSE POSSIBLE SOLUTIONS |PAGE)
POWER
The AC power cord is not connected. Connect the AC power cord to the AC
No power. 5
outlet.
Although the power is on, the | Cassette or disc is not inserted. Insert a video cassette or disc. 35, 48
unit does not operate. The TIMER REC buttons are depressed. Press the TIMER REC buttons. 43
TV BROADCAST RECEPTION
TV station experiencing problems. Try another channel. 23
Picture control is not adjusted. Check picture control adjustments. 33
Poor or no picture. Possible local interference. Check for source of reception distur- 79
bance.
Antenna (CATV) connector is not con- Check CATV connection or VHF/UHF 14 15
nected or possible local interference. antenna, reposition or rotate antenna.
TV station experiencing problems. Try another channel. 23
Picture control is not adjusted. Check picture control adjustments. 33
Possible local interference. Check for source of reception distur-
Poor or no color. 72
bance.
Antenna (CATV) connector is not con- Check CATV connection or VHF/UHF 14.15
nected or possible local interference. antenna, reposition or rotate antenna.
TV station experiencing problems. Try another channel. 23
Picture wobbles or drifts. Antenna (CATV) connector is not con- Check CATV connection or VHF/UHF 14, 15
nected or possible local interference. antenna, reposition or rotate antenna.
Cable TV channel is scrambled. Try another channel. 23
CATV connector is not connected. Check all CATV connections. 15
, TV/CATV Mode menu option is set to the Set the TV/CATV Menu option to the
No CATV reception. TV mode. CATV mode. 26
Cable TV service interrupted. Contact your Cable TV company. 15
. TV/CATV Mode menu option is not set to Make sure TV/CATV menu option is in
No reception above . , 26
channel 13. the appropriate mode. the appropriate mode.
UHF antenna is not connected. Check UHF antenna. 14
TV station experiencing problems. Try another channel. 23
Antenna (CATV) connector is not con- Check CATV connection or VHF/UHF 14, 15
nected or possible local interference. antenna, reposition or rotate antenna.
Poor or no sound. Possible local interference. Check for source of reception distur- 70
bance.
The MUTE button is depressed. Check the MUTE button has not been 24
pressed.
TV shuts off TV station stopped broadcasting. Tune new channel. — 23
Sleep timer is set. Set Sleep Timer to "0". 24
TV station experiencing problems or Try another channel. 23
program tuned is not ciosed captions.
Closed caption is not TV signal is weak. Check CATV connection of VHF/UHF 14.15 |
activated. antenna, reposition or rotate antenna.
The CLOSED CAPTION button is not Press the CLOSED CAPTION button 05
70
(SYMPTOMS CAUSE POSSIBLE SOLUTIONS |PAGE)
VCR
TV recording does not work. The video cassette's erase prevention tab | Place a piece of adhesive tape over 35
is broken off. the hole.
The time is not set correctiy. Reset the present time. 20-22
The recording start/end time is not set Reset the start/end time. 43
Timer recording does not correctly.
work. The TIMER REC buttons have not been Press the TIMER REC buttons at the
pressed at the same time (the TIMER same time (the TIMER REC indicator 43
REC indicator is not lit). is lit).
Tape is old or worn. Replace the tape. —
Noise bars appear on the Tracking adjustment is beyond range of Adjust tracking manualty using the TRK 37
screen. automatic tracking circuit. +/— buttons on the remote control.
Video heads are dirty. Clean the video heads. 39
DVD
The disc is dirty. Eject the disc and clean it. 7
The playback picture has It is in fast forward or fast reverse Some times a small amount of picture
occasional distortion. playback. distortion may appear. This is not a —
malfunction.
No disc is inserted. Insert a disc. 48
An unplayable disc is inserted. Insert a playable disc (Check the disc 8
type and color system).
The disc is placed upside down. Place the disc with the playback side
48
The unit does not start down.
playback. The disc is not placed within the guide. Place the disc correctly inside the
guide on the disc tray. 48
The disc is dirty. Clean the disc. 7
The parental lock function is set. Cancel the parental lock function or
change the parental lock level. 62, 66
Playback does not follow the | It is in the mode of repeat playback, These operations may prevent a
course of the disc's program | memory playback, etc. proper progress of the contents. Ш
(D appears on the screen. The function is prohibited with the unit or _ _
the disc.
REMOTE CONTROL
The remote control is not aimed at the Aim the remote control at the remote 13
sensor. sensor.
Distance is too far or too much light in the | Operate within 7 m or reduce the light
Remote control does not room. of the room. 13
operate. There is an obstacle in the path of the Clear the path of the beam. 13
beam.
The batteries are weak. Replace the batteries. 13
№. The batteries are not inserted correctly. Insert correctly. 13 5
71
о
"=
=
®
A
yception disturbances
Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna.
Outdoor antennas are recommended for best results. The most common types of television interference are shown
below. If one of these symptoms appear when the unit is connected to a Cable TV system, the disturbance may be
caused by the local Cable TV company broadcast.
N
IGNITION
Black spots or horizontal streaks may appear, the picture may flutter or drift.
Usually caused by interference from automobile ignition systems, neon lamps or
AC powered tools and appliances such as drills or hair dryers.
N
á GHOSTS
Ghosts are caused by the television signal following two paths. One is the direct
path and the other is reflected by tall buildings, hills or other large objects.
Changing the direction or position of the antenna may improve the reception.
\
á SNOW
If the TV/VCR/DVD is located far from the TV station, in a fringe reception area
where the signal is weak, small dots may appear in the picture.
If the signal is extremely weak, the installation of a larger external antenna may
be necessary.
N
RADIO FREQUENCY INTERFERENCE (RFI)
Caused by two-way radios, this type of interference produces moving ripples or
diagonal streaks in the picture. Some cases may cause a loss of contrast in the
picture. Changing the direction and position of the antenna or installing an RFI
filter may improve the picture.
N
á PICTURE SIZE VARIATION
A slight picture size variation is normal when you adjust the CONTRAST or
BRIGHTNESS settings.
\_ — y
CARE AND MAINTENANCE
To prevent fire or shock hazard, disconnect the unit from the power source before cleaning.
The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture. Use caution
when cleaning or wiping the plastic parts.
72
ecifications
MW20FM3
MW24FM3
Picture Tube
Type 20 (508mm diagonal)
Type 24 (600mm diagonal)
Speaker
1-13/16 (46mm) x 3-7/8 (99mm) inches, 8 ohm x 2
Audio Output Power
1.5W+1.5W
Power supply
AC 120V 60Hz
Power consumption
Operation: 120W, Standby: 4W
Operation: 135W, Standby: 4W
Weight 59.51bs (27.0 kg) 79.4lbs (36.0 kg)
Dimensions Width : 22-9/16 inches (573 mm) | Width : 25-13/16 inches (655 mm)
Height: 20-3/8 inches (517 mm) Height: 22-13/16 inches (580 mm)
Depth : 19-15/16 inches (482 mm) | Depth : 18-5/8 inches (473.5 mm)
Operating conditions
Temperature: 5°C-40°C (41°F-104°F), Operating status: Horizontal 181
Tuner
channel freq. synthesized
VHF 2-13
UHF 14-69
CATV 113 Channels
Antenna input/output
UHF/VHF In : 75 ohm coaxial
Color system
NTSC
Video head
4 Rotary heads
Audio track
Hi-Fi sound - 2 Tracks / MONO sound - 1 Track
Hi-Fi frequency response
20Hz to 20,000Hz
Hi-Fi dynamic range
More than 90dB
F.FWD/REW time at 25°C (77°F)
Approx. 1minute and 48 seconds (with T-120 Cassette Tape)
Applicable disc (DVD)
DVD (12cm, 8cm), CD (12cm, 8cm)
Frequency range (DVD)
DVD linear sound: 48 kHz sampling 4Hz-22kHz
96 kHz sampling 4Hz-44 kHz
S/N ratio (DVD)
90dB
Harmonic distortion (DVD)
0.1%
Wow and flutter (DVD)
Below measurable level
Dynamic range (DVD)
More than 90dB
Input/Output
Video input 1.0 V (p-p), 75 Q, negative sync., pin jack x 2
Video output 1.0 V (p-p), 75 Q, negative sync., pin jack x 1
Audio input 300mV (rms), 50kS2. negative sync., pin jack (L/R) x 2
Audio output 300mV (rms), 1kQ. negative sync., pin jack (L/R) x 1
Audio output (BITSTREAM/PCM
COAXIAL)
0.5V (p-p), 75 Q, pin jack x 1
Supplied accessories
300-75 ohm Matching Transformer ...................... 1
Remote control .…….......…......…….…….…resserenessannrencenses 1
Batteries (AAA) .……...........ersrrerrerensarienee ses es raen anse 2
* Designs and specifications are subject to change without notice.
* Tape Speed shown is approximate.
73
Toshiba America Consumer Products, Inc. ("TACP") and Toshiba Hawaii Inc. ("THI") make the following limited
warranties. These limited warranties extend to the original consumer purchaser or any person receiving this set
as a gift from the original consumer purchaser and to no other purchaser or transferee .
Limited Ninety (90) Day Warranty
TACP and THI warrant this product and its parts against defects in materials or workmanship for a period of
ninety (90) days after the date of original retail purchase. During this period, TACP and THI will repair a defec-
tive product or part, without charge to you. You must deliver the entire set to an Authorized TACP/THI Service
Station. You pay for all transportation and insurance charges for the set to and from the Service Station.
Limited One (1) Year Warranty
TACP/THI further warrant the parts in this product against defects in materials or workmanship for a period of
one year after the date of original retail purchase. During this period TACP/THI will replace a defective part
without charge to you, except that if a defective part is replaced after ninety (90) days from the date of original
retail purchase you pay labor charges involved in the replacement. You must also deliver the entire product to a
TACP/THI Authorized Service Station. You are responsible for all transportation for the set to and from the
Service Station.
Limited Two (2) Year Warranty of Picture Tube
TACP and THI further warrant the picture tube in this product against defects in materials or workmanship for a
period of two (2) years after the date of original retail purchase. During this period, TACP/THI will replace a
defective picture tube without charge to you except that if a defective picture tube is replaced after ninety (90)
days from the date of the original retail purchase, you pay labor charges involved in the replacement. You are
responsible for all charges involved in the replacement. you are responsible for all transportation and insurance
charges for the set to and from the Service Station.
Rental Units
The warranty for rental units begins with the first rental or thirty (30) days from the date of shipment to the rental
firm, whichever comes first.
Commercial Units
Products sold and used for commercial use have a limited ninety (90) day warranty for all parts, labor and picture tube.
Owner's Manual and Demographic Card
You should read this owner's manual thoroughly before operating this product. You should complete and mail the
enclosed Demographic card within ten days after you, or the person who has given you this product as a gift,
purchased this product. This is one way to enable TACP/TH! to provide you with better customer service and
improved products. Failure to return the Demographic card will not affect your rights under this warranty.
Your Responsibility
The above warranties are subject to the following conditions:
(1) You must retain your bill of sale or provide other proof of purchase.
(2) All warranty servicing of this product must be made by an Authorized TACP/THI Service Station.
( 3) These warranties are effective only if the product is purchased and operated in the U.S.A. or Puerto Rico.
(4) Labor service charges for set installation, set up, adjustment of customer controls and installation or repair
of antenna systems are not covered by this warranty. Reception problems caused by inadequate antenna
systems are your responsibility. |
(5) Warranties extend only to defects in materials or workmanship as limited above and do not extend to any
product or parts which have been lost or discarded by you or to damage to products or parts caused by
misuse, accident, damage caused by Acts of God, such as lightning or fluctuations in electric power,
improper installation, improper maintenance or use in violation of instructions furnished by us; or to units
which have been altered or modified without authorization of TACP/THI .
74
4
How to Obtain Warranty Service
If after following all of the operating instructions in this manual and checking the section "Before calling
service personnel" and you still find that service is needed;
(1) Call the TACP toll free number 1-800-631-3811 after you find a defective product or part to find the
nearest Toshiba Authorized Service Station.
(2) Please present your bill of sale or other proof to the Authorized Service Station.
"TACP/THI Authorized Service Station personnel will come to your home when warranty service is
required. Depending on the type of repair required, the service will either be performed in your home or
the set will be taken to the TACP/THI Authorized Service Station for repair and returned to your home at
no cost to you"
In the Continental United States contact: In Hawaii Contact:
Toshiba Hawaii, Inc
327 Kamakee Street,
Honolulu, Hawaii 96814
(808) 591-8377
Toll Free
1-800-631-3811
N J
All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular
purpose, are expressly limited to the duration of the limited warranties set forth above. With the exception of any
warranties implied by state law as hereby limited, the foregoing warranty is exclusive and in lieu of all other
warranties, guarantees, agreements and similar obligations of manufacturer or seller with respect to the repair
or replacement of any parts. In no event shall TACP or THI be liable for consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these
warranties in any manner whatsoever. The time within which action must be commenced to enforce any obligation
of TACP or THI arising under this warranty or under any statute, or law of the United States or any state thereof, is
here by limited to 90 days from the date you discover or should have discovered, the defect. This limitation does
not apply to implied warranties arising under state law.
This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.
Some states do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the
exclusion or limitation of incidental or consequential damages, so the above provisions may not apply to you.
ATTENTION CANADIAN CONSUMERS:
Canadian consumers are requested to complete the special Canadian "Warranty Registration
Form" enclosed, and forward this completed form with a copy of bill of sale to TOSHIBA OF
CANADA to "Register and Validate" their warranty.
Products purchased in the U.S.A. and used in Canada are not covered by these warranties.
Products purchased in Canada and used in the U.S.A. are not covered by these warranties.
Rev. 09-01-98
75
TOSHIBA
TOSHIBA AMERICA CONSUMER PRODUCTS, INC.
5870301A Printed in Thailand
02/03 34567 89 10 11 12 /02A

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
