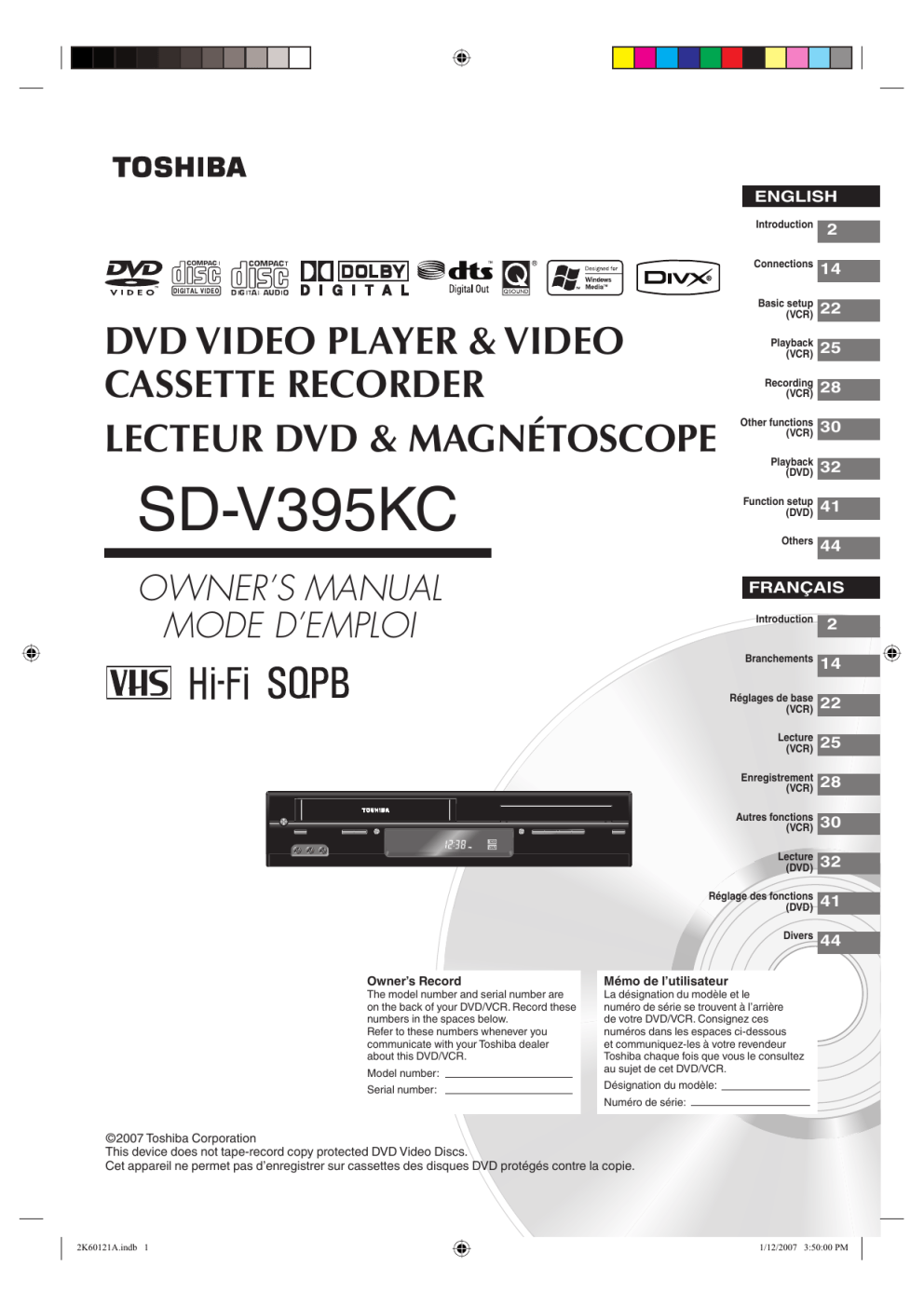

Toshiba SD-V395 DVD & Blu-ray User Guide

ENGLISH
DVD VIDEO PLAYER & VIDEO
CASSETTE RECORDER
LECTEUR DVD & MAGNÉTOSCOPE
SD-V395KC
OWNER’S MANUAL
MODE D’EMPLOI
Owner’s Record
The model number and serial number are
on the back of your DVD/VCR. Record these
numbers in the spaces below.
Refer to these numbers whenever you
communicate with your Toshiba dealer
about this DVD/VCR.
Model number:
Serial number:
Introduction
2
Connections
14
Basic setup
(VCR)
22
Playback
(VCR)
25
Recording
(VCR)
28
Other functions
(VCR)
30
Playback
(DVD)
32
Function setup
(DVD)
41
Others
44
FRANÇAIS
Introduction
2
Branchements
14
Réglages de base
(VCR)
22
Lecture
(VCR)
25
Enregistrement
(VCR)
28
Autres fonctions
(VCR)
30
Lecture
(DVD)
32
Réglage des fonctions
(DVD)
41
Divers
44
Mémo de l’utilisateur
La désignation du modèle et le
numéro de série se trouvent à l’arrière
de votre DVD/VCR. Consignez ces
numéros dans les espaces ci-dessous
et communiquez-les à votre revendeur
Toshiba chaque fois que vous le consultez
au sujet de cet DVD/VCR.
Désignation du modèle:
Numéro de série:
©2007 Toshiba Corporation
This device does not tape-record copy protected DVD Video Discs.
Cet appareil ne permet pas d’enregistrer sur cassettes des disques DVD protégés contre la copie.
2K60121A.indb 1
1/12/2007 3:50:00 PM
Introduction
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the presence
of uninsulated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED
TO PREVENT BLADE EXPOSURE.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE
LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU
FOND.
CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER’S GUIDE CAREFULLY
AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE,
CONTACT AN AUTHORIZED SERVICE LOCATION.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE.
VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT
STARE INTO BEAM.
2
2K60121A.indb 2
1/12/2007 3:50:01 PM
IMPORTANT SAFEGUARDS
Introduction
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a soft dry cloth for cleaning the exterior cabinet only.
6. ATTACHMENTS
The manufacturer of this unit does not make any recommendations for attachments, as they may cause
hazards.
7. WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.
PORTABLE CART WARNING
(symbol provided by RETAC)
8. ACCESSORIES
Do not place this unit on an unstable cart, stand, tripod, bracket, or table.
The unit may fall, causing serious injury, and serious damage to the unit.
8A. An appliance and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and cart
combination to overturn.
9. VENTILATION
Slots and openings in the cabinet back or bottom are provided for ventilation,
S3125A
to ensure reliable operation of the unit, and to protect it from overheating.
These openings must not be blocked or covered. The openings should never be blocked by placing the unit
on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat
source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided and/or the manufacturer’s instructions have been adhered to.
10. POWER SOURCE
This unit should be operated only from the type of power source indicated on the rating plate. If you are not
sure of the type of power supply to your home, consult your appliance dealer or local power company.
11. GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the appliance.
13. LIGHTNING
To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit
due to lightning and power line surges.
3
2K60121A.indb 3
1/12/2007 3:50:01 PM
Introduction
IMPORTANT SAFEGUARDS
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light
or power circuits, or where it can fall onto or against such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact
with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short
out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is
grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the
grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
ANTENNA LEAD IN WIRE
GROUND CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE
S2898A
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
18. SERVICING
Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
For example:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that
are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f . When the unit exhibits a distinct change in performance, this indicates a need for service.
4
2K60121A.indb 4
1/12/2007 3:50:01 PM
IMPORTANT SAFEGUARDS / Power source
Introduction
19. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by the
manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
20. SAFETY CHECK
Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
21. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
22. DISC TRAY
Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury.
23. CONNECTING
When you connect the product to other equipment, turn off the power and unplug all of the equipment
from the wall outlet. Failure to do so may cause a product damage. Read the owner’s manual of the other
equipment carefully and follow the instructions when making any connections.
24. LASER BEAM
Do not look into the opening of the disc tray or ventilation opening of the product to see the source of the laser
beam. It may cause sight damage.
25. DISC
Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious
personal injury and product malfunction.
26. NOTE TO CABLE TV SYSTEM INSTALLER
This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building, as close to the point of cable entry as practical.
Power source
AC Outlet
Wider Hole
and Blade
Polarized AC Cord Plug
(One blade is wider than the other.)
TO USE AC POWER SOURCE
Use the AC polarized line cord provided for operation on AC. Insert
the AC cord plug into a standard 120V 60Hz polarized AC outlet.
Notes:
• Never connect the AC line cord plug to other than the specified
voltage (120V 60Hz). Use the attached power cord only.
• If the polarized AC cord does not fit into a non-polarized AC outlet, do
not attempt to file or cut the blade. It is the user’s responsibility to have
an electrician replace the obsolete outlet.
• If you cause a static discharge when touching the unit and the unit
fails to function, simply unplug the unit from the AC outlet and plug it
back in. The unit should return to normal operation.
5
2K60121A.indb 5
1/12/2007 3:50:01 PM
Introduction
Precautions
Notes on handling
When shipping the DVD/VCR, the original shipping
carton and packing materials come in handy. For fully
protection, repack the unit as it was originally packed at
the factory.
Do not use volatile liquids, such as insect spray, near
the DVD/VCR. Do not leave rubber or plastic products
to contact the DVD/VCR for a prolonged period. They
will leave marks on the finish.
The top and rear panels of the DVD/VCR may
become warm after a long period of use. This is not a
malfunction.
When the DVD/VCR is not in use, be sure to remove the
disc and the video cassette turn off the power.
If you do not use the DVD/VCR for a long period, the
unit may not function properly in the future. Turn on and
use the DVD/VCR occasionally.
Notes on moisture condensation
Moisture condensation damages the DVD/VCR.
Please read the following carefully.
Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day. Drops of
water form on the outside of the glass. In the same way,
moisture may condense on the head drum or the optical
pick-up lens inside this unit, one of the most crucial
internal parts of the DVD/VCR.
le of mo
Examp ensat isture
ion!
cond
Tape
Head drum
Notes on locating
Moisture condensation occurs during the
following cases.
Place the DVD/VCR on a level surface. Do not use it on
a shaky or unstable surface such as a wobbling table or
inclined stand. The loaded disc or the video tape may
become dis-aligned and damage the DVD/VCR.
When you place this DVD/VCR near a TV, radio, or
VCR, the playback picture may become poor and the
sound may be distorted. In this case, place the DVD/
VCR away from the TV, radio or VCR.
When you bring the DVD/VCR directly from a cold place
to a warm place.
When you use the DVD/VCR in a room where you just
turned on the heater, or a place where the cold wind
from the air conditioner directly hits the unit.
In summer, when you use the DVD/VCR in a hot and
humid place just after you move the unit from an air
conditioned room.
When you use the DVD/VCR in a humid place.
Notes on cleaning
It’s too
warm!
Use a soft, dry cloth for cleaning.
Use a dry cloth to wipe.
Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the DVD/
VCR.
Do not use the DVD/VCR when moisture
condensation may occur.
If you use the DVD/VCR in such a situation, it may
damage discs and internal parts. Remove the disc or
the video tape, connect the power cord of the DVD/VCR
to the wall outlet, turn on the DVD/VCR, and leave it for
two or three hours. After two or three hours, the DVD/
VCR will have warmed up and evaporated any moisture.
Keep the DVD/VCR connected to the wall outlet and
moisture condensation will seldom occur.
Wa
it!
Wall outlet
6
2K60121A.indb 6
1/12/2007 3:50:02 PM
Notes on discs
Do not touch the playback side of the disc.
Normally, DVD video discs are divided into titles, and the
titles are sub-divided into chapters. Video CDs and Audio
CDs are divided into tracks.
DVD video disc
DVD video disc
Title 1
Chapter 1
Introduction
Structure of disc contents
On handling discs
Title 2
Chapter 2
Chapter 1
Chapter 2
Chapter 3
Playback side
Do not attach paper or tape to discs.
Video CD/Audio CD
Video CD/Audio CD
Track 1
Track 2
Track 3
Track 4
Track 5
On cleaning discs
Fingerprints and dust on the disc cause picture and
sound deterioration. Wipe the disc from the center
outwards with a soft cloth. Always keep the disc clean.
Each title, chapter or track is assigned a number, which is
called “title number”, “chapter number” or “track number”
respectively.
There may be discs that do not have these numbers.
Notes on copyright
Do not use any type of solvent such as thinner, benzine,
commercially available cleaners or antistatic spray for
vinyl LPs. It may damage the disc.
On storing discs
Do not store discs in a place subject to direct sunlight
or near heat sources.
Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.
The unauthorized recording, use, distribution, or revision
of copyrighted materials including, without limitation,
television programs, videotapes, and DVDs is prohibited
under the Copyright Laws of the United States and other
countries, and may subject you to civil and criminal liability.
This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use
of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
Consumers should note that not all high definition
television sets are fully compatible with this product
and may cause artifacts to be displayed in the picture.
In case of 525 progressive scan picture problems, it is
recommended that the user switch the connection to the
“STANDARD DEFINITION” output. If there are questions
regarding our TV set compatibility with this model 525p
DVD player, please contact our customer service center.
7
2K60121A.indb 7
1/12/2007 3:50:02 PM
Introduction
Notes on discs (Continued)
About this owner’s manual
This owner’s manual explains the basic instructions of this
unit. Some DVD video discs are produced in a manner
that allows specific or limited operation during playback.
As such, the unit may not respond to all operating
commands. This is not a defect in the unit. Refer to
instruction notes of discs.
The following symbol may appear on the TV screen during
operation.
It means that the operation is not permitted by the DVD/
VCR or the disc.
For example, sometimes it is unable to stop the playback
of copyright message of the disc when the STOP ( )
button is pressed. Alternatively, this symbol may also
indicate that the feature is not available for the disc.
Notes on region numbers
The region number of this DVD/VCR is 1. If region
numbers, which stand for their playable area, are printed
on your DVD video disc and you do not find 1 or ALL ,
disc playback will not be allowed by the player. (In this
case, the DVD/VCR will display a message on-screen.)
On Video CDs
This DVD/VCR supports Video CDs equipped with the
PBC (Version 2.0) function. (PBC is the abbreviation of
Playback Control.) You can enjoy two playback variations
depending on types of discs.
• Video CD not equipped with PBC function
(Version 1.1)
Sound and movie can be played on this DVD/VCR in
the same way a DVD.
• Video CD equipped with PBC function
(Version 2.0)
In addition to operation of a Video CD not equipped
with the PBC function, you can enjoy playback of
interactive software with search function by using the
menu displayed on the TV screen (Menu Playback).
Some of the functions described in this owner’s manual
may not work with some discs.
Playable discs
This DVD/VCR can play the following discs.
Disc Mark
DVD
video
discs
Video
CDs
DIGITAL VIDEO
Contents
Disc
Size
Maximum
playback time
Approx. 4 hours
(single sided disc)
Audio
+
Video
(moving
pictures)
12 cm
Audio
+
Video
(moving
pictures)
12 cm
Approx. 74 minutes
(single sided disc)
8 cm
Approx. 20 minutes
(single sided disc)
12 cm
Approx. 74 minutes
(single sided disc)
8 cm
Approx. 20 minutes
(single sided disc)
Audio
CDs
Audio
DivX®
Audio
+
Video
(moving
pictures)
8 cm
12 cm
8 cm
Approx. 8 hours
(double sided disc)
Approx. 80 minutes
(single sided disc)
Approx. 160 minutes
(double sided disc)
It depends on
DivX® quality
The following discs are also available.
DVD-R/RW discs of DVD video format
CD-R/CD-RW discs of CD-DA, Video CD, SVCD, MP3,
WMA, JPEG or DivX® format
Kodak picture CD, FUJICOLOR CD format
Some of these discs may be incompatible.
• You cannot play discs other than those listed above.
• You cannot play discs of DVD-RAM, DVD-ROM, CDROM, Photo CD, etc., or non standardized discs even if
they may be labeled as above.
• Some CD-R/RWs cannot be played back depending on
the recording conditions.
• This DVD/VCR uses the NTSC color system, and
cannot play DVD video discs recorded in any other
color system (PAL, SECAM, etc.).
Because of problems and errors that can occur during
the creation of DVD and CD Software and/or the
manufacture of DVD and CD discs, Toshiba cannot
assure that the DVD player will successfully play every
disc bearing DVD and CD logos. If you happen to
experience any difficulty playing a DVD and/or CD disc
on this DVD player, please contact Toshiba Customer
Service.
is a trademark of DVD Format/Logo Licensing Corporation.
8
2K60121A.indb 8
1/12/2007 3:50:02 PM
Contents
Playback (DVD)
SAFETY PRECAUTIONS ..................................2
IMPORTANT SAFEGUARDS .............................3
Power source .....................................................5
Precautions ........................................................6
Notes on discs ...................................................7
Contents ............................................................9
Identification of controls ...................................10
Playing a disc ...................................................32
Advanced playback..........................................33
Zooming .....................................................33
Locating desired scene ...............................33
Marking desired scenes..............................34
Repeat playback .........................................34
A-B Repeat playback ..................................34
Program playback .......................................34
Random playback .......................................35
Changing angles.........................................35
Title selection..............................................35
DVD menu ..................................................35
Changing soundtrack language ..................35
Setting surround sound...............................36
Subtitles ......................................................36
To turn off the PBC ......................................36
MP3/WMA/JPEG/DivX® and Audio CD
operation..........................................................37
Connections
Antenna connections .......................................14
Cable TV connections ......................................16
Connecting to a TV ..........................................18
Connecting to optional audio equipment..........20
Basic setup (VCR)
Setting the video channel.................................22
Setting the language ........................................22
Clock setting ....................................................23
Tuner setting ....................................................24
Playback (VCR)
Loading and unloading a cassette tape ...........25
Cassette tape playback ...................................26
Special playback ..............................................26
Convenient function .........................................27
Recording (VCR)
Recording a TV program ..................................28
One-touch Timer Recording (OTR) ..................29
Timer recording................................................29
Introduction
Introduction
Function setup (DVD)
Customizing the function settings ....................41
Temporary cancel the rating level by
DVD disc ..........................................................43
Others
Language code list...........................................44
Troubleshooting ...............................................45
Specifications ..................................................46
Limited Canadian Warranty ..............................47
Other functions (VCR)
Stereo recording and playback ........................30
Second Audio Program (SAP) .........................31
Duplicating a video tape ..................................31
Recording a DVD/CD disc ...............................31
9
2K60121A.indb 9
1/12/2007 3:50:03 PM
Introduction
Identification of controls
See the page in
for details.
Front panel
VCR/DVD mode selector
button 22
OPEN/CLOSE button 32
REC button 28
ON/STANDBY button 22
Cassette loading slot 25
EJECT
button 25
DVD mode indicator 32
FWD button 26 33
Disc tray 32
Remote sensor 13
VCR mode indicator 22
CHANNEL
/
buttons 28
PLAY button 26 32
Display window 11
AUDIO (L/R)/VIDEO IN
(LINE IN 2) jacks 31
REV button 26 33
STOP button 26 32
Rear panel
DVD COAXIAL DIGITAL AUDIO OUT jack 20
DVD S-VIDEO OUT jack 19
DVD/VCR common AUDIO
(L/R)/VIDEO OUT jacks 18
ANT IN jack 14
AC power cord 5
DVD COMPONENT DVD AUDIO (L/R)
OUT jacks 19
OUT jacks 19
AUDIO (L/R)/VIDEO
IN (LINE IN1) jacks 31
ANT OUT jack 14
10
2K60121A.indb 10
1/12/2007 3:50:03 PM
Display window
Still indicator
Introduction
Play indicator
VCR indicator (VCR)
DVD disc inserted indicator
Recording
indicator
(VCR)
CD inserted
indicator
Multifunctional indicator
Track indicator (CD)
Progressive indicator
Tape loaded indicator (VCR)
AM/PM indicator
(AM is not displayed)
Timer Recording indicator (VCR)
VCR operation status
Press CALL to display VCR operation status on the screen.
To cancel the display, press CALL again.
While watching TV
CLOCK
8 : 47AM MON
STEREO SAP
Recording :
HI-FI STEREO
DAY OF THE WEEK
STEREO AND
SECOND
AUDIO
PROGRAM
(SAP)
VCR Icons
While operating a tape
CH 125
CHANNEL
OPERATING
MODE
8 : 30AM MON
HI-FI
Rec/Pause :
AUTO REPEAT
00 : 00 : 00 SP
TAPE SPEED
REAL TIME COUNTER
STEREO
00 : 15 : 12 SP
TAPE IN
Play :
Stop :
Eject :
OUTPUT SELECTION
Disc operation status
Press DISPLAY, the status display of the disc will appear on the screen as follows.
To cancel the display, press DISPLAY again.
DVD
DISC OPERATION
TITLE NO.
ELAPSED
TIME
DVD
00:15:25 01:41:39
Title 1/3
1/1 Eng Dolby Digital
VCD
TOTAL
TIME
Chapter 2/24
1/2 Eng
DISC OPERATION
CHAPTER
NO.
VCD
ELAPSED TOTAL
TIME
TIME
00:08:32 00:51:03
Track 3/15
1/1
ANGLE NO.
AUDIO LANGUAGE
SUBTITLE LANGUAGE
A KIND OF AUDIO
TRACK NO.
11
2K60121A_En_P01-13.indd 11
1/12/2007 7:58:01 PM
Introduction
Identification of controls (Continued)
The instructions in this manual describe the function on the remote control. See the page in
for details.
Remote controls
VCR DVD button 22
EJECT button (VCR) 25
CLOCK/COUNTER button 27
VCR MENU button 22
SETUP button 41
CM SKIP button 26
ZOOM button 33
POWER button 22
OPEN/CLOSE button (DVD) 32
TV/VCR button 22
INPUT SELECT button 31
SLOW button 26
33
DVD MENU button 35
TOP MENU button 35
Direction buttons (
/ / / ) 32
SET+/- buttons 22
ENTER button 22 41
CH+/- buttons 28
CANCEL button 29
CLEAR button 34
RETURN button 41
STOP button 26 32
PAUSE/STEP button 26 32
INDEX- button 27
button 33
SKIP
REV button 26 33
REC/OTR button
28 29
TIMER REC button
29
Direct channel
Selection buttons (0-9) 25
Number buttons (0-9) 33
COUNTER RESET button 27
ANGLE button 35
ATR button 26
PLAY button 26 32
INDEX+ button 27
button 33
SKIP
FWD button 26
33
A-B RPT button 34
SP/SLP button 28
PLAY MODE button 34
CALL button 11
DISPLAY button 11
ZERO RETURN button 27
JUMP button 33
MARKER button 34
AUDIO SELECT button 30
AUDIO button 35
SUBTITLE button 36
12
2K60121A.indb 12
1/12/2007 3:50:04 PM
Introduction
Inserting batteries
1
Open the battery
compartment cover in the
direction of the arrow.
2
Install two “AAA” batteries
(supplied), paying attention
to the polarity diagram in the
battery compartment.
3
Replace the compartment
cover.
Caution:
Never throw batteries into a fire.
Notes:
• Be sure to use AAA size batteries.
• Dispose of batteries in a designated disposal area.
• Batteries should always be disposed of with the environment in mind. Always dispose of batteries in accordance with
applicable laws and regulations.
• If the remote control does not operate correctly, or if the operating range becomes reduced, replace batteries with new
ones.
• When necessary to replace batteries in the remote control, always replace both batteries with new ones. Never mix
battery types or use new and used batteries in combination.
• Always remove batteries from remote control if they are dead or if the remote control is not to be used for an extended
period of time. This will prevent battery acid from leaking into the battery compartment.
Remote control basics
• Press POWER to turn the DVD/VCR on or off.
• Select your desired operating mode (DVD or VCR) using VCR DVD.
(DVD or VCR indicator on the front panel will show you which mode is selected.)
• Press CH + or CH – to move through the channels one channel at a time.
• The ▲/▼/◀/▶ are also used to navigate on-screen menu system.
• You can directly access specific channels using Direct channel selection buttons (0–9).
• Each press of VCR DVD on the remote control, switches the screen between the VCR screen (VCR mode) and the
DVD screen (DVD mode).
Operation
• Aim the remote control at the remote sensor and press control buttons to
operate.
• Operate the remote control within 30° angle on either side of the remote
sensor, up to a distance of approx. 7 meters.
Approx. 7 meters
13
2K60121A.indb 13
1/12/2007 3:50:04 PM
Connections
Antenna connections
If you are using an antenna system, follow these instructions. If you are a Cable TV subscriber, skip ahead to page 16 for
the proper connections.
Antenna to DVD/VCR connection
The DVD/VCR must be connected “between” the antenna and the TV. First, disconnect the antenna from the TV and
connect it to the DVD/VCR. Then connect the DVD/VCR to the TV. Below are 3 common methods of connecting an
antenna system to a DVD/VCR. Find the type of antenna system you are using and follow the connection diagram.
1
Combination VHF/UHF Antenna with 75 ohm Coaxial Cable
DVD/VCR
75 ohm Coaxial Cable
2
Combination VHF/UHF Antenna with 300 ohm Twin Lead (Flat) Wire
DVD/VCR
Matching Transformer 300 ohm Input 75
ohm output (not supplied)
300 ohm Twin Lead (Flat) Wire
(not supplied)
3
Separate VHF and UHF Antennas
VHF
UHF
DVD/VCR
Combiner 75/300 ohm Inputs 75 ohm output
(not supplied)
300 ohm Twin Lead (Flat) Wire
(not supplied)
75 ohm Coaxial Cable
Note: If both VHF and UHF antennas have 300 ohm twin lead (flat) wires, use a combiner having two 300 ohm inputs and
one 75 ohm output.
Notes: • A clear picture will not be obtained by the DVD/VCR unless the antenna signal is good. Connect the antenna to
the DVD/VCR properly.
• For better quality recording, an indoor antenna or a telescopic antenna is not recommended. The use of an outdoor
type antenna is required.
14
2K60121A.indb 14
• If you are not sure about the connection, please refer to qualified service personnel.
1/12/2007 3:50:05 PM
DVD/VCR to TV connection
After you have connected the antenna to the DVD/VCR, you must connect the DVD/VCR to the TV.
Below are 3 common methods of connecting your DVD/VCR to a TV. Find the type of TV you are using and follow the
connection diagram.
Connections
This DVD/VCR has a single 75 ohm output for connection to a TV. If your TV has separate VHF and UHF antenna
inputs (numbers 2 and 3 below), use a splitter to connect the DVD/VCR to the TV for VHF and UHF reception.
TV
Note:
VHF/UHF IN
75 ohm Coaxial Cable (supplied)
If a VHF or UHF antenna is used,
set the TV/CABLE menu option to
the “TV” mode.
TV with single 75 ohm VHF/UHF antenna
input
TV
75 ohm Coaxial Cable
(supplied)
Splitter 75 ohm Input
75/300 ohm outputs
(not supplied)
Note:
UHF
VHF
If a VHF or UHF antenna is used,
set the TV/CABLE menu option to
the “TV” mode.
TV with 300 ohm UHF and 75 ohm VHF
antenna inputs
TV
75 ohm Coaxial Cable
(supplied)
Splitter 75 ohm Input
300 ohm outputs
(not supplied)
UHF
Note:
If a VHF or UHF antenna is used,
set the TV/CABLE menu option to
the “TV” mode.
VHF
TV with 300 ohm UHF and 300 ohm VHF
antenna inputs
15
2K60121A.indb 15
1/12/2007 3:50:07 PM
Connections
Cable TV connections
Many cable companies offer services permitting reception of extra channels including pay or subscription channels.
This DVD/VCR has an extended tuning range and can be tuned to most cable channels without using a cable company
supplied converter box, except for those premium channels which are intentionally scrambled. If you subscribe to a
premium channel which is scrambled, you must have a descrambler box for proper reception.
1
DVD/VCR
TV
VHF/UHF
IN (ANT)
Incoming Cable
Allows: * Recording of nonscrambled channels.
* Use of the programmable timer.
* Recording of one channel while watching another.
2
DVD/VCR
TV
Converter/
Descrambler
VHF/UHF
IN (ANT)
Incoming
Cable
Allows: * Recording of channels through the converter
box (scrambled and unscrambled).
* Using the programmable timer to record only the
channel selected at the converter box.
Prevents: * Recording one channel while watching another.
* Using the DVD/VCR tuner to select channels.
3
Note:
To record from converter/descrambler, DVD/VCR
tuner must be tuned to the converter output channel, usually channel 3 or 4.
DVD/VCR
TV
Converter/Descrambler
Incoming Cable
Allows: * Recording of nonscrambled channels.
* Use of the programmable timer.
* Recording an unscrambled channel while
watching any channel selected at the converter
box.
Prevents: Recording scrambled channels.
VHF/UHF
IN (ANT)
Note:
If you are playing a tape or using the tuner built
into the DVD/VCR, the converter must be set
to the video channel output of the DVD/VCR
(either 3 or 4).
Note: Whenever a Converter/Descrambler box is placed before the DVD/VCR, you must tune the DVD/VCR to the output of the
Converter/Descrambler box, usually channel 3 or 4.
16
2K60121A.indb 16
1/12/2007 3:50:07 PM
IMPORTANT: Make sure the TV/CABLE menu option is set to the “CABLE” mode.
This DVD/VCR cannot receive scrambled programs since it does not contain a descrambler. In order to receive
scrambled programs, your existing descrambler must be used. Descrambler boxes are available from cable companies.
Consult your local cable company for more information concerning connection to their descrambler equipment. There are
many ways to connect your DVD/VCR to a cable system. Below are six common methods of connection.
DVD/VCR
TV
Splitter
A/B Switch
Connections
4
VHF/UHF
IN (ANT)
A
Incoming Cable
Allows: *
*
*
Prevents: *
*
Converter/Descrambler
B
Recording of one channel while watching another.
Using the programmable timer to record only the channel selected at the converter box.
Recording of all channels through the converter box.
Watching scrambled channels while recording another channel.
Using the DVD/VCR tuner to select channels.
5
DVD/VCR
TV
Splitter
Converter/Descrambler
Incoming Cable
A/B Switch
VHF/UHF
IN (ANT)
A
B
Allows: *
*
*
*
Prevents:
Recording of nonscrambled channels.
Recording of one channel while watching another.
Watching premium channels through the converter while recording nonscrambled channels.
Using the programmable timer.
Recording scrambled channels.
6
DVD/VCR
TV
Splitter
Converter/Descrambler
Incoming Cable
Converter/Descrambler
A/B Switch
VHF/UHF
IN (ANT)
A
B
Allows: * Recording of all channels through the converter box.
* Recording a scrambled or unscrambled channel while watching another (scrambled or
unscrambled) channel.
* Using the programmable timer to record only the channel selected at the converter box.
Prevents: Using the DVD/VCR tuner to select channels.
17
2K60121A.indb 17
1/12/2007 3:50:07 PM
Connections
Connecting to a TV
Connect the DVD/VCR to your TV.
Note: This method transports VHS and DVD-video signals. For enhanced DVD-video performance, we recommend you to
connect the S-video or ColorStream® component video outputs to your TV/monitor also. 19
Basic connection
Signal flow
(yellow) (red) (white)
To wall outlet
To VIDEO
OUT
To ANALOG AUDIO OUT
Audio/video cable (supplied)
To video input
(yellow)
(red)
To audio inputs
(white)
TV or monitor with
audio/video inputs
Notes:
• Refer to the owner’s manual of the connected TV as well.
• When you connect the DVD/VCR to your TV, be sure to turn off the power and unplug both units from the wall outlet before
making any connections.
• If your television set has one audio input, connect the left and right audio outputs of the DVD/VCR to a Y cable adapter (not
supplied) and then connect to your TV.
• Connect the DVD/VCR directly to your TV. If you connect the DVD/VCR to a VCR, TV/VCR combination or video selector, the
playback picture may be distorted as DVD video discs are copy protected.
18
2K60121A.indb 18
1/12/2007 3:50:08 PM
S-video output
An S-Video connection is superior to Video (Yellow) output. Use this method for DVD playback when the connected television has SVideo input, and does not have component video inputs.
Component video outputs
Notes:
• To switch the scan mode between the interlace and progressive modes, see page 43 .
• In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust
the TV or monitor for optimum performance.
Connections
PROGRESSIVE outputs
Some TVs or monitors are equipped with component video inputs that are capable of reproducing a progressively scanned video signal.
Connecting to these inputs allows you to view the highest quality pictures with less flicker.
INTERLACED outputs
Some TVs or monitors are equipped with component video inputs. Connecting to these inputs allows you to enjoy the highest quality
DVD picture playback.
Connecting to an audio system and TV equipped with S-video input/component video inputs
The S-video output and component video output transports the DVD video signal exclusively and will deliver enhanced
DVD video picture performance.
Signal flow
To ANALOG
AUDIO OUT
(white)
To S-VIDEO
OUT
(red)
If you connect the DVD/VCR to your
TV with the DVD OUT jacks, select
the corresponding video input on
your television to watch DVD video
discs.
To wall outlet
• Actual labels for
component video
inputs may vary
depending on the
TV manufacturer
(ex. Y, R-Y, B-Y or
Y, CB, CR).
To
PR/CR
VIDEO
OUT
To
PB/CB
VIDEO
OUT
To Y
VIDEO
OUT
Audio cable (not supplied)
To Y video input
Component
video cable
(not supplied)
S-video cable (not supplied)
To audio inputs of
the amplifier
To PB/CB video input
(red)
(white)
To PR/CR video input
To S-video input
TV or monitor with
component video inputs
Audio system
Notes:
• Refer to the owner’s manual of the connected equipment as well.
• When you connect the DVD/VCR to other equipment, be sure to turn off the power and unplug all of the equipment from the
wall outlet before making any connections.
• If you place the DVD/VCR near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD/
VCR away from the tuner and radio.
• The output sound of the DVD/VCR has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening
level. Otherwise, the speakers may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the DVD/VCR’s power cord. If you leave the amplifier power on, the
speakers may be damaged.
• When connecting to a TV using the S-video jack, make sure that the Progressive indicator “ ” on the display
window is not lit. If it is lit, the S-video outputs do not feed the correct signals and you cannot see any picture. To
turn off the Progressive indicator, select Interlaced output 43 .
19
2K60121A.indb 19
1/12/2007 3:50:08 PM
Connections
Connecting to optional audio equipment
You can enjoy high quality dynamic sounds of DVD video discs
or audio CDs by connecting the DVD/VCR to optional audio
equipment.
Connection for video signal to your TV, see
18
19
.
• This selection uses the following reference mark.
: Front speaker
: Rear speaker
: Sub woofer
: Center speaker
: Signal flow
Connecting to an amplifier equipped with a Dolby® Digital decoder
Dolby Digital
Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic
effect in the home. You can enjoy motion picture and live concert DVD video discs encoded via the Dolby Digital recording system with
this dynamic realistic sound by connecting the DVD/VCR to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby Digital
processor. If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that
provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark.
Amplifier equipped with a
Dolby Digital decoder
To COAXIAL
type digital
audio input
Manufactured under license from
Dolby Laboratories. Dolby and the
double-D symbol are trademarks
of Dolby Laboratories.
• Use DVD video discs encoded
via the Dolby Digital recording
system.
75 Ω coaxial cable (not supplied)
To COAXIAL DIGITAL
AUDIO OUT
Connecting to an amplifier equipped with a DTS® decoder
Digital Theater Systems (DTS)
DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs.
If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS encoded sound tracks on DVD video discs or
audio CDs.
“DTS” and “DTS Digital Out” are
registered trademarks of DTS, Inc.
Amplifier equipped with
a DTS decoder
To COAXIAL
type digital
audio input
• Use DVD video discs or audio
CDs encoded via the DTS
recording system.
75 Ω coaxial cable (not supplied)
To COAXIAL DIGITAL
AUDIO OUT
Warning
When playing DTS-encoded discs (DVD video discs and audio CDs), excessive noise may be output from the analog stereo
jacks. To avoid possible damage to the audio system, you should take proper precautions when the ANALOG AUDIO OUT
(L/R) jacks of the DVD/VCR are connected to an amplification system. (Do not leave the ANALOG AUDIO OUT (L/R) wires
dangling.) To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must
be connected to the COAXIAL DIGITAL AUDIO OUT jack of the DVD/VCR.
20
2K60121A.indb 20
1/12/2007 3:50:08 PM
Connections
Connecting to an amplifier equipped with a MPEG2 audio decoder
MPEG2 sound
You can enjoy motion picture and live concert DVD video discs encoded via the MPEG2 recording system with dynamic realistic sound
by connecting an amplifier equipped with an MPEG2 audio decoder or MPEG2 audio processor.
Amplifier equipped with an
MPEG2 audio decoder
To COAXIAL
type digital
audio input
• Use DVD video discs encoded
via the MPEG2 recording
system.
To COAXIAL DIGITAL
AUDIO OUT
75 Ω coaxial cable (not supplied)
Connecting to an amplifier equipped with a digital audio input
2 channel digital stereo
You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier equipped with a digital audio input and speaker
system (right and left front speakers).
Amplifier equipped with a
digital audio input
To COAXIAL
type digital
audio input
To COAXIAL DIGITAL
AUDIO OUT
75 Ω coaxial cable (not supplied)
Notes:
• DO NOT connect the COAXIAL DIGITAL AUDIO OUT jack of the DVD/VCR to the AC-3 RF input of a Dolby Digital Receiver.
This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the COAXIAL DIGITAL AUDIO
OUT jack of the DVD/VCR.
• Connect the COAXIAL DIGITAL AUDIO OUT jack of the DVD/VCR to the “COAXIAL” input of a Receiver or Processor.
• Refer to the owner’s manual of the connected equipment as well.
• When you connect the DVD/VCR to other equipment, be sure to turn off the power and unplug all of the equipment from the
wall outlet before making any connections.
• The output sound of the DVD/VCR has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening
level. Otherwise, the speakers and your hearing may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the DVD/VCR’s power cord. If you leave the amplifier’s power on, the
speakers may be damaged.
21
2K60121A.indb 21
1/12/2007 3:50:09 PM
Basic setup (VCR)
Setting the video channel
When a TV is connected with the 75 ohm coaxial cable
only.
To view playback of a recorded tape or DVD disc, or to watch a
program selected by the VCR’s channel selector, the TV must
be set to channel 3 or 4 (video channel).
Setting the video channel
and hold 3 or 4 on the remote control for 3
1 Press
seconds in standby mode.
• The video channel will start to flash for 3 seconds
in the display window.
2
3 Press VCR DVD selector to select the VCR mode.
Press POWER to turn on the DVD/VCR.
• The VCR mode indicator will light at the right of
the display window.
ON the TV and set to CH 3 or 4 to correspond
4 Turn
with the channel selected in step 1.
5 Press TV/VCR to select the VCR position.
• The VCR indicator will appear at the upper left of
the display window.
Setting the language
You can choose from three different languages (English,
French and Spanish) for the on-screen display.
Setting the language
Preparation:
• Turn ON the TV and select to the corresponding
video input.
• Press VCR DVD selector to select the VCR mode.
(The VCR mode indicator will light.)
1 Press VCR MENU.
• The VCR menu screen will appear. Press SET + or
– to select “SYSTEM SETUP”, then press ENTER.
If you use the unit for the first time, press VCR
MENU, instead of the “SYSTEM SETUP” menu
screen of the main menu screen in step 2 may
appear.
MENU
TIMER REC SET
ON
AUTO REPEAT
ON
SAP
CH SETUP
SYSTEM SETUP
OFF
OFF
〈+/-/ENTER/MENU〉
SET + or – to select “LANGUAGE”, then press
2 Press
ENTER.
6
Select any channel to receive a TV station in your
area.
The channel number will appear on the screen for
about 4 seconds.
SYSTEM SETUP
CLOCK SET
LANGUAGE/IDIOMA/LANGUE
NO NOISE BACKGROUND
ON OFF
ON OFF
AUTO CLOCK
STANDARD TIME
DAYLIGHT SAVING TIME
〈+/-/ENTER/MENU〉
For a push-button TV tuner
If CH 3 or 4 corresponding to the video channel cannot
be tuned on your TV, proceed as follows: set the VCR
3/4 channel selector and the TV to CH 3 or 4, playback
a prerecorded tape and tune the TV to receive a sharp
color picture from the video cassette recorder. Refer to
your TV owner’s manual for details.
Note:
If the unit does not operate properly, or No key operation
(by the unit and/or the remote control): Static electricity,
etc., may affect the player’s operation. Disconnect the AC
power cord once, then connect it again.
SET + or – to select the desired language:
3 Press
English (ENGLISH), Spanish (ESPAÑOL) or French
(FRANCAIS), then press ENTER.
VCR MENU repeatedly until the menu screen
4 isPress
cleared.
Notes:
• Both the VCR and the DVD have their own player menus 41 .
• If no buttons are pressed for more than 60 seconds, the
VCR MENU screen will return to normal TV-operation
automatically.
22
2K60121A.indb 22
1/12/2007 3:50:09 PM
Clock setting
The AUTO CLOCK function will automatically set the builtin clock (Month, Day, Year and Time) when the DVD/VCR is
connected to an Antenna or Cable system and it is turned off.
The DVD/VCR searches for a station in your area containing
the necessary AUTO CLOCK setting signals. Once received,
it will take approximately 4 minutes for the clock to set itself
automatically.
Preparation:
• Turn ON the TV and select to the corresponding
video input.
• Press VCR DVD selector to select the VCR mode.
(The VCR mode indicator will light.)
1
Connect the Antenna or Cable system.
• If you use a cable box, turn it on.
2 Plug the AC power cord to the AC outlet.
3 Make sure the DVD/VCR is turned off.
• If you press POWER, the Auto Clock set is not
programmed.
4 Wait at least three minutes and press POWER.
Press CALL to check the clock setting on the on
5 screen
display.
clock is not set, check the antenna condition.
6 IfThetheAUTO
CLOCK may not function properly if the
reception condition is not good.
AUTO CLOCK adjustment
The AUTO CLOCK adjustment will be updated at
6:00 AM, 12:00 PM and 6:00 PM everyday when the
DVD/VCR turned off.
• If you use a cable box and you want AUTO CLOCK
adjustment to be performed, the cable box must be
left on.
• The AUTO CLOCK adjustment is not effective when
there is a difference of more than 5 minutes exists
between the built-in clock time and the actual time.
When shipped from factory the AUTO CLOCK is set to “ON”.
But if you do not want AUTO CLOCK setting, it can be turned off:
1 Press VCR MENU.
SET + or – to select “SYSTEM SETUP”, then
2 Press
press ENTER.
3 Press SET + or – to select “AUTO CLOCK”.
4 Press ENTER to select “off”.
VCR MENU repeatedly to return to the normal
5 Press
screen.
• When the AUTO CLOCK is set to “OFF”, the
AUTO CLOCK adjustment does not function. You
must set the clock manually 24 .
Basic setup (VCR)
AUTO CLOCK setting
To set AUTO CLOCK to off
To set STANDARD TIME
In the rare event that you live within broadcast range of two
stations in two different time zones, the DVD/VCR may
recognize the wrong station for the AUTO CLOCK setting.
1 Press VCR MENU.
SET + or – to select “SYSTEM SETUP”, then
2 Press
press ENTER.
SET + or – to select “STANDARD TIME”, then
3 Press
press ENTER.
SET + or – to select your time zone, then press
4 Press
ENTER.
ATLANTIC : GMT–4hours
EASTERN : GMT–5hours
CENTRAL : GMT–6hours
MOUNTAIN : GMT–7hours
PACIFIC
: GMT–8hours
ALASKA
: GMT–9hours
HAWAII
: GMT–10hours
AUTO
: AUTO SET
(GMT: Greenwich Mean Time)
5 Press VCR MENU until the menu screen is cleared.
Notes:
• To be able to select the standard time, the clock must first
be set by AUTO CLOCK once.
• If you live in Newfoundland and the AUTO CLOCK does
not function properly, set the AUTO CLOCK menu option to
“OFF” and set the clock manually.
23
2K60121A.indb 23
1/12/2007 3:50:10 PM
Basic setup (VCR)
To set DAYLIGHT SAVING TIME
You can set the DAYLIGHT SAVING TIME automatically or
manually.
VCR MENU.
1 Press
Press SET + or – to select “SYSTEM SETUP”, then
press ENTER.
SET + or – to select “DAYLIGHT SAVING
2 Press
TIME”, then press ENTER.
SET + or – to select one of the options, then
3 Press
press ENTER. Press VCR MENU until the MENU
screen is cleared.
ON:
for manual setting
(forward one hour)
OFF: for manual setting
(back one hour)
AUTO: for automatic setting
(read XDS in the signal)
When you want to set the DAYLIGHT SAVING TIME
manually, on the first Sunday in April you set to “ON”,
and on the last Sunday in October you set to “OFF”.
Notes:
• When shipped from factory, the DAYLIGHT SAVING TIME is
set to “AUTO” position.
• When the clock is not set, DAYLIGHT SAVING TIME setting
is not available.
• When there is no DAYLIGHT SAVING TIME in your area,
always select “OFF” position in step 3.
Manual clock setting
If the AUTO CLOCK process did not set the date and time
correctly, you must set them manually for timer recording and
DAYLIGHT SAVING TIME.
Tuner setting
This DVD/VCR is equipped with a channel memory feature
which allows channels to skip up or down to the next channel
set into memory, skipping over unwanted channels. Before
selecting channels, they must be programmed into the DVD/
VCR’s memory. In addition to normal VHF and UHF channels,
this DVD/VCR can receive up to 113 Cable TV channels. To use
this DVD/VCR with an antenna, set the TV/CABLE menu option
to the TV mode. When shipped from the factory, this menu
option is in the CABLE mode.
TV/CABLE selection
Preparation:
• Turn ON the TV and select the corresponding video
input.
• Press VCR DVD selector to select the VCR mode.
(The VCR mode indicator will light.)
VCR MENU. Press SET + or – to select “CH
1 Press
SETUP”, then press ENTER.
2 Press SET + or – to select “TV/CABLE”.
3 Press ENTER to select the TV or CABLE mode.
• The arrow indicates the selected mode.
CH SETUP
TV CABLE
AUTO CH MEMORY
ADD/DELETE
TV
- VHF/UHF channels
CABLE - Cable TV channels
+/–/ENTER/MENU
4 Press VCR MENU until the menu screen is cleared.
1
SET + or – to select “SYSTEM SETUP”, then
2 Press
press ENTER.
SET + or – to select “CLOCK SET”, then press
Setting channels automatically
3 Press
ENTER.
SET + or – to set the month, then press
above step 1 and press SET + or – to select
4 Press
ENTER.
1 Repeat
“AUTO CH MEMORY”.
5 Set the day, year and time as in step 4.
2 Press ENTER.
setting the clock, date and time starts
6 After
functioning automatically.
Press VCR MENU.
Note:
You can’t select “CH SETUP” if you set the channel to “L1” or
“L2”.
• Auto tuning will begin. The channel display will
count up and when finished, the screen returns to
normal.
To make corrections any time during the process
Press CANCEL repeatedly until the item you want to
change blinks, then press SET + or –.
Note:
After a power failure or disconnection of the power, the timer
settings will be lost. In this case, reset the present time.
24
2K60121A.indb 24
1/12/2007 3:50:10 PM
Basic setup (VCR)/ Playback (VCR)
VCR MENU. Press SET + or – to select “CH
1 Press
SETUP”, then press ENTER.
SET + or – to select the “ADD/DELETE” and
2 Press
press ENTER.
3 To Add or Delete channels
1) Press Direct channel selection buttons (0–9) or
SET +/– to select a channel number you want to add
or delete.
To delete channels
Press ENTER until “DELETE” appears on the screen.
The channel number will blink.
3) Repeat step 1 and 2 to add or delete other channel.
4 Press VCR MENU until the menu screen is cleared.
Noise elimination
When you don’t want to receive a weak signal broadcast, a
Blue back screen can be obtained by selecting the NO NOISE
BACKGROUND to “ON”. When the unit is shipped from the
factory, the NO NOISE BACKGROUND is set to “ON”.
VCR MENU. Press SET + or – to select
1 Press
“SYSTEM SETUP”, then press ENTER.
2 Press SET + or – to select “NO NOISE BACKGROUND”.
3 Press ENTER to select “ON” or “OFF” position.
VCR MENU repeatedly until the menu screen
4 Press
is cleared.
Use only video cassette tapes marked
.
Loading
Push the center of the tape until it is automatically
inserted.
Insert the cassette tape with its labeled side facing up
and the erase prevention tab positioned at your left. An
inverted cassette tape cannot be inserted.
Erase prevention tab
Automatic power ON
When you insert a cassette tape, the unit power will turn ON
automatically.
Automatic playback
When loading a cassette tape without an erase prevention
tab, playback will start automatically.
Playback (VCR)
2) To add channels
Press ENTER until “ADD” appears on the screen.
Loading and unloading a
cassette tape
Basic setup (VCR)
To ADD/DELETE channels
Unloading
EJECT on the front panel or on the remote
1 Press
control.
2 Remove the cassette tape.
Automatic tape eject
This DVD/VCR will automatically rewind the tape when
the tape has ended. Once the tape is rewound to its
beginning, the cassette tape will be ejected automatically.
To prevent accidental erasure
Screwdriver
To prevent accidental
erasure
Remove the erase prevention
tab with a screwdriver.
To record again
Cover the hole with a piece of
adhesive tape.
Erase
prevention
tab
Adhesive tape
Tape speed and maximum recording time
Video cassette tape
T-160
T-120
T-90
T-60
T-30
Tape speed
SP (Standard Play)
2-2/3 hours
2 hours
1-1/2 hours
1 hour
30 minutes
SLP (Super Long Play)
8 hours
6 hours
4-1/2 hours
3 hours
1-1/2 hours
25
2K60121A.indb 25
1/12/2007 3:50:10 PM
Playback (VCR)
Cassette tape playback
To play a pre-recorded tape.
Playback
Preparation:
• Turn ON the TV and select the corresponding video
input.
• Press VCR DVD selector to select the VCR mode. (The
VCR mode indicator will light).
1 Load a pre-recorded tape
(When loading a cassette tape without the erase
prevention tab, playback will start automatically).
2 To start playback
Press PLAY.
Playback will start. “ ▶ ” will appear on the screen
for about 4 seconds.
To stop playback
Press STOP once.
The tape will stop but remain fully loaded and ready
to play.
“■” will appear on the screen for about 4 seconds.
SPEED SEARCH TIMES
TAPE SPEED
PICTURE SEARCH SPEED
PRESS ONCE
PRESS TWICE
SP (Standard Play)
3X
5X
LP (Long Play)
7X
9X
SLP (Super Long Play)
9X
15 X
Still picture
Press PAUSE/STEP during playback.
To resume normal playback, press PLAY or PAUSE/STEP.
Slow motion
During playback, press SLOW.
To resume normal playback, press PLAY.
Slow tracking and vertical lock adjustment
If noise bars appear in the picture during slow motion, press
SET +/– to reduce the noise bars.
If the still picture jitters excessively, press SET +/– to
stabilize the still picture.
Frame by frame picture
Notes:
• This VCR selects the playback tape speed SP, LP or SLP
automatically.
• The cassette tape and DVD disc can be played back
simultaneously. If you press VCR DVD selector, the tape
playback and DVD playback alternate with each other on
the screen (via CH3, 4 or video connection).
Press PAUSE/STEP during playback.
Press SLOW repeatedly. The picture advances frame by
frame.
To resume normal playback, press PLAY or PAUSE/STEP.
Rewind or forward the tape
Press CM SKIP during playback. The DVD/VCR will search
forward through approximately 30 seconds of the tape (e.g.
unwanted commercial time) for each press of CM SKIP
(maximum six presses) and then resume normal playback.
Stop the playback via STOP on remote control.
To rewind the tape: Press REV.
To forward the tape: Press FWD.
To discontinue the tape-winding, press STOP. To switch to
playback directly (without STOP), press PLAY.
■ Forward/Reverse picture search mode
When the tape is being winded, you can switch to picture
search mode (see below). To do this, press REV or FWD
and hold it down. The unit will resume the tape advance
or rewinding as soon as the button is released.
Special playback
Picture search
Reverse picture search function
Press REV once or twice during playback.
Forward picture search function
Press FWD once or twice during playback.
To resume normal playback, press PLAY.
26
2K60121A.indb 26
CM skip
For example : 1 press: 30 seconds of tape
2 press: 60 seconds of tape
3 press: 90 seconds of tape
Adjusting tracking condition
Automatic tracking adjustment
Whenever you insert a tape and start playback, the
automatic tracking feature continuously analyzes the
signal to enable optimum picture quality during playback.
Manual tracking adjustment
If automatic tracking cannot eliminate noises well during
playback, press SET +/– to eliminate the noise. “MANUAL
TR.” will appear on the screen. Press it once for a fine
adjustment, or press and hold for a coarse adjustment.
Press ATR to reactivate automatic tracking again.
“AUTO TR.” will appear on the screen.
Notes:
• The audio output is muted during PICTURE SEARCH,
STILL PICTURE, SLOW MOTION and FRAME BY FRAME
PICTURE.
• During picture search mode, there will be noise bars. This is
not a defect.
• Playback will commence after approx. 5 minutes to protect
the video tape against excessive wear during pause mode.
1/12/2007 3:50:11 PM
Clock/counter display
Video head cleaning
■ Video head clogging
The video heads are the means by which the
DVD/VCR reads the picture from the tape
during playback. In the unlikely event that the
heads become dirty enough to be clogged,
no picture will be displayed. This can easily
be determined if, during playback of a known
good tape, there is good sound, but no picture
(picture is extremely snowy). If this is the case,
the DVD/VCR need to check and clean by the
qualified service personnel.
Press CLOCK/COUNTER. The clock and tape counter
alternate with each other in the display window.
COUNTER
CLOCK
Good Picture
Press VCR DVD selector. The DVD mode and the VCR
mode alternate with each other in the display.
DVD mode
Snowy Picture
Convenient function
Repeat playback
Notes:
• If you rewind the tape beyond “00:00”, a minus sign (“–”) will
be displayed in front of the time.
• When you load a tape, the counter will reset to “00:00”.
• The counter does not function on non-recorded (blank)
sections of the tape. When you rewind, fast forward or play
tapes through blank sections, the counter stops.
Playback (VCR)
Notes:
• DO NOT ATTEMPT TO CLEAN THE VIDEO HEADS OR
SERVICE THE UNIT BY REMOVING THE REAR COVER.
• Video heads may eventually wear out and should be
replaced when they fail to produce clear pictures.
• To help prevent video head clogging, use only good quality
VHS tapes. Discard worn out tapes.
VCR mode
Video index search system
This function enables you to locate the beginning of any
The entire video tape will play until its end. The tape will automatically recording made on the VCR.
rewind to the beginning and the playback will be repeated.
1
2 Press ENTER to select “ON” or “OFF”.
Press VCR MENU.
• Press SET + or – to select “AUTO REPEAT”.
• If “ON” is selected, the playback will be repeated
endlessly.
VCR MENU repeatedly until the menu screen
3 Press
is cleared.
• To confirm whether AUTO REPEAT function
is turning ON or OFF, press CALL. If “ ” is
displayed, it is turning ON 11 .
4 To commence playback, press PLAY.
• The playback will be repeated endlessly.
Recording an INDEX mark
The Index Search function automatically records an
INDEX mark on the tape whenever a recording is initiated.
Index search
Press INDEX + or – during stop or play mode.
For Succeeding programs: Press INDEX +.
For Preceding programs: Press INDEX –.
(As many as 9 index points can be accessed via this
method.)
When the INDEX + or – is
pressed, the unit starts searching
the selected INDEX NO. and finds
the portion. Then playback starts
automatically. To stop the Index
Search, press STOP.
To cancel repeat mode:
Follow the above step 1, then press ENTER to select “OFF”
Notes:
position. Press VCR MENU to return to the TV screen.
Zero return function
This function rewinds the tape to the “00:00” counter position
automatically.
1 Press CLOCK/COUNTER.
• The counter display shows the tape running time
during playback or recording.
2 Press COUNTER RESET at the desired tape position.
• The counter display will be reset to “00:00”
position (e.g. the beginning of recording).
STOP when playback or recording is completed.
3 Press
Press ZERO RETURN.
• The tape will automatically rewind or fast forward
to the “00:00” counter position.
2K60121A.indb 27
or
is displayed
INDEX NO. (up to 9)
• When you record an INDEX mark at the very beginning of
the tape, the mark may not be found.
• During INDEX search, the tape may stop and begin to play
at a slightly different location.
• INDEX may not function properly with old or worn out video
tapes.
• INDEX marks may not be found if it is extremely close to the
point where the search began.
• During recording, if you stop recording temporarily, the
INDEX mark is not recorded on the tape.
SQPB (S-VHS Quasi Playback)
You can playback video cassette tapes recorded in the
S-VHS system.
However, the picture will not have the high resolution of
S-VHS system.
Note: You cannot record S-VHS video format with this VCR.
27
1/12/2007 3:50:11 PM
Recording (VCR)
Recording a TV program
Recording and viewing the same TV program.
Recording a TV program
Preparation:
• Turn ON the TV and select to the corresponding video
input.
• Press VCR DVD selector to select the VCR mode. (The
VCR mode indicator will light.)
1
Load a cassette tape with the erase prevention tab
intact.
• The DVD/VCR will automatically turn on.
SP/SLP to select the desired tape speed SP
2 Press
or SLP.
• The tape counter and “SP” or “SLP” will appear on
the screen for about 4 seconds.
“TV” or “CABLE” to the appropriate position
3 Select
.
Number buttons or CH +/– to select the
4 Press
channel to be recorded.
24
TV mode direct channel selection:
All channels can be instantly selected by using two buttons.
(for example, to select channel 2, press “0”, then “2”. If you
press only “2”, channel selection will be delayed for two
seconds.) For channels 10 and above, press the 2 digits in
order.
CABLE mode direct channel selection:
1-9
Press 0 twice and then 1-9 as required.
Example: To select “2”, press 002.
10-12
Press 0 first and then the remaining 2 digits in
order from left to right.
Example: Press 012 for “12”.
13-99
Press 2 digits in order.
Example: Press 22 for “22”.
100-125 Press the 3 digits in order.
Example: Press 110 for “110”.
To stop recording
Press STOP to stop recording.
• “
” will appear on screen for about 4 seconds.
To stop recording temporarily
Press PAUSE/STEP to avoid recording unwanted
material. Press again to continue the recording.
• “
” will appear on screen for about 4 seconds.
Notes:
• The pause function will be released after 5 minutes to
prevent damage to the tape or the VCR. The VCR will
change to the STOP mode.
• You can select a recording channel in the recording pause
mode.
Auto Rewind feature
This VCR will automatically rewind the tape when the tape has
ended (except during OTR and timer recording). It will also
eject the tape.
Recording one program while
watching another
While the VCR is recording, select your desired channel on
the TV.
When a TV is connected with an antenna cable only, press
TV/VCR to select the TV position.
The “VCR” display will go off and recording will continue.
Select the TV channel you want to watch by using the TV
channel selector.
Note:
Some Cable TV hookups do not permit viewing one
channel while recording another. See pages 16 and
17
.
VHF/UHF/CABLE TV CHANNELS
TV
CABLE TV
VHF
2-13
VHF
2-13
UHF
14-69
STD/HRC/IRC
14-36 (A) (W)
37-59 (AA) (WW)
60-85 (AAA) (ZZZ)
86-94 (86) (94)
95-99 (A-5) (A-1)
100-125 (100) (125)
01 (5A)
5 Press REC/OTR.
• “ ” will appear on the screen for about 4 seconds
and “REC” will appear on the display window.
28
2K60121A.indb 28
1/12/2007 3:50:12 PM
One-touch Timer Recording
(OTR)
The One-touch Timer Recording feature provides a simple and
convenient way to make a timed recording.
One-touch Timer Recording (OTR)
a cassette tape with the erase prevention tab
1 Load
intact.
• The VCR will automatically turn on.
SP/SLP to select the desired tape speed SP
2 Press
or SLP.
• The tape counter and “SP” or “SLP” will appear
on the screen for about 4 seconds.
Timer recording can be programmed on-screen with the
remote control. The built-in timer allows automatic unattended
recording of up to 8 programs within 1 month.
Timer recording
Preparation:
• Press VCR DVD selector to select the VCR mode.
• Load a cassette tape with the erase prevention tab
intact.
• Check the time and date are correct 23 .
VCR MENU. Select “TIMER REC SET”, then
1 Press
press ENTER.
SET + or – to select one of the program line,
2 Press
then press ENTER.
SET + or – to select the date, then press
3 Press
ENTER.
the start time, end time, channel and tape speed
4 Set
as in step 3.
Recording (VCR)
Preparation:
• Turn ON the TV and select to the corresponding
video input.
• Press VCR DVD selector to select the VCR mode. (The
VCR mode indicator will light.)
Example: One-touch Timer Recording for 30 minutes.
Timer recording
Notes:
• Press CANCEL to move cursor backward for correction.
• To record from external source set the channel to “L1” or
“L2”.
3
Direct channel selection buttons (0–9) or
4 Press
CH +/– to select the channel to be recorded.
To enter other programs, repeat step 2 through 4.
5
Press REC/OTR. Recording begins. Press the button
5 again
to stop recording after 30 minutes. Each
additional press of REC/OTR will increase recording
Press TIMER REC. The timer symbol (
) will
time as shown in the chart below, up to a maximum
6
appear on the display and the VCR standbys for
of 6 hours.
Set “TV” or “CABLE” option to the appropriate
position 24 .
• To return to the normal screen, press VCR
MENU twice.
Press
Recording time
Press
once
NORMAL REC
6 times
Recording time
3:00
twice
0:30
7 times
4:00
3 times
1:00
8 times
5:00
4 times
1:30
9 times
6:00
5 times
2:00
10 times
NORMAL REC
• The OTR and recording time will appear on the
screen for about 4 seconds, then change to “ ”.
To cancel OTR
Press STOP or turn off the power.
• “
” will appear on the screen for about 4 seconds.
Note:
If you wish to watch the DVD playback during OTR or standard
recording, press VCR DVD selector to change to DVD mode
and perform the DVD playback 32 .
recording.
• At the same time, VCR mode will change to DVD
mode automatically. You can use DVD even if the
VCR is in the timer recording mode. If you do not
use the DVD, turn the power off.
Notes:
• The timer recording will start at 5 seconds before the
preset starting time.
• If the timer symbol (
) does not appear on the display
when TIMER REC is pressed, the cassette is not inserted
25 .
• If the cassette is ejected when TIMER REC is pressed,
the erase prevention tab of the cassette may have been
removed 25 .
Notes:
• If the timer symbol (
) blinks when the timer recording
ended, the TV program has not been completely recorded
because of an insufficient tape length. Press TIMER REC
to cancel the timer program or press EJECT to remove the
cassette tape.
• During timer recording standby mode, the VCR mode
cannot be operated. To use the VCR, first press TIMER
REC, then press VCR DVD selector to change to VCR
mode. After VCR mode is selected, press TIMER REC
again to put the VCR into timer recording standby mode.
• If you press TIMER REC during timer recording, the
recording operation will be interrupted. If you press TIMER
REC again within the programmed time, the recording
operation will start again.
• After a power failure or disconnection of the power plug, all
programmed recording settings and time display will be lost
upon resumption of power. In this case, reset the clock 23
and reprogram any timer recording.
29
2K60121A.indb 29
1/12/2007 3:50:12 PM
Recording (VCR)/Other functions (VCR)
3 To cancel Timer program:
To set daily/weekly timer
Weekly (e.g. WKL-TU: each Tuesday) or daily (e.g.
MO-SA: Monday to Saturday) Timer recording
Follow the procedure of timer recording on page 29 .
At step 3, press SET + or – repeatedly until the desired
setting appears. Then press ENTER.
When you press SET – repeatedly, the DATE indicator will
change as follows, in this case the day is Friday.
The current day (Friday)
SU-SA (Sunday to Saturday)
MO-SA (Monday to Saturday)
One month later minus
one day
MO-FR (Monday to Friday)
WKL-WE
(Weekly Wednesday)
DATE
START END
Notes:
• If there are other timer record programs remaining, TIMER
REC must be pressed to reactivate the timer, otherwise the
remaining timer record programs will be ignored.
• You cannot confirm the Timer program during timer
recording operation.
• You can correct or cancel a programmed setting in program
confirm mode.
Stereo recording and playback
Stereo recording and playback
CH
The VHS Hi-Fi audio system permits high fidelity recording of
MTS STEREO TV broadcasts.
If the programs overlap another
Do not overlap timer programs as portions of the
conflicting programs will be lost. The first recording
time has priority over the next recording time as shown
in the diagram below.
If you set up many timer recording programs at the same
start time, the priority will be the top program in the timer
recording list.
8 : 00
9 : 00
10 : 00
11 : 00
Program 1
Program 2
Deleted Parts
Program 3
Non Recorded Portion Parts
Prog.1
Prog.2
Prog.3
Notes:
• The daily/weekly recording can be made continuously until
the recording is canceled or the tape reaches the end.
• During timer recording the automatic rewinding mechanism
does not function.
To confirm or cancel a program
1
VCR MENU repeatedly until the menu screen
4 isPress
cleared.
WKL-TH (Weekly Thursday)
WKL-WE
Recording
Control Settings
Press SET + or – to select the unwanted program, then
press CANCEL to cancel the program.
If the Timer has been activated, press TIMER REC to
deactivate the Timer.
• The timer symbol (
) will disappear. Then press
VCR DVD selector to change to VCR mode.
When a MTS STEREO broadcast is received, “STEREO”
will appear on the screen for about 4 seconds and the
program can be viewed or recorded in stereo.
The Hi-Fi stereo recording procedure is the same as for
normal recordings.
Note:
When using a Cable TV system, stereo TV programs may
be transmitted over a mono cable channel. In this case
“STEREO” will not appear and the sound will be in mono.
Output selection
When viewing an MTS stereo TV program, or playing a
prerecorded VHS Hi-Fi stereo videotape, press AUDIO
SELECT to select how the audio will be heard through
the speakers. Normally set to the Hi-Fi stereo position,
this button can be set to the MONO position if the stereo
broadcast or videotape audio is of poor quality. The “R” and
“L” positions allow the audio from the Right or Left Hi-Fi
channel to be heard over both TV speakers. This button
has no effect when viewing a MONO videotape or TV
program. Each time when you press the button, OUTPUT
SELECTION display appears on the screen for several
seconds. Refer to the chart below.
OUTPUT
SELECTION
SOUND HEARD ON BOTH
SPEAKERS
STEREO
STEREO
L ch
LEFT CHANNEL AUDIO
R ch
RIGHT CHANNEL AUDIO
MONO
MONO
2 To confirm Timer program:
At step 1 on page 29 select “TIMER REC SET” and
press ENTER.
• The timer program list will appear on the screen.
30
2K60121A.indb 30
1/12/2007 3:50:13 PM
Second Audio Program (SAP)
Connection with second VCR
Playback VCR
LINE IN 2
Second Audio Program (SAP)
Your DVD/VCR is fitted with a SAP broadcast system which
enables you to switch to a second audio program when viewing
a selected channel.
This function applies only when the program is broadcast in
multi-languages through the SAP broadcast system.
VCR MENU. Then press SET + or – to select
1 Press
“SAP”.
2 Press ENTER to select “ON”.
• Then press VCR MENU until the menu screen is
cleared.
When the VCR is turned on or a channel selection is made,
make certain the letters “SAP” appears on the screen
for about 4 seconds. This means that the “Second Audio
Program” broadcasting is available.
To VIDEO OUT
To AUDIO (L) OUT
To AUDIO (R) OUT
To AUDIO
(R) IN
AUDIO/VIDEO cable (not supplied)
Connection with Camcorder
Playback Camcorder
LINE IN 2
To AV Jack
To VIDEO
IN
To AUDIO (L) IN
To AUDIO
(R) IN
AUDIO/VIDEO cable (not supplied)
For duplicating a previously recorded tape from a camcorder,
follow the camcorder manufacturer’s instructions. A typical
camcorder dubbing hookup is shown above.
Notes:
• When playing back a tape that is not recorded in Hi-Fi stereo
mode, the audio will automatically be monaural.
• When listening to a VHS Hi-Fi video tape or MTS broadcast
You can record disc material in DVD, Audio CD, etc. onto a
through the VHF/UHF jack (Audio/Video cable not
Video tape with this DVD/VCR.
connected), the sound will be monaural.
Recording a DVD/CD disc
Duplicating a video tape
If you connect the DVD/VCR to another VCR or Camcorder, you
can duplicate a previously recorded tape. Make all connections
before turning on the power.
Duplicating a video tape
Preparation:
• Turn ON the TV and select the corresponding video input.
• Press VCR DVD selector to select the VCR mode. (The
VCR mode indicator will light.)
• Load a cassette tape with the erase prevention tab intact.
• Load a previously recorded tape into the playback VCR or
Camcorder.
SP/SLP to select the desired tape speed SP
1 orPress
SLP.
• It is recommended to set the tape speed to the
SP mode on the recording VCR for best results.
INPUT SELECT once or twice to select
2 Press
AUDIO/VIDEO input position.
• “L1” or “L2” will appear
on the display.
L1: on the rear panel L2: on the front panel
3 Press PLAY on the playback VCR or Camcorder.
4 Press REC/OTR on the recording VCR.
• The duplicating process begins.
5 Press STOP when you finish duplicating.
2K60121A.indb 31
Other functions (VCR)
Listening to SAP
To VIDEO
IN
To AUDIO (L) IN
Duplicating a DVD or CD disc
Preparation:
• Turn ON the TV and select the corresponding video input.
• Press VCR DVD selector to select the VCR mode. (The
VCR mode indicator will light.)
• Load a cassette tape with the erase prevention tab intact.
• Load a DVD/CD disc.
SP/SLP to select the desired tape speed SP
1 Press
or SLP.
2 Press VCR DVD selector to select the DVD mode.
• The DVD mode indicator will light.
3 Press PLAY to start playback.
4 Press REC/OTR to start recording.
• The DVD/VCR will change to the VCR mode
automatically and the playback picture or sound
will be duplicated on the video cassette tape.
5 Press STOP when you finish recording.
• If you wish to stop a DVD/CD disc, press VCR DVD
selector to change the DVD mode, then press STOP.
Notes:
• You may not be able to record the beginning of the disc.
Begin VCR recording once program playback commences
on the DVD.
• When the scanning mode is set to the progressive mode,
you cannot duplicate a disc material onto a video tape.
When REC/OTR is pressed, the PROGRESSIVE indicator
“ ” on the display window will flash.
• You cannot record discs encoded with copy guard
function. The following icon and text will show up on the
TV screen.
DISC IS COPY PROTECTED
31
1/12/2007 3:50:13 PM
Playback (DVD)
Playing a disc
■ To pause playback (still mode)
Press PAUSE/STEP during playback.
• To resume normal playback, press PLAY.
• The sound is muted during still mode.
This section shows you the basics on how to play a disc.
CAUTION
Keep your fingers well clear of the disc tray as it is closing.
Neglecting to do so may cause serious personal injury.
■ About DVD VCD CD
The DVD VCD CD icons on the heading bar show the
playable discs for the function described under that
heading.
DVD : You can use this function with DVD video discs.
VCD : You can use this function with Video CDs.
CD
: You can use this function with Audio CDs and
CD-R/RW CDs.
DVD
VCD
Basic playback
Preparations:
• When you want to view a disc, turn on the TV and select the
corresponding video input connected to the DVD/VCR. This
may include S-video or component video inputs which are
exclusive to DVD playback.
• When you want to enjoy the sound of discs from the audio
system, turn on the audio system and select the input
connected to the DVD/VCR.
1 Press ON/STANDBY.
• The DVD/VCR turns on.
2 Press VCR/DVD to select the DVD mode.
• The DVD indicator will light.
3
Press OPEN/CLOSE.
• The disc tray opens.
4 Place a disc on the disc tray.
• With the playback side down
• There are two different disc sizes. Place the disc
in the correct guide on the disc tray. If the disc
is out of the guide, it may damage the disc and
cause the DVD/VCR to malfunction.
• Do not place a disc which is unplayable in this
DVD/VCR.
5 Press OPEN/CLOSE or PLAY on the unit.
The disc tray closes automatically.
On the TV-screen, “ ” changes to “Reading” and
then playback commences.
• A menu screen will appear on the TV screen if the
disc has a menu feature.
• Press ▲/▼/◀/▶ to select title, then press ENTER.
Title is selected and play commences.
• To start playback in the stop mode, press PLAY.
6 Press STOP to end playback.
• The unit records the stopped point, depending on
the disc. “ ” appears on the screen. Press PLAY
to resume playback (from the scene point).
• If you press STOP again (“ ■ ” appears on the
screen.), the unit will clear the stopped point.
32
2K60121A.indb 32
■ To remove the disc
Press OPEN/CLOSE.
• Remove the disc after the disc tray opens
completely.
Be sure to press OPEN/CLOSE to close the disc tray
after you remove the disc.
■ Playing a Disc while the VCR section is recording
or standing by for timer recording
1) Start to record.
Follow steps 1~5 on page 28 .
• If the DVD/VCR is standing by for recording, turn
on the DVD/VCR.
2) Press VCR DVD selector to select DVD mode.
3) Play a disc.
Follow steps 3 ~ 5 on the left.
• Press PLAY if the DVD/VCR does not start to play
a disc automatically.
4) Stop playback.
Press STOP to stop playing a disc.
■ Screen saver function
The screen saver operates when you leave the unit in
DVD stop mode for approx. five minutes.
The DVD VIDEO logo moves randomly on the screen.
Please press any button when you want to return to
an usual screen.
To turn on or off the screen saver, see page 42 .
Notes:
• If the unit does not operate property: Static electricity, etc., may
affect the player’s operation. Disconnect the AC power cord
once, then connect it again.
• Occasionally, some picture noise not usually visible on the TV
screen during a normal broadcast may appear while playing a
DVD video disc. It is because due to high resolution pictures
on these discs which include a lot of information. The amount
of noise depends on the disc you use with this unit. You should
generally reduce the sharpness adjustment on your TV when
viewing DVD video discs.
• If a non-compatible disc is loaded, “Incorrect Disc”, “Region
Code Error” or “Parental Error” will appear on the TV screen
according to the type of loaded disc. In this case, check your
disc again 8 42 .
• Some discs may take a minute or so to start playback.
• When you set a single-faced disc label downwards (i.e. the
wrong way up) and press OPEN/CLOSE or PLAY on the unit,
“Reading” will appear on the display for a few minutes and then
“Incorrect Disc” will continue to be displayed.
• Some discs may not work the resuming facility.
• Resuming cannot function when you play a PBC-featured Video
CD while the PBC is on. To turn off the PBC, see page 36 .
• Some playback operations of DVDs may be intentionally fixed by
software producers. Since this unit plays DVDs according to the
disc contents the software producers designed, some playback
features may not be available. Also refer to the instructions
supplied with the DVDs.
• Do not move the unit during playback. Doing so may damage the
disc.
• Use the OPEN/CLOSE to open and close the disc tray. Do not
push the disc tray while it is moving. Doing so may cause the unit
to malfunction.
• Do not push up on the disc tray or put any objects other
than discs on the disc tray. Doing so may cause the unit to
malfunction.
• In many instances, a menu screen will appear after playback of
a movie is completed. Prolonged display of an on-screen menu
may damage your television set, permanently etching that image
onto its screen. To avoid this, be sure to press POWER on your
remote control once the movie is completed.
• There may be a slight delay between the button is pressed and
the function activates.
1/12/2007 3:50:14 PM
DVD
VCD
CD
Playing in fast reverse or fast
forward directions
Press REV or FWD during playback.
REV: Fast reverse playback
FWD: Fast forward playback
• Each time you press REV or FWD, the playback
speed changes.
■ To resume normal playback
Press PLAY.
Notes:
• The DVD/VCR mutes sound and subtitles during reverse and
forward scan of DVD/VCD/Audio CD discs.
• The playback speed may differ depending on the disc.
DVD
VCD
Playing frame by frame
• Each time you press PAUSE/STEP, the picture
advances one frame.
■ To resume normal playback
Press PLAY.
Note:
The sound is muted during frame by frame playback.
DVD
VCD
Playing in slow-motion
Press SLOW during playback.
• Each time you press the button, the slow-motion
speed changes.
■ To resume normal playback
Press PLAY.
Note:
The sound is muted during slow-motion playback.
DVD
VCD
CD
Locating a chapter or track
Press SKIP
or
repeatedly to display the
chapter or track number you want.
SKIP
SKIP
• Playback starts from the selected chapter or track.
: To locate succeeding chapters or tracks.
: Playback starts from the beginning of
the current chapter or track.
When you press twice in quick successions,
playback starts from the beginning of the
preceding chapter or track.
Notes:
• A prohibition symbol may appear at the upper right of the
screen. This symbol means either the feature you tried is not
available on the disc, or the DVD/VCR cannot access the
feature at this time. This does not indicate a problem with the
DVD/VCR.
• The unit is capable of holding a still video image or On
screen display image on your television screen indefinitely.
If you leave the still video image or On screen display image
displayed on your TV for an extended period of time, you
risk permanent damage to your television screen. Projection
televisions are very susceptible.
2K60121A.indb 33
DVD
VCD
CD
Zooming
This unit will allow you to zoom in on the frame image. You can
then make selections by switching the position of the frame.
1 Press ZOOM during playback.
• The center part of the image will be zoomed in.
Each press of ZOOM will change the ZOOM 1
(x 1.3), 2 (x 1.5) and 3 (x 2.0).
2 Press ▲/▼/◀/▶ to view a different part of the frame.
• You may move the frame from the center position
to UP, DOWN, LEFT or RIGHT direction.
zoom mode, press ZOOM repeatedly to return
3 Into the
a 1:1 view ( Off).
Notes:
• You can select the Pause, Slow or Search playback in the
zoom mode.
• Some discs may not respond to zoom feature.
DVD
VCD
CD
Playback (DVD)
Press PAUSE/STEP during still playback.
Advanced playback
Locating desired scene
Use the title, chapter and time recorded on the DVD disc to
locate the desired point to playback. In the case of VCD/AUDIO
CD discs, time and track are used to locate the desired point
to playback. To check the title, chapter/track and time, press
DISPLAY.
1 Press JUMP during playback or resume stop mode.
▲ or ▼ to select the “Title/Track”, “Chapter” or
2 Press
“Time”.
3 Press Number buttons (0–9) to input the number.
• If you input a wrong number, press CLEAR.
• Refer to the package supplied with the disc to
check the numbers.
4 Press ENTER. Playback starts.
• When you change the title, playback starts from
Chapter 1 of the selected title.
• Some discs may not work in the above operation.
Notes:
• In case of the Audio CD and Video-CD, only Track and Time
can be selected.
• In case of the Video-CD playback with PBC, the JUMP does
not work. Turn off the PBC 36 .
33
1/12/2007 3:50:14 PM
Playback (DVD)
DVD
VCD
Marking desired scenes
The unit stores the points that you want to watch again up
to 3 points. You can resume playback from each scene.
1 Press MARKER during playback.
Select the blank Marker using ▲ or ▼.
2 Then
press ENTER at the desired scene.
• Repeat this procedure to set the other 2 scenes.
3
A-B Repeat playback
DVD
VCD
CD
A-B repeat playback allows you to repeat a section between
two selected points.
1 Press A-B RPT during playback.
• The start point is selected.
2 Press A-B RPT again.
• The end point is selected. Playback starts at the
point that you selected. Playback stops at the end
point and returns to Point A automatically, then
starts again.
Press MARKER to clear this display.
■ Returning to the scenes
1) Press MARKER during playback or stop mode.
2) Press ▲ or ▼ to select the Marker 1-3.
3) Press ENTER.
• Playback starts from the marked scene.
■ To resume normal playback
Press A-B RPT again.
“
Off ” appears on the screen.
Notes:
• In A-B Repeat mode, subtitles near the A or B locations may
■ To cancel the Marker
not be displayed.
Follow the above steps 1~2, then press CLEAR.
• You may not be able to set A-B Repeat for the scenes that
include multiple angles.
Notes:
• A-B Repeat playback does not work when Repeat playback
• Some discs may not work with the marking operation.
is activated.
• The marking is canceled when you open the disc tray or turn
• You may not be able to set A-B Repeat during certain
the power off.
scenes of the DVD.
• Some subtitles recorded around the marker may fail to
• A-B Repeat does not work with an interactive DVD, MP3/
appear.
WMA/JPEG CD.
• In case of Video CD with PBC, Marker function is prohibited.
• In case of Video CD with PBC, A-B Repeat is prohibited.
DVD
VCD
Repeat playback
VCD
1 Press PLAY MODE during playback or stop mode.
2 [DVD]
Press ▼ to select “Repeat”.
Press ENTER repeatedly to select “Chapter” or “Title”.
The unit automatically starts repeat playback after
finishing the current title or chapter.
[Video CD]
Press ▼ to select “Repeat”.
Press ENTER repeatedly to select “Track” or “All”.
The unit automatically starts repeat playback after
finishing the current track.
• If you set the repeat mode during stop mode,
press PLAY to start Repeat playback.
[Audio CD and MP3/WMA/JPEG/DivX® CD]
Please see “Repeat playback (CD)”
39
.
3 Press PLAY MODE again to clear the screen.
■ To resume normal playback
Select Repeat : “Off” in step 2.
Notes:
• Some discs may not work with the repeat operation.
• In case of Video CD with PBC, Repeat function is
prohibited during playback.
• Chapter/Track repeat function is canceled whenever
or
is pressed.
SKIP
34
2K60121A_En_P32-37.indd 34
Program playback
You can arrange the playback order of tracks on the disc. This
feature works for Video CD.
For Audio CD and MP3/WMA/JPEG/Divx® CD, please see
“Program playback (CD)” 40 .
1 Press PLAY MODE during stop mode.
▲/▼ to select “Mode”, then press ENTER
2 Press
repeatedly to select “Program”.
◀/▶ to select the programming position. Use
3 Press
Number buttons (0–9) to input the track numbers.
• If you input a wrong number, press CLEAR.
◀/▶ to return to the left column, then press ▲/▼
4 Press
to select the “Program Playback” and press ENTER.
• The programs you selected will start to playback
in order.
• To resume normal playback, select Mode “Off” in
step 2.
■ To change the program
1. Select Mode to “Program” (as step 2), press ◀/▶/▲/▼ to select
the track number you want to change, then press CLEAR.
2. Press Number buttons (0–9) to input the new track number.
■ To clear the program one by one
Select Mode to “Program”, press ◀/▶/▲/▼ to select the track
number. Then press CLEAR.
■ To clear all the programs
At the left column, press ▲/▼ to select “Clear Program”. Then
press ENTER.
Notes:
• In playing back the Video CD with PBC, you cannot set
Program playback.
• The program is canceled when you open the disc tray or
turn the power off.
1/12/2007 7:59:21 PM
Random playback
VCD
The unit can also select tracks at random and playback them.
These feature works for Video CD.
For Audio CD and MP3/WMA/JPEG/Divx® CD, please see
“Random playback (CD)” 40 .
1 Press PLAY MODE during playback or stop mode.
Press ▲/▼ to select “Mode”, then press ENTER
2 repeatedly
to select “Random”.
3 Press PLAY.
The Random Playback will start.
• If you set “Random” during playback mode,
Random playback will begin after the track that is
currently being played has ended.
• To resume normal playback, select Mode “Off” in
step 2.
DVD
DVD menu
Some DVDs allow you to select the disc contents using the
menu. When you playback these DVDs, you can select the
subtitle language and soundtrack language, etc. using the
menu.
1 Press DVD MENU during playback.
• The DVD menu appears on the screen.
• Press DVD MENU again to resume playback at
the scene when you press DVD MENU.
2 Press ▲/▼/◀/▶ to select the desired item.
3 Press ENTER.
• The menu continues to another screen. Repeat
steps 2 and 3 to set the item completely.
Changing angles
DVD
DVD
VCD
Changing soundtrack
language
When playing back a disc recorded with multi-angle facility, You can select the language when you play a multilingual disc.
you can change the angle that you are viewing the scene
from.
Press AUDIO during playback.
1
Press ANGLE repeatedly until the desired angle is
2 selected.
Press ANGLE during playback.
• The current angle will appear.
Note:
Depending on the DVD, you may not be able to change the
angles even if multi-angles are recorded on the DVD.
DVD
Title selection
Two or more titles are recorded on some discs. If the title
menu is recorded on the disc, you can select the desired
title.
1 Press TOP MENU during playback.
2 Press ▲/▼/◀/▶ to select the desired title.
3 Press ENTER or PLAY.
• Title menu appears on the screen.
Playback (DVD)
Note:
Depending on the DVD, you may not be able to resume
Note:
In case of Video CD with PBC, you cannot set Random function playback from the scene point when you press DVD MENU.
during playback.
1
AUDIO repeatedly until the desired language
2 Press
is selected.
• The current soundtrack language will appear.
• The on screen display will disappear after a few
seconds.
■ In case of Video CD playback
Audio type changes as follows each time you press AUDIO.
LR
L
R
Notes:
• If the desired language is not heard after pressing the button
several times, the language is not recorded on the disc.
• The selected soundtrack language is canceled when you
open the disc tray. The initial default language or available
language will be heard if the disc is played back again.
• If you select DTS in playing DTS-encoded disc, no sound will
be heard.
• The playback of the selected title will start.
Note:
Depending on the DVD, you may not be able to select the title.
Depending on the DVD, a “title menu” may simply be called a
“menu” or “title” in the instructions supplied with the disc.
35
2K60121A.indb 35
1/12/2007 3:50:16 PM
Playback (DVD)
Setting surround sound
DVD
This DVD video player equipped with a “QSound”. It can
produce the effect of being in a cinema or a concert hall.
1 Press AUDIO during playback.
2 Press ◀ or ▶ to select “On”.
• The on screen display will disappear after a few
seconds.
■ To cancel Surround mode:
Follow the above steps 1~2, then press ◀ or ▶ to select
the “Off” position.
Notes:
• The QSound setting can also be changed in the function
setting 42 .
• The “QSound” works only when the DVD disc recorded with
Dolby Digital is played back.
• When this function works, the volume might changed.
• When the voice is distorted, turn off QSound.
To turn off the PBC (see page 8)
1 Press PLAY MODE in the stop mode.
Press ▲/▼ to select “Mode”, then press
2 ENTER
repeatedly until “Off” appear.
3 Press PLAY MODE again to clear the screen.
■ To turn on the PBC
Follow the above steps 1~2, then press ENTER repeatedly
until “PBC” appear.
Manufactured under license from QSound
Labs, Inc. U.S. patent Nos. 5,105,462,
5,208,860 and 5,440,638 and various foreign
counterpart. Copyright QSound Labs, Inc.
1998-2002. QSound® is a trademark of
QSound Labs, Inc. All rights reserved.
DVD
Subtitles
When playing back a disc recorded with subtitles, you can
select the subtitle language or turn the subtitle off.
SUBTITLE repeatedly during playback until
1 Press
your desired language is selected.
turn off the subtitle, press SUBTITLE until “Off”
2 Toappears.
• The on screen display will disappear after a few
seconds.
Notes:
• Depending on the DVD, you may not be able to change
subtitles, or to turn subtitles on or off.
• While playing a DVD, the subtitle may change when you
open or close the disc tray.
• In some cases, a selected subtitle language may not be
changed immediately.
36
2K60121A.indb 36
1/12/2007 3:50:16 PM
MP3/WMA/JPEG/DivX® and Audio CD operation
This player can playback the MP3/WMA/JPEG/DivX®-data which has been recorded on CD-R or CD-RW. To produce the MP3/
WMA/JPEG/DivX®-data, you need a Windows-PC with CD-RW drive and a MP3/WMA/JPEG/DivX®-encoding Software (not
supplied). The Apple-HFS-System cannot be played.
This player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality.
There are many different types of recordable disc formats (including CD-R containing MP3/WMA files). Not all
recordable discs will produce optimal playback quality. The technical criteria set forth in this owner’s manual are meant
only as a guide. Use of CD-RW for MP3 files is not recommended.
You must obtain any required permission from copyright owners to download or use copyrighted content.
Toshiba cannot and does not grant such permission.
MP3/WMA/JPEG/DivX® CD information
Playback (DVD)
Limitations on MP3/WMA/JPEG/DivX® CD playback
• MP3/WMA/JPEG/DivX® CD is the disc that is standardized by ISO9660, its file name must include 3-digits extension
letters, “.mp3”, “.wma”, “.jpg”, “.div”, “.divx”, “.avi”.
• MP3/WMA/JPEG/DivX® CD must be corresponded to the ISO standardized files.
• This unit can read 2000 files per disc. If one disc has more than 2000 files, it reads up to 2000 files, the remaining files will
be omitted.
• MP3/WMA/JPEG/DivX® CDs cannot be used for the purpose of recording.
• If the CD has both audio tracks and MP3/WMA/JPEG/DivX® files, only audio tracks will be played.
• It may take more than one minute for this unit to read MP3/WMA/JPEG/DivX® files depending on its structure.
• Music recorded by “Joliet Recording Specification” can be played back, the file name is displayed (within 15 letters) on the
screen. Long file names will be condensed.
• The music files recorded by “Hierarchical File System” (HFS) cannot be played.
Limitations on display
• The maximum number for display is 15 letters.
Available letters for display are the following:
capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).
• Other letters than those above are replaced in hyphen.
Notes on MP3/WMA/JPEG/DivX® files
To playback MP3/WMA/JPEG/DivX® CD in the recorded order,
1. Use MP3/WMA/JPEG/DivX® software that records data alphabetically or numerically.
2. Name each file including two-digit or three-digit number (ex. “01” “02” or “001” “002”).
3. Refrain from making too many sub-folders.
CAUTION:
• Some MP3/WMA/JPEG/DivX® CDs cannot be played back depending on the recording conditions.
• The CD-R/RW that has no music data or non MP3/WMA/JPEG/DivX® files cannot be played back.
Standard, sampling frequency and the bit rate:
MP3 CD
MPEG-1 Audio
32kHz, 44.1kHz, 48kHz
32kbps ~ 320kbps (constant bit rate or variable bit rate)
The recommend recording setting for a high-quality sound is 44.1kHz of sampling frequency and 128kbps of constant bit
rate.
WMA CD
WMA version 7 and 8
32kHz/48kbps, 44.1kHz/48kbps~192kbps, 48kHz/128kbps~192kbps
The file recorded by mono, 48kHz, 48 kbps is not available to this unit.
DivX® video
DivX® version: DivX® 3, 4, 5, and 6 (specifically 3.1.1, 4.1.2, 5.0.2, 5.0.5, 5.1.1, 5.2.1, 6.0 at Home Theater profile).
Audio format: MPEG1 Layer2 (MP2), MPEG1 Layer3 (MP3)
Sampling frequencies: 32kHz, 44.1kHz, 48kHz
Bit rate: 32kbps ~ 320kbps
Resolution: Max 720 x 576 (at 25fps), Max 720 x 480 (at 30fps)
Microsoft, Windows Media, and Windows Logo are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
37
2K60121A.indb 37
1/12/2007 3:50:17 PM
Playback (DVD)
CD
MP3/WMA CD and Audio CD playback
an Audio CD or a disc on which MP3 or WMA
1 Place
files have been recorded onto the disc tray.
2 A file browser screen will appear on the screen.
3 Press ▲/▼ to select the desired file.
• In case the current directory includes more than 8
files, press ▲ or ▼ to scroll in the file list.
• To see contents in folder, select the folder and
then press ENTER. To return to the parent
directory, press RETURN or select “ Go Up ...”
then press ENTER.
• When PLAY is pressed after the file browser
displayed, playback begins automatically starting
from the first file. In this case, if the first file is an
MP3/WMA file, only MP3/WMA files are played
back in order. If the first file is a JPEG file, the first
JPEG file is played back. If the first file is a DivX®
file, the first DivX® file is played back. If there is
no file at a root directory, playback does not begin
automatically.
4 Press ENTER.
5 Press STOP to end playback.
• The selected file starts playing back.
• The unit records the stopped point. “ ” appears
on the screen. Press PLAY to resume playback
(from the scene point).
• If you press STOP again or unload the disc, the
unit will clear the stopped point.
About file browser
Operation status File number
Elapsed time Selected file name
3/15 00:00:00
/Folder-1/WMA-11.WMA
MP3-5
MP3-6
WMA-11
WMA-12
Picture-1
Picture-2
Movie-1
Movie-2
File list
Cursor
Select Files
Repeat
:Off
Mode
:Off
Tool kit
window
Music Playing
Preview window
: Indicates Music file (Audio CD/MP3/WMA)
: Indicates Picture file (JPEG)
: Indicates Movie file (DivX video)
Notes:
• In the case of a CD containing a mixture of MP3, WMA,
JPEG and DivX® files, the files are played back by
selecting them from the file browser.
• MP3 or WMA file on the Kodak Picture CD is not
recognized on this unit.
Notes:
• In case of Audio CD, the function of A-B Repeat can be
used. See “A-B Repeat playback” 34 .
• During MP3/WMA/JPEG-Playback, you cannot use JUMP
and A-B Repeat functions.
• You can use Repeat (Track or All), Random functions and
Program playback for MP3/WMA/JPEG/DivX® CD Playback
39 , 40 .
■ Select Files
The file type to make it display in the file browser can be
chosen.
1. Press ◀ or ▶ to highlight “Select Files” at right column in
the file browser.
2. Press ENTER, then press ▲ or ▼ to select file type
from the list (Music, Picture or Movie).
3. Press ENTER to add/remove check mark. Checked file
type will be displayed in the file browser.
4. Press RETURN to save the setting.
CD
JPEG CD playback
a disc on which JPEG files have been recorded
1 Place
onto the disc tray.
2 A file browser screen will appear on the screen.
▲/▼ to select the desired file.
3 Press
To display a thumbnail list, press DVD MENU.
Press ◀/▶/▲/▼ to select the desired file.
(To return to the file browser, press TOP MENU.)
• When PLAY is pressed after the file browser
displayed, playback begins automatically starting
from the first file. In this case, if the first file is a
JPEG file, the first JPEG file is played back. If the
first file is a DivX® file, the first DivX® file is played
back. If the first file is an MP3/WMA file, only
MP3/WMA files are played back in order. If there
is no file at a root directory, playback does not
begin automatically.
ENTER or PLAY.
4 Press
The selected picture appears on the screen.
Rotating an image
You can rotate an image by 90 degrees.
Press ANGLE during playback of the image.
“
”, “
”, “
” or “
” appears on the screen.
Zooming an image
Zoom function also can be used in viewing JPEG files.
Press ZOOM (See “Zooming” 33 ).
5 Press STOP to end playback.
• The file browser appears on the screen. If you
want to watch the other file, repeat steps 3 ~ 4.
38
2K60121A_En_P38-49.indd 38
1/12/2007 7:59:54 PM
CD
Slide show playback
CD
Playing DivX® VOD content
The slide show enables you to view pictures (files) one after DivX® VOD content is protected by DRM (Digital Rights
another automatically.
Management) system. This restricts playback of content to
specific registered devices.
Preparation:
Set “JPEG Interval” setting to “5 Seconds”, “10 Seconds” or “15
Seconds” 42 .
1
ENTER or PLAY to start slide show from the
2 Press
selected file.
Select your desired starting file for the slide show in
step 3 on “JPEG CD playback” 38 .
• If you press PAUSE/STEP during the slide show,
the slide show stops temporary. “ ” appears
briefly on the screen.
• If the picture appears upside down or sideways,
press ANGLE repeatedly until it’s right side up.
Notes:
• During JPEG playback, you cannot use Jump and A-B
Repeat functions.
• When an image exceeds 5760 x 3840 pixels, the entire
image may not be displayed on a screen, preview window
or thumbnail list.
CD
Yes
No
• If the number of plays goes over the limit, then
“Rental Expired” will be displayed. In this case,
the file will not be played.
Note:
In order to play DivX® VOD content on this unit, you first need
to register the unit with registration code. See page 43 .
CD
Repeat playback (CD)
the file browser, press ◀/▶/▲/▼ to select “Repeat”
1 inIn stop
mode.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
Select Files
Repeat
:Off
Mode
:Off
2 Press ENTER repeatedly to select “Track” or “All”.
DivX CD playback
®
1
2 A file browser screen will appear on the screen.
3 Press ▲/▼ to select file.
Place a disc on which DivX® files have been recorded
onto the disc tray.
• When PLAY has been pressed after the file
browser displayed, playback begins automatically
starting from the first file. In this case, if the first file
is a JPEG file, the first JPEG file is played back.
If the first file is a DivX® file, the first DivX® file is
played back. If the first file is an MP3/WMA file,
only MP3/WMA file are played back in order. If
there is no file at a root directory, playback does
not begin automatically.
Press ENTER or PLAY. The selected DivX
4 will
be played back on the screen.
5 Press STOP to end playback.
View DivX(R) VOD Rental
This rental has 5 views left.
Do you want to use one
of your 5 views now?
Playback (DVD)
“
”, “
”, “
” or “
” appears on the
screen.
• Press PLAY or SKIP
again to resume the slide
show.
• When the slide show playback finished, the file list
appears.
• To stop the slide show, press STOP. The file list
appears.
If the incorrect DRM file is loaded,
“Authorization Error This player is
not authorized to play this video.”
will appear on the screen.
When you attempt to play DivX®
VOD, the number of plays is limited
and the right message will appear
on the screen. If you wish to play it,
select “Yes”.
®
3 Press PLAY.
Folder-1
Folder-2
MP3-1
MP3-2
MP3 3
Select Files
Repeat
:Track
Mode
:Off
The unit automatically starts repeat playback after
finishing the current track.
■ To resume normal playback
Select Repeat : “Off” in step 2.
Notes:
• The repeat or random function is canceled when you open
the disc tray or turn the power off.
• Track repeat function is canceled whenever SKIP
or
is pressed.
movie
• The file browser appears on the screen. If you
want to watch the other file, repeat steps 3 ~ 4.
39
2K60121A_En_P38-49.indd 39
1/12/2007 7:59:55 PM
Playback (DVD)
CD
1
▲/▼ to select “Program View”, then press
4 Press
ENTER. Program View shows only the programed
Random playback (CD)
In the file browser, press ◀/▶/▲/▼ to select “Mode” in
stop mode.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
files that you have added in step 2.
MP3-1
MP3-2
MP3-3
WMA-3
Repeat
:Off
Mode
:Off
JPEG Preview
Program View
Select Files
Repeat
:Off
Mode
:Random
Browser View
3 Press PLAY.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
Edit Mode
Program View
Add To Program
JPEG Preview
the Program View, press PLAY. The files start to
5 Inplayback
in programmed order that were added by
• The Random playback will start.
■ To resume normal playback
you.
Select Mode : “Off” in step 2.
CD
Clear Program
Select Files
2 Press ENTER to select “Random”.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
Edit Mode
Browser View
■ To remove file from program list in stop mode
In the Edit Mode, switch to Program View. Select the files you
want to remove, then press ENTER. Select “Clear Program”
and press ENTER. Marked file is removed from program list.
Program playback (CD)
the file browser, press ◀/▶/▲/▼ to select “Edit
1 InMode”,
then press ENTER.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
Repeat
:Off
Mode
:Off
Note:
The program function is canceled when you eject the disc or
turn the power off.
Edit Mode
• When “Edit Mode” is black color, you can mark the
files which you want to add into Program list.
Press ◀/▶/▲/▼ to select the file you want to add into
2 the
program list.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
Repeat
:Off
Mode
:Off
Edit Mode
• Press ENTER. Selected file was marked.
Repeat this procedure to select the other files.
Press ◀/▶/▲/▼ to select “Add To Program”.
3 Then
press ENTER. All marked files are added into
the program list.
Folder-1
Folder-2
MP3-1
MP3-2
MP3 3
Edit Mode
Program View
Add To Program
• When you finish storing the files you want into the
Program list, select “Edit Mode” again and press
ENTER to release edit mode.
40
2K60121A.indb 40
1/12/2007 3:50:18 PM
Function setup (DVD)
Night Mode
Customizing the function
settings
QSound
You can change the default settings to customize performance
to your preference.
DVD
VCD
CD
Setting procedure
Digital Out
Parental
Password
• The following on-screen display appears.
Parental
DRC
E.B.L.
Menu
Output
: Off
English
QSound
TV
Subtitle
Screen
Set Password
: English
On
4:3
Output
Display
Audio
: On
Interlace
English
Picture Mode
DivX(R) VOD
: Auto
JPEG Interval
: 5 Seconds
Screen Saver
: On
save the setting.
41
43
• Repeat steps 3 and 5 to change other option.
• To select another section, go back to step 2 by
pressing ◀ repeatedly.
clear SETUP screen, press SETUP once or press
6 ToRETURN
repeatedly.
Setting details
Section
Option
Menu
Subtitle
Audio
E.B.L.
TV Screen
Display
Picture Mode
JPEG Interval
Screen Saver
Details
Page
To select the language
of “Menu”, “Subtitle”
and “Audio” if more
than one languages are
available on the disc.
41
To select On or Off
for E.B.L. (Enhanced
Black Level).
To select a picture
size according to the
aspect ratio of your TV.
To turn On or Off the
operational status
display on the screen.
To select a preferred
picture mode from
“Video”, “Film” or
42
“Auto”.
To select a preferred
setting for the slide
show playback.
To select On or Off for
Screen Saver function.
43
■ Menu, Subtitle, Audio
You can select the language of “Menu”, “Subtitle” and
“Audio” if more than one languages are recorded onto the
disc.
English, Francais, Espanol:
The selected language will be heard or seen.
Other:
Other language can be selected (see “Language
code list” on page 44 ).
Original (Audio):
The unit will select the first-priority language of each
disc.
Off (Subtitle):
Subtitles do not appear.
Function setup (DVD)
Press ▲ or ▼ to select the desired section, then
2 press
◀ or ▶.
option will be highlighted. Press ▲ or ▼ to select
3 First
the desired option.
press ▶ or ENTER. The selectable settings will
4 Then
appear.
the selection using ▲ or ▼, by referring to
5 Change
the corresponding pages
~
. Press ENTER to
DivX(R) VOD
42
Playback (DVD)
1 Press SETUP in stop mode.
To select On or Off for
Night Mode.
To select On or Off for
QSound.
To select a digital
output sound format
corresponding to your
system connection.
To select a preferred
parental level for the
parental setting.
To change the
password.
To select a preferred
video output signal
from “Interlace” or
“Progressive”.
To display your 8character registration
code.
Notes:
• If the selected language is not recorded on the disc, the
first-priority language is selected.
• If you want to change the OSD language, you can perform
it by VCR MENU 22 .
■ E.B.L.
To select the black level of playback pictures, set your
preference and monitor’s ability.
Off: Standard grey scale (7.5 IRE cut off)
On: Enhanced grey scale (0 IRE cut off)
■ TV Screen
You have the following screen sizes to choose from:
4:3
(Letter box):
Select this mode when connecting to a conventional
TV. When playing back a wide screen-DVD disc, it
displays the wide picture with black bands at the top
and bottom of screen.
4:3
(Pan & scan):
It displays the wide picture on the whole screen with
left and right edges automatically cut off.
16:9
(Wide):
Select this mode when connecting to a widescreen TV. A wide screen picture is displayed full
size.
Note:
If the DVD disc is not formatted in the pan & scan style, it
displays 4:3 style.
41
2K60121A.indb 41
1/12/2007 3:50:19 PM
Function setup (DVD)
■ Display
On screen display can be switched on or off when you
press any buttons.
Off: On screen displays do not appear when you
press any buttons.
On: On screen displays appear when you press
any buttons (factory setting).
■ Picture Mode
There are two types of source content in pictures
recorded in DVD video discs: film content (pictures
recorded from films at 24 frames per second) and
video content (video signals recorded at 30 frames per
second). Make this selection according to the type of
content being viewed.
Auto: Select this selection normally.
The DVD player automatically detects
source content, film or video of playback
source, and converts that signal in the
progressive output format in an appropriate
method.
Film: The DVD player converts film content
pictures in the progressive output format
appropriately. Suitable for playback of film
content pictures. The progressive output
feature will be most effective under this
selection.
Video: The DVD player filters video signal, and
converts it in the progressive output format
appropriately.
Suitable for playback of video content
pictures.
Note:
Depending on the disc, pictures may be cut off or doubled. In
this case, select “Video”.
■ JPEG Interval
You can continuously playback all JPEG files
automatically.
After the selection below, the disc will start playback on
JPEG files which have been recorded.
Off:
Plays back one file at a time.
5 Seconds:
Plays back images in the form of a slide show at 5
second intervals.
10 Seconds:
Plays back images in the form of a slide show at 10
second intervals.
15 Seconds:
Plays back images in the form of a slide show at 15
second intervals.
■ Screen Saver
The screen saver operates when you leave the unit in
DVD stop mode for approx. five minutes.
The DVD VIDEO logo moves randomly on the screen.
Off:
Screen Saver function is invalidated.
On:
Screen Saver function is made effective.
■ Night Mode
Night Mode enables you to control the dynamic range so
as to achieve a suitable sound for your equipment.
Off: It plays back at the recording level on the disc.
On: Loud sound such as explosion is toned down
slightly when played back. This is suitable
when it is connected to a stereo.
Notes:
• This function works only when the disc recorded with
Dolby Digital is played back.
• The level of Night Mode may differ depending on DVD
video disc.
■ QSound
This DVD video player equipped with a “QSound”. It can
produce the effect of being in a cinema or a concert hall.
Off: The QSound is disengaged.
On: The QSound operates.
Notes:
• The QSound setting can also be changed with AUDIO on
the remote control 36 .
• This function works only when the disc recorded with
Dolby Digital is played back.
• When this function works, the volume might changed.
• When the voice is distorted, turn off QSound.
■ Digital Out
You can select the digital output sound format corresponding
to your system connection.
PCM:
Change Dolby Digital to PCM for the output.
Select when connected to a 2 channel digital stereo
amplifier.
Bitstream:
Disc audio bitstream data will be output.
Off:
There is no sound output from DIGITAL AUDIO
OUT jack.
Note:
Even if you select “Bitstream”, MPEG Audio will be output
in PCM format.
■ Parental control setting
Some discs are specified as not suitable for children.
Such discs can be limited not to playback with the unit.
1) Press ▲ or ▼ to select “Parental”, then press
ENTER. “Enter Password” screen will appear.
2) Press “0000” using Number buttons (0–9).
(Please note, this is pre-setting password of this unit).
Then press ENTER. The parental level list will appear.
• Level Off: The parental control setting does not
function.
• Level 8: Virtually all DVD software can be played
back.
• Level 1: DVD software for adults cannot be played
back.
3) Press ▲ or ▼ to select from the level 1 to level 8.
Then press ENTER. The limitation will be more severe
as the level number is lower.
4) Press OPEN/CLOSE to activate Parental control
setting.
42
2K60121A.indb 42
1/12/2007 3:50:20 PM
Notes:
• The parental control level is equivalent to the following
USA movie ratings.
Level 1: G
Level 5:
Level 2:
Level 6: R
Level 3: PG
Level 7: NC-17
Level 4: PG-13 Level 8:
The parental control levels for other countries/area than
U.S. are included for future use. Check the appropriate
parental control level when you buy a DVD video disc
equipped with the parental control feature in the future.
• Depending on the discs, the unit cannot limit playback.
• Some discs may not be encoded with specific rating level
information though its disc jacket says “adult.” For those
discs, the age restriction will not work.
• The password is required every time when you change the
parental level.
• If you input a wrong number, press CLEAR.
■ Set the new password
■ DivX(R) VOD
In order to play DivX® VOD (Video On Demand) content
on this unit, you first need to register the unit with your
DivX® VOD content provider. You do this by generating a
DivX® VOD registration code, which you submit to your
provider.
Press ▲ or ▼ to select “DivX(R) VOD”. Then press
ENTER. Your 8-character registration code is
displayed. Make a note of the code as you will need
it when you register with a DivX® VOD provider. Then
press ENTER.
Note:
If each setup (pages 41 ~ 43 ) has completed, the unit
can always work under the same condition (especially
with DVD discs).
Each setup will be retained in the memory even if you
turn the power off.
1) Press ▲ or ▼ to select “Password”, then press ENTER.
“Enter Current Password” screen will appear.
2) Press Number buttons (0–9) to input the current
password (If the password has not been set yet after
you purchase this unit, it is “0000”).
Depending on the DVD disc, the disc may try to temporarily
3) Then press ENTER. “Enter New Password” screen
will appear. Press Number buttons (0–9) to input the cancel the rating level that you have set.
It is up to you to decide whether to cancel the rating level or not.
new password.
4) Press ENTER. Now your new password has been set.
Be sure to remember this number!
Temporary cancel the rating
level by DVD disc
1) Press OPEN/CLOSE to open the disc tray.
2) Remove the disc.
3) Press OPEN/CLOSE again to close the disc tray.
“No Disc” appears on the screen.
4) While holding 7 down on the remote control and at the
same time press STOP on the front panel. “Password
Clear” appears on the screen. Now the password has
been returned to the initial value (“0000”).
■ Output
You can select the video output signal of the DVD video
player to the TV from “Interlace” or “Progressive”.
Interlace:
Select when connecting to a composite TV or a
TV equipped with component video inputs but
progressive scan is not compatible.
Progressive:
Select when connecting to a TV equipped with
component video inputs and progressive scan
compatible.
Warning:
Once “Progressive” is selected when connecting to a TV
progressive scan incompatible, no image will be seen on
the video display.
In this case, you must reset the unit by pressing STOP,
on the front panel for five seconds. The video output will
be restored to “Interlace” setting, and a picture will once
again be seen on a conventional analog display.
DVD
Temporary cancel the rating
level by DVD disc
a DVD disc and press PLAY or OPEN/CLOSE
1 Load
on the unit
.
Function setup (DVD)
If you forget the password.
32
the DVD disc has been designed to temporarily
2 Ifcancel
the Rating level, the screen which follows the
“Reading” screen will change, depending on which
disc is played. If you select “Yes” with the ENTER key,
password input screen will then appear.
Enter the password with Number buttons (0–9).
3 Then
press ENTER.
To exit from the entry, press RETURN.
will commence if the entered password was
4 Playback
correct.
Note:
This temporary cancellation of rating level will be kept until the
disc is ejected.
When the disc is ejected, the original rating level will be set
again automatically.
Notes:
• Some discs may not be played back with the progressive
scanning mode correctly because of the disc
characteristics or recording condition.
• Once Progressive scan on, S-video output is disabled.
43
2K60121A.indb 43
1/12/2007 3:50:20 PM
Others
Language code list
Enter the appropriate code number for the initial settings “Menu”, “Subtitle” and/or “Audio” 41 .
Language Name Code Language Name Code Language Name Code Language Name Code
Abkhazian
1112 Fiji
1620 Lingala
2224 Singhalese
2919
Afar
1111 Finnish
1619 Lithuanian
2230 Slovak
2921
Afrikaans
1116 French
1628 Macedonian
2321 Slovenian
2922
Albanian
2927 Frisian
1635 Malagasy
2317 Somali
2925
Amharic
1123 Galician
1722 Malay
2329 Spanish
1529
Arabic
1128 Georgian
2111 Malayalam
2322 Sundanese
2931
Armenian
1835 German
1415 Maltese
2330 Swahili
2933
Assamese
1129 Greek
1522 Maori
2319 Swedish
2932
Aymara
1135 Greenlandic
2122 Marathi
2328 Tagalog
3022
Azerbaijani
1136 Guarani
1724 Moldavian
2325 Tajik
3017
Bashkir
1211 Gujarati
1731 Mongolian
2324 Tamil
3011
Basque
1531 Hausa
1811 Nauru
2411 Tatar
3030
Bengali; Bangla
1224 Hebrew
1933 Nepali
2415 Telugu
3015
Bhutani
1436 Hindi
1819 Norwegian
2425 Thai
3018
Bihari
1218 Hungarian
1831 Oriya
2528 Tibetan
1225
Breton
1228 Icelandic
1929 Panjabi
2611 Tigrinya
3019
Bulgarian
1217 Indonesian
1924 Pashto Pushto
2629 Tonga
3025
Burmese
2335 Interlingua
1911 Persian
1611 Turkish
3028
Byelorussian
1215 Irish
1711 Polish
2622 Turkmen
3021
Cambodian
2123 Italian
1930 Portuguese
2630 Twi
3033
Catalan
1311 Japanese
2011 Quechua
2731 Ukrainian
3121
Chinese
3618 Javanese
2033 Rhaeto-Romance 2823 Urdu
3128
Corsican
1325 Kannada
2124 Romanian
2825 Uzbek
3136
Croatian
1828 Kashmiri
2129 Russian
2831 Vietnamese
3219
Czech
1329 Kazakh
2121 Samoan
2923 Volapük
3225
Danish
1411 Kirghiz
2135 Sanskrit
2911 Welsh
1335
Dutch
2422 Korean
2125 Scots Gaelic
1714 Wolof
3325
English
1524 Kurdish
2131 Serbian
2928 Xhosa
3418
Esperanto
1525 Laothian
2225 Serbo-Croatian
2918 Yiddish
2019
Estonian
1530 Latin
2211 Shona
2924 Yoruba
3525
Faroese
1625 Latvian Lettish
2232 Sindhi
2914 Zulu
3631
44
2K60121A.indb 44
1/12/2007 3:50:20 PM
Troubleshooting
Before calling a service technician, please check the following table for a possible cause of the symptoms and some solutions.
Symptoms
Solutions
Page
Make sure the power cord is plugged in.
Try another AC outlet.
Unplug unit, then plug it back in.
Select the DVD or VCR mode before operating.
Antenna connection is not correct or antenna cable is
disconnected.
The video channel is not in the correct position or the TV is not
set to the video channel 3 or 4.
Check the unit is connected correctly.
The video input selector of the TV is not set to VIDEO. Set to
VIDEO (or equivalent).
Channel is set to the external mode.
Check the unit is connected correctly.
Check the input selector of the amplifier is set properly.
The unit is in the Special playback mode.
Aim the remote control at the remote sensor.
Operate within Approx. 7 meters or reduce the light in the room.
Clear the path of the beam.
The batteries are weak. Replace the batteries.
Check the batteries are inserted correctly.
Check all Cable TV connections.
Station or Cable TV system problems, try another station.
5
–
5
26, 32
14~17
DVD/VCR
DVD/VCR does not operate.
•
•
•
•
•
•
No picture.
No sound.
The remote control does not function.
•
•
•
•
•
•
•
•
•
•
•
14~19
–
–
14~21
–
26, 33
13
16, 17
Others
No Cable TV reception.
•
•
22
VCR
TV recording does not work.
Timer recording does not work.
Noise bars on screen.
DVD
Display is not shown in your language.
Playback doesn’t start.
Stopping playback, slow-motion play,
repeat play, or memory play, etc. cannot be
performed.
No picture, or the screen is blurred or
divided into two parts.
No 4:3 (16:9) picture.
No on-screen display.
No surround sound.
The unit or remote operation key is not
functioning.
Playback does not start when the title is
selected.
Audio soundtrack and/or subtitle language is
not changed when you playback a DVD.
No subtitle.
Angle cannot be changed.
“ ” appears on the screen.
•
•
•
•
•
•
The erase prevention tab of the video cassette is broken off.
The unit is in the external input mode.
The time is not set correctly.
The recording start/end time is not set correctly.
The TIMER REC has not been pressed ( is not lit).
Tracking adjustment beyond range of automatic tracking circuit.
Try Manual tracking adjustment.
• Video heads are dirty.
• The tape is worn or damaged.
•
•
•
•
25, 28
23~24
29
29
26
27
–
Select proper language in the menu options.
No disc is inserted.
The disc may be dirty. Clean up the disc.
The unit cannot play DVD-ROMs, etc.
41
32
7
8
• Some discs may not do some of the functions.
–
• The progressive scan is “On” although the unit is connected to a
TV via the VIDEO OUT or the S-VIDEO OUT jack.
• The setup does not match your TV.
• Set Display to “On”.
• The setup does not match your stereo system.
• Turn off the unit and unplug the AC power cord for several
minutes, then replug it.
• Check the Parental setup.
• Multilingual language is not recorded on the DVD disc.
•
•
•
•
Some discs have no subtitles.
Subtitles are cleared. Press SUBTITLE.
Multi-angles are not recorded on the DVD disc.
The function is prohibited with the unit or the disc.
43
41
42
20
–
42, 43
35, 36
36
35
8, 33
45
2K60121A.indb 45
1/12/2007 3:50:21 PM
Others
Specifications
General
Power supply
AC 120 V 60 Hz
Power consumption
Operation: 18 W, Stand by: 2 W
Weight
7.7 lbs (3.5 kg)
Dimensions
Width: 16-15/16 inches (430.6 mm)
Height: 3-9/16 inches (89.7 mm)
Depth: 9 inches (228.7 mm)
Tuner
181 channel freq. synthesized
VHF
2-13
UHF
14-69
CATV
113 Channels
Antenna input/output
UHF/VHF In/Out: 75 Ω coaxial
RF channel output
Channel 3 or 4, Switchable
Color system
NTSC
Video head
4 Rotary heads
Audio track
Hi-Fi sound - 2 Tracks / MONO sound - 1 Track
Hi-Fi frequency response
20 Hz to 20 kHz
Hi-Fi dynamic range
More than 90 dB
FF/REW time at 25˚C (77˚F)
Approx. 1 minute and 48 seconds (with T-120 Cassette Tape)
Applicable disc
DVD (12 cm, 8 cm), CD (12 cm, 8 cm)
Frequency range
DVD: 4 Hz-22 kHz, CD: 4 Hz-20 kHz
S/N ratio
85dB (DVD)
Harmonic distortion
0.06% (DVD)
Wow and flutter
Less than 0.01% Wrms
Operating conditions
Temperature: 5˚C-40˚C (41˚F-104˚F), Operating status: Horizontal
Input/Output
DVD/VCR
Video input
1.0 V (p-p), 75 Ω, negative sync., pin jack x 2
Video output
1.0 V (p-p), 75 Ω, negative sync., pin jack x 1
Audio input
–8 dBm, 50 kΩ, negative sync., pin jack (L/R) x 2
Audio output
–8 dBm, 1 kΩ, negative sync., pin jack (L/R) x 1
DVD
S-video output
(Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1
(C) 0.286 V (p-p), 75 Ω
Component video output
(Y) 1.0 V (p-p), 75 Ω, negative sync., pin jack x 1
(PB)/(PR) 0.7 V (p-p), 75 Ω, pin jack x 2
Audio output (COAXIAL DIGITAL)
0.5 V (p-p), 75 Ω, pin jack x 1
Audio output (ANALOG)
–12 dBm, 1 kΩ, pin jacks (L, R) x 1
Supplied accessories
Audio/video cable ......................................... 1
Remote control (SE-R0220).......................... 1
Batteries (R03/AAA) ..................................... 2
75 Ω coaxial cable ........................................ 1
• This model complies with the above specifications.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.
46
2K60121A.indb 46
1/12/2007 3:50:21 PM
Limited Canadian Warranty
For Toshiba Brand DVD Players, DVD Recorders, DVD/VCR Combo Players and Portable DVD
Players
Toshiba of Canada Limited (“TCL”) makes the following limited warranties to original consumers in Canada. THESE LIMITED
WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS TOSHIBA BRAND
DVD PLAYER, DVD RECORDER, DVD/VCR COMBO PLAYER OR PORTABLE DVD PLAYER (the “PLAYER(S)” or “Player(s)”)
AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.
PLAYERS PURCHASED IN CANADA, AND USED ANYWHERE OUTSIDE OF CANADA INCLUDING, WITHOUT LIMITATION,
THE UNITED STATES AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.
PLAYERS PURCHASED ANYWHERE OUTSIDE OF CANADA, INCLUDING, WITHOUT LIMITATION, THE UNITED STATES
AND MEXICO, AND USED IN CANADA, ARE NOT COVERED BY THESE WARRANTIES.
Limited One (1) Year Warranty on Parts and Labour (home/non-commercial use)
Subject to the more limited warranty if the Player is used for any commercial or business purposes as set out below, TCL warrants
the Player and its parts against material defects in materials or workmanship that result in the Player failing for a period of one (1)
year after the date of original retail purchase. DURING THIS PERIOD, TCL WILL, AT TCL’S OPTION, REPAIR OR REPLACE
A DEFECTIVE PART WITH A NEW OR REFURBISHED PART, WITHOUT CHARGE TO YOU FOR PARTS OR LABOUR. YOU
MUST DELIVER THE ENTIRE PLAYER TO THE CLOSEST TCL DESIGNATED DVD PLAYER, DVD RECORDER, DVD/VCR
COMBO PLAYER OR PORTABLE DVD PLAYER AUTHORIZED SERVICE DEPOT (“ASD”). YOU MUST PAY FOR ALL
TRANSPORTATION AND INSURANCE CHARGES FOR THE PLAYER TO AND FROM THE ASD.
Rental Units
The warranty for Player rental units begins with the date of first rental or thirty (30) days from the date of shipment to the rental
firm, whichever comes first.
Limited Warranty for Commercial Units
Others
TCL warrants Players that are used for any commercial or business purposes as follows: all parts are warranted against material
defects in materials or workmanship that result in the Player failing for a period of ninety (90) days after the date of original retail
purchase. DURING THIS PERIOD, TCL WILL, AT TCL’S OPTION, REPAIR OR REPLACE A DEFECTIVE PART WITH A NEW
OR REFURBISHED PART, WITHOUT CHARGE TO YOU FOR PARTS OR LABOUR. YOU MUST DELIVER THE ENTIRE
PLAYER TO THE CLOSEST ASD. YOU MUST PAY FOR ALL TRANSPORTATION AND INSURANCE CHARGES FOR THE
PLAYER TO AND FROM THE ASD.
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING CONDITIONS:
(1) You must provide your bill of sale or other proof of purchase.
(2) All warranty servicing of this Player must be performed by a Toshiba Factory Service Depot.
(3) The warranties from TCL are effective only if the Player is (i) purchased as new and unopened from TCL or from TCL’s authorized
distributors, dealers or resellers (“ADR’s”) and (ii) located/operated in Canada.
(4) Warranties extend only to material defects in materials or workmanship as limited above, and do not extend to:
a. Service, repairs or replacement made necessary by accident, misuse, abuse, moisture, liquids, dust, dirt, neglect, accident,
damage, 24/7 applications, improper installation, improper operation, improper cleaning, improper maintenance, normal
wear and tear, or any other external cause or event, act or omission outside the control of TCL, including fire, theft, acts of
God, alteration, power failures, power surges or power shortages, lightning, other electrical faults, or repairs, modifications
or replacements by persons other than those authorized by TCL to service the Player;
b. Replacement of missing, discarded or lost parts, the provision of retrofits, or preventive maintenance;
c. Repair of damage that is cosmetic only or does not affect the Player functionality, such as wear and tear, scratches and
dents;
d. Service on Toshiba-branded accessory items (such accessory items may be covered by their own warranty);
e. Service on third party products or service made necessary by use of incompatible third party products;
f. Service made necessary by the simultaneous use of this Player and connected equipment;
g. Modifications to the Player not approved in writing by TCL, and service made necessary by the use or installation of nonToshiba modifications to the Player;
h. Service of a Player on which the TOSHIBA label or logo, rating label or serial number have been defaced or removed;
i. On-site service and repair of the Player; and
j. Damage to the Player caused by failure to follow the specifications, User manuals or guides as to usage and/or storage.
Disclaimer and Limitation of Remedy
TO THE EXTENT NOT PRECLUDED BY LAW, ALL OTHER EXPRESS AND IMPLIED WARRANTIES, CONDITIONS
AND REPRESENTATIONS FOR THIS PLAYER, INCLUDING THE IMPLIED WARRANTIES AND CONDITIONS OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED AND EXCLUDED. IF
THE APPLICABLE LAW, STATUTORY OR OTHERWISE, PRECLUDES THE EXCLUSION OF ANY IMPLIED WARRANTIES,
CONDITIONS AND REPRESENTATIONS THEN SUCH IMPLIED WARRANTIES, CONDITIONS AND REPRESENTATIONS
ARE OTHERWISE LIMITED IN DURATION TO THE TERM OF THIS EXPRESS WRITTEN LIMITED WARRANTY. TO THE
EXTENT NOT PRECLUDED BY LAW, THIS WRITTEN WARRANTY SUPERCEDES AND SPECIFICALLY DISCLAIMS ANY
OTHER WARRANTY, CONDITION OR REPRESENTATION NOT STATED IN THIS WARRANTY, WHETHER MADE BY TCL,
TOSHIBA CORPORATION, THEIR AFFILIATES, ADRs AND ASDs AND WHETHER MADE ORALLY OR IN WRITING
(INCLUDING ANY STATEMENT IN ANY BROCHURE, PRESS RELEASE, ANNOUNCEMENT, ADVERTISEMENT, POINT
OF SALE DISPLAY, ETC.).
47
2K60121A.indb 47
1/12/2007 3:50:21 PM
Others
Limited Canadian Warranty (Continned)
YOU MUST READ AND FOLLOW ALL SET-UP AND USAGE INSTRUCTIONS IN THE APPLICABLE USER GUIDES AND/OR
MANUALS. IF YOU FAIL TO DO SO, THIS PLAYER MAY NOT FUNCTION PROPERLY AND YOU MAY SUFFER DAMAGE. THIS
WARRANTY WILL NOT COVER ANY SERVICE THAT IS REQUIRED, IN PART OR IN WHOLE, AS A RESULT OF ANY FAILURE
TO FOLLOW THE SET-UP AND USAGE INSTRUCTIONS. THIS WARRANTY DOES NOT APPLY AND SHALL BE VOID AND
UNENFORCEABLE IF THE PLAYER IS OPENED, SERVICED, OR REPAIRED BY PERSONS OTHER THAN THOSE AUTHORIZED
BY TCL TO SERVICE OR REPAIR THE PLAYER.
IF THE PLAYER FAILS TO WORK AS WARRANTED ABOVE, YOUR SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR
OR REPLACEMENT OF THE DEFECTIVE PART. IN NO EVENT WILL TCL, TOSHIBA CORPORATION, THEIR AFFILIATES,
ADRs OR ASDs (THE “RELATED PARTIES”) BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DAMAGES, MONEY,
REIMBURSEMENT, COSTS OR EXPENSES. THIS LIMITATION APPLIES TO DAMAGES, MONEY, REIMBURSEMENT, COSTS
OR EXPENSES OF ANY KIND WHATSOEVER INCLUDING ANY DIRECT OR INDIRECT DAMAGES, DAMAGE TO PROPERTY
OR PERSON, LOST PROFITS, LOST SAVINGS, INCONVENIENCE OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR
CONSEQUENTIAL DAMAGES, WHETHER FOR BREACH OF WARRANTY, BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), UNDER A STATUTE OR UNDER ANY OTHER LAW OR FORM OR ACTION, OR WHETHER ARISING OUT OF
THE USE OF OR INABILITY TO USE THE PLAYER, EVEN IF ANY OF THE RELATED PARTIES HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER PARTY.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any
manner whatsoever.
Arbitration and Dispute Resolution
To the extent not precluded by law, any claim, dispute, controversy or disagreement (whether for breach of warranty, breach of
contract, tort (including negligence), under a statute or under any other law or form of action) against any of the Related Parties
arising out of, or otherwise relating to: (i) this warranty; (ii) the Player; (iii) any oral or written representations, statements, brochures,
press releases, advertising, announcement, point of sale display, or promotional material relating to the Player; (iv) the relationships
that result from this warranty, (the foregoing claims, disputes controversies and disagreements are collectively referred to as
the “Dispute”), shall be referred to and resolved by final and binding arbitration (to the exclusion of the courts). To the extent
not precluded by law, you agree to waive any right that you may have to commence or participate in any representative or class
proceeding against the Related Parties relating to any Dispute. If and where applicable and to the extent not precluded by law,
you further agree to opt out of any such representative or class proceedings. Arbitration of any Dispute will be conducted in the
forum and in the manner as agreed to between you and TCL. Failing such agreement, the arbitration will be conducted by one
arbitrator pursuant to the laws and rules relating to arbitration generally in force in the jurisdiction in which you reside at the time
that the Dispute arises. To the extent not precluded by law, no claim, dispute, controversy or disagreement of any other person
may be joined or combined with any Dispute by you, without the prior written consent of TCL.
Critical Applications
The Player you have purchased is not designed for any “critical applications.” “Critical applications” means life support systems,
medical applications, connections to implanted medical devices, commercial transportation, nuclear facilities or systems or any
other applications where Player failure could lead to injury to persons or loss of life or catastrophic property damage.
IF THE CUSTOMER USES THE PLAYER IN ANY CRITICAL APPLICATION, THE CUSTOMER – AND NOT TCL, ITS AFFILIATES,
ADRs OR ASDs – ASSUME SOLE AND FULL RESPONSIBILITY FOR SUCH USE. TCL RESERVES THE RIGHT TO REFUSE
TO SERVICE ANY PLAYER USED IN A CRITICAL APPLICATION. TCL, ITS AFFILIATES, ADRs AND ASDs HEREBY DISCLAIM
ANY AND ALL LIABILITY, DAMAGES AND CONSEQUENCES ARISING OUT OF THE SERVICE OR REFUSAL TO SERVICE
SUCH PLAYER AND FURTHER DISCLAIM ANY AND ALL LIABILITY, CONSEQUENCES AND DAMAGES THAT MAY ARISE
OR RESULT FROM THE USE OF THE PLAYER IN ANY CRITICAL APPLICATIONS.
General Provisions
If and to the extent that any provision of this limited warranty should generally be found to be unenforceable, the unenforceable
provision shall be severed from the warranty and deemed not to form part of the warranty. The remaining provisions of this warranty
shall be and remain valid and enforceable. If and to the extent that any provision of this limited warranty as it relates to any of the
Related Parties is found to be invalid or unenforceable in respect of that party (the “Excluded Party”), the Excluded Party shall be
deemed to be severed or excluded from the provision, and the provision shall remain valid, enforceable and applicable in respect
of the other or remaining Related Parties.
To the extent permitted by law, this limited warranty shall be governed and construed in accordance with the laws of Ontario.
If there is any inconsistency between this limited warranty, on the one hand, and any statement in the packaging of the Player or in
any other document enclosed with, or used in the context of the promotion or sale of, the Player, on the other hand, the provisions
of this limited warranty shall prevail.
How to Obtain Warranty Services
If, after following all of the operating instructions in this manual and checking the “Troubleshooting” section, you find that service
is needed:
(1) To find the nearest TCL Authorized Service Depot, visit TCL’s web site at www.toshiba.ca, or call toll free 1-866-275-6372.
(2) Present your bill of sale or other proof of purchase to the Toshiba Factory Service Depot.
For additional information, visit TCL’s website:
www.toshiba.ca
