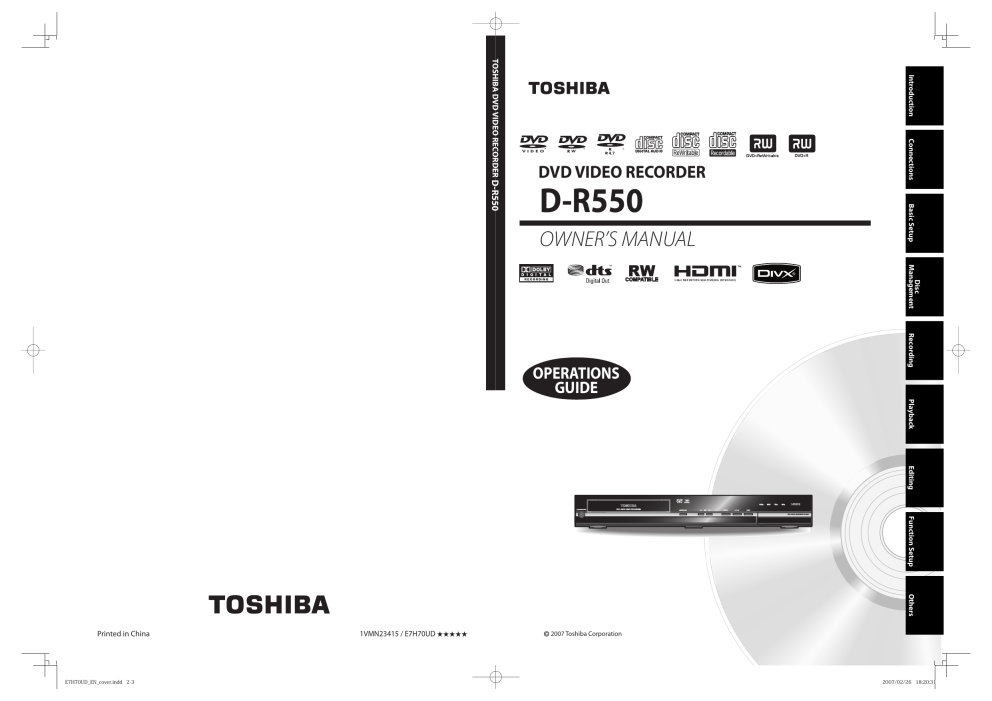

Toshiba D-R550KU DVD & Blu-ray User Guide

Introduction
OWNER’S MANUAL
Basic Setup
D-R550
Connections
TOSHIBA DVD VIDEO RECORDER D
D-R550
R550
DVD VIDEO RECORDER
Disc
Management
Recording
OPERATIONS
GUIDE
Playback
Editing
Function Setup
Others
Printed in China
E7H70UD̲EN̲cover.indd 2-3
1VMN23415 / E7H70UD
2007 Toshiba Corporation
2007/02/26 18:20:31
PRECAUTIONS
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The caution marking is located on the rear of the cabinet.
Laser Safety
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device,
due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.
LOCATION: INSIDE, NEAR THE DECK MECHANISM.
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in the manual. The
user could lose the authority to operate this equipment if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
A NOTE ABOUT RECYCLING
This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance
with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations
concerning chemical wastes.
Make your contribution to the environment!!!
• Used up batteries do not belong in the dust bin.
• You can dispose of them at a collection point for used up batteries or special waste.
Contact your council for details.
For Customer Use:
Read carefully the information located at the back of this unit and enter below the Model No. and Serial No. Retain
this information for future reference.
Model No. _____________________
Serial No. _____________________
2
EN
E7H70UD̲EN.indb 2
2007/02/26 18:10:57
PRECAUTIONS
Introduction
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
22. If the apparatus should emit smoke or an unusual odor,
immediately disconnect the power cord from the wall
outlet. Wait until the smoke or smell stops, then ask your
dealer for a check and repair. Neglecting to do so may
cause fire.
23. During thunderstorms, do not touch the connecting
cables or the apparatus.
24.
DANGER: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
11. Only use attachments/accessories specified by the
manufacturer.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
25. Always make sure the antenna system is properly
grounded to provide adequate protection against
voltage surges and built-up static charges (see Section
810 of the National Electric Code).
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL ELECTRICAL CODE
17. Keep your fingers well clear of the disc tray as it is closing.
Neglecting to do so may cause serious personal injury.
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
NEC – NATIONAL ELECTRICAL CODE
S2898A
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMP
Function Setup
16. Never expose the apparatus to dripping or splashing or
place items such as vases, aquariums, any other item
filled with liquid, or candles on top of the unit.
ANTENNA
LEAD
WIRE
Editing
15. Do not overload wall outlets; extension cords, or integral
convenience receptacles as this can result in a risk of fire
or electric shock.
Playback
13. Unplug this apparatus and disconnect the antenna or
cable system during lightning storms or when unused
for long periods of time.
• Use extreme care to make sure you are never in a
position where your body (or any item you are in
contact with, such as a ladder or screwdriver) can
accidentally touch overhead power lines. Never locate
the antenna near overhead power lines or other
electrical circuits.
• Never attempt to install any of the following during
lightning activity: a) an antenna system; or b) cables,
wires, or any home theater component connected to an
antenna or phone system.
Recording
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
Disc
Management
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
21. Do not use a cracked, deformed, or repaired disc. These
discs are easily broken and may cause serious personal
injury and apparatus malfunction.
Basic Setup
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
20. Never block or cover the slots or openings in the unit.
Never place the unit:
• on a bed, sofa, rug, or similar surface;
• too close to drapes, curtains, or walls; or
• in a confined space such as a bookcase, built-in cabinet,
or any other place with poor ventilation.
The slots and openings are provided to protect the unit
from overheating and to help maintain reliable operation.
Connections
4. Follow all instructions.
19. Do not place the apparatus on amplifiers or equipment
that may produce heat.
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
18. Do not place anything on top of this unit.
Others
EN
E7H70UD̲EN.indb 3
3
2007/02/26 18:10:58
PRECAUTIONS
Installation Location
For safety and optimum performance of this unit:
• Install the unit in a horizontal and stable position. Do
not place anything directly on top of the unit. Do not
place the unit directly on top of the TV.
• Shield it from direct sunlight and keep it away from
devices of intense heat. Avoid dusty or humid places.
Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes on
the sides of the unit. Avoid locations subject to strong
vibration or strong magnetic fields.
Supplied Accessories
remote control with batteries (AAx2)
RF coaxial cable
Avoid the Hazards of Electrical Shock and Fire
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it
from AC outlet. Grasp it by the plug.
• If, by accident, water is spilled on this unit, unplug
the power cord immediately and take the unit to our
Authorized Service Center for servicing.
RCA audio/video cables
Moisture Condensation Warning
Moisture condensation may occur inside the unit when it
is moved from a cold place to a warm place or after
heating a cold room or under conditions of high
humidity. Do not use this unit at least for 2 hours until its
inside gets dry.
owner’s manual
About Copyright
The unauthorized recording, use, distribution, or revision
of television programs, videotapes, DVDs and other
materials, is prohibited under the copyright laws of the
United States and other countries, and may subject you
to civil and/or criminal liability.
This product incorporates copyright protection
technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright
protection technology must be authorized by
Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is
prohibited.
Notice for Progressive Scan Output
OWNER’S MANUAL
quick setup guide
return stop sheet
Consumers should note that not all high definition
television sets are fully compatible with this product and
may cause artifacts to be displayed in the picture. In case
of picture problems with 480 progressive scan output, it
is recommended that the user switch the connection to
the “standard definition” output. If there are questions
regarding your TV set compatibility with this 480p DVD
recorder, please contact Toshiba Customer Service.
4
EN
E7H70UD̲EN.indb 4
2007/02/26 18:10:59
PRECAUTIONS
Servicing
Cleaning Discs
Cleaning The Disc Lens
Disc Handling
• Handle the discs so that fingerprints and dust do not
adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is
not used.
“DTS” and “DTS Digital Out” are registered trademarks of
DTS, Inc.
Manufactured under license from
Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI logo and HighDefinition Multimedia Interface
are trademarks or registered
trademarks of HDMI Licensing
LLC.
Playback
• If this unit still does not perform properly although you
refer to the relevant sections and to
“TROUBLESHOOTING” in this owner’s manual, the laser
optical pickup unit may be dirty. Consult your dealer or
an Authorized Service Center for inspection and
cleaning of the laser optical pickup unit.
“WMA” (Windows Media Audio) is a new audio codec
developed by Microsoft® in the United States of America.
Recording
• When a disc becomes dirty, clean it with a cleaning
cloth. Wipe the disc from the center to out. Do not
wipe in a circular motion.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, detergent, abrasive
cleaning agents or antistatic spray intended for analog
records.
Disc
Management
• Wipe the front panel and other exterior surfaces of the
unit with a soft, slightly damp cloth.
• Never use a solvent, thinner, benzene or alcohol to
clean the unit. Do not spray insecticide liquid near the
unit. Such chemicals may discolor the surface or
damage the unit.
Basic Setup
Cleaning The Cabinet
If the remote control does not work properly, you can test if
the remote control sends out the infrared signal with AM
radio or a digital camera (including built-in camera of cellular
phone). It will help to define the cause of malfunction.
• With an AM radio:
Tune an AM radio to a station with no
broadcasting. Press a button on remote
control toward the radio. Sound will be
fluttering when you press any key and the
radio receives the signal. This means the
remote control is working.
• With a digital camera (including built-in camera of
cellular phone):
Direct a digital camera to remote control,
press and hold a button on remote control. If
infrared light appears through digital camera,
the remote control is working.
Connections
• Please refer to relevant topics on “TROUBLESHOOTING”
on pages 108-111 before returning the product.
• If you need to call a customer service representative,
please know the model number and serial number of
your product before you call. This information is
displayed on the back of the product. Also, please take
a moment to identify the problem you are having, and
be prepared to explain this to the representative. If you
believe the representative will need to help you with
operations, please stay near the product. Our
representatives will be happy to assist you.
IR Signal Check
Introduction
Maintenance
Dolby Digital Recording
Editing
“Dolby® Digital Recording enables consumers to record
high-quality video with stereo sound on recordable DVD
discs. The technology, when utilized instead of PCM
recording, also saves recordable disc space, allowing for
higher video resolution or extended recording time on
each DVD. DVDs created using Dolby Digital Recording
will play back on all DVD-video players.”
Note: This is true when the players are compatible with
actual recordable DVD discs.
Function Setup
Others
EN
E7H70UD̲EN.indb 5
5
2007/02/26 18:11:00
CONTENTS
Introduction
Disc Management
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Symbols Used in this Owner’s Manual . . . . . . . . . . . . . . .8
FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the Batteries in the Remote Control . . . . . . 12
Using a Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
GUIDE TO ON-SCREEN DISPLAYS AND MENUS . . . . 14
On-Screen Display / Menu . . . . . . . . . . . . . . . . . . . . . . . . . 14
Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
FRONT PANEL DISPLAY GUIDE . . . . . . . . . . . . . . . . . . . 17
FORMATTING A DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing the Recording Format of a Brand-New
DVD-RW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reformatting a Disc Manually . . . . . . . . . . . . . . . . . . . . .
PREPARING A DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Make Recording Compatible . . . . . . . . . . . . . . . . . . . . . .
Setting for Auto Chapter . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording Audio Select (XP) . . . . . . . . . . . . . . . . . . . . . . .
Setting Aspect Ratio for Video Mode Recording . . . .
SETTING A DISC TO PROTECT . . . . . . . . . . . . . . . . . . . .
PLAYING THE DISCS IN OTHER DVD PLAYERS . . . . .
Auto Finalizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Finalizing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connections
ANTENNA CABLE CONNECTION . . . . . . . . . . . . . . . . . .
RF MODULATOR CONNECTION. . . . . . . . . . . . . . . . . . .
CONNECTION TO A CABLE / SATELLITE BOX. . . . . . .
CONNECTION TO A TV. . . . . . . . . . . . . . . . . . . . . . . . . . .
CONNECTION TO A TV WITH AN HDMI™
COMPATIBLE PORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONNECTION TO AN AUDIO SYSTEM . . . . . . . . . . . . .
18
19
20
21
22
24
Basic Setup
INITIAL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHANNEL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding/Deleting Channels . . . . . . . . . . . . . . . . . . . . . . . .
SETTING THE CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual Clock Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daylight Saving Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TUNER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Analog Mode / Digital Mode . . . . . . . . . . . .
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting TV Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTV Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Closed Caption Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
25
26
26
27
29
29
30
30
31
31
31
32
34
35
37
37
38
39
39
39
40
40
41
42
42
43
Recording
INFORMATION ON DVD RECORDING . . . . . . . . . . . . . 45
Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Restrictions on Recording . . . . . . . . . . . . . . . . . . . . . . . . . 45
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
TIMER RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Hints for Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . 52
SETTINGS FOR AN EXTERNAL DEVICE . . . . . . . . . . . . 53
Connection to an External Device. . . . . . . . . . . . . . . . . . 53
Recording from an External Device . . . . . . . . . . . . . . . . 54
DV DUBBING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Guide to DV and On-Screen Display . . . . . . . . . . . . . . . 55
DVC to DVD Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
EN
E7H70UD̲EN.indb 6
2007/02/26 18:11:00
CONTENTS
Introduction
Editing
58
58
59
59
60
Function Setup
LIST OF THE DEFAULT SETTINGS . . . . . . . . . . . . . . . . . 93
GENERAL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
DivX® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Reset All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Recording
Others
Playback
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 111
LANGUAGE CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Editing
73
73
73
74
74
75
75
75
76
76
76
77
78
78
78
79
81
81
82
83
83
85
86
87
89
90
91
92
Disc
Management
62
63
65
65
66
66
66
66
67
67
67
68
68
69
70
71
71
71
72
INFORMATION ON DISC EDITING. . . . . . . . . . . . . . . . .
Guide to a Title List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DELETING TITLES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CREATING/DELETING PLAYLIST . . . . . . . . . . . . . . . . . .
Adding Titles to a Playlist. . . . . . . . . . . . . . . . . . . . . . . . . .
Erasing All Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EDITING DISCS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Putting Names on Titles . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Chapter Marks. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hiding Chapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting a Part of a Title . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dividing a Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Combining Titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting or Releasing the Title Protection . . . . . . . . . . .
Setting or Clearing All Chapter Marks at Once. . . . . .
Basic Setup
INFORMATION ON PLAYBACK . . . . . . . . . . . . . . . . . . .
Structure of Disc Contents. . . . . . . . . . . . . . . . . . . . . . . . .
BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Direct Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playback from the Title List . . . . . . . . . . . . . . . . . . . . . . . .
Playing Back an Audio CD and a CD-RW/-R with
MP3/WMA/JPEG Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing Back a DivX® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Title/Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . .
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fast Forward / Fast Reverse Playback . . . . . . . . . . . . . .
Skipping TV Commercials During Playback. . . . . . . . .
Rapid Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Step by Step Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slow Forward / Slow Reverse Playback. . . . . . . . . . . . .
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Marker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chasing Playback during Recording . . . . . . . . . . . . . . .
Simultaneous Playback and Recording. . . . . . . . . . . . .
SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Title/Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REPEAT/RANDOM/PROGRAM PLAYBACK/
SLIDE SHOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Program Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SELECTING THE FORMAT OF AUDIO AND VIDEO . .
Switching Subtitles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Audio Soundtrack . . . . . . . . . . . . . . . . . . . . . .
Switching Virtual Surround System . . . . . . . . . . . . . . . .
Switching Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . .
Reducing Block Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Black Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connections
Playback
Function Setup
Others
EN
E7H70UD̲EN.indb 7
7
2007/02/26 18:11:01
FEATURES
This unit not only plays back DVD and CD but also offers features for you to record on DVD and edit them after that.
The following features are offered with this unit.
Dividing or combining titles:
Recording
You can divide or combine a title.
This unit is compatible with recording on DVD-RW/+RW which
Editing title names:
are recordable repeatedly and DVD-R, DVD+R which accept
You can change the title name you prefer.
the additional recordings until the disc becomes full but not
overwritable. You can choose either one for your convenience.
Compatibility
Up to 12 program recording:
Available for playing back discs on a regular DVD player:
You can program the unit to record up to 12 programs, with
Recorded discs can be played back on regular DVD players,
in a month in advance. Daily or weekly program recordings
including computer DVD drives compatible with DVD-video
are also available.
playback. Although DVD+RW/+R are playable on other units
One-touch timer recording (OTR):
without finalization in most cases, it is recommended to
You can easily set a recording time as you prefer. Every time
finalize in order to stabilize the performance.
[REC I] is pressed during recording, the recording time
will be increased by 30 minutes up to 8 hours. The recordOthers
ing automatically stops when the recording time you set is
reached.
Progressive scan system
DV dubbing:
Unlike conventional interlace scanning, the progressive scan
This function helps you to easily dub the contents of the
system provides less flickering and images in higher
DVC (digital video camcorder) to DVD.
resolution than that of traditional television signals.
Automatic chapter mark setting:
HDMI (High-Definition Multimedia Interface)
Chapter marks will be put on recordings as you set before
You can enjoy clearer audio/video output when connecting
attempting to record.
this unit to a display device with an HDMI-compatible port.
Automatic title menu making:
The unit creates title menu automatically when finalizing discs.
Symbols Used in this Owner’s Manual
Automatic playlist making:
The unit creates a playlist automatically after recording.
To specify for what disc type each function is, we put the
following symbols at the beginning of each item to operate.
Automatic title finalizing:
* DVD-R recorded in VR format or non compatible recording
You can finalize discs automatically after finishing all timer
format are not playable.
recordings or at the end of the disc space if you set this in
the main menu.
Symbol Description
Left channel stereo recording:
This unit can record the sound of the left channel monaural
For Recording, Playing Back, and Editing
input as left and right channels automatically (the input
from the L2 jacks only).
Description refers to DVD-RW in video mode
Playback
Theater surround sound in your home:
When connecting the unit to an amplifier or a decoder which
is compatible with Dolby Digital or DTS, you can experience
the theater surround sound from discs with surround sound
system.
Quick search for what you want to watch:
You can easily find the part you want to watch using the
search function. Search for a desired point on a disc by title,
chapter/track or time.
Virtual surround system:
You can enjoy stereophonic space through your existing 2
channel stereo system.
Playing back on MP3/WMA/JPEG/DivX® files:
You can enjoy MP3/WMA/JPEG/DivX® files which are recorded on CD-RW/-R.
DivX® files can also be recorded on DVD-RW/-R and
DVD+RW/+R.
Editing
Deleting titles:
You can delete titles which you do not need anymore.
Setting or clearing chapter marks:
You can set or clear chapter marks on titles.
Hiding chapters:
To keep others from playing back some chapters without
permission, you can hide chapters.
Deleting parts of titles:
You can delete a specific part of a title.
8
Description refers to DVD-RW in VR mode
Description refers to DVD-R in video mode
Description refers to DVD+RW
Description refers to DVD+R
For Playback only
Description refers to DVD-video
Description refers to audio CD
Description refers to CD-RW/-R with MP3 files
Description refers to CD-RW/-R with WMA files
Description refers to CD-RW/-R with JPEG files
Description refers to DVD-RW/-R, DVD+RW/+R
and CD-RW/-R with DivX® files
If you do not find any of the symbols listed above under
the function heading, the operation is applicable to all
media.
EN
E7H70UD̲EN.indb 8
2007/02/26 18:11:01
FEATURES
Introduction
Discs for Recording, Playing back
Disc type
DVD-RW
DVD-R
DVD+RW
DVD+R
Logo
Can be formatted in VR or video
mode
Video Mode
Automatically
formatted in
video mode
Automatically
formatted in
+VR mode
Automatically
formatted in
+VR mode
480 min (12cm)
144 min (8cm)
480 min (12cm)
144 min (8cm)
480 min (12cm)
144 min (8cm)
Ver.2.0
Ver.2.0/4×
Ver.2.0/8×
Ver2.0/16×
1×-4×
1×-16×
Playable on
most DVD
players.
Finalization
necessary.
(title menu will
be created)
Playable on
DVD+RW
compatible
players.
Finalization
recommended.
(title menu will
be created)
Playable on
most DVD
players.
Finalization
recommended.
(title menu will
be created)
Connections
Format
VR Mode
Icon
480 min (12cm)
144 min (8cm)
Ver.1.1,1.2
Recordable/playable
Ver.1.1/2× CPRM compatible
versions
Ver.1.2/4× CPRM compatible
Playable only
on VR mode
compatible unit.
Finalization
recommended.
Disc
Management
Playable on
most DVD
players.
Compatibility Finalization
necessary.
(title menu will
be created)
Basic Setup
Maximum record 480 min (12cm)
time 144 min (8cm)
✓
✓
Reuse by deleting
the current
contents
✓
✓
Record 16:9 size
pictures
✓
✓
Record copy-once
programs
Create chapters
at fixed intervals
(auto chapter)
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Playlist Original
✓
✓
Create chapters
wherever you like
(chapter mark)
✓
✓
Divide a title
✓
Combine titles
✓
✓
✓
Hide chapters
✓
✓
Function Setup
✓
Editing
✓
Scene delete
Delete a title
✓
✓*
Editing Features
Edit title name
✓
Playback
Record TV
programs
Recording
Available Features
Recording Features
✓
✓
Protect a title
✓
✓
✓
✓
Others
Create a
playlist
✓
✓
✓: Available
Gray: Not available
*CPRM compatible disc only.
EN
E7H70UD̲EN.indb 9
9
2007/02/26 18:11:02
FEATURES
Discs for playing back
Disc Type
DVD-VIDEO
CD-DA
CD-RW
CD-R
MP3
WMA
JPEG
DivX®
CD-RW/-R
CD-RW/-R
CD-RW/-R
CD-RW/-R
DVD-RW/-R
DVD+RW/+R
Logo
Icon
Files for playing back
Type of title
Icon
Media
is a trademark of DVD Format/Logo Licensing Corporation.
DivX, DivX Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
• Official DivX® Certified product; Plays DivX® 6.0, DivX® 5,
DivX® 4, DivX® 3, and DivX®VOD video content (in
compliance with DivX Certified™ technical requirements).
• Discs containing the DivX® files with the DivX® GMC (Global
Motion Compensation) playback feature, which is DivX®
supplemental function, cannot be played back on this unit.
* This unit cannot play back the disc contents protected
by Windows Media Digital Rights Management (DRM).
Unplayable Discs
The following discs will not play back on this unit.
• CD-ROM
• Compact Disc-Interactive (CD-I)
• Video Single Disc (VSD)
• DVD-ROM
• DVD-audio
• Unfinalized disc
• DVD contains MP3, WMA or JPEG files
• DVD-R recorded in VR format or non compatible
recording format
On the following disc, the sound may not be heard.
• Super audio CD - Only the sound on the CD layer can be
heard. The sound on the high-density super audio CD
layer cannot be heard.
Color Systems
DVD is recorded in different color systems throughout
the world. The most common color system is NTSC
(which is used primarily in the United States and Canada).
This unit uses NTSC, so DVD you play back must be
recorded in the NTSC system. You cannot play back DVD
recorded in other color systems.
Region Codes
This unit has been designed to play back DVD
with region 1. DVD must be labeled for ALL
regions or for region 1 in order to play back on
the unit. You cannot play back DVD that are
labeled for other regions. Look for the symbols
on the right on your DVD. If these region
symbols do not appear on your DVD, you cannot
play back the DVD in this unit.
10
The number inside the globe refers to region of the world.
A DVD labeled for a specific region can only play back on
the unit with the same region code.
Following discs are recommended for good recording
quality and are proven to be compatible with this unit.
However, depending on the media condition, the unit
may not read the disc properly.
Verbatim DVD+R 8x, DVD+RW 4x, DVD-R 8x, DVD-RW 2x
JVC
DVD-RW 4x
Maxell
DVD+R 4x/8x/16x, DVD-R 8x/16x
SONY
DVD+R 4x/8x/16x, DVD+RW 4x
TDK
DVD+R 4x/8x/16x
Performance of any other discs are not guaranteed.
• Toshiba is not liable for any damage or loss caused directly
or indirectly by the malfunction of this recorder, including,
without limitation, any one of the following:
• Failure to record contents intended to be recorded by
the consumer.
• Failure to edit contents as intended by the consumer.
• When a DVD-RW/-R, DVD+RW/+R disc created on this
recorder is used (e.g., insertion, playback, recording or
editing) in another DVD player, recorder or personal
computer drive.
• When a DVD-RW/-R, DVD+RW/+R disc that is used in
the manner described in the immediately preceding
bullet point is used again in this recorder.
• When a DVD-RW/-R, DVD+RW/+R disc that was
recorded in another DVD recorder, or in a personal
computer drive is used in this recorder.
• Some functions may not work with personal computer
discs.
• Discs recorded in this recorder may not operate as
expected on other DVD players, recorders or personal
computer drives.
Because of problems and errors that can occur during the
creation of DVD and CD software and/or the manufacture
of DVD and CD discs, Toshiba cannot assure that this DVD
Video Recorder will successfully play every disc bearing the
DVD and CD logos. If you happen to experience any
difficulty playing a DVD and/or CD disc on this DVD Video
Recorder, please contact Toshiba Customer Service.
DVD players with
recorded in VR mode.
are capable of playing DVD-RW
EN
E7H70UD̲EN.indb 10
2007/02/26 18:11:03
FUNCTIONAL OVERVIEW
Introduction
Front Panel
1
2
45
3*
6
7
8
1080p
DVD -RW/R +RW/R RECORDING
I/y ON/STANDBY
OPEN/CLOSE
SKIP
STOP
PLAY
1080i
720p
480p
L2
VIDEO
L
REC
R
DV IN
12
11 10
9
Disc
Management
Recording
When playback is paused, press to play back advance
step by step.
When playback is paused, press and hold for 1.5
seconds to slow forward.
7. Display
Refer to “FRONT PANEL DISPLAY GUIDE” on page 17.
8. HDMI indicator
Lights up and indicates the HDMI output mode when
HDMI output is on.
9. DV IN jack (L3)
Use to connect the DV output of external device with
a DV cable.
10. AUDIO input jacks (L2)
Use to connect external device with a RCA audio
cable.
11. VIDEO input jack (L2)
Use to connect external device with a RCA video
cable.
12. S-VIDEO input jack (L2)
Use to connect the S-video output of external device
with an S-video cable.
13. I REC button
Press once to start a recording. Press repeatedly to
start one-touch timer recording.
14. B PLAY button*
Press to start or resume playback.
15. C STOP button
Press to stop playback or recording.
Basic Setup
(*) The unit can also be turned on by pressing these buttons.
1. I/y ON/STANDBY button
Press to turn the unit on and off.
If timer programmings have been set, press to set the
unit in timer-standby mode.
2. Disc tray
Place a disc when the disc tray is opened.
3. A OPEN/CLOSE button*
Press to open or close the disc tray.
4. Infrared sensor window
Receive signals from your remote control so that you
can control the unit from a distance.
5. H (SKIP) button
During playback, press once midway through a
chapter or track to go back to the beginning of the
current chapter or track. When pressed twice in quick
succession, playback will start from the preceding
chapter or track.
During playback, press and hold for 1.5 seconds to
fast reverse.
When playback is paused, press to play back reverse
step by step.
When playback is paused, press and hold for 1.5
seconds to slow reverse.
6. G (SKIP) button
During playback, press to skip to the next chapter or track.
During playback, press and hold for 1.5 seconds to
fast forward.
Connections
S-VIDEO
15 14* 13
Rear Panel
2
3 4
5
Playback
1
6
IN
VIDEO VIDEO
IN
OUT
L
L
Y
HDMI OUT
PB/CB
OUT
ANTENNA
R
AUDIO IN
(L1)
IN
R
S-VIDEO AUDIO OUT
12 11 10 9
PR/CR
COMPONENT
VIDEO OUT
OUT
COAXIAL
S-VIDEO
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
8
7
• Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
• This unit does not have the RF modulator.
EN
E7H70UD̲EN.indb 11
Others
Note
Function Setup
8. S-VIDEO OUT jack
Use to connect the S-video input of a TV monitor, AV
receiver or other device with an S-video cable.
9. AUDIO OUT jacks
Use to connect a TV monitor, AV receiver or other
device with a RCA audio cable.
10. S-VIDEO IN jack (L1)
Use to connect the S-video output of external device
with an S-video cable.
11. AUDIO IN jacks (L1)
Use to connect external device with a RCA audio
cable.
12. ANTENNA OUT jack
Use to connect an RF coaxial cable to pass the signal
from the ANTENNA IN to your TV.
Editing
1. ANTENNA IN jack
Use to connect an antenna.
2. VIDEO IN jack (L1)
Use to connect external device with a RCA video
cable.
3. VIDEO OUT jack
Use to connect a TV monitor, AV receiver or other
device with a RCA video cable.
4. COMPONENT VIDEO OUTPUT jacks
Use to connect a TV monitor with component video
inputs with a component video cable.
5. HDMI OUT jack
Use an HDMI cable to connect to a display with an
HDMI compatible port.
6. AC Power Cord
Connect to a standard AC outlet to supply power to
this unit.
7. COAXIAL DIGITAL AUDIO OUTPUT jack
Use to connect an AV receiver, Dolby Digital decoder,
DTS decoder or other device with a digital audio
coaxial input jack with a digital audio coaxial cable.
11
2007/02/26 18:11:05
FUNCTIONAL OVERVIEW
Remote Control
Installing the Batteries in the Remote
Control
Install the batteries (AAx2) matching the polarity
indicated inside battery compartment of the remote
control.
1
Open the cover.
2
Insert batteries.
Using a Remote Control
Keep in mind the following when using the remote
control:
• Make sure that there are no obstacles between the remote
control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the infrared
sensor window of the unit.
• Remote control for different devices can interfere with
each other. Avoid using remote control for other device
located close to the unit.
• Replace the batteries when you notice a fall off in the
operating range of the remote control.
• The maximum operable ranges from the unit are as
follows.
- Line of sight: approx. 23 feet (7m)
- Either side of the center:
approx. 23 feet (7m) within 30°
23feet (7m)
30˚
Make sure to match + and - on the batteries to
the marks indicated in the battery compartment.
3
23feet (7m)
17
1
Close the cover.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
18
2*
CH
19
3
TIMER
PROG.
SPACE
4
20
DTV/TV
6
SETUP
DISPLAY
AUDIO
5
21
TOP MENU
MENU/LIST
7
Caution:
Never throw batteries into a fire.
8
Note:
9
• Be sure to use AA size batteries.
• Dispose of batteries in a designated disposal area.
• Batteries should always be disposed of with the
environment in mind. Always dispose of batteries in
accordance with applicable laws and regulations.
• If the remote control does not operate correctly, or if
the operating range becomes reduced, replace
batteries with new ones.
• When necessary to replace batteries in the remote
control, always replace both batteries with new ones.
Never mix battery types or use new and used
batteries in combination.
• Always remove batteries from remote control if they
are dead or if the remote control is not to be used for
an extended period of time. This will prevent battery
acid from leaking into the battery compartment.
12
23feet (7m)
30˚
ENTER
CLEAR
13*
24
RETURN
25
SKIP
11
FWD
REV
SKIP
10
26
PAUSE
STOP
PLAY
12
27
28
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
14
29
REPEAT REC MODE
16
22
23
REC
15
ZOOM
30
31
32
SE-R0264
EN
E7H70UD̲EN.indb 12
2007/02/26 18:11:06
FUNCTIONAL OVERVIEW
Basic Setup
Disc
Management
Recording
Playback
Editing
Function Setup
16. REC MODE button
Press to switch the recording mode.
17. HDMI button
Press to set the HDMI connector’s video signal output mode .
18. I/y ON/STANDBY button
Press to turn the unit on and off. If timer programmings have been set, press to set the unit in timerstandby mode.
19. CH
/
buttons
Press to change the channel up and down.
20. TIMER PROG. button
Press to display the timer programming list.
21. AUDIO
button
• Press to switch the audio language for digital TV.
• Press to display the audio menu during playback.
22. DISPLAY button
Press to display the display menu on or off.
23. MENU/LIST button
Press to display the disc menu. To change original
and playlist on the TV screen.
24. ENTER button
Press to confirm or select menu items.
25. RETURN button
Press to return to the previous displayed menu
screen.
26. SKIP G button
• During playback, press to skip to the next chapter,
track or file.
• When playback is in pause, press repeatedly to forward the playback step by step.
27. FWD D button
• During playback, press to fast forward playback.
• When playback is in pause, press to slow forward
playback.
28. STOP C button
• Press to stop playback or recording.
• Press to exit from the title list.
29. INSTANT SKIP button
During playback, press to skip 30 seconds.
30. 1.3x/0.8x PLAY button
During playback, press to play back in a slightly
faster/slower while keeping the audio quality just as
normal playback.
31. ZOOM button
During playback, press to enlarge the picture on the
TV screen.
32. REC I button
• Press once to start a recording.
• Press repeatedly to start the one-touch timer
recording.
Connections
1. INPUT SELECT button
Press to select the appropriate input.
2. OPEN/CLOSE A button*
Press to open or close the disc tray.
3. Number/Character buttons
• Press to select channel numbers.
• Press to select a title/chapter/track/file on display.
• Press to enter values for the settings in the main
menu.
• Press to enter title names.
4. Confirm ( − ) button
Analog mode:
Press to confirm the channel selection made by
[the Number buttons].
Digital mode:
Press to confirm the major / minor channel
selection made by [the Number buttons].
5. DTV/TV button
Press to switch between digital TV (DTV) mode and
analog TV (TV) mode.
6. SETUP button
• Press to display the main menu.
• During DVD playback, press and hold for more than
3 seconds to switch the progressive scanning mode
to the interlace mode.
7. TOP MENU button
Press to display the title list.
8. Cursor K / L / { / B buttons
Press to select items or settings.
9. CLEAR button
Press to clear the password once entered, to cancel
the programming for CD, to clear the selecting marker number in the display menu, etc.
10. SKIP H button
• During playback, press to return to the beginning of
the current chapter, track or file.
• When playback is in pause, press repeatedly to
reverse the playback step by step.
11. REV E button
• During playback, press to fast reverse playback.
• When playback is in pause, press to slow reverse
playback.
12. PAUSE F button
Press to pause playback or recording.
13. PLAY B button*
Press to start playback or resume playback.
14. TIME SLIP button
Press once to start recording the TV program you are
watching. Press again to watch the content being
recorded from the beginning while recording continues. (VR mode DVD-RW with the recording mode of
LP, EP or SLP only)
15. REPEAT button
Press to display the repeat menu.
Introduction
(*) The unit can also be turned on by pressing these buttons.
Others
EN
E7H70UD̲EN.indb 13
13
2007/02/26 18:11:07
GUIDE TO ON-SCREEN DISPLAYS AND MENUS
This unit uses the following on-screen displays and menus to guide you to the easy operations.
The on-screen displays give you the information on the loaded disc, the disc/file in playback, or the HDMI status, etc.
The menus allow you to change the various kinds of settings for playing back, recording, or editing to suite your preference.
On-Screen Display / Menu
The on-screen display changes in the following order
as you press [DISPLAY].
Disc Information / Menu
5
OFF
1/ 5
2
1/ 5
0:01:00 / 1:23:45
-RW
DTV Program Guide (only in DTV mode)
6
Disc Information/Menu
Title Name Information
(only when DVD+RW/+R, VR mode DVD-RW/-R, or
unfinalized Video mode DVD-RW/-R is in playback)
or
File Name Information
(only when a CD with MP3/WMA/
JPEG/DivX® files is in playback)
WMA Tag Information
(only when a WMA file is in playback)
HDMI Information
(only for the images output through the HDMI output)
DTV Program Guide
1
2
5
3
5
4
5
KABC
A Day of Memories
VR
ORG
CH 10
1
3
SP
7
1:53
4
* This is an example screen only
for explanation.
1. Indicates a disc type and format mode.
2. Indicates a type of titles for VR mode DVD-RW .
3. Indicates a channel number or selected external input
mode.
4. Indicates a recording mode and possible recording
time left.
5. Indicates a title number, chapter number, elapsed time
and total time of disc playback.
6. Each icon means:
: Search
5
DTV 6.1
English 1/2
A quarter-century ago, which may now
qualify as the good old days of
newspapering, run-of-paper sales
accounted for 80 percent of the
industry's advertising revenues.
: Audio
: Subtitle
: Angle
: Repeat
: Marker
: Noise Reduction / Black Level
: Zoom
: Surround
1. Broadcast station
2. Program title (max. 2 lines displayed)
3. Audio language (“Other” is displayed when the
audio language cannot be acquired, or the acquired
languages are other than English, Spanish or French.)
4. Program guide (max. 6 lines displayed)
5. Channel number
7. Indicates an operation status.
Note
• In some descriptions on this manual, only one disc
type is indicated as an example.
Note
• When the program guide is displayed in more than 7
lines, use [K / L] to scroll.
• “No description provided” is displayed when the
program guide is not provided.
14
EN
E7H70UD̲EN.indb 14
2007/02/26 18:11:07
GUIDE TO ON-SCREEN DISPLAYS AND MENUS
Introduction
Title/File Name Information
HDMI Information
1. Displays title/file name.
1
Title name information
Video Info. :
Audio Info. :
Title Name
480p
/
Bitstream
2
YCbCr
My Title
Connections
3
1
File name information
File Name
My File
1
1. Indicates artist/title information
• First, artist name will be displayed.
Artist Name
Basic Setup
WMA Tag Information
4
Disc
Management
*1. Indicates the resolution of the HDMI output image.
*2. Indicates the HDMI video format.
*3. Indicates the HDMI audio format.
4. Indicates current disc status.
* “- - -” will be displayed, when it does not have any
information.
• If you press [DISPLAY] one more time, title name will
be displayed.
Track Name
Recording
• If there is no artist or track name, “Not Available” will
be displayed.
Playback
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 15
15
2007/02/26 18:11:08
GUIDE TO ON-SCREEN DISPLAYS AND MENUS
Main Menu
Press [SETUP] to display the main menu. Then use
[K / L] to select a menu and press [ENTER] to display the
menu. These menus provide entries to all main functions
of the unit.
Setup
1
2
3
4
5
General Setting
Timer Programming
Title List
DVD Menu
CD Playback Mode
1. General Setting:
To go to general setting menu.
2. Timer Programming:
To program a timer recording.
3. Title List:
To call up the title list.
4. DVD Menu:
To set up the DVD setting.
5. CD Playback Mode:
To set up the CD playback setting.
• “CD Playback Mode” is available only when an audio
CD, a CD-RW/-R with MP3 / WMA / JPEG files is
inserted into the unit.
General Setting Menu
1
2
3
4
5
2
6
3
7
8
4
9
5
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
1. Playback:
To set up the unit to play back discs as you prefer.
2. Display:
To set up the OSD screen as you prefer.
3. Video:
To set up the video setting.
4. Recording:
To set up the unit to record to discs as you prefer.
5. Clock:
To set up the clock of the unit as you need.
6. Channel:
To adjust the channel setting of the unit as you prefer.
7. DivX:
To set up the setting for the DivX® playback.
8. HDMI:
To set up the HDMI connection setting.
9. Reset All:
To reset the setting to the factory default.
DVD Menu / CD Playback Mode
<DVD Menu menu>
DVD Menu
1
2
3
4
Format
Finalize
Disc Protect OFF ON
Delete All Playlists
<CD Playback Mode menu>
CD Playback Mode
5
1
6
2
7
3
16
Random Play
Program Play
Slide Show
1. Format (DVD-RW, DVD+RW only):
Allows you to format the disc.
2. Finalize:
Allows you to finalize a disc containing recorded titles.
3. Disc Protect (VR mode DVD-RW, DVD+RW/+R only):
Allows you to protect a disc from accidental editing or
recording.
4. Delete All Playlists (VR mode DVD-RW only):
Allows you to delete playlist.
5. Random Play:
Allows you to activate the random playback feature.
6. Program Play: (Audio CD only)
Allows you to activate the program playback feature.
7. Slide Show: (JPEG files only)
Allows you to select the display time of the slide show
mode.
EN
E7H70UD̲EN.indb 16
2007/02/26 18:11:08
FRONT PANEL DISPLAY GUIDE
1
PM
Introduction
2
3
DTV
4
Connections
5
4. Current status of the unit
1.
: Appears in the afternoon
with the clock display.
: Appears when the channel
is in DTV mode.
3. Title/Track and chapter mark
: Appears when indicating a
chapter number.
: Appears when the timer
programming or OTR has
been set and is
proceeding.
: Flashes when all timer
recordings have been
finished.
Disc
Management
: Appears when indicating a
title/track number.
: Appears when playing
back a disc.
• Elapsed playback time
• Current title / chapter / track
number
• Recording time / remaining time
• Clock
• Channel number
• Remaining time for one-touch
timer recording
• Selected HDMI OUTPUT mode
Basic Setup
2. DTV
: Appears when playback is
paused.
5. Displays the following
: Appears during recording
process.
: Flashes when a recording
pauses.
Recording
: Appears when a disc is in
this unit.
Display Message
Appears when HDMI output
mode (720p) is selected.
Appears when a disc is loaded
on the disc tray.
Appears when HDMI output
mode (1080i) is selected.
Appears when data is being
recorded on a disc.
Appears when HDMI output
mode (1080p) is selected.
Function Setup
Appears when the disc tray is
closing.
Editing
Appears when HDMI output
mode (480p) is selected.
Playback
Appears when the disc tray is
opening.
Others
EN
E7H70UD̲EN.indb 17
17
2007/02/26 18:11:09
ANTENNA CABLE CONNECTION
This section describes how to connect your unit to an antenna, cable box, etc.
1
2
Disconnect the power cord of your TV from the AC outlet.
Disconnect RF coaxial cable from antenna input jack of your TV.
rear of your TV
VHF / UHF
antenna
2
1
disconnect
disconnect
or
RF coaxial cable
cable TV
company
3
ANT. IN
Connect cables to the unit.
Make the basic connection as illustrated below.
VHF / UHF
antenna
rear of this unit
IN
VIDEO VIDEO
IN
OUT
L
L
Y
PB/CB
OUT
IN
RF coaxial cable
ANTENNA
R
AUDIO IN
(L1)
IN
R
S-VIDEO AUDIO OUT
PR/CR
COMPONENT
VIDEO OUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
VIDEO
OUT
or
L
cable TV
company
rear of your TV
R
OUT
ANTENNA
RF coaxial cable
RCA video
cable
AUDIO OUT
RCA audio
cable
ANT. IN
L
R
AUDIO IN
4
VIDEO IN
Plug in the power cord of this unit and your TV to the AC outlet.
rear of your TV
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your
local store.
connect
HDMI OUT
L
O OUTPUT
TREAM
rear of this unit
*Once connections are completed, turn on the TV and
initial setting begin.
Channel scanning is necessary for the unit to memorize
all available channels in your area.
(Refer to “INITIAL SETTING” on page 25.)
Note
• For your safety and to avoid damage to the device, please unplug the RF coaxial cable from the ANTENNA IN jack
before moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be
more effective than set-top versions.
• RF output is for tuner pass through only. DVD playback through the RF is not possible.
18
EN
E7H70UD̲EN.indb 18
2007/02/26 18:11:12
RF MODULATOR CONNECTION
Connections
VHF / UHF
antenna
Introduction
If your TV has antenna in jack only, it is still possible to connect this unit to your TV by using a stereo audio/video RF
modulator. In this case, follow the instructions below.
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator’s channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area.
If your RF modulator has a Modulator/Antenna switch, set it according to the manual supplied with the RF
modulator.
4) Plug in the power cords of the devices to the AC outlet.
5) Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch.
For more details, follow the manual supplied with the RF modulator.
rear of this unit
IN
L
Basic Setup
VIDEO VIDEO
IN
OUT
L
Y
HDMI OUT
PB/CB
OUT
RF coaxial cable
IN
ANTENNA
R
AUDIO IN
(L1)
IN
R
S-VIDEO AUDIO OUT
PR/CR
COMPONENT
VIDEO OUT
OUT
COAXIAL
S-VIDEO
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
RCA video
cable
VIDEO
OUT
or
L
cable TV
company
rear of your TV
Disc
Management
R
OUT
ANTENNA
AUDIO OUT
RCA audio cable
ANT. IN
rear of your
RF modulator
RF coaxial cable
RF coaxial cable
3
4
CHANNEL
L
Recording
ANT. IN
R
AUDIO IN
VIDEO IN
TO TV
Set channel 3 or 4
Playback
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
Editing
• The quality of picture may become poor if this unit is connected to an RF modulator.
Function Setup
Others
EN
E7H70UD̲EN.indb 19
19
2007/02/26 18:11:13
CONNECTION TO A CABLE / SATELLITE BOX
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) Plug in the power cords of the devices to the AC outlet.
e.g.)
rear of your TV
satellite
dish
AUDIO IN
L
R
VIDEO IN
or
ANT. IN
cable TV
company
RCA audio
cable
RCA video
cable
rear of this unit
IN
VIDEO VIDEO
IN
OUT
RF coaxial cable
L
L
Y
HDMI OUT
PB/CB
OUT
ANTENNA
R
AUDIO IN
(L1)
R
IN
S-VIDEO AUDIO OUT
PR/CR
COMPONENT
VIDEO OUT
OUT
COAXIAL
S-VIDEO
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
RF coaxial cable
ANT. IN RF OUT
VIDEO VIDEO
IN
OUT
L
cable/satellite
box
AUDIO OUT
L
R
VIDEO OUT
S-VIDEO
OUT
L
OUT
Y
PB/CB
ANTENNA
R
or
AUDIO IN
(L1)
RCA video cable
IN
R
S-VIDEO AUDIO OUT
PR/CR
COMPONENT
VIDEO OUT
OUT
S-VIDEO
RCA audio cable
S-video cable
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
• Required cables and connecting methods differ depending on the cable/satellite box.
For more information, please contact your cable/satellite provider.
• Instead of using VIDEO OUT jack of this unit, you can also use S-VIDEO OUT jack, COMPONENT VIDEO OUTPUT
jack, or HDMI OUT jack (no AUDIO OUT jack connection required) for connecting to your TV.
With this setup:
• You can record any unscrambled channel by selecting the channel on the cable/satellite box. Be sure that the
cable/satellite box is turned on.
• You cannot record one channel while watching another channel.
Note to CATV system installer
• This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electrical
Code, which provides guidelines for proper grounding - in particular, specifying that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as possible.
20
EN
E7H70UD̲EN.indb 20
2007/02/26 18:11:14
CONNECTION TO A TV
Introduction
Make one of the following connections, depending on the capabilities of your display device.
analog audio
Method 2
Method 3
standard picture
good picture
better picture
VIDEO
IN
rear of your TV
COMPONENT
VIDEO IN
S-VIDEO IN
Y
AUDIO IN
L
Connections
TV
Method 1
R
PB/CB
PR/CR
RCA
audio cable
this unit
and
VIDEO
OUT
Basic Setup
RCA
video cable
S-video cable
or
or
component
video cable
VIDEO
OUT
L
Y
L
Disc
Management
IN
VIDEO VIDEO
IN
OUT
L
L
OUT
HDMI OUT
PB/CB
S-VIDEO
OUT
ANTENNA
R
AUDIO IN
(L1)
IN
R
S-VIDEO AUDIO OUT
COAXIAL
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
R
R
AUDIO OUT
AUDIO OUT
AUDIO OUT
PR/CR
VIDEO OUT
COMPONENT
VIDEO OUT
S-VIDEO OUT
COMPONENT
VIDEO OUTPUT
Recording
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Playback
After you have completed the connections
• Switch the input selector on your TV to an appropriate external input channel. Press a button on the TV’s original
remote control that selects an external input channel until the DVD recorder’s opening picture appears. Check your
TV owner’s manual for details.
Note
Editing
• Connect this unit directly to the TV. If the RCA audio/video cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
• Progressive signal does not output from the VIDEO OUT or S-VIDEO OUT jack.
To set progressive scan mode, refer to page 103
• This unit is compatible with the progressive scan system. The feature provides you the higher quality images than the
traditional output system. To utilize this feature, you must set “Progressive” to “ON”.
Function Setup
Others
EN
E7H70UD̲EN.indb 21
21
2007/02/26 18:11:15
CONNECTION TO A TV WITH AN HDMI™ COMPATIBLE PORT
A simple 1-cable connection with a device having an HDMI (high-definition multimedia interface) connector allows
digital transfer of the digital images of DVD-video and other devices.
TV
HDMI IN
HDMI cable
this unit
HDMI OUT
When connecting with an HDMI cable, the audio signal will be output as the digital audio signal simultaneously, so
you do not need the analog audio connection described on page 21.
Cables not included.
Please purchase the necessary cables at your local store.
HDMI Mode and Actual Output Signals
Press [HDMI] to select the HDMI output mode. The output mode changes as follows every time [HDMI] is pressed.
Front Panel Display
HDMI Indicator
480p
Video Output Signal
480 Progressive
Press [HDMI]
720p
720 Progressive
1080i
1080 interlaced
1080p
1080 Progressive
HDMI indicator
Press [HDMI]
Press [HDMI]
Press [HDMI]
• The HDMI mode that is not supported by display device will be skipped.
22
EN
E7H70UD̲EN.indb 22
2007/02/26 18:11:15
CONNECTION TO A TV WITH AN HDMI™ COMPATIBLE PORT
Introduction
Actual Output Modes by Media
Audio recording format of the disc
Dolby Digital
DVD-video
Dolby Digital
DivX®
MP3 / MP2
Actual output
PCM
2channel PCM
Stream
Dolby Digital
PCM
Stream
2channel PCM
PCM
2channel PCM
Stream
Dolby Digital
PCM
Stream
Connections
LPCM
Dolby Digital setting of this unit
2channel PCM
Basic Setup
For audio CD and MP3 / WMA files, 2 channel PCM will be output regardless of the “Dolby Digital” setting.
If the connected device is not compatible with HDMI BITSTREAM, audio will be output as PCM even if you select
“Stream” in “Dolby Digital” setting (Refer to page 98).
*HDMI: High Definition Multimedia Interface
Disc
Management
Copyright protection system
To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the
display device (or an AV amplifier) support a copyright protection system called HDCP (high-bandwidth digital
content protection system). HDCP is copy protection technology that comprises data encryption and authentication
of the connected AV device. This unit supports HDCP. Please read the operating instructions of your display device
(or AV amplifier) for more information.
Note
Recording
Playback
• Because HDMI is an evolving technology, it is possible that some devices with an HDMI input may not operate
properly with this unit.
• When using an HDCP-incompatible display device, the image will not be viewed properly.
• Among the devices that support HDMI, some devices can control other devices via the HDMI connector; however,
this unit cannot be controlled by another device vice the HDMI connector.
• The audio signals from the HDMI connector (including the sampling frequency, the number of channels and bit
length) maybe limited by the device that is connected.
• Among the monitors that support HDMI, some do not support audio output (for example, projectors). In
connections with device such as this unit, audio signals are not output from the HDMI output connector.
• When this unit’s HDMI connector is connected to a DVI-D compatible monitor (HDCP compatible) with an HDMIDVI converter cable, the signals are output in digital RGB.
• If the connected equipment is not compatible with HDMI BITSTREAM, DTS sound will not be output.
• When the power failure occurs, or when you unplug the unit, some problems in the HDMI setting might occur.
Please check and set the HDMI setting again.
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 23
23
2007/02/26 18:11:16
CONNECTION TO AN AUDIO SYSTEM
• When you change the connections, all devices should be turned off.
• Refer to the owner’s manual accompanying external devices for more information.
Playing Back 2 Channel Analog Audio
Playing Back Multi Channel Digital Audio
stereo system
Dolby Digital decoder, DTS decoder
audio
AUDIO IN
L
R
COAXIAL
digital audio
coaxial input jack
analog audio
input jacks
digital audio coaxial cable
RCA audio cable
IN
IN
VIDEO VIDEO
IN
OUT
L
L
VIDEO VIDEO
IN
OUT
Y
L
HDMI OUT
this unit
PB/CB
OUT
ANTENNA
R
AUDIO IN
(L1)
IN
R
S-VIDEO AUDIO OUT
OUT
PR/CR
COMPONENT
VIDEO OUT
L
HDMI OUT
PB/CB
COAXIA
R
OUT
DIGITAL AUDIO O
PCM / BITSTR
S-VIDEO
Y
ANTENNA
AUDIO IN
(L1)
IN
R
S-VIDEO AUDIO OUT
PR/CR
COMPONENT
VIDEO OUT
OUT
COAXIAL
S-VIDEO
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
DIGITAL AUDIO OUTPUT
*MD deck or DAT deck can be also connected through coaxial jack.
AUDIO OUT
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Multi Channel Digital Audio Setting
Setting
Connection
Setup >General Setting >Playback >Audio Out >
Dolby Digital
DTS
If output is Dolby Digital encoded audio, connect to
a Dolby Digital decoder.
Stream
OFF
If output is DTS encoded audio, connect to a DTS
decoder.
PCM
ON
If output is encoded audio for both Dolby Digital
and DTS, connect to the decoder which encodes
multiple audio sources.
Stream
ON
Connecting to an MD deck or DAT deck.
PCM
OFF
If not connected to any external devices.
PCM
OFF
* To complete these settings, refer to page 98.
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound
by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel
surround sound as heard in the movie theaters.
• By connecting this unit to the DTS decoder, you can enjoy Multi-channel Surround System which reproduces the
original sound as truthfully as possible. Multi-channel Surround System is developed by the DTS, Inc.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
24
EN
E7H70UD̲EN.indb 24
2007/02/26 18:11:16
INITIAL SETTING
Introduction
Turn on this unit for the first time, you need to follow these steps.
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
DISPLAY
Use [K / L] to select your desired
language, then press [ENTER] to set
language.
Basic Setup
SETUP
Before:
Turn the TV on. Select the input to
which the unit is connected.
Initial Setting
TIMER
PROG.
SPACE
DTV/TV
CH
1
2
Connections
OPEN/
CLOSE
Press [I/y
y ON/STANDBY].
OSD Language
AUDIO
English
Français
Español
TOP MENU
MENU/LIST
ENTER
RETURN
3
Disc
Management
CLEAR
Use [K / L] to select the desired
channel preset type then press
[ENTER].
Initial Setting
SKIP
FWD
REV
SKIP
Channel Preset
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REC
SE-R0264
CH
1
Editing
Auto Presetting Now
Press [ENTER] to activate “Clock
Setting”.
Initial Setting
Function Setup
4
Clock Setting
--- / -- / ---- (---)
-- : -- --
Proceed to step 5 in “Manual Clock
Setting” on page 30.
• If a PBS (public broadcasting station) is
available in your area, press [RETURN] or
[SETUP] to exit, then follow “Auto Clock
Setting” on page 29.
EN
E7H70UD̲EN.indb 25
Others
5
Playback
The unit will start getting channels available in
your area.
Air:
(When using antenna)
The channels broadcasted in TV and DTV are
automatically scanned and memorized. Only the
receivable channels in the area where this TV is
used will be memorized.
Cable:
(When using basic cable)
The channels broadcasted in CATV are
automatically scanned and memorized.
ZOOM
Recording
REPEAT REC MODE
Make sure the antenna is
connected to “ANTENNA IN” jack.
Air
Cable
25
2007/02/26 18:11:17
CHANNEL SETTING
If you have changed antenna connection, we recommend that you program available channels in your area with the
following procedures.
Auto Channel Scan
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
TOP MENU
AUDIO
MENU/LIST
ENTER
CLEAR
SKIP
1
2
3
4
FWD
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REC
Use [K / L] to select “Auto Preset”,
then press [ENTER].
Use [K / L] to select the type of
broadcasting signal, then press
[ENTER].
ZOOM
Note
• If the auto channel preset is canceled during
presetting, some channels not yet preset may not be
received.
• The selection will depend on how you receive the TV
channels.
Auto Preset
Auto Preset Manual Preset
TV Audio Select
Air
Cable
Cable (Extended Scan)
The unit will start getting channels available in
your area.
Air:
(When using antenna)
The channels broadcasted in analog TV and
digital TV are automatically scanned and
memorized. Only the receivable channels in the
area will be memorized.
Cable:
(When using basic cable)
The channels broadcasted in analog CATV are
automatically scanned and memorized.
Cable (Extended Scan):
(When using basic cable)
The channels broadcasted in analog CATV and
digital CATV are automatically scanned and
memorized.
To cancel the auto channel preset during
scanning:
Press [RETURN] or [SETUP] to cancel.
SE-R0264
26
“Channel” menu will appear.
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
SKIP
PAUSE
REPEAT REC MODE
Use [K / L] to select “Channel”, then
press [ENTER].
General Setting
RETURN
REV
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
5
When scanning is over, press [SETUP]
to exit.
To cycle through only the memorized channels, use
[CH
/ ].
To select a channel directly (including the ones not
memorized), use [the Number buttons] and [-] (for
digital TV channels).
EN
E7H70UD̲EN.indb 26
2007/02/26 18:11:18
CHANNEL SETTING
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
DISPLAY
TOP MENU
AUDIO
Use [K / L] to select “Channel”, then
press [ENTER].
“Channel” menu will appear.
Use [K / L] to select “Manual Preset”,
then press [ENTER].
“Manual Preset” menu will appear.
• If you are adding or deleting analog TV
on page 28 to
channels, go to
ANALOG
continue.
• If you are deleting digital TV channels, go to
on page 28 to continue
DIGITAL
MENU/LIST
Recording
ENTER
CLEAR
SKIP
Disc
Management
TIMER
PROG.
SPACE
DTV/TV
CH
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
Basic Setup
OPEN/
CLOSE
1
2
3
4
Press [DTV/TV] to select the mode
(DTV or TV) to/from which you want
to add or delete channels.
Connections
You may want to add or delete TV channels if your
channel lineup changes or if you no longer watch some
channels.
Adding channels is only available for the analog TV
channels.
Make sure
• You perform “Auto Channel Scan” before adding or
deleting the channels.
Introduction
Adding/Deleting Channels
RETURN
FWD
REV
SKIP
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
Playback
PAUSE
ZOOM
Editing
SE-R0264
Function Setup
EN
E7H70UD̲EN.indb 27
Others
Instructions continue on the next page.
27
2007/02/26 18:11:18
CHANNEL SETTING
5
6
ANALOG
Select the channel number to add or
delete.
• Use [CH
/ ] to cycle through only the
memorized channels.
• Use [{ / B] to cycle through all the channels
including the ones not memorized.
• Use [the Number buttons] to select a channel
directly.
• When a memorized channel is selected, “Add”
is checked and highlighted as a default.
• When an unmemorized channel is selected,
“Delete” is checked and highlighted as a
default.
Use [K / L] to select “Add” or
“Delete”, then press [ENTER].
Manual Preset
5
6
CH 2
DIGITAL
Select the channel number to delete.
• Only the major channel is displayed in “Manual
Preset” menu. (The channel number displayed
in the parenthesis is a virtual channel number)
• Use [CH
/ ] to cycle through only the
memorized channels.
• You cannot use [{ / B] for the digital TV
channel selection.
• Use [the Number buttons] to select a channel
directly.
• When an unmemorized channel is selected
“Delete” is checked and highlighted as a
default.
Use [K / L] to select “Delete”, then
press [ENTER]. Then select the next
channel to delete.
• If the setting is complete, press [RETURN] to
activate “Manual Preset”.
Manual Preset
Add
Delete
Your setting will be activated and it will
automatically switch to the next channel so that
you can continue adding or deleting channels.
7
DTV 2
Your setting will be activated.
Press [SETUP] to exit.
WARNING:
• For the digital TV channels, you cannot recover the
deleted channels once they are deleted unless you
perform the auto channel preset again.
7
28
(CH - - - )
Add
Delete
Press [SETUP] to exit.
EN
E7H70UD̲EN.indb 28
2007/02/26 18:11:19
SETTING THE CLOCK
Introduction
Set the clock before you try the timer programming. If a PBS (public broadcasting station) is available in your area,
follow “Auto Clock Setting” below. If not, follow “Manual Clock Setting” on page 30.
Auto Clock Setting
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
TOP MENU
AUDIO
Use [K / L] to select “Auto Clock
Setting”, then press [ENTER].
Use [K / L] to select “Auto”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Clock Setting
Auto Clock Setting
Auto Clock Setting
Daylight Saving Time
OFF
Auto
Manual
MENU/LIST
CLEAR
RETURN
FWD
REV
SKIP
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
Press [I/y
y ON/STANDBY] to turn off
the unit.
This unit will search for the time only when the
power is off. Leave it off for several minutes to
give this unit time to set the clock.
If the unit chooses an incorrect PBS channel, set the PBS
channel manually by following the steps below.
Use [the Number buttons] or [K / L]
to enter your PBS channel number,
then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Note
3
Press [SETUP] to exit and turn off the
unit.
EN
E7H70UD̲EN̲Basic Setup.indd 29
Others
• The unit receives the clock data at 12:00 a.m/p.m
from the PBS channel when the power is off.
• The clock may set itself automatically after this unit
receive the antenna/cable signal and plug in the
power cord.
• Only the analog PBS channel signal is effective for
auto clock setting.
Clock Setting
Auto Clock Setting
Auto Clock Setting
Daylight Saving Time
Set Channel No.
OFF
Auto
CH
1
Manual
Function Setup
1
2
Select “Manual” at step 4, then press
[ENTER].
Editing
SE-R0264
Press [SETUP] to exit.
Playback
PAUSE
5
6
Recording
ENTER
SKIP
“Clock” menu will appear.
Disc
Management
INPUT
SELECT
Use [K / L] to select “Clock”, then
press [ENTER].
Basic Setup
OPEN/
CLOSE
1
2
3
4
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
Connections
This unit can set the time and date automatically by
referring to a PBS station.
Make sure
• The antenna/cable TV connections are correct.
• Channels are set. (Refer to pages 26-28.)
• If this unit is connected to a cable/satellite box,
select the local PBS station on them to set the clock
automatically.
29
2007/02/27 17:33:49
SETTING THE CLOCK
Manual Clock Setting
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
1
2
3
4
Use [K / L] to select “Clock”, then
press [ENTER].
“Clock” menu will appear.
Use [K / L] to select “Clock Setting”,
then press [ENTER].
Use [K / L] to select calendar or time,
then press [ENTER].
General Setting
Playback
Display
Clock Setting
Video
Clock Setting Auto Clock Setting
Recording
Daylight Saving Time
JAN / 01 / 2007 ( MON )
Clock
12 : 00 AM
Channel
DivX
HDMI
Reset All
Daylight Saving Time
When “Daylight Saving Time” is “ON”, the unit clock will
automatically adjust the time in order to fit the daylight
saving time.
“ON (MAR - NOV)” has been selected as the default.
1
2
3
4
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
Use [K / L] to select “Clock”, then
press [ENTER].
“Clock” menu will appear.
Use [K / L] to select “Daylight Saving
Time”, then press [ENTER].
Use [K / L] to select “ON (MAR NOV)”, “ON (APR - OCT)” or “OFF”,
then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Use [{ / B] to select an item to set,
and use [K / L] to select the contents
to suit your preference, then press
[ENTER].
5
ON (MAR - NOV):
Move forward one hour on the second Sunday in
March and move back one hour on the first
Sunday in November.
ON (APR - OCT):
Move forward one hour on the first Sunday in
April and move back one hour on the last
Sunday in October.
General Setting
Playback
Display
Clock Setting
Video
Clock Setting Auto Clock Setting
Recording
Daylight Saving Time
JAN / 01 / 2007 ( MON )
Clock
12 : 00 AM
Channel
DivX
HDMI
Reset All
Your setting will be activated.
The clock start counting when you press
[ENTER].
6
Clock Setting
Auto
Clock Setting
Daylight Saving
Time
Daylight Saving Time
ON (MAR - NOV)
ON (APR - OCT)
OFF
5
Press [SETUP] to exit.
Press [SETUP] to exit.
Note
• Your clock setting will be lost if either there is a power
failure or this unit has been unplugged for more than
30 seconds when you set the clock manually.
• For setting the day, year, hour and minute,
[the Number buttons] can also be used.
• You can set the built-in calendar from the year 2007
up to 2056.
30
EN
E7H70UD̲EN.indb 30
2007/02/26 18:11:20
TUNER SETTINGS
You can easily switch the analog TV (NTSC) and digital TV
(ATSC) with the remote control.
Note
DTV 2-1
Now Scanning
Select channels by using [CH
buttons] on remote control.
[CH
/
Use [CH
]
/
/
] or [the Number
] to change the channel.
NTSC
ATSC
18:00
Function Setup
CH4-1 Smallest Smallest
CH
CH
18:30
CH4-1
CH4
CH4-2
CH4-3
CH4-1 Smallest
CH
CH4-3
19:00
19:30
CH4-2 Smallest
CH
CH4-1
20:00
/
Others
: change automatically
: change manually by using [CH
]
EN
E7H70UD̲EN.indb 31
Editing
About minor-channel broadcasting:
There may be different programs being broadcast on
minor channels through a single channel from ATSC. You
can watch each minor channel program being broadcast
by selecting one of the minor channels.
Playback
• In digital TV broadcasting, 2 or more channels, called
minor channels, are simultaneously broadcast on one
main channel, called major channel.
Recording
Note
Disc
Management
[the Number buttons]
Press the channel number with [the Number buttons] to
select a channel you want to watch.
<Analog TV channels>
Enter the channel number with [the Number buttons] to
select a channel you want to watch.
For 1-digit number
e.g.) 2 ch:
[0] + [2], [2] + [-] or
[2] + leave it for 2 seconds.
For 2-digit number
e.g.) 25ch:
[2] + [5]
<Digital TV channels>
Enter the major and minor channel number with [the
Number buttons] to select a channel you want to watch.
For 1-digit number
e.g.) 2-2 ch:
major channel
[0] + [2] or [2] + [-]
minor channel
[0] + [2], [2] + [-] or
[2] + leave it for 2 seconds.
For 2-digit number
e.g.) 35-16ch:
major channel
[3] + [5]
minor channel
[1] + [6]
• If you enter 1 digit for major channel and leave it for 2
seconds, the number will be taken as the major channel
and lowest minor channel of the major channel will be
displayed.
• If there is no minor channel input, lowest minor channel
of the major channel will be displayed.
Basic Setup
• When you switch the analog mode to the digital
mode, it may take awhile until the digital channel
selection is completed. The following screen is
displayed while switching the mode.
Channel Selection
Connections
Press [DTV/TV] on the remote control.
• The analog mode and digital mode switch alternately.
Introduction
Switching Analog Mode /
Digital Mode
31
2007/02/26 18:11:21
TUNER SETTINGS
This section describes how to switch the TV audio.
When you record a TV program, only output sound channel will be recorded.
Selecting TV Audio
Digital TV
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
DISPLAY
TOP MENU
AUDIO
MENU/LIST
ENTER
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
English 1/2
CH
TIMER
PROG.
SPACE
DTV/TV
1
Press [AUDIO ] to cycle through
available audio languages.
• When you press [AUDIO ], selected language
will be displayed on the TV screen.
• Every time you press [AUDIO ], the language
will be switched.
e.g.) English 1/3 → Spanish 2/3 → Other 3/3
• Available languages differ depending on the
broadcast.
• The information display will automatically
disappear.
• When you record digital TV broadcasting, the
audio language you have selected will be
recorded.
ZOOM
SE-R0264
Note
• The timer recording for digital TV cannot record any
audio language other than English.
• [AUDIO ] does not control external device audio.
• When there is only one audio channel on the
broadcast, pressing [AUDIO ] does not display
anything.
32
EN
E7H70UD̲EN.indb 32
2007/02/26 18:11:21
TUNER SETTINGS
Introduction
Selecting TV Audio (cont’d)
Analog TV
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
MENU/LIST
Use [K / L] to select “Channel”, then
press [ENTER].
“Channel” menu will appear.
Use [K / L] to select “TV Audio
Select”, then press [ENTER].
Use [K / L] to select “Stereo” or
“SAP”, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
ENTER
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
Auto Preset
Manual Preset
TV Audio Select
TV Audio Select
Stereo
SAP
Recording
PAUSE
Disc
Management
TOP MENU
AUDIO
1
2
3
4
Basic Setup
INPUT
SELECT
Connections
OPEN/
CLOSE
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
Stereo:
Outputs main-audio.
SAP (secondary audio program):
Outputs sub-audio.
ZOOM
Playback
5
Press [SETUP] to exit.
SE-R0264
Note on recording analog TV channel audio
Selected
audio
SAP
Disc
recording
Audio
output
STEREO
STEREO
STEREO
STEREO
STEREO
MONO+SAP
MONO
MONO
MONO
MONO
MONO
STEREO+SAP
SAP
SAP
STEREO
STEREO
STEREO
MONO+SAP
SAP
SAP
MONO
MONO
MONO
EN
E7H70UD̲EN.indb 33
Others
STEREO+SAP
Function Setup
Stereo
Broadcast
audio
Editing
• When you record an analog TV program available in
second audio or stereo, you have to select either
“Stereo” or “SAP” in “Channel” menu beforehand.
Refer to the following table to check an appropriate
setting.
33
2007/02/26 18:11:22
TUNER SETTINGS
DTV Closed Caption
Digital TV
Apart from closed captions, Digital TV has its own closed captions called DTV CC. Use this menu to change the settings
for DTV CC.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
TOP MENU
AUDIO
1
2
3
MENU/LIST
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
Use [K / L] to select “Display”, then
press [ENTER].
Use [K / L] to select “CC Style”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
ENTER
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
4
ZOOM
SE-R0264
5
34
EN
E7H70UD̲EN.indb 34
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
CC Style
DTV CCOSD Language
Screen Saver
User Setting
FL Dimmer
Font Size
CC Style
Font Style
EdgeV-Chip
Type
Font Opacity
Font Color
Back Opacity
Back Color
Use [K / L] to the desired DTV closed
caption, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
CC Style
DTV CC
CCOSD Language
DTV
Screen Saver
UserOFF
Setting
FL Dimmer
Font
Size
Service1
CC Style
Font
Style
Service2
V-Chip
Edge
Type
Service3
Font
Opacity
Service4
Font
Color
Service5
Back
Opacity
Service6
Back Color
OFF:
Select if you do not want DTV CC. This is the
default.
Service 1 to Service 6:
Select one of these before changing any other
item in the closed caption menu. Choose
“Service 1” under normal circumstances.
Note
• Even if you set “DTV CC” to anything other than
“OFF”, its effect will temporarily be canceled while
recording.
Use [K / L] to select “DTV CC”, then
press [ENTER].
6
Press [SETUP] to exit.
2007/02/26 18:11:23
TUNER SETTINGS
Introduction
Closed Caption Style
Digital TV
Digital TV can also change the style of its closed caption such as font, color or size, etc.
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
MENU/LIST
Use [K / L] to select “Display”, then
press [ENTER].
Use [K / L] to select “CC Style”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
Disc
Management
TOP MENU
AUDIO
1
2
3
ENTER
CLEAR
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
CC Style
DTV CCOSD Language
Screen Saver
User Setting
FL Dimmer
Font Size
CC Style
Font Style
EdgeV-Chip
Type
Font Opacity
Font Color
Back Opacity
Back Color
Use [K / L] to select “ON”, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Editing
5
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Playback
SE-R0264
4
Use [K / L] to select “User Setting”,
then press [ENTER].
Recording
SKIP
CC Style
Function Setup
DTV CCOSD Language
Screen Saver
User
User Setting
Setting
FL Dimmer
Font Size
ONStyle
CC Style
Font
OFF
V-Chip
Edge
Type
Font Opacity
Font Color
Back Opacity
Back Color
EN
Others
Instructions continue on the next page.
E7H70UD̲EN.indb 35
Basic Setup
INPUT
SELECT
Connections
OPEN/
CLOSE
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
35
2007/02/26 18:11:24
TUNER SETTINGS
6
Use [K / L] to select the item and
switch the setting for each item you
want to set, then press [ENTER].
<Font Color>
Font color of the displayed caption can be
switched as below.
• When “User Setting” is set to “ON”, you can set
the following items. CC style set by “User
Setting” will be displayed.
• The setting description for each item is shown
below.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
<Font Size>
Font size of the displayed caption can be
switched as below.
CC Style
DTV CCOSD Language
Screen Saver
User
Font Setting
Size
FL Dimmer
Font Size
CC Style
Middle
Font
Style
V-Chip
Large
Edge
Type
Small
Font
Opacity
Font Color
Back Opacity
Back Color
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
<Font Style>
Font style of the displayed caption can be
switched as below.
CC
Style
Font
Style
DTV Style1
CCOSD Language
Screen Saver
UserStyle2
Setting
FL Dimmer
Font
Size
Style3
CC Style
Font
Style
Style4
V-Chip
Edge
Type
Style5
Font
Opacity
Style6
Font
Color
Style7
Back
Opacity
Style8
Back Color
General Setting
CC Style
EdgeCC
Type
OSD Language
DTV
Screen Saver
User None
Setting
FL Dimmer
Font
Size
Raised
CC Style
Font
Style
Depressed
V-Chip
Edge
Type
Uniform
Font
Opacity
L.Shadow
Font
Color
R.Shadow
Back Opacity
Back Color
DTV CCOSD Language
Screen Saver
User
BackSetting
Opacity
FL Dimmer
Font Size
CC Style
Solid
Font
Style
V-Chip
Translucent
Edge
Type
Flash
Font
Opacity
Font Color
Back Opacity
Back Color
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
<Edge Type>
Edge type of the displayed caption can be
switched as below.
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
CC Style
<Back Color>
Background color of the displayed caption can
be switched as below.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
DTV Transparent
CCOSD Language
Screen Saver
UserWhite
Setting
FL Dimmer
Black
Font
Size
CC Style
RedStyle
Font
V-Chip
Green
Edge
Type
Blue
Font
Opacity
Yellow
Font
Color
Magenta
Back
Opacity
Cyan
Back
Color
<Back Opacity>
Background opacity of the displayed caption can
be switched as below.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Font
Color
CC
Style
7
Back
Color
CC
Style
DTV Transparent
CCOSD Language
Screen Saver
UserWhite
Setting
FL Dimmer
Black
Font
Size
CC Style
Red
Font
Style
V-Chip
Green
Edge
Type
Blue
Font
Opacity
Yellow
Font
Color
Magenta
Back
Opacity
Cyan
Back
Color
Press [SETUP] to exit.
<Font Opacity>
Font opacity of the displayed caption can be
switched as below.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
36
CC Style
DTV CCOSD Language
Screen Saver
User
Font Setting
Opacity
FL Dimmer
Font Size
CC Style
Solid
Font
Style
V-Chip
Translucent
Edge
Type
Flash
Font
Opacity
Font Color
Back Opacity
Back Color
EN
E7H70UD̲EN̲Basic Setup.indd 36
2007/03/09 9:00:32
FORMATTING A DISC
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
CH
1
2
Use [K / L] to select “DVD Menu”,
then press [ENTER].
Basic Setup
OPEN/
CLOSE
Press [SETUP].
Connections
When inserting a brand-new DVD-RW or DVD+RW, the unit automatically starts to initialize the disc. DVD+RW will
always be formatted in +VR mode, and DVD-RW will be formatted either video or VR mode according to the recording
format mode setting of the unit. Before insert a brand-new DVD-RW, you need to set the recording format to the
desired mode. You can also manually format a DVD-RW once it has been used.
Introduction
Choosing the Recording Format of a Brand-New DVD-RW
Setup
General Setting
Timer Programming
Title List
SETUP
DISPLAY
TOP MENU
AUDIO
MENU/LIST
Disc
Management
DTV/TV
DVD Menu
TIMER
PROG.
SPACE
3
Use [K / L] to select “Format”, then
press [ENTER].
4
Use [K / L] to select “Format Mode”,
then press [ENTER].
DVD Menu
Format
Finalize
ENTER
SKIP
PAUSE
TIME SLIP
RETURN
FWD
REV
STOP
PLAY
1.3x / 0.8x PLAY
REC
DVD Menu
Format
Finalize
Start
Format Mode
INSTANT SKIP
ZOOM
Formatting
90%
Formatting is completed.
“100%” is indicated.
Others
• The recording format setting is effective only for
DVD-RW. You cannot change the recording format
for a DVD-R and DVD+RW/+R.
• You cannot mix two formats on one DVD-RW. If you
insert a disc that has been recorded before, the
recording format cannot be changed even if you
change it in the main menu.
Insert a brand-new disc.
Formatting will start.
Function Setup
Note
Press [SETUP] to exit.
Editing
SE-R0264
5
6
7
8
Use [K / L] to select “Video mode” or
“VR mode”, then press [ENTER].
EN
E7H70UD̲EN.indb 37
Playback
REPEAT REC MODE
SKIP
Recording
CLEAR
37
2007/02/26 18:11:25
FORMATTING A DISC
Reformatting a Disc Manually
If you are using a DVD-RW or DVD+RW, you can format the disc by performing “Format”. You can format DVD-RW for
either video mode recording or VR mode recording. DVD+RW can be format in order to erase all content of the disc.
Insert a recordable disc.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
CH
1
2
WXYZ
TUV
Press [SETUP].
Use [K / L] to select “DVD Menu”,
then press [ENTER].
Setup
General Setting
Timer Programming
Title List
TIMER
PROG.
SPACE
DTV/TV
SETUP
DISPLAY
TOP MENU
AUDIO
MENU/LIST
DVD Menu
3
SKIP
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
e.g.) VR mode DVD-RW
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlists
ENTER
CLEAR
Use [K / L] to select “Format”, then
press [ENTER].
4
ZOOM
Use [K / L] to select “Start”, then
press [ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlist
Start
Format Mode
Selection menu will appear and prompt you to
confirm.
• For DVD+RW, use [K / L] to select “Yes”, then
press [ENTER].
SE-R0264
5
Use [K / L] to select “Yes”, then press
[ENTER].
Formatting will start.
If you want to cancel formatting, select “No”.
DVD Menu
Format
Finalize
Start
Disc Protect OFF ON
Format Mode
Are you sure?
Delete All Playlist
Yes
No
Note
• When you reformat the disc, the contents of the disc
are erased.
• For DVD-RW, make sure that the recording format is
set to the desired mode. (See steps 1 to 6 in
“Choosing the Recording Format of a Brand-New
DVD-RW” on page 37.)
38
6
Formatting is completed.
“100%” is indicated.
Formatting
100%
EN
E7H70UD̲EN.indb 38
2007/02/26 18:11:26
PREPARING A DISC
Introduction
Make Recording Compatible
Setting for Auto Chapter
You can set a specified time for chapter marks.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [ENTER].
2) Use [K / L] to select “Recording”, then press
[ENTER].
“Recording” menu will appear.
3) Use [K / L] to select “Auto Chapter”, then press
[ENTER].
4) Use [K / L] to select a desired time option, then
press [ENTER].
3) Use [K / L] to select “Make Recording Compatible”,
then press [ENTER].
General Setting
General Setting
Auto Chapter
Recording Audio Select (XP)
Auto Chapter
Auto Finalize
OFF Aspect Ratio (Video mode)
5 minutes
Make Recording Compatible
10 minutes
15 minutes
30 minutes
60 minutes
Disc
Management
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
4) Use [K / L] to select “ON” or “OFF”, then press
[ENTER].
Auto Chapter
Recording
Audio Select (XP)
Make Recording
Compatible
Auto Finalize
ON
Aspect Ratio (Video mode)
OFF
Make Recording Compatible
5) Press [SETUP] to exit.
Recording
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Basic Setup
2) Use [K / L] to select “Recording”, then press
[ENTER].
“Recording” menu will appear.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [ENTER].
Connections
Use this feature to make the discs recorded on other unit
recordable on this unit. When you make an additional
recording on this unit with “Make Recording Compatible”
set to “ON”, the title list is automatically converted to our
style.
Note
ON:
OFF:
• The interval for auto chapter marks may slightly
differ.
• A blank chapter may be created depending on the
remaining time of the disc.
Playback
Title list will be replaced when you make
additional recordings to the discs recorded by
other units.
Prohibiting additional record to the disc that
has a title list created by other units.
5) Press [SETUP] to exit.
Note
• This function is also available for unfinalized DVD+R.
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 39
39
2007/02/26 18:11:27
PREPARING A DISC
Recording Audio Select (XP)
You can enjoy high quality sound recording. This function
works only when the recording mode is set at XP.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [ENTER].
Setting Aspect Ratio for Video Mode
Recording
You can set aspect ratio for video mode recording.
1) Follow step 1 to 2 on “Recording Audio Select(XP)”.
2) Use [K / L] to select “Recording”, then press
[ENTER].
“Recording” menu will appear.
2) Use [K / L] to select “Aspect Ratio (Video mode)”,
then press [ENTER].
3) Use [K / L] to select “Recording Audio Select (XP)”,
then press [ENTER].
3) Use [K / L] to select your desired setting, then press
[ENTER].
General Setting
4) Use [K / L] to select “PCM” or “Dolby Digital”, then
press [ENTER].
Playback
Display
Auto Chapter
Video
Recording
Audio Select (XP)
Aspect Ratio (Video
mode)
Recording
Auto Finalize
Auto
Clock
Aspect Ratio (Video mode)
4
:
3
Channel
Make Recording Compatible
16 : 9
DivX
HDMI
Reset All
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Auto Chapter
Audio
Select (XP)
Recording Recording
Audio Select
(XP)
Auto Finalize
PCM Aspect Ratio (Video mode)
Dolby Digital
Replace Disc Menu
PCM:
Records PCM audio for the best quality sound.
Dolby Digital:
Records Dolby Digital audio for good quality sound.
5) Press [SETUP] to exit.
Note
• “PCM” stands for Pulse Code Modulation. It changes
analog sound to digital sound without compressing
audio data.
• When the recording mode is set at other than XP, the
unit records “Dolby Digital” audio automatically even
if you selected “PCM”.
40
Auto (default): It will be recorded with whichever the
ratio that the program you started to record are
broadcasted with.
4:3 : Recorded in the aspect ratio of 4:3.
16:9 : Recorded in the aspect ratio of 16:9.
4) Press [SETUP] to exit.
Note
• For DVD-RW VR mode, the image will be recorded in
whichever the ratio that the program you record are
broadcasted with, regardless of the “Aspect Ratio
(Video mode)” setting.
• For DVD+RW/+R, the image will always be recorded
in aspect ratio of 4:3.
EN
E7H70UD̲EN.indb 40
2007/02/26 18:11:28
SETTING A DISC TO PROTECT
INPUT
SELECT
HDMI
.@/:
ABC
DEF
JKL
MNO
PQRS
TUV
WXYZ
DTV/TV
SETUP
DISPLAY
e.g.) VR mode DVD-RW
DVD Menu
AUDIO
MENU/LIST
ENTER
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
DVD Menu
Recording
PAUSE
4
Use [K / L] to select “Yes”, then press
[ENTER].
Disc
Management
TOP MENU
Use [K / L] to select “Disc Protect
OFF ON”, then press [ENTER].
Format
Finalize
Disc Protect OFF ON
Delete All Playlists
TIMER
PROG.
SPACE
Use [K / L] to select “DVD Menu”,
then press [ENTER].
Basic Setup
GHI
CH
Press [SETUP].
Connections
OPEN/
CLOSE
1
2
3
Introduction
To prevent accidental recording, editing or erasing the
titles, you can protect them from “DVD Menu” menu.
Format
Finalize
Disc Protect OFF ON
Protect this disc?
Delete All Playlist
Yes
No
ZOOM
Playback
A disc will be protected.
This operation may take
awhile to be completed.
SE-R0264
Editing
Function Setup
Note
To cancel the disc protect:
• When you insert a disc protected with this unit,
“Disc Protect ON OFF” will appear instead of “OFF
ON”.
DVD Menu
To release the protect for the disc, select “Yes” at step 4.
EN
E7H70UD̲EN.indb 41
Others
Format
Finalize
Disc Protect ON
OFF
Delete All Playlist
41
2007/02/26 18:11:29
PLAYING THE DISCS IN OTHER DVD PLAYERS
Auto Finalizing
You can finalize discs automatically using this function.
You can use this function to finalize discs after finishing
all timer recordings and at the end of the disc space.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
AUDIO
1
2
3
4
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
“General Setting” menu will appear.
Use [K / L] to select “Recording”,
then press [ENTER].
“Recording” menu will appear.
Use [K / L] to select “Auto Finalize”,
then press [ENTER].
Use [K / L] to select “Disc Full” or
“End of Timer Rec”, then press
[ENTER].
General Setting
TOP MENU
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
MENU/LIST
ENTER
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
Auto Chapter
Recording Audio Select (XP)
Auto Finalize
Auto Finalize
Disc Full Aspect Ratio (Video mode)
End of Timer
RecRecording Compatible
Make
5
ZOOM
Use [K / L] to select “ON”, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Auto Chapter
Recording Audio Select (XP)
AutoFull
Finalize
Disc
Auto Finalize
Disc
Full Aspect Ratio (Video mode)
ON
EndOFF
of Timer
RecRecording Compatible
Make
SE-R0264
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Auto Chapter
Audio Select (XP)
End
TimerRecording
Rec
AutoofFinalize
Auto Finalize
ON
Disc
Full Aspect Ratio (Video mode)
EndOFF
of Timer
RecRecording Compatible
Make
Your setting will be activated.
6
42
Press [SETUP] to exit.
EN
E7H70UD̲EN.indb 42
2007/02/26 18:11:30
PLAYING THE DISCS IN OTHER DVD PLAYERS
Introduction
Finalizing a Disc
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
SETUP
DISPLAY
TOP MENU
“DVD Menu“ will appear.
Use [K / L] to select “Finalize”, then
press [ENTER].
Use [K / L] to select “Yes”, then press
[ENTER].
e.g.) VR mode DVD-RW
DVD Menu
Disc
Management
DTV/TV
CH
Use [K / L] to select “DVD Menu”,
then press [ENTER].
Format
Finalize
Disc Protect OFF ON
Finalize disc?
Delete All Playlist
AUDIO
Basic Setup
OPEN/
CLOSE
1
2
3
4
Press [SETUP].
Connections
You will need to finalize discs to play back on other DVD
players.
Finalizing may take several minutes up to an hour.
Since the process of the finalization fills empty space of
the disc, a shorter recording period on the disc will
require a longer time period for finalization. Do not
unplug the power cord during finalization.
Yes
No
MENU/LIST
ENTER
SKIP
RETURN
FWD
REV
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
Playback
REC
Finalizing will start.
SKIP
PAUSE
REPEAT REC MODE
Recording
CLEAR
ZOOM
Finalizing
90%
This operation may take
awhile to be completed.
5
Finalizing is completed.
Editing
SE-R0264
Function Setup
Others
EN
E7H70UD̲EN.indb 43
43
2007/02/26 18:11:31
PLAYING THE DISCS IN OTHER DVD PLAYERS
Note
• Finalizing a disc in video mode and +VR mode
automatically creates a title menu.
• After you finalize the DVD+RW, you can call up the
title list by pressing [TOP MENU], or you can call up
the title menu by pressing [MENU/LIST].
• Even after DVD+RW is finalized, you can still record
or edit. After you finalize DVD-RW/-R or DVD+R, you
cannot edit or record anything else on that disc.
• If you insert a DVD-RW finalized with this unit, “Undo
Finalization” will appear instead of “Finalize” at
step 3.
• To release the finalization of the DVD-RW disc, select
“Undo Finalization” at step 3.
DVD Menu
Format
Undo Finalization
Disc Protect OFF
Delete All Playlists
ON
To cancel finalizing...
(DVD-RW only)
Press [STOP C] during the finalizing is in progress. Use
[K / L] to select “Yes”, then press [ENTER]. Finalizing is
canceled and the unit switches to stop mode.
Do you want to cancel ?
Yes
No
Finalizing
5%
If “ ” appears when [STOP C] is pressed, you cannot
cancel finalizing because the finalizing has already
reached at a critical point in its process.
If “No” is selected and [ENTER] or [RETURN] is pressed,
finalizing is continued.
You cannot cancel finalizing a DVD-R, DVD+R and
DVD+RW once it has started.
• To undo the finalization of the DVD+RW, make an
additional recording to the disc.
• DO NOT power off during finalizing. This may result
in a malfunction.
• For DVD+RW, if you have added or deleted chapters,
or made chapters hidden, you must finalize the disc
before being able to see those effects on other units.
To play back discs other than DVD+RW on other DVD
players, you will need to finalize.
44
EN
E7H70UD̲EN.indb 44
2007/02/26 18:11:32
INFORMATION ON DVD RECORDING
Restrictions on Recording
You can select a recording mode among 5 options, and
the recording time will depend on the recording mode
you select as follows.
XP
SP
LP
EP
SLP
Recording time
12cm
8cm
Video/
Sound Quality
60 min 18 min
120 min 36 min
240 min 72 min
360 min 108 min
480 min 144 min
Making discs playable in other DVD players (Finalize)
For DVD-RW/-R, it is necessary to finalize the disc
after recording, in order to play back the disc on
other DVD players. (Refer to pages 42-44.) For
DVD+RW/+R, it is recommended to finalize the disc
in order to make the disc more compatible to other
DVD player. When video and +VR mode disc are
finalized, a title menu is created. You cannot finalize
discs in other DVD recorders.
Recording
Playback
Editing
Function Setup
• This unit cannot record to CD-RW or CD-R.
• All high definition pictures will be down converted to
the standard definition pictures when they are
recorded on this unit.
• DVD-RW/-R, DVD+RW/+R and CD-RW/-R recorded on
a personal computer or a DVD or CD recorder may
not be played back if the disc is damaged or dirty or
if there is condensation on the player’s lens.
• If you record a disc using a personal computer, even
if it is recorded in a compatible format it may not be
played back because of the settings of the
application software used to create the disc. (Check
with the software publisher for more detailed
information.)
• Discs recorded in video mode on this unit cannot
record additional information using other DVD
recorders.
• It is not possible to use a DVD-RW/DVD+RW
formatted with this unit on other DVD recorder
unless the content of the disc was also recorded with
this unit.
• Since the recording is made by the VBR (variable bit
rate) method, depending on the picture you are
recording, the actual remaining time for recording
may be a little shorter than the remaining time
displayed on the TV screen.
Disc
Management
Note
Basic Setup
• The recording times listed above are estimates and are
for reference purposes only. Actual recording times may
vary.
• The audio and video quality of content being recorded
may differ depending on the recording mode/recording
time chosen.
What is “CPRM”?
CPRM is a copy protection system with scramble
system regarding the recording of “copy-once”
broadcast programs. CPRM stands for Content
Protection for Recordable Media.
This unit is CPRM compatible, which means that
you can record copy-once broadcast programs, but
you cannot make another copy of those recordings.
CPRM recordings can only be made on CPRM compatible DVD-RW formatted in VR mode, and CPRM
recordings can only be played back on DVD players
that are specifically compatible with CPRM.
Connections
Recording mode
You cannot record copy-protected program using
this unit. Copy-protected video signal is included in
DVD-videos, some satellite broadcasts, some payper-view stations and some “premium” stations.
If copy-protected material is detected, recording
will pause or stop automatically and an error
message appears on the screen.
“Copy-once only” video can only be recorded to
CPRM compatible DVD-RW formatted in VR mode.
Introduction
Recording Mode
Others
EN
E7H70UD̲EN̲Recording.indd 45
45
2007/02/27 17:34:22
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
Follow the steps to record TV programs.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
DISPLAY
TOP MENU
Press [OPEN/CLOSE A] to open the
disc tray and insert your disc with its
label facing up.
Align the disc to
the disc tray guide.
AUDIO
MENU/LIST
ENTER
CLEAR
SKIP
Turn on the TV and be sure to select the input to
which the unit is connected.
TIMER
PROG.
SPACE
DTV/TV
CH
1
2
Press [I/y
y ON/STANDBY].
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
3
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
• When inserting a brand-new DVD-RW or
DVD+RW, the unit automatically starts to
format.
• If titles have been recorded on the disc, the
title list is displayed. Press [STOP C] to exit the
title list.
ZOOM
4
Press [REC MODE] to select a
recording mode.
Refer to “Recording Mode” on page 45.
SE-R0264
SP
5
1:53
Press [DTV/TV] to select analog TV or
digital TV, then use [CH / ] or [the
Number buttons] and [-] (for digital
TV channels) to select a desired
channel to record.
Refer to “Switching Analog Mode/Digital Mode”
and “Channel Selection“on page 31.
CH 12
46
EN
E7H70UD̲EN.indb 46
2007/02/26 18:11:33
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
7
Press [STOP C] to stop recording.
The recorded title will be included in the title list.
(Refer to “Guide to a Title List” on page 78.)
Connections
I
Wait for a moment
90%
This operation may take
awhile to be completed.
Basic Setup
Press [PAUSE F] to pause recording.
Press [PAUSE F]] or [REC I] again to restart
recording.
To set one-touch timer recording (OTR)...
Disc
Management
This is a simple way to set the recording time in blocks
of 30 minutes.
Press [REC I] repeatedly until the desired recording
time (30 minutes to 8 hours) appears on the TV screen.
One-touch timer recording will start.
I
0:30
0:30
(normal recording)
1:00
Recording
8:00
Introduction
6
Press [REC I] to start recording.
“I” will be displayed for 5 seconds.
7:30
• To change the recording length during one-touch
timer recording, press [REC I] repeatedly until the
desired length appears.
• To cancel one-touch timer recording within the
specified time, press [STOP C].
Playback
Note
Editing
• When you press [REC I], recording starts immediately and continues until the disc is full or you stop recording.
• When the unit clock has not been set, the space for a date and time of title names will be blank.
• When you record a TV program onto Video mode DVD-RW, DVD-R or DVD+RW/+R, you have to select the TV
channel audio beforehand. Only the selected channel audio will be recorded. Refer to “Selecting TV Audio” on
pages 32-33 for more details.
• You cannot change the recording mode during the recording pause mode.
• You can change a channel to be recorded during the recording pause mode.
EN
E7H70UD̲EN.indb 47
Others
• The remaining recording time will be displayed on the front panel display during one-touch timer recording. Press
[DISPLAY] to see it on the TV screen.
• Unlike the timer recording, you can perform the following operations during one-touch timer recording.
- Turning off the power (One-touch timer recording will be canceled.).
- Using [REC I] or [STOP C] on the remote control.
• You cannot use the pause function during one-touch timer recording.
• When one-touch timer recording is finished and the power is turned off, the unit will switch to the timer-standby
y ON/STANDBY] to cancel the timermode automatically if a timer recording has been programmed. Press [I/y
standby mode to use the unit continuously.
Function Setup
Note for one-touch timer recording
47
2007/02/26 18:11:34
TIMER RECORDING
You can program the unit to record up to 12 programs
within a month in advance. Daily or weekly program
recordings are also available.
Before recording, make sure
• Set the clock before setting a timer programming.
• Insert a recordable disc with enough recordable space.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
DTV/TV
SETUP
DISPLAY
TOP MENU
CH
RETURN
FWD
REV
2
Timer Programming
JAN/ 1/07 12:00 AM 125-01 SP
SP (1:00)
MON JAN/01 10:00AM
Date
JAN/02
Start
End
CH
12:00AM 1:00AM DTV 125- 1
New Program
5
1. Title of a Timer Program (Contains date, time, channel,
recording mode of the program)
2. Current date and time
3. Recording mode and length of the recording
4. Timer program list
5. Total number of pages and current page (2 pages maximum)
AUDIO
ENTER
SKIP
1
4
MENU/LIST
CLEAR
3
1/1
TIMER
PROG.
SPACE
Guide to Timer Programming Display
SKIP
1
2
Press [TIMER PROG.].
Use [K / L] to select “New Program”,
then press [ENTER].
Timer Programming
MON JAN/01 10:00AM
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
Date
Start
End
New Program
CH
ZOOM
1/1
• If there are 6 or more programs, use
[SKIP j / i] to change pages.
SE-R0264
Note
• If you have not set the clock yet:
“Manual Clock Setting” menu will appear instead of
the timer programming list at step 1. Continue with
the step 3 in “Manual Clock Setting” on page 30
before setting a timer programming.
• Use [s / B] to move the cursor to the left and the
right in “Timer Programming” menu.
• Timer recording will not work when the power is on.
• When power is on, programs registered for recording
in timer recording will be automatically cleared after
the end time and date have passed.
48
EN
E7H70UD̲EN.indb 48
2007/02/26 18:11:35
TIMER RECORDING
Date
JAN/02
CH
DTV125- 1
Timer Programming
New Start
Program
12 : 00AM
Mode
SP
End
1 : 00AM
SP
1 : 00
MON JAN/01 10:00AM
Date
CH
End
--:--
--:-Mode
SP
SP
2 : 00
1/1
1/1
6
Use [K / L] to select a recording
mode.
Date
JAN/02
CH
DTV125- 1
New Start
Program
12 : 00AM
Mode
SP
Connections
Date
JAN/02
CH
DTV125- 1
Start
End
New Start
Program
Introduction
3
e.g.) digital mode
Use [K / L] to enter the date, then
press [B].
End
1 : 00AM
SP
1 : 00
JAN/01
1/1
MON-SAT
MON-FRI
SAT
Refer to “Recording Mode” on page 45.
• You can check the remaining recordable space
of the disc when you select the recording
mode.
e.g.) January 1st
Date
JAN/02
CH
DTV125- 1
FRI
Start
12 : 00AM
Mode
SP
End
1 : 00AM
1 : 00
Disc
Management
SP
SUN
Auto recording mode select...
JAN/31
Date
JAN/02
CH
DTV125- 1
New Start
Program
12 : 00AM
Mode
SP
12 : 00AM
Mode
SP
End
1 : 00AM
1 : 00
• “Auto” is only available for one program in the timer
program list.
• The recording may be cut short, when the available
recording space of the disc is too limited.
7
12 : 00AM
Mode
SP
End
1 : 00AM
SP
8
Your program setting will be stored.
• To set another program, repeat steps 2 to 7.
• To exit, press [TIMER PROG.] or [SETUP].
• When 2 or more programs are overlapped,
“Timer program overlapped” appears, and the
overlapped program will be displayed in blue.
To correct the timer program refer to
“Checking, canceling, or correcting the timer
programming information” on page 51.
Press [I/y ON/STANDBY] to set a
timer programming.
will appear on the front panel display, while this
unit waits to make the recording.
1 : 00
Others
1/1
EN
E7H70UD̲EN.indb 49
Function Setup
To record from external input (e.g., cable/
satellite box), select L1 or L2.
Use [K / L] to select the channel number to
record.
For digital mode, select both major and minor
channels. Refer to “How to select a channel
number for the timer recording” on page 50
for more details.
e.g.) analog mode
Press [ENTER] when all items are
entered.
Editing
1/1
New Start
Program
1 : 00
1/1
SP
Date
JAN/02
CH
10
End
1 : 00AM
Playback
L1
12 : 00AM
Mode
Auto
2 : 00
Use [K / L] to select analog (“- - -”) /
digital (“DTV”) mode or external
input (L1 / L2), then press [B].
New Start
Program
New Start
Program
Auto
1/1
Date
JAN/02
CH
Date
JAN/02
CH
DTV125- 1
End
--:--
SP
5
When “Auto” is selected as a recording mode, the unit
calculates how much time is available on the disc and
determines the appropriate recording mode to
complete recording the program.
Recording
4
Use [K / L / { / B] or [the Number
buttons] to enter the start and end
time, then press [B].
Basic Setup
When pressing [L] at
the current date, the
date will change as
follows.
Daily
49
2007/02/26 18:11:36
TIMER RECORDING
How to select a channel number for the timer recording
Analog TV
For channel number 2-6, press [B] or [ – ] to decide the channels. For other channels (7-69), the
channel will be decided as soon as you enter the channel number.
Analog CATV
For channel number 1-12, press [B] or [ – ] to decide the channels. For other channels (13-125),
the channel will be decided as soon as you enter the channel number.
Digital TV
For channel number 1-9, press [B] or [ – ] to decide the channels. For other channels (10-99), the
channel will be decided as soon as you enter the channel number.
Digital CATV
For channel number 1-13, press [B] or [ – ] to decide the channels. For other channels (14-135),
the channel will be decided as soon as you enter the channel number.
minor channels
For channel number 1-9, press [B] or [ – ] to decide the channels. For other channels (10-99), the
channel will be decided as soon as you enter the channel number.
<Hint>
• You can decide the 1-digit channel number by pressing 0 first , then enter desired 1-digit channel number.
e.g.) “5”: [0]+[5]
• For selecting the channels with [K / L], you need to press [B] or [ – ] to decide the channel number.
• For selecting the minor channels with [K / L], please make sure the minor channel your are selecting is existed.
[K / L] does not skip the non-existed minor channels.
50
EN
E7H70UD̲EN.indb 50
2007/02/26 18:11:37
TIMER RECORDING
1) Press [I/y ON/STANDBY].
If the timer program did not complete correctly,
the error number appears in the timer programming list.
2) Press [TIMER PROG.].
Timer Programming
E40
Date
JAN/02
Timer Programming
Start
End
12:00AM 1:00AM
New Program
Connections
MON JAN/01 10:00AM
3) Check the information on the list you want to edit.
CH
DTV125- 1
JAN/ 1/07 12:00 AM 125-01 SP
SP (1:00)
MON JAN/01 10:00AM
Date
JAN/02
Start
End
12:00AM 1:00AM
New Program
Introduction
Checking, canceling, or correcting the timer
programming information
CH
DTV125- 1
1/1
1/1
To stop the timer recording in process
Press [STOP C] on the front panel of the unit.
[STOP C] on the remote control is not effective.
Disc protected
E41
Power failed
E30
Disc full
E42
No disc when recording
E31-32 Already 99 titles
recorded
E43
Already 49 titles
recorded
E33
Already 999 chapters
recorded
E44
Already 254 chapters
recorded
E34
No space for Control
information
E45
Copy prohibited
program
E35
PCA full *1
E46
E36
Already finalized
video format disc
It is impossible to
record additionally
on a disc recorded
by other units
when setting
“Make Recording
Compatible” to “OFF”.
• A program with the error number is grayed in the timer
programming list.
• Once the timer programming list with error line(s) is
displayed, or after canceling and setting again the timer
standby mode, the program line(s) with error will be
cleared.
*1 PCA is a disc's space reserved for recording test.
Editing
Note
Playback
6) Press [I/y ON/STANDBY] to return to the timer
standby mode.
E25-28 Copy prohibited program
E29
Recording
5) Press [TIMER PROG.] to exit.
E23-24 Unrecordable disc
Some portion has
not been recorded
because of program
overlapping.
Recording did not
start at the start time.
Disc
Management
4-A) To delete the timer program:
1 Use [K / L] to select the program you want to
delete, then press [ENTER].
2 Use [K / L] to select “Delete”, then press
[ENTER].
Selection menu will appear.
3 Use [K / L] to select “Yes”, then press [ENTER].
4-B) To correct the timer program:
1 Use [K / L] to select the program you want to
correct, then press [ENTER].
2 Use [K / L] to select “Program Change”, then
press [ENTER].
3 Correct the timer program by using
[K / L / { / B], then press [ENTER].
E1-22 Recording error other E40
E37-39 than below
Basic Setup
Each error number means:
• Press [TIMER PROG.] to check the timer recording in
progress.
When the timer recording is proceeding, that
program will be highlighted with red. In this case,
you cannot select any other program.
Function Setup
Others
EN
E7H70UD̲EN.indb 51
51
2007/02/26 18:11:37
TIMER RECORDING
Hints for Timer Recording
• If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer
programming will be lost.
• If a disc is not inserted or if a inserted disc is not recordable (finalized DVD-RW/-R, finalized DVD+RW, a fully recorded
flashes and timer recording cannot be performed. In some cases,
will appear momentarily around the
disc, etc.),
start point as the unit attempts to record. Please insert a recordable disc.
flashes. To play back or eject the recorded disc, press
• When all the timer recording is completed,
[I/y ON/STANDBY] first, then select the recorded title and press [PLAY B], or [OPEN/CLOSE A] to remove the disc.
• During timer recording or timer standby mode ( will appear), any operations on the unit will not be available. To make
these operations available, press [STOP C] on the front panel to cancel the timer recording or [I/y ON/STANDBY] to
release timer standby mode ( will disappear).
• To cancel the timer standby mode, press [I/y ON/STANDBY].
• When the starting and the ending time are the same, the length of the recording will be set for 24 hours. When the
disc becomes full during the recording, the unit turns itself off.
• When the programmed starting and ending time are earlier than the current time, the setting will not be accepted
and be cleared for redoing.
• If the starting time is earlier and the ending time is later than the current time, the recording will start right after you
turn the power off.
• The timer recording for digital TV cannot record any audio language other than English.
The Priority of Overlapped Settings
This unit records the programs according to priority if the timer programmings are overlapped. The timer
programming set previously has priority.
A timer recording of lower priority will be canceled or start from the middle.
Check the overlapped timer programmings and change the priority if necessary.
When the starting time is the same:
A program set previously (PROG. A) has priority.
When the starting time and the ending time
for each programs are different:
A program that has earlier start time has priority.
PROG. A
PROG. A
PROG. B
PROG. B
PROG. C
actual
PROG.
PROG.AA
PROG. B
recording
The first 2 minutes (at the longest) will be cut off.
When the recording time is partially overlapped:
PROG. A will start after PROG. B is complete to
be recorded.
actual
PROG. A
PROG. C
recording
The first 2 minutes (at the longest) will be cut off.
PROG. B
When the recording time is entirely overlapped:
PROG.A will not be recorded.
PROG. A
PROG. A
PROG. B
PROG. B
actual
PROG.B
PROG.A
recording
The first 2 minutes (at the longest) will be cut off.
actual
recording
PROG. B
Note for DVD recording
• When the recording time of 2 programs are overlapped, or
the end time of a program and the start time of another
program is the same, the first 2 minutes (at the longest) of
the subsequent program will be cut off.
• If the cut-off portion comes up to 3 minutes or more, this
program will be displayed with errors number E40 in the
timer programming list.
When the end time of the programming
currently being recorded and the start time
of the subsequent program are same:
The beginning of the PROG. B may be cut off.
PROG. A
PROG. B
actual
recording
PROG. A
PROG. B
The first 2 minutes (at the longest) will be cut off.
52
EN
E7H70UD̲EN.indb 52
2007/02/26 18:11:38
SETTINGS FOR AN EXTERNAL DEVICE
Connect the external device properly to the unit by using input jacks either L2 and L3 (Front) or L1 (Rear).
When connecting an external device of monaural output to this unit, use AUDIO L jack of L2 (Front).
Use S-video or the RCA audio/video cables for this connection.
When connecting a DVC (digital video camcorder), use DV-IN jack of L3 (Front) instead of S-VIDEO IN or VIDEO IN jack.
S-VIDEO
OUT
VIDEO
OUT
AUDIO OUT
L
R
DV-OUT
VIDEO
OUT
external device
AUDIO OUT
L
R
Connections
or
S-VIDEO
OUT
(camcorder, VCR etc.)
S-video
cable
RCA
audio
cable
DV cable
(4-pin)
RCA
audio
cable
RCA
video
cable
IN
S-video
cable
Basic Setup
RCA
video
cable
or
or
VIDEO VIDEO
IN
OUT
L
L
Y
PB/CB
or
R
AUDIO IN
(L1)
IN
R
S-VIDEO AUDIO OUT
L3
PR/CR
COMPONENT
VIDEO OUT
OUT
S-VIDEO
L1
to L2 & L3 IN
Disc
Management
L2
OUT
ANTENNA
to L1 IN
IN
VIDEO VIDEO
UT
IN
OUT
1080p
I/y ON/STANDBY
DVD -RW/R +RW/R RECORDING
OPEN/CLOSE
SKIP
STOP
PLAY
1080i
720p
480p
L
L
R
R
Y
HDMI OUT
REC
PB/CB
OUT
ANTENNA
S-VIDEO
L2
VIDEO
L
R
AUDIO IN
(L1)
IN
S-VIDEO AUDIO OUT
OUT
COAXIAL
S-VIDEO
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
PR/CR
COMPONENT
VIDEO OUT
DV IN
rear of this unit
front of this unit
PQRS
TUV
WXYZ
DTV/TV
SETUP
DISPLAY
TOP MENU
MENU/LIST
6
Press [SETUP].
L1 (Rear)
L2 (Front)
Use [K / L] to select the input jack
type to connect, then press [ENTER].
If you want to use VIDEO IN jack, select “Video
In”.
If you want to use S-VIDEO IN jack, select
“S-Video In”.
Function Setup
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Use [K / L] to select “General
Setting”, then press [ENTER].
Use [K / L] to select “Video”, then
press [ENTER].
E7H70UD̲EN.indb 53
7
Progressive
TV Aspect
Select Video
L2Select
(Front)Video
In
L1Video
(Rear)
L2S-Video
(Front) In
Others
1
2
3
RETURN
Progressive
TV Aspect
Select Video
Select Video
Editing
CLEAR
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
AUDIO
ENTER
Use [K / L] to select desired external
input position, then press [ENTER].
Playback
TIMER
PROG.
SPACE
4
5
Use [K / L] to select “Select Video”,
then press [ENTER].
Recording
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your
local store.
Introduction
Connection to an External Device
Press [SETUP] to exit.
EN
53
2007/02/26 18:11:39
SETTINGS FOR AN EXTERNAL DEVICE
Recording from an External Device
Before recording from an external device, refer to the
instructions for the connection on page 53.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
CH
TIMER
PROG.
SPACE
DTV/TV
SETUP
DISPLAY
AUDIO
MENU/LIST
TOP MENU
ENTER
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
1
2
3
4
REC
ZOOM
DVD -RW/R +RW/R RECORDING
OPEN/CLOSE
23
1080p
SKIP
STOP
PLAY
1080i
54
480p
REC
S-VIDEO
8
720p
L2
VIDEO
L
R
Press [OPEN/CLOSE A] to open the
disc tray. Place the disc to record on
properly.
Press [OPEN/CLOSE A] to close the
disc tray.
It takes awhile to load
the disc.
Select the input of the unit which the
external device is connected. (L1, L2
or L3)
• To use the input jacks on the rear of this unit;
Select “L1” by using [INPUT SELECT ] or
/ ].
[CH
• To use the input jacks on the front of this unit;
Select “L2” or “DV“ by using
/ ].
[INPUT SELECT ] or [CH
• You can also select “L1” or “L2” by using
[the Number buttons].
- For L1, press [0], [0], [1].
- For L2, press [0], [0], [2].
5
Press [REC MODE] to select a
recording mode.
6
7
8
Press [REC I] on the unit to start
recording.
1
I/y ON/STANDBY
Turn on the TV and press
[I/y
y ON/STANDBY], and be sure to
select the input of the TV to which
the unit is connected.
Refer to “Recording Mode” on page 45.
XP
(1Hr)
SP
(2Hr)
LP
(4Hr)
EP
(6Hr)
SLP
(8Hr)
Start playback on the external device
to record from.
Press [STOP C] on the unit to stop
recording.
This operation may take
awhile to be completed.
DV IN
6
EN
E7H70UD̲EN.indb 54
2007/02/26 18:11:40
DV DUBBING
When the DVC is
in video mode...
1
1/ 1
1/ 1
1/ 1
-RW
2
Control
DV Audio
Start Rec
DVD
Stereo1
VR
1/ 1
ORG
DV
AB-1234
0:12:34
-RW
The menu changes according to
what mode of DVC.
Switch the mode on the DVC to
playback mode for the dubbing
information.
VR
ORG
5
DV
AB-1234
0:12:34
1:00
SP
4
7
Basic Setup
SP
3
When the DVC is not
in camera mode...
1:00
6
Disc
Management
The following instructions are described with the operations using the remote control of this unit.
6. Product name of your DVC
• If the unit cannot recognize the
input signal from the DVC or the
unknown product, “No Device” or
“****” will appear instead.
7. Status of the current operation
and the time counter
Each icon means:
DVC is in stop mode.
DVC is in playback mode.
DVC is fast reversing.
(standard speed)
DVC is fast reversing.
(faster than above)
DVC is fast reversing.
(faster than above)
DVC is in slow reverse
playback.
DVC is in recording.
Editing
DVC is in recording pause
mode.
Function Setup
DVC is fast forwarding.
(standard speed)
DVC is fast forwarding.
(faster than above)
DVC is fast forwarding.
(faster than above)
DVC is slow forwarding.
(standard speed)
DVC is slow forwarding.
(faster than above)
DVC is slow forwarding.
(faster than above)
DVC is fast forwarding.
(in stop mode)
DVC is fast reversing.
(in stop mode)
DVC is in reverse playback.
Playback
DVC is in pause mode.
Recording
1. DV icon
2. Indicator of active device
• When the “Control” is
highlighted, press [ENTER] to
display the item selection. Use [K
/ L] to select the device you wish
to operate, then press [ENTER] to
activate.
• Select “DVD” to control this unit.
• Select “DVC” to control your DVC.
3. Recording audio mode
• Other than the DVC is in stop
mode, the “DV Audio” can be
selected. Press [ENTER] to display
the item selection and then use
[K / L] to select the audio you
wish to output. Press [ENTER]
again to activate.
• Select “Stereo1” to dub the stereo
sound.
• Select “Stereo2” to dub the sound
with after recording sound.
• Select “Mix” to dub the stereo1
and stereo2.
4. Indicator of dubbing function
• When the unit is ready for
dubbing, “Start Rec” will appear.
• When the unit is in dubbing,
“Pause Rec” will appear.
5. Channel position
• When you select “DV” by using
/ ],
[INPUT SELECT] or [CH
“DV” will appear.
Connections
This function helps you to easily dub the contents of the DVC (digital video camcorder) to DVD.
You can control basic operations of the DVC from the remote control of this unit such as playback, fast forward or
reverse and stop all operations if the DVC is in video mode. Use the DV cable that has 4-pin input jack and is
compliance with the IEEE1394 standards. When you connect to DV IN jack on the front of this unit, select “DV” position
by using [INPUT SELECT ] or [CH
/ ] on the remote control and press [DISPLAY] to show the DV dubbing
information for the operating your DVC.
Introduction
Guide to DV and On-Screen Display
Others
EN
E7H70UD̲EN.indb 55
55
2007/02/26 18:11:41
DV DUBBING
DVC to DVD Dubbing
Before recording from DVC, see page 53 for connection
instructions.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
1
DISPLAY
AUDIO
ENTER
CLEAR
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
] or [CH
/
]
DV
AB-1234
0:00:00
CH
MENU/LIST
TOP MENU
SKIP
Use [INPUT SELECT
to select “DV”.
TIMER
PROG.
SPACE
DTV/TV
Insert a recordable DVD-RW/-R or DVD+RW/+R and
make sure your DVC is in video mode.
REC
ZOOM
2
3
4
Press [REC MODE] to select a
recording mode.
(Refer to page 45.)
Press [DISPLAY].
Press [ENTER] to display the item
selection. Use [K / L] to select “DVC”,
then press [ENTER].
1/ 1
1/ 1
-RW
Control
DV Audio
Start Rec
DVD
Stereo1
VR
ORG
DV
AB-1234
0:12:34
SE-R0264
XP
56
1:00
EN
E7H70UD̲EN.indb 56
2007/02/26 18:11:43
DV DUBBING
Introduction
Connections
Use [K / L] to select “Start Rec”, then
press [ENTER].
The dubbing will start.
To stop dubbing;
Use [K / L] to select “Control”, then
press [ENTER].
Use [K / L] to select “DVD”, then
press [ENTER].
Then press [STOP C].
Basic Setup
5
6
7
Press [PLAY B] to find the point
where you wish to start dubbing.
Then, press [STOP C] where you wish
to start dubbing.
Recording
Playback
• If you press [PAUSE F] at step 5, the tape will rewind to the point a few seconds preceding the paused point
when you press [ENTER] at step 6, then, it will start dubbing when it comes to the paused point.
• The unit does not send out the output signal to DVC.
• For the proper operation, connect DVC to the unit directly. Do not connect this unit and DVC via any other unit.
• Do not connect more than 1 DVC.
• The unit can only accept DVC. Other DV device such as cable/satellite box or D-VHS VCR cannot be recognized.
• If no video signal is detected from the DVC during DVC to DVD dubbing, the recording will be paused and “I” will
flash on the TV screen. The recording will resume when the unit detects the video signal again.
• When the DVC is in camera mode, refer to “Guide to DV and On-Screen Display” on page 55.
• You cannot dub from DVC during timer standby mode.
• Date / time and cassette memory data will not be recorded.
• Pictures with a copy-guard signal cannot be recorded.
• A DV terminal is a terminal that can use the transmission mode conforming to the IEEE 1394 standards called “Fire
Wire”. It serves as the interface that connects the PC and peripheral device such as “i.Link” (registered trademark of
SONY). It enables digital dubbing between DV devices with little degradation.
Disc
Management
Note for DV dubbing
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 57
57
2007/02/26 18:11:43
INFORMATION ON PLAYBACK
Structure of Disc Contents
The contents of DVD are generally divided into titles, and the titles are subdivided into chapters.
Audio CDs are divided into tracks.
Data disc contains MP3/WMA/JPEG/DivX® are divided into folders, and the folders are subdivided into files.
DVD video
Title 1
Title 2
Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3
Title:
Chapter:
Track:
Folder:
Divided contents of a DVD video. Roughly
corresponds to a story title in short stories.
Divided contents of a title. This corresponds to
a chapter in a story.
Divided contents of an audio CD.
Divided contents of a MP3/WMA/JPEG/DivX®
data disc. Consists of number of files.
Audio CD
Track 1
Track 2
folder 1
file 1
58
Track 3
Track 4
Track 5
Each title, chapter, or track, folder or file is assigned a
number, which is called “title number”, “chapter number”,
“track number”, “folder number” or “file number”
respectively.
Some discs may not have these numbers.
MP3/WMA/JPEG/DivX®
folder 2
file 2
file 3
file 4
file 5
EN
E7H70UD̲EN.indb 58
2007/02/26 18:11:44
BASIC PLAYBACK
Introduction
Direct Playback
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
TOP MENU
Align the disc to
the disc tray guide.
AUDIO
MENU/LIST
CLEAR
RETURN
FWD
REV
SKIP
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
Press [PLAY B] to start playback.
If you are playing back a DVD-video, a menu
may appear.
Refer to “Using the Title/Disc Menu” on page 65.
Recording
PAUSE
Press [STOP C] once to stop playback
temporarily.
• Refer to “Resume Playback” on page 66.
Playback
3
4
5
Disc
Management
ENTER
SKIP
Press [OPEN/CLOSE A] to open the
disc tray and insert your disc with its
label facing up.
Basic Setup
INPUT
SELECT
Turn on the TV and be sure to select the input to
which the unit is connected.
Connections
OPEN/
CLOSE
1
2
Press [I/y
y ON/STANDBY].
SE-R0264
Editing
Function Setup
Others
Note
• Some discs may start playback automatically.
EN
E7H70UD̲EN.indb 59
59
2007/02/26 18:11:44
BASIC PLAYBACK
Playback from the Title List
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
DISPLAY
TOP MENU
Press [OPEN/CLOSE A] to open the
disc tray and insert your disc with its
label facing up.
Align the disc to
the disc tray guide.
AUDIO
MENU/LIST
ENTER
CLEAR
SKIP
Turn on the TV and be sure to select the input to
which the unit is connected.
TIMER
PROG.
SPACE
DTV/TV
CH
1
2
Press [I/y
y ON/STANDBY].
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
3
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
Title list will appear automatically.
• To exit the title list, press [STOP C].
• To resume the title list, press [TOP MENU].
ZOOM
SE-R0264
Note
• Some discs may start playback automatically.
• You can also start playback by pressing [PLAY B]
instead of [ENTER] at step 5 on page 61.
• At step 4, you can press [SKIP G], or press [B]
when the title on the lower right of the title list is
highlighted to display the next page, and press
[SKIP H], or press [{] when the title on the upper
left of the title list is highlighted to display the
previous page.
60
EN
E7H70UD̲EN.indb 60
2007/02/26 18:11:45
BASIC PLAYBACK
Introduction
4
Use [K / L / { / B] to select a desired
title, then press [ENTER].
e.g.) VR mode DVD-RW original
Title List
Connections
ORG
JAN/ 1/07 12:00AM CH10 SP
12:00AM (0:12:00) JAN/ 1/07
CH10 SP
1
2
3
4
5
6
1/6
Basic Setup
5
Use [K / L] to select “Play From
Start”, then press [ENTER].
ORG
Title List
JAN/ 1/07 12:00AM CH10 SP
12:00AM (0:12:00) JAN/ 1/07
4
2
Play From Start
Edit
Title Delete
5
Add To Playlist
CH10 SP
Disc
Management
1
3
6
1/2
Playback will start.
Recording
6
Press [STOP C] once to stop playback
temporarily.
• Refer to “Resume Playback” on page 66.
To eject the disc, press [OPEN/CLOSE A] to
open the disc tray, then remove the disc before
turning off the unit.
Playback
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 61
61
2007/02/26 18:11:46
BASIC PLAYBACK
Playing Back an Audio CD and a CD-RW/-R with MP3/WMA/JPEG Files
When selecting track/file:
Playback will start.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
TOP MENU
AUDIO
MENU/LIST
ENTER
CLEAR
SKIP
RETURN
FWD
REV
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
1
2
SKIP
REC
ZOOM
Follow steps 1 to 2 in “Direct
Playback” on page 59.
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
File list will appear automatically.
• To exit the file list, press [STOP C].
• To resume the file list, press [TOP MENU].
3
Use [K / L] to select a desired folder
or track/file, then press [ENTER].
File List
DISC NAME
A
B
1
2
3
4
5
6
JPEG file1
JPEG file2
MP3 file1
MP3 file2
WMA file1
WMA file2
1/ 2
62
When selecting folder:
The files in the folder will appear.
Use [K / L] to select the file or folder you want to play
back, then press [ENTER].
• Press [PLAY B], [ENTER] or [B] to move to any lower
hierarchies.
• Press [s] or [RETURN] to move back to the previous
hierarchy.
Hints for audio CD tracks and MP3 / WMA / JPEG files:
• Folders are shown by
.
.
• Audio CD tracks are shown by
• MP3 files are shown by 3 .
• WMA files are shown by W .
.
• JPEG files are shown by
• The system can recognize up to 255 folders and, up to
99 tracks/999 files.
• Letters of a file/folder name overflowing the given space
will be displayed as “…”.
• If there are no files in the folder, “No Files” will be displayed.
It is recommended that files to be played back in this
unit are recorded under the following specifications:
<MP3 / WMA>
• Sampling frequency
: 44.1 kHz or 48 kHz.
• Constant bit rate
: 112 kbps - 320 kbps (MP3),
48 kbps - 192 kbps
(WMA).
<JPEG>
• Upper limit
: 6,300 x 5,100 dots.
• Lower limit
: 32 x 32 dots.
• File size of image maximum : 12 MB.
Note
• The audio source of MP3 files cannot be recorded as
digital sound by an MD or DAT deck.
• Files whose extension is other than “.mp3(MP3)”
“.wma(WMA)” or “.jpg / .jpeg(JPEG)” will not be listed.
• Some unplayable folders or files may be listed due to
the recording status.
• High-resolution JPEG files take longer to be displayed.
• Progressive JPEG files (JPEG files saved in progressive
format) cannot be played back on this unit.
• The JPEG pictures can also rotate by using [s / B].
This DVD Video Recorder requires discs/recordings to meet
certain technical standards in order to achieve optimal
playback quality. There are many different types of
recordable disc formats (including CD-R containing MP3/
WMA files). Not all recordable discs will operate or produce
optimal playback quality. The technical criteria set forth in
this owner's manual are meant only as a guide. Use of CD-RW
for MP3 files is not recommended.
You must obtain any required permission from copyright
owners to download or use copyrighted content. Toshiba
cannot and does not grant such permission.
EN
E7H70UD̲EN.indb 62
2007/02/26 18:11:46
BASIC PLAYBACK
Introduction
Playing Back a DivX®
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
DISPLAY
TOP MENU
AUDIO
MENU/LIST
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
3
Use [K / L] to select the desired
folder or file, then press [ENTER].
File List
DISC NAME
Folder1
Folder2
1 DivX File1
2 DivX File2
When selecting file:
Playback will start.
SE-R0264
Playback
When selecting folder:
The files in the folder will appear.
Use [K / L] to select the file you want to play back, then
press [ENTER].
• Press [PLAY B], [ENTER] or [B] to move to any lower
hierarchy.
• Press [s] or [RETURN] to move back to the previous
hierarchy.
Recording
PAUSE
It may take awhile to load
the disc completely.
Disc
Management
ENTER
Press [OPEN/CLOSE A] to close the
disc tray.
File list will appear automatically.
• To exit the file list, press [STOP C].
• To resume the file list, press [TOP MENU].
TIMER
PROG.
SPACE
DTV/TV
CH
1
2
Basic Setup
INPUT
SELECT
Connections
OPEN/
CLOSE
Follow steps 1 to 2 in “Direct
Playback” on page 59.
DivX® subtitle
Editing
The subtitle created by the user can be displayed
during DivX® playback.
1) After selecting the DivX® file, the “Subtitle List”
menu will appear when “DivX Subtitle” is set to
anything other than “OFF”. (Refer to page 104.)
2) Use [K / L] to select the extension you want to
display, then press [ENTER].
Function Setup
Subtitle List
DivX File1
OFF
SMI
SRT
SUB
ASS
SSA
TXT
EN
E7H70UD̲EN.indb 63
Others
DivX® with the subtitle starts playback. The subtitle
cannot be displayed when the setting is “OFF”.
• If there is more than one extension, the extension
selection appears in the subtitle list.
63
2007/02/26 18:11:48
BASIC PLAYBACK
It is recommended that files to be played back in this
unit are recorded under the following specifications:
Official DivX® Certified product
• Playable codec of AVI files : DivX®3.x, DivX®4.x,
DivX®5.x, DivX®6.0
• Maximum size of image
: 720 x 480 @30 fps
720 x 576 @25 fps
• Sampling frequency of audio : 8 kHz - 48 kHz
• Audio type
: MPEG1 audio layer 3(MP3),
MPEG1 audio layer 2,
Dolby Digital
Hint for the purchased or rental official DivX®
Certified product
• When you purchased or rental a DivX® file through the
official site of DivX® video which is called DivX® VideoOn-Demand (VOD) services, a registration code is
required every time you get the new file from the DivX®
VOD services. Refer to “DivX® VOD” on page 104.
• Some DivX® VOD files are
restricted with the limited
DivX VOD Rental
playable times (you cannot
This rental has
views left.
play them back beyond the
Do you want to use one
of your views now?
limit). If your DivX® VOD file
No
Yes
has such limit, the playback
confirmation screen will
appear.
Use [s / B] to select “Yes” if you want to play back the
file, or to select “No” if you do not wish to play it back.
Then, press [ENTER] to
confirm the selection.
• You cannot play back the
Rental Expired
This rental is expired.
DivX® VOD files, of which
Please push ‘TOP MENU’.
rental period has been
expired. In such case, press
[TOP MENU] and select other
files that can be played back.
R
Note for DivX®
• DivX® is a codec (compression/decompression) that
can compress images to a very small amount of data.
The software can compress video data from almost
any devices to the size that can be sent on the Internet
without compromising visual quality of the images.
• A file with an extension of “.avi” and “.divx” is called an
DivX® file. All files with the “.avi” extension are
recognized as MPEG4.
• Files whose extension other than “.avi” and “.divx” will
not be listed on the DivX® menu. However, unplayable
folders and files may be displayed, depending on the
recording conditions.
• Even if the file has an extension of either “.avi” and
“.divx”, this unit cannot play it back if it is recorded in
the format other than DivX®.
is shown on the top of the file name.
• A symbol of
• A maximum of 255 folders or 999 files may be
recognized in a disc.
• Up to 8 hierarchies can be recognized in a folder. Files
in the 9th or deeper hierarchies cannot be played back.
• If there are more than 9 files, a down arrow “ ”
appears, indicating that the user can view another part
on the previous page. The current page number and
the number of total pages are shown on the bottom of
the screen.
• Letters of a file/folder name overflowing the given
space will be displayed as “…”.
• You can play back the disc recorded in multi-session.
• It may take awhile for audio and images to be output
after you inserted a disc and pressed [PLAY B].
• When playing back the files recorded in high bit rates,
the images can be interrupted in some occasions.
• Although DivX® logo has been obtained for this unit, it
may not be able to play back some data, depending
on the characteristics, bit rates, or audio format
settings, etc.
• A DivX® file whose file size exceeds 2 GB cannot be
played back.
• If a large-sized DivX® file is selected, it may take awhile
to start the playback (over 20 seconds sometimes).
• If you try to playback the DivX® file that has the screen
resolution which this unit does not support, the
playback will be stopped and error message will appear.
64
• If DivX® files written on a CD-RW/-R cannot be played
back, rewrite them on a DVD-RW/-R or DVD+RW/+R
and try to play back.
• For more information for
DivX®, please visit
Please select the media
http://www.divx.com.
to play back.
• If you insert a CD-RW/-R with
Video
DivX® files that are mixed
Audio & Picture
with MP3/WMA/JPEG files,
the playback media selection
screen will be displayed.
Please select “Video” and proceed to next step.
• Press [MENU/LIST] to call up the playback media
selection screen in stop mode.
• If you select “Audio & Picture” instead of “Video” on
the playback media selection screen, this unit can play
back MP3/WMA/JPEG files.
• Some DivX® files cannot be played back on this unit due to the
configuration and characteristics
of the disc, or due to the
condition of recording and
Authorization Error
authoring software.
This player is not authorized to
play this video.
• You cannot play back the
Please push 'TOP MENU'.
DivX® VOD files obtained
with different registration
codes on this unit. Press
[TOP MENU] and select other files that can be played
back.
Note for DivX® subtitle
• To utilize this function, the following conditions must
meet.
– “DivX Subtitle” must be activated in “DivX” menu.
(Refer to “DivX Subtitle” on page 104.)
– Playback file and the subtitle file must have the same
name.
– Playback file and the subtitle file must locate in the
same folder.
– Only the subtitle files with the following extensions
are supported; .smi (.SMI), .srt (.SRT), .sub (.SUB) .ass
(.ASS), .ssa (.SSA), .txt (.TXT).
(.sub (.SUB) and .txt (.TXT) files may not be recognized.)
– The subtitles that exceeds the playback time of the
DivX® file will not be displayed.
EN
E7H70UD̲EN.indb 64
2007/02/26 18:11:49
BASIC PLAYBACK
Introduction
Using the Title/Disc Menu
Pause
1) During playback, press [PAUSE F].
Playback will be paused and sound will be muted.
Connections
DVD may contain a title list, which describes the contents
of the disc, or a disc menu, which guides you through the
available functions in the disc.
1) Press [MENU/LIST] or [TOP MENU] to call up the title
list or disc menu.
2) Use [K / L / { / B] to make a selection, and then
press [ENTER] to enable your selection.
Basic Setup
3) Press [STOP C] to exit the disc menu.
F
2) Press [PLAY B] to return to the normal playback.
Note
• You can select a numbered menu with [the Number
buttons] also.
• Menus vary among discs. Refer to the information
accompanying the disc for details.
• [MENU/LIST] or [TOP MENU] will not always be
effective for all DVDs.
• For DVD, set “Still Mode” to “Field” in “Playback”
menu if pictures in the pause mode are blurred.
(Refer to page 99.)
Disc
Management
Note
Recording
Playback
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 65
65
2007/02/26 18:11:50
SPECIAL PLAYBACK
Resume Playback
Note
You can play back from where you stopped playing back
the disc last.
1) During playback, press [STOP C].
The resume message will appear.
Resume ON
2) Press [PLAY B].
In a few seconds, playback will resume from the point
at which it stopped last. You can resume playback at
the same point even if you turn off the unit.
To cancel the resume playback and start playing back
the disc from the beginning, press [STOP C] again
while the playback is stopped.
• Forward/reverse speed will be indicated with icons
as follows.
forward (approx. speed)
2x:
20x:
40x:
reverse (approx. speed)
5x:
20x:
40x:
Skipping TV Commercials During
Playback
Note
• For MP3/WMA/JPEG files, playback will resume from
the beginning of the file at which playback was
stopped.
Fast Forward / Fast Reverse Playback
You can skip TV commercials to enjoy the recorded
programs without interrupting.
During playback, press [INSTANT SKIP].
Normal playback will start at 30 seconds ahead from the
point you press [INSTANT SKIP].
Every time you press [INSTANT SKIP], the searching
point will be extended by 30 seconds ahead.
You can press [INSTANT SKIP] up to 6 times (180 seconds).
e.g.) Press [INSTANT SKIP] once.
1) During playback, press [FWD D] or [REV E].
Every time you press [FWD D] or [REV E],
approximate speed will be changed as follows.
Fast forward or fast reverse playback across titles (for
DVD), or files (for MP3 / WMA / DivX® files) is not
possible.
FWD
40x
REV
FWD
20x
REV
FWD
5x
REV
FWD
normal
speed
playback
REV
FWD
2x
REV
FWD
20x
REV
40x
Instant Skip 30sec.
(forwarding 30 seconds)
For audio CD, MP3/WMA files, approximate speed is
fixed at 8x with sound.
Picture quality of DivX® files in fast reverse is lower
than that in fast forward.
For some DivX® files, fast forward/fast reverse may not
function.
2) Press [PLAY B] to return to the normal playback.
B
Playback will return to the normal playback.
66
EN
E7H70UD̲EN.indb 66
2007/02/26 18:11:50
SPECIAL PLAYBACK
Slow Forward / Slow Reverse Playback
1) During playback, press [PAUSE F]. Then press
[FWD D] or [REV E].
Every time you press [FWD D] or [REV E],
approximate speed will be changed as follows. (The
sound will remain muted.)
1) During playback, press [1.3X / 0.8X PLAY].
B x1.3 :
B:
Press [1.3X / 0.8X PLAY] twice during playback.
Plays back approximately at 1.3 times of normal
playback.
2) Press [PLAY B] to resume the normal playback.
Note
1/8x
REV
FWD
1/16x
REV
FWD
pause
REV
FWD
1/16x
REV
FWD
1/8x
REV
1/3x
To return to the normal playback, press [PLAY B].
Note
• Forward/reverse speed will be indicated with icons
as follows.
forward (approx. speed)
1/16x:
1/8x:
1/3x:
reverse (approx. speed)
1/16x:
1/8x:
1/4x:
• For some DivX® files, slow forward/slow reverse may
not function.
• Only slow forward is available when playing back
DivX® files.
Recording
• Audio (language) setting cannot be changed while
using this mode.
• This feature may not work at some point in a disc.
• Audio is PCM during rapid playback mode except
when using digital audio connection.
• When using digital audio connection (COAXIAL or
HDMI), the LPCM sound (2 channel) will be output.
FWD
Disc
Management
Press [1.3X / 0.8X PLAY] thrice to play back in
normal speed.
No effects.
1/4x
REV
Basic Setup
B x0.8 : Press [1.3X / 0.8X PLAY] once during playback.
Plays back approximately at 0.8 times of normal
playback.
FWD
Connections
Rapid playback function is available only during
playback.
This function is available only on discs recorded in the
Dolby Digital format, and plays back in a slightly faster/
slower speed while keeping the sound quality just as
normal playback.
Introduction
Rapid Playback
Playback
Step by Step Playback
Editing
1) During playback, press [PAUSE F].
Playback will be paused and sound will be muted.
2) Press [SKIP i ] repeatedly.
Playback will advance one frame at a time when you
press [SKIP i ] with the sound muted.
To play back step by step backward:
Press [SKIP j ] repeatedly.
Every time you press the button, the playback will go
backward by one frame.
• Press and hold [SKIP j ] / [SKIP i ] to reverse/
advance continuously.
3) Press [PLAY B] to resume the normal playback.
Function Setup
Note
• Only step by step forward playback is available for
playing back DivX® files.
Others
EN
E7H70UD̲EN.indb 67
67
2007/02/26 18:11:52
SPECIAL PLAYBACK
Marker Setting
Zoom
1) During playback, press [DISPLAY] or [ZOOM].
• If [ZOOM] is pressed, skip to step 3.
, then press [ENTER] within
2) Use [{ / B] to select
1 second, or wait for 1 second to display the
selection menu.
e.g.) DVD-video
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
This feature allows you to assign a specific point on a disc
to be called back later.
• For audio CD, skip to step 2.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the marker
list.
e.g.) DVD-video
1/ 5
1/ 5
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
3) Use [K / L] to select a desired zoom factor to zoom,
then press [ENTER].
0:01:00 / 1:23:45
DVD Video
× 1.2
× 1.5
× 2.0
3) Use [K / L] to select a desired marker number.
When it reaches the desired point, press [ENTER].
e.g.) DVD-video
1/ 5
Zoom menu will appear.
There are four options
(x1.0, x1.2, x1.5 and x2.0), these are displayed
excluding the current zoom rate.
1/ 5
0:01:00 / 1:23:45
DVD Video
1
2
3
4
5
6
-------------
Zoom area will be displayed.
4) Use [K / L / { / B] to select a desired zoom
position, then press [ENTER].
The title (track) number and the time will be displayed.
4) To return to the marker:
Use [K / L] to select the desired marker number,
then press [ENTER].
Note
Zoom playback will start.
Note
• When selecting a smaller factor than the current one,
the zoom area will not be displayed.
• To exit the zoom menu, press [DISPLAY] repeatedly.
• To cancel the zoom function, select “x1.0” using
[K / L], then press [ENTER] at step 3.
• You cannot slide the zoomed picture on some JPEG
files.
68
• To clear a marker, select the marker number to be
cleared, then press [CLEAR].
• All markers will be erased when you operate these
operations listed below.
– Opening the disc tray
– Turning off the power
– Record on a recordable disc
• You can mark up to 6 points.
EN
E7H70UD̲EN.indb 68
2007/02/26 18:11:54
SPECIAL PLAYBACK
Introduction
Chasing Playback during Recording
1) During recording, press [PLAY B].
Playback will start from the beginning of the program
that you are currently recording.
Screen for the current playback:
1/ 5
0:01:00 / 1:23:45
-RW
VR
ORG
1/ 5
1/ 5
1:23:45
-RW
VR
ORG
CH 10
LP
1:01
Playback
Resume ON
• Playback image may freeze momentarily using this
function.
However, this does not affect the recording.
• The 2x fast forward playback is not available.
• [REC I] is not available during this function.
• You must cancel this function first by pressing
[STOP C] once. Then you can use [REC I] to use
OTR (one-touch timer recording) function or change
recording time for the OTR.
• “Wait for a moment.” will be displayed on the screen
if you press [PLAY B] before 1 minute of recording.
• This function is available only when you are
recording on a DVD-RW in VR mode, with the
recording mode LP, EP or SLP.
Recording
2) Press [STOP C] once to stop playback.
The resume message will appear.
Screen for the current recording:
Note
Disc
Management
If you play back the fast forward playback and the
playback reaches the scene recorded 1 minute before,
the forwarding playback will automatically return to
the normal playback.
With [TIME SLIP] button, even if you leave your couch
while you are watching TV through this unit, you can
come back and watch rest of the program from right
where you left at any convenient time with just one
button. Please make sure to put VR mode DVD-RW
disc, and set the recording mode to LP, EP or SLP.
1) While viewing a TV broadcast via this unit, press
[TIME SLIP].
This unit start to record the TV broadcast.
2) Press [TIME SLIP] again.
Playback will start from the point you press [TIME
SLIP] first while recording continues.
• While viewing the recorded content, you can pause
and resume the playback by pressing [TIME SLIP].
3) Press [STOP C] once to stop playback.
To stop recording, press [STOP C] again.
Basic Setup
1/ 5
Using the [TIME SLIP] button...
Connections
You can play back the already recorded part of the
currently recording program without waiting for the
recording to the end. This function works from 1
minute after the start of the recording.
To stop recording, press [STOP C] again.
To cancel the resume, press [STOP C] again.
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 69
69
2007/02/26 18:11:55
SPECIAL PLAYBACK
Simultaneous Playback and Recording
You can also play back a recorded title during current
recording or the timer recording on the same disc.
3) Press [STOP C] once to stop playback.
The resume message will appear.
Screen for the current recording:
1) During recording, press [DISPLAY].
Screen for the current recording:
1/ 5
1/ 5
1:23:45
-RW
VR
ORG
CH 10
1/ 5
1/ 5
1:23:45
-RW
VR
ORG
CH 10
Resume ON
2) Select
icon using [{ / B], then press [ENTER].
will be highlighted.
The title number next to
Title:
Enter a desired title number to search using
[K / L] or [the Number buttons], then press
[ENTER].
Selected title playback will start.
Chapter:
for chapter, press [B].
To move to
Enter a desired chapter number to search using
[K / L] or [the Number buttons], then press
[ENTER].
Selected chapter playback will start.
If you play back the currently recording program and the
playback reaches the scene recorded 1 minute before,
the forwarding playback will automatically return to the
normal playback.
70
LP
1:01
To stop recording, press [STOP C] again.
To cancel the resume, press [STOP C] again.
Note
• Playback image may freeze momentarily using this
function.
However, this does not affect the recording.
• The 2x fast forward playback is not available.
• This function is available only when you are
recording on a DVD-RW in VR mode, with the
recording mode LP, EP or SLP.
• Only the titles (chapters) in the original can be
selected.
You cannot select titles from the title list.
• When you stop the playback after the timer
recording is completed, the unit will be switched to
the timer standby mode if another program has been
set (refer to “Hints for Timer Recording” on page 52).
EN
E7H70UD̲EN.indb 70
2007/02/26 18:11:56
SEARCH
Introduction
Title/Chapter Search
Track Search
Using [SKIP j ] / [SKIP i ]
1) During playback, press [SKIP i ] to skip the
current title or chapter and move to the next.
The title or chapter will move forward by one at a time.
• If there is no chapter in one title, the current title will
be skipped.
1) During playback, press [SKIP i] to skip the
current track/file and move to the next.
The track/file will move forward one at a time.
To go back to the beginning of the current track/file,
press [SKIP j ].
Press it twice in quick successions to go to the previous
track/file. The track/file will move backward one at a
time.
Using [DISPLAY]
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
e.g.) DVD-video
Using [DISPLAY]
• For audio CD, skip to step 2.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
e.g.) audio CD
, then press [ENTER].
, then press [ENTER].
1/ 5
Disc
Management
1/ 5
Basic Setup
To go back to the beginning of the current title or
chapter, press [SKIP j ].
Press it twice in quick successions to go to the previous
title or chapter. The title or chapter will move
backward one title at a time.
0:00:15 / 0:05:00
CD
1/ 5
0:01:00 / 1:23:45
DVD Video
e.g.) MP3 files
1/ 5
will be highlighted.
The number next to
will be highlighted.
3) Use [K / L] or [the Number buttons] to enter a
desired track/file number to search, then press
[ENTER].
After the search, playback will start automatically.
Note
• During CD playback, you can enter a track number
directly using [the Number buttons] for track search
without displaying the menu.
Editing
Note
MP3
Playback
3) Title:
Use [K / L] or [the Number buttons] to enter a
desired title number to search, then press [ENTER].
Title search will start.
Chapter:
for
Press [B] to move to the number next to
chapter.
Use [K / L] or [the Number buttons] to enter a
desired chapter number to search, then press
[ENTER].
After the search, playback will start automatically.
0:00:15
Recording
The number next to
• In search mode display, total numbers of each search
contents (title/chapter/time) are shown as a
denominator.
1/ 5
1/ 5
Connections
Using [SKIP j ] / [SKIP i ]
0:01:00 / 1:23:45
Function Setup
DVD Video
total number
total time
of titles
of the title
total number
of chapters
Others
EN
E7H70UD̲EN.indb 71
71
2007/02/26 18:11:57
SEARCH
Time Search
• For audio CD, skip to step 2.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
e.g.) DVD-video
1/ 5
, then press [ENTER].
1/ 5
0:01:00 / 1:23:45
DVD Video
e.g.) audio CD
1/ 5
0:00:15 / 0:05:00
CD
The number next to
will be highlighted.
To move to the number next to
, press [B].
When time search is not available,
counter are not displayed.
and time
3) Use [K / L / { / B] or [the Number buttons] to
enter a desired time to search, then press [ENTER].
After the search, playback will start automatically.
Note
• Time search is available only in the same track, file or
title.
72
EN
E7H70UD̲EN.indb 72
2007/02/26 18:11:58
REPEAT/RANDOM/PROGRAM PLAYBACK/SLIDE SHOW
Note
, then press [ENTER] within
2) Use [{ / B] to select
1 second, or wait for 1 second to display the
selection menu.
1/ 5
1/ 5
0:01:00 / 1:23:45
• Point B for the repeat A-B playback should be set
within the same chapter or track of point A.
• To cancel the repeat playback, select “OFF” at step 3.
The repeat setting will also be canceled when you
stop playback.
• You cannot select “Group” during the random
playback of MP3/WMA/JPEG files.
• For some DivX® files, A-B repeat playback may not
function.
• Chapter/Track repeat will be canceled whenever
[SKIP G] or [SKIP H] is pressed.
Connections
Available repeat function may vary depending the discs.
• For audio CD, MP3, or WMA, skip to step 2, or press
[REPEAT] and skip to step 3.
1) During playback, press [DISPLAY] or [REPEAT].
• If you press [REPEAT], skip to step3.
Introduction
Repeat Playback
DVD Video
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
Random Playback
You can play back a disc randomly instead of playing
back in the original order.
e.g.) audio CD
0:00:15 / 0:05:00
CD
OFF
Track
All
A-B
e.g.) MP3/WMA/JPEG files
1/ 5
0:00:15 / 0:05:00
CD
1/ 5
Random
0:00:15
Recording
2) Use [K / L] to select “CD Playback Mode”, then press
[ENTER].
“CD Playback Mode” menu will appear.
3) Use [K / L] to select “Random Play”, then press
[ENTER].
Random playback will start.
e.g.) audio CD
Disc
Management
1) Press [SETUP] in stop mode.
OFF
Title
Chapter
A–B
1/ 5
Basic Setup
3) Use [K / L] to select a desired option to repeat,
then press [ENTER].
e.g.) DVD-video
MP3
OFF
Track
All
Group
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
Repeat
Playback
The selected repeat playback will start.
Note
• To cancel random playback, press [STOP C] twice
during random playback. “OFF” appears on the
display menu.
Title
Editing
Function Setup
Title:
The current title will be played back repeatedly.
Chapter:
The current chapter will be played back repeatedly.
All:
The current disc will be played back repeatedly.
A-B:
Desired section can be played back repeatedly.
1) Use [K / L] to select “A-B”, then press [ENTER].
2) Press [ENTER] at the desired starting point A.
3) Press [ENTER] at the desired ending point B.
Track:
The current track or file will be played back repeatedly.
Group:
The current folder will be played back repeatedly.
Others
EN
E7H70UD̲EN.indb 73
73
2007/02/26 18:11:59
REPEAT/RANDOM/PROGRAM PLAYBACK/SLIDE SHOW
Program Playback
Slide Show
You can program the disc to play back in your desired
order.
You can select the display time between 5 seconds and
10 seconds.
1) Press [SETUP] in stop mode.
1) Follow steps 1 and 2 in “Program Playback” on the
left.
2) Use [K / L] to select “CD Playback Mode”, then press
[ENTER].
“CD Playback Mode” menu will appear.
2) Use [K / L] to select “Slide Show”, then press
[ENTER].
3) Use [K / L] to select “Program Play”, then press
[ENTER].
3) Use [K / L] to select the display time, then press
[ENTER].
4) Use [K / L] to select a desired track, then press
[ENTER] or [B].
4) Press [SETUP] to exit.
Note
CD Playback Mode
• Large-size JPEG files take a few moments to be
displayed.
Program Play
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Total
-0:00:00
Repeat this step until you program all the desired
tracks.
5) Press [PLAY B].
CD Playback Mode
Program Play
09
04
10
06
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Total
-0:31:07
Program playback will start.
Note
• To erase tracks you selected, press [CLEAR] at step 4.
• You can make program settings up to 50 tracks.
• To cancel program playback, press [STOP C] twice
during program playback. “OFF” appears on the TV
screen.
• You may also select a desired track using [the
Number buttons] at step 4.
74
EN
E7H70UD̲EN.indb 74
2007/02/26 18:12:00
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Subtitles
Switching Audio Soundtrack
When playing back a DVD-video recorded with 2 or more
soundtracks (these are often in different languages), you
can switch them during playback.
When playing back audio CD, you can switch “L/R”(stereo),
“L”(left) or “R”(right).
1) During playback, press [DISPLAY].
Connections
DVD-video may have subtitles in one or more languages.
Available subtitle languages can be found on the disc
case. You can switch subtitle languages anytime during
playback.
Introduction
You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back.
1) During playback, press [DISPLAY].
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
3) Use [K / L] to select a desired subtitle language,
then press [ENTER].
1/ 5
1/ 5
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
1.Dolby Digital 2ch English
2.Dolby Digital 5.1ch English
0:01:00 / 1:23:45
Disc
Management
3) Use [K / L] to select a desired audio soundtrack or
audio channel, then press [ENTER].
For DVD-video, VR mode DVD-RW, or DivX® files
• Audio soundtrack will switch.
e.g.) DVD-video
Basic Setup
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
e.g.) DVD-video
DVD Video
OFF
1.English
Note
• Some discs will only allow you to change the subtitle
from the disc menu. Press [MENU/LIST] or [TOP
MENU] to display the disc menu.
• If a 4-digit language code appears in the subtitle
menu, refer to the “LANGUAGE CODE” on page 112.
• For disc with DivX® files, the TV screen only displays
the number of subtitle languages and “_ _ _ _“ next
to the numbers.
1/ 5
Recording
Subtitle will be displayed in the selected language.
When “OFF” is selected, subtitle will disappear.
• If the title contains both main and sub audio, you can
further select “L“ (main), “R“ (sub), “L/R“ (mixed of
main and sub).
For audio CD
• Audio channel will switch.
e.g.) audio CD
0:00:15 / 0:05:00
CD
Playback
1. L/R
2. L
3. R
Editing
Note
• Some discs will only allow you to change the
soundtrack from the disc menu. Press [MENU/LIST]
or [TOP MENU] to display the disc menu.
Function Setup
Others
EN
E7H70UD̲EN.indb 75
75
2007/02/26 18:12:01
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Virtual Surround System
Switching Camera Angles
You can enjoy stereophonic virtual space through your
existing 2 channel stereo system.
Some DVD-video have scenes shot from two or more
angles. Angle information should be on the disc case if
the disc contains multi-angle scenes.
1) During playback, press [DISPLAY].
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
e.g.) DVD-video
1/ 5
1/ 5
1/ 5
, then press [ENTER].
1/ 5
0:01:00 / 1:23:45
DVD Video
0:01:00 / 1:23:45
DVD Video
3) Use [K / L] to select “OFF”, “Type 1” or “Type 2”,
then press [ENTER].
e.g.) DVD-video
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
OFF
Type 1
Type 2
Angle icon appears when a switching camera angle is available.
Angle will switch each time you press [ENTER].
Note
• Angle icon does not appear on the TV screen if you
set “Angle Icon” to “OFF” in “Playback” menu.
Refer to page 99.
Reducing Block Noise
OFF
: no effect
Type 1 : natural effect
Type 2 : emphasized effect
Note
• Select “OFF” if sound is distorted.
• The setting will be kept when the unit is turned off.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
e.g.) DVD-video
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
3) Use [K / L] to, select “Noise Reduction”, then press [ENTER].
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
Noise Reduction OFF
Black Level
OFF
4) Use [K / L] to select a desired option, then press [ENTER].
1/ 5
1/ 5
0:01:00 / 1:23:45
DVD Video
OFF
Type 1
Type 2
Your setting will be activated.
This function reduces noise in the playback picture. If
noises appear on the TV screen during playing back
discs recorded in long time recording mode such as EP
or SLP, select “Type 1” or “Type 2”.
(“Type 2” is more effective.)
When playing back discs with a few noises such as
DVD-video, select “OFF”.
76
EN
E7H70UD̲EN.indb 76
2007/02/26 18:12:02
SELECTING THE FORMAT OF AUDIO AND VIDEO
Introduction
Adjusting Black Level
You can adjust the black level to control the brightness
of the picture in order to get a better picture.
Connections
1)During playback, press [DISPLAY].
2) Use [{ / B] to select
. Press [ENTER] within 1
second, or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5
0:01:00 / 1:23:45
Basic Setup
1/ 5
DVD Video
1/ 5
1/ 5
Disc
Management
3) Use [K / L] to select “Black Level”, then press
[ENTER].
0:01:00 / 1:23:45
DVD Video
Noise Reduction OFF
Black Level
OFF
1/ 5
1/ 5
Recording
4) Use [K / L] to select “ON”, then press [ENTER].
Your setting will be activated.
0:01:00 / 1:23:45
DVD Video
OFF
ON
Playback
Note
Editing
• You can adjust black level setting only during
playback.
• The setting will be kept even when the unit is turned
off.
• The default setting is “ON”.
• You cannot adjust the black level for the images
output through the HDMI.
Function Setup
Others
EN
E7H70UD̲EN.indb 77
77
2007/02/26 18:12:06
INFORMATION ON DISC EDITING
Guide to a Title List
Editing Discs
Title list allows you to check the titles recorded on the
disc easily. You can choose a title to play back from this
list and easily edit the titles as you prefer.
Press [TOP MENU].
4
ORG
5
6
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
CH10 LP
1
2
3
4
5
6
1/2
3
2 1
ORG
3
Edit
2
Scene Delete
Edit Title Name
Chapter Mark
Protect
JAN/31/07 11:00PM CH13 LP
0:00:59
11 10
9
8
7
1. Title list: List of the titles recorded on the disc, and
their information.
• For DVD+RW/+R, empty title always appears at the
last of the title list.
2. The protect icon, which appears when the title has
been protected. (Original titles only)
3. Arrow: Indicating there is a previous / next page.
4. Title list icon, which indicates a type of the displayed
title list.
: VR(original).
: VR (Playlist).
: +VR mode.
: Video mode.
5. Title name.
6. Title information, which displays recorded year/ date/
month/ time, length of the title, recorded external
input mode (CH, L1 or L2), and the recording mode.
7. Submenu: Submenus for the selected menu are
displayed here.
8. Title name (editable): If you do not name the title,
the recorded date, time, channel and the recording
mode are displayed here.
9. Progress bar: Indicating the progress of the
playback.
10. Preview window: Preview of the selected title is
displayed here.
11. Playback status: Indicating the current playback
status of the selected title.
ORG
PL
Edit the recorded disc
You will find editing discs is easy. This unit offers
convenient edit functions which are possible only with
DVD-RW/-R and DVD+RW/+R.
You can edit the following from a title list.
• Assigning a name to a title
• Dividing a title
• Combining titles
• Adding titles to a playlist
• Erasing all playlist
• Setting or releasing the title protection
• Adding or deleting chapter marks
• Deleting titles or parts of titles
(Possible editing functions depend on the recording
format and editing method.)
Original and playlist (VR mode)
For VR mode DVD-RW, you can edit the recordings in
playlist without changing the original recordings. Playlist
does not take up much disc space. After you make a
recording to VR mode DVD-RW, a playlist will be created
automatically.
What “Original” or “Playlist” is for?
Throughout this manual, you will find original and playlist
which refer to the actual content and the edited version.
• Original content refers to what’s actually recorded on
the VR mode DVD-RW.
• Playlist content refers to the edited version of the VR
mode DVD-RW; how the original content is to be played
back.
Finalizing a disc
• This will allow a disc that is recorded on this unit to be
played back on other DVD player — without finalization
it will not be playable on other DVD player.
• After finalizing a DVD-RW/-R or DVD+R, you cannot edit
any information that is on that disc.
• If you have recorded in DVD+RW, then editing is still
permitted after finalizing.
+VR
Video
Using these editing functions to modify copyrighted
content for any purpose other than your private viewing
may be prohibited under the Copyright Laws of the
United States and other countries, and may subject you
to civil and criminal liability.
Press [RETURN] to exit the title list.
78
EN
E7H70UD̲EN.indb 78
2007/02/26 18:12:07
DELETING TITLES
Introduction
Notes for deleting titles
After the disc is fully recorded:
DVD-RW/DVD+RW
TITLE 2
TITLE 2
TITLE 3
TITLE 2
TITLE 3
TITLE 2
TITLE 2
TITLE 2
TITLE 3
You cannot
record
a new title.
Disc
Management
TITLE 3
The deleted title
cannot be created the space.
Basic Setup
Delete!
TITLE 1
You can record
a new title.
TITLE 1
Delete!
TITLE 1
TITLE 1
You can record
a new title.
Delete!
TITLE 1
Delete!
• When a title is deleted from
DVD-R and DVD+R, the
recordable space will NOT be
increased.
The Full-Recorded disc
TITLE 1
TITLE 1
TITLE 2
• When the last title is deleted from
DVD-RW in video mode or DVD+RW,
the recordable space will be
increased.
The Full-Recorded disc
You cannot
record
a new title.
Once all editings are made, press [RETURN] in several times to exit the editing mode. “Writing to Disc” appears
momentarily. It also appears when pressing [AOPEN/CLOSE] or [I/y
y ON/STANDBY] before exiting the editing
mode after editing.
Recording
Note
• If you delete the title in DVD+RW, deleted title will be displayed as “Empty”.
• You cannot overwrite on the “Empty”
• For DVD+RW, if “Empty” appears right next to the other “Empty”, those “Empty” combines into one.
+VR
Title List
+VR
Empty
Title List
Playback
JAN/21/07 7:00AM CH22 SLP
7:00AM (2:00:00)
JAN/21/07
EMPTY TITLE
SLP
1
2
3
4
5
6
Empty
Connections
• When a title is deleted
from DVD-RW in VR
mode, the recordable disc
space will be increased.
The Full-Recorded disc
DVD-R/DVD+R
1
1Delete the
title No.5
2
3
4
Empty
1/1
1/1
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 79
79
2007/02/26 18:12:07
DELETING TITLES
You can delete titles which you do not need anymore.
Please be advised that the titles once deleted cannot be brought back to the disc.
Be sure to read “Notes for deleting titles” on page 79 before you delete the title.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
CH
1
2
In stop mode, press [TOP MENU].
Title list, original or playlist will appear.
• For VR mode DVD-RW, press [MENU/LIST] to
switch between “Original” and “Playlist”.
Use [K / L/ s / B] to select a desired
title, then press [ENTER].
e.g.) VR mode DVD-RW original
ORG
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
PQRS
WXYZ
TUV
SETUP
2
3
4
5
6
TIMER
PROG.
SPACE
DTV/TV
CH10 LP
1
DISPLAY
AUDIO
1/2
TOP MENU
MENU/LIST
ENTER
CLEAR
SKIP
PAUSE
RETURN
FWD
REV
3
Use [K / L] to select “Title Delete”,
then press [ENTER].
ORG
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
1
SKIP
STOP
PLAY
4
TIME SLIP
1.3x / 0.8x PLAY
CH10 LP
2
3
Play From Start
Edit
Title Delete
5
Add To Playlist
6
INSTANT SKIP
1/2
REPEAT REC MODE
REC
SE-R0264
ZOOM
4
Use [K / L] to select “Yes”, then press
[ENTER].
ORG
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
1
2
CH10 LP
3
Delete this title?
4
Yes
5
No
6
1/2
After that, “Are you sure?” will appear, select
“Yes” and then press [ENTER].
Title will be deleted.
5
Press [RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
Writing to Disc
90%
This operation may take
awhile to be completed.
80
EN
E7H70UD̲EN.indb 80
2007/02/26 18:12:08
CREATING/DELETING PLAYLIST
Introduction
Adding Titles to a Playlist
Playlist
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
SETUP
DISPLAY
TOP MENU
AUDIO
MENU/LIST
Use [K / L/ s / B] to select the
desired title, then press [ENTER].
Use [K / L] to select “Add To
Playlist”, then press [ENTER].
ORG
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
1
4
ENTER
CLEAR
Disc
Management
DTV/TV
CH
1
2
3
Follow the step 1 in “DELETING
TITLES” on page 80 to display the
original.
Basic Setup
OPEN/
CLOSE
Connections
For VR mode DVD-RW, you can create the playlist as you wish.
You can add up to 99 titles to a playlist (as long as the total number of the playlist does not exceed 999
chapters).
CH10 LP
2
3
Play From Start
Edit
Title Delete
5
Add To Playlist
6
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
4
ZOOM
Use [K / L] to select “Yes”, then press
[ENTER].
ORG
Recording
1/2
SKIP
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
CH10 LP
2
3
Playback
1
Create a Playlist ?
4
Yes
5
No
6
1/2
SE-R0264
The title is added to playlist.
Editing
5
Press [RETURN] or [STOP C] to exit.
Writing on the disc starts.
It may take awhile to write the data on a disc.
Function Setup
Note
EN
E7H70UD̲EN.indb 81
Others
• To delete a title from the playlist, refer to “DELETING
TITLES” on page 80.
• To delete all titles in the playlist, refer to “Erasing All
Playlist” on page 82.
• When a playlist contains 99 titles or more, or 999
chapters or more, “Add to Playlist” cannot be
selected.
81
2007/02/26 18:12:09
CREATING/DELETING PLAYLIST
Erasing All Playlist
Playlist
A playlist can be deleted if it is no longer needed.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
TOP MENU
AUDIO
1
2
3
Press [SETUP].
Main menu will appear.
Use [K / L] to select “DVD Menu”,
then press [ENTER].
Use [K / L] to select “Delete All
Playlists”, then press [ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlists
MENU/LIST
ENTER
CLEAR
SKIP
PAUSE
TIME SLIP
RETURN
FWD
REV
STOP
PLAY
1.3x / 0.8x PLAY
REPEAT REC MODE
SKIP
REC
INSTANT SKIP
4
Use [K / L] to select “Yes”, then press
[ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete entire playlist?
Delete All Playlist
Yes
No
ZOOM
SE-R0264
“Are you sure?” will appear.
Use [K / L] to select “Yes” and then press
[ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete
play list?
Areentire
you sure?
Delete All Playlist
Yes
No
Playlist is deleted.
Writing on the disc starts.
It may take awhile to write the data on a disc.
Note
• Deleting a playlist will not increase the available
recording time on the disc.
82
EN
E7H70UD̲EN.indb 82
2007/02/26 18:12:10
EDITING DISCS
Introduction
Putting Names on Titles
You can put a name on the disc and change it from this
menu.
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
4
ORG
Connections
OPEN/
CLOSE
Use [K / L] to select “Edit Title
Name”, then press [ENTER].
Edit
1
Scene Delete
Edit Title Name
Chapter Mark
Protect
CH
JAN/ 1/07 12:00AM CH10 LP
DTV/TV
SETUP
DISPLAY
TOP MENU
AUDIO
MENU/LIST
5
To enter a title name, follow the
steps of “Guide to Edit Title Name”
on page 84.
ORG
Edit - Edit Title Name
a b c
CLEAR
FWD
character set
1 2 3
RETURN
REV
A B C
@ !
?
SKIP
Disc
Management
1
ENTER
SKIP
Basic Setup
1 : 25 : 47
TIMER
PROG.
SPACE
M
PAUSE
PLAY
1 : 25 : 47
STOP
Use [K / L/ s / B] to select a desired
title, then press [ENTER].
6
Use [K / L] to select “Yes”, then press
[ENTER].
ORG
Edit - Edit Title Name
1
Playback
1
2
In stop mode, press [TOP MENU].
Title list, original or playlist will appear.
• For VR mode DVD-RW, press [MENU/LIST] to
switch between “Original” and “Playlist”.
Yes
No
e.g.) VR mode DVD-RW original
ORG
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
MY FAVORITE
CH10 LP
2
3
4
5
6
1 : 25 : 47
1/2
ORG
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
1
Play From Start
Edit
Title Delete
5
Add To Playlist
CH10 LP
3
6
Others
4
2
1/2
EN
E7H70UD̲EN.indb 83
Function Setup
Use [K / L] to select “Edit”, then press
[ENTER].
7
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Editing
1
The name you entered will be activated for the title.
3
Recording
area for entering title names
When you finish entering a title name, press
[ENTER].
83
2007/02/26 18:12:10
EDITING DISCS
Putting Names on Titles (cont’d)
Guide to Edit Title Name
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
1) Use [K / L] to select a desired character set, then
press [ENTER].
2) Follow the list below, use [the Number buttons]
repeatedly until the desired letter appears.
Select
SETUP
CH
ABC
abc
123
@!?
<space>
<space>
0
<space>
(*1)
(*1)
1
! ”# $ % & ’( )
*+,-./:;<=>
?@[]^_{|}
ABC
abc
2
(*2)
DEF
def
3
(*2)
GHI
ghi
4
(*2)
JKL
jkl
5
(*2)
MNO
mno
6
(*2)
PQRS
pqrs
7
(*2)
TUV
tuv
8
(*2)
WXYZ
wxyz
9
(*2)
TIMER
PROG.
SPACE
DTV/TV
Press
DISPLAY
TOP MENU
AUDIO
MENU/LIST
ENTER
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
SE-R0264
ZOOM
*1 Press
, character set will be changed to the “ @!? ”
mode automatically.
to
, character set will be changed to the
*2 Press
previous input mode automatically.
• To delete letters, press [CLEAR] repeatedly.
Press and hold [CLEAR] to delete all letters.
• Use [s / B] to move the cursor to the left and right.
• You can enter up to 30 letters.
Note
• Undefined letters in a title name are shown by “*”. If
you delete them, adjoining letters may change to “*”
or other.
84
EN
E7H70UD̲EN.indb 84
2007/02/26 18:12:12
EDITING DISCS
You can put chapter marks in each title. Once a chapter is
marked, you can use it for the chapter search feature.
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
4
Use [K / L] to select “Add” or
“Delete”, then press [ENTER].
TIMER
PROG.
SPACE
DTV/TV
CH
DISPLAY
AUDIO
MENU/LIST
PAUSE
Edit - Chapter Mark
1
RETURN
FWD
REV
PLAY
Chapter
SKIP
Add
Delete
2/3
Recording
SKIP
e.g.) VR mode DVD-RW original
ORG
ENTER
CLEAR
Use [SKIP H / G],
[REV E], [FWD D], [PLAY B] and
[PAUSE F] to find the point where
you will create a new chapter mark.
Or, use [SKIP H / G] to find a
chapter mark that you wish to delete.
Disc
Management
TOP MENU
Submenu will appear.
STOP
JAN/ 1/07 12:00AM CH10 LP
1 : 25 : 47
TIME SLIP
1.3x / 0.8x PLAY
REPEAT REC MODE
REC
Basic Setup
INPUT
SELECT
Use [K / L] to select “Chapter Mark”,
then press [ENTER].
Connections
OPEN/
CLOSE
1
2
3
Follow steps 1 to 3 in “Putting Names
on Titles” on page 83 to display “Edit”
menu.
Introduction
Setting Chapter Marks
INSTANT SKIP
ZOOM
If you select “Add” at step 4, a new chapter mark
will be added, and if you select “Delete” at step
4, the chapter mark will be deleted.
e.g.) Add
SE-R0264
ORG
Playback
5
Use [K / L] to select “Yes”, then press
[ENTER].
Edit - Chapter Mark - Add
1
Editing
Chapter
Yes
No
2/3
JAN/ 1/07 12:00AM CH10 LP
1 : 25 : 47
Function Setup
A new chapter mark will be added.
Note
6
7
Press [RETURN].
Press [RETURN] again and then
[RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
EN
E7H70UD̲EN.indb 85
Others
• Maximum numbers of chapter for each DVD:
VR mode DVD : 999 chapters per entire original
and playlist
+VR mode DVD : 254 chapters per disc, 99 chapters
per title
• Besides the above-mentioned, it is not likely to be
able to add according to recorded time and number
of chapters.
85
2007/02/26 18:12:12
EDITING DISCS
Hiding Chapters
You can hide chapters from the title list.
Hidden chapters are skipped during playback.
OPEN/
CLOSE
INPUT
SELECT
2
Use [K / L/ s / B] to select a desired
title, then press [ENTER].
+VR
Title List
JAN/15/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/15/07
CH10 LP
1
2
3
4
5
6
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
1/2
SETUP
3
TIMER
PROG.
SPACE
DTV/TV
CH
DISPLAY
AUDIO
Use [K / L] to select “Edit”, then
press [ENTER].
+VR
Title List
JAN/15/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/15/07
1
TOP MENU
MENU/LIST
4
CH10 LP
2
3
Play From Start
Edit
Title Delete
5
6
ENTER
1/2
CLEAR
SKIP
RETURN
REV
FWD
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
1
SKIP
REC
ZOOM
In stop mode, press [TOP MENU].
4
5
6
Use [K / L] to select “Hide Chapter”,
then press [ENTER].
Submenu will appear.
Use [SKIP H] or [SKIP G] to decide
the chapter to be hidden.
Use [K / L] to select “Hidden”, then
press [ENTER].
+VR
Edit - Hide Chapter
Title list will appear.
1
Chapter
Visible
Hidden
2 / 3 Hidden
JAN/15/07 12:00AM CH10 LP
Note
1 : 25 : 47
• ”Hidden” will be displayed in the preview window
while previewing the hidden chapter.
• When you make all chapters in the title “Hidden”,
“Hidden” is displayed in a thumbnail of the title list.
+VR
Title List
JAN/15/07 12:00AM CH10 LP
--:-- (2:00:00)
---/--/--
1
2
LP
3
7
After this operation is completed,
press [RETURN] thrice to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
Hidden
4
Empty
1/1
86
If you want hidden chapters to be “Visible”,
select the chapter to be shown. Then use
[K / L] to select “Visible”, then press [ENTER]
at the step 4 above.
Data will be written onto the disc momentarily.
EN
E7H70UD̲EN.indb 86
2007/02/26 18:12:13
EDITING DISCS
Introduction
Deleting a Part of a Title
Original
Playlist
3
Use [SKIP H / G],
[REV E], [FWD D], [PLAY B] and
[PAUSE F] to find the start point,
then press [ENTER].
PL
Edit - Scene Delete
1
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
Start
End
Preview
Delete
JAN/ 1/07 12:00AM CH10 LP
CH
1 : 00 : 00
PQRS
TIMER
PROG.
SPACE
SETUP
DISPLAY
AUDIO
PL
TOP MENU
Edit - Scene Delete
MENU/LIST
1
Start
End
Preview
Delete
Disc
Management
DTV/TV
Then use [SKIP H / G],
[REV E], [FWD D], [PLAY B] and
[PAUSE F] again to move to the end
point, and press [ENTER].
WXYZ
TUV
Basic Setup
OPEN/
CLOSE
Connections
You can delete a specific part of a title.
Even when parts of title are deleted from the playlist, the
original title will remain as it is.
ENTER
CLEAR
RETURN
FWD
REV
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REC
The cursor will move to “Preview”.
The bar at the bottom of the screen indicates the
total and the elapsed time of the title, and the
area selected for deletion is indicated in red.
You can check the preview by pressing [ENTER].
• Before and after 5 seconds of the deleted point
will be playback for preview.
ZOOM
start point end point
Playback
REPEAT REC MODE
1 : 15 : 00
SKIP
Recording
JAN/ 1/07 12:00AM CH10 LP
SKIP
Before
editing
Editing
Edited
Use [K / L] to select “Scene Delete”,
then press [ENTER].
Function Setup
1
2
Follow the steps 1 to 3 in “Putting
Names on Titles” on page 83 to
display “Edit” menu.
e.g.) VR mode DVD-RW playlist.
PL
Edit
1
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Title Combining
1 : 25 : 47
Instructions continue on the next page.
EN
E7H70UD̲EN.indb 87
Others
JAN/ 1/07 12:00AM CH10 LP
87
2007/02/26 18:12:14
EDITING DISCS
Deleting a Part of a Title (cont’d)
4
Use [K / L] to select “Delete” then
press [ENTER].
PL
Edit - Scene Delete
1
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
CH
Start
End
Preview
Delete
JAN/ 1/07 12:00AM CH10 LP
1 : 40 : 00
TIMER
PROG.
SPACE
DTV/TV
SETUP
DISPLAY
TOP MENU
AUDIO
5
Use [K / L] to select “Yes” then press
[ENTER].
“Are you sure?” will appear. Select “Yes” using
[K / L] and then press [ENTER].
MENU/LIST
PL
Edit - Scene Delete
1
ENTER
CLEAR
SKIP
Are you sure?
Yes
No
RETURN
FWD
REV
JAN/ 1/07 12:00AM CH10 LP
SKIP
1 : 40 : 03
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
The part of the title is deleted.
6
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
SE-R0264
Note
• When a scene is deleted from an original, the scene
on the playlist will also be deleted.
• You cannot select “Scene Delete” if the number of
chapter marks in the original or playlist is more than
900. (Depends on the content, there is a case that
you cannot select “Scene Delete” before the number
of chapter marks reaches 900.)
• The recordable disc space will not increase even after
deleting a part of a title on the playlist.
88
EN
E7H70UD̲EN̲Editing.indd 88
2007/03/16 16:02:12
EDITING DISCS
Introduction
Dividing a Title
Playlist
You can divide one title into two new titles.
e.g.) VR mode DVD-RW playlist
PL
OPEN/
CLOSE
.@/:
INPUT
SELECT
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:00:00) JAN/ 1/07
HDMI
ABC
1
DEF
JKL
MNO
PQRS
TUV
WXYZ
4
CH10 LP
2
3
Play From Start
Edit
Title Delete
5
6
CH
1/2
TIMER
PROG.
SPACE
DTV/TV
SETUP
DISPLAY
MENU/LIST
ENTER
CLEAR
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
Use [K / L] to select “Title Dividing”,
then press [ENTER].
Use [K / L] to select “Yes”, then press
[ENTER].
e.g.) VR mode DVD-RW playlist
PL
Edit - Title Dividing
1
REPEAT REC MODE
REC
ZOOM
Yes
No
Playback
JAN/ 1/07 12:00AM CH10 LP
1 : 25 : 47
The title will be divided into two new titles.
Both title names are identical.
In stop mode, press [TOP MENU].
For DVD+RW: Data will be written onto the disc
momentarily.
• For VR mode DVD-RW, press [MENU/LIST] to
select “Playlist”.
Writing to Disc
Use [K / L/ s / B] to select a desired
title, then press [ENTER].
For VR mode DVD-RW: Proceed to step 7.
7
Press [RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
Others
• You cannot divide a title of the disc when the
number of recording titles reaches the maximum of
99 (-RW) or 49 (+RW), and the number of recording
chapters reaches the maximum of 999 (-RW) or 254
(+RW).
This operation may take
awhile to be completed.
EN
E7H70UD̲EN.indb 89
Function Setup
Note
90%
Editing
1
2
Recording
SKIP
RETURN
4
5
6
Disc
Management
TOP MENU
AUDIO
Use [SKIP H], [SKIP G], [REV E],
[FWD D], [PAUSE F] and [PLAY B]
to decide the point at which you will
divide the title.
Basic Setup
GHI
Connections
3
Use [K / L] to select “Edit”, then
press [ENTER].
89
2007/02/26 18:12:16
EDITING DISCS
Combining Titles
Playlist
You can combine two titles into a single title.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
1
2
Follow the steps 1 to 3 in “Dividing a
Title” on page 89 to display “Edit”
menu.
Use [K / L] to select “Title
Combining”, then press [ENTER].
PL
Edit
1
CH
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Title Combining
JAN/ 1/07 12:00AM CH10 LP
TIMER
PROG.
SPACE
DTV/TV
SETUP
DISPLAY
TOP MENU
1 : 25 : 47
Title combining setting window will appear.
Selected title grays out, and the frame of the
next title becomes yellow.
AUDIO
MENU/LIST
PL
Edit - Title Combining
JAN/31/07 11:00PM CH13 LP
11:00PM (0:30:00) JAN/31/07
ENTER
CH13 LP
1
2
3
4
5
6
1+
CLEAR
SKIP
RETURN
FWD
REV
SKIP
1/6
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
3
4
Use [K / L / { / B] to select another
title to combine, then press [ENTER].
Selection menu will appear.
Use [K / L] to select “Yes”, then press
[ENTER].
PL
Edit - Title Combining
JAN/31/07 11:00PM CH13 LP
11:00PM (0:30:00) JAN/31/07
SE-R0264
1
CH13 LP
2
3
1 + 2 Combine selected titles?
Yes
No
4
5
6
1/6
The two titles will combine into a single title.
PL
Title List
JAN/ 1/07 12:00AM CH10 LP
12:00AM (2:30:00) JAN/ 1/07
CH10 LP
1
2
3
4
5
6
1/6
Note
• You cannot select the same title twice and combine
it into a single title.
• If either one of the two original titles is deleted, the
combined new title is also deleted.
90
5
Press [RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
EN
E7H70UD̲EN.indb 90
2007/02/26 18:12:17
EDITING DISCS
Introduction
Setting or Releasing the Title Protection
Original
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
Use [K / L] to select “Protect”, then
press [ENTER].
ORG
Edit
1
Scene Delete
Edit Title Name
Chapter Mark
Protect
Basic Setup
OPEN/
CLOSE
1
2
Connections
To prevent the accidental editing, or erasing of the titles,
you can protect them in “Edit” menu.
You can cancel the title protection feature after it is
applied.
Follow the steps 1 to 3 in “Putting
Names on Titles” on page 83 to
display “Edit” menu.
CH
JAN/ 1/07 12:00AM CH10 LP
1 : 25 : 47
PQRS
WXYZ
TUV
SETUP
DISPLAY
TOP MENU
AUDIO
MENU/LIST
3
icon will appear in
Confirm the indication
“OFF ON”. Press [ENTER] again.
• If the title is already protected, “ON OFF” will
appear. If you press [ENTER], the title will be
released from protection.
Disc
Management
DTV/TV
• If the title is protected,
the original list.
TIMER
PROG.
SPACE
ENTER
ORG
Edit - Protect
RETURN
1
SKIP
FWD
REV
OFF
Recording
CLEAR
ON
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
JAN/ 1/07 12:00AM CH10 LP
REC
•
ZOOM
icon will appear on the title in the original
list.
4
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
Editing
SE-R0264
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Playback
REPEAT REC MODE
1 : 25 : 47
Function Setup
To protect a whole disc
(VR mode DVD-RW, DVD+RW/+R
only):
Select “Disc Protect OFF ON” from the DVD
Menu, then select “Yes”.
Refer to “SETTING A DISC TO PROTECT” on
page 41.
Others
EN
E7H70UD̲EN.indb 91
91
2007/02/26 18:12:17
EDITING DISCS
Setting or Clearing All Chapter Marks at Once
For titles in video mode DVD-RW, you can set or edit
chapter at every time interval. You can clear the chapter
mark too.
You can specify the interval of chapter marks for titles last
more than 5 minutes.
1
2
Follow the steps 1 to 3 in “Putting
Names on Titles” on page 83 to
display “Edit” menu.
Use [K / L] to select “Chapter Mark”,
then press [ENTER].
Video
Edit
1
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
Edit Title Name
Chapter Mark
JAN/ 1/07 12:00AM CH8 LP
CH
1 : 25 : 47
PQRS
WXYZ
TUV
TIMER
PROG.
SPACE
DTV/TV
SETUP
DISPLAY
AUDIO
3
Use [K / L] to select the desired
interval, then press [ENTER].
Video
Edit - Chapter Mark
1
TOP MENU
MENU/LIST
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
ENTER
CLEAR
JAN/ 1/07 12:00AM CH8 LP
RETURN
1 : 25 : 47
SKIP
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
SE-R0264
4
5
Use [K / L] to select “Yes”, then press
[ENTER].
Chapter marks are added.
If you select “OFF” at step 3, all the chapter
marks are erased.
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
Note
• You cannot select a chapter mark interval that
exceeds the length of a title.
• The length of chapters may slightly deviate from the
one specified at the step 3.
• A chapter mark may be delayed depending on the
recording content.
• Maximum number of chapter for Video mode DVD is
99 chapters per disc and title.
92
EN
E7H70UD̲EN.indb 92
2007/02/26 18:12:19
LIST OF THE DEFAULT SETTINGS
Introduction
The following table is the contents which you can set and the default settings.
Refer to the following table for useful operation.
Setup
Playback
All
level 8 to 1
Audio Out
→ page 98
Dynamic Range
Control
ON
OFF
Compressing the range of sound volume.
PCM
48kHz
96kHz
PCM
Stream
ON
OFF
Set whether the sound recorded in 96kHz will be
down sampled in 48kHz.
Disc Menu Language
→ page 99
English
French
Spanish
Other
Set the language for disc menu language.
Audio Language
→ page 99
Original
English
French
Spanish
Other
Set the language for audio.
Subtitle Language
→ page 99
OFF
English
French
Spanish
Other
Set the language for subtitles.
Angle Icon
→ page 99
ON
OFF
Set whether to display the angle icon or not.
Still Mode
→ page 99
Auto
Field
Frame
Set the type of still image in pausing playback.
OSD Language
→ page 100
English
Français
Español
OFF
5minutes
10minutes
15minutes
30miniutes
Auto
Bright
Dark
Set the language for OSD (on-screen display).
OFF
Service1
Service2
Service3
Service4
Service5
Service6
ON
OFF
Set the type of the DTV closed caption.
Font Size
→ page 36
Middle
Large
Small
Set font size of the displayed caption.
Font Style
→ page 36
Style1
Style2
Style3
Style4
Style5
Style6
Style7
Style8
Set font style of the displayed caption.
Dolby Digital
CC Style
DTV CC
→ page 34
Set the brightness of the front panel display.
Editing
User Setting
→ page 35
Set the idling time before the screen saver starts.
Set the CC style setting whether or not is effective.
Function Setup
Others
EN
E7H70UD̲EN̲FunctionSetup.indd 93
Playback
FL Dimmer
→ page 100
Recording
Screen Saver
→ page 100
Disc
Management
Display
Set the type of sound signal which outputs from the
digital audio output jack.
Set whether DTS signal is output or not.
Basic Setup
General Setting
DTS
Contents
Set the parental level for DVD playback.
Connections
Items (highlight is the default)
Parental Lock
→ page 97
93
2007/03/09 8:57:54
LIST OF THE DEFAULT SETTINGS
Setup
Display
Items (highlight is the default)
CC Style
Edge Type
→ page 36
Font Opacity
→ page 36
Set the font opacity of the displayed caption.
Solid
Translucent
Flash
Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Set back opacity of the displayed caption.
V-Chip
→ page 10100
Downloadable
Rating
Change Password
Download rating system via digital broadcasting.
Progressive
→ page 103
TV Aspect
→ page 103
ON
OFF
Set to the progressive scan mode (set to "ON") or to
the interlace scan mode(set to "OFF").
Set a picture size according to aspect ratio of your TV.
Select Video L1(Rear)
→ page 53
Video In
S-Video In
Back Opacity
→ page 36
General Setting
Back Color
→ page 36
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
L2(Front)
Recording
Auto Chapter
→ page 39
Recording Audio Select (XP)
→ page 40
Auto
Disc Full
Finalize
→ page 42 End of Timer Rec
Aspect Ratio(Video mode)
→ page 40
Clock
Make Recording Compatible
→ page 39
Clock Setting → page 30
Auto Clock Setting
→ page 29
Daylight Saving Time
→ page 30
94
Contents
Set edge type of the displayed caption.
Solid
Translucent
Flash
Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Font Color
→ page 36
Video
None
Raised
Depressed
Uniform
L.Shadow
R.Shadow
Video In
S-Video In
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
PCM
Dolby Digital
ON
OFF
ON
OFF
Auto
4:3
16:9
ON
OFF
OFF
Auto
Manual
ON(MAR-NOV)
ON(APR-OCT)
OFF
Set the font color of the displayed caption.
Set back color of the displayed caption.
Set the video input type for the external input.
Insert chapter marks at even time interval.
Set the recording audio type. (Only when the rec
mode is set to XP.)
Set the unit to finalize the disc automatically.
Set a aspect ratio for video mode recording.
Set to prohibiting additional recording (OFF) or to
replace the title list after recording (ON).
Set the clock.
Set the clock automatically.
Set the clock for the daylight saving time.
EN
E7H70UD̲EN.indb 94
2007/02/26 18:12:21
LIST OF THE DEFAULT SETTINGS
Items (highlight is the default)
Auto Preset
→ page 26
DivX®VOD → page 104
DivX Subtitle
→ page 104
HDMI
Provide DivX®VOD registration code.
Set the language for DivX® Subtitle.
Format
→ page 105
RGB
YCbCr
Set the color space for the HDMI output.
HDMI Audio
→ page 106
ON
OFF
Set whether to output the HDMI audio signal or not.
RGB Range
→ page 106
Normal
Enhanced
Yes
No
Set the black-white contrast level for HDMI RGB
output.
Set to the default setting.
Disc
Management
Reset All
→ page 107
OFF
English
French
Spanish
German
Italian
Swedish
Dutch
Russian1
Russian2
Hungarian
Polish
Czech
Tune the channels manually.
Set the analog TV audio type for output and video
mode or DVD+RW/+R recording.
Basic Setup
General Setting
DivX
Stereo
SAP
Contents
Tune the channels automatically.
Connections
Manual Preset → pages 27-28
TV Audio Select
→ page 33
Air
Cable
Cable (Extended
Scan)
Introduction
Setup
Channel
Recording
Note
• Your change to each settings stays on even when the power is off.
• An item which is not currently available is grayed in the settings.
Playback
Editing
Function Setup
Others
EN
E7H70UD̲EN.indb 95
95
2007/02/26 18:12:21
GENERAL SETTING
Playback
Press [STOP C] if you are playing back a disc.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
3
Use [K / L] to select a desired item,
then press [ENTER].
DISPLAY
TOP MENU
AUDIO
ENTER
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
SE-R0264
96
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
MENU/LIST
CLEAR
SKIP
Use [K / L] to select “Playback”, then
press [ENTER].
TIMER
PROG.
SPACE
DTV/TV
CH
1
2
Press [SETUP] and use [K / L] to
select “General Setting“, then press
[ENTER].
ZOOM
1
2
3
4
5
6
7
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Submenu will appear.
4
5
Refer 1 to 7 on pages 97 to 99 and
set the selected item.
When you finish with the setting,
press [SETUP] to exit.
EN
E7H70UD̲EN.indb 96
2007/02/26 18:12:22
GENERAL SETTING
1
Parental Lock (Default: All)
General Setting
Use [K / L] to select “Yes”, then press [ENTER]. Use
[the Number buttons] to enter a new password except
for 4737, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
All
8
7
6
5
4
3
2
1
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
RATING EXPLANATIONS
Parental Lock
All
Audio Out
8
Disc Menu Language
7
Password
Input
Audio
Language
6
Subtitle Language
5
Angle Icon
4
Still Mode
3
2
1
Your setting will be activated.
B
A password has been set already.
• Use [the Number buttons] to enter the current
password.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
Parental Lock
All
Audio Out
8
Disc Menu Language
7
Password
Input
Audio
Language
6
Subtitle Language
5
Angle Icon
4
Still
Mode
3
2
1
Your setting will be activated.
• If you want to change password, use [K / L] to select
“Yes” then press [ENTER]. Use [the Number buttons]
to enter a new password, then press [ENTER].
<change the password>
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
General Setting
Parental Lock
Parental Lock
All
Audio Out
8
Change
Password?
Disc Menu Language
7
Audio Language
Yes
6
Subtitle Language
No
5
Angle Icon
4
Still Mode
3
2
1
Yes
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
Parental Lock
All
Audio Out
8
Disc Menu Language
7
Password
Input
Audio
Language
6
Subtitle Language
5
Angle Icon
4
Still
Mode
3
2
1
Your setting will be activated.
Note
Function Setup
• Press [CLEAR] to erase numbers entered incorrectly.
• When you forget the password or you want to clear
all settings in “Parental Lock” menu, enter 4,7,3,7
using [the Number buttons] in password input
window. Password will be cleared and parental levels
will be set to “All”.
Editing
• Parental lock function may not be available to some
discs.
• With some DVD, it may be difficult to find if they are
compatible with parental lock. Be sure to check if the
parental lock function operates in the way that you
have set.
• Record the password in case you forget it.
• If there is a DVD in the unit when you set up the
parental lock, press [OPEN/CLOSE A] to activate the
parental lock level.
Parental Lock
Playback
Note
Yes
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Recording
• ALL : Parental Control is inactive; all discs can play.
• 8 [ADULT]: DVD softwares of any grades (adult/
general/children) can be played back.
• 7 [NC-17]: No one under 17 admitted.
• 6 [R]: Restricted; under 17 requires accompanying
parent or adult guardian.
• 5 [PGR]: Parental Guidance Recommended.
• 4 [PG13]: Unsuitable for children under 13.
• 3 [PG]: Parental Guidance suggested.
• 2 [G]: General Audience.
• 1 [KID SAFE]: Suitable for children.
Parental Lock
All
Audio Out
8
Change
Password?
Disc Menu Language
7
Audio Language
Yes
6
Subtitle Language
No
5
Angle Icon
4
Still Mode
3
2
1
Disc
Management
If a password has not been set yet, proceed to A .
If a password has been set already, proceed to B .
General Setting
Parental Lock
Basic Setup
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
A password has not been set yet.
Connections
Some DVD-video feature a parental lock level. Playback
will stop if the ratings exceed the levels you set, it will
require you to enter a password before the disc will
playback. This feature prevents your children from
viewing inappropriate material.
Use [K / L] to select the desired level, then press
[ENTER].
A
Introduction
Playback (cont’d)
Others
EN
E7H70UD̲EN.indb 97
97
2007/02/26 18:12:22
GENERAL SETTING
Playback (cont’d)
2
C
Audio Out
Choose the appropriate audio setting for your external device.
It will only affect a disc playback.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Use [K / L] to select a desired item, then press [ENTER].
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
A
Parental Lock
Audio Out Audio Out
Disc Menu Language
Dynamic Range
AudioControl
Language
PCM
Subtitle Language
Dolby Digital
Angle Icon
DTS
Still Mode
Dynamic Range Control (Default : ON)
Set to “ON” to compress the range between soft and loud sounds.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
Audio Out Audio Out
Menu
Language
Dynamic Disc
Range
Control
Dynamic Range
AudioControl
Language
PCM ON Subtitle Language
DolbyOFF
Digital
Angle Icon
DTS
Still Mode
Your setting will be activated.
Settings for Dolby Digital (Default : Stream)
Parental Lock
Audio Out Audio Out
Disc Menu Language
Dolby Digital
Dynamic Range
AudioControl
Language
PCM PCMSubtitle Language
DolbyStream
Digital
Angle Icon
DTS
Still Mode
Your setting will be activated.
PCM
: Converts the Dolby Digital into PCM (2 channel).
When your amplifier/decoder is NOT
compatible with Dolby Digital, set to “PCM”.
Stream : Outputs Dolby Digital signals
When your amplifier/decoder is compatible
with Dolby Digital, set to “Stream”.
D
Settings for DTS (Default : OFF)
Select a setting using [K / L], then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
Audio Out Audio Out
DTS
Disc Menu Language
Dynamic Range
AudioControl
Language
PCM ON Subtitle Language
DolbyOFF
Digital
Angle Icon
DTS
Still Mode
Note
• Dynamic range control function is available only on
the discs which are recorded in the Dolby Digital
format.
B
Settings for PCM (Default : 48kHz)
Use [K / L] to select a setting, then press [ENTER].
Your setting is activated.
ON
: Outputs DTS signals.
If your amplifier / decoder is compatible with
DTS, set to “ON”.
OFF
: No DTS signal is output.
If your amplifier / decoder is NOT compatible
with DTS, set to “OFF”.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
Audio Out Audio Out
Disc Menu Language
PCM
Dynamic Range
AudioControl
Language
PCM 48kHz
Subtitle Language
Dolby96kHz
Digital
Angle Icon
DTS
Still Mode
Your setting will be activated.
48kHz : If your amplifier/decoder is NOT compatible
with 96kHz PCM, select “48kHz”. 96kHz sound
will be output in 48kHz.
96kHz : If your amplifier/decoder is compatible with
96kHz PCM, select “96kHz”. 96kHz sound will
be output.
Note
When playing back disc with copyright protection
• Even if you select “96kHz”, the sound will be down
sampled at 48kHz.
98
EN
E7H70UD̲EN.indb 98
2007/02/26 18:12:23
GENERAL SETTING
Introduction
Playback (cont’d)
3
Disc Menu Language (Default : English)
Set the language for disc menu.
Use [K / L] to select a language, then press [ENTER].
Parental Lock
Out
Disc Menu Audio
Language
Disc Menu Language
EnglishAudio Language
FrenchSubtitle Language
Spanish
Angle Icon
Other Still Mode
6
Angle Icon (Default : ON)
Audio Language (Default : Original)
General Setting
Set the audio language.
Use [K / L] to select a language, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
Audio Out
Audio Language
Disc Menu Language
Original
Audio Language
EnglishSubtitle Language
FrenchAngle Icon
Spanish
Still Mode
Other
Still Mode (Default : Auto)
Recording
5
Your setting will be activated.
7
Your setting will be activated.
• When “Original” is selected, the audio language will be
in the disc’s default language.
Parental Lock
Audio Out
Angle IconDisc Menu Language
Audio Language
ON Subtitle Language
OFF Angle Icon
Still Mode
Disc
Management
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Select “Auto” usually.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Set the subtitle language.
Use [K / L] to select a language, then press [ENTER].
Parental Lock
Still Mode Audio Out
Disc Menu Language
Auto Audio Language
Field Subtitle Language
Frame Angle Icon
Still Mode
Playback
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Subtitle Language (Default : OFF)
General Setting
Parental Lock
Audio Out
Subtitle Language
Disc Menu Language
OFF Audio Language
EnglishSubtitle Language
FrenchAngle Icon
Spanish
Still Mode
Other
Your setting will be activated.
Auto
: Optimum resolution setting (“Field” or
“Frame”) will be selected.
Field
: Images in the still mode will be stabilized.
Frame : Images in the still mode will be highly defined.
Note
Your setting will be activated.
5 , press 4-digit code
• Frame is one completed video image made up of two
fields (There are 30 frames per second of NTSC video).
Function Setup
If “Other” is selected for 3 to
using [the Number buttons].
Code Input
-
-
-
Editing
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Basic Setup
Set to “ON” to show the angle icon during the playback.
Use [K / L] to select a setting, then press [ENTER].
Your setting will be activated.
4
• Only the languages supported by the disc can be
selected.
• Audio language setting may not be available to
some discs.
• You can change or switch off the subtitles on a DVD
also from the disc menu if it is available.
• Press [CLEAR] to erase numbers entered incorrectly.
Connections
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Note
-
• When you finish entering the code, press [ENTER].
Refer to the language code table on page 112.
Others
EN
E7H70UD̲EN.indb 99
99
2007/02/26 18:12:24
GENERAL SETTING
Display
1
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
OSD Language (Default : English)
Set the language for the on-screen display.
Use [K / L] to select a language, then press [ENTER].
General Setting
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
CH
OSD Language
Screen Saver
OSD Language
FL Dimmer
EnglishCC Style
Français
V-Chip
Español
TIMER
PROG.
SPACE
DTV/TV
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
DISPLAY
TOP MENU
AUDIO
MENU/LIST
2
Screen Saver (Default : 10 minutes)
Set the time to activate the screen saver function on the
TV screen.
Use [K / L] to select a setting, then press [ENTER].
ENTER
CLEAR
Your setting will be activated.
RETURN
General Setting
SKIP
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
OSD Language
Screen Saver
Screen Saver
FL Dimmer
OFF CC Style
5 minutes
V-Chip
10 minutes
15 minutes
30 minutes
ZOOM
Your setting will be activated.
3
SE-R0264
FL Dimmer (Default: Bright)
Set the front panel display brightness.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Press [STOP C] if you are playing back a disc.
1
2
3
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
Use [K / L] to select “Display”, then
press [ENTER].
Use [K / L] to select a desired item,
then press [ENTER].
1
2
3
4
5
OSD Language
FL DimmerScreen Saver
FL Dimmer
Auto CC Style
Bright V-Chip
Dark
You can choose one from “Auto”, “Bright” or “Dark”.
If “Auto” is selected, the display gets dark when the
power is off.
4
CC Style
Refer to “DTV Closed Caption” and “Closed Caption Style“
on pages 34-36.
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
Submenu will appear.
100 EN
E7H70UD̲EN̲FunctionSetup.indd 100
2007/02/27 17:40:28
GENERAL SETTING
5
V-Chip
Note
V-Chip
• Press [CLEAR] to erase numbers entered incorrectly.
• When you forgot the access password, enter 4,7,3,7
using [the Number buttons] in password input
window. Password will be cleared.
4
Press [SETUP] to exit.
OSD Language
Screen Saver
FL Dimmer
CC Style
Downloadable
Rating
V-Chip
Change Password
V-Chip
Playback
A
Change the current password.
Use [the Number Buttons] to enter new access
password.
Recording
General Setting
A
B
Change Password
Disc
Management
OSD Language
Screen Saver
FL Dimmer
Password
Input
CC Style
2) Use [K / L] to select a desired item, then press
[ENTER].
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
B
Note
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
To clear the downloadable rating information and its
setting:
Use [K / L] to select “CLEAR DOWNLOADABLE RATING”,
then press [ENTER].
Basic Setup
1) Use [the Number buttons] to enter the access
password.
If you have not set the password, first, use [the
Number buttons] to set the access password, then
press [ENTER]. The number you entered will be stored
as the access password.
• Depending on the type of rating system, you may set
the levels individually.
Connections
You can set the viewing limitation for the digital TV
programs to prevent your children from watching
inappropriate programs.
This feature is available only after the digital TV
ratings have been downloaded
• The ratings can be downloaded by the unit
automatically if it is available in your area.
Introduction
Display (cont’d)
Downloadable Rating
Editing
Set the rating system via digital broadcasting, or clear the
downloaded ratings.
If the broadcasting signal does not have the
downloadable rating information, the message below
will appear.
Downloadable Rating is currently not available.
Function Setup
• This message will also appear when you try to access
“DOWNLOADABLE RATING“ after you have cleared the
downloadable rating information, and the new
information has not been downloaded.
To set the rating:
Use [K / L] to select “BLOCK SETTING” then press
[ENTER] to show the various types of ratings. Use [K / L]
to select a desired rating to set, then press [ENTER] to
show the levels for the rating. Use [K / L] to select a level,
then press [ENTER] to switch “VIEW” or “BLOCK”. If you
set one level to “BLOCK”, all the higher levels will be
turned to “BLOCK” automatically.
Others
EN 101
E7H70UD̲EN.indb 101
2007/02/26 18:12:25
GENERAL SETTING
Video
Press [STOP C] if you are playing back a disc.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
TIMER
PROG.
SPACE
DTV/TV
SETUP
CH
DISPLAY
AUDIO
MENU/LIST
TOP MENU
1
2
3
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
Use [K / L] to select “Video”, then
press [ENTER].
Use [K / L] to select a desired item,
then press [ENTER].
1 Progressive
2 TV Aspect
3 Select Video
Submenu will appear.
ENTER
CLEAR
SKIP
RETURN
FWD
REV
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
4
5
Refer 1 to 2 on page 103 and set
the selected item.
• For 3 , refer to “Connection to an External
Device“ on page 53.
When you finish with the setting,
press [SETUP] to exit.
SE-R0264
102 EN
E7H70UD̲EN.indb 102
2007/02/26 18:12:26
GENERAL SETTING
1
Progressive (Default : OFF)
1) Use [K / L] to select “ON“, then press [ENTER].
Progressive
TV Aspect
Progressive
Select Video
ON
OFF
General Setting
Yes
If you have a standard TV:
Select “4:3 Letter Box”, so that black bars appear on the
top and bottom of the TV screen when playing back a
wide-screen picture. Select “4:3 Pan & Scan” for a full
height picture with both sides trimmed when playing
back wide-screen picture.
If you have a widescreen TV:
Select “16:9 Wide”.
Disc
Management
Playback
Activating progressive scan:
Display
Progressive
Check your TV has progressive
scan
Video
TV Aspect
Progressive
and connect with
component
video cable.
Rcording
Select Video
ON
Clock
OFF
Channel
NOTE :
DivX If there is no picture or picture is
HDMI
‫ޓ ޓ‬distorted after selecting “Yes”,
Reset
All
‫ޓ ޓ‬Wait
about 15 seconds for auto recovery.
Progressive
TV Aspect TV Aspect
Select Video
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
Basic Setup
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
2) Use [{ / B] to select “Yes“, then press [ENTER].
Activate?
You can select the TV aspect ratio to match the formats of
what you are playing back with the unit and your TV
screen (4:3 standard or 16:9 widescreen TV).
Use [K / L] to select a desired option, then press
[ENTER].
General Setting
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
TV Aspect (Default: 4:3 Letter Box)
Connections
This unit is compatible with the progressive scan system.
The feature provides you with the higher definition
images than the traditional output system does. To utilize
this feature, you must set progressive scan mode to “ON”.
2
Introduction
Video (cont’d)
No
Recording
3) Use [K / L] to select “Yes“ within 15 seconds, then
press [ENTER].
Your setting will be activated.
Note
Playback
• If your TV is compatible with progressive scan (480p),
you are recommended to use the HDMI or component
video cable (commercially available) to connect this
unit to the TV. (Refer to “Method 3” on page 21 or
page 22.) If not, use the RCA video cable and set the
progressive scan to “OFF” or press and hold [SETUP]
for more than 3 seconds during DVD playback.
• When selecting “No” or not pressing any buttons on
the unit or remote control within 15 seconds at step 3,
progressive scan remains to be “OFF” (interlace scan).
Editing
Function Setup
Others
EN 103
E7H70UD̲EN.indb 103
2007/02/26 18:12:26
GENERAL SETTING
DivX®
3
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
SETUP
CH
TIMER
PROG.
SPACE
DTV/TV
1
DISPLAY
AUDIO
This unit allows you to play back the files purchased or
rented from DivX® VOD (video-on-demand) services. The
files are available on the internet. When you purchase or
rent DivX® VOD files on the internet, you will be asked to
enter an activation/registration code. This menu item
provides you with the activation/registration code.
On how to activate this unit for the DivX® VOD file
playback, visit www.divx.com/vod.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
ENTER
CLEAR
SKIP
RETURN
FWD
REV
1 DivX R VOD
2 DivX Subtitle
DivX® VOD
MENU/LIST
TOP MENU
Use [K / L] to select a desired item,
then press [ENTER].
DivX R VOD
DivX R VOD
DivX Subtitle
Your registration code is :
To learn more visit
www.divx.com/vod
SKIP
PAUSE
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
Note
REPEAT REC MODE
REC
ZOOM
SE-R0264
1
2
Press [SETUP] in stop mode and use
[K / L] to select “General Setting”,
then press [ENTER].
• One registration code is only valid for one DivX® VOD
file.
• You must first download the file from the internet
and play it back on this unit before you are able to
get another code.
• You must follow this step every time you purchase or
rent a DivX® VOD file from the internet.
• For more information for DivX®, please visit
http://www.divx.com/vod.
• The registration code will be displayed in 8
characters consist of numbers between 0 to 9 and
capital letters chosen randomly.
2
DivX Subtitle (Default : OFF)
Set the DivX® subtitle.
Use [K / L] to select a setting, then press [ENTER].
Use [K / L] to select “DivX”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
DivX R VOD
DivX Subtitle
DivX Subtitle
OFF
English
French
Spanish
German
Italian
Swedish
Your setting will be activated.
4
When you finish with the setting,
press [SETUP] to exit.
104 EN
E7H70UD̲EN.indb 104
2007/02/26 18:12:27
GENERAL SETTING
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
SETUP
DISPLAY
Use [K / L] to select “HDMI”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Basic Setup
TIMER
PROG.
AUDIO
MENU/LIST
TOP MENU
CLEAR
RETURN
FWD
REV
SKIP
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
ZOOM
1
Format (Default : RGB)
You can select the color space for HDMI output.
Set the appropriate color space for your display device.
Use [K / L] to select a setting, then press [ENTER].
• When the connected device is not compatible with the
Y/Cb/Cr, HDMI signal is output as RGB regardless of the
setting.
Playback
General Setting
SE-R0264
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Recording
PAUSE
1 Format
2 HDMI Audio
3 RGB Range
Disc
Management
ENTER
SKIP
3
Use [K / L] to select a desired item,
then press [ENTER].
WXYZ
SPACE
DTV/TV
CH
1
2
Connections
OPEN/
CLOSE
Press [SETUP] in stop mode and use
[K / L] to select “General Setting”,
then press [ENTER].
Introduction
HDMI
Format
HDMI Audio
RGB Range
RGB
YCbCr
Format
Editing
Your setting will be activated.
Function Setup
Others
EN 105
E7H70UD̲EN.indb 105
2007/02/26 18:12:27
GENERAL SETTING
HDMI (cont’d)
2
HDMI Audio (Default : ON)
If you do not want to output the audio through HDMI
(when you digitally output the audio through the
COAXIAL DIGITAL AUDIO OUTPUT jack to your audio
system, etc.), you can set the HDMI audio output off.
Use [K / L] to select a setting, then press [ENTER].
• Set to “OFF” when the HDMI sound is not outputted.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Format
HDMI AudioHDMI Audio
RGB Range
ON
OFF
Your setting will be activated.
3
RGB Range (Default : Normal)
You can adjust the RGB range to make the dark areas of
the HDMI images brighter.
Use [K / L] to select a setting, then press [ENTER].
• Select “Enhanced“ if the black-white contrast is not clear.
• This setting is effective only for HDMI RGB output.
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Format
RGB RangeHDMI Audio
RGB Range
Normal
Enhanced
Your setting will be activated.
4
When you finish with the setting,
press [SETUP] to exit.
106 EN
E7H70UD̲EN.indb 106
2007/02/26 18:12:28
GENERAL SETTING
GENERAL
SETTING
Reset the setting to default.
INPUT
SELECT
HDMI
.@/:
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
3
SETUP
DISPLAY
AUDIO
Use [K / L] to select “Reset All”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Basic Setup
TIMER
PROG.
MENU/LIST
TOP MENU
RETURN
FWD
REV
SKIP
PLAY
STOP
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
REPEAT REC MODE
REC
Reset to factory default?
Recording
PAUSE
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Disc
Management
ENTER
CLEAR
SKIP
Select “Yes” using [K / L] , then press
[ENTER].
WXYZ
SPACE
DTV/TV
CH
1
2
Connections
OPEN/
CLOSE
Press [SETUP] in stop mode and use
[K / L] to select “General Setting”,
then press [ENTER].
Introduction
Reset All
Yes
No
ZOOM
SE-R0264
Playback
“Are you sure?” will appear. Select “Yes” using
[K / L] and then press [ENTER].
Your setting will be initialized.
Editing
Others
• The settings listed below will remain unchanged
even after resetting to the factory default.
- Clock setting
- Channel setting
- OSD language setting
- Parental lock setting
- DivX® VOD code
- V-Chip setting
- Timer programs
Function Setup
Note
EN 107
E7H70UD̲EN.indb 107
2007/02/26 18:12:28
TROUBLESHOOTING
Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing.
Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
Symptom
Power
The power does not turn on.
There is no picture.
Remedy
• Check that the AC power cord is connected securely.
• Check the breaker (in case of power failure).
• Re-connect the connecting cords securely.
• Check if the connecting cords are damaged.
• If the main menu appears on the TV screen, press [RETURN] to exit.
• Check the connection to your TV (pages 21-23).
• Check if the progressive scan mode is set correctly according to your TV
(page 103).
• Switch the input selector on your TV (such as to “L1”) so that the signal from
the unit appears on the TV screen.
Picture noise appears.
• Clean the disc with a cleaning cloth.
TV program reception does not
fill the TV screen.
• Try to set the channels with “Auto Preset” or “Manual Preset” in “Channel”
menu (pages 26-28).
• Select a channel of any TV program using [CH
/ ].
TV program pictures are
distorted.
• Adjust TV antenna.
• Adjust the picture. (Refer to the TV’s instruction manual.)
• Place the unit and TV farther apart.
• Place the TV and any bunched RF coaxial cables farther apart.
TV channels cannot be changed.
• Switch the input to TV.
• Connect the RF coaxial cable correctly (pages 18-20).
Playback picture is distorted.
• Keep the device which may cause electrical disturbances, such as a cellular
phone away.
Playback picture or TV program
from the device connected
through the unit is distorted.
• If the playback picture output from a DVD player, VCR or tuner goes through
the unit before reaching your TV, the copy-protection signal applied to some
programs could affect picture quality. Disconnect the playback device in
question and connect it directly to your TV.
No analog TV closed captions are
output.
• If you are using HDMI connection to watch the TV programs through this
unit’s tuner, analog TV closed caption cannot be output. Try using other
connection.
Sound
There is no sound.
• Clean the disc with a cleaning cloth.
• Re-connect all connections securely.
• Check if the connecting cord is damaged.
• Check the connections to the amplifier input.
• The input device setting on the amplifier is incorrect.
• The unit is in pause mode or in slow-motion playback mode.
• The unit is in fast forward or fast reverse mode.
• If the audio signal does not come through the DIGITAL AUDIO OUTPUT
(COAXIAL) jack, check the setting in “Audio Out” (page 98).
No DTS sound on digital output.
• Change the setting menu for “DTS” to “ON”.
No DTS sound from analog
output
• This unit has no analog sound output when playing back the selected DTS
sound mode.
Sound is noisy.
• Clean the disc with a cleaning cloth.
Remote control
The remote control does not
function.
• Batteries are weak.
• There are obstacles between the remote control and the unit.
• The remote control is far from the unit.
• There are no batteries in the remote control.
• Check if the unit is turned on.
• The remote control is not pointed at the infrared sensor window on the unit.
108 EN
E7H70UD̲EN.indb 108
2007/02/26 18:12:29
TROUBLESHOOTING
Remedy
• During the playback of 2 layered disc, picture may freeze for a moment when
the 1st layer switches to the 2nd layer. This is not a malfunction.
The disc does not start playback
from the beginning.
• Resume playback was activated (page 66). Press [STOP C] twice.
• You have inserted a disc whose title menu or disc menu automatically
appears on the TV screen when it is first inserted.
The unit starts playing back the
disc automatically.
• The DVD-video features an auto playback function.
Some functions such as stop,
search, or slow-motion playback
cannot be performed.
• Depending on the disc, you may not be able to do some of the operations.
Refer to the instruction manual supplied with the disc.
The language for the sound track
cannot be changed.
• Tracks multilingual are not recorded being played back.
• The DVD-video prohibits the changing of the language for the sound track.
The subtitle language cannot be
changed or turned off.
• Multilingual subtitle are not recorded on the DVD-video.
The angles cannot be changed.
• Multi-angles are not recorded on the DVD-video being played back.
• The angle-change operation is whenever possible as long as the disc contains
a multi-angle portion. Actual change will be performed when the portion has
come up.
• The DVD-video prohibits changing angles.
• Try changing the angle using the DVD-video’s menu.
Basic Setup
Playback image freezes for a
second.
Connections
• No disc is inserted.
• A blank disc is inserted.
• The disc is upside down. Insert the disc with the labeled side facing up.
• The disc is not correctly inserted.
• The unit cannot play back certain discs (such as a CD-ROM) (page 10).
• The region code on the DVD-video does not match the unit (page 10).
• Moisture has condensed inside the unit. Remove the disc and leave the unit
turned on for about 2 hours until the moisture evaporates (page 4).
• If the disc was recorded on another recorder, the unit cannot play back the
disc if it was not finalized.
Introduction
Symptom
Playback
The disc does not play back.
Timer recording is not complete
or did not start from the
beginning.
• The timer setting overlapped with another setting that has priority (page 52).
• Disc space was not enough.
• “Make Recording Compatible“ is not set to “ON”, when recording onto
DVD+RW/+R that was recorded on other unit.
Timer recording does not start.
• No disc is inserted.
• A disc is not recordable (finalized DVD-RW/-R, finalized DVD+R, a fully
recorded disc, etc.).
Function Setup
• It will take a few seconds for the unit to input disc data before recording
stops.
Editing
Recording does not stop
immediately after you press
[STOP C].
Playback
• There was a power failure during recording.
• The unit’s internal clock stopped due to a power failure that lasted for more
than 30 seconds. Reset the clock (pages 29-30).
• The program contains copy protection signals that restricts copying.
• The timer setting overlapped with another setting that has priority.
Recording
Nothing was recorded even
though you set the timer setting
correctly.
Disc
Management
Recording / Timer recording / Editing
The channel cannot be changed
• Set the TV’s input to “TV.”
from the channel you are
recording.
Others
EN 109
E7H70UD̲EN.indb 109
2007/02/26 18:12:30
TROUBLESHOOTING
Symptom
DV
DV signal cannot be input.
Remedy
• Before connection, turn on the power supplies for both this unit and the DVC,
and make sure that these units are in stop mode.
• Only a “DVC-SD” signal can be input from the DVC to this unit. Other types of
signals are not supported.
• Do not connect any device other than the DVC. Even if a recorder or PC with
another DV terminal is connected, the DV function will not operate.
• If the DVC is not recognized after connection, turn off the power supply for
the unit and re-connect the DVC.
The DVC cannot be operated
with this unit.
• Signal input or DVC operation from this unit may be disabled depending on
the type of DVC.
• If a DVC signal cannot be input, use an external input (L1/L2) for analog
connection via audio/video cables.
• DVC control may be disabled depending on the type of DVC, even in a mode
other than camera mode. In this case, switch to DVD control and execute the
normal recording procedure while operating the DVC.
Certain functions of the unit
cannot operate.
• Some functions may not operate depending on the type of DVC. For
example, if the DVC does not support slow playback mode, the slow playback
function is disabled.
• With L3 (DV), the disc display menu does not appear unless disc playback is
executed.
DV audio signal cannot be
switched.
• For recording with the DVC, the recording audio signal can be set to 12 bits
or 16 bits. However, when 16-bit recording mode is selected, audio signal
cannot be switched. To record an audio signal, set it to 12 bits.
HDMI
No image from HDMI connection.
There is no sound or the sound is
distorted.
Others
The unit does not operate
properly.
• Check the HDMI connection. (Check the status of the HDMI related
indications.)
• Check whether the connected monitor device or other device supports
HDCP. (This unit will not output a video signal unless the other device
supports HDCP.)
• Check the setting of HDMI.
• Check whether the output format of this unit (HDMI FORMAT) matches the
supported input format of other connected device.
• The HDMI sound is not output when “HDMI Audio” is set to “OFF”.
• Check the RCA audio cable connection. If you are using HDMI-DVI conversion
cable, you must connect the RCA audio cable, too.
• Check whether the output format of this unit (HDMI FORMAT) matches the
supported input format of other connected device.
• When static electricity, etc., causes the unit to operate abnormally, unplug
the unit and then plug it in again.
The disc tray does not open when
you press [OPEN/CLOSE A].
• It may take a few seconds for the disc tray to open after you have recorded or
edited a disc. This is because the unit is adding disc data to the disc.
“Repairing” appears on the TV
screen.
• If there is a power failure or unplugging during recording, finalizing,
formatting or editing (even after “Repairing” disappears), a repairing process
will begin automatically just after turning the unit on again.
It may take several minutes up to about several hours.
Repairing
In a case you intend to cancel the
repairing process.
Do you want to cancel a repairing process ?
When selecting “Yes”, the disc may not be
usable.
• If you intend to cancel the repairing process, press [OPEN/CLOSE A]
on the front panel, then select “Yes” and press [ENTER]. After that, press
[OPEN/CLOSE A] to take out the disc. The disc canceled during the
repairing process MAY NOT work.
Yes
No
Repairing
110 EN
E7H70UD̲EN.indb 110
2007/02/26 18:12:30
TROUBLESHOOTING
Cause
Solution
• Unplayable disc is inserted in the unit.
• The disc is upside down.
• Check “Parental Lock” setting in
“Playback” menu (page 97).
• You are trying to record on to the protected
disc which is set in “DVD Menu” menu.
• You are trying to record onto the disc
which has no space for recording.
• Release the disc protect setting in “DVD
Menu” menu (page 41).
• Insert the recordable disc with enough
recording space.
• You are trying to record onto the DVDRW/-R on which the number of recording
titles comes up to the maximum (99).
• You are trying to record onto the VR mode
DVD-RW on which the number of recording
chapters comes up to the maximum (999).
• You are trying to record onto the DVD+RW/
+R on which the number of recording titles
comes up to the maximum (49).
• Delete unnecessary titles (page 80).
Recording Error
You cannot record more than 254 chapters on one disc.
(The maximum is 254)
• You are trying to record onto the DVD+RW
on which the number of recording
chapters comes up to the maximum (254).
• Delete unnecessary chapter marks
(page 85).
Recording Error
You cannot record on this disc as Control
Information is full.
• This disc has no space to write the Control
Information when recording or deleting contents.
When editing has been repeatedly performed,
the control Information area may come up to be
full even the recording area has enough space.
• When recordings are performed
repeatedly onto an unstable disc, this
area may come up to be full.
• Every time you insert a disc for recording,
the disc’s working area will be taken up.
And if you repeat this frequently, it will
be used up sooner and you may not be
able to record full 49 titles.
• You are trying to record onto the disc
already finalized.
• You are trying to record onto the
unfinalized +VR mode discs recorded
on other unit.
• Delete unnecessary titles
(page 80).
• Insert a new disc.
Editing
• Undo the finalizing for this disc
(page 44).
• Set “Make Recording Compatible” to
“ON” to rewrite the menu, after that you
will record to disc (page 39).
* If you are still having trouble with the unit after checking “TROUBLESHOOTING”, write down the error code and the
error description for calling our help line to locate an Authorized Service Center.
Function Setup
Recording Error
This disc is already finalized.
Recording Error
The disc has no recording compatibility.
Set “Make Recording Compatible” to
“ON” to convert the disc.
• Delete unnecessary titles (page 80).
Playback
Recording Error
You cannot record on this disc as Power
Calibration Area is full.
• Delete unnecessary chapter marks
(page 85).
Recording
Recording Error
This disc is protected and not recordable.
Recording Error
Disc is full.
(No area for new recording)
Recording Error
You cannot record more than 99 titles on one disc.
(The maximum is 99)
Recording Error
You cannot record more than 999 chapters on one disc.
(The maximum is 999)
Recording Error
You cannot record more than 49 titles on one disc.
(The maximum is 49)
Recording Error
This program is not allowed to be
recorded on this disc.
• Insert the DVD-RW disc in VR mode
(ver.1.1 or 1.2 compatible with CPRM).
• Insert the recordable disc, and ensure
the disc status satisfies the recording
requirements (page 9).
• Clean the disc with a cleaning cloth.
• Replace the disc.
• Insert the DVD-RW disc in VR mode
(ver.1.1 or 1.2 compatible with CPRM).
Disc
Management
• You cannot record copy prohibited
programs.
• Set “Format Mode” to “VR mode”
(pages 37-38).
Basic Setup
• You are trying to record the copy
prohibited program.
• You are trying to record the copy-once
program onto the DVD-RW disc in
Video mode.
• You are trying to record the copy-once
program.
• You are trying to record onto the disc
which is unrecordable, or the disc status
is unable to record.
• The disc is dirty.
• The disc is damaged.
• You are trying to record the copy-once
program onto the DVD-RW disc which
is not compatible with CPRM.
Connections
• Playback is not authorized in the region
of the DVD-video which you inserted in
the unit.
• The current selected parental level
prohibits playback.
• Insert the standardized disc which have
the marks on pages 9-10.
• Insert the disc with the labeled side facing up.
• Insert the DVD-video with region codes
1 or ALL.
Introduction
Error message
Disc Error
— Please eject the disc. —
Playback feature may not be available on this disc.
Region Error
— Please eject the disc. —
Playback is not authorized in your region.
Parental Lock On
The current selected parental level
prohibits playback.
Recording Error
This program is not allowed to be recorded.
Recording Error
This program is not recordable in Video
mode.
Recording Error
This program is not recordable in +VR mode.
Recording Error
Cannot record on this disc.
Frequently Asked Questions
No, this unit records only DVD.
Possible when the region code of the disc is 1 and All.
No, you cannot control the unit by PC.
Yes, you can. Select “L1” or “L2” as your recording channel,
and leave the cable/satellite box on (pages 20, 48-52).
Others
– Can I record to CD-RW/-R?
– Can I play back DVD-video that is bought in another country?
– Can I connect the unit to my PC?
– Can I program a timer recording with cable/satellite box?
EN 111
E7H70UD̲EN.indb 111
2007/02/26 18:12:31
LANGUAGE CODE
Language
Abkhazian
Afar
Afrikaans
Albanian
Amharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali;Bangla
Bhutani
Bihari
Bislama
Breton
Bulgarian
Burmese
Byelorussian
Cambodian
Catalan
Chinese
Corsican
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Fiji
Finnish
French
Frisian
Galician
Georgian
German
Greek
Greenlandic
Guarani
Gujarati
Hausa
Hebrew
Hindi
Code
4748
4747
4752
6563
4759
4764
5471
4765
4771
4772
4847
5167
4860
5072
4854
4855
4864
4853
5971
4851
5759
4947
7254
4961
5464
4965
5047
6058
5160
5161
5166
5261
5256
5255
5264
5271
5358
5747
5051
5158
5758
5360
5367
5447
5569
5455
Language
Hungarian
Icelandic
Indonesian
Interlingua
Interlingue
Inupiak
Irish
Italian
Japanese
Javanese
Kannada
Kashmiri
Kazakh
Kinyarwanda
Kirghiz
Kirundi
Korean
Kurdish
Laothian
Latin
Latvian; Lettish
Lingala
Lithuanian
Macedonian
Malagasy
Malay
Malayalam
Maltese
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian
Occitan
Oriya
Oromo (Afan)
Panjabi
Pashto; Pushto
Persian
Polish
Portuguese
Quechua
Rhaeto-Romance
Romanian
Code
5467
5565
5560
5547
5551
5557
5347
5566
5647
5669
5760
5765
5757
6469
5771
6460
5761
5767
5861
5847
5868
5860
5866
5957
5953
5965
5958
5966
5955
5964
5961
5960
6047
6051
6061
6149
6164
6159
6247
6265
5247
6258
6266
6367
6459
6461
Language
Russian
Samoan
Sangho
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian
Sesotho
Setswana
Shona
Sindhi
Singhalese
Siswat
Slovak
Slovenian
Somali
Spanish
Sundanese
Swahili
Swedish
Tagalog
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga
Tsonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
Code
6467
6559
6553
6547
5350
6564
6554
6566
6660
6560
6550
6555
6565
6557
6558
6561
5165
6567
6569
6568
6658
6653
6647
6666
6651
6654
4861
6655
6661
6665
6664
6657
6669
6757
6764
6772
6855
6861
4971
6961
7054
5655
7161
7267
112 EN
E7H70UD̲EN.indb 112
2007/02/26 18:12:31
GLOSSARY
The most common system of encoding digital audio,
found on CD and DAT. Excellent quality, but requires a
lot of data compared to formats such as Dolby Digital
and MPEG audio. For compatibility with digital audio
recorders (CD, MD and DAT) and AV amplifiers with
digital inputs, this unit can convert Dolby Digital and
MPEG audio to PCM. See also “Digital Audio”.
Aspect Ratio
The width of a TV screen relative to its height.
Conventional TVs are 4:3 (in other words, the TV screen
is almost square); widescreen models are 16:9 (the TV
screen is almost twice as wide as it is high).
Chapter
Just as a book is split up into several chapters, a title on a
DVD is usually divided into chapters. See also “Title”.
A type of display that does not split each frame into
fields, and instead scans directly through all the scanlines
of each frame in order. Progressive scan provides less
flickering and higher image resolution than traditional
(480i) TV signals. Refer to page 103 for instructions on
selective progressive scan mode.
Region Code
Digital Audio
Sampling Frequency
An indirect representation of sound by numbers. During
recording, the sound is measured at discrete intervals
(44,100 times a second for CD audio) by an analogto-digital converter, generating a stream of numbers.
On playback, a digital-to-analog converter generates
an analog signal based on these numbers. See also
“Sampling Frequency” and “Analog Audio”.
DivX® is a codec (compression/decompression) that can
compress images to a very small amount of data.
Dolby® Digital
The system to compress digital sound developed by
Dolby Laboratories. It offers you sound of stereo(2ch) or
multi channel audio.
The rate which sound is measured by a specified interval
to turn into digital audio data. The numbers of sampling
in one second defines as sampling frequency. The higher
the rate, the better the sound quality.
SAP (secondary audio program)
Sub-audio channel which is delivered separately from
main-audio channel. This audio channel is used as an
alternate in bilingual broadcasting.
S-Video Output
It delivers independently each signal of color(C) and
luminance(Y) to TV as video signals, so that higher-quality
picture will be gained.
Title (DVD only)
A collection of chapters on DVD. See also “Chapter”.
DTS is a multi channel surround sound system. By
connecting to DTS decoder you can enjoy dynamic and
realistic sound like movie theatre. DTS surround sound
technologies were developed by DTS, Inc.
Track
Finalize
Video mode is the same recording format as used on
the DVD videos you purchase in local shops. You can
play back the discs recorded in this format in most DVD
players, however it offers only limited editing. You will
need to finalize discs recorded in video mode before
playing them back on other unit.
A digital interface between audio and video source. It can
transmit component video, audio, and control signal with
one cable connection.
JPEG is a method of compressing still image files. You can
copy JPEG files on CD-RW/-R from a computer and play
back the files on this unit.
MP3 (MPEG audio layer 3)
MP3 is a method of compressing files. You can copy MP3
files on CD-RW/-R from the computer and play back the
files on this unit.
VR mode
A basic recording format for DVD-RW. VR mode offers
advanced editing, however it is playable only on VR
mode compatible unit. Finalization is recommended
before playing them back on other unit.
WMA (Windows Media™ Audio)
WMA is the audio compressing technology developed by
Microsoft. You can copy WMA files on CD-RW/-R from a
computer and play them back on this unit.
A recording format for DVD+RW/+R. +VR mode offers basic
editing, and it is playable on most DVD players. Finalization
is recommended before playing them back on other unit.
Others
+VR mode
Function Setup
JPEG (joint photographic experts group)
Video mode
Editing
HDMI™ (high definition multimedia interface)
Audio CD use tracks to divide up the content of a disc.
The DVD equivalent is called a chapter. See also “Chapter”.
Playback
DTS® (Digital Theater System)
To make DVD, which have been recorded on, possible to
play back in DVD players.
Recording
DivX®
Regions associate discs and players with particular areas
of the world. This unit will only play back discs that have
compatible region codes. You can find the region code
of your unit by looking on the rear panel. Some discs are
compatible with more than one region (or all regions).
Disc
Management
Each signal of luminance (Y) and component (PB/CB, PR/
CR) is independent to output so that you can experience
picture color as it is.
Also, due to compatibility with progressive video (480p),
you can experience higher-density picture than that in
interlace (480i).
Basic Setup
Component Video Output
Progressive Scan (480p)
Connections
PCM (pulse code modulation)
An electrical signal that directly represents sound.
Compare this to digital audio which can be an electrical
signal, but is an indirect representation of sound. See also
“Digital Audio”.
Introduction
Analog Audio
EN 113
E7H70UD̲EN.indb 113
2007/02/26 18:12:32
SPECIFICATIONS
• This model complies with the below specifications.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.
General
System
Power requirements
Power consumption
Weight
Dimensions (width x height x depth)
Operating temperature
Operating humidity
TV format
Recording
Recording format
Recording discs
Video recording format
Sampling frequency
Compression format
Audio recording format
Sampling frequency
Compression format
Tuner
Tuning system
Channel coverage (ATSC / NTSC)
Terrestrial
CATV
Input / Output
VHF/UHF antenna input/output terminal
Video input
Input level
Jacks
Video output
Output level
Jack
S-video input
Y (luminance) - Input level
C (color) - Input level
Jacks
S-video output
Y (luminance) - Output level
C (color) - Output level
Jack
Component video output
Output level
Jacks
HDMI output
Jack
Audio input
During audio input
Jacks
Audio output
During audio output
Jacks
Digital audio output
Output level
Jack
DV input
Jack
DVD-RW/-R, DVD+RW/+R, DVD-video, CD-DA, CD-RW/-R
AC120 V, 60 Hz
22 W (standby: 2.8 W)
5.3 lbs ( 2.4 kg )
16 9/16” x 2 3/8” x 10 1/16” (420 x 59 x 254 mm)
41 °F to 104 °F (5 °C to 40 °C)
Less than 80% (no condensation)
ATSC / NTSC-M TV standard
VR (video recording) format
Video format
+VR format
DVD-Rewritable/-Recordable, DVD+Rewritable/+Recordable
13.5 MHz
MPEG
48 kHz
Dolby Digital/LPCM (XP Recording mode only)
Channel frequency synthesized tuning system
VHF 2~13, UHF 14~69
2~13, A~W, W+1~W+94 (analog W+1~W+84), A-5~A1, 5A
VHF/UHF set 75Ω
Input 1 (rear), 2 (front)
1 Vp-p (75Ω)
RCA jack
Output 1 (rear)
1 Vp-p (75Ω)
RCA jack
Input 1 (rear), 2 (front)
1 Vp-p (75Ω)
286 mVp-p (75Ω)
4 pin mini DIN
Output 1 (rear)
1 Vp-p (75Ω)
286 mVp-p (75Ω)
4 pin mini DIN
Output 1 (rear)
Y: 1.0 Vp-p (75Ω), PB/CB, PR/CR: 0.7 Vp-p (75Ω)
RCA jacks
HDMI jack
Input 1 (rear), 2 (front) L/R
2 V rms (input impedance: more than 22 kΩ)
RCA jacks
Output 1 L/R (rear)
2 V rms (output impedance: less than 1 kΩ)
RCA jacks
Output 1 (rear) COAXIAL
500 mVp-p (75Ω)
RCA jack
IEEE 1394
DV input jack (4 pin)
114 EN
E7H70UD̲EN.indb 114
2007/02/26 18:12:32
LIMITED WARRANTY
Toshiba America Consumer Products, L.L.C. (“TACP”) makes the following limited warranties to original consumers in the United States.
THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS DAV PRODUCT
AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.
Introduction
Limited United States Warranty
Digital Audio Video (“DAV”) Product - Exchange Warranty
DAV PRODUCTS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA
AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.
Commercial Units
DAV Products sold and used for commercial purposes have a limited
warranty for all parts and labor, which warranty begins on the date of
original retail purchase and ends on the date that is ninety (90) days
thereafter.
Complete and mail the enclosed product registration card or register your
DAV Product on-line at www.tacp.toshiba.com/service as soon as possible.
By registering your DAV Product you will enable TACP to bring you new
products specifically designed to meet your needs and help us to contact
you in the unlikely event a safety notification is required under the U.S.
Consumer Product Safety Act. Failure to complete and return the product
registration card does not diminish your warranty rights.
THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING
CONDITIONS:
(1) You must retain your bill of sale or provide other proof of purchase.
(2) All warranty servicing of this DAV Product must be made pursuant
to the TACP DAV Product Warranty Exchange Program.
ALL WARRANTIES IMPLIED BY THE LAW OF ANY STATE OF THE U.
S.A., INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY
LIMITED TO THE DURATION OF THE LIMITED WARRANTIES SET
FORTH ABOVE. WITH THE EXCEPTION OF ANY WARRANTIES
IMPLIED BY THE LAW OF ANY STATE OF THE U.S.A. AS HEREBY
LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, GUARANTEES, AGREEMENTS, AND
SIMILAR OBLIGATIONS OF TACP WITH RESPECT TO THE REPAIR
OR REPLACEMENT OF ANY PARTS. IN NO EVENT SHALL TACP BE
LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, LOST PROFITS, BUSINESS INTERRUPTION,
OR MODIFICATION OR ERASURE OF RECORDED DATA CAUSED BY
USE, MISUSE OR INABILITY TO USE THIS DAV PRODUCT).
No person, agent, distributor, dealer, or company is authorized to change,
modify, or extend the terms of these warranties in any manner whatsoever.
The time within which an action must be commenced to enforce any
obligation of TACP arising under the warranty or under any statute or law
of the United States or any state thereof is hereby limited to ninety (90)
days from the date you discover, or should have discovered, the defect.
This limitation does not apply to implied warranties arising under state law.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO
STATE IN THE U.S.A. SOME STATES OF THE U.S.A. DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, WHEN
AN ACTION MAY BE BROUGHT, OR THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
PROVISIONS MAY NOT APPLY TO YOU UNDER SUCH CIRCUMSTANCES.
Editing
(3) The warranties from TACP are effective only if the DAV Product is
purchased and operated in the Continental U.S.A. or Puerto Rico.
For additional information, visit TACP’s website: www.tacp.toshiba.com
Playback
Your Responsibility
(2) You must include the original bill of sale (or a copy of the original bill
of sale) or other proof of purchase along with the entire DAV Product
when sending the DAV Product to the TACP Warranty Exchange Center
specified by TACP’s Consumer Solutions Center. You are responsible
for all inbound transportation and insurance charges for the DAV Product
to the TACP Warranty Exchange Center.
Recording
Owner’s Manual and Product Registration Card
Read this owner’s manual thoroughly before operating this DAV Product.
(1) For instructions on how to obtain warranty service for your DAV Product
under the TACP DAV Product Warranty Exchange Program, contact
TACP’s Consumer Solutions Center toll free at 1-800-631-3811.
Disc
Management
Rental Units
The warranty for DAV Product rental units begins on the date of the first
rental or thirty (30) days after the date of shipment to the rental firm,
whichever comes first.
How to Obtain Warranty Services
If, after following all of the operating instructions in this manual and checking
the section “TROUBLESHOOTING,” you find that service is needed:
Basic Setup
Limited Warranty
TACP warrants this DAV Product and its parts against defects in materials
or workmanship for a period of ninety (90) days after the date of original
retail purchase.
DURING THIS PERIOD, TACP WILL EXCHANGE A DEFECTIVE DAV
PRODUCT WITH A NEW OR REFURBISHED DAV PRODUCT WITHOUT
CHARGE TO YOU. DURING THE PERIOD THAT COMMENCES ON THE
DATE THAT IS NINETY ONE (91) DAYS AFTER THE DATE OF ORIGINAL
RETAIL PURCHASE AND ENDS ON THE DATE THAT IS THREE HUNDRED
SIXTY FIVE (365) DAYS AFTER THE DATE OF ORIGINAL RETAIL
PURCHASE, TACP WILL EXCHANGE A DEFECTIVE DAV PRODUCT
WITH A NEW OR REFURBISHED DAV PRODUCT FOR A FEE.
Connections
DAV PRODUCTS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA AND MEXICO, AND USED
IN THE U.S.A., ARE NOT COVERED BY THESE WARRANTIES.
(4) Labor service charges for set installation, setup, adjustment of customer
controls, and installation or repair of antenna systems are not covered
by this warranty. Reception problems caused by inadequate antenna
systems are your responsibility.
Function Setup
(5) Warranties extend only to defects in materials or workmanship as
limited above, and do not extend to any DAV Product or parts that
have been lost or discarded by you or to damage to the DAV Product
or parts caused by fires, misuse, accident, Acts of God (such as
lightning or fluctuations in electric power), improper installation,
improper maintenance, or use in violation of instructions furnished by
TACP; use or malfunction through simultaneous use of this DAV Product
and connected equipment; or to units that have been modified or had
the serial number removed, altered, defaced, or rendered illegible.
Others
EN 115
E7H70UD̲EN.indb 115
2007/02/26 18:12:32

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
