This product specification is variable and subject to change prior to product launch.

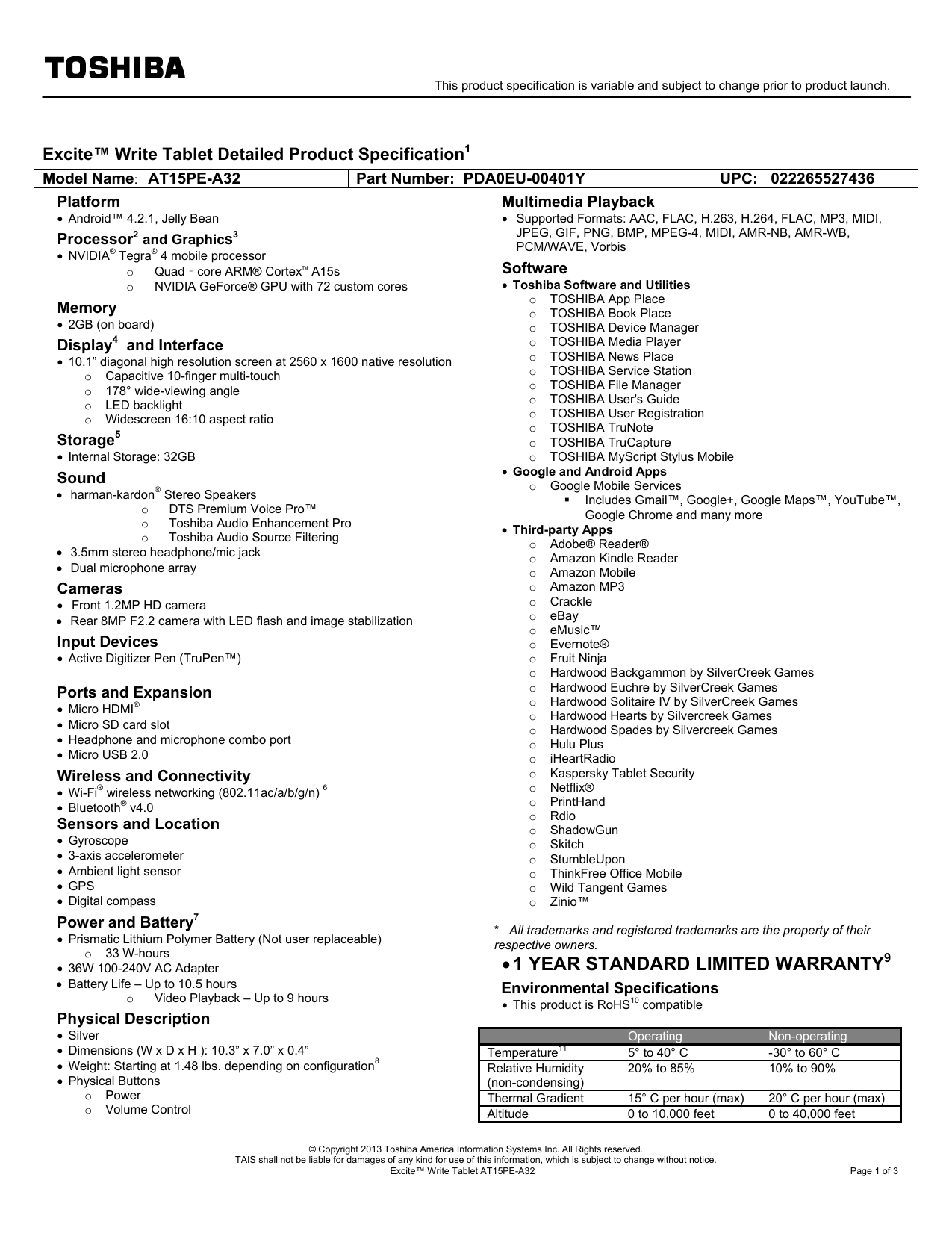

Excite™ Write Tablet Detailed Product Specification1
Model Name: AT15PE-A32
Part Number: PDA0EU-00401Y
Multimedia Playback
 Android™ 4.2.1, Jelly Bean
Processor and Graphics
 NVIDIA Tegra 4 mobile processor
Quad‐core ARM® Cortex™ A15s
NVIDIA GeForce® GPU with 72 custom cores
 2GB (on board)
Display4 and Interface
 10.1” diagonal high resolution screen at 2560 x 1600 native resolution
o Capacitive 10-finger multi-touch
o 178° wide-viewing angle
o LED backlight
o Widescreen 16:10 aspect ratio
 Internal Storage: 32GB
 harman-kardon Stereo Speakers
DTS Premium Voice Pro™
Toshiba Audio Enhancement Pro
Toshiba Audio Source Filtering
 3.5mm stereo headphone/mic jack
 Dual microphone array
 Front 1.2MP HD camera
 Rear 8MP F2.2 camera with LED flash and image stabilization
Input Devices
 Active Digitizer Pen (TruPen™)
Ports and Expansion
Micro HDMI
Micro SD card slot
Headphone and microphone combo port
Micro USB 2.0
Wireless and Connectivity
 Wi-Fi wireless networking (802.11ac/a/b/g/n)
 Bluetooth v4.0
Sensors and Location
3-axis accelerometer
Ambient light sensor
Digital compass
Power and Battery7
 Prismatic Lithium Polymer Battery (Not user replaceable)
o 33 W-hours
 36W 100-240V AC Adapter
 Battery Life – Up to 10.5 hours
Video Playback – Up to 9 hours
UPC: 022265527436
 Supported Formats: AAC, FLAC, H.263, H.264, FLAC, MP3, MIDI,
PCM/WAVE, Vorbis
 Toshiba Software and Utilities
o TOSHIBA App Place
o TOSHIBA Book Place
o TOSHIBA Device Manager
o TOSHIBA Media Player
o TOSHIBA News Place
o TOSHIBA Service Station
o TOSHIBA File Manager
o TOSHIBA User's Guide
o TOSHIBA User Registration
o TOSHIBA TruCapture
o TOSHIBA MyScript Stylus Mobile
 Google and Android Apps
o Google Mobile Services
 Includes Gmail™, Google+, Google Maps™, YouTube™,
Google Chrome and many more
 Third-party Apps
o Adobe® Reader®
o Amazon Kindle Reader
o Amazon Mobile
o Amazon MP3
o Crackle
o eBay
o eMusic™
o Evernote®
o Fruit Ninja
o Hardwood Backgammon by SilverCreek Games
o Hardwood Euchre by SilverCreek Games
o Hardwood Solitaire IV by SilverCreek Games
o Hardwood Hearts by Silvercreek Games
o Hardwood Spades by Silvercreek Games
o Hulu Plus
o iHeartRadio
o Kaspersky Tablet Security
o Netflix®
o PrintHand
o Rdio
o ShadowGun
o Skitch
o StumbleUpon
o ThinkFree Office Mobile
o Wild Tangent Games
o Zinio™
* All trademarks and registered trademarks are the property of their
respective owners.
Environmental Specifications
 This product is RoHS compatible
Physical Description
Dimensions (W x D x H ): 10.3” x 7.0” x 0.4”
Weight: Starting at 1.48 lbs. depending on configuration
Physical Buttons
o Power
o Volume Control
Relative Humidity
Thermal Gradient
5° to 40° C
20% to 85%
-30° to 60° C
10% to 90%
15° C per hour (max)
0 to 10,000 feet
20° C per hour (max)
0 to 40,000 feet
© Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Excite™ Write Tablet AT15PE-A32
Page 1 of 3
This product specification is variable and subject to change prior to product launch.
(relative to sea level)
Service Upgrades and Extensions
Toshiba offers many different enhanced services such as SystemGuard ,
On-Site Repair, and ServiceExpress to provide additional support to your
tablet. For a full description and complete list of programs and program
terms and conditions, please visit
Input Device
For additional and most updated accessories, please visit
Part Number
Part Number
Tablet 36W USB AC Adapter
Carrying Case
Part Number
Excite Pro/Write Portfolio Case
Toshiba Bluetooth keyboard Cover
Toshiba Android™ Bluetooth Keyboard
Toshiba Digitizer Pen with Eraser
Subject to Change
While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications,
configurations, prices, system/component/options availability are all subject to change without notice. For the most up-to-date product information about your
computer, or to stay current with the various computer software or hardware options, visit Toshiba’s Web site at
Return Policy
Notwithstanding anything to the contrary in any third party License Agreement or product documentation supplied with your PC, Toshiba America Information
Systems, Inc. (“TAIS”) does not accept the return of component parts, or bundled software, that have been removed from the PC system. Pro-rata refunds on
individual PC components or bundled software, including the operating system, will not be granted. If you wish to return a complete PC system, contact the
TAIS dealer where you purchased the product, and comply with the dealer’s standard return policies and procedures.
Toshiba America Information Systems, Incorporated (“TAIS”)
9740 Irvine Boulevard
Irvine CA 92618
ToshibaDirect website:
TAIS website for resellers:
TAIS Support website:
Thrive and SystemGuard are registered trademarks of Toshiba America Information Systems, Inc. and/or Toshiba Corporation. All other products and names
mentioned are the property of their respective owners.
Product Series Legal Footnote. The product specifications and configuration information are designed for a product Series. Your particular model may not have all the features
and specifications listed or illustrated. For more detailed information about the features and specifications on your particular model, please visit Toshiba's Web site at
Processor (Central Processing Unit). Also see 64-Bit Computing Legal Footnote, if applicable.
CPU performance in your computer product may vary from specifications under the following conditions:
use of certain external peripheral products
use of battery power instead of AC power
use of certain multimedia, computer generated graphics or video applications
use of standard telephone lines or low speed network connections
use of complex modeling software, such as high end computer aided design applications
use of several applications or functionalities simultaneously
use of computer in areas with low air pressure (high altitude >1,000 meters or >3,280 feet above sea level)
use of computer at temperatures outside the range of 5°C to 30°C (41°F to 86° F) or >25°C (77°F) at high altitude (all temperature references are
approximate and may vary depending on the specific computer model – please visit the Toshiba website at for details).
CPU performance may also vary from specifications due to design configuration.
Under some conditions, your computer product may automatically shut-down. This is a normal protective feature designed to reduce the risk of lost data or damage to the product
when used outside recommended conditions. To avoid risk of lost data, always make back-up copies of data by periodically storing it on an external storage medium. Use your
computer product only under recommended conditions. Read additional restrictions under “Environmental Conditions” in your product “Detailed Specs.” Contact Toshiba Technical
Service and Support for more information.
Graphics (Graphics Processing Unit). GPU performance may vary depending on product model, design configuration, applications, power management settings and features
utilized. GPU performance is only optimized when operating in AC power mode and may decrease considerably when operating in battery power mode.
Total Available Graphics Memory is the total of, as applicable, Dedicated Video Memory, System Video Memory and Shared System Memory. Shared System Memory will vary
depending on system memory size and other factors.
Display. Small bright dots may appear on your screen display when you turn on your PC. Your display contains an extremely large number of thin-film transistors (TFT) and is
manufactured using high-precision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology. Over a
period of time, and depending on the usage of the computer, the brightness of the screen will deteriorate. This is also an intrinsic characteristic of the screen technology.
© Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Excite™ Write Tablet AT15PE-A32
Page 2 of 3
This product specification is variable and subject to change prior to product launch.
When the computer is operated on battery power, the screen with dim and you may not be able to increase the brightness of the screen while on battery power.
Storage One Gigabyte (GB) means 109 = 1,000,000,000 bytes using powers of 10. The computer operating system, however, reports storage capacity using powers of 2 for the
definition of 1 GB = 230 = 1,073,741,824 bytes, and therefore shows less storage capacity. Available storage capacity will also be less if the computer includes one or more preinstalled operating systems, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
Wireless May require purchase of additional software, external hardware, or services. Transmission speeds may vary. Certain optional features within the wireless-n
specifications (if available on your system) may not be supported.
Battery Life Battery tests were conducted by Toshiba using specific preproduction tablet units and software. Actual battery life may vary depending on settings, application usage,
features or tasks selected, network configuration, operating temperature and many other factors. Testing consisted of full battery discharge while performing certain tasks such as
video playback, Internet browsing using Wi-Fi and standby mode. Auto-Brightness was turned off.
Weight. Weight may vary depending on product configuration, vendor components, manufacturing variability and options selected.
Warranty. The terms and conditions of Toshiba’s standard limited warranty are available at
RoHS. This notebook is compatible with European Union Directive 2002/95/EC, Restriction of the use of certain Hazardous Substances in electrical and electronic equipment
(RoHS), which restricts use of lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. Toshiba requires its notebook component suppliers to meet RoHS requirements
and verifies its suppliers' commitment to meeting RoHS requirements by conducting component sampling inspections during the product design approval process.
Temperature (Environmental) Conditions. All temperature references are approximate and the performance of your computer may vary from specifications even when
operating within the recommended temperature range.
© Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Excite™ Write Tablet AT15PE-A32
Page 3 of 3
