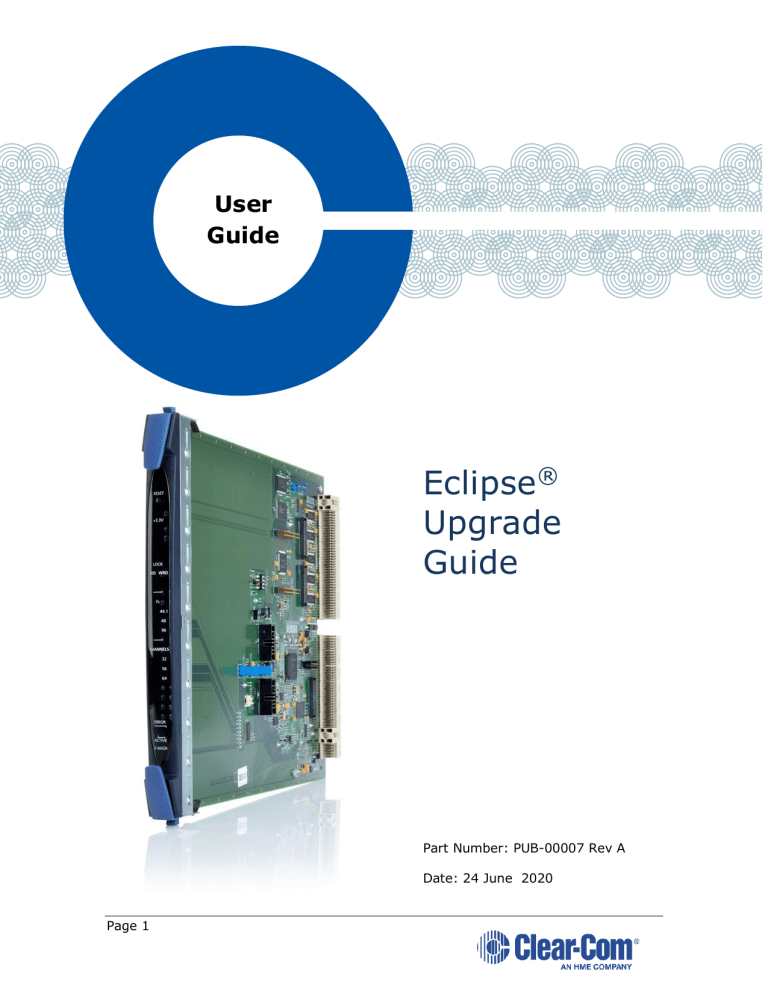

User
Guide
Eclipse®
Upgrade
Guide
Part Number: PUB-00007 Rev A
Date: 24 June 2020
Page 1
Document Reference
Eclipse | Upgrade Guide
Clear-Com Eclipse HX Upgrade Guide
Product number: PUB-00007 Revision: A
Legal Disclaimers
Copyright © 2020 HME Clear-Com Ltd.
All rights reserved.
Clear-Com and the Clear-Com logo are trademarks or registered trademarks of HM
Electronics, Inc.
The software described in this document is furnished under a license agreement and
may be used only in accordance with the terms of the agreement.
The product described in this document is distributed under licenses restricting its use,
copying, distribution, and decompilation/reverse engineering. No part of this document
may be reproduced in any form by any means without prior written authorization of
Clear-Com, an HME Company.
Clear-Com Offices are located in California, USA; Cambridge, UK; Dubai, UAE;
Montreal, Canada; and Beijing, China. Specific addresses and contact information can
be found on Clear-Com’s corporate website:
www.clearcom.com
Clear-Com Contacts
Americas and Asia-Pacific Headquarters
California, United States
Tel: +1 510 337 6600
Email: [email protected]
Europe, Middle East, and Africa Headquarters
Cambridge, United Kingdom
Tel: +44 1223 815000
Email: [email protected]
China Office
Beijing Representative Office
Beijing, P.R.China
Tel: +8610 65811360/65815577
Page 2
Eclipse | Upgrade Guide
Contents
1
Important Safety Instructions ............................................7
Safety symbols................................................................................................ 8
Mains power cord ............................................................................................ 8
2
Introduction .....................................................................10
2.1
3
4
5
Planning the upgrade to Eclipse HX .......................................................... 10
Quick reference: Upgrading to Eclipse HX v12.0 ...............20
3.1
Upgrading from 5.2.5 ............................................................................. 20
3.2
Upgrading from 7.0 ............................................................................... 23
3.3
Upgrading from 7.1 ............................................................................... 26
3.4
Upgrading from 7.5 ............................................................................... 29
3.5
Upgrading from 7.6 ............................................................................... 32
3.6
Upgrading from 8.0 ............................................................................... 35
3.7
Upgrading from 8.5 ............................................................................... 38
3.8
Upgrading from 8.5.1 ............................................................................. 41
3.9
Upgrading from 8.5.2 ............................................................................. 44
3.10
Upgrading from 8.7 ........................................................................... 47
3.11
Upgrading from 8.8 ........................................................................... 51
3.12
Upgrading from 9.0 ........................................................................... 54
3.13
Upgrading from 9.1 ........................................................................... 57
3.14
Upgrading from 10.0.......................................................................... 60
3.15
Upgrading from 11.0.......................................................................... 62
3.16
Upgrading from 11.1.......................................................................... 65
Upgrading to Eclipse HX v12.0..........................................69
4.1
Backing up your ECS v5.2.5 configurations ............................................... 69
4.2
Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations ......................... 69
4.3
Installing EHX and Dynam-EC Clients ....................................................... 69
4.4
Importing your configurations into EHX .................................................... 70
4.5
Updating Dynam-EC .............................................................................. 71
Upgrading the CPU cards ..................................................72
Page 3
6
7
8
5.1
Eclipse | Upgrade Guide
Changing the CPU card PROM ................................................................. 72
5.2
Changing the CPU card RAM ................................................................... 73
5.3
Changing the CPU card DIP switches ........................................................ 74
5.4
Upgrading the CPU card secondary bootloader and application code ............. 75
5.5
Setting the matrix type .......................................................................... 93
5.6
Checking the CPU card application code version ........................................ 95
5.7
Upgrading CPU Card U53 CPLD................................................................ 95
5.8
Upgrading CPU Card U1 CPLD ................................................................. 97
5.9
Upgrading the CPU card U53 CPLD code with Xilinx tools ............................ 99
5.10
Upgrading the CPU card U1 CPLD code with Xilinx tools ........................ 101
5.11
Downloading a test configuration to the CPU card using EHX................. 104
5.12
Forcing the CPU card to the factory default IP address ......................... 104
Upgrading the Eclipse HX-PiCo .......................................106
6.1
Changing the Eclipse HX-PiCo PROM ...................................................... 106
6.2
Changing the Eclipse HX-PiCo RAM ........................................................ 109
6.3
Changing the Eclipse HX-PiCo DIP switches............................................. 110
6.4
Upgrading the Eclipse HX-PiCo Secondary Bootloader and Application ........ 110
6.5
Upgrading the Eclipse HX-PiCo MVX code................................................ 127
6.6
Checking the Eclipse HX-PiCo app code and MVX code versions ................. 135
6.7
Upgrading the Eclipse HX-PiCo CPLD and FPGA code with Xilinx tools ......... 136
6.8
Download a test configuration into the Eclipse HX-PiCo using EHX ............. 139
6.9
Forcing the Eclipse HX-PiCo to the factory default IP address .................... 140
Upgrading the MVX-A16 card..........................................142
7.1
Identifying MK I and MK II MVX-A16 cards ............................................. 142
7.2
Upgrading the MVX-A16 MK I or MK II boot and/or app code .................... 142
7.3
Checking the MVX-A16 MK I or MK II boot and application code version ..... 149
7.4
Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx tools ............. 150
Upgrading E-FIB cards....................................................160
8.1
9
Upgrading E-FIB card FPGA with Xilinx tools ........................................... 160
Upgrading E-QUE cards ..................................................163
9.1
Page 4
Identifying MK1 and MK2 E-QUE cards ................................................... 163
9.2
Eclipse | Upgrade Guide
Upgrading the E-QUE card (MK1 and MK2) via EHX.................................. 164
9.3
Upgrading the E-QUE card (MK1) via serial cable and third-party TFTP tools 165
9.4
Upgrading the E-QUE card (MK2) via serial cable and third-party TFTP tools 170
9.5
Upgrading the E-QUE card (MK1 and MK2) FPGA with Xilinx tools .............. 177
9.6
Upgrading the E-QUE card (MK1) boot ROM ............................................ 179
9.7
Upgrading the E-QUE card (MK2) boot ROM ............................................ 180
10 Upgrading IVC-32 and LMC-64 cards ..............................187
10.1
Identifying MK1 and MK2 IVC-32 / LMC-64 cards ................................ 187
11 Upgrading E-MADI64 cards ............................................189
11.1
Identifying MK1 and MK2 E-MADI64 cards .......................................... 189
11.2
Upgrading the E-MADI64 boot code ................................................... 191
11.3
Upgrading the E-MADI64 application, DSP and FPGA code using EHX ..... 194
11.4
Upgrading the E-MADI64 FPGA using the Xilinx tool set ........................ 197
12 Upgrading E-DANTE64-HX cards .....................................201
13 Upgrading E-IPA-HX cards .............................................204
14 Upgrading panels ...........................................................207
14.1
Upgrading panels using EHX ............................................................. 207
14.2
Upgrading V-Series Iris panels by USB ............................................... 210
14.3
Upgrading panel application code manually......................................... 211
14.4
Manually upgrading V-Series panels................................................... 223
15 Upgrading the TEL-14 module ........................................230
15.1
Upgrading the TEL-14 hardware ........................................................ 230
15.2
Upgrading the TEL-14 firmware ......................................................... 232
16 Upgrading the AES-6 module ..........................................236
16.1
Upgrading AES-6 FPGA .................................................................... 238
17 Upgrading FreeSpeak II™ wireless systems ...................243
17.1
Upgrading FreeSpeak II Beltpacks and transceivers centrally using EHX . 243
17.2
Upgrading FreeSpeak II beltpacks and non-IP transceivers via USB ....... 246
17.3
Upgrading the FS II IP Transceiver firmware ....................................... 248
18 Upgrading FreeSpeak Edge .............................................250
Page 5
18.1
Eclipse | Upgrade Guide
Upgrading FreeSpeak Edge transceivers ............................................. 250
18.2
Upgrading FreeSpeak Edge beltpacks ................................................. 251
Appendix A: CPU card layout ..............................................253
Appendix B: CPU card DIP switches ...................................254
Appendix C: PiCo card layout .............................................256
Appendix D: Eclipse HX-PiCo CPU DIP switches .................258
Appendix E: Hitachi Renesas Flash Development Tool .......260
Appendix F: TFTPUtil ..........................................................268
Appendix G: Tera Term ......................................................271
Appendix H: Flash Magic ....................................................273
Appendix I: i-Station converter cable wiring and rear panel
layouts
.......................................................................277
Appendix J: Xilinx tools ......................................................279
Appendix K: Clear-Com®End User Software License ...........280
Page 6
Eclipse | Upgrade Guide
1
Important Safety Instructions
1)
Read these instructions.
2)
Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8)
Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10)
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11)
Only use attachments/accessories specified by the manufacturer.
12)
Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13)
Unplug this apparatus during lightning storms or when unused for long periods
of time.
14)
Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-cord supply or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15)
Warning: To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Page 7
Eclipse | Upgrade Guide
Safety symbols
Familiarize yourself with the safety symbols in Figure 1 below. These symbols are displayed on
the apparatus and warn you of the potential danger of electric shock if the system is
used improperly. They also refer you to important operating and maintenance
instructions in the product user manual.
Figure 1-1: Safety symbols
Mains power cord
Eclipse HX matrices are powered by an internal power supply. The cord to connect the
internal power supply to the mains supply must conform to the following:
•
The mains power cord shall have an IEC C13 connector at one end and a
mains power plug at the other end.
•
An IEC C13 plug has three pins, the center pin carrying the earth / ground.
The other two pins carry neutral and live circuits.
•
The conductors of the mains cords shall have adequate cross-sectional area for
rated current consumption of the equipment.
Page 8
•
Eclipse | Upgrade Guide
The mains plug that connects to the mains supply must be approved for use in
the country where the equipment is to be used.
•
The mains power cord must be an IEC mains power cord complying with
standard IEC60320; IEC320/C13.
•
Mains power cords used in the U.S. must also comply with standard UL817.
Page 9
Eclipse | Upgrade Guide
2
Introduction
This guide describes how to upgrade from ECS v5.2.5 to Eclipse HX v12.0, a
software release for the Clear-Com Eclipse HX™ digital matrix system (standalone or
networked). This guide additionally identifies the simpler upgrade from
v7.x/v8.x/v9.x/v10.x/11.x to v12.0.
The system components covered by the guide include (but are not limited to):
• Matrices (Eclipse HX-PiCo, Eclipse HX-Delta, Eclipse HX-Median and Eclipse
HX-Omega)
• Interface cards (E-IPA, E-FIB, E-QUE, MVX-A16, E-MADI64, LMC-64, and
others)
• Interface modules (AES-6, TEL-14 and others)
• User panels (V-series and i-Station panels)
Important note:
Eclipse HX upgrades must be performed by a technically qualified engineer.
2.1
Planning the upgrade to Eclipse HX
Before you start upgrading your Eclipse (ECS v5.2.5 or EHX v7x/v8.x/v9.x/10.x/11.x)
system components to Eclipse HX v12.0 ensure that you have:
• Sufficient spare (replacement) cards, interfaces or panels for the upgrade.
• Scheduled enough time to complete the upgrade, or if required, roll back the
upgrade to the version that was running before the upgrade.
• A suitable backup system is in place to maintain service, if your intercom
system is part of a mission critical or sensitive application.
You should also be aware that:
• The order in which you carry out the upgrade is important. The chapters of
this guide are laid out in the order that your system components should be
upgraded.
Tip: For a quick reference to the upgrade procedures you require, and the
order in which they should be carried out, see chapter 3 Quick reference:
Upgrading to Eclipse HX.
• If you are upgrading V-Series panels, you may have to upgrade each VSeries panel individually by connecting it directly to a PC.
• Upgrading the matrices in a networked (linked) system should take place at
the same time, because the data sent between networked matrices can
change.
Page 10
Eclipse | Upgrade Guide
When upgrading networked (linked) matrices, Clear-Com recommends that you:
• Remove one CPU card from each matrix, put it in a safe place, then upgrade
the other CPU card and the rest of the system upgrade.
• Upgrade the remaining CPU cards in the matrices only when the upgrade has
been completed and tested across the full system. Leaving the remaining CPU
cards until last gives you the capability of quickly rolling back to the previously
running version, if any mission critical issues are encountered. NOTE – When
the second card is upgraded retrospectively as described it needs to be placed
in the frame without the other CPU card in place. This is because CPU cards
only exchange data as a master/slave pair when both cards are already
running the same firmware. Once both cards are upgraded insert both cards
and re-download the frame configuration.
• Great care must be taken when opening the lid of the Eclipse HX-PiCo matrix
to upgrade components. This may invalidate UL status.
Remove power from the device first, to avoid working with the
system while it is live. Observe all electrical shock hazard
warning and precautions for handling electrostatic sensitive
devices
2.1.1
Client / Server installations
When upgrading Client / Server installations from ECS v5.2.5 or EHX
v7.x/v8.x/v9.x/v10.x/v11.x to Eclipse HX v12.0, you must:
• Use the EHX v12.0 Server Installer only on the PC that is to be the EHX
Server. The EHX v12.0 server installer will automatically update your IIS and
configure it to work with Eclipse HX v12.0.
• Use the standard combined EHX/Dynam-EC 12.0 Client Installer on all the
Client PCs. The Server PC can also act as a client.
You should check that you have the appropriate IIS and .Net Windows components
installed prior to installing the EHX Server. Please refer to the Initial Setup section of
the Client/Server chapter in the EHX User Guide for a complete list of the components
required for each version of Windows.
Note: Installing an EHX Server is an advanced workflow - please contact Clear-Com
Support for advice before attempting to install an EHX Server.
Before upgrading your EHX Server installation, Clear-Com strongly recommends that
you export any existing projects (using File->Export from an EHX Client) and backup
Page 11
Eclipse | Upgrade Guide
your users list (using the Export command in the User Management screen). It is
recommended that you uninstall your existing EHX Server before installing the newer
version.
2.1.2
Roll back strategy
You should not encounter any mission critical issues when upgrading to Eclipse HX
v12.0. However, if you decide to roll back the system to the previously running
version, then you must:
• Allow adequate time for the roll back operation.
• Roll back all system components to the same baseline version.
Temporary roll back strategy
If you want to roll back to the previously running version for a temporary period only,
before making another attempt to upgrade to Eclipse HX v12.0, then you may
implement the following temporary roll back strategy:
1)
Leave all cards and panels at Eclipse HX v12.0
2)
Roll back the matrix CPU card to run at the previously running version.
3)
Re-install the previous running version of ECS/EHX and import your old
configurations.
Caution:
The above strategy is a temporary solution only. Eclipse HX v12.0 configurations will
not import or work with a CPU card at ECS v5.2.5 or EHX v7.x/v8.x/v9.x/v10.x.v11.x.
If you want to run the previously running system software for an extended period,
Clear-Com recommends rolling back all system components to the same baseline
version.
2.1.3
Supplied Upgrade Media
Different upgrade media are supplied to the customer, according to the type of Eclipse
HX product that has been purchased:
Product
Matrix
Page 12
Firmware Documentation
USB
System
Drivers
USB
-
-
Documentation
USB
Eclipse | Upgrade Guide
ECS / EHX /
Dynam-EC
-
Upgrade kit
-
Table 2-1: Supplied USBs
System Drivers Upgrade Media
The System Drivers upgrade media contains the latest firmware for your Eclipse HX
devices, including Boot PROM and FPGA / CPLD code files for Eclipse HX matrices,
interface cards, interface modules and supported panels (i-Station and V-Series
panels). You must upgrade to the latest firmware when upgrading to Eclipse HX v12.0.
The System Drivers USB also includes the third party software that may be used
during upgrades.
Firmware USB
The Firmware USB contains:
• The EHX configuration software, which is used to manage and configure your
Eclipse HX devices.
• Dynam-EC, which provides fast, intuitive audio routing control for your Eclipse
HX system.
• A full set of Eclipse HX documentation, including release notes and user
guides.
• The application code files for your Eclipse HX matrices.
The Firmware USB also includes the third party software that may be used during
upgrades.
You must upgrade to the latest application code files when upgrading to Eclipse HX
v12.0. You require both sets of upgrade media to complete a full upgrade to Eclipse
HX v12.0.
Tip: You can find user documentation, brochures and summary information for all
Clear-Com’s products (including the Eclipse and Eclipse HX systems), on the ClearCom website at: http://www.clearcom.com/support/user-manuals.
A number of upgrade procedures, require the use of a TFTP Server. One is supplied on
the USB, but you can use any compatible TFTP Server.
Page 13
Eclipse | Upgrade Guide
2.1.4
Fitting the Eclipse HX door panel
To enable you to change the branding of Eclipse Median and Eclipse Omega matrices
that have been upgraded to Eclipse HX, Clear-Com provides an Eclipse HX door panel
kit.
The figures that illustrate the procedure below feature an Eclipse Median matrix.
However, the procedure is also applicable to Eclipse Omega matrices.
Tip: For more information about fitting the Eclipse HX door panel to your upgraded
Eclipse Median and Eclipse Omega matrices, see the Eclipse Matrix Door
Replacement Instructions, included with your kit.
To replace the Eclipse branded door with the Eclipse HX door:
1)
Remove the two screws securing the Eclipse door (and hinge) unit to the
Eclipse matrix. Retain the screws.
1
Figure 2-1: Screws securing the Eclipse door (and hinge)
unit
2)
Remove the four screws securing the hinge to the existing door unit. Retain
the screws.
Page 14
Eclipse | Upgrade Guide
2
Figure 2-2: Removing the screws securing the hinge to the
Eclipse door
3)
Use the four screws retained in Step 2 to secure the hinge to the new Eclipse
HX door unit.
3
Page 15
Eclipse | Upgrade Guide
Figure 2-3: Securing the hinge to the Eclipse HX door
4)
Use alcohol to clean the latch-mount surface (located to the bottom right on
the inside of the Eclipse HX door).
4
Latch-mount
surface
Figure 2-4: Latch-mount surface, inside the Eclipse HX
door
5)
To attach the Eclipse HX door to the matrix, secure the hinge to the matrix
using the two screws retained from Step 1.
Page 16
Eclipse | Upgrade Guide
5
Figure 2-5: Attaching the Eclipse HX door to the matrix
6)
Open the door. Insert the latch (a separate item from the door unit) into the
latch receptacle on the chassis.
The latch receptacle is located to the bottom left of the area enclosed by the
door.
Note:
Leave the white plastic protector on the latch when you insert the latch into the receptacle.
Page 17
Eclipse | Upgrade Guide
6
Latch
receptacle
Latch
Figure 2-6: Inserting the latch into the latch receptacle
7)
To expose the adhesive surface of the latch, remove the green film from the
back of the latch.
8)
Close the door. Press down firmly on the bottom left of the door, so that the
latch adheres firmly to the latch-mount surface inside the door.
9)
Open the door again and remove the white plastic protector from the latch.
The Eclipse HX door has now been fitted to the matrix.
Page 18
Eclipse | Upgrade Guide
9
White
Figure 2-7: Removing the white plastic protector from the
latch
2.1.5
Help with upgrading
If you require more help with either a particular upgrade procedure or the
implementation of a whole system upgrade, contact either:
•
Clear-Com Technical Support (http://www.clearcom.com/contact/supportcontacts).
•
Your Clear-Com sales representative, to arrange for an engineer to visit your
site and assist you with the upgrade.
See page 2 of this guide for contact email addresses, or go to
http://www.clearcom.com/contact/sales-contacts.
Page 19
Eclipse | Upgrade Guide
3
Quick reference: Upgrading to Eclipse HX v12.0
The upgrade kit includes a Drivers USB, containing the latest firmware files (including Boot and FPGA / CPLD code files) for
your Eclipse HX devices. It also includes a software USB, containing the application code files for your Eclipse HX feature
applications. It includes the EHX configuration software, Dynam-EC audio routing software, and Eclipse HX v12.0
documentation. You require both upgrade media to complete a full system upgrade. For more information, see 2.1.3 Supplied
.
3.1
Upgrading from 5.2.5
The following table lists the procedures that you will require to upgrade from ECS v5.2.5 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
9.4 Upgrading the E-QUE card (MK2) via serial cable and
third-party TFTP tools
Page 20
No PROM upgrade is required
Eclipse | Upgrade Guide
Order
2
System component
Upgrade procedure(s)
Notes
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
No DSP upgrade required.
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
VSeries
panels
Uboot
No upgrade required.
14.4 Manually upgrading V-Series Panels
Kernel
Root file
system
App code
Display module
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
5
i-Station
No upgrade required
6
CellCom® / FreeSpeak®
Beltpack / Transceiver /
Splitter
No longer supported
Page 21
(Note – if the E-MADI64 card
is upgraded before the CPU
Card then there is no E-MADI
card LED activity during the
upgrade. See E-MADI64
section for important upgrade
information).
Eclipse | Upgrade Guide
Order
7
System component
Upgrade procedure(s)
Notes
MVX-A16 card
7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas
FDT
Clear-Com recommends
upgrading the MVX boot and
application code using the
combined MVX boot and
application code file. See the
Drivers USB.
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools
8
Eclipse HX-PiCo
6.1 Changing the Eclipse HX-PiCo PROM
6.2 Changing the Eclipse HX-PiCo RAM
6.3 Changing the Eclipse HX-PiCo DIP switches
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
6.5.2 Upgrading the Eclipse HX-PiCo MVX boot and/or app code
using the Renesas FDT
6.7 Upgrading the Eclipse HX-PiCo CPLD and FPGA code with Xilinx
tools
9
10
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.1 Backing up your ECS v5.2.5 configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
Page 22
CPU card
5.1 Changing the CPU card PROM
If you are upgrading the PiCo to
an HX-PiCo please contact your
Clear-Com representative to
establish if your hardware is HX
ready. If your PiCo hardware is
not HX ready then this is a
factory only upgrade.
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Notes
5.2 Changing the CPU card RAM
5.3 Changing the CPU card DIP switches
5.4 Upgrading the CPU card secondary bootloader and application
code
5.8 Upgrading CPU Card U1 CPLD
5.11 Downloading a test configuration to the CPU card using EHX
5.7 Upgrading CPU Card U53 CPLD
5.9 Upgrading the CPU card U53 CPLD code with Xilinx tools
5.10 Upgrading the CPU card U1 CPLD code with Xilinx tools
12
Dynam-EC (without EHX
on the same PC)
4.5 Updating Dynam-EC
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
Table 3-1: Procedures for upgrading from ECS v5.2.5 to Eclipse HX v12.0
3.2
Upgrading from 7.0
The following table lists the procedures that you will require to upgrade from Eclipse HX v7.0 to Eclipse HX v12.0.
Page 23
Eclipse | Upgrade Guide
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
No PROM upgrade is required
9.4 Upgrading the E-QUE card (MK2) via serial cable and
third-party TFTP tools
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
4
Page 24
E-FIB card
Uboot
No upgrade required.
14.4 Manually upgrading V-Series Panels
No DSP upgrade required.
(Note – if the E-MADI64 card
is upgraded before the CPU
Card then there is no E-MADI
card LED activity during the
upgrade. See E-MADI64
section for important upgrade
information).
Eclipse | Upgrade Guide
Order
System component
VSerie
s
panel
s
Upgrade procedure(s)
Notes
Kernel
Root file
system
App code
Display module
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
5
i-Station
No upgrade required
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported
7
MVX-A16 card
7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas
FDT
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools
Clear-Com recommends
upgrading the MVX boot and
application code using the
combined MVX boot and
application code file. See the
Drivers USB.
MK II (Blue) card only
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
Page 25
Eclipse | Upgrade Guide
Order
9
10
System component
Upgrade procedure(s)
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
Notes
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
Table 3-2: Procedures for upgrading from Eclipse HX v7.0 to Eclipse HX v12.0
3.3
Upgrading from 7.1
The following table lists the procedures that you will require to upgrade from Eclipse HX v7.1 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Page 26
Eclipse | Upgrade Guide
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
No PROM upgrade is required
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
VSerie
s
panel
s
Page 27
Uboot
Kernel
Root file
system
No upgrade required.
14.4 Manually upgrading V-Series Panels
No DSP upgrade required.
(Note – if the E-MADI64 card
is upgraded before the CPU
Card then there is no E-MADI
card LED activity during the
upgrade. See E-MADI64
section for important upgrade
information).
Eclipse | Upgrade Guide
Order
System component
App code
Display module
Upgrade procedure(s)
Notes
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
5
i-Station
No upgrade required
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported
7
MVX-A16 card
7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas
FDT
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools
Clear-Com recommends
upgrading the MVX boot and
application code using the
combined MVX boot and
application code file. See the
Drivers USB.
MK II (Blue) card only
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
Page 28
AES-6
No upgrade required
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Notes
4.4 Importing your configurations into EHX
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
Table 3-3: Procedures for upgrading from Eclipse HX v7.1 to Eclipse HX v12.0
3.4
Upgrading from 7.5
The following table lists the procedures that you will require to upgrade from Eclipse HX v7.5 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Page 29
Eclipse | Upgrade Guide
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
No PROM upgrade is required
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
VSerie
s
panel
s
Uboot
14.4 Manually upgrading V-Series Panels
Kernel
Root file
system
App code
Page 30
No upgrade required.
14.4 Manually upgrading V-Series Panels
No DSP upgrade required.
(Note – if the E-MADI64 card
is upgraded before the CPU
Card then there is no E-MADI
card LED activity during the
upgrade. See E-MADI64
section for important upgrade
information).
Eclipse | Upgrade Guide
Order
System component
Display module
Upgrade procedure(s)
Notes
14.1 Upgrading panels using EHX
5
i-Station
No upgrade required
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
Error! Reference source not found. Error! Reference source not found..
Transceiver application only.
7
MVX-A16 card
7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas
FDT
Clear-Com recommends
upgrading the MVX boot and
application code using the
combined MVX boot and
application code file. See the
Drivers USB.
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools
MK II (Blue) card only
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
AES-6
No upgrade required
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
Page 31
Eclipse | Upgrade Guide
Order
3.5
System component
Upgrade procedure(s)
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
Notes
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
Table 3-4: Procedures for upgrading from Eclipse HX v7.5 to Eclipse HX v12.0
Upgrading from 7.6
The following table lists the procedures that you will require to upgrade from Eclipse HX v7.6 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Page 32
Eclipse | Upgrade Guide
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
No PROM upgrade is required
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
4
E-FIB card
Uboot
VSerie
Kernel
s
panel Root file
system
s
App code
Display module
Page 33
No upgrade required.
14.4 Manually upgrading V-Series Panels
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
No DSP upgrade required.
(Note – if the E-MADI64 card
is upgraded before the CPU
Card then there is no E-MADI
card LED activity during the
upgrade. See E-MADI64
section for important upgrade
information).
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
5
i-Station
No upgrade required
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported
7
MVX-A16 card
7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas
FDT
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools
Notes
Clear-Com recommends
upgrading the MVX boot and
application code using the
combined MVX boot and
application code file. See the
Drivers USB.
MK II (Blue) card only
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
Page 34
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Notes
12
Dynam-EC
4.5 Updating Dynam-EC
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
13
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
Table 3-5: Procedures for upgrading from Eclipse HX v7.6 to Eclipse HX v12.0
3.6
Upgrading from 8.0
The following table lists the procedures that you will require to upgrade from Eclipse HX v8.0 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Page 35
Eclipse | Upgrade Guide
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
VSerie
s
panel
s
Uboot
14.4 Manually upgrading V-Series Panels
Kernel
Root file
system
App code
Page 36
No upgrade required.
14.4 Manually upgrading V-Series Panels
No PROM upgrade is
required.
No DSP upgrade required.
(Note – if the E-MADI64 card
is upgraded before the CPU
Card then there is no E-MADI
card LED activity during the
upgrade. See E-MADI64
section for important upgrade
information).
Eclipse | Upgrade Guide
Order
System component
Display module
Upgrade procedure(s)
14.1 Upgrading panels using EHX
5
i-Station
Upgrade required.
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported
7
MVX-A16 card
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
Page 37
CPU card
Notes
5.4 Upgrading the CPU card secondary bootloader and application
code
MK II (Blue) card only
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Notes
12
Dynam-EC
4.5 Updating Dynam-EC
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
13
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
Table 3-6: Procedures for upgrading from Eclipse HX v8.0 to Eclipse HX v12.0
3.7
Upgrading from 8.5
The following table lists the procedures that you will require to upgrade from Eclipse HX v8.5 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Page 38
Eclipse | Upgrade Guide
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
V-Series
panels
No upgrade required.
Uboot
14.4 Manually upgrading V-Series Panels
Kernel
Root file
system
App code
Display
module
5
Page 39
i-Station
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
No upgrade required.
No PROM upgrade is
required.
MADI FPGA upgrade only.
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
7
MVX-A16 card
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
Notes
MK II (Blue) card only
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
Page 40
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Notes
matrix audio monitoring and
control is required.
13
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
Table 3-7: Procedures for upgrading from Eclipse HX v8.5 to Eclipse HX v12.0
3.8
Upgrading from 8.5.1
The following table lists the procedures that you will require to upgrade from Eclipse HX v8.5.1 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Page 41
Eclipse | Upgrade Guide
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
V-Series
panels
No upgrade required.
Uboot
14.4 Manually upgrading V-Series Panels
Kernel
Root file
system
App code
Display
module
5
Page 42
i-Station
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
No upgrade required.
No PROM upgrade is
required.
MADI FPGA upgrade only
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
7
MVX-A16 card
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools.
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
Notes
MK II (Blue) card only
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
Page 43
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Notes
matrix audio monitoring and
control is required.
13
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
Table 3-8: Procedures for upgrading from Eclipse HX v8.5.1 to Eclipse HX v12.0
3.9
Upgrading from 8.5.2
The following table lists the procedures that you will require to upgrade from Eclipse HX v8.5.2 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Page 44
Eclipse | Upgrade Guide
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
V-Series
panels
No upgrade required.
Uboot
14.4 Manually upgrading V-Series Panels
Kernel
Root file
system
App code
Display
module
5
Page 45
i-Station
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
No upgrade required.
No PROM upgrade is
required.
MADI FPGA upgrade only
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
7
MVX-A16 card
7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx
tools
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
Notes
MK II (Blue) card only
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
Page 46
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Notes
matrix audio monitoring and
control is required.
13
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
Table 3-9: Procedures for upgrading from Eclipse HX v8.5.2 to Eclipse HX v12.0
3.10
Upgrading from 8.7
The following table lists the procedures that you will require to upgrade from Eclipse HX v8.7 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Page 47
Eclipse | Upgrade Guide
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
FPGA upgrade only.
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
V-Series
panels
No upgrade required.
Uboot
14.4 Manually upgrading V-Series Panels
Kernel
Root file
system
App code
Display
module
5
Page 48
i-Station
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
No upgrade required.
MADI FPGA upgrade only
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
7
MVX-A16 card
No upgrade required.
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
Notes
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
Page 49
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
Eclipse | Upgrade Guide
Order
13
System component
Upgrade procedure(s)
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
Notes
Table 3-10: Procedures for upgrading from Eclipse HX v8.7 to Eclipse HX v12.0
Page 50
Eclipse | Upgrade Guide
3.11
Upgrading from 8.8
The following table lists the procedures that you will require to upgrade from Eclipse HX v8.8 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
FPGA upgrade only.
9.4 Upgrading the E-QUE card (MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
E-FIB card
4
V-Series
panels
Page 51
No upgrade required.
Uboot
Kernel
14.4 Manually upgrading V-Series Panels
MADI FPGA upgrade only
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Root file
system
App code
Display
module
14.4 Manually upgrading V-Series Panels
14.1 Upgrading panels using EHX
5
i-Station
No upgrade required.
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
7
MVX-A16 card
No upgrade required.
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
10
AES-6
No upgrade required.
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
Page 52
Notes
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
13
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
14
E-DANTE64-HX Card
12 Upgrading E-DANTE64-HX cards
FPGA and Module upgrade only.
Table 3-11: Procedures for upgrading from Eclipse HX v8.8 to Eclipse HX v12.0
Page 53
Notes
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
Eclipse | Upgrade Guide
3.12
Upgrading from 9.0
The following table lists the procedures that you will require to upgrade from Eclipse HX v9.0 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
FPGA upgrade only.
9.4 Upgrading the E-QUE card (MK2)9.4 Upgrading the E-QUE card
(MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
Page 54
E-FIB card
No upgrade required.
MADI FPGA upgrade only
Eclipse | Upgrade Guide
Order
4
System component
V-Series
panels
Uboot
Upgrade procedure(s)
No upgrade required.
Kernel
Root file
system
App code
Display
module
14.4 Manually upgrading V-Series Panels
No upgrade required.
5
i-Station
No upgrade required.
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
7
MVX-A16 card
No upgrade required.
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
Page 55
AES-6
No upgrade required.
Notes
Eclipse | Upgrade Guide
Order
10
System component
Upgrade procedure(s)
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
Notes
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
13
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
14
E-DANTE64-HX Card
12 Upgrading E-DANTE64-HX cards
FPGA and Module upgrade only.
Table 3-11: Procedures for upgrading from Eclipse HX v8.8 to Eclipse HX v12.0
Page 56
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
Eclipse | Upgrade Guide
3.13
Upgrading from 9.1
The following table lists the procedures that you will require to upgrade from Eclipse HX v9.1 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Order
1
System component
Upgrade procedure(s)
Notes
E-QUE card
IVC-32 card
LMC-64 card
9.1 Identifying MK1 and MK2 E-QUE cards
The procedures used to upgrade
E-QUE cards to Eclipse HX v12.0
can also be used to upgrade IVC32 and LMC-64 cards.
9.2 Upgrading the E-QUE card (MK1 and MK2) via EHX
9.3 Upgrading the E-QUE card (MK1) via serial cable and thirdparty TFTP tools
FPGA upgrade only.
9.4 Upgrading the E-QUE card (MK2)9.4 Upgrading the E-QUE card
(MK2)
2
E-MADI64 card
11.3 Upgrading the E-MADI64 application, DSP and FPGA code
using EHX
11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set
3
Page 57
E-FIB card
No upgrade required.
MADI FPGA upgrade only
Eclipse | Upgrade Guide
Order
4
System component
V-Series
panels
Uboot
Upgrade procedure(s)
No upgrade required.
Kernel
Root file
system
App code
Display
module
14.4 Manually upgrading V-Series Panels
No upgrade required.
5
i-Station
No upgrade required.
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
7
MVX-A16 card
No upgrade required.
8
Eclipse HX-PiCo
6.4.1 Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
9
Page 58
AES-6
No upgrade required.
Notes
Eclipse | Upgrade Guide
Order
10
System component
Upgrade procedure(s)
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
Notes
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
11
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
12
Dynam-EC
4.5 Updating Dynam-EC
13
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
14
E-DANTE64-HX Card
12 Upgrading E-DANTE64-HX cards
Page 59
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
FPGA and Module upgrade only.
Eclipse | Upgrade Guide
3.14
Upgrading from 10.0
The following table lists the procedures that you will require to upgrade from Eclipse HX v10.0 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Additionally, it is important that the E-IPA card is upgraded before upgrading the CPU App card software.
Order
System component
Upgrade procedure(s)
1
E-QUE card
IVC-32 card
LMC-64 card
No upgrade required.
2
E-MADI64 card
No upgrade required.
3
E-FIB card
No upgrade required.
4
V-Series
panels
Uboot
Kernel
Root file
system
Page 60
No upgrade required.
Notes
Eclipse | Upgrade Guide
Order
System component
App code
Display
module
Upgrade procedure(s)
14.4 Manually upgrading V-Series Panels
No upgrade required.
5
i-Station
No upgrade required.
6
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
7
MVX-A16 card
No upgrade required.
8
E-IPA card
13 Upgrading E-IPA-HX cards
9
Eclipse HX-PiCo
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
10
AES-6
No upgrade required.
11
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
Page 61
Notes
Eclipse | Upgrade Guide
Order
3.15
System component
Upgrade procedure(s)
Notes
12
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
Application code only.
13
Dynam-EC
4.5 Updating Dynam-EC
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
14
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
15
E-DANTE64-HX Card
12 Upgrading E-DANTE64-HX cards
Upgrading from 11.0
The following table lists the procedures that you will require to upgrade from Eclipse HX v11.0 to Eclipse HX v12.0.
Page 62
Eclipse | Upgrade Guide
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Additionally, it is important that the E-IPA card is upgraded before upgrading the CPU App card software.
Order
System component
Upgrade procedure(s)
1
E-QUE card
IVC-32 card
LMC-64 card
No upgrade required.
2
E-MADI64 card
No upgrade required.
3
E-FIB card
No upgrade required.
4
V-Series Iris panels
14.1 Upgrading panels using EHX
14.2 Upgrading V-Series Iris panels by USB
5
V-Series
panels
Uboot
Kernel
Root file
system
Page 63
No upgrade required.
Notes
Eclipse | Upgrade Guide
Order
System component
App code
Display
module
Upgrade procedure(s)
14.4 Manually upgrading V-Series Panels
No upgrade required.
6
i-Station
No upgrade required.
7
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
8
MVX-A16 card
No upgrade required.
9
E-IPA card
13 Upgrading E-IPA-HX cards
10
Eclipse HX-PiCo
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
11
AES-6
No upgrade required.
12
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
Page 64
Notes
Eclipse | Upgrade Guide
Order
3.16
System component
Upgrade procedure(s)
Notes
13
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
Application code only.
13
Dynam-EC
4.5 Updating Dynam-EC
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
14
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
FreeSpeak II IPT (IP transceiver)
only
15
E-DANTE64-HX Card
12 Upgrading E-DANTE64-HX cards
Upgrading from 11.1
The following table lists the procedures that you will require to upgrade from Eclipse HX v11.1 to Eclipse HX v12.0.
Important note:
The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference /
link.
Page 65
Eclipse | Upgrade Guide
Important note:
If you are upgrading to Eclipse HX 12.0 and are using an E-IPA-HX card, see the FreeSpeak II IP Transceiver Quick Start Guide
for information about IP setup and configuration.
Additionally, it is important that the E-IPA card is upgraded before upgrading the CPU App card software.
Order
System component
Upgrade procedure(s)
1
E-QUE card
IVC-32 card
LMC-64 card
No upgrade required.
2
E-MADI64 card
No upgrade required.
3
E-FIB card
No upgrade required.
4
V-Series Iris panels
14.1 Upgrading panels using EHX
14.2 Upgrading V-Series Iris panels by USB
5
V-Series
panels
Uboot
No upgrade required.
Kernel
Root file
system
App code
Page 66
14.4 Manually upgrading V-Series Panels
Notes
Eclipse | Upgrade Guide
Order
System component
Display
module
Upgrade procedure(s)
Notes
No upgrade required.
6
i-Station
No upgrade required.
7
CellCom / FreeSpeak
Beltpack / Transceiver
/ Splitter
No longer supported.
8
MVX-A16 card
No upgrade required.
9
E-IPA card
13 Upgrading E-IPA-HX cards
10
Eclipse HX-PiCo
6.4.4 Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
11
AES-6
No upgrade required.
12
EHX configuration /
Dynam-EC software
4.2 Backing up your EHX 7.x/8.x/9.x/10.x/11.x configurations
4.3 Installing EHX and Dynam-EC Clients
4.4 Importing your configurations into EHX
13
Page 67
CPU card
5.4 Upgrading the CPU card secondary bootloader and application
code
Application code only.
Eclipse | Upgrade Guide
Order
System component
Upgrade procedure(s)
Notes
13
Dynam-EC
4.5 Updating Dynam-EC
Dynam-EC is also installed as
part of the EHX/Dynam-EC
combined installer. This section
details how to install the DynamEC client only on a machine i.e.
where only the dynamic online
matrix audio monitoring and
control is required.
14
FreeSpeak II Beltpack,
Transceiver
17 Upgrading FreeSpeak II™ wireless systems
FreeSpeak II IPT (IP transceiver)
only
15
E-DANTE64-HX Card
12 Upgrading E-DANTE64-HX cards
Page 68
Eclipse | Upgrade Guide
4
Upgrading to Eclipse HX v12.0
This chapter describes the files you require to install Eclipse HX v12.0. It also describes how
to back up your ECS 5.2.5 configurations and import them into Eclipse HX v12.0
Important notes:
This guide is laid out in the order in which you must upgrade your Eclipse software and
hardware devices to Eclipse 11.x. For a quick reference to upgrading your system, see
3Quick reference: Upgrading to Eclipse HX.
4.1
Backing up your ECS v5.2.5 configurations
Back up your ECS v5.2.5 configurations by exporting them from ECS v5.2.5 to a hard disk
location. In ECS:
Note:
1)
Open the configuration you wish to save.
2)
Select File > Export Project.
3)
Save the configuration to a location on your hard drive. The configuration will be
saved as a *.ccn file, which you can import later into EHX (the configuration
software for Eclipse HX v12.0).
EHX can open *.ccn format files as well as its own *.hxn format configuration files.
Repeat the above procedure for all the configurations you want to save.
4.2
Backing up your EHX 7.x/8.x/9.x/10.x/11.x
configurations
Back up your EHX 7.x/8.x/9.x/10.x/11.x configurations by saving them to a secure location
on your hard drive.
4.3
1)
Open the configuration you wish to save.
2)
Select File > Save Project.
Installing EHX and Dynam-EC Clients
EHX is the configuration software for Eclipse HX v12.0. Dynam-EC is the application used for
online monitoring and dynamic audio routing.
The Eclipse HX v12.0 software USB contains a number of executable (*.exe) files for
installing EHX and Dynam-EC:
Page 69
Eclipse | Upgrade Guide
Installation (*.exe) file
Description and comments
EHXDynam-ECSetup.exe
The installer for the client version of EHX (both 32 and
64 bit machines) and Dynam-EC (both 32 and 64 bit
machines).
You can use the EHX Client version to connect:
EHXServerSetup.exe
•
Directly to a matrix in Client-only mode.
•
To an EHX Server in Client-Server mode.
The installer for the server version of EHX (both 32 and
64 bit machines).
The EHX Server enables multiple EHX clients to work
together when configuring an Eclipse HX system.
Table 4-1: Installing EHX
Note:
If you are required to uninstall and re-install EHX for any reason, ensure to save your
configurations for re-importing into EHX (see section below). You can uninstall EHX from
your Windows All Programs menu.
EHX uninstall will stop and restart IIS during the uninstall process to remove any files that
are currently in use.
Additionally, if a PC only requires the installation of Dynam-EC then the standalone installer
for Dynam-EC should be used. See the section below.
4.4
Importing your configurations into EHX
The procedure below is only applicable if you are running EHX in Client-Server mode.
Tip: Remember to import any control macros which may be associated with a configuration.
To import a saved configuration from ECS v5.2.5 into EHX:
Note:
1)
Open EHX. From the top menu bar, select File > Import Project.
2)
Navigate to the ECS v5.2.5 configuration (*.ccn) file saved to your hard drive. To
import the file, click Open.
EHX can open *.ccn format files as well as its own *.hxn format configuration files.
To import a saved project from an earlier version of EHX or ECS into EHX in Client-only
mode:
Page 70
Eclipse | Upgrade Guide
Note:
3)
Open EHX. Select File > Open.
4)
Navigate to the project file (*.hxn or *.ccn format) saved to your hard drive. Click
Open.
If you import a .ccn file, remember to save your imported project as an *.hxn format file.
Repeat the above procedure for all the configurations you want to import.
4.5
Updating Dynam-EC
If you are installing Dynam-EC as an update to an existing Dynam-EC installation, you must
first uninstall your existing version of Dynam-EC. Ensure that you save your Dynam-EC
layouts project files (*.ccr files) and all relevant EHX system configurations (*.hxn files)
To update Dynam-EC to your PC:
1)
Insert the USB into the PC. Navigate to the USB and click the relevant *.exe file for
your machine.
2)
When the Setup wizard has loaded, the License Agreement dialog is displayed.
Use the internal scroll bar to review the agreement. To continue with the
installation, click I Agree.
3)
The Choose Install Location dialog is displayed. The default location is Program
Files > ClearCom on the C Drive. To select a different location, click Browse. To
continue, click Next.
4)
The Choose Start Menu Folder dialog is displayed. The default Start Menu folder
is Clear-Com\Dynam-EC. To select an alternative folder either:
•
Select from the list of existing Start Menu folders. Use the dialog scroll bar to
navigate the list.
•
Enter a name into the selection field to create a new folder.
To prevent the creation of shortcuts, select Do not create shortcuts. Click Install.
5)
Dynam-EC starts to install. During installation, an installation progress bar is
displayed. For more detailed information about the progress of the installation, click
Show Details.
When the installation is complete, click Close.
Note:
On installing Dynam-EC, a firewall dialog may be displayed asking if Windows should Block
or Unblock Dynam-EC. Select Unblock Dynam-EC.
Page 71
Eclipse | Upgrade Guide
5
Upgrading the CPU cards
This chapter describes how to upgrade the Boot PROM, CPLD, secondary bootloader and
application code for the CPU cards, two of which are fitted to the Eclipse HX-Median, Eclipse
HX-Omega and Eclipse HX-Delta matrices.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see
3Quick reference: Upgrading to Eclipse HX.
Note:
At v10 the CPU card has changed to use a new firmware scheme.
@ v9.1 there was a Boot PROM and main application firmware
@ v10 we now have Boot PROM, secondary bootloader firmware and main application
firmware
Eclipse HX devices are powered by mains voltage. Unless
specifically advised to the contrary, disconnect mains supply before
carrying out any maintenance or repair tasks. Observe precautions
for handling electrostatic sensitive devices.
Changing the CPU card PROM, RAM and DIP switch settings
The CPU card PROM and RAM should be changed at the same time. The CPU card DIP switch
settings must also be upgraded.
5.1
Note:
Changing the CPU card PROM
When you change the CPU card PROM, you must also change the CPU card RAM (from
128Mb RAM to 256Mb RAM). See 5.2 Changing the CPU card RAM below.
To change the CPU card PROM:
1)
Ensure that you have the following equipment:
• 2MBit PROM device (ST M27W201 or equivalent).
• PROM Programming Unit (with the appropriate programming software for that unit).
• The *.s record file for the CPU card boot PROM. To find the file, go to:
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx – Config Boot
PROM
Where xxxxxx represents the product number.
.
The folder contains the *.s record file and a Read Me file (*.txt), with version information.
Page 72
Eclipse | Upgrade Guide
2)
Note:
5.2
Note:
Program the PROM device with the *.s record file. Follow the instructions for the
PROM Programming Unit you are using.
Ensure that the PROM device is empty before you begin programming.
3)
Ensure that the checksum of the programmed device matches the checksum in the
Eclipse HX Release Notes.
4)
Remove the existing PROM device from the CPU card.
5)
Insert the newly programmed PROM device, taking care to ensure the correct
polarity of the device.
Changing the CPU card RAM
When you change the CPU card RAM (from 128Mb RAM to 256Mb RAM), you must also
change the CPU card PROM. See 5.1 Changing the CPU card PROM above.
To change the CPU card RAM (from 128Mb to 256Mb):
1)
Ensure that you have the replacement 256Mb CPU card RAM to hand.
2)
Remove the CPU card from the Eclipse HX-Median, Eclipse HX-Omega or Eclipse
HX-Delta matrix.
3)
The cassette that holds the CPU card RAM daughter board is located towards the
center of the main board:
Figure 5-1: CPU card 128Mb RAM daughter board
Page 73
Eclipse | Upgrade Guide
To release the 128Mb RAM daughter board, push back the levers to either side of the
cassette. Remove the board.
4)
Fit the replacement 256Mb CPU card RAM daughter board to the cassette. The
daughter board is fitted chip-side up. Ensure that the daughter board is securely
fitted (only the top edge of the connectors along the lower edge of the board should
be visible).
Figure 5-2: CPU card 256Mb RAM daughter board
5.3
5)
Secure the RAM daughter board by closing the levers to either side of the cassette.
6)
Return the CPU card to the Eclipse HX-Median, Eclipse HX-Omega or Eclipse HXDelta matrix.
Changing the CPU card DIP switches
To change the CPU card DIP switches to the appropriate Eclipse HX v12.0 settings, see
either:
• Appendix B: CPU card DIP switches
• 5.4.3 Upgrading the CPU Card secondary bootloader code using Tera Term
Page 74
Eclipse | Upgrade Guide
5.4
Upgrading the CPU card secondary bootloader and
application code
5.4.1
Upgrading the CPU card secondary bootloader code
Upgrading the CPU card secondary bootloader code using EHX with
Ethernet connection
Before you upgrade the CPU card secondary bootloader code, check that:
• The PC can successfully connect to the matrix with an Ethernet connection by
viewing the Event Log (Diagnostics > Event Log) in EHX.
• There is a valid configuration in the matrix. A valid configuration enables the matrix
to identify its IP address and run its TCP / IP stack.
Note:
Both CPU cards may remain in place (inserted) for this procedure.
To upgrade the CPU card secondary bootloader code, using EHX with an Ethernet
connection:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet
connector
-
LAN cable for the PC-tomatrix connection
For direct connections, use Ethernet crossover
cable. If the connection passes through an
Ethernet switch on its way to the PC / matrix,
use straight CAT5 cable.
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.hxn or *.ccn format)
The configuration file must have an appropriate
IP address set.
The appropriate *.fwr data
file for the CPU card
application
You can find the *.fwr data file on the software
USB:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HXOmega-Median-Delta > xxxxxx – Config
Card Secondary Bootloader (where xxxxxx
represents the product number).
Example secondary bootloader version number
- x.y.71.z
Table 5-1: Required equipment
Page 75
Eclipse | Upgrade Guide
2)
Start EHX. Select File > Matrix connection.
3)
In the Matrix connection dialog, select the Ethernet communications option.
4)
Connect the PC to the Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta
matrix, using the LAN#1 port on the rear of the matrix.
5)
In EHX, select File > Import project. Navigate to the configuration file (*.ccn or
*.hxn format) and click Open to import the file.
6)
Select System > Layout. In the work area, right click the Eclipse HX-Median /
Eclipse HX-Omega / Eclipse HX-Delta matrix.
7)
From the menu, select Firmware > Update Firmware.
Figure 5-3: Upgrading app code: Matrix firmware update
1)
In the Firmware update wizard, click Next. Ensure that Matrix is selected in the
following dialog, then click Next again.
2)
In the next dialog, click Browse and navigate to the required *.fwr file for the
Eclipse HX-Omega / Eclipse HX-Median / Eclipse HX-Delta CPU card application:
a. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx >
Eclipse HX-Omega-Median-Delta > xxxxxx – Config Card Secondary
Bootloader (where xxxxxx represents the product number).
The folder contains the *.fwr file and a Read Me file (*.txt) with version
information. (Example secondary bootloader version number - x.y.71.z)
b. Select the*.fwr file and click Open. Ensure that the correct file name is
displayed in the dialog.
Page 76
Eclipse | Upgrade Guide
3)
Click Next. Confirm that the correct file has been selected, and click Next again to
start the firmware update. The update will take approximately 2 minutes.
Tip: While the update is in progress, check that the S1 LED on the front of the CPU
card(s) is flashing rapidly. Rapid flashes indicate communication with the PC.
The Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta (matrix) matrix
reboots. The CPU card(s) is reset.
4)
When the update is complete the matrix will be reachable via ethernet, however the
matrix will may remain grey in the layout screen and the apply firmware dialog may
remain at the verifying stage. If this happens, check that the matrix can be
contacted by closing the apply firmware verifying dialog box and opening the
Diagnostics >> Event Log window. Check that the event log is connected to the
matrix. See section 5.6
If so it simply means that this is the first time that this CPU card is running the new
secondary bootloader and main application image scheme and that the application
has not yet been loaded.
Download the CPU card main application using EHX. See 5.4.4
5.4.2
Upgrading the CPU card secondary bootloader code with
EHX using a serial link
You can upgrade the CPU card secondary bootloader with EHX using a serial link, whether or
not there is a valid configuration (map) on the Eclipse HX-Median / Eclipse HX-Omega
matrix / Eclipse HX-Delta. Both CPU cards may remain inserted during the upgrade. You
may choose to perform the initial upgrade with EHX using a serial connection, then move to
an Ethernet connection for future configuration downloads and upgrades, once an IP
address has been configured.
Note:
Before you use this procedure, check that the matrix event log can connect serially to a CPU
card with a configuration. Both CPU cards may remain inserted during the upgrade.
To upgrade the application code with EHX, using a serial link:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with either a serial port
connection or USB-to-serial
port adaptor
If using a USB-to-serial port adaptor cable,
you must connect the cable before starting
EHX to enable EHX to detect the USB port as
a COM port.
Page 77
Eclipse | Upgrade Guide
Standard RS232 serial cable
(9-pin D-Type to 9-pin DType)
-
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.hxn or *.ccn format)
The configuration file must have the
appropriate IP addresses set.
The appropriate *.fwr data
file for the CPU card
application
You can find the *.fwr data file on the
software USB:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HXOmega-Median-Delta > xxxxxx – Config
Card Secondary Bootloader
Example secondary bootloader version
number - x.y.71.z
Table 5-2: Required equipment
Note:
2)
Start EHX. Select File > Matrix connection.
3)
In the Matrix connection dialog, select the serial communications option.
4)
Select the correct COM port then click OK.
5)
Use the RS232 cable to connect the PC with the serial port on the rear of the
Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix.
6)
Do one of the following:
•
If you are running EHX in Client-Server mode, select File > Import
project. Navigate to the configuration (*.ccn) file and click Open to import
the file.
•
If you are running EHX in Client-Only mode, select File > Open. Navigate
to the configuration (*.ccn) and open the file.
EHX can open *.ccn format files as well as its own *.hxn format configuration files.
7)
Select System > Layout. In the work area, right click the Eclipse HX-Median /
Eclipse HX-Omega / Eclipse HX-Delta matrix.
8)
From the menu, select Firmware > Update Firmware.
Page 78
Eclipse | Upgrade Guide
Figure 5-4: Upgrading app code: Matrix firmware update
9)
In the Firmware update wizard, click Next. Ensure that Matrix is selected in the
following dialog, then click Next again.
10)
In the next dialog, click Browse and navigate to the required *.fwr file for the
Eclipse HX-Omega / Eclipse HX-Median / Eclipse HX-Delta CPU card application:
a. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx >
Eclipse HX-Omega-Median-Delta > xxxxxx – Config Card Secondary
Bootloader (where xxxxxx represents the product number).
The folder contains the *.fwr file and a Read Me file (*.txt) with version
information.( Example secondary bootloader version number - x.y.71.z)
b. Select the*.fwr file and click Open. Ensure that the correct file name is
displayed in the dialog.
Click Open. Ensure that the correct file name is displayed in the dialog.
11)
Click Next. Confirm that the correct file has been selected and then click Next
again to start the firmware update. The update will take approximately 2 minutes.
Tip: While the update is in progress, check that the S1 LED on the front of the CPU
card(s) is flashing rapidly. Rapid flashes indicate communication with the PC.
The Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta (matrix) matrix
reboots. The CPU card(s) is reset.
12)
When the update is completed the matrix will be reachable via the serial
connection, however the matrix will may the apply firmware dialog may remain at
the verifying stage. If this happens, check that the matrix can be contacted by
closing the apply firmware verifying dialog box and opening the Diagnostics >>
Event Log window. Check that the event log is connected to the matrix. If so it
Page 79
Eclipse | Upgrade Guide
simply means that this is the first time that this CPU card is running new secondary
bootloader and application image scheme and that the application has not yet been
loaded. See section 5.6 Checking the CPU card application code version.
Download a configuration file (apply changes), using EHX.
If the upgrade fails
If the upgrade of both CPU cards fails, repeat the procedure (with only one CPU card in the
matrix) for each card. When the procedure is complete, insert both the CPU cards into the
Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix.
If there was no previous configuration loaded in the matrix, download a basic configuration
file (apply changes) to the CPU cards using EHX. Make any further configuration changes
over the Ethernet LAN.
Tip: For more information about setting up a configuration, see the EHX User Guide.
Page 80
Eclipse | Upgrade Guide
5.4.3
Upgrading the CPU Card secondary bootloader code using
Tera Term
To upgrade the CPU card application code using Tera Term:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with either a serial port
connection or USB-to-serial
port adaptor
If using a USB-to-serial port adaptor cable, you
must connect the cable before starting EHX to
enable EHX to detect the USB port as a COM
port.
Standard RS232 serial cable
(9-pin D-Type to 9-pin DType)
-
Tera Term installation
Tera Term must be configured and operational.
You can find the Tera Term application on both
of the Eclipse HX upgrade media:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx >
3rd_Party_Software > Teraterm
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > Teraterm
An EHX configuration file
(*.hxn or *.ccn format)
The configuration file must have the
appropriate IP addresses set.
The appropriate *.fwr data
file for the CPU card
application
You can find the *.fwr data file on the software
USB:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HXOmega-Median-Delta > xxxxxx – Config
Card Secondary Bootloader
(where xxxxxx represents the part number).
Table 5-3: Required equipment
2)
Install the Tera Term application. Accept all default settings.
Tip: To find out how to install Tera Term, see Appendix G:Tera Term.
3)
Start Tera Term. In the New Connection dialog, select Serial (connection) and
the COM port to use. Click OK.
Page 81
Eclipse | Upgrade Guide
Figure 5-5: Tera Term: selecting serial connection
Figure 5-6: Tera Term: selecting Serial port
4)
From the Setup menu, select the Serial port… entry.
5)
The Serial port configuration dialog is displayed. Configure the serial port as
follows:
Field
Data (to enter / select)
Port
Com1
Note:
Change as required to match a COM port on the PC.
Baud Rate
115200
Parity
Even
Page 82
Eclipse | Upgrade Guide
Stop
One (bits)
Data
8 (bits)
Table 5-4: Tera Term: Serial port configuration
Tip: You can use the Tera Term application for many of the Eclipse HX system
upgrade processes. To save and recall the relevant com port settings in Tera Term,
select the Setup / Save or Restore settings options.
6)
Connect the PC serial port to the RS232 port on the rear of the Eclipse HX-Median /
Eclipse HX-Omega / Eclipse HX-Delta matrix, using the RS232 cable.
7)
Remove both CPU cards from the matrix. Power on the Eclipse HX-Median / Eclipse
HX-Omega / Eclipse HX-Delta matrix.
8)
Erase the old application code from the CPU cards.
a. Place the CPU card in Test mode.
b. Set the DIP switches on the CPU card as follows:
Figure 5-7: DIP switch settings, Test mode
c. Insert the CPU card into the Eclipse HX-Median / Eclipse HX-Omega / Eclipse
HX-Delta matrix. You can place the card in either the P1 or P2 slot.
d. Confirm that the CPU card has entered test mode. If the card is in test mode,
data similar to the following is displayed on the PC:
Figure 5-8: Tera Term: CPU card test mode.
Page 83
Eclipse | Upgrade Guide
Note:
If you do not see the data above, press Enter on the PC.
Tip: To see all the available options in test mode, press ? on your keyboard.
To see all the current applications loaded onto the CPU, press i.
e. On your PC keyboard, press number 1. To start the erasure of Flash
memory, press Enter (or Return). Select y and Enter to confirm.
Note:
It takes approximately 1 minute to erase Flash.
f.
9)
When the Flash has been erased, press number 2 on your keyboard. To start
the erasure of NVRAM, press Enter (or Return). When the NVRAM erase is
complete, remove the CPU card.
Download the new secondary bootloader code (firmware) to the CPU card(s), using
Tera Term.
a. Place the erased CPU card in serial download mode. Set the DIP switches on
the CPU card as follows:
Figure 5-9: Tera Term: DIP switches, serial download mode
b. Insert the CPU card into the Eclipse HX-Median / Eclipse HX-Omega / Eclipse
HX-Delta matrix. The LED on the front of the matrix should flash LD AP.
c. In Tera Term, open File and select Send file… Ensure that the BINARY
option box is selected.
Page 84
Eclipse | Upgrade Guide
Figure 5-10: Tera Term: Send file…
d. In the Send file dialog > Select the file to download, navigate to the CPU
card application code (firmware) *.fwr file:
i. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE EHX.xxx > Eclipse HX-Omega-Median-Delta > xxxxxx – Config
Card Secondary Bootloader (where xxxxxx represents the product
number).
The folder contains the *.fwr file and a Read Me file (*.txt) with
version information.
ii.Select the*.fwr file and click OK / Open. Ensure that the correct file
name is displayed in the dialog.
e. The file starts to download. Confirm that the CPU card LED matrix display
shows numbers counting up.
Important note:
The count-up display indicates that packets are being received by the CPU
card. The numbers do not represent a percentage complete figure.
If the download fails, the CPU card display shows LD Err. This type of failure
is usually caused by the user continuing to use the PC for other tasks while
the download is occurring. The Tera Term screen will not indicate a failure
and will continue to show a download. If this occurs:
i. Abort the Tera Term download (press Cancel in the Tera Term
screen).
ii. Reset the CPU card (by removing the card from the matrix and
reinserting it again).
iii. Check the cable connections, then restart the Send file download
process again.
f.
Page 85
When the download is complete, the CPU card reboots. The CPU card(s) is
reset and the OK LED produces a 1Hz narrow flash.
Eclipse | Upgrade Guide
Note:
The zero ( 0 ) displayed indicates that although valid application code is
present, the CPU cards do not contain a configuration.
Page 86
Eclipse | Upgrade Guide
g. Remove the upgraded CPU card and set the DIP switches to normal running
(watchdog) mode:
Figure 5-11: Tera Term: DIP switches in normal running
(watchdog) mode
h. Repeat the above procedure for the second CPU card, if present. Reinsert
both of the upgraded CPU cards into the matrix.
i.
The OK LED shows a 1Hz narrow flash, which indicates that valid the
secondary bootloader is present, and that it is waiting to receive the CPU card
application image from EHX via either ethernet (recommended) or serial
connection.
j.
Download the CPU card application.
k. Download a configuration file (apply changes), using EHX.
5.4.4
Upgrading the CPU card main application code
Upgrading the CPU card main application code using EHX with
Ethernet connection
Before you upgrade the CPU card main application code, check that:
• The PC can successfully connect to the matrix with an Ethernet connection by
viewing the Event Log (Diagnostics > Event Log) in EHX.
Note:
Both CPU cards may remain in place (inserted) for this procedure.
Page 87
Eclipse | Upgrade Guide
To upgrade the CPU card main application code, using EHX with an Ethernet connection:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet
connector
-
LAN cable for the PC-tomatrix connection
For direct connections, use Ethernet crossover
cable. If the connection passes through an
Ethernet switch on its way to the PC / matrix,
use straight CAT5 cable.
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.hxn or *.ccn format)
The configuration file must have an appropriate
IP address set.
The appropriate *.fwr data
file for the CPU card main
application
You can find the *.fwr data file on the software
USB:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HXOmega-Median-Delta > xxxxxx – Config
Card Application (where xxxxxx represents
the product number).
Example version number – x.y.2.0
Table 5-5: Required equipment
2)
Start EHX. Select File > Matrix connection.
3)
In the Matrix connection dialog, select the Ethernet communications option.
4)
Connect the PC to the Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta
matrix, using the LAN#1 port on the rear of the matrix.
5)
In EHX, select File > Import project. Navigate to the configuration file (*.ccn or
*.hxn format) and click Open to import the file.
6)
Select System > Layout. In the work area, right click the Eclipse HX-Median /
Eclipse HX-Omega / Eclipse HX-Delta matrix.
7)
From the menu, select Firmware > Update Firmware.
Page 88
Eclipse | Upgrade Guide
Figure 5-12: Upgrading app code: Matrix firmware update
8)
In the Firmware update wizard, click Next. Ensure that Matrix is selected in the
following dialog, then click Next again.
9)
In the next dialog, click Browse and navigate to the required *.fwr file for the
Eclipse HX-Omega / Eclipse HX-Median / Eclipse HX-Delta CPU card application:
c. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx >
Eclipse HX-Omega-Median-Delta > xxxxxx – Config Card Application
(where xxxxxx represents the product number).
The folder contains the *.fwr file and a Read Me file (*.txt) with version
information.( Example version number – x.y.2.0).
d. Select the*.fwr file and click Open. Ensure that the correct file name is
displayed in the dialog.
10)
Click Next. Confirm that the correct file has been selected, and click Next again to
start the firmware update. The update will take approximately 2 minutes.
Tip: While the update is in progress, check that the S1 LED on the front of the CPU
card(s) is flashing rapidly. Rapid flashes indicate communication with the PC.
11)
When the update is completed, click Finish in the Firmware Update wizard.
The Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta (matrix) matrix reboots. The
CPU card(s) is reset.
Download a configuration file (apply changes), using EHX.
Note:
The CPU card uses a default configuration that is embedded in the download application
(even though the CPU DOT matrix display shows zero (0)). The default configuration helps
with the initial hardware configuration and testing of the Eclipse HX-Median / Eclipse HXPage 89
Eclipse | Upgrade Guide
Omega / Eclipse HX-Delta matrix by providing usable functionality to each of the MVX-A16
cards fitted to the matrix.
5.4.5
Upgrading the CPU card application code with EHX using a
serial link
You can upgrade the CPU card with EHX using a serial link, whether or not there is a valid
configuration (map) on the Eclipse HX-Median / Eclipse HX-Omega matrix / Eclipse HXDelta. Both CPU cards may remain inserted during the upgrade. You may choose to
perform the initial upgrade with EHX using a serial connection, then move to an Ethernet
connection for future configuration downloads and upgrades, once an IP address has been
configured.
Note:
Before you use this procedure, check that the matrix event log can connect serially to a CPU
card with a configuration. Both CPU cards may remain inserted during the upgrade.
To upgrade the application code with EHX, using a serial link:
12)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with either a serial port
connection or USB-to-serial
port adaptor
If using a USB-to-serial port adaptor cable,
you must connect the cable before starting
EHX to enable EHX to detect the USB port as
a COM port.
Standard RS232 serial cable
(9-pin D-Type to 9-pin DType)
-
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.hxn or *.ccn format)
The configuration file must have the
appropriate IP addresses set.
The appropriate *.fwr data
file for the CPU card
application
You can find the *.fwr data file on the
software USB:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HXOmega-Median-Delta > xxxxxx – Config
Card Application
(where xxxxxx represents the product
number). Example version number – x.y.2.0
Table 5-6: Required equipment
13)
Start EHX. Select File > Matrix connection.
Page 90
Eclipse | Upgrade Guide
Note:
14)
In the Matrix connection dialog, select the serial communications option.
15)
Select the correct COM port then click OK.
16)
Use the RS232 cable to connect the PC with the serial port on the rear of the
Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix.
17)
Do one of the following:
•
If you are running EHX in Client-Server mode, select File > Import
project. Navigate to the configuration (*.ccn) file and click Open to import
the file.
•
If you are running EHX in Client-Only mode, select File > Open. Navigate
to the configuration (*.ccn) and open the file.
EHX can open *.ccn format files as well as its own *.hxn format configuration files.
18)
Select System > Layout. In the work area, right click the Eclipse HX-Median /
Eclipse HX-Omega / Eclipse HX-Delta matrix.
19)
From the menu, select Firmware > Update Firmware.
Figure 5-13: Upgrading app code: Matrix firmware update
20)
In the Firmware update wizard, click Next. Ensure that Matrix is selected in the
following dialog, then click Next again.
21)
In the next dialog, click Browse and navigate to the required *.fwr file for the
Eclipse HX-Omega / Eclipse HX-Median / Eclipse HX-Delta CPU card application:
Page 91
Eclipse | Upgrade Guide
c. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx >
Eclipse HX-Omega-Median-Delta > xxxxxx – Config Card Application
(where xxxxxx represents the product number).
The folder contains the *.fwr file and a Read Me file (*.txt) with version
information.( Example version number – x.y.2.0)
d. Select the*.fwr file and click Open. Ensure that the correct file name is
displayed in the dialog.
Click Open. Ensure that the correct file name is displayed in the dialog.
22)
Click Next. Confirm that the correct file has been selected and then click Next
again to start the firmware update. The update will take approximately 2 minutes.
Tip: While the update is in progress, check that the S1 LED on the front of the CPU
card(s) is flashing rapidly. Rapid flashes indicate communication with the PC.
Note:
If you are upgrading from v5.2.5 to Eclipse HX v12.0, the download dialog does not
automatically finish. This is due to a messaging change between the two system
architectures. Instead, close the dialog (which will continue to indicate Verifying) when the
matrix reboots (see Step 11).
23)
When the update is completed, click Finish in the Firmware Update wizard.
The Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta (matrix) matrix
reboots. The CPU card(s) is reset.
Download a configuration file (apply changes), using EHX.
Note:
The CPU card uses a default configuration that is embedded in the download application
(even though the CPU DOT matrix display shows zero (0)). The default configuration helps
with the initial hardware configuration and testing of the Eclipse HX-Median / Eclipse HXOmega / Eclipse HX-Delta matrix by providing usable functionality to each of the MVX-A16
cards fitted to the matrix.
If the upgrade fails
If the upgrade of both CPU cards fails, repeat the procedure (with only one CPU card in the
matrix) for each card. When the procedure is complete, insert both the CPU cards into the
Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix.
If there was no previous configuration loaded in the matrix, download a basic configuration
file (apply changes) to the CPU cards using EHX. Make any further configuration changes
over the Ethernet LAN.
Tip: For more information about setting up a configuration, see the EHX User Guide.
Page 92
Eclipse | Upgrade Guide
5.5
Setting the matrix type
The Eclipse HX-Median, Eclipse HX-Omega and Eclipse HX-Delta matrices run common
software, which means that when you upgrade the application code for the CPU card, the
CPU card cannot automatically distinguish between the two matrix types. You must
therefore set the matrix type in EHX.
Note:
The Eclipse HX-PiCo runs its own matrix-specific software, and will always identify itself as
an Eclipse HX-PiCo on hardware discovery. There is therefore no requirement to set the
matrix type for the Eclipse HX-PiCo.
To set the matrix type:
1)
In EHX, select Diagnostics > Event Log.
2)
In the Matrix Event Log tab, Click the Play icon [
3)
Click Request info. In the dialog (see Figure 5-14: Setting the matrix type), enter
the following custom command:
].
Custom 145.1.12096. <2 == Eclipse HX-Median, 3 == Eclipse HX-Omega,
== Eclipse HX-Delta>
Click Send.
Page 93
4
Eclipse | Upgrade Guide
Figure 5-14: Setting the matrix type
Note:
If the Event Log does not display, stop and restart the EHX software.
Page 94
Eclipse | Upgrade Guide
5.6
Checking the CPU card application code version
To check the CPU card application code version:
1)
In EHX, select Diagnostics > Event Log.
2)
In the Matrix Event Log tab, Click the Play icon [
3)
Click Request info. In the dialog, select Matrix Overview and click Send.
4)
Look for the line that displays the application code (firmware) version. In the
following example, the application code (version) number is 4.28.2.0:
].
Figure 5-15: Application code (firmware) version
5.7
Upgrading CPU Card U53 CPLD
The U53 image is embedded in the CPU card main application firmware image (for upgrade
purposes).
If the CPU card supports the embedded (DIP switch based) upgrade (see below) and U53
needs upgrading, then follow the steps below.
The CPU card U53 upgrade can be performed any time after the v12.0 CPU main application
has been loaded into the card.
The U53 firmware image is embedded in CPU card main application firmware image and
therefore no additional download from EHX is required.
Note: Upgrade one CPU card at a time and verify correct functionality of the card after the
upgrade before upgrading the second card.
Note Some older h/w revisions of CPU card do not support this centralized upgrade
process. To establish if a CPU card supports the following upgrade method request a
firmware report from EHX. If the U53 and U1 versions for a CPU card are reported as
UNKNOWN then this method of CPLD upgrade is not supported and the Xilinx tools method
of upgrade detailed in this section will need to be used.
To upgrade a CPU card U53 CPLD device firmware image:
Page 95
Eclipse | Upgrade Guide
1)
Set the CPU card DIP switches as follows. This enables CPLD firmware upgrades.
2)
Re-insert the CPU card into the matrix. If the CPLD image requires upgrading this
will be performed and the CPU card will reset on completion to action the image in
the CPLD device.
3)
When the CPU card initializes (or re-initializes as a result of step 2.) and determines
that the CPLD image is up to date it will output the following message via the LED
front panel “CPLD Upgrades Enabled”.
4)
When the CPU card is running the CPLD upgrader application it will appear red in
the layout screen indicating that this is not valid image to be configured using the
EHX. However, the EHX firmware report can still be used. Use the EHX firmware
report to verify that the correct version of the U53 CPLD is now loaded.
5)
If the upgrade has been completed disable the CPLD upgrade functionality by
setting the DIP switches to the following settings.
Page 96
Eclipse | Upgrade Guide
5.8
Upgrading CPU Card U1 CPLD
The U1 image is embedded in the CPU card firmware image (for upgrade purposes).
The U1 upgrade can be performed any time after the v10 CPU card main application
firmware image has been loaded into the card.
The U1 firmware image is embedded in the CPLD upgrader CPU card main application
firmware image and therefore no additional download from EHX is required.
Note: Upgrade one CPU card at a time and verify correct functionality of the card after the
upgrade before upgrading the second card.
Note:
Power must not be lost to the CPU card during the upgrade of the U1 CPLD. The
duration of the device load is approximately 5 seconds, but this will only commence a
number of seconds after the card has been booted. If power is lost during the U1 CPLD
upgrade the Xilinx tools method of upgrade will be required to recover the card. Until this is
done the card will not be usable. It is therefore also especially important to upgrade the U1
CPLD on one CPU card at a time.
Note:
Some older h/w revisions of CPU card do not support this following centralized upgrade. To
establish if a CPU card supports the following upgrade method request a firmware report
from EHX. If the U53 and U1 versions for a CPU card are reported as UNKNOWN then this
method of CPLD upgrade is not supported and the Xilinx tools method of upgrade detailed in
this section will need to be used.
To upgrade a CPU card U1 CPLD device firmware image
1)
Set the CPU card DIP switches as follows. This enables CPLD firmware upgrades.
Page 97
Eclipse | Upgrade Guide
2)
Re-insert the CPU card into the matrix.
3)
Press and hold the ‘Config’ button on the front of the CPU card.
4)
Pin reset the CPU card and wait for 5 seconds.
5)
Release the ‘Config’ button. . If the CPLD image requires upgrading this will be
performed and the CPU card will reset on completion to action the image in the
CPLD device.
6)
When the CPU card initializes (or re-initializes as a result of step 2.) and determines
that the CPLD image is up to date it will output the following message via the LED
front panel “CPLD Upgrades Enabled”.
7)
Use the EHX firmware report to verify that the correct version of the U1 CPLD is
now loaded.
8)
If the upgrade has been completed disable the CPLD upgrade functionality by
setting the DIP switches to the following settings.
Page 98
Eclipse | Upgrade Guide
5.9
Upgrading the CPU card U53 CPLD code with Xilinx
tools
Use the following procedure to upgrade the U53 CPLD code for the CPU card.
To upgrade the CPU U53 CPLD code with Xilinx tools:
1)
Check that you have the correct version of Xilinx ISE tools installed.
Tip: Upgrading the CPU card(s) CPLD code using Xilinx tools requires specialized
equipment. For more information about installing Xilinx programming tools, see
Appendix J:Xilinx tools.
2)
Connect the USB connector of the download cable (Platform cable Xilinx HW-USB-II-G
or Digilent 6003-410-011) to the USB port of the PC.
3)
Connect the 14way IDC header to CON11.
4)
Power up the CPU card and start the iMPACT programming tool.
5)
In Load Project, select Cancel.
6)
Hold the CPU card in reset by inserting a suitable tool into the Reset pin at the top
of the card. You must press and hold the reset pin during the whole upgrade
process.
7)
In Flows, double click Boundary Scan. Right click the main window and select
Initialise Chain / Ctrl+ I:
Page 99
Eclipse | Upgrade Guide
Figure 5-16: Example iMPACT Boundary Scan
8)
If the cable is connected correctly, the application will connect and a Xilinx chip
chain will be shown. If the cable is not connected correctly, a cable connection
warning is given.
The full chain shows two devices, as shown below. If more devices are seen, the
connector may be loose, in the wrong position, or the CPU card may not have been
held in reset properly.
Page 100
Eclipse | Upgrade Guide
Figure 5-17: Example Xilinx chip chain
9)
The Assign New Configuration File dialog asks you to select the CPLD code for
the first device in the chain or to bypass that device.
Select the first device in the chain.
For this (first) device, select the U53 CPLD code. The U53 CPLD code for the CPU
card is available from the Drivers USB:
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx Config Card U53 CPLD code.
Note:
xxxxxx represents the part number.
The folder contains a CPLD code file (*.jed) and a Read Me file (*.txt), which
contains version information.
5.10
10)
Right click the first device (U53) and select Programming.
The upgrade starts, and takes approximately 2 minutes to complete. When the
upgrade is complete, the Program Succeeded message is displayed in the main
window.
11)
Power down the CPU card.
Upgrading the CPU card U1 CPLD code with Xilinx
tools
Use the following procedure to upgrade the U1 CPLD code for the CPU card.
Page 101
Eclipse | Upgrade Guide
To upgrade the CPU U1 CPLD code with Xilinx tools:
1)
Check that you have the latest version of Xilinx tools installed.
Tip: Upgrading the CPU card(s) CPLD code using Xilinx tools requires specialized
equipment. For more information about installing Xilinx programming tools, see
Appendix J:Xilinx tools.
2)
Connect the USB connector of the download cable (Xilinx HW-USB-II-G or Digilent 6003410-011) to the USB port of the PC.
3)
Connect the 14way IDC header to CON11.
4)
Power up the CPU card and start the iMPACT programming tool.
5)
In Load Project, select Cancel.
6)
Hold the CPU card in reset by inserting a suitable tool into the Reset pin at the top
of the card. You must press and hold the reset pin during the whole upgrade
process.
7)
In Flows, double click Boundary Scan. Right click the main window and select
Initialise Chain / Ctrl+ I:
Figure 5-18: Example iMPACT Boundary Scan
Page 102
Eclipse | Upgrade Guide
8)
If the cable is connected correctly, the application will connect and a Xilinx chip
chain will be shown. If the cable is not connected correctly, a cable connection
warning is given.
The full chain shows two devices, as shown below. If more devices are seen, the
connector may be loose, in the wrong position, or the CPU card may not have been
held in reset properly.
Figure 5-19: Example Xilinx chip chain
9)
The Assign New Configuration File dialog asks you to select the CPLD code for
the first device in the chain or to bypass that device.
Bypass the first device.
For the second device, select the U1 CPLD code. The U1 CPLD code for the CPU card
is available from the Drivers USB:
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx Config Card U1 CPLD code.
Note:
xxxxxx represents the part number.
The folder contains a CPLD code file (*.jed) and a Read Me file (*.txt), which
contains version information.
10)
A summary dialog is presented. For all devices, ensure that the Erase Before
Programming and Verify flags are set. Click OK.
Page 103
Eclipse | Upgrade Guide
Figure 5-20: Example Xilinx device programming properties
5.11
11)
Right click the second device and select Programming.
The upgrade starts, and takes approximately 2 minutes to complete. When the
upgrade is complete, the Program Succeeded message is displayed in the main
window.
12)
Power down the CPU card.
Downloading a test configuration to the CPU card
using EHX
After you have upgraded your Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta
matrix CPU cards, Clear-Com recommends downloading a test configuration from EHX to
the CPU cards.
Downloading a configuration will enable you to make any further configuration changes to
the cards using either a serial or Ethernet connection.
For more information, see your EHX User Manual.
5.12
Forcing the CPU card to the factory default IP
address
In rare situations, the CPU card may not be able to find a valid IP address for the Ethernet
port. To address this issue, you can force the matrix to the factory default IP address
(169.254.0.100):
13)
Set your PC Ethernet IP address to DCHP mode.
Page 104
Eclipse | Upgrade Guide
14)
Directly connect the PC to the matrix, using an Ethernet crossover cable.
15)
Force the system to use the default IP address, by performing the 3-finger reset.
Press and hold both the ENG and FULL RESET front panel buttons simultaneously,
then press the top RESET button.
1. When the CPU card OK LED starts to flash, release both the ENG and FULL RESET
buttons.
Tip: For help with selecting the other procedures you require for upgrading to EHX, see the
quick reference procedures tables in 3 Quick reference: Upgrading to Eclipse HX v
Page 105
Eclipse | Upgrade Guide
6
Upgrading the Eclipse HX-PiCo
This chapter describes how to upgrade the Eclipse HX-PiCo matrix, including the PROM,
FPGA and application code.
The Eclipse HX-PiCo PROM is different from the PROM used with the CPU cards, which are
fitted to the Eclipse HX-Median, Eclipse HX-Omega and Eclipse HX-Delta matrices. Care
should be taken to ensure that the correct PROM is fitted.
Note:
If you are upgrading your PiCo to an HX-PiCo please contact your Clear-Com representative
to establish if your hardware is HX ready. If your PiCo hardware is not HX ready then this is
a factory only upgrade.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see
3Quick reference: Upgrading to Eclipse HX.
Note:
The HX-PiCo mainboard needs a factory hardware modification.
Eclipse HX devices are powered by mains voltage. Unless
specifically advised to the contrary, disconnect mains supply before
carrying out any maintenance or repair tasks. Observe precautions
for handling electrostatic sensitive devices.
6.1
Note:
Changing the Eclipse HX-PiCo PROM
When you change the Eclipse HX-PiCo PROM, you must also change the Eclipse HX-PiCo
RAM (from 128Mb RAM to 256Mb RAM). See 6.2 Changing the Eclipse HX-PiCo RAM
below.
To upgrade the Eclipse HX-PiCo PROM:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
2MBit PROM device (ST
M27W201 or equivalent).
-
PROM Programming Unit
You will also require the appropriate
programming software for the unit.
The appropriate S record
file for the Eclipse HX-PiCo
boot PROM.
You can find the S record file on the Drivers
USB:
Page 106
Eclipse | Upgrade Guide
Drivers USB > ECLIPSE DRIVERS > PiCoHX_PiCo_E-32 > xxxxxx – Boot PROM
(where xxxxxx represents the part number).
Table 6-1: Required equipment
2)
Ensure that the Eclipse HX-PiCo is powered off. Remove the lid of the device.
Remove power from the device first, to avoid working with the
system while it is live. Observe all electrical shock hazard warning
and precautions for handling electrostatic sensitive devices
3)
Ensure that the PROM device to be programmed / upgraded is empty.
4)
Program the PROM device with the appropriate file, in accordance with the
instructions for the PROM device.
5)
Confirm that the checksum of the programmed device matches that given in the
Eclipse HX Release Notes (for this documentation, see the Eclipse HX v12.0
software USB).
6)
Remove the existing PROM device from the main board.
Figure 6-1: Eclipse HX-PiCo main board
Page 107
Eclipse | Upgrade Guide
7)
Insert the newly programmed PROM device, taking care to ensure the correct
polarity of the device.
8)
Replace the lid of the Eclipse HX-PiCo device.
Page 108
Eclipse | Upgrade Guide
6.2
Note:
Changing the Eclipse HX-PiCo RAM
When you change the Eclipse HX-PiCo RAM (from 128Mb RAM to 256Mb RAM), you must
also change the Eclipse HX-PiCo PROM. See 6.1 Changing the Eclipse HX-PiCo PROM
above.
To change the Eclipse HX-PiCo RAM (from 128Mb to 256Mb):
1)
Ensure that:
2)
The Eclipse HX-PiCo is powered off.
3)
You have the replacement 256Mb CPU card RAM daughter board to hand.
4)
Remove the lid of the Eclipse HX-PiCo.
5)
The cassette that holds the Eclipse HX-PiCo RAM daughter board is left of center on
the main board:
Figure 6-2: Eclipse HX-PiCo 128Mb RAM daughter board
To release the 128Mb RAM daughter board, push back the levers to either side of the
cassette. Remove the board.
6)
Fit the replacement 256Mb CPU card RAM daughter board to the cassette. The
daughter board is fitted chip-side up. Ensure that the daughter board is securely
fitted (only the top edge of the connectors along the lower edge of the board should
Page 109
Eclipse | Upgrade Guide
be visible).
Figure 6-3: Eclipse HX-PiCo 256Mb RAM daughter board
6.3
7)
Secure the RAM daughter board by closing the levers to either side of the cassette.
8)
Return the CPU card to the Eclipse HX-Median, Eclipse HX-Omega or Eclipse HXDelta matrix.
Changing the Eclipse HX-PiCo DIP switches
To change the Eclipse HX-PiCo DIP switches to the appropriate Eclipse HX v12.0 settings,
see either:
• Appendix D:Eclipse HX-PiCo CPU DIP switches
• 6.4.3 Upgrading the Eclipse HX-PiCo secondary bootloader code using Tera Term
Upgrading the Eclipse HX-PiCo secondary bootloader code
6.4
Upgrading the Eclipse HX-PiCo Secondary
Bootloader and Application
6.4.1
Upgrading the Eclipse HX-PiCo secondary bootloader code
using EHX with Ethernet
Before you upgrade the Eclipse HX-PiCo card secondary bootloader code, check that:
• The PC can successfully connect to the matrix with an Ethernet connection by
viewing the Event Log (Diagnostics > Event Log) in EHX.
Page 110
Eclipse | Upgrade Guide
• There is a valid configuration in the matrix. A valid configuration enables the matrix
to identify its IP address and run its TCP / IP stack.
To upgrade Eclipse HX-PiCo secondary bootloader code using EHX with an Ethernet
connection:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet
connector
-
LAN cable for the PC-toEclipse HX PiCo connection
For direct connections, use Ethernet crossover
cable. If the connection passes through an
Ethernet switch on its way to the PC / matrix,
use straight CAT5 cable.
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.ccn or *.hxn file format)
The configuration file must have an appropriate
IP address set.
The appropriate *.fwr data
file for the Eclipse HX-PiCo
You can find the *.fwr data file on the software
USB at:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HX-PiCo >
xxxxxx – Secondary Bootloader (where
xxxxxx represents the product number).
Example secondary bootloader version number
- x.y.72.z
Table 6-2: Required equipment
2)
Start EHX. Select File > Matrix Connection.
3)
In the Matrix Connection dialog, select the Ethernet communications option.
4)
Connect the PC with the Eclipse HX-PiCo, using the LAN port on the rear of the
matrix.
5)
Do one of the following:
Page 111
Eclipse | Upgrade Guide
• If you are running EHX in Client-Server mode, select File > Import project.
Navigate to the configuration (*.ccn) file and click Open to import the file.
• If you are running EHX in Client-Only mode, select File > Open. Navigate to the
configuration (*.ccn) and open the file.
Note:
EHX can open *.ccn format files as well as its own *.hxn format
configuration files.
6)
In EHX, select System > Layout. In the work area, right click the Eclipse HX-PiCo.
7)
From the menu, select Firmware > Update Firmware.
Figure 6-4: Upgrading app code: Matrix firmware update
8)
In the Firmware update wizard, click Next. Ensure that Matrix is selected in the
following dialog, then click Next again.
9)
In the next dialog, click Browse and navigate to the required *.fwr file for the
Eclipse HX-PiCo secondary bootloader:
a. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx >
Eclipse HX-PiCo > xxxxxx – Secondary Bootloader (where xxxxxx
represents the part number).
The folder contains the *.fwr file and a Read Me file (*.txt) with version
information. (Example secondary bootloader version number - x.y.72.z)
b. Select the*.fwr file and click OK / Open. Ensure that the correct file name is
displayed in the dialog.
10)
When the update is completed, click Finish in the Firmware Update wizard. The
Eclipse HX-PiCo reboots. The CPU is reset.
Page 112
Eclipse | Upgrade Guide
11)
When the update is complete the HX Pico will be reachable via ethernet, however
the matrix will may remain grey in the layout screen and the apply firmware dialog
may remain at the verifying stage. If this happens, check that the HX Pico can be
contacted by closing the apply firmware verifying dialog box and opening the
Diagnostics >> Event Log window. Check that the event log is connected to the
matrix. See section 5.6
12)
If so it simply means that this is the first time that this HX Pico is running the new
secondary bootloader and main application image scheme and that the application
has not yet been loaded. If the unit is in this state the OK LED will flash with a
narrow pulse at a rate of 1Hz.
13)
Download the HX Pico main application using EHX. See section 6.4.4 Upgrading the
Eclipse HX-PiCo main application code using EHX with Ethernet.
Tip: While the update is in progress, check that the LED on the front of the Eclipse
HX-PiCo is flashing rapidly. Rapid flashes indicate communication with the PC.
6.4.2
Upgrading the Eclipse HX-PiCo app code using EHX with
serial link
You can upgrade the Eclipse HX-PiCo secondary bootloader code using EHX with a serial
link, whether or not there is a valid configuration (map) on the matrix. With EHX, it is
possible to perform the initial upgrade using a serial connection, then move to an Ethernet
connection for future configuration downloads and upgrades, once an IP address has been
configured.
Note:
Before you use this procedure, check that the matrix event log can connect serially to an
Eclipse HX-PiCo with a configuration.
To upgrade the secondary bootloader code with EHX, using a serial link:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with either a serial port
connection or USB-to-serial
port adaptor
If using a USB-to-serial port adaptor cable, you
must connect the cable before starting EHX to
enable EHX to detect the USB port as a COM
port.
RS232 serial cable
Use an RS232 cable with DB9 to 3.5mm jack
connectors (a CellCom / FreeSpeak / FreeSpeak
II (FSBP) registration cable (PD4007Z)).
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.hxn or *.ccn)
The configuration file must have the
appropriate IP address set.
Page 113
Eclipse | Upgrade Guide
The appropriate *.fwr data
file for the Eclipse HX-PiCo
secondary bootloader
You can find the *.fwr data file on the software
USB at:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HX-PiCo >
xxxxxx – Secondary Bootloader (where
xxxxxx represents the part number).
Example secondary bootloader version number
- x.y.72.z
Table 6-3: Required equipment
2)
Start EHX. Select File > Matrix connection.
3)
In the Matrix connection dialog, select the serial communications option.
4)
Select the correct COM port then click OK.
5)
Connect the PC to the serial port on the front of the device, using an RS232 cable
with DB9 to 3.5mm jack connectors (CellCom / FreeSpeak / FreeSpeak II (FSBP)
registration cable (PD4007Z)).
5. Do one of the following:
•
If you are running EHX in Client-Server mode, select File > Import
project. Navigate to the configuration (*.ccn) file and click Open to import
the file.
•
If you are running EHX in Client-Only mode, select File > Open. Navigate
to the configuration (*.ccn) and open the file.
Note:
EHX can open *.ccn format files as well as its own *.hxn format
configuration files.
6)
In EHX, select System > Layout. In the work area, right click the matrix.
7)
From the menu, select Firmware > Update Firmware.
Page 114
Eclipse | Upgrade Guide
Figure 6-5: Upgrading app code: Matrix firmware update
8)
In the Firmware update wizard, click Next. Ensure that Matrix is selected in the
following dialog, then click Next again.
9)
In the next dialog, click Browse and navigate to the required *.fwr file for the
Eclipse HX-PiCo secondary bootloader:
a. Go to Software USB > SOFTWARE - EHX.xxx > Eclipse HX-PiCo >
xxxxxx – Secondary Bootloader (where xxxxxx represents the part
number).
The folder contains the *.fwr file and a Read Me file (*.txt) with version
information. (Example secondary bootloader version number - x.y.72.z)
b. Select the*.fwr file and click OK / Open. Ensure that the correct file name is
displayed in the dialog.
c. When the update is completed, click Finish in the Firmware Update wizard.
The Eclipse HX-PiCo reboots.
d. When the update is complete the HX Pico will be reachable via ethernet,
however the matrix will may remain grey in the layout screen and the apply
firmware dialog may remain at the verifying stage. If this happens, check that
the HX Pico can be contacted by closing the apply firmware verifying dialog
box and opening the Diagnostics >> Event Log window. Check that the event
log is connected to the matrix. See section 5.6
e. If so it simply means that this is the first time that this HX Pico is running the
new secondary bootloader and main application image scheme and that the
application has not yet been loaded. If the unit is in this state the OK LED will
flash with a narrow pulse at a rate of 1Hz.
Page 115
Eclipse | Upgrade Guide
Download the HX Pico main application using EHX. See Section 6.4.5 Upgrading the Eclipse
HX-PiCo main application code using EHX with serial link.
If the upgrade fails
If the upgrade fails, check the cabling and repeat the procedure. If the procedure still fails,
use Tera Term to upgrade the Eclipse HX-PiCo firmware (see below).
If there was no previous configuration loaded in the matrix, download a basic configuration
file to the Eclipse HX-PiCo matrix using EHX. Make any further configuration changes over
the Ethernet LAN.
6.4.3
Upgrading the Eclipse HX-PiCo secondary bootloader code
using Tera Term
To upgrade the Eclipse HX-PiCo secondary bootloader code using Tera Term:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with either a serial port
connection or USB-to-serial
port adaptor
If using a USB-to-serial port adaptor cable, you
must connect the cable before starting EHX to
enable EHX to detect the USB port as a COM
port.
RS232 serial cable
Use a RS232 cable with DB-9 to 3.5mm jack
connectors (a CellCom / FreeSpeak / FreeSpeak
II (FSBP) registration cable (PD4007Z)).
Tera Term installation
Tera Term must be configured and operational.
You can find the Tera Term application on both
of the Eclipse HX 12.0 upgrade media:
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > Teraterm
Drivers USB > ECLIPSE DRIVERS >
ECLIPSE DRIVERS > 3rd_Party_Software >
Teraterm
The appropriate *.fwr data
file for the Eclipse HX-PiCo
secondary bootloader
Page 116
You can find the *.fwr data file on the software
USB at:
Software USB > SOFTWARE - EHX.xxx >
Eclipse HX-PiCo > xxxxxx – Secondary
Eclipse | Upgrade Guide
Required equipment
Description / comments
Bootloader (where xxxxxx represents the
part number).
Example secondary bootloader version number
- x.y.72.z
Table 6-4: Required equipment
2)
Install the Tera Term application. Accept all default settings.
3)
Start Tera Term. In the New Connection dialog, select Serial (connection) and
the COM port to use. Click OK.
Figure 6-6: Tera Term: selecting serial connection
Page 117
Eclipse | Upgrade Guide
4)
From the Setup menu, select the Serial port… entry.
Figure 6-7: Tera Term: selecting Serial port…
5)
The Serial port configuration dialog is displayed. Configure the serial port as
follows:
Field
Data (to enter / select)
Port
Com1
Note:
Change as required to match a COM port on the PC.
Baud Rate
115200
Parity
Even
Stop
One (bits)
Data
8 (bits)
Table 6-5: Tera Term: Serial port configuration
Tip: The Tera Term application can be used for many of the Eclipse system upgrade
processes. You can save and recall the relevant com port settings in Tera Term by
selecting the Setup / Save or Restore settings options.
6)
Connect the PC serial port to the RS232 port to the front of the Eclipse HX-PiCo
matrix.
Page 118
Eclipse | Upgrade Guide
7)
Power off the matrix. To access the CPU, remove the lid from the matrix.
Remove power from the device first, to avoid working
with the system while it is live. Observe all electrical
shock hazard warning and precautions for handling
electrostatic sensitive devices.
8)
Erase the old application code (firmware) from the CPU:
a. Place the CPU in TEST mode.
b.
c. Set the DIP switches on the CPU as follows:
Figure 6-8: Eclipse HX-PiCo dip switches in Test mode
d. To bring the DIP switch changes into effect, power cycle or reset the matrix.
e. To confirm that the matrix has entered Test mode, check the display screen.
Information similar to the following should be displayed:
Figure 6-9: Tera Term CPU test mode
Note:
If you do not see the data above, press the enter button on the PC.
Tip: To see all the available options in test mode, press ? on your keyboard.
To see all the current applications loaded onto the CPU, press i.
Page 119
Eclipse | Upgrade Guide
f.
On your PC keyboard, press number 1. To start the erasure of Flash
memory, press Enter (or Return). Select y and Enter to confirm.
Note:
It takes approximately 1 minute to erase Flash.
g. When the Flash has been erased, press number 2 on your keyboard. To start
the erasure of NVRAM, press Enter (or Return). When the NVRAM erase is
complete, remove the CPU card.
9)
Download the new secondary bootloader code to the CPU, using Tera Term:
a. Place the erased CPU in serial download mode. Set the DIP switches on the
CPU as follows:
Figure 6-10: Tera Term: DIP switches, serial download mode
b. Power cycle or reset the Eclipse HX-PiCo to bring the DIP switch changes into
effect.
c. In Tera Term, open File and select Send file… Ensure that the BINARY
option box is selected.
Figure 6-11: Tera Term: Send file…
Page 120
Eclipse | Upgrade Guide
d. In the Select file dialog, select the file to download, navigate to the CPU
secondary bootloader code (firmware) *.fwr file:
i. Go to Software USB > SOFTWARE - EHX.xxx > Eclipse HX-PiCo >
xxxxxx – Secondary Bootloader (where xxxxxx represents the
part number).
The folder contains the *.fwr file and a Read Me file (*.txt) with
version information. (Example secondary bootloader version number x.y.72.z)
ii. Select the*.fwr file and click OK / Open. Ensure that the correct file
name is displayed in the dialog.
Note:
Confirm that the matrix resets and restarts correctly.
Note:
It may take up to 1 minute for the matrix to write the new
secondary bootloader code in Flash before it reboots and the OK
LED starts to flash with a narrow 1Hz pulse
e. Set the DIP switches to normal running mode (watchdogs enabled):
Figure 6-12: DIP switches set to normal running mode (watchdogs enabled)
f.
Note:
Power cycle the Eclipse HX-PiCo so the DIP switch changes come into effect.
If the download fails the matrix OK LED displays a long flash/ off rate. Tera Term does not
indicate a failure onscreen and continues to download.
In this case, re-erase the matrix by placing the SW1 and SW2 into Test mode and repeating
the steps that follow. Check your cabling.
6.4.4
Upgrading the Eclipse HX-PiCo main application code using
EHX with Ethernet
Before you upgrade the Eclipse HX-PiCo card main application code, check that:
• The PC can successfully connect to the matrix with an Ethernet connection by
viewing the Event Log (Diagnostics > Event Log) in EHX.
Page 121
Eclipse | Upgrade Guide
Page 122
Eclipse | Upgrade Guide
To upgrade Eclipse HX-PiCo main application code using EHX with an Ethernet connection:
10)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet
connector
-
LAN cable for the PC-toEclipse HX PiCo connection
For direct connections, use Ethernet crossover
cable. If the connection passes through an
Ethernet switch on its way to the PC / matrix,
use straight CAT5 cable.
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.ccn or *.hxn file format)
The configuration file must have an appropriate
IP address set.
The appropriate *.fwr data
file for the Eclipse HX-PiCo
You can find the *.fwr data file on the software
USB at:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HX-PiCo >
xxxxxx – Application Code (where xxxxxx
represents the product number).
Example version number – x.y.3.0
Table 6-6: Required equipment
11)
Start EHX. Select File > Matrix Connection.
12)
In the Matrix Connection dialog, select the Ethernet communications option.
13)
Connect the PC with the Eclipse HX-PiCo, using the LAN port on the rear of the
matrix.
14)
Do one of the following:
• If you are running EHX in Client-Server mode, select File > Import project.
Navigate to the configuration (*.ccn) file and click Open to import the file.
• If you are running EHX in Client-Only mode, select File > Open. Navigate to the
configuration (*.ccn) and open the file.
Note:
Page 123
EHX can open *.ccn format files as well as its own *.hxn format
configuration files.
Eclipse | Upgrade Guide
15)
In EHX, select System > Layout. In the work area, right click the Eclipse HX-PiCo.
16)
From the menu, select Firmware > Update Firmware.
Figure 6-13: Upgrading main application code: Matrix firmware update
17)
In the Firmware update wizard, click Next. Ensure that Matrix is selected in the
following dialog, then click Next again.
18)
In the next dialog, click Browse and navigate to the required *.fwr file for the
Eclipse HX-PiCo main application:
c. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx >
Eclipse HX-PiCo > xxxxxx – Application Code (where xxxxxx represents
the part number).
The folder contains the *.fwr file and a Read Me file (*.txt) with version
information.
d. Select the*.fwr file and click OK / Open. Ensure that the correct file name is
displayed in the dialog. Example version number – x.y.3.0
19)
Click Next. Confirm that the correct file has been selected, and click Next again to
start the firmware update. The update will take approximately 2 minutes.
Tip: While the update is in progress, check that the LED on the front of the Eclipse
HX-PiCo is flashing rapidly. Rapid flashes indicate communication with the PC.
Note:
Page 124
If you are upgrading from v5.2.5 to Eclipse HX v12.0, the download
dialog does not automatically finish. This is due to a messaging
change between the two system architectures. Instead, close the
dialog (which will continue to indicate Verifying) when the Eclipse
HX-PiCo reboots (see Step 10).
Eclipse | Upgrade Guide
20)
When the update is completed, click Finish in the Firmware Update wizard. The
Eclipse HX-PiCo reboots. The CPU is reset.
Note:
6.4.5
The OK LED double flashes to indicate that valid application code is
present, but that there is no configuration in the cards. Download a
configuration file (*.hxn or *.ccn format), using EHX.
Upgrading the Eclipse HX-PiCo main application code using
EHX with serial link
You can upgrade the Eclipse HX-PiCo main application code using EHX with a serial link,
whether or not there is a valid configuration (map) on the matrix. With EHX, it is possible to
perform the initial upgrade using a serial connection, then move to an Ethernet connection
for future configuration downloads and upgrades, once an IP address has been configured.
Note:
Before you use this procedure, check that the matrix event log can connect serially to an
Eclipse HX-PiCo with a configuration.
To upgrade the main application code with EHX, using a serial link:
21)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with either a serial port
connection or USB-to-serial
port adaptor
If using a USB-to-serial port adaptor cable, you
must connect the cable before starting EHX to
enable EHX to detect the USB port as a COM
port.
RS232 serial cable
Use an RS232 cable with DB9 to 3.5mm jack
connectors (a CellCom / FreeSpeak / FreeSpeak
II (FSBP) registration cable (PD4007Z)).
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.hxn or *.ccn)
The configuration file must have the
appropriate IP address set.
The appropriate *.fwr data
file for the Eclipse HX-PiCo
main application
You can find the *.fwr data file on the software
USB at:
Software USB > SOFTWARE - EHX.xxx >
SOFTWARE - EHX.xxx > Eclipse HX-PiCo >
xxxxxx – Application Code (where xxxxxx
represents the part number).
Example version number – x.y.3.0
Table 6-7: Required equipment
22)
Start EHX. Select File > Matrix connection.
Page 125
Eclipse | Upgrade Guide
23)
In the Matrix connection dialog, select the serial communications option.
24)
Select the correct COM port then click OK.
25)
Connect the PC to the serial port on the front of the device, using an RS232 cable
with DB9 to 3.5mm jack connectors (CellCom / FreeSpeak / FreeSpeak II (FSBP)
registration cable (PD4007Z)).
Do one of the following:
•
If you are running EHX in Client-Server mode, select File > Import
project. Navigate to the configuration (*.ccn) file and click Open to import
the file.
•
If you are running EHX in Client-Only mode, select File > Open. Navigate
to the configuration (*.ccn) and open the file.
Note:
EHX can open *.ccn format files as well as its own *.hxn format
configuration files.
26)
In EHX, select System > Layout. In the work area, right click the matrix.
27)
From the menu, select Firmware > Update Firmware.
Figure 6-14: Upgrading main application code: Matrix firmware update
28)
In the Firmware update wizard, click Next. Ensure that Matrix is selected in the
following dialog, then click Next again.
29)
In the next dialog, click Browse and navigate to the required *.fwr file for the
Eclipse HX-PiCo application:
Page 126
Eclipse | Upgrade Guide
f.
Go to Software USB > SOFTWARE - EHX.xxx > Eclipse HX-PiCo >
xxxxxx – Application Code (where xxxxxx represents the part number).
The folder contains the *.fwr file and a Read Me file (*.txt) with version
information. Example version number – x.y.3.0
g. Select the*.fwr file and click OK / Open. Ensure that the correct file name is
displayed in the dialog.
30)
Click Next. Confirm that the correct file has been selected, and click Next again to
start the firmware update. The upgrade will take approximately 2 minutes.
Tip: While the update is in progress, the LED on the front of the CPU card will flash
rapidly. Rapid flashes indicate communication with the PC.
Note:
31)
If you are upgrading from v5.2.5 to Eclipse HX v12.0, the download
dialog does not automatically finish. This is due to a messaging
change between the two system architectures. Instead, close the
dialog (which will continue to indicate Verifying) when the Eclipse
HX-PiCo reboots (see Step 11).
When the update is completed, click Finish in the Firmware Update wizard. The
Eclipse HX-PiCo reboots.
If the upgrade fails
If the upgrade fails, check the cabling and repeat the procedure. If the procedure still fails,
use Tera Term to upgrade the Eclipse HX-PiCo firmware (see below).
If there was no previous configuration loaded in the matrix, download a basic configuration
file to the Eclipse HX-PiCo matrix using EHX. Make any further configuration changes over
the Ethernet LAN.
6.5
Upgrading the Eclipse HX-PiCo MVX code
The Eclipse HX-PiCo has two MVX cards (or sections) on the same PCB, both of which
require upgrading.
If you are upgrading from ECS v5.2.5, Clear-Com recommends upgrading the Eclipse HXPiCo with the combined MVX boot and application code file (*.mot), using the Renesas
Flash Development Tool (FDT).
If you are upgrading an existing Eclipse HX installation, you can upgrade:
• The MVX application code separately (*.fwc), using EHX.
• The MVX boot code separately (*.mot), using the Renesas FDT method.
Page 127
Eclipse | Upgrade Guide
• The MVX boot and application code simultaneously, using the Renesas FDT method
and the combined MVX boot and application code file (*.mot).
MVX code
Renesas FDT
method
MVX boot code (*.mot)
EHX method
-
MVX application code
(.fwc)
-
Combined MVX boot and
application code (*mot)
-
Table 6-8: Upgrading the Eclipse HX-PiCo MVX code
Note:
6.5.1
Note:
Because of small differences in PCB layout, it may not be possible to complete the upgrade
of the MVX application code on a small number of Eclipse HX-PiCo units, using EHX. If the
upgrade fails, you can still upgrade the MVX application code using Renesas FDT (which is
suitable for all Eclipse HX-PiCo units).
Upgrading the Eclipse HX-PiCo MVX application code
with EHX
To upgrade the Eclipse HX-PiCo MVX application code with EHX, your system must already
be running a version of Eclipse HX.
Recommendation
Clear-Com recommends that you monitor the MVX application code upgrade using the Event
Log in EHX. The upgrade process is complete when the Event Log reports the Eclipse HXPiCo’s MVXs are absent and then present again. To check that the upgrade has been
successful, run a firmware report.
If the upgrade is unsuccessful, use the Renesas FDT to upgrade the MVX code
(see 6.5.2 Upgrading the Eclipse HX-PiCo MVX boot and/or app code using the
Renesas FDT).
To upgrade the Eclipse HX-PiCo MVX application code using EHX:
1)
Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet
connector
-
Page 128
Eclipse | Upgrade Guide
Serial cable or Ethernet
cable for the PC to matrix
connection
-
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.hxn or *.ccn format)
The configuration file must have an appropriate
IP address set.
The appropriate *.fwc
format file for the Eclipse
HX-PiCo MVX cards /
sections
You can find the Eclipse HX-PiCo MVX
application code (*.fwc) file on the software
USB:
Drivers USB > ECLIPSE DRIVERS >
ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 >
xxxxxx-MVX Application
Table 6-9: Required equipment
2)
Start EHX on the PC.
3)
Connect the PC to the matrix using either Ethernet or a serial communications
port.
4)
Open the EHX configuration map within EHX. Select System > Layout.
5)
Right click the matrix and then select Firmware> Update Firmware.
6)
The Update Firmware wizard dialog is displayed. Click Next.
In the Select Hardware Type screen, ensure that the Card radio button is
selected.
Figure 6-15: Select Hardware Type
Page 129
Eclipse | Upgrade Guide
7)
In the next dialog, click Browse and navigate to the required *.fwc file for the
Eclipse HX-PiCo application:
8)
Go to Drivers USB > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx –
MVX Application (where xxxxxx represents the part number).
9)
The folder contains the *.fwc file and a Read Me file (*.txt) with version
information.
10)
Select the*.fwc file and click OK / Open. Ensure that the correct file name is
displayed in the dialog.
11)
Click Next and confirm that the details displayed are correct.
12)
Click Next and confirm that the download commences.
13)
Note:
6.5.2
When the download has completed, click Finish to close the update firmware wizard.
Because of small differences in PCB layout, it may not be possible to complete the upgrade
of the MVX application code on a small number of Eclipse HX-PiCo units, using EHX. If the
upgrade fails, you can still upgrade the MVX application code using Renesas FDT (which is
suitable for all Eclipse HX-PiCo units).
Upgrading the Eclipse HX-PiCo MVX boot and/or app code
using the Renesas FDT
To upgrade certain components within the Eclipse HX-PiCo matrix,
the lid must be removed.
Remove power from the devices first, to avoid working with the
system while it is live. Observe all electrical shock hazard warning
and precautions for handling electrostatic sensitive devices
You can use the Renesas FDT to upgrade:
•
The MVX boot code file separately (*.mot).
•
The MVX boot code and MVX application code simultaneously, using the combined MVX boot
and application code file (*.mot).
Tip: For more information about installing and configuring the Renesas FDT, see
Appendix E: Hitachi Renesas Flash Development Tool.
To upgrade the Eclipse HX-PiCo MVX code (MVX boot code or combined MVX boot and
application code):
1)
Ensure that you have the following equipment:
Page 130
Eclipse | Upgrade Guide
Required equipment
Description / comments
PC with a serial port
connection or USB-toserial port adaptor
If you are using a USB-to-serial port adaptor,
download the latest drivers.
Renesas Flash
Development Toolkit 3.4
Basic (FDT)
The Renesas FDT must be installed and
configured. You can find the Renesas FDT
application on both of the Eclipse HX v12.0
upgrade media:
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > RenesasFDT
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > RenesasFDT
MVX-A16 serial upgrade
cable (Clear-Com part
CAB-MVX-48Z)
The appropriate MVX code
file
For an image of this cable, see
Figure 28: MVX-A16 Serial upgrade cable.
(*.fwc format for the
separate MVX boot file,
*.mot format for the
combined MVX boot and
application code file )
Drivers USB > ECLIPSE DRIVERS > PiCoHX_PiCo_E-32 > xxxxxx-MVX Boot
You can find the Eclipse HX-PiCo MVX code files
on the Eclipse Drivers USB:
Drivers USB > ECLIPSE DRIVERS > PiCoHX_PiCo_E-32 > xxxxxx-MVX Combined
Boot & App
Where xxxxxx represents the product number.
Table 6-10: Required equipment
2)
Install the Renesas Flash Development Toolkit 3.4 Basic (FDT). Accept the default
install settings.
3)
Start the Renesas Flash Development Toolkit 3.4 (FDT) from Programs, selecting
the basic Startup option.
4)
Access the configuration (settings) dialogs, by selecting Options > New
Settings... Configure the FDT, as shown in the table below:
Settings dialog /
option
Setting to enter
Select Device
H8S/2318F
Select Port
COM1 (Change to match a COM port present on the PC)
Page 131
Eclipse | Upgrade Guide
Settings dialog /
option
CPU Frequency
Setting to enter
Connection
Boot mode
Recommended Speed
38400 (Deselect the Use-Default option)
Protection
Automatic
Messaging
Advanced
User Area
Selected (Checked)
20.0000 Mhz
Table 6-11: FDT settings
Note:
The first time the FDT is run, the settings dialogs are displayed by default. After the
FDT has been configured, the settings dialogs are no longer shown by default.
Tip: For more information about installing and configuring the Renesas FDT, see
Appendix E: Hitachi Renesas Flash Development Tool.
5)
6)
In the Download window, click Options and ensure that:
•
Auto-Disconnect is selected (checked).
•
Download File Area has User Area selected (checked).
•
The Download File radio button is selected.
Select ‘…’ for the User area and select the appropriate MVX code file from the
Eclipse HX v12.0 software USB. According to your requirements, select one of the
following:
•
Drivers USB > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx-MVX
Boot
Where xxxxxx represents the product number. The folder contains the
*.mot file and a Read Me file (*.txt) with version information.
•
Drivers USB > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx-MVX
Combined Boot & App
Where xxxxxx represents the product number. The folder contains the
*.mot file and a Read Me file (*.txt) with version information.
7)
Upgrade / program the first of the two H8 devices:
Page 132
Eclipse | Upgrade Guide
a. Connect the MVX serial cable (CAB-MVX-48Z) between the COM port on the PC
and J9 (H8FP1) on the MVX card.
Note:
The MVX connection is polarized to ensure correct connection.
b. On the MVX card, ensure that jumper H8 Boot1 (JP8) is made.
c. Select Program Flash from the Flash Development Toolkit (FDT) program.
d. Confirm that FDT reports the image has been written successfully.
e. Remove the serial cable.
f.
Remove jumper JP8.
For the location of connectors, jumpers and reset switch positions on the Eclipse HXPiCo, see Figure 6-16: Eclipse HX-PiCo main board.
Note:
If the MVX card fails to upgrade, press the Reset button, located near the J9 (H8FP1)
connector and select Program Flash from the FDT again.
If you are using a USB-to-serial adaptor, the adaptor may have to be unplugged and
re-plugged to enable the upgrade to start on some computers. If you are running the
EHX application, ensure that EHX is configured for Ethernet and not serial
connection.
8)
Upgrade / program the second of the two H8 devices:
a. Connect the MVX serial cable (CAB-MVX-48Z) between the COM port on the PC
and J11 (H8FP2) on the MVX card.
Note:
The MVX connection is polarized to ensure correct connection.
b. On the MVX card, ensure that jumper H8 Boot2 (JP10) is made.
c. Select Program Flash from the Flash Development Toolkit (FDT) program.
d. Confirm that FDT reports the image has been written successfully.
e. Remove the serial cable.
f.
Remove jumper JP10.
For the location of connectors, jumpers and reset switch positions on the Eclipse HXPiCo, see Figure 6-16: Eclipse HX-PiCo main board.
Note:
If the MVX card fails to upgrade, press the Reset button, located
near the H8FP1 (JP11) connector and select Program Flash from
the FDT again.
If you are using a USB-to-serial adaptor, the adaptor may have to be unplugged and replugged to enable the upgrade to start on some computers. If you are running the EHX
application, ensure that EHX is configured for Ethernet and not serial connection.
Page 133
Eclipse | Upgrade Guide
Page 134
Eclipse | Upgrade Guide
Figure 6-16: Eclipse HX-PiCo main board
6.6
Checking the Eclipse HX-PiCo app code and MVX
code versions
You can check both the Eclipse HX-PiCo application code and MVX code versions by going to
EHX> Matrix Event Log > Matrix Overview.
You can also use the Firmware report tool in EHX to confirm code versions. To use the
Firmware report tool:
1)
Go to EHX> System> Layout.
2)
Right click the matrix icon.
3)
Select Firmware > Firmware report.
To check the Eclipse PiCo MVX code version only using Tera Term:
4)
Install Tera Term. Tera Term is available to install from both of the Eclipse HX 12.0
upgrade media:
• Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > Teraterm
• Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > Teraterm
5)
Open Tera Term and select the following port settings:
Port setting
Setting to enter
Port
COM1 (Change to match a COM port present on the PC)
Baud rate
115200
Data
8 bit
Parity
None
Stop
1 bit
Flow control
none
Table 6-12: Tera Term port settings
6)
Open the Eclipse HX-PiCo lid.
Remove power from the devices first, to avoid working with the
system while it is live. Observe all electrical shock hazard warning
and precautions for handling electrostatic sensitive devices
Page 135
Eclipse | Upgrade Guide
7)
Note:
There are two three-pin connectors (H8DBG1 and H8DBG2), one for each of the
two MVX cards / sections. Connect the MVX serial cable (CAB-MVX-48Z) to one of the
connectors.
Take care not to confuse these two three-pin connectors with the identical (but differently
labeled) three-pin connectors which are used to upload new application code.
8)
Run Tera Term. If necessary, press Enter on your keyboard or the MVX reset
switch a few times. The version information is displayed in the Tera Term window.
Note:
9)
6.7
Reports the MVX application code version only.
Repeat the procedure with the second MVX card / section.
Upgrading the Eclipse HX-PiCo CPLD and FPGA code
with Xilinx tools
To upgrade either the Eclipse HX-PiCo U1 CPLD code or FPGA code with Xilinx tools:
1)
Ensure that the latest version of the Xilinx programming tools has been installed.
Tip: For more information about installing Xilinx programming tools, see Appendix
J:Xilinx tools.
Connect the USB connector of the download cable (Xilinx HW-USB-II-G or Digilent 6003410-011) to the USB port of the PC.
2)
If you are upgrading the FPGA code, connect the 14way IDC header to CON12.
3)
If you are upgrading the U1 CPLD code, connect the 14way IDC header to
CON25. (the Xilinx chain for the Pico CPLD is one chain)
Tip: For the location of CON12 and CON25, see Figure 6-16: Eclipse HX-PiCo
main board.
4)
Power up the Eclipse HX-PiCo and start the iMPACT programming tool.
5)
In Load Project, select Cancel.
6)
In Flows, double click Boundary Scan. Right click the main window and select
Initialise Chain / Ctrl+ I:
Page 136
Eclipse | Upgrade Guide
Figure 6-17: Example iMPACT Boundary Scan
1. If the cable is connected correctly, the application will connect and a Xilinx chip chain
will be shown. If the cable is not connected correctly, a cable connection warning is
given.
The full chain should show two devices, as shown in the example figure below.
Page 137
Eclipse | Upgrade Guide
Figure 6-18: Example Xilinx chip chain
2. The Assign New Configuration File dialog asks you to select the code for the first
device in the chain or to bypass that device.
In this example procedure, the first device will be bypassed and either the U1 CPLD
or FPGA code will be assigned to the second device.
•
For the first device, press Bypass.
•
For the second device, select the appropriate code file (either the U1 CPLD code or
FPGA code file). The U1 CPLD and FPGA code files are available from the Drivers USB:
•
Drivers USB > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx – E32
Glue Logic CPLD (U1).
•
Drivers USB > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx – Eclipse
32 FPGA Code.
Reminder:
If you are upgrading the FPGA code, the 14way IDC header must be connected to
CON12. If you are upgrading the U1 CPLD code, the 14way IDC header must be
connected to CON25. See Step 3.
Page 138
Eclipse | Upgrade Guide
3. A summary dialog is presented. For all devices, ensure that the Erase Before
Programming and Verify flags are set. Click OK.
Figure 6-19: Example Xilinx device programming properties
4. Right click the second device and select Programming.
The upgrade starts, and takes approximately 2 minutes to complete. When the
upgrade is complete, the Program Succeeded message is displayed in the main
window.
5. Power down the matrix.
6.8
Download a test configuration into the Eclipse HXPiCo using EHX
After you have upgraded your Eclipse HX-PiCo, Clear-Com recommends downloading a
test configuration to the matrix. Downloading a configuration will enable you to make any
further configuration changes you require using EHX over an Ethernet or serial connection.
For more information, see your EHX User Guide.
Page 139
Eclipse | Upgrade Guide
6.9
Forcing the Eclipse HX-PiCo to the factory default
IP address
In rare situations, the CPU card may not be able to find a valid IP address for the Ethernet
port. To address this issue, force the matrix to the factory default IP address
(169.254.0.100) by using the Eclipse HX-PiCo menu system to enable DHCP.
For more information about using the Eclipse HX-PiCo menu system, see the Eclipse HXPiCo User Guide.
Alternatively, you can reset the Eclipse HX-PiCo to the factory default IP address with the
internal reset switches.
To force the Eclipse HX-PiCo to the factory default IP address using the internal switches:
1. Set your PC Ethernet IP address to DCHP mode. Directly connect the PC to the
matrix using an Ethernet crossover cable.
2. To gain access to the internal reset switches, remove the lid of the Eclipse HX-PiCo.
The device is live (powered). Observe all electrical shock hazard
warning and precautions for handling electrostatic sensitive devices.
Figure 6-20: Eclipse HX-PiCo: resetting to the factory default IP
address
Page 140
Eclipse | Upgrade Guide
3. To reset the IP address, press and hold the two rightmost switches simultaneously
(the IP Reset switch and the Full Reset switch), then press and release RESET on
the front of the matrix.
4. Once the OK LED starts to flash, release both internal buttons.
5. Replace the Eclipse HX-PiCo lid.
Page 141
Eclipse | Upgrade Guide
7
Upgrading the MVX-A16 card
This chapter describes how to upgrade the MVX-A16 analog port card, which is fitted to the
Eclipse HX-Median, Eclipse HX-Omega and Eclipse HX-Delta matrices.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see
3 Quick reference: Upgrading to Eclipse HX.
7.1
Identifying MK I and MK II MVX-A16 cards
You can identify MK I and MK II cards visually.
The MK 1 MVX-A16 card is green. – see Figure 7-2: MVX-A16 MK I card: J1, CON8 and
CON12
The MK2 E-QUE card is blue. – see Figure 7-3: MVX-A16 MK II card: J1, CON8 and
CON12
Both cards are upgraded with the same code except for the FPGA – see 7.4 Upgrading the
MVX-A16 MK I or MK II card FPGA with Xilinx tools
7.2
Upgrading the MVX-A16 MK I or MK II boot and/or
app code
If you are upgrading from ECS v5.2.5, Clear-Com recommends upgrading the MVX-A16 card
with the combined MVX boot and application code file (*.mot), using the Renesas Flash
Development Tool (FDT).
If you are upgrading an existing Eclipse HX installation, you can upgrade:
•
The MVX application code separately (*.fwc), using EHX.
•
The MVX boot code separately (*.mot), using the Renesas FDT method.
•
The MVX boot and application code simultaneously, using the Renesas FDT method and the
combined MVX boot and application code file (*.mot).
Page 142
Eclipse | Upgrade Guide
MVX code
Renesas FDT method
MVX boot code
(*.mot)
MVX application code
(.fwc)
EHX method
-
-
Combined MVX boot
and application code
(*mot)
-
Table 7-1: Upgrading the Eclipse HX-PiCo MVX code
7.2.1
Upgrading the MVX-A16 card app code using EHX
You can upgrade the MVX-A16 application code (*.fwc) using EHX and an Eclipse HX
matrix. For Ethernet connections, an EHX configuration is required with the correct IP
address configured. The application code is available from the Eclipse HX v12.0 software
USB.
Place the H8 application code in a location that EHX can access. When these files are
downloaded to the matrix, all the MVX-A16 cards that have been fitted to the matrix will be
upgraded.
To upgrade MVX-A16 H8 application code using EHX:
1. Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet
connector
-
Serial cable or Ethernet
cable for the PC to matrix
connection.
-
EHX installation
EHX must be configured and operational.
An EHX configuration file
(*.hxn)
The configuration file must have an appropriate
IP address set.
The appropriate *.fwc
format file for the MVX-A16
card
You can find the *.fwc file on the software
USB:
Drivers USB > ECLIPSE DRIVERS >
Omega-Median-Delta > xxxxxx-MVX
Application (where xxxxxx represents the
product number).
Table 7-2: Required equipment
Page 143
Eclipse | Upgrade Guide
2. Start EHX on the PC.
3. Connect the PC to the matrix using either Ethernet or a serial communications port.
4. Open the EHX configuration map within EHX. Select System > Layout.
5. Right click the matrix and then select Firmware> Update Firmware.
6. The Update Firmware wizard dialog is displayed. Click Next.
In the Select Hardware Type screen, ensure that the Card radio button is
selected.
Figure 7-1: Select Hardware Type
7. In the next dialog, click Browse and navigate to the required *.fwc file for the MVXA16 card application:
a. Go to Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta >
xxxxxx – MVX Application (where xxxxxx represents the part number).
The folder contains the *.fwc file and a Read Me file (*.txt) with version
information.
b. Select the*.fwc file and click OK / Open.
8. Click Next and confirm that the details displayed are correct.
9. Click Next and confirm that the download commences.
10. When the download has completed, click Finish to close the update firmware wizard.
Note:
The MVX-A16 card status light flashes green while the upgrade is in process (LED on to off
ratio: 1:4 at 0.5Hz). When the upgrade is complete, the status light is lit green at a steady
heartbeat (LED on to off ratio: 1:1 at 1Hz).
11. Ensure that the MVX-A16 cards reset once the download is complete. Reset should
take approximately 1 minute.
7.2.2
Upgrading the MVX-A16 boot and app code using the
Renesas FDT
Remove power from the devices first, to avoid working with the
system while it is live. Observe all electrical shock hazard warning
and precautions for handling electrostatic sensitive devices
Page 144
Eclipse | Upgrade Guide
You can use the Renesas FDT to upgrade:
•
The MVX boot code file separately (*.mot).
•
The MVX boot code and MVX application code simultaneously, using the combined MVX boot
and application code file (*.mot).
Tip: For more information about installing and configuring the Renesas FDT, see
Appendix E: Hitachi Renesas Flash Development Tool.
To upgrade the MVX code (MVX boot code or combined MVX boot and application code) for
the MVX-A16 card:
1. Ensure that you have the following equipment:
Required equipment
Description / comments
PC with a serial port
connection or USB-toserial port adaptor
If you are using a USB-to-serial port adaptor,
download the latest drivers.
Renesas Flash
Development Toolkit 3.4
Basic (FDT)
The Renesas FDT must be installed and
configured. You can find the Renesas FDT
application on both of the Eclipse HX v12.0
upgrade media:
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > RenesasFDT
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > RenesasFDT
MVX-A16 serial upgrade
cable (Clear-Com part
CAB-MVX-48Z)
The appropriate MVX code
file (*.fwc format for the
separate MVX boot file,
*.mot format for the
combined MVX boot and
application code file )
For an image of this cable, see
Figure 28: MVX-A16 Serial upgrade cable.
You can find the Eclipse HX-PiCo MVX code files
on the Eclipse drivers USB:
Drivers USB > ECLIPSE DRIVERS > OmegaMedian-Delta > xxxxxx-MVX Boot
Drivers USB > ECLIPSE DRIVERS > OmegaMedian-Delta > xxxxxx-MVX Combined Boot
& Application
Where xxxxxx represents the product number.
Table 7-3: Required equipment
2. Install the Renesas Flash Development Toolkit 3.4 Basic (FDT). Accept the default
install settings.
Page 145
Eclipse | Upgrade Guide
3. Start the Renesas Flash Development Toolkit 3.4 (FDT) from Programs, selecting
the basic Startup option.
4. Access the configuration (settings) dialogs, by selecting Options > New Settings...
Configure the FDT, as shown in the table below:
Settings dialog /
option
Setting to enter
Select Device
H8S/2318F
Select Port
COM1 (Change to match a COM port present on the PC)
CPU Frequency
20.0000 Mhz
Connection
Boot mode
Recommended Speed
38400 (Deselect the Use-Default option)
Protection
Automatic
Messaging
Advanced
User Area
Selected (Checked)
Table 7-4: FDT settings
Note:
The first time the FDT is run, the settings dialogs are displayed by default. After the FDT has
been configured, the settings dialogs are no longer shown by default.
Tip: For more information about installing and configuring the Renesas FDT, see
Appendix E: Hitachi Renesas Flash Development Tool.
5. In the Download window, click Options and ensure that:
•
Auto-Disconnect is selected (checked).
•
Download File Area has User Area selected (checked).
•
The Download File radio button is selected.
6. Select ‘…’ for the User area and select the appropriate MVX code file from the
Eclipse HX v12.0 software USB. According to your requirements, select either:
Page 146
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxxMVX Boot
Where xxxxxx represents the product number. The folder contains the
*.mot file and a Read Me file (*.txt) with version information.
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxxMVX Combined Boot & Application
Eclipse | Upgrade Guide
Where xxxxxx represents the product number. The folder contains the
*.mot file and a Read Me file (*.txt) with version information.
7. Upgrade / program the device:
a. Connect the MVX serial cable (CAB-MVX-48Z) between the COM port on the PC
and CON8 on the MVX-A16 card.
Note:
The MVX connection is polarized to ensure correct connection.
b. On the MVX card, ensure that jumper JP1 is made. Insert the MVX card into
the frame and verify that all LEDs are now on.
c.
d. Select Program Flash from the Flash Development Toolkit (FDT) program.
e. Confirm that FDT reports the image has been written successfully.
f.
Remove the serial cable.
g. Remove jumper JP1.
Tip: For the location of connectors and jumpers on the MVX-A16 MK I card, see
Figure 7-2: MVX-A16 MK I card: J1, CON8 and CON12
Tip: For the location of connectors and jumpers on the MVX-A16 MK II card, see
Figure 7-3: MVX-A16 MK II card: J1, CON8 and CON12
8. Repeat for Step 7 for all other MVX-A16 cards in the system.
Important note:
If the MVX card fails to upgrade, press the Reset button on the front of the card,
and select Program Flash from the FDT again.
If you are using a USB-to-serial adaptor, the adaptor may have to be unplugged and
re-plugged to enable the upgrade to start on some computers. If you are running the
EHX application, ensure that EHX is configured for Ethernet and not serial
connection.
Page 147
Eclipse | Upgrade Guide
CON8
J1
CON12
Figure 7-2: MVX-A16 MK I card: J1, CON8 and CON12
Page 148
Eclipse | Upgrade Guide
CON8
CON12
Figure 7-3: MVX-A16 MK II card: J1, CON8 and CON12
7.3
Checking the MVX-A16 MK I or MK II boot and
application code version
You can check the MVX-A16 boot and application code versions by going to EHX> Matrix
Event Log > Matrix Overview.
You can also use the Firmware report tool in EHX to confirm the application code version. To
use the Firmware report tool:
1. Go to EHX> System> Layout.
2. Right click the matrix icon.
3. Select Firmware > Firmware report.
To check the firmware version using Tera Term:
1. Install Tera Term. Tera Term is available to install from both of the Eclipse HX 12.0
upgrade media:
•
Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > Teraterm
•
Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > Teraterm
Page 149
Eclipse | Upgrade Guide
2. Open Tera Term and select the following port settings:
Port setting
Setting to enter
Port
COM1 (Change to match a COM port present on the PC)
Baud rate
115200
Data
8 bit
Parity
None
Stop
1 bit
Flow control
none
Table 7-5: Tera Term port settings
3. Remove the MVX-A16 card to be checked from the Eclipse HX-Median / Eclipse HXOmega / Eclipse HX-Delta matrix.
4. Connect the MVX serial cable (CAB-MVX-48Z) to the CON8 connector on the MVX-A16
card and to the PC (see Figure 7-2: MVX-A16 MK I card: J1, CON8 and CON12).
5. Reset (re-seat) the MVX-A16 card back in the Eclipse HX-Median / Eclipse HX-Omega
/ Eclipse HX-Delta matrix.
The MVX-A16 firmware version is the first line of the information received on Tera
Term.
7.4
Upgrading the MVX-A16 MK I or MK II card FPGA
with Xilinx tools
7.4.1
Upgrading the MVX-A16 MK1
Note:
Some very early MVX (MKI) cards may exhibit the following errors when upgrading
the FPGA device:
Programming failed or
The idcode read from the device does not match the idcode in the bsdl File.
There are two possible solutions
a)
USB cable speed : Adjust the USB cable speed, Output > Cable Setup and
setting the TCK Speed/Baud to 1.5Mhz
Always try this solution first for either failure mode
b) Modify the Device ID bsdl file
In the Xilinx installation directory, change the expected IDCODE from .bsd file.
Page 150
Eclipse | Upgrade Guide
To do this:
7)
Search for xc18v04.bsd in Xilinx installation directory.
8)
Change Part Number from 0101000000110110 to 0101000000100110 in the
file.
9)
Save the file, then close and open impact. After doing this the prom is
accessible from impact.
Example File location: C:\Xilinx\14.5\LabTools\LabTools\xc18v00\data
You can use the Firmware report tool in EHX to confirm the firmware version of H8
application and FPGA code. The Firmware report tool does not provide firmware
version information for DSP code.
To use the Firmware report tool:
10)
Open EHX and go to System > Layout.
11)
Right click the matrix icon.
12)
Select Firmware > Firmware report.
To upgrade the MVX FPGA with Xilinx tools:
1. Ensure that a compatible version of the Xilinx programming tools is installed.
Tip: For more information about installing the Xilinx programming tools, see
Appendix J:Xilinx tools.
2. Connect the USB connector of the download cable (Xilinx HW-USB-II-G or Digilent 6003410-011) to the USB port of the PC.
3. Connect the 14way IDC header to CON12 (see Figure 7-2: MVX-A16 MK I card:
J1, CON).
4. Power up the MVX-A16 card and start the iMPACT programming tool.
5. In Load Project, select Cancel.
6. In Flows, double click Boundary Scan. Right click the main window and select
Initialize Chain / Ctrl+ I:
Page 151
Eclipse | Upgrade Guide
Figure 7-4: Example iMPACT Boundary Scan
7. If the cable is connected correctly, the application will connect and a Xilinx chip chain
will be shown. If the cable is not connected correctly, a cable connection warning is
given. The full chain should show two devices, as shown in the example figure
below.
Page 152
Eclipse | Upgrade Guide
Figure 7-5: Example Xilinx chip chain
8. The Assign New Configuration File dialog asks you to select an FPGA image for
the first device in the chain or to bypass that device.
In this example procedure, the first device will be bypassed and an FPGA image will
be assigned to the second device.
• For the first device, press Bypass.
• For the second device, select the FPGA image (*.mcs format). The FPGA file is available
from the Drivers USB and is dependent on whether the MVX Card is a Mark I or a Mark II
:
• MVX MK I (Green PCB)
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta >
xxxxxx – MVX MK I (Green PCB) FPGA
(Where xxxxxx represents the product number).
•
MVX MK II (Blue PCB)
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta >
xxxxxx – MVX MK II (Blue PCB) FPGA
(Where xxxxxx represents the product number).
Page 153
Eclipse | Upgrade Guide
Figure 7-6: Example Xilinx device programming properties
9. Right click the second device and select Programming.
The upgrade starts, and takes approximately 2 minutes to complete. When the
upgrade is complete, the Program Succeeded message is displayed in the main
window.
A summary dialog is presented. For all devices, ensure that the Erase Before
Programming and Verify flags are set. Click OK.
10. Power down the MVX-A16 card.
7.4.2
Upgrading the MVX-A16 MK2
1. Ensure that a compatible version of the Xilinx programming tools is installed.
Tip: For more information about installing the Xilinx programming tools, see
Appendix J:Xilinx tools.
2. Connect the USB connector of the download cable (Xilinx HW-USB-II-G or Digilent 6003410-011) to the USB port of the PC.
3. Connect the 14way IDC header to CON12 (see Figure 7-2: MVX-A16 MK I card:
J1, CON).
4. Power up the MVX-A16 card and start the iMPACT programming tool (Ver 13.1) on
the PC.
5. Ensure that Xilink box shows GREEN led. (Orange Led means no connection)
Page 154
Eclipse | Upgrade Guide
6. Select "No"
7. Select
a. "Yes" if more upgrade is to be performed later on.
b. "No" if this is a one off upgrade
8. Cancel the following pop up when seen
9. Double click on "Boundary Scan" on the right of the window.
Page 155
Eclipse | Upgrade Guide
10. In the Boundary Scan window, right click in the display and select "Initialise Chain"
11. When asked whether to "Continue and assign configuration file(s)?"
a. Select "No"
12. "Cancel" the next pop up window.
13. On the device shown on the diagram, right click on the "SPI/BPI" on top of the
device.
14. Select "Add SPI/BPI....."
Page 156
Eclipse | Upgrade Guide
15. A message, "Add PROM File" appears. Select where the .mcs file needed, and click
Open
16. A message "Select Attached SPI/BPI” appears. On the first drop down list on the
right, select S25FL032P from the list, click OK.
Page 157
Eclipse | Upgrade Guide
17. Right click on the SPI/BPI device, it should show GREEN with the word "FLASH".
Select Program
18. A message "Device Programming Properties" appears. Select Device1(Attached
Flash, S25FL032P), then click OK.
19. A message "Executing command....." appears to show the progress.
20. On successful upgrade a message "Program Succeeded" appears.
Page 158
Eclipse | Upgrade Guide
21. Power down the MVX-A16 card and remove the Xilinx programming tool.
Page 159
Eclipse | Upgrade Guide
8
Upgrading E-FIB cards
This chapter describes how to upgrade the E-FIB fiber cards, which are fitted to the Eclipse
HX-Median, Eclipse HX-Omega and Eclipse HX-Delta matrices.
Note:
8.1
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see
3Quick reference: Upgrading to Eclipse HX.
Upgrading E-FIB card FPGA with Xilinx tools
If the E-FIB card FPGAs are going to be upgraded in an Eclipse HX-Median / Eclipse HXOmega / Eclipse HX-Delta matrix, take one of the following measures:
•
Fit the E-FIB cards to a slot which is not configured for it.
•
Manually reset the E-FIB card for the duration of the upgrade operation.
•
Remove both CPU cards from the Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta
matrix for the duration of the upgrade.
If you do not take one of the above measures then the upgrade may fail.
To upgrade the Xilinx FPGAs (front card and rear card) on an E-FIB card:
1. Ensure that the latest versions of the Xilinx programming tools have been installed.
Tip: For more information about installing Xilinx programming tools, see
Appendix J:Xilinx tools.
2. Connect the USB connector of the download cable (Xilinx HW-USB-II-G or Digilent 6003410-011) to the USB port of the PC.
3. Connect the 14way IDC header to:
Note:
•
CON8 on the front card, if you are programming both cards simultaneously or just the
front card.
•
CON5 of the rear card if you are only programming the rear card.
The front and rear cards can be upgraded (programmed) either individually or together. If
only the front card is being programmed, fit LK9 to the front card.
4. Power up the UUT and start the iMPACT programming tool.
5. In Load Project, select Cancel.
6. In Flows, double click Boundary Scan. Right click the main window and select
Initialise Chain / Ctrl+ I:
Page 160
Eclipse | Upgrade Guide
Figure 8-1: Example iMPACT Boundary Scan
7. If the cable is connected correctly, the application will connect and a Xilinx chip chain
will be shown. If the cable is not connected correctly, a cable connection warning is
given.
If only one of the cards (the front or the rear) is being upgraded, only the first two or
last two devices in the above chain are displayed.
Note:
The Assign New Configuration File dialog is also displayed. However, ignore this dialog
until you have checked the chain.
Tip: If the programming tool fails initially to recognize the adaptor or the FPGA
chain, you can sometimes solve this issue by:
• Pressing the reset switches by the FPGA.
• Setting a slower cable speed.
8. The Assign New Configuration File dialog asks you to select an FPGA image for
the first device in the chain or to bypass that device.
In this example procedure:
a. Bypass the first and third devices. In the Assign New Configuration File
dialog, press Bypass for each device.
b. Provide the second and fourth devices (the FPGA Flashes) with images. In the
Assign New Configuration File dialog, select the FPGA image for the
second device, the router FPGA Flash.
Go to Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta >
xxxxxx-Fibre Router (front) FPGA (where xxxxxx represents the product
number).
Page 161
Eclipse | Upgrade Guide
The folder contains the FPGA file (*.mcs format) and a Read Me file (*.txt), which
contains version information.
c. Select the FPGA image for the fourth device, the networking FPGA Flash.
Go to Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx-Fibre
Networking (rear) FPGA
(where xxxxxx represents the product number).
The folder contains the FPGA file (*.mcs format) and a Read Me file (*.txt), which
contains version information.
9. A summary dialog is presented. For the FPGA Flash device(s), ensure that the Erase
Before Programming and Verify flags are set. Click OK.
Figure 8-2: Example Xilinx device programming properties
10. The upgrade (programming) starts, and takes approximately 2 minutes to complete.
When the upgrade is complete, the Program Succeeded message is displayed in
the main window.
11. Ensure that a compatible version of the Xilinx programming tools..
12. Remove the Xilinx programmer, and update any other E-FIB cards in the matrix.
13. Reseat the E-FIB cards and check that the card’s front LEDs show no errors.
Page 162
Eclipse | Upgrade Guide
9
Upgrading E-QUE cards
The following chapter describes how to upgrade E-QUE cards (both MK1 and MK2).
Note:
9.1
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see 3 Quick reference:
Upgrading to Eclipse HX.
Identifying MK1 and MK2 E-QUE cards
To identify the E-QUE card as a MK1 or a MK2 card, run a firmware report in EHX. To use
the Firmware report tool:
a. Go to EHX> System> Layout .
b. Right click the matrix icon.
c. Select Firmware > Firmware report.
You can also identify MK 1 and MK 2 cards visually.
The MK 1 E-QUE card is green. It also features a large chip in the upper right hand corner
of the PCB (as it is installed in the matrix):
Figure 9-1: MK 1 E-QUE card detail
The MK2 E-QUE card is blue. The large chip no longer forms part of the PCB:
Figure 9-2: MK 2 E-QUE card detail
Page 163
Eclipse | Upgrade Guide
9.2
Upgrading the E-QUE card (MK1 and MK2) via EHX
You can now upgrade the IVC/LMC64/EQue cards via EHX and an integrated TFTP server.
Previously a card upgrade would have to be started via the serial port and performed on
each card individually. EHX can now host the required files and push the upgrade to all valid
cards.
The following conditions apply:
•
You must have an IP connection with a valid, unique IP address on each
IVC/LMC64/EQue card.
•
Make sure that there is no TFTP server already running on the EHX PC.
•
Make sure that the PC’s firewall allows TFTP traffic
•
Make sure that you do not remove the card or interrupt its power supply during the
upgrade. Otherwise, you might have to connect the card via a serial port and
perform the upgrade via the existing method. There is also no way to inform the user
of the progress of the upgrade. The only way to gain information about the card’s
state is to look at the event log and firmware report.
The upgrade can be triggered in one of two ways. Either via the Apply Firmware dialog in
the tools menu or via the Apply firmware wizard to upgrade the cards in an individual
Matrix. In both cases the users are displayed the following two warning messages:
Page 164
Eclipse | Upgrade Guide
Note:
Do not download any map changes during the upgrade process.
Progress will be reported in the Event Log. Do not reset the matrix until the update is
complete.
9.3
Upgrading the E-QUE card (MK1) via serial cable
and third-party TFTP tools
You must upgrade the E-QUE card (MK1) in the following order:
1. E-QUE card application code (using the procedure described in this section).
Note:
An MVX upgrade cable is required. The procedure also requires an
Ethernet connection between the E-QUE card and the PC. If the
card and the PC are not connected to the network, they can be
connected directly using a crossover Ethernet cable.
2. E-QUE card FPGA code (see 9.5 Upgrading the E-QUE card (MK1 and MK2) FPGA with
Xilinx tools).
Note:
Requires specialized equipment. For more information about
installing and using Xilinx programming tools, see Appendix
J:Xilinx tools.
3. E-QUE card (MK1) Boot PROM (if required) (see 9.6 Upgrading the E-QUE card (MK1) boot
ROM).
Page 165
Eclipse | Upgrade Guide
Ethernet Crossover cable from PC LAN port
>
E-QUE rear card LAN connector.
MVX cable connected to the
E-QUE front card.
Figure 9-3: E-QUE upgrade
To upgrade the application code of the E-QUE card (MK1):
1. Ensure that you have the following equipment:
Required equipment
Description / comments
Tera Term software
Tera Term must be configured and operational.
You can find the Tera Term application on both of
the Eclipse HX 12.0 upgrade media:
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > Teraterm
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > Teraterm
TFTP Server software
-
MVX Serial cable (CABMVX-48Z)
See Figure 9-4: MVX-A16 serial cable (CABMVX-48Z)
Ethernet crossover cable
-
Small reset tool
For example, a bent paper clip
Table 9-1: Required equipment
Page 166
Eclipse | Upgrade Guide
Figure 9-4: MVX-A16 serial cable (CAB-MVX-48Z)
2. Install Tera-Term. Third party software is available from either of the Eclipse HX 12.0
upgrade media:
• Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > Teraterm
• Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > Teraterm
Tip: For more information about installing Tera Term, see Appendix G: Tera Term
3. Create a directory on your PC called c:\tftp.
4. Navigate to either of the following folders:
• Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > EQue TFTP Server App
•
Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > EQue TFTP Server App
Open the folder. Copy tftpserv.exe into the c:\tftp directory.
Note:
Any TFTP server can be used as long as it points to the C:\TFTP folder.
5. Navigate to the following folder on the software USB:
Page 167
Eclipse | Upgrade Guide
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx- E-Que application
MK-I & MK-II (where xxxxxx represents the product number)
Open the folder. Copy the E-QUE software file (*.image format file) into the c:\tftp directory.
6. From the same folder, copy the Tera Term macro file combined_eque_upgrade.ttl to the c:\tftp
directory.
7. Start Tera Term. Open the Setup menu and select Serial Port….
Figure 9-5: Tera Term: selecting Serial Port
8. In the Serial port configuration dialog, enter the following settings:
Port setting
Setting to enter
Port
COM1 (Change to match a COM port present on the PC)
Baud rate
115200
Data
8 bit
Parity
None
Stop
1 bit
Flow control
none
Transmit delay
0 msec/char. If the E-QUE card fails to load correctly, change
this value to 50ms.
Table 9-2: Tera Term port settings
9. Set the IP address of your PC to a fixed / static address (any IP address of your choice is
suitable).
10. Navigate to the c:\tftp directory. To open the TFTP Server command window, double click the
application tftpsrv.exe.
Page 168
Eclipse | Upgrade Guide
Figure 9-6: TFTP Server Window
Note:
The TFTP application can only access files in the same folder as the TFTP application. The EQUE firmware file must be in the same directory as the tftpsrv.exe program.
11. Connect the MVX serial cable (CAB-MVX-48Z) between the PC serial port and the E-QUE card
CON-200.
Reinsert the E-QUE card into the rack.
Figure 9-7: E-QUE MK1 card serial connector
Page 169
Eclipse | Upgrade Guide
12. If it is not already powered up, power up the Eclipse HX-Median / Eclipse HX-Omega / Eclipse
HX-Delta matrix.
13. Ensure that the E-QUE card and the PC are both connected to the Ethernet network in some
way, or are connected using a crossover Ethernet cable.
The LAN connector on the E-QUE card is the highest RJ-45 socket on the back panel. When the
E-QUE card is connected to the PC or to the network, check that the LAN LEDs (the yellow and
green lights at the bottom of the card) are flashing occasionally, indicating a network connection.
14. In Tera Term, select Control > Macro and then navigate to the c:\tftp directory. Open
combined_eque_upgrade.ttl and follow the macro instructions.
Note:
The macro should reset and re-boot the E-QUE card automatically. However, if it does not, you
may have to reset the E-QUE card using the reset button on the front. The reboot should be seen
on the serial console. This reset is essential, as it permits Tera Term to interrupt the boot
process.
15. The Macro will detect the card as an MKI. You will be prompted to verify the card has a green
PCB by the macro. If the card is Blue, it is a MKII.
16. Enter the following information to enable the download:
a. Enter an IP address for the E-QUE card. This address must be in the same range as
your PC IP address (for example, 192.168.42.5).
b.
Enter your PC IP address (for example,192.168.42.1)
c.
Enter the name of the E-QUE card firmware file. This will be the *.IMAGE file copied
in step 5.
17. The application code downloads to the E-QUE card. When the download is complete, the
E-QUE card reboots.
Note:
If when downloading file, T T T T is displayed on the Tera Term serial screen, this indicates a
problem downloading the file. Check the network connection and the IP addresses that were
entered. Also check that the filename has no file extension.
Tip: On the Tera Term screen towards the end of the boot sequence messages there will be a
status message that shows a date stamp and version string. Check this string to verify the
firmware version.
9.4
Upgrading the E-QUE card (MK2) via serial cable
and third-party TFTP tools
You must upgrade the E-QUE card (MK 2) in the following order:
1. E-QUE card application code (using the procedure described in this section).
Note:
An MVX upgrade cable is required. The procedure also requires an Ethernet connection between
the E-QUE card and the PC. If the card and the PC are not connected to the network, they can be
Page 170
Eclipse | Upgrade Guide
connected directly using a crossover Ethernet cable.
2. E-QUE card FPGA code (see 9.5 Upgrading the E-QUE card (MK1 and MK2) FPGA with
Xilinx tools).
Note:
Requires specialized equipment. For more information about installing and using Xilinx
programming tools, see Appendix J:Xilinx tools.
3. E-QUE card (MK2) Boot PROM (if required) (see 9.7 Upgrading the E-QUE card (MK2) boot
ROM).
Ethernet Crossover cable from PC LAN port
>
E-QUE rear card LAN connector.
MVX cable connected to the
E-QUE front card.
Figure 9-8: E-QUE upgrade
To upgrade the firmware file / application code of the E-QUE card (MK2):
1. Ensure that you have the following equipment:
Required equipment
Description / comments
Tera Term software
Tera Term (version 4.3 or later) must be
configured and operational. You can find the Tera
Term application on both of the Eclipse HX 12.0
upgrade media:
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > Teraterm
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > Teraterm
TFTP Server software
Page 171
-
Eclipse | Upgrade Guide
MVX Serial cable (CABMVX-48Z)
See Figure 9-4: MVX-A16 serial cable (CABMVX-48Z)
Ethernet crossover cable
-
Small reset tool
For example, a bent paper clip
Table 9-3: Required equipment
Figure 9-9: MVX-A16 serial cable (CAB-MVX-48Z)
2. Install Tera-Term. Third party software is available from either of the Eclipse HX 12.0 upgrade
media:
•
Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > Teraterm
•
Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > Teraterm
Tip: For more information about installing Tera Term, see Appendix G: Tera Term
Page 172
Eclipse | Upgrade Guide
3. Create a directory on your PC called c:\tftp.
4. Navigate to either of the following folders:
•
Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > EQue TFTP Server App
• Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > EQue TFTP Server App
5. Open the folder. Copy tftpserv.exe into the c:\tftp directory.
Note:
Any TFTP server can be used as long as it points to the C:\TFTP folder.
5. Navigate to the following folder on the software USB:
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx - E-Que application
MK-I & MK-II (where xxxxxx represents the product number)
Open the folder. Copy the E-QUE firmware file (*.image format file) into the c:\tftp directory.
Tip: The folder also contains a Read Me file (*.txt), which includes the procedure for
upgrading the E-QUE firmware file.
6. From the same folder, copy the Tera Term macro file combined_eque_upgrade.ttl to the c:\tftp
directory.
7. Start Tera Term. Open the Setup menu and select Serial Port….
Figure 9-10: Tera Term: selecting Serial Port
8. In the Serial port configuration dialog, enter the following settings:
Port setting
Setting to enter
Port
COM1 (Change to match a COM port present on the PC)
Page 173
Eclipse | Upgrade Guide
Baud rate
115200
Data
8 bit
Parity
None
Stop
1 bit
Flow control
none
Transmit delay
0 msec/char. If the E-QUE card fails to load correctly, change
this value to 50ms.
Table 9-4: Tera Term port settings
9. Set the IP address of your PC to a fixed / static address (any IP address of your choice is
suitable).
10. Navigate to the c:\tftp directory. To open the TFTP Server command window, double click the
application tftpsrv.exe.
Figure 9-11: TFTP Server Window
Note:
The TFTP application can only access files in the same folder as the TFTP application. The EQUE firmware file must be in the same directory as the tftpsrv.exe program.
11. Connect the MVX serial cable (CAB-MVX-48Z) between the PC serial port and the E-QUE card
(MK2) CON-2200.
Reinsert the E-QUE card (MK2) into the rack:
Page 174
Eclipse | Upgrade Guide
Figure 9-12: E-QUE card (MK2) serial connector
12. Power up the Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix (if not already
powered up).
13. Ensure that the E-QUE card (MK2) and the PC are either:
•
Connected to your Ethernet network.
•
Directly connected using a crossover Ethernet cable.
The LAN connector on the E-QUE card is the highest RJ-45 socket on the back panel. When the
E-QUE card is connected to the PC or to the network, check that the LAN LEDs (the yellow and
green lights at the bottom of the card) are flashing occasionally, indicating a network connection.
14. In Tera Term, select Control > Macro and then navigate to the c:\tftp directory. Open
combined_eque_upgrade.ttl and follow the macro instructions.
Note:
The macro should reset and re-boot the E-QUE card automatically. However, if it does not, you
may have to reset the E-QUE card using the reset button on the front. The reboot should be seen
on the serial console. This reset is essential, as it permits Tera Term to interrupt the boot
Page 175
Eclipse | Upgrade Guide
process.
15. If the reset is successful, the following dialog is displayed:
Figure 9-13: E-QUE (MK2) successful reset dialog
To continue, click OK.
Note:
If the reset and reboot is not successful, the following error message is displayed:
Figure 9-14: E-QUE (MK2) reset error message
If you receive this message, you are advised to repeat the procedure from Step 6.
16. The boot countdown appears again on the serial console. Tera Term recognizes that the card has
rebooted and you are asked to enter the following information to enable the download:
a. Enter an IP address for the E-QUE card. This address must be in the same range as
your PC IP address (for example, 192.168.42.5).
b.
Enter your PC IP address (for example,192.168.42.1).
c.
Enter the file name of the E-QUE card application code (firmware) (for example,
eque_release_image-3.16.5.0).
d. Enter the Gateway IP address or accept the default (10.50.16.1).
e. Enter the Subnet Mask or accept the default (255.255.255.0).
The application code downloads to the E-QUE card (MK2). When the download is complete, the
E-QUE card (MK2) reboots.
Note:
If when downloading file, T T T T is displayed on the Tera Term serial screen, this indicates a
problem downloading the file. Check the network connection and the IP addresses that were
Page 176
Eclipse | Upgrade Guide
entered.
17. If the download is successful, the following dialog is displayed by Tera Term:
Figure 9-15: Successful download dialog
To exit the macro, click OK.
Note:
If the download was not successful, the following error dialog is displayed by Tera Term:
Figure 9-16: Failed download dialog
If you receive this message, you are advised to repeat the procedure from Step 6.
9.5
Note:
Upgrading the E-QUE card (MK1 and MK2) FPGA
with Xilinx tools
Upgrading the E-QUE card FPGA using Xilinx tools requires specialized equipment. For more
information about the Xilinx programming tools, see Appendix J:Xilinx tools.
To upgrade the E-QUE card FPGA code with Xilinx tools:
1. Ensure that the latest versions of the Xilinx programming tools have been installed.
2. Connect the USB connector of the download cable (Xilinx HW-USB-II-G or Digilent 6003410-011) to the USB port of the PC.
3. Connect the 14way IDC header to CON3100.
4. Insert the E-Que card into the matrix and start the iMPACT programming tool.
5. In Load Project, select Cancel.
6. In Flows, double click Boundary Scan. Right click the main window and select
Initialize Chain / Ctrl+ I:
Page 177
Eclipse | Upgrade Guide
Figure 9-17: iMPACT Boundary Scan
7. If the cable is connected correctly, the application will connect and a Xilinx chip chain
will be shown. If the cable is not connected correctly, a cable connection warning is
given.
Figure 9-18: Example Xilinx chip chain
Page 178
Eclipse | Upgrade Guide
8. The Assign New Configuration File dialog asks you to select an FPGA image for
the first device in the chain or to bypass that device.
In this example procedure, the first device will be bypassed and an FPGA image will
be assigned to the second device.
• For the first device, press Bypass.
• For the second device, select the FPGA image (*.mcs) from the Drivers USB:
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx – EQUE FPGA
(where xxxxxx represents the product number).
A summary dialog is presented. Ensure that the Erase Before Programming and
Verify flags are set. Click OK.
Figure 9-19: Example Xilinx device programming properties
9. Right click the second device and select Programming.
The upgrade starts, and takes approximately 2 minutes to complete. When the
upgrade is complete, the Program Succeeded message is displayed in the main
window.
10. Remove the Xilinx programming tool and carefully re-insert the E-Que card into the
matrix.
9.6
Upgrading the E-QUE card (MK1) boot ROM
Only upgrade the E-QUE (MK1) boot ROM after the main E-QUE application code has been
upgraded.
Page 179
Eclipse | Upgrade Guide
Note:
The procedure below is for E-QUE (MK1) cards only. To upgrade the PROM of an E-QUE card
(MK2), see 9.7 Upgrading the E-QUE card (MK2) boot ROM.
To upgrade the E-QUE card (MK1) boot PROM:
1. Ensure that you have the required equipment:
•
2 MBit PROM device (ST M27W201 or equivalent).
•
PROM programming unit and PROM programming software appropriate for that unit.
•
Appropriate ‘S’ record file. To find the file, go to:
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx – E-Que MKI
(Green PCB) Boot ROM (where xxxxxx represents the part number).
.
The folder contains the *.s record file and a Read Me file (*.txt), with version information.
2. Ensure that the PROM device to be programmed is empty.
3. Program the PROM device with the appropriate file, according to the instructions for
the PROM programmer being used.
Note:
The load address for the S record is 0xFFF00000.
Confirm that the checksum of the programmed device matches that detailed in the
Eclipse HX Release Notes.
4. Remove the existing PROM device from the configuration card.
Insert the newly programmed PROM device taking care to ensure the correct polarity
of the device.
Observe all electrical shock hazard warning and precautions for
handling electrostatic sensitive devices
9.7
Note:
Upgrading the E-QUE card (MK2) boot ROM
Only upgrade the E-QUE (MK2) boot ROM after the main E-QUE application code has been
upgraded.
The procedure below is for E-QUE (MK2) cards only. To upgrade the PROM of an E-QUE card
(MK2), see 9.6 Upgrading the E-QUE card (MK1) boot ROM.
To upgrade the E-QUE (MK2) boot PROM:
1. Ensure that you have the following equipment:
Page 180
Eclipse | Upgrade Guide
Required equipment
Description / comments
Tera Term software
Tera Term must be configured and operational.
You can find the Tera Term application on both of
the Eclipse HX 12.0 upgrade media:
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > Teraterm
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > Teraterm
TFTP Server software
-
MVX Serial cable (CABMVX-48Z)
See Figure 9-4: MVX-A16 serial cable (CABMVX-48Z)
Ethernet crossover cable
-
Small reset tool
For example, a bent paper clip
Table 9-5: Required equipment
2. Install Tera Term.
Tip: For more information about installing Tera Term, see Appendix G: Tera Term
3. Create a directory on your PC called c:\tftp.
4. Navigate to either of the following folders:
• Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > EQue TFTP Server App
•
Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > EQue TFTP Server App
Open the folder. Copy tftpserv.exe into the c:\tftp directory.
Note:
Any TFTP server can be used as long as it points to the C:\TFTP
folder.
5. Navigate to Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx – E-Que
MKII (Blue PCB) Boot ROM
(where xxxxxx represents the product number).
Open the folder. Copy the E-QUE (MK2) boot ROM file into the c:\tftp directory.
6. From the same folder, copy the Tera Term macro file EQ2_uboot_upgrade.ttl to the c:\tftp
directory.
7. Start Tera Term. Open the Setup menu and select Serial Port….
Page 181
Eclipse | Upgrade Guide
Figure 9-20: Tera Term: selecting Serial Port
8. In the Serial port configuration dialog, enter the following settings:
Port setting
Setting to enter
Port
COM1 (Change to match a COM port present on the PC)
Baud rate
115200
Data
8 bit
Parity
None
Stop
1 bit
Flow control
none
Transmit delay
0 msec/char. If the E-QUE card fails to load correctly, change
this value to 50ms.
Table 9-6: Tera Term port settings
9. Set the IP address of your PC to a fixed / static address (any IP address of your choice is
suitable).
10. Navigate to the c:\tftp directory. To open the TFTP Server command window, double click the
application tftpsrv.exe.
Page 182
Eclipse | Upgrade Guide
Figure 9-21: TFTP Server Window
Note:
The TFTP application can only access files in the same folder as the TFTP application. The EQUE MK2 boot ROM file must be in the same directory as the tftpsrv.exe program.
11. Connect the MVX serial cable (CAB-MVX-48Z) between the PC serial port and the E-QUE card
(MK2) serial connector (CON-2200):
Page 183
Eclipse | Upgrade Guide
Figure 9-22: E-QUE card (MK2) serial connector
12. Reinsert the E-QUE card (MK2) into the rack.
13. Power up the Eclipse HX-Median / Eclipse HX-Omega matrix / Eclipse HX-Delta matrix (if it is not
already powered up).
14. Ensure that the E-QUE card (MK2) and the PC are either:
•
Connected to your Ethernet network.
•
Directly connected using a crossover Ethernet cable.
The LAN connector on the E-QUE card is the highest RJ-45 socket on the back panel. When the
E-QUE (MK2) card is connected to the PC or to the network, check that the LAN LEDs (the
yellow and green lights at the bottom of the card) are flashing occasionally, indicating a network
connection.
15. In Tera Term, select Control > Macro and then navigate to the c:\tftp directory. Open
EQ2_uboot_upgrade.ttl and follow the macro instructions.
Note:
Page 184
Eclipse | Upgrade Guide
The macro should reset and re-boot the E-QUE card (MK2) automatically. However, if it does not,
you may have to reset the E-QUE card (MK2) using the reset button on the front. The reboot
should be seen on the serial console. This reset is essential, as it permits Tera Term to interrupt
the boot process.
16. If the reset is successful, the following dialog is displayed:
Figure 9-23: E-QUE (MK2) successful reset dialog
To continue, click OK.
Note:
If the reset and reboot is not successful, the following error message is displayed:
Figure 9-24: E-QUE (MK2) reset error message
If you receive this message, you are advised to repeat the procedure from Step 6.
17. The boot countdown appears again on the serial console. Tera Term recognizes that the card has
rebooted and you are asked to enter the following information to enable the download:
a. Enter an IP address for the E-QUE card. This address must be in the same range as
your PC IP address (for example, 192.168.42.5).
b.
Enter your PC IP address (for example,192.168.42.1).
c.
Enter the file name of the E-QUE card application code (firmware) (for example,
eque_release_image-3.16.5.0).
d. Enter the Gateway IP address or accept the default (10.50.16.1).
e. Enter the Subnet Mask or accept the default (255.255.255.0).
The application code downloads to the E-QUE card (MK2). When the download is complete, the
E-QUE card (MK2) reboots.
Page 185
Eclipse | Upgrade Guide
Note:
If when downloading file, T T T T is displayed on the Tera Term serial screen, this indicates a
problem downloading the file. Check the network connection and the IP addresses that were
entered.
17. If the download is successful, the following dialog is displayed by Tera Term:
Figure 9-25: Successful download dialog
To exit the macro, click OK.
Note:
If the download was not successful, the following error dialog is displayed by Tera Term:
Figure 9-26: Failed download dialog
If you receive this message, you are advised to repeat the procedure from Step 6.
Page 186
Eclipse | Upgrade Guide
10
Upgrading IVC-32 and LMC-64 cards
To upgrade IVC-32 and LMC-64 cards, follow the same upgrade procedures for E-QUE cards
(MK1), as described in 9 Upgrading E-QUE cards.
At EHX v12.0, the application code for all 3 cards (E-QUE, IVC-32 and LMC-64 cards) is the
same.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see 3 Quick reference:
Upgrading to Eclipse HX.
10.1
Identifying MK1 and MK2 IVC-32 / LMC-64 cards
To find out if the IVC-32 / LMC-64 card is either a MK 1 or a MK 2 card, run a firmware
report in EHX. The firmware report identifies the card as either a MK 1 or a MK 2 card.
To use the Firmware report tool:
a. Go to EHX> System> Layout .
b. Right click the matrix icon.
c. Select Firmware > Firmware report.
You can also identify MK1 and MK2 cards visually.
The MK1 IVC-32/LMC-64 card is green. It features a large chip in the upper right hand
corner of the PCB (as it is installed in the matrix):
Figure 10-1: IVC-32/LMC-64 MK1 card detail
The MK2 IVC-32/LMC-64 card is blue. If you look at the upper right hand corner of the
card, the large chip no longer forms part of the PCB:
Page 187
Eclipse | Upgrade Guide
Figure 10-2: IVC-32/LMC-64 MK2 card detail
Page 188
Eclipse | Upgrade Guide
11
Upgrading E-MADI64 cards
This chapter describes how to upgrade MK1 E-MADI64 cards. The following E-MADI64 code
can be upgraded:
•
The boot code file (*.mot), which is upgraded using the Renesas Flash Development Toolkit 3.4
Basic (FDT).
•
The application code and DSP code files (*.fwc), which are upgraded using EHX.
•
The FPGA code, which is upgraded using either EHX or Xilinx iMPACT programming software.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see
3 Quick reference: Upgrading to Eclipse HX.
11.1
Identifying MK1 and MK2 E-MADI64 cards
Note: this chapter only describes how to update MK1 E-MADI64 cards.
To identify the E-MADI64 card as a MK1 or a MK2 card, run a firmware report in EHX. To
use the Firmware report tool:
a. Go to EHX> System> Layout .
b. Right click the matrix icon.
c. Select Firmware > Firmware report.
You can also identify MK 1 and MK 2 cards visually.
Page 189
Eclipse | Upgrade Guide
The MK 1 E-MADI64 card is blue or green:
Figure 11-1: MK 1 E-MADI64 card detail
The MK2 E-QUE card is blue:
Figure 11-2: MK 2 E-MADI64 card detail
Page 190
Eclipse | Upgrade Guide
11.2
Upgrading the E-MADI64 boot code
To upgrade the E-MADI64 card H8 boot code:
1. Ensure that you have the following equipment:
Required equipment
Description / comments
PC with a serial port
connection or USB-to-serial
port adaptor
If you are using a USB-to-serial port adaptor,
Renesas Flash
Development Toolkit 3.4
Basic (FDT)
The Renesas FDT must be installed and
configured. The Renesas FDT application is
available from both Eclipse HX v12.0 upgrade
media:
download the latest drivers.
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > RenesasFDT
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > RenesasFDT
MVX-A16 serial upgrade
cable (Clear-Com part
CAB-MVX-48Z)
The E-MADI64 card H8
boot code file (*.mot):
For an image of this cable, see
Figure 28: MVX-A16 Serial upgrade cable.
The E-MADI64 card boot code file (*.mot) is
available from the following folder:
Drivers USB > ECLIPSE DRIVERS > OmegaMedian-Delta > xxxxxx – E-MADI Boot
(Where xxxxxx represents the product number).
Table 11-1: Required equipment
2. Install the Renesas Flash Development Toolkit (FDT), which is available from either
of the Eclipse HX v12.0 upgrade media:
•
Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software >
RenesasFDT
•
Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software >
RenesasFDT
Accept the default install settings.
3. Start the Renesas Flash Development Toolkit (FDT) from Programs, selecting the
basic Startup option.
Page 191
Eclipse | Upgrade Guide
4. Access the configuration (settings) dialogs, by selecting Options > New Settings...
Configure the FDT, as shown in the table below:
Settings dialog /
option
Setting to enter
Select Device
H8S/2318F
Select Port
COM1 (Change to match a COM port present on the PC)
CPU Frequency
25.0 Mhz
Connection
Boot mode
Recommended Speed
38400 (Deselect the Use-Default option)
Protection
Automatic
Messaging
Advanced
User Area
Selected (Checked)
Readback verification
Yes
Table 11-2: FDT settings
Note:
The first time the FDT is run, the settings dialogs are displayed by default. After the
FDT has been configured, the settings dialogs are no longer shown by default.
5. In the Download window, click Options and ensure that:
•
Auto-Disconnect is selected (checked).
•
The Download File radio button is selected.
6. Select ‘…’ for the User area and select the appropriate *.mot format file for the EMADI64 H8 boot code.
The EMADI64 boot code file is available from the Drivers USB:
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx-E-MADI
Boot
(where xxxxxx represents the product number).
7. On the E-MADI64 card to be updated, ensure that jumper J1000 is made.
Page 192
Eclipse | Upgrade Guide
Figure 11-3: E-MADI64 PCB (upper right hand corner)
8. Connect the MVX serial cable (CAB-MVX-48Z) between the COM port on the PC and the
CON1001 on the E-MADI64 card to be updated.
See Figure 11-3: E-MADI64 PCB (upper right hand corner) above.
Note:
The E-MADI64 connection is polarized to ensure a correct connection.
9. Insert the E-MADI64 card into the Eclipse HX-Median / Eclipse HX-Omega / Eclipse
HX-Delta matrix (having ensured that the matrix is powered on).
10. Select Program Flash from the FDT. Confirm that FDT reports the image has been
written successfully.
Important note:
If the E-MADI64 card fails to upgrade, reset (re-seat) the E-MADI64 card and select
Program Flash from the FDT again.
If you are using a USB-to-serial adaptor, the adaptor may have to be unplugged and
re-plugged to enable the upgrade to start on some computers. If you are running the
EHX application, ensure that EHX is configured for Ethernet and not serial
connection. When the upgrade is complete, you can also do the following:
Page 193
Eclipse | Upgrade Guide
1. Remove the E-MADI64 card from the matrix.
2. Remove the MVX serial cable (CAB-MVX-48Z).
3. Remove jumper J1000.
4. Repeat steps 7 through 11 for each remaining E-MADI64 card.
11.3
Upgrading the E-MADI64 application, DSP and
FPGA code using EHX
You can upgrade the E-MADI64 application, DSP and FPGA code using EHX and an Eclipse
matrix. If you are using an Ethernet connection, an EHX configuration map is required with
the correct IP address configured.
Note:
With E-MADI64, you can upgrade the FPGA code in exactly the same way as the application
and DSP code.
*.fwc format files are used in the download of the E-MADI64 application code, the DSP
code, and the FPGA code. The Drivers USB contains the E-MADI64 application and DSP
code:
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > E-MADI Application
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > E-MADI DSP
The Drivers USB contains the E-MADI64 FPGA code:
•
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > E-MADI FPGA
Place the application, DSP and FPGA code files in a location that EHX can access. When
these files are downloaded to the matrix, all the E-MADI64 cards that have been fitted to
the matrix will be upgraded.
Note – Once the firmware is downloaded from EHX to the CPU card it can take between 45 –
60 minutes to transmit this image to the MADI cards (depending on the number of cards
that are inserted and therefore receiving the image in parallel). Please use the matrix event
log of the matrix frame to monitor the percentage complete state of the image
transmission. Allow the card to automatically reboot at the end of upgrade as the image has
to be copied to permanent storage on the card after it has been received.
Tip: For help with selecting the other procedures you require for upgrading to Eclipse HX
v12.0, see the quick reference procedures tables in 2 Selecting Upgrade Procedures.
Page 194
Eclipse | Upgrade Guide
To upgrade E-MADI64 H8, DSP or FPGA code using EHX:
1. Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet or
serial communications
port
-
EHX software
EHX must be installed and configured.
Ethernet or serial cable for
the PC-to-matrix
connection
-
H8 application code, DSP
and FPGA code files
The appropriate application code, DSP code and
FPGA code files (*.fwc format) are available from
the Eclipse HX v12.0 upgrade media:
•
Drivers USB > ECLIPSE DRIVERS > OmegaMedian-Delta > E-MADI Application
•
Drivers USB > ECLIPSE DRIVERS > OmegaMedian-Delta > E-MADI DSP
•
Drivers USB > ECLIPSE DRIVERS > OmegaMedian-Delta > E-MADI FPGA.
Table 11-3: Required equipment
2. Start EHX on the PC.
3. Connect the PC to the matrix using either Ethernet or a serial communications port.
4. Open the EHX configuration map within EHX.
5. Select System > Layout.
6. Right click the matrix and then select Firmware> Update Firmware.
The Update Firmware wizard dialog is displayed. Click Next.
In the Select Hardware Type screen, ensure that the Card radio button is
selected.
Page 195
Eclipse | Upgrade Guide
Figure 11-4: Select Hardware Type
7. Click Next and then browse to the E-MADI64 code file (application, DSP or FPGA
code files (*.fwc)).
Tip: See Step 1 for the location of the .fwc files on the Eclipse HX v12.0 USB.
8. Click Next and confirm that the details displayed are correct.
9.
Click Next and confirm that the download commences.
Note:
The E-MADI64 card status light flashes green while the upgrade is in process (LED
on to off ratio: 1:4 at 0.5Hz). When the upgrade is complete, the status light is lit
green at a steady heartbeat (LED on to off ratio: 1:1 at 1 Hz).
10. When the download has completed, click Finish to close the update firmware wizard.
11. Ensure that the E-MADI64 cards reset once the download is complete. All the cards
are upgraded at the same time.
Code
Approx. reset time
Application
1 minute
DSP
3 minutes
FPGA
18 minutes
Table 11-4: Approximate reset times per system
12. Confirm the updated firmware version by opening EHX and going to
Matrix event log > Matrix overview.
Note:
You can also use the Firmware report tool in EHX to confirm the firmware version for
the H8 boot code (see the previous procedure), H8 application code and FPGA.
However, the Firmware report tool does not provide firmware version information for
DSP code.
Page 196
Eclipse | Upgrade Guide
To use the Firmware report tool:
a. Open EHX and go to System > Layout.
b. Right click the matrix icon.
c. Select Firmware > Firmware report.
11.4
Upgrading the E-MADI64 FPGA using the Xilinx tool
set
Note:
Upgrading the E-QUE card FPGA using Xilinx tools requires specialized equipment. For more
information about the Xilinx programming tools, see Appendix J:Xilinx tools.
Note:
Ensure that the Xilinx tool set is Version 11 or later.
To upgrade the Xilinx FPGAs on an E-MADI64 card:
1. Ensure that the latest versions of the Xilinx programming tools have been installed.
Tip: For more information about installing Xilinx programming tools, see
Appendix J:Xilinx tools.
2. Obtain the latest version of the Xilinx device firmware from the Drivers USB:
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx - E-MADI
FPGA > xxxxxx.mcs and xxxxxx.cfi
Where xxxxxxx represents the product / file number.
Note:
When upgrading the E-MADI64 FPGA, both the *.mcs and *.cfi file are required. The
*.cfi and *.mcs file are available from the same location. The user does not have to
do anything else, as the tools find the files.
3. Connect the USB connector of the download cable (Xilinx HW-USB-II-G or Digilent 6003410-011) to the USB port of the PC.
4. Connect the 14way IDC header to CON4000.
5. Power up the UUT and start the iMPACT programming tool.
Page 197
Eclipse | Upgrade Guide
6. In Automatically create and save a project, select No.
7. In Load Project, select Cancel.
8. In Flows, double click Boundary Scan. Right click the main window and select
Initialise Chain / Ctrl+ I:
Figure 11-5: Example iMPACT Boundary Scan
9. If the cable is connected correctly, the application will connect and a Xilinx chip chain
will be shown. If the cable is not connected correctly, a cable connection warning is
given.
Page 198
Eclipse | Upgrade Guide
Figure 11-6: Example Xilinx chip chain
10. In the Auto Assign Configuration Files Query dialog, select Yes.
11. The Assign New Configuration File dialog asks you to select an FPGA image for
the first device in the chain or to bypass that device.
In this example procedure, the first device will be bypassed and an FPGA image will
be assigned to the second device.
•
For the first device, press Bypass.
•
For the second device, select the FPGA image:
Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx - E-MADI FPGA
> xxxxxx.mcs and xxxxxx.cfi
Where xxxxxx represents the product / file number.
Note:
When upgrading the E-MADI64 FPGA, both the *.mcs and *.cfi file are required. The
*.cfi and *.mcs file are available from the same location. The user does not have to
do anything else, as the tools find the files.
12. A summary dialog is presented. For the selected device, ensure that the Erase the
Entire Device and Verify flags are set. Click OK.
Page 199
Eclipse | Upgrade Guide
Figure 11-7: Example Xilinx device programming properties
13. In Impact Processes, double click program.
The upgrade (programming) starts, and takes approximately 2 minutes to complete.
When the upgrade is complete, the Program Succeeded message is displayed in
the main window.
14. Remove the Xilinx programmer from the E-MADI card and carefully re-insert the card
into the matrix.
Page 200
Eclipse | Upgrade Guide
12
Upgrading E-DANTE64-HX cards
Upgrades for your E-DANTE64-HX card are available for both EHX and Dante firmware and
are available from your Clear-Com representative.
The upgrade process for each of the two modules on the card (EHX and Dante) is different.
The two processes are outlined below.
Note:
When upgrading your E-Dante64 card, only use the Clear-Com supplied upgrade files for
both
(A: EHX) ClearCom - App, Boot, DSP, FPGA: xxxxxx.FWC files
(B: Dante) ClearCom [Brooklyn]: xxxxxx.dnt file.
To check if your firmware is up to date, open the Firmware Report in
EHX:
1)
In the EHX software, navigate to the Layout tab.
2)
Right click on the required matrix and select Firmware/Firmware Report.
12.1.1 Upgrade EHX E-DANTE64 firmware
1)
In the EHX software, navigate to the Layout tab.
2)
Right click on the matrix to be upgraded and select Firmware > Update
Firmware > Card.
Page 201
Eclipse | Upgrade Guide
3)
Navigate to where the E-Dante64 upgrade file is stored and click to upload.
There are 4 possible upgrade file types.
Upgrade file type
Approximate upgrade time/notes
App.FWC
2 min. This is the most common file to
upgrade and is usually labeled
‘Clearcom’.
Boot.FWC
1 min.
DSP.FWC
3 min. Reset card on front panel after
upgrade.
FPGA.FWC
16 mins.
While the E-DANTE64 card is being upgraded with EHX firmware, the active light (green) on
the front of the device will flash at double its usual speed and the error light (red) will show.
The card is ready for use when the error light is off and the status light has returned to a
steady 1Hz pulse.
Note:
The upgrade process for an E-DANTE64 card is the same as a MADI card. If you need more
detailed information, see 11 Upgrading E-MADI64 cards).
Page 202
Eclipse | Upgrade Guide
12.1.2 Upgrade Dante firmware
Before updating the Dante component of your E-DANTE64 card, you must first download the
Dante Firmware Update Manager from the Audinate website.
Open the Dante Firmware Update Manager and follow the instructions on the screen.
The Dante firmware upgrade file (usually labeled ‘Brooklyn’) has a .dnt extension.
Note:
Disable any firewalls before upgrading the E-Dante combined Brooklyn file via Dante
Firmware Update Manager.
Note:
When upgrading firmware for the Dante component, the status light on the front of the EDante64 card will not change.
Note:
An upgrade guide for the *.dnt file is available at https://dev.audinate.com/GA/firmwareupdate-manager/userguide/latest/AUD-MAN-Firmware_Update_Manager-v2.7.pdf. The EDante card may need to be reset after a successful update.
Page 203
Eclipse | Upgrade Guide
13
Upgrading E-IPA-HX cards
The Admin LAN port of the E-IPA card must be on the same subnet as the PC hosting the
EHX software.
Example E-IPA firmware version x.y.63.z.tar.gz. The single tar.gz file contains the main
application, kernel and FPGA files.
Note: the upgrade process from the PC to the EIPA card takes about 2.5 mins however
depending on what sub-system on the EIPA card requires upgrading the whole process for
the card may take up to five minutes.
If there is an interruption to the power supply of the E-IPA-HX card during the upgrade, the
card will go into recovery mode. The table below shows the stages that occur during
recovery mode.
Page 204
Eclipse | Upgrade Guide
State\ LED
Erasing flash
(~ 10
minutes)
Writing
preloader, uboot and
DTB
(<1
minute)
Writing
zImage
(<1
minute)
Writing
FPGA image
( 1 minute)
Fetching
rootfs
(~ 10
seconds)
Writing
rootfs
(<5
minutes)
All done!
Page 205
16
32
48
64
EXT1
EXT2
EXT3
EXT4
E1 1
&2
Eclipse | Upgrade Guide
Check the firmware report to make sure that the upgrade has completed successfully.
Page 206
Eclipse | Upgrade Guide
14
Upgrading panels
This chapter describes how to upgrade the i-Station and V-Series user panels supported by
Eclipse HX.
Supported panels may be upgraded using an installed and configured copy of EHX and an
active Eclipse HX matrix.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see
3 Quick reference: Upgrading to Eclipse HX.
14.1
Upgrading panels using EHX
In all cases, panels should initially be upgraded using EHX. Manual programming of panels
should only be attempted if the EHX download repeatedly fails.
For V-Series Iris panels, upgrade using EHX is only possible if the panel is connected to the
matrix using AoIP. Otherwise, you must upgrade the panel by USB (see 14.2 Upgrading
V-Series Iris panels by USB).
The download of a panel application requires an *.fwp format file, which is located on the
software USB. This must be placed in a location that is accessible by the installed EHX
application.
Note:
The Eclipse HX v12.0 contains all the firmware files required for upgrading a panel.
The download of a panel application requires:
•
An operational Eclipse HX matrix with the panels connected and powered.
•
A suitable EHX configuration (with the correct IP address configured, if an Ethernet connection is
used).
Once the *.fwp format file is downloaded to the Eclipse HX matrix, all panels of the same
type will be upgraded at the same time through an automatic download from the matrix to
the panel.
Each panel type requires a different *.fwp format file, but the Eclipse HX matrix determines
the panel type before attempting any download. It is therefore not necessary to disconnect
panels of a different type to prevent an accidental download.
Page 207
Eclipse | Upgrade Guide
To upgrade panel application code using EHX:
1. Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet or
serial communications
port
-
EHX software
EHX must be installed and configured.
EHX configuration file /
map
-
Ethernet or serial cable for
the PC-to-matrix
connection
-
Appropriate *.fwp format
panel application
The appropriate *.fwp format panel code is
available from the Drivers USB:
Drivers USB > ECLIPSE DRIVERS > Panel
Software > <Panel type>
Table 14-1: Required equipment
2. Start EHX on the PC.
3. Connect the PC to the matrix using either Ethernet or serial communications port.
4. Open the EHX configuration map within EHX.
5. Select System > Layout.
6. Right click the matrix and then select Firmware> Update Firmware.
7. The update firmware wizard dialogue is displayed. Click Next and ensure that the
Panel radio button is selected.
In Options:
• Selecting Automatic mode forces panels to upgrade automatically.
•
Selecting Panel Prompt mode means that each panel user will be asked to
accept / decline the panel upgrade.
8. Click Next and then browse to the appropriate *.fwp file:
Drivers USB > ECLIPSE DRIVERS > Panel Software > <Panel type>
Page 208
Eclipse | Upgrade Guide
9. Click Next and confirm that the details displayed are correct.
10. Click Next and confirm that the download commences.
11. When the download has completed, click Finish to close the update firmware wizard.
12. Ensure that the matrix commences downloading to connected panels of the required
type. If automatic download does not commence, power cycle the panel(s) being
upgraded.
13. Ensure that the panels reset once the download is complete.
14. Confirm the updated firmware version using either:
•
•
The EHX firmware report tool:
-
Go to EHX > System > layout.
-
Right click the matrix icon.
-
Select Firmware > Firmware report.
The local menu on the panel (display panels only).
14.1.1 Locating Panel *.fwp files on the software USB
Panel type
*.fwp file
i-Station (i-Series)
Drivers USB > ECLIPSE DRIVERS > Panel_Software > iStation > xxxxxx-i-Station App (where xxxxxx represents
the product number)
Note:
Clear-Com recommends that you upgrade Expansion panels
first before upgrading the main i-Station.
E-Station
Drivers USB > ECLIPSE DRIVERS > Panel Software > EStation > xxxxxx-E-Station App (where xxxxxx represents
the product number).
Note:
Clear-Com recommends that you upgrade Expansion panels
first before upgrading the main E-station.
V-Series
Page 209
Drivers USB > ECLIPSE DRIVERS > Panel Software > VSeries > Main Board > xxxxxx-Panel Application
Eclipse | Upgrade Guide
(where xxxxxx represents the product number).
V-Series Display
Module
The Display Module upgrade files (*.fwp format) are available
from the Drivers USB:
•
Drivers USB > ECLIPSE DRIVERS > Panel_Software > VSeries > Display_Module > xxxxxx-Display PIC Boot Loader
•
Drivers USB > ECLIPSE DRIVERS > Panel_Software > VSeries > Display_Module > xxxxxx-Display PIC Application
Code
Where xxxxxx represents a product number.
V-Series Iris panels
EHX upgrade only via AES67 connected panels. Iris panels
connected via MCX or IVC require upgrade using USB memory
stick
Table 14-2: Locating Panel *.fwp files
Tip: For help with selecting the other procedures you require for upgrading to Eclipse HX
v12.0, see the quick reference procedures tables in 2 Selecting Upgrade Procedures.
14.1.2 V-Series upgrades
You cannot upgrade any other panels during a V-Series panel upgrade.
The size of the V-Series firmware means that it cannot be stored in the flash memory of the
matrix during the upload, and has to be retained in the upload buffer. If an attempt is made
to upgrade another panel while the V-Series panel is being upgraded, the V-Series firmware
upload will be overwritten.
Clear-Com also recommends that you do not download any configurations during the VSeries panel upgrade. An Apply Changes download from EHX will break a V-Series panel
upgrade (the download partially resets the configuration for each panel and this makes the
rack "forget" that it is upgrading the panel).
14.2
Upgrading V-Series Iris panels by USB
Note:
This section only applies to the V-Series Iris panels connected by analogue MVX or IVC-IP.
It does not apply to any other V-Series or I-Series panel.
Note:
When performing software updates, start the update and do NOT touch the panel until
update is completed. Set a timer for 10 minutes to ensure enough time is allowed for the
update.
Note:
If the panel is connected by AoIP, you must upgrade V-Series Iris panels using the EHX
configuration software. See 14.1 Upgrading panels using EHX.
1)
Rename the .tar.gz file to IRIS.gz and place it in the root file of your USB stick.
Page 210
Eclipse | Upgrade Guide
Note:
14.3
2)
Insert the USB into the connector on either the front or the back of the device and
follow the panel menu as usual.
3)
Make sure the Iris panel is either not connected to the matrix (panel needs to be off
line) OR in the local menu screen.
Only connect a single USB device to the panel during the upgrade.
Upgrading panel application code manually
The application code for most panels can be upgraded manually either by re-programming
the PROM or by directly connecting the panel to a PC. Before attempting any upgrade,
ensure that anti-static precautions are taken, as Eclipse HX devices are sensitive to static
discharges.
Observe all electrical shock hazard warning and precautions for
handling electrostatic sensitive devices
Tip: For help with selecting the other procedures you require for upgrading to Eclipse HX
v12.0 see the quick reference procedures tables in 2 Selecting Upgrade Procedures.
Cabling for i-Station upgrades
14.3.1 Manually upgrading i-Station & E-Station panel application
code
Before you manually upgrade the application code for i-Station & E-Station panels, ensure
that you have the following equipment:
•
An i-Station serial interconnect lead.
•
RS232/RS422 adaptor (see Figure 14-1: Example converter cable).
•
An installed Tera Term application.
•
A paperclip or small flat blade screwdriver to access maintenance button on
the rear of the i-Station panel.
Tera Term uses a special file with the updated i-Station or E-station application code,
instead of an *.fwp file. The file has an *.s19 file extension and the specific files can be
found on the software USB:
•
Software USB > SOFTWARE - EHX.xxx > Panel Software > i-Station > xxxxxx-i-Station App
•
Software USB > SOFTWARE - EHX.xxx > Panel Software > E-Station > xxxxxx-E-Station
App
Where xxxxxx represents the product number.
Page 211
Eclipse | Upgrade Guide
The convertor cable connects from a serial port on the PC, routes through an RS-232 to
RS-422 adapter and connects to the expansion out RJ-45 port and the i-Station or the
expansion in RJ-45 port of the E-Station using separate CAT5 cables.
Figure 14-1: Example converter cable
Figure 14-2 shows an example wiring scheme for serial programming an i-Station panel:
Figure 14-2: Example wiring scheme for i-Station serial programming
Figure 14-3 shows an alternative cabling scheme that does not require the use of the RS422 converter module:
Page 212
Eclipse | Upgrade Guide
Figure 14-3: Alternate example wiring scheme for i-Station serial programming
Note:
The cabling scheme shown supports i-Station panels. To use with an E-station simply
reverse the TX and RX connections at the Sub-D 9-pin F connector.
Tip: An i-Station or E-station with either no firmware installed or corrupted firmware may
be repaired through an upgrade (the station will display Display Module Test, Press All
Buttons 3X).
To manually upgrade the i-Station panel application code:
1. Install Tera Term. Third party software is available from either of the Eclipse HX 12.0 upgrade
media:
•
Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > Teraterm
•
Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > Teraterm
Tip: For more information about installing Tera Term, see Appendix G: Tera Term
2. Connect the converter cable to the expansion out RJ-45 port (J1) on the i-Station
undergoing the upgrade.
If the cable has separate i-Station and E-station CAT5 cables, the i-Station CAT5
cable is used for the connection to J1 on the i-Station. Connect the other end of the
cable to the serial port of the PC running the Tera Term software.
Note:
The i-Station panel must not be powered while the cable is connected.
Page 213
Eclipse | Upgrade Guide
Figure 14-4: i-Station manual upgrade
3. Start Tera Term.
Configure Tera Term for the appropriate COM port on the PC, as shown in the
following figure.
Select the Serial radio button and then the correct COM port setting for the PC from
the Port drop-down menu. Click OK.
Figure 14-5: Tera Term: COM port setting
4. From the Tera Term main screen select Setup > Serial port….
The serial port setup screen should now be visible. Configure Tera Term with the
following settings:
Field
Setting
Baud
19200
Data
8 bit
Parity
None
Stop
1 bit
Flow Control
None
Table 14-3: Serial port setup screen settings
Page 214
Eclipse | Upgrade Guide
Note:
Do not configure (ignore) the Transmit delay settings.
Click OK.
5. Power up the i-Station panel into maintenance mode by first holding in the recessed
button found on the rear panel during a simultaneous AC power up.
The reset button must be held in until all front panel keys turn bright red and the
front panel display modules show the message Display Module Test’, Press All
Buttons 3x.
Tip: If the recessed button cannot easily be accessed, use a bent paper clip or small
flat blade screwdriver to press the button in.
Figure 14-6: Module display message
Page 215
Eclipse | Upgrade Guide
6. The following Tera-Term boot up message is displayed.
Note:
Do not proceed until you see the boot up message. If you do not see the boot up
message, check your wiring connections and software settings. Repeat steps 1 – 6
Figure 14-7: Boot up message
7. Press the 1 key on the PC keyboard. Press Enter to access the Checksums and
Versions information on the i-Station panel.
The boot code version and application code versions are displayed on the Tera-Term
screen.
Note:
Do not proceed until the version information is displayed, as shown below.
Page 216
Eclipse | Upgrade Guide
Figure 14-8: Version and application code (firmware) versions
8. Before loading the new application code (*.s19 format file), you must erase the
Flash ROM on the i-Station panel.
Press in the 2 key on the PC keyboard and press Enter.
A message is displayed indicating Flash Erasing – Please wait. . After the Flash
ROM is erased, a message is displayed asking you to Download S-record file now.
Figure 14-9: Erasing Flash ROM
9. In File, select the Send File. You are prompted to browse for the i-Station *.s19
file:
Drivers USB > ECLIPSE DRIVERS > Panel Software > i-Station > xxxxxx-iStation App
10. Select the i-Station *.s19 file. Select Open to start the *.s19 file download process
to the Flash ROM of the i-Station panel.
Note:
The download process takes several minutes to complete.
11. When the download process is complete, Tera-Term will display the message on the
PC Download Success!
Exit Tera Term and reboot the i-Station panel to leave maintenance / update mode.
Press 9 on the PC keyboard and then Enter.
The i-Station panel begins its reset process.
Note:
Page 217
Eclipse | Upgrade Guide
When the reset process is underway, the display modules briefly display the updated
firmware version. If the i-Station is re-connected to an Eclipse HX matrix with a valid
configuration press keypad button 9 to access the updated firmware/rack code
version.
Figure 14-10: Example version display
Note:
If the manual upgrade fails repeat the above procedure. It can be necessary to attempt the
manual process up to 3-5 times before the application is installed.
14.3.2 Upgrading the i-Station panel firmware using EHX
Caution: Central upgrade from EHX is not supported on all IStations, when upgrading I-Stations with the serial number 45PC0001
or above you must contact your Clear-Com sales representative first.
Caution: When a firmware upgrade to an i-Station has started, wait
for it to complete on all panels before doing any other changes to the
matrix.
1)
Download the i-Station firmware upgrade to the Eclipse / Eclipse HX
matrix from ECS / EHX.
2)
Provided that the Panel Prompt option is set, the i-Station panel displays the
following message:
UPGRD TO VER nnnnn YES NO
Each word corresponds to a key on the panel, and nnnnn represents the firmware
upgrade number.
Note:
The i-Station panel keys flash, indicating that an upgrade is
available.
Note:
The prompt is displayed provided that the i-Station panel is online.
Page 218
Eclipse | Upgrade Guide
3)
To decline the upgrade, the i-Station user presses the NO key (right-hand
flashing). The i-Station panel returns to its normal display. If the upgrade is
declined it will not be offered again until a black reset (reset and clear all memory)
is performed on the matrix.
To accept the upgrade, the i-Station user:
a. Presses the YES key (left-hand flashing). The i-Station panel displays the
following:
ARE YOU SURE nnnnn YES NO.
Each word corresponds to a key on the panel, and nnnnn represents the
firmware upgrade number.
b. If the user selects the NO key, the upgrade is cancelled and will not be
offered again until a black reset (reset and clear all memory) is performed on
the matrix.
If the user selects the YES key, the firmware upgrade is applied to the iStation panel.
14.3.3 Manually upgrading E-Station application code
The procedure for upgrading the E-station application code is very similar to the procedure
for upgrading the i-Station panel application code (see 14.3.1 Manually upgrading iStation & E-Station panel application code).
To manually upgrade the E-Station:
1. Connect the converter cable to the expansion in RJ-45 port (J1) on the E-station
undergoing the upgrade.
If the cable has separate i-Station and E-station CAT5 cables, the E-station CAT5
cable lead is used for the connection to J1 on the E-station. Connect the other end
of the cable to the serial port of the PC running the Tera-Term software.
Note:
The E-Station must not be powered while the cable is connected.
Figure 14-11: E-Station manual upgrade
Page 219
Eclipse | Upgrade Guide
2. Start Tera Term.
Configure Tera Term for the appropriate COM port on the PC, as shown in the
following figure. Select the Serial radio button and then the correct COM port
setting for the PC from the Port drop-down menu. Click OK.
Figure 14-12: Tera Term: COM port setting
3. From the Tera Term main screen select Setup > Serial port….
The serial port setup screen should now be visible. Select the following settings to
configure Tera Term for updating the E-station:
Field
Setting
Baud
19200
Data
8 bit
Parity
None
Stop
1 bit
Flow Control
None
Table 14-4: Serial port setup screen settings
Note:
Do not configure (ignore) the Transmit delay settings.
Click OK.
4. Power up the E-station into maintenance mode by first holding in the recessed
button found on the rear panel during a simultaneous AC power up.
The reset button must be held in until all front panel keys turn bright red and the
front panel display modules show the message Display Module Test, Press All
Buttons 3x.
Page 220
Eclipse | Upgrade Guide
If the recessed button cannot easily be accessed, use a bent paper clip or small flat
blade screwdriver to press the button in.
The following Tera Term boot up message is displayed.
Figure 14-13: Module display message
Note:
Do not proceed until you see the boot up message. If you do not see the boot up
message, check your wiring connections and software settings. Repeat steps 1 – 6.
Figure 14-14: Tera Term boot up message
5. Before loading the new application code (*.s19 format file), you must erase the
Flash ROM on the E-station.
Press in the 2 key on the PC keyboard and press Enter, a message is displayed
indicating Flash Erasing – Please wait.
Page 221
Eclipse | Upgrade Guide
After the Flash ROM is erased, a message is displayed asking you to Download Srecord file now.
Figure 14-15: Erasing Flash ROM
6. In File, select the Send File. This prompts the user to browse for the correct EStation *.s19 file for download to the unit undergoing the firmware upgrade:
Drivers USB > ECLIPSE DRIVERS > Panel Software > E-Station > xxxxxx-E-Station App
Where xxxxxx represents the product number.
7. When you have selected the E-Station *.s19 file, select Open to start the s19 file
download process to the E-station Flash ROM.
Note:
The download process take several minutes to complete.
8.
When the download process is complete Tera-Term will display the message on the
PC Download Success!
Exit Tera Term and reboot the E-station out of maintenance / update mode.
Press 9 on the PC keyboard and then Enter. The E-station begins its reset process.
Note:
When the reset process is underway, the display modules briefly display the updated
firmware version. If the E-station is re-connected to an Eclipse matrix with a valid
configuration press keypad button 9 to access the updated firmware/rack code
version.
Page 222
Eclipse | Upgrade Guide
Figure 14-16: Example version display
Tip: For help with selecting the other procedures you require for upgrading to EHX V5.2.5,
see the quick reference procedures tables in 2 Selecting Upgrade Procedures.
14.4
Manually upgrading V-Series panels
Before attempting to upgrade V-Series panels, ensure that anti-static precautions are taken,
as the Eclipse HX items are sensitive to static discharges.
Observe all electrical shock hazard warning and precautions for
handling electrostatic sensitive devices
V-Series panels can be manually upgraded using a PC directly connected to the panel.
Before manually upgrading a V-Series Panel, ensure you have the following equipment:
•
An Ethernet crossover cable.
•
A PC with an installed and running TFTP server (there is a TFTP server application
on the EHX USB), or any TFTP server as long as it points to the C:\TFTP folder.
Figure 14-17: PC LAN port connected directly to V-Series Panel Ethernet port
The following components of the V-Series panel can be upgraded either by EHX or directly
Page 223
Eclipse | Upgrade Guide
Component
Description
Upgrade path
U-Boot
This is the very first software which runs when
the panel starts. It initializes hardware and
then starts the kernel running.
Direct only
Kernel
The micro-Linux kernel binary.
Direct only
Kernel Root File
system
The file system containing all the files used
and required by the kernel (servers, utilities,
and so on).
Direct only
Application Files
The Clear-com software which actually runs in
the panel and is used by the system to
operate the panel.
Direct or EHX
Display module Boot
loader
Each bank of six displays forms a single
module. This module is a discrete hardware
component and like the panel itself, has its
software, which runs when the module is
started, which in turn initializes the module
and starts the display module application.
EHX only
Display Module
Application
The software which actually operates the
module, which the panel communicates with
to get the displays to perform.
EHX only
Table 14-5: Upgradeable V-Series components
Direct manual upgrades are described in this section.
Note:
EHX upgrades operate in the same way as all EHX based panel upgrades See 14.1
Upgrading panels using EHX.
To manually upgrade a V-Series panel:
1. Unpack and install the TFTPUtil application.
Tip: For more information about installing the TFTPUtil application on either 32 bit
or 64 bit computers, see Appendix F:TFTPUtil.
2. When the TFTPUtil GUI program has been installed, you can find the program at
Start > Programs> TFTPUtil > TFTPUtil GUI.
Run TFTPUtil.
3. Open My Computer and navigate to your C: drive. Create a new directory called
C:\TFTP.
Page 224
Eclipse | Upgrade Guide
4. In the C:\TFTP directory:
a.
Create another directory called Release.
b. Copy the following file from the Drivers USB to the C:\TFTP\Release
directory:
•
Drivers USB > ECLIPSE DRIVERS > Panel_Software > V-Series >
Main_Board > xxxxxx- Panel UBOOT TFTP Image > u-boot.ldr
Where xxxxxx represents a product number.
c. Copy the following files from the software USB to the C:\TFTP\Release
directory:
•
Drivers USB > ECLIPSE DRIVERS > Panel_Software > V-Series >
Main_Board > xxxxxx- Root File System > rootfs.cramfs
•
Drivers USB > ECLIPSE DRIVERS > Panel_Software > V-Series >
Main_Board > xxxxxx- Panel Kernel > vmImage
•
Drivers USB > ECLIPSE DRIVERS > Panel_Software > V-Series >
Main_Board > xxxxxx - Panel Application > sbin.jffs2
Where xxxxxx represents a product number.
The C:\TFTP > Release directory appears similar to the following:
Figure 14-18: C:\TFTP > Release directory
5. From the Start menu of your PC:
a. Select Settings > Network and Dial-up Connections.
Page 225
Eclipse | Upgrade Guide
b. Double click Local Area Connection and click Properties.
c. In the This connection uses the following items box, select Internet
Protocol (TCP/IP) and select Properties.
Tip: Make a note of all information in this window in case of later problems
with networking.
d. Select the Use the following IP address radio button and enter
172.16.5.50 into the IP address line. Set the Subnet mask to 255.255.0.0.
Note:
It is advisable to switch off any wireless Wi-Fi connections that maybe
running on your PC when doing this upgrade.
6. Start the TFTP server application.
7. Click the options icon (spanner) to display the options window. Check that the
C:\TFTP\ folder is set as the path.
Figure 14-19: TFTPUtil Options
8. Select the icon with two blue cogs on the left hand side of the window. Check the
settings as below.
Page 226
Eclipse | Upgrade Guide
Figure 14-20: TFTPUtil settings
9. If a firewall is running it may request permission for the program to have access
when the TFTP server is run for the first time. Click Yes. Click OK and OK again.
10. Check that your PC IP address is correctly displayed on the main header of the TFTP
application:
Figure 14-21: Checking the PC IP address
11. Connect an Ethernet cross-over cable from the PC to the Ethernet port at the back of
the V-series panel and disconnect the cable that connects to the matrix.
Your PC is now ready to act as a file server to a V-series panel and the panel is now
ready to be told which files to upload.
12. To upgrade the V-Series U-Boot Loader:
a. Press and hold down both the MAIN and AUX knobs on the V-Series Panel
while applying a reset.
Page 227
Eclipse | Upgrade Guide
The reset may be applied by either power cycling the panel or poking a paper
clip into the reset hole between the H/S and MENU buttons.
b. The 4 function button LEDs (Mic On, H/S, Shift and Menu) will flash. Press
and release the H/S button then press and release the Shift button to trigger
the U-Boot code upload.
Note:
As the upload proceeds, the AUX and MAIN lights on the panel will gradually
change from green to amber and then red. This process may take a few
minutes.
c. When the upload is complete, the panel will reset itself, completing the
procedure. After the panel has reset the display will either go blank or
display the versions.
13. To upgrade the V-Series Kernel, Root File System and Application files:
a. Press and hold down both the AUX and MAIN knobs whilst applying a reset.
The reset may be applied by either power cycling the panel or poking a paper
clip into the reset hole between the H/S and MENU buttons.
b. The 4 function button LEDs (Mic On, H/S, Shift and Menu) will flash. Press
and release the Shift button to trigger the Kernel, Root File System and
Application files upload.
Note:
As the upload proceeds, the AUX and MAIN lights on the panel will gradually
change from green to amber and then red. This process may take a few
minutes.
c. When the upload is complete, the panel will reset itself, completing the
procedure.
Wait until the panel completely resets itself and displays the offline status
screen before powering down the panel (example shown below).
Page 228
Eclipse | Upgrade Guide
Figure 14-22: Panel after update reset
Notes:
After the V-Series panel has been upgraded using the TFTP server some of the level
settings may be disabled. IP settings will also be lost. To restore the level and IP
settings, download a map from EHX using the Clear Matrix Data option.
14.4.1 Upgrading the V-Series Display Module
The only upgradeable component in a V-Series expansion panel is the Display Module.
When the parent V-series panel has its Display Module updated, the updates are
automatically propagated to the expansion panels.
However, this only occurs if the expansion panel is plugged in at the time the parent panel
is upgraded. Expansion panels connected afterwards are not upgraded.
The Display Module upgrade is only performed using EHX. The required files (*.fwp format)
are available from the Drivers USB:
•
Drivers USB > ECLIPSE DRIVERS > Panel_Software > V-Series > Display_Module >
xxxxxx-Display PIC Boot Loader
•
Drivers USB > ECLIPSE DRIVERS > Panel_Software > V-Series > Display_Module >
xxxxxx-Display PIC Application Code
Where xxxxxx represents a product number.
For more information, see 14.1.1 Locating Panel *.fwp files on the software USB.
Page 229
Eclipse | Upgrade Guide
15
Upgrading the TEL-14 module
This chapter describes how to upgrade the TEL-14 module, including how to:
•
Replace the TEL-14 processor.
•
Re-fit TEL-14 modules.
•
Update TEL-14 firmware.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see
3 Quick reference: Upgrading to Eclipse HX.
15.1
Upgrading the TEL-14 hardware
To upgrade the TEL-14 hardware, you require the following equipment:
•
The old Tel-14 card
•
The replacement TEL-14 processor module.
•
Flash Magic Software. Third party software is available from either of the
Eclipse HX 12.0 upgrade media:
Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software >
FlashMagic
Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > FlashMagic
Tip: For more information about installing Flash Magic, see
Appendix H: Flash Magic.
•
TEL-14 application software. The TEL-14 application software (*.HEX format
file) is available from the software USB:
Drivers USB > ECLIPSE DRIVERS > Other_Software >xxxxxx-TEL-14
Application
Where xxxxxx represents the product number.
To upgrade the TEL-14 hardware:
1. Remove the four screws securing the front panel and remove the front panel.
2. Remove the three screws securing the PCB without the backplane connector and
open the two cards up. It is not necessary to disconnect the two cards.
Page 230
Eclipse | Upgrade Guide
3. Remove the original processor (IC20) from its socket.
Figure 15-1: original IC20 in position
4. Replace the old processor with the new processor module, ensuring that it is
correctly positioned.
Tip: The blue serial connector should be farthest away from the front panel.
Page 231
Eclipse | Upgrade Guide
Figure 15-2: replacement processor module in position
15.2
Upgrading the TEL-14 firmware
To upgrade the TEL-14 firmware:
1. Ensure that you have the following equipment:
Required equipment
Description / comments
MVX-A16 serial upgrade
cable (Clear-Com part
CAB-MVX-48Z)
See:
Figure 28: MVX-A16 Serial upgrade cable.
Third party software is available from either of the
Eclipse HX 12.0 upgrade media:
• Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > FlashMagic
Flash Magic
•
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > FlashMagic
Tip: For more information about installing Flash
Magic, see Appendix H: Flash Magic.
*.HEX file to upload
TEL-14 application software. The TEL-14
application software (*.HEX format file) is
available from the software USB:
• Drivers USB > ECLIPSE DRIVERS >
Other_Software >xxxxxx-TEL-14
Application
Where xxxxxx represents the product number.
Table 15-1: Required equipment
2. Connect the PC to the Serial Programming port of the TEL-14 processor card, as
shown in the following figure.
Page 232
Eclipse | Upgrade Guide
Figure 15-3: Processor module with serial cable attached
Note:
For correct connector orientation, the wires must exit the plug on the top side as
shown.
3. Power up the TEL-14.
4. Start Flash Magic. Configure the following settings for the 5 purple numbered
boxes in the Flash Magic dialog:
Box
Setting(s) to enter
1
The COM port to which you are connected.
Baud Rate: 2400
Device: 89LPC935
Oscillator Frequency: 3.5795 MHz
2
Select Erase blocks used by Hex File
3
Enter the name of the file (710756Z .hex) to be loaded, or use
Browse to locate the file.
4
Ensure all boxes are clear
5
Do not press Start.
Table 15-2: FlashMagic settings
Page 233
Eclipse | Upgrade Guide
Figure 15-4: FlashMagic configuration dialog
5. In the menu options along the top of the Flash Magic dialog, select ISP (second
option from the left).
From the drop-down menu, select Start Bootloader.
Figure 15-5: Start Bootloader dialog
Page 234
Eclipse | Upgrade Guide
6. Ensure that Send Break Condition is checked, then press Start Bootloader.
7. The configuration dialog is re-displayed after a few seconds. In box 5, press Start.
Note:
The status bar along the bottom displays Programming device, and the progress
bar displays the state of the operation.
After about 20 seconds, Finished is displayed in the status bar. The device has now
been reprogrammed. Power cycle the TEL-14 to activate the new firmware.
Page 235
Eclipse | Upgrade Guide
16
Upgrading the AES-6 module
This chapter describes how to upgrade the application code of the AES-6 interface module.
Before attempting any upgrade of the AES-6 card, ensure that anti static precautions are
taken, as the Eclipse HX devices are sensitive to static discharges.
Observe all electrical shock hazard warning and precautions for
handling electrostatic sensitive devices
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see 3 Quick reference:
Upgrading to Eclipse HX.
To upgrade the AES-6 application code:
1. Ensure you have the following equipment:
Required equipment
Description / comments
PC with a serial port
A USB-to-serial adapter is usually acceptable.
CellCom / FreeSpeak
/ FreeSpeak II
(FSBP) registration
cable
PD4007Z, DB-9 to 3.5mm jack.
The appropriate AES6 application code file
(*.mot file)
The AES-6 application code (*.mot format file) is
available from the software USB:
Drivers USB > ECLIPSE DRIVERS >
Other_Software > xxxxxx - AES-6 Application
(where xxxxxx represents the product number)
Hitachi Renesas Flash
Development Toolkit
(FDT)
Third party software is available from either of the
Eclipse HX 12.0 upgrade media:
•
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > Hitachi_FDT
•
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > Hitachi_FDT
Tip: For more information about installing the Hitachi
Renesas FDT, see Appendix E:Hitachi Renesas
Page 236
Eclipse | Upgrade Guide
Flash Development Tool.
Table 16-1: Required equipment
2. Fit the AES-6 card to either the IMF-3 interface frame or Eclipse HX-Median Matrix. If there
is a jumper on J6, move the jumper to J3.Reset or power-cycle the card so the
jumper change takes effect.
3. Connect the serial cable to the front of the AES-6.
4. Run Flash Development Toolkit BASIC (FDT). Configure the FDT (Options > New
Settings) as follows:
FDT field
Setting
Select Device
H8S/2318F
Select Port
COM1 (change to match COM port present on the PC)
CPU Frequency
25.0000 MHz
Connection
BOOT mode
Recommended Speed
Deselect Use Default and set to 9600
Protection
Automatic
Messaging
Advanced
User data
Selected (Checked)
Table 16-2: FDT settings
5. Navigate to the AES-6 application code (*.mot format file) on the software USB:
Drivers USB > ECLIPSE DRIVERS > Other_Software > xxxxxx - AES-6
Application
Where xxxxxx represents the product number).
6. Select Program Flash and download the AES-6 application code (*.mot format
file).
7. When the download is complete, move the jumper on J3 back to J6. Reset or powercycle the card.
Note:
If an FPGA image is present, the card will now run normally. If an FPGA image is not
present, you will be prompted for an FPGA image. See 3.33.1 Upgrading AES-6
FPGA.
Page 237
Eclipse | Upgrade Guide
16.1
Upgrading AES-6 FPGA
Before attempting any upgrade of the AES-6 card, ensure that anti static precautions are
taken, as the Eclipse items are sensitive to static discharges.
Observe all electrical shock hazard warning and precautions for
handling electrostatic sensitive devices
Tip: For help with selecting the other procedures you require for upgrading to EHX V5.2.5,
see the quick reference procedures tables in 2 Selecting Upgrade Procedures.
To upgrade the AES-6 FPGA:
1. Ensure you have the following equipment:
Required equipment
Description / comments
PC with a serial port
A USB-to-serial adapter is usually acceptable.
CellCom / FreeSpeak /
FreeSpeak II (FSBP)
registration cable
PD4007Z, DB-9 to 3.5mm jack.
The appropriate AES-6
FPGA code file
The AES-6 FPGA code is available from the Drivers
USB:
Drivers USB > ECLIPSE DRIVERS >
Other_Software > xxxxxx - AES-6 FPGA
(where xxxxxx represents the product number)
Tera Term terminal
software
Third party software is available from either of
the Eclipse HX 12.0 upgrade media:
Software USB > SOFTWARE - EHX.xxx >
3rd_Party_Software > Teraterm
Drivers USB > ECLIPSE DRIVERS >
3rd_Party_Software > Teraterm
Tip: For more information about installing Tera
Term, see Appendix G: Tera Term
Table 16-3: Required equipment
Page 238
Eclipse | Upgrade Guide
2. Fit the AES-6 card to a parent unit.
3. Run TeraTerm. Configure the serial settings to the following:
Serial setting
Setting
Baud rate
57600
Parity
None
Data Bits
8
Stop Bits
1
Flow Control
None
Table 16-4: Tera Term serial settings
4. Reset or power-cycle the module.
5. At this point, the procedure varies depending on whether or not an FPGA image is
already present.
If there is an FPGA image present:
a. After the reset, the following output will be shown in the TeraTerm window:
Page 239
Eclipse | Upgrade Guide
Figure 16-1: AES-6 FPGA upgrade using Tera Term
Type testmode into the Tera Term window and press Enter (return). The
card enters test mode and displays the following menu:
Figure 16-2: AES-6 main menu
b. Select option 6, Download FPGA Image.
Page 240
Eclipse | Upgrade Guide
c. You are prompted to delete the old FPGA image. Press Y.
Note:
Key entry is case sensitive, so Y must be a capital.
The card deletes the old image and then prompts you for a new FPGA image:
d. In Tera Term, select Send File and select the FPGA image, which is located
on the Drivers USB:
•
Drivers USB > ECLIPSE DRIVERS > Other_Software > xxxxxx - AES-6 FPGA
(where xxxxxx represents the product number).
Note:
During the download the six yellow LEDs illuminate in a circulating anticlockwise direction.
e. When the download is complete, the six yellow LEDs should be off and the
following text should be displayed in TeraTerm:
Figure 16-3: FPGA HEX file load
f.
Reset the card to complete the upgrade.
If the FPGA image is not present:
a. After the reset, the following output will be shown in the TeraTerm window:
Page 241
Eclipse | Upgrade Guide
Figure 16-4: AES-6 FPGA HEX file load
The card is ready to load the FPGA image. In Tera Term, select Send File and
select the FPGA image, which is located on the Drivers USB:
•
Drivers USB > ECLIPSE DRIVERS > Other_Software > xxxxxx - AES-6 FPGA
(where xxxxxx represents the product number).
b. During the download the six yellow LEDs illuminate in a circulating anticlockwise direction. When the download is complete, the following text should
be displayed in TeraTerm:
Figure 16-5: FPGA upgrade completed
c. Reset the card to complete the upgrade.
Page 242
Eclipse | Upgrade Guide
17
Upgrading FreeSpeak II™ wireless systems
This chapter describes how to upgrade FreeSpeak II beltpacks and transceivers supported
by Eclipse HX.
Supported FreeSpeak II beltpacks and transceivers may be upgraded using an installed and
configured copy of EHX and an active Eclipse HX matrix, or via a USB connection from
within EHX.
Note:
This guide is laid out in the order in which you must upgrade your Eclipse HX software and
hardware devices. For a quick reference to upgrading your system, see
3 Quick reference: Upgrading to Eclipse HX.
17.1
Upgrading FreeSpeak II Beltpacks and transceivers
centrally using EHX
There is currently a limitation that applies to upgrading FreeSpeak II beltpacks Over The Air
(OTA) using EHX. It applies to specific firmware versions. Refer to the table below for more
information.
Start beltpack
firmware
New beltpack
firmware
Transceiver type
Result
V 1.09 or earlier
V 2.14 or later
E1
Upgrades successfully
V 1.09 or earlier
V 2.14 or later
IPT
Upgrade fails during the
verification stage of the
beltpack.
V 2.14 or later
V 2.14 or later
E1
Upgrades successfully
V 2.14 or later
V 2.14 or later
IP
Upgrades successfully
There is no limitation for upgrading using USB.
FreeSpeak II beltpacks and transceivers can be upgraded centrally via EHX in a similar
fashion to upgrading panel software. This allows multiple beltpacks or transceivers to be
upgraded simultaneously.
The download of a FreeSpeak II application requires an *.fww format file, which is located
on the drivers USB. This must be placed in a location that is accessible by the installed EHX
application.
Note:
The Eclipse HX v12.0 contains all the firmware files required for upgrading a FreeSpeak II
Page 243
Eclipse | Upgrade Guide
beltpack or transceiver.
The download of a beltpack application requires:
•
An operational Eclipse HX matrix with the beltpacks registered, connected and powered.
•
A suitable EHX configuration (with the correct IP address configured, if an Ethernet connection is
used).
Once the beltpack *.fww format file is downloaded to the Eclipse HX matrix, all beltpacks
of the same type will be upgraded at the same time through an automatic download from
the matrix to the beltpack. The beltpack *.fww file will be stored so that if any beltpack
subsequently connects to the matrix, an upgrade can still be performed.
The download of a transceiver application requires:
•
An operational Eclipse HX matrix with the transceivers configured, connected and powered.
•
A suitable EHX configuration (with the correct IP address configured, if an Ethernet connection is
used).
Once the transceiver *.fww format file is downloaded to the Eclipse HX matrix, all
transceivers of the same type will be upgraded at the same time through an automatic
download from the matrix to the transceiver.
To upgrade FreeSpeak II beltpack or transceiver application code using EHX:
1. Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an Ethernet or
serial communications
port
-
EHX software
EHX must be installed and configured.
EHX configuration file /
map
-
Ethernet or serial cable for
the PC-to-matrix
connection
-
Appropriate *.fww format
application
The appropriate *.fww format beltpack and
transceiver code is available from the software
USB
Table 45: Required equipment
2. Start EHX on the PC.
Page 244
Eclipse | Upgrade Guide
3. Connect the PC to the matrix using either Ethernet or serial communications port.
4. Open the EHX configuration map within EHX.
5. Select System > Layout.
6. Right click the matrix and then select Firmware> Update Firmware.
7)
The update firmware wizard dialogue is displayed. Click Next and ensure that the
Wireless radio button is selected. The Wireless radio button will only be availableif
you have an E-Que FSII-TA transceiver or E-Que FSII-TA Splitter card configured in
your matrix configuration.
In Options:
•
Selecting Automatic mode forces beltpacks or transceivers to upgrade
automatically.
•
Selecting Prompted mode means that each beltpack user will be asked to
accept / decline the beltpack upgrade. If you select this option when
upgrading a transceiver, the matrix will function as in Automatic mode.
8. Click Next and then browse to the appropriate *.fww file.
9. Click Next and confirm that the details displayed are correct.
10. Click Next and confirm that the download commences.
11. When the download has completed, click Finish to close the update firmware wizard.
Page 245
Eclipse | Upgrade Guide
12. The matrix will transmit the *.fww file to the transceivers – this process takes
approximately 9-10 minutes. The progress of transmitting the *.fww file to the
transceivers can be tracked using the Event Log from EHX.
13. Once the file has been transmitted, if the *.fww file contains transceiver code, the
transceivers will update themselves and restart.
14. If the *.fww file contains beltpack code, the file will be transmitted to the beltpacks,
which will indicate their progress. Upon completion of the upgrade, the beltpacks will
restart.
15. Confirm the updated firmware version using either:
•
•
17.2
The EHX firmware report tool:
-
Go to EHX > System > layout.
-
Right click the matrix icon.
-
Select Firmware > Firmware report.
The local menu on the beltpack.
Upgrading FreeSpeak II beltpacks and non-IP
transceivers via USB
FreeSpeak II beltpacks and transceivers can be upgraded via a micro USB cable connected
directly to the device. This allows direct upgrading of a single device without the need to be
connected to an active matrix.
The download of a FreeSpeak II application requires an *.fws format file, which is located
on the software USB. This must be placed in a location that is accessible by the installed
EHX application.
Note:
The Eclipse HX v12.0 contains all the firmware files required for upgrading a FreeSpeak II
beltpack or transceiver.
The download of a beltpack application requires:
•
A powered beltpack connected to a PC via a USB connection
•
A copy of EHX installed with the appropriate USB drivers (part of a standard EHX installation)
To upgrade FreeSpeak II beltpack or transceiver application code via USB using EHX:
Page 246
Eclipse | Upgrade Guide
1. Ensure that you have the following equipment:
Required equipment
Description / comments
PC with an USB port
-
EHX software
EHX must be installed and configured.
USB to Micro USB cable
The appropriate *.fws format beltpack and
transceiver code is available from the software
USB
Appropriate *.fws format
application
Table 46: Required equipment
2. Start EHX on the PC.
3. Connect the FreeSpeak II beltpack or transceiver to the PC using either a micro USB
cable.
4. Select Tools->Apply Wireless Firmware Via USB from the EHX menu.
5. The Update Wireless Firmware Via USB Dialog will now appear.
6. Click Browse and then browse to the appropriate *.fws file.
7. Click Update Firmware to begin the update process.
8. A bar will indicate the progress of the upgrade process. It may take 10-20 seconds to
initially connect to the device and begin the upgrade.
9. When the upgrade has completed, EHX will display a message box indicating whether
the upgrade has been successful. The beltpack or transceiver device should restart
itself.
10. Confirm the updated firmware version using either:
•
•
Page 247
The local menu on the beltpack.
The EHX firmware report tool:
-
Connect the device to the matrix and allow it to connect.
-
Go to EHX > System > layout.
-
Right click the matrix icon.
Eclipse | Upgrade Guide
-
17.3
Select Firmware > Firmware report.
Upgrading the FS II IP Transceiver firmware
You can upgrade the IP transceiver firmware by:
• Upgrading from the matrix (the file extension for the upgrade firmware is .fww)
•
Using a USB connection (the file extension for the upgrade firmware is .fws)
17.3.1 Upgrading from the matrix
Note:
1)
Right-click on the Frame in the Layout window, and then select Firmware >
Update Firmware. The Update Firmware Wizard appears.
2)
Select Next. The following screen appears:
For IPT Transcievers, the Auto/Promoted radio button is always set to Auto.
3)
Select the Wireless radio button.
4)
Select Next, and then browse to the upgrade file (.tar.gz) and select Open. The
upgrade file is loaded to the transceiver, and the transceiver restarts. You can track
the status of the download in the EHX Event Log.
17.3.2 Upgrading by USB connection
Place the *tar.gz upgrade image onto a USB stick in a folder named firmware_upgrade
located in the root of the USB FAT32 file system.
Note:
Make sure that there is only one upgrade image in the folder. If not, the incorrect image
might be upgraded.
The upgrade will begin automatically when you insert the USB stick.
Page 248
Eclipse | Upgrade Guide
Note:
Both status LEDs will flash light blue once per second for 5 seconds on successful detection
of the upgrade file. Both status LEDs will light solid red if there is an error duing the
upgrade.
Page 249
Eclipse | Upgrade Guide
18
Upgrading FreeSpeak Edge
This chapter describes how to upgrade FreeSpeak Edge beltpacks and transceivers
supported by Eclipse HX.
18.1
Upgrading FreeSpeak Edge transceivers
You can upgrade the transceiver firmware by:
• Upgrading from the matrix (the file extension for the upgrade firmware is .ccf)
• Using a USB connection (the file extension for the upgrade firmware is .ccf)
18.1.1 Upgrading from the matrix
1)
Right-click on the Frame in the Layout window, and then select Firmware >
Update Firmware. The Update Firmware Wizard appears.
2)
Select Next. The following screen appears:
Note:
For the Edge transceivers, the Auto/Promoted radio button is
always set to Auto.
3)
Select the Wireless radio button.
4)
Select Next, and then browse to the upgrade file (.ccf) and select Open. The
upgrade file is loaded to the transceiver, and the transceiver restarts.
You can track the status of the download in the EHX Event Log.
Page 250
Eclipse | Upgrade Guide
18.1.2 Upgrading by USB connection
Place the *.ccf upgrade image onto a USB stick in a folder named firmware_upgrade located
in the root of the USB FAT32 file system.
Note:
Make sure that there is only one upgrade image in the folder. If not, the incorrect image
might be upgraded.
The upgrade will begin automatically when you insert the USB stick.
Note:
18.2
Both status LEDs will flash light blue once per second for 5 seconds on successful detection
of the upgrade file. Both status LEDs will light solid red if there is an error during the
upgrade. When upgrade is complete, both status LEDs will flash green.
Upgrading FreeSpeak Edge beltpacks
You can upgrade the FreeSpeak II beltpack firmware by:
• Using a USB connection (the upgrade file for USB has a .ccu extension).
• Using an Over The Air upgrade.
18.2.1 Upgrading by USB connection
1)
Connect the beltpack to a USB port on the computer running the EHX software.
2)
Select Tools > Apply Wireless Firmware Via USB.
3)
Browse to the location of the upgrade file, and then select Update Firmware. The
upgrade file for USB has a .ccu extension.
The upgrade file is downloaded to the beltpack or transceiver.
Note:
FreeSpeak Edge beltpacks must be upgraded individually.
18.2.2 Upgrading beltpack firmware by Over The Air Upgrade
You must first upgrade the transceivers before upgrading the beltpacks.
When enable OTA registration on the beltpack is on, upgrade is disabled. Upgrade is reenabled when registration is finished.
FreeSpeak Edge beltpacks must be upgraded one by one.
For OTA upgrade, the beltpack must be within 15- 20 meters (50 to 66 feet) of the
transceiver.
1)
Right-click on the Frame in the Layout window, and then select Firmware >
Update Firmware. The Update Firmware Wizard appears.
2)
Select Next. The following screen appears
Page 251
Eclipse | Upgrade Guide
3)
Select the Wireless radio button. Select the Automatic option.
4)
Select Next, and then browse to the upgrade file (.ccu) and select Open. The
upgrade file is downloaded to the connected beltpack.
Upgrade status is shown on the beltpack display and also in the EHX Event Log.
Page 252
Eclipse | Upgrade Guide
Appendix A: CPU card layout
Figure 18-1: Eclipse HX-Median / Eclipse HX-Omega / Eclipse
HX-Delta CPU card layout
Page 253
Eclipse | Upgrade Guide
Appendix B: CPU card DIP switches
Test mode settings for CPU card DIP switches
Serial download settings for CPU card DIP switches
Page 254
Eclipse | Upgrade Guide
Normal running (watchdog enabled) settings for CPU card DIP switches
Page 255
Eclipse | Upgrade Guide
Appendix C: PiCo card layout
Page 256
Eclipse | Upgrade Guide
Page 257
Eclipse | Upgrade Guide
Appendix D: Eclipse HX-PiCo CPU DIP
switches
Figure 18-2: Test mode settings for Eclipse HX-PiCo DIP switches
Figure 18-3: Serial download settings for Eclipse HX-PiCo DIP switches
Page 258
Eclipse | Upgrade Guide
Figure 18-4: Normal running (watchdog enabled) settings for Eclipse HX-PiCo DIP switches
Page 259
Eclipse | Upgrade Guide
Appendix E: Hitachi Renesas Flash
Development Tool
To install and configure the Hitachi Renesas Flash Development Tool (FDT):
1.
Navigate to the installation file on the Eclipse installation USB:
USB\3rd_Party_Software\Hitachi_FDT\fdt3_04.exe
Double click to install.
Note:
Later versions can be downloaded from
http://www.renesas.com/products/tools/flash_prom_programming/fdt/download_search_results.jsp#
2. When the installation file is run, the installer displays a series of setup screens to
configure the installation.
Figure 18-5: Initial install screen
Click Next.
Page 260
Eclipse | Upgrade Guide
3. Select the required language (International English, Asia (Japanese), Asia
(English)).
Figure 18-6: Language selection
Click Next.
4. Click Yes to accept the license conditions. The installer then displays the Select
Components screen:
Page 261
Eclipse | Upgrade Guide
Figure 18-7: Select Components
Note:
It may be advisable to uncheck the Microsoft System Files checkbox as the versions
of system files in the installation may be older than those currently on the system. If
these files are required then the software can be uninstalled and then reinstalled
with the system files.
Click Next.
5. The Additional Information (Application) screen is displayed. Leave the default
options selected unless this causes an issue for other installed software.
Page 262
Eclipse | Upgrade Guide
Figure 18-8: Additional Information (Application)
Click Next.
6. The Kernels screen (Part 1) is displayed. Leave as is, unless you want to reduce the
amount of disk space used by reducing the number of kernels installed.
Figure 18-9: Kernels 1
Page 263
Eclipse | Upgrade Guide
Click Next.
7. The Kernels screen (Part 2) is displayed. Leave as is, unless you want to reduce the
amount of disk space used by reducing the number of kernels installed.
Figure 18-10: Kernels 2
Click Next.
8. The Select Destination Directory screen is displayed. The default installation
directory is usually recommended.
Page 264
Eclipse | Upgrade Guide
Figure 18-11: Select Destination
Click Next.
9. The Select Start Menu Group screen is displayed. The default menu can be used or
the programmer can be added to the Clear-Com menu.
Page 265
Eclipse | Upgrade Guide
Figure 18-12: Select Start Menu Group
Click Next.
10. The Ready to Install screen is displayed. Click Install. The files will be installed in
the selected directory.
Figure 18-13: Ready to install
11. When the installation is complete a completion screen is displayed:
Page 266
Eclipse | Upgrade Guide
Figure 18-14: Installation completed
To exit the installer, click Finish.
Page 267
Eclipse | Upgrade Guide
Appendix F: TFTPUtil
To install the TFTPUtil tool:
1.
Navigate to the installation file on the Eclipse installation USB.
USB\3rd_Party_Software\V-Panel TFTO Server
App\TFTPUtil_GUI_Version_1.3.0_Installer.exe
2. When the installation file is run, the installer will display a series of setup screens to
configure the installation. The first screen is the License Agreement. Click I Agree.
Figure 18-15: License Agreement
3. The TFTPUtil Components screen is displayed. Accept the defaults and click Next.
Page 268
Eclipse | Upgrade Guide
Figure 18-16: Components
4. The Installation Folder destination screen is displayed. Accept the default
destination folder unless it clashes with other system setups. Click Install.
Figure 18-17: Installation Folder destination screen
5. When the installation is completed, click Close to exit the installer. If the defaults
were accepted the TFTPUtil server can be run from Programs under TFTPUtil.
TFTPUtil on Vista and Windows 7 PCs
Page 269
Eclipse | Upgrade Guide
The TFTP Util TFTP server has been known to fail on Vista or Windows 7 PCs. In this case,
you use any TFTP server that is known to work on your PC.
The TFTP servers below are known to operate on Vista or Windows 7 PCs. Install the server
and point the server to the C:\TFTP folder as described above.
Win Agents TFTP server
The server is available from either of the Eclipse HX v12.0 upgrade media:
Software USB \3rd_Party_Software > V-Panel TFTP Server App > tftpserversetup.exe
Drivers USB \3rd_Party_Software > V-Panel TFTP Server App > tftpserversetup.exe
Alternatively, it can be downloaded from http://tftp-server.com.
SolarWinds TFTP server
http://www.solarwinds.com/products/freetools/free_tftp_server.aspx
tftp32 server
http://tftpd32.jounin.net/tftpd32_download.html
Note:
Select the 32 or 64 bit installer.
Page 270
Eclipse | Upgrade Guide
Appendix G: Tera Term
To install Tera Term:
1.
Navigate to the installation file on the Eclipse installation USB:
USB\3rd_Party_Software\Teraterm
Use the latest supplied xx.exe file.
2. Open the file with WinZip and execute Setup.exe to start the Tera Term installation.
The language options screen will be displayed.
Figure 18-18: Language selection
Select the required language mode and click Continue.
3. You are asked to close any old versions of Tera Term that are running. Close any old
versions and click Continue.
4. The Destination Path screen is displayed. Enter the required installation directory
name if it is different to the default. It is recommended that the default is used.
Click Continue.
Page 271
Eclipse | Upgrade Guide
Figure 18-19: Destination Path
The Installation complete screen is displayed. To exit the installer, click OK.
Figure 18-20: Installation complete
TIP: The Tera Term application is used for many of the Eclipse system upgrade
processes. You can save and recall the relevant com port settings by selecting the
Setup / Save or restore settings options.
Page 272
Eclipse | Upgrade Guide
Appendix H: Flash Magic
To install Flash Magic:
1.
Navigate to the installation file on the Eclipse installation USB.
USB\3rd_Party_Software\FlashMagic\FlashMagic.exe
2. Execute the file to start the installation. The Flash Magic Setup Wizard welcome
screen is displayed. Click Next.
Figure 18-21: Welcome screen (installer)
3. The License Agreement screen is displayed. Accept the agreement and click Next.
4. The Select Destination Location screen is displayed. Select the destination folder
for FlashMagic (normally the default is accepted). Click Next.
Page 273
Eclipse | Upgrade Guide
Figure 18-22: Select Destination Location
5. The Select Start Menu Folder is displayed. Select the Start menu folder for Flash
Magic; (normally the default is accepted). Click Next.
Figure 18-23: Select Start Menu Folder
6. The Select Additional Tasks screen is displayed. Select Create a Desktop icon
and / or Quick Launch icon, if desired. Click Next.
Page 274
Eclipse | Upgrade Guide
Figure 18-24: Select Additional Tasks
7. The Ready to Install screen is displayed. Click Install.
Figure 18-25: Ready to Install
8. When the installation is complete, the completion screen is displayed.
Page 275
Eclipse | Upgrade Guide
Figure 18-26 Completion screen
Click Finish to exit the installer.
Page 276
Eclipse | Upgrade Guide
Appendix I: i-Station converter cable wiring
and rear panel layouts
Figure 18-27: Converter cable wiring example for i-Station serial programming
Page 277
Eclipse | Upgrade Guide
RESET BUTTON
Figure 18-28: i-Station rear panel layout
RESET BUTTON
Figure 18-29: E-Station rear panel layout
Page 278
Eclipse | Upgrade Guide
Appendix J: Xilinx tools
Xilinx programming tools are used to upgrade FPGA and CLPD code. For more information
about using this specialized equipment, contact your Clear-Com technical support
representative.
The following cards and matrices can be upgraded using Xilinx tools:
•
CPU card (CPLD).
•
MVX-A16 (FPGA).
•
E-QUE / IVC-32 / LMC-64 (FPGA).
•
E-FIB (FPGA).
•
E-MADI64 (FPGA).
Note:
The E-MADI64 FPGA can also be upgraded using EHX. For more information, see
11.3 Upgrading the E-MADI64 application, DSP and FPGA code using EHX.
•
Eclipse HX-PiCo matrix (FPGA).
To program the Flash PROM, you require a PC or laptop with the Xilinx iMPACT
programming software and a Xilinx Download Cable (such as Xilinx HW-USB-II-G or
Digilent 6003-410-011) is required.
The Xilinx programming tool, Xilinx iMPACT, may be obtained by downloading ISE
WebPACK™ from:
https://www.xilinx.com/support/download/index.html/content/xilinx/en/downloadNav/vivado-designtools/archive-ise.html
Note:
You must create an account at the Xilinx website, and accept a license agreement, before
you can download ISE WebPACK™.
Tip: A number of Found new hardware dialogs will display when the programming device
is plugged into the USB port of the PC or laptop. Clear-Com recommends installing the
software (which also installs the necessary drivers) before you plug in the device, to reduce
the number of dialogs.
Page 279
Eclipse | Upgrade Guide
Appendix K: Clear-Com®End User Software
License
IMPORTANT: CAREFULLY READ THE FOLLOWING BEFORE USING THIS SOFTWARE.
USING THE SOFTWARE INDICATES YOUR ACKNOWLEDGMENT THAT YOU HAVE
READ THE FOLLOWING AND AGREE TO ITS TERMS.
IF YOU DO NOT AGREE, RETURN THE SOFTWARE COMPLETE TO CLEAR-COM OR
YOUR CLEAR-COM REPRESENTATIVE AND CANCEL THE INSTALLATION.
THIS IS YOUR PROOF THAT YOU HAVE A VALID LICENSE. PLEASE TREAT IT AS
VALUABLE PROPERTY.
HME CLEAR-COM LIMITED OR CLEAR-COM LLC., as the case may be (hereinafter
referred to as “CLEAR-COM”), offers you this storage media containing a computer
program and files (the “SOFTWARE”) and offers to grant to you a non-exclusive
and non-transferable License to use the Software on the following terms. Any new
revision or update of the Software provided by CLEAR-COM to Customer under this
License shall be governed by the terms and conditions of this License.
SOFTWARE LICENSE AGREEMENT
END USER LICENSE AGREEMENT
PLEASE READ THIS END USER LICENSE AGREEMENT (“Agreement”). BY DOWNLOADING OR
INSTALLING SOFTWARE (DEFINED BELOW), OR BY USING HARDWARE (DEFINED BELOW),
YOU AND ANY ENTITY YOU REPRESENT (“Licensee”) AGREE TO BE BOUND BY THIS
AGREEMENT WITH CLEAR-COM LLC (“Licensor”). IF LICENSEE DOES NOT AGREE TO ALL OF
THE TERMS OF THIS AGREEMENT, THEN DO NOT DOWNLOAD, INSTALL OR USE THE
SOFTWARE.
This Agreement governs Licensee’s use of the Software unless the particular software is
subject to a separate written agreement between Licensor and Licensee that is signed by
Licensor.
1.
Definitions.
1.1.
“Authorized Modules” means those modules of the Software identified by Licensor in
writing designated as authorized for Licensee’s use and for which Licensee has paid the
applicable fees.
Page 280
Eclipse | Upgrade Guide
1.2.
“Documentation” means the then-current printed, online, and/or electronic
documentation, if any, that is provided by Licensor to Licensee describing the use of the
Software and/or Hardware. “Documentation” does not include any sales or marketing
materials.
1.3.
“Effective Date” means the date that Licensee installs or otherwise uses any
Software or Hardware, as may be updated from time to time.
1.4.
“Exclusions” is defined in Section 5.4 (Exclusions).
1.5.
“Evaluation Software” means any Software provided to Licensee for evaluation
purposes or otherwise designated by Licensor as evaluation software, as may be provided
by Licensor from time to time in Licensor’s sole discretion and as specified in a separate
written agreement between Licensor and Licensee.
1.6.
“Hardware” means the hardware sold or otherwise provided by Licensor to Licensee,
which includes embedded Software.
1.7.
“Improvements” means modifications, improvements, derivative works and the like.
1.8.
“Intellectual Property Rights” means all intellectual property and proprietary rights
throughout the world (including patents, trade secrets, copyrights and trademarks).
1.9.
“Machine Data” means the data that is generated by any Hardware or Software in
connection with Licensee’s use of any Hardware.
1.10. “Personal Data” means any information relating to an identified or identifiable natural
person.
1.11. “Software” means the software provided by Licensor for which Licensor references
this Agreement (including software identified in Licensor’s order form or quotation that
references this Agreement and any updates Licensor provides to Licensee to such software
for use in connection with it).
1.12. “Software Warranty” is defined in Section 5.1 (Software Warranty).
1.13. “Software Warranty Period” is defined in Section 5.1 (Software Warranty).
1.14. “Third Party Software” is defined in Section 2.7 (Third Party Software).
1.15. “Use Limitations” means the limitations on use of the Software provided by Licensor
in writing on its website or in connection with Licensee’s order and/or receipt of the
Software (including in connection with download and/or as provided in connection with the
order form provided by Licensor). Use Limitations includes, but is not limited to, “nodelocked” Software licensed with respect to a specific or otherwise identifiable Hardware
device and not to any other hardware device whatsoever, whether similar or dissimilar and
Page 281
Eclipse | Upgrade Guide
prohibited from any transfer or assignment whatsoever without the prior written consent of
Licensor.
2.
License Grant and Intellectual Property Rights.
2.1.
License. As of the Effective Date, subject to the terms and conditions of this
Agreement (including payment and Section 2.3 (License Restrictions)) and irrespective of
whether Hardware is sold to or rented by Licensee, Licensor grants Licensee a nonexclusive, non-transferable, non-assignable, non-sublicensable and limited license, only in
object code form, to (a) the number of copies of Software, whether downloaded or installed
Software or embedded on a component or system of Hardware, purchased by Licensee and
(b) use such Software in accordance with the Documentation and Use Limitations solely for
Licensee’s internal business purposes. For the avoidance of doubt and notwithstanding
anything to the contrary in this Agreement or anywhere else, Software is licensed not sold,
and the license to Software is only the express, written license agreement for such software
provided by Licensor to Licensee.
2.2.
Evaluation License. All terms and provisions of this Agreement shall apply to
Evaluation Software, subject to the following modifications: (a) the license of Section 2.1
(License) shall be limited to Licensee’s evaluation of the Evaluation Software only; (b)
Licensor shall have the right at any time in its sole discretion to terminate this Agreement
and any license to Evaluation Software upon written notice to Licensee; and (c) the
provision of Section 5 (Limited Warranty) shall not apply with respect to any Evaluation
Software and all Evaluation Software is provided “as is” without any warranties whatsoever,
express or implied.
2.3.
License Restrictions. The licenses under Section 2 (License Grant and Intellectual
Property Rights) are conditioned on Licensee’s compliance with, and Licensee agrees to, the
following: (a) Licensee shall not use the Software outside of the scope of the license
granted hereunder; (b) Licensee shall not sublicense, distribute, disclose, market, rent,
lease or transfer the Software, the Documentation or any portion thereof to any third party
(including through any remote access, interactive, Internet-based, service bureau or other
on line service); (c) Licensee shall not remove or cause to be removed from any copies of
the Software, the Documentation or any portion thereof any copyright, licensed trademark,
patent or other proprietary notices thereon; (d) Licensee shall not modify, alter, adapt,
translate, reverse-engineer, decompile, disassemble or attempt to discover the source code,
underlying ideas, algorithms, file formats or programming interfaces of the Software, the
Documentation or any portion thereof; (v) Licensee shall not export or re-export the
Software, either directly or indirectly, without Licensor’s prior written consent or in violation
of the laws of the United States or other jurisdiction; and (vi) Licensee shall not use any
aspects of the Software other than the Authorized Modules, and without limiting the
foregoing, Licensee shall use the Software only in accordance with the applicable
Documentation, license key and any Use Limitations and only within the scope for which
Page 282
Eclipse | Upgrade Guide
Licensee is paying the required fees. Licensee agrees that the Software may use or contain
a license key mechanism limiting its use, and Licensee shall not use or enable the use of the
Software other than in accordance with the intended limitations of any license key provided
by Licensor (in addition to any contractual limitations). Licensee agrees that, without
limitation, any breach of this Section 2.3 (License Restrictions) or unauthorized use of the
Software or Documentation is a material breach of this Agreement.
2.4.
Export, Import and Government Restrictions. Licensee is advised that the Software
may be subject to export laws and the laws of the country where it is delivered or used.
Licensee shall abide by all applicable export laws and regulations. Under such laws and
regulations, the Software may not be sold, leased or transferred to certain restricted
countries, restricted end-users or for restricted end-uses.
2.5.
Ownership by Licensor. Licensor retains all Intellectual Property Rights covering or
embodied in the Software and any Improvements to any Software. The non-public aspects
of the Software (including any source code of the Software) are Licensor’s confidential
information. Licensee shall maintain the confidentiality of Licensor’s confidential information
and not disclose such confidential information to any third party without Licensor’s prior
written consent. To the extent that Licensor grants Licensee use of or access to Hardware
or Software outside of the scope of the license in Section 2.1 (License) (e.g. access to
source code), the terms of such use or access shall be sent forth in a separate written
addendum to this Agreement.
2.6.
License Only. The Software is licensed, not sold, to Licensee. This Agreement does
not transfer any right, title, or interest in or to any such Software regardless of any use of
the terms “purchase,” “acquire,” “sale” or similar language herein or in any agreement
between Licensee and any third party.
2.7.
Third Party Software. The Software may use or rely on software that is subject to
open source or commercial license terms as identified by Licensor in writing on its website
or connection with Licensee’s order and/or receipt of the Software (“Third Party Software”).
Third Party Software is provided “as is” without any warranty, express, implied or
otherwise.
2.8.
No Other Rights. All Intellectual Property Rights of Licensor not expressly granted to
Licensee in this Agreement are expressly reserved by Licensor. Without limitation, Licensee
receives no right or license, by implication, estoppel or otherwise, to any software,
technology or Intellectual Property Rights not embodied in the Software, even if such other
software, technology or Intellectual Property Rights are useful or necessary in connection
with the Software.
3.
Data.
Page 283
Eclipse | Upgrade Guide
3.1.
Ownership of Machine Data. Licensor retains all Intellectual Property Rights covering
or embodied in the Machine Data and any Improvements to any Machine Data. In the event
that Licensee acquires any rights in or to any Machine Data, Improvements thereto or
Intellectual Property Rights covering or embodying the Machine Data or Improvements to
the Machine Data, Licensee shall assign, and hereby assigns, all right, title and interest in
such Improvements and Intellectual Property Rights to Licensor. Licensor grants Licensee a
non-exclusive, non-transferable, non-assignable, non-sublicensable, royalty-free, fully paidup and limited license to use such Machine Data for Licensee’s internal business purposes.
3.2.
Transfer and Access to Machine Data. Machine Data may be transferred
automatically or as facilitated by Licensor or Licensee’s representatives, from Hardware to
Licensor, from time to time, and Licensee hereby acknowledges and agrees to such transfer
of Machine Data. To the extent that any such Machine Data cannot be automatically
transferred to Licensor or is not otherwise not conducive for such automatic transfer,
Licensee shall transfer such Machine Data to Licensor, whether in-person or pursuant to a
separate network transfer protocol or procedures, at a time, location or pursuant to
procedures mutually acceptable to Licensee and Licensor.
3.3.
Personal Data. Information on the Personal Data collected by Licensor from
Licensee, which may be included in Machine Data, and how Licensor treats that Personal
Data is set out in Licensor’s privacy policy, which can be found at
https://www.clearcom.com/privacy-policy/.
4.
Payment. The terms of this Section 4 (Payment) shall apply to the extent that there
are no conflicting provisions in a separate written agreement (e.g. terms of sale) between
Licensor and Licensee.
4.1.
Payment. All fees for the Software are due and payable in U.S. dollars by bank wire
transfer in immediately available funds to a bank account designated by Licensor. If not
otherwise provided in the respective schedule or other documentation from Licensor, then
Licensee shall pay amounts due within thirty (30) days of invoice.
4.2.
Records and Audit Rights. Licensee shall keep and maintain books and records in
sufficient detail to permit the verification of Licensee’s obligations hereunder. Licensor shall
have the right to inspect or appoint an auditor to inspect Licensee’s systems, books and
records relevant to this Agreement and other materials as may be required to verify or
determine Licensee’s compliance with its obligations hereunder during regular business
hours, wherever they are normally kept by Licensee, upon not less than one (1) week’s
prior written notice. The cost of any such audit shall be paid for by Licensor unless material
non-compliance is found (in which case, Licensee shall pay Licensor for the costs associated
with the audit).
4.3.
Late Payment. All late payments shall be subject to interest calculated at the rate of
one and one half percent (1.5%) per month or the maximum allowable by law, whichever is
Page 284
Eclipse | Upgrade Guide
less. This Section 4.3 (Late Payment) shall in no way limit any other rights or remedies that
may otherwise be available to Licensor. Licensee shall pay all expenses associated with
collection (including reasonable attorneys’ fees).
4.4.
Taxes. All stated prices, fees and other stated charges are exclusive of applicable
sales, excise, VAT, use or similar taxes. Licensee shall pay all such taxes, either directly or
to Licensor, as required by applicable law or regulation. In the event that Licensee is
required to withhold taxes, Licensee shall provide to Licensor official receipts issued by the
appropriate taxing authority or other evidence to establish that such taxes have been paid.
4.5.
Payment Terms. Licensor shall have the right to require advance payment and
require adequate assurance of payment in the event that Licensee fails to make payment
within the time limits required hereunder or, as determined in Licensor’s sole discretion, it is
advisable in view of Licensee’s financial condition. The foregoing does not limit Licensor’s
other remedies hereunder (including the right to terminate this Agreement for breach).
5.
Limited Warranty.
5.1.
Hardware Warranty. Warranties for Hardware are set forth in a separate written
agreement between Licensor and Licensee or as an addendum to this Agreement, as
applicable.
5.2.
Software Warranty. Unless otherwise set forth in a separate written agreement (e.g.
terms of sale) between Licensor and Licensee, Licensor warrants to Licensee that, for a
period of ninety (90) days following the delivery of the initial Software to Licensee (the
“Software Warranty Period”), the Software will substantially conform to the Documentation
when maintained and operated in accordance with the Documentation (“Software
Warranty”). Following the Software Warranty Period, Licensor may provide maintenance,
training and support of Software as set forth in a separate written agreement between
Licensor and Licensee or as an addendum to this Agreement, as applicable.
5.3.
Remedy. Licensee shall provide Licensor notice during the Software Warranty Period
identifying any non-conformity to Software Warranty and shall provide detail as requested
by Licensor to identify the nature of the non-conformity and conditions under which it
appears. Licensor, at its sole option, shall use commercially reasonable efforts to repair or
to deliver a replacement copy of the Software. All warranty repairs by Licensor shall be
made at Licensor’s premises, unless Licensor otherwise agrees. Licensee’s sole remedy and
Licensor’s sole liability with respect to any warranty regarding the Software shall be for
Licensor to use such commercially reasonable efforts to provide the above correction during
the Software Warranty Period.
5.4.
Exclusions. Licensor provides no warranty for the following or any liability or claim
arising from any of the following (collectively, “Exclusions”): (a) software and equipment of
Licensee or any third party (including any Third Party Software); (b) directions, designs,
Page 285
Eclipse | Upgrade Guide
plans or specifications furnished by or on behalf of Licensee; (c) unauthorized use or use of
the Software in violation of this Agreement or other terms with Licensor (including any
copies of the Software not made in accordance with the terms of this Agreement and the
limitations of the licenses granted hereunder); (d) any data provided by Licensee or third
party; (e) any activities of Licensee or third party through the use of the Software; (f)
modification of the Software made other than by Licensor; (g) the combination, operation or
use by Licensee of the Software with equipment, devices or software not supplied by
Licensor; (h) failure of Licensee to use an updated or modified Software provided by
Licensor (including those provided to avoid error or infringement); or (i) Licensee’s use of
the Software after termination of this Agreement.
5.5.
Warranty Disclaimer. THE FOREGOING LIMITED WARRANTIES AND REMEDIES
PROVIDED BY LICENSOR ARE THE SOLE AND EXCLUSIVE REMEDIES FOR ANY BREACH OF
WARRANTY. EXCEPT TO THE EXTENT EXPRESSLY SET FORTH ABOVE, LICENSOR
DISCLAIMS ALL WARRANTIES, CONDITIONS, AND REPRESENTATIONS (EXPRESS OR
IMPLIED, ORAL OR WRITTEN) WITH RESPECT TO THE SOFTWARE OR ANY SUPPORT
RELATED THERETO (INCLUDING ANY AND ALL WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, NON INFRINGEMENT, NON INTERFERENCE,
ACCURACY OF DATA, OPERATION WITHOUT INTERRUPTION OR ERROR, FREEDOM FROM
VULNERABILITY TO INTRUSION OR ATTACK AND INTEROPERABILITY WITH ANY
HARDWARE, SOFTWARE, SYSTEMS OR DATA NOT PROVIDED BY LICENSOR, AS WELL AS
ANY AND ALL WARRANTIES ARISING FROM A COURSE OF DEALING, AND ALL SUCH
WARRANTIES ARE EXCLUDED TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.
6.
Indemnification. Licensee shall indemnify and hold harmless Licensor at Licensee’s
expense from any action brought against Licensor to the extent that it is based on a claim
arising out of or relating to any of the Exclusions, and Licensee shall pay any costs and
damages finally awarded against Licensor in any such actions which are attributable to such
claim.
7.
Limitation of Liability.
7.1.
Limitation of Liability. LICENSOR SHALL NOT BE LIABLE FOR ANY SPECIAL,
INDIRECT, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES (INCLUDING LOST
PROFITS, BUSINESS INTERRUPTION OR LOSS OF INFORMATION) RELATING TO THIS
AGREEMENT OR IN ANY WAY RELATED TO THIS AGREEMENT, REGARDLESS OF WHETHER
LICENSOR WAS ADVISED OF THE POSSIBILITY OF ANY OF THE FOREGOING. IN NO EVENT
SHALL THE TOTAL COLLECTIVE LIABILITY OF LICENSOR FOR ALL CLAIMS HEREUNDER OR
IN ANY WAY RELATED TO THIS AGREEMENT EXCEED AMOUNTS PAID BY LICENSEE FOR THE
APPLICABLE SOFTWARE GIVING RISE TO THE CLAIM IN THE LAST TWELVE (12) MONTHS
UNDER THIS AGREEMENT BEFORE THE EARLIER OF THE MAKING OF THE CLAIM OR
TERMINATION OR END OF THE TERM OF THIS AGREEMENT.
Page 286
Eclipse | Upgrade Guide
7.2.
Allocation of Risk. The warranty disclaimer and limitations of liability set forth in this
Agreement shall apply irrespective of any failure of the essential purpose of any limited
remedy. Licensee and Licensor each acknowledge and agree that the limitation of liability
provisions of this Agreement reflect an informed, voluntary allocation between them of the
risk associated with the exercise of Licensee’s rights regarding the Software and, but for
these provisions, Licensor would not have made the Software available to Licensee under
the terms contemplated under this Agreement.
7.3.
Applicable Law. The warranty disclaimer and limitations of liability set forth in this
Agreement shall not apply to the extent prohibited by law, in which case the disclaimer or
limitation shall be modified to disclaim and/or limit in accordance with applicable law.
Without limiting the foregoing, to the extent required by law, the foregoing limitations shall
not apply to claims due to fraud, bodily injury or death.
8.
Term and Termination.
8.1.
Term. Unless terminated earlier as set forth below, this Agreement shall become
effective upon the Effective Date and shall continue for the license term stated by Licensor
in writing on the Licensor website or in connection with Licensee’s order and/or receipt of
the Software.
8.2.
Termination for Cause. Without prejudice to any other right or remedy which may
be available to it, each party may terminate this Agreement upon written notice to the other
upon the other party’s material breach of this Agreement that is incurable or, if curable,
remains uncured thirty (30) days after notice to the other party or, in the case of failure to
make payment, remains uncured ten (10) days after notice to the other party. Licensee’s
failure to pay amounts when due hereunder shall be deemed a material breach.
8.3.
Termination for Bankruptcy. Each party may terminate this Agreement immediately
upon written notice to the other upon the other party (a) becoming insolvent or bankrupt;
(b) dissolving or ceasing to conduct business in the ordinary course; (c) making an
assignment for the benefit of its creditors; (d) commencing any insolvency, receivership,
bankruptcy or other similar proceeding for the settlement of its debts; or (e) having
commenced against it any insolvency, receivership, bankruptcy or other similar proceeding
for the settlement of its debts that is not dismissed within thirty (30) days after notice of
such proceeding.
8.4.
Return or Destruction of Software. Within fifteen (15) days after termination of this
Agreement, Licensee shall certify in writing to Licensor that all copies of the Software and
Documentation in any form (including partial copies) have been destroyed or returned to
Licensor.
8.5.
Effect of Termination. If this Agreement is terminated for any reason, then all rights
granted hereunder to Licensee shall terminate. The provisions of Sections 1 (Definitions),
Page 287
Eclipse | Upgrade Guide
2.3 (License Restrictions), 2.4 (Export, Import and Government Restrictions), 2.5
(Ownership by Licensor), 2.7 (Third Party Software), 3 (Data), 4 (Payment), 5.4
(Exclusions), 5.5 (Warranty Disclaimer), 6 (Indemnification), 7 (Limitation of Liability), 8
(Term and Termination) and 9 (Miscellaneous) shall survive any termination or expiration of
this Agreement.
9.
Miscellaneous.
9.1.
Relationship of Parties. The parties to this Agreement are independent contractors
and this Agreement shall not establish any relationship of partnership, joint venture,
employment, franchise, or agency between the parties. Neither party shall have the power
to bind the other or incur obligations on the other’s behalf without the other’s prior written
consent.
9.2.
Assignment. Licensee shall not have the right to assign, transfer or delegate this
Agreement, in whole or in part, without Licensor’s prior written consent and any attempt
thereto shall be null and void.
9.3.
Force Majeure. Nonperformance of any party (other than with respect to payment
obligations) shall be excused to the extent that performance is rendered impossible by
strike, fire, earthquake, flood, governmental acts or orders or restrictions, failure of
suppliers or any other reason where failure to perform is beyond the reasonable control of
the nonperforming party.
9.4.
Federal Acquisition. This provision applies to all acquisitions of the Software by or
for the Federal Government, whether by any prime contractor or subcontractor (at any tier)
and whether under any procurement contract, grant, cooperative agreement, or other
activity by or with the Federal Government. By accepting delivery of the Software, the
Government agrees that the Software qualifies as “commercial items” as that term is
defined at 48 C.F.R. 2.101 and that the software and documentation delivered by Licensor
consists of “commercial computer software” and “commercial computer software
documentation” as such terms are used in 48 C.F.R. 12.212. Consistent with 48 C.F.R.
12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4, all Federal Government end users
acquire the software and documentation with only those rights set forth herein. The terms
and conditions of this Agreement shall pertain to the Federal Government’s use and
disclosure of the software, and shall supersede any conflicting contractual terms or
conditions. Disputes with the Federal Government shall be subject to resolution pursuant to
the Contract Disputes Act of 1978, as amended. If this Agreement fails to meet the
Government’s needs or is inconsistent in any respect with Federal law, then the Federal
Government shall return the Software, unused, to Licensor.
9.5.
Governing Law. This Agreement shall be governed by, and construed in accordance
with, the laws of the State of California, USA, applicable to contracts made in and fully
performed in the State of California, USA, without reference to conflict of law or choice of
Page 288
Eclipse | Upgrade Guide
law principles that would cause the application of laws of any other jurisdiction. The United
Nations Convention on Contracts for the International Sales of Goods shall not apply to this
Agreement. The use of the words “include,” “includes” and “including” followed by one or
more examples is intended to be illustrative and does not limit the scope of the description
or term for which the examples are provided. In any action or proceeding under which a
party enforces its respective rights hereunder, the non-prevailing party agrees to pay all
costs incurred by the prevailing party therein (including reasonable attorneys’ fees).
9.6.
Severability. If any provision of this Agreement or the application thereof is for any
reason, and to any extent thereof, determined by a court of competent jurisdiction to be
invalid or unenforceable under applicable law, then a valid provision that most closely
matches the intent of the original shall be substituted and the remaining provisions of this
Agreement shall be interpreted so as best to reasonably effect its original intent.
9.7.
Waiver. The failure by either party to enforce any provision of this Agreement shall
not constitute a waiver of future enforcement of that or any other provision. No waiver by
either party of any such provision shall be deemed to have been made unless expressed in
writing and signed by such party.
9.8.
Notices. All notices required or permitted under this Agreement shall be in writing
and delivered by courier, overnight delivery service or by certified mail and in each instance
shall be deemed given upon receipt. All notices shall to Licensor be sent to the addresses
set forth below or to such other address as may be specified by Licensor on its website or
otherwise in writing. Licensor may provide notices to Licensee at the address provided by
Licensee in connection with its order or otherwise as changed by Licensee by notice to
Licensor in accordance with this clause.
Notices to Licensor:
Clear Com LLC
2848 Whiptail Loop
Carlsbad, CA 92010 USA
Attention: General Counsel
9.9.
Effect of Purchase Orders and Other Documents. This Agreement is intended by
Licensor and Licensee to operate as a basic set of operating conditions regarding the license
of the Software and related services. Purchase orders or other documents may be used for
convenience to identify the order information and any other terms of purchase orders are
Page 289
Eclipse | Upgrade Guide
hereby rejected. Unless otherwise expressly provided herein, this Agreement shall prevail
over any conflicting or additional terms or conditions of any purchase order or other
document exchanged in connection with the ordering of the Software and related services.
Any such conflicting or additional terms of Licensee are hereby deemed to be material
alterations and notice of objection to and rejection of them is hereby given.
9.10. Entire Agreement. This Agreement contains the complete understanding and
agreement of the parties and supersedes all prior or contemporaneous agreements or
understandings, oral or written, relating to the subject matter herein. Any modification or
amendment of any provision of this Agreement shall be effective only if in writing and
signed by duly authorized representatives of the parties. A facsimile or e-mail transmission
of a signed version of this Agreement shall be legal and binding on the applicable party.
Page 290
