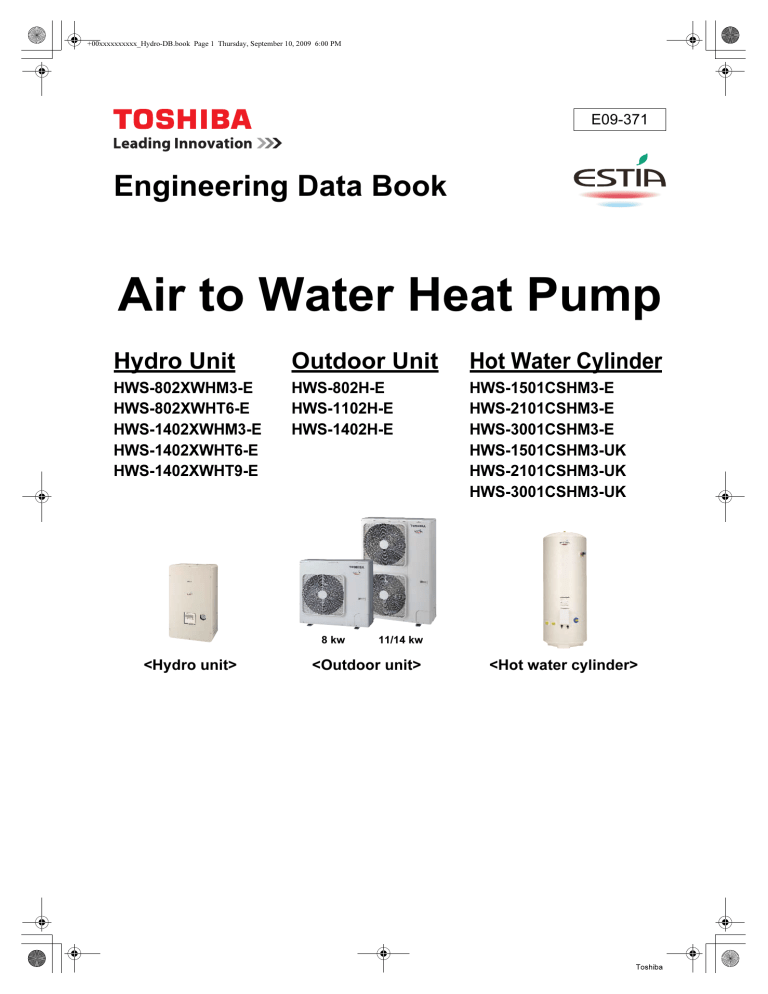

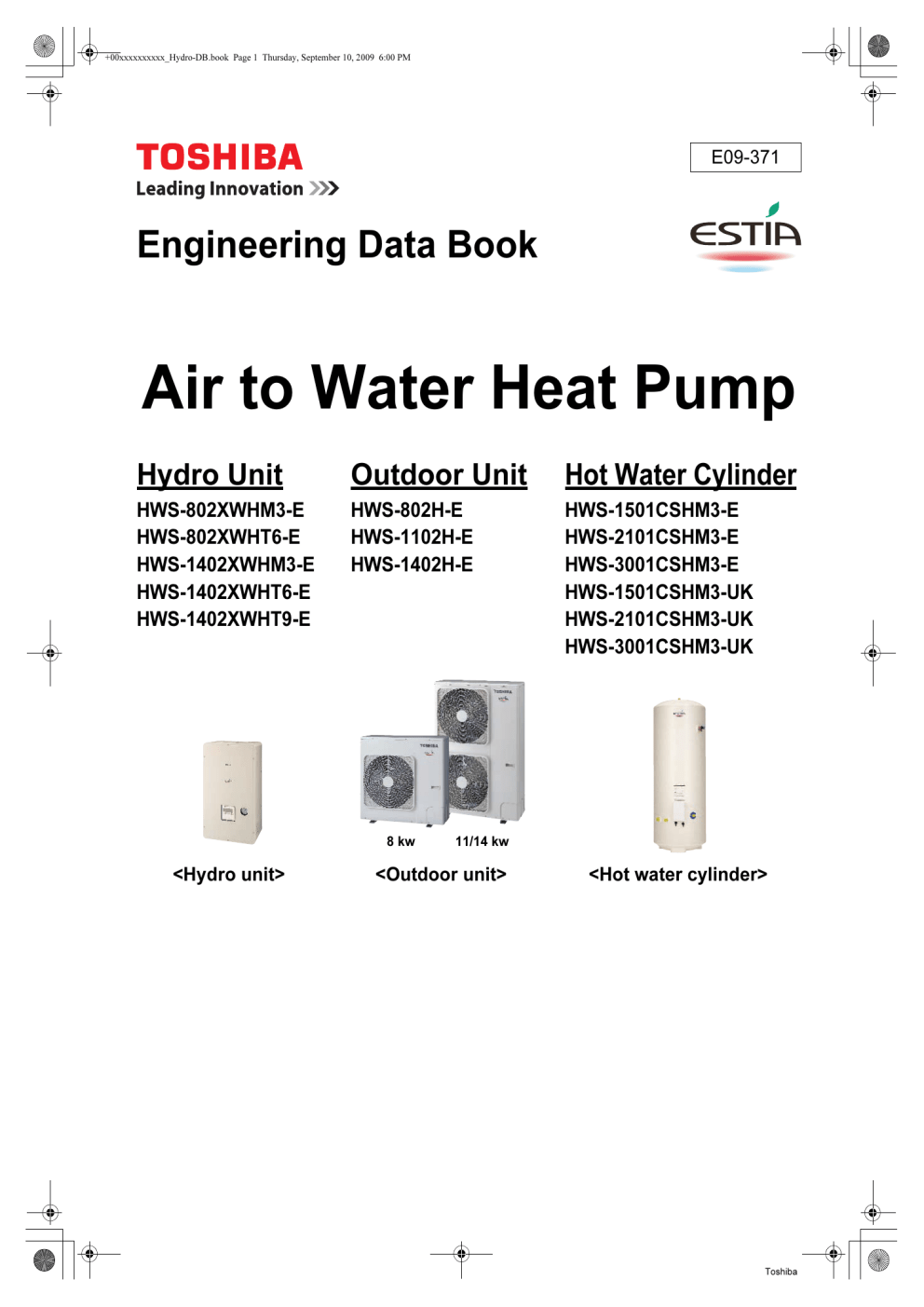

+00xxxxxxxxxx_Hydro-DB.book Page 1 Thursday, September 10, 2009 6:00 PM
E09-371
Engineering Data Book
Air to Water Heat Pump
Hydro Unit
Outdoor Unit
Hot Water Cylinder
HWS-802XWHM3-E
HWS-802XWHT6-E
HWS-1402XWHM3-E
HWS-1402XWHT6-E
HWS-1402XWHT9-E
HWS-802H-E
HWS-1102H-E
HWS-1402H-E
HWS-1501CSHM3-E
HWS-2101CSHM3-E
HWS-3001CSHM3-E
HWS-1501CSHM3-UK
HWS-2101CSHM3-UK
HWS-3001CSHM3-UK
8 kw
<Hydro unit>
11/14 kw
<Outdoor unit>
<Hot water cylinder>
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 1 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
Air to Water Heat Pump
Contents
1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2-1. System Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-2. Hydro Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-3. Outdoor Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-4. Hot Water Cylinder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2-5. Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. SYSTEM SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. HYDRO UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4-1. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4-2. Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4-3. Piping Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4-4. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4-5. Capacity Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4-6. Water Pump Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4-7. Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5. OUTDOOR UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5-1. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5-2. Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5-3. Piping Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5-4. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5-5. Sound Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5-6. Operation Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6. HOT WATER CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
6-1. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6-2. Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
6-3. Piping Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
6-4. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7. HYDRO UNIT INSTALLATION MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
8. OUTDOOR UNIT INSTALLATION MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
9. OWNER’S MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
1
Toshiba XXXXXXX(X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 2 Thursday, September 10, 2009 6:00 PM
1. INTRODUCTION
2
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 3 Thursday, September 10, 2009 6:00 PM
Engineering Data book
1.INTRODUCTION
to ate
Heat Pump System
World-leading energy efficiency –– COP of 4.66*
Comfortable heating and hot water supply
Versatile installation and operation
Welcome Estía to your home!
Air-to-water Heat Pump System
* 11 kW model
Introducing Toshiba’s super-efficient space heating and hot water supply system for homes and businesses. Estía
represents breakthrough thinking in intelligent heat pump and inverter technologies, by efficiently transferring
ambient thermal heat from outside air to heat water indoors. Based on Toshiba’s proven light commercial air
conditioning system, the Super Digital Inverter, this innovative unit features DC twin rotary compressor, DC
inverter and R410A refrigerant, providing the highest coefficient of performance (COP) in its class. This means
more power from less energy consumption, and the ideal ecological and economical solution for your home.
Hot water cylinder
Hydro unit
8 kW
Outdoor unit
Outdoor unit
11 / 14 kW
Hot water cylinder Hydro unit
3
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 4 Thursday, September 10, 2009 6:00 PM
Engineering Data book
1.INTRODUCTION
Advantages
World-leading energy efficiency - COP of 4.66*
With its best in class COP performance, Estía air to water heat pump system delivers more heating
power with less energy consumption.
Estía uses high quality components and material which contribute to the overall savings in energy
consumption.
With the Toshiba advanced inverter, Estía air to water heat pump system only delivers the heating
capacity required; thus consuming only the necessary electricity.
The hot water temperature is also optimized thanks to Toshiba advanced control depending on
the outside air temperature. The milder outside, the air-to-water systems automatically produces
lower water temperature to anticipate decreased needs of space heating. The same control logic
allows to anticipate as well increasing heating needs when weather conditions become extreme;
this overall temperature management gives the best conditions of comfort.
All this saving has a positive impact on the personal electricity bill and the whole community by
reducing the CO2 emissions in the atmosphere.
Easy to install
*11kW model
Environment conscious
Quick and easy to install. The hydro module
unit can be placed safely in the most suitable
place within the house.
There’s no need for chimney or underground
captors which require additional works on site.
The compact outdoor unit can be placed anywhere outside the
house or on a balcony, thanks to extensive piping options.
One system, multiple
solutions
1
The use of Toshiba Estía heat pump contribute
to the reduction of global CO2 emissions in the
atmosphere and limit the use of fossil fuels or
other non-renewable energy primary sources.
Whenever required for maintenance purpose,
all the R410A refrigerant (non ozone depleting) can be
completely sucked back to the outdoor unit through the
powerful embedded Toshiba “pump down” operation.
The right temperature at the
right time
Estía heat pump systems can be used in
combination with different types of emitters:
existing heating low temperature radiators,
floor heating or fan coil units.
It can produce water at different temperatures
for several applications simultaneously.
Toshiba Estía air to water heat pump system operates smoothly
both with low outdoor air temperature down to -20 ˚C in winter
and up to 43 ˚C in the summer season. The system has a unique
anti-ice build-up protection embedded.
4
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 5 Thursday, September 10, 2009 6:00 PM
Engineering Data book
1.INTRODUCTION
For new houses or refurbishment Estía heat pump offers a variety of combinations, some examples are shown below:
1 zone
1 zone
Shower Bath Kitchen
Hydro unit
Hydro unit
Floor heating
Hot water tank
Floor heating
Outdoor unit
Outdoor unit
1 zone heating
1 zone heating with domestic hot water
1 zone
1 zone
HEATING ONLY
2 way valve
Shower Bath Kitchen
Conventional boiler
Panel radiator
Panel radiator
Fan coil
Hydro unit
Hot water
tank
HEATING
COOLING
Hydro unit
Buffer
tank
Outdoor unit
Outdoor unit
1 zone heating with boiler backup
1 zone heating / cooling with domestic hot water
2 zones
2 zones
Conventional boiler
Panel radiator
Shower Bath
Kitchen
Panel radiator
Shower Bath Kitchen
Hot water
tank
Hydro unit
Hot water
tank
Buffer
Mixing tank
valve
Hydro unit
Temp. sensor
Mixing valve
Floor heating
Temp. sensor
Floor heating
Buffer tank
Outdoor unit
Outdoor unit
2 zone heating with domestic hot water
Buffer tank
2 zone heating with domestic hot water and boiler backup
In existing dwellings already equipped with traditional gas or
The intelligent Toshiba control balances the energy source in the
fuel boilers, Toshiba Estía air to water heat pump system can be most efficient way.
combined with the existing heating system to cover exclusively
and in an optimized way all the heating needs, all year round.
Then, the boiler is only used as a back-up source during some
extreme weather days of the winter.
5
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 6 Thursday, September 10, 2009 6:00 PM
2. SYSTEM OVERVIEW
6
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 7 Thursday, September 10, 2009 6:00 PM
Engineering Data book
2.SYSTEM OVERVIEW
2-1. System Combination
Combination
Outdoor unit
Hydro unit
HWS-802H-E
HWS-1102H-E
HWS-1402H-E
HWS-802XWHM3-E
–
–
HWS-802XWHT6-E
–
–
HWS-1402XWHM3-E
–
HWS-1402XWHT6-E
–
HWS-1402XWHT9-E
–
Hot water cylinder
HWS-1501
CSHM3-E
HWS-2101
CSHM3-E
HWS-3001
CSHM3-E
HWS-1501 HWS-2101 HWS-3001
CSHM3-UK CSHM3-UK CSHM3-UK
HWS-802XWHM3-E
HWS-802XWHT6-E
Hydro unit
HWS-1402XWHM3-E
HWS-1402XWHT6-E
HWS-1402XWHT9-E
2-2. Hydro Unit
Hydro Unit
Model Description
HWS-802XWHM3-E
8 kW Hydro Unit (3 kW 230 V ~ back up heater)
HWS-802XWHT6-E
8 kW Hydro Unit (6 kW 400 V 3N ~ back up heater)
HWS-1402XWHM3-E
11 & 14 kW Hydro Unit (3 kW 230 V ~ back up heater)
HWS-1402XWHT6-E
11 & 14 kW Hydro Unit (6 kW 400 V 3N ~ back up heater)
HWS-1402XWHT9-E
11 & 14 kW Hydro Unit (9 kW 400 V 3N ~ back up heater)
Hydro Unit
Back up heater capacity
for backup heater
Power supply for hot water cylinder
heater (option)
Leaving water Heating
temperature Cooling
HWS802XWHT6-E
HWS1402XWHM3-E
HWS1402XWHT6-E
HWS1402XWHT9-E
3 kW
6 kW
3 kW
6 kW
9 kW
230 V ~
400 V 3N ~
230 V ~
400 V 3N ~
400 V 3N ~
230 V ~
(°C)
20 to 55
(°C)
10 to 25
For use with
Dimension
HWS802XWHM3-E
HWS-802H-E
HxWxD
(mm)
HWS-1102H-E/HWS-1402H-E
925 x 525 x 355
7
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 8 Thursday, September 10, 2009 6:00 PM
Engineering Data book
2.SYSTEM OVERVIEW
2-3. Outdoor Unit
Outdoor unit
HWS-802H-E
HWS-1102H-E
Type
HWS-1402H-E
Inverter
Function
Heating & Cooling
Heating
Capacity
(kW)
8.0
11.2
14.0
Input
(kW)
1.96
2.40
3.15
4.08
4.66
4.45
COP
Cooling
Capacity
(kW)
6.0
10.0
11.0
Input
(kW)
2.13
3.52
4.08
2.84
2.69
EER
2.82
Power supply
230 V ~
Refrigerant
R410A
Dimension
HxWxD
(mm)
890 x 900 x 320
1,340 x 900 x 320
2-4. Hot Water Cylinder
Hot water cylinder (option)
HWS-1501CSHM3-E
HWS-1501CSHM3-UK
HWS-2101CSHM3-E
HWS-2101CSHM3-UK
HWS-3001CSHM3-E
HWS-3001CSHM3-UK
150
210
300
Water volume
litres
Max water temperature
(°C)
75
Electric heater
(kW)
2.75 (230 V ~)
Height
(mm)
Diameter
(mm)
1,090
1,474
2
2,040
550
Material
Stainless steel
2-5. Options
No.
Part name
Model name
1
External output board
TCB-PCIN3E
2
External input board
TCB-PCMO3E
Application
Boiler-linked output, Alarm output
Defrost signal output, compressor operation signal
output
Cooling/heating thermostat input
Forced-stop signal input
Remarks
Up to two boards (according
to applications)
Up to two boards (according
to applications)
8
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 9 Thursday, September 10, 2009 6:00 PM
3. SYSTEM SPECIFICATION
9
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 10 Thursday, September 10, 2009 6:00 PM
Engineering Data book
3.SYSTEM SPECIFICATION
Outdoor unit
HWS-802H-E
Hydro unit
Capacity
Rated heating
condition
TO (DB/WB)=7/6°C
LWT=35°C dT=5deg
Rated heating
condition
TO (DB/WB)=7/6°C
LWT=45°C dT=5deg
Rated cooling
condition
TO=35°C
LWT=7°C dT=5deg
Rated cooling
condition
TO=35°C
LWT=18°C dT=5deg
Power input
HWS-802XWH**-E
kW
HWS-1402H-E
HWS-1402XWH**-E
8.0
11.2
14.0
kW
1.96
2.4
3.15
W/W
4.08
4.66
4.45
Rated water flow
/min
22.9
32.1
40.1
Capacity
kW
8.0
11.2
14.0
COP
Power input
kW
2.40
2.95
3.95
W/W
3.33
3.80
3.54
Rated water flow
/min
22.9
32.1
40.1
Capacity
kW
6.0
10.0
11.0
COP
Power input
kW
2.13
3.52
4.08
W/W
2.82
2.84
2.69
Rated water flow rate
/min
17.2
28.7
31.5
Capacity
kW
6.0
10
11
EER
Power input
EER
Rated water flow
kW
1.42
2.35
2.65
W/W
4.23
4.26
4.15
/min
17.2
28.7
31.5
Power supply
Maximum current
HWS-1102H-E
1~ 230V 50Hz
A
20.8
22.8
22.8
* Rated condition capacity and power input are the data at rated compressor operating frequency.
* Power input does not include water pump power.
* Capacity and power input are measured in accordance with EN14511.
TO
LWT
dT
:
:
:
Outdoor temperature (°C)
Leaving water temperature (°C)
Delta temperature (deg)
Leaving water temperature - return water temperature (Heating)
Return water temperature - leaving water temperature (Cooling)
3
10
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 11 Thursday, September 10, 2009 6:00 PM
4. HYDRO UNIT
11
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 12 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
4-1. Specification
4-1-1. Hydro unit specifications
Hydro unit
back up heater
Back up heater
Maximum current
Hot water
cylinder heater*
Appearance
Outer
dimension
Total weight
HWS802XWHT6-E
3
6
Maximum current
A
13
A
mm
925
Width
mm
525
Depth
mm
355
Height
mm
1070
Width
mm
608
Depth
mm
456
kg
kg
litres
50
56
1.18
17.5
W
125 / 95 / 65
190 / 180 / 135
m
6.5 / 6.1 / 4.5
8.3 / 8.1 / 7.2
Expansion
vessel
Volume
Refrigerant
pipe
Drain port
Note
60
13
Delivery head
Water pipe
54
0.67
Power input
litres
12
Initial pressure
MPa(bar)
0.1 (1)
Operating pressure
MPa(bar)
0.3 (3)
dBA
29
°C
20~55
Cooling
°C
10~25
Outlet
mm
34.92
Inlet
mm
34.92
Gas
mm
15.9
Liquid
mm
9.5
mm
16.0 inner diameter for drain hose
Heating
13 (13A*3P)
Brazed plate
Water pump
(3 speed)
Sound pressure level
13 (13A*2P)
Pre-coated material
Height
/min
Operation
water temp.
13
Silky shade (Muncel 1Y8.5-0.5)
Material
Water volume
9
12.0
Color
Unit and packing
6
1402XWHT9-E
1 ~ 230V 50Hz
Minimum flow rate
Pressure relief
valve
3
13 (13A*2P)
Type
Heat
exchanger
1402XWHM3-E 1402XWHT6-E
1 ~ 230V 50Hz 3N~ 400V 50Hz 1 ~ 230V 50Hz 3N~ 400V 50Hz 3N~ 400V 50Hz
Power supply
Unit weight
Packing
dimension
kW
Power supply
HWS802XWHM3-E
4
* The electric heater, incorporated in the hot water cylinder, requires separete supply
to hydro unit.
12
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 13 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
4-1-2. Power Wiring specifications
Description
POWER SUPPLY
14 kW
Outdoor unit
power
22.8 A
Installation fuse
rating
25 A
Cable size
Connection
destination
2.5 mm² or more
11 kW
230 V ~ 50 Hz
22.8 A
25 A
2.5 mm² or more
8 kW
230 V ~ 50 Hz
20.8 A
25 A
2.5 mm² or more
–
1.5 mm² or more
,
3 kW
230 V ~ 50 Hz
13 A
16 A
1.5 mm² or more
,
(TB02)
6 kW
400 V 3N ~ 50 Hz
13 A (13 A x 2P)
16 A
1.5 mm² or more
,
,
9 kW
400 V 3N ~ 50 Hz
13 A (13 A x 3P)
16 A
1.5 mm² or more
(TB02)
Outdoor-Hydro
Hydro inlet heater
power
230 V ~ 50 Hz
Maximum current
–
,
,
,
Hydro cylinder heater power
230 V ~ 50 Hz
12 A
16 A
1.5 mm² or more
,
(TB03)
Hydro - cylinder
–
12 A
–
1.5 mm² or more
,
(TB03)
4-1-3. External Device specifications
Power
Maximum current
Type
Motorized 3-way valve
(for hot water)
AC 230 V
100 mA
Spring return type
Note: 3-wire SPST and SPDT type can be used by changing the
DPSW 13-1.
Motorized 2-way valve
(for cooling)
AC 230 V
100 mA
spring return type (normally open)
Motorized mixing valve
type 1 (for 2-zone)
AC 230 V
100 mA
60 sec 90º. SPDT type
Note: SPST and 20 to 240 sec type can be used by changing the
function code.
4-1-4. External Device Wiring specifications
Description
Line spec
Maximum current
Maximum length
Cable size
3-way valve control
2 line or 3 line
100 mA
12 m
0.75 mm² or more
Mixing valve control
3 line
100 mA
12 m
0.75 mm² or more
Connection
destination
,
,
(TB05)
,
,
,
,
or
(TB04)
2-zone thermo sensor
2 line
100 mA
5m
0.75 mm² or more
,
(TB06)
Cylinder thermo sensor
2+GND(shield wire)
100 mA
5m
0.75 mm² or more
,
(TB06)
Second remote controller
2 line
50 mA
50 m
0.75 mm² or more
,
(TB07)
4-1-5. External Output specifications
Description
Output
Maximum
current
Max voltage
Maximum
length
External pump No.1
AC230V
1A
–
12 m
External boost heater
AC230V
1A
–
12 m
Boiler control
Non-voltage
contacts
0.5 A
AC230 V
12 m
1A
DC24 V
12 m
ALARM Output
Non-voltage
contacts
0.5 A
AC230 V
12 m
1A
DC24 V
12 m
Compressor Operation Output
Non-voltage
contacts
0.5 A
AC230 V
12 m
1A
DC24 V
12 m
Defrost Output
Non-voltage
contacts
0.5 A
AC230 V
12 m
1A
DC24 V
12 m
Output as required when outdoor air
temperature is -20°C or less
Output as required when outdoor air
temperature is -10°C or less
13
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 14 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
4-1-6. External Input specifications
Description
Emergency stop control
Input
Non-voltage
Maximum length
12 m
Cooling thermostat input
Non-voltage
12 m
Heating thermostat input
Non-voltage
12 m
4
14
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 15 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
4-2. Dimension
19.5
▼Hydro unit
352
525
40.5
9
2-dia.12x17 long hole
(for dia.8-10 anchor bolt)
371.5
72.5
B leg part
40
380
Anchor bolt
long hole pitch
72.5
960
Anchor bolt long hole pitch
925
20
355
Manometer
20
40
2-dia.12x17 U-shape hole
(for dia.8-10 anchor bolt)
116
350 or more
259
Service space
500 or more
200 or more
37.5
100 or more
Hot water outlet
connecting pipe 1 1/4"
186.5
19.5
135.5
A leg part
158
40.5
54
Remote controler
Gas line dia.15.88
Liquid line dia.9.52
Drain nipple
Water inlet
connecting pipe 1 1/4"
144.5
59.5
500 or more
309.5
80
81
80
28
960
28
10
4
36
R1
Outside line
of product
4
2-R
Detailed B leg part
380
R1
40
960
81
Detailed A leg part
380
Outside line
of product
15
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 16 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
▼External output board (TCB-PCIN3E)
Size (mm) : H22 x L73 x W79
Weight (g) : 57
4- 4Øhole
63
73
79
69
Terminal (Screw M3)
▼External input board (TCB-PCMO3E)
Size (mm) : H18 x L55.5 x W60
Weight (g) : 20
4-Ø4 hole
Terminal (Screw M3)
55.5
45.5
50
TCB-PCMO2
TCB-PCMO2E
4
PJ17
60
NCC-1214
16
Toshiba
Outdoor unit
8,11,14kw
TC
Backup heater
Ø1 : 3kW
Ø3 : 6kW
Ø3 : 9kW
Water inlet
Thermal cut-out
(manual reset)
82+3-2 °C
Water outlet
Flow sw
set : 13 /min
set : 17.5 /min
Menometer
gage : ~6bar
Thermal protector
(auto)
set : 75±3 °C
THO
AC pump
TTW
Hot water cylinder
TWI
Water vent valve
Pressure relief valve
set : 3bar
Cylinder heater
Ø1 : 2.75kW
Relief valve (UK)
90 °C
10bar
Drain cock for water charge
(locally procured)
Strainer
(locally procured)
40 mesh
Motorized 3-way valve
(locally procured)
AC230V
Booster heater
(locally procured)
Boiler
(locally
procured)
TFI
AC pump
(locally procured)
Floor
heating
zone2
2-way valve for
cooling mode
(locally procured)
AC230V
Buffer tank
(locally procured)
Moterized mixing valve
(locally procured)
AC230V
By-pass valve
(locally procured)
Radiator unit
By-pass valve
(locally procured)
Fan coil unit
4.HYDRO UNIT
Local hot water system
Reducing valve
Pressure relief
Water heat exchanger
TWO
Thermal protector
single operation
set : 95±5 °C
Air vent valve
M
Pressure sensor
Pressure sw
4.15MPa
Expansion vessel
set : 1bar
zone1
+01GB01BODY.fm Page 17 Monday, September 14, 2009 6:06 PM
Engineering Data book
4-3. Piping Diagram
Water system diagram
M
17
Toshiba
Compressor
Accumulator
TS
TD
Defrosting / Cooling
Heating / Hot-water supply
Outdoor heat
exchanger
TO
4-way valve
Outdoor unit
TE
Pulse motor
valve
TC
Plate-type water
heat exchanger
Low Pressure
sensor
Pressure Switch
TWI
TWO
P
Circulating pump
Flow switch
THO
Safety valve
Backup heater
Water vent valve
Manometer
Air vent valve
Expansion vessel
Hydro unit
+00xxxxxxxxxx_Hydro-DB.book Page 18 Thursday, September 10, 2009 6:00 PM
4.HYDRO UNIT
Engineering Data book
Refrigeration cycle system diagram
4
18
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 19 Friday, September 11, 2009 4:52 PM
Engineering Data book
4.HYDRO UNIT
4-4. Wiring Diagram
4-4-1. Hydro unit
*Option
TWO
THO
*Option
LPS
A B
3 3
2
RED
1 1
CR10
CN41
(BLU)
RY
10
RY
11
CR11
CR12
RY
12
RY
13
CR13
CN01
(WHI)
CN02
(WHI)
5
4
3
2
1
5
4
3
2
1
RED
BLU
ORN
GRN
BRW
5
4
3
2
1
6
5
4
3
2
1
3
1
1 2 3
1 2
1 2
6A 6B 6C 6D TB 06
RED
BLK
1 2
1 2
WHI
BLK
BLK
BLK
3
1
1 2 3
BLK
BLK
BLK
BLK
BLK
1 2
1 2
3
1
1 2 3
2
1 2 3 4
1 2
1 2
3
1
1 2 3
CN212
(WHI)
CN214
(WHI)
CN213
(WHI)
CN203 CN204 CN205 CN206 CN207
(YEL) (BRW) (RED) (WHI) (BLU)
Color identification
CN208
(BLU)
P.C.board
(MCC-1511)
BLK
CN209
(GRN)
CN210
(RED)
1 1
SW02
RY601
CN603
(YEL)
ON
CN211
(BLK)
ON
BRW
L L
1
1
WHI
BLK
7
RY
06
8
A1
1
2
3
4
1
2
3
4
PJ17
1
2
3
4
YEL
1
2 YEL
YEL
3
YEL
4
1
2
3
4
1
2
3
4
PJ17
WHI
Relay
p.c.board
(MCC-1217)
K2
Parts name
CN102
(WHI)
1
2
3
4
5
6
5
1
3
3
1
1
1
2
3
4
5
6
Boiler control O/P
Alerm O/P
TB1
4
3
2
1
K1
Relay
p.c.board
(MCC-1217)
K2
Operation O/P
Defrost O/P
TB1
Photocoupler input
p.c.board
(MCC-1214)
3
2
1
Emergency stop I/P
Hot water cylinder
thermostat I/P
3
2
1
Cooling thermostat I/P
Heating thermostat I/P
TB1
Photocoupler input
p.c.board
(MCC-1214)
TB1
7 RY
01 8
2 2
1 1
1 1
Flow switch
High pressure
switch 4.15MPa
3 3
Thermal protector
(auto)75 3
BRW
BRW
RED
RED
ORN
ORN
Transformer
1 1
3 3
WHI
WHI
P100 BLK
: Installed
*1 HWS-802XWHT6-E
HWS-1402XWHT6-E : Installed
HWS-1402XWHT9-E : Installed
HWS-802XWHM3-E : Not installed
HWS-1402XWHM3-E : Not installed
A1
A2
WHI
*1
Thermal protector
(Single operation)
95 5
Thermal protector
(Single operation)
95 5
Backup heater 1
Backup heater 2
RY04
2T1 4T2 6T3
BLK
BRW
2T1 4T2 6T3
F3 F4
F3~6
Fuse
AC250V
T30A
L1 L2 L3 N TB 02
Power supply
400V 3N~ 50Hz
RY02
BRW
BRW
2T1 4T2 6T3
F3 F4 F5 F6
Backup heater 1
1L1 3L2 5L3
1L1 3L2 5L3
1L1 3L2 5L3
RY02
HWS-1402XWHT9-E
Thermal protector
(Single operation)
95 5
Backup heater 1
Backup heater 2
BRW
Backup heater 3
Thermal protector
(Single operation)95 5
F3~8
Fuse
AC250V
T30A
Power supply
400V 3N~ 50Hz
BLK
1 1
2
BLK
3 3
4
3
2
1
K1
RY
04
4
BLU
BLU
3
3
6
2T1 4T2 6T3
BLU
GRY
BLU
BLK
3
3
8
RY
03
7
A2
RY
02
4
1
1
L1 L2 L3 N TB 02
Power supply
230V~ 50Hz
Hot water cylinder
Symbol
GRY
BLK
BRW
BLU
2T1 4T2 6T3
F3 F4 F5 F6 F7 F8
*Option
RY
01
RY04
BRW
BLU
L N
1L1 3L2 5L3
RY02
YEL/GRN
BLU
1 2
YEL
1
2 YEL
YEL
3
YEL
4
BLU
1L1 3L2 5L3
BLU
BLU
BRW
Power supply
230V~ 50Hz
TB 03 31 32
BRW
BRW
WHI
RED
GRY
Outdoor unit
1 2 3
3
3
BLU
6
4
2
ORN
1L1 3L2
1 2 3
1
1
WHI
3
3
Thermal protector
(Single operation)
95 5
Thermal protector
(Single operation)
95 5
11 12 13 TB 01
1
2
3
4
CN202
(YEL)
F100
Fuse
T5A
250V~
CN305 CN100
(GRN) (WHI)
BLK
PNK
F1, F2
Fuse
AC250V
T30A
PJ20
BLK
1 1
BLK
2 2
CN101
(WHI)
RED
5
5
RED
Type 2
(3-wire SPDT type)
Type 3
(3-wire SPDT type)
F1 F2
GRN
1
1 1
2 GRN 2 2
GRN
3
3 3
GRN
4
4 4
CN201
(WHI)
1 2 3 4
RY607
CN606
(BLU)
6
2T1 4T2
1 2 3 4
GRY
7
7
5
MIXV
RY05
1
2
3
4
YEL
1 1
GRN
2 2
RED
3 3
SW07
RY606
CN605
(YEL)
YEL
ORN
WHI
PNK
RY605
CN604
(BLU)
*See DIP SW13_1
Type 2
(3-wire SPST type)
1 2 3 4
PNK
RY604
41 42 43 44 TB 04
3WV
PJ20
CN200
(RED)
1 2
RED
57 58 59 TB 05
ON
WHI
WHI
ORN
CN602
(WHI)
41 42 43 44 TB 04
RED
YEL
WHI
1 1
MIXV
Type 1
(3-wire SPST type)
BH
3WV
Type 1
(2-wire spring return)
RED
WPM 2WV
PNK
RED
WHI
YEL
51 52 53 54 55 56 57 58 59 TB 05
ON
SW06
RY603
WHI
RED
1 2 3 4
SW13
ON
3
RED
BRW
BLU
YEL
WHI WHI
5 5
ON
SW12
BLU
7 7
WHI
SW 11
ON
ORN
YEL
SW10
BLU
1 1
RY602
05
CN601
(RED)
WHI
WHI
A2 RY A1
3 3
RY600
1 2 3 4
RED
GRN
1
1 1
2 GRN 2 2
GRN
3
3 3
GRN
4
4 4
SW14
SW01
3 3
OFF
WPM N N
1
2
3
4
CN501
(YEL)
1
BLU
BLU : BLUE
GRN : GREEN
ORN : ORANGE
RED : RED
YEL : YELLOW
*Option p.c.board
Relay
p.c.board
(MCC-1431)
F01 (5A)
BLK : BLACK
BRW : BROWN
GRY : GRAY
PNK : PINK
WHI : WHITE
BLU
WHI
WHI
GRY
9 9
8
7 7
6
5 5
4
3
2
WHI
1 1
BLU
BRW
23 4
23 4
TB 07 7A 7B
CN10
(WHI)
TFI
A B
HWS-802XWHT6-E
HWS-1402XWHT6-E
Symbol
L
BLU
GRY
WHI
A B
YEL
TTW
123 4
23 4
RED
TWI
BRW
BRW
Remote
controller
(HWS-AMS11E)
RED
TC
Remote
controller
(HWS-AMS11E)
F3,F4
Fuse
AC250V
T30A
N
TB 02
Power supply
230V~ 50Hz
HWS-802XWHM3-E
HWS-1402XWHM3-E
Parts name
WPM
Water pump motor
TC
Water heat exchanger temperature sensor
3WV
3-way valve (locally procured)
TWI
Water inlet temperature sensor
2WV
2-way valve (locally procured)
TWO
Water outlet temperature sensor
MIXV
Mixing valve (locally procured)
THO
Heater outlet temperature sensor
BH
Booster heater
TTW
Hot water cylinder temperature sensor
RY01~RY06
Relay01~Relay06
TFI
Floor heating inlet temperature sensor
LPS
Low pressure sensor
TB
Terminal block
Backup heater1, 2, 3
Heater AC230V, 3kW
1. The one-dot chain line indicates wiring at the local site, and the dashed line indicates accessories sold separately and service
wires, respectively.
2. , and indicates the terminal board and the numberals indicate the terminal numbers.
19
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 20 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
2. , and indicates the terminal board and the numberals indicate the terminal numbers.
3.
indicates P.C. board.
* Be sure to fix the electric parts cover surely with screws.
(Otherwise water enters into the box resulting in malfunction.)
4-4-2. Power line
Backup heater
230 V ~ (3 kW type)
Backup heater
400 V 3N ~ (6/9 kW type)
Input power
230 V ~
50 Hz
Input power
400 V 3N ~
50 Hz
Leakage breaker
30 mA
L
Leakage
breaker 30 mA
L1 L2 L3 N
N
TB02
Hot water cylinder
TB02
Leakage
breaker 30
mA
TB03
Input power
230 V ~ 50 Hz
1
2
3
1
2
3
TB01
1
2
1
2
L
L
N
N
Outdoor unit
Leakage
breaker 30
mA
Input power for
cylinder heater
230 V ~ 50 Hz
4
Hydro unit
20
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 21 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
1
5
3
2
5
4
5
5
WPM
6
5
5
5
BH
2WV
7
5
8
59
5
1
4
2
4
3WV
3
4
4
4
MIXV
TB 05
TB 04
TB02
TB03
1
6A
6B
TTW
6C
6D
TF1
TB 06
Don't apply 11
220-240V
or
breakdown
will occur.
2
3
12
13
L1
31
32
L
N
L2
L3
L
N
L1
L2
L3
N
N
HOT WATER CYLINDER
TB 01
TB 03
TB 02
TB01
to Outdoor unit
Sensor
connection
Outdoor unit
connection
Hot
water
cylinder
Input
power
230 V ~
50 Hz
Hot water cylinder
power supply
Input
power
230 V ~
50 Hz
Input
power
400 V 3N ~
50 Hz
Backup heater
power supply
21
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 22 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
4-4-3. Control line
Mixing-Valve
type 2 for 2 zone
control
Mixing-Valve type 1
for 2 zone control
CW
1 2 3 4
TB04
Max 12 m
230 V 1 A
0.75 mm² or more
CCW
Pump (local)
N
Max 12 m
230 V 100 mA
0.75 mm² or more
A
B
TB05
3
4
TB06
Booster heater
(local)
1
2
2Way-Valve
for cooling
stop
Max 5 m shield wire 0.75
mm² or more
1 2 3 4
TB04
Max 12 m
230 V 100 mA
0.75 mm² or more
A
B
C
D
Max 5 m shield
wire 0.75 mm² or
more
5
6
Max 12 m
230 V 1 A
0.75 mm² or more
Temp sensor in hot
water cylinder
7
8
9
Temp sensor for
2 zone control
CN209
OPTION
PJ20
CN208
OPTION
PJ20
1 2 3 4 1 2 3 4
3Way-Valve for hot
water cylinder
Max 12 m
non voltage
0.75 mm² or more
Alert output
(local)
Boiler operation
(local)
Defrost output
(local)
Compressor
Operation output
(local)
4
4-4-4. External Device
Electrical connection for external booster heater
Booster Heater
1
2
3
4
5
6
7
8
9
Terminal Block 05
22
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 23 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Electrical connection for external additional pumps
Pump
01
1
2
3
4
5
6
7
8
9
Terminal Block 05
3-way valve (diverter) connection
Required Valve Specification:
Electrical Specification: 230 V; 50 Hz; <100 mA
Valve Diameters: Port A, Port B: Ø 1 1/4"
Return Mechanism: 3 types of 3-way valve (diverter) can be used.
Set the 3-way valve in use with the DIP switch SW13-1 on the Hydro Unit board.
SW13-1
Type 1
2-wire spring return
OFF
Type 2
3-wire SPST
OFF
Type 3
3-wire SPDT
ON
Type 1: SPRING RETURN
Type 2: SPST
port “A” to Hot water
cylinder
port “A” to Hot water
cylinder
Hydro Unit
TB 05
port “AB” to
Hydro unit
port “AB” to
Hydro unit
7
port “A” open
8
Hydro Unit
port “A”
close
open
TB 05
7
8
9
9
port “B” to Room heating or
cooling
port “B” to Room heating or
cooling
Type 3: SPDT
port “A” to Hot water
cylinder
port “AB” to
Hydro unit
Hydro Unit
port “A”
close
open
TB 05
7
8
9
port “B” to Room heating or
cooling
23
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 24 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
3-way mixing valve connection
Required Actuator Specification
Electrical Specification:230 V; 50 Hz; <100 mA
The 3-way mixing valve is used to achieve the temperature differential needed in a 2-zone heating system.
• Connect the 3-way mixing valve to terminals 2, 3 and 4 on Terminal Block 04 (for Type 1 mixing valve) or on
terminals 1, 2 and 3 on Terminal Block 04 (for Type 2 mixing valve).
• Connect the 3-way mixing valve in accordance with the diagrams below:Type 1: SPDT
Type 2: SPST
port “A” to Zone 2 Heating
port “A” to Zone 2 Heating
Hydro Unit
TB 04
1
open
port “AB” to
Hydro unit
Hydro Unit
port “AB” to
Hydro unit
2
port “A”
close
port “A”
close
open
TB 04
1
3
2
4
3
4
port “B” BLANK OFF
port “B” BLANK OFF
Hot water cylinder connection (optional)
Earth leakage breaker
INPUT Power 230 V ~ 50 Hz
2
1
4
1
2
L
N
Terminal block 03
Hot water cylinder
Hot water cylinder electrical box connections
Hydro unit
24
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 25 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
4-5. Capacity Tables
▼Outdoor unit
Hydro unit
HWS-802H-E
HWS-802XWH**-E
Rated heating capacity and power input
Capacity
Rated condition 1
TO (DB/WB)=7/6°C
LWT=35°C
dT=5deg
Rated condition 2
TO (DB/WB)=7/6°C
LWT=45°C
dT=5deg
Power input
kW
8.0
kW
1.96
W/W
4.08
Rated water flow rate
/min
22.9
Capacity
kW
8.0
COP
Power input
COP
Rated water flow rate
kW
2.40
W/W
3.33
/min
22.9
* Rated heating capacity and power input are the data at rated compressor operating frequency
* Power input does not include water pump power.
* Heating capacity and power input are measured in accordance with EN14511.
TO
LWT
dT
:
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
Delta temperature (deg)
Leaving water temperature - return water temperature
25
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 26 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Average heating capacity and power input
Capacity (kW)
LWT (°C)
30
35
40
-20
3.93
3.83
3.74
—
—
—
-15
4.66
4.54
4.44
—
—
—
-7
5.45
5.30
5.15
4.99
-2
6.24
6.11
5.97
5.84
5.69
2
6.86
6.75
6.64
6.52
6.47
6.38
7
9.02
8.78
8.58
8.34
8.11
7.87
10
9.56
9.29
9.10
8.84
8.42
8.29
12
10.11
9.81
9.62
9.35
8.92
8.87
15
10.94
10.60
10.41
10.13
9.68
9.52
20
12.42
11.99
11.82
11.50
11.03
10.78
30
35
40
45
50
55
-20
1.70
1.82
1.90
—
—
—
-15
1.78
1.90
2.00
—
—
—
-7
2.06
2.21
2.33
2.47
-2
2.10
2.26
2.39
2.56
2.86
2
2.11
2.28
2.43
2.60
2.88
3.17
7
1.87
2.07
2.25
2.46
2.65
2.85
10
1.84
2.03
2.21
2.42
2.61
2.86
12
1.83
2.02
2.20
2.41
2.60
2.87
15
1.83
2.02
2.20
2.41
2.60
2.88
20
1.82
2.01
2.18
2.44
2.58
2.91
TO
(°C)
Power input (kW)
TO
(°C)
45
50
—
55
—
—
LWT (°C)
COP
—
—
—
4
LWT (°C)
-20
TO
(°C)
30
35
40
2.31
2.10
1.97
—
45
—
50
55
—
—
—
—
—
—
-15
2.62
2.39
2.22
-7
2.65
2.40
2.21
-2
2.97
2.70
2.50
2.28
1.99
2
3.25
2.96
2.73
2.51
2.25
2.02
2.02
—
7
4.82
4.24
3.81
3.39
3.06
2.76
10
5.20
4.58
4.12
3.65
3.23
2.90
12
5.52
4.86
4.37
3.88
3.43
3.09
15
5.98
5.25
4.73
4.20
3.72
3.31
20
6.82
5.97
5.42
4.71
4.28
3.70
* Heating capacity and power input are include defrost cycle data.
* Heating capacity and power input are shown at maximum compressor operating frequency
* Power input does not include water pump power.
* Heating capacity and power input are measured in accordance with EN14511.
TO
LWT
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
26
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 27 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Heating peak capacity and power input
Capacity (kW)
LWT (°C)
30
35
40
-20
4.11
4.01
3.92
—
—
—
-15
4.87
4.74
4.62
—
—
—
-7
6.25
6.08
5.92
5.74
-2
7.22
7.00
6.80
6.59
6.37
2
8.17
7.91
7.67
7.43
7.17
6.92
7
9.02
8.78
8.58
8.34
8.11
7.87
10
9.56
9.29
9.10
8.84
8.42
8.29
12
10.11
9.81
9.62
9.35
8.92
8.87
15
10.94
10.60
10.41
10.13
9.68
9.52
20
12.42
11.99
11.82
11.50
11.03
10.78
30
35
40
45
50
55
-20
1.72
1.85
2.04
—
—
—
-15
1.83
1.97
2.17
—
—
—
-7
1.85
2.01
2.21
2.43
-2
1.87
2.04
2.24
2.46
2.65
2
1.86
2.04
2.24
2.45
2.65
2.80
7
1.87
2.07
2.25
2.46
2.65
2.85
10
1.84
2.03
2.21
2.42
2.61
2.86
12
1.83
2.02
2.20
2.41
2.60
2.87
15
1.83
2.02
2.20
2.41
2.60
2.88
20
1.82
2.01
2.18
2.44
2.58
2.91
TO
(°C)
Power input (kW)
TO
(°C)
45
50
—
55
—
—
LWT (°C)
COP
—
—
—
LWT (°C)
-20
TO
(°C)
30
35
40
2.38
2.17
1.92
—
45
—
50
55
—
—
—
—
—
—
-15
2.67
2.41
2.13
-7
3.37
3.02
2.68
-2
3.85
3.43
3.04
2.68
2.40
2
4.39
3.88
3.43
3.03
2.71
2.47
2.37
—
7
4.82
4.24
3.81
3.39
3.06
2.76
10
5.20
4.58
4.12
3.65
3.23
2.90
12
5.52
4.86
4.37
3.88
3.43
3.09
15
5.98
5.25
4.73
4.20
3.72
3.31
20
6.82
5.97
5.42
4.71
4.28
3.70
* Heating capacity and power input are shown peak value during operation
* Heating capacity and power input are shown at maximum compressor operating requency
* Power input does not include water pump power.
TO
LWT
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
27
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 28 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
▼Outdoor unit
Hydro unit
HWS-802H-E
HWS-802XWH**-E
Rated cooling capacity and power input
Capacity
Rated condition 1
TO=35°C
LWT=7°C
dT=5deg
Rated condition 2
TO=35°C
LWT=18°C
dT=5deg
Power input
kW
6.0
kW
2.13
W/W
2.82
Rated water flow rate
/min
17.2
Capacity
kW
6.0
EER
Power input
EER
Rated water flow rate
kW
1.42
W/W
4.23
/min
17.2
* Rated cooling capacity and power input are the data at rated compressor operating frequency
* Power input does not include water pump power.
* Cooling capacity and power input are measured in accordance with EN14511.
TO
LWT
dT
:
:
:
Outdoor temperature (DB°C)
Leaving water temperature (°C)
Delta temperature (deg)
Return water temperature - Leaving water temperature
4
28
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 29 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Cooling capacity and power input
Capacity (kW)
TO
(°C)
LWT (°C)
7
10
13
15
18
20
7.36
8.05
8.81
9.25
10.03
27
6.76
7.39
8.09
8.49
9.21
30
6.46
7.06
7.73
8.12
8.80
35
6.00
6.56
7.18
7.54
8.18
40
5.50
6.01
6.58
6.91
7.49
43
4.62
5.00
5.44
5.69
6.09
7
10
13
15
18
20
1.60
1.63
1.66
1.68
1.70
27
1.84
1.86
1.90
1.92
1.95
30
1.90
1.93
1.97
2.00
2.02
35
2.13
2.16
2.20
2.23
2.26
40
2.30
2.34
2.38
2.41
2.44
43
2.09
2.09
2.09
2.09
2.09
Power input (kW)
TO
(°C)
LWT (°C)
EER
LWT (°C)
TO
(°C)
7
10
13
15
18
20
4.60
4.95
5.32
5.51
5.91
27
3.68
3.97
4.26
4.41
4.73
30
3.39
3.65
3.92
4.07
4.36
35
2.82
3.04
3.26
3.38
3.62
40
2.39
2.57
2.76
2.86
3.07
43
2.21
2.40
2.60
2.72
2.91
* Cooling capacity and power input are the data at rated compressor operating frequency of rated condition 1
* Power input does not include water pump power.
* Cooling capacity and power input are measured in accordance with EN14511.
TO
LWT
:
:
Outdoor temperature (DB°C)
Leaving water temperature (°C)
29
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 30 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Heating capacity and input specifications
▼Outdoor unit
Hydro unit
HWS-1102H-E
HWS-1402XWH**-E
Rated heating capacity and power input
Capacity
Rated condition 1
TO (DB/WB)=7/6°C
LWT=35°C
dT=5deg
Rated condition 2
TO (DB/WB)=7/6°C
LWT=45°C
dT=5deg
Power input
kW
11.2
kW
2.4
W/W
4.66
Rated water flow rate
/min
32.1
Capacity
kW
11.2
COP
Power input
COP
Rated water flow rate
kW
2.95
W/W
3.80
/min
32.1
* Rated heating capacity and power input are the data at rated compressor operating frequency
* Power input does not include water pump power.
* Heating capacity and power input are measured in accordance with EN14511.
TO
LWT
dT
:
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
Delta temperature (deg)
Leaving water temperature - return water temperature
4
30
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 31 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Average heating capacity and power input
Capacity (kW)
LWT (°C)
30
35
40
-20
5.66
5.48
5.34
—
—
—
-15
7.09
6.86
6.69
—
—
—
-7
8.68
8.40
8.19
8.02
-2
10.23
9.90
9.65
9.46
2
10.90
10.55
10.28
10.08
9.66
8.49
7
15.47
14.97
14.59
14.30
13.71
11.48
10
16.40
15.87
15.47
15.16
14.53
12.17
12
17.35
16.62
16.20
15.88
15.22
12.75
15
18.84
17.70
17.25
16.91
16.21
13.57
20
21.71
20.01
19.50
19.11
18.33
15.35
30
35
40
45
50
55
-20
2.76
2.97
3.26
—
—
—
-15
2.87
3.09
3.40
—
—
—
-7
3.16
3.40
3.74
4.08
-2
3.11
3.35
3.68
4.02
4.37
2
3.07
3.30
3.63
3.96
4.30
4.26
7
3.00
3.23
3.55
3.88
4.21
4.17
10
2.98
3.21
3.53
3.86
4.18
4.14
12
2.97
3.20
3.52
3.84
4.17
4.13
15
2.96
3.19
3.51
3.83
4.16
4.12
20
2.94
3.17
3.48
3.81
4.13
4.09
TO
(°C)
Power input (kW)
TO
(°C)
45
50
—
55
—
9.07
—
LWT (°C)
COP
—
—
—
LWT (°C)
-20
TO
(°C)
30
35
40
2.05
1.85
1.64
—
45
—
50
55
—
—
—
—
—
—
-15
2.47
2.22
1.97
-7
2.75
2.47
2.19
-2
3.29
2.96
2.62
2.35
2.08
2
3.55
3.20
2.83
2.55
2.25
1.99
1.97
—
7
5.16
4.63
4.11
3.69
3.26
2.75
10
5.50
4.94
4.38
3.93
3.48
2.94
12
5.84
5.19
4.60
4.14
3.65
3.09
15
6.36
5.55
4.91
4.42
3.90
3.29
20
7.38
6.31
5.60
5.02
4.44
3.75
* Heating capacity and power input are include defrost cycle data.
* Heating capacity and power input are shown at maximum operating frequency
* Power input does not include water pump power.
* Heating capacity and power input are measured in accordance with EN14511.
TO
LWT
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
31
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 32 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Heating peak capacity and power input
Capacity (kW)
LWT (°C)
30
35
40
-20
6.64
6.48
6.37
—
—
—
-15
8.07
7.86
7.71
—
—
—
-7
10.40
10.10
9.89
9.69
—
—
-2
12.04
11.68
11.41
11.18
10.73
2
13.41
12.98
12.65
12.40
11.90
9.97
7
15.47
14.97
14.59
14.30
13.71
11.48
10
16.40
15.87
15.47
15.16
14.53
12.17
12
17.35
16.62
16.20
15.88
15.22
12.75
15
18.84
17.70
17.25
16.91
16.21
13.57
20
21.71
20.01
19.50
19.11
18.33
15.35
30
35
40
45
50
55
-20
2.63
2.78
3.08
—
—
—
-15
2.81
2.99
3.30
—
—
—
-7
2.91
3.11
3.43
3.75
-2
2.96
3.17
3.49
3.82
4.15
2
2.96
3.19
3.51
3.84
4.17
4.13
7
3.00
3.23
3.55
3.88
4.21
4.17
10
2.98
3.21
3.53
3.86
4.18
4.14
12
2.97
3.20
3.52
3.84
4.17
4.13
15
2.96
3.19
3.51
3.83
4.16
4.12
20
2.94
3.17
3.48
3.81
4.13
4.09
TO
(°C)
Power input (kW)
TO
(°C)
45
50
55
—
LWT (°C)
COP
—
—
—
4
LWT (°C)
-20
TO
(°C)
30
35
40
2.53
2.33
2.07
—
45
—
50
55
—
—
—
—
—
—
-15
2.87
2.63
2.33
-7
3.57
3.25
2.89
-2
4.07
3.68
3.27
2.93
2.59
2
4.53
4.07
3.61
3.23
2.86
2.41
2.58
—
7
5.16
4.63
4.11
3.69
3.26
2.75
10
5.50
4.94
4.38
3.93
3.48
2.94
12
5.84
5.19
4.60
4.14
3.65
3.09
15
6.36
5.55
4.91
4.42
3.90
3.29
20
7.38
6.31
5.60
5.02
4.44
3.75
* Heating capacity and power input are shown peak value during operation
* Heating capacity and power input are shown at maximum compressor operating requency
* Power input does not include water pump power.
TO
LWT
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
32
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 33 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
▼Outdoor unit
Hydro unit
HWS-1102H-E
HWS-1402XWH**-E
Rated cooling capacity and power input
Capacity
Rated condition 1
TO=35°C
LWT=7°C
dT=5deg
Rated condition 2
TO=35°C
LWT=18°C
dT=5deg
Power input
kW
10.0
kW
3.52
W/W
2.84
Rated water flow rate
/min
28.7
Capacity
kW
EER
Power input
EER
Rated water flow rate
10
kW
2.35
W/W
4.26
/min
28.7
* Rated heating capacity and power input are the data at rated compressor operating frequency
* Power input does not include water pump power.
* Cooling capacity and power input are measured in accordance with EN14511.
TO
LWT
dT
:
:
:
Outdoor temperature (DB°C)
Leaving water temperature (°C)
Delta temperature (deg)
Return water temperature - Leaving water temperature
33
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 34 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Cooling capacity and power input
Capacity (kW)
TO
(°C)
LWT (°C)
7
10
13
15
18
20
12.78
13.64
14.99
16.03
16.98
27
11.60
12.38
13.61
14.55
15.42
30
11.03
11.77
12.94
13.83
14.66
35
10.00
10.67
11.73
12.54
13.29
40
8.96
9.56
10.51
11.24
11.91
43
6.89
7.35
8.08
8.64
9.16
7
10
13
15
18
20
2.64
2.70
2.74
2.77
2.78
27
3.04
3.11
3.16
3.18
3.20
30
3.23
3.30
3.35
3.38
3.40
35
3.52
3.59
3.65
3.68
3.70
40
3.82
3.84
3.86
3.88
3.91
43
3.28
3.28
3.28
3.29
3.29
Power input (kW)
TO
(°C)
LWT (°C)
EER
LWT (°C)
TO
(°C)
7
10
13
15
18
20
4.83
5.05
5.47
5.80
6.11
27
3.81
3.98
4.31
4.57
4.81
30
3.41
3.57
3.86
4.09
4.31
35
2.84
2.97
3.21
3.41
3.59
40
2.34
2.49
2.72
2.90
3.04
43
2.10
2.24
2.46
2.62
2.78
4
* Cooling capacity and power input are include are the data at rated compressor operating frequency
* Power input does not include water pump power.
* Cooling capacity and power input are measured in accordance with EN14511.
TO
LWT
:
:
Outdoor temperature (DB°C)
Leaving water temperature (°C)
34
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 35 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
▼Outdoor unit
Hydro unit
HWS-1402H-E
HWS-1402XWH**-E
Rated heating capacity and power input
Capacity
Rated condition 1
TO (DB/WB)=7/6°C
LWT=35°C
dT=5deg
Rated condition 2
TO (DB/WB)=7/6°C
LWT=45°C
dT=5deg
Power input
kW
14.0
kW
3.15
W/W
4.45
Rated water flow rate
/min
40.1
Capacity
kW
14.0
COP
Power input
COP
Rated water flow rate
kW
3.95
W/W
3.54
/min
40.1
* Rated heating capacity and power input are the data at rated compressor operating frequency
* Power input does not include water pump power.
* Heating capacity and power input are measured in accordance with EN14511.
TO
LWT
dT
:
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
Delta temperature (deg)
Leaving water temperature - return water temperature
35
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 36 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Average heating capacity and power input
Capacity (kW)
LWT (°C)
30
35
40
-20
6.43
6.18
5.94
—
—
—
-15
8.26
7.94
7.64
—
—
—
50
9.75
9.37
9.01
8.24
-2
11.37
10.93
10.52
9.61
2
12.03
11.56
11.12
10.17
9.16
8.62
7
17.77
17.08
16.43
15.02
13.53
12.13
10
18.66
17.93
17.25
15.77
14.21
12.74
12
19.92
18.96
18.24
16.67
15.02
13.47
15
21.53
20.09
19.33
17.67
15.91
14.27
20
23.89
21.87
21.04
19.23
17.32
15.53
30
35
40
45
50
55
-20
3.24
3.50
3.76
—
—
—
-15
3.41
3.69
3.96
—
—
—
-7
3.80
4.10
4.40
4.42
-2
3.74
4.04
4.34
4.36
4.38
2
3.69
3.98
4.27
4.29
4.31
4.34
7
3.65
3.94
4.23
4.25
4.27
4.30
10
3.65
3.94
4.23
4.25
4.27
4.30
12
3.66
3.95
4.24
4.26
4.28
4.31
15
3.69
3.98
4.28
4.30
4.32
4.35
20
3.48
3.75
4.03
4.05
4.07
4.10
Power input (kW)
—
55
-7
TO
(°C)
TO
(°C)
45
—
8.66
—
LWT (°C)
COP
—
—
—
4
LWT (°C)
-20
TO
(°C)
30
35
40
1.98
1.77
1.58
—
45
—
50
55
—
—
—
—
—
—
-15
2.42
2.15
1.93
-7
2.57
2.29
2.05
-2
3.04
2.71
2.42
2.20
1.98
2
3.26
2.90
2.60
2.37
2.13
1.99
1.86
—
7
4.87
4.34
3.88
3.53
3.17
2.82
10
5.11
4.55
4.08
3.71
3.33
2.96
12
5.44
4.80
4.30
3.91
3.51
3.13
15
5.83
5.05
4.52
4.11
3.68
3.28
20
6.86
5.83
5.22
4.75
4.26
3.79
* Heating capacity and power input are include defrost cycle data.
* Heating capacity and power input are shown at maximum operating frequency
* Power input does not include water pump power.
* Heating capacity and power input are measured in accordance with EN14511.
TO
LWT
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
36
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 37 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Heating peak capacity and power input
Capacity (kW)
LWT (°C)
30
35
40
-20
7.12
6.90
6.69
—
—
—
-15
9.36
9.05
8.76
—
—
—
-7
12.15
11.72
11.32
10.35
—
—
-2
14.09
13.57
13.08
11.96
10.78
2
15.35
14.75
14.19
12.97
11.70
10.01
7
17.77
17.08
16.43
15.02
13.53
12.13
10
18.66
17.93
17.25
15.77
14.21
12.74
12
19.92
18.96
18.24
16.67
15.02
13.47
15
21.53
20.09
19.33
17.67
15.91
14.27
20
23.89
21.87
21.04
19.23
17.32
15.53
30
35
40
45
50
55
-20
3.12
3.30
3.57
—
—
—
-15
3.31
3.52
3.80
—
—
—
-7
3.52
3.77
4.06
4.08
-2
3.60
3.87
4.16
4.19
4.21
2
3.59
3.88
4.16
4.18
4.21
4.25
7
3.65
3.94
4.23
4.25
4.27
4.30
10
3.65
3.94
4.23
4.25
4.27
4.30
12
3.66
3.95
4.24
4.26
4.28
4.31
15
3.69
3.98
4.28
4.30
4.32
4.35
20
3.48
3.75
4.03
4.05
4.07
4.10
TO
(°C)
Power input (kW)
TO
(°C)
45
50
55
—
LWT (°C)
COP
—
—
—
LWT (°C)
-20
TO
(°C)
30
35
40
2.28
2.09
1.87
—
45
—
50
55
—
—
—
—
—
—
-15
2.83
2.57
2.30
-7
3.45
3.11
2.79
-2
3.91
3.51
3.14
2.86
2.56
2
4.27
3.81
3.41
3.10
2.78
2.36
2.54
—
7
4.87
4.34
3.88
3.53
3.17
2.82
10
5.11
4.55
4.08
3.71
3.33
2.96
12
5.44
4.80
4.30
3.91
3.51
3.13
15
5.83
5.05
4.52
4.11
3.68
3.28
20
6.86
5.83
5.22
4.75
4.26
3.79
* Heating capacity and power input are shown peak value during operation
* Heating capacity and power input are shown at maximum compressor operating requency
* Power input does not include water pump power.
TO
LWT
:
:
Outdoor temperature (DB°C) RH85%
Leaving water temperature (°C)
37
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 38 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
▼Outdoor unit
Hydro unit
HWS-1402H-E
HWS-1402XWH**-E
Rated cooling capacity and power input
Capacity
Rated condition 1
LWT=7°C
dT=5deg
Rated condition 2
LWT=18°C
dT=5deg
Power input
kW
11.0
kW
4.08
W/W
2.69
Rated water flow rate
/min
31.5
Capacity
kW
EER
Power input
EER
Rated water flow rate
11
kW
2.65
W/W
4.15
/min
31.5
* Rated cooling capacity and power input are the data at rated compressor operating frequency
* Power input does not include water pump power.
* Cooling capacity and power input are measured in accordance with EN14511.
TO
LWT
dT
:
:
:
Outdoor temperature (DB°C)
Leaving water temperature (°C)
Delta temperature (deg)
Return water temperature - Leaving water temperature
4
38
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 39 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
Cooling capacity and power input
Capacity (kW)
TO
(°C)
LWT (°C)
7
10
13
15
18
20
13.95
15.48
16.82
17.53
18.34
27
12.60
13.98
15.19
15.83
16.56
30
12.01
13.33
14.49
15.10
15.80
35
11.00
12.21
13.27
13.83
14.47
40
8.83
9.80
10.65
11.10
11.62
43
6.81
7.56
8.21
8.56
8.95
7
10
13
15
18
20
3.14
3.21
3.26
3.27
3.30
27
3.57
3.64
3.70
3.72
3.76
30
3.77
3.85
3.91
3.92
3.97
35
4.08
4.17
4.23
4.25
4.29
40
3.84
3.85
3.85
3.87
3.88
43
3.25
3.23
3.23
3.22
3.22
Power input (kW)
TO
(°C)
LWT (°C)
EER
LWT (°C)
TO
(°C)
7
10
13
15
18
20
4.44
4.83
5.16
5.36
5.55
27
3.53
3.84
4.10
4.26
4.41
30
3.19
3.46
3.71
3.85
3.98
35
2.70
2.93
3.14
3.26
3.37
40
2.30
2.55
2.76
2.87
3.00
43
2.10
2.34
2.54
2.65
2.78
* Cooling capacity and power input are include are the data at rated compressor operating frequency
* Power input does not include water pump power.
* Cooling capacity and power input are measured in accordance with EN14511.
TO
LWT
:
:
Outdoor temperature (DB°C)
Leaving water temperature (°C)
39
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 40 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
4-6. Water Pump Specifications
Pump operation/configuration
Hydraulic heat exchanger (14 kW) QH characteristics
Minimum flow rate
10
9
Pump head (m)
8
7
6
5
4
SW3
3
SW2
Out of Operation
Range
2
SW1
1
0
0
5
10
20
15
25
30
35
Flow rate ( /min)
40
45
50
55
60
65
Hydraulic heat exchanger (8 kW) QH characteristics
Minimum flow rate
4
8
7
Pump head (m)
6
5
4
3
SW 3
2
SW 2
1
Out of Operation
Range
SW 1
0
10
15
20
Flow rate ( /min)
25
30
40
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 41 Thursday, September 10, 2009 6:00 PM
Engineering Data book
4.HYDRO UNIT
4-7. Options
Optional parts
No.
Part name
Model name
1
External output board
TCB-PCIN3E
2
External input board
TCB-PCMO3E
Application
Remarks
Boiler-linked output, Alarm output
Defrost signal output, Compressure operation signal
output
Cooling/heating thermostat input
Up to two boards (according
to applications)
Up to two boards (according
to applications)
Forced-stop signal input
▼External output board
Feature
Operation and Error monitoring is possible by using Error output control board “TCB-PCIN3E“
Function / Electric wiring diagram
Alarm output : Output enabled when the system is in alarm / fault condition.
Boiler control output : Output enabled when outdoor ambient temperature <-10 °C
Hydro unit main control board
TCB-PCIN3E
Display
Relay
K1
Connection
Cable
CN208
PJ20
Display
Relay
K2
Local Supply
4
Power Supply L1 : Alarm output
3
L2
2
L2 : Boiler control output
Power Supply
1
L1
Operation output : Display relay is ON with outdoor unit compressor operation.
Defrost output : Display relay is ON when the system in defrost.
Hydro unit main control board
TCB-PCIN3E
Display
Relay
Connection
Cable
CN209
K1
PJ20
Display
Relay
K2
Local Supply
4
3
Power Supply L1 : Defrost output
L2
L2 : Compressure
operation output
2
1
Power Supply
L1
CAUTION
• Be sure to prepare a non-voltage point for each terminal.
• Display Relay capacity of "ALERM" and "BOILER", "OPERATION" and "DEFROST"
Below AC230V 0.5A (COS Ø =100%). when connecting load such as relay coil to "L1,L2" load, insert the noise surge
absorber.
Below DC24V 1A (Non-inductive load). when connecting load such as relay coil to "L1,L2" load, insert the bypass circuit.
41
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 42 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
▼External input board
Feature
* “TCB-PCMO3E“ is used for the following external master controls.
1. Cooling / Heating thermostat input
2. Forced - stop signal input
Refer to “Function/Electric wiring diagram“ for feature of each control because connection is different according to
the control.
Function / Electric wiring diagram
Cooling / Heating thermostat input
2-3 : Room thermostat input for cooling mode
1-3 : Room thermostat input for heating mode
• Output enabled when either heating or cooling mode selected on room thermostat. (locally procured)
• Volt free details :
• Connection details :
Cooling connection :Terminals 3 (COM) and 2 (COOL) on TCB-BCMO3E (See Schematic below)
Heating connection :Terminals 3 (COM) and 1 (HEAT) on TCB-BCMO3E (See Schematic below)
TCB-PCMO3E
CN211
Connection
Cable
Thermostat (locally procured)
COM
3
COOL
2
HEAT
1
PJ17
Cool
Hot
Forced - stop signal input
S1 : Emergency shutdown input
• Non-voltage contacts
• Connection details :
Cylinder Thermostat :Terminals 3 (COM) and 2 (COOL) on TCB-PCMO3E (See Schematic below)
5
S2 : Cylinder thermostat input
• Non-voltage contacts
• Connection details :
Emergency shutdown :Terminals 3 (COM) and 1 (HEAT) on TCB-PCMO3E (See Schematic below)
Locally procured
TCB-PCMO3E
Connection
Cable
CN210
COM
3
COOL
2
HEAT
1
S1
S2
PJ17
CAUTION
• Be sure to prepare non voltage continuous point of contact for each terminal.
• Supplementary Insulation must be added to user touched to user touchabel part of switches.
42
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 43 Thursday, September 10, 2009 6:00 PM
5. OUTDOOR UNIT
43
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 44 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
5-1. Specification
Outdoor unit
HWS-802H-E
Power supply
Type
Compressor
Motor
2.0
Pole
Appearance
Outer dimension
4
4
2.7
2.7
Pulse motor valve
m
5
Standard
m
7.5
Maximum
m
Outdoor-Hydro unit
m
30
Pre-coated material
Height
mm
890
1340
Width
mm
900
900
Depth
mm
320
320
kg
63
93
Height
mm
975
1425
Width
mm
971
971
Depth
mm
436
436
kg
69
unit and packing
Type
Standard air flow
Motor
Refrigerant pipe
100
Finned tube
Fan
Operation outdoor temp
7.5
Silky shade (Muncel 1Y8.5-0.5)
Material
Heat exchanger
Sound pressure level
3
30
Color
Total weight
Fan unit
3.75
4
Minimum
Unit weight
Packing dimension
3.75
1.8
Refrigerant control
Height difference
HWS-1402H-E
Hermetic compressor
kW
Refrigerant charged
Pipe length
HWS-1102H-E
1 ~ 230V 50Hz
Propeller fan
m3/min
57
101
103
W
63
100+100
100+100
Heating nomal
dBA
49
49
51
Heating low noise*
dBA
42
44
44
Cooling normal
dBA
47
50
51
Cooling low noise*
dBA
44
45
45
Hot water normal
dBA
49
49
51
Hot water low noise
dBA
42
44
44
Heating
°C
Cooling
°C
10 to 43
Hot water
°C
-20 to 43
Gas
mm
15.9
Liquid
mm
9.5
Maximum running current
Installation fuse rating
5
-20 to 25
A
20.8
22.8
25
(all types can be used)
A
Power wire
H07 RN-F or 60245 IEC 66
(2.5 mm2 or more)
Hydro/outdoor connecting wires
H07 RN-F or 60245 IEC 66
(1.5 mm2 or more)
44
Toshiba
17.5
365
17.5
Z views
83
7
52
60 178
68
327
150
383
75
900
A legs
34
170
178 178
518
550
70
600
Air outret
port
Knockout for downward piping
Mounting hole sold separately
(Ø12-Ø3 emboss)
5-Drain hole
(Ø20x88 burring hole)
Air inret port
Z
80
135
Details of A legs
1
2
Refrigerant pipe
connecting port
(Ø9.5 flare at gas side)
18
1
2
30
Mounting bolt hole
(Ø12x17 long hole)
Refrigerant pipe
connecting port
(Ø9.5 flare at liquid side)
39
96
55 95
46
B legs
48
54
155
247
255
581
534
148
165
40
Drain hole (Ø25 burring hole)
55 95
18
12
80
151
400
320
Details of B legs
40
Air inret
port
94
Name
2 Power supply inlet hole
Refrigerant piping hole
1 Indoor/Outdoor unit
connecting wire inlet hole
1
12
64
Mounting bolt hole
(Ø12x17 U-shape hole)
890
24
74 118 128
7
Ø38 Kockout hole
Note
5.OUTDOOR UNIT
65
55 95
380
200 60
+00xxxxxxxxxx_Hydro-DB.book Page 45 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5-2. Dimension
5-2-1. HWS-802H-E
Unit: mm
45
Toshiba
7
Z views
83
Knockout for downward piping
60
68
52
327
178
150
383
60
34
170
178
900
178
518
550
600
Z
80
135
Drain hole (Ø25)
B legs
Air outret
port 70 A legs
75
46
17.5
17.5
365
74
118 128
200
1
2
18
1
2
18
30
Refrigerant pipe
connecting port
(Ø9.5 flare at gas side)
80
151
400
320
Details of B legs
12
Details of A legs
Mounting bolt hole
(Ø12x17 long hole)
Refrigerant pipe
connecting port
(Ø9.5 flare at liquid side)
39
96
605
613
Air inret
port
55 95
Air inret port
360
48
54
55 95
155
534
581
40
94
655
121
74
534
581
85
70
40
1340
24
Drain hole (Ø20x88)
7
1
12
64
Mounting bolt hole
(Ø12x17 U-shape hole)
2 Power supply inlet hole
1
Name
Refrigerant piping hole
Indoor/Outdoor unit
connecting wire inlet hole
Ø38 Kockout hole
Note
5.OUTDOOR UNIT
65
55 95
380
+00xxxxxxxxxx_Hydro-DB.book Page 46 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5-2-2. HWS-1402H-E
Unit: mm
5
46
Toshiba
Compressor
Accumulator
TS
TD
Defrosting / Cooling
Heating / Hot-water supply
Outdoor heat
exchanger
TO
4-way valve
Outdoor unit
TE
Pulse motor
valve
TC
Plate-type water
heat exchanger
Low Pressure
sensor
Pressure Switch
TWI
TWO
P
Circulating pump
Flow switch
THO
Safety valve
Backup heater
Water vent valve
Manometer
Air vent valve
Expansion vessel
Hydro unit
+00xxxxxxxxxx_Hydro-DB.book Page 47 Thursday, September 10, 2009 6:00 PM
5.OUTDOOR UNIT
Engineering Data book
5-3. Piping Diagram
47
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 48 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
5-4. Wiring Diagram
5-4-1. Outdoor Unit
Reactor
(Gry) (White)
(Gry)
P04 P05
FM
1 1
2 2
3 3
CN300
(White)
FM01
1 1
2 2
3 3
CN400 * HWS-1102H-E
HWS-1402H-E
(White)
FM02
1 1
2 2
3 3
CN300
(White)
1 1
2 2
CN609
(Blue)
1
2
3
4
5
6
CN610
(Yellow)
TL
1 1
2 2
CN604
(White)
TD
1 1
2
3 3
CN603
(White)
TO
1 1
2 2
CN602
(Yellow)
TE
1 1
2 2
CN601
(White)
TS
1 1
2
3 3
CN600
(White)
FM
FM01,02*
PMV
CN200 CN201 CN202
1 2 3 4
ON
SW801
L/F
ON
1 2 3 4
1 2 3 4
SW803
Fuse, F01
T25A, 250V~
RY704
P09
4 CN701
4 (White)
20SF
Parts name
Fan motor
Pipe temperature sensor (Discharge)
Pipe temperature sensor (Suction)
TE
Heat exchanger sensor 1
TL
Heat exchanger sensor 2
TO
Outside temperature sensor
20SF
4-way valve coil
49C
Compressor case thermostat
RY
Relay
L/F
Line Filter
7
7
(Red)
Earth
screw
1
1
2
2
P01
P02
(Black)
L
(White)
N
3
3
5
Power Supply
230V ~ 50Hz
Earth
screw
Pulse motor valve
TS
5
5
3
3
Earth
screw
Outdoor
unit
Hydro
unit
Compressor
TD
CN04 1
(White) 1
(Red)
1
1
(Gry)
3
(White)
CN704 1
(Blue)
(Black)
Fuse, F03
T10A, 250V~
SW802
PMV
CM
P06 P07
SW800
SW804
CN710 1 2 3 4 5 6
(White) 1 2 3 4 6
Symbol
(Red) (White) (Black)
U
V
W
(White)
Control P.C. board
MCC-1571
ON
49C
CM
Reactor
3.
indicates the terminal block. Alphanumeric characters in
the cycle indicate the terminal No.
4. The two-dot chain line indicates the wiring procured locally.
5.
indicates the P.C. board.
6. For the hydro unit circuit, refer to the wiring diagram of the
hydro unit.
* HWS-1102H-E, HWS-1402H-E
48
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 49 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
5-4-2. Power line
Hot water cylinder
1
2
Leakage
breaker 30
mA
TB01
TB03
Input power
230 V ~ 50 Hz
1
2
3
1
2
3
1
2
Leakage
breaker 30
mA
L
L
N
N
Outdoor unit
Input power for
cylinder heater
230 V ~ 50 Hz
Hydro unit
Leakage
breaker
30 mA
Input power
230 V
50 Hz
L
N
1
2
3
1
2
3
Outdoor Unit
To Hydro unit
terminal block
1
2
L
N
Earth screw
Pipe valve fixing
plate
Connecting wire
10
Hydro Unit
Power supply
terminal block
3
Earth screw
TB01
5-4-3. Wiring between Hydro Unit and Outdoor Unit
10
1 2 3
10
Power supply
wire
LN
10
50
50
30
Earth line
40
(mm)
Earth line
Connecting wire
Power supply
wire
<Stripping length cord and connecting wire>
49
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 50 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
5-5. Sound Data
5-5-1. Sound pressure level measurement
▼HWS-802H-E
microphone
1.5m
1.0m
▼HWS-1102H-E, HWS-1402H-E
microphone
5
1.5m
1.0m
50
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 51 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
5-5-2. Sound Characteristics (NC Curve)
▼HWS-802H-E
(8 kw, 230 V ~ 50Hz)
HWS-802H-E
Sound pressure level
(dB(A))
Cooling
Heating
Heating
47
49
Cooling
90
80
NC-70
Octave band sound pressure level (dB)
70
NC-60
60
NC-50
50
NC-40
40
NC-30
30
NC-20
20
10
63
125
250
500
1000
2000
4000
8000
Octave band centre frequency (Hz)
51
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 52 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
▼HWS-1102H-E
(11 kw, 230 V ~ 50Hz)
HWS-1102H-E
Sound pressure level
(dB(A))
Cooling
Heating
Heating
49
51
Cooling
90
80
NC-70
Octave band sound pressure level (dB)
70
NC-60
60
NC-50
50
NC-40
40
5
NC-30
30
NC-20
20
10
63
125
250
500
1000
2000
4000
8000
Octave band centre frequency (Hz)
52
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 53 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
▼HWS-1402H-E
(14kw, 230 V ~ 50Hz)
HWS-1402H-E
Sound pressure level
(dB(A))
Cooling
Heating
Heating
53
54
Cooling
90
80
NC-70
Octave band sound pressure level (dB)
70
NC-60
60
50
NC-40
40
NC-30
30
NC-20
20
10
63
125
250
500
1000
2000
4000
8000
Octave band centre frequency (Hz)
53
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 54 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
5-6. Operation Range
Heating operation
45
40
35
30
Outdoor Temperature (DB °C)
25
20
15
10
5
0
-5
-10
-15
-20
-25
Back up Heater Operation only
0
5
10
15
20
25
30
35
40
45
50
55
60
Leaving Water temperature (°C) T = 5 deg
Cooling operation
45
5
40
35
30
Outdoor Temperature (DB °C)
25
20
15
10
5
0
-5
-10
-15
-20
-25
0
5
10
15
20
25
30
35
40
45
50
55
60
Leaving Water temperature (°C) T = 5 deg
54
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 55 Thursday, September 10, 2009 6:00 PM
Engineering Data book
5.OUTDOOR UNIT
Hot water operation
45
40
35
30
Outdoor Temperature (DB °C)
25
20
15
10
5
0
-5
-10
-15
-20
-25
Back up Heater Operation only
0
5
10
15
20
25
30
35
40
45
50
55
60
Leaving Water temperature (°C) T = 5 deg
NOTE
Hot water produced only by cylinder heater when both cooling and hot water operation demanded.
5
55
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 56 Thursday, September 10, 2009 6:00 PM
6. HOT WATER CYLINDER
56
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 57 Thursday, September 10, 2009 6:00 PM
Engineering Data book
6.HOT WATER CYLINDER
6-1. Specification
Hot water cylinder specifications
Hot water cylinder
Water volume
Appearance
Cylinder
Insulation
litres
HWS-1501
CSHM3-UK
HWS-2101
CSHM3-UK
HWS-3001
CSHM3-UK
150
210
300
150
210
300
White
Plastic coated steel
Material
Stainless steel
Material
Flame retardent expanded polyurethane foam
Thickness
Immersion
heater
Type
mm
50
Stainless steel tube
Single straight, Alloy 825 sheathed
Capacity
kW
Height
mm
Diameter
mm
Height
mm
Width
mm
576
Depth
mm
640
Unit weight
Total weight
HWS-3001
CSHM3-E
Material
Material
Packing
dimension
HWS-2101
CSHM3-E
Color
Heat exchanger
Outer dimension
HWS-1501
CSHM3-E
kg
unit and packing
Maximum water temperature
Maximum water pressure
kg
2.75
1,090
1,474
2,040
1,090
31
41
59
31
41
56
1,781
2,118
1,406
1,781
2,118
41
51
56
12
18
25
37
44
59
°C
75
bar
10
Water pipe
Hydro-cylinder
mm
22
Outlet
mm
22
Water pipe
Domestic watercylinder
Inlet
mm
22
Outlet
mm
22
Standard
accessories
litres
2,040
1,213
Inlet
Expansion Vessel
1,474
550
Not included
Installation manual
Installation manual
Safety group NF7bar
Factory fitted T&P valve c/w insulation
and housing
Compression nuts and olives
Compression nuts and olives
Cylinder heater key spanner
Cylinder heater key spanner
Tundish
Cold water combination valve
57
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 58 Thursday, September 10, 2009 6:00 PM
Engineering Data book
6.HOT WATER CYLINDER
6-2. Dimension
General dimensions and performance
29
Ø550
HWS-1501CSHM3-E
HWS-1501CSHM3-UK
HWS-2101CSHM3-E
HWS-2101CSHM3-UK
HWS-3001CSHM3-E
HWS-3001CSHM3-UK
NOMINAL CAPACITY
(litres)
150
210
300
A (mm)
315
315
315
B (mm)
354
354
354
C (mm)
800
1184
1474
D (mm)
1090
1474
2040
SURFACE AREA (sq.m)
0.65
0.79
0.79
HOT WATER OUTPUT
AT 60ºC (litres)
102
163
254
MIXED HOT WATER
OUTPUT AT 40ºC
(litres)
243
329.5
476
HEATLOSS (kWh/24h)
1.45
1.91
2.52
HEATING TIME 15ºC
TO 60ºC - USING
ELECTRIC CYLINDER
HEATER ONLY (mins)
123
188
262
CAPACITY HEATED
USING ELECTRIC
CYLINDER HEATER
ONLY (litres)
102
163
254
A
B
C
D
MODEL
45
°
25°
30°
°
45
6
58
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 59 Thursday, September 10, 2009 6:00 PM
Engineering Data book
6.HOT WATER CYLINDER
6-3. Piping Diagram
▼HWS-1501CSHM3-E, HWS-2101CSHM3-E, HWS-3001CAHM3-E
4
8
1
3
9
2
1
5
6
1
COLD WATER INLET
2
ISOLATING VALVE
3
SAFETY GROUP NF7 BAR
4
SANITARY WATER
EXPANSION VESSEL
5
DISCHARGE PIPE
6
PRIMARY CIRCUIT RETURN
7
PRIMARY CIRCUIT FLOW
8
HOT WATER OUTLET
9
SANITARY WATERRECIRCULATION
CONNECTION
7
▼HWS-1501CSHM3-UK, HWS-2101CSHM3-UK, HWS-3001CSHM3-UK
TO HOT
OUTLETS
T&P RELIEF
VALVE
EXPANSION
VESSEL
COLD WATER
COMBINATION
VALVE
BALANCED
MAINS
COLD WATER
WATER
CONNECTION
SUPPLY
(IF REQUIRED)
ELEMENT /
CONTROLS
HOUSING
PRIMARY
RETURN
PRIMARY
FLOW
ISOLATING
VALVE (NOT
SUPPLIED)
SECONDARY
RETURN
TAPPING (IF
REQUIRED)
TUNDISH
DISCHARGE
PIPE
DRAIN COCK
(NOT SUPPLIED)
INLET
59
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 60 Thursday, September 10, 2009 6:00 PM
Engineering Data book
6.HOT WATER CYLINDER
Typical discharge pipe arrangement
(extract from Building Regulation G3 Guidance section 3.9)
Safety device
(e.g. Temperaturerelief valve)
Metal discharge pipe (D1) from
Temperature relief valve to tundish
Tundish
500 mm maximum
300 mm
minimum
Discharge below
fixed grating
(Building Regulation
G3 section 3.9d
givesalternative points
of discharge)
Discharge pipe (D2) from tundish,
with continuous fall. See Building
Regulation G3 section 3.9d i-iv,
Table 4 and worked example
Fixed grating
Trapped gully
6
60
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 61 Thursday, September 10, 2009 6:00 PM
Engineering Data book
6.HOT WATER CYLINDER
6-4. Wiring Diagram
▼HWS-1501CSHM3-E, HWS-2101CSH3-E, HWS-3001CSHM3-E
HWS-1501CSHM3-UK, HWS-2101CSHM3-UK, HWS-3001CSHM3-UK
Electrical Connections (Schematic)
Double pole thermal
cut-out
Blue
Green/Yellow
Blue
Brown
Brown
1 2
TBO3 (230V)
Sensor
Green/
Yellow
A B
TBO6 (TTW)
TTW sensor
Hot water
cylinder heater
TO Hydro unit
230V~ Mains supply
from hidro unit.
2
1.5mm min. cable size
Thermal cut-out
Terminal bracket
Reset button located
on this face
Thermal cut-out
Sensor terminal
block
Mains terminal
block
NOTE:
The cover and element assembly have been removed
from this view for clarity
61
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 62 Thursday, September 10, 2009 6:00 PM
7. HYDRO UNIT INSTALLATION MANUAL
62
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 62 Thursday, September 10, 2009 6:00 PM
AIR TO WATER HEAT PUMP
Installation manual
Hydro Unit
Model name:
HWS-802XWHM3-E
HWS-802XWHT6-E
HWS-1402XWHM3-E
HWS-1402XWHT6-E
HWS-1402XWHT9-E
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 63 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Please read this Installation Manual carefully before installing the Air to Water Heat Pump.
• This Manual describes the installation method of the hydro unit.
• For installation of the outdoor unit, follow the Installation Manual attached to the outdoor unit.
ADOPTION OF NEW REFRIGERANT
This Air to Water Heat Pump is a new type which adopts a new refrigerant HFC (R410A) instead of the
conventional refrigerant R22 in order to prevent destruction of the ozone layer.
Contents
1 GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
2 ACCESSORY PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
3 PREPARATIONS FOR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
4 PRECAUTIONS FOR SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
5 EXAMPLE OF HYDRO UNIT INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
6 MAIN COMPONENTS OF HYDRO UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
7 HYDRO UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
8 START UP AND CONFIGURATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
9 TEST RUN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
10 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
11 SENSOR TEMPERATURE MONITORING FUNCTION . . . . . . . . . . . . . . . . . . . . . . . 101
12 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
1-EN
– 63 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 64 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
1
GENERAL INFORMATION
Hydro Unit Description
Hydro Unit
Model Description
HWS-802XWHM3-E
8 kW Hydro Unit (3 kW 230 V ~ back up heater)
HWS-802XWHT6-E
8 kW Hydro Unit (6 kW 400 V 3N ~ back up heater)
HWS-1402XWHM3-E
11 & 14 kW Hydro Unit (3 kW 230 V ~ back up heater)
HWS-1402XWHT6-E
11 & 14 kW Hydro Unit (6 kW 400 V 3N ~ back up heater)
HWS-1402XWHT9-E
11 & 14 kW Hydro Unit (9 kW 400 V 3N ~ back up heater)
General Specifications
Outdoor unit
HWS-802H-E
HWS-1102H-E
Type
HWS-1402H-E
Inverter
Function
Heating & Cooling
Heating
Capacity
(kW)
8.0
11.2
14.0
Input
(kW)
1.96
2.40
3.15
COP
Cooling
4.08
4.66
4.45
Capacity
(kW)
6.0
10.0
11.0
Input
(kW)
2.13
3.52
4.08
2.82
2.84
2.69
EER
Power supply
230 V ~
Refrigerant
R410A
Dimension
HxWxD
(mm)
Hydro Unit
Back up heater capacity
for backup heater
Power supply for hot water cylinder
heater (option)
Leaving water Heating
temperature
Cooling
1,340 x 900 x 320
HWSHWSHWS1402XWHM3-E 1402XWHT6-E 1402XWHT9-E
HWS802XWHM3-E
HWS802XWHT6-E
3 kW
6 kW
3 kW
6 kW
9 kW
230 V ~
400 V 3N ~
230 V ~
400 V 3N ~
400 V 3N ~
230 V ~
(°C)
20 to 55
(°C)
For use with
Dimension
890 x 900 x 320
HxWxD
(mm)
Hot water cylinder (option)
HWS-1102H-E/HWS-1402H-E
925 x 525 x 355
HWS-1501CSHM3-E
HWS-1501CSHM3-UK
HWS-2101CSHM3-E
HWS-2101CSHM3-UK
HWS-3001CSHM3-E
HWS-3001CSHM3-UK
150
210
300
Water volume
litres
Max water temperature
(°C)
75
Electric heater
(kW)
2.75 (230 V ~)
Height
(mm)
Diameter
(mm)
7
10 to 25
HWS-802H-E
1,090
1,474
2,040
550
Material
Stainless steel
– 64 –
2-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 65 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
2
No
ACCESSORY PARTS
Parts name
Quantity
No
3
1
Installation manual (this document)
1
2
Owner’s manual
1
3
Parts name
Quantity
Insulator for cooling
1
PREPARATIONS FOR INSTALLATION
Parts required to connect this product (Common items)
Category
Water piping
Electrical system
Part
Specification
Quantity
Strainer (water filter)
1 1/4" 30 to 40 meshes
1
Drain cock
(for water charge)
1
Isolating ball valves
1 1/4"
for service 1 1/4"
2
Earth leakage breaker for main power
supply
30 mA
1
Earth leakage breaker for backup heater
30 mA
1
(Option)
Earth leakage breaker for hot water cylinder 30 mA
heater
1
Options required for each function
Purpose
In the Hydro Unit
Part name
Purchased part
Model name
Part name
Prescribed specification
Heating
–
–
Radiator(s), Fan coil(s),
Under floor heating
Heating &Cooling
(all rooms)
–
–
Fan coil(s)
Heating & Cooling
(partly heating only)
–
–
Motorized 2-way valve (for
cooling)
Refer to “Control parts
specifications” on page 84.
Motorized 3-way valve
Earth leakage breaker
Refer to “Control parts
specifications” on page 84.
Motorized mixing valve
Refer to “Control parts
specifications” on page 84.
Circulator pump
Other power supply
Hot water cylinder
150 L
Hot water supply
210 L
300 L
2-zone control
–
HWS-1501CSHM3-E
HWS-1501CSHM3-UK
HWS-2101CSHM3-E
HWS-2101CSHM3-UK
HWS-3001CSHM3-E
HWS-3001CSHM3-UK
–
Buffer tank
3-EN
Interlocking with
boiler
Output control
board kit (1)
TBC-PCIN3E
Boiler
Other power supply
Signal 12 V input function is
required for boiler.
Interlocking with
booster heater
Output control
board kit (1)
TBC-PCIN3E
Electric heater
Other power supply.
Signal 230 V input function
is required for booster
heater
– 65 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 66 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Optional Parts
No.
Part name
Model name
1
External output
board
TCB-PCIN3E
2
External input
board
TCB-PCMO3E
Application
Boiler-linked output, Alarm output
Defrost signal output, compressor operation
signal output
Cooling/heating thermostat input
Forced-stop signal input
Remarks
Up to two boards
(according to applications)
Up to two boards
(according to applications)
Use specified products for the outdoor unit, Hydro Unit, and hot water cylinder.
Do not use commercially available products.
Use parts that conform to prescribed specifications for parts to be connected to the Hydro Unit.
If unspecified products or parts are used, a malfunction, failure or fire may be caused.
4
PRECAUTIONS FOR SAFETY
General Safety Precautions
Ensure that all Local, National and International regulations are satisfied.
• Read the “PRECAUTIONS FOR SAFETY” carefully before installation.
• The precautions described below include the important items regarding safety – Observe them without fail.
• After the installation work has been completed, perform a trial operation to check for any problems. Follow the
Owner’s Manual to explain how to use and maintain the unit to the customer.
• Turn off the main power supply switch (or breaker) before unit maintenance.
• Ask the customer to keep the Installation Manual along with the Owner’s Manual.
Refrigerant Precautions
• If a refrigerant leak is suspected contact the dealer who supplied the system, in the case of a recharge of
refrigerant ask service personnel for details of the leak and confirmation of the repairs completed.
The refrigerant used in the system is harmless.
• Generally the refrigerant does not leak, however, if the refrigerant should leak into a room and a heater or stove
burner in the room is lit, toxic gas may be generated.
• Do not install the system in a location subject to a risk of exposure to a combustible gas.
If a combustible gas leaks and stays around the unit a fire may occur.
• Install the refrigerant pipe securely during installation and before operation.
If the compressor is operated with no pipe work connected and valves open the compressor will suck air which
would result in over pressurization of the system which may result in bursting or injury.
Observe the same precautions for refrigerant recovery work (pump back procedure to outdoor unit) and do not
disconnect pipe work until refrigerant is recovered and valves closed.
– 66 –
7
4-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 67 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
WARNING
Installation Precautions
• Ask an authorized dealer or qualified installation professional to install/maintain the Air to Water Heat Pump System.
Inappropriate installation may result in water leaks, electric shock or fire.
• Electrical work must be performed by a qualified electrician in accordance with the installation manual.
An inappropriate power supply capacity or installation may result in fire.
• When completing any electrical works to the system ensure that all Local, National and International regulations are
satisfied.
Inappropriate grounding may result in electric shock.
• Use the specified electrical cables, fixing securely at all terminations.
• Earth wire connections.
• Install an earth leakage breaker without fail.
Incomplete grounding can cause electric shock.
Do not ground wires to gas pipes, water pipes, lightning rods or telephone cable ground wires.
• This unit must be connected to the main power supply using a circuit breaker or switch with a contact separation of
at least 3 mm.
• Be sure to turn off all main power supply switches or the circuit breaker before starting any electrical work.
Ensure all power switches are off, failure to do so can cause electric shock.
Use an exclusive power circuit for the Air to Water Heat Pump system using the rated voltage.
• Ensure correct connection of interconnecting wire between Outdoor Unit and Hydro Unit.
Incorrect connection of the interconnecting cable may result in the damage of electrical parts.
• Ensure refrigeration system remains sealed to external gases and air.
Should air or other gases contaminate the refrigeration circuit, high system pressures could result in burst pipes and
injuries.
• Do not modify or bypass any of safety guards or switches in this system.
• After unpacking the outdoor unit, examine the unit carefully for any possible damage.
• Do not install in any place that might increase the vibration of the unit.
• To avoid personal injury (with sharp edges), be careful when handling parts.
• Perform installation work properly in accordance with the installation manual.
Inappropriate installation may result in water leaks, electric shock or fire.
• Tighten all flare nuts with a torque wrench in the specified manner.
Excessive tightening of the flare nut may result in cracking of the pipe work or flare nut which may result in a
refrigerant leakage.
• Wear heavy duty gloves during installation work to avoid injury.
• Install the outdoor unit securely in a location where the base can sustain the weight adequately.
• In enclosed areas, if the refrigerant leaks during installation vacate and ventilate immediately.
• After installation is complete ensure and confirm that refrigerant does not leak.
If refrigerant leaks into a room and flows near a fire source noxious gas may be generated.
• Do not block any drain hoses. Hoses may come off and electric shocks may occur.
• Do not hit the manometer, because it is made of glass. It is breakable.
Notes on System Design
• The input water temperature to the Hydro Unit must be 55°C or less.
Especially, be careful when there is an external heating source such as a boiler.
When hot water over 55°C returns, it may result in a failure of the unit or water leakage.
• The flow rate of the circulating water must meet the following range.
11 and 14 kW 18 L/minute or more
8 kW 13 L/minute or more
If the flow rate becomes less than the minimum, the protective device is activated to stop operation.
Ensure the flow rate with a bypass valve, etc. when you use a flow rate valve for the Hydro Unit.
• Do not drive water by power other than the pump built in the Hydro Unit.
• The backup heater operates supplementarily to exert a prescribed capacity when the heat pump cannot exert its
capacity at a low outside temperature.
• Install the Hydro Unit and water pipes in a place in which they do not freeze.
• Make the water circuit closed. Never use it as an open circuit.
• Circulating water must be 20 liters or more. If total water amount is not enough, the unit may not function fully
due to protective operation.
5-EN
– 67 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 68 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
5
EXAMPLE OF HYDRO UNIT INSTALLATION
Example of Installation for Cooling and Heating
When both cooling and heating are used, install a 2-way valve (for cooling) to the pipe to the room for heating only.
▼ Fig. 5-01
Fan Coil Units
(Cooling or Heating)
Isolating
Ball
Valves
Diverting 3-Way
Valve for
Sanitary Hot
Water Cylinder
Strainer (40 mesh / 0.4 mm)
Drain Cock for water
Charge and Drain
Radiators (Heating Only)
[2-Way Valve Control]
M
2-Way
M Valve
Use it when
do not
operate
cooling.
TTW
7
Indirect Sanitary
Hot Water Cylinder
2-Way
M Valve
Use it when do not
operate cooling.
Alternative to Radiators
Under-floor Heating
(Heating Only)
[2-Way Valve Control]
– 68 –
6-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 69 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Example of 2-Zone Temperature Control and Hot Water Supply
System
The following shows an example of the 2-zone temperature control.
A buffer tank and a water pump are required for the 2-zone temperature control.
▼ Fig. 5-02
Hi-Pressure
By-Pass
Valve
Temperature
Regulating
Valve
(Mechanical)
TRV
Temp.
Regulating
Valve
(Mechanical)
TRV
Isolating
Valves
(Service)
Zone 1
Fan Coil Unit (Heating
or Cooling)
Diverting
3-Way
Valve for
Sanitary
Hot
Water
Cylinder
Strainer (40 mesh / 0.4 mm)
Drain Cock for water
Charge and Drain
M
M
TTW
M
Motorized 2-Way Valve
is required if fan coil
units are in cooling
operation.
Mixing 3-Way
Valve for Under
Floor Heating
External Pump for
Under Floor Heating
TFI
Indirect Sanitary Hot
Water Cylinder
Direct Buffer tank for
Under Floor Heating
7-EN
Zone 2
Under-floor Heating
(2-Way Valve Control)
– 69 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 70 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
6
MAIN COMPONENTS OF HYDRO UNIT
Exploded view and description for Hydro Unit
▼ Fig. 6-01
12
13
14
15
16
1
2
17
3
4
5
6
7
8
18
19
9
10
11
20
21
1 : Expansion vessel
2 : Hi pressure switch (4.15 MPa)
3 : Temperature sensor (for Heat pump outlet -TWO)
4 : Pressure sensor
5 : Heat exchanger
6 : Flow switch (13.0 L/min 17.5 L/min)
7 : Temperature sensor (for refrigerant -TC)
8 : Temperature sensor (for water inlet -TWI)
9 : Drain nipple
10 : Water inlet connection
11 : Refrigerant liquid connection
12 : Air relief valve
13 : Pressure relief valve (0.3 MPa (3 bar))
14 : Thermal protector (auto)
15 : Temperature sensor (for water outlet THO)
16 : Thermal protector (Single operation)
17 : Water pump
18 : Backup heater (3 kW, 3 kW x 2, 3 kW x 3)
19 : Manometer
20 : Water outlet connection
21 : Refrigerant gas connection
7
– 70 –
8-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 71 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
E-Box layout
▼ Fig. 6-02
P.C. board
MCC-1511
Trans
former
Relay P.C. board
MCC-1217
(Option)
MG-SW (RY04)
Relay
(RY03)
Relay
(RY06)
MG-SW (RY05)
Relay P.C. board
MCC-1217
(Option)
MG-SW (RY02)
Fuse
Relay P.C. board
MCC-1431
9-EN
Relay
(RY01)
Relay P.C. board
MCC-1214
(Option)
– 71 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 72 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
7
HYDRO UNIT INSTALLATION
WARNING
• To protect yourself from injury, always use PPE (Personal Protective Equipment), that is, wear gloves.
• Install the Hydro Unit by at least two persons.
• Install the Hydro Unit in a place strong enough to withstand the following weights:
Hydro Unit weight with no water 60 kg (802) 65 kg (1402)
Hydro Unit weight with full water 80 kg (802) 85 kg (1402)
CAUTION
• The operating temperature range is 5 to 32°C (Heating) and 18 to 30°C (Cooling).
Do not install the unit in a place where water freezes.
• Do not install the Hydro Unit in a place where combustible gas may leak.
• Do not install the Hydro Unit in a place exposed to rain or water.
• Do not install the Hydro Unit near equipment which generates heat.
• Do not install the Hydro Unit to a movable object.
• Do not install the Hydro Unit in a place exposed to vibration.
Handling, Unpacking, and Checking the Hydro Unit
• The unit should be checked when it is delivered, and any damage reported immediately to the courier claims the
department.
Positioning
Refrigeration pipe
The length and height of the refrigeration pipe must be within the following values.
As long as the Hydro Unit is installed within these ranges, no additional refrigerant is required.
▼ Fig. 7-01
L
Outdoor unit
H
7
H: Max. ±30 m (above or below)
L: Max. 30 m
Min. HWS-802H-E : 5 m
HWS-1102H-E : 3 m
HWS-1402H-E : 3 m
– 72 –
10-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 73 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Water pipe
Design the water pipe length within the QH characteristics of the pump (Refe to “Fig. 7-16” and “Fig. 7-17” on page 80).
The height of the pipe must be 7 m or less.
▼ Fig. 7-02
H<7m
Service space
Secure a service space for the Hydro Unit.
• Do not install the Hydro Unit in a place where heat stagnates.
▼ Fig. 7-03
200 mm
500 mm
100 mm
350 mm
500 mm
Mounting
Install M10 bolts at the positions shown below and secure them with nuts.
▼ Fig. 7-04
380 mm
M10
960 mm
11-EN
– 73 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 74 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
The Hydro Unit can be installed directly without using the fixing angles.
However, the back side of the Hydro Unit can be highly heated, therefore, the installing surface must be heatresistant.
▼ Fig. 7-05
▼ Fig. 7-06
▼ Fig. 7-07
380
860
M10
M10
Remove the M5a screws to
detach the fixing angles.
Secure the Hydro Unit with
plain washers and nuts.
Install the Hydro Unit so that its tilting angle falls within the range below.
▼ Fig. 7-09
▼ Fig. 7-08
± 1°
± 1°
7
– 74 –
12-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 75 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Refrigerant Piping
WARNING
• THIS SYSTEM ADOPTS HFC REFRIGERANT (R410A) WHICH DOES NOT DESTROY THE OZONE LAYER.
• The characteristics of R410A refrigerant are: ease to absorb water, oxidizing membrane or oil, and its pressure is
approximately 1.6 times higher that of R22. Accompanied with the new refrigerant the oil has also been changed.
Therefore during installation work prevention of the invasion of water, dust, former refrigerant or oil is of a paramount
importance.
To prevent the charging of incorrect refrigerants into the system the service valve connection ports have also
increased in size.
• The use of R410A tools is required for correct installation of the system.
• The use of the correct pipe sizes and wall thicknesses of copper pipe work is required for the correct installation of
the system.
CAUTION
•
•
•
•
•
Ensure all refrigerant pipes are protected from the invasion of dust and water.
Ensure all pipe work connections are tightened to the required torque settings detailed in this section.
Perform an air tight using Oxygen Free Nitrogen (OFN) only.
Evacuate the air in the pipe work using a vacuum pump.
Check for refrigerant gas leaks at all connections throughout the pipe work.
NOTE
The Air to Water Heat Pump system uses R410A refrigerant. It is important that copper pipes used for refrigerant
piping have the following wall thickness:
• 0.8 mm for Ø6.4 mm, Ø9.5 mm and Ø12.7 mm
• 1.0 mm for Ø15.9 mm
Refrigerant pipe sizes
Hydro Unit Model
Gas Side (mm)
Liquid Side (mm)
8 kW Hydro Unit
Ø 15.88
Ø 9.52
11 & 14 kW Hydro Unit
Ø 15.88
Ø 9.52
Flaring
• Cut the refrigerant pipes to the correct length using a pipe cutter. Remove any burrs that may be on the pipes as
these may cause refrigerant leaks or component failure in the refrigeration cycle.
• Place the correct size flare nuts onto the pipes (use the flare nuts supplied with the Hydro Unit or use flare nuts
designed specifically for R410A refrigerant) and then flare the pipes using the correct flaring tool.
13-EN
– 75 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 76 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Tightening
• Connect the refrigerant pipes, from the outdoor unit, to the Hydro Unit as shown below.
▼ Fig. 7-10
Gas line Ø 15.88
Liquid line Ø 9.52
• Align the flare connection on each pipe with the corresponding outlet connection on the Hydro Unit.
Tighten the flare nuts, using fingers, to secure the pipes in place.
• Tighten the flare nuts, using a torque wrench, to the tightening torques shown below:
Outer Ø of Copper Pipe (mm)
Tightening Torque (N/m)
9.5
33 to 42
15.9
63 to 77
• To prevent damage, to the refrigerant pipes, use two spanners to tighten the flare nut connections to the required
torque.
Water Pipe
WARNING
• Install water pipes according to the regulations of respective countries.
• Install water pipes in a freeze-free place.
• Make sure that water pipes have sufficient pressure resistance.
The setting value of the pressure relief valve is 0.3 MPa.
CAUTION
• Do not use zinc plated water pipes. When steel pipes are used, insulate both ends of the pipes.
• The water to be used must meet the water quality standard specified in EN directive 98/83 EC.
7
– 76 –
14-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 77 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Water circuit
• Install a strainer with 30 to 40 meshes (procured locally) at the water inlet of the Hydro Unit.
• Install drain cocks (procured locally) for water charge and discharge at the lower part of the Hydro Unit.
• Make the piping route a closed circuit. (An open water circuit may cause a failure.)
▼ Fig. 7-11
Attention
To avoid water leak, exchange the seal
tapes to new one.
Attention
Water (used at test in factory before
shipping) may be found in the caps.
Hot water outlet
connection 1 1/4"
Water inlet connection
1 1/4"
▼ Fig. 7-12
Inlet
Isolating Ball Valve
Strainer (30 to 40
meshes)
Drain cock for
water charge
and discharge
Local arrangement
15-EN
– 77 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 78 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Piping to hot water cylinder (option)
Water supplied to the hot water cylinder is branched by a motorized 3-way valve (procured locally).
For the specifications of the motorized 3-way valve, refer to “Control parts specifications” on page 84.
Connect the hot water cylinder to port A (open when energized) of the valve.
▼ Fig. 7-13
to hydro unit
room heating or cooling
B
AB
to hot water cylinder
A
Open when de-energized
Open when energized
Piping to 2-zone operation
To perform 2-zone temperature control, circulate water by another pump (procured locally) through a motorized
mixing valve (procured locally) and a buffer tank (procured locally).
For the specifications of the motorized mixing valve, Refer to “Control parts specifications” on page 84.
▼ Fig. 7-14
Motorized mixing valve
(Procured locally)
A
Open when
energized
Water pump
(Procured locally)
to hydro unit
AB
Zone 2
B
Open when
de-energized
Buffer tank
(Procured locally)
Checking water volume and initial pressure of expansion vessel
The expansion vessel of the Hydro Unit has a capacity of 12 liters.
The initial pressure of the expansion vessel is 0.1 MPa (1 bar).
The pressure of the safety valve is 0.3 MPa (3 bar).
Verify whether the capacity of the expansion vessel is sufficient using the following expression. If the volume is
insufficient, add the capacity locally.
– 78 –
7
16-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 79 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Expression for expansion vessel selection
V:
:
Vs:
P1:
Necessary total tank capacity ( )
Water expansion coefficient at average hot water temperature
Total water amount in the system
System pressure at tank setting position (MPaabs.)
(Pipe inner pressure during pump operation before heating device operates = water supply pressure)
P2: Maximum pressure used during operation at tank setting position (MPaabs.)
(= safety valve setting pressure)
* The absolute pressure value (abs.) is obtained by adding the atmospheric pressure (0.1 MPa (1 bar)) to the
gauge pressure.
▼ Tank selection method
Water temperature and expansion coefficient
Hot water temperature (°C)
Hot water temperature (°C)
Expansion rate
Expansion rate
0
0.0002
50
0.0121
4
0.0000
55
0.0145
5
0.0000
60
0.0171
10
0.0003
65
0.0198
15
0.0008
70
0.0229
20
0.0017
75
0.0258
25
0.0029
80
0.0292
30
0.0043
85
0.0324
35
0.0050
90
0.0961
40
0.0078
95
0.0967
45
0.0100
▼ Fig. 7-15
Expansion vessel volume( )
18
16
14
12
10
8
6
4
2
0
0
50
100
150
200
250
300
Water volume ( )
*Hot water temperature 55ºC
Install an external expansion vessel when the capacity of the expansion vessel is insufficient.
17-EN
– 79 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 80 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Pump operation/configuration
▼ Fig. 7-16
Hydraulic heat exchanger (14 kW) QH characteristics
Minimum flow rate
10
9
8
Pump head (m)
7
6
5
4
Out of Operation
Range
3
2
SW3
SW2
SW1
1
0
0
5
10
15
20
25
30
35
40
45
50
55
60
65
Flow rate ( /min)
▼ Fig. 7-17
Hydraulic heat exchanger (8 kW) QH characteristics
Minimum flow rate
8
7
Pump head (m)
6
5
4
3
SW 3
7
2
SW 2
Out of
Operation
Range
1
SW 1
0
10
15
20
25
30
Flow rate ( /min)
– 80 –
18-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 81 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Water charging
Charge water until the pressure gauge shows 0.2 MPa (2 bar).
Hydraulic pressure may drop when the trial run begins. In that case, add water.
Air may enter if the charged hydraulic pressure is low.
Loosen the purge valve cap by two turns to release air.
▼ Fig. 7-18
Loosen 2 turns for
proper venting
Loosen the cap of the pressure relief valve to release air.
Water may come out of the pressure relief valve.
Release the air completely from the water circuit. Failure to do so may disable correct operation.
Water quality
The water used must satisfy EN directive 98/83 EC.
Piping insulation
It is recommended that insulation treatment be applied to all pipes. To perform optional cooling operation, apply
insulation treatment of 20 t or more to all pipes.
19-EN
– 81 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 82 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Electrical Installation
WARNING
•
•
•
•
Ensure electrical circuits are isolated before commencing the electrical installation.
The electrical installation must be completed by a qualified electrician.
The electrical installation must comply to all Local, National and International electrical installation regulations.
This product must be earthed in accordance with Local, National and International electrical installation regulations.
CAUTION
• The Hydro Unit must be connected to a dedicated power supply for the back up heater circuit.
• The electrical supply must be protected by a suitably sized over current protection device (fuse, MCB etc) and an
earth leakage protection device.
• The Hydro Unit must be connected to the mains power supply using a isolating switch which disconnects all poles
and has a contact separation of at least 3 mm.
• The cord clamps, attached to the Hydro Unit, must be used to secure the electrical cables.
• Wrong connection of electrical cables may result in electrical component failure or fire.
• Ensure the electrical cables are sized in accordance with the installation instructions.
Power line
▼ Fig. 7-19
Backup heater
230 V ~ (3 kW type)
Backup heater
400 V 3N ~ (6.9 kW type)
Input power
230 V ~
50 Hz
Input power
400 V 3N ~
50 Hz
Leakage
breaker 30 mA
L
Leakage
breaker 30 mA
L1 L2 L3 N
N
TB02
Hot water cylinder
TB02
7
Leakage
breaker
30 mA
1
2
3
TB03
Input power
230 V ~
50 Hz
1
2
3
TB01
1
2
1
2
L
L
N
N
Outdoor unit
Leakage
breaker
30 mA
Input power for
cylinder heater
230 V ~ 50 Hz
Hydro unit
– 82 –
20-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 83 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Control line
▼ Fig. 7-20
Mixing-Valve
type 2 for 2
zone control
Mixing-Valve type
1 for 2 zone control
CW
1 2 3 4
TB04
Max 12 m
230 V 1 A
0.75 mm² or more
CCW
Pump (local)
N
Max 12 m
230 V 100 mA
0.75 mm² or more
Max 5 m shield wire
0.75 mm² or more
1 2 3 4
A
B
TB04
Booster heater
(local)
1
2
2Way-Valve for
cooling stop
TB05
3
4
TB06
Max 12 m
230 V 100 mA
0.75 mm² or more
Temp sensor in hot
water cylinder
A
B
C
D
Max 5 m shield
wire 0.75 mm² or
more
5
6
Max 12 m
230 V 1 A
0.75 mm² or more
Temp sensor
for 2 zone
control
7
8
9
CN209
OPTION
PJ20
CN208
OPTION
PJ20
1 2 3 4 1 2 3 4
3Way-Valve for hot
water cylinder
Max 12 m
non voltage
0.75 mm² or more
Alert output
(local)
Boiler operation
(local)
Defrost output
(local)
Compressor
operation output
(local)
▼ Fig. 7-21
1
5
3
2
5
5
WPM
5
4
6
5
5
5
BH
2WV
7
5
8
59
5
1
4
2
4
3WV
3
4
4
4
MIXV
TB 04
TB 05
TB02
TB03
1
6A
6B
TTW
6C
6D
TF1
TB 06
Don't apply 11
220-240V
or
breakdown
will occur.
2
3
12
13
L1
31
32
L
N
L2
L3
L
N
L1
L2
L3
N
N
HOT WATER CYLINDER
TB 01
TB 03
TB 02
TB01
to Outdoor unit
Sensor
connection
21-EN
Outdoor unit
connection
Hot
water
cylinder
Input
power
230 V ~
50 Hz
Hot water
cylinder power
supply
Input
power
230 V ~
50 Hz
Input
power
400 V 3N ~
50 Hz
Backup heater
power supply
– 83 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 84 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Electrical supply/cable specifications
▼ Wiring specifications
POWER SUPPLY Maximum
current
Installation fuse Power wire
rating
14 kW
230 V ~ 50 Hz
22.8 A
25 A
2.5 mm² or more
11 kW
230 V ~ 50 Hz
22.8 A
25 A
2.5 mm² or more
8 kW
230 V ~ 50 Hz
20.8 A
25 A
2.5 mm² or more
–
1.5 mm² or more
,
,
16 A
1.5 mm² or more
,
(TB02)
400 V 3N ~ 50 Hz 13 A (13 A x 2P)
16 A
1.5 mm² or more
400 V 3N ~ 50 Hz 13 A (13 A x 3P)
16 A
1.5 mm² or more
,
,
(TB02)
Description
Outdoor unit
power
Outdoor-Hydro
–
3 kW
Hydro inlet heater 6 kW
power
9 kW
230 V ~ 50 Hz
13 A
Connection
destination
,
,
Hydro cylinder heater power 230 V ~ 50 Hz
12 A
16 A
1.5 mm² or more
,
(TB03)
Hydro - cylinder
12 A
–
1.5 mm² or more
,
(TB03)
–
▼ Wiring specifications (control line)
Description
Line spec
Maximum
current
Maximum length
3-way valve control
2 line or 3 line
100 mA
12 m
Connection
destination
0.75 mm² or more
,
,
(TB05)
,
,
or
Mixing valve control
3 line
100 mA
12 m
0.75 mm² or more
2-zone thermo sensor
2 line
100 mA
5m
0.75 mm² or more
,
(TB06)
Cylinder thermo sensor
2+GND(shield
wire)
100 mA
5m
0.75 mm² or more
,
(TB06)
Second remote controller
2 line
50 mA
50 m
0.75 mm² or more
,
(TB07)
,
,
(TB04)
▼ Control parts specifications
Power
Maximum current
Type
Motorized 3-way valve
(for hot water)
AC 230 V 100 mA
Spring return type
Note: 3-wire SPST and SPDT type can be used by changing
DIP switch 13-1.
Motorized 2-way valve
(for cooling)
AC 230 V 100 mA
spring return type (normally open)
Motorized mixing valve
type 1 (for 2-zone)
AC 230 V 100 mA
60 sec 90º. SPDT type
Note: SPST and 20 to 240 sec type can be used by changing
the function code.
7
▼ Output line specifications
Description
Output
Maximum
current
Max
voltage
Maximum
length
External pump No.1
AC230V
1A
–
12 m
External boost heater
AC230V
1A
–
12 m
Output as required when outdoor air
temperature is -20°C or less
Boiler control
Non-voltage 0.5 A
contacts
1A
AC230 V
12 m
DC24 V
12 m
Output as required when outdoor air
temperature is -10°C or less
ALARM Output
Non-voltage 0.5 A
contacts
1A
AC230 V
12 m
DC24 V
12 m
Compressor operation
output
Non-voltage 0.5 A
contacts
1A
AC230 V
12 m
DC24 V
12 m
– 84 –
22-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 85 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Maximum
current
Description
Output
Defrost Output
Non-voltage 0.5 A
contacts
1A
Max
voltage
Maximum
length
AC230 V
12 m
DC24 V
12 m
▼ Input line specifications
Description
Input
Maximum length
Emergency stop control
Non-voltage
12 m
Cylinder thermostat input
Non-voltage
12 m
Cooling thermostat input
Non-voltage
12 m
Heating thermostat input
Non-voltage
12 m
CAUTION
Earthing arrangements
The Hydro Unit and related equipment must be earthed in accordance with your local and national electrical regulations.
It is essential that the equipment is earthed to prevent the electric shock and damage to the equipment.
Electrical connection to hydro unit
• Remove the front cover and the electrical box cover from the Hydro Unit.
• The Hydro Unit power cable must be sized in accordance with refer to “Electrical supply/cable specifications”.
• Connect the Hydro Unit power cable to Terminal 02 as shown below.
Single Phase Units: Live conductor – Terminal L1
Neutral conductor – Terminal L2
Earth conductor – Earth terminal
Three Phase Units: Phase 1 conductor – Terminal L1
Phase 2 conductor – Terminal L2
Phase 3 conductor – Terminal L3
Neutral conductor – Terminal N
Earth conductor – Earth Terminal
• Ensure the Hydro Unit power cable is secured using the cable clamp fitted in the electrical box.
• Ensure the Hydro Unit power cable connection terminals are tight.
Outdoor unit to hydro unit electrical connection
▼ Fig. 7-22
(Hydro/outdoor
connecting wires)
(Main circuit)
L
N
Input power
230 V~,
50 Hz
1
2
3
1
2
3
Remote controller
Hydro unit
Outdoor unit
Earth
Earth
Leakage
breaker
Hydro Unit: Terminal 01
Earth
• Ensure electrical circuits are isolated before commencing work.
• The Outdoor Unit to Hydro Unit interconnecting cable must be sized in accordance with refer to “Electrical supply/
cable specifications”.
• Connect the Outdoor Unit to Hydro Unit interconnecting cable as shown in the diagram above.
23-EN
– 85 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 86 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
• Ensure the Outdoor Unit to Hydro Unit interconnecting cable is secured using the cable clamp fitted in the
electrical box.
• Ensure the Outdoor Unit to Hydro Unit interconnecting cable connection terminals are tight.
Electrical connection for external booster heater
CAUTION
• The maximum current available from the booster heater output is 1 A. Do not connect the booster
pump directly to Terminal Block 05 on the Hydro Unit. A separate contactor, supplied locally, must
be used to supply the booster heater.
• The booster heater can be installed only for room heating and cannot be used for hot water supply.
• Install the booster heater downstream of the 3-way valve on the indoor unit side.
The booster heater is an external heater, supplied locally, used to assist the Hydro Unit during low ambient
conditions.
• The AC230 V 1 A output from the Hydro Unit must only be used to energize an external contactor. (Supplied locally)
• The output from the Hydro Unit is only enabled when the outdoor air temperature is less than -10°C.
• Ensure the external booster heater is installed and set up in accordance with all Local, National and International
regulations.
• Connect the external booster heater to the Hydro Unit in accordance with the diagram shown below.
• Connect the coil, of the field supplied contactor, to terminals 5 & 6 on Terminal Block 05. The contactor will
energize in the event of low ambient conditions.
• A separate dedicated electrical supply must be used for the external booster heater. This must be connected
through the contacts on the field supplied contactor.
▼ Fig. 7-23
Booster Heater
1
2
3
4
5
6
7
8
9
Terminal Block 05
Electrical connection for external additional pumps
• The Hydro Unit has the facility to connect an additional circulating pump, if required, into the heating or cooling
system.
• There is an output available from the Hydro Unit. AC230 V 1 A (maximum) is available from each output. The
output for each additional pump is synchronized with the operation of the main circulating pump inside the Hydro
Unit.
• Connect the additional pumps as shown in the diagram below.
• Connect external pump 1 to terminals 1 & 2 on Terminal Block 05.
• Install external pumps so that their motive power does not affect the internal pump.
7
▼ Fig. 7-24
Pump
01
1
2
3
4
– 86 –
5
6
7
8
9
Terminal Block 05
24-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 87 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
3-way valve (diverter) connection
Required Valve Specification:
Electrical Specification: 230 V; 50 Hz; <100 mA
Valve Diameters: Port A, Port B: Ø 1 1/4"
Return Mechanism: 3 types of 3-way valve (diverter) can be used.
Set the 3-way valve in use with the DIP switch SW13-1 on the Hydro Unit board.
SW13-1
Type 1
2-wire spring return OFF
Type 2
3-wire SPST
OFF
Type 3
3-wire SPDT
ON
NOTE
Continuous operation of the valve motor at the fully open position is not recommended.
• The 3-way diverter valve is used to select either domestic hot water or space heating.
• Connect the 3-way diverter valve to terminals 7, 8 and 9 on Terminal Block 05.
• Connect the 3-way diverter valve in accordance with the diagram below:-
▼ Fig. 7-25
▼ Fig. 7-26
Type 1: SPRING RETURN
Type 2: SPST
port “A” to Hot water
cylinder
port “A” to Hot water
cylinder
Hydro Unit
TB 05
port “AB” to
Hydro unit
7
port “A” open
port “AB” to
Hydro unit
8
Hydro Unit
port “A”
close
open
TB 05
7
8
9
9
port “B” to Room heating
or cooling
port “B” to Room heating
or cooling
▼ Fig. 7-27
Type 3: SPDT
port “A” to Hot water
cylinder
port “AB” to
Hydro unit
Hydro Unit
port “A”
close
open
TB 05
7
8
9
port “B” to Room heating
or cooling
25-EN
– 87 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 88 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
3-way mixing valve connection
Required Actuator Specification
Electrical Specification:230 V; 50 Hz; <100 mA
The 3-way mixing valve is used to achieve the temperature differential needed in a 2-zone heating system.
• Connect the 3-way mixing valve to terminals 2, 3 and 4 on Terminal Block 04 (for Type 1 mixing valve) or on
terminals 1, 2 and 3 on Terminal Block 04 (for Type 2 mixing valve).
• Connect the 3-way mixing valve in accordance with the diagrams below:-
▼ Fig. 7-28
▼ Fig. 7-29
Type 1: SPDT
Type 2: SPST
port “A” to Zone 2 Heating
port “A” to Zone 2 Heating
Hydro Unit
Hydro Unit
TB 04
1
open
port “AB” to
Hydro unit
TB 04
port “A”
close
port “AB” to
Hydro unit
2
port “A”
close
1
open
3
2
4
3
4
port “B” BLANK OFF
port “B” BLANK OFF
Hot water cylinder connection (optional)
• Please refer to “Electrical supply/cable specifications” for fuse/cable size and for connection details.
Electrical Connection (Hot Water Cylinder Electric Heater)
• The electric heater, incorporated in the hot water cylinder, requires a separate supply to Hydro Unit.
• Connect the hot water cylinder heater electrical supply in accordance with shown below:
Live conductor: Terminal L on Terminal Block 03
Neutral conductor: Terminal N on Terminal Block 03
Earth Conductor: Earth terminal on Terminal Block 03
• Connect the hot water cylinder heater to the Hydro Unit as shown below:
Live conductor to hot water cylinder: Terminal 1 on Terminal Block 03
Neutral conductor to hot water cylinder: Terminal 2 on Terminal Block 03
Earth conductor to hot water cylinder: Earth terminal on Terminal Block 03
Electrical Connection (Hot Water Cylinder temperature Sensor)
7
• Connect the hot water cylinder temperature sensor as shown below to terminals A & B on Terminal Block 06 in
the Hydro Unit.
• Please ensure that the interconnecting cable, between the Hydro Unit and the hot water cylinder, is connected
to earth at both ends of the cable using the shield wire.
▼ Fig. 7-30
Earth leakage breaker
INPUT Power 230 V ~ 50 Hz
2
1
1
2
L
N
Terminal block 03
Hot water cylinder
– 88 –
26-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 89 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Hot water cylinder electrical box connections
▼ Fig. 7-31
Hydro unit
Additional hydro unit outputs
Alarm and Boiler Outputs
Alarm Output: L1: Alarm output
• Output enabled when the system is in alarm/fault condition.
• Volt free contact - specification shown below:
AC230 V; 0.5 A (maximum)
DC24 V; 1 A (maximum)
• Connection details: Terminals 1 and 2 (OPERATION) on MCC-1217 TB (Refer to “Fig. 7-32”)
Boiler Control Output: L2: Boiler drive permission output
• Output enabled when outdoor ambient temperature <-10°C
• Volt free contact - specification shown below:
AC230 V; 0.5 A (maximum)
DC24 V; 1 A (maximum)
• Connection details: Terminals 3 and 4 (EMG) on MCC-1217 TB (Refer to “Fig. 7-32”)
▼ Fig. 7-32
Hydro unit main
control board
CN208
Local Supply
TCB-PCIN3E
Connection
Cable
Display
Relay
K1
PJ20
4
EMG
3
OPERATION
2
Display
Relay
1
K2
27-EN
Power Supply
BOILER
CONTROL
OUTPUT
Power Supply
ALARM
OUTPUT
L2
L1
– 89 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 90 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Defrost and Compressor operation Outputs
Defrost output
• Display relay is ON when the system defrost.
• Volt free contact
AC230 V; 0.5 A (maximum)
DC24 V; 1 A (maximum)
• Connection details: Terminals 1 and 2 (OPERATION) on MCC-1217 TB (Refer to “Fig. 7-33”)
Compressor operation output
• Display relay is ON with outdoor unit compressor operation.
• Volt free contact
AC230 V; 0.5 A (maximum)
DC24 V; 1 A (maximum)
• Connection details: Terminals 3 and 4 (EMG) on MCC-1217 TB (Refer to “Fig. 7-33”)
▼ Fig. 7-33
Hydro unit main
control board
CN209
Local Supply
TCB-PCIN3E
Connection
Cable
Display
Relay
K1
PJ20
:Defrost
output
4
EMG
3
OPERATION
2
Display
Relay
1
K2
Power Supply
L2
:Compressor
operation
output
Power Supply
L1
7
– 90 –
28-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 91 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
CAUTION
• Be sure to prepare a non-voltage contact for each terminal.
• Display Relay capacity of “EMG” and “OPERATION”.
Below AC230 V 0.5 A (COS Ø = 100 %)
When connecting loads such as relay coil to “L1, L2” load, insert noise surge absorber.
Below DC24 V 1 A (Non-inductive load)
When connecting load such as relay coil to “L1, L2” load, insert the bypass circuit.
Optional inputs to hydro unit
Room Thermostat Input:
2–3: Room thermostat input for cooling mode
1–3: Room thermostat input for heating mode
• Output enabled when either heating or cooling mode selected on room thermostat. (locally supplied)
• Volt free contacts
• Connection details:
Cooling Connection: Terminals 3 (COM) and 2 (COOL) on TCB-PCMO3E (Refer to “Fig. 7-34”)
Heating Connection: Terminals 3 (COM) and 1 (HEAT) on TCB-PCMO3E (Refer to “Fig. 7-34”)
▼ Fig. 7-34
Local supply thermostat
TCB-PCMO3E
CN211
Connection
Cable
COM
3
COOL
2
HEAT
1
PJ17
Cool
Hot
CAUTION
• Be sure to prepare a non-voltage continuous contact for each terminal.
• Supplementary Insulation must be added to user touchable part of switches.
Cylinder Thermostat Input
S1: Cylinder thermostat input
• Non-voltage contacts
• Connection details:
Cylinder Thermostat: Terminals 3 (COM) and 2 (COOL) on TCB-PCMO3E (Refer to “Fig. 7-35”)
Emergency Shutdown input
S2: Emergency stop input
• Non-voltage contacts
• Connection details:
Emergency stop: Terminals 3 (COM) and 1 (HEAT) on TCB-PCMO3E (Refer to “Fig. 7-35”)
▼ Fig. 7-35
CN210
29-EN
Local Supply
TCB-PCMO3E
Connection
Cable
PJ17
COM
3
COOL
2
HEAT
1
S1
S2
– 91 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 92 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
CAUTION
• Be sure to prepare a non-voltage continuous contact for each terminal.
• Supplementary Insulation must be added to user touchable part of switches.
Electrical safety checks
The electrical safety checks must be completed before turning on the electrical supplies to the Air to Water heat
pump system. The electrical safety checks should be completed by a qualified electrician. All results measured
should comply with your local/national electrical installation regulations.
Earth continuity test
On completion of the electrical installation a resistance test should be completed on the earth conductor to ensure
continuity between all pieces of equipment on the earth conductor.
Insulation resistance test
This test must be completed using a 500 V D.C. insulation resistance tester. Insulation resistance tests should be
completed between each live terminal and earth.
7
– 92 –
30-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 93 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
8
START UP AND CONFIGURATION
Set the DIP switches and function codes.
Setting DIP Switches on the Board in the Hydro Unit
• Detach the front cover and the electric parts box cover of the Hydro Unit.
• Set the DIP switches on the main board.
▼ Fig. 8-01
SW10
SW10
3
OFF
1
SW11
SW12
ON
2
3
4
1
External P2 pump operation
SW13
ON
2
4
3
1
ON
2
3
4
1
2
3
4
Switch mode
Description
SW11
Default setting
Continuous operation
OFF
ON
Interlocked with the
internal pump
synchronized with P1.
Switch mode
Description
Default setting
1
Internal backup heater operation
Operate
OFF
ON
Not operate
2
Hot water cylinder heater operation Operate
OFF
ON
Not operate
3
Booster heater operation
OFF
ON
Not operate
SW12
Operate
Switch mode
Description
Default setting
1
Hot water supply operation
Valid
OFF
ON
Invalid
2
Zone 1 operation
Valid
OFF
ON
Invalid
3
Zone 2 operation
Invalid
OFF
ON
Valid
SW13
Switch mode
Description
Default setting
1
Type of motorized 3-way valve
• 2-wire spring return type
• 3-wire SPST type
OFF
ON
3-wire SPDT type
2
Interlocking with boiler
Invalid
OFF
ON
Valid
3
Auto restart for power failure
Auto restart
OFF
ON
Manual restart
4
–
OFF
ON
Valid
SW02
4
31-EN
ON
ON
Description
Room thermostat
Default setting
Invalid
– 93 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 94 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Setting Function Codes for Hydro Unit and Remote Controller
Set function codes for various operation modes with the remote controller.
There are two types of setting.
1) Hydro Unit function code setting
2) Remote controller function code setting
Setting remote controller mode
<Setting Hydro Unit Function Code>
1
2
3
4
5
6
Press the TEST
+ SET
+ SELECT
buttons for four seconds or more
to enter the remote controller function code
setting mode.
Set the function code (CODE No.) with the
TEMP.
buttons. (CODE No.: 01 to 91)
Set data (DATA) with the TIME
Press the SET
The CL
changed.
buttons.
button to determine the settings.
button is enabled only before the SET
Press the TEST
button is pressed and the function code is
button to end the settings.
<Setting Remote Controller Function Code>
1
2
3
4
5
6
Press the TEST
+ CL
+ TEMP.
buttons for four seconds or more to enter the
remote controller function code setting mode.
Set the function code (CODE No.) with the
TEMP.
buttons. (CODE No.: 01 to 13)
Set data (DATA) with the TIME
Press the SET
The CL
changed.
buttons.
button to determine the settings.
button is enabled only before the SET
Press the TEST
button is pressed and the function code is
button to end the settings.
– 94 –
7
32-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 95 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Main setting items
(1) Setting Hot Water Temperature Range (function code 18 to 1F)
• Set the temperature range for heating (zone 1, zone 2), cooling, and hot water.
• The upper-limit and lower-limit temperatures of each mode can be set.
(2) Setting Heat Pump Operation Conditions for Hot Water Supply (function code 20 and 21)
• Set the heat pump start water temperature and heat pump stop water temperature.
• The heat pump starts working when the water temperature lowers below the set start water temperature. It
is recommended that the default value be used.
(3) Compensating Hot Water Temperature (function code 24 and 25)
• Compensate the target temperature from the remote controller set temperature when the hot water
temperature lowers below the set outside air temperature.
(4) Setting Hot Water Boost (function code 08 and 09)
• Set the control time and target temperature when the HOT WATER BOOST
controller is pressed.
button on the remote
(5) Setting Anti-Bacteria
• Set the control for the hot water cylinder when ANTI BACTERIA
is set with the remote controller.
• Set the target temperature, control period, start time (24-hour notation), and target temperature retention
period.
• Make this control setting according to regulations and rules of respective countries.
(6) Setting Priority Mode Temperature
• Set the outside air temperature that changes the preferred operation mode.
• Hot Water - Heating Switching Temperature
Heating operation takes precedence when the temperature lowers the set temperature.
• Boiler HP Switching Temperature
When the temperature lowers the set temperature, the HP operation stops and the external boiler output is
made.
(7) Setting Heating Auto Mode Temperature (function code 27 to 31)
• Compensate the target temperature when Auto is set for temperature setting on the remote controller.
• The outside air temperature can be set to one of three points (T1 and T3) within a range of -15 to 15°C.
• The target temperature can be set to a value from 20 to 55°C.
• However, A > B > C > D > E.
▼ Fig. 8-02
(40) A
(35) B
(30) C
(25) D
(20) E
-20
T1
(-10)
T2
T3
0
(10)
20
Outdoor Temperature
• The entire curve can be adjusted plus and minus 5°C by function code 27.
(8) Setting Frost Protection Temperature (function code 3A to 3B)
• Set the function when the FROST PROTECTION
button on the remote controller is pressed.
• Set enabling/disabling of this function and the target water temperature.
• If disabling is set, the frost protection operation is not performed even when the FROST PROTECTION
button is pressed.
33-EN
– 95 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 96 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
(9) Setting Frequency of Output to Internal Heater (function code 33 to 34)
• The increase/decrease time is used to set the response time.
(10)Setting Night Setback (function code 26. remote controller function code 0F to 11)
• Set the function when the NIGHT
button on the remote controller is pressed.
• Set enabling/disabling of this function, reduction temperature, start time, and end time.
• If disabling is set, the night setback operation is not performed even when the NIGHT
pressed.
button is
(11)Setting 2-Way Valve (for Cooling) Operation (function code 3C)
• When using both cooling and heating operations and there is an indoor unit only for heating (such as floor
heating), install the 2-way valve and set this function code.
(12)Setting 3-Way Valve Operation (function code 54)
• This setting is not necessary for normal installation. Make this setting to invert the logic circuit in case ports
A and B of the 3-way valve are wrongly attached and it cannot be rectified on site.
(13)Mixing valve types and setting
• Set the time period from full close to full open of the 2-zone control mixing valve. Set a value that is 1/10 of
the actual time.
(14)Setting Heating/Hot Water Switching when Boiler Is Used (function code 3E)
• When boiler is used, make this setting to operate the Hydro Unit by the instruction from the boiler.
(15)Setting Heat Pump Operating Time for Hot Water Supply Operation
• Set the time period from the start of heat pump run to the start of heater energization at the beginning of hot
water supply operation. If a long period is set, it takes long time for heating water.
(16)Setting Cooling ON/OFF
• Set this function when performing cooling operation.
(17)Remote controller time indication
• 24-hour or 12-hour notation is selected for the timer.
(18)Setting Nighttime Quiet Operation
• Issue an instruction for low-noise mode operation to the outdoor unit. Enabling/disabling of this function, start
time, and end time can be set.
(19)Setting Alarm Tone
• The remote controller alarm tone can be set.
7
– 96 –
34-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 97 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Function code settings
Function code setting
Hydro
unit
Remote
controller
Default
Range
Unit
Unit
01. Upper-limit temperature for
heating Zone 1
1A
55
37 to 55
°C
1
02. Lower-limit temperature for
heating Zone 1
1B
20
20 to 37
°C
1
03. Upper-limit temperature for
heating Zone 2
1C
55
37 to 55
°C
1
04. Lower-limit temperature for
heating Zone 2
1D
20
20 to 37
°C
1
05. Upper-limit temperature for
cooling
18
25
18 to 30
°C
1
06. Lower-limit temperature for
cooling
19
10
10 to 18
°C
1
07. Upper-limit temperature for
hot water
1E
75
60 to 80
°C
1
08. Lower-limit temperature for
hot water
1F
40
40 to 60
°C
1
2. Hot water
operation
01. Heat pump start temperature
20
38
20 to 45
°C
1
02. Heat pump stop temperature
21
45
40 to 50
°C
1
3. Hot water
temperature
compensation
01. Temperature compensation
start outside air temperature
24
0
-20 to 10
°C
1
02. Compensation temperature
25
3
0 to 15
Degree
1
01. Operation time x 10 min
08
6
3 to 18
Minute
1 (x10)
02. Setting temperature
09
75
40 to 80
°C
1
01. Setting temperature
0A
75
70 to 80
°C
1
1. Setting
temperature range
4. Hot Water Boost
5. Anti -bacteria
6. Priority mode
7. Heating Auto
setting
35-EN
Function code
setting address
02. Operation cycle
0D
7
1 to 10
Day
1
03. Start time
0C
22
0 to 23
Hour
1
04. Operation time
0B
30
0 to 60
Minute
1
01. Hot water and heating
switching temperature
22
0
-20 to 20
°C
1
02. Boiler and heat pump
switching temperature
23
-10
-20 to 20
°C
1
01. Outside temperature T1
29
-10
-15 to 0
°C
1
02. Outside temperature T3
2B
10
0 to 15
°C
1
03. Setting
temperature A at
-20°C
2C
40
20 to 55
°C
1
04. Setting
temperature B at T1°C
2D
35
20 to 55
°C
1
2E
30
20 to 55
°C
1
2F
25
20 to 55
°C
1
07. Setting
temperature E at
+20°C
30
20
20 to 55
°C
1
08. Ratio of Zone 2 in Zone 1
Auto mode
31
80
0 to 100
%
10
09. Temperature shift of entire
AUTO curve
27
0
-5 to 5
Degree
1
When A
05. Setting
≥
B≥C
temperature C at T2°C ≥ D ≥ E
06. Setting
temperature D at T3°C
Note
– 97 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 98 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Function code setting
8. Frost Protection
9. Heater control
10. Night setback
Function code
setting address
Hydro
unit
Remote
controller
Default
Range
Unit
Unit
01. Function 0: Invalid, 1: Valid
3A
1
0, 1
02. Setting temperature
3B
15
8 to 20
01. Down time (Example) Heater
0: 5 min, 1: 10 min, 2: 15 min,
3: 20 min
33
1
(10 min)
0 to 3
Select
02. Up time (Example) Heater
0: 10 min, 1: 20 min, 3: 30 min,
4: 40 min
34
0
(10 min)
0 to 3
Select
01. Change temperature range
26
5
3 to 20
Degree
1
Select
°C
1
02. Start time
0E
22
0 to 23
Hour
1
03. End time
0F
06
0 to 23
Hour
1
01. Room temperature control
adjustment 0: Valid, 1: Invalid.
02
0
0, 1
1
1 to 5
02. Compensation for
temperature
11. Room
temperature setting 03. Down time zone B (x 5 min)
35
Select
Degree
1
36
1 to 24
6
to 120
(30 min) (5 min)
Minute
1 (x5)
04. Up time zone C (x 5 min)
37
1 to 24
6
(5 to 120
(30 min)
min)
Minute
1 (x5)
12. Hydro 2-way
valve operation
control
Activating 2-way valve for cooling
01. (0: Activated during cooling,
1: Not activated during cooling)
3C
13. 2-zone mixing
valve drive time
Previous drive time x 10 seconds
0C
14. Boiler operates
synchronized with
heat pump
01. (0: Synchronized, 1: Not
synchronized)
3E
0
0, 1
15. Maximum
operation time of
hot water heat
pump
01. Maximum heat pump
operation time in hot water
operation priority mode
07
30
1 to 120
16. Cooling
operation
01. (0: Cooling and heating, 1:
Heating only)
02
1
0, 1
Select
05
0
0, 1
Select
17. Remote
01. 24-hour or 12-hour notation of
controller indication timer 0: 24-hour, 1: 12-hour
0
0, 1
Select
3 to 24
6
(30 to
(60 sec) 240 sec)
1 (x10)
Select
Minute
01. (1: Valid, 0: Invalid)
09
0
0, 1
18. Nighttime lownoise operation
02. Start time
0A
22
0 to 23
Hour
03. End time
0B
06
0 to 23
Hour
19. Alarm tone
01. Tone switching 0: OFF, 1: ON
11
1
0, 1
– 98 –
Note
1
7
1
1
Select
36-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 99 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Settings by Purpose
Settings when hot water supply function is not used
• When the hot water supply function is not used, set DIP SW12-1 on the Hydro Unit board to ON. (Refer to
page 93.)
Setting for cooling
• For Hydro Units that do not perform cooling (those for floor heating, etc.), procure a motorized 2-way valve (for
cooling) (refer to “Control parts specifications” on page 84 for the details.) locally and attach it to the water pipe
that is not used for cooling. Connect the valve cables to terminals TB05 (3) and (4) of the Hydro Unit.
• Press long the TEST
+ SET
+ SELECT
switches on the remote controller to change the
Hydro Unit function code, and change address 02 to 0, and then press the SET
button to enable the function.
Press the TEST
button to exit the setting mode.
• Stick the optional insulator for cooling to the bottom of the Hydro Unit.
Settings for hot water supply
• Prepare the optional hot water cylinder.
• Procure a motorized 3-way valve (refer to “Control parts specifications” on page 84 for the details.) locally and
perform piping. Connect the valve cables to terminals TB05 (7), (8) and (9) of the Hydro Unit.
• Set DIP SW12-1 on the Hydro Unit board to OFF. (Refer to page 93.)
• Connect the power supply unit for the hot water cylinder heater to terminals TB03 L and N of the Hydro Unit.
• Connect cables between the Hydro Unit and the hot water cylinder as follows:
Hydro Unit terminals TB03 (1), (2), and earth — Hot water cylinder (1), (2), and earth
TB06 A, B, and earth — Hot water cylinder A, B, and earth
Settings for 2-zone temperature control
• Procure a motorized mixing valve (refer to “Control parts specifications” on page 84 for the details.) locally and
perform piping. Connect the valve cables to terminals TB04 (1), (2), (3) and (4) of the Hydro Unit.
• Procure a buffer tank locally.
• Procure a water pump locally, and connect its cables to terminals TB05 (1) and (2) of the Hydro Unit.
To inhibit interlocking the water pump with the internal pump of the Hydro Unit, set DIP SW10-3 on the Hydro
Unit board to OFF.
• Set DIP SW12-3 on the Hydro Unit board to ON. (Refer to page 93.)
Attach the temperature sensor (TFI) connected to terminals TB06 C and D of the Hydro Unit near the hot water
inlet of the Hydro Unit.
• Fix TFI sensor on the room heating supply pipe by using the connector procured in locally.
• Cover the cables with insulation tube (minimum 1 mm) or conduit so that the user cannot touch them directly.
• Cover the TFI sensor's cables and sensor with insulation tube (minimum 1 mm) shown in the diagram on the
right.
37-EN
– 99 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 100 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
▼ Fig. 8-03
▼ Fig. 8-04
Insulation tube (minimum 1 mm)
M
TFI Sensor
Tying up
TFI
2 Zone hot water supply pipe
Direct Buffer tank for
Under Floor Heating
9
More than 4 mm
Zone 2
Under-floor Heating
(2-Way Valve Control)
TEST RUN
Use operation buttons usually to conduct a test run.
If the outside air temperature or water temperature is outside the setting value range, press the TEST
button
on the remote controller and then start a test run. Since the protection setting is disabled in the TEST mode, do not
continue a test run longer than 10 minutes.
• Press the TEST
button on the remote controller. An indication “TEST” appears on the remote controller.
• Press the ZONE1, 2
button and select “heating” with the OPERATE MODE
button.
The pump is activated in 30 seconds.
If air is not released completely, the flow rate switch is activated to stop operation. Release air again according
to the piping procedure.
Little air bite is discharged from the purge valve.
• Check that the air bite sound disappears.
• Check that the hydraulic pressure has become the predetermined pressure 0.1 to 0.2 MPa (1 to 2 bar). If the
hydraulic pressure is insufficient, replenish water.
• Heating operation starts. Check that the hydro unit starts heating.
• Press the OPERATE MODE
button and select “cooling.”
• Cooling operation starts. Check that the hydro unit starts cooling and that the floor heating system is not cooled.
• Press the ZONE1, 2
button to stop operation.
• Press the HOT WATER
button to start hot water supply operation.
• Check that there is no air bite.
• Check that hot water is present at the connection port of the hot water cylinder.
• Press the HOT WATER
button to stop the hot water supply operation.
• Press the TEST
button to exit the test mode.
– 100 –
7
38-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 101 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
10 MAINTENANCE
Execute periodic maintenance at least once a year.
Check points
• Check all electrical connections and make adjustments if they are necessary.
• Check the water pipes of the heating systems in particular any evidence of leakage.
• Check the expansion tank inner pressure. If it is insufficient, enclose nitrogen or dry air in the tank.
• Check that the hydraulic pressure is 0.1 MPa (1 bar) or more with a water manometer. If it is insufficient, replenish
tap water.
• Pull the lever of the pressure relief valve and check operation.
• Clean the strainer.
• Check the pump for an abnormal sound or other abnormalities.
11 SENSOR TEMPERATURE MONITORING
FUNCTION
Sensor Temperature Monitoring Function
The sensor sensing temperature is displayed on the remote controller.
This function allows you to make sure whether the sensor is installed properly.
Press the TEST
+ CL
buttons for four seconds or more.
Select the function code with the TEMP.
buttons.
Press the TEST
button to exit the test mode.
Function code
Location
06
Return water temperature °C
08
Hot water temperature °C
09
Hydro unit
0A
2-zone sensor temperature °C
Hot water cylinder temperature sensor °C
0B
Motorized mixing valve position
60
Heat exchanger temperature °C
61
Outside air temperature °C
62
63
Outdoor unit
Refrigerant discharge temperature °C
Refrigerant intake temperature °C
6A
Current value (in the inverter) A
70
Compressor operating frequency
F4
Hydro unit AC pump total operating hours x100 hours
F5
F6
39-EN
Indication
Operating hours
Hot water cylinder heater total operating hours x100 hours
Hydro unit heater total operating hours x100 hours
– 101 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 102 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
12 TROUBLESHOOTING
Fault Symptoms
Symptom
Room is not heated or
cooled.
Water is not hot enough.
Possible cause
Corrective action
Incorrect remote controller setting
Check remote controller operation and temperature
setting
Incorrect function code setting
Check function code setting with the function code table.
Backup heater disconnected
Check backup heater and bimetal thermostat.
Insufficient capacity
Check selection of equipment.
Sensor defect
Check whether temperature sensor is installed at the
normal position.
Power is not supplied.
Nothing is displayed on the
remote controller.
Incorrect setting
Flow rate switch is
activated.
Error code [P01]
Hot water leaks from
pressure relief valve.
Check power supply wiring.
Check DIP switch setting on the Hydro Unit board.
Check the setting with the function code table.
Air bite in the pump
Release air completely according to the procedure.
Low hydraulic pressure
Set hydraulic pressure considering pipe height, and
replenish water until manometer shows a value of set
hydraulic pressure or more.
Strainer is clogged.
Clean the strainer.
Large resistance on the hydro side
Widen water path to the hydro unit or adopt a bypass
valve.
Malfunction of motorized 3-way valve
for hot water supply
Check wiring and parts.
Excessive hydraulic pressure
Set hydraulic pressure considering pipe height, and
replenish water until manometer shows a value of set
hydraulic pressure or more.
Check expansion tank capacity compared to total water
Insufficient capacity of expansion tank amount. If it is insufficient, install another expansion
tank.
Expansion tank failure
Alarm
indication
Check the air pressure.
Alarm description and generation/reset conditions
E03
Regular communication error between hydro unit and remote controller (system controller)
If there is no regular communication from the remote controller for three minutes, the hydro unit regards it as no
remote controller. If there is no communication from both sides, alarm E03 occurs.
Auto-reset: When successful regular communication is made
E04
Regular communication error between hydro unit and outdoor unit
When serial signal from the outdoor unit cannot be received though normal serial signal is sent to the outdoor
unit
1) When serial signal cannot be received continuously for 60 seconds (S code communication)
2) Communication is still not successful for 80 seconds through three retries if serial signal cannot be
received for 20 seconds after new communication (f code) starts
When the remote controller starts operation, serial transmission starts with the new communication format.
Auto-reset: When successful regular communication is made
F03
Condensing temperature TC sensor defect
If short-circuit or open-circuit state continues for two seconds, an alarm occurs.
Auto-reset: When normal value is confirmed
F10
Hydraulic heat exchanger inlet temperature TWI sensor defect
If short-circuit or open-circuit state continues for two seconds, an alarm occurs.
Auto-reset: When normal value is confirmed
F11
Hydraulic heat exchanger outlet temperature TWO sensor defect
If short-circuit or open-circuit state continues for two seconds, an alarm occurs.
Auto-reset: When normal value is confirmed
– 102 –
7
40-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 103 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Alarm
indication
41-EN
Alarm description and generation/reset conditions
F14
Hot water cylinder temperature TTW sensor defect
If short-circuit or open-circuit state continues for two seconds, an alarm occurs.
Auto-reset: When normal value is confirmed
F17
Floor inlet temperature TFI sensor defect
If short-circuit or open-circuit state continues for two seconds, an alarm occurs.
Auto-reset: When normal value is confirmed
F18
Internal heater outlet temperature TWO sensor defect
If short-circuit or open-circuit state continues for two seconds, an alarm occurs.
Auto-reset: When normal value is confirmed
F20
Floor inlet temperature TFI sensor disconnection or wrong installation
(This alarm is reset by stopping operation and is checked again.)
F23
Low-pressure sensor defect
If open-circuit state continues for two seconds, an alarm occurs.
Auto-reset: When normal value is confirmed
F29
Hydraulic heat exchanger EEPROM defect
One mismatch is detected if there is no verification ACK after data write to the EEPROM
Reset condition: This alarm is inhibited while the unit is not working.
(When EEPROM1K is mounted, this alarm cannot be reset.)
F30
Onboard expansion IC defect
This alarm is not reset automatically.
L07
Group line in an hydro unit
This alarm is checked during initial communication immediately after power-on.
This alarm occurs immediately after operation start.
This alarm is not reset automatically. (This alarm is inhibited while the unit is not working, but occurs again after
the unit operates.)
L09
Hydro unit capacity has not been set.
This alarm is checked immediately after power-on.
This alarm is not reset automatically. (This alarm is inhibited while the unit is not working, but occurs again after
the unit operates.)
A01
Pump defect or abnormal flow rate
This alarm is not reset automatically.
A02
Excessive water temperature increase by the heating heater
Auto-reset:
A03
Excessive water temperature increase in the hot water cylinder
A04
Freezing is detected.
Auto-reset:
A07
High-pressure switch malfunction
This alarm is not reset automatically.
A08
Low-pressure sensor malfunction
This alarm is not reset automatically.
A09
Overheat preventive operation malfunction
Auto-reset: When operation mode is changed
A11
Release preventive operation malfunction
This alarm occurs when the Hydro Unit enters the forced-stop zone 10 times.
– 103 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 104 Thursday, September 10, 2009 6:00 PM
Engineering Data Book
7. HYDRO UNIT INSTALLATION MANUAL
Alarm
indication
Main failure part
Description
F04
Outdoor unit discharge
temperature sensor TD defect
When open- or short-circuit of discharge temperature sensor TD is
detected
F06
Outdoor unit temperature sensor
TE or TS defect
When open- or short-circuit of heat exchanger temperature sensor TE or
TS is detected
F08
Outdoor unit outside air
temperature sensor TO defect
When open- or short-circuit of outside air temperature sensor TO is
detected
H01
Compressor breakdown
When min-Hz is reached by current release control or when short-circuit
current (Idc) is detected after direct current excitation
H02
Compressor locked
When compressor lock is detected
H03
Current detector defect
When abnormal current is detected in AC-CT or phase loss is detected
H06
Low-pressure system defect
Ps pressure sensor defect or low-pressure protective operation
L29
Other outdoor unit faults
Other outdoor unit faults: 1) Inter-MCU communication error between IPDU
and CDB 2) abnormal GBT heatsink temperature
L31
Phase sequence error, etc.
When phase sequence of 3-phase power supply is incorrect (thermostat
OFF operation continued), etc.
P03
Abnormal outdoor unit discharge
temperature
When abnormal temperature is detected by discharge temperature release
control
P04
High-pressure system defect
When high-pressure switch, IOL is activated or when abnormality is
detected by high-pressure release control by TE
P22
Outdoor unit fan defect
When overcurrent or lock in outdoor unit fan drive circuit is detected
P26
Inverter Idc operation
When short-circuit protection is activated for compressor driver devices
(G-Tr, IGBT)
P29
Position detection error
When compressor motor position detection error is detected
7
– 104 –
42-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 105 Thursday, September 10, 2009 6:00 PM
8. OUTDOOR UNIT INSTALLATION MANUAL
105
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 106 Thursday, September 10, 2009 6:00 PM
AIR TO WATER HEAT PUMP
Installation manual
Outdoor Unit
Model name:
HWS-802H-E
HWS-1102H-E
HWS-1402H-E
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 107 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
Please read this Installation Manual carefully before installing the Air to Water Heat Pump.
• This Manual describes the installation method of the outdoor unit.
• For installation of the hydro unit, follow the Installation Manual attached to the hydro unit.
ADOPTION OF NEW REFRIGERANT
This Air to Water Heat Pump is a new type which adopts a new refrigerant HFC (R410A) instead of the
conventional refrigerant R22 in order to prevent destruction of the ozone layer.
Contents
1 ACCESSORY PARTS AND REFRIGERANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
2 PRECAUTIONS FOR SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
3 INSTALLATION OF NEW REFRIGERANT AIR TO WATER HEAT PUMP . . . . . . . 110
4 SELECTION OF INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
5 REFRIGERANT PIPING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
6 AIR PURGING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
7 ELECTRICAL WORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
8 EARTHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
9 FINISHING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
10 TEST RUN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
11 ANNUAL MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
12 FUNCTIONS TO BE IMPLEMENTED LOCALLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
13 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
14 APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
1-EN
– 107 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 108 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
1
ACCESSORY PARTS AND REFRIGERANT
Accessory parts
Part name
Q’ty
Shape
Usage
Outdoor unit
Installation manual
1
This manual
Drain nipple
1
Waterproof rubber cap
5
Protective bush
1
For protecting wires (pipe cover)
Guard material for passage
part
1
For protecting passage part (pipe cover)
(Hand this directly to the customer.)
Refrigerant Piping
• Piping kit used for the conventional refrigerant cannot be used.
• Use copper pipe with 0.8 mm or more thickness for Ø9.5 mm.
Use copper pipe with 1.0 mm or more thickness for Ø15.9 mm.
• Flare nut and flare works are also different from those of the conventional refrigerant.
Take out the flare nut attached to the Air to Water Heat Pump, and use it.
8
– 108 –
2-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 109 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
2
PRECAUTIONS FOR SAFETY
• Ensure that all Local, National and International regulations are satisfied.
• Read this “PRECAUTIONS FOR SAFETY” carefully before Installation.
• The precautions described below include the important items regarding safety.
Observe them without fail.
• After the installation work, perform a trial operation to check for any problem.
Follow the Owner’s Manual to explain how to use and maintain the unit to the customer.
• Turn off the main power supply switch (or breaker) before the unit maintenance.
• Ask the customer to keep the Installation Manual together with the Owner’s Manual.
WARNING
• Ask an authorized dealer or qualified installation professional to install/maintain the Air to Water Heat Pump.
Inappropriate installation may result in water leakage, electric shock or fire.
• Be sure to connect earth wire. (grounding work)
Incomplete grounding cause an electric shock.
Do not connect ground wires to gas pipes, water pipes, lightning rods or ground wires for telephone wires.
• Turn off the main power supply switch or breaker before attempting any electrical work.
Make sure all power switches are off. Failure to do so may cause electric shock.
Use an exclusive power circuit for the Air to Water Heat Pump. Use the rated voltage.
• Connect the connecting wire correctly.
If the connecting wire is connected in a wrong way, electric parts may be damaged.
• When moving the Air to Water Heat Pump for the installation into another place, be very careful not to enter
any gaseous matter other than the specified refrigerant into the refrigeration cycle.
If air or any other gas is mixed in the refrigerant, the gas pressure in the refrigeration cycle becomes abnormally high
and it may resultingly causes pipe burst and injuries on persons.
• Do not modify this unit by removing any of the safety guards or by by-passing any of the safety interlock
switches.
• After unpacking the unit, examine it carefully if there are possible damage.
• Do not install in a place that might increase the vibration of the unit.
• To avoid personal injury (with sharp edges), be careful when handling parts.
• Perform installation work properly according to the Installation Manual.
Inappropriate installation may result in water leakage, electric shock or fire.
• When the Air to Water Heat Pump hydro unit is installed in a small room, provide appropriate measures to
ensure that the concentration of refrigerant leakage occur in the room does not exceed the critical level.
• Tighten the flare nut with a torque wrench in the specified manner.
Excessive tightening of the flare nut may cause a crack in the flare nut after a long period, which may result in
refrigerant leakage.
• Wear heavy gloves during the installation work to avoid injury.
• Install the Air to Water Heat Pump securely in a location where the base can sustain the weight adequately.
• Perform the specified installation work to guard against an earthquake.
If the Air to Water Heat Pump is not installed appropriately, accidents may occur due to the falling unit.
• If refrigerant gas has leaked during the installation work, ventilate the room immediately.
If the leaked refrigerant gas comes in contact with fire, noxious gas may generate.
• After the installation work, confirm that refrigerant gas does not leak.
If refrigerant gas leaks into the room and flows near a fire source, such as a cooking range, noxious gas might
generate.
• Electrical work must be performed by a qualified electrician in accordance with the Installation Manual. Make
sure the Air to Water Heat Pump uses an exclusive power supply.
An insufficient power supply capacity or inappropriate installation may cause fire.
• Use the specified wires for wiring connect the terminals securely fix.
To prevent external forces applied to the terminals from affecting the terminals.
3-EN
– 109 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 110 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
WARNING
• When the Air to Water Heat Pump cannot cool or heat water well, contact the dealer from whom you
purchased the Air to Water Heat Pump as refrigerant leakage is considered as the cause.
In the case of repair that requires refill of refrigerant, ask service personnel about details of the repair.
The refrigerant used in the Air to Water Heat Pump is harmless.
Generally, the refrigerant does not leak. However, if the refrigerant leaks in a room and a heater or stove burner in
the room catches fire, it may generate toxic gas.
When you ask service personnel for repairing refrigerant leakage, confirm that the leakage portion has been
completely repaired.
• Conform to the regulations of the local electric company when wiring the power supply.
Inappropriate grounding may cause electric shock.
• Do not install the Air to Water Heat Pump in a location subject to a risk of exposure to a combustible gas.
If a combustible gas leaks, and stays around the unit, a fire may occur.
• Install the refrigerant pipe securely during the installation work before operating the Air to Water Heat Pump.
If the compressor is operated with the valve open and without the refrigerant pipe, the compressor sucks air and the
refrigeration cycle is overpressurized, which may cause a burst or injury.
• For the refrigerant recovery work (collection of refrigerant from the pipe to the compressor), stop the
compressor before disconnecting the refrigerant pipe.
If the refrigerant pipe is disconnected while the compressor is working with the valve open, the compressor sucks air
and the refrigeration cycle is overpressurized, which may cause a burst or injury.
CAUTION
New Refrigerant Air to Water Heat Pump Installation
• THIS AIR TO WATER HEAT PUMP ADOPTS THE NEW HFC REFRIGERANT (R410A) WHICH DOES NOT
DESTROY OZONE LAYER.
• The characteristics of R410A refrigerant are ; easy to absorb water, oxidizing membrane or oil, and its pressure is
approx. 1.6 times higher than that of refrigerant R22. Accompanied with the new refrigerant, refrigerating oil has also
been changed. Therefore, during installation work, be sure that water, dust, former refrigerant, or refrigerating oil does
not enter the refrigerating cycle.
• To prevent charging an incorrect refrigerant and refrigerating oil, the sizes of connecting sections of charging port of
the main unit and installation tools are changed from those for the conventional refrigerant.
• Accordingly the exclusive tools are required for the new refrigerant (R410A).
• For connecting pipes, use new and clean piping designed for R410A, and please care so that water or dust does not
enter.
To Disconnect the Appliance from Main Power Supply
• This appliance must be connected to the main power supply by means of a switch with a contact separation of at
least 3 mm.
• The installation fuse 25 A (All type fuse can be used) must be used for the power supply line of this unit.
3
INSTALLATION OF NEW REFRIGERANT
AIR TO WATER HEAT PUMP
8
• The R410A refrigerant is more susceptible to impurities such as water, oxide membrane, oils, and fats. With the
adoption of the new refrigerant, refrigerating oil has also been changed.
Be careful so that water, dust, conventional refrigerant, and/or conventional refrigerating oil do not enter the
refrigerating cycle of the new refrigerant Air to Water Heat Pump.
• To prevent different refrigerant or refrigerating oil being mixed, the sizes of the charging port of the unit and the
installation tool connecting sections are different from the conventional refrigerant. Accordingly the following
exclusive tools are required for the new refrigerant R410A.
– 110 –
4-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 111 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
Required Tools/Equipment and Precautions for Use
Prepare the tools and equipment listed in the following table before starting installation work.
Newly prepared tools and equipment must be used exclusively.
Legend
: Prepared newly (Use for R410A only. Do not use for refrigerant R22 or R407C etc..)
: Conventional tools/equipment are available
Tools/equipment
Gauge manifold
Use
How to use tools/equipment
Charging hose
Vacuuming/charging
refrigerant and operation
check
Prepared newly for R410A only
Charging cylinder
Can not be used
Gas leak detector
Gas leak check
Vacuum pump with backflow
prevention function
Vacuum drying
Vacuum pump with backflow
prevention function
Vacuum drying
R22 (Conventional tools)
Flare tool
Flare machining of pipes
Usable if dimensions are adjusted.
Bender
Bending pipes
R22 (Conventional tools)
Refrigerant recovery equipment
Refrigerant recovery
For R410A only
Torque wrench
Tightening flare nuts
Exclusive for Ø12.7 mm and Ø15.9 mm
Pipe cutter
Cutting pipes
R22 (Conventional tools)
Refrigerant cylinder
Charging refrigerant
Welding machine and nitrogen
cylinder
Welding pipes
R22 (Conventional tools)
Refrigerant charging measure
Charging refrigerant
R22 (Conventional tools)
Prepared newly for R410A only
Unusable (Use the refrigerant charging measure instead.)
Prepared newly
Unusable
For R410A only
Discriminated by the refrigerant name on the cylinder.
Refrigerant Piping
New refrigerant (R410A)
When using the conventional piping kit
• When using the conventional piping kit that has no indication of applicable refrigerant types, be sure to use it with
a wall thickness of 0.8 mm for Ø6.4 mm, Ø9.5 mm, and Ø12.7 mm, and with a wall thickness of 1.0 mm for Ø15.9
mm. Never use the conventional piping kit with a wall thickness less than these thicknesses due to insufficient
pressure capacity.
When using general copper pipes
• Use general copper pipes with a wall thickness of 0.8 mm for Ø6.4 mm, Ø9.5 mm, and Ø12.7 mm, and with a
wall thickness of 1.0 mm for Ø15.9 mm.
Never use any copper pipes with a wall thickness less than these thicknesses.
Flare nuts and flare machining
• The flare nuts and flare machining are different from those for the conventional refrigerant.
Use the flare nuts supplied with the Air to Water Heat Pump or those for R410A.
• Before performing flare machining, carefully read “REFRIGERANT PIPING”
5-EN
– 111 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 112 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
4
SELECTION OF INSTALLATION
Before installation
Earthing
Be careful to the following items before installation.
WARNING
Length of refrigerant pipe
Length of refrigerant
pipe connected to hydro/
outdoor unit
3 m to 30 m
Item
Addition of refrigerant is
unnecessary at the local site.
* Do not connect a refrigerant pipe shorter than 3 m.
This may cause a malfunction of the compressor or
other devices.
Airtight test
1. Before starting an airtight test, further tighten the
spindle valves on the gas side and liquid side.
2. Pressurize the pipe with nitrogen gas charged from
the service port to the design pressure (4.15 Mpa) to
conduct the airtight test.
3. After the airtight test is completed, evacuate the
nitrogen gas.
Air purge
• For air purge, use a vacuum pump.
• Do not use refrigerant charged in the outdoor unit for
air purge. (The refrigerant for air purge is not
contained in the outdoor unit.)
Electrical wiring
Make sure that proper earthing is provided.
Improper earthing may cause electric shock. For how
to check earthing, contact the dealer who installed the
Air to Water Heat Pump or a professional installation
company.
• Proper earthing can prevent charging of electricity on
the outdoor unit surface due to high frequency of the
frequency converter (inverter) in the outdoor unit, as
well as prevent electric shock. If the outdoor unit is
not properly earthed, you may feel electric shock.
• Be sure to connect earth wire. (grounding work)
Incomplete grounding cause an electric shock.
Do not connect ground wires to gas pipes, water
pipes, lightning rods or ground wires for telephone
wires.
Test Run
• Start test run when the water piping work is
completed and the system is filled with the proper
amount of water.
• Turn on the leakage breaker at least 12 hours before
starting a test run to protect the compressor during
startup.
CAUTION
Incorrect work may result in a malfunction or
complaints of customers.
Be sure to fix the power wires and hydro/outdoor
connecting wires with clamps so that they do not
contact with the cabinet, etc.
8
– 112 –
6-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 113 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
Installation Place
CAUTION
WARNING
Install the outdoor unit properly at a place that is
durable enough to the weight of the outdoor unit.
Insufficient durability may cause the outdoor unit to fall,
which may result in injury.
CAUTION
Do not install the outdoor unit at a place subject to
combustible gas leak.
Accumulation of combustible gas around the outdoor
unit may cause a fire.
1. Install the outdoor unit at a place where
discharge air is not blocked.
2. When an outdoor unit is installed in a place that
is always exposed to a strong wind like a coast
or on a high storey of a building, secure a
normal fan operation by using a duct or a wind
shield.
3. When installing the outdoor unit in a place that
is constantly exposed to a strong wind such as
the upper stairs or rooftop of a building, apply
the windproof measures referring to the
following examples.
1) Install the unit so that its discharge port faces
to the wall of the building.
Keep a distance 500 mm or more between the
unit and the wall surface.
Install the outdoor unit at a place that meets the
following conditions after customer’s consent is
obtained.
• A well-ventilated place free from obstacles near the
air inlets and air outlet
• A place that is not exposed to rain or direct sunlight
• A place that does not increase the operating noise or
vibration of the outdoor unit
• A place that does not cause any drainage problem
with discharged water
Do not install the outdoor unit at the following
places.
• A place full of saline atmosphere (coastal area) or
sulfide gas (hot-spring area)
(Special maintenance is required.)
• A place subject to oil, vapor, oily smoke, or corrosive
gas
• A place where organic solvent is used
• A place where high-frequency equipment (including
inverter equipment, private power generator,
medical equipment, and communication equipment)
is used
(Installation in this place may cause malfunction of
the Air to Water Heat Pump, abnormal control or
problems due to noise to such equipment.)
• A place where the discharged air of the outdoor unit
blows against the window of the neighboring house
• A place where the operating noise of the outdoor unit
is transmitted
• When the outdoor unit is installed in an elevated
position, be sure to secure its feet.
• A place where the drain water does not make any
problem.
7-EN
500
2) Supposing the wind direction during the
operation season of the Air to Water Heat
Pump, install the unit so that the discharge port
is set at right angle to the wind direction.
Strong
wind
Strong
wind
• When using an Air to Water Heat Pump under low
outside temperature condition (Outside temp.:-5 °C or
lower) with COOL mode, prepare a duct or wind shield
so that it is not affected by the wind.
<Example>
Wind shield
Wind shield
Wind shield
– 113 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 114 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
Necessary Space for Installation
(Unit:mm)
Obstacle at front side
▼ Upper side is free
▼ Upper side is free
1. Single unit installation
1. Single unit installation
500
or more
150
or more
Obstacle at rear side
200
or more
2. Obstacles at both right and left sides
2. Serial installation of two or more units
300
or more
▼ Obstacle also at the upper side
3. Serial installation of two or more units
200 or more
1000
or more
300
or more
300
or more
The height of the obstacle should be lower
than the height of the outdoor unit.
500
or more
▼ Obstacle also at the upper side
150
or more
Obstacles at both front and rear sides
Open the upper side and both right and left sides.
The height of obstacle at both front and rear side,
should be lower than the height of the outdoor unit.
▼ Standard installation
1. Single unit installation
150
or more
300
or more
1000
or more
150
or more
1000
or more
150
or more
1000
or more
The height of the
obstacle should be
lower than the height
of the outdoor unit.
– 114 –
8
8-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 115 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
300
or more
300
or more
• As shown in the figure below, install the foundation
and vibration-proof rubbers to directly support the
bottom surface of the fixing leg that is in contact with
the bottom plate of the outdoor unit.
* When installing the foundation for an outdoor unit
with downward piping, consider the piping work.
GOOD
1000
or more
200
or more
2. Serial installation of two or more units
Absorb vibration
with vibrationproof rubbers
Fixing leg
Serial installation at front and rear sides
Foundation
Open the upper side and both right and left sides.
The height of obstacle at both front and rear sides
should be lower than the height of the outdoor unit.
GOOD
Bottom plate
of outdoor unit
▼ Standard installation
Foundation
1000
or more
300
or more
1500
or more
2000
or more
Support the bottom surface of
the fixing leg in contact with
the bottom plate of the outdoor
unit.
200
or more
If only the end of the
fixing leg is
supported, it may be
deformed.
Installation of Outdoor Unit
• Before installation, check strength and horizontality
of the base so that abnormal sound does not
generate.
• According to the following base diagram, fix the base
firmly with the anchor bolts.
(Anchor bolt, nut: M10 x 4 pairs)
Drain hole
Do not support
the outdoor unit
only with the
fixing leg.
Foundation
Set the out margin of the anchor bolt to 15 mm or less.
15 or less
525
600
150
400
365
45
150
NO GOOD
Drain
nipple mounting hole
Drain hole
9-EN
– 115 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 116 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
• In case of draining through the drain hose, attach the
following drain nipple and the waterproof rubber cap,
and use the drain hose (Inner diam.: 16 mm) sold on
the market. And also seal the screws securely with
silicone material, etc. so that water does not drop
down. Some conditions may cause dewing or
dripping of water.
• When collectively draining discharged water
completely, a drain pan must be made locally.
Drain nipple
Waterproof rubber cap
(5pcs.)
Drain nipple
Waterproof rubber cap
For Reference
If a heating operation would be continuously performed
for a long time under the condition that the outdoor
temperature is 0 °C or lower, draining of defrosted
water may be difficult due to freezing of the bottom
plate, resulting in a trouble of the cabinet or fan.
It is recommended to procure an anti-freeze heater
locally for a safety installation of the Air to Water Heat
Pump.
For details, contact the dealer.
8
– 116 –
10-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 117 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
5
REFRIGERANT PIPING
Knockout of Pipe Cover
Supplied protective bush
Supplied passage hole guard
material
Rear direction
* Attach the guard material
securely so that it does not
come loose.
Pipe cover
Side direction
Front direction
Down direction
Optional Installation Parts
(Local Procure)
Knockout procedure
Parts name
• The hydro/outdoor connecting pipes can be
connected to 4 directions.
Take off the knockout part of the pipe cover in which
pipes or wires pass through the base plate.
• Detach the piping cover and give an impact on the
knockout section a few times with the shank of a
screwdriver. A knockout hole can easily be punched.
• After punching the knockout hole, remove burrs of
the hole and then install the supplied protective bush
and guard material for passage part to protect wires
and pipes.
Be sure to attach the pipe covers after pipes have
been connected. Cut the slits under the pipe covers
to facilitate the installation.
After connecting the pipes, be sure to mount the pipe
cover. The pipe cover is easily mounted by cutting off
the slit at the lower part of the pipe cover.
Q’ty
Refrigerant piping
A Liquid side : Ø9.5 mm
Gas side : Ø15.9 mm
B
Each one
Pipe insulating material
(polyethylene foam, 10 mm thick)
1
C Putty, PVC tapes
Each one
Refrigerant Piping
Connection
CAUTION
TAKE NOTICE THESE IMPORTANT
4 POINTS BELOW FOR PIPING WORK
1. Keep dust and moisture away from inside the
connecting pipes.
2. Tightly connect the connection between pipes
and the unit.
3. Evacuate the air in the connecting pipes using
VACUUM PUMP.
4. Check gas leak at connected points.
▼ Piping connection
Liquid side
* Be sure to wear heavy work gloves while working.
11-EN
Gas side
Outer
diameter
Thickness
Outer
diameter
Thickness
Ø9.5 mm
0.8 mm
Ø15.9 mm
1.0 mm
– 117 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 118 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
Flaring
1. Cut the pipe with a pipe cutter.
Be sure to remove burrs that may cause gas
leak.
2. Insert a flare nut into the pipe, and then flare the
pipe.
Use the flare nuts supplied with the Air to Water
Heat Pump or those for R410A.
Insert a flare nut into the pipe, and flare the pipe.
As the flaring sizes of R410A differ from those of
refrigerant R22, the flare tools newly manufactured
for R410A are recommended.
However, the conventional tools
B
can be used by adjusting
projection margin of the copper
pipe.
Tightening of Connecting
Part
1. Align the centers of the connecting pipes and fully
tighten the flare nut with fingers. Then fix the nut with
a spanner as shown in the figure and tighten it with
a torque wrench.
2. As shown in the figure, be sure to use two spanners
to loosen or tighten the flare nut of the valve on the
gas side. If you use a single spanner, the flare nut
cannot be tightened to the required tightening
torque.
On the other hand, use a single spanner to loosen or
tighten the flare nut of the valve on the liquid side.
(Unit: N•m)
Outer diam. of copper pipe
▼ Projection margin in flaring : B (Unit : mm)
Tightening torque
9.5 mm (diam.)
33 to 42 (3.3 to 4.2 kgf•m)
15.9 mm (diam.)
68 to 82 (6.8 to 8.2 kgf•m)
Rigid (Clutch type)
Outer diam. of
copper pipe
9.5
Flare nut
R410A
1.0 to 1.5
0 to 0.5
15.9
Half union or packed valve
Conventional
tool used
R410A tool used
Externally
threaded side
▼ Flare nut width: H and flare matching size: A.
Internally
threaded side
Fix with spanner.
Tighten with torque wrench.
Flare nut width: H
Cover
(mm)
H
Copper pipe
outer diam.
Ø6.4
Ø9.5
Ø12.7
Ø15.9
Ø19.0
For R410A
17
22
26
29
36
Cap
Piping valve
Flare machining size: A
Loosened
A
A +0, -0.4
(mm)
Copper pipe
outer diam.
Ø6.4
Ø9.5
Ø12.7
Ø15.9
Ø19.0
For R410A
9.1
13.2
16.6
19.7
24.0
Tightened
Flare nut
Do not apply the refrigerator oil to the flare surface.
* In case of flaring for R410A with the
conventional flare tool, pull it out approx.
0.5 mm more than that for R22 to adjust
to the specified flare size.
The copper pipe gauge is useful for
adjusting projection margin size.
Valve at gas side
A
8
– 118 –
12-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 119 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
Refrigerant Pipe Length
CAUTION
Refrigeration pipe
1. Do not put the spanner on the cap or cover.
H: max. ±30 m (above/below)
L: max. 30 m, min. 3 m
The valve may be broken.
2. If applying excessive torque, the nut may be
broken according to some installation
conditions.
Hydro Unit
• After the installation work, be sure to check gas leak
of connecting part of the pipes with nitrogen.
NO GOOD
L
H
Outdoor unit
Cover
Cap
30 m chargeless
• Pressure of R410A is higher than that of R22
(Approx. 1.6 times).
Therefore, using a torque wrench, tighten the flare
pipe connecting sections which connect the hydro/
outdoor units at the specified tightening torque.
Incomplete connections may cause not only a gas
leak, but also a trouble of the refrigeration cycle.
Do not apply refrigerating machine oil to the
flared surface.
13-EN
– 119 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 120 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
6
AIR PURGING
Airtight test
Before starting an airtight test, further tighten the spindle valves on the gas side and liquid side.
Pressurize the pipe with nitrogen gas charged from the service port to the design pressure (4.15 Mpa) to conduct
the airtight test.
After the airtight test is completed, evacuate the nitrogen gas.
Air Purge
With respect to the preservation of terrestrial environment, adopt “Vacuum pump” for air purge
(Evacuate air in the connecting pipes) when installing the unit.
• Do not discharge the refrigerant gas to the atmosphere to preserve the terrestrial environment.
• Use a vacuum pump to discharge the air (nitrogen, etc.) remained in the set. If the air remains,
the capacity may decrease.
For the vacuum pump, be sure to use one with backflow preventer so that the oil in the pump
does not backflow into the pipe of the Air to Water Heat Pump when the pump stops.
(If oil in the vacuum pump is put in an Air to Water Heat Pump including R410A, it may cause trouble on the
refrigeration cycle.)
Vacuum pump
(continued)
As shown in the figure, connect the charge hose after the manifold
valve are closed completely.
Disconnect the charge hose from the charge port.
Attach the connecting port of the charge hose with a projection to
push the valve core (setting pin) to the charge port of the set.
Tighten valve and caps of the charge port surely.
Open handle Low fully.
Turn ON the vacuum pump (*1)
Loosen the flare nut of the packed valve (Gas side) a little to check
the air passes through. (*2)
*1 Use the vacuum pump, vacuum pump adapter, and
gauge manifold correctly referring to the manuals
supplied with each tool before using them.
Check that the vacuum pump oil is filled up to the
specified line of the oil gauge.
*2 When air is not charged, check again whether the
connecting port of the discharge hose, which has a
projection to push the valve core, is firmly connected
to the charge port.
Tighten the flare nut again.
Compound pressure gauge
Execute vacuuming until the compound pressure gauge indicates –
101kPa (–76cmHg). (*1)
–101 kPa
(–76 cmHg)
Gauge manifold
valve
Handle Lo
Close handle Low completely.
Charge hose
(For R410A only)
Turn OFF the vacuum pump.
Handle Hi
(Keep fully
closed)
8
Charge hose
(For R410A only)
Vacuum pump
adapter for
counter-flow
prevention
(For R410A only)
Leave the vacuum pump as it is for 1 or 2 minutes, and check the
indicator of the compound pressure gauge does not return.
Vacuum
pump
Open fully the valve stem or the valve handle. (First, at liquid side,
then gas side)
Pressure gauge
Charge port
(Valve core
(Setting pin))
Packed valve
at gas side
– 120 –
14-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 121 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
How to open the valve
Confirm the structure surely and then open or close the
valve.
▼ Liquid side
Replenishing refrigerant
This model is a 30 m chargeless type that does not
need to replenish refrigerant for refrigerant pipes up to
30 m.
Open the valve with a 4-mm hexagon wrench.
Refrigerant replenishing procedure
▼ Gas side
Valve unit
Using a minus
screwdriver, turn it
counterclockwise by
90° until it hits the
stopper. (Full open)
Charge port
Requirement for replenishing refrigerant
Replenish liquid refrigerant.
When gaseous refrigerant is replenished, the
refrigerant composition varies, which disables normal
operation.
Flare nut
Handle position
Closed completely
1. After the vacuuming of the refrigerant pipe is
completed, close the valves and then charge
refrigerant while the Air to Water Heat Pump is not
working.
2. When the refrigerant cannot be charged to the
specified amount, charge the required amount of
refrigerant from the charge port of the valve on the
gas side during cooling.
Additional amount of refrigerant
Opened fully
The refrigerant need not be reduced for a 30 meter (or
less) refrigerant pipe.
Stopper pin
Main stopper
Movable part of valve (Stem)
• While the valve is fully opened, after the screwdriver
has reached the stopper, do not apply torque
exceeding 5N•m. Applying excessive torque may
damage the valve.
Valve handling precautions
• Open the valve stem until it strikes the stopper.
It is unnecessary to apply further force.
• Securely tighten the cap with a torque wrench.
• Cap tightening torque
Valve size
Charge port
15-EN
Ø9.5 mm
33 to 42 N•m (3.3 to 4.2 kgf•m)
Ø15.9 mm
20 to 25 N•m (2.0 to 2.5 kgf•m)
14 to 18 N•m (1.4 to 1.8 kgf•m)
– 121 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 122 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
ELECTRICAL WORK
WARNING
1. Using the specified wires, ensure to connect the
wires, and fix wires securely so that the external
tension to the wires do not affect the connecting
part of the terminals.
Incomplete connection or fixation may cause a fire,
etc.
2. Be sure to connect earth wire. (grounding work)
Incomplete grounding cause an electric shock.
Do not connect ground wires to gas pipes, water
pipes, lightning rods or ground wires for telephone
wires.
3. Appliance shall be installed in accordance with
national wiring regulations.
Capacity shortage of power circuit or incomplete
installation may cause an electric shock or a fire.
Furthermore, be sure to secure these wires with the
pipe valve fixing plate and cord clamps stored in the
electric parts box.
Electric parts box
Panel
Pipe valve
fixing plate
Cord
clamp
Pipe hole
Wiring between Hydro Unit
and Outdoor Unit
CAUTION
• Wrong wiring may cause a burn-out to some electrical
parts.
• Be sure to use the cord clamps attached to the
product.
• Do not damage or scratch the conductive core and
inner insulator of power and inter-connecting wires
when peeling them.
• Use the power and Inter-connecting wires with
specified thickness, specified type and protective
devices required.
• Remove the panel, and you can see electric parts on
the front side.
• A metal pipe can be installed through the hole for
wiring. If the hole size does not fit the wiring pipe to
be used, drill the hole again to an appropriate size.
• Be sure to clamp the power wires and hydro/outdoor
connecting wires with banding band along the
connecting pipe so that the wires do not touch the
compressor or discharge pipe. (The compressor and
the discharge pipe become hot.)
The dashed lines show on-site wiring.
Input power
230 V
50 Hz
Leakage
breaker
30 mA
L
N
1
2
3
1
2
3
Outdoor Unit
TB01
7
Hydro Unit
• Connect the hydro/outdoor connecting wires to the
identical terminal numbers on the terminal block of
each unit.
Incorrect connection may cause a failure.
For the Air to Water Heat Pump, connect a power wire
as mentioned below.
Model HWS-
802H-E
Power supply
Maximum
running
current
1102H-E
1402H-E
230 V~, 50 Hz
20.8 A
22.8 A
Installation
fuse rating
25 A
(all types can be used)
Power wire
H07 RN-F or 60245 IEC 66
(2.5 mm2 or more)
Hydro/outdoor
connecting
wires
H07 RN-F or 60245 IEC 66
(1.5 mm2 or more)
– 122 –
8
16-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 123 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
How to wire
1. Connect the connecting wire to the terminal as
identified with their respective numbers on the
terminal block of hydro and outdoor unit.
H07 RN-F or 60245 IEC 66 (1.5 mm2 or more)
2. When connecting the connecting wire to the outdoor
unit terminal, prevent water coming in the outdoor
unit.
3. Insulate the unsheathed cords (conductors) with
electrical insulation tape. Process them so that they
do not touch any electrical or metal parts.
4. For inter connecting wire, do not use a wire jointed
to another on the way.
Use wires long enough to cover the entire length.
To Hydro unit
terminal block
1
2
• The installation fuse must be used for the power
supply line of this outdoor unit.
• Incorrect/incomplete wiring might cause an electrical
fire or smoke.
• Prepare the exclusive power supply for the Air to
Water Heat Pump.
• This product can be connected to the mains.
Connection to the fixed wiring :
A switch which disconnects all poles and has a
contact separation of at least 3 mm must be
incorporated in the fixed wiring.
Power supply
terminal block
3
L
Earth screw
CAUTION
N
Earth screw
Pipe valve fixing
plate
Connecting wire
Power supply
wire
Stripping length power cord and connecting
wire
10
10
1 2 3
10
50
Earth line
17-EN
LN
10
50
30
40
(mm)
Earth line
Connecting wire
Power supply
wire
– 123 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 124 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
8
EARTHING
WARNING
• Be sure to connect earth wire. (grounding work)
Incomplete grounding cause an electric shock.
Connect the earth line properly following applicable technical standards.
Connecting an earth line is essential to prevent electric shock and to reduce noise and electricity charge on the
outdoor unit surface due to high frequency generated by the frequency converter (inverter) in the outdoor unit.
If you touch the charged outdoor unit without earth line, you may feel electric shock.
9
FINISHING
After the refrigerant pipe and the inter-unit wires have been connected, cover them with finishing tape and clamp
them to the wall with off-the-shelf support brackets or equivalent.
Keep the power wires and hydro/outdoor connecting wires off the valve on the gas side or pipes that have no heat
insulator.
10 TEST RUN
• The test run, on the outdoor unit, can only be completed when the complete Air to Water Heat Pump system has
been installed. (Hydro unit, heating system or/and the others)
• Please refer to the hydro unit installation manual for the details of the test run procedure.
11 ANNUAL MAINTENANCE
• For Air to Water system which is operated regularly, cleaning and maintenance of the hydro/outdoor units are
strongly recommended.
As a general rule, if an hydro unit is operated for about 8 hours daily, the hydro/outdoor units will need to be
cleaned at least once every 3-month. This cleaning and maintenance shall be carried out by a qualified person.
Failure to clean the hydro/outdoor units regularly will result in poor performance, icing, water leaking and even
compressor failure.
8
– 124 –
18-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 125 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
12 FUNCTIONS TO BE IMPLEMENTED LOCALLY
Recovering Refrigerant
• Use the refrigerant recovery switch SW801 on the P.C. board of the outdoor unit to recover refrigerant when the
hydro unit or outdoor unit is moved.
Procedure
1. Drain off the water in the hydro unit.
2. Turn on the power of the Air to Water Heat Pump.
3. Set SW804 on the P.C. board of the outdoor unit to all OFF, and then press SW801 for one second or more.
The Air to Water Heat Pump enters the forced cooling mode for up to 10 minutes. Operation or handling the
valve to recover refrigerant during this time period.
4. Upon completion of refrigerant recovery, close the valve and press SW801 for at least one second to stop
operation.
5. Turn off the power.
Refrigerant
recovery
switch
SW801
P.C. board
1 2 3 4
ON
1 2 3 4
Special
operation
select switch
SW804
ON
Optional
connector
CN610
DANGER
Take care for an electric shock because the P.C.board is electrified.
19-EN
– 125 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 126 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
13 TROUBLESHOOTING
You can perform fault diagnosis of the outdoor unit with the LEDs on the P.C. board of the outdoor unit in addition
to check codes displayed on the wired remote controller of the hydro unit.
Use the LEDs and check codes for various checks. Details of check codes displayed on the wired remote controller
of the hydro unit are described in the Installation Manual of the hydro unit.
Check of the current abnormal status
1. Check that DIP switch SW803 is set to all OFF.
2. Jot down the states of LED800 to LED804. (Display
mode 1)
3. Press SW800 for at least one second. The LED
status changes to display mode 2.
4. Check the code whose display mode 1 equals the
jotted LED status and display mode 2 equals the
current flashing status of LED800 to LED804 from
the following table to identify the cause.
No.
Cause
Check of the abnormal status in the past although the
abnormal status is not occurred now.
1. Set bit 1 of DIP switch SW803 to ON.
2. Jot down the states of LED800 to LED804. (Display
mode 1)
3. Press SW800 for at least one second. The LED
status changes to display mode 2.
4. Find an error whose display mode 1 equals the jotted
LED status and display mode 2 equals the current
flashing status of LED800 to LED804 from the
following table to identify the error.
• An outside air temperature (TO) sensor error can
be checked only while an error occurs.
Display mode 1
Display mode 2
D800
D801
D802
D803
D804
D800
D801
D802
D803
D804
●
●
●
●
●
●
●
●
●
1
Normal
●
●
●
●
●
●
●
2
Discharge (TD) sensor error
●
●
●
●
3
Heat exchanger (TE) sensor error
●
●
●
4
Heat exchanger (TL) sensor error
●
●
5
Outside air temperature (TO) sensor error
●
●
●
●
6
Suction (TS) sensor error
●
●
●
●
●
7
Heat sink (TH) sensor error
●
●
●
●
8
Outdoor temperature sensor (TE/TS) connection error
●
●
9
Outdoor EEPROM error
●
●
10
Compressor lock
●
●
●
11
Compressor lock
●
●
●
12
Current detect circuit error
●
●
●
13
Thermostat for compressor activated
●
●
●
●
14
Model data not set
(on the service P.C. board)
●
●
●
15
MCU-MCU communication error
●
●
16
Discharge temperature error
●
17
Abnormal power
(open phase detected or abnormal voltage)
●
18
Heat sink overheat
●
19
Gas leak detected
●
20
4-way valve reverse error
●
21
High pressure release operation
●
●
22
Outdoor fan motor error
●
●
23
Compressor driver short-circuit protection
●
●
24
Position detect circuit error in one-line display
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
8
●
●
●
●
●
●
●
●
(●:OFF :ON
:Flashing)
– 126 –
20-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 127 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
* The LEDs and DIP switches are located at the lower left of the P.C. board of the outdoor unit.
SW800
Enlarged view
of LEDs
4
1
SW803
D800
D801
D802
D803
D804
D805
SW802
1
ON
2
3
4
ON
2
SW804
LED
D800
D801
D802
D803
D804
D805
3
1
ON
2
3
4
SW801
14 APPENDIX
Curing of pipes
When removing and opening the hydro unit or outdoor unit for a long time, cure the pipes as follows:
• Otherwise rust may generate when moisture or foreign matter due to dewing enters in the pipes.
• The rust cannot be removed by cleaning, and a new piping work is necessary.
Place position
Outdoors
Hydro units
21-EN
Term
Curing manner
1 month or more
Pinching
Less than 1 month
Every time
Pinching or taping
– 127 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 128 Thursday, September 10, 2009 6:00 PM
Engineering Data book
8. OUTDOOR UNIT INSTALLATION MANUAL
IMPORTANT INFORMATION AND WARNING:
READ BEFORE INSTALLING THE UNIT. KEEP IN A SAFE PLACE THE INFORMATION IN THIS BOOKLET IS NEEDED
FOR END OF LIFE, DISPOSAL OR REUSE OF THE UNIT
• We are very sensitive to environment and welcomes the 2002/96/EC Directive WEEE (Waste Electrical and Electronic Equipment).
• This product is compliant with EU directive 2002/96/EC. It must be collected separately after its use is completed, and cannot be disposed
as unsorted municipal waste.
• The objectived of EU directive 2002/96/EC are to tackle the fast increasing waste stream of electrical and electronic equipment, increase
recycling of electric & electronic equipment ("EEE"), and to limit the total quantity of waste EEE ("WEEE") going to final disposal.
• The crossed out wheeled bin symbol
that is affixed to the product means that this product falls under the Directive.
• The user is responsible for returning the product to the appropriate collection facility, as specified by your municipality or the distributor.
In case of installation of a new product, it may be possible to have the distributor pick up old WEEE directly.
• The producer, importer and distributor of are responsible for collection and treatment of waste, either directly or through a collective system.
The list of our distributor in each country is shown in the attached table.
• In case of violation of the Directive, sanctions are set in each country.
• We are in general following the "CECED interpretation", and consider the WEEE applicable to Portable units, Dehumidifiers, WRACs
(Window Room Air to Water Heat Pumps), Split Systems up to 12 kW, plug in refrigerators and freezers.
• Nevertheless, there may be difference among member state laws. In case country law exclude some products from WEEE scope, country
law must be followed, and WEEE obligations do not have to be followed for products that fall out of country low scope.
• This directive does not apply to products sold outside European Community. In case the product is sold out of Eu, WEEE obligations do
not have to be followed, while compliance with local regulation must be ensured.
• For additional information, please contact the municipal facility, the shop/dealer/installer that have sold the product, or the producer.
➊ Country
➋ Name of Company responsible for WEEE.
➊
➋
➊
➋
Austria
AIRCOND, Klimaanlagen
Handelsgesellshcaft m.b.H
Petesgasse 45, A-8010
Graz Austria
Holland
INTERCOOL Technics BV
Nikkelstraat 39, Postbus 76
2980 AB Ridderkerk
Netherlands
Belgium
DOLPHIN NV, Fotografi
elaan 12, B-2610,
Antwerpen Belgium
Ireland
GT Phelan Unit 30 Southern
Cross Business Park Bray
Co Wicklow Ireland
Cyprus
Carrier Hellas
Airconditioning S.A.- 4g
Andersen street-11525
Athens Greece
Denmark
GIDEX A/S, Korshoj 10,
3600 Frederikssund,
Denmark
Estonia
Carrier OY Linnavuorentie
28A 00950 Helsinki Finland
Finland
France
Italy
Carrier SpA Via R. Sanzio, 9
20058 Villasanta (Milano)
Italy
Latvia
Carrier OY Linnavuorentie
28A 00950 Helsinki Finland
Lithuania
Carrier OY Linnavuorenlie
28A 00950 Helsinki Finland
Luxembourg
DOLPHIN NV Fotografi
elaan 12, B-2610,
Antwerpen Belgium
Malta
CUTRICO Services Ltd,
Cutrico Building Psala
Street, Sta Venea HMR 16
Malta
Carrier OY Linnavuorentie
28A 00950 Helsinki Finland
Carrier S.A. Route de Thil
BP 49 01122 Montiuel
Cedex France
Germany
Carrier GmbH & Co. KG
Edisonstrasse 2 85716
Unterschleissheim
Greece
Carrier Hellas
Aircondilioning S.A.- 4g
Andersen street-11525
Athens Greece
Norway
Carrier AB - P.O.BOX 8946Arods Industrivag 32. S-402
73 Gothenburg Sweden
Poland
Carrier Polska Sp. Z.o.o.
Postepu 14 02-676 Warsaw
Poland
➊
➋
Portugal
Carrier Portugal - AR
Condicionado LDA Avenida
do Forte, Nr. 3 Editi cio
Suecia l,Piso 1 Camaxide
2794-043 Portugal
UK
Toshiba Carrier UK Ltd
Porsham Close, Belliver Ind.
Est. Plymouth, Devon, PL6
7DB
Czech
Republic
AIRCOND, , Klimaanlagen
Handelsgesellshcaft m.b.H
Petersgasse 45, A-8010
Graz Austria
Slovakia
AIRCOND, , Klimaanlagen
Handelsgesellshcaft m.b.H
Petersgasse 45, A-8010
Graz Austria
Slovenia
AIRCOND, , KlimaanlagenHandelsgesellshcaft m.b.H,
Petersgasse 45, A-8010
Graz, Austria
Spain
Carrier Espana S.L. - Paseo
Castellana 36-38, 28046
Madrid
Sweden
Carrier AB - P.O.BOX 8946Arods Industrivag 32 . S-402
73 Gothenburg
Hungary
AIRCOND, Klimaanlagen
Handelsgesellshcaft m.b.H
Petersgasse 45, A-8010
Graz Austria
8
The manufacturer reserves the right to change any product specifications without notice.
– 128 –
22-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 129 Thursday, September 10, 2009 6:00 PM
9. OWNER’S MANUAL
129
Toshiba
+00xxxxxxxxxx_Hydro-DB.book Page 130 Thursday, September 10, 2009 6:00 PM
AIR TO WATER HEAT PUMP
Owner’s Manual
Hydro Unit
Model name:
HWS-802XWHM3-E
HWS-802XWHT6-E
HWS-1402XWHM3-E
HWS-1402XWHT6-E
HWS-1402XWHT9-E
Toshiba XXXXXXX(X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 131 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
Thank you very much for purchasing TOSHIBA Air to Water Heat Pump.
Please read this owner’s manual carefully before using the system.
• Be sure to obtain the “Owner’s manual” and “Installation manual” from constructor (or dealer).
Request to constructor or dealer
• Please clearly explain the contents of the Owner’s manual before handing it over to the Customer.
ADOPTION OF NEW REFRIGERANT
This Air to Water Heat Pump is a new type which adopts a new refrigerant HFC (R410A) instead of the
conventional refrigerant R22 in order to prevent destruction of the ozone layer.
Contents
1 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
2 Names and Functions of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
3 How to use Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
4 User Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
5 Air TO Water Heat Pump Operations and Performance. . . . . . . . . . . . . . . . . . . . . 141
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
1-EN
– 131 –
Toshiba XXXXXXX(X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 132 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
1
SAFETY PRECAUTIONS
DANGER
•
•
•
•
•
•
DO NOT ATTEMPT TO INSTALL THIS UNIT YOURSELF.
THIS UNIT REQUIRES A QUALIFIED INSTALLER.
DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF.
THIS UNIT HAS NO COMPONENTS WHICH YOU CAN REPAIR.
OPENING OR REMOVING THE COVER WILL EXPOSE YOU TO DANGEROUS VOLTAGES.
TURNING OFF THE POWER SUPPLY WILL PREVENT POTENTIAL ELECTRIC SHOCK.
WARNING
INSTALLATION WARNINGS
• Be sure to ask a dealer or a store specialized in electrical work to install the Air to Water Heat Pump.
• The Air to Water Heat Pump should be installed by a suitably qualified installer, if not; this may lead to problems such
as water leaks, electric shock, fire, etc.
• Ensure the correct grounding procedures are applied when installing the Air to Water Heat Pump.
• Do not connect the ground wire to gas pipes, water pipes, lightning rods or telephone ground wires.
• Should the Air to Water Heat Pump be improperly grounded, this could lead to an electric shock.
• Serious damage can occur if there is water leak. Therefore, the Hydro Unit is recommended to be installed in a room
with waterproof flooring and drainage systems.
• Products and parts to be used in combination with this product must be specified products and parts that meet
prescribed specifications. If unspecified products or parts are used, a failure, smoke, fire, or electric shock may be
caused.
OPERATION WARNINGS
• Avoid injury or damage to the outdoor unit by never inserting fingers or sticks into the air outlet or air inlet of the
outdoor unit, during operation the fans run at a high speed.
• Should you notice something unusual with the Air to Water Heat Pump (such as a burning smell or weak heating
power), immediately turn off the main switch and circuit breaker from the main power supply to stop the Air to Water
Heat Pump, and contact the dealer.
• If there is a suspected problem with the operation of the Air to Water Heat Pump, continuous operation is not
recommended, operational failures may lead to machine breakdown, electric shock, a fire, etc.
• Do not spill water or other liquid onto the Hydro Unit.
• If the unit is wet, it could cause an electric shock.
WARNINGS AT MOVEMENT AND REPAIR
• Do not attempt to move or repair the unit yourself.
• Due to the presence of high voltage, removal of any covers may result in an electric shock.
• Should there be any requirements for the Air to Water Heat Pump to be moved, always consult the dealer or qualified
installer.
• Should the Air to Water Heat Pump be improperly installed, it may lead to electric shock or fire.
• Whenever the Air to Water Heat Pump requires repair, request assistance from the dealer.
• Should the Air to Water Heat Pump be improperly repaired, the result may lead to electric shock or fire.
9
– 132 –
2-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 133 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
CAUTION
This appliance is not intended for use by person (including children) with reduced physical sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
TO DISCONNECT THE APPLIANCE FROM THE MAIN POWER SUPPLY
This appliance must be connected to the main power supply using a circuit breaker or switch with a contact separation
of at least 3 mm.
INSTALLATION CAUTIONS
• Be sure to connect the Air to Water Heat Pump to a dedicated power supply using the rated voltage.
Failure to do so may cause the unit to break down or cause a fire.
• Do not install the unit in a place where there is a risk that flammable gas may leak.
• An accumulation of flammable gases around the unit may result in a fire.
OPERATION CAUTIONS
• To ensure satisfactory performance, please read this manual carefully before operating the Air to Water Heat Pump
system.
• Do not install the Air to Water Heat Pump in special-purpose rooms such as a ship or any kind of vehicle.
Doing so could harm machine performance.
• When the Air to Water Heat Pump is operated together with a combustion device in the same place, pay careful
attention to ventilation and let fresh air into the room.
Poor ventilation can cause an oxygen shortage.
• When the Air to Water Heat Pump is used in a closed room, pay careful attention to the ventilation of the room.
Poor ventilation can cause an oxygen shortage.
• Do not put a container with water, such as a vase, on the unit, should water enter the unit the result may lead to an
electric shock, this would be due to deterioration in the electric insulation.
• Perform occasional checks to the concrete supports underneath the outdoor unit.
If the base is left damaged or deteriorated, the unit may topple over which could result in possible injury.
• Check from time to time that the unit mounts are not damaged.
If the mounts are left damaged, the unit may drop or topple over, resulting in possible injury.
• Do not wash the unit with water. This could cause an electric shock.
• Do not use alcohol, benzene, thinner, glass cleaner, polishing powder, or other solvent for cleaning the unit because
they can deteriorate and damage the Air to Water Heat Pump.
• Before cleaning the unit, be sure to turn off the main switch or circuit breaker.
• Do not place anything, or step, on the unit, this could cause the unit to fall or topple over which may result in possible
injury.
• To achieve maximum performance, the Air to Water Heat Pump must operate within the temperature range specified
in the instructions.
Failure to do so may cause malfunction, break down, or water to leak from the unit.
• Clear away snow before it accumulates on the outdoor unit.
Accumulated snow can lead to malfunction and damage.
• Do not locate other electric appliances or furniture underneath the unit.
Water may drip from the unit, which could lead to rust, unit failure and damage to property.
• Do not allow the obstruction of air flow around the outdoor unit; place any items within the specified installation service
space requirements.
Obstructed air flow can lower performance and cause damage.
• Check for water leaks. In communal housing, leaking water may damage lower floors.
Check for water leaks everyday.
• Do not touch the water pipes, refrigerant pipes, or joints. These may become extremely hot.
Do not drink water produced by the Air to Water Heat Pump.
• After extended use, fresh water may become contaminated by the Hydro Unit, due to deterioration of pipe materials,
etc.
• If fresh water contains solid matter, is discolored, turbid or smells, DO NOT DRINK IT.
• Call for equipment inspection immediately.
• Use source water that satisfies water quality standard.
• When the unit will not be used for a long period of time, ask your dealer or a qualified service shop to drain the water
inside the Hydro Unit in order to prevent the water quality from changing.
• When restarting use, ask your dealer or a qualified service shop to charge the unit with water and perform a trial
operation.
• Ask your dealer or a qualified service shop to periodically clean the strainer.
• Ask your dealer or a qualified service shop to confirm that the relief valve is operating correctly.
• Do not hit the manometer, because it is made of glass. It is breakable.
3-EN
– 133 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 134 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
2
NAMES AND FUNCTIONS OF PARTS
Buttons
▼ Fig. 2-01
17
1
10
16
2
15
3
14
4
5
1. TEMP. button:
6
8
7
9
11
12
13
Changes the set temperature for
10. NIGHT button:
each operation mode (ZONE1/2 hot
water) by 1°C step.
11. AUTO TEMP.
2. SCHEDULE button: Sets the current time and scheduled button:
weekly operation.
Controls the night set back
operation.
Switches setting temperature
automatically according to outside
temperature. (Pressing this button
long changes the mode to data
setting mode.)
12. OPERATE MODE
Changes time for current time setting button:
and scheduled weekly operation
setting with
and
buttons.
Selects ZONE1/2 operation mode
(heating or cooling).
4. SET button:
Determines the entered current time 13. ZONE1, 2 button:
setting and scheduled weekly
operation setting.
Turns on/off the zone (floor heating/
radiator/Fan Coil Unit) operation.
5. CL button:
Clears settings for the current time
and scheduled weekly operation.
6. DAY button:
Sets days of the week for current
time setting and scheduled weekly
operation setting.
7. STEP button:
16. HOT WATER
Specifies switching STEP number in button:
a day for weekly schedule.
3. TIME button:
8. TEST button:
14. ANTI BACTERIA
button:
15. HOT WATER
BOOST button:
17. SELECT button:
Used for test run or service.
Regularly increases the hot water
temperature in the tank for
sterilization. (Pressing this button
long changes the mode to data
setting mode.)
Boosts boiling when high tapping
temperature is required temporarily.
Turns on/off hot water operation.
Selects an operation mode when
changing the set temperature of
each operation mode.
9. FROST
Controls minimum operation for
PROTECTION button: unused period (going out, absence,
etc.) for anti freezing.
9
NOTE
Some functions are not provided depending on the system specifications in use.
For details, contact the installation company.
– 134 –
4-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 135 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
Meaning of Indication
▼ Fig. 2-02
18
20
19
21
Heating side [ZONE1, 2]
18. Indication
Hot water side
Description
20. Indication
Lights when floor heater or radiator is
connected (when the system has floor
heater or radiator).
Lights when controlling the second
temperature.
(It may not light depending on the
system)
The [
Description
Lights when hot water supply system
is connected (when the system has
hot water supply).
] mark lights for operation mode for which temperature is to be changed.
Lights during heating or cooling
operation using the heat pump.
Lights when hot water supply
operation is performed by heat pump.
Lights when the internal heater is
energized during heating operation.
Lights when the internal heater is
energized during hot water supply
operation.
Lights when heating is selected.
Lights during hot water supply
operation.
Lights when cooling is selected.
Lights while hot water boost is
activated.
Lights when the FROST
PROTECTION button is pressed and
goes out when the button is pressed
again.
Lights when the ANTI BACTERIA
button is pressed and goes out when
the button is pressed again.
Lights when Auto operation is
selected.
Displays heating/cooling set
temperature.
(Heating: 20 to 55°C, factory setting:
Auto, cooling: 10 to 30°C)
Goes out when Auto operation is
selected.
°C
5-EN
Displays hot water set temperature.
(40 to 75°C, factory setting: 65°C)
Lights when the set temperature or sensor's water temperature is displayed with the 7-segment
indicator.
– 135 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 136 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
19. Indication
Description
Clock: Displays the current time (AM or PM).
Displays days of the week (Sunday to Saturday).
Lights when the NIGHT button is pressed and goes out when the button is pressed again.
Lights when nighttime quiet operation is set.
Indicates scheduled operation 1 status (including setting time).
Displays the scheduled operation step when the scheduled operation STEP1-5 program is set.
Lights during time setting and scheduled operation setting.
21. Indication
Description
Lights while internal pump (pump 1) or expansion pump (pump 2) is driven.
Lights during backup operation only by the heater.
Lights when the unit enters the data set mode and goes out when the unit exits the data set mode.
Lights when the unit enters the service mode and goes out when the unit exits the service mode.
Lights when an error occurs and goes out when the error is cleared.
Lights for two seconds when settings are completed.
Lights for two seconds when settings failed.
9
– 136 –
6-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 137 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
3
HOW TO USE FUNCTIONS
Timer setting
Setting temperature
First, set the current time on the remote controller.
Procedure to set the current time and day of the week
(If day/time is not set, the indication of time and day of
the week blinks.)
(1) Press the TIME
or
button for 4 seconds or
more to enable the time setting mode.
• The SETTING
segment blinks.
(2) Set the current day of the week with the DAY
button.
• Each time the button is pressed, the segment
shifts cyclically pointing MO → TU →…→ SU →
MO.
(3) Set the current time with the TIME
and
buttons.
• If you press the buttons long, the current time can
be set in units of 10 minutes.
(4) Press the SET
button to determine the setting.
• Press the SELECT
button to move
and select
or
.
• Change the set temperature with the TEMP.
button.
• The ZONE2 setting temperature must be equal to or
lower than the ZONE1 setting temperature.
Heating or cooling operation
Performing Auto mode operation
• The setting temperature can be set automatically
according to the outside temperature.
• Press the AUTO TEMP.
button.
• The temperature indication changes to “A” and the
water temperature is automatically set according to
the outside temperature.
Performing heating or cooling operation
• Press the ZONE1, 2
button to start heating
or cooling operation.
The set temperature appears under
on
the remote controller. (When ZONE2 is provided, the
set temperature appears simultaneously under
.)
• During the heat pump operation or while the internal
heater or backup heater is energized,
is
displayed.
• Use the OPERATE MODE
button to select
cooling operation or heating operation.
Each time this button is pressed, heating
and
cooling are switched alternately.
• To stop heating or cooling, press the ZONE1, 2
button. The set temperature and
go
out and the heating or cooling operation stops.
7-EN
To correct the set value for the Auto mode
• Press the AUTO TEMP.
button for 4
seconds or more to enter the auto curve adjusting
mode.
• The function code setting screen appears. Press the
TIME
button to display a temperature
between -5 to +5°C.
In this case, temperature is displayed as -5, -4, -3,
-2, -1, 0, 1, 2, 3, 4, or 5.
Only ZONE1 temperature is displayed.
When the SET
button is pressed after the
temperature is changed, the set temperature is
registered.
– 137 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 138 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
• When the TEST
button is pressed, the
registered data is determined. The unit exits the
function code setting mode and “A” appears on the
display.
protection operation starts with the set minimum
capacity (target water temperature: 15°C).
• To stop the frost protection operation, press the
FROST PROTECTION
button again to delete
the
mark on the remote controller.
• This function takes precedence over the scheduled
operation and Night setback quiet operation that are
set separately. Ask the installation company for the
minimum capacity setting.
Night setback
• Each time AUTO TEMP.
the mode changes as follows:
No indication
(cancel)
button is pressed,
Auto
Hot water
Performing hot water supply operation
• Press the HOT WATER
button to start the
hot water supply operation.
• The set temperature appears under
on
the remote controller, and
lights.
• During the heat pump operation or while the internal
heater is energized,
or
is displayed.
This function is used to save heating operation during
specified time zone (sleeping hours, etc.) at night.
• When the NIGHT
button is pressed during
heating (ZONE1 or ZONE2),
appears on the
remote controller and the night setback operation is
reserved. The set temperature is lowered by 5°C
between the set start time and end time.
• To stop the night setback operation, press the
NIGHT
button again to delete the
mark
on the remote controller.
Setting the start time and end time for the
night setback operation
Press the NIGHT
button for 4 seconds or
more while the night setback operation is enabled (
is displayed on the remote controller), to enter the
setting mode.
Setting temperature
• Press the SELECT
button to move
and select
.
• Change the set temperature with the TEMP.
button.
• The setting mode is indicated on the remote
controller.
• Select the code number to be set with the TEMP.
buttons, and set the start time and end
time with the TIME
buttons.
Code No. 0E: Start time (default 22)
0F: End time (default 06)
• Press the SET
button to determine the start time
and end time.
• Press the TEST
button to exit the setting mode.
Useful functions
9
Frost protection
This function performs operation with the minimum
capacity to prevent pipes from freezing in case the unit
is not used for a long period due to absence.
• When the FROST PROTECTION
button is
pressed during heating (ZONE1 or ZONE2),
appears on the remote controller and the frost
– 138 –
8-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 139 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
Hot water boost
This function is used when temporarily giving priority to
the hot water supply operation.
The hot water supply operation is performed in
preference to other operations with a target of the
preset time (60 minutes) and the preset temperature
(75°C). Use this function when hot water is not used for
a long time or before using a large amount of hot water.
• When the HOT WATER BOOST
button is
pressed, the
mark appears on the remote
controller and the hot water boost operation starts.
When the set time period has passed or the water
temperature has reached the set temperature, the
hot water boost operation ends automatically.
• The preferential time and temperature settings can
be changed to values within a range of 30 to 180
minutes and 40 to 80°C. Ask the installation
company for the setting change.
Anti bacteria
This function performs anti-bacteria operation of the
hot water cylinder.
• When the ANTI BACTERIA
button is
pressed, the
mark appears on the remote
controller and the anti-bacteria operation is
reserved.
• The anti-bacteria operation is performed to maintain
the preset temperature (75°C) for the set time period
(30 minutes) when the preset start time (22:00)
comes according to the preset interval (7 days).
• The settings of these interval, start time, and
temperature maintaining time period can be
changed, but ask the installation company for the
setting change.
9-EN
Schedule timer
Operations can be scheduled in eight STEPs for each
day of the week.
(Example)
• Monday
STEP1:
04:00 ZONE1: Heating 45°C, hot water 50°C
STEP2:
07:00 ZONE1: Heating 50°C, hot water 45°C
STEP3:
10:00 ZONE1: Heating disabled, hot water 45°C
STEP4:
16:00 ZONE1: Heating 50°C, hot water 50°C
STEP5:
23:00 ZONE1: Heating 40°C, hot water 45°C
• Tuesday to Saturday: Same as Monday
• Sunday
STEP1:
04:00 ZONE1: Heating 45°C, hot water 50°C
Setting the schedule function
Press the SCHEDULE
button and press the
SET
button within five seconds while the
mark
is blinking. The
mark changes to lighting and the
schedule function starts working.
Cancelling the schedule function
Press the SCHEDULE
button and press the
CL
button within five seconds while the
mark is
blinking. The
mark disappears and the schedule
function is cancelled.
– 139 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 140 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
Setting schedule
3
Set the start time.
4
Set temperature.
5
Set operation mode.
6
Determine the settings.
Press the SCHEDULE
button for 4 seconds or
more to enter the schedule setting mode.
Perform the following procedure to set the
schedule
• First schedule setting
Procedure: 1 → 2 → 3 → 4 → 5 → 6
• Existing schedule setting
Procedure: 2 → 3 → 4 → 5 → 6
1
2
• Set the start time with the TIME
buttons.
• When the preset start time is retained, the start
time is displayed.
• If no start time is set, “--’-- --” is displayed.
• Set the temperature for ZONE1 or ZONE2 with
the SELECT
button and TEMP.
buttons.
• Press the SELECT
button so that
the
mark lights for the zone to be changed.
• Enter setting temperature with the TEMP.
buttons.
• Set the operation mode (heating or cooling) with
the OPERATE MODE
button.
• Press the SET
button to determine the
settings.
• The “__” mark lights under the set day of the
week and the “ ” mark appears on the display
for 4 seconds.
• Press the SCHEDULE
button to end
the settings.
Set days of the week.
Copying data
• Each time the DAY
button is pressed, the
mark blinking on the current day of the week at
intervals of 1 Hz shifts sequentially.
• When all days are set at a time, all days (MO to
SU) blink.
• Press the SET
button to determine the set
days of the week.
• When the setting is completed, the mark
changes to lighting.
When “C” is selected during the STEP setting, the
setting of the specified day of the week can be copied.
• Press the SET
button to determine the copy
mode.
• Specify the day of the week of copy destination with
the DAY
button.
• Each time the DAY
button is pressed, the
mark on the specified day of the week blinks
sequentially. When all days of the week are blinked,
the data can be copied to all days of the week.
• Press the SET
button. When the “ ” mark
appears on the remote controller for 4 seconds, the
setting is completed.
Set STEP.
• Select a STEP to be set with the STEP
button, and press the SET
button to
determine the selected STEP.
1→2→3→4→5→6→7→8→C→L→
1 → ….
• 1 to 8: Operation program STEP number
• C (Copy):
Set s the operation mode for a day (0:00 to
23:59) simultaneously.
• L (Deletion):
Deletes all the current program operation
settings (for entire week).
9
– 140 –
10-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 141 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
4
USER MAINTENANCE
Periodic maintenance (once a year) is necessary for this product. Consult the installation company.
If a problem occurs, contact the installation company or dealer.
5
AIR TO WATER HEAT PUMP OPERATIONS
AND PERFORMANCE
3 minutes protection function
3-minutes protection function prevents the air to water heat pump from starting for initial 3 minutes after the main
power switch/circuit breaker is turned on for re-starting the air to water heat pump.
Power failure
Power failure during operation will stop the unit completely.
• To restart the operation, push the ZONE1, 2/HOT WATER button on the remote controller.
Heating characteristics
Defrosting operation
If the outdoor unit is frosted during the heating or hot water supply operation, defrosting starts automatically (for
approximately 2 to 10 minutes) to maintain the heating capacity.
• During the defrosting operation, the defrosted water will be drained from the bottom plate of the outdoor unit.
Heating capacity
In the heating operation, the heat is absorbed from the outside and brought into the room. This way of heating is
called heat pump system. When the outside temperature is too low, it is recommended to use another heating
apparatus in combination with the air to water heat pump.
Attention to snowfall and freeze on the outdoor unit
• In snowy areas, the air inlet and air outlet of the outdoor unit are often covered with snow or frozen up.
If snow or freeze on the outdoor unit is left as it is, it may cause machine failure or poor warming.
• In cold areas, pay attention to the drain hose so that it perfectly drains water without water remaining inside for
freeze prevention. If water freezes in the drain hose or inside the outdoor unit, it may cause machine failure or
poor warming.
Air to water heat pump operating conditions
For proper performance, operate the air to water heat pump under the following temperature conditions:
Cooling operation
Hot water
Heating operation
Outdoor temperature
: 10°C to 43°C
Room temperature
: 18°C to 32°C (Dry valve temp.)
Outdoor temperature
: –20°C to 43°C
Room temperature
: 5°C to 32°C
Outdoor temperature
: –20°C to 25°C
Room temperature
: 5°C to 32°C
If air to water heat pump is used outside of the above conditions, safety protection may work.
11-EN
– 141 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 142 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
General Specifications
Outdoor unit
HWS-802H-E
HWS-1102H-E
Type
HWS-1402H-E
Inverter
Function
Heating & Cooling
Heating
Capacity
(kW)
8.0
11.2
14.0
Input
(kW)
1.96
2.40
3.15
4.08
4.66
4.45
COP
Cooling
Capacity
(kW)
6.0
10.0
11.0
Input
(kW)
2.13
3.52
4.08
2.82
2.84
2.69
EER
Power supply
230 V ~
Refrigerant
R410 A
Dimension
HxWxD
(mm)
890 x 900 x 320
HWS802XWHM3-E
Hydro Unit
Back up heater capacity
for backup heater
1,340 x 900 x 320
HWS802XWHT6-E
3 kW
6 kW
3 kW
6 kW
9 kW
230 V ~
400 V 3N ~
230 V ~
400 V 3N ~
400 V 3N ~
Power supply for hot water cylinder
heater (option)
Leaving water Heating
temperature
Cooling
230 V ~
(°C)
20 to 55
(°C)
10 to 25
For use with
Dimension
HWSHWSHWS1402XWHM3-E 1402XWHT6-E 1402XWHT9-E
HWS-802H-E
HxWxD
(mm)
Hot water cylinder (option)
HWS-1102H-E/HWS-1402H-E
925 x 525 x 355
HWS-1501CSHM3-E
HWS-1501CSHM3-UK
HWS-2101CSHM3-E
HWS-2101CSHM3-UK
HWS-3001CSHM3-E
HWS-3001CSHM3-UK
150
210
300
Water volume
litres
Max water temperature
(°C)
75
Electric heater
(kW)
2.75
Height
(mm)
Diameter
(mm)
1,090
1,474
2,040
550
Material
Stainless steel
9
– 142 –
12-EN
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 143 Thursday, September 10, 2009 6:00 PM
Engineering Data book
9. OWNER’S MANUAL
6
TROUBLESHOOTING
If a problem occurs, contact the installation company or dealer.
Problem Check
Action
Nothing is displayed on the remote controller.
• Check whether power is supplied.
• Is the circuit breaker switch turned on?
Time indication is blinking.
• Date/time setting is not made.
• Set date and time.
An error code is displayed on the remote
controller.
• Contact the installation company.
• Is scheduled operation set?
• Check whether scheduled operation is set.
Room is not cooled or heated.
• Is night setback operation set?
• Check the setting on the remote controller.
• Is the air conditioner operating in Auto mode?
• In Auto mode, the target value is set automatically according to the
outdoor unit temperature.
• The Auto mode can be adjusted. Contact the installation company.
• Is the main water supply cock closed?
• Check valves.
Hot water is not supplied.
• Are you using too much hot water?
• If hot water exceeding the storage capacity is used, water at a
temperature lower than the set hot water temperature is supplied.
If you have any questions, contact the installation company.
13-EN
– 143 –
Toshiba XXXXXXX(<SanSerif1>X/X)
+00xxxxxxxxxx_Hydro-DB.book Page 145 Thursday, September 10, 2009 6:00 PM
Air to Water Heat Pump
Engineering Data Book
Aug. 2009
Toshiba

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
