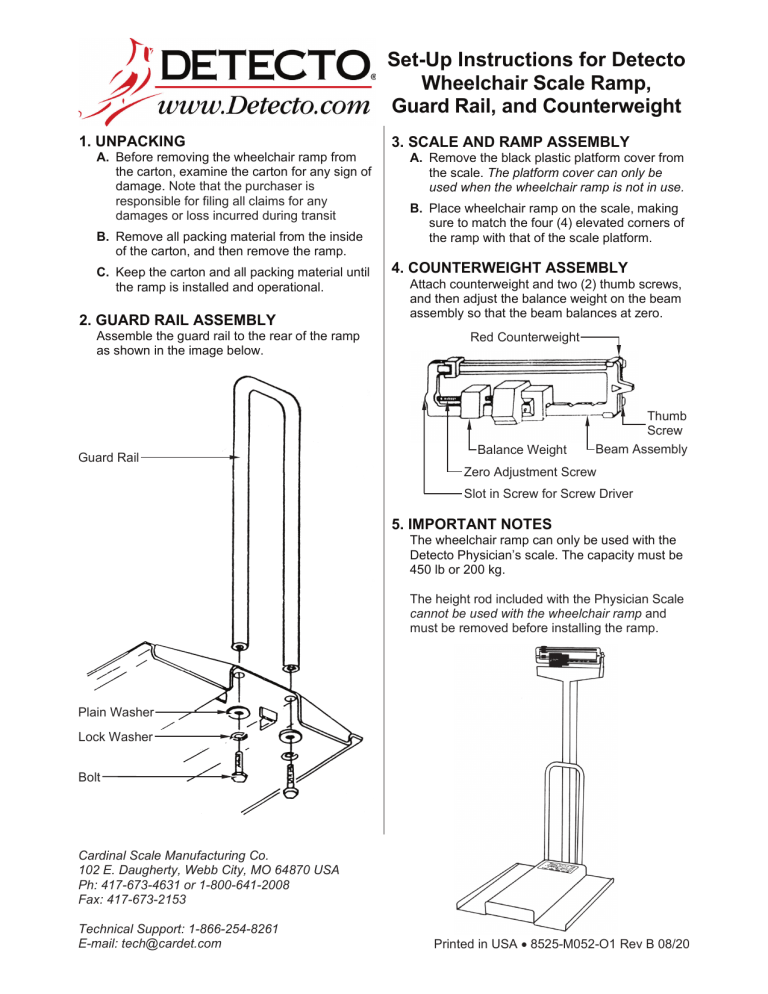

Set-Up Instructions for Detecto
Wheelchair Scale Ramp,
Guard Rail, and Counterweight
1. UNPACKING
A. Before removing the wheelchair ramp from
the carton, examine the carton for any sign of
damage. Note that the purchaser is
responsible for filing all claims for any
damages or loss incurred during transit
B. Remove all packing material from the inside
of the carton, and then remove the ramp.
C. Keep the carton and all packing material until
the ramp is installed and operational.
2. GUARD RAIL ASSEMBLY
Assemble the guard rail to the rear of the ramp
as shown in the image below.
Guard Rail
3. SCALE AND RAMP ASSEMBLY
A. Remove the black plastic platform cover from
the scale. The platform cover can only be
used when the wheelchair ramp is not in use.
B. Place wheelchair ramp on the scale, making
sure to match the four (4) elevated corners of
the ramp with that of the scale platform.
4. COUNTERWEIGHT ASSEMBLY
Attach counterweight and two (2) thumb screws,
and then adjust the balance weight on the beam
assembly so that the beam balances at zero.
Red Counterweight
Balance Weight
Thumb
Screw
Beam Assembly
Zero Adjustment Screw
Slot in Screw for Screw Driver
5. IMPORTANT NOTES
The wheelchair ramp can only be used with the
Detecto Physician’s scale. The capacity must be
450 lb or 200 kg.
The height rod included with the Physician Scale
cannot be used with the wheelchair ramp and
must be removed before installing the ramp.
Plain Washer
Lock Washer
Bolt
Cardinal Scale Manufacturing Co.
102 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008
Fax: 417-673-2153
Technical Support: 1-866-254-8261
E-mail: [email protected]
Printed in USA x 8525-M052-O1 Rev B 08/20
