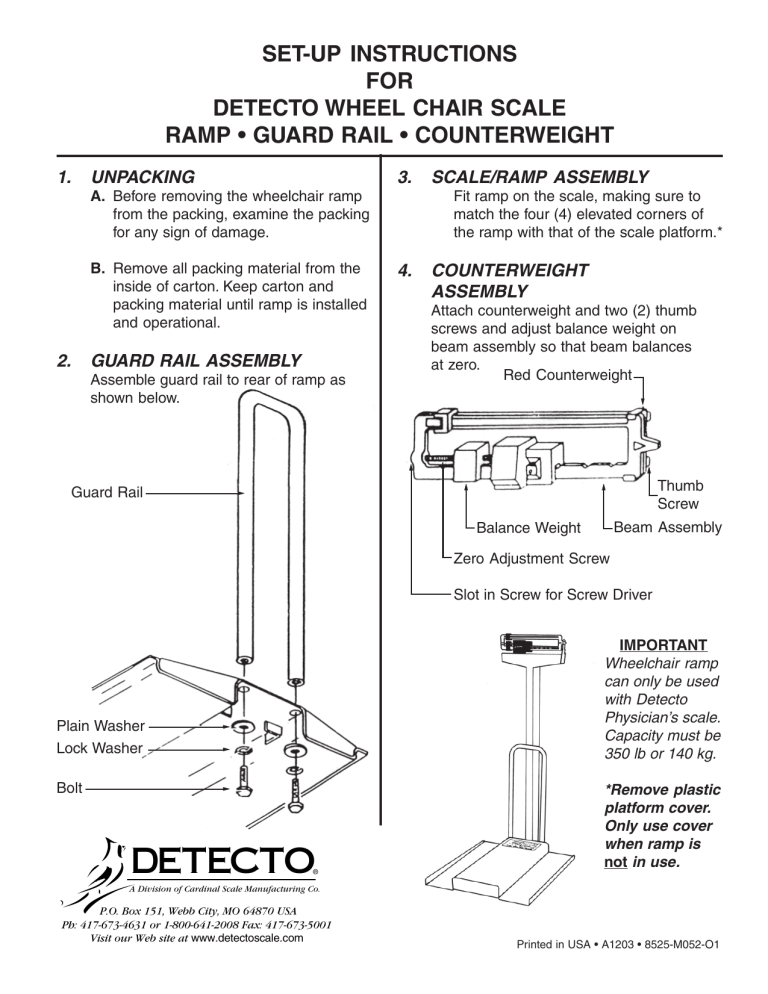

SET-UP INSTRUCTIONS
FOR
DETECTO WHEEL CHAIR SCALE
RAMP • GUARD RAIL • COUNTERWEIGHT
1.
UNPACKING
3.
A. Before removing the wheelchair ramp
from the packing, examine the packing
for any sign of damage.
B. Remove all packing material from the
inside of carton. Keep carton and
packing material until ramp is installed
and operational.
2.
GUARD RAIL ASSEMBLY
Assemble guard rail to rear of ramp as
shown below.
SCALE/RAMP ASSEMBLY
Fit ramp on the scale, making sure to
match the four (4) elevated corners of
the ramp with that of the scale platform.*
4.
COUNTERWEIGHT
ASSEMBLY
Attach counterweight and two (2) thumb
screws and adjust balance weight on
beam assembly so that beam balances
at zero.
Red Counterweight
Thumb
Screw
Guard Rail
Beam Assembly
Balance Weight
Zero Adjustment Screw
Slot in Screw for Screw Driver
IMPORTANT
Wheelchair ramp
can only be used
with Detecto
Physician’s scale.
Capacity must be
350 lb or 140 kg.
Plain Washer
Lock Washer
Bolt
DETECTO
®
*Remove plastic
platform cover.
Only use cover
when ramp is
not in use.
A Division of Cardinal Scale Manufacturing Co.
P.O. Box 151, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
Visit our Web site at www.detectoscale.com
Printed in USA • A1203 • 8525-M052-O1
