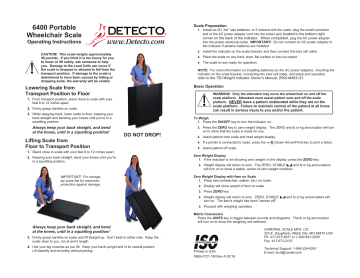

Detecto 6400 Operating instructions

Detecto 6400 Operating instructions
Scale Preparation
6400 Portable
Wheelchair Scale
1. Install six (6) “AA” size batteries, or if ordered with the scale, plug the small connector
end of the AC power adapter cord into the power jack located in the bottom right
corner on the back of the indicator. When completed, plug the AC power adapter
into the proper electrical outlet. IMPORTANT! Do not connect an AC power adapter to
the indicator if alkaline batteries are installed.
Operating Instructions
2. Install the indicator on the scale bracket, and then connect the load cell cable.
CAUTION! This scale weighs approximately
90 pounds. If you think it is too heavy for you
to lower or lift safely, ask someone to help
you. Damage to the Load Cells can occur if
the scale is dropped or allowed to fall from the
transport position. If damage to the scale is
determined to have been caused by falling or
dropping scale, the warranty will be voided.
3. Place the scale on any hard, level, flat surface or low-cut carpet.
4. The scale is now ready for operation.
NOTE: For more information on installing batteries (or the AC power adapter), mounting the
indicator on the scale bracket, connecting the load cell cable, and setup and operation,
refer to the 750 Weight Indicator Owner’s Manual, 8555-M483-O1.
Basic Operation
Lowering Scale from
Transport Position to Floor
WARNING! Only the attendant may move the wheelchair on and off the
scale platform. Attendant must assist patient onto and off the scale
platform. NEVER leave a patient unattended while they are on the
1. From transport position, stand close to scale with your
feet 8 to 12 inches apart.
scale platform. Failure to maintain control of the patient at all times
can result in serious injury to you and/or the patient.
2. Firmly grasp handles on scale.
3. While stepping back, lower scale to floor, keeping your
back straight and bending your knees until you're in a
squatting position.
Always keep your back straight, and bend
at the knees, until in a squatting position!
To Weigh
1. Press the ON/OFF key to turn the indicator on.
2. Press the ZERO key to zero weight display. The ZERO and lb or kg annunciator will turn
DO NOT DROP!
Lifting Scale from
Floor to Transport Position
on to show that the scale is ready for use.
3. Assist patient onto scale and read weight display.
4. If a printer is connected to scale, press the b/~
~ (Down Arrow/Print) key to print a ticket.
5. Assist patient off scale.
1. Stand close to scale with your feet 8 to 12 inches apart.
2. Keeping your back straight, bend your knees until you're
in a squatting position.
Zero Weight Display
1. If the indicator is not showing zero weight on the display, press the ZERO key.
2. Weight display will return to zero. The ZERO, STABLE [\ and lb or kg annunciators
will turn on to show a stable, center-of-zero weight condition.
IMPORTANT! For storage,
lay scale flat for maximum
protection against damage.
Zero Weight Display with Item on Scale
1. Place item (wheelchair, walker, etc.) on scale.
2. Display will show weight of item on scale.
3. Press ZERO key.
4. Weight display will return to zero. ZERO, STABLE [\ and lb or kg annunciators will
turn on. The item's weight has been "zeroed off".
5. Proceed with weighing operation.
Metric Conversion
Press the UNITS key to toggle between pounds and kilograms. The lb or kg annunciator
will turn on to show the weighing unit selected.
Always keep your back straight, and bend
at the knees, until in a squatting position!
CARDINAL SCALE MFG. CO.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008
Fax: 417-673-2153
3. Firmly grasp handles on scale and lift straight up. Don't twist to either side. Keep the
scale close to you, not at arm's length.
4. Use your leg muscles as you lift. Keep your back upright and in its natural posture.
Lift steadily and smoothly without jerking.
Printed in USA
0065-0721-1M Rev A 02/18
Technical Support: 1-866-254-8261
E-mail: [email protected]
Was this manual useful for you? yes no
Thank you for your participation!
