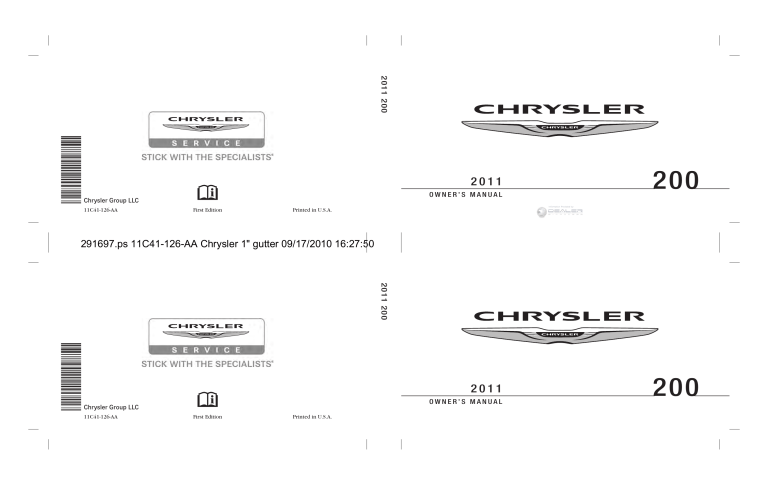

2011 200
200
2011
OWNER’S MANUAL
Chrysler Group LLC
11C41-126-AA
First Edition
I
nf
or
mat
i
onPr
ovi
dedby:
Printed in U.S.A.
291697.ps 11C41-126-AA Chrysler 1" gutter 09/17/2010 16:27:50
2011 200
2011
OWNER’S MANUAL
Chrysler Group LLC
11C41-126-AA
First Edition
Printed in U.S.A.
200
VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name
Chrysler Group LLC shall be deemed to be deleted and
the name Chrysler Canada Inc. used in substitution
therefore.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab, a friend, or use public transportation.
WARNING!
Driving after drinking can lead to an accident. Your
perceptions are less sharp, your reflexes are slower,
and your judgment is impaired when you have been
drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or optional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
Chrysler Group LLC reserves the right to make changes
in design and specifications, and/or make additions to or
improvements to its products without imposing any
obligation upon itself to install them on products previously manufactured.
Copyright © 2010 Chrysler Group LLC
I
nf
or
mat
i
onPr
ovi
dedby:
SECTION
TABLE OF CONTENTS
PAGE
1
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
3
4
UNDERSTANDING YOUR INSTRUMENT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
4
5
STARTING AND OPERATING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
5
6
WHAT TO DO IN EMERGENCIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
6
7
MAINTAINING YOUR VEHICLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391
7
8
MAINTENANCE SCHEDULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441
8
9
IF YOU NEED CONSUMER ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 457
9
10
INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467
10
I
nf
or
mat
i
onPr
ovi
dedby:
I
nf
or
mat
i
onPr
ovi
dedby:
INTRODUCTION
1
CONTENTS
䡵 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 䡵 Vehicle Identification Number
.............. 6
䡵 How To Use This Manual . . . . . . . . . . . . . . . . . . 4 䡵 Vehicle Modifications/Alterations . . . . . . . . . . . . 7
䡵 Warnings And Cautions . . . . . . . . . . . . . . . . . . . 6
I
nf
or
mat
i
onPr
ovi
dedby:
4
INTRODUCTION
INTRODUCTION
Congratulations on selecting your new Chrysler Group
LLC vehicle. Be assured that it represents precision
workmanship, distinctive styling, and high quality - all
essentials that are traditional to our vehicles.
This Owner’s Manual has been prepared with the assistance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by Warranty Information, and various
customer-oriented documents. Please take the time to
read these publications carefully. Following the instructions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained technicians and genuine MOPAR威 parts, and cares about
your satisfaction.
HOW TO USE THIS MANUAL
Consult the Table of Contents to determine which section
contains the information you desire.
Since the specification of your vehicle depends on the
items of equipment ordered, certain descriptions and
illustrations may differ from your vehicle’s equipment
The detailed index at the back of this Owner’s Manual
contains a complete listing of all subjects.
NOTE:
After reviewing the owner information, it Consult the following table for a description of the
should be stored in the vehicle for convenient referenc- symbols that may be used on your vehicle or throughout
ing and remain with the vehicle when sold.
this Owner’s Manual:
I
nf
or
mat
i
onPr
ovi
dedby:
INTRODUCTION
I
nf
or
mat
i
onPr
ovi
dedby:
5
6
INTRODUCTION
WARNINGS AND CAUTIONS
This Owner’s Manual contains WARNINGS against operating procedures that could result in a collision or
bodily injury. It also contains CAUTIONS against procedures that could result in damage to your vehicle. If you
do not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The Vehicle Identification Number (VIN) is on the left
front corner of the instrument panel and is visible from
outside of the vehicle through the windshield. This
number also appears stamped on the right front door sill
Vehicle Identification Number
under the sill moulding and printed on the Automobile The stamped VIN is located on the right front door sill
Information Disclosure Label affixed to a window on under the sill moulding.
your vehicle, the vehicle registration and title.
I
nf
or
mat
i
onPr
ovi
dedby:
INTRODUCTION
7
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a accident resulting in serious injury or
death.
Stamped VIN Location
NOTE: It is illegal to remove or alter the VIN.
I
nf
or
mat
i
onPr
ovi
dedby:
1
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
2
CONTENTS
䡵 A Word About Your Keys . . . . . . . . . . . . . . . . . 12
䡵 Vehicle Security Alarm — If Equipped . . . . . . . . 18
▫ Ignition Key Removal . . . . . . . . . . . . . . . . . . 12
▫ Rearming The System . . . . . . . . . . . . . . . . . . 18
▫ Key-In-Ignition Reminder . . . . . . . . . . . . . . . 14
▫ To Arm The System . . . . . . . . . . . . . . . . . . . 18
▫ Locking The Doors With The Key . . . . . . . . . . 14
▫ To Disarm The System . . . . . . . . . . . . . . . . . 19
䡵 Sentry Key威 . . . . . . . . . . . . . . . . . . . . . . . . . . 15
䡵 Illuminated Entry — If Equipped . . . . . . . . . . . 20
▫ Replacement Keys . . . . . . . . . . . . . . . . . . . . . 16
䡵 Remote Keyless Entry (RKE) — If Equipped . . . 20
▫ Customer Key Programming . . . . . . . . . . . . . 16
▫ To Unlock The Doors . . . . . . . . . . . . . . . . . . 21
▫ General Information . . . . . . . . . . . . . . . . . . . 17
▫ To Lock The Doors . . . . . . . . . . . . . . . . . . . . 23
▫ To Unlatch The Trunk . . . . . . . . . . . . . . . . . . 24
I
nf
or
mat
i
onPr
ovi
dedby:
10
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
▫ Remote Open Window Feature —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . 25
▫ Using The Panic Alarm . . . . . . . . . . . . . . . . . 25
▫ Programming Additional Transmitters . . . . . . 25
▫ Transmitter Battery Replacement . . . . . . . . . . 25
▫ General Information . . . . . . . . . . . . . . . . . . . 26
䡵 Remote Start System — If Equipped . . . . . . . . . 27
▫ How To Use Remote Start . . . . . . . . . . . . . . . 27
䡵 Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
▫ Manual Door Locks . . . . . . . . . . . . . . . . . . . 30
▫ Power Door Locks . . . . . . . . . . . . . . . . . . . . 31
▫ Child-Protection Door Lock System —
Rear Doors . . . . . . . . . . . . . . . . . . . . . . . . . . 33
䡵 Power Windows . . . . . . . . . . . . . . . . . . . . . . . 34
▫ Power Window Switches . . . . . . . . . . . . . . . . 34
▫ Auto Window Down — If Equipped . . . . . . . 35
▫ Auto Window Up — If Equipped . . . . . . . . . . 36
▫ Window Lockout Switch . . . . . . . . . . . . . . . . 37
▫ Wind Buffeting . . . . . . . . . . . . . . . . . . . . . . . 37
䡵 Trunk Lock And Release
. . . . . . . . . . . . . . . . . 38
䡵 Trunk Safety Warning . . . . . . . . . . . . . . . . . . . 39
▫ Trunk Internal Emergency Release . . . . . . . . . 39
䡵 Occupant Restraints . . . . . . . . . . . . . . . . . . . . . 39
▫ Lap/Shoulder Belts . . . . . . . . . . . . . . . . . . . . 43
▫ Lap/Shoulder Belt Untwisting Procedure . . . . 47
▫ Adjustable Upper Shoulder Belt Anchorage . . . 48
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
11
▫ Rear Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 49
▫ Air Bag System Components . . . . . . . . . . . . . 59
▫ Seat Belts In Passenger Seating Positions . . . . . 49
▫ Advanced Front Air Bag Features . . . . . . . . . . 60
▫ Automatic Locking Retractor Mode (ALR) —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . 49
▫ Air Bag Deployment Sensors And Controls . . . 64
▫ Energy Management Feature . . . . . . . . . . . . . 50
▫ Seat Belt Pretensioners . . . . . . . . . . . . . . . . . 51
▫ Supplemental Active Head Restraints
(AHR) — If Equipped . . . . . . . . . . . . . . . . . . 51
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert威) . . . . . . . . . . . . . . . . . . . . . . . . . 55
▫ Event Data Recorder (EDR) . . . . . . . . . . . . . . 71
▫ Child Restraints . . . . . . . . . . . . . . . . . . . . . . 72
▫ Transporting Pets . . . . . . . . . . . . . . . . . . . . . 83
䡵 Engine Break-In Recommendations . . . . . . . . . . 83
䡵 Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
▫ Transporting Passengers . . . . . . . . . . . . . . . . 84
▫ BeltAlert威 Programming . . . . . . . . . . . . . . . . 56
▫ Exhaust Gas . . . . . . . . . . . . . . . . . . . . . . . . . 84
▫ Seat Belts And Pregnant Women . . . . . . . . . . 57
▫ Safety Checks You Should Make Inside The
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
▫ Seat Belt Extender . . . . . . . . . . . . . . . . . . . . . 57
▫ Supplemental Restraint System (SRS) —
Air Bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
▫ Periodic Safety Checks You Should Make
Outside The Vehicle . . . . . . . . . . . . . . . . . . . 87
I
nf
or
mat
i
onPr
ovi
dedby:
2
12
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your vehicle has the
key code numbers for your vehicle locks. These numbers
can be used to order duplicate keys from your authorized
dealer. Ask your authorized dealer for these numbers
and keep them in a safe place.
You can insert the double-sided keys into the locks with
either side up.
Vehicle Key
Ignition Key Removal
Automatic Transaxle
Place the shift lever in PARK. Turn the ignition switch to
the ACC position, push the key and cylinder inward,
rotate the key to the LOCK position, and remove the key.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
13
NOTE:
• If you try to remove the key before you place the shift
lever in PARK, the key may become trapped temporarily in the ignition switch lock cylinder. If this
occurs, rotate the key to the right slightly, then remove
the key as described. If a malfunction occurs, the
system will trap the key in the ignition switch lock
cylinder to warn you that this safety feature is inoperable. The engine can be started and stopped, but the
key cannot be removed until you obtain service.
Ignition Switch Positions
1 — LOCK
2 — ACC (ACCESSORY)
3 — ON/RUN
4 — START
• For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, hands–free system (if equipped), and
power outlets will remain active for 45 seconds after
the ignition switch is turned to the LOCK position.
Opening either door will cancel this feature.
I
nf
or
mat
i
onPr
ovi
dedby:
2
14
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
• For vehicles equipped with the Electronic Vehicle InCAUTION!
formation Center (EVIC), the power window switches,
radio, hands–free system (if equipped), and power An unlocked car is an invitation to thieves. Always
outlets will remain active for up to 10 minutes after the remove key from the ignition and lock all doors
ignition switch is turned to the LOCK position. Open- when leaving the vehicle unattended.
ing either front door will cancel this feature. The time
for this feature is programmable. Refer to “Electronic Key-In-Ignition Reminder
Vehicle Information Center (EVIC)/Personal Settings Opening the driver’s door when the key is in the ignition
(Customer-Programmable Features)” in “Understand- sounds a signal to remind you to remove the key.
ing Your Instrument Panel” for further information.
NOTE:
• The Key-In-Ignition reminder only sounds when the
WARNING!
ignition key is placed in the LOCK or ACC position.
Never leave children alone in a vehicle. Leaving
• With either front door open, and the key in the
unattended children in a vehicle is dangerous for a
ignition, both the power door locks and Remote Keynumber of reasons. A child or others could be seriless Entry (RKE) transmitter will not function.
ously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows, Locking the Doors with the Key
There is only one external door lock cylinder which is
other controls, or move the vehicle.
located in the driver’s door.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
You can insert the key with either side up. To lock the
door, turn the key rearward. To unlock the door, turn the
key forward. For door lock lubrication, see “Maintenance
Procedures” in “Maintaining Your Vehicle” of this
manual.
SENTRY KEY姞
The Sentry Key威 Immobilizer System prevents unauthorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are programmed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to start the
engine.
15
NOTE: A key which has not been programmed is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
key to start the engine. Either of these conditions will
result in the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 seconds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
I
nf
or
mat
i
onPr
ovi
dedby:
2
16
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
The Sentry Key威 Immobilizer system is not compat- The PIN is required for authorized dealer replacement of
ible with some after-market remote starting systems. keys. Duplication of keys may be performed at an
Use of these systems may result in vehicle starting authorized dealer or by using the Customer Key Programming procedure. This procedure consists of proproblems and loss of security protection.
gramming a blank key to the vehicle electronics. A blank
All of the keys provided with your vehicle have been key is one which has never been programmed.
programmed to the vehicle electronics.
NOTE: When having the Sentry Key威 Immobilizer
System serviced, bring all vehicle keys with you to the
Replacement Keys
authorized dealer.
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once Customer Key Programming
a Sentry Key威 has been programmed to a vehicle, it You can program new keys to the system if you have two
cannot be programmed to any other vehicle.
valid Sentry Keys威 by performing the following procedure:
CAUTION!
CAUTION!
Always remove the Sentry Key威 from the vehicle and
lock all doors when leaving the vehicle unattended.
1. Cut the additional Sentry Key威 Transponder blank(s)
to match the ignition switch lock cylinder key code.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at least
three seconds, but no longer than 15 seconds. Then, turn
the ignition switch to the LOCK position and remove the
first key.
17
The new Sentry Key威 is programmed. The Remote
Keyless Entry (RKE) transmitter will also be programmed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key威 contact your
3. Insert the second valid key into the ignition switch. authorized dealer for details.
Turn the ignition switch to the ON/RUN position within
NOTE: If a programmed key is lost, see your authorized
15 seconds. After ten seconds, a chime will sound. In
dealer to have all remaining keys erased from the sysaddition, the Vehicle Security Light will begin to flash.
tems memory. This will prevent the lost key from starting
Turn the ignition switch to the LOCK position and
your vehicle. The remaining keys must then be reproremove the second key.
grammed. All vehicle keys must be taken to your autho4. Insert a blank Sentry Key威 into the ignition switch. rized dealer at the time of service to be reprogrammed.
Turn the ignition switch to the ON/RUN position within
General Information
60 seconds. After 10 seconds, a single chime will sound.
The Sentry Key威 system complies with FCC rules part 15
In addition, the Vehicle Security Light will stop flashing.
and with RSS-210 of Industry Canada. Operation is
To indicate that programming is complete, the indicator
subject to the following conditions:
light will turn on again for three seconds and then turn
• This device may not cause harmful interference.
off.
I
nf
or
mat
i
onPr
ovi
dedby:
2
18
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
• This device must accept any interference that may be Rearming The System
received, including interference that may cause unde- If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
sired operation.
horn after three minutes, turn off all of the visual signals
VEHICLE SECURITY ALARM — IF EQUIPPED
after 15 minutes, and then the Vehicle Security Alarm will
The Vehicle Security Alarm monitors the doors and trunk rearm itself.
for unauthorized entry and ignition switch for unauthorized operation. While the Vehicle Security Alarm is To Arm The System
armed, interior switches for door locks and decklid 1. Remove the keys from the ignition switch and get out
release are disabled.
of the vehicle.
If something triggers the alarm, the Vehicle Security
Alarm will signal for about 18 minutes. For the first three
minutes, the horn will sound intermittently and the
headlights, park lamps and/or turn signals will flash and
the Vehicle Security Light in the cluster will flash. Then
the exterior lights will flash for another 15 minutes.
2. Lock the door using either the power door lock switch
(one door must be open) or the LOCK button on the
Remote Keyless Entry (RKE) transmitter (doors can be
open or closed), and close all doors.
NOTE: The Vehicle Security Alarm will not arm if you
lock the doors with the manual door lock plungers.
3. The Vehicle Security Light in the instrument cluster
will flash for 16 seconds. This shows that the Vehicle
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
19
Security Alarm is arming. During this period, if a door is NOTE:
opened, the ignition switch is turned to ON/RUN, or the • The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
power door locks are unlocked in any manner, the
Security Alarm.
Vehicle Security Alarm will automatically disarm.
• The Vehicle Security Alarm remains armed during
NOTE:
• During the 16-second arming period, if a door is
trunk entry. Pressing the trunk button will not disarm
opened or the ignition switch is turned to ON/RUN,
the Vehicle Security Alarm. If someone enters the
the Vehicle Security Alarm will automatically disarm.
vehicle through the trunk and opens any door, the
alarm will sound.
• Once armed, the Vehicle Security Alarm disables the
unlock switch on the driver door trim panel and The Vehicle Security Alarm is designed to protect your
passenger door trim panel, the trunk release button on vehicle; however, you can create conditions where the
the instrument panel, and the HomeLink威/Garage Vehicle Security Alarm will give you a false alarm. If one
Door Opener (if equipped).
of the previously described arming sequences has occurred, the Vehicle Security Alarm will arm regardless of
To Disarm The System
whether you are in the vehicle or not. If you remain in the
Either press the UNLOCK button on the RKE transmitter
vehicle and open a door, the alarm will sound. If this
or insert a valid Sentry Key威 into the ignition lock
occurs, disarm the Vehicle Security Alarm.
cylinder and turn the key to the ON/START position.
I
nf
or
mat
i
onPr
ovi
dedby:
2
20
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once the
ignition switch is turned to ON/RUN from the OFF
position..
NOTE:
Tamper Alert
• The front courtesy overhead console and door courIf the alarm was triggered, but the warning signals have
tesy lights do not turn on if the dimmer control is in
timed out, the park and taillights flash three times, and
the ⬙Dome ON⬙ position (extreme top position).
the horn will chirp three times, when unlocking the
• The Illuminated Entry system will not operate if the
vehicle with a valid RKE transmitter to alert the driver.
dimmer control is in the “Dome defeat” position
(extreme bottom position).
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you press the
REMOTE KEYLESS ENTRY (RKE) — IF EQUIPPED
unlock button on the Remote Keyless Entry (RKE) transThis system allows you to lock or unlock the doors, open
mitter or open any door.
the trunk, lower both front windows (if equipped), or
This feature also turns on the approach lighting in the activate the Panic Alarm from distances approximately
outside mirrors (if equipped). Refer to “Mirrors” in 66 ft (20 m) using a Remote Keyless Entry (RKE) trans“Understanding The Features Of Your Vehicle” for fur- mitter. The RKE transmitter does not need to be pointed
at the vehicle to activate the system.
ther information.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
21
NOTE:
To Unlock The Doors
• The line of transmission must not be blocked with Press and release the UNLOCK button on the RKE
metal objects.
transmitter once to unlock the driver’s door, or twice to
unlock all doors. The turn signal lights will flash to
• Inserting the key into the ignition switch disables all
acknowledge the unlock signal. The Illuminated Entry
buttons on the RKE transmitter.
system (if equipped) will also turn on.
Remote Key Unlock, Driver Door/All Doors First
Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
Vehicle Key
• For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings (Customer-Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
I
nf
or
mat
i
onPr
ovi
dedby:
2
22
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
• For vehicles not equipped with the EVIC, perform the NOTE: If there is no key in the ignition switch, pressing
following procedure:
the LOCK button on the RKE transmitter while you are
inside the vehicle will activate the Vehicle Security Alarm
1. Press and hold the LOCK button on a programmed
system. Opening a door with the system activated will
RKE transmitter for at least four seconds, but not longer
cause the alarm to sound. Press the UNLOCK button to
than 10 seconds. Then, press and hold the UNLOCK
deactivate the Vehicle Security Alarm system.
button while still holding the LOCK button.
Flash Lights With Lock
2. Release both buttons at the same time.
The feature will cause the turn signal lights to flash when
3. Test the feature while outside of the vehicle by press- the doors are locked or unlocked with the RKE transmiting the LOCK/UNLOCK buttons on the RKE transmitter ter. This feature can be turned on or turned off. To change
with the ignition in the LOCK position and the key the current setting, proceed as follows:
removed.
• For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
4. Repeat these steps if you want to return this feature to
Information Center (EVIC)/Personal Settings (Cusits previous setting.
tomer-Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
23
• For vehicles not equipped with the EVIC, perform the NOTE: If there is no key in the ignition switch, pressing
following procedure:
the LOCK button on the RKE transmitter while you are in
the vehicle will activate the Vehicle Security Alarm
1. Press and hold the UNLOCK button on a programmed
system. Opening a door with the system activated will
RKE transmitter for at least four seconds, but not longer
cause the alarm to sound. Press the UNLOCK button to
than 10 seconds. Then, press and hold the LOCK button
deactivate the Vehicle Security Alarm system.
while still holding the UNLOCK button.
Illuminated Approach — If Equipped
2. Release both buttons at the same time.
This feature activates the headlights for up to 90 seconds
3. Test the feature while outside of the vehicle by press- when the doors are unlocked with the RKE transmitter.
ing the LOCK/UNLOCK buttons on the RKE transmitter The time for this feature is programmable on vehicles
with the ignition in the LOCK position and the key equipped with EVIC. For details, refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
removed.
(Customer-Programmable Features)” in “Understanding
4. Repeat these steps if you want to return this feature to
Your Instrument Panel” for further information.
its previous setting.
To Lock The Doors
Press and release the LOCK button on the RKE transmitter to lock all doors. The turn signal lights will flash and
the horn will chirp once to acknowledge the lock signal.
I
nf
or
mat
i
onPr
ovi
dedby:
2
24
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Sound Horn With Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:
3. Test the feature while outside of the vehicle by pressing the LOCK button on the RKE transmitter with the
ignition in the LOCK position and the key removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
• For vehicles equipped with EVIC, refer to “Electronic
NOTE: If there is no key in the ignition switch, pressing
Vehicle Information Center (EVIC)/Personal Settings
the LOCK button on the RKE transmitter while you are in
(Customer-Programmable Features)” in “Understandthe vehicle will activate the Vehicle Security Alarm.
ing Your Instrument Panel” for further information.
Opening a door with the alarm activated will cause the
• For vehicles not equipped with the EVIC, perform the alarm to sound. Press the UNLOCK button to deactivate
following steps:
the Vehicle Security Alarm.
1. Press the LOCK button on a programmed RKE trans- To Unlatch The Trunk
mitter for at least four seconds, but not longer than Press the TRUNK button on the RKE transmitter two
10 seconds. Then, press the PANIC button while still times to unlatch the trunk.
holding the LOCK button.
2. Release both buttons at the same time.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
25
The Panic Alarm will stay on for three minutes unless
Remote Open Window Feature — If Equipped
The RKE remotely lowers both driver and passenger you turn it off by pressing the PANIC button a second
front windows simultaneously. Lowering the front win- time or if the vehicle speed is 5 mph (8 km/h) or greater.
dows using the RKE is a two step operation:
NOTE: You may need to be close to the vehicle when
using the RKE transmitter to turn off the Panic Alarm due
1. Press the RKE transmitter UNLOCK button once.
to the Radio Frequency (RF) noises emitted by the
2. Press the UNLOCK button a second time and hold the
system.
button until the windows lower completely or the windows drop to the desired level, then release the button. Programming Additional Transmitters
Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the Illuminated Entry system (if
equipped) will turn on.
Refer to Sentry Key威 “Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Transmitter Battery Replacement
The recommended replacement battery is CR2032.
NOTE: Perchlorate Material — special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
I
nf
or
mat
i
onPr
ovi
dedby:
2
26
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
1. With the RKE transmitter buttons facing down, use a
flat blade screwdriver to pry the two halves of the RKE
transmitter apart. Make sure not to damage the seal
during removal.
2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To assemble the RKE transmitter case, snap the two
halves together.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
Separating RKE Transmitter Halves
NOTE: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
27
If your RKE transmitter fails to operate from a normal How To Use Remote Start
All of the following conditions must be met before the
distance, check for these two conditions.
engine will remote start:
1. Weak battery in the RKE transmitter. The expected life
• Shift lever in PARK
of a battery is five years.
2. Closeness to a radio transmitter such as a radio station • Doors closed
tower, airport transmitter, military base, and some mobile
• Hood closed
or CB radios.
• Trunk closed
REMOTE START SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry • Hazard switch off
(RKE) transmitter to start the engine conve- • Brake switch inactive (brake pedal not pressed)
niently from outside the vehicle while still
maintaining security. The system has a range of • Ignition key removed from ignition switch
approximately 300 ft (91 m).
• Battery at an acceptable charge level, and
NOTE: The vehicle must be equipped with an auto- • RKE PANIC button not pressed
matic transmission to be equipped with Remote Start.
• System not disabled from previous remote start event
• Vehicle theft alarm not active
I
nf
or
mat
i
onPr
ovi
dedby:
2
28
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
• Remote Start Aborted — Hood Ajar
WARNING!
• Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monoxide (CO) which is odorless and colorless. Carbon Monoxide is poisonous and can cause serious
injury or death when inhaled.
• Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
• Remote Start Aborted — Trunk Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — System Fault
The EVIC message stays active until the ignition is cycled
to the ON/RUN position.
To Enter Remote Start Mode
Press and release the REMOTE START button
on the RKE transmitter twice within five seconds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start premaNOTE:
turely:
• If an engine fault is present the vehicle will start and
• Remote Start Aborted — Door Ajar
then shut down 10 seconds later.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
29
• For security, power window operation is disabled To Exit Remote Start Mode Without Driving The
when the vehicle is in the Remote Start mode.
Vehicle
Press and release the REMOTE START button one time or
• The engine can be started two consecutive times (two
allow the engine to run for the entire 15 minute cycle.
15 minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON/RUN NOTE: To avoid unintentional shut downs, the system
position before you can repeat the start sequence for a will disable the one-time press of the Remote Start button
for two seconds after receiving a valid remote start
third cycle.
request.
Remote start will also cancel if any of the following occur:
To Exit Remote Start Mode And Drive The Vehicle
• The engine stalls or RPM exceeds 2500
Before the end of the 15 minute cycle, press and release
• Any engine warning lamps come on
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
• Fuel lamp turns on
equipped). Then insert the key into the ignition switch
• The hood is opened
and turn the switch to the ON/RUN position.
• The hazard switch is pressed
• The transmission is moved out of PARK
• The brake pedal is pressed
NOTE: The ignition switch must be in the ON/RUN
position in order to drive the vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
2
30
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
DOOR LOCKS
WARNING!
Manual Door Locks
To lock each door, push the door lock knob on each door
trim panel downward. To unlock each door, pull the
inside door handle.
• For personal security and safety in the event of an
accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
• When leaving the vehicle, always remove the key
from the ignition lock, and lock your vehicle. Do
not leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause severe personal injuries or death.
• Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power windows, other controls, or move the vehicle.
Manual Lock Knob
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
31
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock all
of the doors when leaving the vehicle unattended.
2
Power Door Locks
A door lock switch is located on the driver and passenger
door panel. Press this switch to lock or unlock the doors.
Power Door Lock Switch
Automatic Door Locks — If Equipped
When enabled, the door locks will lock automatically
when the vehicle’s speed exceeds 15 mph (24 km/h). The
Automatic Door Locks feature can be enabled or disabled
by your authorized dealer. See your authorized dealer for
programming.
I
nf
or
mat
i
onPr
ovi
dedby:
32
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Auto Unlock On Exit
Auto Unlock On Exit Programming
The doors will unlock automatically on vehicles with The Automatic Unlock Doors On Exit feature can be
power door locks if:
enabled or disabled as follows:
1. The Automatic Unlock Doors On Exit feature is en- • For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
abled.
Information Center (EVIC)/Personal Settings (Cus2. The transmission was in gear and the vehicle speed
tomer-Programmable Features)” in “Understanding
returned to 0 mph (0 km/h).
Your Instrument Panel” for further information.
3. The transmission is in NEUTRAL or PARK.
• For vehicles not equipped with the EVIC, perform the
following procedure:
4. The driver door is opened.
5. The doors were not previously unlocked.
1. Close all doors and place the key in the ignition.
6. The vehicle speed is 0 mph (0 km/h).
2. Cycle the ignition switch between LOCK and ON/
RUN and then back to LOCK four times, ending up in the
LOCK position.
3. Press the power door unlock switch to unlock the
doors.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
33
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
2
NOTE: Use the Automatic Unlock Doors On Exit feature
in accordance with local laws.
Child-Protection Door Lock System —
Rear Doors
To provide a safer environment for children riding in the
rear seat, the rear doors of your vehicle have a ChildProtection Door Lock system.
I
nf
or
mat
i
onPr
ovi
dedby:
Child-Protection Door Lock Location
34
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
The Child-Protection Door Locks are located inside the
rear edge of the door. Insert the tip of the ignition key or
similar flat-bladed object into the lock and rotate approximately one-quarter turn to the lock or unlock position (as
indicated by the stamped icons).
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged.
NOTE: For emergency exit with the system engaged,
move the lock knob up (UNLOCKED position), roll
down the window, and open the door with the outside
door handle.
POWER WINDOWS
Child Lock Control
Power Window Switches
The control on the driver’s door has up/down switches
that give you fingertip control of all four power windows.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
35
WARNING!
Never leave children in a vehicle, with the keys in
the ignition switch. Occupants, particularly unattended children, can become entrapped by the windows while operating the power window switches.
Such entrapment may result in serious injury or
death.
Auto Window Down — If Equipped
The front window controls on the driver and passenger
door trim panels have an Auto-Down feature. These
AUTO Power Window Switch
switches are labeled AUTO to indicate this capability.
There is a single window control on the front and rear Push the window switch past the first detent, release, and
passenger’s door trim panel, which operates the front the window will go down automatically.
and rear passenger door windows. The window controls
To open the window part way, push the window switch
will operate when the ignition switch is turned to the
to the first detent and release it when you want the
ON/RUN or ACC position, and when the accessory
window to stop.
delay feature is active.
I
nf
or
mat
i
onPr
ovi
dedby:
2
36
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
To cancel the Auto-Down movement, operate the switch Auto Window Up — If Equipped
either in the up or down direction and release the switch. Lift the window switch fully upward to the second
detent, release, and the window will go up automatically.
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window switches To cancel the Auto Up movement, operate the switch
will remain active for 45 seconds after the ignition switch either in the up or down direction and release the switch.
is turned to the LOCK position. Opening either door will
To close the window part way, lift the window switch to
cancel this feature.
the first detent and release it when you want the window
For vehicles equipped with EVIC, the power window to stop.
switches will remain active for up to 10 minutes after the
NOTE: ANTI-PINCH PROTECTION
ignition switch is turned off. Opening either door will
cancel this feature. The time for this feature is program- • If the window runs into any obstacle during autoclosure, it will reverse direction and then go back
mable. Refer to “Electronic Vehicle Information Center
down. Remove the obstacle and use the window
(EVIC)/Personal Settings (Customer-Programmable Feaswitch again to close the window.
tures)” in “Understanding Your Instrument Panel” for
further information.
• Any impact due to rough road conditions may trigger
the auto reverse function unexpectedly during autoclosure. If this happens, pull the switch lightly to the
first detent and hold to close window manually.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
37
WARNING!
When the window is almost closed, there is no
anti-pinch protection. To avoid personal injury, be
sure to clear your arms, hands, fingers and all objects
from the window path before closing.
Reset Auto Up
Anytime the vehicle battery goes dead, the Auto Up
function will be disabled. To reactivate the Auto Up
feature, pull the window switch up to close the window
completely and continue to hold the switch up for an
additional two seconds after the window is closed.
2
Window Lockout Switch
Wind Buffeting
Window Lockout Switch
Wind buffeting can be described as the perception of
The window lockout switch on the driver’s door allows
pressure on the ears or a helicopter-type sound in the
you to disable the window control on the other doors. To
ears. Your vehicle may exhibit wind buffeting with the
disable the window controls on the other doors, press the
windows down, or the sunroof (if equipped) in certain
window LOCK button. To enable the window controls,
press the window control button again.
I
nf
or
mat
i
onPr
ovi
dedby:
38
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
open or partially open positions. This is a normal occurrence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, then adjust the
sunroof opening to minimize the buffeting.
To unlatch the trunk lid from outside the vehicle, press
and release the TRUNK button on the RKE transmitter
two times.
With the ignition switch in the ON/RUN position, the
word “deck” will display in place of the odometer
display indicating that the trunk is open. The odometer
display will reappear once the trunk is closed or if the
TRUNK LOCK AND RELEASE
Use the Remote Keyless Entry (RKE) trip button is depressed.
transmitter to open the trunk from With the ignition switch in the LOCK position or with the
outside the vehicle. From inside the key out, the word “deck” will display until the trunk is
vehicle the trunk lid can be released by closed.
pressing the TRUNK RELEASE button
located on the instrument panel to the On EVIC-equipped vehicles, the words “Trunk Ajar” will
display.
left of the steering wheel.
NOTE: The shift lever must be in PARK for this button
to operate.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
39
TRUNK SAFETY WARNING
WARNING!
2
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke.
Trunk Internal Emergency Release
As a security measure, a Trunk Internal Emergency
Release lever is built into the trunk latching mechanism.
In the event of an individual being locked inside the
trunk, the trunk can be simply opened by pulling on the
glow-in-the-dark handle attached to the trunk latching
mechanism.
Trunk Internal Emergency Release
OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems:
• Three-point lap and shoulder belts for all seating
positions
I
nf
or
mat
i
onPr
ovi
dedby:
40
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
• Advanced Front Air Bags for driver and front passen- • All seat belt systems (except the driver’s) include
ger
Automatic Locking Retractors (ALRs), which lock the
seat belt webbing into position by extending the belt
• Supplemental Active Head Restraints (AHR) located
all the way out and then adjusting the belt to the
on top of the front seats (integrated into the head
desired length to restrain a child seat or secure a large
restraint) — if equipped
item in a seat
• Supplemental Side Air Bag Inflatable Curtains
Please pay close attention to the information in this
(SABIC) for the driver and passengers seated next to a
section. It tells you how to use your restraint system
window
properly, to keep you and your passengers as safe as
• Supplemental Seat-Mounted Side Air Bags (SAB)
possible.
• An energy-absorbing steering column and steering If you will be carrying children too small for adult-sized
wheel
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature also can be used to hold
• Knee bolsters/blockers for front seat occupants
infant and child restraint systems. For more information
• Front seat belts incorporate pretensioners that may on LATCH, refer to Lower Anchors and Tether for
enhance occupant protection by managing occupant CHildren (LATCH).
energy during an impact event
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
41
NOTE: The Advanced Front Air Bags have a multistage
inflator design. This allows the air bag to have different
rates of inflation based on the severity and type of
collision.
secured in the rear seat in child restraints or beltpositioning booster seats. Older children who do not use
child restraints or belt-positioning booster seats should
ride properly buckled up in the rear seat. Never allow
children to slide the shoulder belt behind them or under
Here are some simple steps you can take to minimize the
their arm.
risk of harm from a deploying air bag:
If a child from 1 to 12 years old (not in a rear facing child
1. Children 12 years old and under should always ride
seat) must ride in the front passenger seat, move the seat
buckled up in a rear seat.
as far back as possible and use the proper child restraint.
(Refer to “Child Restraints”)
WARNING!
Infants in rear facing child restraints should never
ride in the front seat of a vehicle with a passenger
Advanced Front Air Bag. An air bag deployment can
cause severe injury or death to infants in that position.
You should read the instructions provided with your
child restraint to make sure that you are using it properly.
2. All occupants should always wear their lap and
shoulder belts properly.
3. The driver and front passenger seats should be
moved back as far as practical to allow the Advanced
Children that are not big enough to wear the vehicle seat
Front Air Bags room to inflate.
belt properly (see section on Child Restraints) should be
I
nf
or
mat
i
onPr
ovi
dedby:
2
42
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
4. Do not lean against the door or window. If your
vehicle has side air bags, and deployment occurs, the
side air bags will inflate forcefully into the space
between you and the door.
5. If the air bag system in this vehicle needs to be
modified to accommodate a disabled person, contact
the Customer Center. Phone numbers are provided
under ⴖIf You Need Assistanceⴖ.
WARNING!
• Relying on the air bags alone could lead to more
severe injuries in a collision. The air bags work
with your seat belt to restrain you properly. In
some collisions, the air bags won’t deploy at all.
Always wear your seat belts even though you have
air bags.
(Continued)
WARNING! (Continued)
• Being too close to the steering wheel or instrument
panel during Advanced Front Air Bag deployment
could cause serious injury, including death. Air
Bags need room to inflate. Sit back, comfortably
extending your arms to reach the steering wheel or
instrument panel.
• Supplemental Side Air Bag Inflatable Curtain
(SABIC) and Seat-Mounted Side Air Bags (SAB)
also need room to inflate. Do not lean against the
door or window. Sit upright in the center of the
seat.
• In an accident, you and your passengers can suffer
much greater injuries if you are not properly
buckled up. You can strike the interior of your
vehicle or other passengers, or you can be thrown
out of the vehicle. Always be sure you and others
in your vehicle are buckled up properly.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
43
Buckle up even though you are an excellent driver, even conditions. However, in an accident the belt will lock and
on short trips. Someone on the road may be a poor driver reduce your risk of striking the inside of the vehicle or
and cause an accident that includes you. This can happen being thrown out.
far away from home or on your own street.
Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in an accident.
Some of the worst injuries happen when people are
thrown from the vehicle. Seat belts reduce the possibility
of ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.
Lap/Shoulder Belts
All seating positions in your vehicle are equipped with
lap/shoulder belts.
The belt webbing retractor will lock only during very
sudden stops or accidents. This feature allows the shoulder part of the belt to move freely with you under normal
WARNING!
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
• It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In an accident, people riding
in these areas are more likely to be seriously
injured or killed.
• Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of an accident the
best.
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
2
44
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING! (Continued)
• Wearing your belt in the wrong place could make
your injuries in an accident much worse. You
might suffer internal injuries, or you could even
slide out of part of the belt. Follow these instructions to wear your seat belt safely and to keep your
passengers safe, too.
• Two people should never be belted into a single
seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or lap belt for more
than one person, no matter what their size.
2. The seat belt latch plate is above the back of the front
seat, next to your arm. Grasp the latch plate and pull out
the belt. Slide the latch plate up the webbing as far as
necessary to allow the belt to go around your lap.
Lap/Shoulder Belt Operating Instructions
1. Enter the vehicle and close the door. Sit back and
adjust the seat.
Pulling Out The Latch Plate
3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
45
WARNING!
• A belt that is buckled into the wrong buckle will
not protect you properly. The lap portion could
ride too high on your body, possibly causing
internal injuries. Always buckle your belt into the
buckle nearest you.
• A belt that is too loose will not protect you
properly. In a sudden stop, you could move too far
forward, increasing the possibility of injury. Wear
your seat belt snugly.
2
Inserting Latch Plate Into Buckle
I
nf
or
mat
i
onPr
ovi
dedby:
46
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
• A belt that is worn under your arm is dangerous.
Your body could strike the inside surfaces of the
vehicle in an accident, increasing head and neck
injury. A belt worn under the arm can cause
internal injuries. Ribs aren’t as strong as shoulder
bones. Wear the belt over your shoulder so that
your strongest bones will take the force in a
collision.
• A shoulder belt placed behind you will not protect
you from injury during an accident. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.
4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
on the shoulder belt. To loosen the lap belt if it is too tight,
tilt the latch plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in an accident.
Positioning the Lap Belt
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
• A lap belt worn too high can increase the risk of
internal injury in an accident. The belt forces
won’t be at the strong hip and pelvic bones, but
across your abdomen. Always wear the lap belt as
low as possible and keep it snug.
• A twisted belt will not protect you properly. In a
collision, it could even cut into you. Be sure the
belt is straight. If you can’t straighten a belt in
your vehicle, take it to your authorized dealer
immediately and have it fixed.
47
6. To release the belt, push the red button on the buckle.
The belt will automatically retract to its stowed position.
If necessary, slide the latch plate down the webbing to
allow the belt to retract fully.
WARNING!
A frayed or torn belt could rip apart in an accident
and leave you with no protection. Inspect the belt
system periodically, checking for cuts, frays, or loose
parts. Damaged parts must be replaced immediately.
Do not disassemble or modify the system. Seat belt
assemblies must be replaced after an accident if they
have been damaged (i.e., bent retractor, torn webbing, etc.).
5. Position the shoulder belt on your chest so that it is
comfortable and not resting on your neck. The retractor
will withdraw any slack in the belt.
Lap/Shoulder Belt Untwisting Procedure
Use the following procedure to untwist a twisted lap/
shoulder belt.
I
nf
or
mat
i
onPr
ovi
dedby:
2
48
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
1. Position the latch plate as close as possible to the
anchor point.
2. At about 6 to 12 in (15 to 30 cm) above the latch plate,
grasp and twist the belt webbing 180 degrees to create a
fold that begins immediately above the latch plate.
3. Slide the latch plate upward over the folded webbing.
The folded webbing must enter the slot at the top of the
latch plate.
4. Continue to slide the latch plate up until it clears the
folded webbing.
Adjustable Upper Shoulder Belt Anchorage
In the front seat, the shoulder belt can be adjusted
upward or downward to position the belt away from
your neck. Push anchorage button to release the anchorage, and move it up or down to the position that serves
you best.
Adjustable Anchorage
As a guide, if you are shorter than average, you will
prefer a lower position, and if you are taller than average,
you will prefer a higher position. When you release the
anchorage, try to move it up or down to make sure that
it is locked in position.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Rear Seat Belts
The shoulder belt anchorages of the rear three-point belts
are nonadjustable for outboard and center rear passengers on sedans. The center belt is mounted to the rear
shelf panel and exits through a bezel in the panel.
49
• ALR — Automatic Locking Retractor
If the passenger seating position is equipped with an
ALR and is being used for normal usage:
Only pull the belt webbing out far enough to comfortably
wrap around the occupant’s mid-section so as to not
activate the ALR. If the ALR is activated, you will hear a
ratcheting sound as the belt retracts. Allow the webbing
to retract completely in this case and then carefully pull
out only the amount of webbing necessary to comfortably wrap around the occupant’s mid-section. Slide the
latch plate into the buckle until you hear a ⬙click.⬙
Seat Belts In Passenger Seating Positions
The seat belts in the passenger seating positions are
equipped with Automatic Locking Retractors (ALR)
which are used to secure a child restraint system. For
additional information, refer to “Installing Child Restraints Using The Vehicle Seat Belt” under the “Child
Restraints” section. The chart below defines the type of
Automatic Locking Retractor Mode (ALR) —
feature for each seating position.
If Equipped
Driver
Center
Passenger
In this mode, the shoulder belt is automatically preFirst Row
N/A
N/A
ALR
locked. The belt will still retract to remove any slack in
Second Row
ALR
ALR
ALR
the shoulder belt. The Automatic Locking Mode is avail• N/A — Not Applicable
able on all passenger-seating positions with a combination lap/shoulder belt. Use the Automatic Locking Mode
I
nf
or
mat
i
onPr
ovi
dedby:
2
50
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
anytime a child safety seat is installed in a seating
position that has a belt with this feature. Children
12 years old and under should always be properly
restrained in the rear seat.
How To Engage The Automatic Locking Mode
1. Buckle the combination lap and shoulder belt.
2. Grasp the shoulder portion and pull downward until
the entire belt is extracted.
WARNING!
• The belt and retractor assembly must be replaced
if the seat belt assembly Automatic Locking Retractor (ALR) feature or any other seat belt function is not working properly when checked according to the procedures in the Service Manual.
• Failure to replace the belt and retractor assembly
could increase the risk of injury in collisions.
3. Allow the belt to retract. As the belt retracts, you will Energy Management Feature
hear a clicking sound. This indicates the safety belt is This vehicle has a safety belt system with an Energy
now in the Automatic Locking Mode.
Management feature in the front seating positions to help
further reduce the risk of injury in the event of a head-on
How To Disengage The Automatic Locking Mode
Unbuckle the combination lap/shoulder belt and allow it accident. This safety belt system has a retractor assembly
to retract completely to disengage the Automatic Locking that is designed to release webbing in a controlled
Mode and activate the vehicle sensitive (emergency) manner. This feature is designed to help reduce the belt
force acting on the occupant’s chest.
locking mode.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Seat Belt Pretensioners
The seat belts for both front seating positions are
equipped with pretensioning devices that are designed to
remove slack from the seat belt in the event of an
accident. These devices may improve the performance of
the seat belt by assuring that the belt is tight about the
occupant early in an accident. Pretensioners work for all
size occupants, including those in child restraints.
51
Supplemental Active Head Restraints (AHR) —
If Equipped
These head restraints are passive, deployable components, and vehicles with this equipment cannot be readily
identified by any markings, only through visual inspection of the head restraint. The head restraint will be split
in two halves, with the front half being soft foam and
trim, the back half being decorative plastic.
NOTE: These devices are not a substitute for proper seat How The Active Head Restraints (AHR) Work
belt placement by the occupant. The seat belt still must be The Occupant Restraint Controller (ORC) determines
whether the severity, or type of rear impact will require
worn snugly and positioned properly.
the Active Head Restraints (AHR) to deploy. If a rear
The pretensioners are triggered by the Occupant Reimpact requires deployment, both the driver and front
straint Controller (ORC). Like the air bags, the pretenpassenger seat AHRs will be deployed.
sioners are single use items. A deployed pretensioner or
a deployed air bag must be replaced immediately.
I
nf
or
mat
i
onPr
ovi
dedby:
2
52
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
When AHRs deploy during a rear impact, the front half
of the head restraint extends forward to minimize the gap
between the back of the occupant’s head and the AHR.
This system is designed to help prevent or reduce the
extent of injuries to the driver and front passenger in
certain types of rear impacts.
NOTE: The Active Head Restraints (AHR) may or may
not deploy in the event of a front or side impact.
However if during a front impact, a secondary rear
impact occurs, the AHR may deploy based on the severity and type of the impact.
Active Head Restraint (AHR) Components
1 — Head Restraint Front Half
(Soft Foam and Trim)
2 — Seatback
I
nf
or
mat
i
onPr
ovi
dedby:
3 — Head Restraint Back Half
(Decorative Plastic Rear
Cover)
4 — Head Restraint Guide
Tubes
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
53
1. Grasp the deployed AHR from the rear seat.
CAUTION!
All occupants, including the driver, should not operate a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in order
to minimize the risk of neck injury in the event of an
accident.
NOTE: For more information on properly adjusting and
positioning the head restraint, refer to “Adjusting Active
Head Restraints” in “Understanding The Features Of
Your Vehicle”.
Resetting Active Head Restraints (AHR)
Hand Positioning Points On AHR
If the Active Head Restraints are triggered in an accident,
you must reset the head restraint on the driver’s and 2. Position the hands on the top of the deployed AHR at
front passenger seat. You can recognize when the Active a comfortable position.
Head Restraint has been triggered by the fact that they
have moved forward (as shown in step three of the
resetting procedure).
I
nf
or
mat
i
onPr
ovi
dedby:
2
54
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
3. Pull down then rearward towards the rear of the
vehicle then down to engage the locking mechanism.
3 — Final Downward Movement To Engage Locking Mechanism
1 — Downward Movement
2 — Rearward Movement
4. The AHR front soft foam and trim half should lock
into the back decorative plastic half.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
55
Enhanced Seat Belt Use Reminder System
(BeltAlert姞)
BeltAlert威 is a feature intended to remind the driver to
fasten their seat belt. This feature is active whenever the
ignition is on. If the driver is unbelted, the Seat Belt
Reminder Light will turn on and remain on until the
driver seat belt is fastened. BeltAlert威 triggers within
60 seconds of vehicle speed over 5 mph (8 km/h). The
reminder sequence lasts for 96 seconds or until the driver
seat belt is fastened. After the sequence completes, the
Seat Belt Reminder Light remains illuminated until the
driver seat belt is fastened. The driver should instruct all
AHR In Reset Position
other occupants to fasten their seat belts. If the driver seat
NOTE:
belt is unbuckled while traveling at speeds greater than
• If you have difficulties or problems resetting the 5 mph (8 km/h), BeltAlert威 will chime as a single
Active Head Restraints, see an authorized dealer.
notification and illuminate the Seat Belt Reminder Light,
then will proceed to the 96 second reminder sequence.
• For safety reasons, have the Active Head Restraints
checked by a qualified specialist at an authorized
dealer.
I
nf
or
mat
i
onPr
ovi
dedby:
2
56
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
BeltAlert威 will be reactivated if the driver’s seat belt is 2. Turn the ignition switch to the ON/RUN position and
unbuckled for more than 10 seconds and the vehicle wait for the Seat Belt Reminder Light to turn off.
speed is greater than 5 mph (8 km/h).
3. Unbuckle and then re-buckle the driver’s seat belt at
least three times within 10 seconds, ending with the seat
BeltAlert姞 Programming
belt buckled.
NOTE: Chrysler Group LLC does not recommend deactivating the BeltAlert威.
NOTE: Watch for the Seat Belt Reminder Light to turn
on while unbuckling and off while re-buckling the seat
BeltAlert威 can be enabled or disabled by your authorized
belt. It may be necessary to retract the seat belt partially
dealer or by following these steps:
each time when unbuckling.
NOTE: The following steps must occur within the first
4. Turn the ignition switch to the LOCK position. A
60 seconds of the ignition switch being turned to the
single chime will sound to signify that you have successON/RUN or START position.
fully completed the programming.
1. Turn the ignition switch to the LOCK position and
BeltAlert威 can be reactivated by repeating this procedure.
buckle the driver’s seat belt.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
57
NOTE: Although BeltAlert威 has been deactivated, the extender should be used only if the existing belt is not
Seat Belt Reminder Light will continue to illuminate long enough. When it is not required, remove the extender, and store it.
while the driver’s seat belt remains unbuckled.
Seat Belts And Pregnant Women
We recommend that pregnant women use the seat belts
throughout their pregnancy. Keeping the mother safe is
the best way to keep the baby safe.
Pregnant women should wear the lap part of the belt
across the thighs and as snug across the hips as possible.
Keep the belt low so that it does not come across the
abdomen. That way the strong bones of the hips will take
the force if there is an accident.
Seat Belt Extender
If a seat belt is too short, even when fully extended and
when the adjustable upper shoulder belt anchorage (if
equipped) is in its lowest position, your authorized
dealer can provide you with a seat belt extender. This
WARNING!
Using a seat belt extender when not needed can
increase the risk of injury in an accident. Only use
when the lap belt is not long enough when it is worn
low and snug, and in the recommended seating
positions. Remove and store the extender when not
needed.
Supplemental Restraint System (SRS) — Air Bags
This vehicle has Advanced Front Air Bags for both the
driver and front passenger as a supplement to the seat
belt restraint systems. The driver’s Advanced Front Air
Bag is mounted in the center of the steering wheel. The
passenger’s Advanced Front Air Bag is mounted in the
I
nf
or
mat
i
onPr
ovi
dedby:
2
58
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
instrument panel, above the glove compartment. The The Advanced Front Air Bags have a multistage inflator
words SRS AIRBAG are embossed on the air bag covers. design. This allows the air bag to have different rates of
inflation that are based on the severity and type of
collision.
This vehicle may be equipped with driver and/or front
passenger seat track position sensors that may adjust the
inflation rate of the Advanced Front Air Bags based upon
seat position.
This vehicle may be equipped with a driver and/or front
passenger seat belt buckle switch that detects whether
the driver or front passenger seat belt is fastened. The
seat belt buckle switch may adjust the inflation rate of the
Advanced Front Air Bags.
Advanced Front Air Bag And Knee Bolster Locations
1 — Driver And Passenger Advanced Front Air Bags
2 — Knee Bolster
NOTE: These air bags are certified to the new Federal
regulations for Advanced Air Bags.
This vehicle is equipped with Supplemental Side Air Bag
Inflatable Curtains (SABIC) to protect the driver, front,
and rear passengers sitting next to a window. If the
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
59
vehicle is equipped with SABIC, they are located above • Air Bag Warning Light
the side windows. The trim covering the side air bags is
• Steering Wheel and Column
labeled SRS AIRBAG.
• Instrument Panel
This vehicle is equipped with Supplemental SeatMounted Side Air Bags (SAB) to provide enhanced • Knee Impact Bolster
protection for an occupant during a side impact. The
• Driver Advanced Front Air Bag
SABs are located in the outboard side of the front seats.
• Passenger Advanced Front Air Bag
NOTE:
• Air Bag covers may not be obvious in the interior trim, • Supplemental Seat-Mounted Side Air Bags (SAB)
but they will open during air bag deployment.
• Supplemental Side Air Bag Inflatable Curtains
• After any accident, the vehicle should be taken to an
(SABIC)
authorized dealer immediately.
• Front and Side Impact Sensors
Air Bag System Components
• Front Seat Belt Pretensioners, Seat Belt Buckle Switch,
Your vehicle may be equipped with the following air bag
and Seat Track Position Sensors
system components:
• Supplemental Active Head Restraint for Driver and
• Occupant Restraint Controller (ORC)
Front Passenger
I
nf
or
mat
i
onPr
ovi
dedby:
2
60
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Advanced Front Air Bag Features
The Advanced Front Air Bag system has multistage
driver and front passenger air bags. This system provides
output appropriate to the severity and type of collision as
determined by the Occupant Restraint Controller (ORC),
which may receive information from the front impact
sensors.
The first stage inflator is triggered immediately during an
impact that requires air bag deployment. This low output
is used in less severe collisions. A higher energy output is
used for more severe collisions.
WARNING!
• No objects should be placed over or near the air bag
on the instrument panel, because any such objects
could cause harm if the vehicle is in a collision
severe enough to cause the air bag to inflate.
• Do not put anything on or around the air bag
covers or attempt to open them manually. You may
damage the air bags and you could be injured
because the air bags may no longer be functional.
The protective covers for the air bag cushions are
designed to open only when the air bags are
inflating.
• Do not drill, cut or tamper with the knee bolster in
any way.
• Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizen band radios,
etc.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Supplemental Seat-Mounted Side Air Bags (SAB)
Supplemental Seat-Mounted Side Air Bags may provide
enhanced protection to help protect an occupant during a
side impact. The Supplemental Seat-Mounted Side Air
Bag is marked with an air bag label sewn into the
outboard side of the front seats.
61
When the air bag deploys, it opens the seam between the
front and side of the seat’s trim cover. Each air bag
deploys independently; a left side impact deploys the left
air bag only and a right-side impact deploys the right air
bag only.
Supplemental Seat-Mounted Side Air Bag Label
I
nf
or
mat
i
onPr
ovi
dedby:
2
62
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Supplemental Side Air Bag Inflatable Curtain
(SABIC)
SABIC air bags may offer side-impact protection to front
and rear seat outboard occupants in addition to that
provided by the body structure. Each air bag features
inflated chambers placed adjacent to the head of each
outboard occupant that reduce the potential for sideimpact head injuries. The SABIC air bags deploy downward, covering both windows on the impact side.
Side Air Bag Inflatable Curtains (SABIC) Location
NOTE:
• Air Bag covers may not be obvious in the interior trim;
but they will open during air bag deployment.
• Being too close to the SAB and SABIC air bags during
deployment could cause you to be severely injured or
killed.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
The system includes side impact sensors that are calibrated to deploy the side air bags during impacts that
require air bag occupant protection.
WARNING!
• If your vehicle is equipped with left and right
Supplemental Side Air Bag Inflatable Curtain
(SABIC), do not stack luggage or other cargo up
high enough to block the location of the SABIC.
The area where the SABIC is located should remain free from any obstructions.
• Do not use accessory seat covers or place objects
between you and the side air bags; the performance could be adversely affected and/or objects
could be pushed into you, causing serious injury.
63
WARNING! (Continued)
• If your vehicle is equipped with SABIC air bags,
do not have any accessory items installed which
will alter the roof, including adding a sunroof to
your vehicle. Do not add roof racks that require
permanent attachments (bolts or screws) for installation on the vehicle roof. Do not drill into the roof
of the vehicle for any reason.
Knee Impact Bolsters
The Knee Impact Bolsters help protect the knees of the
driver and the front passenger, and position front occupants for the best interaction with the Advanced Front
Air Bags.
(Continued)
I
nf
or
mat
i
onPr
ovi
dedby:
2
64
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Along with seat belts and pretensioners, Advanced Front
Air Bags work with the knee bolsters to provide improved protection for the driver and front passenger. Side
air bags also work with seat belts to improve occupant
protection.
Air Bag Deployment Sensors And Controls
Advanced Front Air Bags are designed to provide additional protection by supplementing the seat belts in
certain frontal collisions depending on the severity and
type of collision. Advanced Front Air Bags are not
expected to reduce the risk of injury in rear, side, or
rollover collisions.
The Advanced Front Air Bags will not deploy in all
Occupant Restraint Controller (ORC)
frontal collisions, including some that may produce subThe ORC is part of a Federally regulated safety system
stantial vehicle damage — for example, some pole collirequired for this vehicle.
sions, truck underrides, and angle offset collisions. On
The ORC determines if deployment of the front and/or the other hand, depending on the type and location of
side air bags in a frontal or side collision is required. impact, Advanced Front Air Bags may deploy in crashes
Based on the impact sensor’s signals, a central electronic with little vehicle front-end damage but that produce a
ORC deploys the Advanced Front Air Bags, SABIC air severe initial deceleration.
bags, Supplemental Seat-Mounted Side Air Bags, and
The side air bags will not deploy in all side collisions.
front seat belt pretensioners, as required, depending on
Side air bag deployment will depend on the severity and
the severity and type of impact.
type of collision.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
65
Also, the ORC turns on the Air Bag Warning
Light in the instrument panel for approximately four to eight seconds for a self-check
when the ignition is first turned on. After the
self-check, the Air Bag Warning Light will turn off. If the
Seat belts are necessary for your protection in all acciORC detects a malfunction in any part of the system, it
dents, and also are needed to help keep you in position,
turns on the Air Bag Warning Light, either momentarily
away from an inflating air bag.
or continuously. A single chime will sound if the light
The ORC monitors the readiness of the electronic parts of comes on again after initial startup.
the air bag system whenever the ignition switch is in the
It also includes diagnostics that will illuminate the instruSTART or ON/RUN position. If the key is in the OFF
ment cluster Air Bag Warning Light if a malfunction is
position, in the ACC position, or not in the ignition, the
noted that could affect the air bag system. The diagnosair bag system is not on and the air bags will not inflate.
tics also record the nature of the malfunction.
The ORC contains a backup power supply system that
may deploy the air bags even if the battery loses power or
it becomes disconnected prior to deployment.
Because air bag sensors measure vehicle deceleration
over time, vehicle speed and damage by themselves are
not good indicators of whether or not an air bag should
have deployed.
I
nf
or
mat
i
onPr
ovi
dedby:
2
66
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
Ignoring the Air Bag Warning Light in your instrument panel could mean you won’t have the air bags
to protect you in a collision. If the light does not come
on as a bulb check when the ignition is first turned
on, stays on after you start the vehicle, or if it comes
on as you drive, have an authorized dealer service the
air bag system immediately.
Driver And Passenger Advanced Front Air Bag
Inflator Units
The Driver and Passenger Advanced Front Air Bag
Inflator Units are located in the center of the steering
wheel and on the right side of the instrument panel.
When the ORC detects a collision requiring the Advanced Front Air Bags, it signals the inflator units. A large
quantity of non-toxic gas is generated to inflate the
Advanced Front Air Bags. Different air bag inflation rates
are possible, based on the collision type and severity. The
steering wheel hub trim cover and the upper right side of
the instrument panel separate and fold out of the way as
the air bags inflate to their full size. The air bags fully
inflate in about 50 to 70 milliseconds. This is about half of
the time it takes to blink your eyes. The air bags then
quickly deflate while helping to restrain the driver and
front passenger.
The Advanced Front Air Bag gas is vented through the
vent holes in the sides of the air bag. In this way, the air
bags do not interfere with your control of the vehicle.
Supplemental Seat-Mounted Side Air Bag (SAB)
Inflator Units
The Supplemental Seat-Mounted Side Air Bags (SAB) are
designed to activate only in certain side collisions.
The ORC determines if a side collision requires the side
air bags to inflate, based on the severity and type of
collision.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Based on the severity and type of collision, the side air
bag inflator on the crash side of the vehicle may be
triggered, releasing a quantity of non-toxic gas. The
inflating SAB exits through the seat seam into the space
between the occupant and the door. The SAB fully inflate
in about 10 milliseconds. The side air bag moves at a very
high speed and with such a high force that it could injure
you if you are not seated properly, or if items are
positioned in the area where the side air bag inflates. This
especially applies to children.
Supplemental Side Air Bag Inflatable Curtain
(SABIC) Inflator Units
During collisions where the impact is confined to a
particular area of the side of the vehicle, the ORC may
deploy the SABIC air bags, depending on the severity
and type of collision. In these events, the ORC will
deploy the SABIC only on the impact side of the vehicle.
67
A quantity of non-toxic gas is generated to inflate the side
curtain air bag. The inflating side curtain air bag pushes
the outside edge of the headliner out of the way and
covers the window. The air bag inflates in about 30
milliseconds (about one-quarter of the time that it takes
to blink your eyes) with enough force to injure you if you
are not belted and seated properly, or if items are
positioned in the area where the side curtain air bag
inflates. This especially applies to children. The side
curtain air bag is only about 3-1/2 in (9 cm) thick when
it is inflated.
Because air bag sensors estimate deceleration over time,
vehicle speed and damage are not good indicators of
whether or not an air bag should have deployed.
Front And Side Impact Sensors
In front and side impacts, impact sensors can aid the
ORC in determining appropriate response to impact
events.
I
nf
or
mat
i
onPr
ovi
dedby:
2
68
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Enhanced Accident Response System
In the event of an impact causing air bag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the following functions:
•
•
•
•
NOTE: Front and/or side air bags will not deploy in all
collisions. This does not mean something is wrong with
the air bag system.
If you do have a collision, which deploys the air bags, any
or all of the following may occur:
• The nylon air bag material may sometimes cause
abrasions and/or skin reddening to the driver and
Cut off fuel to the engine.
front passenger as the air bags deploy and unfold. The
Flash hazard lights as long as the battery has power or
abrasions are similar to friction rope burns or those
until the ignition key is turned off.
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
Turn on the interior lights, which remain on as long as
They are not permanent and normally heal quickly.
the battery has power or until the ignition key is
However, if you haven’t healed significantly within a
removed.
few days, or if you have any blistering, see your doctor
Unlock the doors automatically.
immediately.
If A Deployment Occurs
• As the air bags deflate, you may see some smoke-like
particles. The particles are a normal by-product of the
The front air bags are designed to deflate immediately
after deployment.
process that generates the non-toxic gas used for air
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
69
bag inflation. These airborne particles may irritate the Maintaining Your Air Bag System
skin, eyes, nose, or throat. If you have skin or eye
WARNING!
irritation, rinse the area with cool water. For nose or
throat irritation, move to fresh air. If the irritation
• Modifications to any part of the air bag system
continues, see your doctor. If these particles settle on
could cause it to fail when you need it. You could
your clothing, follow the garment manufacturer’s inbe injured if the air bag system is not there to
structions for cleaning.
protect you. Do not modify the components or
Do not drive your vehicle after the air bags have dewiring, including adding any kind of badges or
ployed. If you are involved in another collision, the air
stickers to the steering wheel hub trim cover or the
bags will not be in place to protect you.
upper right side of the instrument panel. Do not
modify the front bumper, vehicle body structure,
WARNING!
or add aftermarket side steps or running boards.
• It is dangerous to try to repair any part of the air
Deployed air bags and seat belt pretensioners cannot
bag system yourself. Be sure to tell anyone who
protect you in another collision. Have the air bags,
works on your vehicle that it has an air bag system.
seat belt pretensioners, and the front seat belt retrac(Continued)
tor assemblies replaced by an authorized dealer immediately. Also, have the Occupant Restraint Controller System serviced as well.
I
nf
or
mat
i
onPr
ovi
dedby:
2
70
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING! (Continued)
• Do not attempt to modify any part of your air bag
system. The air bag may inflate accidentally or
may not function properly if modifications are
made. Take your vehicle to an authorized dealer
for any air bag system service. If your seat including your trim cover and cushion needs to be
serviced in any way (including removal or
loosening/tightening of seat attachment bolts),
take the vehicle to your authorized dealer. Only
manufacturer approved seat accessories may be
used. If it is necessary to modify the air bag system
for persons with disabilities, contact your authorized dealer.
Air Bag Warning Light
You will want to have the air bags ready to
inflate for your protection in a collision. The
Air Bag Warning Light monitors the internal
circuits and interconnecting wiring associated
with air bag system electrical components. While the air
bag system is designed to be maintenance free. If any of
the following occurs, have an authorized dealer service
the air bag system immediately.
• The Air Bag Warning Light does not come on during
the four to eight seconds when the ignition switch is
first turned to the ON/RUN position.
• The Air Bag Warning Light remains on after the four to
eight-second interval.
• The Air Bag Warning Light comes on intermittently or
remains on while driving.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
NOTE: If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint
Controller (ORC) may also be disabled. The air bags may
not be ready to inflate for your protection. Promptly
check the fuse block for blown fuses. Refer to the label
located on the inside of the fuse block cover for the
proper air bag fuses. See your authorized dealer if the
fuse is good.
Event Data Recorder (EDR)
This vehicle is equipped with an event data recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to
vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle
is designed to record such data as:
• How various systems in your vehicle were operating;
71
• Whether or not the driver and passenger safety belts
were buckled/fastened;
• How far (if at all) the driver was depressing the
accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of
the circumstances in which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a
non-trivial crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a
crash investigation.
I
nf
or
mat
i
onPr
ovi
dedby:
2
72
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
To read data recorded by an EDR, special equipment is
required, and access to the vehicle or the EDR is needed.
In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information if they have access to the
vehicle or the EDR.
WARNING!
In a collision, an unrestrained child, even a tiny baby,
can become a projectile inside the vehicle. The force
required to hold even an infant on your lap could
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.
Child Restraints
Everyone in your vehicle needs to be buckled up all the
time, including babies and children. Every state in the
United States and all Canadian provinces require that
small children ride in proper restraint systems. This is the
There are different sizes and types of restraints for
law, and you can be prosecuted for ignoring it.
children from newborn size to the child almost large
Children 12 years or younger should ride properly enough for an adult safety belt. Always check the child
buckled up in a rear seat, if available. According to crash seat owner’s manual to ensure you have the correct seat
statistics, children are safer when properly restrained in for your child. Use the restraint that is correct for your
the rear seats, rather than in the front.
child.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Infants And Small Children
73
WARNING!
• Safety experts recommend that children ride
Rearward-facing child seats must never be used in
rearward-facing in the vehicle until they are at least
the front seat of a vehicle with a front passenger air
one year old and weigh at least 20 lbs (9 kg). Two types
bag. An air bag deployment could cause severe
of child restraints can be used rearward-facing: infant
injury or death to infants in this position.
carriers and convertible child seats. Both types of child
restraints are held in the vehicle by the lap/shoulder
Older Children And Child Restraints
belt or the LATCH child restraint anchorage system.
Children who weigh more than 20 lbs (9 kg) and who are
• The infant carrier is only used rearward-facing in the older than one year can ride forward-facing in the
vehicle. It is recommended for children who weigh up vehicle. Forward-facing child seats and convertible child
to about 20 lbs (9 kg). Convertible child seats can be seats used in the forward-facing direction are for children
used either rearward-facing or forward-facing in the who weigh 20 to 40 lbs (9 to 18 kg) and who are older
vehicle. Convertible child seats often have a higher than one year. These child seats are also held in the
weight limit in the rearward-facing direction than vehicle by the lap/shoulder belt or the LATCH child
infant carriers do, so they can be used rearward-facing restraint anchorage system. Refer to “Lower Anchors and
by children who weigh more than 20 lbs (9 kg) but are Tether for CHildren (LATCH)”.
less than one year old.
The belt-positioning booster seat is for children weighing
more than 40 lbs (18 kg), but who are still too small to fit
I
nf
or
mat
i
onPr
ovi
dedby:
2
74
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
the vehicle’s seat belts properly. If the child cannot sit Here are some tips on getting the most out of your
with knees bent over the vehicle’s cushion while the child restraints:
child’s back is against the seatback, then the child should
• Children who are large enough to wear the shoulder
use a belt-positioning booster seat. The child and booster
belt comfortably, and whose legs are long enough to
seat are held in the vehicle by the lap/shoulder belt.
bend over the front of the seat when their back is
against the seatback, should use the lap/shoulder belt
WARNING!
in a rear seat.
• Improper installation can lead to failure of an
• Before buying any restraint system, make sure that it
infant or child restraint. It could come loose in a
has a label certifying that it meets all applicable Safety
collision. The child could be badly injured or
Standards. Chrysler Group LLC also recommends that
killed. Follow the manufacturer’s directions exyou make sure that you can install the child restraint in
actly when installing an infant or child restraint.
the vehicle where you will use it, before you buy it.
• A rearward-facing child restraint should only be
used in a rear seat. A rearward-facing child re- • The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
straint in the front seat may be struck by a deployweight and height limits.
ing passenger air bag which may cause severe or
fatal injury to the infant.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
• Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
75
around, and insert the latch plate into the buckle
again. If you still can’t make the child restraint secure,
try a different seating position.
• All passenger seating positions contain automatic • Buckle the child into the seat according to the child
locking retractors. However, any seat belt system will
restraint manufacturer’s directions.
loosen with time, so check the belt occasionally and
WARNING!
pull it tight if necessary.
• In the rear seat, you may have trouble tightening the When your child restraint is not in use, secure it in
lap/shoulder belt on the child restraint because the the vehicle with the seat belt or remove it from the
buckle or latch plate is too close to the belt path vehicle. Do not leave it loose in the vehicle. In a
opening on the restraint. Disconnect the latch plate sudden stop or accident, it could strike the occupants
from the buckle and twist the short buckle end of the or seatbacks and cause serious personal injury.
belt several times to shorten it. Insert the latch plate
into the buckle with the release button facing out.
NOTE: For additional information, refer to
www.seatcheck.org or call 1–866–SEATCHECK. Cana• If the belt still can’t be tightened, or if pulling and
dian residents should refer to Transport Canada’s webpushing on the restraint loosens the belt, disconnect
site for additional information: http://www.tc.gc.ca/
the latch plate from the buckle, turn the latch plate
roadsafety/safedrivers/childsafety/index.htm
I
nf
or
mat
i
onPr
ovi
dedby:
2
76
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Lower Anchors and Tether for CHildren (LATCH)
Your vehicle is equipped with the child restraint anchorage system called LATCH, which stands for Lower
Anchors and Tether for CHildren. The LATCH system
provides for the installation of the child restraint without
using the vehicle seat belt. All rear seating positions have
lower anchorages that are capable of accommodating
LATCH-compatible child seats having flexible, webbingmounted lower attachments. Child seats with fixed lower
attachments must be installed in the outboard positions
only. Regardless of the specific type of lower attachment,
never install LATCH-compatible child seats such that
two seats share a common lower anchorage. If you are
installing LATCH-compatible child restraints in adjacent
rear seating positions, you can use the LATCH anchors or
the vehicle’s seat belt for the outboard position, but you
must use the vehicle’s seat belt at the center position. If
your child restraints are not LATCH-compatible, you can
only install the child restraints using the vehicle’s seat
belts. For typical installation instructions, refer to “Installing The LATCH-Compatible Child Restraint
System”.
Rear Seat LATCH Anchors
Child restraints systems having attachments designed to
connect to the lower anchorages are now available. Child
restraints having tether straps and hooks for connection
to the top tether anchorage, have been available for some
time. In fact, many child restraint manufacturers will
provide add-on tether strap kits for some of their older
products. Tether anchorage kits are also available for
most older vehicles.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
77
have tether straps, and you are urged to take advantage
of all of the available attachments provided with your
child restraint in any vehicle.
Rear Seat LATCH Anchors
Because the lower anchorages are to be introduced to
passenger carrying vehicles over a period of years, child
restraint systems having attachments for those anchorages will continue to have features for installation in
vehicles using the lap or lap/shoulder belt. They will also
NOTE: When using the LATCH attaching system to
install a child restraint, please ensure that all seat belts
not being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child
restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through the
child restraint belt path and then buckle it. This should
stow the seat belt out of the reach of an inquisitive child.
Remind all children in the vehicle that the seat belts are
not toys and should not be played with, and never leave
your child unattended in the vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
2
78
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
In addition, there are tether strap anchorages
Installing The LATCH-Compatible Child Restraint
behind each rear seating position located in the
System
We urge you to carefully follow the directions of the
panel between the rear seatback and the rear
manufacturer when installing your child restraint. Not all
window. These tether strap anchorages are
child restraint systems will be installed as described here. under a plastic cover with this symbol on it.
Again, carefully follow the installation instructions that
Many, but not all, restraint systems will be equipped with
were provided with the child restraint system.
separate straps on each side, with each having a hook or
The rear seat lower anchorages are round bars, connector for attachment to the lower anchorage and a
located at the rear of the seat cushion where it means of adjusting the tension in the strap. Forwardmeets the seatback, and are just visible when facing toddler restraints and some rear-facing infant
you lean into the rear seat to install the child restraints will also be equipped with a tether strap, a
restraint. You will easily feel them if you run your finger hook for attachment to the tether strap anchorage and a
along the intersection of the seatback and seat cushion means of adjusting the tension of the strap.
surfaces.
You will first loosen the child seat adjusters on the lower
straps and on the tether strap so that you can more easily
attach the hooks or connectors to the vehicle anchorages.
Next, attach the lower hooks or connectors over the top
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
of the seat cover material. Then, rotate the tether anchorage cover directly behind the seat where you are placing
the child restraint and attach the tether strap to the
anchorage, being careful to route the tether strap to
provide the most direct path between the anchor and the
child restraint. Finally, tighten all three straps as you
push the child restraint rearward and downward into the
seat, removing slack in the straps according to the child
restraint manufacturer’s instructions.
NOTE:
• Ensure that the tether strap does not slip into the
opening between the seatbacks as you remove slack in
the strap.
• When using the LATCH attaching system to install a
child restraint, please ensure that all seat belts not
being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
79
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child
restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through
the child restraint belt path and then buckle it. This
should stow the seat belt out of the reach of an
inquisitive child. Remind all children in the vehicle
that the seat belts are not toys and should not be
played with, and never leave your child unattended in
the vehicle.
WARNING!
Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.
I
nf
or
mat
i
onPr
ovi
dedby:
2
80
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
2. Route the tether strap to provide the most direct path
for the strap between the anchor and the child seat. If
1. Rotate the cover over the anchor directly behind the
your vehicle is equipped with adjustable rear head
seat where you are placing the child restraint.
restraints, raise the head restraint, and where possible,
route the tether strap under the head restraint and
between the two posts. If not possible, lower the head
restraint and pass the tether strap around the outboard
side of the head restraint.
Installing Child Restraint Tether Strap
3. Attach the tether strap hook (A) of the child restraint
to the anchor (B) and remove slack in the tether strap
according to the child restraint manufacturer’s
instructions.
Installing Child Restraint Tether Strap
1— Cover
3— Attaching Strap
A— Tether Strap Hook
B— Tether Anchor
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.
Installing Child Restraints Using The Vehicle Seat
Belts
The seat belts in the passenger seating positions are
equipped with an Automatic Locking Retractor to secure
a Child Restraint System (CRS). These types of seat belts
are designed to keep the lap portion of the seat belt tight
around the child restraint so that it is not necessary to use
a locking clip. The ALR will make a ratcheting noise if
you extract the entire belt from the retractor and then
allow the belt to retract into the retractor. For additional
information on ALR, refer to “Automatic Locking Mode”
81
description under “Seat Belts In Passenger Seating Positions” section. The chart below defines the seating positions with an Automatic Locking Retractor (ALR) or a
cinching latch plate.
First Row
Second Row
Driver
CRS Lock
N/A
ALR
Center
CRS Lock
N/A
ALR
Passenger
CRS Lock
ALR
ALR
• N/A — Not Applicable
• ALR — Automatic Locking Retractor
Installing a Child Restraint with an ALR:
1. To install a child restraint with ALR, first, pull enough
of the seat belt webbing from the retractor to route it
through the belt path of the child restraint. Slide the latch
plate into the buckle until you hear a “click.” Next,
extract all the seat belt webbing out of the retractor and
then allow the belt to retract into the retractor. As the belt
I
nf
or
mat
i
onPr
ovi
dedby:
2
82
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
retracts, you will hear a ratcheting sound. This indicates insert the latch plate into the buckle again. If you still
can’t make the child restraint secure, try a different
the safety belt is now in the Automatic Locking mode.
seating position.
2. Finally, pull on any excess webbing to tighten the lap
portion around the child restraint. Any seat belt system Children Too Large For Booster Seats
will loosen with time, so check the belt occasionally, and Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
pull it tight if necessary.
over the front of the seat when their back is against the
In the rear seat, you may have trouble tightening the
seatback, should use the lap/shoulder belt in a rear seat.
lap/shoulder belt on the child restraint because the
Make sure that:
buckle or latch plate is too close to the belt path opening
on the restraint. Disconnect the latch plate from the • The child is upright in the seat.
buckle and twist the short buckle-end belt several times
• The lap portion should be low on the hips and as snug
to shorten it. Insert the latch plate into the buckle with the
as possible.
release button facing out.
• Check belt fit periodically. A child’s squirming or
If the belt still can’t be tightened, or if pulling and
slouching can move the belt out of position.
pushing on the restraint loosens the belt, disconnect the
latch plate from the buckle, turn the buckle around, and
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
• If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.
83
While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detrimental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. For
the recommended viscosity and quality grades, refer to
“Maintenance Procedures” in “Maintaining Your VePets should be restrained in the rear seat in pet harnesses
hicle”. NON-DETERGENT OR STRAIGHT MINERAL
or pet carriers that are secured by seat belts.
OILS MUST NEVER BE USED.
Transporting Pets
Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
an accident.
ENGINE BREAK-IN RECOMMENDATIONS
A new engine may consume some oil during its first few
A long break-in period is not required for the engine and thousand miles (kilometers) of operation. This should be
drivetrain (transmission and axle) in your vehicle.
considered a normal part of the break-in and not interDrive moderately during the first 300 miles (500 km). preted as an indication of difficulty.
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
I
nf
or
mat
i
onPr
ovi
dedby:
2
84
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
SAFETY TIPS
Exhaust Gas
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
• It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.
If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.
I
nf
or
mat
i
onPr
ovi
dedby:
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
85
If you are required to drive with the trunk/liftgate open, Safety Checks You Should Make Inside The
make sure that all windows are closed and the climate Vehicle
control BLOWER switch is set at high speed. DO NOT
Seat Belts
use the recirculation mode.
Inspect the belt system periodically, checking for cuts,
The best protection against carbon monoxide entry into frays, and loose parts. Damaged parts must be replaced
the vehicle body is a properly maintained engine exhaust immediately. Do not disassemble or modify the system.
system.
Front seat belt assemblies must be replaced after a
Whenever a change is noticed in the sound of the exhaust collision. Rear seat belt assemblies must be replaced after
system, when exhaust fumes can be detected inside the a collision if they have been damaged (i.e., bent retractor,
vehicle, or when the underside or rear of the vehicle is torn webbing, etc.). If there is any question regarding belt
damaged, have a competent mechanic inspect the com- or retractor condition, replace the belt.
plete exhaust system and adjacent body areas for broken,
Airbag Warning Light
damaged, deteriorated, or mispositioned parts. Open
The light should come on and remain on for four to eight
seams or loose connections could permit exhaust fumes
seconds as a bulb check when the ignition switch is first
to seep into the passenger compartment. In addition,
turned ON. If the light is not lit during starting, see your
inspect the exhaust system each time the vehicle is raised
authorized dealer. If the light stays on, flickers, or comes
for lubrication or oil change. Replace as required.
on while driving, have the system checked by an authorized dealer.
I
nf
or
mat
i
onPr
ovi
dedby:
2
86
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious personal injury.
WARNING! (Continued)
• Always make sure that floor mats are properly
attached to the floor mat fasteners.
• Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and interfering with the pedals or the ability to control the
vehicle.
• Never put floor mats or other floor coverings on
top of already installed floor mats. Additional
floor mats and other coverings will reduce the size
of the pedal area and interfere with the pedals.
• Check mounting of mats on a regular basis. Always properly reinstall and secure floor mats that
have been removed for cleaning.
(Continued)
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
WARNING! (Continued)
• Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Objects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
87
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
I
nf
or
mat
i
onPr
ovi
dedby:
2
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
䡵 Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 䡵 Uconnect™ Phone — If Equipped . . . . . . . . . . . 97
▫ Inside Day/Night Mirror . . . . . . . . . . . . . . . . 93
▫ Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 99
▫ Automatic Dimming Mirror — If Equipped . . . 94
▫ Phone Call Features . . . . . . . . . . . . . . . . . . 107
▫ Power Mirrors . . . . . . . . . . . . . . . . . . . . . . . 95
▫ Uconnect™ Phone Features . . . . . . . . . . . . . 110
▫ Adjusting Sideview Mirrors . . . . . . . . . . . . . . 96
▫ Advanced Phone Connectivity . . . . . . . . . . . 114
▫ Exterior Mirrors Folding Feature . . . . . . . . . . 96
▫ Things You Should Know About Your
Uconnect™ Phone . . . . . . . . . . . . . . . . . . . . 116
▫ Heated Mirrors — If Equipped . . . . . . . . . . . . 96
▫ Illuminated Vanity Mirrors — If Equipped . . . 96
▫ General Information . . . . . . . . . . . . . . . . . . 127
I
nf
or
mat
i
onPr
ovi
dedby:
3
90
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
䡵 Voice Command — If Equipped . . . . . . . . . . . 127
▫ Fold-Flat Passenger Seatback . . . . . . . . . . . . 142
▫ Voice Command System Operation . . . . . . . . 127
▫ Folding Rear Seat . . . . . . . . . . . . . . . . . . . . 143
▫ Commands . . . . . . . . . . . . . . . . . . . . . . . . 128
▫ Folding Rear Seat Center Armrest . . . . . . . . 144
▫ Voice Training . . . . . . . . . . . . . . . . . . . . . . 132 䡵 To Open And Close The Hood . . . . . . . . . . . . 145
䡵 Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 䡵 Lights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
▫ Power Seats — If Equipped . . . . . . . . . . . . . 132
▫ Multifunction Lever . . . . . . . . . . . . . . . . . . 146
▫ Heated Seats — If Equipped . . . . . . . . . . . . 134
▫ Headlights And Parking Lights . . . . . . . . . . 147
▫ Manual Front Seat Adjustment . . . . . . . . . . . 136
▫ Automatic Headlights — If Equipped . . . . . . 148
▫ Driver Seat Manual Height Adjuster —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . 136
▫ Headlight Time Delay . . . . . . . . . . . . . . . . . 148
▫ Reclining Seats . . . . . . . . . . . . . . . . . . . . . . 137
▫ Lumbar Support — If Equipped . . . . . . . . . . 138
▫ Head Restraints . . . . . . . . . . . . . . . . . . . . . 138
▫ Turn Signals . . . . . . . . . . . . . . . . . . . . . . . . 148
▫ Lane Change Assist . . . . . . . . . . . . . . . . . . . 149
▫ High/Low Beam Switch . . . . . . . . . . . . . . . 149
▫ Flash-To-Pass . . . . . . . . . . . . . . . . . . . . . . . 149
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
91
▫ Fog Lights — If Equipped . . . . . . . . . . . . . . 150
▫ To Set A Desired Speed . . . . . . . . . . . . . . . . 159
▫ Daytime Running Lights — If Equipped . . . . 150
▫ To Deactivate . . . . . . . . . . . . . . . . . . . . . . . 159
▫ Lights On Reminder . . . . . . . . . . . . . . . . . . 150
▫ To Resume Speed . . . . . . . . . . . . . . . . . . . . 159
▫ Instrument Panel Dimmer . . . . . . . . . . . . . . 151
▫ To Vary The Speed Setting . . . . . . . . . . . . . . 159
▫ Map/Reading/Interior Lights . . . . . . . . . . . 151
▫ To Accelerate For Passing . . . . . . . . . . . . . . 160
䡵 Windshield Wipers And Washers . . . . . . . . . . 152
䡵 Garage Door Opener — If Equipped . . . . . . . . 160
▫ Intermittent Wiper System . . . . . . . . . . . . . . 154
▫ Programming HomeLink威 . . . . . . . . . . . . . . 162
▫ Windshield Washers . . . . . . . . . . . . . . . . . . 155
▫ Gate Operator/Canadian Programming . . . . 164
▫ Mist Feature . . . . . . . . . . . . . . . . . . . . . . . . 156
▫ Using HomeLink威 . . . . . . . . . . . . . . . . . . . 165
▫ Headlights With Wipers Feature (Available
With Automatic Headlights Only) . . . . . . . . . 156
▫ Reprogramming A Single
HomeLink威 Button . . . . . . . . . . . . . . . . . . . 165
䡵 Tilt/Telescoping Steering Column . . . . . . . . . . 156
▫ Security . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
䡵 Electronic Speed Control — If Equipped . . . . . 157
▫ Troubleshooting Tips . . . . . . . . . . . . . . . . . . 166
▫ To Activate . . . . . . . . . . . . . . . . . . . . . . . . . 158
▫ General Information . . . . . . . . . . . . . . . . . . 166
I
nf
or
mat
i
onPr
ovi
dedby:
3
92
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
䡵 Power Sunroof — If Equipped . . . . . . . . . . . . 167 䡵 Cigar Lighter And Ash Receiver —
If Equipped . . . . . . . . . . . . . . . . .
▫ Opening Sunroof — Express . . . . . . . . . . . . 168
䡵 Cupholders . . . . . . . . . . . . . . . . .
▫ Opening Sunroof — Manual Mode . . . . . . . . 168
▫ Front Seat Cupholders . . . . . . . .
▫ Closing Sunroof — Express . . . . . . . . . . . . . 168
▫ Rear Cupholders . . . . . . . . . . . .
▫ Closing Sunroof — Manual Mode . . . . . . . . 168
䡵 Storage . . . . . . . . . . . . . . . . . . . .
▫ Pinch Protect Feature . . . . . . . . . . . . . . . . . 168
▫ Glovebox Storage Compartment .
▫ Venting Sunroof — Express . . . . . . . . . . . . . 169
䡵 Console Features . . . . . . . . . . . . .
▫ Sunshade Operation . . . . . . . . . . . . . . . . . . 169
▫ Dual Storage Bins . . . . . . . . . . .
▫ Wind Buffeting . . . . . . . . . . . . . . . . . . . . . . 169
䡵 Cargo Area Features . . . . . . . . . .
▫ Sunroof Maintenance . . . . . . . . . . . . . . . . . 169
▫ Ski Pass-Through . . . . . . . . . . .
▫ Ignition Off Operation . . . . . . . . . . . . . . . . . 170
䡵 Rear Window Features . . . . . . . . .
䡵 Electrical Power Outlets . . . . . . . . . . . . . . . . . 170
▫ Rear Window Defroster . . . . . . .
I
nf
or
mat
i
onPr
ovi
dedby:
. . . . . . . . . 174
. . . . . . . . . 174
. . . . . . . . . 174
. . . . . . . . . 174
. . . . . . . . . 176
. . . . . . . . . 176
. . . . . . . . . 176
. . . . . . . . . 177
. . . . . . . . . 178
. . . . . . . . . 180
. . . . . . . . . 181
. . . . . . . . . 181
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
93
MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
3
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
I
nf
or
mat
i
onPr
ovi
dedby:
94
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
Automatic Dimming Mirror
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
95
Power Mirrors
The power mirror controls are located on the driver’s
door trim panel.
3
Mirror Directions
When you are finished adjusting the mirror, turn the
control to the center position to prevent accidentally
moving a mirror.
Power Mirror Switch
To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move.
I
nf
or
mat
i
onPr
ovi
dedby:
96
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Adjusting Sideview Mirrors
Exterior Mirrors Folding Feature
All exterior mirrors are hinged and may be moved either
Outside Mirror — Driver Side
forward or rearward to resist damage. The hinges have
Adjust the outside mirror to center on the adjacent lane of
three detent positions: full forward, full rearward and
traffic, with a slight overlap of the view obtained on the
normal.
inside mirror.
Heated Mirrors — If Equipped
Outside Mirror — Passenger Side
Adjust the convex outside mirror so you can just see the These mirrors are heated to melt frost or ice. This feature
side of your vehicle in the part of the mirror closest to the is activated whenever you turn on the rear window
defroster. Refer to “Rear Window Features” in “Undervehicle.
standing the Features of Your Vehicle” for further
information.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other objects. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side mirror.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, lower the sun visor and rotate the mirror
cover upward. The lights will turn on automatically.
Closing the mirror cover turns off the lights.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
97
mobile phone’s audio is transmitted through your vehicle’s audio system; the system will automatically mute
your radio when using the Uconnect™ Phone.
NOTE: The Uconnect™ Phone requires a mobile phone
equipped with the Bluetooth威 “Hands-Free Profile”, Version 0.96 or higher. See the Uconnect™ website for
supported phones.
For Uconnect™ customer support, visit the following
websites:
• www.chrysler.com/uconnect
Illuminated Vanity Mirror
• www.dodge.com/uconnect
Uconnect™ Phone — IF EQUIPPED
• www.jeep.com/uconnect
Uconnect™ Phone is a voice-activated, hands-free, invehicle communications system. Uconnect™ Phone al- • or call 1–877–855–8400
lows you to dial a phone number with your mobile
phone using simple voice commands (e.g., “Call” ѧ
“Mike” ѧ “Work” or “Dial” ѧ “248-555-1212”). Your
I
nf
or
mat
i
onPr
ovi
dedby:
3
98
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
The Uconnect™ Phone is driven through your
Bluetooth威 “Hands-Free Profile” mobile phone.
Uconnect™ features Bluetooth威 technology - the global
standard that enables different electronic devices to connect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to seven mobile phones to be linked to the
system. Only one linked (or paired) mobile phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in a
collision causing serious injury or death.
Uconnect™ Phone Button
The radio or steering wheel controls (if
equipped) will contain the two control buttons
button and Voice
(Uconnect™ Phone
Command
button) that will enable you
to access the system. When you press the button you will
hear the word Uconnect™ followed by a BEEP. The beep
is your signal to give a command.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
99
Voice Command Button
Actual button location may vary with the radio. The individual buttons are described in the
“Operation” section.
Operation
Voice commands can be used to operate the Uconnect™
Phone and to navigate through the Uconnect™ Phone
menu structure. Voice commands are required after most
Uconnect™ Phone prompts. You will be prompted for a
The Uconnect™ Phone can be used with any Hands-Free specific command and then guided through the available
Profile certified Bluetooth威 mobile phone. See the options.
Uconnect™ website for supported phones. Refer to your
• Prior to giving a voice command, one must wait for
mobile service provider or the phone manufacturer for
the beep, which follows the “Ready” prompt or andetails.
other prompt.
The Uconnect™ Phone is fully integrated with the vehi• For certain operations, compound commands can be
cle’s audio system. The volume of the Uconnect™ Phone
used. For example, instead of saying “Setup” and then
can be adjusted either from the radio volume control
“Pair a Device”, the following compound command
knob or from the steering wheel radio control (right
can be said: “Pair a Bluetooth威 Device”.
switch), if so equipped.
• For each feature explanation in this section, only the
The radio display will be used for visual prompts from
compound form of the voice command is given. You
the Uconnect™ Phone such as “CELL” or caller ID on
can also break the commands into parts and say each
certain radios.
part of the command when you are asked for it. For
I
nf
or
mat
i
onPr
ovi
dedby:
3
100
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
example, you can use the compound form voice
command “Phonebook New Entry”, or you can break
the compound form command into two voice commands: “Phonebook” and “New Entry”. Please remember, the Uconnect™ Phone works best when you
talk in a normal conversational tone, as if speaking to
someone sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say “Help” following
the beep. The Uconnect™ Phone will play some of the
options at any prompt if you ask for help.
Cancel Command
At any prompt, after the beep, you can say “Cancel” and
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) Uconnect™ Phone To A Mobile Phone
To begin using your Uconnect™ Phone, you must pair
your compatible Bluetooth威 enabled mobile phone.
To complete the pairing process, you will need to reference your mobile phone Owner’s Manual. The
Uconnect™ website may also provide detailed instructions for pairing.
The following are general phone to Uconnect™ Phone
pairing instructions:
To activate the Uconnect™ Phone, simply press the
• Press the
button to begin.
button and follow the audible prompts for directions.
Uconnect™ Phone sessions begin with a press of the
• After the “Ready” prompt and the following beep, say
“Device Pairing”.
button on the radio control head.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
• When prompted, after the beep, say “Pair a Device”
and follow the audible prompts.
• You will be asked to say a four-digit Personal Identification Number (PIN), which you will later need to
enter into your mobile phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
101
phone to use if multiple mobile phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
Uconnect™ Phone will use the priority three mobile
phone when you make a call. You can select to use a
lower priority mobile phone at any time (refer to
“Advanced Phone Connectivity” in this section).
Dial By Saying A Number
• For identification purposes, you will be prompted to
give the Uconnect™ Phone a name for your mobile • Press the
button to begin.
phone. Each mobile phone that is paired should be
• After the “Ready” prompt and the following beep, say
given a unique phone name.
“Dial”.
• You will then be asked to give your mobile phone a
• The system will prompt you to say the number you
priority level between one and seven, with one being
want to call.
the highest priority. You can pair up to seven mobile
phones to your Uconnect™ Phone. However, at any • For example, you can say “234-567-8901”.
given time, only one mobile phone can be in use,
connected to your Uconnect™ System. The priority
allows the Uconnect™ Phone to know which mobile
I
nf
or
mat
i
onPr
ovi
dedby:
3
102
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
• The Uconnect™ Phone will confirm the phone number • The Uconnect™ system will confirm the name and
and then dial. The number will appear in the display
then dial the corresponding phone number, which
of certain radios.
may appear in the display of certain radios.
Call By Saying A Name
Add Names To Your Uconnect™ Phonebook
• Press the
NOTE: Adding names to the Uconnect™ Phonebook is
recommended when the vehicle is not in motion.
button to begin.
• After the “Ready” prompt and the following beep, say
• Press the
“Call”.
button to begin.
• The system will prompt you to say the name of the • After the “Ready” prompt and the following beep, say
person you want to call.
“Phonebook New Entry”.
• After the “Ready” prompt and the following beep, say • When prompted, say the name of the new entry. Use of
the name of the person you want to call. For example,
long names helps the Voice Command and it is recomyou can say “John Doe”, where John Doe is a previmended. For example, say “Robert Smith” or “Robert”
ously stored name entry in the Uconnect™ phonebook
instead of “Bob”.
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to “Add Names to Your
Uconnect™ Phonebook”, in the phonebook.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
103
• When prompted, enter the number designation (e.g.,
“Home”, “Work”, “Mobile”, or “Other”). This will
allow you to store multiple numbers for each phonebook entry, if desired.
Phonebook Download – Automatic Phonebook
Transfer From Mobile Phone
If equipped and specifically supported by your phone,
Uconnect™ Phone automatically downloads names (text
names) and number entries from your mobile phone’s
• When prompted, recite the phone number for the
phonebook. Specific Bluetooth威 Phones with Phone Book
phonebook entry that you are adding.
Access Profile may support this feature. See Uconnect™
After you are finished adding an entry into the phone- website for supported phones.
book, you will be given the opportunity to add more
• To call a name from the Uconnect™ Phonebook or
phone numbers to the current entry or to return to the
downloaded Phonebook, follow the procedure in
main menu.
“Call by Saying a Name” section.
The Uconnect™ Phone will allow you to enter up to 32
• Automatic download and update, if supported, begins
names in the phonebook with each name having up to
as soon as the Bluetooth威 wireless phone connection is
four associated phone numbers and designations. Each
made to the Uconnect™ Phone, for example, after you
language has a separate 32-name phonebook accessible
start the vehicle.
only in that language. In addition, if equipped and
supported by your phone, Uconnect™ Phone automati- • A maximum of 1000 entries per phone will be downloaded and updated every time a phone is connected
cally downloads your mobile phone’s phonebook.
to the Uconnect™ Phone.
I
nf
or
mat
i
onPr
ovi
dedby:
3
104
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
• Depending on the maximum number of entries down- Edit Uconnect™ Phonebook Entries
loaded, there may be a short delay before the latest
NOTE:
downloaded names can be used. Until then, if avail• Editing names in the phonebook is recommended
able, the previously downloaded phonebook is availwhen the vehicle is not in motion.
able for use.
• Automatic downloaded phonebook entries cannot be
• Only the phonebook of the currently connected mobile
deleted or edited.
phone is accessible.
• Press the
button to begin.
• Only the mobile phone’s phonebook is downloaded.
SIM card phonebook is not part of the Mobile phone- • After the “Ready” prompt and the following beep, say
book.
“Phonebook Edit Entry”.
• This downloaded phonebook cannot be edited or • You will then be asked for the name of the phonebook
deleted on the Uconnect™ Phone. These can only be
entry that you wish to edit.
edited on the mobile phone. The changes are trans• Next, choose the number designation (home, work,
ferred and updated to Uconnect™ Phone on the next
mobile, or other) that you wish to edit.
phone connection.
• When prompted, recite the new phone number for the
phonebook entry that you are editing.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
105
After you are finished editing an entry in the phonebook, • After you enter the Phonebook Delete menu, you will
you will be given the opportunity to edit another entry in
then be asked for the name of the entry that you wish
the phonebook, call the number you just edited, or return
to delete. You can either say the name of a phonebook
to the main menu.
entry that you wish to delete or you can say “List
Names” to hear a list of the entries in the phonebook
“Phonebook Edit Entry” can be used to add another
from which you choose. To select one of the entries
phone number to a name entry that already exists in the
button while the
from the list, press the
phonebook. For example, the entry John Doe may have a
Uconnect™ Phone is playing the desired entry and say
mobile and a home number, but you can add “John
“Delete”.
Doe’s” work number later using the “Phonebook Edit
Entry” feature.
• After you enter the name, the Uconnect™ Phone will
ask you which designation you wish to delete: home,
Delete Uconnect™ Phonebook Entry
work, mobile, other, or all. Say the designation you
NOTE: Editing phonebook entries is recommended
wish to delete.
when the vehicle is not in motion.
• Note that only the phonebook entry in the current
• Press the
button to begin.
language is deleted.
• After the “Ready” prompt and the following beep, say • Automatic downloaded phonebook entries cannot be
“Phonebook Delete”.
deleted or edited.
I
nf
or
mat
i
onPr
ovi
dedby:
3
106
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Delete/Erase “All” Uconnect™ Phonebook Entries
List All Names In The Uconnect™ Phonebook
• Press the
• Press the
button to begin.
button to begin.
• After the “Ready” prompt and the following beep, say • After the “Ready” prompt and the following beep, say
“Phonebook Erase All”.
“Phonebook List Names”.
• The Uconnect™ Phone will ask you to verify that you • The Uconnect™ Phone will play the names of all the
wish to delete all the entries from the phonebook.
phonebook entries, including the downloaded phonebook entries, if available.
• After confirmation, the phonebook entries will be
• To call one of the names in the list, press the
deleted.
button during the playing of the desired name, and
• Note that only the phonebook in the current language
say “Call”.
is deleted.
• Automatic downloaded phonebook entries cannot be NOTE: The user can also exercise “Edit” or “Delete”
operations at this point.
deleted or edited.
• The Uconnect™ Phone will then prompt you as to the
number designation you wish to call.
• The selected number will be dialed.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Phone Call Features
The following features can be accessed through the
Uconnect™ Phone if the feature(s) are available on your
mobile service plan. For example, if your mobile service
plan provides three-way calling, this feature can be
accessed through the Uconnect™ Phone. Check with
your mobile service provider for the features that you
have.
107
Answer Or Reject An Incoming Call —
Call Currently In Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
button to place the current
mobile phone. Press the
call on hold and answer the incoming call.
NOTE: The Uconnect™ Phone compatible phones in the
Answer Or Reject An Incoming Call —
market today do not support rejecting an incoming call
No Call Currently In Progress
when another call is in progress. Therefore, the user can
When you receive a call on your mobile phone, the only answer an incoming call or ignore it.
Uconnect™ Phone will interrupt the vehicle audio system, if on, and will ask if you would like to answer the
button to accept the call. To reject the
call. Press the
button until you hear a
call, press and hold the
single beep, indicating that the incoming call was
rejected.
I
nf
or
mat
i
onPr
ovi
dedby:
3
108
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Making A Second Call While Current Call Is In
Progress
To make a second call while you are currently on a call,
press the
button and say “Dial” or “Call” followed
by the phone number or phonebook entry you wish to
call. The first call will be on hold while the second call is
in progress. To go back to the first call, refer to “Toggling
Between Calls” in this section. To combine two calls, refer
to “Conference Call” in this section.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
button until you hear a single beep, indicatpress the
ing that the active and hold status of the two calls have
switched. Only one call can be placed on hold at a time.
Conference Call
When two calls are in progress (one active and one on
button until you hear a
hold), press and hold the
double beep indicating that the two calls have been
joined into one conference call.
Place/Retrieve A Call From Hold
To put a call on hold, press the
button until you hear
Three-Way Calling
a single beep. This indicates that the call is on hold. To
To initiate three-way calling, press the
button
bring the call back from hold, press and hold the
while a call is in progress, and make a second phone call,
button until you hear a single beep.
as described under “Making a Second Call While Current
Call is in Progress”. After the second call has established,
button until you hear a double
press and hold the
beep, indicating that the two calls have been joined into
one conference call.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Call Termination
To end a call in progress, momentarily press the
button. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active call.
If the active call is terminated by the phone far end, a call
on hold may not become active automatically. This is cell
phone-dependent. To bring the call back from hold, press
button until you hear a single beep.
and hold the
Redial
• Press the
button to begin.
109
Call Continuation
Call continuation is the progression of a phone call on the
Uconnect™ Phone after the vehicle ignition key has been
switched to OFF. Call continuation functionality available on the vehicle can be any one of three types:
• After the ignition key is switched to OFF, a call can
continue on the Uconnect™ Phone either until the call
ends, or until the vehicle battery condition dictates
cessation of the call on the Uconnect™ Phone and
transfer of the call to the mobile phone.
• After the ignition key is switched to OFF, a call can
continue on the Uconnect™ Phone for a certain duration, after which the call is automatically transferred
from the Uconnect™ Phone to the mobile phone.
• The Uconnect™ Phone will call the last number that
was dialed from your mobile phone.
• An active call is automatically transferred to the
mobile phone after the ignition key is switched to OFF.
NOTE: This may not be the last number dialed from the
• After the “Ready” prompt and the following beep, say
“Redial”.
Uconnect™ Phone.
I
nf
or
mat
i
onPr
ovi
dedby:
3
110
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Uconnect™ Phone Features
Emergency Assistance
If you are in an emergency and the mobile phone is
reachable:
Language Selection
To change the language that the Uconnect™ Phone is
using:
• Pick up the phone and manually dial the emergency
number for your area.
• Press the
button to begin.
If the phone is not reachable and the Uconnect™ Phone is
• After the “Ready” prompt and the following beep, say
operational, you may reach the emergency number as
the name of the language you wish to switch to
follows:
English, Espanol, or Francais.
• Press the
button to begin.
• Continue to follow the system prompts to complete
• After the “Ready” prompt and the following beep, say
the language selection.
“Emergency” and the Uconnect™ Phone will instruct
After selecting one of the languages, all prompts and
the paired mobile phone to call the emergency numvoice commands will be in that language.
ber. This feature is supported in the U.S., Canada, and
Mexico.
NOTE: After every Uconnect™ Phone language change
operation, only the language-specific 32-name phoneNOTE:
book is usable. The paired phone name is not language• The emergency number dialed is based on the country
specific and is usable across all languages.
where the vehicle is purchased (911 for the U.S. and
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
111
Canada and 060 for Mexico). The number dialed may Towing Assistance
not be applicable with the available mobile service and If you need towing assistance:
area.
• Press the
button to begin.
• If supported, this number may be programmable on
• After the “Ready” prompt and the following beep, say
button and
some systems. To do this, press the
“Towing Assistance”.
say “Setup”, followed by “Emergency”.
NOTE:
• The Uconnect™ Phone does slightly lower your
• The towing assistance number dialed is based on the
chances of successfully making a phone call as to that
country where the vehicle is purchased (1-800-528for the mobile phone directly.
2069 for the U.S., 1-877-213-4525 for Canada, 55-143454 for Mexico City and 1-800-712-3040 for outside
WARNING!
Mexico City in Mexico). Please refer to the 24-Hour
“Towing Assistance” coverage details on the DVD in
To use your Uconnect™ Phone System in an emerthe Warranty Information Booklet and the 24-Hour
gency, your mobile phone must be:
Towing Assistance references.
• turned on,
• paired to the Uconnect™ System,
• If supported, this number may be programmable on
• and have network coverage.
button and
some systems. To do this, press the
say “Setup”, followed by “Towing Assistance”.
I
nf
or
mat
i
onPr
ovi
dedby:
3
112
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
When calling a number with your Uconnect™ Phone that
normally requires you to enter in a touch-tone sequence
on your mobile phone keypad, you can press the
button and say the sequence you wish to enter, followed
by the word “Send”. For example, if required to enter
your PIN followed with a pound, (3 7 4 6 #), you can
Voice Mail Calling
button and say, “3 7 4 6 # Send”. Saying
To learn how to access your voice mail, refer to “Working press the
a
number,
or
sequence
of numbers, followed by “Send”,
with Automated Systems”.
is also to be used for navigating through an automated
Working With Automated Systems
customer service center menu structure, and to leave a
This method is used in instances where one generally has number on a pager.
to press numbers on the mobile phone keypad while
You can also send stored Uconnect™ phonebook entries
navigating through an automated telephone system.
as tones for fast and easy access to voice mail and pager
You can use your Uconnect™ Phone to access a voice entries. To use this feature, dial the number you wish to
mail system or an automated service, such as a paging call and then press the
button and say, “Send.” The
service or automated customer service line. Some ser- system will prompt you to enter the name or number and
vices require immediate response selection. In some say the name of the phonebook entry you wish to send.
instances, that may be too quick for use of the
Uconnect™ Phone.
Paging
To learn how to page, refer to “Working with Automated
Systems”. Paging works properly except for pagers of
certain companies, which time out a little too soon to
work properly with the Uconnect™ Phone.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
113
The Uconnect™ Phone will then send the corresponding Turning Confirmation Prompts ON/OFF
phone number associated with the phonebook entry, as Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the Uconnect™
tones over the phone.
Phone will not repeat a phone number before you dial it).
NOTE:
• You may not hear all of the tones due to mobile phone • Press the
button to begin.
network configurations. This is normal.
• After the “Ready” prompt and the following beep, say
• Some paging and voice mail systems have system time
one of the following:
out settings that are too short and may not allow the
− “Setup Confirmation Prompts On”
use of this feature.
− “Setup Confirmation Prompts Off”
Barge In — Overriding Prompts
The “Voice Command” button can be used when you Phone And Network Status Indicators
wish to skip part of a prompt and issue your voice If available on the radio and/or on a premium display
command immediately. For example, if a prompt is such as the instrument panel cluster, and supported by
asking “Would you like to pair a phone, clear a...,” you your mobile phone, the Uconnect™ Phone will provide
button and say, “Pair a Phone” to notification to inform you of your phone and network
could press the
select that option without having to listen to the rest of status when you are attempting to make a phone call
the voice prompt.
using Uconnect™ Phone. The status is given for network
signal strength, phone battery strength, etc.
I
nf
or
mat
i
onPr
ovi
dedby:
3
114
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Dialing Using The Mobile Phone Keypad
You can dial a phone number with your mobile phone
keypad and still use the Uconnect™ Phone (while dialing
via the mobile phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetooth威 mobile
phone, the audio will be played through your vehicle’s
audio system. The Uconnect™ Phone will work the same
as if you dial the number using Voice Command.
NOTE: Certain brands of mobile phones do not send the
dial ring to the Uconnect™ Phone to play it on the vehicle
audio system, so you will not hear it. Under this situation, after successfully dialing a number the user may feel
that the call did not go through even though the call is in
progress. Once your call is answered, you will hear the
audio.
Mute/Un-Mute (Mute OFF)
When you mute the Uconnect™ Phone, you will still be
able to hear the conversation coming from the other
party, but the other party will not be able to hear you. In
order to mute the Uconnect™ Phone:
• Press the
button.
• Following the beep, say “Mute”.
In order to un-mute the Uconnect™ Phone:
• Press the
button.
• Following the beep, say “Mute off”.
Advanced Phone Connectivity
Transfer Call To And From Mobile Phone
The Uconnect™ Phone allows ongoing calls to be transferred from your mobile phone to the Uconnect™ Phone
without terminating the call. To transfer an ongoing call
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
115
from your Uconnect™ Phone paired mobile phone to the • When prompted, say “List Phones”.
button
Uconnect™ Phone or vice versa, press the
• The Uconnect™ Phone will play the phone names of
and say “Transfer Call”.
all paired mobile phones in order from the highest to
the lowest priority. To “Select” or “Delete” a paired
Connect Or Disconnect Link Between The
button and
phone being announced, press the
Uconnect™ Phone And Mobile Phone
Your mobile phone can be paired with many different
say “Select” or “Delete”. Also, see the next two secelectronic devices, but can only be actively “connected”
tions for an alternate way to “Select” or “Delete” a
with one electronic device at a time.
paired phone.
If you would like to connect or disconnect the Bluetooth威 Select Another Mobile Phone
connection between your mobile phone and the This feature allows you to select and start using another
Uconnect™ Phone System, follow the instructions de- phone paired with the Uconnect™ Phone.
scribed in your mobile phone User’s Manual.
• Press the
button to begin.
List Paired Mobile Phone Names
• After the “Ready” prompt and the following beep, say
button to begin.
• Press the
“Setup Select Phone” and follow the prompts.
• After the “Ready” prompt and the following beep, say • You can also press the
button at any time while
“Setup Phone Pairing”.
the list is being played, and then choose the phone that
you wish to select.
I
nf
or
mat
i
onPr
ovi
dedby:
3
116
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
• The selected phone will be used for the next phone
call. If the selected phone is not available, the
Uconnect™ Phone will return to using the highest
priority phone present in or near (approximately
within 30 ft (9 m)) the vehicle.
Things You Should Know About Your Uconnect™
Phone
Uconnect™ Phone Tutorial
To hear a brief tutorial of the system features, press the
button and say “Uconnect™ Tutorial.”
Delete Uconnect™ Phone Paired Mobile Phones
Voice Training
For users experiencing difficulty with the system recognizing their voice commands or numbers, the Uconnect™
• After the “Ready” prompt and the following beep, say
Phone Voice Training feature may be used. To enter this
“Setup Phone Pairing”.
training mode, follow one of the two following proce• At the next prompt, say “Delete” and follow the dures:
prompts.
From outside the Uconnect™ Phone mode (e.g., from
• You can also press the
button at any time while radio mode):
the list is being played, and then choose the phone you • Press and hold the
button for five seconds until
wish to delete.
the session begins, or,
• Press the
button to begin.
• Press the
button and say the “Voice Training,
System Training, or Start Voice Training” command.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
117
You can either press the Uconnect™ Phone button to Voice Command
restore the factory setting or repeat the words and
• For best performance, adjust the rearview mirror to
phrases when prompted by the Uconnect™ Phone. For
provide at least 1⁄2 in (1 cm) gap between the overhead
best results, the Voice Training session should be comconsole (if equipped) and the mirror.
pleted when the vehicle is parked with the engine
running, all windows closed, and the blower fan • Always wait for the beep before speaking.
switched off.
• Speak normally, without pausing, just as you would
speak to a person sitting a few feet/meters away from
This procedure may be repeated with a new user. The
you.
system will adapt to the last trained voice only.
• Make sure that no one other than you is speaking
during a Voice Command period.
Reset
• press the
button.
• After the “Ready” prompt, and the following beep, say
“Setup”, then “Reset”.
This will delete all phone pairing, phone book entries,
and other settings in all language modes. The System will
prompt you before resetting to factory settings.
• Performance is maximized under:
• low-to-medium blower setting,
• low-to-medium vehicle speed,
• low road noise,
• smooth road surface,
I
nf
or
mat
i
onPr
ovi
dedby:
3
118
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
• fully closed windows,
• dry weather condition.
• Numbers must be spoken in single digits. “800” must
be spoken “eight-zero-zero” not “eight hundred”.
• You can say “O” (letter “O”) for “0” (zero).
• Even though the system is designed for users speaking
in North American English, French, and Spanish ac- • Even though international dialing for most number
combinations is supported, some shortcut dialing
cents, the system may not always work for some.
number combinations may not be supported.
• When navigating through an automated system such
as voice mail, or when sending a page, at the end of • In a convertible vehicle, system performance may be
compromised with the convertible top down.
speaking the digit string, make sure to say “Send”.
• Storing names in the phonebook when the vehicle is Far End Audio Performance
not in motion is recommended.
• Audio quality is maximized under:
• It is not recommended to store similar sounding
• low-to-medium blower setting,
names in the Uconnect™ Phonebook.
• low-to-medium vehicle speed,
• Phonebook (Downloaded and Uconnect™ Phone Lo• low road noise,
cal) name recognition rate is optimized when the
entries are not similar.
• smooth road surface,
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
• fully closed windows,
• dry weather conditions, and
• operation from the driver’s seat.
119
SMS
Uconnect™ Phone can read or send new messages on
your phone.
Read Messages:
• Performance, such as audio clarity, echo, and loudness If you receive a new text message while your phone is
to a large degree rely on the phone and network, and connected to Uconnect™ Phone, an announcement will
not the Uconnect™ Phone.
be made to notify you that you have a new text message.
If you wish to hear the new message:
• Echo at the phone far end can sometimes be reduced
by lowering the in-vehicle audio volume.
• Press the
button.
• In a convertible vehicle, system performance may be • After the “Ready” prompt and the following beep, say
compromised with the convertible top down.
“SMS Read” or “Read Messages.”
Recent Calls
• Uconnect™ Phone will play the new text message for
If your phone supports “Automatic Phonebook Downyou.
load”, Uconnect™ Phone can list your Outgoing, IncomAfter reading a message, you can “Reply” or “Forward”
ing and Missed Calls.
the message using Uconnect™ Phone.
I
nf
or
mat
i
onPr
ovi
dedby:
3
120
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
3. Where are you?
Send Messages:
You can send messages using Uconnect™ Phone. To send
4. I need more direction.
a new message:
5. L O L
• Press the
button.
6. Why
• After the “Ready” prompt and the following beep, say
7. I love you
“SMS Send” or “Send Message.”
• You can either say the message you wish to send or say 8. Call me
“List Messages.” There are 20 preset messages.
9. Call me later
button while the 10. Thanks
To send a message, press the
system is listing the message and say “Send.”
11. See You in 15 minutes
Uconnect™ Phone will prompt you to say the name or
number of the person you wish to send the message to. 12. I am on my way
List of Preset Messages:
13. I’ll be late
1. Yes
14. Are you there yet?
2. No
15. Where are we meeting?
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
16. Can this wait?
Bluetooth威 Communication Link
Mobile phones have been found to lose connection to the
Uconnect™ Phone. When this happens, the connection
can generally be reestablished by switching the phone
off/on. Your mobile phone is recommended to remain in
Bluetooth威 ON mode.
17. Bye for now
18. When can we meet
19. Send number to call
20. Start without me
Turn SMS Incoming Announcement ON/OFF
Turning the SMS Incoming Announcement OFF will stop
the system from announcing the new incoming messages.
• Press the
121
Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least fifteen seconds prior to using the
system.
button.
• After the “Ready” prompt and the following beep, say
“Setup, SMS Incoming Message Announcement,” you
will then be given a choice to change it.
I
nf
or
mat
i
onPr
ovi
dedby:
3
122
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
123
3
I
nf
or
mat
i
onPr
ovi
dedby:
124
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Primary
zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
add location
all
Voice Commands
Alternate(s)
125
Voice Commands
Alternate(s)
Primary
call
cancel
confirmation prompts
continue
delete
dial
download
edit
emergency
English
erase all
Espanol
Francais
help
home
I
nf
or
mat
i
onPr
ovi
dedby:
3
126
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Primary
language
list names
list phones
mobile
mute
mute off
new entry
no
other
pair a phone
phone pairing
phonebook
previous
record again
redial
Voice Commands
Alternate(s)
pairing
phone book
Voice Commands
Primary
Alternate(s)
return to main menu
return or main menu
select phone
select
send
set up
phone settings or phone
set up
towing assistance
transfer call
Uconnect™ Tutorial
try again
voice training
work
yes
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
• Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired
operation.
VOICE COMMAND — IF EQUIPPED
Voice Command System Operation
This Voice Command system allows you to
control your AM, FM radio, satellite radio, disc
player, and a memo recorder.
127
NOTE: Take care to speak into the Voice Interface
System as calmly and normally as possible. The ability of
the Voice Interface System to recognize user voice commands may be negatively affected by rapid speaking or a
raised voice level.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws. All
attention should be kept on the roadway ahead.
Failure to do so may result in a collision causing
serious injury or death.
button, you
When you press the Voice Command
will hear a beep. The beep is your signal to give a
command.
NOTE: If you do not say a command within a few
seconds, the system will present you with a list of options.
I
nf
or
mat
i
onPr
ovi
dedby:
3
128
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
If you ever wish to interrupt the system while it lists The system will best recognize your speech if the winbutton, listen dows are closed, and the heater/air conditioning fan is
options, press the Voice Command
set to low.
for the beep, and say your command.
button while the
Pressing the Voice Command
system is speaking is known as “barging in.” The system
will be interrupted, and after the beep, you can add or
change commands. This will become helpful once you
start to learn the options.
At any point, if the system does not recognize one of your
commands, you will be prompted to repeat it.
To hear the first available Menu, press the Voice
button and say “Help” or “Main
Command
Menu”.
NOTE: At any time, you can say the words “Cancel”, Commands
“Help” or “Main Menu”.
The Voice Command system understands two types of
These commands are universal and can be used from any commands. Universal commands are available at all
menu. All other commands can be used depending upon times. Local commands are available if the supported
radio mode is active.
the active application.
When using this system, you should speak clearly and at Changing the Volume
a normal speaking volume.
1. Start a dialogue by pressing the Voice Command
button.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
129
2. Say a command (e.g., “Help”).
Radio AM
To switch to the AM band, say “AM” or “Radio AM”. In
3. Use the ON/OFF VOLUME rotary knob to adjust the
this mode, you may say the following commands:
volume to a comfortable level while the Voice Command
system is speaking. Please note the volume setting for • “Frequency #” (to change the frequency)
Voice Command is different than the audio system.
• “Next Station” (to select the next station)
Main Menu
• “Previous Station” (to select the previous station)
Start a dialogue by pressing the Voice Command
button. You may say “Main Menu” to switch to the main • “Radio Menu” (to switch to the radio menu)
menu.
• “Main Menu” (to switch to the main menu)
In this mode, you can say the following commands:
• “Radio” (to switch to the radio mode)
• “Disc” (to switch to the disc mode)
• “Memo” (to switch to the memo recorder)
• “Setup” (to switch to system setup)
Radio FM
To switch to the FM band, say “FM” or “Radio FM”. In
this mode, you may say the following commands:
• “Frequency #” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous station)
I
nf
or
mat
i
onPr
ovi
dedby:
3
130
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
• “Menu Radio” (to switch to the radio menu)
Disc
To switch to the disc mode, say “Disc”. In this mode, you
may say the following commands:
• “Main Menu” (to switch to the main menu)
Satellite Radio
• “Track” (#) (to change the track)
To switch to satellite radio mode, say “Sat” or “Satellite
Radio”. In this mode, you may say the following com- • “Next Track” (to play the next track)
mands:
• “Previous Track” (to play the previous track)
• “Channel Number” (to change the channel by its
• “Main Menu” (to switch to the main menu)
spoken number)
Memo
• “Next Channel” (to select the next channel)
To switch to the voice recorder mode, say “Memo”. In
• “Previous Channel” (to select the previous channel)
this mode, you may say the following commands:
• “List Channel” (to hear a list of available channels)
• “Select Name” (to say the name of a channel)
• “Menu Radio” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)
• “New Memo” (to record a new memo) — During the
recording, you may press the Voice Command
button to stop recording. You proceed by saying one of
the following commands:
− “Save” (to save the memo)
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
− “Continue” (to continue recording)
• “Switch to system setup”
− “Delete” (to delete the recording)
• “Change to setup”
131
• “Play Memos” (to play previously recorded memos) • “Main menu setup” or
— During the playback you may press the Voice
• “Switch to setup”
button to stop playing memos. You
Command
In this mode, you may say the following commands:
proceed by saying one of the following commands:
− “Repeat” (to repeat a memo)
• “Language English”
− “Next” (to play the next memo)
• “Language French”
− “Previous” (to play the previous memo)
• “Language Spanish”
− “Delete” (to delete a memo)
• “Tutorial”
• “Delete All” (to delete all memos)
• “Voice Training”
NOTE: Keep in mind that you have to press the Voice
Setup
button first and wait for the beep
To switch to system setup, you may say on of the Command
following:
before speaking the “Barge In” commands.
• “Change to setup”
I
nf
or
mat
i
onPr
ovi
dedby:
3
132
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Voice Training
For users experiencing difficulty with the system recognizing their voice commands or numbers the Uconnect™
Voice “Voice Training” feature may be used.
button, say “System
1. Press the Voice Command
Setup” and once you are in that menu then say “Voice
Training.” This will train your own voice to the system
and will improve recognition.
WARNING!
• It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
2. Repeat the words and phrases when prompted by
Uconnect™ Voice. For best results, the “Voice Training”
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new Power Seats — If Equipped
user. The system will adapt to the last trained voice only. The power seat switches are on the outboard side of the
seat near the floor. Use the bottom switch to move the
SEATS
seat up, down, forward, rearward, or to tilt the seat. The
Seats are a part of the Occupant Restraint System of the top switch controls the seatback recliner.
vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
133
Adjusting The Seat Up Or Down
The height of the seats can be adjusted up or down. Pull
upward or push downward on the rear of the seat switch,
the seat will move in the direction of the switch. Release
the switch when the desired position is reached.
Tilting The Seat Up Or Down
The angle of the seat cushion can be adjusted in four
directions. Pull upward or push downward on the front
or rear of the seat switch, the front or rear of the seat
cushion will move in the direction of the switch. Release
the switch when the desired position is reached.
Power Seat Switches
Adjusting The Seat Forward Or Rearward
The seat can be adjusted both forward and rearward.
Push the seat switch forward or rearward, the seat will
move in the direction of the switch. Release the switch
when the desired position is reached.
Reclining The Seatback
The angle of the seatback can be adjusted forward or
backward. Push the seatback switch forward or rearward, the seat will move in the direction of the switch.
Release the switch when the desired position is reached.
I
nf
or
mat
i
onPr
ovi
dedby:
3
134
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
WARNING!
CAUTION!
• Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt, which could result in serious injury or death.
Do not place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.
Heated Seats — If Equipped
There are two heated seat switches that allow the driver
and passenger to operate the seats independently. The
controls for each heater are located on the center of the
instrument panel (above the climate controls).
You can choose from HIGH, LOW or OFF heat settings.
Amber indicator lights in each switch indicate the level of
heat in use. Two indicator lights will illuminate for
HIGH, one for LOW and none for OFF.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Press the switch once to select HIGH-level
heating. Press the switch a second time to select
LOW-level heating. Press the switch a third
time to shut the heating elements OFF.
NOTE: Once a heat setting is selected, heat will be felt
within two to five minutes.
When the HIGH-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the
normal HIGH-level. If the HIGH-level setting is selected,
the system will automatically switch to LOW-level after a
maximum of 60 minutes of continuous operation. At that
time, the number of illuminated LEDs changes from two
to one, indicating the change. The LOW-level setting will
turn OFF automatically after a maximum of 45 minutes.
135
WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
• Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. Sitting in a
seat that has been overheated could cause serious
burns due to the increased surface temperature of
the seat.
I
nf
or
mat
i
onPr
ovi
dedby:
3
136
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Pull the bar upward to move the seat forward or rearManual Front Seat Adjustment
The manual seat adjustment bar is at the front of the seat, ward. Release the bar once the seat is in the position
near the floor.
desired. Then, using body pressure, move forward and
rearward on the seat to be sure that the seat adjusters
have latched.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
the seat only while the vehicle is parked.
Manual Seat Adjusting Bar
Driver Seat Manual Height Adjuster —
If Equipped
A lever style height adjustment feature enhances comfort
for petite as well as tall drivers. A lever with a ratcheting
mechanism, located on the outboard side of the seat,
raises and lowers it. Total travel is 2.2 in (56 mm).
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
137
3
Manual Seat Height Adjustment Lever
Seatback Adjustment
Reclining Seats
The recliner control is located on the side of the seat. To
recline, lean forward slightly before lifting the lever, then
lean back to the desired position and release the lever.
Lean forward and lift the lever to return the seatback to
its normal position.
I
nf
or
mat
i
onPr
ovi
dedby:
138
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
WARNING!
• Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Lumbar Support — If Equipped
This feature allows you to increase or decrease the
amount of lumbar support. The control lever is located
on the outboard side of the driver’s seatback. Turn the
control lever downward to increase and upward to
decrease the desired amount of lumbar support.
Lumbar Support
Head Restraints
Head restraints are designed to reduce the risk of injury
by restricting head movement in the event of a rear
impact. Head restraints should be adjusted so that the top
of the head restraint is located above the top of your ear.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
WARNING!
The head restraints for all occupants must be properly adjusted prior to operating the vehicle or occupying a seat. Head restraints should never be adjusted while the vehicle is in motion. Driving a
vehicle with the head restraints improperly adjusted
or removed could cause serious injury or death in the
event of a collision.
139
identified by any markings, only through visual inspection of the head restraint. The head restraint will be split
in two halves, with the front half being soft foam and
trim, the back half being decorative plastic.
When AHRs deploy during a rear impact, the front half
of the head restraint extends forward to minimize the gap
between the back of the occupant’s head and the AHR.
This system is designed to help prevent or reduce the
extent of injuries to the driver and front passenger in
certain types of rear impacts. Refer to “Occupant ReActive Head Restraints — Front Seats
straints” in “Things To Know Before Starting Your VeActive Head Restraints are passive, deployable compohicle” for further information.
nents, and vehicles with this equipment cannot be readily
I
nf
or
mat
i
onPr
ovi
dedby:
3
140
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint, and push
downward on the head restraint.
For comfort the Active Head Restraints can be tilted
forward and rearward. To tilt the head restraint closer to
the back of your head, pull forward on the bottom of the
head restraint. Push rearward on the bottom of the head
restraint to move the head restraint away from your
head.
Push Button
Active Head Restraint (Normal Position)
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
141
• In the event of deployment of an Active Head Restraint, refer to “Occupant Restraints/Resetting Active
Head Restraints (AHR)” in “Things to Know Before
Starting Your Vehicle” for further information.
WARNING!
3
• Do not place items over the top of the Active Head
Restraint, such as coats, seat covers or portable
DVD players. These items may interfere with the
operation of the Active Head Restraint in the event
of a collision and could result in serious injury or
death.
Active Head Restraint (Tilted)
NOTE:
• The head restraints should only be removed by qualified technicians, for service purposes only. If either of
the head restraints require removal, see your authorized dealer.
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
142
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
WARNING! (Continued)
• Active Head Restraints may be deployed if they
are struck by an object such as a hand, foot or loose
cargo. To avoid accidental deployment of the Active Head Restraint ensure that all cargo is secured, as loose cargo could contact the Active Head
Restraint during sudden stops. Failure to follow
this warning could cause personal injury if the
Active Head Restraint is deployed.
Fold-Flat Passenger Seatback
The recline handle on the front passenger seat also
releases the seatback to fold forward.
Head Restraints — Rear Seats
The rear seat head restraints are fixed and cannot be
adjusted. For proper routing of a Child Seat Tether refer
to “Occupant Restraints” in “Things to Know Before
Starting Your Vehicle” for further information.
I
nf
or
mat
i
onPr
ovi
dedby:
Seatback Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
143
The hard seatback features a work surface and a molded When returning the rear seatback to the upright position,
be sure the seatback is latched.
rim for retaining items stored on the seatback panel.
3
Fold-Flat Front Passenger Seat
Folding Rear Seats
Folding Rear Seat
To provide additional storage area, the rear seatback can
be folded forward. Pull on the loops shown in the picture
to fold down either or both seatbacks.
I
nf
or
mat
i
onPr
ovi
dedby:
144
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
WARNING!
The rear cargo area of the vehicle (with the rear
seatbacks in the locked-up or folded down position)
should not be used as a play area by children. They
could be seriously injured in a collision. Children
should be seated and using the proper restraint
system.
Folding Rear Seat Center Armrest
The rear seat is equipped with a folding armrest with
cupholders.
Folding Rear Seat Armrest
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
145
2. Then lift the secondary latch located under the front
edge of the hood, near the center and raise the hood.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located under the left side
of the instrument panel.
3
Hood Safety Catch
Hood Release Lever
I
nf
or
mat
i
onPr
ovi
dedby:
146
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Use the hood prop rod to secure the hood in the open
position. Place the upper end of the prop rod in the hole
on the left underside of the hood.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the center of
the hood to ensure that both latches engage.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
Hood Prop Rod Hole Location
LIGHTS
NOTE: Before closing the hood, make sure to stow the Multifunction Lever
The multifunction lever controls the operation of the
prop rod in its proper location.
parking lights, headlights, headlight beam selection,
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
147
passing light, fog lights, instrument panel light dimming Headlights And Parking Lights
and turn signals. The multifunction lever is located on Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
the left side of the steering column.
headlight operation.
3
Multifunction Lever
Headlight Switch
I
nf
or
mat
i
onPr
ovi
dedby:
148
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
With the engine running and the multifunction lever in
Automatic Headlights — If Equipped
Turning the end of the multifunction lever to the third the AUTO position, the headlights will turn on and turn
detent (AUTO), will activate the automatic headlight off based on the surrounding light levels.
system.
Headlight Time Delay
There is also a feature that delays turning off the vehicle
lights for 30, 60 or 90 seconds after the ignition switch is
turned OFF. To activate the headlight delay, the multifunction lever must be rotated to the off position after the
ignition switch is turned OFF. Only the headlights will
illuminate during this time. Refer to “Electronic Vehicle
Information Center (EVIC)/Customer-Programmable
Features” in “Understanding Your Instrument Panel” for
further information.
Headlight Switch
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
149
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you, to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
Turn Signal Control
will turn on the high beam headlights until the lever is
NOTE: If either light remains on and does not flash, or released.
there is a very fast flash rate, check for a defective outside
NOTE: If the multifunction lever is held in the flash-tolight bulb. If an indicator fails to light when the lever is
pass position for more than 15 seconds, the high beams
moved, it would suggest that the indicator bulb is
will shut off. If this occurs, wait 30 seconds for the next
defective.
flash-to-pass operation.
I
nf
or
mat
i
onPr
ovi
dedby:
3
150
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Fog Lights — If Equipped
The front fog light switch is on the multifunction
lever. To activate the front fog lights, turn on the
parking lights or the low beam headlights and pull
out the end of the multifunction lever.
NOTE: The front fog lights will only operate with the
headlights on low beam. Selecting high beam headlights
will turn off the front fog lights.
Daytime Running Lights — If Equipped
The high beam headlights will turn on as Daytime
Running Lights (DRL) and operate at lower intensity
whenever the ignition is ON, the engine is running, the
headlight switch is off, the parking brake is released and
the shift lever is in any position except PARK.
NOTE: The Daytime Running Lights will turn off
automatically when a turn signal is in operation and turn
on again when the turn signal is not operating.
Front Fog Light Control
Lights On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
151
Instrument Panel Dimmer
Rotate the center portion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
3
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the parking lights or headlights are on.
Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Dimmer Control
Rotate the center portion of the lever upward to the last
Map/Reading/Interior Lights
detent to turn on the interior lighting.
These lights are mounted between the sun visors above
the rearview mirror. Each light can be turned on by
pressing the barrel. Press the barrel a second time to turn
the light off. Both of these lights can swivel so that the
light can be aimed at a specific spot, if desired. The lights
I
nf
or
mat
i
onPr
ovi
dedby:
152
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
will remain on until the switch is pressed a second time,
so be sure they have been turned off before leaving the
vehicle. They will not turn off automatically. Interior
lighting also comes on when a door is opened or the
dimmer control is turned fully upward, past the second
detent.
There is a second light located midway back in the
headliner.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open. To restore interior light operation,
either turn the ignition switch ON or cycle the light
switch.
WINDSHIELD WIPERS AND WASHERS
The wipers and washers are operated by a switch
on the control lever. The lever is located on the
right side of the steering column.
Interior Dome Lamp
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
153
3
Windshield Wiper/Washer Lever
Changing Wiper Speeds
Rotate the end of the lever to the LO position for NOTE: The wipers will automatically return to the park
low-speed wiper operation, or to the HI position for position if you turn the ignition switch OFF while they
high-speed wiper operation.
are operating. The wipers will resume operation when
you turn the ignition switch to the ON position again.
I
nf
or
mat
i
onPr
ovi
dedby:
154
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CAUTION!
• Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than off.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
interval. There are five delay settings, which allow you to
regulate the wipe interval from a minimum of one cycle
every second to a maximum of approximately 18 seconds
between cycles.
Intermittent Wiper System
Use the intermittent wiper system when weather conditions make a single wiping cycle with a variable pause
between cycles desirable. Rotate the end of the windshield wiper/washer control lever to the first detent, and
then turn the end of the lever to select the desired delay
I
nf
or
mat
i
onPr
ovi
dedby:
Changing Intermittent Settings
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
155
NOTE: The wiper delay times depend on vehicle speed. If you activate the washer while the wiper control is in
If the vehicle is moving less than 10 mph (16 km/h), the off position, the wipers will operate for two wipe
cycles and then turn off.
delay times will be doubled.
Windshield Washers
To use the washer, pull the windshield wiper/washer
control lever toward you and hold it for as long as
washer spray is desired.
If you activate the washer while the wiper control is in
the delay range, the wipers will operate in low-speed for
two wipe cycles after releasing the lever and then resume
the intermittent interval previously selected.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during windshield washer use.
I
nf
or
mat
i
onPr
ovi
dedby:
3
156
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Mist Feature
Push down on the wiper control lever to activate a single
wipe to clear the windshield of road mist or spray from
a passing vehicle. As long as the lever is held down, the
wipers will continue to operate.
Headlights With Wipers Feature
(Available With Automatic Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the multifunction lever (on the left side of the steering
column) is placed in the AUTO position. In addition, the
headlights will turn off when the wipers are turned off if
they were turned on by this feature.
The headlights with wipers feature can be turned on or
off through the Electronic Vehicle Information Center
(EVIC) — if equipped. Refer to “Electronic Vehicle Information Center (EVIC)/Personal Settings (CustomerProgrammable Features)” in “Understanding Your Instrument Panel” for further information.
Mist Control
TILT/TELESCOPING STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. It also allows you to lengthen or
shorten the steering column. The tilt/telescoping lever is
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
157
located below the steering wheel at the end of the outward or push it inward as desired. To lock the steering
steering column.
column in position, pull the lever upward until fully
engaged.
WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driving with the steering column unlocked, could cause
the driver to lose control of the vehicle. Be sure the
steering column is locked before driving your vehicle. Failure to follow this warning may result in
serious injury or death.
ELECTRONIC SPEED CONTROL — IF EQUIPPED
To unlock the steering column, push the lever down- When engaged, the Electronic Speed Control takes over
ward. To tilt the steering column, move the steering accelerator operations at speeds greater than 25 mph
wheel upward or downward as desired. To lengthen or (40 km/h).
shorten the steering column, pull the steering wheel
Tilt/Telescoping Lever
I
nf
or
mat
i
onPr
ovi
dedby:
3
158
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
The Electronic Speed Control buttons are located on the the same time. If this occurs, the Electronic Speed Control
right side of the steering wheel.
System can be reactivated by pushing the Electronic
Speed Control ON/OFF button and resetting the desired
vehicle set speed.
To Activate
Push the ON/OFF button. The Cruise Indicator Light in
the instrument cluster will illuminate. To turn the system
off, push the ON/OFF button a second time. The Cruise
Indicator Light will turn off. The system should be
turned off when not in use.
WARNING!
1 — ON/OFF
4 — CANCEL
2 — RES +
3 — SET -
NOTE: In order to ensure proper operation, the Electronic Speed Control System has been designed to shut
down if multiple Speed Control functions are operated at
Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidentally
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the system OFF when you are not using it.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
To Set A Desired Speed
Turn the Electronic Speed Control ON. When the vehicle
has reached the desired speed, press the SET (-) button
and release. Release the accelerator and the vehicle will
operate at the selected speed.
159
To Vary The Speed Setting
When the Electronic Speed Control is set, you can increase speed by pushing the RES (+) button. If the button
is continually pressed, the set speed will continue to
increase until the button is released, then the new set
speed will be established.
NOTE: The vehicle should be traveling at a steady speed
and on level ground before pressing the SET button.
Pressing the RES (+) button once will result in a 1 mph
(2 km/h) increase in set speed. Each subsequent tap of
To Deactivate
the button results in an increase of 1 mph (2 km/h).
A soft tap on the brake pedal, pushing the CANCEL
button, or normal brake pressure while slowing the To decrease speed while the Electronic Speed Control is
vehicle will deactivate Electronic Speed Control without set, push the SET (-) button. If the button is continually
erasing the set speed memory. Pressing the ON/OFF held in the SET (-) position, the set speed will continue to
button or turning the ignition switch OFF erases the set decrease until the button is released. Release the button
speed memory.
when the desired speed is reached, and the new set speed
will be established.
To Resume Speed
To resume a previously set speed, push the RES (+) Pressing the SET (-) button once will result in a 1 mph
button and release. Resume can be used at any speed (2 km/h) decrease in set speed. Each subsequent tap of
above 20 mph (32 km/h).
the button results in a decrease of 1 mph (2 km/h).
I
nf
or
mat
i
onPr
ovi
dedby:
3
160
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
To Accelerate For Passing
Press the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.
Using Electronic Speed Control On Hills
The transmission may downshift on hills to maintain the
vehicle set speed.
WARNING!
Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your vehicle could go too fast for the conditions, and you
could lose control and have an accident. Do not use
Electronic Speed Control in heavy traffic or on roads
that are winding, icy, snow-covered or slippery.
NOTE: The Electronic Speed Control system maintains
speed up and down hills. A slight speed change on
moderate hills is normal.
GARAGE DOOR OPENER — IF EQUIPPED
On steep hills, a greater speed loss or gain may occur so HomeLink威 replaces up to three remote controls (handit may be preferable to drive without Electronic Speed held transmitters) that operate devices such as garage
door openers, motorized gates, lighting or home security
Control.
systems. The HomeLink威 unit operates off your vehicle’s
battery.
The HomeLink威 buttons that are located in the headliner
or sun visor designate the three different HomeLink威
channels.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
161
WARNING!
HomeLink威 Buttons
NOTE: HomeLink威 is disabled when the Vehicle Security Alarm is active.
• Your motorized door or gate will open and close
while you are training the universal transceiver.
Do not train the transceiver if people, pets or other
objects are in the path of the door or gate. Only use
this transceiver with a garage door opener that has
a “stop and reverse” feature as required by Federal
safety standards. This includes most garage door
opener models manufactured after 1982. Do not
use a garage door opener without these safety
features. Call toll-free 1–800–355–3515 or, on the
Internet at www.HomeLink.com for safety information or assistance.
• Vehicle exhaust contains carbon monoxide, a dangerous gas. Do not run your vehicle in the garage
while training the transceiver. Exhaust gas can
cause serious injury or death.
I
nf
or
mat
i
onPr
ovi
dedby:
3
162
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Programming HomeLink姞
Place the handheld transmitter 1 to 3 in (3 to 8 cm) away
from the HomeLink威 button you wish to program while
keeping the indicator light in view.
Before You Begin
If you have not trained any of the HomeLink威 buttons,
erase all channels before you begin training.
3. Simultaneously press and hold both the chosen
HomeLink威 button and the handheld transmitter button
To do this, press and hold the two outside buttons for up
until the HomeLink威 indicator changes from a slow to a
to 20 seconds until the red indicator flashes.
rapidly blinking light, then release both the HomeLink威
It is recommended that a new battery be placed in the and handheld transmitter buttons.
handheld transmitter of the device that is being copied to
Watch for the HomeLink威 indicator to change flash rates.
HomeLink威 for more efficient training and accurate
When it changes, it is programmed. It may take up to
transmission of the radio-frequency signal.
30 seconds or longer in rare cases. The garage door may
Your vehicle should be parked outside of the garage open and close while you train.
when programming.
NOTE:
• Some gate operators and garage door openers may
1. Turn the ignition switch to the ON/RUN position.
require you to replace Step 3 with procedures noted in
2. Hold the battery side of the handheld transmitter
the “Gate Operator/Canadian Programming” section.
away from the HomeLink威 button you wish to program.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
• After training a HomeLink威 channel, if the garage
door does not operate with HomeLink威 and the garage door opener was manufactured after 1995, the
garage door opener may have a rolling code. If so,
proceed to Step 5 “Programming A Rolling Code
System.”
This can usually be found where the hanging antenna
wire is attached to the garage door opener motor. It is
NOT the button normally used to open and close the
door.
3
4. Press and hold the just-trained HomeLink威 button
and observe the indicator light.
If the indicator light stays on constantly, programming is
complete and the garage door (or device) should activate
when the HomeLink威 button is pressed.
If the indicator light blinks rapidly for two seconds and
then turns to a constant light, proceed to “Programming
A Rolling Code System.”
5. Programming A Rolling Code
At the garage door opener motor (in the garage), locate
the “Learn” or “Training” button.
163
Training The Garage Door Opener
1 — Door Opener
2 — Training Button
I
nf
or
mat
i
onPr
ovi
dedby:
164
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
6. Firmly press and release the LEARN or TRAINING Gate Operator/Canadian Programming
button. The name and color of the button may vary by Canadian radio frequency laws require transmitter signals to time-out (or quit) after several seconds of transmanufacturer.
mission – which may not be long enough for HomeLink威
NOTE: You have 30 seconds in which to initiate the next
to pick up the signal during programming. Similar to this
step after the LEARN button has been pressed.
Canadian law, some U.S. gate operators are designed to
7. Return to the vehicle and press the programmed time-out in the same manner.
HomeLink威 button twice (holding the button for two It may be helpful to unplug the device during the cycling
seconds each time). If the device is plugged in and process to prevent possible overheating of the garage
activates, programming is complete.
door or gate motor.
If the device does not activate, press the button a third If you are having difficulties programming a garage door
time (for two seconds) to complete the training.
opener or a gate operator, replace “Programming
HomeLink威” Step 3, with the following:
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at 3. Continue to press and hold the HomeLink威 button,
while you press and release (“cycle”), your handheld
www.HomeLink.com for information or assistance.
transmitter every two seconds until HomeLink威 has
To program the remaining two HomeLink威 buttons, successfully accepted the frequency signal. The indicarepeat each step for each remaining button. DO NOT tor light will flash slowly and then rapidly when fully
erase the channels.
trained.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
165
If you unplugged the device for training, plug it back in 2. Press and hold the desired HomeLink威 button until
the indicator light begins to flash after 20 seconds. Do not
at this time.
release the button.
Then proceed with Step 4 under “Programming
3. Without releasing the button, proceed with ProgramHomeLink威,” earlier in this section.
ming HomeLink威 Step 2 and follow all remaining steps.
Using HomeLink姞
To operate, press and release the programmed Security
HomeLink威 button. Activation will now occur for the It is advised to erase all channels before you sell or turn
trained device (i.e., garage door opener, gate operator, in your vehicle.
security system, entry door lock, home/office lighting,
To do this, press and hold the two outside buttons for
etc.,). The handheld transmitter of the device may also be
20 seconds until the red indicator flashes. Note that all
used at any time.
channels will be erased. Individual channels cannot be
Reprogramming A Single HomeLink姞 Button
erased.
To reprogram a channel that has been previously trained,
The HomeLink威 Universal Transceiver is disabled when
follow these steps:
the Vehicle Security Alarm is active.
1. Turn the ignition switch to the ON/RUN position.
I
nf
or
mat
i
onPr
ovi
dedby:
3
166
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Troubleshooting Tips
General Information
If you are having trouble programming HomeLink威, here This device complies with FCC rules Part 15 and Industry
are some of the most common solutions:
Canada RSS-210. Operation is subject to the following
two conditions:
• Replace the battery in the original transmitter.
1. This device may not cause harmful interference.
• Press the LEARN button on the Garage Door Opener
to complete the training for a Rolling Code.
2. This device must accept any interference that may be
received including interference that may cause undesired
• Did you unplug the device for training, and remember
operation.
to plug it back in?
NOTE:
If you have any problems, or require assistance, please
• The transmitter has been tested and it complies with
call toll-free 1–800–355–3515 or, on the Internet at
FCC and IC rules. Changes or modifications not
www.HomeLink.com for information or assistance.
expressly approved by the party responsible for compliance could void the user’s authority to operate the
device.
• The term IC before the certification/registration number only signifies that Industry Canada technical
specifications were met.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
POWER SUNROOF — IF EQUIPPED
The sunroof controls are mounted between the dome/
reading lights.
Power Sunroof Switch
167
WARNING!
• Never leave children in a vehicle with the key in
the ignition switch. Occupants, particularly unattended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.
• In a collision, there is greater risk of being thrown
from a vehicle with an open sunroof. You could
also be seriously injured or killed. Always fasten
your seat belt properly and make sure all passengers are properly secured too.
• Do not allow small children to operate the sunroof. Never allow your fingers, other body parts, or
any object to project through the sunroof opening.
Injury may result.
I
nf
or
mat
i
onPr
ovi
dedby:
3
168
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Opening Sunroof — Express
Press the switch rearward and release it within one-half
second and the sunroof will open automatically from any
position. The sunroof will open fully and stop automatically. This is called “Express Open”. During Express
Open operation, any movement of the sunroof switch
will stop the sunroof.
position. The sunroof will close fully and stop automatically. This is called “Express Close”. During Express
Close operation, any movement of the switch will stop
the sunroof.
Closing Sunroof — Manual Mode
To close the sunroof, press and hold the switch in the
forward position. Any release of the switch will stop the
Opening Sunroof — Manual Mode
movement and the sunroof will remain in a partially
To open the sunroof, press and hold the switch rearward closed condition until the switch is pushed and held
to full open. Any release of the switch will stop the forward again.
movement and the sunroof will remain in a partially
Pinch Protect Feature
opened condition until the switch is pushed and held
This feature will detect an obstruction in the opening of
rearward again.
the sunroof during Express Close operation. If an obClosing Sunroof — Express
struction in the path of the sunroof is detected, the
Press the switch forward and release it within one-half sunroof will automatically retract. Remove the obstrucsecond and the sunroof will close automatically from any tion if this occurs. Next, press the switch forward and
release to Express Close.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
169
NOTE: Pinch protection is disabled while the switch is Wind Buffeting
Wind buffeting can be described as the perception of
pressed.
pressure on the ears or a helicopter-type sound in the
Venting Sunroof — Express
ears. Your vehicle may exhibit wind buffeting with the
Press and release the Vent button within one half second
windows down, or the sunroof (if so equipped) is in
and the sunroof will open to the vent position. This is
certain open or partially open positions. This is a normal
called “Express Vent”, and it will occur regardless of
occurrence and can be minimized. If the buffeting occurs
sunroof position. During Express Vent operation, any
with the rear windows open, then open the front and rear
movement of the switch will stop the sunroof.
windows together to minimize the buffeting. If the
Sunshade Operation
buffeting occurs with the sunroof open, adjust the sunThe sunshade can be opened manually. However, the roof opening to minimize the buffeting.
sunshade will open automatically as the sunroof opens.
Sunroof Maintenance
NOTE: The sunshade cannot be closed if the sunroof is Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
open.
I
nf
or
mat
i
onPr
ovi
dedby:
3
170
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Ignition Off Operation
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power sunroof switch
will remain active for 45 seconds after the ignition switch
is turned OFF. Opening either front door will cancel this
feature.
ELECTRICAL POWER OUTLETS
There are two 12 Volt (13 Amp) electrical power outlets
on this vehicle. Both of the power outlets are protected by
a fuse.
The instrument panel power outlet, located below the
climate control knobs, has power available only when the
For vehicles equipped with the EVIC, the power sunroof ignition is ON. This power outlet will also operate a
switch will remain active for up to 10 minutes after the conventional cigar lighter unit. To preserve the heating
ignition switch is turned OFF. Opening either front door element, do not hold the lighter in the heating position.
will cancel this feature. The time is programmable. Refer
to “Electronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Programmable Features)” in
“Understanding Your Instrument Panel” for further
information.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
171
3
Instrument Panel Power Outlet
Center Console
There is a power outlet located on the inside of the center NOTE: To ensure proper operation a MOPAR威 knob
console. This power outlet is powered directly from the and element must be used.
battery (power available at all times). Items plugged into
this power outlet may discharge the battery and/or
prevent the engine from starting.
I
nf
or
mat
i
onPr
ovi
dedby:
172
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CAUTION!
• Do not exceed the maximum power of 160 Watts
(13 Amps) at 12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded the fuse protecting the
system will need to be replaced.
• Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your warranty.
Power Outlet Fuse Locations
1 — #16 Fuse 15 A Blue Cigar Lighter Instrument Panel
2 — #11 Fuse 15 A Blue Power Outlet Inside Arm Rest
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
173
WARNING!
CAUTION!
To avoid serious injury or death:
• Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving
the vehicle.
• If this outlet is mishandled, it may cause an
electric shock and failure.
• Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these intermittently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
I
nf
or
mat
i
onPr
ovi
dedby:
3
174
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CIGAR LIGHTER AND ASH RECEIVER —
IF EQUIPPED
An optional ash receiver is available from your authorized dealer and will fit in the center console front
cupholder.
The optional ash receiver also comes with a cigar lighter
that can be used with the power outlets. Refer to “Power
Outlets” in “Understanding the Features of Your Vehicle”
for further information.
CUPHOLDERS
Front Seat Cupholders
The cupholders in the center console will accommodate
either two large size cups or two 20 oz (.5 L) bottles or
cans. The one-peice insert can be easily removed for
cleaning. An optional removable ashtray may be located
in one of the cupholders.
Front Cupholders
Rear Cupholders
The rear seat cupholders are located in the armrest
between the rear seats. Pull down the armrest to use the
cupholders.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
175
3
Rear Cupholders
Rear Bottle Holder
Rear Seat Bottle Holder
There are built-in bottle holders located in both rear door
trim panels.
WARNING!
If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burning the occupants. Be careful when closing the doors
to avoid injury.
I
nf
or
mat
i
onPr
ovi
dedby:
176
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
STORAGE
CONSOLE FEATURES
The center console is located between the front driver
Glovebox Storage Compartment
and passenger seats. The center console armrest slides
The glovebox storage compartment is located on the right
forward from design position to provide added user
side of the instrument panel. To open the glovebox, pull
comfort. The center console can be used for storage and
outward on the latch handle located on the front of the
is also equipped with an electrical power outlet. Refer to
glovebox.
“Power Outlets” in “Understanding The Feature of Your
Vehicle” for further information.
Glovebox Storage Compartment
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
177
3
Center Console
Storage Console Detail
Dual Storage Bins
1 — Release Top Compartment
The center console contains both an upper and lower 2 — Release Bottom Compartment
storage bin. Lifting a latch at the front of the hinged The lower bin can be accessed directly, without first
armrest provides access to these storage areas.
exposing the upper bin, by operating the right latch with
the armrest down.
The first storage bin can be used to hold smaller items.
I
nf
or
mat
i
onPr
ovi
dedby:
178
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
The lower storage bin includes a molded-in coin holder,
room for CD’s, DVD’s, and a power outlet that allows a
cellular phone to recharge while concealed.
NOTE:
• A notch in the side of the console base under the
armrest will also allow use of cellular phone while still
plugged into the power outlet and with the armrest
latched down.
WARNING!
Do not operate this vehicle with a console compartment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distraction, resulting in death or injury.
• The power outlet located inside the console can also CARGO AREA FEATURES
energize the cigar lighter in the available Smoker’s The 60/40 split-folding rear seat provides cargo-carrying
Package.
versatility. The seatbacks fold down easily by pulling
nylon tabs between the seatbacks and the bolsters. When
the seats are folded down, they provide a continuous,
nearly flat extension of the load floor.
When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
179
WARNING!
WARNING! (Continued)
• Be certain that the seatback is securely locked into
position. If the seatback in not securely locked
into position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
• The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in a collision. Children should
be seated and using the proper restraint system.
• To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
• The weight and position of cargo and passengers
can change the vehicle center of gravity and vehicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:
Always place cargo evenly on the cargo floor. Put heavier
(Continued) objects as low and as far forward as possible. Place as
much cargo as possible in front of the rear axle. Too much
weight or improperly placed weight over or behind the
rear axle can cause the rear of the vehicle to sway.
I
nf
or
mat
i
onPr
ovi
dedby:
3
180
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a dangerous projectile in a sudden stop or collision.
Ski Pass-Through
There is a ski pass-through door located behind the rear
seat armrest that allows longer items, such as snow skis,
to be stored in the rear cargo area. Lower the armrest and
pull downward on the latch to open the ski pass-through
door.
Ski Pass-Through
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
REAR WINDOW FEATURES
181
CAUTION!
Rear Window Defroster
The rear window defroster button is located on the
climate control (Mode) knob. Press this button to
turn on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after approximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
I
nf
or
mat
i
onPr
ovi
dedby:
3
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
䡵 Instrument Panel Features . . . . . . . . . . . . . . . 186
▫ Oil Change Required — If Equipped . . . . . . 206
䡵 Instrument Cluster
. . . . . . . . . . . . . . . . . . . . 187
▫ Trip Functions . . . . . . . . . . . . . . . . . . . . . . 207
䡵 Instrument Cluster Descriptions . . . . . . . . . . . 188
▫ Display Units In . . . . . . . . . . . . . . . . . . . . . 208
䡵 Mini-Trip Computer — If Equipped . . . . . . . . 201
▫ Tire Psi . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
▫ Control Buttons . . . . . . . . . . . . . . . . . . . . . 202
▫ Compass Display . . . . . . . . . . . . . . . . . . . . 209
䡵 Electronic Vehicle Information Center
(EVIC) – If Equipped. . . . . . . . . . . . . . . . . . . . 203
▫ Personal Settings
(Customer-Programmable Features) . . . . . . . 212
▫ Electronic Vehicle Information Center
(EVIC) Displays . . . . . . . . . . . . . . . . . . . . . 205
䡵 Setting The Analog Clock . . . . . . . . . . . . . . . . 215
I
nf
or
mat
i
onPr
ovi
dedby:
4
184
UNDERSTANDING YOUR INSTRUMENT PANEL
䡵 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) . . . . . . . . . . . . . . . . . . 215
䡵 Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . 234
▫ Operating Instructions - Radio Mode . . . . . . 216
▫ Operating Instructions
(Voice Command System) — If Equipped . . . 234
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 224
▫ Notes On Playing MP3/WMA Files . . . . . . . 226
▫ List Button
(Disc Mode For MP3/WMA Play) . . . . . . . . . 228
▫ Operating Instructions (Uconnect™ Phone)
— If Equipped . . . . . . . . . . . . . . . . . . . . . . 234
䡵 Media Center 130 (Sales Code RES) . . . . . . . . . 235
▫ Operating Instructions — Radio Mode . . . . . 235
▫ Info Button
(Disc Mode For MP3/WMA Play) . . . . . . . . . 228
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play . . . . . . . . . . . . . . . . . 238
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . 230
▫ Notes On Playing MP3 Files . . . . . . . . . . . . 240
▫ Operation Instructions - Auxiliary Mode . . . . 243
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
䡵 Media Center 130 With Satellite Radio
(Sales Code RES+RSC). . . . . . . . . . . . . . . . . . . 243
▫ Operating Instructions — Radio Mode . . . . . 244
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play . . . . . . . . . . . . . . . . . 249
▫ Notes On Playing MP3 Files . . . . . . . . . . . . 251
▫ List Button (CD Mode For MP3 Play) . . . . . . 254
▫ Info Button (CD Mode For MP3 Play) . . . . . . 254
▫ Uconnect™ Multimedia (Satellite Radio) — If
Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . 255
185
▫ Play Mode . . . . . . . . . . . . . . . . . . . . . . . . . 261
▫ List Or Browse Mode . . . . . . . . . . . . . . . . . 263
▫ Bluetooth Streaming Audio (BTSA) . . . . . . . . 265
䡵 Steering Wheel Audio Controls —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . 266
▫ Radio Operation . . . . . . . . . . . . . . . . . . . . . 267
▫ CD Player . . . . . . . . . . . . . . . . . . . . . . . . . 267
䡵 CD/DVD Disc Maintenance . . . . . . . . . . . . . . 267
䡵 Radio Operation And Mobile Phones
. . . . . . . 268
䡵 iPod威/USB/MP3 Control — If Equipped . . . . . 259
䡵 Climate Controls . . . . . . . . . . . . . . . . . . . . . . 268
▫ Connecting The iPod威 Or External USB
Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
▫ Manual Heating And Air Conditioning . . . . . 268
▫ Using This Feature . . . . . . . . . . . . . . . . . . . 261
▫ Controlling The iPod威 Or External USB
Device Using Radio Buttons . . . . . . . . . . . . . 261
▫ Automatic Temperature Control (ATC) — If
Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . 273
▫ Operating Tips . . . . . . . . . . . . . . . . . . . . . . 279
I
nf
or
mat
i
onPr
ovi
dedby:
4
186
UNDERSTANDING YOUR INSTRUMENT PANEL
INSTRUMENT PANEL FEATURES
1
2
3
4
5
— Air Outlet
— Side Window Demister Outlet
— Instrument Cluster
— Ignition Switch
— Analog Clock
6 — Radio
7 — Passenger Airbag
8 — Glove Compartment
9 — Heated Seat Switch – If Equipped
10 — Hazard Switch
I
nf
or
mat
i
onPr
ovi
dedby:
11 — Storage Compartment
12 — Climate Control
13 — Trunk Release Button
14 — Power Outlet
UNDERSTANDING YOUR INSTRUMENT PANEL
187
INSTRUMENT CLUSTER
4
I
nf
or
mat
i
onPr
ovi
dedby:
188
UNDERSTANDING YOUR INSTRUMENT PANEL
removes this heat. You can also turn the Temperature
control to maximum heat, the Mode control to Floor and
1. Temperature Gauge
the Fan control to High. This allows the heater core to act
The temperature gauge shows engine coolant temperaas a supplement to the radiator and aids in removing heat
ture. Any reading below the red area of the gauge shows
from the engine cooling system.
that the engine cooling system is operating properly. The
gauge pointer may show a higher than normal tempera- 2. Fuel Door Reminder
This is a reminder that the Fuel Filler Door is
ture when driving in hot weather, up mountain grades, in
located on the left side of the vehicle.
heavy stop and go traffic, or when towing a trailer.
INSTRUMENT CLUSTER DESCRIPTIONS
If the pointer rises to the H (red) mark, the instrument
cluster will sound a chime. Pull over and stop the vehicle.
Idle the vehicle with the air conditioner turned off until
the pointer drops back into the normal range. If the
pointer remains on the H (red) mark, turn the engine off
immediately and call for service.
3. Fuel Gauge
When the ignition switch is in the ON/RUN position, the
pointer will show the level of fuel remaining in the fuel
tank.
4. Speedometer
There are steps that you can take to slow down an
Indicates the vehicle speed in miles per hour (MPH) and
impending overheat condition. If your air conditioning is
kilometers per hour (km/h).
on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
189
If jump starting is required, refer to “Jump Starting
5. Low Fuel Light
When the fuel level drops to approximately 2.0 gal- Procedures” in “What To Do In Emergencies”.
lons (7.6 Liters), the fuel symbol will light and a
7. Airbag Warning Light
single chime will sound.
This light will turn on for four to eight seconds
NOTE: This light will remain on until a minimum of
as a bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on
approximately 3.0 gallons of fuel is added.
during starting, stays on, or turns on while
6. Charging System Light
driving, have the system inspected at an authorized
This light shows the status of the electrical chargdealer as soon as possible. Refer to “Occupant Restraints”
ing system. The light should come on briefly when
in “Things To Know Before Starting Your Vehicle” for
the ignition is first turned on and remain on briefly as a
further information.
bulb check. If the light stays on or comes on while
driving, turn off some of the vehicle’s electrical devices, 8. Seat Belt Reminder Light
such as the Front Fog Lights or Rear Window Defroster.
When the ignition switch is first turned to ON/
If the Charging System Light remains on, it means that
RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if
the vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See your local the driver’s seat belt is unbuckled, a chime will sound.
authorized dealer.
After the bulb check or when driving, if the driver seat
belt remains unbuckled, the Seat Belt Warning Light will
I
nf
or
mat
i
onPr
ovi
dedby:
4
190
UNDERSTANDING YOUR INSTRUMENT PANEL
flash or remain on continuously. Refer to “Occupant 10. Engine Temperature Warning Light
Restraints” in “Things To Know Before Starting Your
This light warns of an overheated engine condition. If the engine is critically hot, a warning chime
Vehicle” for further information.
will sound 10 times. After the chime turns off, the
9. Oil Pressure Warning Light
engine will still be critically hot until the light goes out.
This light indicates low engine oil pressure. The
light will come on and remain on when the 11. Brake Warning Light
This light monitors various brake functions,
ignition switch is turned from the OFF to the ON/RUN
position, and the light will turn off after the engine is
including brake fluid level and parking brake
application. If the brake light turns on it may
started. If the bulb does not come on during starting,
indicate that the parking brake is applied, that
have the system checked by an authorized dealer.
the brake fluid level is low, or that there is a problem with
If the light comes on and remains on while driving, stop
the anti-lock brake system.
the vehicle and shut off the engine. DO NOT OPERATE
THE VEHICLE UNTIL THE CAUSE IS CORRECTED. The dual brake system provides a reserve braking capacity in the event of a failure to a portion of the hydraulic
The light does not show the quantity of oil in the engine.
system. Failure of either half of the dual brake system is
This can be determined using the procedure shown in
indicated by the Brake Warning Light which will turn on
“Maintaining Your Vehicle”.
when the brake fluid level in the master cylinder has
dropped below a specified level.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
191
The light will remain on until the cause is corrected.
In the event of an EBD failure, the Brake Warning Light
will turn on along with the ABS Light. Immediate repair
NOTE: The light may flash momentarily during sharp
to the ABS system is required.
cornering maneuvers which change fluid level conditions. The vehicle should have service performed, and The operation of the Brake Warning Light can be checked
the brake fluid level checked.
by turning the ignition switch from the OFF position to
the ON/RUN position. The light should illuminate for
If brake failure is indicated, immediate repair is necesapproximately three seconds. The light should then turn
sary.
off unless the parking brake is applied or a brake fault is
detected. If the light does not illuminate, have the light
WARNING!
inspected by an authorized dealer.
Driving a vehicle with the brake light on is dangerThe light also will turn on when the parking brake is
ous. Part of the brake system may have failed. It will
applied with the ignition switch in the ON/RUN positake longer to stop the vehicle. You could have a
tion.
collision. Have the vehicle checked immediately.
NOTE: This light shows only that the parking brake is
Vehicles equipped with Anti-Lock brakes (ABS), are also applied. It does not show the degree of brake application.
equipped with Electronic Brake Force Distribution (EBD).
I
nf
or
mat
i
onPr
ovi
dedby:
4
192
UNDERSTANDING YOUR INSTRUMENT PANEL
been driven. If your odometer needs to be repaired or
serviced, the repair technician should leave the odometer
reading the same as it was before the repair or service. If
s/he cannot do so, then the odometer must be set at zero,
and a sticker must be placed in the door jamb stating
what the mileage was before the repair or service. It is a
13. Shift Lever Indicator
good idea for you to make a record of the odometer
The Shift Lever Indicator is self-contained within the
reading before the repair/service, so that you can be sure
instrument cluster. It displays the gear position of the
that it is properly reset, or that the door jamb sticker is
automatic transmission.
accurate if the odometer must be reset at zero.
NOTE: You must apply the brakes before shifting from
The two trip odometers show individual trip mileage. To
PARK.
switch from odometer to trip odometers, press and
release the Trip Odometer button. To reset a trip odom14. Odometer Display/Trip Odometer Display
The odometer display shows the total distance the ve- eter, display the desired trip odometer to be reset then
hicle has been driven. U.S. Federal regulations require push and hold the button until the display resets (apthat upon transfer of vehicle ownership, the seller certify proximately 2 seconds). Refer to “Trip Odometer Button”
to the purchaser the correct mileage that the vehicle has for additional information.
12. Tachometer
The silver area of the scale shows the permissible engine
revolutions-per-minute (RPM x 1000) for each gear range.
Before reaching the red area, ease up on the accelerator to
prevent engine damage.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
193
Vehicle Odometer Messages
LoW tirE
When the appropriate conditions exist, the odometer will When the appropriate condition exists, the odometer
display the following messages:
display will toggle between LoW and tirE for three
cycles.
door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Door Ajar HOTOIL
dECK . . . . . . . . . . . . . . . . . . . . . . . . . . . . Trunk Ajar When this message is displayed there is a transmission
LoW tirE. . . . . . . . . . . . . . . . . . . . . Low Tire Pressure over-temperature condition. When this condition occurs,
CHANgE OIL. . . . . . . . . . . . . . . Oil Change Required the “HOTOIL” message will be displayed in the odomgASCAP . . . . . . . . . . . . . . . . . . . . . . . Fuel Cap Fault eter along with a chime.
HOTOIL . . . . . . . . . . . . Transmission Oil Temperature
Exceeds Safe Threshold NOTE: When this message is displayed, bring the
vehicle to a stop and idle the engine in park until the
message clears. Raising the idle of the engine slightly will
NOTE: If the instrument cluster is equipped with the
help speed up the cooling.
optional Electronic Vehicle Information Center (EVIC),
then warnings such as ”Low Tire,” “Door Ajar” and gASCAP
“Trunk Ajar” will display in the EVIC. (Refer to “Elec- If the vehicle diagnostic system detects a leak or change
tronic Vehicle Information Center (EVIC)” for specific in the evaporative system, or the fuel filler cap is loose,
improperly installed, or damaged, the words “gASCAP”
messages).
will display in the odometer display area. If this occurs,
I
nf
or
mat
i
onPr
ovi
dedby:
4
194
UNDERSTANDING YOUR INSTRUMENT PANEL
tighten the fuel filler cap properly and press the odometer reset button to turn off the “gASCAP” message.
(Refer to “Onboard Diagnostic System — OBDII” in
“Maintaining Your Vehicle” for further information). If
the problem continues, the message will appear the next
time the vehicle is started. See your authorized dealer
service center as soon as possible.
To turn off the message temporarily, press and release the
Trip Odometer button on the instrument cluster. To reset
the oil change indicator system (after performing the
scheduled maintenance) perform the following procedure:
1. Turn the ignition switch to the ON/RUN position
(do not start the engine).
CHANgE OIL
2. Fully depress the accelerator pedal slowly 3 times
Your vehicle is equipped with an engine oil change
within 10 seconds.
indicator system. The “CHANgE OIL” message will flash
in the instrument cluster odometer for approximately
3. Turn the ignition switch to the LOCK position.
12 seconds after a single chime has sounded to indicate
NOTE: If the indicator message illuminates when you
the next scheduled oil change interval. The engine oil
start the vehicle, the oil change indicator system did not
change indicator system is duty cycle based, which
reset. If necessary, repeat this procedure.
means the engine oil change interval may fluctuate
dependent upon your personal driving style.
4. For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Unless reset, this message will continue to display each
Information Center (EVIC)”.
time you turn the ignition switch to the “ON” position.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
195
17. Electronic Throttle Control (ETC) Indicator Light
15. Cruise Indicator — If Equipped
This indicator shows that the Electronic Speed
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
Control System is ON.
problem is detected, the light will come on
16. Odometer/Trip Odometer Reset Button
while the engine is running. If the light remains
lit with the engine running, your vehicle will usually be
Dual Trip Odometer
Press and release this button to change the display from drivable and not need towing, however see your authoodom eter to “Trip A.” Press and release it a second time rized dealer for service as soon as possible.
to change the display to “Trip B.” Press and release it a
If the light is flashing when the engine is running you
third time to change the display back to the odometer.
may experience power loss, an elevated/rough idle, and
To reset the trip odometer, first display the trip mileage increased brake pedal effort, and your vehicle may
that you want to reset, “Trip A” or “Trip B.” Then push require towing. Immediate service is required.
and hold the button (approximately 2 seconds) until the
The light will come on when the ignition switch is first
display resets to 0 miles (km). The odometer must be in
turned on and remain on approximately 15 seconds as a
Trip Mode to reset the trip odometer.
bulb check. This is normal. If the light does not come on
during starting, have the system checked by an authorized dealer.
I
nf
or
mat
i
onPr
ovi
dedby:
4
196
UNDERSTANDING YOUR INSTRUMENT PANEL
22. Vehicle Security Light — If Equipped
18. Park/Headlight ON Indicator — If Equipped
This indicator will illuminate when the park
This light will flash rapidly for approximately
16 seconds when the alarm system is arming.
lights or headlights are turned on.
The light will begin to flash slowly indicating
that the system is armed. The light will stop
flashing when the vehicle is disarmed.
19. Electronic Stability Control (ESC) OFF Indicator
Light — If Equipped
23. Anti-Lock Brake (ABS) Light — If Equipped
This light indicates the Electronic Stability ConThis light monitors the ABS. This light will
trol system (ESC) has been turned off by the
come on when the ignition key is turned to the
driver.
ON/RUN position and may stay on for approximately three seconds.
20. Turn Signal Indicators
The arrows will flash in unison with the exterior If the ABS light remains on or comes on during driving,
it indicates that the Anti-Lock portion of the brake system
turn signal, when using the turn signal lever.
is not functioning and that service is required, however,
21. Front Fog Light Indicator — If Equipped
the conventional brake system will continue to operate
This indicator will illuminate when the front fog
normally provided that the BRAKE warning light is not
lights are on.
on.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
197
If the ABS light is on, the brake system should be serviced cycles, and the vehicle has been driven several miles
as soon as possible to restore the benefit of Anti-Lock (kilometers) at speeds greater than 30 mph (48 km/h), see
your authorized dealer as soon as possible to have the
Brakes.
problem diagnosed and corrected.
The ABS warning light should be checked frequently to
assure that it is operating properly. Turn the ignition key NOTE:
to the on position, but do not start the vehicle. The light • The “ESC Off Indicator Light” and the “ESC
Activation/Malfunction Indicator Light” come on moshould come on. If the light does not come on, have the
mentarily each time the ignition switch is turned to
system inspected by an authorized dealer.
ON/RUN.
24. Electronic Stability Control (ESC) Activation/
• Each time the ignition is turned to ON/RUN, the ESC
Malfunction Indicator Light — If Equipped
system will be ON, even if it was turned off previously.
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
• The ESC system will make buzzing or clicking sounds
when the ignition switch is turned to the
when it is active. This is normal; the sounds will stop
ON/RUN position. It should go out with the
when ESC becomes inactive following the maneuver
engine running. If the “ESC Activation/Malfunction Inthat caused the ESC activation.
dicator Light” comes on continuously with the engine
running, a malfunction has been detected in the ESC
system. If this light remains on after several ignition
I
nf
or
mat
i
onPr
ovi
dedby:
4
198
UNDERSTANDING YOUR INSTRUMENT PANEL
25. Tire Pressure Monitoring Telltale Light
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those
tires.)
As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is not
operating properly. The TPMS malfunction indicator is
combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure
as intended. TPMS malfunctions may occur for a variety
of reasons, including the installation of replacement or
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
199
alternate tires or wheels on the vehicle that prevent the 26. Malfunction Indicator Light (MIL)
TPMS from functioning properly. Always check the
The Malfunction Indicator Light (MIL) is part of
TPMS malfunction telltale after replacing one or more
an onboard diagnostic system called OBD that
tires or wheels on your vehicle, to ensure that the
monitors emissions, engine, and automatic transreplacement or alternate tires and wheels allow the TPMS mission control systems. The light will illuminate when
to continue to function properly.
the key is in the ON/RUN position before engine start. If
the bulb does not come on when turning the key from
CAUTION!
LOCK to ON/RUN, have the condition checked
promptly.
The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and Certain conditions, such as a loose or missing gas cap,
warning have been established for the tire size poor fuel quality, etc., may illuminate the light after
equipped on your vehicle. Undesirable system opera- engine start. The vehicle should be serviced if the light
tion or sensor damage may result when using re- stays on through several of your typical driving cycles. In
placement equipment that is not of the same size, most situations, the vehicle will drive normally and will
type, and/or style. Aftermarket wheels can cause not require towing.
sensor damage. Do not use tire sealant from a can or
balance beads if your vehicle is equipped with a
TPMS, as damage to the sensors may result.
I
nf
or
mat
i
onPr
ovi
dedby:
4
200
UNDERSTANDING YOUR INSTRUMENT PANEL
CAUTION!
Prolonged driving with the MIL on could cause
damage to the engine control system. It also could
affect fuel economy and drivability. If the MIL is
flashing, severe catalytic converter damage and
power loss will soon occur. Immediate service is
required.
27. Transmission Temperature Warning Light —
If Equipped
This light indicates that the transmission fluid
temperature is running hot. This may occur
with severe usage, such as trailer towing. If this
light turns on, safely pull over and stop the
vehicle. Then, shift the transmission into NEUTRAL and
run the engine at idle or faster until the light turns off.
CAUTION!
WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you
drive slowly or park over flammable substances such
as dry plants, wood, cardboard, etc. This could result
in death or serious injury to the driver, occupants or
others.
Continuous driving with the Transmission Temperature Warning Light illuminated will eventually cause
severe transmission damage or transmission failure.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
WARNING!
If the Transmission Temperature Warning Light is
illuminated and you continue operating the vehicle,
in some circumstances you could cause the fluid to
boil over, come in contact with hot engine or exhaust
components and cause a fire.
201
MINI-TRIP COMPUTER — IF EQUIPPED
The Mini-Trip Computer is located in the instrument
cluster and features a driver-interactive trip information
and temperature display.
NOTE: The system will display the last known outside
temperature when starting the vehicle and may need to
be driven several minutes before the updated temperature is displayed. Engine temperature can also affect the
28. High Beam Indicator
displayed temperature; therefore, temperature readings
This light indicates that the headlights are on high
are not updated when the vehicle is not moving.
beam. Pull the turn signal lever toward the steering wheel to switch the headlights to low beam.
29. Electronic Vehicle Information Center (EVIC)
Display — If Equipped
This display shows the EVIC messages when the appropriate conditions exist. Refer to “Electronic Vehicle Information Center (EVIC)” for further information.
I
nf
or
mat
i
onPr
ovi
dedby:
4
202
UNDERSTANDING YOUR INSTRUMENT PANEL
Control Buttons
RESET Button
To reset the display shown, turn the ignition switch to the
ON position, then press and hold the RESET button
located on the steering wheel.
The following displays can be reset or changed:
• Trip A
• Trip B
Trip Odometer (ODO)
This display shows the distance traveled since the last
reset. Press and release the STEP button on the instrument cluster to switch from odometer, to Trip A or Trip B.
Mini-Trip Control Buttons
Trip A
STEP Button
Shows the total distance traveled for Trip A since the last
Press the STEP button located on the steering wheel to reset.
scroll through sub menus (i.e., Temperature, Trip FuncTrip B
tions: Odometer, Trip A, Trip B).
Shows the total distance traveled for Trip B since the last
reset.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
203
The EVIC consists of the following:
ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) – IF EQUIPPED
• Compass Heading Display (N, S, E, W, NE, NW, SE,
The Electronic Vehicle Information Center (EVIC) feaSW)
tures a driver-interactive display that is located in the
• Mileage (Avg/MPG)
instrument cluster.
• Miles To Empty
• Low Tire Information (Tire Pressure Monitor System
(TPMS) Displays) — if equipped
• Timer
• Units
• System Warnings (Door Ajar, etc.)
• Personal Settings (Customer-Programmable Features)
• Outside Temperature Display (°F or °C)
Electronic Vehicle Information Center (EVIC)
• Audio Mode Displays – 12 preset Radio Stations or CD
Title and Track number when playing
I
nf
or
mat
i
onPr
ovi
dedby:
4
204
UNDERSTANDING YOUR INSTRUMENT PANEL
The system allows the driver to select information by
pressing the following buttons on the instrument panel
switch bank located below the climate controls:
Press and release the MENU button to advance
the display to each of the EVIC Main Menu
features. Upon reaching the last item in the
MENU Main Menu the EVIC will advance to the first
Button item in the Main Menu with the next MENU
button press and release.
Press and release the DOWN button to advance
the display through the various Trip Functions
or Personal Settings.
DOWN
Button
EVIC Steering Wheel Buttons
Press and release the COMPASS button to
display the compass heading, the outside
temperature, and Audio Info (when the raCOMPASS dio is on) screen when the current screen is
not the compass, outside temp, audio info
Button
screen.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
205
Press and release the SELECT Button to accept • Right Rear Turn Signal Lamp Out (with a single
a selection. The SELECT Button also resets
chime)
various Trip Functions.
• RKE (Remote Keyless Entry) Battery Low (with a
SELECT
single chime)
Button
• Personal Settings Not Available – Vehicle Not In PARK
Electronic Vehicle Information Center (EVIC)
• Personal Settings Not Available – Vehicle in Motion
Displays
When the appropriate conditions exist, the EVIC displays • Door(s) Ajar (with a single chime if vehicle is in
the following messages:
motion)
• Turn Signal On (with a continuous warning chime • Trunk Ajar (with a single chime)
after one mile traveled)
• Headlights On
• Left Front Turn Signal Lamp Out (with a single chime)
• Key In Ignition
• Left Rear Turn Signal Lamp Out (with a single chime)
• Remote start aborted — Door ajar
• Right Front Turn Signal Lamp Out (with a single
• Remote start aborted — Hood ajar
chime)
• Remote start aborted — Trunk ajar
I
nf
or
mat
i
onPr
ovi
dedby:
4
206
UNDERSTANDING YOUR INSTRUMENT PANEL
• Remote start aborted — Fuel low
• Remote start disabled — System fault
• Oil Change Required (with a single chime)
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
• Low Tire (with a graphic of the car showing which
release the MENU button. To reset the oil change indicatire(s) is/are low - with a single chime). Refer to ⬙Tire
tor system (after performing the scheduled maintenance),
Pressure Monitoring System⬙ in ⬙Starting and Operatperform the following procedure:
ing⬙.
1. Turn the ignition switch to the ON position (Do not
• Check TPM System (with a single chime) Refer to ⬙Tire
start the engine.)
Pressure Monitoring System⬙ in ⬙Starting and Operating⬙.
2. Fully depress the accelerator pedal slowly three times
Oil Change Required — If Equipped
within 10 seconds.
Your vehicle is equipped with an engine oil change
indicator system. The Oil Change Required message will 3. Turn the ignition switch to the LOCK position.
flash in the EVIC display for approximately five seconds
NOTE: If the indicator message illuminates when you
after a single chime has sounded to indicate the next
start the vehicle, the oil change indicator system did not
scheduled oil change interval. The engine oil change
reset. If necessary repeat this procedure.
• ECO (Fuel Saver Indicator) — If Equipped
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
207
The Trip Functions mode displays the following informaTrip Functions
Press and release the MENU button until one of the tion:
following Trip Functions displays in the EVIC:
• ECO (Fuel Saver Indicator) — If Equipped
The ECO indicator will illuminate in the EVIC display.
• ECO (Fuel Saver Indicator) — If Equipped
This ECO message will appear when you are driving in a
• Average Fuel Economy
fuel efficient manner and can be used to modify driving
• Distance To Empty
habits in order to increase fuel economy.
• Elapsed Time
• Average Fuel Economy
Shows the average fuel economy since the last reset.
• Display Units of Measure in
When the fuel economy is reset, the display will read,
Press and release the DOWN button to advance the RESET or show dashes for two seconds. Then, the history
display through the Trip Functions.
information will be erased, and the averaging will continue from the last fuel average reading before the reset.
I
nf
or
mat
i
onPr
ovi
dedby:
4
208
UNDERSTANDING YOUR INSTRUMENT PANEL
• Distance To Empty (DTE)
Shows the estimated distance that can be traveled with
the fuel remaining in the tank. This estimated distance is
determined by a weighted average of the instantaneous
and average fuel economy, according to the current fuel
tank level. DTE cannot be reset through the SELECT
button.
• Elapsed Time
Shows the total elapsed time of travel since the last reset.
Elapsed time will increment when the ignition switch is
in the ON or START position.
To Reset The Display
Reset will only occur if a resettable function is currently
displayed. Press and hold the SELECT button once to
NOTE: Significant changes in driving style or vehicle clear the function currently displayed.
loading will greatly affect the actual drivable distance of
To reset all resettable functions, press and release the
the vehicle, regardless of the DTE display value.
SELECT button a second time within three seconds of
When the DTE value is less than 30 miles (48 km) resetting the currently displayed function (Reset ALL will
estimated driving distance, the DTE display will change display during this three-second window).
to a text display of ⬙LOW FUEL”. This display will
Display Units In
continue until the vehicle runs out of fuel. Adding a
significant amount of fuel to the vehicle will turn off the Press and release the MENU button until “Display Units
In” displays in the EVIC. To make your selection, press
LOW FUEL text and a new DTE value will display.
and release the SELECT button until ENGLISH or METRIC appears.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
209
Tire PSI
Compass Display
Press and release the MENU button until ⬙Tire PSI⬙ is
The compass heading indicates the direction
highlighted in the EVIC. Press and release the SELECT
the vehicle is facing. Press and release the
button and one of the following will be displayed:
compass button to display one of eight
compass heading and the outside tempera• If tire pressure is OK for all tires a vehicle ICON is COMPASS
ture.
Button
displayed with tire pressure values in each corner of
the ICON.
NOTE: The system will display the last known outside
• If one or more tires have low pressure, ⬙Tire Pressure temperature when starting the vehicle and may need to
LOW⬙ is displayed with the vehicle ICON and the tire be driven several minutes before the updated temperature is displayed. Engine temperature can also affect the
pressure values in each corner of the ICON.
displayed temperature; therefore, temperature readings
• If the Tire Pressure system requires service, ⬙Service are not updated when the vehicle is not moving.
Tire Pressure System⬙ is displayed.
Automatic Compass Calibration
Tire PSI is an information only function and cannot be This compass is self-calibrating, which eliminates the
reset. Press and release the MENU button to return to the need to calibrate the compass manually. When the vemain menu.
hicle is new, the compass may appear erratic and the
EVIC will flash the “CAL” indicator until the compass is
calibrated. You may calibrate the compass by completing
I
nf
or
mat
i
onPr
ovi
dedby:
4
210
UNDERSTANDING YOUR INSTRUMENT PANEL
one or more 360–degree turns (in an area free from large 3. Press and release the DOWN button until “Calibrate
metal or metallic objects) until the CAL indicator in the Compass Yes” displays in the EVIC.
EVIC turns off. The compass will now function normally.
4. Press and release the SELECT button and the “CAL”
NOTE: A good calibration requires a level surface and indicator will quit flashing.
an environment free from large metallic objects such as
5. Drive the vehicle slowly (under 5 mph / 8 km/h),
buildings, bridges, underground cables, railroad tracks,
completing one or more circles (in an area free from large
etc.
metal or metallic objects) until the “CAL” indicator turns
off. The compass will now function normally.
Manual Compass Calibration
If the compass appears erratic or inaccurate, and the
Compass Variance
variance has been properly set, you may wish to manuCompass Variance is the difference between Magnetic
ally recalibrate the compass. To manually calibrate the
North and Geographic North. To compensate for the
compass:
differences, the variance should be set for the zone where
1. Start the engine. Leave the shift lever in PARK in order the vehicle is driven, per the zone map. Once properly
to enter the EVIC Programming Menus.
set, the compass will automatically compensate for the
differences and provide the most accurate compass head2. Press and release the MENU button until “Personal
ing.
Settings” displays in the EVIC.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
NOTE: Magnetic and battery powered devices, (such as
cell phones, iPod’s, radar detectors, PDA’s and laptops)
should be kept away from the top of the instrument
panel. This is where the compass module is located and
such devices may interfere and cause false compass
readings.
211
1. Turn the ignition switch to the ON position. Leave the
shift lever in PARK.
2. Press and release the MENU button until “Personal
Settings” displays in the EVIC.
3. Press and release the DOWN button until “Compass
Variance” and the current Variance Value displays in the
EVIC.
4. Press and release the SELECT button to increment the
Variance Value by one, (one button press per update),
until the proper variance zone is selected according to the
map.
NOTE: The Variance Values will wrap around from 15
back to 1. The Default Variance is Zone 8.
Compass Variance Map
5. Press and release the MENU button to exit. Press the
DOWN button if you wish to calibrate the compass
manually (Refer to “Manual Compass Calibration”).
I
nf
or
mat
i
onPr
ovi
dedby:
4
212
UNDERSTANDING YOUR INSTRUMENT PANEL
Personal Settings
(Customer-Programmable Features)
Personal Settings allows the driver to set and recall
features when the automatic transaxle is in PARK.
Auto Unlock on Exit
When ON is selected and the transaxle is in the PARK or
NEUTRAL position, all doors will unlock when the
driver’s door is opened. To make your selection, press the
SELECT button until ON or OFF appears.
Press and release the MENU button until “Personal
RKE Unlock
Settings” displays in the EVIC.
When “Driver Door 1st Press” is selected, only the
Press and release the DOWN button to display the
driver’s door will unlock on the first press of the Remote
following programmable features:
Keyless Entry (RKE) transmitter UNLOCK button. When
Language
Driver Door 1st Press is selected, you must press of the
When in this display you may select different languages RKE transmitter UNLOCK button twice to unlock the
for all display nomenclature, including the trip functions. passenger’s doors. When “All Doors 1st Press” is sePressing the SELECT button while in this display selects lected, all of the doors will unlock on the first press of the
English, Spanish, French, German, Italian, or Dutch de- RKE transmitter UNLOCK button. To make your selecpending on availability. As you continue, the displayed tion, press and release the SELECT button until “Driver
information will be shown in the selected language.
Door 1st Press” or “All Doors 1st Press” appears.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
213
Sound Horn with Lock
When ON is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lights with
Lock feature. To make your selection, press and release
the SELECT button until ON or OFF appears.
Headlights With Wipers
(Available with Auto Headlights Only)
When ON is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approximately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned
off if they were turned on by this feature. To make your
Flash Lamps with Lock
selection, press the SELECT button until ON or OFF
When ON is selected, the front and rear turn signals will
appears.
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or NOTE: Turning the headlights on during the daytime
without the Sound Horn on lock feature selected. To causes the instrument panel lights to dim. To increase the
make your selection, press and release the SELECT brightness, refer to “Lights” in “Understanding The
button until ON or OFF appears.
Features Of Your Vehicle.”
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
the SELECT button until 0, 30, 60, or 90 seconds appears.
Key-Off Power Delay
When this feature is selected, the power window
switches, radio, Uconnect™ phone (if equipped), and
power outlets will remain active for up to 10 minutes
after the ignition switch is turned to the LOCK position.
I
nf
or
mat
i
onPr
ovi
dedby:
4
214
UNDERSTANDING YOUR INSTRUMENT PANEL
Opening either front vehicle door will cancel this feature. Display ECO — If Equipped
To make your selection, press the SELECT button until The “ECO” message is located in the EVIC, this message
can be turned on or off. To make your selection, press and
Off, 45 sec., 5 min., or 10 min. appears.
release the SELECT button until “ON” or “OFF” appears.
Illumin. Approach
When this feature is selected, the headlights will activate Display Units In
and remain on for up to 90 seconds when the doors are The EVIC and odometer can be changed between English
unlocked with the remote keyless entry transmitter. To and Metric units of measure. To make your selection,
make your selection, press the SELECT button until press and release the SELECT button until “ENGLISH”
or “METRIC” appears.
“OFF,” “30 sec,” “60 sec,” or “90 sec” appears.
Hill Start Assist (HSA) — If Equipped
When on is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating information. To make your selection, press and release the
SELECT button until “On” or “Off” appears.
Calibrate Compass
Refer to “Compass Display” for more information.
Compass Variance
Refer to “Compass Display” for more information.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
SETTING THE ANALOG CLOCK
215
MEDIA CENTER 230 (REQ) — AM/FM STEREO
RADIO AND 6–DISC CD/DVD CHANGER
(MP3/WMA AUX JACK)
NOTE: The radio sales code is located on the lower right
side of the radio faceplate.
4
To set the analog clock, located at the top center of the
instrument panel, press and hold the button in until the
setting is correct. The clock will adjust slowly at first and
then quicker the longer the button is held.
Media Center 230 (REQ)
I
nf
or
mat
i
onPr
ovi
dedby:
216
UNDERSTANDING YOUR INSTRUMENT PANEL
SEEK Buttons
Press and release the SEEK buttons to search for the next
NOTE: The ignition switch must be in the ON or ACC
listenable station in AM/FM mode. Press the right switch
position to operate the radio.
to seek up and the left switch to seek down. The radio
Power Switch/Volume Control (Rotary)
will remain tuned to the new station until you make
Push the ON/VOLUME control knob to turn on the another selection. Holding either button will bypass
radio. Press the ON/VOLUME control knob a second stations without stopping until you release it.
time to turn off the radio.
SCAN Button
Electronic Volume Control
Pressing the SCAN button causes the tuner to search for
The electronic volume control turns continuously (360 the next listenable station in AM, FM or Satellite (if
degrees) in either direction without stopping. Turning the equipped) frequencies, pausing for five seconds at each
ON/VOLUME control knob to the right increases the listenable station before continuing to the next. To stop
volume and to the left decreases it.
the search, press the SCAN button a second time.
Operating Instructions - Radio Mode
When the audio system is turned ON, the sound will be
set at the same volume level as last played.
Voice Command Button Uconnect™ Phone —
If Equipped
Press this button to operate the Uconnect™ Phone feature
(if equipped). Refer to “Voice Command in the Uconnect™
User Manual located on the DVD for further details.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
217
If your vehicle is not equipped with or this feature is not Clock Setting Procedure
available on your vehicle, a “Not Equipped With
1. Press and hold the TIME button until the hours blink.
Uconnect Phone” message will display on the radio
2. Adjust the hours by turning the right side TUNE/
screen.
SCROLL control knob.
Phone Button Uconnect™ Phone — If Equipped
Press this button to operate the Uconnect™ Phone feature 3. After adjusting the hours, press the right side TUNE/
(if equipped). Refer to “Uconnect™ Phone” in the SCROLL control knob to set the minutes. The minutes
Uconnect™ User Manual located on the DVD for further will begin to blink.
details.
4. Adjust the minutes using the right side TUNE/
If your vehicle is not equipped with or this feature is not SCROLL control knob. Press the TUNE/SCROLL control
available on your vehicle, a “Not Equipped With knob to save the time change.
Uconnect Phone” message will display on the radio
5. To exit, press any button/knob or wait five seconds.
screen.
The clock can also be set by pressing the SETUP button
TIME Button
and selecting the “SET HOME CLOCK” entry. Once in
Press the TIME button to alternate locations of the time
this display follow the above procedure, starting at
and frequency display.
step 2.
I
nf
or
mat
i
onPr
ovi
dedby:
4
218
UNDERSTANDING YOUR INSTRUMENT PANEL
INFO Button
Press the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).
Push the rotary TUNE/SCROLL control knob a second
time and MID will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
mid-range tones.
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in AM, FM
or Satellite (if equipped) frequencies.
Push the rotary TUNE/SCROLL control knob a third
time and TREBLE will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
treble tones.
Setting the Tone, Balance, and Fade
Push the rotary TUNE/SCROLL control knob and BASS
will display. Turn the TUNE/SCROLL control knob to
the right or left to increase or decrease the bass tones.
Push the rotary TUNE/SCROLL control knob a fifth time
and FADE will display. Turn the TUNE/SCROLL control
knob to the left or right to adjust the sound level between
the front and rear speakers.
Push the rotary TUNE/SCROLL control knob a fourth
time and BALANCE will display. Turn the TUNE/
TUNE Control
Turn the rotary TUNE/SCROLL control knob clockwise SCROLL control knob to the right or left to adjust the
to increase or counterclockwise to decrease the frequency. sound level from the right or left side speakers.
Push the rotary TUNE/SCROLL control knob again to
exit setting tone, balance, and fade.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
MUSIC TYPE Button
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the TUNE/SCROLL control knob within five
seconds will allow the program format type to be selected. Many radio stations do not currently broadcast
Music Type information.
Toggle the MUSIC TYPE button to select the following
format types:
Program Type
No program type or
undefined
Adult Hits
Classical
Classic Rock
College
Country
Foreign Language
16-Digit Character Display
None
Adlt Hit
Classicl
Cls Rock
College
Country
Language
Program Type
Information
Jazz
News
Nostalgia
Oldies
Personality
Public
Rhythm and Blues
Religious Music
Religious Talk
Rock
Soft
Soft Rock
Soft Rhythm and Blues
Sports
Talk
I
nf
or
mat
i
onPr
ovi
dedby:
219
16-Digit Character Display
Inform
Jazz
News
Nostalga
Oldies
Persnlty
Public
R&B
Rel Musc
Rel Talk
Rock
Soft
Soft Rck
Soft R & B
Sports
Talk
4
220
UNDERSTANDING YOUR INSTRUMENT PANEL
Program Type
Top 40
Weather
16-Digit Character Display
Top 40
Weather
By pressing the SEEK button when the Music Type icon
is displayed, the radio will be tuned to the next frequency
station with the same selected Music Type name. The
Music Type function only operates when in the FM
mode.
If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset station.
SETUP Button
Pressing the SETUP button allows you to select between
the following items:
NOTE: Turn the TUNE/SCROLL control knob to scroll
through the entries. Push the AUDIO/SELECT button to
select an entry and make changes.
• DVD Enter - When the disc is in DVD Menu mode,
selecting DVD Enter will allow you to play the current
highlighted selection. Use the remote control to scroll
up and down the menu (if equipped).
• DISC Play/Pause - You can toggle between
playing the DVD and pausing the DVD by
pushing the SELECT button (if equipped).
• DVD Play Options - Selecting the DVD Play Options
will display the following:
• Subtitle – Repeatedly pressing SELECT will switch
subtitles to different subtitle languages that are
available on the disc (if equipped).
• Audio Stream – Repeatedly pressing SELECT will
switch to different audio languages (if supported on
the disc) (if equipped).
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
221
• Angle – Repeatedly pressing SELECT will change • Set Home Clock - Pressing the SELECT button allows
the viewing angle if supported by the DVD disc (if
you to set the clock. Turn the TUNE/SCROLL control
equipped).
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
NOTE:
Press the TUNE/SCROLL control knob again to save
• The available selections for each of the above entries
changes.
varies depending upon the disc.
• Player Defaults - Selecting this item will allow the
• These selections can only be made while playing a
user to scroll through the following items and set
DVD.
defaults according to customer preference.
• VES™ Power - Allows you to turn VES™ ON and
Menu Language — If Equipped
OFF (if equipped).
Selecting this item will allow the user to choose the
• VES™ Lock - Locks out rear VES™ remote controls (if default startup DVD menu language (effective only if
equipped).
language supported by disc). If you want to select a
language not listed, then scroll down and select ⬙other.⬙
• VES™ CH1/CH2 - Allows the user to change the
Enter the four-digit country code using the TUNE/
mode of either the IR1 or IR2 wireless headphones by
SCROLL control knob to scroll up and down to select the
pressing the AUDIO/SELECT button (if equipped).
number and then push to select.
I
nf
or
mat
i
onPr
ovi
dedby:
4
222
UNDERSTANDING YOUR INSTRUMENT PANEL
Audio Language — If Equipped
Selecting this item allows you to choose a default audio
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selecting ⬙other.⬙ Enter the country code using
the TUNE/SCROLL control knob to scroll up and down
to select the number and then push to select.
Subtitle Language — If Equipped
Selecting this item allows you to choose a default subtitle
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selecting ⬙other.⬙ Enter the country code using
the TUNE/SCROLL control knob to scroll up and down
to select the number and then push to select.
Audio DRC — If Equipped
Selecting this item allows you to limit maximum audio
dynamic range. The default is set to ⬙High,⬙ and under
this setting, dialogues will play at 11 db higher than if the
setting is ⬙Normal.⬙
Aspect Ratio — If Equipped
Selecting this item allows you to choose between wide
screen, pan scan, and letter box.
AutoPlay — If Equipped
When this is set to On and a DVD video is inserted, it will
bypass the DVD menu screen and automatically play the
movie. In some rare cases, the DVD player may not
auto-play the main title. In such cases, use the MENU
button on the remote control to select desired title to play.
Subtitles — If Equipped
Selecting this item allows you to choose between subtitle
Off or On.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
NOTE: The user will have to set these defaults before
loading a disc. If changes are made to these settings after
a disc is loaded, changes will not be effective. Also, the
defaults are effective only if the disc supports the
customer-preferred settings.
AM and FM Buttons
Press the buttons to select AM or FM mode.
SET Button — To Set the Pushbutton Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET button.
The symbol SET 1 will now show in the display window.
Select the button (1-6) you wish to lock onto this station
and press and release that button. If a button is not
selected within five seconds after pressing the SET button, the station will continue to play but will not be
stored into pushbutton memory.
223
You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2 in
both AM and FM. This allows a total of 12 AM, 12 FM,
and 12 Satellite (if equipped) stations to be stored into
pushbutton memory. The stations stored in SET 2
memory can be selected by pressing the pushbutton
twice.
Every time a preset button is used, a corresponding
button number will display.
Buttons 1 - 6
These buttons tune the radio to the stations that you
commit to pushbutton memory {12 AM, 12 FM, and 12
Satellite (if equipped) stations}.
DISC Button
Pressing the DISC button will allow you to switch from
AM/FM modes to Disc modes.
I
nf
or
mat
i
onPr
ovi
dedby:
4
224
UNDERSTANDING YOUR INSTRUMENT PANEL
Operation Instructions - (DISC MODE for CD and
MP3/WMA Audio Play, DVD-VIDEO)
The radio DVD player and many DVD discs are coded by
geographic region. These region codes must match in
order for the disc to play. If the region code for the DVD
disc does not match the region code for the radio DVD
player, it will not play the disc. Customers may take their
vehicle to an authorized dealer to change the region code
of the player a maximum of five times.
CAUTION!
The radio may shut down during extremely hot
conditions. When this occurs, the radio will indicate
“Disc Hot” and shut off until a safe temperature is
reached. This shutdown is necessary to protect the
optics of the DVD player and other radio internal
components.
NOTE: The ignition switch must be in the ON or ACC
position to operate the radio.
LOAD Button — Loading Compact Disc(s)
Press the LOAD button and the pushbutton with the
corresponding number (1-6) where the CD is being
loaded. The radio will display PLEASE WAIT and
prompt when to INSERT DISC. After the radio displays
⬙INSERT DISC,⬙ insert the CD into the player.
Radio display will show ⬙LOADING DISC⬙ when the disc
is loading and “READING DISC” when the radio is
reading the disc.
CAUTION!
This CD player will accept 4–3/4 in (12 cm) discs only.
The use of other sized discs may damage the CD
player mechanism.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
Eject Button — Ejecting Compact Disc(s)
Press the EJECT button and the pushbutton
with the corresponding number (1-6) where the
CD was loaded and the disc will unload and
move to the entrance for easy removal. Radio
display will show ⬙EJECTING DISC⬙ when the disc is
being ejected and prompt the user to remove the disc.
225
SCAN Button (CD MODE)
Press the SCAN button to scan through each track on the
CD currently playing.
TIME Button (CD MODE)
Press this button to change the display from a large CD
playing time display to a small CD playing time display.
RW/FF (CD MODE)
Press and hold the EJECT button for five seconds and all
Press and hold FF (Fast Forward) and the CD player will
CDs will be ejected from the radio.
begin to fast forward until FF is released, or RW or
The disc can be ejected with the radio and ignition OFF. another CD button is pressed. The RW (Rewind) button
works in a similar manner.
SEEK Button (CD MODE)
Press the right SEEK button for the next selection on the AM or FM Button (CD MODE)
CD. Press the left SEEK button to return to the beginning Switches the radio into the AM or FM radio mode.
of the current selection, or return to the beginning of the
previous selection if the CD is within the first second of
the current selection. Pressing and holding the SEEK
button will allow you to scroll through the tracks faster in
CD and MP3/MWA modes.
I
nf
or
mat
i
onPr
ovi
dedby:
4
226
UNDERSTANDING YOUR INSTRUMENT PANEL
The radio uses the following limits for file systems:
Notes On Playing MP3/WMA Files
The radio can play MP3/WMA files; however, acceptable
• Maximum number of directory levels: 8
MP3/WMA file recording media and formats are limited.
When writing MP3/WMA files, pay attention to the • Maximum number of files: 255
following restrictions.
• Maximum number of folders: 100
Supported Media (Disc Types)
• Maximum number of characters in file/folder names:
The MP3/WMA file recording media supported by the
• Level 1: 12 (including a separator ⬙.⬙ and a threeradio are CDDA, CD-R, CD-RW, MP3,WMA, DVD Video,
character extension)
DVD-R, DVD-RW, DVD+R, DVD+RW, and CDDA+MP3.
Supported Medium Formats (File Systems)
The medium formats supported by the radio are ISO 9660
Level 1 and Level 2 and includes the Joliet extension.
When reading discs recorded using formats other than
ISO 9660 Level 1 and Level 2, the radio may fail to read
files properly and may be unable to play the file normally. UDF and Apple HFS formats are not supported.
• Level 2: 31 (including a separator ⬙.⬙ and a threecharacter extension)
Multisession disc formats are supported by the radio.
Multisession discs may contain combinations of normal
CD audio tracks and computer files (including MP3/
WMA files). Discs created with an option such as ⬙keep
disc open after writing⬙ are most likely multisession
discs. The use of multisession for CD audio or MP3/
WMA playback may result in longer disc loading times.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
If a disc contains multi-formats, such as CD audio and
MP3/WMA tracks, the radio will only play the MP3/
WMA tracks on that disc.
MPEG
Specification
Supported MP3/WMA File Formats
The radio will recognize only files with the *.MP3/WMA
extension as MP3/WMA files. Non-MP3/WMA files
named with the *.MP3/WMA extension may cause playback problems. The radio is designed to recognize the file
as an invalid MP3/WMA and will not play the file.
MPEG-1 Audio
Layer 3
48, 44.1, 32
MPEG-2 Audio
Layer 3
24, 22.05, 16
Sampling Frequency (kHz)
227
Bit Rate (kbps)
320, 256, 224,
192, 160, 128,
112, 96, 80, 64,
56, 48
160, 128, 144,
112, 96, 80, 64,
56, 48
WMA
Sampling FreBit Rate (kbps)
When using the MP3/WMA encoder to compress audio
Specification
quency (kHz)
data to an MP3/WMA file, the bit rate and sampling
48, 64, 96, 128,
WMA
44.1 and 48
frequencies in the following table are supported. In
160, 192 VBR
addition, variable bit rates (VBR) are also supported. The
majority of MP3/WMA files use a 44.1 kHz sampling rate ID3 Tag information for artist, song title, and album title
are supported for ID3 version 1 tags. ID3 version 2 is not
and a 192, 160, 128, 96 or VBR bit rates.
supported by the radios.
Playlist files are not supported. MP3 Pro files are not
supported.
I
nf
or
mat
i
onPr
ovi
dedby:
4
228
UNDERSTANDING YOUR INSTRUMENT PANEL
Playback of MP3/WMA Files
When a medium containing MP3/WMA data is loaded,
the radio checks all files on the medium. If the medium
contains a lot of folders or files, the radio will take more
time to start playing the MP3/WMA files.
LIST Button (DISC Mode for MP3/WMA Play)
Pressing the LIST button will bring up a list of all folders
on the disc. Scrolling up or down the list is done by
turning the TUNE/SCROLL control knob. Selecting a
folder by pressing the TUNE/SCROLL control knob will
begin playing the files contained in that folder (or the
Loading times for playback of MP3/WMA files may be
next folder in sequence if the selection does not contain
affected by the following:
playable files).
• Media - CD-RW media may take longer to load than
The folder list will time out after five seconds.
CD-R media
INFO Button (DISC Mode for MP3/WMA Play)
• Medium formats - Multisession discs may take longer
Pressing the INFO button repeatedly will scroll through
to load than non-multisession discs
the following TAG information: Song Title, Artist, File
• Number of files and folders - Loading times will Name, and Folder Name (if available).
increase with more files and folders
Press the INFO button once more to return to ⬙elapsed
To increase the speed of disc loading, it is recommended time⬙ priority mode.
to use CD-R media and single-session discs. To create a
Press and hold the INFO button for three seconds or
single-session disc, enable the “Disc at Once” option
more and radio will display song titles for each file.
before writing to the disc.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
Press and hold the INFO button again for three seconds
to return to ⬙elapsed time⬙ display.
229
SCAN Button (Auxiliary Mode)
No function.
Operation Instructions - Auxiliary Mode
EJECT Button (Auxiliary Mode)
The auxiliary (AUX) jack is an audio input jack which
No function.
allows the user to plug in a portable device such as an
MP3/WMA player, cassette player, or microphone and
utilize the vehicle’s audio system to amplify the source
and play through the vehicle speakers.
TIME Button (Auxiliary Mode)
Press the TIME button to change the display from
Pressing the AUX button will change the mode to auxilelapsed playing time to time of day. The time of day will
iary device if the AUX jack is connected.
display for five seconds.
NOTE: The AUX device must be turned on and the
RW/FF (Auxiliary Mode)
device’s volume set to the proper level. If the AUX audio
No function.
is not loud enough, turn the device’s volume up. If the
AUX audio sounds distorted, turn the device’s volume SET Button (Auxiliary Mode)
down.
No function.
SEEK Button (Auxiliary Mode)
No function.
I
nf
or
mat
i
onPr
ovi
dedby:
4
230
UNDERSTANDING YOUR INSTRUMENT PANEL
Operating Instructions — Voice Command System
(If Equipped)
For the radio, Refer to “Voice Command” in the
Uconnect™ User Manual located on the DVD for further
details.
Macrovision
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is
intended for home and other limited viewing uses only,
unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
Operating Instructions - Uconnect™ Phone (If
Equipped)
Refer to “Uconnect™ Phone” in the Uconnect™ User
DTS™
Manual located on the DVD for further details.
⬙DTS™⬙ and ⬙DTS™ 2.0⬙ are trademarks of Digital TheOperating Instructions - Video Entertainment
ater Systems, Inc.
System (VES)™ (If Equipped)
Refer to “Video Entertainment System (VES)™” in the Uconnect™ Multimedia (Satellite Radio) —
Uconnect™ User Manual located on the DVD for further If Equipped
Satellite radio uses direct satellite-to-receiver broadcastdetails.
ing technology to provide clear digital sound, coast to
Dolby威
coast. The subscription service provider is Sirius Satellite
Manufactured under license from Dolby威 Laboratories. Radio. This service offers over 130 channels of music,
⬙Dolby威⬙ and the double-D symbol are trademarks of sports, news, entertainment, and programming for chilDolby威 Laboratories.
dren, directly from its satellites and broadcasting studios.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
NOTE: Sirius service is not available in Hawaii and has
limited coverage in Alaska.
System Activation
Sirius Satellite Radio service is pre-activated, and you
may begin listening immediately to the one year of audio
service that is included with the factory-installed satellite
radio system in your vehicle. Sirius will supply a welcome kit that contains general information, including
how to setup your on-line listening account. For further
information, call the toll-free number 888-539-7474, or
visit the Sirius web site at www.sirius.com, or at
www.siriuscanada.ca for Canadian residents.
231
2. Your Vehicle Identification Number.
To access the ESN/SID, refer to the following steps:
ESN/SID Access
With the ignition switch in the ON/RUN or ACC position and the radio on, press the SETUP button and scroll
using the TUNE/SCROLL control knob until Sirius ID is
selected. Press the TUNE/SCROLL control knob and the
Sirius ID number will display. The Sirius ID number
display will time out in two minutes. Press any button on
the radio to exit this screen.
Selecting Uconnect™ Multimedia (Satellite) Mode
Press the SAT button until ⬙SAT⬙ appears in the display. A
CD may remain in the radio while in the Satellite radio
mode.
Electronic Serial Number/Sirius Identification
Number (ESN/SID)
Please have the following information available when
calling:
Satellite Antenna
To ensure optimum reception, do not place items on the
1. The Electronic Serial Number/Sirius Identification
roof around the rooftop antenna location. Metal objects
Number (ESN/SID).
I
nf
or
mat
i
onPr
ovi
dedby:
4
232
UNDERSTANDING YOUR INSTRUMENT PANEL
placed within the line of sight of the antenna will cause
decreased performance. Larger luggage items such as
bikes should be placed as far rearward as possible, within
the loading design of the rack. Do not place items directly
on or above the antenna.
Operating Instructions - Uconnect™ Multimedia
(Satellite) Mode
NOTE: The ignition switch must be in the ON/RUN or
ACC position to operate the radio.
SEEK Buttons
Reception Quality
Press and release the SEEK buttons to search for the next
Satellite reception may be interrupted due to one of the
channel in Satellite mode. Press the right switch to seek
following reasons:
up and the left switch to seek down. The radio will
• The vehicle is parked in an underground parking remain tuned to the new channel until you make another
structure or under a physical obstacle.
selection. Holding either button will bypass channels
without stopping until you release it.
• Dense tree coverage may interrupt reception in the
SCAN Button
form of short audio mutes.
Pressing the SCAN button causes the tuner to search for
• Driving under wide bridges or along tall buildings can
the next channel, pausing for eight seconds before concause intermittent reception.
tinuing to the next. To stop the search, press the SCAN
• Placing objects over or too close to the antenna can button a second time.
cause signal blockage.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
INFO Button
Pressing the INFO button will cycle the display information between Artist, Song Title, and Composer (if available). Also, pressing and holding the INFO button for an
additional three seconds will make the radio display the
Song Title all of the time (press and hold again to return
to normal display).
233
or turning the TUNE/SCROLL control knob within five
seconds will allow the program format type to be selected.
Toggle the MUSIC TYPE button again to select the music
type.
By pressing the SEEK button when the Music Type
function is active, the radio will be tuned to the next
channel with the same selected Music Type name.
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons If a preset button is activated while in the Music Type
causes the tuner to search for the next channel in the (Program Type) mode, the Music Type mode will be
direction of the arrows.
exited and the radio will tune to the preset channel.
TUNE Control (Rotary)
SETUP Button
Turn the rotary TUNE/SCROLL control knob clockwise Pressing the SETUP button allows you to select the
to increase or counterclockwise to decrease the channel. following items:
MUSIC TYPE Button
• Display Sirius ID number — Press the AUDIO/
Pressing this button once will turn on the Music Type
SELECT button to display the Sirius ID number. This
mode for five seconds. Pressing the MUSIC TYPE button
number is used to activate, deactivate, or change the
Sirius subscription.
I
nf
or
mat
i
onPr
ovi
dedby:
4
234
UNDERSTANDING YOUR INSTRUMENT PANEL
SET Button – To Set the Pushbutton Memory
When you are receiving a channel that you wish to
commit to pushbutton memory, press the SET button.
The symbol SET 1 will now show in the display window.
Select the button (1-6) you wish to lock onto this channel
and press and release that button. If a button is not
selected within five seconds after pressing the SET button, the channel will continue to play but will not be
stored into pushbutton memory.
You may add a second channel to each pushbutton by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2. This
allows a total of 12 Satellite channels to be stored into
pushbutton memory. The channels stored in SET 2
memory can be selected by pressing the pushbutton twice.
Buttons 1 - 6
These buttons tune the radio to the channels that you
commit to pushbutton memory (12 Satellite stations).
MEDIA CENTER 730N/430/430N (RHR/RER/RBZ/
RHB) CD/DVD/HDD/NAV — IF EQUIPPED
NOTE: The sales code is located on the lower right side
of the unit’s faceplate.
Refer to your Uconnect™ Multimedia RHR, RER, RBZ or
RHB user’s manual for detailed operating instructions.
Operating Instructions
(Voice Command System) — If Equipped
Refer to “Voice Command” in the Uconnect™ User
Manual located on the DVD for further details.
Operating Instructions (Uconnect™ Phone) —
Every time a preset button is used, a corresponding If Equipped
Refer to “Uconnect™ Phone” in the Uconnect™ User
button number will display.
Manual located on the DVD for further details.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
MEDIA CENTER 130 (SALES CODE RES)
235
Operating Instructions — Radio Mode
NOTE: The radio sales code is located on the lower right NOTE: The ignition switch must be in the ON or ACC
side of the radio faceplate.
position to operate the radio.
Power Switch/Volume Control (Rotary)
Push the ON/VOLUME control knob to turn on the
radio. Push the ON/VOLUME control knob a second
time to turn off the radio.
Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction, without stopping. Turning
the ON/VOLUME control knob to the right increases the
volume, and to the left decreases it.
Media Center 130 (RES)
When the audio system is turned on, the sound will be
set at the same volume level as last played.
I
nf
or
mat
i
onPr
ovi
dedby:
4
236
UNDERSTANDING YOUR INSTRUMENT PANEL
SEEK Buttons
Press and release the SEEK buttons to search for the next
listenable station in AM/FM mode. Press the right switch
to seek up and the left switch to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding either button will bypass
stations without stopping, until you release it.
4. Adjust the minutes using the right side TUNE/
SCROLL control knob. Press the TUNE/SCROLL control
knob to save time change.
5. To exit, press any button/knob, or wait five seconds.
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
TIME Button
direction of the arrows. This feature operates in either
Press the TIME button to alternate display of the time
AM or FM frequencies.
and radio frequency.
TUNE Control
Clock Setting Procedure
Turn the rotary TUNE/SCROLL control knob clockwise
1. Press and hold the TIME button until the hours blink. to increase or counterclockwise to decrease the frequency.
2. Adjust the hours by turning the right side TUNE/ Setting the Tone, Balance, and Fade
Push the rotary TUNE/SCROLL control knob and BASS
SCROLL control knob.
will display. Turn the TUNE/SCROLL control knob to
3. After adjusting the hours, press the right side TUNE/
the right or left to increase or decrease the bass tones.
SCROLL control knob to set the minutes. The minutes
will begin to blink.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
237
Push the rotary TUNE/SCROLL control knob a second AM/FM Button
time and MID will display. Turn the TUNE/SCROLL Press the buttons to select either AM or FM mode.
control knob to the right or left to increase or decrease the
SET/RND Button — To Set the Pushbutton
mid-range tones.
Memory
Push the rotary TUNE/SCROLL control knob a third When you are receiving a station that you wish to
time and TREBLE will display. Turn the TUNE/SCROLL commit to pushbutton memory, press the SET/RND
control knob to the right or left to increase or decrease the button. The symbol SET 1 will now show in the display
window. Select the button (1 to 6) you wish to lock onto
treble tones.
this station and press and release that button. If a button
Push the rotary TUNE/SCROLL control knob a fourth
is not selected within five seconds after pressing the
time and BALANCE will display. Turn the TUNE/
SET/RND button, the station will continue to play but
SCROLL control knob to the right or left to adjust the
will not be stored into pushbutton memory.
sound level from the right or left side speakers.
You may add a second station to each pushbutton by
Push the rotary TUNE/SCROLL control knob a fifth time
repeating the above procedure with this exception: Press
and FADE will display. Turn the TUNE/SCROLL control
the SET/RND button twice and SET 2 will show in the
knob to the left or right to adjust the sound level between
display window. Each button can be set for SET 1 and
the front and rear speakers.
SET 2 in both AM and FM. This allows a total of 12 AM
Push the rotary TUNE/SCROLL control knob again to
exit setting tone, balance, and fade.
I
nf
or
mat
i
onPr
ovi
dedby:
4
238
UNDERSTANDING YOUR INSTRUMENT PANEL
and 12 FM stations to be stored into pushbutton memory. • This radio is capable of playing compact discs (CD),
The stations stored in SET 2 memory can be selected by
recordable compact discs (CD-R), rewritable compact
pressing the pushbutton twice.
discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.
Every time a preset button is used, a corresponding
Inserting Compact Disc(s)
button number will display.
Gently insert one CD into the CD player with the CD
Buttons 1 - 6
label facing up. The CD will automatically be pulled into
These buttons tune the radio to the stations that you
the CD player and the CD icon will illuminate on the
commit to pushbutton memory (12 AM and 12 FM
radio display. If a CD does not go into the slot more than
stations).
1.0 in (2.5 cm), a disc may already be loaded and must be
DISC Button
ejected before a new disc can be loaded.
Pressing the DISC button will allow you to switch from
If you insert a disc with the ignition ON and the radio
AM/FM modes to Disc modes.
ON, the unit will switch from radio to CD mode and
Operation Instructions — CD MODE For CD And
begin to play when you insert the disc. The display will
MP3 Audio Play
show the track number, and index time in minutes and
seconds. Play will begin at the start of track 1.
NOTE:
• The ignition switch must be in the ON or ACC
position to operate the radio.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
CAUTION!
• This CD player will accept 4-3/4 in (12 cm) discs
only. The use of other sized discs may damage the
CD player mechanism.
• Do not use adhesive labels. These labels can peel
away and jam the player mechanism.
• RES is a single CD player. Do not attempt to insert
a second CD if one is already loaded.
• Dual-media disc types (one side is a DVD, the
other side is a CD) should not be used, and they
can cause damage to the player.
EJECT Button - Ejecting a CD
Press the EJECT button to eject the CD.
239
If you have ejected a disc and have not removed it within
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.
A disc can be ejected with the radio and ignition OFF.
NOTE: Ejecting with the ignition OFF is not allowed on
convertible or soft-top models (if equipped).
SEEK Button
Press the right SEEK button for the next selection on the
CD. Press the left SEEK button to return to the beginning
of the current selection, or return to the beginning of the
previous selection if the CD is within the first second of
the current selection. Pressing and holding the SEEK
button will allow faster scrolling through the tracks in
CD and MP3 modes.
TIME Button
Press this button to change the display from a large CD
playing time display to a small CD playing time display.
I
nf
or
mat
i
onPr
ovi
dedby:
4
240
UNDERSTANDING YOUR INSTRUMENT PANEL
RW/FF
Press and hold the FF (Fast Forward) button and the CD
player will begin to fast forward until FF is released, or
RW or another CD button is pressed. The RW (Reverse)
button works in a similar manner.
Notes on Playing MP3 Files
The radio can play MP3 files; however, acceptable MP3
file recording media and formats are limited. When
writing MP3 files, pay attention to the following restrictions.
AM/FM Button
Press the button to select either AM or FM mode.
Supported Media (Disc Types)
The MP3 file recording media supported by the radio are
CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.
SET/RND Button (Random Play Button)
Press this button while the CD is playing to activate
Random Play. This feature plays the selections on the
compact disc in random order to provide an interesting
change of pace.
Supported Medium Formats (File Systems)
The medium formats supported by the radio are ISO 9660
Level 1 and Level 2 and includes the Joliet extension.
When reading discs recorded using formats other than
ISO 9660 Level 1 and Level 2, the radio may fail to read
Press the right SEEK button to move to the next ranfiles properly and may be unable to play the file nordomly selected track.
mally. UDF and Apple HFS formats are not supported.
Press the RND button a second time to stop Random
The radio uses the following limits for file systems:
Play.
• Maximum number of folder levels: 8
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
241
Discs created with an option such as ⬙keep disc open after
writing⬙ are most likely multisession discs. The use of
• Maximum number of folders. (The radio display of file
multisession for CD audio or MP3 playback may result in
names and folder names is limited. For large numbers
longer disc loading times.
of files and/or folders, the radio may be unable to
display the file name and folder name, and will assign Supported MP3 File Formats
a number instead. With a maximum number of files, The radio will recognize only files with the *.MP3 extenexceeding 20 folders will result in this display. With sion as MP3 files. Non-MP3 files named with the *.MP3
200 files, exceeding 50 folders will result in this extension may cause playback problems. The radio is
designed to recognize the file as an invalid MP3 and will
display.)
not play the file.
• Maximum number of characters in file/folder names:
When using the MP3 encoder to compress audio data to
• Level 1: 12 (including a separator ⬙.⬙ and a threean MP3 file, the bit rate and sampling frequencies in the
character extension)
following table are supported. In addition, variable bit
• Level 2: 31 (including a separator ⬙.⬙ and a three- rates (VBR) are also supported. The majority of MP3 files
character extension)
use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or
VBR bit rate.
Multisession disc formats are supported by the radio.
Multisession discs may contain combinations of normal
CD audio tracks and computer files (including MP3 files).
• Maximum number of files: 255
I
nf
or
mat
i
onPr
ovi
dedby:
4
242
UNDERSTANDING YOUR INSTRUMENT PANEL
MPEG
Specification
MPEG-1 Audio
Layer 3
MPEG-2 Audio
Layer 3
Sampling Frequency (kHz)
48, 44.1, 32
24, 22.05, 16
Bit Rate (kbps)
320, 256, 224,
192, 160, 128,
112, 96, 80, 64,
56, 48, 40, 32
160, 128, 144,
112, 96, 80, 64,
56, 48, 40, 32, 24,
16, 8
Playback of MP3 Files
When a medium containing MP3 data is loaded, the
radio checks all files on the medium. If the medium
contains a lot of folders or files, the radio will take more
time to start playing the MP3 files.
Loading times for playback of MP3 files may be affected
by the following:
• Media - CD-RW media may take longer to load than
CD-R media
ID3 Tag information for artist, song title, and album title • Medium formats - Multisession discs may take longer
are supported for version 1 ID3 tags. ID3 version 2 is not
to load than non-multisession discs
supported by the radios.
• Number of files and folders - Loading times will
Playlist files are not supported. MP3 Pro files are not
increase with more files and folders
supported.
To increase the speed of disc loading, it is recommended
to use CD-R media and single-session discs. To create a
single-session disc, enable the “Disc at Once” option
before writing to the disc.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack, which
allows the user to plug in a portable device, such as an
MP3 player, or cassette player, and utilize the vehicle’s
audio system to amplify the source and play through the
vehicle speakers.
243
MEDIA CENTER 130 WITH SATELLITE RADIO
(SALES CODE RES+RSC)
NOTE: The radio sales code is located on the lower right
side of the radio faceplate.
Pressing the DISC/AUX button will change the mode to
auxiliary device if the AUX jack is connected.
4
NOTE: The AUX device must be turned on and the
device’s volume set to proper level. If the AUX audio is
not loud enough, turn the device’s volume up. If the AUX
audio sounds distorted, turn the device’s volume down.
TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when ignition is
OFF).
I
nf
or
mat
i
onPr
ovi
dedby:
Media Center 130 (RES/RSC)
244
UNDERSTANDING YOUR INSTRUMENT PANEL
SEEK Buttons
Press and release the SEEK buttons to search for the next
NOTE: The ignition switch must be in the ON or ACC
listenable station in AM/FM mode. Press the right switch
position to operate the radio.
to seek up and the left switch to seek down. The radio
Power Switch/Volume Control (Rotary)
will remain tuned to the new station until you make
Push the ON/VOLUME control knob to turn on the another selection. Holding either button will bypass
radio. Push the ON/VOLUME control knob a second stations without stopping until you release it.
time to turn off the radio.
Voice Command System (Radio) — If Equipped
Electronic Volume Control
Refer to “Voice Command” in “Understanding The FeaThe electronic volume control turns continuously (360 tures If Your Vehicle”.
degrees) in either direction without stopping. Turning the
Voice Command Button Uconnect™ Phone —
ON/VOLUME control knob to the right increases the
If Equipped
volume and to the left decreases it.
Press this button to operate the Uconnect™ Phone feature
When the audio system is turned on, the sound will be (if equipped). Refer to “Uconnect™ Phone” in “Understanding The Features If Your Vehicle”.
set at the same volume level as last played.
Operating Instructions — Radio Mode
If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With Uconnect
Phone” message will display on the radio screen.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
245
3. After adjusting the hours, press the right side TUNE/
Phone Button Uconnect™ Phone — If Equipped
Press this button to operate the Uconnect™ Phone feature SCROLL control knob to set the minutes. The minutes
(if equipped). Refer to “Uconnect™ Phone” in “Under- will begin to blink.
standing The Features If Your Vehicle”.
4. Adjust the minutes using the right side TUNE/
If your vehicle is not equipped with or this feature is not SCROLL control knob. Press the TUNE/SCROLL control
available on your vehicle, a “Not Equipped With knob to save time change.
Uconnect Phone” message will display on the radio
5. To exit, press any button/knob or wait five seconds.
screen.
The clock can also be set by pressing the SETUP button.
TIME Button
For vehicles equipped with satellite radio, press the
Press the TIME button to alternate display of the time
SETUP button, use the TUNE/SCROLL control to select
and radio frequency.
SET CLOCK, and then follow the above procedure,
starting at Step 2. For vehicles not equipped with satellite
Clock Setting Procedure
radio, press the SETUP button and then follow the above
1. Press and hold the TIME button until the hours blink.
procedure, starting at Step 2.
2. Adjust the hours by turning the right side TUNE/
SCROLL control knob.
I
nf
or
mat
i
onPr
ovi
dedby:
4
246
UNDERSTANDING YOUR INSTRUMENT PANEL
INFO Button
Press the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).
Push the rotary TUNE/SCROLL control knob a second
time and MID will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
mid-range tones.
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either
AM or FM frequencies.
Push the rotary TUNE/SCROLL control knob a third
time and TREBLE will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
treble tones.
Setting the Tone, Balance, and Fade
Push the rotary TUNE/SCROLL control knob and BASS
will display. Turn the TUNE/SCROLL control knob to
the right or left to increase or decrease the bass tones.
Push the rotary TUNE/SCROLL control knob a fifth time
and FADE will display. Turn the TUNE/SCROLL control
knob to the left or right to adjust the sound level between
the front and rear speakers.
Push the rotary TUNE/SCROLL control knob a fourth
time and BALANCE will display. Turn the TUNE/
TUNE Control
Turn the rotary TUNE/SCROLL control knob clockwise SCROLL control knob to the right or left to adjust the
to increase or counterclockwise to decrease the frequency. sound level from the right or left side speakers.
Push the rotary TUNE/SCROLL control knob again to
exit setting tone, balance, and fade.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
MUSIC TYPE Button
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the TUNE/SCROLL control knob within five
seconds will allow the program format type to be selected. Many radio stations do not currently broadcast
Music Type information.
Toggle the MUSIC TYPE button to select the following
format types:
Program Type
No program type or
undefined
Adult Hits
Classical
Classic Rock
College
Country
Foreign Language
16-Digit Character Display
None
Adlt Hit
Classicl
Cls Rock
College
Country
Language
Program Type
Information
Jazz
News
Nostalgia
Oldies
Personality
Public
Rhythm and Blues
Religious Music
Religious Talk
Rock
Soft
Soft Rock
Soft Rhythm and Blues
Sports
Talk
I
nf
or
mat
i
onPr
ovi
dedby:
247
16-Digit Character Display
Inform
Jazz
News
Nostalga
Oldies
Persnlty
Public
R&B
Rel Musc
Rel Talk
Rock
Soft
Soft Rck
Soft R&B
Sports
Talk
4
248
UNDERSTANDING YOUR INSTRUMENT PANEL
Program Type
Top 40
Weather
16-Digit Character Display
Top 40
Weather
hours, press the TUNE/SCROLL control knob to set
the minutes. The minutes will begin to blink. Adjust
the minutes using the right side TUNE/SCROLL
control knob. Press the TUNE/SCROLL control knob
to save time change.
By pressing the SEEK button when the Music Type icon
is displayed, the radio will be tuned to the next frequency
AM/FM Button
station with the same selected Music Type name. The
Press the button to select either AM or FM mode.
Music Type function only operates when in the FM
mode.
SET/RND Button — To Set the Pushbutton
Memory
If a preset button is activated while in the Music Type
When you are receiving a station that you wish to
(Program Type) mode, the Music Type mode will be
commit to pushbutton memory, press the SET/RND
exited and the radio will tune to the preset station.
button. The symbol SET 1 will now show in the display
SETUP Button
window. Select the button (1–6) you wish to lock onto this
Pressing the SETUP button allows you to select between station and press and release that button. If a button is
the following items:
not selected within five seconds after pressing the SET/
RND button, the station will continue to play but will not
• Set Clock — Pressing the SELECT button will allow
be stored into pushbutton memory.
you to set the clock. Adjust the hours by turning the
TUNE/SCROLL control knob. After adjusting the
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and
SET 2 in both AM and FM. This allows a total of 12 AM
and 12 FM stations to be stored into pushbutton memory.
The stations stored in SET 2 memory can be selected by
pressing the pushbutton twice.
249
Operation Instructions —
CD MODE for CD and MP3 Audio Play
NOTE:
• The ignition switch must be in the ON or ACC
position to operate the radio.
• This radio is capable of playing compact discs (CD),
recordable compact discs (CD-R), rewritable compact
discs (CD-RW), compact discs with MP3 tracks and
Every time a preset button is used, a corresponding
multisession compact discs with CD and MP3 tracks.
button number will display.
Inserting Compact Disc(s)
Buttons 1 - 6
Gently insert one CD into the CD player with the CD
These buttons tune the radio to the stations that you
label facing up. The CD will automatically be pulled into
commit to pushbutton memory (12 AM and 12 FM
the CD player and the CD icon will illuminate on the
stations).
radio display. If a CD does not go into the slot more than
DISC/AUX Button
1.0 in (2.5 cm), a disc may already be loaded and must be
Pressing the DISC/AUX button will allow you to switch ejected before a new disc can be loaded.
from AM/FM modes to DISC/AUX mode.
I
nf
or
mat
i
onPr
ovi
dedby:
4
250
UNDERSTANDING YOUR INSTRUMENT PANEL
If you insert a disc with the ignition ON and the radio EJECT Button - Ejecting a CD
Press the EJECT button to eject the CD.
ON, the unit will switch from radio to CD mode and
begin to play when you insert the disc. The display will
show the track number, and index time in minutes and
seconds. Play will begin at the start of track 1.
If you have ejected a disc and have not removed it within
CAUTION!
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.
• This CD player will accept 4–3/4 in (12 cm) discs
only. The use of other sized discs may damage the A disc can be ejected with the radio and ignition OFF.
CD player mechanism.
NOTE: Ejecting with the ignition OFF is not allowed on
• Do not use adhesive labels. These labels can peel convertible or soft-top models (if equipped).
away and jam the player mechanism.
• RES is a single CD player. Do not attempt to insert SEEK Button
Press the right SEEK button for the next selection on the
a second CD if one is already loaded.
• Dual-media disc types (one side is a DVD, the CD. Press the left SEEK button to return to the beginning
of the current selection, or return to the beginning of the
other side is a CD) should not be used, and they
previous selection if the CD is within the first second of
can cause damage to the player.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
251
the current selection. Pressing and holding the SEEK SET/RND Button (Random Play Button)
button will allow faster scrolling through the tracks in Press this button while the CD is playing to activate
Random Play. This feature plays the selections on the
CD and MP3 modes.
compact disc in random order to provide an interesting
TIME Button
change of pace.
Press this button to change the display from a large CD
playing time display to a small CD playing time display. Press the right SEEK button to move to the next randomly selected track.
RW/FF
Press and hold FF (Fast Forward) and the CD player will Press the SET/RND button a second time to stop Ranbegin to fast forward until FF is released or RW or dom Play.
another CD button is pressed. The RW (Reverse) button
Notes On Playing MP3 Files
works in a similar manner.
The radio can play MP3 files; however, acceptable MP3
AM/FM Button
file recording media and formats are limited. When
Press the button to select either AM or FM mode.
writing MP3 files, pay attention to the following restrictions.
Supported Media (Disc Types)
The MP3 file recording media supported by the radio are
CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.
I
nf
or
mat
i
onPr
ovi
dedby:
4
252
UNDERSTANDING YOUR INSTRUMENT PANEL
Supported Medium Formats (File Systems)
• Maximum number of characters in file/folder names:
The medium formats supported by the radio are ISO 9660
• Level 1: 12 (including a separator ⬙.⬙ and a threeLevel 1 and Level 2 and includes the Joliet extension.
character extension)
When reading discs recorded using formats other than
• Level 2: 31 (including a separator ⬙.⬙ and a threeISO 9660 Level 1 and Level 2, the radio may fail to read
character extension)
files properly and may be unable to play the file normally. UDF and Apple HFS formats are not supported. Multisession disc formats are supported by the radio.
Multisession discs may contain combinations of normal
The radio uses the following limits for file systems:
CD audio tracks and computer files (including MP3 files).
• Maximum number of folder levels: 8
Discs created with an option such as ⬙keep disc open after
writing⬙ are most likely multisession discs. The use of
• Maximum number of files: 255
multisession for CD audio or MP3 playback may result in
• Maximum number of folders. (The radio display of file longer disc loading times.
names and folder names is limited. For large numbers
of files and/or folders, the radio may be unable to Supported MP3 File Formats
display the file name and folder name and will assign The radio will recognize only files with the *.MP3 extena number instead. With a maximum number of files, sion as MP3 files. Non-MP3 files named with the *.MP3
exceeding 20 folders will result in this display. With 200 extension may cause playback problems. The radio is
designed to recognize the file as an invalid MP3 and will
files, exceeding 50 folders will result in this display.)
not play the file.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
When using the MP3 encoder to compress audio data to
an MP3 file, the bit rate and sampling frequencies in the
following table are supported. In addition, variable bit
rates (VBR) are also supported. The majority of MP3 files
use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or
VBR bit rates.
MPEG
Specification
Sampling Frequency (kHz)
MPEG-1 Audio
Layer 3
48, 44.1, 32
MPEG-2 Audio
Layer 3
24, 22.05, 16
Bit Rate (kbps)
320, 256, 224,
192, 160, 128,
112, 96, 80, 64,
56, 48, 40, 32
160, 128, 144,
112, 96, 80, 64,
56, 48, 40, 32, 24,
16, 8
ID3 Tag information for artist, song title, and album title
are supported for version 1 ID3 tags. ID3 version 2 is not
supported by the radios.
253
Playlist files are not supported. MP3 Pro files are not
supported.
Playback of MP3 Files
When a medium containing MP3 data is loaded, the
radio checks all files on the medium. If the medium
contains a lot of folders or files, the radio will take more
time to start playing the MP3 files.
Loading times for playback of MP3 files may be affected
by the following:
• Media - CD-RW media may take longer to load than
CD-R media
• Medium formats - Multisession discs may take longer
to load than non-multisession discs
• Number of files and folders - Loading times will
increase with more files and folders
I
nf
or
mat
i
onPr
ovi
dedby:
4
254
UNDERSTANDING YOUR INSTRUMENT PANEL
To increase the speed of disc loading, it is recommended Press the INFO button once more to return to ⬙elapsed
to use CD-R media and single-session discs. To create a time⬙ priority mode.
single-session disc, enable the “Disc at Once” option
Press and hold the INFO button for three seconds or
before writing to the disc.
more and the radio will display song titles for each file.
LIST Button (CD Mode for MP3 Play)
Press and hold the INFO button again for three seconds
Pressing the LIST button will bring up a list of all folders
to return to ⬙elapsed time⬙ display.
on the disc. Scrolling up or down the list is done by
turning the TUNE/SCROLL control knob. Selecting a Operation Instructions - Auxiliary Mode
folder by pressing the TUNE/SCROLL control knob will The auxiliary (AUX) jack is an audio input jack which
begin playing the files contained in that folder (or the allows the user to plug in a portable device such as an
next folder in sequence if the selection does not contain MP3 player or cassette player and utilize the vehicle’s
audio system to amplify the source and play through the
playable files).
vehicle speakers.
The folder list will time out after five seconds.
Pressing the AUX button will change the mode to auxilINFO Button (CD Mode for MP3 Play)
iary device if the AUX jack is connected.
Pressing the INFO button repeatedly will scroll through
the following TAG information: Song Title, Artist, File NOTE: The AUX device must be turned on and the
Name, and Folder Name (if available).
device’s volume set to the proper level. If the AUX audio
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
255
is not loud enough, turn the device’s volume up. If the System Activation
AUX audio sounds distorted, turn the device’s volume Sirius Satellite Radio service is pre-activated, and you
may begin listening immediately to the one year of audio
down.
service that is included with the factory-installed satellite
TIME Button (Auxiliary Mode)
radio system in your vehicle. Sirius will supply a welPress this button to change the display to time of day. The
come kit that contains general information, including
time of day will display for five seconds (when the
how to setup your on-line listening account. For further
ignition is OFF).
information, call the toll-free number 888-539-7474, or
Uconnect™ Multimedia (Satellite Radio) —
visit the Sirius web site at www.sirius.com, or at
If Equipped
www.siriuscanada.ca for Canadian residents.
Satellite radio uses direct satellite-to-receiver broadcastElectronic Serial Number/Sirius Identification
ing technology to provide clear digital sound, coast to
Number (ESN/SID)
coast. The subscription service provider is Sirius Satellite
Please have the following information available when
Radio. This service offers over 130 channels of music,
calling:
sports, news, entertainment, and programming for children, directly from its satellites and broadcasting studios. 1. The Electronic Serial Number/Sirius Identification
Number (ESN/SID).
NOTE: Sirius service is not available in Hawaii and has
2. Your Vehicle Identification Number.
limited coverage in Alaska.
I
nf
or
mat
i
onPr
ovi
dedby:
4
256
UNDERSTANDING YOUR INSTRUMENT PANEL
To access the ESN/SID, refer to the following steps:
ESN/SID Access
With the ignition switch in the ON/RUN or ACC position and the radio on, press the SETUP button and scroll
using the TUNE/SCROLL control knob until Sirius ID is
selected. Press the TUNE/SCROLL control knob and the
Sirius ID number will display. The Sirius ID number
display will time out in two minutes. Press any button on
the radio to exit this screen.
bikes should be placed as far rearward as possible, within
the loading design of the rack. Do not place items directly
on or above the antenna.
Reception Quality
Satellite reception may be interrupted due to one of the
following reasons:
• The vehicle is parked in an underground parking
structure or under a physical obstacle.
• Dense tree coverage may interrupt reception in the
Selecting Uconnect™ Multimedia (Satellite) Mode
form of short audio mutes.
Press the SAT button until ⬙SAT⬙ appears in the display. A
CD may remain in the radio while in the Satellite radio • Driving under wide bridges or along tall buildings can
mode.
cause intermittent reception.
Satellite Antenna
• Placing objects over or too close to the antenna can
cause signal blockage.
To ensure optimum reception, do not place items on the
roof around the rooftop antenna location. Metal objects
placed within the line of sight of the antenna will cause
decreased performance. Larger luggage items such as
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
257
Operating Instructions - Uconnect™ Multimedia
(Satellite) Mode
INFO Button
Pressing the INFO button will cycle the display information between Artist, Song Title, and Composer (if availNOTE: The ignition switch must be in the ON/RUN or
able). Also, pressing and holding the INFO button for an
ACC position to operate the radio.
additional three seconds will make the radio display the
SEEK Buttons
Song Title all of the time (press and hold again to return
Press and release the SEEK buttons to search for the next to normal display).
channel in Satellite mode. Press the right switch to seek
RW/FF
up and the left switch to seek down. The radio will
Pressing the RW (Rewind) or FF (Fast Forward) buttons
remain tuned to the new channel until you make another
causes the tuner to search for the next channel in the
selection. Holding either button will bypass channels
direction of the arrows.
without stopping until you release it.
TUNE Control (Rotary)
SCAN Button
Turn the rotary TUNE/SCROLL control knob clockwise
Pressing the SCAN button causes the tuner to search for
to increase or counterclockwise to decrease the channel.
the next channel, pausing for eight seconds before continuing to the next. To stop the search, press the SCAN
button a second time.
I
nf
or
mat
i
onPr
ovi
dedby:
4
258
UNDERSTANDING YOUR INSTRUMENT PANEL
MUSIC TYPE Button
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the TUNE/SCROLL control knob within five
seconds will allow the program format type to be selected.
SETUP Button
Pressing the SETUP button allows you to select the
following items:
• Display Sirius ID number — Press the AUDIO/
SELECT button to display the Sirius ID number. This
number is used to activate, deactivate, or change the
Sirius subscription.
Toggle the MUSIC TYPE button again to select the music
type.
SET Button – To Set the Pushbutton Memory
By pressing the SEEK button when the Music Type When you are receiving a channel that you wish to
function is active, the radio will be tuned to the next commit to pushbutton memory, press the SET button.
The symbol SET 1 will now show in the display window.
channel with the same selected Music Type name.
Select the button (1-6) you wish to lock onto this channel
If a preset button is activated while in the Music Type
and press and release that button. If a button is not
(Program Type) mode, the Music Type mode will be
selected within five seconds after pressing the SET butexited and the radio will tune to the preset channel.
ton, the channel will continue to play but will not be
stored into pushbutton memory.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
You may add a second channel to each pushbutton by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2. This
allows a total of 12 Satellite channels to be stored into
pushbutton memory. The channels stored in SET 2
memory can be selected by pressing the pushbutton
twice.
259
iPod姞/USB/MP3 CONTROL — IF EQUIPPED
NOTE: This section is for sales code RES and REQ/
REL/RET radios only with Uconnect™. For sales code
RBZ/RHB, RHR, RHP, RHW or RB2 touch-screen radio
iPod威/USB/MP3 control feature, refer to the separate
RBZ/RHB, RHR, RHP, RHW or RB2 User’s Manual.
iPod威/USB/MP3 control is available only if equipped as
an option with these radios.
Every time a preset button is used, a corresponding
This feature allows an iPod威 or external USB device to be
button number will display.
plugged into the USB port, located in the center of the
Buttons 1 - 6
instrument panel below the climate controls.
These buttons tune the radio to the channels that you
iPod威 control supports Mini, 4G, Photo, Nano, 5G iPod威
commit to pushbutton memory (12 Satellite stations).
and iPhone威 devices. Some iPod威 software versions may
Operating Instructions - Uconnect™ Phone
not fully support the iPod威 control features. Please visit
(If Equipped)
Apple’s website for software updates.
Refer to “Uconnect™ Phone” in “Understanding The
Features If Your Vehicle”.
I
nf
or
mat
i
onPr
ovi
dedby:
4
260
UNDERSTANDING YOUR INSTRUMENT PANEL
NOTE:
• If the radio has a USB port, refer to the appropriate
Uconnect™ Multimedia radio User’s Manual for
iPod威 or external USB device support capability.
• Connecting an iPod威 or consumer electronic audio
device to the AUX port located in the radio faceplate,
plays media, but does not use the iPod威 /MP3 control
feature to control the connected device.
Connecting The iPod姞 Or External USB Device
Use the connection cable to connect an iPod威 or external
USB device to the vehicle’s USB connector port which is
USB Connector Port
located in the center of the instrument panel below the
Once the audio device is connected and synchronized to
climate controls.
the vehicle’s iPod威/USB/MP3 control system (iPod威 or
external USB device may take a few minutes to connect),
the audio device starts charging and is ready for use by
pressing radio switches, as described below.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
261
NOTE: If the audio device battery is completely discharged, it may not communicate with the iPod威/USB/
MP3 control system until a minimum charge is attained.
Leaving the audio device connected to the iPod威/USB/
MP3 control system may charge it to the required level.
Controlling The iPod姞 Or External USB Device
Using Radio Buttons
To get into the iPod威/USB/MP3 control mode and access
a connected audio device, either press the “AUX” button
on the radio faceplate or press the VR button and say
⬙USB⬙ or ⬙Switch to USB⬙. Once in the iPod威/USB/MP3
Using This Feature
control mode, audio tracks (if available from audio
By using iPod cable or external USB device to connect to
device) start playing over the vehicle’s audio system.
USB port:
Play Mode
• The audio device can be played on the vehicle’s sound When switched to iPod威/USB/MP3 control mode, the
system, providing metadata (artist, track title, album, iPod威 or external USB device automatically starts Play
etc.) information on the radio display.
mode. In Play mode, the following buttons on the radio
• The audio device can be controlled using the radio faceplate may be used to control the iPod威 or external
buttons to Play, Browse, and List the iPod威 contents. USB device and display data:
• The audio device battery charges when plugged into • Use the TUNE control knob to select the next or
previous track.
the USB/AUX connector (if supported by the specific
• Turning it clockwise (forward) by one click, while
audio device)
playing a track, skips to the next track or press the
VR button and say ⬙Next Track⬙.
I
nf
or
mat
i
onPr
ovi
dedby:
4
262
UNDERSTANDING YOUR INSTRUMENT PANEL
• Turning it counterclockwise (backward) by one • While a track is playing, press the INFO button to see
click, will jump to the previous track in the list or
the associated metadata (artist, track title, album, etc.)
press the VR button and say ⬙Previous Track⬙
for that track. Pressing the INFO button again jumps
to the next screen of data for that track. Once all
• Jump backward in the current track by pressing and
screens have been viewed, the last INFO button press
holding the << RW button. Holding the << RW
will go back to the play mode screen on the radio.
button long enough will jump to the beginning of
• Pressing the REPEAT button will change the audio
the current track.
device mode to repeat the current playing track or
• Jump forward in the current track by pressing and
press the VR button and say ⬙Repeat ON⬙ or ⬙Repeat
holding the FF >> button.
Off⬙.
• A single press backward << RW or forward FF >> will
• Press the SCAN button to use iPod威/USB/MP3 dejump backward or forward respectively, for five
vice scan mode, which will play the first 10 seconds of
seconds.
each track in the current list and then forward to the
• Use the << SEEK and SEEK >> buttons to jump to the
next song. To stop SCAN mode and start playing the
previous or next track. Pressing the SEEK >> button
desired track, when it is playing the track, press the
during play mode will jump to the next track in the
SCAN button again. During Scan mode, pressing the
list, or press the VR button and say ⬙Next or Previous
<< SEEK and SEEK >> buttons will select the previTrack⬙.
ous and next tracks.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
• RND button (available on sales code RES radio only):
Pressing this button toggles between Shuffle ON and
Shuffle OFF modes for the iPod威 or external USB
device, or press the VR button and say ⬙Shuffle ON⬙ or
⬙Shuffle Off⬙. If the RND icon is showing on the radio
display, then the shuffle mode is ON.
List Or Browse Mode
During Play mode, pressing any of the buttons described
below, will bring up List mode. List mode enables
scrolling through the list of menus and tracks on the
audio device.
• TUNE control knob: The TUNE control knob functions
in a similar manner as the scroll wheel on the audio
device or external USB device.
• Turning it clockwise (forward) and counterclockwise (backward) scrolls through the lists, displaying
the track detail on the radio display. Once the track
to be played is highlighted on the radio display,
263
press the TUNE control knob to select and start
playing the track. Turning the TUNE control knob
fast will scroll through the list faster. During fast
scroll, a slight delay in updating the information on
the radio display may be noticeable.
• During all List modes, the iPod威 displays all lists in
“wrap-around” mode. So if the track is at the
bottom of the list, just turn the wheel backward
(counterclockwise) to get to the track faster.
• In List mode, the radio PRESET buttons are used as
shortcuts to the following lists on the iPod威 or
external USB device.
I
nf
or
mat
i
onPr
ovi
dedby:
• Preset 1 – Playlists
• Preset 2 – Artists
• Preset 3 – Albums
• Preset 4 – Genres
4
264
UNDERSTANDING YOUR INSTRUMENT PANEL
• Preset 5 – Audiobooks
• Preset 6 – Podcasts
• Pressing a PRESET button will display the current
list on the top line and the first item in that list on
the second line.
• To exit List mode without selecting a track, press the
same PRESET button again to go back to Play
mode.
• LIST button: The LIST button will display the top
level menu of the iPod威 or external USB device. Turn
the TUNE control knob to list the top-menu item to be
selected and press the TUNE control knob. This will
display the next sub-menu list item on the audio
device, then follow the same steps to go to the desired
track in that list. Not all iPod威 or external USB device
sub-menu levels are available on this system.
• MUSIC TYPE button: The MUSIC TYPE button is
another shortcut button to the genre listing on your
audio device.
CAUTION!
• Leaving the iPod威 or external USB device (or any
supported device) anywhere in the vehicle in
extreme heat or cold can alter the operation or
damage the device. Follow the device manufacturer’s guidelines.
• Placing items on the iPod威 or external USB device,
or connections to the iPod威 or external USB device
in the vehicle, can cause damage to the device
and/or to the connectors.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
265
system. Seven devices can be paired to the Uconnect™
phone system, but just one can be selected and played.
WARNING!
Do not plug in or remove the iPod威 or external USB
device while driving. Failure to follow this warning
could result in an accident.
Selecting Different Audio Device
1. Press PHONE button to begin.
2. After the ⬙Ready⬙ prompt and the following beep, say
Bluetooth Streaming Audio (BTSA)
⬙Setup⬙, then ⬙Select Audio Devices⬙.
Music can be streamed from your cellular phone to the
3. Say the name of the audio device or ask the
Uconnect™ phone system.
Uconnect™ phone system to list audio devices.
Controlling BTSA Using Radio Buttons
To get into the BTSA mode, press either “AUX” button on Next Track
the radio or press the VR button and say “Bluetooth Use the SEEK UP button, or press the VR button on the
radio and say “Next Track” to jump to the next track
Streaming Audio”.
music on your cellular phone.
Play Mode
When switched to BTSA mode, some audio devices can Previous Track
start playing music over the vehicle’s audio system, but Use the SEEK DOWN button, or press the VR button on
some devices require the music to be initiated on the device the radio and say “Previous Track” to jump to the
first, then it will get streamed to the Uconnect™ phone previous track music on your cellular phone.
I
nf
or
mat
i
onPr
ovi
dedby:
4
266
UNDERSTANDING YOUR INSTRUMENT PANEL
Browse
The remote sound system controls are located on the rear
Browsing is not available on a BTSA device. Only the surface of the steering wheel, at the three and nine
current song that is playing will display info.
o’clock positions.
STEERING WHEEL AUDIO CONTROLS —
IF EQUIPPED
The right-hand rocker switch has a pushbutton in the
center, and controls the volume and mode of the sound
system. Pressing the top of the rocker switch will increase
the volume. Pressing the bottom of the rocker switch will
decrease the volume. Pressing the center button changes
the operation of the radio from AM to FM, or to CD
mode, depending on which radio is in the vehicle.
The left-hand rocker switch has a pushbutton in the
center. The function of the left-hand switch is different,
depending on which mode you are in.
The following describes the left-hand rocker switch operation in each mode.
Remote Sound System Controls
(Back View Of Steering Wheel)
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
267
Radio Operation
CD/DVD DISC MAINTENANCE
Pressing the top of the switch will SEEK up for the next To keep a CD/DVD in good condition, take the following
listenable station, and pressing the bottom of the switch precautions:
will SEEK down for the next listenable station.
1. Handle the disc by its edge; avoid touching the
The button located in the center of the left-hand switch surface.
will tune to the next preset station that you have pro2. If the disc is stained, clean the surface with a soft cloth,
grammed in the radio preset pushbutton.
wiping from center to edge.
CD Player
3. Do not apply paper or tape to the disc; avoid scratchPressing the top of the switch once will go to the next
ing the disc.
track on the CD. Pressing the bottom of the switch once
will go to the beginning of the current track, or to the 4. Do not use solvents such as benzene, thinner, cleaners,
beginning of the previous track if it is within one second or anti-static sprays.
after the current track begins to play.
5. Store the disc in its case after playing.
If you press the switch up or down twice it plays the
6. Do not expose the disc to direct sunlight.
second track; three times, it will play the third, etc.
7. Do not store the disc where temperatures may become
The button in the center of the left-hand switch has no
too high.
function in this mode.
I
nf
or
mat
i
onPr
ovi
dedby:
4
268
UNDERSTANDING YOUR INSTRUMENT PANEL
NOTE: If you experience difficulty in playing a particu- Manual Heating And Air Conditioning
lar disc, it may be damaged (i.e., scratched, reflective
coating removed, a hair, moisture or dew on the disc)
oversized, or have protection encoding. Try a known
good disc before considering disc player service.
RADIO OPERATION AND MOBILE PHONES
Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
Manual Temperature Control
turned down or off during mobile phone operation when The Manual Temperature Controls consist of a series of
not using Uconnect™ (if equipped).
outer rotary dials and inner push knobs.
CLIMATE CONTROLS
The air conditioning and heating system is designed to
make you comfortable in all types of weather.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
Blower Control
Rotate this control to regulate the
amount of air forced through the ventilation system in any mode. The
blower speed increases as you move
the control to the right from the “O”
(OFF) position. There are four blower
speeds.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
269
Temperature Control
Rotate this control to regulate the temperature of the air inside the passenger
compartment. Rotating the dial left
into the blue area of the scale indicates
cooler temperatures, while rotating
right into the red area indicates
warmer temperatures.
NOTE: If your air conditioning performance seems
lower than expected, check the front of the A/C condenser located in front of the radiator for an accumulation of dirt or insects. Clean with a gentle water spray
from behind the radiator and through the condenser.
Fabric front fascia protectors may reduce airflow to the
condenser, reducing air conditioning performance.
I
nf
or
mat
i
onPr
ovi
dedby:
4
270
UNDERSTANDING YOUR INSTRUMENT PANEL
Mode Control (Air Direction)
Rotate this control to choose from several patterns of air distribution. You
can select either a primary mode as
identified by the symbols on the control, or a blend of two of these modes.
The closer the setting is to a particular
symbol, the more air distribution you
receive from that mode.
Bi-Level
Air is directed through the panel and floor outlets.
NOTE: For all settings, except full cold or full hot, there
is a difference in temperature between the upper and
lower outlets. The warmer air flows to the floor outlets.
This feature gives improved comfort during sunny but
cool conditions.
Floor
Panel
Air is directed through the floor outlets with a
Air is directed through the outlets in the instrument
small amount flowing through the defrost and side
panel. These outlets can be adjusted to direct airflow. window demist outlets.
NOTE: The center instrument panel outlets can be
aimed so that they are directed toward the rear seat
passengers for maximum airflow to the rear.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
271
Recirculation Control
Air is directed through the floor, defrost, and side
Pressing the Recirculation Control button will
temporarily put the system in recirculation
window demist outlets. This setting works best in
mode. This can be used when outside condicold or snowy conditions that require extra heat to
tions such as smoke, odors, dust, or high
the windshield. This setting is good for maintaining
comfort while reducing moisture on the windshield.
humidity are present. Activating recirculation will cause
the LED in the control button to illuminate. After ten
Defrost
minutes, the system will return to normal mode function
Air is directed through the windshield and side
and the LED will turn off.
window demist outlets. Use this mode with maximum blower and temperature settings for best wind- NOTE:
• Continuous use of the Recirculation mode may make
shield and side window defrosting.
the inside air stuffy and window fogging may occur.
NOTE: The air conditioning compressor operates in
Extended use of this mode is not recommended.
Mix, Defrost, or a blend of these modes, even if the Air
Conditioning (A/C) button is not pressed. This dehu- • The use of the Recirculation mode in cold or damp
weather will cause windows to fog on the inside,
midifies the air to help dry the windshield. To improve
because of moisture buildup inside the vehicle. Select
fuel economy, use these modes only when necessary.
the outside air position for maximum defogging.
Mix
I
nf
or
mat
i
onPr
ovi
dedby:
4
272
UNDERSTANDING YOUR INSTRUMENT PANEL
• The A/C will engage automatically to prevent fogging Air Conditioning Control
Press this button to engage the Air
when the recirculation button is pressed and the mode
Conditioning. A light will illuminate
control is set to panel or Bi-Level.
when the Air Conditioning system is
• Recirculated air is not allowed in Floor, Mix or Defrost
engaged. Rotating the dial left into the
modes. If the Recirculation button is depressed while
blue area of the scale indicates cooler
in any of these modes, the LED indicator will flash
temperatures, while rotating right into
several times then go out. Recirculation will be disthe red area indicates warmer temabled automatically is these modes are selected.
peratures.
• The A/C can be deselected manually without disturbNOTE: The air conditioning compressor will not engage
ing the mode control selection.
until the engine has been running for about 10 seconds.
• When the ignition switch is turned to the LOCK
• MAX A/C
position, the recirculation feature will be cancelled.
For maximum cooling use the A/C and recirculation
buttons at the same time.
• ECONOMY MODE
If economy mode is desired, press the A/C button to turn
OFF the indicator light and the A/C compressor. Then,
move the temperature control to the desired temperature.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
Automatic Temperature Control (ATC) —
If Equipped
273
Automatic Operation
The Automatic Temperature Control system automatically maintains the climate in the cabin of the vehicle at
the comfort levels desired by the driver and passenger.
Operation of the system is quite simple.
1. Turn the Mode Control knob (on the right) and the
Blower Control knob (on the left) to AUTO.
NOTE: The AUTO position performs best for front seat
occupants only.
Automatic Temperature Control
I
nf
or
mat
i
onPr
ovi
dedby:
4
274
UNDERSTANDING YOUR INSTRUMENT PANEL
2. Dial in the temperature you would NOTE:
like the system to maintain by rotating • The temperature setting can be adjusted at anytime
without affecting automatic operation.
the Temperature Control knob. Once
the comfort level is selected, the sys• Pressing the Air Conditioning Control button while in
tem will maintain that level automatiAUTO mode will cause the LED in the control button
cally using the heating system. Should
to flash three times and then turn off. This indicates
the desired comfort level require air
that the system is in AUTO mode and requesting the
conditioning, the system will automatically make the
air conditioning is not necessary.
adjustment.
• If your air conditioning performance seems lower than
You will experience the greatest efficiency by simply
expected, check the front of the A/C condenser located
allowing the system to function automatically. Selecting
in front of the radiator for an accumulation of dirt or
the “O” (OFF) position on the blower control stops the
insects. Clean with a gentle water spray from behind
system completely and closes the outside air intake.
the radiator and through the condenser. Fabric front
fascia protectors may reduce airflow to the condenser,
72°F (22°C) is the recommended setting for maximum
reducing air conditioning performance.
comfort for the average person; however, this may vary.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
275
• While operating in AUTO, the system will not automatically sense the presence of fog, mist or ice on the
windshield. The defrost mode must be manually selected to clear the windshield and side glass.
Manual Operation
This system offers a full complement of manual override
features, which consist of Blower Preferred Automatic,
Mode Preferred Automatic, or Blower and Mode Preferred Automatic. This means the operator can override
Blower Control
the blower, the mode, or both. There is a manual blower
For full automatic operation or for
range for times when the AUTO setting is not desired.
automatic blower operation, turn the
The blower can be set to any fixed blower speed by
knob to the AUTO position. In manual
rotating the Blower Control knob (on the left).
mode there are seven blower speeds
that can be individual selected. In off NOTE: Please read the Automatic Temperature Control
position the blower will shut off.
Operation Chart that follows for details.
I
nf
or
mat
i
onPr
ovi
dedby:
4
276
UNDERSTANDING YOUR INSTRUMENT PANEL
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
277
The operator can override the AUTO mode setting to • Floor
change airflow distribution by rotating the Mode Control
Air is directed through the floor outlets with a
knob (on the right) to one of the following positions.
small amount flowing through the defrost and side
window demist outlets.
• Panel
Air is directed through the outlets in the instrument • Mix
Air is directed through the floor, defrost, and side
panel. These outlets can be adjusted to direct airflow.
window demist outlets. This setting works best in
NOTE: The center instrument panel outlets can be
cold or snowy conditions that require extra heat to
aimed so that they are directed toward the rear seat
the windshield. This setting is good for maintaining
passengers for maximum airflow to the rear.
comfort while reducing moisture on the windshield.
• Bi-Level
• Defrost
Air is directed through the panel and floor outlets.
Air is directed through the windshield and side
window demist outlets. Use this mode with maxiNOTE: For all settings, except full cold or full hot, there mum blower and temperature settings for best windis a difference in temperature between the upper and shield and side window defrosting.
lower outlets. The warmer air flows to the floor outlets.
This feature gives improved comfort during sunny but
cool conditions.
I
nf
or
mat
i
onPr
ovi
dedby:
4
278
UNDERSTANDING YOUR INSTRUMENT PANEL
• Air Conditioner Control
Press this button to turn on the air
conditioning during manual operation
only. When the air conditioning is
turned on, cool dehumidified air will
flow through the outlets selected with
the Mode control dial. Press this button a second time to turn OFF the air
conditioning. An LED in the button illuminates when
manual compressor operation is selected.
• Recirculation Control
The system will automatically control recirculation. However, pressing the Recirculation
Control button will temporarily put the system
in recirculation mode. This can be used when
outside conditions such as smoke, odors, dust, or high
humidity are present. Activating recirculation will cause
the LED in the control button to illuminate. After ten
minutes, the system will return to normal AUTO mode
function and the LED will turn off.
NOTE:
• When the ignition switch is turned to the LOCK
position, the recirculation feature will be cancelled.
• In cold weather, use of the Recirculation mode may lead
to excessive window fogging. The Recirculation mode
is not allowed in the floor, defrost, or Mix mode in order
to improve window clearing. Recirculation will be
disabled automatically if these modes are selected.
• Extended use of recirculation may cause the windows
to fog. If the interior of the windows begins to fog,
press the Recirculation button to return to outside air.
Some temp/humidity conditions will cause captured
interior air to condense on windows and hamper
visibility. For this reason, the system will not allow
Recirculation to be selected while in floor, defrost, or
Mix mode. Attempting to use the recirculation while in
these modes will cause the LED in the control button
to blink and then turn off.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
• Most of the time, when in Automatic Operation, you
can temporarily put the system into Recirculation
Mode by pressing the Recirculation button. However,
under certain conditions, while in Automatic Mode,
the system is blowing air out the defrost vents. When
these conditions are present, and the Recirculation
button is pressed, the indicator will flash and then turn
off. This tells you that you are unable to go into
Recirculation Mode at this time. If you would like the
system to go into Recirculation Mode, you must first
move the Mode knob to Panel, Mix and then press the
Recirculation button. This feature reduces the possibility of window fogging.
279
Summer Operation
The engine cooling system in air-conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A solution of 50% ethylene
glycol antifreeze coolant and 50% water is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.
Winter Operation
Use of the air Recirculation Mode during winter months is
not recommended because it may cause window fogging.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
Operating Tips
(i.e., vacation) for two weeks or more, run the air
NOTE: Refer to the chart at the end of this section for conditioning system at idle for about five minutes in the
suggested control settings for various weather condi- fresh air and high blower settings. This will ensure
tions.
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
I
nf
or
mat
i
onPr
ovi
dedby:
4
280
UNDERSTANDING YOUR INSTRUMENT PANEL
Window Fogging
Interior fogging on the windshield can be quickly removed by turning the mode selector to Defrost. The Mix
mode can be used to maintain a clear windshield and
provide sufficient heating. If side window fogging becomes a problem, increase blower speed. Vehicle windows tend to fog on the inside in mild but rainy or humid
weather.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter — If Equipped
NOTE: Recirculate without A/C should not be used for The A/C Filter prevents most dust and pollen from
entering the cabin. The filter acts on air coming from
long periods as fogging may occur.
outside the vehicle and recirculated air within the pasSide Window Demisters
senger compartment. Refer to “Maintenance Procedures”
A side window demister outlet is located at each end of
in “Maintaining Your Vehicle” for A/C Air Filter service
the instrument panel. These non-adjustable outlets direct
information or see your authorized dealer for service.
air toward the side windows when the system is in the
Refer to “Maintenance Schedules” for filter service
FLOOR, MIX, or DEFROST mode. The air is directed at
intervals.
the area of the windows through which you view the
outside mirrors.
I
nf
or
mat
i
onPr
ovi
dedby:
UNDERSTANDING YOUR INSTRUMENT PANEL
281
Control Setting Suggestions for Various Weather Conditions
4
I
nf
or
mat
i
onPr
ovi
dedby:
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
CONTENTS
䡵 Starting Procedures . . . . . . . . . . . . . . . . . . . . 288
䡵 Automatic Transmission . . . . . . . . . . . . . . . . . 292
▫ Automatic Transmission . . . . . . . . . . . . . . . 288
▫ Automatic Transmission Ignition Interlock
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
▫ Normal Starting . . . . . . . . . . . . . . . . . . . . . 288
▫ Extreme Cold Weather
(Below –20°F Or ⫺29°C) . . . . . . . . . . . . . . . 289
▫ If Engine Fails To Start . . . . . . . . . . . . . . . . 289
▫ After Starting . . . . . . . . . . . . . . . . . . . . . . . 291
䡵 Engine Block Heater — If Equipped . . . . . . . . 291
▫ Key Ignition Park Interlock . . . . . . . . . . . . . 293
▫ Brake/Transmission Interlock System . . . . . . 294
▫ Four-Speed/Six-Speed Automatic
Transmission . . . . . . . . . . . . . . . . . . . . . . . 294
▫ Gear Ranges . . . . . . . . . . . . . . . . . . . . . . . . 294
䡵 AutoStick威 — If Equipped . . . . . . . . . . . . . . . 298
▫ Operation . . . . . . . . . . . . . . . . . . . . . . . . . 298
I
nf
or
mat
i
onPr
ovi
dedby:
5
284
STARTING AND OPERATING
▫ General Information . . . . . . . . . . . . . . . . . . 299
▫ Traction Control System (TCS) . . . . . . . . . . . 309
䡵 Driving On Slippery Surfaces . . . . . . . . . . . . . 300
▫ Brake Assist System (BAS) . . . . . . . . . . . . . . 310
▫ Acceleration . . . . . . . . . . . . . . . . . . . . . . . . 300
▫ Hill Start Assist (HSA) – If Equipped . . . . . . 311
▫ Traction . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
▫ Electronic Stability Control (ESC) . . . . . . . . . 313
䡵 Driving Through Water . . . . . . . . . . . . . . . . . 301
▫ ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light . . . . . . . . . . . . 315
▫ Flowing/Rising Water . . . . . . . . . . . . . . . . . 301
▫ Shallow Standing Water . . . . . . . . . . . . . . . 301
䡵 Power Steering . . . . . . . . . . . . . . . . . . . . . . . 303
▫ Power Steering Fluid Check . . . . . . . . . . . . . 304
䡵 Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . 304
䡵 Anti-Lock Brake System (ABS) . . . . . . . . . . . . 307
䡵 Electronic Brake Control System . . . . . . . . . . . 309
▫ Anti-Lock Brake System (ABS) . . . . . . . . . . . 309
䡵 Tire Safety Information
. . . . . . . . . . . . . . . . . 316
▫ Tire Markings . . . . . . . . . . . . . . . . . . . . . . . 316
▫ Tire Identification Number (TIN) . . . . . . . . . 320
▫ Tire Terminology And Definitions . . . . . . . . . 321
▫ Tire Loading And Tire Pressure . . . . . . . . . . 322
䡵 Tires — General Information
. . . . . . . . . . . . . 326
▫ Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . 326
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
285
▫ Tire Inflation Pressures . . . . . . . . . . . . . . . . 327
䡵 Tire Rotation Recommendations . . . . . . . . . . . 336
▫ Radial-Ply Tires . . . . . . . . . . . . . . . . . . . . . 329
䡵 Tire Pressure Monitor System (TPMS) . . . . . . . 337
▫ Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped . . . . . . . . . . . . . . 330
▫ Base System . . . . . . . . . . . . . . . . . . . . . . . . 339
▫ Compact Spare Tire – If Equipped . . . . . . . . 330
▫ Full Size Spare – If Equipped . . . . . . . . . . . . 331
▫ Limited-Use Spare – If Equipped . . . . . . . . . 331
▫ Tire Spinning . . . . . . . . . . . . . . . . . . . . . . . 332
▫ Tread Wear Indicators . . . . . . . . . . . . . . . . . 333
▫ Life Of Tire . . . . . . . . . . . . . . . . . . . . . . . . 333
▫ Replacement Tires . . . . . . . . . . . . . . . . . . . . 334
䡵 Tire Chains . . . . . . . . . . . . . . . . . . . . . . . . . . 335
䡵 Snow Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 335
▫ Premium System – If Equipped . . . . . . . . . . 341
▫ General Information . . . . . . . . . . . . . . . . . . 345
䡵 Fuel Requirements . . . . . . . . . . . . . . . . . . . . . 346
▫ Reformulated Gasoline . . . . . . . . . . . . . . . . 346
▫ Gasoline/Oxygenate Blends . . . . . . . . . . . . . 347
▫ E-85 Usage In Non-Flex Fuel Vehicles . . . . . . 347
▫ MMT In Gasoline . . . . . . . . . . . . . . . . . . . . 348
▫ Materials Added To Fuel . . . . . . . . . . . . . . . 348
▫ Fuel System Cautions . . . . . . . . . . . . . . . . . 349
▫ Carbon Monoxide Warnings . . . . . . . . . . . . 350
I
nf
or
mat
i
onPr
ovi
dedby:
5
286
STARTING AND OPERATING
䡵 Flexible Fuel (3.6L Engine Only) —
䡵 Adding Fuel . . . . . . . . . . . . . . . . . . .
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . 350
▫ Fuel Filler Cap (Gas Cap) . . . . . . . .
▫ E-85 General Information . . . . . . . . . . . . . . . 350
▫ Loose Filler Cap Message . . . . . . . .
▫ Ethanol Fuel (E-85) . . . . . . . . . . . . . . . . . . . 351
䡵 Vehicle Loading . . . . . . . . . . . . . . . .
▫ Fuel Requirements . . . . . . . . . . . . . . . . . . . 352
▫ Vehicle Certification Label . . . . . . . .
▫ Selection Of Engine Oil For Flexible Fuel
▫ Gross Vehicle Weight Rating (GVWR)
Vehicles (E-85) And Gasoline Vehicles . . . . . . 352
▫ Gross Axle Weight Rating (GAWR) . .
▫ Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
▫ Overloading . . . . . . . . . . . . . . . . . .
▫ Cruising Range . . . . . . . . . . . . . . . . . . . . . . 353
▫ Loading . . . . . . . . . . . . . . . . . . . . .
▫ Replacement Parts . . . . . . . . . . . . . . . . . . . 353
䡵 Trailer Towing . . . . . . . . . . . . . . . . . .
▫ Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 354
▫ Common Towing Definitions . . . . . .
. . . . . . 354
. . . . . . 354
. . . . . . 356
. . . . . . 357
. . . . . . 357
. . . . . . 357
. . . . . . 357
. . . . . . 358
. . . . . . 358
. . . . . . 358
. . . . . . 359
▫ Trailer Hitch Classification . . . . . . . . . . . . . . 361
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
287
▫ Trailer Towing Weights
䡵 Recreational Towing
(Maximum Trailer Weight Ratings) . . . . . . . . 362
(Behind Motorhome, Etc.) . . . . . . . . . . . . . . . . 369
▫ Trailer And Tongue Weight . . . . . . . . . . . . . 363
▫ Towing Requirements . . . . . . . . . . . . . . . . . 364
▫ Towing This Vehicle
Behind Another Vehicle . . . . . . . . . . . . . . . . 369
▫ Towing Tips . . . . . . . . . . . . . . . . . . . . . . . . 368
5
I
nf
or
mat
i
onPr
ovi
dedby:
288
STARTING AND OPERATING
STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seriously or fatally injured. Do not leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
Automatic Transmission
The shift lever must be in the PARK or NEUTRAL
position before you can start the engine. Apply the brakes
before shifting to any driving gear.
NOTE: The ignition switch must be in the ON position,
and you must press the brake pedal before shifting out of
PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
For vehicles not equipped with Tip Start (Four-Speed
Transmission), turn the ignition switch to the START
position and release it when the engine starts. If the
engine fails to start within 10 seconds, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
289
For vehicles equipped with Tip Start (Six-Speed Trans- If Engine Fails To Start
mission), turn the ignition switch to the START position
WARNING!
and release it as soon as the starter engages. The starter
motor will continue to run, and it will disengage auto• Never pour fuel or other flammable liquids into
matically when the engine is running. If the engine fails
the throttle body air inlet opening in an attempt to
to start, the starter will disengage automatically in 10 secstart the vehicle. This could result in a flash fire
onds. If this occurs, turn the ignition switch to the LOCK
causing serious personal injury.
position, wait 10 to 15 seconds, then repeat the “Normal
•
Do not attempt to push or tow your vehicle to get it
Starting” procedure.
started. Vehicles equipped with an automatic transExtreme Cold Weather (Below –20°F or ⫺29°C)
mission cannot be started this way. Unburned fuel
To ensure reliable starting at these temperatures, use of
could enter the catalytic converter and once the
an externally powered electric engine block heater (availengine has started, ignite and damage the converter
able from your dealer) is recommended.
and vehicle. If the vehicle has a discharged battery,
booster cables may be used to obtain a start from a
booster battery or the battery in another vehicle.
This type of start can be dangerous if done improperly. Refer to “Jump Starting” in “What To Do In
Emergencies” for further information.
I
nf
or
mat
i
onPr
ovi
dedby:
5
290
STARTING AND OPERATING
Without Tip Start
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” procedures, it may be flooded. Push the accelerator pedal all
the way to the floor and hold it there while cranking the
engine. This should clear any excess fuel in case the
engine is flooded.
If the engine shows no sign of starting after two 15second periods of cranking with the accelerator pedal
held to the floor, repeat the “Normal Starting” or “Extreme Cold Weather” procedures.
With Tip Start
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” procedures, it may be flooded. To clear any excess fuel, push
CAUTION!
the accelerator pedal all the way to the floor and hold it.
Then, turn the ignition switch to the START position and
To prevent damage to the starter, do not crank the
release it as soon as the starter engages. The starter motor
engine for more than 15 seconds at a time. Wait 10 to
will disengage automatically in 10 seconds. Once this
15 seconds before trying again.
occurs, release the accelerator pedal, turn the ignition
If the engine is flooded, it may start to run, but not have switch to the LOCK position, wait 10 to 15 seconds, then
enough power to continue running when the key is repeat the “Normal Starting” procedure.
released. If this occurs, continue cranking up to 15 seconds with the accelerator pedal pushed all the way to the
floor.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
CAUTION!
To prevent damage to the starter, wait 10 to 15 seconds before trying again.
291
The engine block heater cord is bundled under the hood
between the headlight assembly and the Totally Integrated Power Module (Fuse Box) on the driver’s side of
the vehicle.
The engine block heater must be plugged in at least one
After Starting
hour to have an adequate warning effect on the engine.
The idle speed will automatically decrease as the engine
warms up.
WARNING!
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a
grounded, three-wire extension cord.
Remember to disconnect the engine block heater
cord before driving. Damage to the 110-115 Volt
electrical cord could cause electrocution.
I
nf
or
mat
i
onPr
ovi
dedby:
5
292
STARTING AND OPERATING
NOTE: You MUST press and hold the brake pedal down
while shifting the shift lever out of PARK.
AUTOMATIC TRANSMISSION
CAUTION!
Damage to the transmission may occur if the following precautions are not observed:
• Shift the shift lever into PARK only after the
vehicle has come to a complete stop.
• Shift the shift lever into or out of REVERSE only
after the vehicle has come to a complete stop and
the engine is at idle speed.
• Do not shift the shift lever from REVERSE, PARK,
or NEUTRAL into any forward gear when the
engine is above idle speed.
• Before shifting the shift lever into any gear, make
sure your foot is firmly on the brake pedal.
WARNING!
• It is dangerous to move the shift lever out of PARK
or NEUTRAL if the engine speed is higher than
idle speed. If your foot is not firmly on the brake
pedal, the vehicle could accelerate quickly forward
or in reverse. You could lose control of the vehicle
and hit someone or something. Only shift into
gear when the engine is idling normally and when
your right foot is firmly on the brake pedal.
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
STARTING AND OPERATING
WARNING! (Continued)
• Unintended movement of a vehicle could injure
those in and near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine is
running. Before exiting a vehicle, you should
always shift the vehicle into PARK, remove the
key from the ignition, and apply the parking
brake. Once the key is removed from the ignition,
the shift lever is locked in the PARK position,
securing the vehicle against unwanted movement.
Furthermore, you should never leave children unattended inside a vehicle.
293
Automatic Transmission Ignition Interlock
Systems
These systems prevent the key fob from being removed
unless the shift lever is in PARK. They also prevent
shifting out of PARK unless the ignition switch is in the
ON or START position and the brake pedal is applied.
Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Interlock which requires the shift lever to be placed in PARK
prior to rotating the key to the LOCK position. The key
can only be removed from the ignition when the ignition
is in the LOCK position. Once the key is removed, the
shift lever is locked in PARK.
NOTE: If a malfunction occurs, the system will trap the
key in the ignition switch lock cylinder to warn you that
this safety feature is inoperable. The engine can be started
and stopped, but the key cannot be removed until you
obtain service.
I
nf
or
mat
i
onPr
ovi
dedby:
5
294
STARTING AND OPERATING
Brake/Transmission Interlock System
This vehicle is equipped with a Brake Transmission Shift
Interlock System (BTSI) that holds the shift lever in the
PARK position when the ignition switch is in the LOCK
position. To move the shift lever out of the PARK
position, the ignition switch must be turned to the ON or
START position (engine running or not) and the brake
pedal must be pressed.
Four-Speed/Six-Speed Automatic Transmission
The electronically controlled transmission provides a
precise shift schedule. The transmission electronics are
self-calibrating; therefore, the first few shifts on a new
Shift Lever
vehicle may be somewhat abrupt. This is a normal
Gear Ranges
condition, and precision shifts will develop within a few
PARK
hundred miles/kilometers.
This range supplements the parking brake by locking the
transmission. The engine can be started in this range.
Never attempt to use PARK while vehicle is in motion.
Apply parking brake when leaving vehicle in this range.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
When parking on a flat surface, place the shift lever into
the PARK position first, and then apply the parking
brake.
When parking on a hill, it is important to set the parking
brake before placing the shift lever in PARK, otherwise
the load on the transmission locking mechanism may
make it difficult to move the shift lever out of PARK. As
an added precaution, turn the front wheels toward the
curb on a downhill grade and away from the curb on an
uphill grade.
WARNING!
• Never use the PARK position as a substitute for
the parking brake. Always apply the parking
brake fully when parked to guard against vehicle
movement and possible injury or damage.
295
WARNING! (Continued)
• Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the
ignition key in the ignition switch. A child could
operate power windows, other controls, or move
the vehicle.
5
CAUTION!
DO NOT race the engine when shifting from PARK
or NEUTRAL positions into another gear range as
this can damage the drivetrain.
REVERSE
This range is for moving the vehicle backward. Use only
(Continued) after the vehicle has come to a complete stop.
I
nf
or
mat
i
onPr
ovi
dedby:
296
STARTING AND OPERATING
NEUTRAL
This range is used when vehicle is standing for prolonged periods with engine running. Engine may be
started in this range. Set the parking brake and shift the
transmission into PARK if you must leave the vehicle.
WARNING!
Do not coast in NEUTRAL and never turn off the
ignition switch to coast down a hill. These are unsafe
practices that limit your response to changing traffic
or road conditions. You might lose control of the
vehicle and have a collision.
DRIVE – Six-Speed Transmission
This range should be used for most city and highway
driving. It provides the smoothest upshifts, downshifts,
and best fuel economy. However, use the AutoStick威
mode and select the appropriate gear when frequent
transmission shifting occurs in the DRIVE range. For
example: When operating the vehicle under heavy loading conditions, (i.e., in hilly terrain, traveling into strong
headwinds, or while towing heavy trailers). Under these
conditions, reducing shifting by selecting the appropriate
gear in AutoStick威 will improve the performance and
extend transmission life by reducing excessive shifting
and heat build-up.
DRIVE – Four-Speed Transmission
This range should be used for most city and highway
driving, it provides the smoothest upshifts, downshifts,
and best fuel economy. However, select the ⬙3⬙ range
when frequent transmission shifting occurs while using
the DRIVE range, such as when operating the vehicle
under heavy loading conditions, (i.e., in hilly terrain,
traveling into strong headwinds, or while towing heavy
trailers). Under these conditions, using the ⬙3⬙ range will
improve performance and extend transmission life by
reducing excessive shifting and heat build-up.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
DRIVE 3 — Four-Speed Transmission
This range eliminates shifts into fourth gear. The transmission will operate normally in first and second gear.
Shifts into third gear may be delayed to provide second
gear operation at higher speeds. The ⬙3⬙ range should
also be used when descending steep grades to prevent
brake system distress
297
CAUTION!
If the transmission operating temperature exceeds
acceptable limits, the vehicle computer may override
the manually selected gear position by changing shift
points. This is done to prevent transmission damage
due to overheating.
NOTE: Using the ⬙3⬙ range while operating the vehicle
Reset Mode - Electronic Transmission
under heavy operating conditions will improve perforThe transmission is monitored electronically for abnormance and extend transmission life by reducing excesmal conditions. If a condition is detected that could cause
sive shifting and heat build-up.
damage, the transmission automatically shifts into secLOW — Four-Speed Transmission
ond gear (third gear for six–speed). The transmission
This range should be used for engine braking when remains in second gear (third gear for six–speed) despite
descending very steep grades. In this range, upshifts will the forward gear selected. PARK, REVERSE, and NEUoccur only to prevent engine overspeed while downshifts TRAL will continue to operate. The Reset feature allows
occur earlier than other gear range selections.
the vehicle to be driven to a dealer for service without
damaging the transmission.
I
nf
or
mat
i
onPr
ovi
dedby:
5
298
STARTING AND OPERATING
In the event of a momentary problem, the transmission AUTOSTICK姞 — IF EQUIPPED
can be reset to regain all forward gears by performing the AutoStick威 is a driver-interactive feature providing
manual shift control, giving you more control of the
following steps:
vehicle. AutoStick威 allows you to maximize engine brak1. Stop the vehicle.
ing, eliminate undesirable upshifts and downshifts, and
improve overall vehicle performance. This system can
2. Shift the shift lever into PARK.
also provide you with more control during passing, city
3. Turn the ignition switch to the LOCK position.
driving, cold slippery conditions, mountain driving,
trailer towing, and many other situations.
4. Restart the engine.
5. Shift the shift lever into the desired gear range and Operation
When the shift lever is in the AutoStick威 position (below
resume driving.
the DRIVE position), it can be moved from side to side.
NOTE: Even if the transmission can be reset, it is
This allows the driver to manually select the transmission
recommended that you visit a dealer at your earliest
gear being used. Moving the shift lever to the left (-)
possible convenience. Your dealer has diagnostic equiptriggers a downshift and to the right (+) an upshift. The
ment to determine if the problem could recur.
gear position will display in the instrument cluster on the
If the transmission cannot be reset, dealer service is transmission range indicator.
required.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
299
NOTE: In AutoStick威 mode, the transmission will only • Avoid using speed control when AutoStick威 is enshift up or down when the driver moves the shift lever to
gaged.
the right (+) or left (-).
• The transmission will automatically shift up when
maximum engine speed is reached while AutoStick威 is
AutoStick威 is deactivated when the shift lever is moved
engaged.
from the AutoStick (+/-) position into the DRIVE
position.
• Transmission shifting will be more noticeable when
AutoStick威 is engaged.
General Information
• You can start out, from a stop, in any gear except sixth. • If a downshift would cause the engine to overspeed,
The system will ignore attempts to upshift at too low
that shift will not occur until it is safe for the engine.
of a vehicle speed.
Mostly the transmission will stay in the manually
selected ratio, however.
• If a ratio other than first is selected, and the vehicle is
brought to a stop, the transmission control logic will • If the system detects powertrain overheating, the
transmission will revert to the automatic shift mode
automatically select the first gear ratio.
and remain in that mode until the powertrain cools off.
• Starting out in second gear is helpful in snowy or icy
conditions. To select second gear after the vehicle is • If the system detects a problem, it will disable the
AutoStick威 mode and the transmission will return to
brought to a stop, tap the shift lever to the right (+)
the automatic mode until the problem is corrected.
once.
I
nf
or
mat
i
onPr
ovi
dedby:
5
300
STARTING AND OPERATING
DRIVING ON SLIPPERY SURFACES
Acceleration
Rapid acceleration on snow covered, wet, or other slippery surfaces may cause the driving wheels to pull
erratically to the right or left. This phenomenon occurs
when there is a difference in the surface traction under
the front (driving) wheels.
Traction
When driving on wet or slushy roads, it is possible for a
wedge of water to build up between the tire and road
surface. This is hydroplaning and may cause partial or
complete loss of vehicle control and stopping ability. To
reduce this possibility, the following precautions should
be observed:
1. Slow down during rainstorms or when the roads are
slushy.
WARNING!
Rapid acceleration on slippery surfaces is dangerous.
Unequal traction can cause sudden pulling of the
front wheels. You could lose control of the vehicle
and possibly have a collision. Accelerate slowly and
carefully whenever there is likely to be poor traction
(ice, snow, wet, mud, loose sand, etc.).
2. Slow down if the road has standing water or puddles.
3. Replace the tires when tread wear indicators first
become visible.
4. Keep tires properly inflated.
5. Maintain sufficient distance between your vehicle and
the vehicle in front of you to avoid a collision in a sudden
stop.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
DRIVING THROUGH WATER
Driving through water more than a few inches/
centimeters deep will require extra caution to ensure
safety and prevent damage to your vehicle.
301
Shallow Standing Water
Although your vehicle is capable of driving through
shallow standing water, consider the following Caution
and Warning before doing so.
Flowing/Rising Water
CAUTION!
WARNING!
Do not drive on or across a road or path where water
is flowing and/or rising (as in storm run-off). Flowing water can wear away the road or path’s surface
and cause your vehicle to sink into deeper water.
Furthermore, flowing and/or rising water can carry
your vehicle away swiftly. Failure to follow this
warning may result in injuries that are serious or
fatal to you, your passengers, and others around you.
• Always check the depth of the standing water
before driving through it. Never drive through
standing water that is deeper than the bottom of
the tire rims mounted on the vehicle.
• Determine the condition of the road or the path
that is under water and if there are any obstacles in
the way before driving through the standing water.
• Do not exceed 5 mph (8 km/h) when driving
through standing water. This will minimize wave
effects.
(Continued)
I
nf
or
mat
i
onPr
ovi
dedby:
5
302
STARTING AND OPERATING
CAUTION! (Continued)
WARNING!
• Driving through standing water may cause damage to your vehicle’s drivetrain components. Always inspect your vehicle’s fluids (i.e., engine oil,
transmission, axle, etc.) for signs of contamination
(i.e., fluid that is milky or foamy in appearance)
after driving through standing water. Do not continue to operate the vehicle if any fluid appears
contaminated, as this may result in further damage. Such damage is not covered by the New
Vehicle Limited Warranty.
• Getting water inside your vehicle’s engine can
cause it to lock up and stall out, and cause serious
internal damage to the engine. Such damage is not
covered by the New Vehicle Limited Warranty.
• Driving through standing water limits your vehicle’s traction capabilities. Do not exceed 5 mph
(8 km/h) when driving through standing water.
• Driving through standing water limits your vehicle’s braking capabilities, which increases stopping distances. Therefore, after driving through
standing water, drive slowly and lightly press on
the brake pedal several times to dry the brakes.
• Getting water inside your vehicle’s engine can
cause it to lock up and stall out, and leave you
stranded.
• Failure to follow these warnings may result in
injuries that are serious or fatal to you, your
passengers, and others around you.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
POWER STEERING
The standard power steering system will give you good
vehicle response and increased ease of maneuverability
in tight spaces. The system will provide mechanical
steering capability if power assist is lost.
If for some reason the power assist is interrupted, it will
still be possible to steer your vehicle. Under these conditions, you will observe a substantial increase in steering
effort, especially at very low vehicle speeds and during
parking maneuvers.
NOTE:
• Increased noise levels at the end of the steering wheel
travel are considered normal and do not indicate that
there is a problem with the power steering system.
• Upon initial start-up in cold weather, the power steering pump may make noise for a short amount of time.
This is due to the cold, thick fluid in the steering
303
system. This noise should be considered normal, and it
does not in any way damage the steering system.
WARNING!
Continued operation with reduced power steering
assist could pose a safety risk to yourself and others.
Service should be obtained as soon as possible.
CAUTION!
Prolonged operation of the steering system at the end
of the steering wheel travel will increase the steering
fluid temperature and it should be avoided when
possible. Damage to the power steering pump may
occur.
I
nf
or
mat
i
onPr
ovi
dedby:
5
304
STARTING AND OPERATING
Power Steering Fluid Check
Checking the power steering fluid level at a defined
service interval is not required. The fluid should only be
checked if a leak is suspected, abnormal noises are
apparent, and/or the system is not functioning as anticipated. Coordinate inspection efforts through an authorized dealer.
CAUTION!
Do not use chemical flushes in your power steering
system as the chemicals can damage your power
steering components. Such damage is not covered by
the New Vehicle Limited Warranty.
WARNING!
Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to ensure accurate fluid level reading. Do
not overfill. Use only manufacturer’s recommended
power steering fluid.
If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further
information.
PARKING BRAKE
Before leaving the vehicle, make sure that the parking
brake is fully applied. Also, be certain to leave the
transmission in PARK.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
The parking brake lever is located in the center console.
To apply the parking brake, pull the lever up as firmly as
possible. To release the parking brake, pull the lever up
slightly, press the center button, then lower the lever
completely.
305
When the parking brake is applied with the ignition
switch ON, the “Brake Warning Light” in the instrument
cluster will illuminate.
NOTE:
• When the parking brake is applied and the transmission is placed in gear, the “Brake Warning Light” will
flash. If vehicle speed is detected, a chime will sound
to alert the driver. Fully release the parking brake
before attempting to move the vehicle.
• This light only shows that the parking brake is applied. It does not show the degree of brake application.
Parking Brake
When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. Apply the parking
brake before placing the shift lever in PARK, otherwise
the load on the transmission locking mechanism may
I
nf
or
mat
i
onPr
ovi
dedby:
5
306
STARTING AND OPERATING
make it difficult to move the shift lever out of PARK. The
parking brake should always be applied whenever the
driver is not in the vehicle.
WARNING!
• Never use the PARK position as a substitute for
the parking brake. Always apply the parking
brake fully when parked to guard against vehicle
movement and possible injury or damage.
• Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured.
• Do not leave the key in the ignition. A child could
operate power windows, other controls, or move
the vehicle.
WARNING! (Continued)
• Be sure the parking brake is fully disengaged
before driving; failure to do so can lead to brake
failure and a collision.
• Always fully apply the parking brake when leaving your vehicle or it may roll and cause damage or
injury. Also, be certain to leave the transmission in
PARK. Failure to do so may cause the vehicle to
roll and cause damage or injury.
CAUTION!
If the “Brake Warning Light” remains on with the
parking brake released, a brake system malfunction
is indicated. Have the brake system serviced by an
authorized dealer immediately.
(Continued)
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
ANTI-LOCK BRAKE SYSTEM (ABS)
The Anti-Lock Brake System (ABS) provides increased
vehicle stability and brake performance under most
braking conditions. The system operates with a separate
computer to modulate the hydraulic pressure to prevent
wheel lock-up and avoid skidding on slippery surfaces.
WARNING!
• Pumping of the anti-lock brakes will diminish
their effectiveness and may lead to a collision.
Pumping makes the stopping distance longer. Just
press firmly on your brake pedal when you need
to slow down or stop.
• The ABS cannot prevent the natural laws of physics from acting on the vehicle, nor can it increase
braking or steering efficiency beyond that afforded by the condition of the vehicle brakes and
tires or the traction afforded.
307
WARNING! (Continued)
• The ABS cannot prevent collisions, including
those resulting from excessive speed in turns,
following another vehicle too closely, or hydroplaning.
• The capabilities of an ABS-equipped vehicle must
never be exploited in a reckless or dangerous
manner, which could jeopardize the user’s safety
or the safety of others.
The “Anti-Lock Brake Warning Light” monitors the Anti-Lock Brake System. The light will
come on when the ignition switch is turned to
the ON position and may stay on for as long as
four seconds.
If the “Anti-Lock Brake Warning Light” remains on or
comes on while driving, it indicates that the anti-lock
(Continued) portion of the brake system is not functioning and that
I
nf
or
mat
i
onPr
ovi
dedby:
5
308
STARTING AND OPERATING
service is required. However, the conventional brake properly. This self check occurs each time the vehicle is
system will continue to operate normally if the “Brake started and accelerated past 7 mph (11 km/h).
Warning Light” is not on.
ABS is activated during braking under certain road or
If the “Anti-Lock Brake Warning Light” is on, the brake stopping conditions. ABS-inducing conditions can insystem should be serviced as soon as possible to restore clude ice, snow, gravel, bumps, railroad tracks, loose
the benefits of anti-lock brakes. If the “Anti-Lock Brake debris, or panic stops.
Warning Light” does not come on when the ignition
You also may experience the following when the brake
switch is turned to the ON position, have the bulb
system goes into anti-lock:
repaired as soon as possible.
• The ABS motor running (it may continue to run for a
If both the “Brake Warning Light” and the “Anti-Lock
short time after the stop),
Brake Warning Light” remain on, the Anti-Lock Brake
(ABS) and Electronic Brake Force Distribution (EBD) • the clicking sound of solenoid valves,
Systems are not functioning. Immediate repair to the ABS
• brake pedal pulsations,
system is required. See your authorized dealer.
• and a slight drop or fall away of the brake pedal at the
When the vehicle is driven over 7 mph (11 km/h), you
end of the stop.
may hear a slight clicking sound as well as some related
motor noises. These noises are the system performing its These are all normal characteristics of ABS.
self-check cycle to ensure that the ABS system is working
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
WARNING!
The Anti-Lock Brake System contains sophisticated
electronic equipment that may be susceptible to
interference caused by improperly installed or high
output radio transmitting equipment. This interference can cause possible loss of anti-lock braking
capability. Installation of such equipment should be
performed by qualified professionals.
309
together to enhance vehicle stability and control in various driving conditions and are commonly referred to as
ESC.
Anti-Lock Brake System (ABS)
This system aids the driver in maintaining vehicle control
under adverse braking conditions. The system controls
hydraulic brake pressure to prevent wheel lock-up and
help avoid skidding on slippery surfaces during braking.
Refer to “Anti-Lock Brake System” in “Starting and
Operating” for further information.
All vehicle wheels and tires must be the same size and
type, and tires must be properly inflated to produce Traction Control System (TCS)
This system monitors the amount of wheel spin of each of
accurate signals for the computer.
the driven wheels. If wheel spin is detected, brake
ELECTRONIC BRAKE CONTROL SYSTEM
pressure is applied to the slipping wheel(s) and engine
Your vehicle may be equipped with an optional ad- power is reduced to provide enhanced acceleration and
vanced electronic brake control system that includes stability. A feature of the TCS system functions similar to
Anti-Lock Brake System (ABS), Traction Control System a limited slip differential and controls the wheel spin
(TCS), Brake Assist System (BAS), Hill Start Assist (HSA), across a driven axle. If one wheel on a driven axle is
and Electronic Stability Control (ESC). All systems work
I
nf
or
mat
i
onPr
ovi
dedby:
5
310
STARTING AND OPERATING
spinning faster than the other, the system will apply the reduce brake pedal pressure unless braking is no longer
brake of the spinning wheel. This will allow more engine desired. Once the brake pedal is released, the BAS is
torque to be applied to the wheel that is not spinning. deactivated.
This feature remains active even if TCS and ESC are in
WARNING!
the “Partial Off” mode. Refer to “Electronic Stability
Control (ESC)” in this section of this manual.
• The BAS cannot prevent the natural laws of physBrake Assist System (BAS)
ics from acting on the vehicle, nor can it increase
The BAS is designed to optimize the vehicle’s braking
braking efficiency beyond that afforded by the
capability during emergency braking maneuvers. The
condition of the vehicle brakes and tires or the
system detects an emergency braking situation by senstraction afforded.
ing the rate and amount of brake application and then • The BAS cannot prevent collisions, including
applies optimum pressure to the brakes. This can help
those resulting from excessive speed in turns,
reduce braking distances. The BAS complements the
following another vehicle too closely, or hydroAnti-Lock Brake System (ABS). Applying the brakes very
planing.
quickly results in the best BAS assistance. To receive the • The capabilities of a BAS-equipped vehicle must
benefit of the system, you must apply continuous braknever be exploited in a reckless or dangerous
ing pressure during the stopping sequence. Do not
manner, which could jeopardize the user’s safety
or the safety of others.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
311
Hill Start Assist (HSA) – If Equipped
The HSA system is designed to assist the driver in
launching a vehicle on an incline. HSA will maintain the
level of brake pressure the driver inputs for a short
duration once the driver takes his foot off of the brake
pedal. If the driver does not apply the throttle during this
short duration, the system will release brake pressure
and the vehicle will roll down the incline. The system will
release brake pressure in proportion to the amount of
throttle applied.
HSA Activation Criteria
The following criteria must be met in order for HSA to
activate:
During operation, HSA will activate the brake control
system and a clicking noise may occur. If your foot is on
the brake pedal during operation you may feel a slight
pedal movement. The clicking and pedal movement is
normal and both will stop when HSA becomes inactive.
WARNING!
• Vehicle must be stopped
• Vehicle must be on a 7% or greater incline
• Gear selection matches vehicle uphill direction (i.e.,
vehicle facing uphill is in forward gear; vehicle backing uphill is in REVERSE gear).
There may be situations on minor hills (i.e., less than
7%), with a loaded vehicle or while pulling a trailer
where the system will not activate and slight rolling
may occur, which could cause a collision with another vehicle or object. Always remember the driver
is responsible for braking the vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
5
312
STARTING AND OPERATING
The system will only work if the intended direction of the 3. Apply the parking brake.
vehicle and vehicle gear match. For example, if the intended
4. Start the engine.
direction is forward up a hill and the vehicle is in DRIVE
5. Release the clutch pedal.
and the activation criteria are met, HSA will activate.
The system will work in REVERSE and all forward gears, 6. Rotate the steering wheel one-half turn to the left.
and will not activate if the vehicle is placed in
7. Press the “ESC Off” switch four times within 20 secNEUTRAL.
onds. The “ESC Activation/Malfunction Indicator Light”
should turn on and turn off two times.
HSA Off
Non-EVIC Equipped Vehicles
8. Rotate the steering wheel back to center and then an
If you wish to turn off the HSA system, follow this additional half-turn to the right.
procedure:
9. Turn the ignition switch to the OFF position and then
NOTE: You must complete Steps 1 through 8 within back to the ON position. If the sequence was completed
properly, the “ESC Activation/Malfunction Indicator
90 seconds.
Light” will blink several times to confirm HSA is disabled.
1. Center the steering wheel (front wheels pointing
10. Repeat these steps if you want to return this feature
straight forward).
to it’s previous setting.
2. Shift the transmission into NEUTRAL.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
313
EVIC Equipped Vehicles
• Over-steer - when the vehicle is turning more than
HSA is a Customer Programmable Feature on a EVIC
appropriate for the steering wheel position.
equipped vehicle. If you wish to turn off the HSA feature,
• Under-steer - when the vehicle is turning less than
refer to “Electronic Vehicle Information Center (EVIC)/
appropriate for the steering wheel position.
Customer Programmable Features” in “Understanding
Your Instrument Panel” for further information.
WARNING!
Electronic Stability Control (ESC)
This system enhances directional control and stability of
the vehicle under various driving conditions. ESC corrects for over/under steering of the vehicle by applying
the brake of the appropriate wheel to assist in counteracting the over/under steer condition. Engine power
may also be reduced to help the vehicle maintain the
desired path. ESC uses sensors in the vehicle to determine the vehicle path intended by the driver and compares it to the actual path of the vehicle. When the actual
path does not match the intended path, ESC applies the
brake of the appropriate wheel to assist in counteracting
the oversteer or understeer condition
The Electronic Stability Control (ESC) cannot prevent the natural laws of physics from acting on the
vehicle, nor can it increase the traction afforded by
prevailing road conditions. ESC cannot prevent accidents, including those resulting from loss of vehicle
control due to inappropriate driver input for the
conditions. Only a safe, attentive, and skillful driver
can prevent accidents. The capabilities of an ESC
equipped vehicle must never be exploited in a reckless or dangerous manner which could jeopardize the
user’s safety or the safety of others.
I
nf
or
mat
i
onPr
ovi
dedby:
5
314
STARTING AND OPERATING
reduction. This mode is intended to be used if the vehicle
ESC Operating Modes
All ESC equipped vehicles can choose the following ESC is in deep snow, sand, or gravel conditions and more
wheel spin than ESC would normally allow is required to
operating modes:
gain traction.
ESC On
This is the normal operating mode for ESC. Whenever
the vehicle is started the ESC system will be in this mode.
This mode should be used for almost all driving situations. ESC should only be turned to “Partial Off” for
specific reasons as noted below.
Partial ESC Mode
This mode is entered by momentarily pressing the “ESC
Off” switch (located in the lower switch bank below the
heater/air conditioning controls). When in “Partial Off”
mode, the TCS portion of ESC, except for the limited slip
feature described in the TCS section, has been disabled
and the “ESC Activation/Malfunction Indicator Light”
will be illuminated. All other stability features of ESC
function normally, with the exception of engine power
I
nf
or
mat
i
onPr
ovi
dedby:
ESC Off Switch
STARTING AND OPERATING
315
To turn ESC on again, momentarily press the “ESC Off” ESC Activation/Malfunction Indicator Light And
switch. This will restore the normal “ESC On” mode of ESC OFF Indicator Light
The “ESC Activation/Malfunction Indicator
operation.
Light” in the instrument cluster will come on
WARNING!
when the ignition switch is turned to the ON
position. It should go out with the engine
In partial ESC mode, the engine power reduction
running. If the “ESC Activation/Malfunction Indicator
feature of ESC is disabled. Therefore, enhanced
Light” comes on continuously with the engine running, a
vehicle stability offered by the ESC system is remalfunction has been detected in the ESC system. If this
duced.
light remains on after several ignition cycles, and the
vehicle has been driven several miles (kilometers) at
NOTE: To improve the vehicle’s traction when driving
speeds greater than 30 mph (48 km/h), see your authowith snow chains, or starting off in deep snow, sand or
rized dealer as soon as possible to have the problem
gravel, it may be desirable to switch to the “Partial Off”
diagnosed and corrected.
mode by pressing the “ESC Off” switch. Once the situation requiring ESC to be switched to the “Partial Off” The “ESC Activation/Malfunction Indicator Light” (lomode is overcome, turn ESC on again by momentarily cated in the instrument cluster) starts to flash as soon as
pressing the “ESC Off” switch. This may be done while the tires lose traction and the ESC system becomes active.
The “ESC Activation/Malfunction Indicator Light” also
the vehicle is in motion.
flashes when TCS is active. If the “ESC Activation/
I
nf
or
mat
i
onPr
ovi
dedby:
5
316
STARTING AND OPERATING
Malfunction Indicator Light” begins to flash during ac- TIRE SAFETY INFORMATION
celeration, ease up on the accelerator and apply as little
Tire Markings
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions.
NOTE:
• The “ESC Activation/Malfunction Indicator Light”
and the “ESC OFF Indicator Light” come on momentarily each time the ignition switch is turned ON.
• Each time the ignition is turned ON, the ESC system
will be ON even if it was turned off previously.
• The ESC system will make buzzing or clicking sounds
when it is active. This is normal; the sounds will stop
when ESC becomes inactive following the maneuver
that caused the ESC activation.
The “ESC OFF Indicator Light” indicates the
Electronic Stability Control (ESC) is off.
1 — U.S. DOT Safety
Standards Code (TIN)
2 — Size Designation
3 — Service Description
I
nf
or
mat
i
onPr
ovi
dedby:
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and
Temperature Grades
STARTING AND OPERATING
317
NOTE:
• LT (Light Truck) - Metric tire sizing is based on U.S.
• P (Passenger) - Metric tire sizing is based on U.S.
design standards. The size designation for LT-Metric
design standards. P-Metric tires have the letter “P”
tires is the same as for P-Metric tires except for the
molded into the sidewall preceding the size designaletters “LT” that are molded into the sidewall precedtion. Example: P215/65R15 95H.
ing the size designation. Example: LT235/85R16.
• European-Metric tire sizing is based on European • Temporary spare tires are high-pressure compact
design standards. Tires designed to this standard have
spares designed for temporary emergency use only.
the tire size molded into the sidewall beginning with
Tires designed to this standard have the letter “T”
the section width. The letter ⬙P⬙ is absent from this tire
molded into the sidewall preceding the size designasize designation. Example: 215/65R15 96H.
tion. Example: T145/80D18 103M.
• High flotation tire sizing is based on U.S. design
standards and it begins with the tire diameter molded
into the sidewall. Example: 31x10.5 R15 LT.
I
nf
or
mat
i
onPr
ovi
dedby:
5
318
STARTING AND OPERATING
Tire Sizing Chart
EXAMPLE:
Size Designation:
P = Passenger car tire size based on U.S. design standards
ⴖ....blank....ⴖ = Passenger car tire based on European design standards
LT = Light truck tire based on U.S. design standards
T = Temporary spare tire
31 = Overall diameter in inches (in)
215 = Section width in millimeters (mm)
65 = Aspect ratio in percent (%)
— Ratio of section height to section width of tire
10.5 = Section width in inches (in)
R = Construction code
— ⬙R⬙ means radial construction
—⬙D⬙ means diagonal or bias construction
15 = Rim diameter in inches (in)
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
319
EXAMPLE:
Service Description:
95 = Load Index
— A numerical code associated with the maximum load a tire can carry
H = Speed Symbol
— A symbol indicating the range of speeds at which a tire can carry a load corresponding
to its load index under certain operating conditions
— The maximum speed corresponding to the speed symbol should only be achieved under
specified operating conditions (i.e., tire pressure, vehicle loading, road conditions, and
posted speed limits)
Load Identification:
ⴖ....blank....ⴖ = Absence of any text on the sidewall of the tire indicates a Standard Load (SL) tire
Extra Load (XL) = Extra load (or reinforced) tire
Light Load = Light load tire
C, D, E = Load range associated with the maximum load a tire can carry at a specified pressure
Maximum Load — Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure — Maximum pressure indicates the maximum permissible cold tire inflation pressure for
this tire
I
nf
or
mat
i
onPr
ovi
dedby:
5
320
STARTING AND OPERATING
Tire Identification Number (TIN)
The TIN may be found on one or both sides of the tire,
however, the date code may only be on one side. Tires
with white sidewalls will have the full TIN, including the
date code, located on the white sidewall side of the tire.
Look for the TIN on the outboard side of black sidewall
tires as mounted on the vehicle. If the TIN is not found on
the outboard side, then you will find it on the inboard
side of the tire.
EXAMPLE:
DOT MA L9 ABCD 0301
DOT = Department of Transportation
— This symbol certifies that the tire is in compliance with the U.S. Department of Transportation tire
safety standards and is approved for highway use
MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)
03 = Number representing the week in which the tire was manufactured (two digits)
—03 means the 3rd week.
01 = Number representing the year in which the tire was manufactured (two digits)
—01 means the year 2001
— Prior to July 2000, tire manufacturers were only required to have one number to represent the
year in which the tire was manufactured. Example: 031 could represent the 3rd week of 1981 or 1991
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
321
Tire Terminology And Definitions
Term
B-Pillar
Cold Tire Pressure
Maximum Inflation Pressure
Recommended Inflation Pressure
Tire Placard
Definition
The vehicle B-Pillar is a structural member of the body located
between the front and rear door (of a four-door vehicle) running
from the sill to the roof.
Cold tire inflation pressure is defined as the tire pressure after the
vehicle has not been driven for at least 3 hours, or driven less
than 1 mile (1.6 km) after sitting for a three hour period. Inflation
pressure is measured in units of PSI (pounds per square inch) or
KPa (kilopascals).
The maximum inflation pressure is the maximum permissible cold
tire inflation pressure for this tire. The max inflation pressure is
molded into the sidewall.
Vehicle manufacturer’s recommended tire inflation pressure as
shown on the tire placard.
A paper label permanently attached to the vehicle showing the
vehicle’s loading capacity, the original equipment tire size and the
recommended inflation pressure.
I
nf
or
mat
i
onPr
ovi
dedby:
5
322
STARTING AND OPERATING
Tire And Loading Information Placard
Tire Loading And Tire Pressure
Tire Placard Location
NOTE: The proper cold tire inflation pressure is listed
on the driver’s side B-Pillar.
Tire and Loading Information Placard
Tire Placard Location
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
This placard tells you important information about
the:
1) number of people that can be carried in the vehicle
2) total weight your vehicle can carry
3) tire size designed for your vehicle
4) cold tire inflation pressures for the front, rear, and
spare tires.
323
axles must not be exceeded. For further information on
GAWRs, vehicle loading, and trailer towing, refer to
“Vehicle Loading” in this section.
To determine the maximum loading conditions of your
vehicle, locate the statement “The combined weight of
occupants and cargo should never exceed XXX lbs or
XXX kg” on the Tire and Loading Information placard.
The combined weight of occupants, cargo/luggage and
Loading
trailer tongue weight (if applicable) should never exceed
The vehicle maximum load on the tire must not exceed
the weight referenced here.
the load carrying capacity of the tire on your vehicle. You
will not exceed the tire’s load carrying capacity if you Steps For Determining Correct Load Limit
adhere to the loading conditions, tire size, and cold tire
1. Locate the statement “The combined weight of occuinflation pressures specified on the Tire and Loading
pants and cargo should never exceed XXX lbs or XXX kg”
Information placard and in the “Vehicle Loading” section
on your vehicle’s placard.
of this manual.
2. Determine the combined weight of the driver and
NOTE: Under a maximum loaded vehicle condition,
passengers that will be riding in your vehicle.
gross axle weight ratings (GAWRs) for the front and rear
I
nf
or
mat
i
onPr
ovi
dedby:
5
324
STARTING AND OPERATING
3. Subtract the combined weight of the driver and pas- NOTE:
• The following table shows examples on how to calcusengers from XXX lbs or XXX kg.
late total load, cargo/luggage, and towing capacities
4. The resulting figure equals the available amount of
of your vehicle with varying seating configurations
cargo and luggage load capacity. For example, if “XXX”
and number and size of occupants. This table is for
amount equals 1,400 lbs (635 kg) and there will be five
illustration purposes only and may not be accurate for
150 lb (68 kg) passengers in your vehicle, the amount of
the seating and load carry capacity of your vehicle.
available cargo and luggage load capacity is 650 lbs
(295 kg) (since 5 x 150 = 750, and 1400 – 750 = 650 lbs • For the following example, the combined weight of
occupants and cargo should never exceed 865 lbs
[295 kg]).
(392 kg).
5. Determine the combined weight of luggage and cargo
being loaded on the vehicle. That weight may not safely
exceed the available cargo and luggage load capacity
calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
I
nf
or
mat
i
onPr
ovi
dedby:
325
326
STARTING AND OPERATING
Safety
WARNING!
Overloading of your tires is dangerous. Overloading
can cause tire failure, affect vehicle handling, and
increase your stopping distance. Use tires of the
recommended load capacity for your vehicle. Never
overload them.
TIRES — GENERAL INFORMATION
Tire Pressure
Proper tire inflation pressure is essential to the safe and
satisfactory operation of your vehicle. Three primary
areas are affected by improper tire pressure:
WARNING!
• Improperly inflated tires are dangerous and can
cause collisions.
• Under-inflation increases tire flexing and can result in over-heating and tire failure.
• Over-inflation reduces a tire’s ability to cushion
shock. Objects on the road and chuckholes can
cause damage that result in tire failure.
• Unequal tire pressures can cause steering problems. You could lose control of your vehicle.
• Over-inflated or under-inflated tires can affect
vehicle handling and can fail suddenly, resulting
in loss of vehicle control.
(Continued)
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
WARNING! (Continued)
• Unequal tire pressures from one side of the vehicle to the other can cause the vehicle to drift to
the right or left.
• Always drive with each tire inflated to the recommended cold tire inflation pressure.
Economy
Improper inflation pressures can cause uneven wear
patterns to develop across the tire tread. These abnormal
wear patterns will reduce tread life resulting in a need for
earlier tire replacement. Under-inflation, also increases
tire rolling resistance and results in higher fuel
consumption.
327
Ride Comfort and Vehicle Stability
Proper tire inflation contributes to a comfortable ride.
Over-inflation produces a jarring and uncomfortable
ride.
Tire Inflation Pressures
The proper cold tire inflation pressure is listed on the
driver’s side B-Pillar.
Some vehicles may have Supplemental Tire Pressure
Information for vehicle loads that are less than the
maximum loaded vehicle condition. These pressure conditions will be found in the “Supplemental Tire Pressure
Information” section of this manual.
The pressure should be checked and adjusted as well as
inspecting for signs of tire wear or visible damage at least
once a month. Use a good quality pocket-type gauge to
check tire pressure. Do not make a visual judgement
when determining proper inflation. Radial tires may look
properly inflated even when they are under-inflated.
I
nf
or
mat
i
onPr
ovi
dedby:
5
328
STARTING AND OPERATING
CAUTION!
After inspecting or adjusting the tire pressure, always reinstall the valve stem cap. This will prevent
moisture and dirt from entering the valve stem,
which could damage the valve stem.
Tire pressures change by approximately 1 psi (7 kPa) per
12°F (7°C) of air temperature change. Keep this in mind
when checking tire pressure inside a garage, especially in
the winter.
Example: If garage temperature = 68°F (20°C) and the
outside temperature = 32°F (0°C) then the cold tire
inflation pressure should be increased by 3 psi (21 kPa),
Inflation pressures specified on the placard are always
which equals 1 psi (7 kPa) for every 12°F (7°C) for this
“cold tire inflation pressure.” Cold tire inflation pressure
outside temperature condition.
is defined as the tire pressure after the vehicle has not
been driven for at least three hours, or driven less than Tire pressure may increase from 2 to 6 psi (13 to 40 kPa)
1 mile (1.6 km) after a three hour period. The cold tire during operation. DO NOT reduce this normal pressure
inflation pressure must not exceed the maximum infla- build up or your tire pressure will be too low.
tion pressure molded into the tire sidewall.
Tire Pressures For High Speed Operation
Check tire pressures more often if subject to a wide range The manufacturer advocates driving at safe speeds
of outdoor temperatures, as tire pressures vary with within posted speed limits. Where speed limits or conditions are such that the vehicle can be driven at high
temperature changes.
speeds, maintaining correct tire inflation pressure is very
important. Increased tire pressure and reduced vehicle
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
329
loading may be required for high-speed vehicle opera- Radial-Ply Tires
tion. Refer to original equipment or an authorized tire
WARNING!
dealer for recommended safe operating speeds, loading
and cold tire inflation pressures.
Combining radial ply tires with other types of tires
on your vehicle will cause your vehicle to handle
WARNING!
poorly. The instability could cause a collision. AlHigh speed driving with your vehicle under maxiways use radial ply tires in sets of four. Never
mum load is dangerous. The added strain on your
combine them with other types of tires.
tires could cause them to fail. You could have a
serious collision. Do not drive a vehicle loaded to the Cuts and punctures in radial tires are repairable only in
maximum capacity at continuous speeds above the tread area because of sidewall flexing. Consult your
authorized tire dealer for radial tire repairs.
75 mph (120 km/h).
I
nf
or
mat
i
onPr
ovi
dedby:
5
330
STARTING AND OPERATING
Do not install more than one non-matching temporary
Spare Tire Matching Original Equipped Tire and
use spare tire/wheel on the vehicle at any given time.
Wheel – If Equipped
The spare tire of your vehicle is equivalent in look and
CAUTION!
function as the original equipment tire and wheel found
on the front or rear axle of your vehicle. This spare tire
Because of the reduced ground clearance, do not take
may be used in the tire rotation for your vehicle. If your your vehicle through an automatic car wash with a
vehicle has an option for a spare tire matching original compact, full size or limited-use temporary spare
equipment tire and wheel, refer to the recommended tire installed. Damage to the vehicle may result.
rotation pattern in “Tire Rotation Recommendations” in
“Starting and Operating” for further information.
Compact Spare Tire – If Equipped
If your vehicle is not equipped with an original equip- The compact spare is for temporary emergency use only.
ment tire and wheel as a spare, a non-matching tempo- You can identify if your vehicle is equipped with a
rary emergency use spare may be equipped with your compact spare by looking at the spare tire description on
vehicle. Temporary use spares are engineered to be used the Tire and Loading Information Placard located on the
only with your vehicle. Your vehicle may be equipped driver’s side door opening or on the sidewall of the tire.
with one of the following types of non-matching tempo- Compact spare tire descriptions begin with the letter “T”
or “S” preceding the size designation. Example: T145/
rary use spares; compact, full size, or limited-use.
80D18 103M.
T, S = Temporary Spare Tire
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
331
Since this tire has limited tread life the original equip- Full Size Spare – If Equipped
ment tire should be repaired (or replaced) and reinstalled The full size spare is for temporary emergency use only.
This tire may look like the original equipped tire on the
on your vehicle at the first opportunity.
front or rear axle of your vehicle, but it is not. This spare
Do not install a wheel cover or attempt to mount a
tire may have limited tread life. When the tread is worn
conventional tire on the compact spare wheel, since the
to the tread wear indicators, the temporary use full size
wheel is designed specifically for the compact spare. Do
spare tire needs to be replaced. Since it is not the same as
not install more than one compact spare tire/wheel on
your original equipment tire, replace (or repair) the
the vehicle at any given time
original equipment tire and reinstall on the vehicle at the
first opportunity.
WARNING!
Compact spares are for temporary emergency use
only. With these spares, do not drive more than
50 mph (80 km/h). Temporary use spares have limited
tread life. When the tread is worn to the tread wear
indicators, the temporary use spare tire needs to be
replaced. Be sure to follow the warnings, which
apply to your spare. Failure to do so could result in
spare tire failure and loss of vehicle control.
Limited-Use Spare – If Equipped
The limited-use spare tire is for temporary emergency
use only. This tire is identified by a label located on the
limited-use spare wheel. This label contains the driving
limitations for this spare. This tire may look like the
original equipped tire on the front or rear axle of your
vehicle, but it is not. Installation of this limited-use spare
tire affects vehicle handling. Since it is not the same as
I
nf
or
mat
i
onPr
ovi
dedby:
5
332
STARTING AND OPERATING
your original equipment tire, replace (or repair) the Tire Spinning
original equipment tire and reinstall on the vehicle at the When stuck in mud, sand, snow, or icy conditions, do not
spin your vehicle’s wheels faster than 30 mph (48 km/h)
first opportunity.
or for longer than 30 seconds continuously without
WARNING!
stopping.
Limited-use spares are for emergency use only. Installation of this limited-use spare tire affects vehicle
handling. With this tire, do not drive more than the
speed listed on the limit-use spare wheel. Keep
inflated to the cold tire inflation pressure listed on
your Tire and Loading Information Placard located
on the driver’s side door opening. Replace (or repair)
the original equipment tire at the first opportunity
and reinstall it on your vehicle. Failure to do so could
result in loss of vehicle control.
Refer to “Freeing A Stuck Vehicle” in “What To Do In
Emergencies” for further information.
WARNING!
Fast spinning tires can be dangerous. Forces generated by excessive wheel speeds may cause tire damage or failure. A tire could explode and injure someone. Do not spin your vehicle’s wheels faster than
30 mph (48 km/h) or for more than 30 seconds
continuously when you are stuck, and do not let
anyone near a spinning wheel, no matter what the
speed.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
Tread Wear Indicators
Tread wear indicators are in the original equipment tires
to help you in determining when your tires should be
replaced.
333
These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes 1/16 in (2 mm). When the tread is worn to the
tread wear indicators, the tire should be replaced.
Life Of Tire
The service life of a tire is dependent upon varying
factors including but not limited to:
• Driving style
5
• Tire pressure
• Distance driven
WARNING!
1 — Worn Tire
2 — New Tire
Tires and spare tire should be replaced after six years,
regardless of the remaining tread. Failure to follow
this warning can result in sudden tire failure. You
could lose control and have a collision resulting in
serious injury or death.
I
nf
or
mat
i
onPr
ovi
dedby:
334
STARTING AND OPERATING
Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.
Replacement Tires
The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for
wear and correct cold tire inflation pressure. The manufacturer strongly recommends that you use tires equivalent to the originals in size, quality and performance
when replacement is needed (refer to the paragraph on
“Tread Wear Indicators”). Refer to the “Tire and Loading
Information” placard for the size designation of your tire.
The service description and load identification will be
found on the original equipment tire. Failure to use
equivalent replacement tires may adversely affect the
safety, handling, and ride of your vehicle. We recommend
that you contact your original equipment or an authorized tire dealer with any questions you may have on tire
specifications or capability.
WARNING!
• Do not use a tire, wheel size or rating other than
that specified for your vehicle. Some combinations
of unapproved tires and wheels may change suspension dimensions and performance characteristics, resulting in changes to steering, handling, and
braking of your vehicle. This can cause unpredictable handling and stress to steering and suspension components. You could lose control and have
a collision resulting in serious injury or death. Use
only the tire and wheel sizes with load ratings
approved for your vehicle.
• Never use a tire with a smaller load index or
capacity, other than what was originally equipped
on your vehicle. Using a tire with a smaller load
index could result in tire overloading and failure.
You could lose control and have a collision.
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
STARTING AND OPERATING
WARNING! (Continued)
• Failure to equip your vehicle with tires having
adequate speed capability can result in sudden tire
failure and loss of vehicle control.
CAUTION!
Replacing original tires with tires of a different size
may result in false speedometer and odometer readings.
335
SNOW TIRES
Some areas of the country require the use of snow tires
during the winter. All season tires can be identified by the
M+S designation on the tire sidewall.
If you need snow tires, select tires equivalent in size and
type to the original equipment tires. Use snow tires only
in sets of four; failure to do so may adversely affect the
safety and handling of your vehicle.
Snow tires generally have lower speed ratings than what
was originally equipped with your vehicle and should
not be operated at sustained speeds over 75 mph
TIRE CHAINS
(120 km/h). For speeds above 75 mph (120 km/h) refer to
Due to limited clearance, tire chains are not recomoriginal equipment or an authorized tire dealer for
mended.
recommended safe operating speeds, loading and cold
tire inflation pressures.
CAUTION!
Damage to the vehicle may result if tire chains are
used.
While studded tires improve performance on ice, skid
and traction capability on wet or dry surfaces may be
I
nf
or
mat
i
onPr
ovi
dedby:
5
336
STARTING AND OPERATING
poorer than that of non-studded tires. Some states pro- The suggested rotation method is the “rearward cross”
hibit studded tires; therefore, local laws should be shown in the following diagram. This rotation pattern
does not apply to some directional tires that must not be
checked before using these tire types.
reversed.
TIRE ROTATION RECOMMENDATIONS
Tires on the front and rear axles of vehicles operate at
different loads and perform different steering, driving,
and braking functions. For these reasons, they wear at
unequal rates.
These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on all season type
tires. Rotation will increase tread life, help to maintain
mud, snow and wet traction levels, and contribute to a
smooth, quiet ride.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals. The reasons for any rapid or
unusual wear should be corrected prior to rotation being
performed.
I
nf
or
mat
i
onPr
ovi
dedby:
Tire Rotation
STARTING AND OPERATING
337
TIRE PRESSURE MONITOR SYSTEM (TPMS)
The Tire Pressure Monitor System (TPMS) will warn the
driver of a low tire pressure based on the vehicle recommended cold placard pressure.
The TPM System will warn the driver of a low tire
pressure if the tire pressure falls below the low-pressure
warning limit for any reason, including low temperature
effects and natural pressure loss through the tire.
The tire pressure will vary with temperature by about
1 psi (7 kPa) for every 12°F (6.5°C). This means that when
the outside temperature decreases, the tire pressure will
decrease. Tire pressure should always be set based on
cold inflation tire pressure. This is defined as the tire
pressure after the vehicle has not been driven for at least
three hours, or driven less than 1 mile (1.6 km) after a
three hour period. The cold tire inflation pressure must
not exceed the maximum inflation pressure molded into
the tire sidewall. Refer to “Tires – General Information”
in “Starting and Operating” for information on how to
properly inflate the vehicle’s tires. The tire pressure will
also increase as the vehicle is driven - this is normal and
there should be no adjustment for this increased pressure.
The TPM System will continue to warn the driver of low
tire pressure as long as the condition exists, and will not
turn off until the tire pressure is at or above the recommended cold placard pressure. Once the low tire pressure
warning (Tire Pressure Monitoring Telltale Light) illuminates, you must increase the tire pressure to the recommended cold placard pressure in order for the “Tire
Pressure Monitoring Telltale Light” to turn off. The
system will automatically update and the “Tire Pressure
Monitoring Telltale Light” will turn off once the system
receives the updated tire pressures. The vehicle may need
to be driven for up to 20 minutes above 15 mph
(24 km/h) in order for the TPMS to receive this information.
I
nf
or
mat
i
onPr
ovi
dedby:
5
338
STARTING AND OPERATING
For example, your vehicle may have a recommended
cold (parked for more than three hours) placard pressure
of 30 psi (207 kPa). If the ambient temperature is 68°F
(20°C) and the measured tire pressure is 27 psi (186 kPa),
a temperature drop to 20°F (-7°C) will decrease the tire
pressure to approximately 23 psi (158 kPa). This tire
pressure is sufficiently low enough to turn ON the “Tire
Pressure Monitoring Telltale Light.” Driving the vehicle
may cause the tire pressure to rise to approximately
27 psi (186 kPa), but the “Tire Pressure Monitoring
Telltale Light” will still be ON. In this situation, the “Tire
Pressure Monitoring Telltale Light” will turn OFF only
after the tires are inflated to the vehicle’s recommended
cold placard pressure value.
CAUTION!
• The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system
operation or sensor damage may result when using replacement equipment that is not of the same
size, type, and/or style. Aftermarket wheels can
cause sensor damage. Do not use aftermarket tire
sealants or balance beads if your vehicle is
equipped with a TPMS, as damage to the sensors
may result.
• After inspecting or adjusting the tire pressure,
always reinstall the valve stem cap. This will
prevent moisture and dirt from entering the valve
stem, which could damage the Tire Pressure Monitoring Sensor.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
339
NOTE:
• Seasonal temperature changes will affect tire pressure,
• The TPMS is not intended to replace normal tire care
and the TPMS will monitor the actual tire pressure in
and maintenance, or to provide warning of a tire
the tire.
failure or condition.
Base System
• The TPMS should not be used as a tire pressure gauge The Tire Pressure Monitor System (TPMS) uses wireless
while adjusting your tire pressure.
technology with wheel rim mounted electronic sensors to
monitor tire pressure levels. Sensors, mounted to each
• Driving on a significantly under-inflated tire causes
wheel as part of the valve stem, transmit tire pressure
the tire to overheat and can lead to tire failure.
readings to the Receiver Module.
Under-inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle’s handling and NOTE: It is particularly important for you to check the
stopping ability.
tire pressure in all of the tires on your vehicle monthly
and to maintain the proper pressure.
• The TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain The TPMS consists of the following components:
correct tire pressure using an accurate tire pressure
• Receiver Module
gauge, even if under-inflation has not reached the
level to trigger illumination of the “Tire Pressure • Four Tire Pressure Monitoring Sensors
Monitoring Telltale Light.”
• Tire Pressure Monitoring Telltale Light
I
nf
or
mat
i
onPr
ovi
dedby:
5
340
STARTING AND OPERATING
Tire Pressure Monitoring Low Pressure Warnings
The “Tire Pressure Monitoring Telltale Light” will
illuminate in the instrument cluster, a ⬙LOW TIRE⬙
message will be displayed for a minimum of five
seconds and a chime will sound when tire pressure is low
in one or more of the four active road tires. Should this
occur, you should stop as soon as possible, check the
inflation pressure of each tire on your vehicle, and inflate
each tire to the vehicle’s recommended cold placard
pressure value. Once the system receives the updated tire
pressures, the system will automatically update and the
“Tire Pressure Monitoring Telltale Light” and ⬙LOW
TIRE⬙ message will turn off. The vehicle may need to be
driven for up to 20 minutes above 15 mph (24 km/h) in
order for the TPMS to receive this information.
sound a chime. If the ignition key is cycled, this sequence
will repeat, providing the system fault still exists. The
“Tire Pressure Monitoring Telltale Light” will turn off
when the fault condition no longer exists. A system fault
can occur due to any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the TPM
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
Check TPMS Warning
The “Tire Pressure Monitoring Telltale Light” will flash
on and off for 75 seconds and then remain on solid when
a system fault is detected. The system fault will also
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
341
5. Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically and the “Tire Pressure Monitoring Telltale Light” will turn OFF, as long no
tire pressure is below the low-pressure warning limit in
2. If you install the compact spare tire in place of a road
any of the four active road tires. The vehicle may need to
tire that has a pressure below the low-pressure warning
be driven for up to 20 minutes above 15 mph (24 km/h)
limit, upon the next ignition key cycle, a chime will
in order for the TPMS to receive this information.
sound and the “Tire Pressure Monitoring Telltale Light”
will turn ON and a ⬙LOW TIRE⬙ message will be dis- Premium System – If Equipped
The Tire Pressure Monitor System (TPMS) uses wireless
played for a minimum of five seconds.
technology with wheel rim mounted electronic sensors to
3. After driving the vehicle for up to 20 minutes above
monitor tire pressure levels. Sensors, mounted to each
15 mph (24 km/h), the “Tire Pressure Monitoring Telltale
wheel as part of the valve stem, transmit tire pressure
Light” will flash on and off for 75 seconds and then
readings to the Receiver Module.
remain on solid.
NOTE: It is particularly important for you to check the
4. For each subsequent ignition key cycle, a chime will
tire pressure in all of the tires on your vehicle monthly
sound and the “Tire Pressure Monitoring Telltale Light”
and to maintain the proper pressure.
will flash on and off for 75 seconds and then remain on
solid.
NOTE:
1. The compact spare tire (if equipped) does not have a
tire pressure monitoring sensor. Therefore, the TPMS will
not monitor the pressure in the compact spare tire.
I
nf
or
mat
i
onPr
ovi
dedby:
5
342
STARTING AND OPERATING
more of the four active road tires. In addition, the
Electronic Vehicle Information Center (EVIC) will display
a graphic showing the pressure values of each tire with
the low tire pressure values flashing.
The TPMS consists of the following components:
• Receiver Module
• Four Tire Pressure Monitoring Sensors
• Three Trigger Modules (mounted in three of the four
wheel-wells)
• Various Tire Pressure Monitoring System Messages,
which display in the Electronic Vehicle Information
Center (EVIC)
• Tire Pressure Monitoring Telltale Light
Tire Pressure Monitoring Low Pressure Warnings
The “Tire Pressure Monitoring Telltale Light” will
illuminate in the instrument cluster and a chime
will sound when tire pressure is low in one or
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
343
Should this occur, you should stop as soon as possible, display dashes (- -) in place of the pressure value to
and inflate all tires with low pressure (those flashing in indicate which sensor is not being received.
the EVIC graphic) to the vehicle’s recommended cold
placard pressure value. Once the system receives the
updated tire pressures, the system will automatically
update, the graphic display in the EVIC will stop flashing, and the “Tire Pressure Monitoring Telltale Light”
will turn off. The vehicle may need to be driven for up to
20 minutes above 15 mph (24 km/h) in order for the
TPMS to receive this information.
Check TPMS Warning
When a system fault is detected, a chime will sound and
the “Tire Pressure Monitoring Telltale Light” will flash on
and off for 75 seconds and then remain on solid. In
addition, the EVIC will display a ⬙CHECK TPM SYSTEM⬙ message for a minimum of five seconds and then
I
nf
or
mat
i
onPr
ovi
dedby:
5
344
STARTING AND OPERATING
The EVIC will also display a ⬙CHECK TPM SYSTEM⬙
message for a minimum of five seconds when a system
fault related to an incorrect sensor location fault is
detected. In this case, the ⬙CHECK TPM SYSTEM⬙ message is then followed with a graphic display with pressure values still shown. This indicates that the pressure
values are still being received from the TPM sensors but
they may not be located in the correct vehicle position.
1. Jamming due to electronic devices or driving next to
The system still needs to be serviced as long as the
facilities emitting the same Radio Frequencies as the TPM
⬙CHECK TPM SYSTEM⬙ message is displayed.
sensors.
NOTE:
2. Installing some form of aftermarket window tinting
1. The compact spare tire (if so equipped) does not have
that affects radio wave signals.
a tire pressure monitoring sensor. Therefore, the TPMS
3. Lots of snow or ice around the wheels or wheel will not monitor the pressure in the compact spare tire.
housings.
2. If you install the compact spare tire in place of a road
4. Using tire chains on the vehicle.
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, the “Tire Pressure
5. Using wheels/tires not equipped with TPM sensors.
If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, and the ⬙CHECK TPM
SYSTEM⬙ message will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following:
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
345
Monitoring Telltale Light” will remain ON, a chime will 5. Once you repair or replace the original road tire, and
sound, and the EVIC will still display a flashing pressure reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
value in the graphic display.
“Tire Pressure Monitoring Telltale Light” will turn OFF
3. After driving the vehicle for up to 20 minutes above
and the graphic in the EVIC will display a new pressure
15 mph (24 km/h), the “Tire Pressure Monitoring Telltale
value instead of dashes (- -), as long no tire pressure is
Light” will flash on and off for 75 seconds and then
below the low-pressure warning limit in any of the four
remain on solid. In addition, the EVIC will display a
active road tires. The vehicle may need to be driven for
⬙CHECK TPM SYSTEM⬙ message for a minimum of five
up to 20 minutes above 15 mph (24 km/h) in order for the
seconds and then display dashes (- -) in place of the
TPMS to receive this information.
pressure value.
General Information
4. For each subsequent ignition key cycle, a chime will
This device complies with part 15 of the FCC rules and
sound, the “Tire Pressure Monitoring Telltale Light” will
RSS 210 of Industry Canada. Operation is subject to the
flash on and off for 75 seconds and then remain on solid,
following conditions:
and the EVIC will display a ⬙CHECK TPM SYSTEM⬙
message for a minimum of five seconds and then display • This device may not cause harmful interference.
dashes (- -) in place of the pressure value.
• This device must accept any interference received,
including interference that may cause undesired
operation.
I
nf
or
mat
i
onPr
ovi
dedby:
5
346
STARTING AND OPERATING
The tire pressure sensors are covered under one of the as hard starting, stalling, and hesitations. If you experifollowing licenses:
ence these symptoms, try another brand of gasoline
before considering service for the vehicle.
United States . . . . . . . . . . . . . . . . . . . KR5S18002015B Over 40 auto manufacturers worldwide have issued and
Canada. . . . . . . . . . . . . . . . . . . . . . . . 267T-S180015B endorsed consistent gasoline specifications (the WorldFUEL REQUIREMENTS
This engine is designed to meet all emissions regulations and provide excellent
fuel economy and performance when using high-quality unleaded “regular” gasoline having an octane rating of 87. The use
of premium gasoline is not recommended,
as it will not provide any benefit over regular gasoline in
these engines.
wide Fuel Charter, WWFC) which define fuel properties
necessary to deliver enhanced emissions, performance,
and durability for your vehicle. The manufacturer recommends the use of gasolines that meet the WWFC specifications if they are available.
Reformulated Gasoline
Many areas of the country require the use of cleaner
burning gasoline referred to as “Reformulated Gasoline.”
Reformulated gasoline contains oxygenates and are speLight spark knock at low engine speeds is not harmful to cifically blended to reduce vehicle emissions and imyour engine. However, continued heavy spark knock at prove air quality.
high speeds can cause damage and immediate service is
required. Poor quality gasoline can cause problems such
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
347
The manufacturer supports the use of reformulated gasoline. Properly blended reformulated gasoline will provide excellent performance and durability of engine and
fuel system components.
Problems that result from using gasoline containing
Methanol or gasoline containing more than 10% Ethanol
are not the responsibility of the manufacturer and may
not be covered under warranty.
Gasoline/Oxygenate Blends
Some fuel suppliers blend unleaded gasoline with oxygenates such as Ethanol. Fuels blended with oxygenates
may be used in your vehicle.
E-85 Usage In Non-Flex Fuel Vehicles
Non-FFV vehicles are compatible with gasoline containing 10% ethanol (E10). Gasoline with higher ethanol
content may void the vehicle’s warranty.
CAUTION!
If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
DO NOT use gasoline containing Methanol or gasoline containing more than 10% Ethanol. Use of these
blends may result in starting and driveability problems, damage critical fuel system components, cause
emissions to exceed the applicable standard, and/or
cause the “Malfunction Indicator Light” to illuminate. Pump labels should clearly communicate if a
fuel contains greater than 10% Ethanol.
• operate in a lean mode
• OBD II “Malfunction Indicator Light” on
• poor engine performance
• poor cold start and cold driveability
• increased risk for fuel system component corrosion
I
nf
or
mat
i
onPr
ovi
dedby:
5
348
STARTING AND OPERATING
To fix a Non-FFV vehicle inadvertently fueled once with vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
E-85 perform the following:
of gasoline may not be indicated on the gasoline pump,
• change the engine oil and oil filter
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. It is even more important to
• disconnect and reconnect the battery
look for gasoline without MMT in Canada, because MMT
• drain the fuel tank (see your authorized dealer)
can be used at levels higher than those allowed in the
More extensive repairs will be required for prolonged United States. MMT is prohibited in Federal and California reformulated gasoline.
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emissions system performance in some
Materials Added To Fuel
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
conditions and they would result in additional cost.
Therefore, you should not have to add anything to the
fuel.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
Fuel System Cautions
349
CAUTION! (Continued)
CAUTION!
Follow these guidelines to maintain your vehicle’s
performance:
• The use of leaded gas is prohibited by Federal law.
Using leaded gasoline can impair engine performance and damage the emissions control system.
• An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune
or malfunctioning and may require immediate
service. Contact your authorized dealer for service
assistance.
• The use of fuel additives, which are now being
sold as octane enhancers, is not recommended.
Most of these products contain high concentrations of methanol. Fuel system damage or vehicle
performance problems resulting from the use of
such fuels or additives is not the responsibility of
the manufacturer.
NOTE: Intentional tampering with the emissions control system can result in civil penalties being assessed
against you.
(Continued)
I
nf
or
mat
i
onPr
ovi
dedby:
5
350
STARTING AND OPERATING
Carbon Monoxide Warnings
WARNING! (Continued)
WARNING!
Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon
monoxide poisoning:
• Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas, which can
kill. Never run the engine in a closed area, such as
a garage, and never sit in a parked vehicle with the
engine running for an extended period. If the
vehicle is stopped in an open area with the engine
running for more than a short period, adjust the
ventilation system to force fresh, outside air into
the vehicle.
• Guard against carbon monoxide with proper
maintenance. Have the exhaust system inspected
every time the vehicle is raised. Have any abnormal conditions repaired promptly. Until repaired,
drive with all side windows fully open.
• Keep the trunk closed when driving your vehicle
to prevent carbon monoxide and other poisonous
exhaust gases from entering the vehicle.
FLEXIBLE FUEL (3.6L ENGINE ONLY) —
IF EQUIPPED
E-85 General Information
The information in this section is for Flexible Fuel vehicles only. These vehicles can be identified by a unique
(Continued)
fuel filler door label that states Ethanol (E-85) or Unleaded Gasoline Only. This section only covers those
subjects that are unique to these vehicles. Please refer to
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
the other sections of this manual for information on
features that are common between Flexible Fuel and
gasoline-only powered vehicles.
351
CAUTION!
Only vehicles with the E-85 fuel filler door label can
operate on E-85.
Ethanol Fuel (E-85)
E-85 is a mixture of approximately 85% fuel ethanol and
15% unleaded gasoline.
WARNING!
E-85 Fuel Cap
Ethanol vapors are extremely flammable and could
cause serious personal injury. Never have any smoking materials lit in or near the vehicle when removing the fuel filler tube cap (gas cap) or filling the
tank. Do not use E-85 as a cleaning agent and never
use it near an open flame.
I
nf
or
mat
i
onPr
ovi
dedby:
5
352
STARTING AND OPERATING
NOTE:
Fuel Requirements
Your vehicle will operate on both unleaded gasoline with • When the ambient temperature is above 90° F (32° C),
an octane rating of 87, or E-85 fuel, or any mixture of
you may experience hard starting and rough idle
these two. For best results, a refueling pattern that
following start up even if the above recommendations
alternates between E-85 and unleaded gasoline should be
are followed.
avoided.
• Some additives used in regular gasoline are not fully
compatible with E-85 and may form deposits in your
When you do switch fuel types it is recommended that:
engine. To eliminate driveability issues that may be
• you do not switch when the fuel gauge indicates less
caused by these deposits, a supplemental gasoline
than 1/4 full
additive, such as MOPAR威 Injector Cleanup or
• you do not add less than 5 gallons (19 Liters) when
Techron may be used.
refueling
Selection Of Engine Oil For Flexible Fuel Vehicles
• you operate the vehicle immediately after refueling for (E-85) And Gasoline Vehicles
FFV vehicles operated on E-85 require specially formua period of at least 5 minutes
lated engine oils. These special requirements are included
Observing these precautions will avoid possible hard
in MOPAR威 engine oils, and in equivalent oils meeting
starting and/or significant deterioration in driveability
Chrysler Specification MS-6395. The manufacturer reduring warm up.
quires engine oils that are API Certified and meet the
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
requirements of Material Standard MS-6395. MS-6395
contains additional requirements, developed during extensive fleet testing, to provide additional protection to
Chrysler Group LLC engines. Use MOPAR威 or an
equivalent oil meeting the specification MS-6395.
Starting
The characteristics of E-85 fuel make it unsuitable for use
when ambient temperatures fall below 0°F (-18°C). In the
range of 0°F (-18°C) to 32°F (0°C), you may experience an
increase in the time it takes for your engine to start, and
a deterioration in driveability (sags and/or hesitations)
until the engine is fully warmed up.
NOTE: Use of the engine block heater (if equipped) is
beneficial for E-85 startability when the ambient temperature is less than 32°F (0°C).
353
Cruising Range
Because E-85 fuel contains less energy per gallon/liter
than gasoline, you will experience an increase in fuel
consumption. You can expect your miles per gallon
(mpg)/miles per liter and your driving range to decrease
by about 30%, compared to gasoline operation.
Replacement Parts
Many components in your Flexible Fuel Vehicle (FFV) are
designed to be compatible with ethanol. Always be sure
that your vehicle is serviced with correct ethanol compatible parts.
CAUTION!
Replacing fuel system components with non-ethanol
compatible components can damage your vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
5
354
STARTING AND OPERATING
Maintenance
CAUTION!
Do not use ethanol mixture greater than 85% in your
vehicle. It will cause difficulty in cold starting and
may affect driveability.
ADDING FUEL
Fuel Filler Cap (Gas Cap)
The gas cap is behind the fuel filler door, on the left rear
quarter panel of the vehicle. If the gas cap is lost or
Fuel Filler Door
damaged, be sure the replacement cap is for use with this After removing the gas cap, place the gas cap tether cable
vehicle.
over a hook on the inside of the fuel door. This keeps the
gas cap suspended away from and protects the vehicle’s
surface.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
355
CAUTION!
• Damage to the fuel system or emission control
system could result from using an improper fuel
tank filler tube cap (gas cap).
• A poorly fitting gas cap may cause the “Malfunction Indicator Light (MIL)” to turn on.
• To avoid fuel spillage and overfilling, do not “top
off” the fuel tank after filling. When the fuel
nozzle “clicks” or shuts off, the fuel tank is full.
Tether Cable
WARNING!
NOTE: If the gas cap is lost or damaged, be sure the
replacement cap is for use with this vehicle.
• Never have any smoking materials lit in or near
the vehicle when the gas cap is removed or the
tank is being filled.
(Continued)
I
nf
or
mat
i
onPr
ovi
dedby:
5
356
STARTING AND OPERATING
Loose Filler Cap Message
If the vehicles diagnostic system determines that the fuel
• Never add fuel when the engine is running. This is filler cap in loose, improperly installed, or damaged, a
in violation of most state and federal fire regula- “gASCAP” message will be displayed in the instrument
tions and doing so may cause the MIL to turn on. cluster. Tighten the gas cap until a “clicking” sound is
• A fire may result if gasoline is pumped into a heard. This is an indication that the gas cap is properly
portable container that is inside of a vehicle. You tightened. Press the trip odometer reset button to turn off
could be burned. Always place gas containers on
the message. If the problem persists, the message will
the ground while filling.
appear the next time the vehicle is started. This might
indicate a damaged cap. If the problem is detected twice
NOTE:
in a row, the system will turn on the MIL. Resolving the
• Tighten the gas cap until you hear a “clicking” sound. problem will turn the MIL off.
This is an indication that the gas cap is tightened
properly. The MIL in the instrument cluster may turn
on if the gas cap is not secured properly. Make sure
that the gas cap is tightened each time the vehicle is
refueled.
WARNING! (Continued)
• When the fuel nozzle “clicks” or shuts off, the fuel
tank is full.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
VEHICLE LOADING
357
The bar code allows a computer scanner to read the
Vehicle Identification Number (VIN).
Vehicle Certification Label
Your vehicle has a certification label attached to the rear Gross Vehicle Weight Rating (GVWR)
of the driver’s door.
The GVWR is the total allowable weight of your vehicle.
This includes driver, passengers, and cargo. The total load
The label contains the following information:
must be limited so that you do not exceed the GVWR.
• Name of manufacturer
Gross Axle Weight Rating (GAWR)
• Month and year of manufacture
The GAWR is the maximum capacity of the front and rear
axles. Distribute the load over the front and rear axles
• Gross Vehicle Weight Rating (GVWR)
evenly. Make sure that you do not exceed either front or
• Gross Axle Weight Rating (GAWR) front
rear GAWR.
• Gross Axle Weight Rating (GAWR) rear
• Vehicle Identification Number (VIN)
• Type of Vehicle
• Month Day and Hour of Manufacture (MDH)
WARNING!
Because the front wheels steer the vehicle, it is
important that you do not exceed the maximum front
or rear GAWR. A dangerous driving condition can
result if either rating is exceeded. You could lose
control of the vehicle and have a collision.
I
nf
or
mat
i
onPr
ovi
dedby:
5
358
STARTING AND OPERATING
Overloading
The load carrying components (axle, springs, tires,
wheels, etc.) of your vehicle will provide satisfactory
service as long as you do not exceed the GVWR and front
and rear GAWR.
The best way to figure out the total weight of your
vehicle is to weigh it when it is fully loaded and ready for
operation. Weigh it on a commercial scale to ensure that
it is not over the GVWR.
Loading
To load your vehicle properly, first figure out its empty
weight, axle by axle and side by side. Store heavier items
down low and be sure you distribute their weight as
evenly as possible. Stow all loose items securely before
driving. If weighing the loaded vehicle shows that you
have exceeded either GAWR, but the total load is within
the specified GVWR, you must redistribute the weight.
Improper weight distribution can have an adverse effect
on the way your vehicle steers and handles and the way
the brakes operate.
Figure out the weight on the front and rear of the vehicle
separately. It is important that you distribute the load
TRAILER TOWING
evenly over the front and rear axles.
In this section, you will find safety tips and information
Overloading can cause potential safety hazards and on limits to the type of towing you can reasonably do
shorten useful service life. Heavier axles or suspension with your vehicle. Before towing a trailer, carefully
components do not necessarily increase the vehicle’s review this information to tow your load as efficiently
GVWR.
and safely as possible.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
359
To maintain warranty coverage, follow the requirements Gross Trailer Weight (GTW)
and recommendations in this manual concerning ve- The GTW is the weight of the trailer plus the weight of all
cargo, consumables and equipment (permanent or temhicles used for trailer towing.
porary) loaded in or on the trailer in its ⬙loaded and
If you have any questions or concerns after reviewing
ready for operation⬙ condition.
this section, please consult your dealer to for full details
The recommended way to measure GTW is to put your
on the towing capabilities of the vehicle.
fully loaded trailer on a vehicle scale. The entire weight
Common Towing Definitions
of the trailer must be supported by the scale.
The following trailer towing related definitions will assist
you in understanding the following information:
Gross Combination Weight Rating (GCWR)
The GCWR is the total permissible weight of your vehicle
Gross Vehicle Weight Rating (GVWR)
and trailer when weighed in combination.
The GVWR is the total allowable weight of your vehicle.
This includes driver, passengers, cargo, and tongue NOTE: The GCWR rating includes a 150 lbs (68 kg)
weight. The total load must be limited so that you do not allowance for the presence of a driver.
exceed the GVWR. Refer to “Vehicle Loading/Vehicle
Certification Label” in “Starting and Operating” for
further information.
I
nf
or
mat
i
onPr
ovi
dedby:
5
360
STARTING AND OPERATING
Gross Axle Weight Rating (GAWR)
The GAWR is the maximum capacity of the front and rear
axles. Distribute the load over the front and rear axles
evenly. Make sure that you do not exceed either front or
rear GAWR. Refer to “Vehicle Loading/Vehicle Certification Label” in “Starting and Operating” for further
information.
WARNING!
Trailer Tongue Weight (TW)
The tongue weight is the downward force exerted on the
hitch ball by the trailer. In most cases it should not be less
than or more than 10% of the trailer load. You must
consider this as part of the load on your vehicle.
Frontal Area
The frontal area is the maximum height multiplied by the
maximum width of the front of a trailer.
It is important that you do not exceed the maximum
front or rear GAWR. A dangerous driving condition
can result if either rating is exceeded. You could lose
control of the vehicle and have a collision.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
Weight-Carrying Hitch
A weight-carrying hitch supports the trailer tongue
weight, just as if it were luggage located at a hitch ball or
some other connecting point of the truck. These kinds of
hitches are the most popular on the market today and
they are commonly used to tow small- and mediumsized trailers.
361
Trailer Hitch Classification Definitions
Class
Max. Trailer Hitch Industry
Standards
Class I - Light Duty
2,000 lbs (907 kg)
Class II - Medium
3,500 lbs (1 587 kg)
Duty
Class III - Heavy Duty
5,000 lbs (2 268 kg)
Class IV - Extra
10,000 lbs (4 540 kg)
Heavy Duty
Refer to the “Trailer Towing Weights (Maximum
Trailer Weight Ratings)” chart for the Maximum
Gross Trailer Weight (GTW) towable for your given
drivetrain.
Trailer Hitch Classification
The following chart provides the industry standard for
the maximum trailer weight a given trailer hitch class can
tow and should be used to assist you in selecting the
correct trailer hitch for your intended towing condition.
Refer to the Trailer Towing Weights (Maximum Trailer
Weight Ratings) chart for the Max. GTW towable for your
All trailer hitches should be professionally installed on
given drivetrain.
your vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
5
362
STARTING AND OPERATING
Trailer Towing Weights (Maximum Trailer Weight Ratings)
The following chart provides the maximum trailer weight ratings towable for your given drivetrain.
Maximum Trailer Weight Ratings
Max. GTW
Max. Trailer Tongue Wt.
Engine/Transmission
Max. Frontal Area
(Gross Trailer Wt.)
(See Note 1)
2.4L/Auto
See Note 2
1,000 lbs (450 kg)
100 lbs (45 kg)
3.6L/Auto
22 sq.ft. (2.0 sq.m)
2,000 lbs (900 kg)
200 lbs (90 kg)
Refer to local laws for maximum trailer towing speeds.
Note 1: The trailer tongue weight must be considered as part of the combined weight of occupants and
cargo, and it should never exceed the weight referenced on the Tire and Loading Information placard. Refer
to “Tire Safety Information” in “Starting and Operating” for further information.
Note 2: Enclosed trailers or open utility trailers with front shields/guards are not recommended for use with
all four-cylinder engines with automatic transmission. Please see your authorized dealer for additional information.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
363
CAUTION!
Towing a trailer with a larger than recommended
frontal area could cause the engine to overheat or
cause severe engine damage under extreme conditions.
Trailer And Tongue Weight
Always load a trailer with 60% to 65% of the weight in
the front of the trailer. This places 10% of the Gross Trailer
Weight (GTW) on the tow hitch of your vehicle. Loads
balanced over the wheels or heavier in the rear can cause
the trailer to sway severely side to side which will cause Consider the following items when computing the
loss of control of vehicle and trailer. Failure to load weight on the rear axle of the vehicle:
trailers heavier in front is the cause of many trailer • The trailer tongue weight of the trailer.
collisions.
• The weight of any other type of cargo or equipment
Never exceed the maximum trailer tongue weight
put in or on your vehicle.
stamped on your bumper or trailer hitch.
• The weight of the driver and all passengers.
I
nf
or
mat
i
onPr
ovi
dedby:
5
364
STARTING AND OPERATING
NOTE: Remember that everything put into or on the
trailer adds to the load on your vehicle. Also, additional
factory-installed options, or authorized dealer-installed
options, must be considered as part of the total load on
your vehicle. Refer to “Tire Safety Information/Tire and
Loading Information Placard” in “Starting and Operating” for the maximum combined weight of occupants
and cargo for your vehicle.
CAUTION!
Incorrect trailer tongue weight could result in increased yaw or vehicle instability. A negative trailer
tongue weight could unload the rear suspension of
the tow vehicle decreasing vehicle stability. Negative
trailer tongue weight could cause the trailer to squat
and potentially become disengaged from the tow
vehicle resulting in a runaway trailer condition.
Towing Requirements
To promote proper break-in of your new vehicle drivetrain components the following guidelines are recommended:
CAUTION!
• Do not tow a trailer at all during the first 500 miles
(805 km) the new vehicle is driven. The engine,
axle or other parts could be damaged.
• Then, during the first 500 miles (805 km) that a
trailer is towed, do not drive over 50 mph
(80 km/h) and do not make starts at full throttle.
This helps the engine and other parts of the
vehicle wear in at the heavier loads.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
WARNING!
365
WARNING! (Continued)
Improper towing can lead to a collision. Follow these
guidelines to make your trailer towing as safe as
possible:
• Make certain that the load is secured in the trailer
and that it will not shift during travel. When
trailering cargo that is not fully secured, dynamic
load shifts can occur that may be difficult for the
driver to control. You could lose control of your
vehicle and have a collision.
• When hauling cargo, or towing a trailer, do not
overload your vehicle or trailer. Overloading can
cause a loss of control, poor performance, or damage to brakes, axle, engine, transmission, steering,
suspension, chassis structure, or tires.
(Continued)
• Safety chains must always be used between your
vehicle and trailer. Always connect the chains to
the frame or hook retainers of the vehicle hitch.
Cross the chains under the trailer tongue and
allow enough slack for turning corners.
• Vehicles with trailers should not be parked on a
grade. When parking, apply the parking brake on
the tow vehicle. Put the tow vehicle automatic
transmission in PARK. Always, block or ⴖchockⴖ
the trailer wheels.
• GCWR must not be exceeded.
• Total weight must be distributed between the tow
vehicle and the trailer such that the following four
ratings are not exceeded:
1. GVWR
2. GTW
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
5
366
STARTING AND OPERATING
WARNING! (Continued)
3. GAWR
4. Trailer tongue weight rating for the trailer hitch
utilized (This requirement may limit the ability to
always achieve 10% of trailer tongue weight as a
percentage of total trailer weight).
• Check for signs of tire wear or visible tire damage
before towing a trailer. Refer to “Tires – General
Information” in “Starting and Operating” for information on tread wear indicators and for proper inspection
procedure.
• When replacing tires, refer to “Tires – General Information” in “Starting and Operating” for information
on replacement tires and for proper tire replacement
Towing Requirements – Tires
procedures. Replacing tires with a higher load carry• Do not attempt to tow a trailer while using a compact
ing capacity will not increase the vehicle’s GVWR and
spare tire.
GAWR limits.
• Proper tire inflation pressures are essential to the safe Towing Requirements – Trailer Brakes
and satisfactory operation of your vehicle. Refer to
“Tires – General Information” in “Starting and Oper- • Do not interconnect the hydraulic brake system or
vacuum system of your vehicle with that of the trailer.
ating” for proper tire inflation procedures.
This could cause inadequate braking and possible
• Check the trailer tires for proper tire inflation prespersonal injury.
sures before trailer usage.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
• An electronically actuated trailer brake controller is
required when towing a trailer with electronically
actuated brakes. When towing a trailer equipped with
a hydraulic surge actuated brake system, an electronic
brake controller is not required.
• Trailer brakes are recommended for trailers over
1,000 lbs (450 kg) and required for trailers in excess of
2,000 lbs (907 kg).
CAUTION!
If the trailer weighs more than 1,000 lbs (450 kg)
loaded, it should have its own brakes with adequate
braking capacity. Failure to do this could lead to
accelerated brake lining wear, higher brake pedal
effort, and longer stopping distances.
367
WARNING!
• Do not connect trailer brakes to your vehicle’s
hydraulic brake lines. It can overload your brake
system and cause it to fail. You might not have
brakes when you need them and could have a
collision.
• Towing any trailer will increase your stopping
distance. When towing, you should allow for additional space between your vehicle and the vehicle in front of you. Failure to do so could result
in a collision.
Towing Requirements – Trailer Lights And Wiring
Whenever you pull a trailer, regardless of the trailer size,
stop lights and turn signals on the trailer are required for
motoring safety.
I
nf
or
mat
i
onPr
ovi
dedby:
5
368
STARTING AND OPERATING
If you REGULARLY TOW a trailer for more than 45 minutes of continuous operation, then change the automatic
transmission fluid and filter according to the interval
specified for “police, taxi, fleet, or frequent trailer towing.” Refer to the “Maintenance Schedule” for the proper
Make sure all trailer and vehicle lights are working
maintenance intervals.
properly — including hazard flashers.
NOTE: Check the four-speed automatic transmission
Automatic Transmission
fluid level before towing. The AutoStick威 six-speed transThe DRIVE range can be selected when towing. Howmission is sealed and the fluid level cannot be checked.
ever, if frequent shifting occurs while in this range, third
See your authorized dealership service center for
gear for a four-speed automatic and the fifth gear for a
assistance.
six-speed AutoStick威 should be selected.
Electronic Speed Control – If Equipped
NOTE: Using third or fifth instead of DRIVE while
operating the vehicle under heavy operating conditions, • Do not use in hilly terrain or with heavy loads.
will improve performance and extend transmission life
• When using the speed control, if you experience speed
by reducing excessive shifting and heat build-up. This
drops greater than 10 mph (16 km/h), disengage until
action will also provide better engine braking.
you can get back to cruising speed.
Towing Tips
Before setting out on a trip, practice turning, stopping,
and backing the trailer in an area located away from
heavy traffic.
I
nf
or
mat
i
onPr
ovi
dedby:
STARTING AND OPERATING
369
• Use speed control in flat terrain and with light loads to RECREATIONAL TOWING
maximize fuel efficiency.
(BEHIND MOTORHOME, ETC.)
Cooling System
Towing This Vehicle Behind Another Vehicle
To reduce potential for engine and transmission over- Recreational towing is not allowed.
heating, take the following actions:
• City Driving
When stopped for short periods of time, shift the transmission into NEUTRAL and increase engine idle speed.
• Highway Driving
Reduce speed.
• Air Conditioning
Turn off temporarily.
CAUTION!
DO NOT flat tow this vehicle. Damage to the drivetrain will result.
NOTE: This vehicle may be towed on a flatbed or vehicle
trailer provided all four wheels are OFF the ground.
CAUTION!
Towing this vehicle in violation of the above requirements can cause severe transmission damage. Damage from improper towing is not covered under the
New Vehicle Limited Warranty.
I
nf
or
mat
i
onPr
ovi
dedby:
5
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
CONTENTS
䡵 Hazard Warning Flashers . . . . . . . . . . . . . . . . 372 䡵 Jump-Starting . . . . . . . . . . . . . . . . . . . . . . . . 381
䡵 If Your Engine Overheats . . . . . . . . . . . . . . . . 372
▫ Preparations For Jump-Start . . . . . . . . . . . . . 382
▫ Engine Oil Overheating
(2.4L Engine Only) — If Equipped . . . . . . . . 373
▫ Jump-Starting Procedure . . . . . . . . . . . . . . . 384
䡵 Jacking And Tire Changing . . . . . . . . . . . . . . . 374
▫ Jack Location . . . . . . . . . . . . . . . . . . . . . . . 374
▫ Spare Tire Stowage . . . . . . . . . . . . . . . . . . . 374
▫ Preparations For Jacking . . . . . . . . . . . . . . . 375
䡵 Freeing A Stuck Vehicle . . . . . . . . . . . . . . . . . 386
䡵 Shift Lever Override . . . . . . . . . . . . . . . . . . . 387
䡵 Towing A Disabled Vehicle . . . . . . . . . . . . . . . 388
▫ Without The Ignition Key . . . . . . . . . . . . . . 390
▫ Jacking Instructions . . . . . . . . . . . . . . . . . . . 376
I
nf
or
mat
i
onPr
ovi
dedby:
6
372
WHAT TO DO IN EMERGENCIES
HAZARD WARNING FLASHERS
IF YOUR ENGINE OVERHEATS
The Hazard Warning flasher switch is located on the In any of the following situations, you can reduce the
instrument panel, below the radio.
potential for overheating by taking the appropriate action.
Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all directional • On the highways — Slow down.
turn signals will flash on and off to warn oncoming
• In city traffic — While stopped, put transaxle in
traffic of an emergency. Press the switch a second time to
NEUTRAL, but do not increase engine idle speed.
turn off the Hazard Warning flashers.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.
NOTE: With extended use the Hazard Warning flashers
may wear down your battery.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If temperature gauge reads “H”, pull
over and stop the vehicle with the engine at idle,
when safe. Turn the air conditioner off and wait until
the pointer drops back into the normal range. After
appropriate action has been taken, if the pointer
remains on the “H”, turn the engine off immediately,
and call for service.
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
373
NOTE: There are steps that you can take to slow down Engine Oil Overheating (2.4L Engine Only) —
an impending overheat condition:
If Equipped
During sustained high-speed driving or trailer tow up
• If your air conditioner (A/C) is on, turn it off. The A/C
long grades on a hot day, the engine oil temperature may
system adds heat to the engine cooling system and
become too hot. If this happens, the “HOTOIL” message
turning the A/C off can help remove this heat.
flashes in the odometer and the vehicle speed will be
• You can also turn the temperature control to maximum reduced to 53 mph (85 km/h) until the engine oil
heat, the mode control to floor and the blower control temperature is reduced.
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat NOTE: The vehicle speed is reduced to a maximum of
53 mph (85 km/h). You may of course, reduce your
from the engine cooling system.
vehicle speed further if needed.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
I
nf
or
mat
i
onPr
ovi
dedby:
6
374
WHAT TO DO IN EMERGENCIES
JACKING AND TIRE CHANGING
WARNING! (Continued)
WARNING!
• Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
• Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack.
• Never start or run the engine while the vehicle is
on a jack. If you need to get under a raised vehicle,
take it to a service center where it can be raised on
a lift.
(Continued)
• The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm level surface only.
Avoid ice or slippery areas.
Jack Location
The jack and jack-handle are stowed under the load floor
in the trunk.
Spare Tire Stowage
The compact spare tire is stowed under the rear load floor
in the trunk.
Spare Tire Removal
Lift up the load floor cover and remove the hold down.
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
375
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
2. Turn on the Hazard Warning flashers.
3. Set the parking brake.
4. Place the shift lever into PARK (automatic transmission) or REVERSE (manual transmission).
Spare Tire and Jack Stowage
5. Turn OFF the ignition.
Preparations For Jacking
1. Park the vehicle on a firm, level surface. Avoid ice or
slippery areas.
I
nf
or
mat
i
onPr
ovi
dedby:
6
376
WHAT TO DO IN EMERGENCIES
6. Block both the front and rear of the
wheel diagonally opposite the jacking
position. For example, if changing the
right front tire, block the left rear
wheel.
NOTE: Passengers should not remain in the vehicle
while the vehicle is being jacked.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
(Continued)
WARNING! (Continued)
• Always park on a firm, level surface as far from
the edge of the roadway as possible before raising
the vehicle.
• Turn on the Hazard Warning flashers.
• Block the wheel diagonally opposite the wheel to
be raised.
• Set the parking brake firmly and set an automatic
transmission in PARK; a manual transmission in
REVERSE.
• Never start or run the engine with the vehicle on a
jack.
• Do not let anyone sit in the vehicle when it is on a
jack.
• Do not get under the vehicle when it is on a jack.
• Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
WHAT TO DO IN EMERGENCIES
WARNING! (Continued)
CAUTION!
• If working on or near a roadway, be extremely
careful of motor traffic.
• To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
Jack Warning Label
377
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
NOTE: Refer to the Compact Spare Tire section of
Tires--General Information--for information about the
spare tire, its use, and operation.
1. Remove the scissors jack and lug wrench from the
spare wheel as an assembly. Turn the jack screw to the left
to loosen the lug wrench, and remove the wrench from
the jack assembly.
I
nf
or
mat
i
onPr
ovi
dedby:
6
378
WHAT TO DO IN EMERGENCIES
NOTE: The jack handle attaches to the side of the jack 2. Loosen, but do not remove, the wheel nuts by turning
with two attachment points. When the jack is partially them to the left one turn while the wheel is still on the
expanded, the tension between the two attachment ground.
points holds the jack handle in place.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in Step 3.
Removing Jack Handle From Jack
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
379
3. There is a front and rear jacking location on each side
of the vehicle.
6
Rear Jacking Location
Front Jacking Location
4. Turn the jack screw to the left until the jack can be
placed under the jacking location. Once the jack is
positioned, turn the jack screw to the right until the jack
head is properly engaged with the lift area closest to the
wheel to be changed. Do not raise the vehicle until you
are sure the jack is securely engaged.
I
nf
or
mat
i
onPr
ovi
dedby:
380
WHAT TO DO IN EMERGENCIES
WARNING!
CAUTION!
Raising the vehicle higher than necessary can make
the vehicle less stable. It could slip off the jack and
hurt someone near it. Raise the vehicle only enough
to remove the tire.
Be sure to mount the spare tire with the valve stem
facing outward. The vehicle could be damaged if the
spare tire is mounted incorrectly.
5. Raise the vehicle by turning the jack screw to the right,
using the swivel wrench. Raise the vehicle only until the
tire just clears the surface and enough clearance is
obtained to install the spare tire. Minimum tire lift
provides maximum stability.
6. Remove the wheel nuts, and pull the wheel and wheel
covers (where applicable) off the hub. Install the spare
wheel and wheel nuts with the cone shaped end of the
nuts toward the wheel. Lightly tighten the nuts.
WARNING!
• To avoid the risk of forcing the vehicle off the jack,
do not tighten the wheel nuts fully until the
vehicle has been lowered. Failure to follow this
warning may result in personal injury.
• To avoid possible personal injury, handle the
wheel covers with care to avoid contact with any
sharp edges.
7. Lower the vehicle by turning the jack screw to the left.
8. Finish tightening the nuts. Push down on the wrench
while tightening the wheel nuts. Alternate nuts, until
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
each nut has been tightened twice. The correct wheel nut
torque is 100 ft lbs (135 N·m). If you doubt that you have
tightened the nuts correctly, have them checked with a
torque wrench by your authorized dealer or at a service
station.
381
WARNING!
A loose tire thrown forward in a collision or hard
stop could injure the occupants in the vehicle. Have
the deflated (flat) tire repaired or replaced immediately.
9. Remove the wheel blocks and lower the jack until it is
free. Reassemble the lug wrench to the jack assembly and
11. Check the tire pressure as soon as possible. Correct
stow it in the spare tire area. Secure the assembly using
the tire pressure as required.
the means provided.
WARNING!
A loose tire or jack thrown forward in a collision or
hard stop could endanger the occupants of the vehicle. Always stow the jack parts and the spare tire in
the places provided.
JUMP-STARTING
If your vehicle has a discharged battery it can be jumpstarted using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.
NOTE: When using a portable battery booster pack
10. Place the deflated (flat) tire in the cargo area and have follow the manufacturer’s operating instructions and
the tire repaired or replaced as soon as possible.
precautions.
I
nf
or
mat
i
onPr
ovi
dedby:
6
382
WHAT TO DO IN EMERGENCIES
CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
Preparations For Jump-Start
The battery in your vehicle is located between the left
front headlight assembly and the left front wheel splash
shield. To allow jump-starting there are remote battery
posts located on the left side of the engine compartment.
Remote Battery Posts
1 — Remote Positive (+) Post (covered with protective cap)
2 — Remote Negative (-) Post
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
WARNING!
• Take care to avoid the radiator cooling fan whenever the hood is raised. It can start anytime the
ignition switch is on. You can be injured by
moving fan blades.
• Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
• Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
383
3. Remove the protective cover over the remote positive
(+) battery post. To remove the cover, press the locking
tab and pull upward on the cover.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
6
Locking Tab
4. If using another vehicle to jump-start the battery, park
2. Turn off the heater, radio, and all unnecessary electrithe vehicle within the jumper cables reach, set the
cal accessories.
parking brake and make sure the ignition is OFF.
I
nf
or
mat
i
onPr
ovi
dedby:
384
WHAT TO DO IN EMERGENCIES
WARNING!
1. Connect the positive (+) end of the jumper cable to the
remote positive (+) post of the discharged vehicle.
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
2. Connect the opposite end of the positive (+) jumper
cable to the positive (+) post of the booster battery.
3. Connect the negative end (-) of the jumper cable to the
negative (-) post of the booster battery.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in personal injury or property damage due to battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
4. Connect the opposite end of the negative (-) jumper
cable to the remote negative (-) post of the vehicle with
the discharged battery.
WARNING!
Do not connect the cable to the negative post (-) of the
discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
5. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
385
10. Reinstall the protective cover over the remote positive (+) battery post of the discharged vehicle.
If frequent jump-starting is required to start your vehicle
Once the engine is started, remove the jumper cables in you should have the battery and charging system inthe reverse sequence:
spected at your authorized dealer.
6. Disconnect the negative (-) jumper cable from the
remote negative (-) post of the vehicle with the discharged battery.
7. Disconnect the negative end (-) of the jumper cable
from the negative (-) post of the booster battery.
8. Disconnect the opposite end of the positive (+) jumper
cable from the positive (+) post of the booster battery.
CAUTION!
Accessories that can be plugged into the vehicle
power outlets draw power from the vehicle’s battery,
even when not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long enough, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
9. Disconnect the positive (+) end of the jumper cable
from the remote positive (+) post of the discharged
vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
6
386
WHAT TO DO IN EMERGENCIES
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved by a rocking motion. Turn your
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVE
and REVERSE. Using minimal accelerator pedal pressure
to maintain the rocking motion, without spinning the
wheels, is most effective.
CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the engine to idle with the shift lever in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.
NOTE: If your vehicle is equipped with Electronic
Stability Control (ESC), turn the system to Partial OFF
before attempting to “rock” the vehicle. Refer to “Electronic Brake Control” in “Starting and Operating” for
further information.
CAUTION!
• When “rocking” a stuck vehicle by moving between DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
• Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 30 mph (48 km/h) while in gear (no
transmission shifting occurring).
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
WARNING!
Fast spinning tires can be dangerous. Forces generated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehicle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stopping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
387
SHIFT LEVER OVERRIDE
If a malfunction occurs and the shift lever cannot be
moved out of the PARK position, you can use the
following procedure to temporarily move the shift lever:
1. Firmly apply the parking brake.
2. Remove the cupholder liner.
3. Turn the ignition to the ON/RUN position without
starting the engine.
4. Press and maintain firm pressure on the brake pedal.
5. Insert a screwdriver or similar tool into the hole at the
front of the cupholder and push and hold the override
lever forward.
6. Move the shift lever into the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the cupholder liner.
I
nf
or
mat
i
onPr
ovi
dedby:
6
388
WHAT TO DO IN EMERGENCIES
TOWING A DISABLED VEHICLE
Towing Condition
Flat Tow
Wheels OFF the Ground
NONE
ALL MODELS
If transmission is operable:
• Trans in NEUTRAL
Wheel Lift Or Dolly Tow
Flatbed
Rear
Front
ALL
• 25 mph (40 km/h)max speed
• 15 mi (24 km) max distance
OK
BEST METHOD
Proper towing or lifting equipment is required to prevent If you must use the accessories (wipers, defrosters, etc.)
damage to your vehicle. Use only tow bars and other while being towed, the ignition must be in the ON/RUN
equipment designed for the purpose, following equip- position, not the ACC position.
ment manufacturer’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws applying to
vehicles under tow must be observed.
I
nf
or
mat
i
onPr
ovi
dedby:
WHAT TO DO IN EMERGENCIES
389
The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.
CAUTION!
• Do not use sling type equipment when towing.
Damage to the fascia will occur.
• When securing the vehicle to a flatbed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
• Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and transmission may result.
• If the vehicle being towed requires steering, the
ignition switch must be in the ON position, not
the LOCK or ACC positions.
If flatbed equipment is not available, and the transmission is operable, the vehicle may be flat towed (with all
four wheels on the ground) under the following conditions:
• The shift lever must be in NEUTRAL.
• The distance to be traveled must not exceed 15 mi
(24 km).
• The towing speed must not exceed 25 mph (40 km/h).
I
nf
or
mat
i
onPr
ovi
dedby:
6
390
WHAT TO DO IN EMERGENCIES
If the transmission is not operable, or the vehicle must
be towed faster than 25 mph (40 km/h) or farther than 15
mi (24 km), it must be towed with the front wheels OFF
the ground (using a flatbed truck, towing dolly, or
wheel lift equipment with the front wheels raised).
CAUTION!
Towing faster than 25 mph (40 km/h) or farther than
15 mi (24 km) with front wheels on the ground can
cause severe damage to the transmission. Such damage is not covered by the New Vehicle Limited
Warranty.
Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. Flatbed towing is
the preferred towing method. However, if a flatbed
towing vehicle is not available, wheel lift towing equipment may be used. Rear towing (with the front wheels on
the ground) is not allowed, as transmission damage will
occur. If rear towing is the only alternative, the front
wheels must be placed on a towing dolly. Proper towing
equipment is necessary to prevent damage to the vehicle.
CAUTION!
Failure to follow these towing methods could result
in damage to the transmission. Such damage is not
covered by the New Vehicle Limited Warranty.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
CONTENTS
䡵 Engine Compartment — 2.4L . . . . . . . . . . . . . 393
䡵 Maintenance Procedures . . . . . . . . . . . . . . . . . 398
䡵 Engine Compartment — 3.6L . . . . . . . . . . . . . 394
▫ Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 399
䡵 Onboard Diagnostic System — OBD II . . . . . . 395
▫ Engine Oil Filter . . . . . . . . . . . . . . . . . . . . . 402
▫ Loose Fuel Filler Cap Message . . . . . . . . . . . 395
▫ Engine Air Cleaner Filter . . . . . . . . . . . . . . . 403
䡵 Emissions Inspection And Maintenance
Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
▫ Maintenance-Free Battery . . . . . . . . . . . . . . 403
䡵 Replacement Parts . . . . . . . . . . . . . . . . . . . . . 397
䡵 Dealer Service . . . . . . . . . . . . . . . . . . . . . . . . 398
▫ Air Conditioner Maintenance . . . . . . . . . . . . 405
▫ A/C Air Filter – If Equipped . . . . . . . . . . . . 406
▫ Body Lubrication . . . . . . . . . . . . . . . . . . . . 407
▫ Windshield Wiper Blades . . . . . . . . . . . . . . . 408
I
nf
or
mat
i
onPr
ovi
dedby:
7
392
MAINTAINING YOUR VEHICLE
▫ Adding Washer Fluid . . . . . . . . . . . . . . . . . 409
䡵 Bulb Replacement . . . . . . . . . . . . . . . . . . . . . 434
▫ Exhaust System . . . . . . . . . . . . . . . . . . . . . 409
▫ High Intensity Discharge
Headlamps (HID) . . . . . . . . . . . . . . . . . . . . 434
▫ Cooling System . . . . . . . . . . . . . . . . . . . . . 412
▫ Brake System . . . . . . . . . . . . . . . . . . . . . . . 417
▫ Automatic Transmission . . . . . . . . . . . . . . . 419
▫ Appearance Care And Protection From
Corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . 422
▫ Front Turn Signal . . . . . . . . . . . . . . . . . . . . 435
▫ Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . 435
▫ Backup Lamps . . . . . . . . . . . . . . . . . . . . . . 436
▫ License Plate Lamp . . . . . . . . . . . . . . . . . . . 437
▫ Cleaning Center Console Cupholders . . . . . . 428 䡵 Fluid Capacities
. . . . . . . . . . . . . . . . . . . . . . 438
䡵 Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428 䡵 Fluids, Lubricants, And Genuine Parts . . . . . . . 439
▫ Totally Integrated Power Module . . . . . . . . . 428
▫ Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 439
䡵 Vehicle Storage . . . . . . . . . . . . . . . . . . . . . . . 433
▫ Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . 440
䡵 Replacement Bulbs . . . . . . . . . . . . . . . . . . . . 434
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
393
ENGINE COMPARTMENT — 2.4L
7
1
2
3
4
5
6
— Engine Coolant Reservoir
— Power Steering Fluid Reservoir
— Automatic Transmission Dipstick
— Brake Fluid Reservoir
— Integrated Power Module (Fuses)
— Power Distribution Center (Fuses)
7 — Air Cleaner Filter
8 — Engine Oil Fill
9 — Coolant Pressure Cap
10 — Engine Oil Dipstick
11 — Washer Fluid Reservoir
I
nf
or
mat
i
onPr
ovi
dedby:
394
MAINTAINING YOUR VEHICLE
ENGINE COMPARTMENT — 3.6L
1
2
3
4
—
—
—
—
Engine Coolant Reservoir
Power Steering Fluid Reservoir
Brake Fluid Reservoir
Totally Integrated Power Module (Fuses)
5 — Air Cleaner Filter
6 — Engine Oil Dipstick
7 — Engine Oil Fill
8ovid—
Washer
Fluid Reservoir
I
nf
or
mat
i
onPr
edby
:
MAINTAINING YOUR VEHICLE
ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emissions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Although your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
395
CAUTION!
• Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
• If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is possibly loose or
improperly installed. A “GASCAP” message will be
displayed in the instrument cluster. Tighten the gas cap
until a ⬙clicking⬙ sound is heard. This is an indication that
the gas cap is properly tightened. Press the trip odometer
“Reset” button to turn off the message. If the problem
I
nf
or
mat
i
onPr
ovi
dedby:
7
396
MAINTAINING YOUR VEHICLE
persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the “Malfunction Indicator Light (MIL).” Resolving the problem will turn the MIL light off.
Normally, the OBD II system will be ready. The OBD II
system may not be ready if your vehicle was recently
serviced, recently had a dead battery or a battery replacement. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
For states that require an Inspection and Mainte- crank or start the engine.
nance (I/M), this check verifies the “Malfunction 2. If you crank or start the engine, you will have to start
Indicator Light (MIL)” is functioning and is not this test over.
on when the engine is running, and that the OBD II
3. As soon as you turn the ignition switch to the ON
system is ready for testing.
position, you will see the MIL symbol come on as part of
a normal bulb check.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
397
4. Approximately 15 seconds later, one of two things will Regardless of whether your vehicle’s OBD II system is
happen:
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
a. The MIL will flash for about 10 seconds and then
before going to the I/M station. The I/M station can fail
return to being fully illuminated until you turn OFF
your vehicle because the MIL is on with the engine
the ignition or start the engine. This means that your
running.
vehicle’s OBD II system is not ready and you should
not proceed to the I/M station.
REPLACEMENT PARTS
b. The MIL will not flash at all and will remain fully Use of genuine MOPAR威 parts for normal/scheduled
illuminated until you turn OFF the ignition or start the maintenance and repairs is highly recommended to enengine. This means that your vehicle’s OBD II system sure the designed performance. Damage or failures
caused by the use of non-MOPAR威 parts for maintenance
is ready and you can proceed to the I/M station.
and repairs will not be covered by the manufacturer’s
If your OBD II system is not ready, you should see your warranty.
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready.
I
nf
or
mat
i
onPr
ovi
dedby:
7
398
MAINTAINING YOUR VEHICLE
DEALER SERVICE
Your authorized dealer has the qualified service personnel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
your vehicle. Refer to these Service Manuals before
attempting any procedure yourself.
NOTE: Intentional tampering with emissions control
systems may void your warranty and could result in civil
penalties being assessed against you.
WARNING!
You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent mechanic.
MAINTENANCE PROCEDURES
The pages that follow contain the required maintenance
services determined by the engineers who designed your
vehicle.
Besides those maintenance items specified in the fixed
maintenance schedule, there are other components which
may require servicing or replacement in the future.
CAUTION!
• Failure to properly maintain your vehicle or perform repairs and service when necessary could
result in more costly repairs, damage to other
components or negatively impact vehicle performance. Immediately have potential malfunctions
examined by an authorized Chrysler Group LLC
dealership or qualified repair center.
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
MAINTAINING YOUR VEHICLE
CAUTION! (Continued)
• Your vehicle has been built with improved fluids
that protect the performance and durability of
your vehicle and also allow extended maintenance
intervals. Do not use chemical flushes in these
components as the chemicals can damage your
engine, transmission, power steering or air conditioning. Such damage is not covered by the New
Vehicle Limited Warranty. If a flush is needed
because of component malfunction, use only the
specified fluid for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after a
399
fully warmed engine is shut off. Do not check oil level
before starting the engine after it has sat overnight.
Checking engine oil level when the engine is cold will
give you an incorrect reading.
Checking the oil while the vehicle is on level ground and
only when the engine is hot, will improve the accuracy of
the oil level readings. Maintain the oil level between the
range markings on the dipstick. Either the range markings consist of a crosshatch zone marked SAFE or a
crosshatch zone marked with MIN at the low end of the
range and MAX at the high end of the range. Adding one
quart of oil when the reading is at the low end of the
range marking will raise the oil level to the high end of
the range marking.
I
nf
or
mat
i
onPr
ovi
dedby:
7
400
MAINTAINING YOUR VEHICLE
CAUTION!
Do not overfill the engine. Overfilling the engine
will cause oil aeration, which can lead to loss of oil
pressure and an increase in oil temperature. This
could damage your engine. Also, be sure the oil fill
cap is replaced and tightened after adding oil.
Engine Oil Selection
For best performance and maximum protection under all
types of operating conditions, the manufacturer recommends engine oils that are API Certified and meet the
requirements of Chrysler Material Standard MS-6395.
American Petroleum Institute (API) Engine Oil
Identification Symbol
This symbol means that the oil has
Change Engine Oil
been certified by the American
The oil change indicator system will remind you that it is
Petroleum Institute (API). The
time to take your vehicle in for scheduled maintenance.
manufacturer only recommends
Refer to “Maintenance Schedule” for further information.
API Certified engine oils.
NOTE: Under no circumstances should oil change
intervals exceed 8,000 miles (13 000 km) or six months,
whichever occurs first.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is
not covered by the New Vehicle Limited Warranty.
401
Lubricants which do not have both the engine oil certification mark and the correct SAE viscosity grade number should not be used.
Engine Oil Viscosity (SAE Grade) – 3.6L Engine
SAE 5W-30 engine oil is preferred for all operating
temperatures. The engine oil filler cap also shows the
recommended engine oil viscosity for your vehicle.
Engine Oil Viscosity (SAE Grade) – 2.4L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature Lubricants which do not have both, the engine oil certistarting and vehicle fuel economy. Your engine oil filler fication mark and the correct SAE viscosity grade numcap also shows the recommended engine oil viscosity for ber should not be used.
your vehicle.
The engine oil filler cap also shows the recommended
The engine oil filler cap also shows the recommended engine oil viscosity for your engine. For information on
engine oil viscosity for your engine. For information on engine oil filler cap location, refer to “Engine Compartengine oil filler cap location, refer to “Engine Compart- ment” in “Maintaining Your Vehicle” for further informament” in “Maintaining Your Vehicle” for further informa- tion.
tion.
I
nf
or
mat
i
onPr
ovi
dedby:
7
402
MAINTAINING YOUR VEHICLE
Lubricants which do not have both, the engine oil certi- Disposing Of Used Engine Oil And Oil Filters
fication mark and the correct SAE viscosity grade num- Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
ber should not be used.
indiscriminately discarded, can present a problem to the
Synthetic Engine Oils
environment. Contact your authorized dealer, service
You may use synthetic engine oils provided the recomstation, or governmental agency for advice on how and
mended oil quality requirements are met, and the recomwhere used oil and oil filters can be safely discarded in
mended maintenance intervals for oil and filter changes
your area.
are followed.
Engine Oil Filter
Materials Added To Engine Oils
The engine oil filter should be replaced with a new filter
Do not add any supplemental materials, other than leak
at every engine oil change.
detection dyes, to your engine oil. Engine oil is an
engineered product and it’s performance may be im- Engine Oil Filter Selection
All of this manufacturer’s engines have a full-flow type
paired by supplemental additives.
disposable oil filter. Use a filter of this type for replacement. The quality of replacement filters varies considerably. Only high quality filters should be used to assure
most efficient service. MOPAR威 engine oil filters are high
quality oil filters and are recommended.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
Engine Air Cleaner Filter
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
403
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPAR威 engine air
cleaner filters are high quality and are recommended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic maintenance required.
NOTE: The battery is stored in a compartment behind
the left front fender and is accessible without removing
the tire and wheel. Remote battery terminals are located
in the engine compartment for jump-starting. Refer to
Refer to the “Maintenance Schedule” for the proper
_Jump-Starting Procedures” in “What To Do In Emergenmaintenance intervals.
cies” for further information.
To access the battery, turn the steering wheel fully to the
right and remove the inner fender shield.
I
nf
or
mat
i
onPr
ovi
dedby:
7
404
MAINTAINING YOUR VEHICLE
WARNING!
CAUTION!
• Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid
to contact your eyes, skin, or clothing. Do not lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area immediately with large amounts of water.
• Battery gas is flammable and explosive. Keep
flame or sparks away from the battery. Do not use
a booster battery or any other booster source with
an output greater than 12 Volts. Do not allow cable
clamps to touch each other.
• Battery posts, terminals, and related accessories
contain lead and lead compounds. Wash hands
after handling.
• It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to
the negative post. Battery posts are marked positive (+) and negative (-) and are identified on the
battery case. Cable clamps should be tight on the
terminal posts and free of corrosion.
• If a “fast charger” is used while the battery is in
the vehicle, disconnect both vehicle battery cables
before connecting the charger to the battery. Do
not use a “fast charger” to provide starting voltage.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
Air Conditioner Maintenance
For best possible performance, your air conditioner
should be checked and serviced by an authorized dealer
at the start of each warm season. This service should
include cleaning of the condenser fins and a performance
test.
CAUTION!
Do not use chemical flushes in your air conditioning
system as the chemicals can damage your air conditioning components. Such damage is not covered by
the New Vehicle Limited Warranty.
405
WARNING!
• Use only refrigerants and compressor lubricants
approved by the manufacturer for your air conditioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer to
Warranty Information Book, located on the DVD,
for further warranty information.
• The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced technician.
I
nf
or
mat
i
onPr
ovi
dedby:
7
406
MAINTAINING YOUR VEHICLE
Refrigerant Recovery And Recycling
R-134a air conditioning refrigerant is a hydrofluorocarbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. However, the manufacturer recommends that air conditioning
service be performed by authorized dealers or other
service facilities using recovery and recycling equipment.
The A/C Air Filter is located in the fresh air inlet behind
the glove box. Perform the following procedure to replace the filter:
1. Open the glove box and remove all contents.
2. Push in on the sides of the glove box and lower the
door.
NOTE: Use only manufacturer approved A/C System 3. Disconnect the glove box door dampener from the slot
Sealers, Stop Leak Products, Seal Conditioners, Compres- on the side of the box. This is done by grasping the
sor Oil, and Refrigerants.
dampener connector (on the outside of the box) and the
end of the connector pin (on the inside of the box) with
A/C Air Filter – If Equipped
your thumb and forefinger and pulling outward while
Refer to the “Maintenance Schedule” for the proper
lightly lifting upward on the door with your other hand.
maintenance intervals.
Once disconnected, the dampener will retract underneath the instrument panel if you release it.
WARNING!
Do not remove the A/C Air Filter while the blower is
operating or personal injury may result.
4. Pivot the glove box downward.
5. Disengage the two retaining tabs that secure the filter
cover to the HVAC housing and remove the cover.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
407
CAUTION!
The A/C Air Filter is identified with an arrow to
indicate airflow direction through the filter. Failure
to install the filter properly will result in the need to
replace it more often.
8. Reinstall the glove box door dampener and glove box.
A/C Air Filter Replacement
6. Remove the A/C Air Filter by pulling it straight out of
the housing.
7. Install the A/C Air Filter with the arrow on the filter
pointing toward the floor. When installing the filter
cover, make sure the retaining tabs fully engage the
cover.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubricated periodically with a lithium based grease, such as
MOPAR威 Spray White Lube or equivalent, to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to
I
nf
or
mat
i
onPr
ovi
dedby:
7
408
MAINTAINING YOUR VEHICLE
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR威
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Avoid using the wiper blades to remove frost or ice from
the windshield. Make sure that they are not frozen to the
glass before turning them on to avoid damaging the
blade.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild non-abrasive cleaner or use the washer solvent. This
will remove accumulations of salt, waxes, or road film
and help reduce streaking and smearing.
Keep the blade rubber out of contact with petroleum
products such as engine oil, gasoline, etc.
NOTE: Life expectancy of wiper blades varies depending on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as
necessary.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
Adding Washer Fluid
The fluid reservoir for the windshield washers is located
in the engine compartment. Be sure to check the fluid
level in the reservoir at regular intervals. Fill the reservoir
with windshield washer solvent (not radiator antifreeze)
and operate the system for a few seconds to flush out the
residual water.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
409
Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
If you notice a change in the sound of the exhaust system;
or if the exhaust fumes can be detected inside the vehicle;
or when the underside or rear of the vehicle is damaged;
have an authorized technician inspect the complete exhaust system and adjacent body areas for broken, damaged, deteriorated, or mispositioned parts. Open seams
or loose connections could permit exhaust fumes to seep
into the passenger compartment. In addition, inspect the
exhaust system each time the vehicle is raised for lubrication or oil change. Replace as required.
I
nf
or
mat
i
onPr
ovi
dedby:
7
410
MAINTAINING YOUR VEHICLE
WARNING!
CAUTION!
• Exhaust gases can injure or kill. They contain
carbon monoxide (CO), which is colorless and
odorless. Breathing it can make you unconscious
and can eventually poison you. To avoid breathing
CO, refer to “Safety Tips/Exhaust Gas” in “Things
To Know Before Starting Your Vehicle” for further
information.
• A hot exhaust system can start a fire if you park
over materials that can burn. Such materials might
be grass or leaves coming into contact with your
exhaust system. Do not park or operate your vehicle in areas where your exhaust system can
contact anything that can burn.
• The catalytic converter requires the use of unleaded fuel only. Leaded gasoline will destroy the
effectiveness of the catalyst as an emissions control device and may seriously reduce engine performance and cause serious damage to the engine.
• Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition.
In the event of engine malfunction, particularly
involving engine misfire or other apparent loss of
performance, have your vehicle serviced promptly.
Continued operation of your vehicle with a severe
malfunction could cause the converter to overheat,
resulting in possible damage to the converter and
vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
411
Under normal operating conditions, the catalytic con- To minimize the possibility of catalytic converter damverter will not require maintenance. However, it is im- age:
portant to keep the engine properly tuned to assure
• Do not shut off the engine or interrupt the ignition,
proper catalyst operation and prevent possible catalyst
when the transmission is in gear and the vehicle is in
damage.
motion.
NOTE: Intentional tampering with emissions control
• Do not try to start the engine by pushing or towing the
systems can result in civil penalties being assessed
vehicle.
against you.
• Do not idle the engine with any spark plug wires
In unusual situations involving grossly malfunctioning
disconnected or removed, such as when diagnostic
engine operation, a scorching odor may suggest severe
testing, or for prolonged periods during very rough
and abnormal catalyst overheating. If this occurs, stop
idle or malfunctioning operating conditions.
the vehicle, turn off the engine and allow it to cool.
Service, including a tune-up to manufacturer’s specifications, should be obtained immediately.
I
nf
or
mat
i
onPr
ovi
dedby:
7
412
MAINTAINING YOUR VEHICLE
Cooling System
WARNING!
• When working near the radiator cooling fan, disconnect the fan motor lead or turn the ignition
switch to the LOCK position. The fan is temperature controlled and can start at anytime the ignition switch is in the ON position.
• You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the
hood, do not open the hood until the radiator has
had time to cool. Never try to open a cooling
system pressure cap when the radiator is hot.
rusty in appearance, the system should be drained,
flushed, and refilled with fresh engine coolant (antifreeze). Check the front of the A/C condenser for any
accumulation of bugs, leaves, etc. If dirty, clean by gently
spraying water from a garden hose vertically down the
face of the condenser.
Check the coolant recovery bottle tubing for brittle rubber, cracking, tears, cuts, and tightness of the connection
at the bottle and radiator. Inspect the entire system for
leaks.
Cooling System – Drain, Flush, And Refill
If the engine coolant (antifreeze) is dirty or contains a
considerable amount of sediment, clean and flush with a
reliable cooling system cleaner. Follow with a thorough
rinsing to remove all deposits and chemicals. Properly
dispose of the old engine coolant (antifreeze).
Coolant Checks
Check engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, where Refer to the “Maintenance Schedule” for the proper
applicable). If the engine coolant (antifreeze) is dirty or maintenance intervals.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
Selection Of Coolant
Use only the manufacturer’s recommended coolant. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for further information.
CAUTION!
• Mixing of engine coolant (antifreeze) other than
specified HOAT engine coolant (antifreeze), may
result in engine damage and may decrease corrosion protection. If a non-HOAT engine coolant
(antifreeze) is introduced into the cooling system
in an emergency, it should be replaced with the
specified engine coolant (antifreeze) as soon as
possible.
413
CAUTION! (Continued)
• Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional rust inhibitors or antirust products, as they
may not be compatible with the engine coolant
(antifreeze) and may plug the radiator.
• This vehicle has not been designed for use with
Propylene Glycol based engine coolant (antifreeze). Use of Propylene Glycol based engine
coolant (antifreeze) is not recommended.
Adding Coolant
Your vehicle has been built with an improved engine
coolant (antifreeze) that allows extended maintenance
(Continued) intervals. This engine coolant (antifreeze) can be used up
to five years or 104,000 miles (169 000 km) before replacement. To prevent reducing this extended maintenance
period, it is important that you use the same engine
coolant (antifreeze) throughout the life of your vehicle.
I
nf
or
mat
i
onPr
ovi
dedby:
7
414
MAINTAINING YOUR VEHICLE
Please review these recommendations for using Hybrid Please note that it is the owner’s responsibility to mainOrganic Additive Technology (HOAT) engine coolant tain the proper level of protection against freezing according to the temperatures occurring in the area where
(antifreeze). When adding engine coolant (antifreeze):
the vehicle is operated.
• The manufacturer recommends using MOPAR威
Antifreeze/Coolant 5 Year/100,000 Mile Formula NOTE: Mixing engine coolant (antifreeze) types will
HOAT (Hybrid Organic Additive Technology) or decrease the life of the engine coolant (antifreeze) and
will require more frequent coolant changes.
equivalent.
• Mix a minimum solution of 50% HOAT engine coolant
and distilled water. Use higher concentrations (not to
exceed 70%) if temperatures below ⫺34°F (⫺37°C) are
anticipated.
Cooling System Pressure Cap
The cap must be fully tightened to prevent loss of engine
coolant (antifreeze), and to ensure that the engine coolant
(antifreeze) will return to the radiator from the coolant
recovery bottle.
• Use only high purity water such as distilled or deionized water when mixing the water/engine coolant The cap should be inspected and cleaned if there is any
(antifreeze) solution. The use of lower quality water accumulation of foreign material on the sealing surfaces.
will reduce the amount of corrosion protection in the
engine cooling system.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
WARNING!
415
rules for your community. To prevent ingestion by animals or children, do not store ethylene glycol based
engine coolant (antifreeze) in open containers or allow it
to remain in puddles on the ground. If ingested by a child
or pet, seek emergency assistance immediately. Clean up
any ground spills immediately.
• The warning words “DO NOT OPEN HOT” on
the cooling system pressure cap are a safety precaution. Never add engine coolant (antifreeze)
when the engine is overheated. Do not loosen or
remove the cap to cool an overheated engine. Heat
causes pressure to build up in the cooling system.
To prevent scalding or injury, do not remove the
pressure cap while the system is hot or under
pressure.
• Do not use a pressure cap other than the one
specified for your vehicle. Personal injury or engine damage may result.
Coolant Level
Four-Cylinder Engines – the coolant bottle provides a
quick visual method for determining that the engine
coolant (antifreeze) level is adequate. With the engine
idling and warm to normal operating temperature, the
level of the engine coolant (antifreeze) in the bottle
should be between the “ADD” and “FULL” lines, shown
on the bottle.
Disposal Of Used Engine Coolant
Used ethylene glycol based engine coolant (antifreeze) is
a regulated substance requiring proper disposal. Check
with your local authorities to determine the disposal
Six-Cylinder Engines – the level of the engine coolant
(antifreeze) in the pressurized coolant bottle should be
between the “COLD” and “FULL” range on the bottle
when the engine is cold.
I
nf
or
mat
i
onPr
ovi
dedby:
7
416
MAINTAINING YOUR VEHICLE
The radiator normally remains completely full, so there is
no need to remove the radiator cap unless checking for
engine coolant (antifreeze) freeze point or replacing coolant. Advise your service attendant of this. As long as the
engine operating temperature is satisfactory, the coolant
bottle need only be checked once a month. When additional engine coolant (antifreeze) is needed to maintain
the proper level, it should be added to the coolant bottle.
Do not overfill.
Points To Remember
If an examination of your engine compartment shows no
evidence of radiator or hose leaks, the vehicle may be
safely driven. The vapor will soon dissipate.
• Do not overfill the coolant recovery bottle.
• Check engine coolant (antifreeze) freeze point in the
radiator and in the coolant recovery bottle. If engine
coolant (antifreeze) needs to be added, the contents of
the coolant recovery bottle must also be protected
against freezing.
• If frequent engine coolant (antifreeze) additions are
NOTE: When the vehicle is stopped after a few miles
required, or if the level in the coolant recovery bottle
(kilometers) of operation, you may observe vapor coming
does not drop when the engine cools, the cooling
from the front of the engine compartment. This is norsystem should be pressure tested for leaks.
mally a result of moisture from rain, snow, or high
humidity accumulating on the radiator and being vapor- • Maintain engine coolant (antifreeze) concentration at
50% HOAT engine coolant (antifreeze) (minimum)
ized when the thermostat opens, allowing hot engine
and distilled water for proper corrosion protection of
coolant (antifreeze) to enter the radiator.
your engine, which contains aluminum components.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
• Make sure that the radiator and coolant recovery
bottle overflow hoses are not kinked or obstructed.
• Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean.
417
WARNING!
Riding the brakes can lead to brake failure and
possibly a collision. Driving with your foot resting or
riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You would not have your full
braking capacity in an emergency.
• Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory cooling performance, poor gas Master Cylinder – Brake Fluid Level Check
mileage, and increased emissions.
Check the fluid level in the master cylinder immediately
if the brake system warning light indicates system failBrake System
ure.
In order to assure brake system performance, all brake
system components should be inspected periodically. Check the fluid level in the master cylinder when perRefer to the “Maintenance Schedule” for the proper forming underhood services.
maintenance intervals.
I
nf
or
mat
i
onPr
ovi
dedby:
7
418
MAINTAINING YOUR VEHICLE
Clean the top of the master cylinder area before removing
the cap. If necessary, add fluid to bring the fluid level up
to the requirements described on the brake fluid reservoir.
Overfilling of fluid is not recommended because it may
cause leaking in the system.
Fluid level can be expected to fall as the brake pads wear.
Brake fluid level should be checked when pads are
replaced. However, low fluid level may be caused by a
leak and a checkup may be needed.
WARNING!
• Use only manufacturer’s recommended brake
fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further
information. Using the wrong type of brake fluid
can severely damage your brake system and/or
impair its performance. The proper type of brake
fluid for your vehicle is also identified on the
original factory installed hydraulic master cylinder reservoir.
Use only manufacturer’s recommended brake fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for further information.
I
nf
or
mat
i
onPr
ovi
dedby:
(Continued)
MAINTAINING YOUR VEHICLE
419
WARNING! (Continued)
WARNING! (Continued)
• To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that
has been in a tightly closed container. Keep the
master cylinder reservoir cap secured at all times.
Brake fluid in a open container absorbs moisture
from the air resulting in a lower boiling point.
This may cause it to boil unexpectedly during hard
or prolonged braking, resulting in sudden brake
failure. This could result in a collision.
• Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.
• Do not allow petroleum based fluid to contaminate the brake fluid. Brake seal components could
be damaged, causing partial or complete brake
failure. This could result in a collision.
Automatic Transmission
The automatic transmission and differential assembly are
contained within a single housing.
The fluid level in the automatic transmission should be
checked whenever the vehicle is serviced. Operation with
an improper fluid level will greatly reduce the life of the
transmission and the fluid.
(Continued)
I
nf
or
mat
i
onPr
ovi
dedby:
7
420
MAINTAINING YOUR VEHICLE
Selection Of Lubricant
It is important that the proper lubricant is used in the
transmission to assure optimum transmission performance.
Use only the manufacturer’s recommended transmission
fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for further information. It is
important that the transmission fluid be maintained at the
prescribed level using the recommended fluid.
Special Additives
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supplemental additives. Therefore, do not add any fluid additives to the transmission. The only exception to this
policy is the use of special dyes to aid in detecting fluid
leaks. In addition, avoid using transmission sealers as
they may adversely affect seals.
CAUTION!
CAUTION!
Using a transmission fluid other than the manufacturer’s recommended fluid may cause deterioration
in transmission shift quality and/or torque converter
shudder. Using a transmission fluid other than the
manufacturer’s recommended fluid will require
more frequent fluid and filter changes. Refer to
“Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for further information.
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission components. Such damage is not covered by the New
Vehicle Limited Warranty.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
421
6. Remove the dipstick and determine if the fluid is hot
Fluid Level Check – 2.4L Engine
Use the following procedure to check the automatic or cold. Hot fluid is approximately 180° F (82° C), which
transmission fluid level properly:
is the normal operating temperature after the vehicle is
driven at least 15 miles (24 km). Hot fluid cannot be held
1. Park the vehicle on level ground.
comfortably between the fingertips. Cold fluid is at a
2. Run the engine at curb idle speed for a minimum of temperature below 80° F (27° C).
60 seconds.
7. Wipe the dipstick clean and reinsert until seated. Then,
3. Apply the parking brake fully.
remove dipstick and note the reading.
4. Place the shift lever momentarily into each gear position ending with the lever in PARK.
5. Wipe the area around the dipstick clean to eliminate
the possibility of dirt entering the transmission.
a. If the fluid is hot, the reading should be in the
crosshatched area marked “HOT” (between the upper
two holes in the dipstick).
b. If the fluid is cold, the fluid level should be between
the lower two holes in the area marked “COLD.”
If the fluid level is low, add sufficient fluid through the
filler (dipstick) tube to bring it to the proper level. Do not
overfill.
I
nf
or
mat
i
onPr
ovi
dedby:
7
422
MAINTAINING YOUR VEHICLE
CAUTION!
• Using a transmission fluid other than the manufacturer’s recommended fluid may cause deterioration in transmission shift quality and/or torque
converter shudder. Using a transmission fluid
other than that recommended by the manufacturer
will require more frequent fluid and filter
changes. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for further information.
• Dirt and water in the transmission can cause
serious damage. To prevent dirt and water from
entering the transmission after checking or replenishing fluid, make certain that the dipstick cap is
re-seated properly.
Fluid Level Check – 3.6L Engine
The automatic transmission has no dipstick and is dealer
serviced only.
Transmission Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
In addition, change the fluid and filter if the transmission
is disassembled for any reason.
Appearance Care And Protection From Corrosion
Protection Of Body And Paint From Corrosion
Vehicle body care requirements vary according to geographic locations and usage. Chemicals that make roads
passable in snow and ice and those that are sprayed on
trees and road surfaces during other seasons are highly
corrosive to the metal in your vehicle. Outside parking,
which exposes your vehicle to airborne contaminants,
road surfaces on which the vehicle is operated, extreme
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
423
hot or cold weather and other extreme conditions will Washing
have an adverse effect on paint, metal trim, and under• Wash your vehicle regularly. Always wash your vebody protection.
hicle in the shade using MOPAR威 Car Wash or equivalent, or a mild car wash soap, and rinse the panels
The following maintenance recommendations will enable
completely with clear water.
you to obtain maximum benefit from the corrosion
resistance built into your vehicle.
• If insects, tar, or other similar deposits have accumulated on your vehicle, use MOPAR威 Super Kleen Bug
What Causes Corrosion?
Corrosion is the result of deterioration or removal of
and Tar Remover or equivalent to remove.
paint and protective coatings from your vehicle.
• Use a high quality cleaner wax, such as MOPAR威
Cleaner Wax or equivalent to remove road film, stains
The most common causes are:
and to protect your paint finish. Take care never to
• Road salt, dirt, and moisture accumulation.
scratch the paint.
• Stone and gravel impact.
• Avoid using abrasive compounds and power buffing
• Insects, tree sap, and tar.
that may diminish the gloss or thin out the paint
finish.
• Salt in the air near seacoast localities.
• Atmospheric fallout/industrial pollutants.
I
nf
or
mat
i
onPr
ovi
dedby:
7
424
MAINTAINING YOUR VEHICLE
CAUTION!
• Do not use abrasive or strong cleaning materials
such as steel wool or scouring powder, which will
scratch metal and painted surfaces.
• Use of power washers exceeding 1,200 psi
(8 274 kPa) can result in damage or removal of
paint and decals.
• If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
• If your vehicle is damaged due to a collision or similar
cause which destroys the paint and protective coating,
have your vehicle repaired as soon as possible. The
cost of such repairs is considered the responsibility of
the owner.
• If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
• If you drive on salted or dusty roads or if you drive
packaged and sealed.
near the ocean, hose off the undercarriage at least once
• If a lot of driving is done on gravel roads, consider
a month.
mud or stone shields behind each wheel.
• It is important that the drain holes in the lower edges
of the doors, rocker panels, and trunk be kept clear • Use MOPAR威 Touch Up Paint or equivalent on
scratches as soon as possible. Your authorized dealer
and open.
has touch up paint to match the color of your vehicle.
Special Care
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels, should be cleaned regularly with
a mild soap and water to prevent corrosion. To remove
heavy soil and/or excessive brake dust, use MOPAR威
Wheel Cleaner or equivalent or select a nonabrasive,
non-acidic cleaner. Do not use scouring pads, steel wool,
a bristle brush, or metal polishes. Only MOPAR威 or
equivalent is recommended. Do not use oven cleaner.
Avoid automatic car washes that use acidic solutions or
harsh brushes that may damage the wheels’ protective
finish.
425
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution followed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Stain Repel Fabric Cleaning Procedure –
If Equipped
Stain Repel seats may be cleaned in the following manner:
•
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
•
less susceptible to stone breakage than glass headlights.
•
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
Remove as much of the stain as possible by blotting
with a clean, dry towel.
Blot any remaining stain with a clean, damp towel.
For tough stains, apply MOPAR威 Total Clean or
equivalent, or a mild soap solution to a clean, damp
cloth and remove the stain. Use a fresh, damp towel to
remove soap residue.
I
nf
or
mat
i
onPr
ovi
dedby:
7
426
MAINTAINING YOUR VEHICLE
• For grease stains, apply MOPAR威 Multi-Purpose if absolutely necessary. Do not use harsh cleaners or
Cleaner or equivalent to a clean, damp cloth and Armor All威. Use MOPAR威 Total Clean or equivalent to
remove the stain. Use a fresh, damp towel to remove clean vinyl upholstery.
soap residue.
Cleaning Leather Upholstery
• Do not use any harsh solvents or any other form of MOPAR威 Total Clean or equivalent is specifically recommended for leather upholstery.
protectants on Stain Repel products.
Interior Care
Instrument Panel Cover
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do not
use protectants or other products, which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
Cleaning Interior Trim
Interior Trim should be cleaned starting with a damp
cloth, a damp cloth with MOPAR威 Total Clean or equivalent, then MOPAR威 Spot & Stain Remover or equivalent
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR威 Total Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather conditioner is not required to maintain the original condition.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR威 Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear window equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments, which may
scratch the elements.
427
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet, soft rag. A mild soap solution may
be used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
When cleaning the rear view mirror, spray cleaner on the
lukewarm water. Do not remove the belts from the car to
towel or rag that you are using. Do not spray cleaner
wash them. Dry with a soft cloth.
directly on the mirror.
I
nf
or
mat
i
onPr
ovi
dedby:
7
428
MAINTAINING YOUR VEHICLE
Replace the belts if they appear frayed or worn or if the Installation
Align the liner in the cupholder and press down firmly.
buckles do not work properly.
Cleaning Center Console Cupholders
FUSES
Removal
Grab the rubber portion of the cupholder and lift
upward.
Totally Integrated Power Module
The Totally Integrated Power Module is located in the
engine compartment near the air cleaner assembly. This
center contains cartridge fuses and mini fuses. A label
Cleaning
Soak the rubber cupholder liner in a mixture of medium that identifies each component may be printed on the
hot tap water and one teaspoon of mild liquid dish soap. inside of the cover. Refer to the graphic below for
Let soak for approximately one hour. After one hour pull FUSES/TIPM location.
the liner from the water and dip it back into the water
about six times. This will loosen any remaining debris.
Rinse the liner thoroughly under warm running water.
Shake the excess water from the liner and dry the outer
surfaces with a clean soft cloth.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
Cartridge
Fuse
Mini
Fuse
3
—
10 Amp
Red
4
—
5
—
6
—
Cavity
Totally Integrated Power Module
Cavity
1
2
Cartridge
Fuse
40 Amp
Green
—
Mini
Fuse
Description
7
—
—
Power Top Module –
If Equipped
8
—
20 Amp
Yellow
AWD Module
I
nf
or
mat
i
onPr
ovi
dedby:
10 Amp
Red
20 Amp
Yellow
10 Amp
Red
30 Amp
Green
30 Amp
Green
429
Description
Center High
Mounted Stop Light
(CHMSL)/Brake
Switch
Ignition Switch
Trailer Tow – If
Equipped
Power Mirror
Switch/Climate Controls
Ignition Off Draw
(IOD) Sense 1
Ignition Off Draw
(IOD) Sense 2
7
430
MAINTAINING YOUR VEHICLE
Cavity
Cartridge
Fuse
9
40 Amp
Green
10
11
12
—
—
—
13
—
14
—
Mini
Fuse
20 Amp
Yellow
15 Amp
Lt Blue
20 Amp
Yellow
20 Amp
Yellow
10 Amp
Red
Description
Cavity
Battery Feed – Power
Seats – If Equipped/
PZEV Air Pump – If
Equipped
Instrument Panel/
Power Locks/Interior
Lights
Selectable Power
Outlet (Inside Center
Arm Rest)
15
Cartridge
Fuse
40 Amp
Green
Mini
Fuse
—
16
—
15 Amp
Lt. Blue
17
—
10 Amp
Red
18
40 Amp
Green
—
19
—
20
—
21
—
—
Ignition
Instrument Panel
I
nf
or
mat
i
onPr
ovi
dedby:
20 Amp
Yellow
15 Amp
Lt. Blue
10 Amp
Red
Description
Radiator Fan Relay
Cigar Lighter/
Sunroof – If
Equipped
Wireless Control
Module (WCM)/
Clock/Steering Control Module (SCM)
Auto Shutdown
(ASD) Relay
Audio Amplifier – If
Equipped
Radio
Siren – If Equipped
MAINTAINING YOUR VEHICLE
Cartridge
Fuse
Mini
Fuse
22
—
10 Amp
Red
23
—
24
—
25
—
10 Amp
Red
—
15 Amp
Lt. Blue
Cavity
26
15 Amp
Lt. Blue
25 Amp
Natural
Description
Cavity
Ignition Run – Climate Controls/Hot
Cupholder – If
Equipped
Auto Shutdown
(ASD) Relay 3
Sunroof – If
Equipped
Ignition Run —
Heated Mirrors - If
Equipped
Auto Shutdown
(ASD) Relay 2
Cartridge
Fuse
Mini
Fuse
27
—
10 Amp
Red
28
—
10 Amp
Red
29
—
—
30
—
20 Amp
Yellow
31
—
10 Amp
Red
I
nf
or
mat
i
onPr
ovi
dedby:
431
Description
Ignition Run – Occupant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
Ignition Run — Occupant Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
Hot Car (No Fuse
Required)
Ignition Run –
Heated Seats – If
Equipped
Headlamp Washer –
If Equipped
7
432
MAINTAINING YOUR VEHICLE
Cavity
32
33
34
Cartridge
Fuse
30 Amp
Pink
—
30 Amp
Pink
Mini
Fuse
—
10 Amp
Red
—
Description
Cavity
Auto Shutdown
(ASD) Relay 1
Switch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)
Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module – If
Equipped
Cartridge
Fuse
Mini
Fuse
35
40 Amp
Green
—
36
30 Amp
Pink
—
37
—
25 Amp
Natural
I
nf
or
mat
i
onPr
ovi
dedby:
Description
Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module – If
Equipped
Passenger Door Module (PDM)/Driver
Door Module (DDM)
Power Top Module –
If Equipped
MAINTAINING YOUR VEHICLE
CAUTION!
• When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
• When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
433
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
• Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
• Or disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
I
nf
or
mat
i
onPr
ovi
dedby:
7
434
MAINTAINING YOUR VEHICLE
REPLACEMENT BULBS
LIGHT BULBS – Exterior
Bulb No.
All the inside bulbs are brass or glass wedge base. Bi-Halogen Headlamp . . . . . . . . . . . . . . . . . . . . HIR2
Aluminum base bulbs are not approved and should not
(Serviced at Authorized Dealer)
be used for replacement.
Front Turn Signal Lamp. . . . . . . . . . . . . . . . 3157NAK
Front Park Lamp . . LED (Serviced at Authorized Dealer)
LIGHT BULBS – Interior
Bulb No. Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . . H11
Front Courtesy/Reading Lamp . . . . . . . . . . 578/W5W Center High Mounted Stop (CHMSL) Lamp . . . . . LED
(Serviced at Authorized Dealer)
Center Courtesy/Reading Lamp. . . . . . . . . . 578/W5W
Rear
Tail/Stop/Turn
Lamp
. . . . . . . . . . . . . . . . . LED
Visor Vanity Lamp. . . . . . . . . . . . . . . . . . . . . . A6220
(Serviced
at Authorized Dealer)
Glove Box Lamp . . . . . . . . . . . . . . . . . . . . . . . A6220
Backup
Lamp
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . . . . . . . . 921
Shift Indicator Lamp . . . . . . . . . . . . . . . . . IKLE14140
License
Lamp.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . . . . . . W5W
Rear Compartment (Trunk) Lamp . . . . . . . . . . . . . 579
NOTE: For lighted switches, see your authorized dealer BULB REPLACEMENT
for replacement.
High Intensity Discharge Headlamps (HID)
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
435
this, you should not attempt to service a headlamp bulb Front Turn Signal
yourself. If a headlamp bulb fails, take your vehicle to
1. Raise and prop open the hood.
an authorized dealer for service.
2. Rotate the bulb’s electrical connector one-quarter turn
WARNING!
counterclockwise and remove it from the headlamp
housing.
A transient high tension occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned 3. Remove the bulb from the connector socket and install
ON. It may cause serious electrical shock or electro- the replacement bulb.
cution if not serviced properly. See your authorized
4. Install the bulb and connector assembly into the
dealer for service.
headlamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
NOTE: On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to Front Fog Lamp
the lights. This diminishes and becomes more white after
NOTE: Access to the lamps through the lower fascia
approximately 10 seconds, as the system charges.
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield.
I
nf
or
mat
i
onPr
ovi
dedby:
7
436
MAINTAINING YOUR VEHICLE
1. Rotate the bulb’s electrical connector one-quarter turn Backup Lamps
counterclockwise and remove it from the fog lamp hous1. Open the trunk and gently pull back the trunk liner
ing.
behind the tail lamp.
2. Remove the bulb from the connector socket and install
2. Remove the two plastic wing nuts from the tail lamp
the replacement bulb.
housing.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Install the bulb and connector assembly into the fog
lamp housing and rotate the connector one-quarter turn
clockwise to lock it in place.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTAINING YOUR VEHICLE
437
3. Grasp the tail lamp and pull firmly outward pushing 4. Twist and remove socket from lamp.
on the studs from inside to disengage the lamp housing.
5. Remove bulb from socket and replace.
NOTE: Placing a small flat head screwdriver or similar
License Plate Lamp
tool between the lamp outboard ball stud and plastic
grommet from inside the trunk can assist in lamp re- 1. Using a small screwdriver, press inward the locking
tab on the side of the lamp assembly and pull down on
moval.
the lamp assembly for removal.
2. Pull bulb from socket, replace, and reinstall the lamp
assembly into place ensuring the locking tab is secure.
7
I
nf
or
mat
i
onPr
ovi
dedby:
438
MAINTAINING YOUR VEHICLE
FLUID CAPACITIES
U.S.
Fuel (Approximate)
All Engines — (Except 2.4L PZEV)
16.9 Gallons
2.4L PZEV (Partial Zero Emissions Vehicle)
18.5 Gallons
Engine Oil with Filter
2.4L Engine (SAE 5W-20, API Certified)
4.5 Quarts
3.6L Engine (SAE 5W-30, API Certified)
6 Quarts
Cooling System*
2.4L Engine (MOPAR威 Antifreeze/Coolant 5
7.7 Quarts
Year/100,000 Mile Formula or equivalent)
3.6L Engine (MOPAR威 Antifreeze/Coolant 5
11.6 Quarts
Year/100,000 Mile Formula or equivalent)
* Includes heater and coolant recovery bottle filled to MAX level.
I
nf
or
mat
i
onPr
ovi
dedby:
Metric
64 Liters
70 Liters
4.4 Liters
5.6 Liters
7.3 Liters
11 Liters
MAINTAINING YOUR VEHICLE
439
FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component
Engine Coolant
Engine Oil – 2.4L Engine
Engine Oil – 3.6L Engine
Fluid, Lubricant, or Genuine Part
MOPAR威 Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) or equivalent.
Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Use API Certified SAE 5W-30 Engine Oil, meeting Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for correct SAE grade.
MOPAR威 Engine Oil Filter or equivalent.
Engine Oil Filter
Spark Plugs – 2.4L Engine except
ZFR5F-11 (Gap 0.043 in [1.1 mm])
PZEV*
Spark Plugs – 2.4L with PZEV*
ZFR5AP (Gap 0.031 in [0.8 mm])
Spark Plugs – 3.6L Engine
RER8ZWYCB4 (Gap 0.043 in [1.1 mm])
Fuel Selection
87 Octane
* PZEV = Partial Zero Emission Vehicle
I
nf
or
mat
i
onPr
ovi
dedby:
7
440
MAINTAINING YOUR VEHICLE
Chassis
Component
Automatic Transmission
Brake Master Cylinder
Power Steering Reservoir
Fluid, Lubricant, or Genuine Part
MOPAR威 ATF+4威 Automatic Transmission Fluid or equivalent licensed
ATF+4威 product.
MOPAR威 DOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is not
available, then DOT 4 is acceptable. Use only recommended brake fluids.
MOPAR威 Power Steering Fluid +4, MOPAR威 ATF+4威 Automatic Transmission Fluid or equivalent licensed ATF+4威 product.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTENANCE SCHEDULES
CONTENTS
䡵 Maintenance Schedule . . . . . . . . . . . . . . . . . . 442
▫ Required Maintenance Intervals . . . . . . . . . . 444
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
8
I
nf
or
mat
i
onPr
ovi
dedby:
M
A
I
N
T
E
N
A
N
C
E
442
MAINTENANCE SCHEDULES
MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent maintenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
S anytime a malfunction is suspected.
C
H
E
D
U
L
E
S
8
On Non-EVIC equipped vehicles “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
NOTE:
• The oil change indicator message will not monitor the
The oil change indicator system will remind you that it is
time since the last oil change. Change your vehicles oil
time to take your vehicle in for scheduled maintenance.
if it has been 6 months since your last oil change even
if the oil change indicator message is NOT illumiOn Electronic Vehicle Information Center (EVIC)
nated.
equipped vehicles “Oil Change Required” will be displayed in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTENANCE SCHEDULES
443 M
• Change your engine oil more often if you drive your At Each Stop For Fuel
vehicle off-road for an extended period of time.
• Check the engine oil level about five minutes after a
• Under no circumstances should oil change intervals
fully warmed engine is shut off. Checking the oil level
exceed 8,000 miles (13 000 km) or six months, whichwhile the vehicle is on level ground will improve the
ever comes first.
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a • Check the windshield washer solvent and add if
required.
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” or under “Instrument Cluster Description/Odometer/Trip Odometer” in “Understanding Your Instrument Panel” for
further information.
I
nf
or
mat
i
onPr
ovi
dedby:
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
8
M
A
I
N
T
E
N
A
N
C
E
444
MAINTENANCE SCHEDULES
At Each Oil Change
Once A Month
• Check tire pressure and look for unusual wear or • Change the engine oil filter.
damage.
• Inspect the brake hoses and lines.
• Inspect the battery and clean and tighten the terminals
CAUTION!
as required.
• Check the fluid levels of coolant reservoir, brake
master cylinder, and transmission and add as needed.
S
C
H • Check all lights and other electrical items for correct
E
operation.
D
U
L
E
S
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
8
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTENANCE SCHEDULES
8,000 Miles (13,000 km) or
6 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
8,000 miles (13 000 km).
Odometer Reading
Repair Order #
Signature, Authorized Service Center
Date
Dealer Code
445 M
16,000 Miles (26,000 km) or 12 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
16,000 miles (26 000 km).
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect exhaust system. Perform the first inspection at 16,000 miles (26 000 km) or
12 months.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
8
M 446 MAINTENANCE SCHEDULES
A
I 24,000 Miles (39,000 km) or
N
T 18 Months Maintenance
E Service Schedule
N ❏ Change the engine oil and engine oil
A
filter.
N ❏ Rotate the tires, rotate at the first sign of
C
irregular wear, even if it occurs before
E
S
C
H
E
D
U
L
E
S
8
24,000 miles (39 000 km).
❏ Inspect the CV joints.
❏ Inspect exhaust system.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
Date
Dealer Code
32,000 Miles (52,000 km) or 24 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
32,000 miles (52 000 km).
❏ Replace the spark plugs (2.4L Engine).
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Adjust parking brake on all vehicles equipped with four wheel disc brakes.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
MAINTENANCE SCHEDULES
40,000 Miles (65,000 km) or
30 Months Maintenance
Service Schedule
48,000 Miles (78,000 km) or 36 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
40,000 miles (65 000 km).
Odometer Reading
Repair Order #
Signature, Authorized Service Center
447 M
Date
Dealer Code
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
48,000 miles (78 000 km).
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
8
M 448 MAINTENANCE SCHEDULES
A
I 56,000 Miles (91,000 km) or
N
T 42 Months Maintenance
E Service Schedule
N ❏ Change the engine oil and engine oil
A
filter.
N ❏ Rotate the tires, rotate at the first sign of
C
irregular wear, even if it occurs before
E
56,000 miles (91 000 km).
S
C
H
E
D
U
L
E
S
8
Odometer Reading
Repair Order #
Signature, Authorized Service Center
Date
Dealer Code
64,000 Miles (104,000 km) or 48 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
64,000 miles (104 000 km).
❏ Replace the spark plugs (2.4L Engine).
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings; replace if necessary.
❏ Adjust parking brake on all vehicles equipped with four wheel disc brakes.
❏ Change the automatic transmission fluid and filter(s) if using your vehicle for any of the
following: police, taxi, fleet, or frequent trailer towing.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
MAINTENANCE SCHEDULES
72,000 Miles (117,000 km) or
54 Months Maintenance
Service Schedule
80,000 Miles (130,000 km) or 60 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
72,000 miles (117 000 km).
❏ Inspect the CV joints.
❏ Inspect exhaust system.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
449 M
Date
Dealer Code
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
80,000 miles (130 000 km).
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Flush and replace the engine coolant at 60 months or 104,000 miles (169 000 km)
whichever comes first.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
8
M 450 MAINTENANCE SCHEDULES
A
I 88,000 Miles (143,000 km) or
N
T 66 Months Maintenance
E Service Schedule
N ❏ Change the engine oil and engine oil
A
filter.
N ❏ Rotate the tires, rotate at the first sign of
C
irregular wear, even if it occurs before
E
88,000 miles (143 000 km).
S
C
H
E
D
U
L
E
S
8
Odometer Reading
Repair Order #
Signature, Authorized Service Center
Date
Dealer Code
96,000 Miles (156,000 km) or 72 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
96,000 miles (156 000 km).
❏ Replace the spark plugs (2.4L Engine).
❏ Replace the spark plugs (3.6L Engine).
❏ Inspect and replace PCV Valve if necessary. †
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Adjust parking brake on all vehicles equipped with four wheel disc brakes.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
MAINTENANCE SCHEDULES
104,000 Miles (169,000 km) or
78 Months Maintenance
Service Schedule
❏ Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
104,000 miles (169 000 km).
❏ Flush and replace the engine coolant at
104,000 miles (169 000 km) or 60 months
whichever comes first.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
Date
Dealer Code
451 M
112,000 Miles (182,000 km) or 84 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
112,000 miles (182 000 km).
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
8
M 452 MAINTENANCE SCHEDULES
A
I 120,000 Miles (195,000 km) or
N
T 90 Months Maintenance
E Service Schedule
N ❏ Change the engine oil and engine oil
A
filter.
N ❏ Rotate the tires, rotate at the first sign of
C
irregular wear, even if it occurs before
E
S
C
H
E
D
U
L
E
S
8
120,000 miles (195 000 km).
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Change the automatic transmission fluid
and filter(s).
❏ Replace the accessory drive belt(s).
Odometer Reading
Repair Order #
Signature, Authorized Service Center
Date
Dealer Code
128,000 Miles (208,000 km) or 96 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
128,000 miles (208 000 km).
❏ Replace the spark plugs (2.4L Engine).
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Adjust parking brake on all vehicles equipped with four wheel disc brakes.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
MAINTENANCE SCHEDULES
136,000 Miles (221,000 km) or
102 Months Maintenance
Service Schedule
❏ Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
136,000 miles (221 000 km).
Odometer Reading
Repair Order #
Signature, Authorized Service Center
Date
Dealer Code
453 M
144,000 Miles (234,000 km) or 108 Months Maintenance Service
Schedule
❏ Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
144,000 miles (234 000 km).
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading
Repair Order #
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
Date
Dealer Code
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
8
M 454 MAINTENANCE SCHEDULES
A
I 152,000 Miles (247,000 km) or
N
T 114 Months Maintenance
E Service Schedule
N ❏ Change the engine oil and engine oil
A
filter.
N ❏ Rotate the tires, rotate at the first sign of
C
irregular wear, even if it occurs before
E
152,000 miles (247 000 km).
S
C
H
E
D
U
L
E
S
8
Odometer Reading
Repair Order #
Date
Dealer Code
Signature, Authorized Service Center
I
nf
or
mat
i
onPr
ovi
dedby:
MAINTENANCE SCHEDULES
† This maintenance is recommended by the manufacturer
to the owner, but is not required to maintain emissions
warranty.
WARNING!
• You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform
a service job, take your vehicle to a competent
mechanic.
• Failure to properly inspect and maintain your
vehicle could result in a component malfunction
and effect vehicle handling and performance. This
could cause an accident.
I
nf
or
mat
i
onPr
ovi
dedby:
455 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S
8
I
nf
or
mat
i
onPr
ovi
dedby:
IF YOU NEED CONSUMER ASSISTANCE
CONTENTS
䡵 Suggestions For Obtaining Service For Your
Vehicle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 459
▫ Customer Assistance For The Hearing Or
Speech Impaired (TDD/TTY) . . . . . . . . . . . . 461
▫ Prepare For The Appointment . . . . . . . . . . . 459
▫ Service Contract . . . . . . . . . . . . . . . . . . . . . 461
▫ Prepare A List . . . . . . . . . . . . . . . . . . . . . . 459
䡵 Warranty Information . . . . . . . . . . . . . . . . . . 462
▫ Be Reasonable With Requests . . . . . . . . . . . . 459
䡵 MOPAR威 Parts . . . . . . . . . . . . . . . . . . . . . . . 462
䡵 If You Need Assistance
. . . . . . . . . . . . . . . . . 459
䡵 Reporting Safety Defects . . . . . . . . . . . . . . . . 462
▫ Chrysler Group LLC Customer Center . . . . . 460
▫ In The 50 United States And Washington,
D.C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 462
▫ Chrysler Canada Inc. Customer Center . . . . . 460
▫ In Mexico Contact . . . . . . . . . . . . . . . . . . . . 460
▫ In Canada . . . . . . . . . . . . . . . . . . . . . . . . . 463
䡵 Publication Order Forms . . . . . . . . . . . . . . . . 463
I
nf
or
mat
i
onPr
ovi
dedby:
9
458
IF YOU NEED CONSUMER ASSISTANCE
䡵 Department Of Transportation Uniform Tire
Quality Grades . . . . . . . . . . . . . . . . . . . . . . . . 465
▫ Treadwear . . . . . . . . . . . . . . . . . . . . . . . . . 465
▫ Traction Grades . . . . . . . . . . . . . . . . . . . . . 465
▫ Temperature Grades . . . . . . . . . . . . . . . . . . 466
I
nf
or
mat
i
onPr
ovi
dedby:
IF YOU NEED CONSUMER ASSISTANCE
459
the service advisor and list the items in order of priority.
At many authorized dealers, you may obtain a rental
vehicle at a minimal daily charge. If you need a rental, it
Prepare For The Appointment
is advisable to make these arrangements when you call
If you’re having warranty work done, be sure to have the
for an appointment.
right papers with you. Take your warranty folder. All
work to be performed may not be covered by the IF YOU NEED ASSISTANCE
warranty. Discuss additional charges with the service The manufacturer and its authorized dealers are vitally
manager. Keep a maintenance log of your vehicle’s interested in your satisfaction. We want you to be happy
service history. This can often provide a clue to the with our products and services.
current problem.
Warranty service must be done by an authorized dealer.
Prepare A List
We strongly recommend that you take the vehicle to an
Make a written list of your vehicle’s problems or the authorized dealer. They know your vehicle the best, and
specific work you want done. If you’ve had an accident are most concerned that you get prompt and high quality
or work done that is not on your maintenance log, let the service. The manufacturer’s authorized dealers have the
service advisor know.
facilities, factory-trained technicians, special tools, and
the latest information to ensure the vehicle is fixed
Be Reasonable With Requests
If you list a number of items and you must have your correctly and in a timely manner.
vehicle by the end of the day, discuss the situation with
SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE
I
nf
or
mat
i
onPr
ovi
dedby:
9
460
IF YOU NEED CONSUMER ASSISTANCE
This is why you should always talk to an authorized Chrysler Group LLC Customer Center
dealer’s service manager first. Most matters can be re- P.O. Box 21–8004
Auburn Hills, MI 48321–8004
solved with this process.
Phone: (800) 247–9753
• If for some reason you are still not satisfied, talk to the
general manager or owner of the authorized dealer- Chrysler Canada Inc. Customer Center
P.O. Box 1621
ship. They want to know if you need assistance.
Windsor, Ontario N9A 4H6
• If an authorized dealership is unable to resolve the
Phone: (800) 465–2001 English / (800) 387–9983 French
concern, you may contact the manufacturer’s customer
In Mexico contact:
center.
Av. Prolongacion Paseo de la Reforma, 1240
Any communication to the manufacturer’s customer cenSante Fe C.P. 05109
ter should include the following information:
Mexico, D. F.
• Owner’s name and address
In Mexico City: 5081-7568
Outside Mexico City: 1-800-505-1300
• Owner’s telephone number (home and office)
• Authorized dealership name
• Vehicle Identification Number (VIN)
• Vehicle delivery date and mileage
I
nf
or
mat
i
onPr
ovi
dedby:
IF YOU NEED CONSUMER ASSISTANCE
Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommunication Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY.
Canadian residents with hearing difficulties that require
assistance can use the special needs relay service offered
by Bell Canada. For TTY teletypewriter users, dial 711
and for Voice callers, dial 1 800 855-0511 to connect with
a Bell Relay Service operator.
461
the manufacturer’s service contracts. If you purchased a
manufacturer’s service contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If you
have any questions about the service contract, call the
manufacturer’s Service Contract National Customer
Hotline at 1-800-521-9922 (Canadian residents, call (800)
465–2001 English / (800) 387–9983 French).
The manufacturer will not stand behind any service
contract that is not the manufacturer’s service contract. It
is not responsible for any service contract other than the
manufacturer’s service contract. If you purchased a service contract that is not a manufacturer’s service contract,
and you require service after the manufacturer’s New
Service Contract
Vehicle Limited Warranty expires, please refer to the
You may have purchased a service contract for a vehicle contract documents, and contact the person listed in
to help protect you from the high cost of unexpected those documents.
repairs after the manufacturer’s New Vehicle Limited
Warranty expires. The manufacturer stands behind only
I
nf
or
mat
i
onPr
ovi
dedby:
9
462
IF YOU NEED CONSUMER ASSISTANCE
We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer
has also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
the ownership experience. You’ll be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.
WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer and
birth defects, or other reproductive harm. In addition, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemicals known to the State of California to cause cancer
and birth defects, or other reproductive harm.
WARRANTY INFORMATION
See the Warranty Information Booklet, located on the
DVD, for the terms and provisions of Chrysler Group
LLC warranties applicable to this vehicle and market.
MOPAR姞 PARTS
MOPAR威 fluids, lubricants, parts, and accessories are
available from an authorized dealer. They are recommended for your vehicle in order to help keep the vehicle
operating at its best.
REPORTING SAFETY DEFECTS
In the 50 United States and Washington, D.C.
If you believe that your vehicle has a defect that could
cause a crash or cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying the
manufacturer.
I
nf
or
mat
i
onPr
ovi
dedby:
IF YOU NEED CONSUMER ASSISTANCE
463
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your authorized
dealer, and the manufacturer.
In Canada
If you believe that your vehicle has a safety defect, you
should contact the Customer Service Department immediately. Canadian customers who wish to report a safety
defect to the Canadian government should contact Transport Canada, Motor Vehicle Defect Investigations and
Recalls at 1-800-333-0510 or go to
To contact NHTSA, you may either call the Auto Safety
http://www.tc.gc.ca/roadsafety/
Hotline toll free at 1–888–327–4236 (TTY: 1–800–424–
9153), or go to http://www.safercar.gov; or write to: PUBLICATION ORDER FORMS
Administrator, NHTSA, 1200 New Jersey Avenue, SE., To order the following manuals, you may use either the
West Building, Washington, D.C. 20590. You can also website or the phone numbers listed below. Visa, Masobtain other information about motor vehicle safety from tercard, American Express, and Discover orders are achttp://www.safercar.gov.
cepted. If you prefer mailing your payment, please call
for an order form.
NOTE: A street address is required when ordering
manuals (no P.O. Boxes).
I
nf
or
mat
i
onPr
ovi
dedby:
9
464
IF YOU NEED CONSUMER ASSISTANCE
• Service Manuals
• Owner’s Manuals
These comprehensive Service Manuals provide the
These Owner’s Manuals have been prepared with the
information that students and professional technicians
assistance of service and engineering specialists to
need in diagnosing/troubleshooting, problem solving,
acquaint you with specific Chrysler Group LLC vemaintaining, servicing, and repairing Chrysler Group
hicles. Included are starting, operating, emergency
LLC vehicles. A complete working knowledge of the
and maintenance procedures as well as specifications,
vehicle, system, and/or components is written in
capabilities and safety tips.
straightforward language with illustrations, diagrams,
Call toll free at:
and charts.
• 1–800–890–4038 (U.S.)
• Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with diagrams, charts and detailed illustrations. These practical manuals make it easy for students and technicians
to find and fix problems on computer-controlled vehicle systems and features. They show exactly how to
find and correct problems the first time, using step-bystep troubleshooting and drivability procedures,
proven diagnostic tests and a complete list of all tools
and equipment.
• 1–800–387–1143 (Canada)
Or
Visit us on the Worldwide Web at:
• www.techauthority.com
I
nf
or
mat
i
onPr
ovi
dedby:
IF YOU NEED CONSUMER ASSISTANCE
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
465
significantly from the norm due to variations in driving
habits, service practices, and differences in road characteristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
All passenger car tires must conform to Federal safety on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perforrequirements in addition to these grades.
mance.
Treadwear
The Treadwear grade is a comparative rating, based on
WARNING!
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For The traction grade assigned to this tire is based on
example, a tire graded 150 would wear one and one-half straight-ahead braking traction tests, and does not
times as well on the government course as a tire graded include acceleration, cornering, hydroplaning, or
100. The relative performance of tires depends upon the peak traction characteristics.
actual conditions of their use, however, and may depart
I
nf
or
mat
i
onPr
ovi
dedby:
9
466
IF YOU NEED CONSUMER ASSISTANCE
Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test
wheel, than the minimum required by law.
WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive loading, either separately or in combination, can cause
heat buildup and possible tire failure.
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
I
nf
or
mat
i
onPr
ovi
dedby:
10
468
INDEX
About Your Brakes . . . . . . . . . . . . . . . . . . . . . . . 304
ABS (Anti-Lock Brake System) . . . . . . . . . . . . . . 307
Adding Engine Coolant (Antifreeze) . . . . . . . . . . 413
Adding Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Adding Washer Fluid . . . . . . . . . . . . . . . . . . . . . 409
Additives, Fuel . . . . . . . . . . . . . . . . . . . . . . . . . 348
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 403
Air Conditioner Maintenance . . . . . . . . . . . . . . . 405
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . 268
Air Conditioning Controls . . . . . . . . . . . . . . . . . 268
Air Conditioning Filter . . . . . . . . . . . . . . . . . 280,406
Air Conditioning Refrigerant . . . . . . . . . . . . . 405,406
Air Conditioning System . . . . . . . . . . . . . 268,273,405
Air Conditioning, Operating Tips . . . . . . . . . . . . 281
Air Pressure, Tires . . . . . . . . . . . . . . . . . . . . . . . 327
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57,67
Airbag Deployment . . . . . . . . . . . . . . . . . . . . . . . 68
Airbag Light . . . . . . . . . . . . . . . . . . . 65,66,70,85,189
Airbag Maintenance . . . . . . . . . . . . . . . . . . . . . . . 69
Airbag, Side . . . . . . . . . . . . . . . . . . . . . . 61,64,66,67
Airbag, Window (Side Curtain) . . . . . . . . . . . 62,64,67
Alarm System (Security Alarm) . . . . . . . . . . . . 18,196
Alterations/Modifications, Vehicle . . . . . . . . . . . . . 7
Antenna, Satellite Radio . . . . . . . . . . . . . . . . 231,256
Anti-Lock Brake System (ABS) . . . . . . . . . . . . . . 307
Anti-Lock Warning Light . . . . . . . . . . . . . . . . . . 307
Anti-Theft Security Alarm (Theft Alarm) . . . . . . . . 18
Antifreeze (Engine Coolant) . . . . . . . . . . . . . . 413,438
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Appearance Care . . . . . . . . . . . . . . . . . . . . . . . . 422
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Assistance Towing . . . . . . . . . . . . . . . . . . . . . . . 111
Auto Down Power Windows . . . . . . . . . . . . . . . . 35
Auto Unlock, Doors . . . . . . . . . . . . . . . . . . . . . . . 32
Auto Up Power Windows . . . . . . . . . . . . . . . . . . 36
Automatic Dimming Mirror . . . . . . . . . . . . . . . . . 94
Automatic Door Locks . . . . . . . . . . . . . . . . . . . 31,32
Automatic Oil Change Indicator . . . . . . . . . . 194,206
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
469
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Belts, Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Body Mechanism Lubrication . . . . . . . . . . . . . . . 407
Brake Assist System . . . . . . . . . . . . . . . . . . . . . . 310
Brake System . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Anti-Lock (ABS) . . . . . . . . . . . . . . . . . . . . . 307
Fluid Check . . . . . . . . . . . . . . . . . . . . . 417,440
Master Cylinder . . . . . . . . . . . . . . . . . . . . . 417
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Warning Light . . . . . . . . . . . . . . . . . . . . . . . 190
Brake, Parking . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Brake/Transaxle Interlock . . . . . . . . . . . . . . . . . . 294
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Break-In Recommendations, New Vehicle . . . . . . . . 83
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . 434
B-Pillar Location . . . . . . . . . . . . . . . . . . . . . . . . 322 Bulbs, Light . . . . . . . . . . . . . . . . . . . . . . . . . . 87,434
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . 30 Calibration, Compass . . . . . . . . . . . . . . . . . . . . . 210
Keyless Transmitter Replacement (RKE) . . . . . 25 Capacities, Antifreeze (Engine Coolant) . . . . . . . . . 20
Automatic Temperature Control (ATC) . . . . . . . . . 273
Automatic Transaxle . . . . . . . . . . . . . . 12,288,292,419
Adding Fluid . . . . . . . . . . . . . . . . . . 421,422,440
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
Fluid and Filter Changes . . . . . . . . . . . . . . . 422
Fluid Level Check . . . . . . . . . . . . . . . . . 421,422
Interlock System . . . . . . . . . . . . . . . . . . 293,294
Reset Mode . . . . . . . . . . . . . . . . . . . . . . . . . 297
Selection Of Lubricant . . . . . . . . . . . . . . . . . 440
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Automatic Transmission
Fluid Type . . . . . . . . . . . . . . . . . . . . . . . . . 420
Special Additives . . . . . . . . . . . . . . . . . . . . . 420
Autostick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
I
nf
or
mat
i
onPr
ovi
dedby:
10
470
INDEX
Capacities, Fluid . . . . . . . . . . . . . . . . . . . . . . . . 438
Caps, Filler
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . 393,401
Power Steering . . . . . . . . . . . . . . . . . . . . . . 304
Radiator (Coolant Pressure) . . . . . . . . . . . . . 414
Car Washes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
Carbon Monoxide Warning . . . . . . . . . . . . . . . 84,350
Cellular Phone . . . . . . . . . . . . . . . . . . . . . . . . 97,268
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Changing A Flat Tire . . . . . . . . . . . . . . . . . . . . . 374
Chart, Tire Sizing . . . . . . . . . . . . . . . . . . . . . . . . 318
Check Engine Light
(Malfunction Indicator Light) . . . . . . . . . . . . . . . 396
Checking Your Vehicle For Safety . . . . . . . . . . . . . 84
Checks, Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Child Restraint . . . . . . . . . . . . . . . . . . . . 72,73,78,81
Child Restraint Tether Anchors . . . . . . . . . . . . . 76,78
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . 33
Cigar Lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Clean Air Gasoline . . . . . . . . . . . . . . . . . . . . . . . 346
Cleaning
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
Windshield Wiper Blades . . . . . . . . . . . . . . . 408
Climate Control . . . . . . . . . . . . . . . . . . . . . . . . . 268
Clock . . . . . . . . . . . . . . . . . . . . . . . . 215,217,236,245
Coin Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Compact Disc (CD) Maintenance . . . . . . . . . . . . . 267
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . 330
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . 201,209
Compass Calibration . . . . . . . . . . . . . . . . . . . . . 210
Compass Variance . . . . . . . . . . . . . . . . . . . . . . . 210
Computer, Trip/Travel . . . . . . . . . . . . . . . . . . 20,207
Connector
UCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Universal Consumer Interface (UCI) . . . . . . . 259
Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144,176
Console, Floor . . . . . . . . . . . . . . . . . . . . . . . 144,176
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
Contract, Service . . . . . . . . . . . . . . . . . . . . . . . . 461
Coolant Pressure Cap (Radiator Cap) . . . . . . . . . . 414
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . 412
Adding Coolant (Antifreeze) . . . . . . . . . . . . . 413
Coolant Capacity . . . . . . . . . . . . . . . . . . . . . 438
Coolant Level . . . . . . . . . . . . . . . . . . . . 412,415
Disposal of Used Coolant . . . . . . . . . . . . . . . 415
Drain, Flush, and Refill . . . . . . . . . . . . . . . . 412
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Points to Remember . . . . . . . . . . . . . . . . . . 416
Pressure Cap . . . . . . . . . . . . . . . . . . . . . . . . 414
Radiator Cap . . . . . . . . . . . . . . . . . . . . . . . 414
Selection of Coolant (Antifreeze) . . . . 413,438,439
Corrosion Protection . . . . . . . . . . . . . . . . . . . . . 422
Crankcase Ventilation Module . . . . . . . . . . . . . . . 20
Cruise Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Cupholders . . . . . . . . . . . . . . . . . . . . . . 144,174,428
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 459
Customer Programmable Features . . . . . . . . . . . . 212
471
Data Recorder, Event . . . . . . . . . . . . . . . . . . . . . . 71
Daytime Running Lights . . . . . . . . . . . . . . . . . . . 150
Dealer Service . . . . . . . . . . . . . . . . . . . . . . . . . . 398
Deck Lid, Power Release . . . . . . . . . . . . . . . . . . . 38
Defroster, Rear Window . . . . . . . . . . . . . . . . . . . 181
Defroster, Windshield . . . . . . . . . . . . . . . . 86,271,277
Delay (Intermittent) Wipers . . . . . . . . . . . . . . . 30,154
Diagnostic System, Onboard . . . . . . . . . . . . . . . . 395
Dimmer Switch, Headlight . . . . . . . . . . . . . . . . . 149
Dipsticks
Automatic Transaxle . . . . . . . . . . . . . . . 421,422
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . 399
Power Steering . . . . . . . . . . . . . . . . . . . . . . 304
Disabled Vehicle Towing . . . . . . . . . . . . . . . . . . . 388
Disposal
Antifreeze (Engine Coolant) . . . . . . . . . . . . . 415
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 402
Door Locks, Automatic . . . . . . . . . . . . . . . . . . . . 31
Door Opener, Garage . . . . . . . . . . . . . . . . . . . . . 160
I
nf
or
mat
i
onPr
ovi
dedby:
10
472
INDEX
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
Driving
On Slippery Surfaces . . . . . . . . . . . . . . . . . . 300
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . 403
Block Heater . . . . . . . . . . . . . . . . . . . . . . . . 291
Through Flowing, Rising, or Shallow
Break-In Recommendations . . . . . . . . . . . . . . 83
Standing Water . . . . . . . . . . . . . . . . . . . . . . 301
Checking Oil Level . . . . . . . . . . . . . . . . . . . 399
E-85 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Compartment . . . . . . . . . . . . . . . . . . . . . . . 394
Compartment Identification . . . . . . . . . . . . . 394
Electric Rear Window Defrost . . . . . . . . . . . . . . . 181
Coolant (Antifreeze) . . . . . . . . . . . . . . . . 412,439
Electric Remote Mirrors . . . . . . . . . . . . . . . . . . . . 95
Electrical Power Outlets . . . . . . . . . . . . . . . . . . . 170
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . 412
Exhaust Gas Caution . . . . . . . . . . . . . . . . 84,350
Electronic Speed Control (Cruise Control) . . . . . . 157
Fails to Start . . . . . . . . . . . . . . . . . . . . . . . . 289
Electronic Stability Control (ESC) . . . . . . . . . . . . . 313
Electronic Vehicle Information Center (EVIC) . . . . 203
Flooded, Starting . . . . . . . . . . . . . . . . . . . . . 289
Fuel Requirements . . . . . . . . . . . . . . . . . 346,438
Emergency Trunk Release . . . . . . . . . . . . . . . . . . . 39
Emergency, In Case of
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . 381
Jacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Oil . . . . . . . . . . . . . . . . . . . . . . . . . 399,438,439
Oil Change Interval . . . . . . . . . . . . . 194,206,400
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . 381
Oil Filler Cap . . . . . . . . . . . . . . . . . . . . 393,401
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388
Emission Control System Maintenance . . . . . . . . . 396
Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Oil Filter Disposal . . . . . . . . . . . . . . . . . . . . 402
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
473
Filters
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . 403
Air Conditioning . . . . . . . . . . . . . . . . . . 280,406
Automatic Transaxle . . . . . . . . . . . . . . . . . . 422
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . 402,439
Engine Oil Disposal . . . . . . . . . . . . . . . . . . . 402
Flash-To-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Flashers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 372
Hazard Warning . . . . . . . . . . . . . . . . . . . . . 372
Turn Signal . . . . . . . . . . . . . . . . . . . . . . . 87,436
Flexible Fuel Vehicles
Cruising Range . . . . . . . . . . . . . . . . . . . . . . 353
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 352
Fuel Requirements . . . . . . . . . . . . . . . . . 350,352
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 354
Replacement Parts . . . . . . . . . . . . . . . . . . . . 353
Fabric Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Filler Location Fuel . . . . . . . . . . . . . . . . . . . . 188,354
Flooded Engine Starting . . . . . . . . . . . . . . . . . . . 289
Floor Console . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Oil Selection . . . . . . . . . . . . . . . . . . . . . 400,438
Oil Synthetic . . . . . . . . . . . . . . . . . . . . . . . . 402
Overheating . . . . . . . . . . . . . . . . . . . . . . . . 372
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Temperature Gauge . . . . . . . . . . . . . . . . . . . 188
Engine Oil Viscosity . . . . . . . . . . . . . . . . . . . . . . 401
Enhanced Accident Response Feature . . . . . . . . . . 68
Entry System, Illuminated . . . . . . . . . . . . . . . . . . 20
Ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . 71
Exhaust Gas Caution . . . . . . . . . . . . . . . . . . . 84,350
Exhaust System . . . . . . . . . . . . . . . . . . . . . . . 84,409
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . . 57
Exterior Lights . . . . . . . . . . . . . . . . . . . . . . . . . . 87
I
nf
or
mat
i
onPr
ovi
dedby:
10
474
INDEX
Fluid Capacities . . . . . . . . . . . . . . . . . . . . . . . . . 438
Fluid Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Fluid Level Checks
Automatic Transaxle . . . . . . . . . . . . . . . 421,422
Brake . . . . . . . . . . . . . . . . . . . . . . . . . . 417,440
Cooling System . . . . . . . . . . . . . . . . . . . . . . 412
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 399
Power Steering . . . . . . . . . . . . . . . . . . . 304,440
Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 439
Fluids, Lubricants and Genuine Parts . . . . . . . . . . 439
Fog Light Service . . . . . . . . . . . . . . . . . . . . . . . . 435
Fog Lights . . . . . . . . . . . . . . . . . . . . . . . 150,196,435
Folding Rear Seat . . . . . . . . . . . . . . . . . . . . . 143,144
Freeing A Stuck Vehicle . . . . . . . . . . . . . . . . . . . 386
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Adding . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Clean Air . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Filler Cap (Gas Cap) . . . . . . . . . . . . . . . 188,354
Filler Door (Gas Cap) . . . . . . . . . . . . . . . . . . 188
Gasoline . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Materials Added . . . . . . . . . . . . . . . . . . . . . 348
Methanol . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Octane Rating . . . . . . . . . . . . . . . . . . . . 346,439
Requirements . . . . . . . . . . . . . . . . . . . . 346,438
Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . 438
Fuel System Caution . . . . . . . . . . . . . . . . . . . . . 355
Fuel, Flexible . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428
Garage Door Opener (HomeLink®) . . . . . . . . . . . 160
Gas Cap (Fuel Filler Cap) . . . . . . . . . . . . 354,356,395
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
Gasoline, Clean Air . . . . . . . . . . . . . . . . . . . . . . 346
Gasoline, Reformulated . . . . . . . . . . . . . . . . . . . 346
Gauges
Coolant Temperature . . . . . . . . . . . . . . . . . . 188
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 192
Gear Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Gear Select Lever Override . . . . . . . . . . . . . . . . . 387
Gearshift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
General Information . . . . . . . . . . . . . . . . . 17,127,345
General Maintenance . . . . . . . . . . . . . . . . . . . . . 398
Glass Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 427
Gross Axle Weight Rating . . . . . . . . . . . . . . . 357,360
Gross Vehicle Weight Rating . . . . . . . . . . . . . 357,359
GVWR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
475
Hands-Free Phone (Uconnect™) . . . . . . . . . . . . . . 97
Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water . . . . . . . . . . . . . . . . . . . . . . 301
Hazard Warning Flasher . . . . . . . . . . . . . . . . . . . 372
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . 138
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
High Beam . . . . . . . . . . . . . . . . . . . . . . 149,201
High Beam/Low Beam Select Switch . . . . . . 149
On With Wipers . . . . . . . . . . . . . . . . . . . . . 156
Passing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Heated Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Heater, Engine Block . . . . . . . . . . . . . . . . . . . . . 291
I
nf
or
mat
i
onPr
ovi
dedby:
10
476
INDEX
Hitches
Trailer Towing .
HomeLink® (Garage
Hood Prop . . . . . .
Hood Release . . . .
...................
Door Opener) Transmitter
...................
...................
..
.
..
..
.
.
.
.
361
160
146
145
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ignition Key Removal . . . . . . . . . . . . . . . . . . . . . 12
Illuminated Entry . . . . . . . . . . . . . . . . . . . . . . . . 20
Immobilizer (Sentry Key) . . . . . . . . . . . . . . . . . . . 15
Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . 72,73
Information Center, Vehicle . . . . . . . . . . . . . . . . . 203
Inside Rearview Mirror . . . . . . . . . . . . . . . . . . . . 93
Instrument Cluster . . . . . . . . . . . . . . . . . . . . 187,188
Instrument Panel and Controls . . . . . . . . . . . . . . 186
Instrument Panel Cover . . . . . . . . . . . . . . . . . . . 426
Instrument Panel Lens Cleaning . . . . . . . . . . . . . 427
Integrated Power Module (Fuses) . . . . . . . . . . . . 428
Interior Appearance Care . . . . . . . . . . . . . . . . . . 426
Interior Lights . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Intermittent Wipers (Delay Wipers) . . . . . . . . . . . 154
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Jack Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Jack Operation . . . . . . . . . . . . . . . . . . . . . . . 374,376
Jacking Instructions . . . . . . . . . . . . . . . . . . . . . . 376
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Key-In Reminder . . . . . . . . .
Key, Programming . . . . . . . .
Key, Replacement . . . . . . . .
Key, Sentry (Immobilizer) . . .
Keyless Entry System . . . . . .
Keyless Entry System (Sedan)
Keys . . . . . . . . . . . . . . . . .
Knee Bolster . . . . . . . . . . . .
I
nf
or
mat
i
onPr
ovi
dedby:
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
14
16
16
15
20
20
12
57
INDEX
Lane Change and Turn Signals . . . . . . . . . . . 196,436
Lane Change Assist . . . . . . . . . . . . . . . . . . . . . . 149
Lap/Shoulder Belts . . . . . . . . . . . . . . . . . . . . . . . 43
LATCH
(Lower Anchors and Tether for CHildren) . . . . . . . 78
Latches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Lead Free Gasoline . . . . . . . . . . . . . . . . . . . . . . 346
Leaks, Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Life of Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Light Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 87,434
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87,146
Airbag . . . . . . . . . . . . . . . . . . . . 65,66,70,85,189
Back-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 436
Brake Assist Warning . . . . . . . . . . . . . . . . . . 315
Brake Warning . . . . . . . . . . . . . . . . . . . . . . 190
Bulb Replacement . . . . . . . . . . . . . . . . . . . . 434
Daytime Running . . . . . . . . . . . . . . . . . . . . 150
Electronic Stability Program (ESP) Indicator . . 315
477
Engine Temperature Warning . . . . . . . . . . . . 190
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Fog . . . . . . . . . . . . . . . . . . . . . . . . . 150,196,435
Headlight Switch . . . . . . . . . . . . . . . . . . . . . 147
Headlights . . . . . . . . . . . . . . . . . . . . . . 147,434
Headlights On With Wipers . . . . . . . . . . . . . 156
High Beam Indicator . . . . . . . . . . . . . . . . . . 201
Illuminated Entry . . . . . . . . . . . . . . . . . . . . . 20
Instrument Cluster . . . . . . . . . . . . . . . . . . . 147
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
License . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Lights On Reminder . . . . . . . . . . . . . . . . . . 150
Low Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Malfunction Indicator (Check Engine) . . . . . . 199
Map Reading . . . . . . . . . . . . . . . . . . . . . . . 151
Oil Pressure . . . . . . . . . . . . . . . . . . . . . . . . 190
Passing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Seat Belt Reminder . . . . . . . . . . . . . . . . . . . 189
Security Alarm (Theft Alarm) . . . . . . . . . . . . . 18
I
nf
or
mat
i
onPr
ovi
dedby:
10
478
INDEX
Theft Alarm (Security Alarm) . . . . . . . . . . . . 196
Tire Pressure Monitoring (TPMS) . . . . . . . 198,337
Traction Control . . . . . . . . . . . . . . . . . . . . . 315
Turn Signal . . . . . . . . . . . . . . 87,148,196,435,436
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Warning (Instrument Cluster Description) . . . 188
Loading Vehicle . . . . . . . . . . . . . . . . . . . . . . 357,358
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Locks
Auto Unlock . . . . . . . . . . . . . . . . . . . . . . . . . 32
Automatic Door . . . . . . . . . . . . . . . . . . . . . . 31
Child Protection . . . . . . . . . . . . . . . . . . . . . . 33
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . 31
Low Tire Pressure System . . . . . . . . . . . . . . . . . . 337
Lower Anchors and Tether for
CHildren (LATCH) . . . . . . . . . . . . . . . . . . . . . . . 78
Lubrication, Body . . . . . . . . . . . . . . . . . . . . . . . 407
Lumbar Support . . . . . . . . . . . . . . . . . . . . . . . . 138
Maintenance Free Battery . . . . . . . . . . . . . . . . . . 403
Maintenance Procedures . . . . . . . . . . . . . . . . . . . 398
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . 442
Maintenance, General . . . . . . . . . . . . . . . . . . . . . 398
Malfunction Indicator Light (Check Engine) . . 199,396
Manual, Service . . . . . . . . . . . . . . . . . . . . . . . . . 463
Map/Reading Lights . . . . . . . . . . . . . . . . . . . . . 151
Master Cylinder (Brakes) . . . . . . . . . . . . . . . . . . 417
Methanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Mini-Trip Computer . . . . . . . . . . . . . . . . . . . 201,207
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Automatic Dimming . . . . . . . . . . . . . . . . . . . 94
Electric Powered . . . . . . . . . . . . . . . . . . . . . . 95
Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Rearview . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Vanity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Modifications/Alterations, Vehicle . . . . . . . . . . . . . 7
Monitor, Tire Pressure System . . . . . . . . . . . . . . . 337
Mopar Parts . . . . . . . . . . . . . . . . . . . . . . . . . 397,462
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
MTBE/ETBE . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
New Vehicle Break-In Period . . . . . . . . . . . . . . . . 83
Occupant Restraints . . . . . . . . . . . . . . . . . . . . . 64,68
Occupant Restraints (Sedan) . . . . . . . . . 39,61,62,64,67
Octane Rating, Gasoline (Fuel) . . . . . . . . . . . . . . 346
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 192,195
Oil Change Indicator . . . . . . . . . . . . . . . . . . 194,206
Oil Change Indicator, Reset . . . . . . . . . . . . . . 194,206
Oil Filter, Change . . . . . . . . . . . . . . . . . . . . . . . . 402
Oil Filter, Selection . . . . . . . . . . . . . . . . . . . . . . . 402
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 190
Oil, Engine . . . . . . . . . . . . . . . . . . . . . . . . . 399,439
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . 438
Change Interval . . . . . . . . . . . . . . . . 194,206,400
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . 399
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
479
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 402,439
Filter Disposal . . . . . . . . . . . . . . . . . . . . . . . 402
Identification Logo . . . . . . . . . . . . . . . . . . . 400
Materials Added to . . . . . . . . . . . . . . . . . . . 402
Recommendation . . . . . . . . . . . . . . . . . . 400,438
Synthetic . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Viscosity . . . . . . . . . . . . . . . . . . . . . . . . 401,438
Onboard Diagnostic System . . . . . . . . . . . . . . 395,396
Opener, Garage Door (HomeLink®) . . . . . . . . . . . 160
Operator Manual (Owner’s Manual) . . . . . . . . . . . . 4
Overdrive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . . 372
Owner’s Manual (Operator Manual) . . . . . . . . . 4,463
Paint Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
Panic Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Passing Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
I
nf
or
mat
i
onPr
ovi
dedby:
10
480
INDEX
Personal Settings . . . . . . . . . . . . . . . . . . . . . . . . 212
Pets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Phone, Cellular . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Phone, Hands-Free (Uconnect™) . . . . . . . . . . . . . . 97
Placard, Tire and Loading Information . . . . . . . . . 322
Power
Deck Lid Release . . . . . . . . . . . . . . . . . . . . . 38
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 31
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Outlet (Auxiliary Electrical Outlet) . . . . . . . . 170
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Steering . . . . . . . . . . . . . . . . . . . . . . . . 303,304
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Pregnant Women and Seat Belts . . . . . . . . . . . . . . 57
Preparation for Jacking . . . . . . . . . . . . . . . . . . . . 375
Pretensioners
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Programmable Electronic Features . . . . . . . . . . . . 212
Programming Transmitters
(Remote Keyless Entry) . . . . . . . . . . . . . . . . . . . . 25
Radial Ply Tires . . . . . . . . . . . . . . . . . . . . . . . . . 329
Radiator Cap (Coolant Pressure Cap) . . . . . . . . . . 414
Radio Operation . . . . . . . . . . . . . . . . . . . . . . . . 268
Radio Remote Controls . . . . . . . . . . . . . . . . . . . . 266
Rear Cupholder . . . . . . . . . . . . . . . . . . . . . . . . . 175
Rear Seat, Folding . . . . . . . . . . . . . . . . . . . . 143,144
Rear Window Defroster . . . . . . . . . . . . . . . . . . . 181
Rear Window Features . . . . . . . . . . . . . . . . . . . . 181
Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 93
Recorder, Event Data . . . . . . . . . . . . . . . . . . . . . . 71
Recreational Towing . . . . . . . . . . . . . . . . . . . . . . 369
Reformulated Gasoline . . . . . . . . . . . . . . . . . . . . 346
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
Reminder, Seat Belt . . . . . . . . . . . . . . . . . . . . . 55,56
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
Remote Control
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 20
Security Alarm . . . . . . . . . . . . . . . . . . . . . . . 18
Remote Keyless Entry (RKE) . . . . . . . . . . . . . . . . . 20
Remote Keyless Entry (Sedan) . . . . . . . . . . . . . . . 20
Remote Sound System (Radio) Controls . . . . . . . . 266
Remote Starting System . . . . . . . . . . . . . . . . . . . . 27
Remote Trunk Release . . . . . . . . . . . . . . . . . . . . . 38
Replacement Bulbs . . . . . . . . . . . . . . . . . . . . . . . 434
Replacement Keys . . . . . . . . . . . . . . . . . . . . . . . . 16
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . 397
Replacement Tires . . . . . . . . . . . . . . . . . . . . . . . 334
Reporting Safety Defects . . . . . . . . . . . . . . . . . . . 462
Resetting Oil Change Indicator . . . . . . . . . . . 194,206
Restraint, Head . . . . . . . . . . . . . . . . . . . . . . . . . 138
Restraints, Child . . . . . . . . . . . . . . . . . . . . . . . . . 72
Restraints, Infant . . . . . . . . . . . . . . . . . . . . . . . . . 73
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 336
481
Safety Checks Inside Vehicle . . . . . . . . . . . . . . . . . 85
Safety Checks Outside Vehicle . . . . . . . . . . . . . . . 87
Safety Defects, Reporting . . . . . . . . . . . . . . . . . . 462
Safety Information, Tire . . . . . . . . . . . . . . . . . . . 316
Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Safety, Exhaust Gas . . . . . . . . . . . . . . . . . . . . . . . 84
Satellite Radio Antenna . . . . . . . . . . . . . . . . . 231,256
Schedule, Maintenance . . . . . . . . . . . . . . . . . . . . 442
Seat Belt Maintenance . . . . . . . . . . . . . . . . . . . . 427
Seat Belt Reminder . . . . . . . . . . . . . . . . . . . . . 55,56
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Adjustable Shoulder Belt . . . . . . . . . . . . . . . . 48
Adjustable Upper Shoulder Anchorage . . . . . . 48
And Pregnant Women . . . . . . . . . . . . . . . . . . 57
Child Restraint . . . . . . . . . . . . . . . . . . . . . 72,81
Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Front Seat . . . . . . . . . . . . . . . . . . . . . . . . . 43,44
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Operating Instructions . . . . . . . . . . . . . . . . . . 44
I
nf
or
mat
i
onPr
ovi
dedby:
10
482
INDEX
Pretensioners . . . . . . . . . . . . . . . . . . . . . . . . 51
Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Untwisting Procedure . . . . . . . . . . . . . . . . . . 47
Seat Belts (Sedan) . . . . . . . . . . . . . . . . . . . . . . . . 39
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 136
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Lumbar Support . . . . . . . . . . . . . . . . . . . . . 138
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Rear Folding . . . . . . . . . . . . . . . . . . . . . 143,144
Reclining . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Security Alarm (Theft Alarm) . . . . . . . . . . . . . . . . 18
Selection of Coolant (Antifreeze) . . . . . . . . . . 413,439
Selection of Oil . . . . . . . . . . . . . . . . . . . . . . . . . 400
Sentry Key (Immobilizer) . . . . . . . . . . . . . . . . . . . 15
Sentry Key Programming . . . . . . . . . . . . . . . . . . . 16
Service Assistance . . . . . . . . . . . . . . . . . . . . . . . 459
Service Contract . . . . . . . . . . . . . . . . . . . . . . . . . 461
Service Manuals . . . . . . . . . . . . . . . . . . . . . . . . 463
Setting the Clock . . . . . . . . . . . . . . . . 215,217,236,245
Settings, Personal . . . . . . . . . . . . . . . . . . . . . . . . 212
Shift Lever Override . . . . . . . . . . . . . . . . . . . . . . 387
Shifting
Automatic Transaxle . . . . . . . . . . . . . . . . . . 292
Shoulder Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Side Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Side Window Demisters (Defrosters) . . . . . . . . . . 280
Signals, Turn . . . . . . . . . . . . . . . . . . . . . . . . . 87,436
Slippery Surfaces, Driving On . . . . . . . . . . . . . . . 300
Snow Chains (Tire Chains) . . . . . . . . . . . . . . . . . 335
Snow Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Spare Tire . . . . . . . . . . . . . . . . . . . . . . . 330,331,374
Specifications
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Speed Control (Cruise Control) . . . . . . . . . . . 157,195
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Engine Fails to Start . . . . . . . . . . . . . . . . . . 289
Starting and Operating . . . . . . . . . . . . . . . . . . . . 288
Starting Procedures . . . . . . . . . . . . . . . . . . . . . . 288
Steering
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 303,304
Tilt Column . . . . . . . . . . . . . . . . . . . . . . . . 156
Wheel, Tilt . . . . . . . . . . . . . . . . . . . . . . . . . 156
Steering Wheel Audio Controls . . . . . . . . . . . . . . 266
Steering Wheel Mounted Sound
System Controls . . . . . . . . . . . . . . . . . . . . . . . . . 266
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176,433
Storage, Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 279
Stuck, Freeing . . . . . . . . . . . . . . . . . . . . . . . . . . 386
Sun Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Supplemental Restraint System - Airbag . . . . . . . . 57
Synthetic Engine Oil . . . . . . . . . . . . . . . . . . . . . . 402
483
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Taillights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436
Telescoping Steering Column . . . . . . . . . . . . . . . 156
Temperature Control, Automatic (ATC) . . . . . . . . 273
Temperature Gauge, Engine Coolant . . . . . . . 188,372
Tether Anchor, Child Restraint . . . . . . . . . . . . . . . 76
Theft Alarm (Security Alarm) . . . . . . . . . . . . . . . . 18
Theft System (Security Alarm) . . . . . . . . . . . . . . . 18
Tilt Steering Column . . . . . . . . . . . . . . . . . . . . . 156
Time Delay, Headlight . . . . . . . . . . . . . . . . . . . . 148
Tire and Loading Information Placard . . . . . . . . . 322
Tire Identification Number (TIN) . . . . . . . . . . . . . 320
Tire Markings . . . . . . . . . . . . . . . . . . . . . . . . . . 316
Tire Safety Information . . . . . . . . . . . . . . . . . . . . 316
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87,326,465
Aging (Life of Tires) . . . . . . . . . . . . . . . . . . 333
Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . 326
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 374
I
nf
or
mat
i
onPr
ovi
dedby:
10
484
INDEX
Compact Spare . . . . . . . . . . . . . . . . . . . . . . 330
General Information . . . . . . . . . . . . . . . . . . 326
High Speed . . . . . . . . . . . . . . . . . . . . . . . . . 328
Inflation Pressures . . . . . . . . . . . . . . . . . . . . 327
Jacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Life of Tires . . . . . . . . . . . . . . . . . . . . . . . . 333
Load Capacity . . . . . . . . . . . . . . . . . . . . 322,323
Pressure Monitor System (TPMS) . . . . . . . . . 337
Pressure Warning Light . . . . . . . . . . . . . . . . 198
Quality Grading . . . . . . . . . . . . . . . . . . . . . 465
Radial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Replacement . . . . . . . . . . . . . . . . . . . . . . . . 334
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 316,326
Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Snow Tires . . . . . . . . . . . . . . . . . . . . . . . . . 335
Spare Tire . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Tread Wear Indicators . . . . . . . . . . . . . . . . . 333
Tongue Weight/Trailer Weight . . . . . . . . . . . . . . 363
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
24-Hour Towing Assistance . . . . . . . . . . . . . . 111
Disabled Vehicle . . . . . . . . . . . . . . . . . . . . . 388
Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Recreational . . . . . . . . . . . . . . . . . . . . . . . . 369
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Towing Assistance . . . . . . . . . . . . . . . . . . . . . . . 111
Traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Cooling System Tips . . . . . . . . . . . . . . . . . . 369
Hitches . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
Minimum Requirements . . . . . . . . . . . . . . . . 364
Trailer and Tongue Weight . . . . . . . . . . . . . . 363
Trailer Towing Guide . . . . . . . . . . . . . . . . . . . . . 362
Trailer Weight . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Transaxle
Automatic . . . . . . . . . . . . . . . . . . 12,288,292,419
Autostick . . . . . . . . . . . . . . . . . . . . . . . . . . 298
I
nf
or
mat
i
onPr
ovi
dedby:
INDEX
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 419
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Overdrive . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Selection of Lubricant . . . . . . . . . . . . . . . . . 440
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Transmitter Battery Service
(Remote Keyless Entry) . . . . . . . . . . . . . . . . . . . . 25
Transmitter Programming
(Remote Keyless Entry) . . . . . . . . . . . . . . . . . . . . 25
Transmitter, Garage Door Opener (HomeLink®) . . 160
Transporting Pets . . . . . . . . . . . . . . . . . . . . . . . . 83
Tread Wear Indicators . . . . . . . . . . . . . . . . . . . . 333
Trip Computer . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Trip Odometer Reset Button . . . . . . . . . . . . . . . . 195
Trunk Lid (Deck Lid) . . . . . . . . . . . . . . . . . . . . . . 38
Trunk Release Remote Control . . . . . . . . . . . . . . . 38
Trunk Release, Emergency . . . . . . . . . . . . . . . . . . 39
485
Turn Signals . . . . . . . . . . . . . . . . . . . . . . 148,196,436
UCI Connector . . . . . . . . . . . . . . . . . . . . . . . . . 259
Uconnect™ (Hands-Free Phone) . . . . . . . . . . . . . . 97
Understanding Your Instrument Panel . . . . . . . . . 186
Uniform Tire Quality Grades . . . . . . . . . . . . . . . . 465
Universal Consumer Interface (UCI) Connector . . . 259
Universal Transmitter . . . . . . . . . . . . . . . . . . . . . 160
Unleaded Gasoline . . . . . . . . . . . . . . . . . . . . . . . 346
Untwisting Procedure, Seat Belt . . . . . . . . . . . . . . 47
Upholstery Care . . . . . . . . . . . . . . . . . . . . . . . . 426
Vanity Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Variance, Compass . . . . . . . . . . . . . . . . . . . . . . . 210
Vehicle Certification Label . . . . . . . . . . . . . . . . . 357
Vehicle Identification Number (VIN) . . . . . . . . . . . . 6
Vehicle Loading . . . . . . . . . . . . . . . . . . . 323,357,358
Vehicle Modifications/Alterations . . . . . . . . . . . . . . 7
Vehicle Storage . . . . . . . . . . . . . . . . . . . . . . . 279,433
I
nf
or
mat
i
onPr
ovi
dedby:
10
486
INDEX
Vehicle Theft Alarm (Security Alarm) . . . . . . . . . . 18 Wheel and Wheel Trim Care . . . . . . . . . . . . . . . . 425
Viscosity, Engine Oil . . . . . . . . . . . . . . . . . . . . . . 401 Wind Buffeting . . . . . . . . . . . . . . . . . . . . . . . 37,169
Voice Recognition System (VR) . . . . . . . . . . . . . . 127 Window Fogging . . . . . . . . . . . . . . . . . . . . . . . . 280
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warning Lights
(Instrument Cluster Description) . . . . . . . . . . . . . 188 Windshield Defroster . . . . . . . . . . . . . . . . 86,271,277
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . 6 Windshield Washers . . . . . . . . . . . . . . . . . . . 152,155
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Warranty Information . . . . . . . . . . . . . . . . . . . . . 462
Washer
Windshield Wiper Blades . . . . . . . . . . . . . . . . . . 408
Adding Fluid . . . . . . . . . . . . . . . . . . . . . . . 409 Windshield Wipers . . . . . . . . . . . . . . . . . . . . . . . 152
Washers, Windshield . . . . . . . . . . . . . . . . 152,155,409 Wiper Blade Replacement . . . . . . . . . . . . . . . . . . 408
Washing Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 423 Wipers, Intermittent . . . . . . . . . . . . . . . . . . . . . . 154
Water
Driving Through . . . . . . . . . . . . . . . . . . . . . 301
Wheel and Wheel Trim . . . . . . . . . . . . . . . . . . . . 425
I
nf
or
mat
i
onPr
ovi
dedby:
INSTALLATION OF RADIO TRANSMITTING
EQUIPMENT
Special design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained personnel. The following must be observed during installation.
The positive power connection should be made directly
to the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the
roof or the rear area of the vehicle. Care should be used
in mounting antennas with magnet bases. Magnets may
affect the accuracy or operation of the compass on
vehicles so equipped.
The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interference between the communications equipment and the
vehicle’s electronic systems.
I
nf
or
mat
i
onPr
ovi
dedby:
Chrysler Group LLC
11C41-126-AF
I
nf
or
mat
i
onPr
ovi
dedby:
Sixth Edition
Printed in U.S.A.
