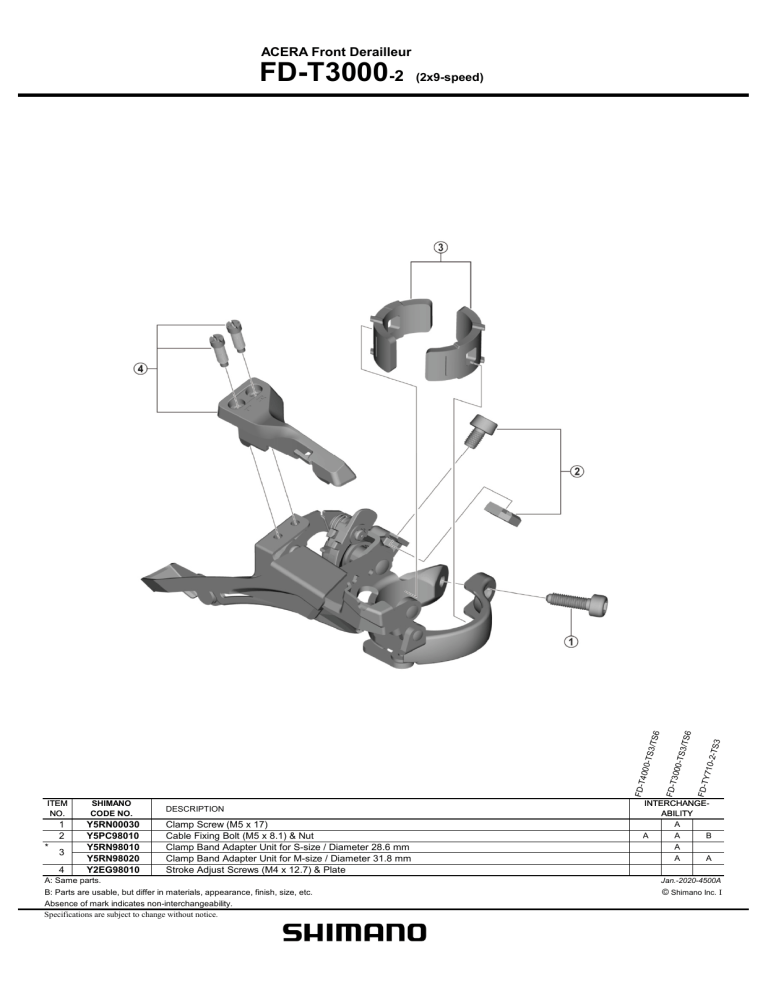

ACERA Front Derailleur
ITEM
NO.
1
2
*
3
4
SHIMANO
CODE NO.
Y5RN00030
Y5PC98010
Y5RN98010
Y5RN98020
Y2EG98010
DESCRIPTION
Clamp Screw (M5 x 17)
Cable Fixing Bolt (M5 x 8.1) & Nut
Clamp Band Adapter Unit for S-size / Diameter 28.6 mm
Clamp Band Adapter Unit for M-size / Diameter 31.8 mm
Stroke Adjust Screws (M4 x 12.7) & Plate
/TS6
-2-TS
3
FD-T
Y710
FD-T
4000
-TS3
/TS6
(2x9-speed)
FD-T
3000
-TS3
FD-T3000-2
INTERCHANGEABILITY
A
A
A
B
A
A
A
A: Same parts.
Jan.-2020-4500A
B: Parts are usable, but differ in materials, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.
© Shimano Inc. I
