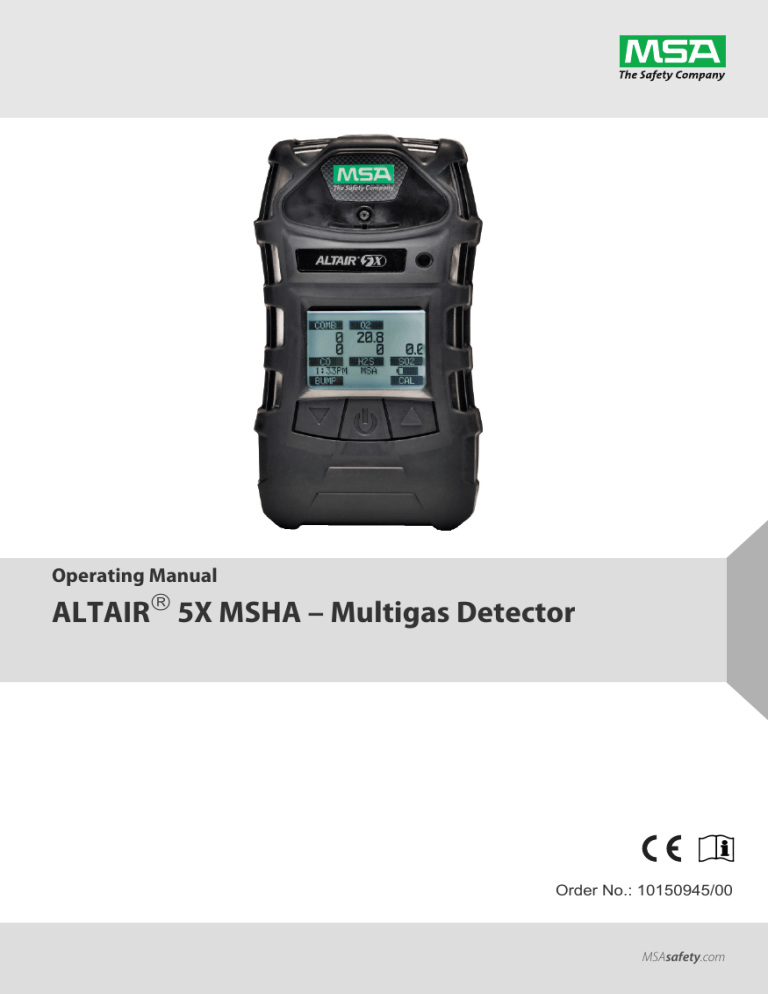

Operating Manual
ALTAIR 5X MSHA – Multigas Detector
Order No.: 10150945/00
MSAsafety.com
WARNING
THIS MANUAL MUST BE CAREFULLY READ BY ALL INDIVIDUALS WHO HAVE OR WILL HAVE
THE RESPONSIBILITY FOR USING OR SERVICING THE PRODUCT. Like any piece of complex
equipment, this device will perform as designed only if it is used and serviced in accordance with the
manufacturer’s instructions. OTHERWISE, IT COULD FAIL TO PERFORM AS DESIGNED AND
PERSONS WHO RELY ON THIS PRODUCT FOR THEIR SAFETY COULD SUSTAIN SEVERE
PERSONAL INJURY OR DEATH.
The warranties made by Mine Safety Appliances Company with respect to the product are voided if
the product is not used and serviced in accordance with the instructions in this manual. Protect yourself and others by following them. We encourage our customers to write or call regarding this equipment prior to use or for any additional information relative to use or repairs.
1000 Cranberry Woods Drive
Cranberry Township, PA 16066
USA
Phone 1-800-MSA-2222
Fax 1-800-967-0398
For your local MSA contacts please go to our website www.MSAsafety.com
©
MSA 2016. All rights reserved
Contents
Contents
1
2
Safety Regulations ........................................................................................... 6
1.1
Correct Use ........................................................................................................... 6
1.2
Liability Information ............................................................................................... 7
1.3
Safety and Precautionary Measures ..................................................................... 7
1.4
Warranty ................................................................................................................ 9
1.4.1
Exclusive Remedy ................................................................................................. 9
1.4.2
Exclusion of Consequential Damage .................................................................... 9
Description ...................................................................................................... 10
2.1
Overview ............................................................................................................. 10
2.2
Device Hardware Interfaces ................................................................................ 11
2.2.1
Button Definitions ................................................................................................ 11
2.2.2
LED Definitions ................................................................................................... 11
2.2.3
Alarms ................................................................................................................. 12
2.3
On-Screen Indicators .......................................................................................... 13
2.3.1
Monochrome Display .......................................................................................... 13
2.3.2
Battery Indicator .................................................................................................. 13
2.3.3
Battery Charging ................................................................................................. 15
2.4
Viewing Additional Pages .................................................................................... 16
2.4.1
Bump Test (BUMP Page) .................................................................................... 16
2.4.2
Peak Readings (PEAK Page) ............................................................................. 17
2.4.3
Minimum Readings (MIN Page) .......................................................................... 17
2.4.4
Short Term Exposure Limits (STEL Page) .......................................................... 17
2.4.5
Time Weighted Average (TWA Page) ................................................................. 18
2.4.6
Date Display ........................................................................................................ 19
2.4.7
LAST CAL Page .................................................................................................. 19
2.4.8
CAL DUE Page ................................................................................................... 19
2.4.9
MotionAlert Activation Page ................................................................................ 19
2.5
Sensor Missing Alarm ......................................................................................... 19
2.6
Monitoring Toxic Gases ...................................................................................... 20
2.7
Monitoring Oxygen Concentration ....................................................................... 21
2.8
Monitoring Combustible Gases ........................................................................... 21
2.9
Gas Exposure of 100 % LEL ............................................................................... 22
ALTAIR 5X MSHA
US
3
Contents
3
4
Operation ......................................................................................................... 23
3.1
Environmental Factors ........................................................................................ 23
3.2
Turning ON and Fresh Air Setup ......................................................................... 24
3.2.1
Sampling System Safety Test ............................................................................. 24
3.2.2
Fresh Air Setup (FAS) at Device Turn-ON .......................................................... 25
3.2.3
Special Consideration for Oxygen Sensor .......................................................... 26
3.3
Measurement Mode (Normal Operation) ............................................................ 26
3.4
Device Setup ....................................................................................................... 26
3.4.1
Calibration Options .............................................................................................. 27
3.4.2
Alarm Options ..................................................................................................... 28
3.4.3
Instrument Options .............................................................................................. 30
3.5
MSA Link Operation ............................................................................................ 32
3.6
Function Tests on the Device .............................................................................. 32
3.7
Calibration Check ................................................................................................ 32
3.7.1
Equipment ........................................................................................................... 32
3.7.2
Performing a Calibration Check .......................................................................... 32
3.8
Calibration ........................................................................................................... 33
3.8.1
Zero Calibration ................................................................................................... 33
3.8.2
Span Calibration .................................................................................................. 34
3.8.3
Finishing Successful Calibration ......................................................................... 35
3.9
Calibration with the GALAXY® GX2 Test System .............................................. 36
3.10
Device Shutdown ................................................................................................ 36
US
Maintenance .................................................................................................... 37
4.1
Troubleshooting .................................................................................................. 37
4.2
Verifying Pump Operation ................................................................................... 38
4.3
Replacing the Battery .......................................................................................... 39
4.4
Live Maintenance Procedure - Sensor Replacement .......................................... 40
4.5
Replacing the Pump Filter ................................................................................... 42
4.6
Cleaning the Device Exterior ............................................................................... 42
4.7
Storage ................................................................................................................ 42
4.8
Shipment ............................................................................................................. 42
ALTAIR 5X MSHA
4
Contents
5
Technical Specifications/Certifications ........................................................ 43
5.1
6
7
8
Technical Specifications ...................................................................................... 43
5.2
Factory-set Alarm Thresholds and Setpoints ...................................................... 44
5.3
Performance Specifications ................................................................................ 45
5.4
Calibration Specifications .................................................................................... 47
5.5
Certifications ....................................................................................................... 47
5.6
XCell Sensor Patents .......................................................................................... 47
Order Information ........................................................................................... 48
6.1
Gas Cylinder Parts List ....................................................................................... 48
6.2
Accessories Parts List ......................................................................................... 49
6.3
Device Replacement Parts .................................................................................. 50
Flow Charts ..................................................................................................... 53
7.1
Basic Operation ................................................................................................... 53
7.2
Bump Test / Informational Pages ........................................................................ 54
7.3
Calibrations ......................................................................................................... 56
7.4
Setup ................................................................................................................... 57
7.5
Calibration Options .............................................................................................. 58
7.6
Alarm Options ..................................................................................................... 59
7.7
Sensor Alarm Setup ............................................................................................ 60
7.8
Instrument Options .............................................................................................. 61
7.9
Sensor Setup ...................................................................................................... 63
US
Changeable Feature Summary ...................................................................... 64
ALTAIR 5X MSHA
5
Safety Regulations
1
Safety Regulations
1.1
Correct Use
The ALTAIR 5X and ALTAIR 5X IR Multigas Detectors, hereafter also referred to as device, are for use
by trained and qualified personnel. They are designed to be used when performing a hazard assessment to
- assess potential worker exposure to combustible and toxic gases and vapors as well as low level
of oxygen,
- determine the appropriate gas and vapor monitoring needed for a workplace.
The ALTAIR 5X Multigas Detector can be equipped to detect:
- combustible gases and certain combustible vapors
- oxygen-deficient or oxygen-rich atmospheres
- specific toxic gases for which a sensor is installed.
The ALTAIR 5X IR Multigas Detector can also contain one infrared sensor to detect CO2 or specific
combustible gases up to 100 % Vol.
WARNING
-
Perform a blocked flow test before each day's use.
Perform a calibration check before each day's use and adjust if necessary.
Perform a calibration check more frequently if exposed to silicone, silicates, lead-containing
compounds, hydrogen sulfide or high contaminant levels.
- Recheck calibration if unit is subjected to physical shock.
- Use only to detect gases/vapors for which a sensor is installed.
- Do not use to detect combustible dusts or mists.
- For accurate catalytic combustible readings, make sure adequate oxygen is present
(>10 % O2).
- Never block pump inlet, except to perform a sampling system safety test.
- Have a trained and qualified person interpret device readings.
- Risk of Explosion: Do not remove battery pack, recharge Li Ion battery, or replace alkaline
batteries in a hazardous location.
- Do not alter or modify device.
- Use only MSA-approved sampling lines.
- Do not use silicone tubing or sampling lines.
- Wait sufficient time for the reading; response times vary based on gas and length of sampling
line.
- Do not use the device for prolonged periods in an atmosphere containing a concentration of fuel
or solvent vapors that may be greater than 10 % LEL.
Incorrect use can cause death or serious personal injury.
US
This Class A digital apparatus complies with Canadian ICES-003.
It is imperative that this operating manual be read and observed when using the product. In particular,
the safety instructions, as well as the information for the use and operation of the product, must be
carefully read and observed. Furthermore, the national regulations applicable in the user's country
must be taken into account for safe use.
Alternative use, or use outside this specification will be considered as non-compliance. This also
applies especially to unauthorized alterations to the product and to commissioning work that has not
been carried out by MSA or authorized persons.
ALTAIR 5X MSHA
6
Safety Regulations
1.2
Liability Information
MSA accepts no liability in cases where the product has been used inappropriately or not as intended.
The selection and use of this product must be under the direction of a qualified safety professional who
has carefully evaluated the specific hazards of the jobsite where it will be used and who is completely
familiar with the product and its limitations. The selection and use of this product and its incorporation
into the safety scheme of the jobsite is the exclusive responsibility of the employer.
Product liability claims, warranties also as guarantees made by MSA with respect to the product are
voided, if it is not used, serviced or maintained in accordance with the instructions in this manual.
1.3
Safety and Precautionary Measures
WARNING
Carefully review the following safety limitations and precautions before placing this device in service.
Incorrect use can cause death or serious personal injury.
-
Check function (see section 3.6) each day before use. MSA recommends carrying out a routine
inspection prior to each day's use.
Perform a calibration check (see section 3.7) before each day's use to verify proper device operation. The device must pass the calibration check. If it fails the test, perform a calibration (see
section 3.8) before using the device.
The ALTAIR 5X Multigas Detectors are designed to detect gases and vapors in air only.
Perform a calibration check more frequently if the device is subjected to physical shock or high
levels of contaminants. Also, perform a calibration check more frequently if the tested atmosphere
contains the following materials, which may desensitize the combustible gas sensor and reduce
its readings:
-
-
The minimum concentration of a combustible gas in air that can ignite is defined as the Lower
Explosive Limit (LEL). A combustible gas reading of "XXX" indicates the atmosphere is above
100 % LEL or 5.00 % Vol CH4 and an explosion hazard exists. Move away from hazardous area
immediately.
Do not use the ALTAIR 5X and ALTAIR 5X IR Multigas Detectors to test for combustible or toxic
gases in the following atmospheres as this may result in erroneous readings:
-
Organic silicones
Silicates
Lead-containing compounds
Sulfur compound exposures over 200 ppm or exposures over 50 ppm for one minute.
Oxygen-deficient or oxygen-rich atmospheres
Reducing atmospheres
Furnace stacks
Inert environments (only IR sensors acceptable for use).
US
Do not use the ALTAIR 5X and ALTAIR 5X IR Multigas Detectors to test for combustible gases in
atmospheres containing vapors from liquids with a high flash point (above 38 °C, 100 °F) as this
may result in erroneously low readings.
Allow sufficient time for device to display accurate reading. Response times vary based on the
type of sensor being utilized (see section 5.2). Allow a minimum of 1 second per foot (3 seconds
per meter) of sample line to allow the sample to be drawn through the sensors.
Sampling lines made from 0.062 inch (1.57 mm) inner diameter tubing provide fast transport times
to the device; however, they must be limited to 50 feet (15 m) in length.
Sampling of reactive toxic gases (Cl2, ClO2, NH3) must only be done with the reactive gas sample
line and probe kits listed in section 6.2.
All device readings and information must be interpreted by someone trained and qualified in interpreting device readings in relation to the specific environment, industrial practice and exposure
limitations.
ALTAIR 5X MSHA
7
Safety Regulations
-
Use of the GALAXY® GX2 Automated Test System is an alternate MSHA-approved method for
calibrating MSHA-approved ALTAIR 5X devices.
Use only calibration gas that is 2.5% Methane with an accuracy of +5% when calibrating MSHAapproved ALTAIR 5X devices.
GALAXY® GX2 Automated Test Setup Mode must be set to Calibration Only or Calibration Check/
Cal on Fail when calibrating MSHA-approved ALTAIR 5X devices.
For 30 CFR Part 75 determinations, the GALAXY® GX2 Automated Test System Test Setup Mode
must be set to Calibration Only or Calibration Check/Cal on Fail so that 19.5 % oxygen can be
detected with an accuracy of +0.5 % when calibrating MSHA-approved ALTAIR 4X devices.
Observe Proper Battery Maintenance
Use only battery chargers made available by MSA for use with this device; other chargers may damage
the battery pack and the device. Dispose of in accordance with local health and safety regulations.
Be Aware of Environmental Conditions
A number of environmental factors may affect the sensor readings, including changes in pressure,
humidity and temperature. Pressure and humidity changes also affect the amount of oxygen actually
present in the atmosphere.
Be Aware of the Procedures for Handling Electrostatically Sensitive Electronics
The device contains electrostatically sensitive components. Do not open or perform maintenance on
the device without using appropriate electrostatic discharge (ESD) protection. The warranty does not
cover damage caused by electrostatic discharges.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
WARNING
This is a class A product in accordance with CISPR 22.
In a domestic environment, this product may cause radio interference, in which case the user may
be required to take adequate measures.
This Class A digital apparatus complies with Canadian ICES-003.
US
Be Aware of the Product Regulations
Follow all relevant national regulations applicable in the country of use.
Be Aware of the Warranty Regulations
The warranties made by Mine Safety Appliances Company with respect to the product are voided if the
product is not used and maintained in accordance with the instructions in this manual. Please protect
yourself and others by following them. We encourage our customers to write or call regarding this
equipment prior to use or for any additional information relative to use or service.
ALTAIR 5X MSHA
8
Safety Regulations
1.4
Warranty
Item
1.4.1
1.4.2
Warranty Period
Chassis and electronics
Three years
XCell COMB, O2, H2S, CO, SO2, NO2, and MSA IR sensors
Three years
XCell Cl2, NH3 sensors
Two years
Series 20 ClO2, HCN, NO, NO2, PH3 sensors
One year
This warranty does not cover filters, fuses, etc. As the battery pack ages, there will be a reduction in
usable device run time. Certain other accessories not specifically listed here may have different
warranty periods. This warranty is valid only if the product is maintained and used in accordance with
Seller's instructions and/or recommendations.
The Seller shall be released from all obligations under this warranty in the event repairs or modifications are made by persons other than its own or authorized service personnel or if the warranty claim
results from physical abuse or misuse of the product. No agent, employee or representative of the
Seller has any authority to bind the Seller to any affirmation, representation or warranty concerning this
product. Seller makes no warranty concerning components or accessories not manufactured by the
Seller, but will pass on to the Purchaser all warranties of manufacturers of such components.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED OR
STATUTORY, AND IS STRICTLY LIMITED TO THE TERMS HEREOF. SELLER SPECIFICALLY
DISCLAIMS ANY WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR
PURPOSE.
Exclusive Remedy
It is expressly agreed that Purchaser's sole and exclusive remedy for breach of the above warranty,
for any tortious conduct of Seller, or for any other cause of action, shall be the replacement at Seller's
option, of any equipment or parts thereof, which after examination by Seller is proven to be defective.
Replacement equipment and/or parts will be provided at no cost to Purchaser, F.O.B. Seller's Plant.
Failure of Seller to successfully replace any nonconforming equipment or parts shall not cause the
remedy established hereby to fail of its essential purpose.
Exclusion of Consequential Damage
Purchaser specifically understands and agrees that under no circumstances will seller be liable to
purchaser for economic, special, incidental or consequential damages or losses of any kind whatsoever, including but not limited to, loss of anticipated profits and any other loss caused by reason of
nonoperation of the goods. This exclusion is applicable to claims for breach of warranty, tortious
conduct or any other cause of action against seller.
US
ALTAIR 5X MSHA
9
Description
2
Description
2.1
Overview
7
1
1
8
9
2
10
3
4
6
5
12
11
Fig. 1
Device view
1
LEDs
(2 red "Alarm", 1 green "Safe" and 1 yellow "Fault")
7
MSA LinkTM Communication Port
2
Horn
8
Pump inlet
3
Display
9
Filter
4
 Button
10
Belt Clip (ALTAIR 5X only)
5
q-Button
11
Charging Port
6
 Button
12
Charge Status LED
US
The device monitors gases in ambient air and in the workplace.
The ALTAIR 5X Detectors are available with a maximum of four sensors, which can display readings
for five separate gases (one Two-Tox Sensor provides both CO and H2S sensing capabilities in a
single package).
The ALTAIR 5X IR is available with a maximum of five sensors, which can display readings for six
separate gases (one Two-Tox Sensor provides both CO and H2S sensing capabilities in a single
package).
The ALTAIR 5X Detectors are available with a monochrome display.
The alarm levels for the individual gases are factory-set and can be changed through the Instrument
Setup Menu. These changes can also be made through MSA Link Software. Ensure that the latest
version of the MSA Link software has been downloaded from MSA’s website www.msasafety.com.
It is recommended that after making changes using MSA Link software, the device should be turned
OFF and ON.
ALTAIR 5X MSHA
10
Description
2.2
Device Hardware Interfaces
2.2.1
Device operation is dialog driven from the display with the aid of the three function buttons (see Fig. 1).
The device has three buttons for user operation.
Button Definitions
The ALTAIR 5X and ALTAIR 5X IR devices have three buttons for user operation. Each button can
function as a "soft key", as defined immediately above the button.
2.2.2
Button
Description
q
The q button is used to turn the device ON or OFF and to confirm user action selections.

The  button is used to page down through data screens or to decrease the values in
setup mode. This button is also used to initiate a Bump Test for the installed sensors,
directly from the MEASURING page. If the user is granted access to the MotionAlert
setting feature, this button can be used to activate the InstantAlertTM alarm.

The  button is used to reset Peak, STEL, TWA and alarms (where possible) or perform
calibration in measuring mode. It is also used as page up or to increase the values in setup
mode.
When the  button and the  button are pressed simultaneously while in normal measure mode, the
Setup mode can be entered after the password is confirmed.
LED Definitions
LED
Description
RED (Alarm)
The red alarm LEDs are visual indications of an alarm condition or any type of
error in the device.
GREEN (Safe)
The Safe LED flashes once every 15 seconds to notify the user that the device
is ON and operating under the conditions defined below:
- The green SAFE LED is enabled
- Combustible reading is 0 % LEL or 0% Vol
- Oxygen (O2) reading is 20.8 %
- Carbon Dioxide (CO2) reading is  0.03 %
- All other sensor readings are 0 ppm
- No gas alarms are present (low or high)
- Device is not in Low Battery warning or alarm
- STEL and TWA readings are 0 ppm
This option can be turned OFF through the MSA Link software.
YELLOW (Fault)
The Fault LED activates if any of several fault conditions are detected during
device operation. This includes:
- A device memory error
- A sensor determined to be missing or inoperative
- A pump fault.
These faults are also indicated by activation of device alarm LEDs, horn, and
vibrating alarm.
ALTAIR 5X MSHA
US
11
Description
2.2.3
Alarms
The device is equipped with multiple alarms for increased user safety:
Alarm
Vibrating Alarm
The device vibrates when any alarm condition is active. This can be turned OFF
through the SETUP- ALARM OPTIONS menu (see section 3.4.2).
Horn
The device is equipped with an audible alarm.
The horn can be turned OFF through the SETUP- ALARM OPTIONS menu (see
section 3.4.2).
Instant-Alert™
Alarm
The InstantAlert exclusive feature allows the user to manually activate an audible
alarm to alert those nearby to potentially dangerous situations. Holding the
 button for approximately 5 seconds while in Normal Measure Mode activates
the InstantAlert alarm. Access to this feature may be restricted.
See section 3.4.2 for means to allow/disallow user access.
MotionAlert™
Alarm
If MotionAlert is turned ON (+ = ON) (see section 3.4.2), the device activates a
"Man Down" alarm if motion is not detected within 30 seconds. The Alarm LEDs
flash, and the horn activates with an increasing audible frequency. MotionAlert is
always turned OFF when the device is turned OFF. It must always be turned ON
prior to use.
Access to this feature may be restricted by user settings. See section 3.4.2 for
means to allow/disallow user access.
Stealth Mode
Stealth Mode disables the visual, audible and vibrating alarms. MSA recommends that this feature be left in its default "OFF" state. Stealth mode can be
turned ON through the SETUP - INSTRUMENT OPTIONS menu (see
section 3.4.3).
The message "Alarms OFF" flashes on the monochrome display when Stealth
mode is ON.
The device evaluates the condition of the sensors during Calibration.
As the end of a sensor’s life approaches, a warning is provided. While the sensor
is still fully functional, the warning gives the user time to plan for a replacement
sensor to minimize downtime. The Sensor Life indicator  displays during
ongoing operations as a reminder of a sensor’s pending end of life.
When a sensor’s end-of-life is reached, sensor calibration will not be successful,
and the user is then alerted by a Sensor Life Alarm. A flashing Sensor Life
Sensor Life Alarm
indicator  displays during ongoing operations until the sensor is replaced and/or
successfully calibrated.
On the monochrome display, the Sensor Life indicator appears on the display at
the same position as the MotionAlert indicator. If MotionAlert is enabled (the
+ indicator displays) and a Sensor Life warning or alarm occurs, the Sensor Life
indicator  takes priority and is shown instead.
See section 3.8 for additional details on Sensor Life determination and indication.
Backlight
The backlight automatically activates when any front panel button is pressed and
remains ON for the duration of user-selected timeout.
This duration can be changed using the SETUP - INSTRUMENT SETUP (see
section 3.4.3) or through MSA Link software.
Operating Beep
This Operating Beep activates every 30 seconds by momentarily beeping the
horn and flashing the alarm LEDs under the following conditions:
- Operating Beep is enabled
- Device is on NORMAL MEASURE GASES page
- Device is not in battery warning
- Device is not in gas alarm.
ALTAIR 5X MSHA
US
12
Description
2.3
On-Screen Indicators
2.3.1
Monochrome Display
4
1
5
6
2
7
3
Fig. 2
Monochrome Display
1 Gas type
5
Battery condition
2 Current time
6
Successful Bump Test/Calibration Indicator
3 "Soft Key"  Indicator
7
"Soft Key"  Indicator
4 Gas reading
8
MotionAlert (+ = ON)
Sensor Life Indicator
2.3.2
On a monochrome display, a message appears every 30 seconds if the Vibration, Horn or LED alarms
are turned OFF.
Battery Indicator
The battery icon continuously displays in the lower right-hand corner of the monochrome display. A bar
represents the charging level of the battery.
The nominal run-time of the device (COMB, O2, CO, H2S, with pump and monochrome display) at
room temperature is 17 hours. Actual run-time will vary depending on ambient temperature, battery
and alarm conditions.
ALTAIR 5X MSHA
US
13
Description
Low Battery Warning
WARNING
If battery warning alarm activates while using the device, leave the area immediately as the end of
battery life is approaching. Failure to follow this warning can result in serious personal injury or death.
Fig. 3
Battery Warning
The duration of remaining device operation during a Low Battery Warning depends on ambient
temperatures, battery condition alarm status.
When the device goes into battery warning the:
- battery life indicator continuously flashes
- alarm sounds and alarm LEDs flash every 30 seconds
- Safe LED no longer flashes
- device continues to operate until it is turned OFF or battery shutdown occurs.
Battery Shutdown
WARNING
If battery alarm displays, stop using the device as it no longer has enough power to indicate potential
hazards, and persons relying on this product for their safety could sustain serious personal injury or
death.
The device goes into battery shutdown mode 60 seconds before final shutdown (when the batteries
can no longer operate the device):
- "BATTERY ALARM” flashes on the display
- Alarm sounds
- Alarm LEDs flash
- Fault LED is ON
- No other pages can be viewed; after approximately one minute, the device automatically turns
OFF.
Fig. 4
US
Battery Shutdown
When battery shutdown condition occurs:
(1)
Leave the area immediately.
(2)
Recharge or replace the battery pack.
ALTAIR 5X MSHA
14
Description
2.3.3
Battery Charging
WARNING
Risk of explosion: Do not recharge device in hazardous area.
NOTICE
Use of any charger, other than the charger supplied with the device, may damage or improperly
charge the batteries.
-
The charger is capable of charging a completely depleted pack in less than six hours in normal,
room-temperature environments.
NOTE: Allow very hot or cold devices to stabilize for one hour at room temperature before
attempting to charge.
-
Minimum and maximum ambient temperature to charge the device is 10 °C (50 °F) and 35 °C
(95 °F), respectively.
For best results, charge the device at room temperature.
To Charge the Device
- Firmly insert the charger connector into the charge port on the back of the device.
- An LED in the battery pack is used to indicate on the charge status:
Red = charging, Green = charged, yellow = fault
- If a problem is detected during charging (LED turns yellow):
Disconnect the charger momentarily to reset the charge cycle.
- The battery pack may be charged separately from the device.
- During periods of non-use, the charger may remain connected to the device/battery pack.
NOTE: The charger must be disconnected for the device to operate.
US
ALTAIR 5X MSHA
15
Description
2.4
Viewing Additional Pages
The Main Screen appears at device turn-ON.
Additional displays can be viewed by pressing the  button to move to the screen as indicated by the
"soft key".
(For the monochrome display, the name of the page is displayed.)
The sequence of pages are as follows and are described below:
Advance on
MAIN
MEASURE
PAGE
BUMP TEST ?
PEAK *
MIN * 1
Advance on
1
STEL *
WIRELESS **
Advance on
MOTION
ALERT
STATUS *
2.4.1
* IF ENABLED
** IF WIRELESS IS INSTALLED
1
NOT VALID FOR ALL SENSORS
CAL DUE
DATE *
LAST CAL
DATE *
TWA * 1
DATE
Bump Test (BUMP Page)
US
This page allows the user to perform an automated Bump Test on the device. To perform the test, the
q (YES) button is pressed.
See section 3.7 for details on performing the Calibration Check.
If the  button is pressed, the Bump Test is not performed, and the display shows the next page in the
sequence (PEAK).
If the  button is pressed, the Bump Test is not performed, and the display reverts back to the normal
MEASURE page.
ALTAIR 5X MSHA
16
Description
2.4.2
Peak Readings (PEAK Page)
Monochromatic display symbol:
PEAK
This page shows the highest levels of gas recorded by the device since turn-ON or since peak readings
were reset.
To reset the peak readings:
(1)
Access the PEAK page.
(2)
Press the  button.
NOTE: This page can be de-activated through MSA Link software.
2.4.3
Minimum Readings (MIN Page)
Monochromatic display symbol:
2.4.4
MIN
This page shows the lowest level of oxygen recorded by the device since turn-ON or since the MIN
reading was reset. It is only shown if an oxygen sensor is installed and enabled.
To reset the MIN reading:
(1)
Access the MIN page.
(2)
Press the  button.
Short Term Exposure Limits (STEL Page)
WARNING
If the STEL alarm activates, leave the contaminated area immediately; the ambient gas concentration has reached the preset STEL alarm level. Failure to follow this warning will cause over-exposure
to toxic gases and persons relying on this product for their safety could sustain serious personal
injury or death.
Monochromatic display symbol:
STEL
This page shows the average exposure over a running 15-minute period.
When the amount of gas detected by device is greater than the STEL limit:
- Alarm sounds
- Alarm LEDs flash
- “STEL ALARM” message flashes.
US
To reset the STEL:
(1)
Access the STEL page.
(2)
Press the  button.
The STEL alarm is calculated over a 15-minute exposure.
ALTAIR 5X MSHA
17
Description
STEL calculation examples:
Assume the device has been running for at least 15 minutes:
15 minute exposure of 35 ppm:
(15 minutes x 35 ppm)
15 minutes
= 35 ppm
10 minute exposure of 35 ppm and 5 minute exposure of 15 ppm:
(10 minutes x 35 ppm) + (5 minutes x 5 ppm)
15 minutes
= 25 ppm
NOTE: This page can be de-activated through MSA Link software.
2.4.5
Time Weighted Average (TWA Page)
WARNING
If the TWA alarm activates, leave the contaminated area immediately; the ambient gas concentration
has reached the preset TWA alarm level. Failure to follow this warning will cause over-exposure to
toxic gases and persons relying on this product for their safety could sustain serious personal injury
or death.
This page shows the average exposure over 8 hours since the device was turned ON or since the TWA
reading was reset. When the amount of gas detected is greater than the eight-hour TWA limit:
Monochromatic display symbol:
-
TWA
Alarm sounds
Alarm LEDs flash
“TWA ALARM” message flashes.
To reset the TWA Readings:
(1)
Access the TWA page.
(2)
Press the  button.
The TWA alarm is calculated over an eight-hour exposure.
TWA calculation examples:
1 hour exposure of 50 ppm:
(1 hour x 50 ppm) + (7 hours x 0 ppm)
8 hours
US
= 6.25 ppm
4 hour exposure of 50 ppm and 4 hour exposure of 100 ppm:
(4 hours x 50 ppm) + (4 hours x 100 ppm)
8 hours
= 75 ppm
12 hour exposure of 100 ppm:
(12 hours x 100 ppm)
8 hours
= 150 ppm
NOTE: This page can be de-activated through MSA Link software.
ALTAIR 5X MSHA
18
Description
2.4.6
2.4.7
2.4.8
2.4.9
2.5
Date Display
Current date appears on the display in the format: MM-DD-YY.
LAST CAL Page
Displays the device last successful calibration date in the format: MM-DD-YY. This page can be deactivated through MSA Link software or the SETUP - CAL OPTIONS page.
CAL DUE Page
Displays the days until the device's next calibration is due (user selectable). This page can be de-activated through MSA Link software or the SETUP - CAL OPTIONS page.
MotionAlert Activation Page
When the MotionAlert feature is active, the + symbol appears. The device enters pre-alarm when no
motion is detected for 20 seconds. This condition can be cleared by moving the device.
MotionAlert is turned OFF each time the device is powered OFF.
After 30 seconds of no motion, the full MotionAlert alarm is triggered. This alarm can only be cleared
by pressing the  button. This page displays if it was selected in Setup Mode.
To activate or deactivate the MotionAlert feature, press the  button while the MOTIONALERT ACTIVATION page is displayed.
Sensor Missing Alarm
Enabled IR and XCell sensors are continuously monitored for proper function. If, during operation, the
IR or an XCell sensor is detected as failed or disconnected, this alarm message appears.
If the IR or an XCell sensor is detected as missing or failed, the following occurs:
- "SENSOR MISSING" flashes on the display.
- The problematic sensor is indicated.
- The alarm sounds and the Fault and Alarm LEDs flash.
- The alarm can be silenced by pressing the  button; no other pages can be viewed.
WARNING
When this alarm occurs, the device is inoperative for measuring gases. The user must exit the
hazardous area, the device must be powered down, and the sensor situation must be corrected.
US
ALTAIR 5X MSHA
19
Description
2.6
Monitoring Toxic Gases
The device can monitor the concentration of a variety of toxic gases in ambient air. Which toxic gases
are monitored depends on the installed sensors.
The device displays the gas concentration in parts per million (ppm) or mg/m3 on the MEASURING
page.
WARNING
If an alarm is triggered while using the device, leave the area immediately.
Remaining in the area under such circumstances can cause serious personal injury or death.
The device has four gas alarms:
HIGH Alarm
LOW Alarm
STEL Alarm
TWA Alarm
-
Fig. 5
Alarm Conditions (here High Alarm)
If the gas concentration reaches or exceeds the alarm set point or the STEL or TWA limits, the:
- alarm message displays and flashes in combination with the corresponding gas concentration
- backlight turns on
- alarm sounds (if active)
- alarm LEDs flash (if active)
- vibrating alarm triggers (if active).
US
ALTAIR 5X MSHA
20
Description
2.7
Monitoring Oxygen Concentration
The device monitors the oxygen concentration in ambient air. The alarm set points can be configured
to activate on two different conditions:
- Enriched - oxygen concentration > 20.8 Vol % or
- Deficient - oxygen concentration < 19.5 Vol %.
WARNING
If an alarm activates while using the device, leave the area immediately.
Remaining in the area under such circumstances can cause serious personal injury or death.
When the alarm set point is reached for either of the above conditions:
- the alarm message displays and flashes in combination with the oxygen gas concentration
- backlight turns ON
- alarm sounds (if active)
- alarm LEDs flash (if active)
- vibrating alarm triggers (if active)
The LOW alarm (oxygen deficient) is latching and will not automatically reset even when the O2
concentration rises above the LOW set point. To reset the alarm, press the  button. If the alarm is
latching, the  button silences the alarm for five seconds. Alarms can be made latching or unlatching
via MSA Link software.
False oxygen alarms can occur due to changes in barometric pressure (altitude), humidity or extreme
changes in ambient temperature.
It is recommended that an oxygen calibration be performed at the temperature and pressure of use.
Be sure that the device is in known fresh air before performing a calibration.
2.8
Monitoring Combustible Gases
The device can be equipped with a catalytic combustible sensor that detects a variety of combustible
gases up to 100 % LEL and displays the reading as either % LEL or % CH4. The ALTAIR 5X IR can
also contain an IR combustible sensor. The IR sensor displays the reading in % Vol.
WARNING
If an alarm is triggered while using the device, leave the area immediately.
Remaining in the area under such circumstances can cause serious personal injury or death.
The catalytic combustible sensor has two alarm setpoints:
HIGH Alarm
LOW Alarm
If the gas concentration reaches or exceeds the alarm setpoint, the device:
- alarm message displays and flashes in combination with the corresponding gas concentration:
- backlight turns ON
- alarm sounds (if active)
- alarm LEDs flash (if active)
- vibrating alarm triggers (if active).
The 100 % Vol IR sensors have no alarm setpoints.
-
ALTAIR 5X MSHA
US
21
Description
2.9
Gas Exposure of 100 % LEL
When the reading from the catalytic combustible sensor reaches 100 % of the lower explosive limit
(LEL), the device enters a LockAlarm state and displays “XXX” in place of the actual reading.
WARNING
A catalytic combustible gas reading of "XXX” indicates the atmosphere may be above 100 % LEL or
5.00 % Vol CH4 and an explosion hazard exists. Move away from contaminated area immediately.
For ALTAIR 5X IR devices with an enabled 100 % Vol methane IR sensor, the LockAlarm will clear,
and the catalytic combustible again displays combustible concentrations when the gas sample drops
to a lower level.
For devices without an enabled 100 % Vol methane IR sensor, the user can clear the LockAlarm state
only by turning the device OFF, and then ON again in a fresh air environment.
When catalytic combustible gas reading digits appear, the device is available for measuring gases
once again.
NOTE: LockAlarm of the catalytic combustible sensor occurs during Bump Testing and calibration of a
% Vol combustible IR sensor.
After the IR sensor Bump Test, the LockAlarm must be cleared (as described above) before the
catalytic combustible sensor is again able to measure and provide readings.
US
ALTAIR 5X MSHA
22
Operation
3
Operation
Device operation is dialog driven from the display with the aid of the three function buttons
(see section 2.2.1).
3.1
Environmental Factors
A number of environmental factors may affect the gas sensor readings, including changes in pressure,
humidity and temperature. Pressure and humidity changes affect the amount of oxygen actually
present in the atmosphere.
Pressure Changes
If pressure changes rapidly (e.g., stepping through airlock), the oxygen sensor reading may temporarily
shift and possibly cause the device to go into alarm. While the percentage of oxygen may remain at or
near 20.8 % Vol, the total amount of oxygen present in the atmosphere available for respiration may
become a hazard if the overall pressure is reduced by a significant degree.
Humidity Changes
If humidity changes by any significant degree (e.g., going from a dry, air conditioned environment to
outdoor, moisture laden air), oxygen readings can be reduced by up to 0.5 % due to water vapor in the
air displacing oxygen.
The oxygen sensor has a special filter to reduce the effects of humidity changes on oxygen readings.
This effect will not be noticed immediately, but slowly impacts oxygen readings over several hours.
Temperature Changes
The sensors have built-in temperature compensation. However, if temperature shifts dramatically, the
sensor reading may shift temporarily.
US
ALTAIR 5X MSHA
23
Operation
3.2
Turning ON and Fresh Air Setup
Device operation is dialog driven from the display with the aid of the three function buttons
(see section 2.2.1).
For more information, see the flow charts in section 7.
Turn the device ON with the q button.
The device performs self tests:
During the self test, the device checks alarm LEDs, audible alarm, vibrating alarm and installed
sensors.
The device displays:
- Startup logo
- Software version, device serial number, company name, department and user names
- Sampling system safety test (see section 3.2.1.)
During the turn-ON sequence, if a sensor was changed since the previous device operation, the
current listing of the installed sensors displays and user interaction is required.
-
 The user must accept the new configuration by pressing the  button.
 If the current sensor configuration is not accepted, the device alarms and is not usable.
Combustible gas type and installed sensor indication
Combustible gas type and sensor units (monochrome display only)
Low Alarm setpoints
High Alarm setpoints
STEL Alarm setpoints (if enabled)
TWA Alarm setpoints (if enabled)
Settings for calibration cylinder
Current date
Last calibration date (if enabled)
CAL due date. If the calibration due date is enabled, the message "CAL DUE; X DAYS" appears
on the device display.
- X = the number of days until a calibration is due, user selectable for 1 to 180 days.
If the number of days until calibration is due reaches 0, an alert occurs and "CAL DUE, NOW"
displays.
- Press the  button to clear the alert.
-
3.2.1
Sensor warm-up period
Fresh Air Setup option (if enabled).
The Main Measure Page will appear.
The presence of a  indicator on the display means a sensor is approaching or has reached its endof-life. See section 2.2.3 for details on the Sensor Life Alarm situation.
Refer to flowchart in section 7.1.
Sampling System Safety Test
US
WARNING
Do not use the pump, sample line, or probe unless the pump alarm activates when the flow is
blocked. Lack of an alarm is an indication that a sample may not be drawn to the sensors, which
could cause inaccurate readings.
Failure to follow the above can result in serious personal injury or death.
Never let the end of the sampling line touch or go under any liquid surface. If liquid is drawn into the
device, readings will be inaccurate and device could be damaged. We recommend the use of an
MSA sample probe containing a special membrane filter, permeable to gas but impermeable to
water, to prevent such an occurrence.
Upon startup, an alarm (visual, audible and vibrating) is triggered and the customer is prompted to
block the pumps/sampling system of the device within 30 seconds.
When the device detects a pump flow block, it will display a "PASS" message. The startup sequence
will resume.
ALTAIR 5X MSHA
24
Operation
3.2.2
If the device does not detect a pump flow block, it will display an error message.
The device will shut OFF after the customer acknowledges this message by pressing the  button.
Check your sampling system if this occurs and contact MSA as needed.
Users can check the operation of the sampling system anytime during operation by blocking the
sampling system to generate a pump alarm.
Fresh Air Setup (FAS) at Device Turn-ON
WARNING
Do not perform the Fresh Air Setup unless you are certain you are in fresh, uncontaminated air.
Otherwise, inaccurate readings can occur which can falsely indicate that a hazardous atmosphere is
safe. If you have any doubts as to the quality of the surrounding air, do not use the Fresh Air Setup
feature. Do not use the Fresh Air Setup as a substitute for daily calibration checks. The calibration
check is required to verify span accuracy. Failure to follow this warning can result in serious personal
injury or death.
The Fresh Air Setup (FAS) is for device ZERO adjustment.
The FAS has limits. If a hazardous level of gas is present, the device ignores the FAS command and
the device alarm activates.
The ability to perform an FAS at device turn-ON can be disabled by using MSA Link software.
NOTE: The Fresh Air Setup does not apply to the CO2 sensor.
Fig. 6
Fresh Air Setup
The device displays a flashing "FRESH AIR SETUP?", prompting the user to perform a Fresh Air
Setup:
(1)
Press the  button to bypass the Fresh Air Setup.
 The Fresh Air Setup is skipped and the device goes to the MEASURING page (MAIN page).
(2)
Press the  button to perform the Fresh Air Setup.
 The device starts the FAS sequence and the FAS screen displays.
 A progress bar shows the user how much of the FAS has been completed.
 At the end of the FAS, the device displays either "FRESH AIR SETUP PASS" or
"FRESH AIR SETUP FAIL".
If the FAS fails, perform a zero calibration (see section 3.8.1).
ALTAIR 5X MSHA
US
25
Operation
3.2.3
Special Consideration for Oxygen Sensor
Under the following situations, the oxygen sensor display reading may be suppressed for up to
30 minutes at device turn-ON as a sensor 'cook down' is performed.
This could occur if:
- the oxygen sensor was just installed
- the battery pack was allowed to be deep-discharged
- the battery pack was removed from the device.
During this time, the oxygen sensor numeric position on the display indicates "PLEASE WAIT". While
this message displays, the device cannot respond to a:
- Fresh Air Setup
- Calibration
- Calibration Check Test procedure.
When the numeric oxygen reading appears, the FAS, calibration or Calibration Check Test procedures
may be performed.
3.3
Measurement Mode (Normal Operation)
The following OPTION pages can be executed from the Main Measurement screen:
For further information see section 2.4.
BUMP page
This page allows user to perform a Bump Test on installed sensors.
See section 3.7.
PEAK Page*
This page shows the peak readings for all sensors.
MIN Page
This page shows the minimum readings for the oxygen sensor.
STEL Page*
This page shows the calculated STEL readings of the device.
TWA Page*
This page shows the calculated TWA readings of the device.
Date Page
This page shows actual date settings of the device.
LAST CAL
This page shows the date of the last calibration.
If the device does not have a valid calibration, it will display "LAST CAL INVALID".
CAL DUE*
This page shows the set date for the next calibration.
MOTIONALERT This page allows the MotionAlert Feature to be activated or deactivated.
* The display of these pages can be de-activated through MSA Link software.
3.4
Device Setup
US
The device has provisions to access and modify the following parameters through direct button interface:
- Calibration Options
- Alarm Options
- Instrument Options
These menus can be accessed only from the MEASURE page by pressing and holding the
 and  buttons simultaneously until you are prompted for a password.
The operation is as follows:
(1)
Turn the device ON and wait until the MEASURE page appears.
(2)
Simultaneously press and hold the  and  buttons for approximately five seconds.
 The default password is "672".
(3)
Enter the first digit by pressing the  or  button and confirm with the q button.
 The cursor jumps to the second digit.
(4)
Enter the second and the third digits.
 Incorrect password: device returns to the MAIN Page.
 Correct password: user can enter the Setup mode.
The password can be changed with a PC through the MSA Link software.
ALTAIR 5X MSHA
26
Operation
3.4.1
If the password is forgotten, it can be reset by using MSA Link software. Contact MSA Customer
Service for assistance.
The following Options are available by pressing the  and  buttons:
- Calibration Options - see section 3.4.1
- Alarm Options - see section 3.4.2
- Instrument Options - see section 3.4.3.
Calibration Options
The Calibration Options menu has provisions to:
- modify the calibration cylinder settings (CYLINDER SETUP)
- enable/disable calibration due date notification and to set the number of days
(CAL DUE OPTIONS)
When enabled, the number of days until due date of device calibration displays during the turnON process.
- enable/disable the option to show the last cal date at turn on and (LAST CAL DATE)
When enabled, the date of the last device calibration displays during the turn-ON process.
- enable/disable the option for password protected calibration (CAL PASSWORD)
When enabled, the device setup password must be entered prior to calibration.
Press:
- the  button go to next page
- the  button to go previous page
- the q button to enter setup.
Setting Calibration Cylinder
This option has a dialog similar to the span calibration dialog.
The display shows all active sensors.
(1)
Press the q button to enter setup.
 The screen for the first calibration cylinder displays.
(2)
Press
 the  or  button to change the value.
 the q button to confirm the setup.
With this confirmation the device automatically moves to the next cylinder setting.
(3)
Repeat the sequence for changing the required settings for all necessary gas values.
 After the last setting is performed, the device returns to the Calibration Options menu.
Setting Cal Due Options
(1)
Press the q button to enter setup.
(2)
Press the  or  button to enable/disable this option.
(3)
Press the q button to confirm.
 After confirmation, the device prompts the user to enter the number of days for the reminder.
(4)
Change number of days by pressing the  or  button.
(5)
Press the q button to go to the next menu.
US
Setting Last Cal Date
(1)
Press the q button to enable/disable this option.
(2)
Press the  button to go to the next page.
(3)
Press the  button to go to the previous page.
ALTAIR 5X MSHA
27
Operation
Setting Calibration Password
(1)
Press the q button to enable/disable this option.
(2)
Press the  button to go to the next page.
(3)
Press the  button to go to the previous page.
3.4.2
Back To Main Menu
(1)
Press the q button to go to Device Setup Menu.
 The Cal Options screen displays.
(2)
Press the  button to go to the next page (Alarm options) or the  button to exit the Setup
menu.
Alarm Options
The Alarm Options Menu allows user to:
- enable/disable the vibrating alarm
- enable/disable the audible alarm (horn)
- enable/disable the Alarm LEDs
- enable/disable the MOTIONALERT SELECTION page.
If disabled, the user cannot change the device MotionAlert setting.
- set Sensor Alarms.
Press
- the  button go to next page
the  button to go previous page
the q button to enter setup.
Setting Vibrating Alarm
Press the q button to enable/disable this option.
Setting Horn Alarm
Press q button to enable/disable this option.
Setting LED Alarm
Press q button to enable/disable this option.
Setting MotionAlert Access
Setting this parameter allows the user to access the MOTIONALERT page from the MEASURE page.
If access is denied here:
- the user cannot access the MOTIONALERT page to enable or disable that feature
- the InstantAlert feature (see section 2.2.3) cannot be activated.
(1)
To grant or deny user access to the MOTIONALERT page, use the button to change the indicated selection.
User access is:
 permitted when the setting indicates ON.
 denied when the setting indicates OFF.
(2)
The selection is confirmed by pressing either the  or  button.
ALTAIR 5X MSHA
US
28
Operation
Setting Sensor Alarms
This page allows modifying the preset alarm values of:
- LOW Alarm
- HIGH Alarm
- STEL Alarm
- TWA Alarm.
NOTE: Factory-set alarm values are shown in section 5.2
(1)
Press the q button to enter Sensor Alarm setup.
 LOW Alarm Setup screen displays.
Fig. 7
Sensor Alarm Setup
(2)
Press:
the  button to abort the operation or
the  button to go to next alarm setup or
the q button to change the alarm setpoints.
 Alarm Value for the first Sensor displays.
Fig. 8
(3)
(4)
(5)
(6)
(7)
US
Sensor Alarm Setup
Set values for Sensor Alarm by pressing the  or  button.
Press the q button to confirm set value.
Repeat setting for all other sensors.
Press the  button to return to the Alarm Options menu.
Repeat setting for all other alarm types.
ALTAIR 5X MSHA
29
Operation
3.4.3
Instrument Options
The Instrument Options menu allows the user to modify different device options:
- Sensor Setup (enable/disable the channel)
- Language Setup
- Time and Date Setup
- Datalog Intervals
- Stealth Mode
- Operating Beep
- Display Contrast (monochrome only)
- Backlight Options
Press
- the  button go to next page
- the  button to go previous page
- the q button to enter setup.
Setting Sensor Options
(1)
Press the q button to enter setup.
 The following screen displays:
Fig. 9
Sensor Options Setup
(2)
Press the  button to select sensor, press the q button to make changes.
 The sensor information is displayed and the sensor can be enabled or disabled.
NOTE: Other operations such as changing the gas type (Methane, Butane, Propane etc. for the
combustible sensor) and units (ppm to mg/m3) are only possible using the MSA Link
software.
(3)
(4)
(5)
Change status by pressing the  or  button.
Press the q button to confirm and advance to next screen (next sensor).
Perform the sequence for all other sensors.
 After setting up the last sensor, the device goes to the next Setup Page.
US
Language Setup
This option is for setting the language of the device.
(1)
Press the q button to enter setup.
(2)
Change language by pressing the  or  button.
(3)
Confirm with the q button.
 The device goes to the next Setup Page.
ALTAIR 5X MSHA
30
Operation
Time and Date Setup
This option is for setting the device time and date. The device first prompts to set the time and then it
prompts for the date.
NOTE: The time can be set up for either regular AM/PM or military time (through MSA Link software).
AM/PM time is the default setting.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Press the q button to enter setup.
Change hours by pressing the  or  button.
Increment through noon for PM hours.
Confirm with the q button.
Change minutes by pressing the  or  button.
Confirm with the q button.
 The device goes to the SET DATE Page.
Change month, date and year by pressing the  or  button and confirming with the q button.
 The device goes to the next Setup Page.
Confirm with the q button.
 The device goes to the next SETUP Page.
Setting Datalog Intervals
This option is for setting the intervals at which all the readings are logged.
(1)
Press the q button to enter setup.
(2)
Change interval by pressing the  or  button.
(3)
Confirm with the q button.
 The device goes to the next SETUP Page.
Setting Stealth Mode
Stealth mode disables the visual, audible and vibrating alarms.
(1)
Press the q button to change mode (ON/OFF).
(2)
Press the  button to go to the next page or the  button to return to the previous page.
Setting Operating Beep
(1)
Press the q button to change mode (ON/OFF).
(2)
Press the  button to go to the next page or the  button to return to the previous page.
Setting Display Contrast (monochrome display)
(1)
Press  or  button to adjust the contrast level.
(2)
Press q button to confirm the contrast level.
US
Setting Backlight
(1)
Press the q button to enter setup.
(2)
Change option by pressing the  or  button.
(3)
Press the q button to enter.
(4)
Change timeout by pressing the  or  button.
(5)
Press q button to confirm timeout.
Back To Main Menu
There are three options at this point:
the  button
the  button
the q button
Sensor Options menu
PREVIOUS SETUP Page in the Instrument Options menu
Instrument Options menu
ALTAIR 5X MSHA
31
Operation
3.5
MSA Link Operation
Connecting device to PC
(1)
Switch ON the device and align the Datalink Communication port on the device to the IR interface of the PC.
(2)
Start the MSA Link software on the PC and start the connection by clicking the connect icon.
NOTE: See MSA Link documentation for detailed instructions.
3.6
Function Tests on the Device
Alarm Test
(1)
Turn ON the device.
The user should verify that:
- alarm LEDs flash
- horn sounds briefly
- vibrating alarm triggers briefly.
3.7
Calibration Check
WARNING
Perform a Calibration Check before each day’s use to verify proper device operation. Failure to
perform this test can result in serious personal injury or death.
This test quickly confirms that the gas sensors are functioning. Perform a full calibration periodically to
ensure accuracy and immediately if the device fails the Calibration Check.
The GALAXY® GX2 Test System can also be used to perform a Calibration Check.
NOTE: The GALAXY® GX2 cannot test the following sensors: Chlorine Dioxide.
For these sensors, use this Calibration Check procedure.
3.7.1
3.7.2
Equipment
See section 6.2 for ordering information for these components.
- Calibration Check Gas Cylinder(s)
See section 5.4 for calibration gas target values and appropriate MSA calibration gas cylinders.
- Demand Flow Regulator(s)
- Tubing appropriate for the gases to be tested
- Kits containing tubing and regulators suitable for reactive and non-reactive gases are available
from MSA.
Performing a Calibration Check
The calibration check is simple and should only take about one minute.
Perform this calibration check before each day's use
For ALTAIR 5X IR units with combustible % Vol IR sensors, the following gas level should not be
exceeded when used for daily Calibration Checks:
IR Methane 100% Vol - 20% Methane Cal Check gas
(1)
Turn ON the device in clean, fresh air.
(2)
Verify that readings indicate no gas is present.
(3)
Attach demand regulator (supplied with calibration kit) to the cylinder.
(4)
Connect tubing (supplied with calibration kit) to the regulator.
(5)
Attach calibration tube to the ALTAIR 5X Multigas Detector pump inlet.
 The reading on the device display should be within the limits stated on the calibration
cylinder or limits determined by your company.
 If necessary, change cylinder to introduce other calibration gases.
 If readings are not within these limits, the device requires recalibration. See section 3.8.
If a device fails the Calibration Check, calibrate the device as described in section 3.8
ALTAIR 5X MSHA
US
32
Operation
3.8
Calibration
The ALTAIR 5X instrument can be calibrated either manually by using this procedure or automatically
by using the GALAXY® GX2 Test System. See section 3.9 for additional GALAXY® GX2 information.
The use of the demand regulators listed in section 6.2 is recommended.
If a new sensor has been installed, the battery pack has been depleted or a new battery pack has been
installed, allow sensors to stabilize for 30 minutes before calibration is performed.
WARNING
Special conditions with toxic gases!
If the device is to be checked or calibrate for reactive gases, prerequisites are required; otherwise,
incorrect calibration would result in incorrect device operation.
Reactive toxic gases (e.g., chlorine, ammonia, chlorine dioxide) have the property of diffusing into
the rubber and plastic tubes so that the volume of test gas available in the device would no longer
be sufficient to correctly perform device calibration.
When calibrating the device with toxic gases, certain prerequisites are required, otherwise incorrect
calibration could result:
- A special pressure regulator
- Shortest possible connection tubes between the pressure regulator and the device
- Connection tubes made from a material that does not absorb the test gases (e.g., PTFE).
NOTE: If using normal tubes and pressure regulators, expose them to the required test gas for an
extended time period. Keep these materials dedicated for use with that test gas only; do not use them
for other gases.
For example: for chlorine, allow the entire contents of a test gas cylinder to flow through the pressure
regulator and tubes before using to calibrate the device. Mark these materials for use with chlorine
only.
3.8.1
Zero Calibration
(1)
Press the  button for five seconds in NORMAL MEASUREMENT page.
 ZERO screen displays.
To skip the ZERO procedure and move directly to the span calibration procedure, push the  button.
If no button is pushed for 30 seconds, the device prompts user to
perform a SPAN calibration before device returns to the
NORMAL MEASUREMENT page.
To perform ONLY a Fresh Air Setup at this time, press the
q button. The device then performs a Fresh Air Setup as
described in section 3.2.2. When the Fresh Air Setup is complete,
the device returns to the normal Measure screen.
(2)
Press the  button to confirm the ZERO screen, i. e. to
execute zero calibration.
 The message "SENSOR REFRESH" displays,
followed by the message "ZERO CALIBRATION".
 The "REFRESH" message does not appear if a catalytic combustible sensor is not installed.
 ZERO calibration starts.
 A progress bar shows the user how much of the calibration has been completed.
NOTE: During the first moments of a ZERO calibration, the
combustible sensor reading may be replaced by a moving display
of “PLEASE WAIT”. This is normal.
ALTAIR 5X MSHA
US
33
Operation
 After the ZERO calibration is completed, the device
displays either
“ZERO CALIBRATION PASS”
or
“ZERO CALIBRATION FAIL”.
 Only if the device passes the zero calibration, the
SPAN screen displays.
3.8.2
Span Calibration
To skip the Span calibration procedure, push the  button.
NOTE: If the SPAN calibration of the combustible sensor is skipped after a successful ZERO calibration, the combustible sensor reading may be replaced with a moving display of “PLEASE WAIT”
for a few moments. This is normal and the device is fully operational once a combustible gas
reading reappears.
If no button is pushed for 30 seconds, span calibration is skipped.
Because of the different possible combinations of gases that are possible, skipping a Span calibration
could advance the user to the Span calibration of another installed sensor, or back to Measuring mode.
When calibrating with combustible gases > 100 % LEL, select the "Yes" option to prompt "Span Calibration?" BEFORE applying gas to the device.
(1)
(2)
(3)
Connect one end of tubing to the cylinder regulator
(supplied in the calibration kit).
Connect the other end of the tubing to the pump inlet.
US
Press the  button to calibrate (span) the device.
 “SPAN CALIBRATION“ flashes
 SPAN calibration starts.
 A progress bar shows the user how much of the calibration has already been completed.
ALTAIR 5X MSHA
34
Operation
 After the SPAN calibration is completed, the device
displays either
“SPAN CALIBRATION PASS”
or
“SPAN CALIBRATION FAIL”
 The device returns to Measuring mode.
If a sensor is nearing its end-of-life, the "PASS" display is followed by the Sensor Life indicator
 display.
- While the sensor is still fully functional, this warning gives the user time to plan for a replacement
sensor to minimize downtime.
- The  indicator blinks as the device returns to Measure mode.
- After 15 seconds, the blinking stops, but the  indicator continues to display during ongoing operations as a reminder of a sensor’s pending end-of-life.
If a span calibration fails:
- The Sensor Life Indicator  blinks to show a sensor has reached its end-of-life and should be
replaced.
- The device remains in the Sensor Life alarm condition until the  button is pressed.
- After the alarm is cleared, the device enters Measure mode and the Sensor Life indicator  blinks
during ongoing operations until the sensor is replaced and/or successfully calibrated.
Span calibration can fail for reasons other than a sensor at the end of its life. If a span calibration failure
occurs, verify items such as:
- sufficient gas remaining in the calibration cylinder
- gas expiration date
- integrity of calibration tubing/fittings, etc.
NOTE: Reattempt the span calibration before replacing the sensor.
3.8.3
Finishing Successful Calibration
Remove the calibration tube from pump inlet.
- The calibration procedure adjusts the span value for any sensor that passes the calibration test.
Sensors that fail calibration are left unchanged.
- In the ALTAIR 5X IR, a combustible IR sensor calibration causes the catalytic combustible sensor
to enter the LockAlarm condition.
-
-
A device with a % Vol methane IR sensor automatically recovers from LockAlarm. For other
devices, the Lock-Alarm state is cleared by turning the device OFF, then ON while in a fresh
air environment.
See section 2.9 for details.
Since residual gas may be present, the device may briefly go into an exposure alarm after the calibration sequence is completed.
-
US
Clear the alarm as necessary.
A  symbol displays on the MEASURE page.
This  symbol:
-
appears on the monochrome display in the lower right corner
remains on the display for 24 hours after the calibration
goes OFF after 24 hours.
ALTAIR 5X MSHA
35
Operation
3.9
Calibration with the GALAXY® GX2 Test System
3.10
Device Shutdown
The device can be calibrated using the GALAXY® GX2 Automated Test System - contact MSA for a
list of compatible gases and concentrations.
Similar to the successful (manual) calibration described in section 3.8.3, a  symbol displays on the
MEASURE page after successful GALAXY® GX2 calibration.
This  symbol :
- appears on the monochrome display in the lower right corner
- remains on the display for 24 hours after the calibration
- goes OFF after 24 hours.
For device shutdown press and hold the q button.
Fig. 10
Shutdown
The device displays a blinking "HOLD BUTTON FOR SHUTDOWN" and a progress bar shows the user
how much longer to hold the button to complete the shutdown.
US
ALTAIR 5X MSHA
36
Maintenance
4
Maintenance
If irregularities occur during operation, use the displayed error codes and messages to determine
appropriate next steps.
WARNING
Repair or alteration of the device beyond the procedures described in this manual or by anyone other
than a person authorized by MSA, could cause the unit to fail to perform properly. Use only genuine
MSA replacement parts when performing any maintenance procedures described in this manual.
Substitution or incorrect installation of components can seriously impair performance of the unit, alter
intrinsic safety characteristics or void agency approvals.
Failure to follow this warning can result in serious personal injury or death.
4.1
Troubleshooting
Error State
Details
Recommended Action
ERROR ADC
Analogue measurement error
Contact MSA
ERROR MEM
Memory error
Contact MSA
ERROR PROG
Program error
Contact MSA
ERROR RAM
RAM error
Contact MSA
Battery Warning repeats
every 30 seconds
Remove from service as soon as possible and
recharge or replace battery
Battery is completely discharged
Device is no longer sensing gas; remove from
service and recharge or replace battery.
LOW BATTERY
(flashing)
BATTERY
ALARM
Device does not
Battery fully discharged
turn ON
Remove from service as soon as possible and
recharge or replace battery pack
MISSING
SENSOR
Sensor damaged or missing
Replace sensor
NO SENSORS
No sensors are enabled
Device must have at least one sensor enabled
at all times
Sensor warning
Sensor is near its end-of-life
Sensor alarm
Sensor has reached end-of-life and cannot be
calibrated; replace sensor and recalibrate
PUMP ERROR
Pump malfunction or flow path
blockage
Check flowpath for blockage. If error persists,
remove from service.
INVALID
CONFIGURATION
Sensor(s) installed in incorrect
location.
Install sensors as shown in Fig. 13.
(flashing)
ALTAIR 5X MSHA
US
37
Maintenance
4.2
Verifying Pump Operation
Users can check operation of the sampling system any time during operation by blocking the sampling
system to generate a pump alarm.
When the pump inlet, sample line or probe is blocked, the pump alarm must activate.
Once gas readings are displayed, plug the free end of the sampling line or probe.
- The pump motor shuts down and an alarm sounds.
- "PUMP ERROR" flashes on the display.

Press the  button to reset the alarm and restart the pump.
If the alarm does not activate:
- Check the sample line and probe for leaks.
- Once leak is fixed, recheck pump alarm by blocking the flow.

Press the  button to reset the alarm and restart the pump.
WARNING
Do not use the pump, sample line, or probe unless the pump alarm activates when the flow is
blocked. Lack of an alarm is an indication that a sample may not be drawn to the sensors, which
could cause inaccurate readings. If a sample line or probe is installed and the pump alarm does not
activate, remove the line or probe and repeat the test. This will provide information on where the
blockage is located.
Failure to follow the above can result in serious personal injury or death.
Never let the end of the sampling line touch or go under any liquid surface. If liquid is drawn into the
device, readings will be inaccurate and device could be damaged. We recommend the use of an
MSA sample probe containing a special membrane filter, permeable to gas but impermeable to
water, to prevent such an occurrence.
During operation, a pump alarm may occur when the:
Flow system is blocked
Pump is inoperative
Sample lines are attached or removed.
-
To Clear Pump Alarm
(1)
Correct any flow blockage.
(2)
Press the  button.
 The Pump will now restart.
US
ALTAIR 5X MSHA
38
Maintenance
4.3
Replacing the Battery
WARNING
Never replace the battery in a hazardous area. This could result in an explosion.
Fig. 11
(1)
(2)
Battery Replacement
Unscrew the two captive screws on the rear of the device.
Pull the battery pack out of the device by gripping the sides and lifting it up and away from the
device.
US
Fig. 12
Battery Replacement
For alkaline battery packs (ALTAIR 5X only):
(3)
Remove the battery holder circuit board from the pack door.
(4)
Replace the 3 cells, using only those listed on the label.
 Be sure to observe proper polarity on the cells.
(5)
Place the battery holder circuit board back in the pack door, and re-install the door into the
device.
(6)
Tighten the two screws.
ALTAIR 5X MSHA
39
Maintenance
4.4
Live Maintenance Procedure - Sensor Replacement
Any factory-installed Series 20 sensor may be removed or replaced with a like type.
The user may not change the type of any sensor. If the type of any sensor (including the IR sensor) is
to be changed, the device must be returned to an authorized service center.
See figure 13 for sensor placement.
CAUTION
Before handling the PC board, ensure you are properly grounded; otherwise, static charges from
your body could damage the electronics. Such damage is not covered by the warranty. Grounding
straps and kits are available from electronics suppliers.
WARNING
Remove and re-install sensors carefully, ensuring that the components are not damaged; otherwise
device intrinsic safety may be adversely affected, wrong readings could occur, and persons relying
on this product for their safety could sustain serious personal injury or death.
CAUTION
While device case is open, do not touch any internal components with metallic/conductive objects or
tools. Damage to the device can occur.
2
1
3
Position #1
Position #2
Position #3
w/ Adapter
4
US
Position #4
Fig. 13
Possible positions for sensor replacement
1
Combustible sensor
3
NH3, CL2, SO2 sensor (position with adapter)
2
O2, CO-H2S sensor
4
CO-H2S sensor
ALTAIR 5X MSHA
40
Maintenance
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Verify that the device is turned OFF.
Remove the battery pack.
Remove the two remaining case screws, and remove the case front.
Gently remove the sensor to be replaced.
Carefully align the new sensor contact pins with the sockets on the printed circuit board.
Press the new sensor into place.
Note the position restrictions in the table above.
 Adapter (P/N 10110183) is required for XCell usage in Position #3.
 Ensure that a sensor plug is properly installed in any position that does not have a sensor.
 The plug for XCell positions is P/N 10105650.
 The Series 20 plug is P/N 10088192.
SENSOR
OPERATIONAL ONLY IN POSITION
XCell combustible sensor
#1
XCell O2 sensor
#2
XCell CO-H2S Two-tox sensor
#2 or #4
XCell SO2, Cl2, NH3
#3 or #4
XCell CO-HC
#4
Series 20 sensor
#3
(8)
Re-install the sensor gasket in the case front.
(9)
Re-install the front case, screws, and battery pack.
If a change in XCell Sensor configuration is detected during the device turn-ON process:
- The "ACCEPT?" prompt appears on the display
- The  button accepts the sensor configuration
- The  button rejects the sensor configuration; the device is not operational.
When an XCell sensor is replaced, the device automatically enables the sensor after the change has
been accepted. If a Series 20 sensor is replaced, it must be manually enabled (see section 3.4.3).
If the oxygen sensor was replaced, see section 3.2.3 regarding the oxygen reading display.
(10) After installation of new sensors, allow them to stabilize at least 30 minutes before calibration.
(11) Calibrate device before use.
US
WARNING
Calibration is required after a sensor is installed; otherwise, the device will not perform as expected
and persons relying on this product for their safety could sustain serious personal injury or death.
ALTAIR 5X MSHA
41
Maintenance
4.5
Replacing the Pump Filter
(1)
(2)
(3)
(4)
Turn OFF the device.
Unscrew the two captive screws from the clear filter cover on the back of the device to access
the filter.
Carefully lift out the O-ring and the filter disk.
Use both the paper-like filter and the fibrous dust filter (the thicker disk) as supplied in Maintenance Kit (P/N 10114949) if the device is NOT configured to use a reactive toxic gas sensor
(does not have a Cl2, ClO2, or NH3 sensor).
Use ONLY the paper filter supplied in the Reactive Gas Maintenance Kit (P/N 10114950) if the
device IS configured to use a reactive toxic gas sensor (Cl2, ClO2, or NH3).
Place the new paper-like filter into the recess in the back of the device. If it is to be used, place
the fibrous dust filter into the clear filter cover.
CAUTION
Use of the fibrous dust filter or the incorrect paper filter for the measurement of reactive gases could
cause erroneous readings.
(5)
(6)
4.6
Replace the O-ring in the recess.
Re-install the clear filter cover on the back of the device.
Cleaning the Device Exterior
Clean the exterior of the device regularly using only a damp cloth. Do not use cleaning agents as many
contain silicones which will damage the combustible sensor.
4.7
Storage
When not in use, store the device in a safe, dry place between 65 °F (18 °C) and 86 °F (30 °C). After
storage, always recheck device calibration before use. If not to be used in 30 days, remove battery
pack or connect it to a charger.
4.8
Shipment
Pack the device in its original shipping container with suitable padding. If the original container is
unavailable, an equivalent container may be substituted.
US
ALTAIR 5X MSHA
42
Technical Specifications/Certifications
5
Technical Specifications/Certifications
5.1
Technical Specifications
Weight
1 lb. (0.45 kg) - device with battery and clip (ALTAIR 5X unit)
Weight (with IR Sensor)
1.1 lb. (0.5 kg)
Dimensions (cm)
6.69" H x 3.49" W x 1.79" D without belt clip (ALTAIR 5X unit)
Dimensions (cm)
(with IR Sensor)
6.68" H x 3.52" W x 1.92" D
Alarms
LEDs, audible alarm, vibrating alarm
Volume of audible alarm
95 dB typical
Displays
Monochrome
Battery types
Rechargeable Li ION battery
Replaceable AA alkaline (ALTAIR 5X only)
Charging time
 6 hours
The maximum safe area charging voltage; Um = 6.7 Volts DC
Normal Temperature range
14 °F to 104 °F (-10 °C to 40 °C)
Extended Temperature range
-4 °F to 122 °F (-20 °C to 50 °C) Monochrome display
-4 °F to 104 °F (-20 °C to 40 °C) for devices with ClO2 sensors
Short Term Operations (15
minutes) temperature range
-40°F to 122°F (-40°C to 50°C)
Humidity range
15-90 % relative humidity, non-condensing,
5-95 % RH intermittent
Atmospheric pressure range 11.6 to 17.4 PSIA (80 to 120 kPA)
Ingress protection
IP 65
Measuring methods
Combustible gases - Catalytic or Infrared sensor
Oxygen and Toxic gases - Electrochemical or Infrared sensor
Warranty
See section 1.4
US
Measuring Range
CIO2
0-1.00 ppm
NH3
0-100 ppm
Cl2
0-10 ppm
NO
0-200 ppm
CO
0-2000 ppm
NO2 (S20)
0-20.0 ppm
CO - HC
0-10,000 ppm
NO2 (XCell)
0-50.0 ppm
Combustible
0-5.00 % CH4
O2
0-30 % Vol.
H2S
0-200 ppm
PH3
0-5.00 ppm
H2S - LC
0-100 ppm
PID
0-2000 ppm
HCN
0-30 ppm
SO2
0-20.0 ppm
ALTAIR 5X MSHA
43
Technical Specifications/Certifications
5.2
Factory-set Alarm Thresholds and Setpoints
Sensor
LOW alarm
HIGH alarm
SETPOINT
min
SETPOINT
max
STEL
TWA
COMB
0.5 % CH4
1 % CH4
0.1 % CH4
3 % CH4
--1
--1
25 ppm
CO
25 ppm
100 ppm
10 ppm
1700 ppm
100 ppm
H2S
10 ppm
15 ppm
5 ppm
175 ppm
15 ppm
10 ppm
H2S-LC
5 ppm
10 ppm
1 ppm
70 ppm
10 ppm
1 ppm
O2
19.5 %
23.0 %
5.0 %
24.0 %
--1
--1
SO2
2.0 ppm
5.0 ppm
2.0 ppm
17.5 ppm
5.0 ppm
2.0 ppm
NO
25
100
10
200
25
25
NO2
2.0 ppm
5.0 ppm
1.0 ppm
17.5 ppm
5.0 ppm
2.0 ppm
NO2 (XCell)
2.5 ppm
5.0 ppm
1.0 ppm
47.5 ppm
5.0 ppm
2.5 ppm
NH3
25 ppm
50 ppm
10 ppm
75 ppm
35 ppm
25 ppm
PH3
0.3 ppm
1.0 ppm
0.3 ppm
3.75 ppm
1.0 ppm
0.3 ppm
Cl2
0.5 ppm
1.0 ppm
0.3 ppm
7.5 ppm
1.0 ppm
0.5 ppm
ClO2
0.1 ppm
0.3 ppm
0.1 ppm
0.9 ppm
0.3 ppm
0.1 ppm
HCN
4.5 ppm
10.0 ppm
2.0 ppm
20.0 ppm
10 ppm
4.5 ppm
IR - CO2
(10 % Vol)
0.5 %Vol
1.5% Vol
0,2 % Vol
8 % Vol
0.5 % Vol
1.5 % Vol
--2
--2
--2
--1
--1
IR - Methane 2
-(100 % Vol)
1
STEL and TWA not applicable for combustible and oxygen gases.
No alarm thresholds are possible for the 0-100 % Vol Methane sensor. In environments with >100 %
LEL combustible gas present, devices with a catalytic combustible LEL sensor will be in a latching
over-range alarm, and the 100 % Vol IR sensors will display the % Vol gas reading.
2
US
ALTAIR 5X MSHA
44
Technical Specifications/Certifications
5.3
Performance Specifications
Sensor
Range
Resolution
Reproducibility
Response time
Combustible (LEL)
0-5 % CH4
0.05 Vol %
CH4
Normal temp range:
±0.10 % CH4, 0.00 % CH4
±0.15 % CH4, 0.25 % CH4
±0.15 % CH4, 0.50 % CH4
±0.20 % CH4, 1.00 % CH4
±0.20 % CH4, 2.00 % CH4
±0.30 % CH4, 3.00 % CH4
±0.30 % CH4, 4.00 % CH4
±0.30 % CH4, 4.50 % CH4
90 % of final
reading
< 10 seconds
(Methane) (normal
temp. range)
Oxygen
0-30 % O2*
0.1 % O2
0.7 % O2 for 0-30 % O2
t(90) < 10 sec
0.7 % O2 for O2  15 % (MSHA (normal temp.)
version only)
0.5 % O2 for
O2 15 %<O2<30 %
(MSHA version only)
Carbon
Monoxide
0-2000 ppm CO
1 ppm CO
Normal temp. range:
t(90) < 15 sec
±5 ppm CO or 10 % of reading, (normal temp.)
whichever is greater
Hydrogen
Sulfide
0-200 ppm H2S
Extended temp. range:
±10 ppm CO or 20 % of
reading, whichever is greater
t(90) < 15 sec
(normal temp.)
1 ppm H2S,
Normal temp. range:
for 3-200 ppm ±2 ppm H S or 10 % of
2
H2S
reading, whichever is greater
t(90) < 15 sec
(normal temp.)
Extended temp. range:
±20 ppm H2S or 20 % of
reading, whichever is greater
IR Sensors
US
Sensor
Range
Resolution
Reproducibility of
the zero point
Response
Reproducibility of the time at
20 °C
measured value1)
t90
Carbon
Dioxide
0-10 % Vol
0.01 % Vol
 ± 0.01 % Vol
 ±4 %
 35 s
Methane
0-100 % Vol 1 % Vol
 ± 5 % Vol
 ±2% Vol or ±10% of
reading, whichever is
greater
 34 s
ALTAIR 5X MSHA
45
Technical Specifications/Certifications
Additional Toxic Sensors
Sensor
Cl2
Chlorine
ClO2
Chlorine
dioxide
Range
(ppm)
Reproducibility
Resolution (ppm) Normal temperature Extended temp.
range:
range:
Nominal
response*
0-10
0.05
±0.2 ppm or 10 %
of reading,
whichever is greater
±0.5 ppm or 20 %
of reading,
whichever is greater
t(90) < 30 s
0-1
0.01
±0.1 ppm or 10 %
of reading,
whichever is greater
±0.2 ppm or 20 %
of reading,
whichever is greater
t(90) < 2 min
5
±5 ppm or 10 %
of reading,
whichever is greater
±10 ppm or 20 %
of reading,
whichever is greater
t(90) < 15 s
CO-HC Carbon
0-10000
Monoxide
H2S-LC
Hydrogen
Sulfide
0-100
0.1
±0.2 ppm or 10 %
of reading,
whichever is greater
±0.5 ppm or 20 %
of reading,
whichever is greater
t(90) < 15 s
HCN
Hydrogen
cyanide
0-30
0.5
±1 ppm or 10 %
of reading,
whichever is greater
±2 ppm or 20 %
of reading,
whichever is greater
t(90) < 30 s
0-100
1
±2 ppm or 10 %
of reading,
whichever is greater
±5 ppm or 20 %
of reading,
whichever is greater
t(90) < 40 s
NO2
Nitrogen
dioxide (S 20)
0-20
0.1
±2 ppm or 10 %
of reading,
whichever is greater
±3 ppm or 20 %
of reading,
whichever is greater
t(90)< 40 s
NO2
Nitrogen
dioxide (XCell)
0-50
0.1
±1 ppm or 10 %
of reading,
whichever is greater
±2 ppm or 20 %
of reading,
whichever is greater
t(90)< 15 s
NO
Nitric oxide
0-200
1
±5 ppm or 10 %
of reading,
whichever is greater
±10 ppm or 20 %
of reading,
whichever is greater
t(90)< 40 s
PH3
Phosphine
0-5
0.05
±0.2 ppm or 10 %
of reading,
whichever is greater
±0.25 ppm or 20 %
of reading,
whichever is greater
t(90)< 30 s
SO2
Sulfur dioxide
0-20
0.1
±2 ppm or 10 %
of reading,
whichever is greater
±3 ppm or 20 %
of reading,
whichever is greater
t(90) < 20 s
NH3
Ammonia
US
* Response time is for normal temperature range with sensor in position #3
ALTAIR 5X MSHA
46
Technical Specifications/Certifications
5.4
Calibration Specifications
See section 6.1 for MSA gas cylinder part numbers.
Sensor
Zero Gas
COMB Methane (0-5 % Vol) Fresh Air
Span Cal
Zero Cal
Value**
Span Cal Gas
Value
Time
(min)
0
2.5 % Vol Methane 2,5 %
1
Fresh Air
20.8 %
15 % O2
15 %
1
CO
Fresh Air
0
60 ppm CO
60 ppm
1
H2S
Fresh Air
0
20 ppm H2S
20 ppm
1
SO2
Fresh Air
0
10 ppm SO2
10 ppm
1
Cl2
Fresh Air
0
10 ppm Cl2
10 ppm
2
O2
NO
Fresh Air
0
50 ppm NO
50 ppm
4
NO2
Fresh Air
0
10 ppm NO2
10 ppm
2
NH3
Fresh Air
0
25 ppm NH3
25 ppm
2
PH3
Fresh Air
0
0.5 ppm PH3
0.5 ppm
1
HCN
Fresh Air
0
10 ppm HCN
10 ppm
4
**ClO2
Fresh Air
0
2 ppm Cl2
0.8 ppm
6
IR CO2 (10 % Vol)
Fresh Air
0.03 %
2.5 % CO2
2.5 %
2
IR Methane (100 % Vol)
Fresh Air
0
50 % Vol Methane
50 % Vol
2
Span values can be changed if using different gas cylinders than those listed. Changes can be made
using MSA Link software.
*See section 5.6.
**For most accurate results, calibration with ClO2 is recommended.
***Zero cal time is one minute if a catalytic combustible or an IR sensor is installed - 30 seconds if not.
5.5
Certifications
See device label for the certifications that applies to your specific device.
USA (Mining)
5.6
US
MSHA 30 CFR Part 22, Methane Detector.
Approved for 30 CFR Part 75 Determination testing for methane and oxygen
deficiency
XCell Sensor Patents
Sensor
Part No.
Patent Status
Combustible
10106722
Patent Pending
Oxygen
10106729
Patent Pending
Carbon Monoxide / Hydrogen Sulfide
10106725
Patent Pending
Ammonia
10106726
Patent Pending
Chlorine
10106728
Patent Pending
Sulphur Dioxide
10106727
Patent Pending
ALTAIR 5X MSHA
47
Order Information
6
Order Information
6.1
Gas Cylinder Parts List
#
Gas Mix
Gases
MSA P/N
ECONORP (58 L)
CAL (34 L)
Recommended
CAL Gas for:
1
10 % CO2 in N2
1
50 % Vol Methane in N2 (103L)
10081603
10075804
1
100 % Vol Methane
711014
1
10 ppm NO2 in Air
1
10 ppm SO2 in Air
711070
808978
SO2 sensor
1
25 ppm NH3 in N2
711078
814866
NH3 sensor
1
10 ppm Cl2 in N2
711066
806740
Cl2 sensor
1
2 ppm Cl2 in N2
711082
10028080
ClO2 sensor
1
10 ppm HCN in N2
711072
809351
HCN sensor
1
0.5 ppm PH3 in N2
711088
710533
PH3 sensor
3
2.50 % CH4, 15.0 % O2,
20 ppm H2S
10048888
10048889
3
2.50 % CH4, 15.0 % O2,
60 ppm CO
10049056
813718
4
2.50 % CH4, 15.0 % O2,
60 ppm CO, 20 ppm H2S
10048981
10048890
4
2.50 % CH4, 15.0 % O2,
60 ppm CO, 10 ppm NO2
10058172
711068
808977
100 % Vol Methane IR
NO2 sensor
US
ALTAIR 5X MSHA
48
Order Information
6.2
Accessories Parts List
Description
Part No.
Calibration Accessories
Demand Regulator Kit
710288
Cl2/NH3/ClO2 Demand Regulator Kit
10034391
Interface & Carrying Accessories
MSA Link USB dongle
10082834
MSA Link Datalogging Software
10088099
Shoulder Strap
474555
Retractable Line with Belt Clip
10050976
Holster, leather
10099648
Charging Accessories
Charger only (North America)
10087913
Charging Cradle with Barrier- (North America)
10093055
Charging Cradle - (North America)
10093054
Vehicle Charger Cradle
10099397
Cradle Only - (no charger)
10093053
4-Unit Multi-Unit Charger NA Plug
10127427
Sample Lines & Probes
Probe, 1 ft. straight PEEK
10042621
Probe, 3 ft. straight PEEK
10042622
Polyurethane Sample Line, 10 ft.
10040665
Polyurethane Sample Line, 25 ft.
10040664
Polyurethane Sample Line, 3 ft. Coiled
10040667
(Cl2, ClO2, NH3) 5 ft.PU Coiled Sample line & probe, kit
10105210
(Cl2, ClO2, NH3) 5 ft. PU Sample line & probe, kit
10105251
(Cl2, ClO2, NH3) 10 ft. Teflon Sample line & probe, kit
10105839
Replacement Filters for probe, 10 pack
US
801582
ALTAIR Hand Probe
10153041
Quick Connector, ALTAIR Hand Probe
10161755
Sampling line, 5ft, PU, non-conductive
10153217
Sampling line, 10ft, PU, non-conductive
10153218
Sampling line, 15ft, PU, non-conductive
10153219
ALTAIR 5X MSHA
49
Order Information
6.3
Device Replacement Parts
7
9
8
6
5
US
4
2
3
ALTAIR 5X MSHA
50
Order Information
No.
Description
Part No.
1
Case assembly, upper, with label
10114853
2
Battery pack, rechargeable, MSHA, ALTAIR 5X
10147308
Battery pack, alkaline, MSHA, ALTAIR 5X
10114837
Battery pack, rechargeable, MSHA, ALTAIR 5X IR
10147309
Kit, belt clip replacement, (ALTAIR 5X rechargeable)
10094830
Kit, maintenance (includes filters, o-ring, screws)
10114949
Kit, maintenance, reactive gas (Cl2, ClO2, NH3)
(includes filters, o-ring, screws)
10114950
4
Filter cover assembly
10083591
5
Display assembly, monochrome
10111389
6
Sensor bracket assembly with pump, ALTAIR 5X
(includes vibrator motor)
10114804
Sensor bracket assembly with pump, ALTAIR 5X IR
(includes vibrator motor)
10114805
3
7
Kit, pump cap replacement
10114855
8
Sensor, HCN (Series 20)
10106375
XCell Sensor, Cl2
10106728
9
Sensor, ClO2 (Series 20)
10080222
XCell Sensor, SO2
10106727
Sensor, NO2 (Series 20)
10080224
XCell Sensor, NH3
10106726
Sensor, PH3 (Series 20)
10116638
XCell Sensor, COMB
10121212
XCell Sensor, O2
10106729
XCell Sensor, CO-H2S, Two-Tox
10106725
XCell Sensor, CO/ NO2
10177766
XCell Sensor, CO-HC
10121216
XCell Sensor, H2S-LC/CO
10121213
XCell Sensor, CO-H2 Res/H2S
10121214
Sensor, NO (Series 20)
10114750
XCell Sensor plug
10105650
20 mm sensor plug
10088192
XCell adapter socket
10110183
ALTAIR 5X MSHA
US
51
Order Information
Description
Part No.
IR sensors – must be repaired or replaced at a Certified Service Center
CO2
0-10 % Vol
10145738-SP
CH4
0-100 % Vol (Methane)
10145752-SP
US
ALTAIR 5X MSHA
52
Flow Charts
7
Flow Charts
7.1
Basic Operation
TURN-ON OR
BATTERY
ATTACH
PUMP TEST
SENSOR
DISCOVERY
SENSOR AND
CALIBRATION
INFORMATION
FRESH AIR
SETUP ? *
BUMP TEST /
INFORMATIONAL
PAGES
Press
MAIN
MEASURE
PAGE
CALIBRATE
Hold
US
For 5
seconds
Hold
For 5
seconds
InstantAlertTM *
Hold
and
Simultaneously
for 2 seconds
Hold
For 5
seconds
SETUP
TURN OFF
* IF ENABLED
ALTAIR 5X MSHA
53
Flow Charts
7.2
Bump Test / Informational Pages
BUMP TEST /
INFORMATIONAL
PAGES
PERFORM
SENSOR
BUMP TEST
BUMP
TEST?
Press
Press
MAIN
MEASURE
PAGE
Press
PEAK *
Press
Press
RESET
PEAK
Press
MIN
Press
Press
RESET
MIN
Press
STEL *
Press
Press
RESET
STEL
US
Press
MAIN
MEASURE
PAGE
TWA *
Press
Press
RESET
TWA
* IF ENABLED (NOT VALID FOR
ALL SENSORS)
ALTAIR 5X MSHA
54
Flow Charts
Continued
DATE
Press
Press
LAST CAL
DATE *
Press
Press
CAL DUE
DATE *
Press
Press
Press
MOTION
ALERT
STATUS *
Press
TOGGLE
ON /OFF
Press
TOGGLE
ON /OFF
Press
WIRELESS **
Press
US
Press
MAIN
MEASURE
PAGE
* IF ENABLED
** IF WIRELESS IS INSTALLED
ALTAIR 5X MSHA
55
Flow Charts
7.3
Calibrations
CALIBRATE
PASSWORD ?
(IF REQUIRED)
ZERO
CALIBRATION
PASSWORD
FAIL
ZERO CAL ?
Press
Press
PERFORM
FRESH AIR
SETUP
Press
SPAN
CALIBRATION
SPAN CAL ?
Press
(REPEATS AS
NECESSARY)
Press
MAIN
MEASURE
PAGE
ALTAIR 5X MSHA
US
56
Flow Charts
7.4
Setup
SETUP
PASSWORD
FAIL
ENTER
PASSWORD
CALIBRATION
OPTIONS ?
Press
CALIBRATION
OPTIONS
Press
ALARM
OPTIONS ?
Press
ALARM
OPTIONS
Press
INSTRUMENT
OPTIONS ?
Press
INSTRUMENT
OPTIONS
US
Press
EXIT ?
Press
MAIN
MEASURE
PAGE
ALTAIR 5X MSHA
57
Flow Charts
7.5
Calibration Options
CALIBRATION
OPTIONS
CYLINDER
SETTINGS
Press
SET SPAN
GAS FOR
EACH
SENSOR
Press
CALIBRATION DUE
Press
ON / OFF,
SET # OF
DAYS
Press
SHOW LAST CAL
DATE AT STARTUP
Press
TOGGLE
ON / OFF
Press
PASSWORD
PROTECTED
CALIBRATION
Press
TOGGLE
ON / OFF
US
Press
BACK TO SETUP ?
Press
RETURN TO
SETUP
ALTAIR 5X MSHA
58
Flow Charts
7.6
Alarm Options
ALARM
OPTIONS
VIBRATOR
Press
TOGGLE
ON/OFF
Press
HORN
Press
TOGGLE
ON/OFF
Press
ALARM LEDS
Press
TOGGLE
ON/OFF
Press
USER ACCESS TO
MOTION ALERT
Press
TOGGLE
ON/OFF
Press
US
SENSOR
ALARM SETUP
SENSOR ALARMS ?
Press
Press
BACK TO SETUP ?
Press
RETURN TO
SETUP
ALTAIR 5X MSHA
59
Flow Charts
7.7
Sensor Alarm Setup
SENSOR
ALARM
SETUP
Press
SETUP
LOW
ALARMS ?
Press
MODIFY LOW
ALARMS FOR
ALL
SENSORS
Press
MODIFY HIGH
ALARMS FOR
ALL
SENSORS
Press
MODIFY
STEL
ALARMS
Press
MODIFY
TWA
ALARMS
Press
Press
SETUP
HIGH
ALARMS ?
Press
Press
SETUP
STEL
ALARMS ?
Press
Press
SETUP
TWA
ALARMS ?
US
Press
RETURN
TO ALARM
OPTIONS
NOTE: STEL AND TWA AR E NOT
VALID FOR ALL SENSORS
ALTAIR 5X MSHA
60
Flow Charts
7.8
Instrument Options
INSTRUMENT
OPTIONS
SENSOR SETUP
Press
SENSOR
SETUP
Press
LANGUAGE
SELECT
Press
Press
TIME / DATE
Press
SET
HH:MM
MM:DD:YY
Press
DATALOG
INTERVAL
Press
US
SET
MM:SS
Press
STEALTH MODE
Press
TOGGLE
ON/OFF
Press
ALTAIR 5X MSHA
61
Flow Charts
Continued
OPERATING BEEP
Press
TOGGLE
ON/OFF
Press
CONTRAST
(MONO ONLY)
ADJUST
Press
Press
BACKLIGHT
Press
ON / OFF
TIMEOUT
PERIOD
US
Press
BACK TO SETUP ?
Press
RETURN TO
SETUP
ALTAIR 5X MSHA
62
Flow Charts
7.9
Sensor Setup
SENSOR
SETUP
COMB
SENSOR **
Press
Press
Press
TOGGLE
SENSOR
ON/OFF
Press
TOGGLE
SENSOR
ON/OFF
Press
TOGGLE
SENSOR
ON/OFF
Press
TOXIC
SENSOR **
(REPEATS AS
NECESSARY)
SHOW
STATUS
Press
SHOW
STATUS
Press
Press
IR
SENSOR **
Press
RETURN TO
DEVICE
OPTIONS
Press
SHOW
STATUS
US
Press
** IF INSTALLED
ALTAIR 5X MSHA
63
Changeable Feature Summary
8
Changeable Feature Summary
Feature
Initial
Setting
Setup Path to Change
this Setting
See
sections:
Change
with MSA
link?
Setup Password
672
No
3.4
Yes
Vibrating Alarm
ON
ALARM OPTIONS
2.2.3, 3.4.2
Yes
Horn Alarm
ON
ALARM OPTIONS
2.2.3, 3.4.2
Yes
LED Alarm
ON
ALARM OPTIONS
2.2.3, 3.4.2
Yes
Safe LED (green)
ON
No
2.2.3
Yes
Operating Beep (alarm LEDs &
OFF
horn)
INSTRUMENT OPTIONS 2.2.3, 3.4.3
Yes
Stealth
OFF
INSTRUMENT OPTIONS 2.2.3, 3.4.3
No
MotionAlert - Access
Allowed
ALARM OPTIONS
2.4.9, 3.4.2
No
MotionAlert
OFF
Use  button from
MEASURE page
2.2.3
No
Sensor Alarm Levels
See section ALARM OPTIONS /
2.6, 2.7, 2.8,
5.4
SENSOR ALARM SETUP 3.4.2
Yes
Enable / Disable High & Low
Alarms
Enabled
No
Yes
Turn Sensors ON / OFF
ON
INSTRUMENT OPTIONS
2.6, 2.7, 3.4.3 Yes
/ SENSOR SETUP
Show Peak
ON
No
2.4.2
Yes
Show STEL, TWA
ON
No
2.4.4, 2.4.5
Yes
Cal Cylinder Setup
See section
CAL OPTIONS
5.3
3.4.1
Yes
Yes
2.6, 2.7, 2.9
Show Last Cal Date
ON
CAL OPTIONS
2.4.7, 3.4.1
Show Cal Due
ON
CAL OPTIONS
2.4.8, 3.4.1
No
Cal Password Required
Not req‘d.
CAL OPTIONS
3.4.1
No
Backlight
Enabled
2.2.3, 3.4.3
No
Backlight Duration
10 secs
INSTRUMENT OPTIONS 3.4.3
Yes
Display Contrast
Factory-set
INSTRUMENT OPTIONS 3.4.3
No
Language
User-set
INSTRUMENT OPTIONS 3.4.3
No
Date, Time
User-set
INSTRUMENT OPTIONS 3.4.3
Yes
Datalog Interval
3 min
INSTRUMENT OPTIONS 3.4.3
Yes
Device S/N
Factory-set
No
3.2
Yes
Company Name
Blank
No
3.2
Yes
Dept./User Name
Blank
No
3.2
Yes
ALTAIR 5X MSHA
US
64
For local MSA contacts, please visit us at MSAsafety.com
Because every life has a purpose...
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
