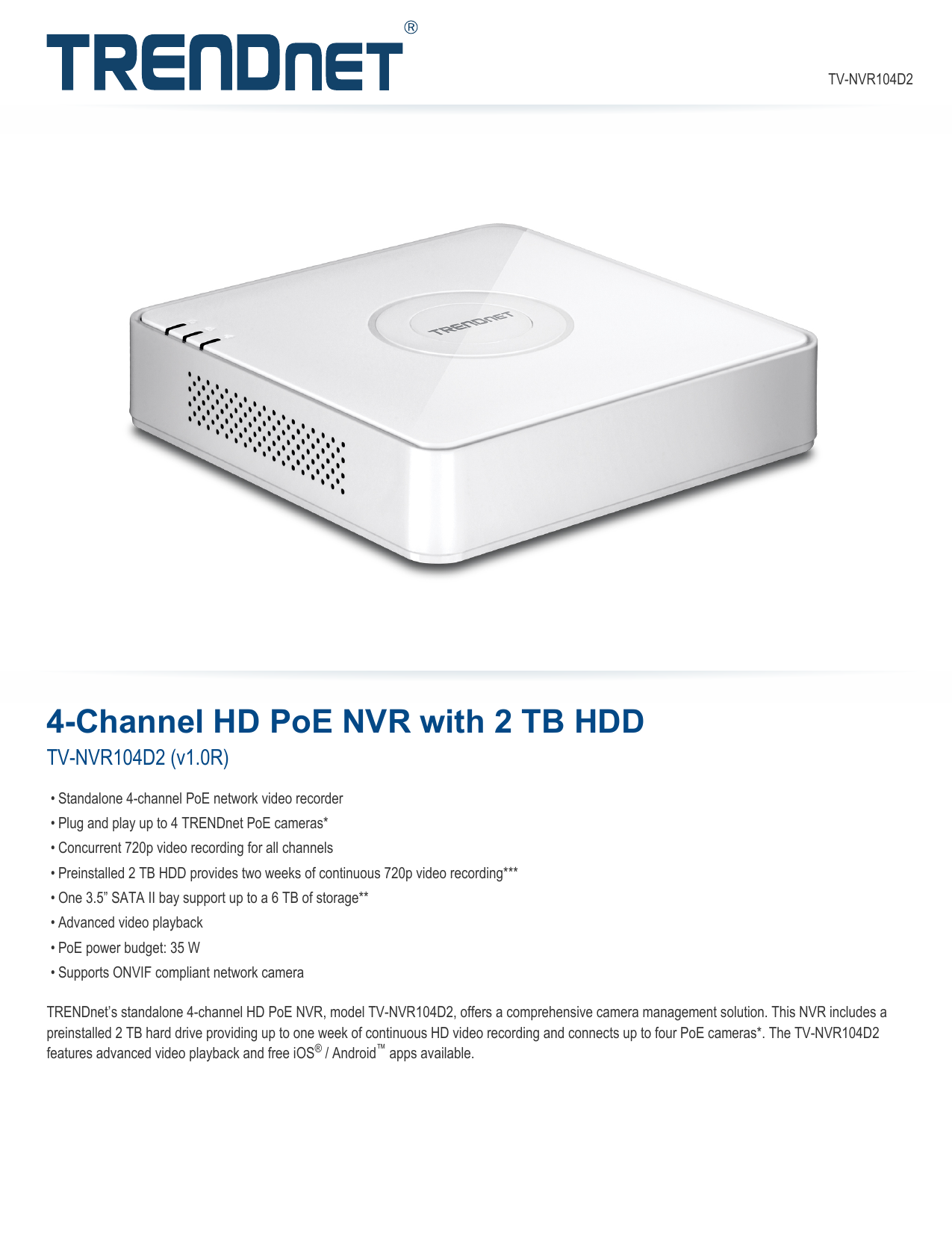

TRENDnet TV-NVR104D2 4-Channel HD PoE NVR Datasheet

TV-NVR104D2
4-Channel HD PoE NVR with 2 TB HDD
TV-NVR104D2 (v1.0R)
• Standalone 4-channel PoE network video recorder
• Plug and play up to 4 TRENDnet PoE cameras*
• Concurrent 720p video recording for all channels
• Preinstalled 2 TB HDD provides two weeks of continuous 720p video recording***
• One 3.5” SATA II bay support up to a 6 TB of storage**
• Advanced video playback
• PoE power budget: 35 W
• Supports ONVIF compliant network camera
TRENDnet’s standalone 4-channel HD PoE NVR, model TV-NVR104D2, offers a comprehensive camera management solution. This NVR includes a
preinstalled 2 TB hard drive providing up to one week of continuous HD video recording and connects up to four PoE cameras*. The TV-NVR104D2
features advanced video playback and free iOS® / Android™ apps available.
TV-NVR104D2
Standalone HD NVR
This standalone 720p HD NVR includes a
preinstalled 2 TB hard drive and supports a
total storage capacity of up to 6 TB and powers
up to four PoE network cameras-HDDs,
cameras, and display sold separately.
Networking Solution
Plug-and-Play Installation
The NVR auto-recognizes and powers
TRENDnet PoE cameras* – simply connect
compatible TRENDnet PoE cameras and start
recording surveillance video.
Intuitive Interface
Users will find the management interface
intuitive and easy to use – quickly navigate live
view preferences, recording schedules, and
advanced playback options.
TV-NVR104D2
Hardware
PoE Ports
Plug and play TRENDnet PoE network cameras* to
the four PoE ports with a total power budget of 35 W
Storage
One 3.5” SATA II bay with preinstalled 2 TB HDD –
upgradeable to 6 TB of total storage**
Network Uplink Port
Gigabit Ethernet network uplink port
Display Interface
HDMI and VGA interfaces
Audio Ports
Audio in and out ports
USB Ports
One USB port for the included mouse and one for
configuration backup and firmware upgrade
Management
Mobile App
See live video on a mobile device with the free iOS®
and Android ™ apps
Remote Access
Access the NVR over the internet
Camera Setup
Auto-recognizes TRENDnet cameras* and works with
most PoE network cameras
Live View
Multiple camera viewing options with auto-scan
function
Camera Management
For each camera, manage on-screen display (OSD),
image settings, PTZ functionality, motion detection,
privacy masks, tamper detection, and video loss
Video Recording
• Max. resolution for all cameras concurrently: Full
HD 720p video at 30 fps in H.264 compression
• Max. for a single camera: 1080p resolution in
H.264 compression
Recording Time
• Two weeks of continuous recording per camera
with preinstalled 2 TB HDD and 4 x 720p cameras
at 30 fps (medium VBR)
• Four weeks of continuous recording per camera
with 6 TB of storage (HDDs sold separately) and
4 x 720p cameras at 30 fps with medium VBR
Scheduled Recording
Create weekly continuous and motion detection
recording schedules for each camera with video
overwrite when storage is full
Advanced Playback
Advanced archived video playback with a quick
reference timeline and calendar
Video Export
Quickly export and archive recorded video
Dynamic DNS Support
Support for dyn.com and NO-IP.com
IPv6
IPv6 support
ONVIF
Supports ONVIF compliant network camera
TV-NVR104D2
Specifications
Video Input
• 4 PoE channels
• Consumption: 50 watts (with HDD and Max. PoE
PD)
• PoE power budget: 35 watts
Video Output
• HDMI and VGA display outputs
• Resolution: 1920 x 1080 (1080p), 1280 x 1024,
1280 x 720 (720p), 1024 x 758 @ 60Hz
Operating Temperature
• -10 - 55 °C (14 - 131 °F)
Operating Humidity
• Max. 95% non-condensing
Audio
• Analog audio in / out (1.0 Vp-p, 1kΩ)
Certifications
• CE
• FCC
Storage
• One 3.5" SATA I / II HDD or SSD up to 6 TB
storage
Dimensions
• 205 x 198 x 45 mm (8.1 x 7.8 x 1.8 in.)
Network Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3af
Weight
• 1.3 kg (3 lb.)
Management Interface
• Live view: Single camera or quad-view
• Camera management*:
◦ On screen display: camera name, date, week,
and date format
◦ Image quality: brightness, contrast, saturation,
hue, mirror
◦ PTZ: pan, tilt, zoom, focus, iris, preset points,
pattern, cruise, patrol
◦ Motion detection: define custom motion
detection areas, motion sensitivity, and
triggering channels
◦ Privacy masks: define custom privacy mask
areas
◦ Video tamper detection: trigger actions if the
viewing field darkens suddenly
◦ Video loss detection: trigger actions if the
setup video is lost
• Scheduled recording: continuous and motion
detection
• Video recording: Record up to Full 720p HD video
• Holiday scheduling for custom recording schedules
during observed holidays
Device Interface
• 10/100 Mbps network port
• 4 x 10/100 Mbps PoE camera network ports
• 1 x 2 TB HDD
• 2 x USB 2.0 ports
• HDMI port
• VGA port
• Analog audio in port
• Analog audio out port
• Power port
• LED indicators (Power, Storage, and Network)
• Grounding point
Network Protocol
• IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
• DHCP, NTP, DNS, DDNS, SMTP, FTP
• HTTP, UPnP, RTSP, RTP, RTCP
Power
• Input: 100 – 240 V AC, 50 / 60 Hz, 1.5 A
• Output: 48 V DC, 1 A
• Advanced playback: playback multiple channels
simultaneously and search video recordings with
special event or tag
• Video export: tag, cut, and export video clips
• HDD: Encoded disk formatting, S.M.A.R.T. disk
health monitoring and testing, bad sector detection,
storage quota allocation to each video channel,
recycle old recordings or send disk full warning to
administrator by email
• USB external storage: firmware upgrade, import /
export configuration file and logs, export recorded
video files, search and playback videos directly
from external storage
• Local live view settings: define screen layout and
channel viewing sequence
• Alert messages: storage full, storage error, network
disconnected, IP conflict, illegal login, and
recording exceptions
• Supported dynamic DNS services: Dyn.com and
NO-IP.com
• Management Setting: maximum 32 user accounts
• Traffic chart and statistics for network management
• IPv6 support
• Supports ONVIF compliant network camera
Remote Viewing and Management
• User interface compatible with Internet Explorer®
9.0 or higher, Safari® 4.0 or higher
Warranty
• 2 year limited
Package Contents
• TV-NVR104
• 1 x 2 TB Hard Drive
• Network cable (1.8 m / 6 ft.)
• Optical mouse
• CD-ROM (User’s Guide)
• Quick Installation Guide
• Power adapter (48 V DC, 1A)
* See list of compatible cameras http://www.trendnet.com/products/nvr-solutions
** Four weeks of continuous recording 4 cameras in 720p resolution at 30 fps (medium VBR) with 6 TB of storage (HDDs not included)
*** Two weeks of continuous recording per camera with preinstalled 2 TB HDD and 4 x 720p cameras at 30 fps (medium VBR)
