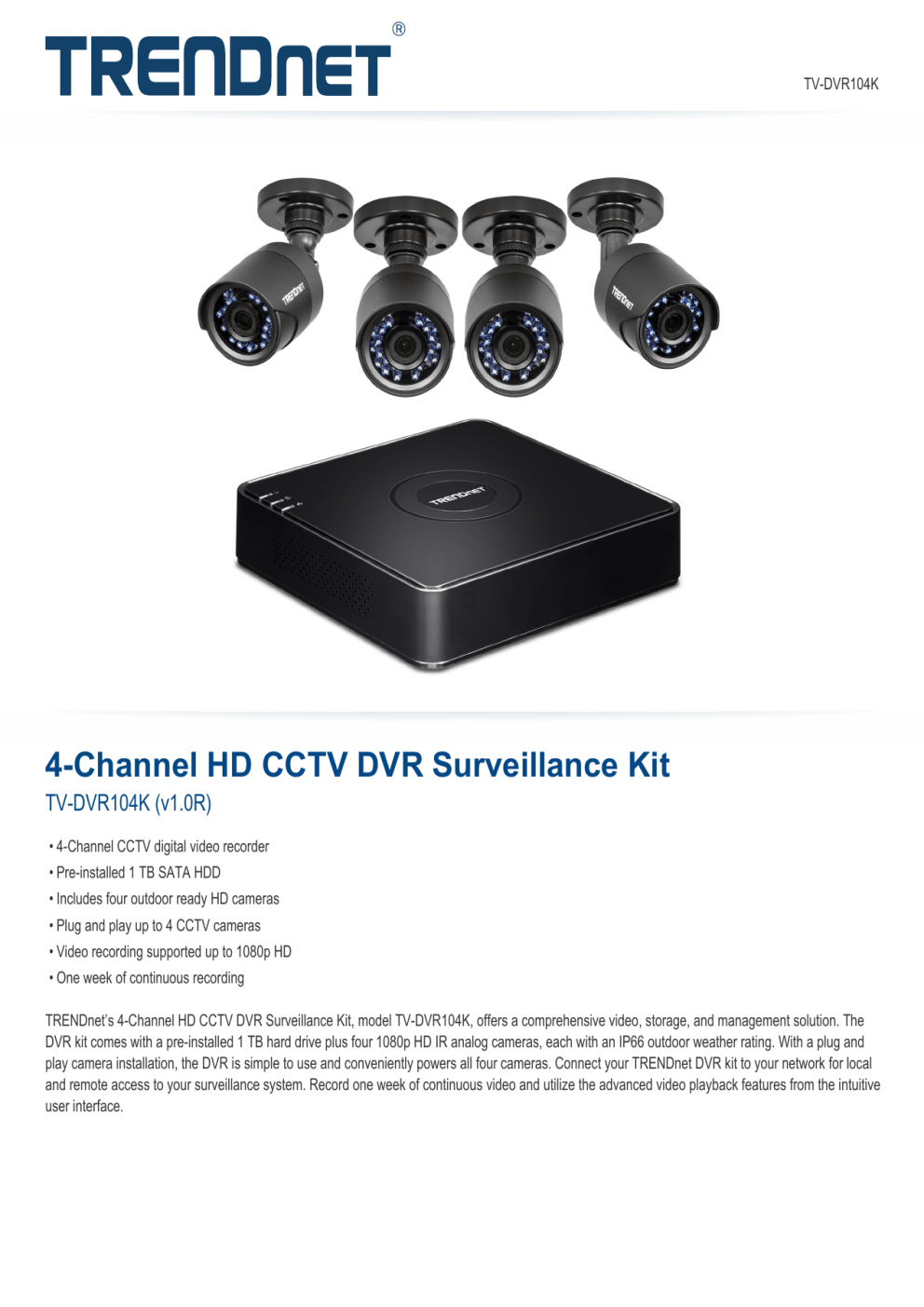

TRENDnet RB-TV-DVR104K 4-Channel HD CCTV DVR Surveillance Kit Datasheet

TV-DVR104K
4-Channel HD CCTV DVR Surveillance Kit
TV-DVR104K (v1.0R)
• 4-Channel CCTV digital video recorder
• Pre-installed 1 TB SATA HDD
• Includes four outdoor ready HD cameras
• Plug and play up to 4 CCTV cameras
• Video recording supported up to 1080p HD
• One week of continuous recording
TRENDnet’s 4-Channel HD CCTV DVR Surveillance Kit, model TV-DVR104K, offers a comprehensive video, storage, and management solution. The
DVR kit comes with a pre-installed 1 TB hard drive plus four 1080p HD IR analog cameras, each with an IP66 outdoor weather rating. With a plug and
play camera installation, the DVR is simple to use and conveniently powers all four cameras. Connect your TRENDnet DVR kit to your network for local
and remote access to your surveillance system. Record one week of continuous video and utilize the advanced video playback features from the intuitive
user interface.
TV-DVR104K
Standalone HD DVR
This standalone CCTV HD DVR includes a
preinstalled 1 TB HDD that provides one week
of continuous 1080p video recording for up to
four CCTV cameras (display sold separately).
Networking Solution
Plug-and-Play Installation
The DVR auto-recognizes TRENDnet CCTV
cameras – simply connect the included
cameras and start recording surveillance
video.
Intuitive Interface
Users will find the management interface
intuitive and easy to use – quickly navigate live
view preferences, recording schedules, and
advanced playback options.
TV-DVR104K
TV-DVR104 Hardware
BNC Connectors
Plug and play CCTV cameras to the four BNC
connectors
Storage Bay
Pre-installed 1 TB SATA hard drive
Network Port
Ethernet network port for uplink connection to the
internet for remote viewing
Display Ports
HDMI and VGA display ports
Audio Ports
Audio in and out ports
Recording Time
(A) One week of recording per camera: 4x cameras
with continuous recording at 1920 x 1080 at 12 fps
(B) 8.5 days of recording per camera: 4x cameras with
continuous recording at 720p at 12 fps
Scheduled Recording
Create weekly continuous and motion detection
recording schedules for each camera with video
overwrite when storage is full
Advanced Playback
Advanced archived video playback with a quick
reference timeline and calendar
Video Export
Quickly export specific video recordings via the USB
2.0 port
Dynamic DNS Support
Support for dyn.com and noip.com
USB Ports
One USB port for the included mouse and one for
video exporting
DVR Camera Hardware
TV-DVR104 Management
Mobile App
See live video on a mobile device with the free iOS®
and Android ™apps
Remote Access
Access the DVR over the internet
Adjustable Bracket
Fully adjustable integrated mounting bracket provides
installation flexibility
Outdoor Ready
Outdoor IP66 weather rated and an operating
temperature range of -40 ° – 60 °C (-40° – 140 °F)
2 Megapixel
Record 1920 x 1080 HD video at 12 fps
Camera Setup
Auto-recognizes compatible TRENDnet CCTV
cameras
Live View
Single camera and quad-view modes with time
adjustable auto-scan function
Camera Management
For each camera, manage on screen display, image
settings, motion detection, privacy masks, tamper
detection, and video loss
Video Recording
Record up to 1080p HD video at 12 fps
Night Vision
Night vision up to 20 meters (66 ft.) in complete
darkness
Smart IR
Dynamic IR adjustment optimizes night visibility
TV-DVR104K
Specifications
Certifications
• CE
• FCC
DVR Specifications
Dimensions
• 200 x 200 x 45 mm (7.9 x 7.9 x 1.8 in.)
Video Input
• 4 channels
• Interface: BNC (1.0 Vp-p, 75 Ω)
Management Interface
• Live view: Single camera or quad-view
• Camera management :
◦ On screen display: camera name, date, week,
and date format
◦ Image quality: brightness, contrast, saturation,
hue, mirror
◦ PTZ: pan, tilt, zoom, focus, iris, preset points,
pattern, cruise, patrol
◦ Motion detection: define custom motion
detection areas, motion sensitivity, and
triggering channels
◦ Privacy masks: define custom privacy mask
areas
◦ Video tamper detection: trigger actions if the
viewing field darkens suddenly
• Scheduled recording: continuous and motion
detection
• Video recording: Record up to 1080p HD video
• Holiday scheduling for custom recording schedules
during observed holidays
• Advanced playback: playback multiple channels
simultaneously and search video recordings with
special event or tag
• Video export: tag, cut, and export video clips
• Local live view settings: define screen layout and
channel viewing sequence
• Alert messages: storage full, storage error, network
disconnected, IP conflict, illegal login, and
recording exceptions
• Supported dynamic DNS services: Dyn.com and
NO-IP.com
• Management Setting: maximum 32 user accounts
Audio
• Analog audio in / out, RCA (linear, 1 KΩ)
• Compression: G.711u
Storage
• One 3.5" SATA I/II HDD or SSD up to 6 TB storage
Network Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
Device Interface
• 10/100 Mbps network port
• 2 x USB 2.0 ports
• 4 x BNC connectors
• 1 x 1TB HDD (pre-installed)
• HDMI port
• VGA port
• Analog audio in port
• Analog audio out port
• Power port
• LED indicators (Power, Storage, and Network)
• Grounding point
Network Protocol
• IPv4, IPv6, UDP, TCP, ICMP
• DHCP, NTP, DNS, DDNS, SMTP, FTP
• HTTP, UPnP, RTSP, RTP, RTCP
Power
• Input: 100 – 240 V AC, 50 / 60 Hz, 0.7 A
• Output: 12 V DC, 1.5 A
• Consumption: 8 W max.
Remote Viewing and Management
• User interface compatible with Internet Explorer®
9.0 or higher, Firefox® 13.0 or higher, Safari® 4.0 or
higher
Operating Temperature
• -10 - 55 °C (14 - 131 °F)
Warranty
• 2 year
• Hard Drive: manufacturer warranty
Operating Humidity
• Max. 90% non-condensing
•
Torrance
Lens
• Focal Length: 3.6 mm
• Sensor: 1/ 2.7” CMOS sensor
Weight
• 0.8 kg (1.8 lb.)
Video Output
• HDMI and VGA display outputs
• Resolution: 1920 x 1080 (1080p), 1280 x 1024,
1280 x 720 (720p), 1024 x 768 @ 60 Hz
• Up to 12 fps on main stream, 22 fps on second
stream
20675 Manhattan Place
Camera Specifications
•
CA 90501
•
USA
•
T: 1-888-326-6061
•
F: 1-310-961-5511
•
Viewing Angle
• 82.2˚
Minimum Illumination
• IR off: 0.01 lux
• IR on: 0 lux
• 20 m distance
• IR wavelength : 850 nm
H.264 Resolution
• Main stream: 1920 x 1080 up to 12 fps
• Sub stream: 960 x 576 up to 22 fps
Device Interface
• IR LEDs
• BNC connectors
• Power jack
Housing
• IP66 rated
Dimension
• 70 x 70 x 154 mm (2.75 x 2.75 x 6 in.)
Weight
• 300 g (0.7 lbs.)
Operating Temperature
• -40 – 60 °C (-40 – 140 °F)
Humidity
• Max. 90% non-condensing
Power
• Input: 100 - 240 V AC , 50 / 60 Hz, 0.7 A
• Output: 12 V DC, 2 A external power adapter
• Consumption: 4 W max.
Warranty
• 2 year
Package Contents
• TV-DVR104
• 4 x AC100
• 4 x BNC / power cables (60 ft.)
• 1 x 1TB HDD
• 1 x Camera power splitter cable
• Network cable (1.8 m / 6 ft.)
• HDMI cable
• Optical mouse
• CD-ROM (Utility / User’s Guide)
• Quick Installation Guide
• Power adapter for DVR (12 V DC, 1.5 A)
• Power adapter for cameras (12 V DC, 2 A)
[email protected]
•
www.TRENDnet.com
