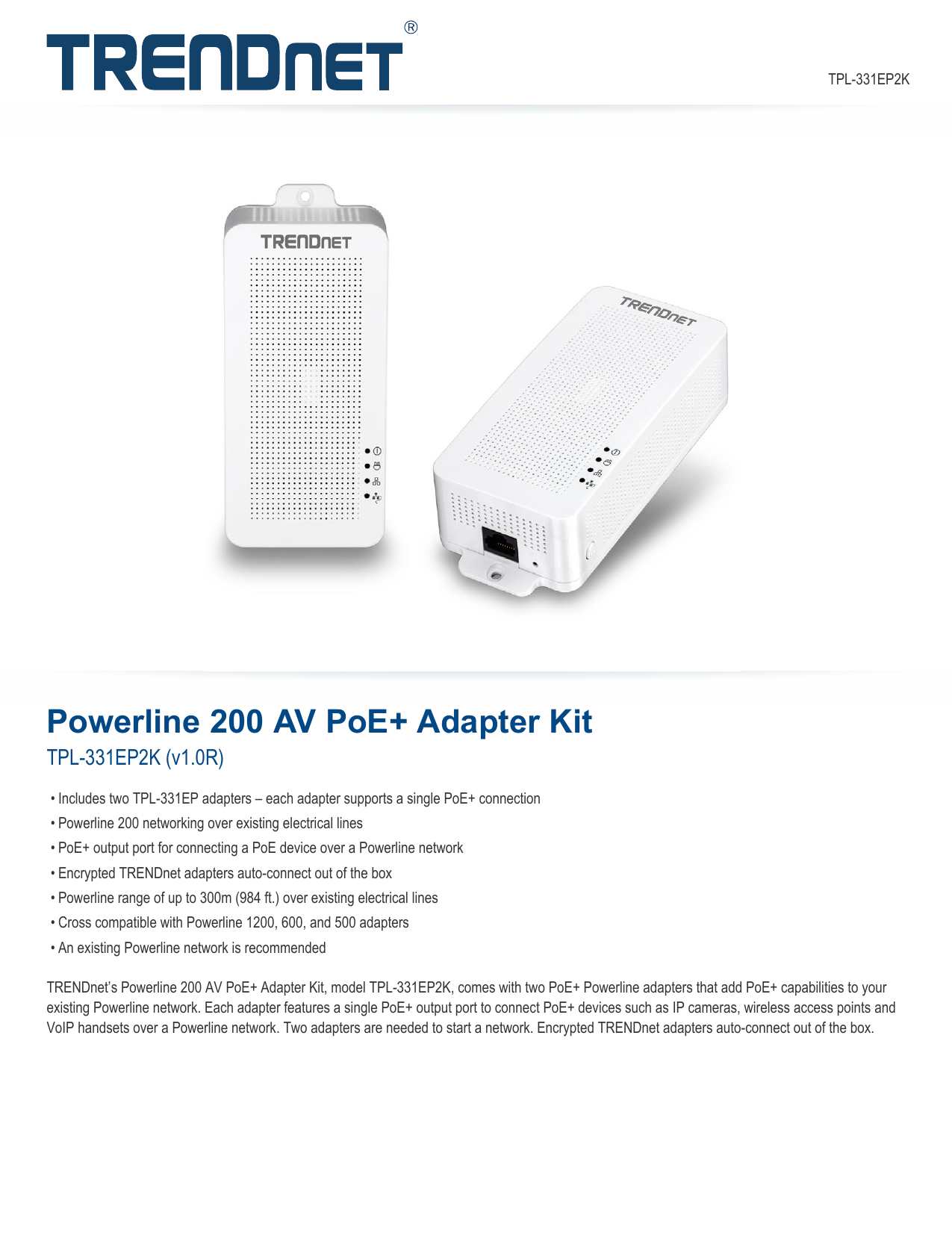

TRENDnet RB-TPL-331EP2K Powerline 200 AV PoE+ Adapter Kit Datasheet

TPL-331EP2K
Powerline 200 AV PoE+ Adapter Kit
TPL-331EP2K (v1.0R)
• Includes two TPL-331EP adapters – each adapter supports a single PoE+ connection
• Powerline 200 networking over existing electrical lines
• PoE+ output port for connecting a PoE device over a Powerline network
• Encrypted TRENDnet adapters auto-connect out of the box
• Powerline range of up to 300m (984 ft.) over existing electrical lines
• Cross compatible with Powerline 1200, 600, and 500 adapters
• An existing Powerline network is recommended
TRENDnet’s Powerline 200 AV PoE+ Adapter Kit, model TPL-331EP2K, comes with two PoE+ Powerline adapters that add PoE+ capabilities to your
existing Powerline network. Each adapter features a single PoE+ output port to connect PoE+ devices such as IP cameras, wireless access points and
VoIP handsets over a Powerline network. Two adapters are needed to start a network. Encrypted TRENDnet adapters auto-connect out of the box.
TPL-331EP2K
Simple Plug-in Installation
No configuration needed! Simply plug in
TRENDnet Powerline adapters and they will
auto-connect right out of the box.
Powerline 200
Powerline 200 technology delivers fast and
stable networking to seamlessly connect
devices.
PoE+ Port
Features a PoE+ output port for connecting
PoE devices such as IP cameras, wireless
access points and VoIP handsets over a
Powerline network.
Networking Solution
PoE+
PoE Access Point
Router
TPL-422E
TPL-331EP
TPL-331EP2K
Sync Button
Press the Sync button to change existing Powerline
encryption keys
Expandable
Use up to 8 adapters on a single Powerline network
Powerline 200
Powerline 200 technology delivers fast and stable
networking to seamlessly connect devices.
Easy Installation
TRENDnet adapters auto-connect out of the box
PoE+ Port
Features a PoE+ output port for connecting PoE
devices such as IP cameras, wireless access points
and VoIP handsets over a Powerline network.
128-bit AES Encryption
Powerline communication is protected with 128-bit
AES encryption
Cross Compatibility
Cross compatible with Powerline 1300, 1200, 600,
and 500 adapters
TPL-331EP2K
Specifications
Standards
•
•
•
•
•
•
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
IEEE 1901
Device Interface
•
•
•
•
1 x 10/100Mbps PoE+ port
Sync button
Reset button
LED indicators
Frequency Band
• 2 – 28MHz
Modulation/Protocol
• OFDM, 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO
• CSMA/CA, CSMA
Data PHY Rate
• Up to 200Mbps
Networking
Distance
• Powerline: Up to 300m (980ft.) linear distance over electrical power
lines***
Encryption
• 128-Bit AES (Advanced Encryption Standard)
Powerline Nodes
• Up to 8 (max.)
Overlapping
Powerline Networks
• Up to 4 (per electrical system)
Special Features
• Auto-connects to other TRENDnet Powerline adapters
• IPv6 support
• IGMP / MLDv2 Streams
Power
• Input: 100 - 240V AC, 50-60Hz
• Consumption: Active mode: 2.3W (max.); Standby mode: 1.7W
(max.)
• PoE Budget: 30 Watts (max.)
PoE Delivery
• Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Operating
Temperature
• 0 – 55°C (32 – 131°F)
Operating Humidity
• Max. 93 % non-condensing
Certifications
• FCC
• IC
Dimensions
• 156 x 67 x 43 mm (6.14 x 2.6 x 1.7 in.)
Weight
• 205g (7.2 oz.)
Warranty:
• 3 year
PACKAGE CONTENTS
• 2 x TPL-331EP
• Quick Installation Guide
• 2 x Network cable (1.2m/4 ft.)
* Maximum of 8 adapters (nodes) recommended for streaming video across your network.
** 200 Mbps is the maximum theoretical Powerline data rate when connected to another Powerline device. Data throughput may vary by circuit wire conditions.
*** Powerline communication works on a single electrical system. (Usually controlled by a single distribution panel). Power strip, GFCI outlets, and AFCI circuit breakers may
degrade Powerline network signals.
20675 Manhattan Place
•
Torrance
•
CA 90501
•
USA
•
T: 1-888-326-6061
•
F: 1-310-961-5511
•
[email protected]
•
www.TRENDnet.com
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice. For the most
recent product information please visit http://www.trendnet.com. Copyright © TRENDnet. All Rights Reserved.
Updated: 5/31/2018
