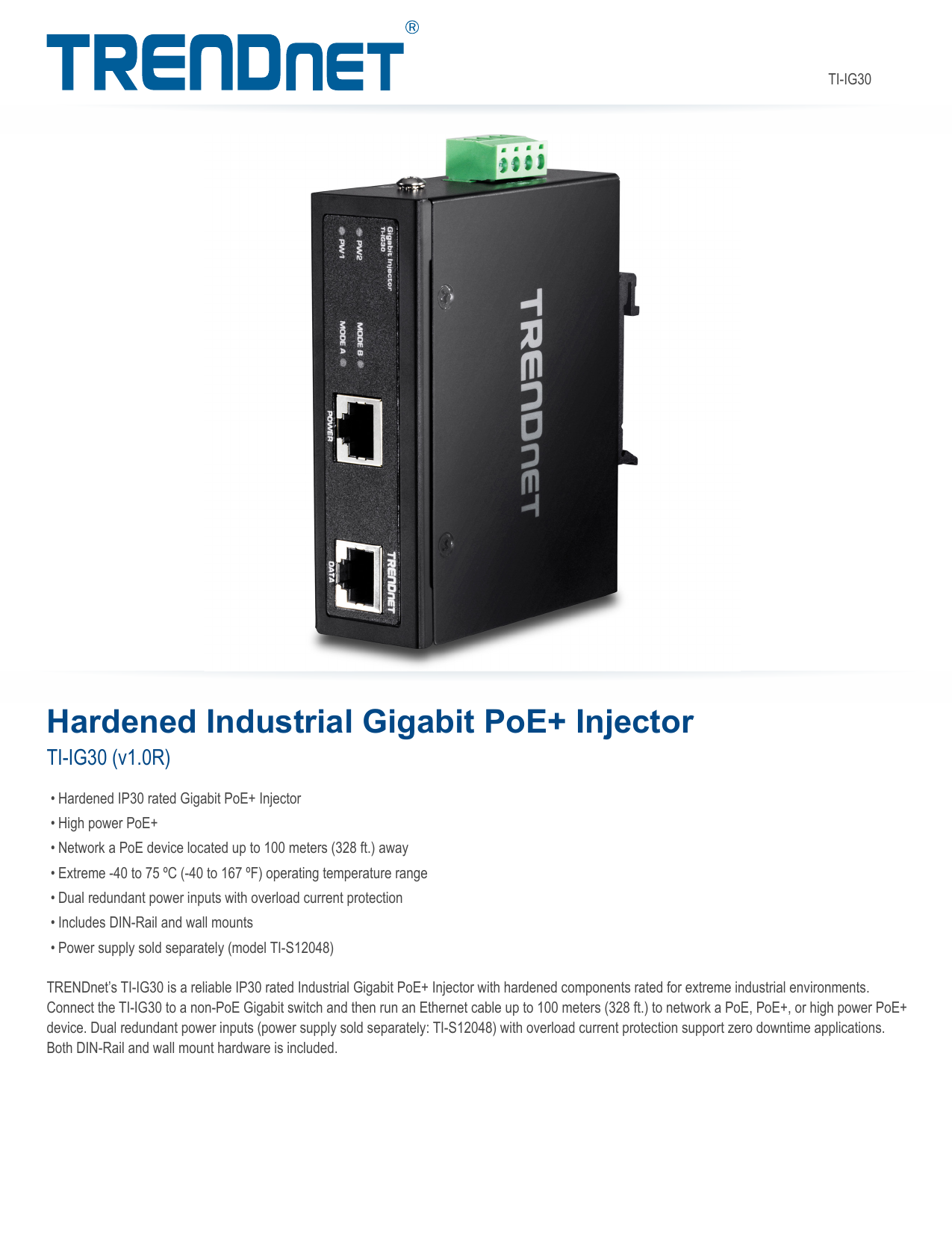

TRENDnet RB-TI-IG30 Hardened Industrial Gigabit PoE+ Injector Datasheet

TI-IG30
Hardened Industrial Gigabit PoE+ Injector
TI-IG30 (v1.0R)
• Hardened IP30 rated Gigabit PoE+ Injector
• High power PoE+
• Network a PoE device located up to 100 meters (328 ft.) away
• Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
• Dual redundant power inputs with overload current protection
• Includes DIN-Rail and wall mounts
• Power supply sold separately (model TI-S12048)
TRENDnet’s TI-IG30 is a reliable IP30 rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme industrial environments.
Connect the TI-IG30 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or high power PoE+
device. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection support zero downtime applications.
Both DIN-Rail and wall mount hardware is included.
TI-IG30
Plug and Play
Plug and play PoE network devices
Extreme Temperatures
Hardened converter is rated for an operating temperature range of -40 to
75 ºC (-40 to 167 ºF)
PoE/PoE+
Supplies power to a PoE (up to 15 W) and PoE + (up to 30 W) device
Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class
A standards
Gigabit Ports
1 x Gigabit Ethernet port and 1 x PoE+ Gigabit Ethernet port
Certifications
Rated for information technology (ITE) equipment (EN55022/24) and
industrial, scientific, and medical (ISM) Equipment (EN55011)
Extension Distance
Extends a PoE network connection up to 100 meters (328 ft.)
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and
vibration (IEC 60068-2-6)
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount
hardware
Grounding Point
Grounding point protects equipment from external electrical surges
Redundant Power
Dual redundant power inputs with overload current protection (power
supply sold separately: model TI-M6024)
LED indicators
LED indicators confirm PoE and network connectivity
Networking Solution
TI-IG30
Specifications
• Stranded wire (AWG): 12-24/14-22
• Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
• Wire strip length: 7 – 8 mm
Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
MTBF
• 510,304 hours
Housing
• IP30 metal case
• DIN-Rail mount
• Wall mount
• Grounding point
• 8 KV ESD protection
• 6 KV surge protection
Device Interface
• 1 x Gigabit port
• 1 x PoE+ Gigabit port
• 4-pin removable terminal block
• LED indicators
• DIN-Rail mount
• Wall mount
• Grounding point
Operating Temperature
• - 40 to 75 °C (-40 to 167 °F)
Data Transfer Rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit: 2000 Mbps (full duplex)
Operating Humidity
• Max. 95 % non-condensing
Dimensions
• 104 x 82 x 32 mm. (4.1 x 3.2 x 1.2 in.)
Special Features
• Hardened components rated for extreme temperatures
• Dual redundant power inputs
• Auto-Negotiation
• ESD 8 KV and Surge 6 KV protection
Weight
• 134 g (4.7 oz.)
Certifications
• CE
• FCC
• Shock (IEC 60068-2-27)
• Freefall (IEC 60068-2-32)
• Vibration (IEC 60068-2-6)
Power
• Input: 48 – 56 V DC
• Compatible power supply: TI-S12048 (sold separately)
• Consumption: Max. 36 Watts
Warranty
• 3 year
PoE
• PoE budget: 30 Watts
• Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Package Contents
• TI-IG30
• Quick Installation Guide
• Removable terminal block
• DIN-Rail and wall mount kit
Terminal Block
• Redundant power inputs, 4 pin
• Wire range: 0.34 mm^2 to 2.5 mm^2
• Solid wire (AWG): 12-24/14-22
