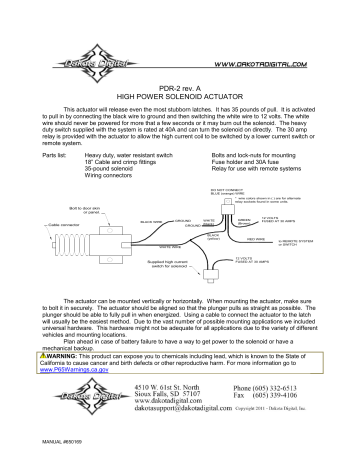

PDR-2 rev. A
HIGH POWER SOLENOID ACTUATOR
This actuator will release even the most stubborn latches. It has 35 pounds of pull. It is activated
to pull in by connecting the black wire to ground and then switching the white wire to 12 volts. The white
wire should never be powered for more that a few seconds or it may burn out the solenoid. The heavy
duty switch supplied with the system is rated at 40A and can turn the solenoid on directly. The 30 amp
relay is provided with the actuator to allow the high current coil to be switched by a lower current switch or
remote system.
Parts list:
Heavy duty, water resistant switch
18” Cable and crimp fittings
35-pound solenoid
Wiring connectors
Bolts and lock-nuts for mounting
Fuse holder and 30A fuse
Relay for use with remote systems
DO NOT CONNECT
BLUE (orange) WIRE
* wire colors shown in ( ) are for alternate
relay sockets found in some units.
Bolt to door skin
or panel.
BLACK WIRE
GROUND
Cable connector
GROUND
WHITE
(black)
BLACK
(yellow)
GREEN
(Brown)
12 VOLTS
FUSED AT 30 AMPS
RED WIRE
to REMOTE SYSTEM
or SWITCH
WHITE WIRE
Supplied high current
switch for solenoid
12 VOLTS
FUSED AT 30 AMPS
The actuator can be mounted vertically or horizontally. When mounting the actuator, make sure
to bolt it in securely. The actuator should be aligned so that the plunger pulls as straight as possible. The
plunger should be able to fully pull in when energized. Using a cable to connect the actuator to the latch
will usually be the easiest method. Due to the vast number of possible mounting applications we included
universal hardware. This hardware might not be adequate for all applications due to the variety of different
vehicles and mounting locations.
Plan ahead in case of battery failure to have a way to get power to the solenoid or have a
mechanical backup.
WARNING: This product can expose you to chemicals including lead, which is known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
MANUAL #650169
