DSTP002

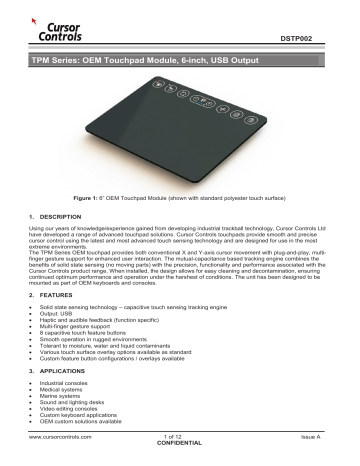

TPM Series: OEM Touchpad Module, 6-inch, USB Output
Figure
F
igure 1: 6” OEM Touchpad Module
Modul
ule (shown
(sho
(s
hown
ho
wn with
wit
ith standard polyester touch surface)
1. DESCRIPTION
Using our years of knowledge/experience gained from developing industrial trackball technology, Cursor Controls Ltd
have developed a range of advanced touchpad solutions. Cursor Controls touchpads provide smooth and precise
cursor control using the latest and most advanced touch sensing technology and are designed for use in the most
extreme environments.
The TPM Series OEM touchpad provides both conventional X and Y-axis cursor movement with plug-and-play, multifinger gesture support for enhanced user interaction. The mutual-capacitance based tracking engine combines the
benefits of solid state sensing (no moving parts) with the precision, functionality and performance associated with the
Cursor Controls product range. When installed, the design allows for easy cleaning and decontamination, ensuring
continued optimum performance and operation under the harshest of conditions. The unit has been designed to be
mounted as part of OEM keyboards and consoles.
2. FEATURES
·
·
·
·
·
·
·
·
·
Solid state sensing technology – capacitive touch sensing tracking engine
Output: USB
Haptic and audible feedback (function specific)
Multi-finger gesture support
8 capacitive touch feature buttons
Smooth operation in rugged environments
Tolerant to moisture, water and liquid contaminants
Various touch surface overlay options available as standard
Custom feature button configurations / overlays available
3. APPLICATIONS
·
·
·
·
·
·
·
Industrial consoles
Medical systems
Marine systems
Sound and lighting desks
Video editing consoles
Custom keyboard applications
OEM custom solutions available
www.cursorcontrols.com
1 of 12
CONFIDENTIAL
Issue A
DSTP002
6. TOUCHPAD FEATURES
6.1. Touchpad Features
The TPM Series touchpad module includes the following features / technologies;
·
·
Touchpad Technology: The 6-inch active touchpad area provides both conventional X and Y-axis
cursor movement with plug-and-play, multi-finger gesture support for enhanced user interaction (see
Section 6.2).
Feature Buttons: 8 x feature buttons are located at the top of the touchpad module. These utilise
capacitive touch sensing technology and incorporate functions such as Cut, Copy & Paste, cursor
resolution adjustment, and a panel lock feature to facilitate cleaning / decontamination of the device.
Refresh Button
Cursor Speed/Resolution Adjustment
with LED Indicators
Latching Left Click
for Drag and Drop Operation
Cut, Copy & Paste Buttons
Panel Lock Feature
to disable touchpad
function for cleaning
purposes
Touchpad Active Area
Figure 4: Module features
www.cursorcontrols.com
4 of 12
CONFIDENTIAL
Issue A
DSTP002
6.2. Gesture Operations
The touchpad incorporates an in-built gesture recognition engine designed to enhance user experience and
increase the overall efficiency of user interaction with a host system. Use of gesture control enables the user to
access frequented functions such as button clicks, scrolling and zooming by means of highly intuitive multi-finger
operations. See table 3 below for details on the available gesture actions.
GESTURE ACTION
FUNCTION
Left mouse button click
Single-Finger Tap
Double/triple tap supported
Right mouse button click
Two-Finger Tap
Double/triple tap supported
Middle mouse button click
Three-Finger Tap
Double/triple tap supported
Two-Finger Vertical Drag
Scroll Up/Down
Two-Finger Horizontal
Drag
Scroll Left/Right 1
Two-Finger Splay
Zoom In 1
Two-Finger Pinch
Zoom Out 1
Three-Finger Swipe Left
Back 1
Three-Finger Swipe Right
Forward 1
Table 3: Gesture Operations
Notes:
1. Horizontal scroll and zoom functions are dependent on application support.
www.cursorcontrols.com
5 of 12
CONFIDENTIAL
Issue A
DSTP002
9. TOUCHPAD DIMENSION DRAWING
Dimensional drawing specifies factory default orientation.
All dimensions are in mm unless otherwise stated.
Tolerances +/- 0.2mm unless otherwise stated
Please note that an IGES model is available on request. Please contact your local sales office for more information.
www.cursorcontrols.com
9 of 12
CONFIDENTIAL
Issue A
DSTP002
10. MOUNTING RECOMMENDATIONS
The TPM series touchpad module can be mounted into panels and consoles using various methods.
For details of typical mounting methods applicable to this module, please refer to Cursor Controls Ltd Application Note
AN0060. Please contact your local sales office for further details.
www.cursorcontrols.com
10 of 12
CONFIDENTIAL
Issue A
DSTP002
11. PRODUCT ORDERING CODE SYSTEM
Please construct your standard product ordering code by selecting the numbers and letters to suit your
specification:
TPM - 8
5
A
5
X
6
Product Range
TPM = Touchpad Module (OEM)
Sealing Capabilities*
8 = Customer Defined
Electrical Output*
5 = USB Only
Switch Configuration
A = Button Style A (8 Featured Buttons)
Mounting Option
5 = OEM mounting style
Colour/Style*
1 = Polyester, RAL 7015 (Slate Grey)
2 = Glass, Pantone 10392 (Metallic Grey)
Active Touchpad Size
6 = 6-inch
*For further options please contact your local sales representative.
11.1. Ordering Example
TPM-85A516: Touchpad, Customer defined sealing, USB Interface, 8 x feature buttons, OEM style, RAL
7015 polyester overlay, 6-inch.
www.cursorcontrols.com
11 of 12
CONFIDENTIAL
Issue A
