Bestway Pool Filter Pump Owner's manual

Bestway Pool Filter Pump Owner's manual

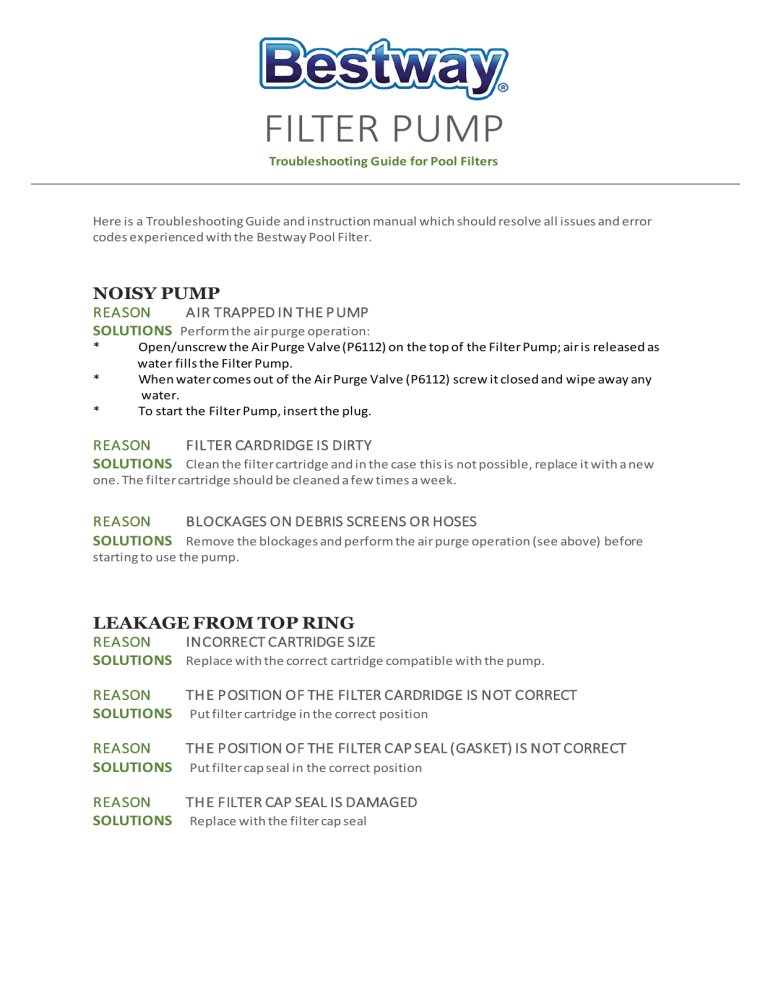

FILTER PUMP
Troubleshooting Guide for Pool Filters
Here is a Troubleshooting Guide and instruction manual which should resolve all issues and error
codes experienced with the Bestway Pool Filter.
NOISY PUMP
REASON
AIR TRAPPED IN THE P UMP
SOLUTIONS Perform the air purge operation:
*
*
*
Open/unscrew the Air Purge Valve (P6112) on the top of the Filter Pump; air is released as
water fills the Filter Pump.
When water comes out of the Air Purge Valve (P6112) screw it closed and wipe away any
water.
To start the Filter Pump, insert the plug.
REASON
FILTER CARDRIDGE IS DIRTY
SOLUTIONS Clean the filter cartridge and in the case this is not possible, replace it with a new
one. The filter cartridge should be cleaned a few times a week.
REASON
BLOCKAGES ON DEBRIS SCREENS OR HOSES
SOLUTIONS Remove the blockages and perform the air purge operation (see above) before
starting to use the pump.
LEAKAGE FROM TOP RING
REASON
INCORRECT CARTRIDGE SIZE
SOLUTIONS Replace with the correct cartridge compatible with the pump.
REASON
THE POSITION OF THE FILTER CARDRIDGE IS NOT CORRECT
SOLUTIONS Put filter cartridge in the correct position
REASON
THE POSITION OF THE FILTER CAP SEAL (GASKET) IS NOT CORRECT
SOLUTIONS Put filter cap seal in the correct position
REASON
THE FILTER CAP SEAL IS DAMAGED
SOLUTIONS Replace with the filter cap seal
LEAKAGE FROM PURGE VALVE
REASON
PURGE VALVE IS NOT CORRECTLY TIGHTENED
SOLUTIONS Correctly tighten the purge valve
REASON
PURGE VALVE SEAL IS MISSING
SOLUTIONS Insert the purge valve seal
REASON
PURGE CAP SEAL IS DAMAGED
SOLUTIONS Replace the purge valve seal
LEAKAGE FROM THE CONNECTION HOSES
REASON
HOSE SEAL RING IS MISSING
SOLUTIONS Insert the hoses seal ring in the correct position
REASON
THE CLAMP IS NOT TIGHTENED
SOLUTIONS Tighten the clamp
POOL WATER IS DIRTY
REASON
FILTER CARTRIDGE IS DIRTY
SOLUTIONS Clean the filter cartridge
REASON
THE FILTER PUMP IS SMALLER THAN THE ONE REQUIRED FOR THE POOL
SOLUTIONS Replace filter pump with one a compatible size for the pool
REASON
THE OPERATING TIME OF THE FILTER PUMP IS UNDER 10 H OURS PER
DAY
SOLUTIONS Increase the operating time
REASON
NO CHEMICAL PRODUCTS USED TO SUPPORT FILTER
SOLUTIONS The filter pump itself is not enough to keep the pool water clean, but it is necessary
to use chemicals products in support
