Art.-No.: 2097 REG HE
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The DALI control voltage is a functional extra-low voltage (FELV). On installing, ensure
safe isolation between KNX and DALI.
These instructions are an integral part of the product, and must remain with the end
customer.

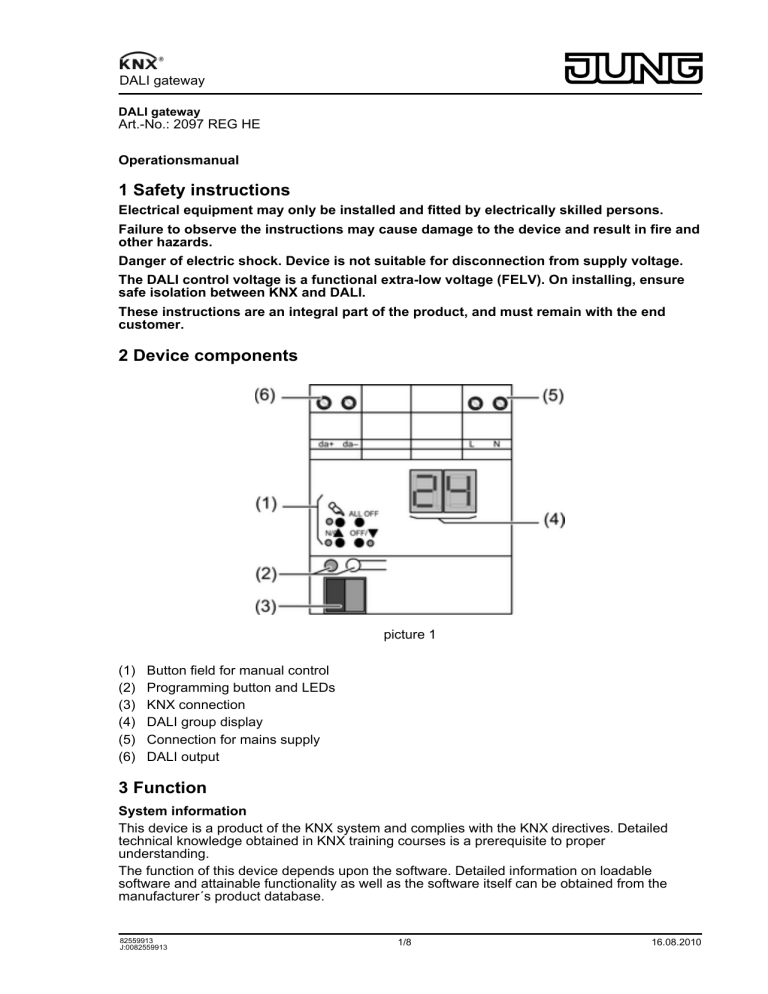

2 Device components
picture 1
(1)
(2)
(3)
(4)
(5)
(6)
Button field for manual control
Programming button and LEDs
KNX connection
DALI group display
Connection for mains supply
DALI output
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database.
82559913
J:0082559913
1/8
16.08.2010
DALI gateway
Planning, installation and commissioning of the device are carried out with the aid of KNXcertified software. Full functionality with KNX commissioning software version ETS3.0d
onwards.
An updated version of the product database, technical descriptions and conversion programs
and other auxiliary programs are available on our Internet website.
Intended use
Controlling of luminaires and other applications with DALI operating device in KNX
installations e.g. electronic ballast
Installation on DIN rail according to EN 60715 in distribution boxes
Product characteristics
Control of up to 64 DALI devices in up to 32 groups
16 light scenes
Read out DALI device state via KNX, e.g. brightness or luminaire error
Manual operation of the DALI groups
Restraint
Feedback of switching state and brightness value in bus and manual mode
Central switching function
Disabling function for each DALI group
Separate ON and OFF delay
Staircase lighting timer with run-on time
DALI commissioning with ETS plug-in
Short circuit protection
Surge protection
Overload protection
An individual DALI device can be exchanged during operation without software.
i Delivery state: construction site mode, the DALI groups can be operated using button field.
All DALI devices are controlled jointly.
4 Operation
Operating elements
picture 2
(4) DALI group display (1...32)
(7) Button c – Manual control
(8) LED c – On: Continuous manual mode active
(9) ON/nbutton – switch on or increase brightness
(10) ON/n LED – On: DALI group switched on, brightness 1...100 %
(11) OFF/o button – switch off or dim darker
(12) LED OFF/o – On: DALI group switched on, brightness 0 %
(13) ALL OFF buttons – Switch off all DALI groups
82559913
J:0082559913
2/8
16.08.2010
DALI gateway
In operation with the button field the device distinguishes between a short and a long press.
Short: pressing for less than 1 second
Long: pressing for between 1 and 5 seconds
Operating modes
Bus operation: Operation via push-button sensors or other bus devices
Short-term manual operation: Manual operation locally with button field, automatic return to
bus operation.
Continuous manual mode: Exclusively manual operation on the device
i No bus operation is possible in manual mode.
i No manual mode is possible in case of bus failure.
i After a bus failure and restoration the device switches to bus operation.
i After a power failure and restoration the device switches to bus operation.
i The manual mode can be disabled in ongoing operation via a bus telegram.
Switching on the temporary manual control
Operation using the button field is programmed and not disabled.
o Press the c button briefly.
Display (4) shows 01, LED c remains off.
- or Display (4) shows bc: The device is not programmed. All connected DALI devices are
controlled jointly. In this broadcast operation it is not possible to control individual DALI
devices.
i After 5 seconds without a button-press, the device returns automatically to bus operation.
Deactivating temporary manual control
The device is in short-term manual mode.
o No button-press for 5 seconds.
- or o Press c button briefly as many time as necessary until the device leaves the short-time
manual mode.
The display (4) is off.
Switching on permanent manual control
Operation using the button field is programmed and not disabled.
o Press the c button for at least 5 seconds.
LED c is illuminated, display (4) shows 01, continuous manual mode is switched on.
- or Display (4) shows bc: The device is not programmed. All connected DALI devices are
controlled jointly. In this broadcast operation it is not possible to control individual DALI
devices.
Deactivating permanent manual control
The device is in continuous manual mode.
o Press the c button for at least 5 seconds.
LED c is off, display (4) is off, bus operation is switched on.
Operating DALI groups
The device is in continuous or short-term manual mode.
o Press c button briefly as many times as necessary until the display shows the desired
group.
The LEDs ON/n and OFF/o indicate the status.
82559913
J:0082559913
3/8
16.08.2010
DALI gateway
o
Operate output with ON/n or OFF/o button.
Short: switch on/off.
Long: dim brighter/darker.
Release: Stop dimming.
The LEDs ON/n and OFF/o indicate the status.
i Short-term manual operation: After running through all of the DALI groups the device exits
manual mode after another brief press.
Switch off all DALI groups
The device is in continuous manual mode.
o Press the ALL OFF button.
All DALI groups switch off.
Disabling individual DALI groups
The device is in continuous manual mode.
o Press c button briefly as many times as necessary until the display shows the desired
DALI group.
Status display via LEDs ON/n and OFF/o.
o Press buttons ON/n and OFF/o simultaneously for at least 5 seconds.
The number of the selected DALI group flashes in the display (4).
The DALI group is blocked.
o Activate bus mode (see section Deactivating permanent manual control).
i A blocked DALI group can be operated in manual mode,
Re-enabling DALI groups
The device is in continuous manual mode.
o Press c button briefly as many times as necessary until the display (4) flashes with the
desired group.
o Press buttons ON/n and OFF/o simultaneously for at least 5 seconds.
Selected DALI group is enabled.
The display (4) no longer flashes.
o Activate bus mode (see section Deactivating permanent manual control).
5 Information for electrically skilled persons
5.1 Fitting and electrical connection
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
Before working on the device, disconnect the power supply and cover up live
parts in the working environment.
Fitting the device
Observe the temperature range. Ensure adequate cooling.
o Mount device on DIN rail. Output terminals must be at the top.
82559913
J:0082559913
4/8
16.08.2010
DALI gateway
Connecting the device
picture 3
Control cable: appropriate type, cross-section and routing for the specifications for 250 V
cables. DALI and mains voltage wires can be run together in a cable, e.g. NYM 5x1.5 mm².
i DALI participants from some manufacturers have expanded functions and can e.g. be
controlled via mains voltage on the DALI connection. When existing DALI installations are
refitted, remove all corresponding operator controls.
i The DALI control voltage is a functional extra-low voltage (FELV). When performing
installation, perform the installation in such a way that when an area is disconnected the
lines carrying both the DALI and also the mains voltage are disconnected.
o Connect device as shown in the connection example (picture 3).
o Connect bus cable with connecting terminal.
i DALI devices can be connected to various phase conductors.
Installing the cover
It is necessary to install a cover to protect the bus connection against hazardous voltages in the
connection area.
picture 4: Installing the cover
82559913
J:0082559913
5/8
16.08.2010
DALI gateway
o
o
Route the bus cable towards the rear.
Install cover on top of the bus terminal so that it snaps into place (picture 4).
Removing the cover
picture 5: Removing the cover
o
Press the cover to the side and pull it off (picture 5).
5.2 Commissioning
Load the address and the application software
o Switch on mains voltage.
o Switch on the bus voltage
o Assign physical address and note on the device label.
o Commission DALI system using commissioning software.
i For more detailed information on commissioning of the DALI system, see the technical
product information for this device.
o Load the application software into the device.
i No programming is possible if no mains voltage is connected.
6 Appendix
6.1 Technical data
Supply
Rated voltage
Mains frequency
Power loss
Ambient conditions
Ambient temperature
Storage/transport temperature
DALI
DALI rated voltage
Number of DALI subscribers
DALI transmission rate
DALI protocol
Cable type
DALI cable length
82559913
J:0082559913
AC 110 ... 240 V ~
50 / 60 Hz
max. 3 W
-5 ... +45 °C
-25 ... +70 °C
DC 16 V (typical)
max. 64
1.2 kbit/s
EN 60929 Annex E4
Sheathed cable 230 V, e,g. NYM
6/8
16.08.2010
DALI gateway
with Ø 1.5 mm²
with Ø 1.0 mm²
with Ø 0.75 mm²
with Ø 0.5 mm²
Housing
Fitting width
Connection of power supply and DALI
Connection mode
Single stranded
finely stranded without conductor sleeve
finely stranded with conductor sleeve
KNX
KNX medium
Commissioning mode
Rated voltage KNX
Power consumption KNX
Connection type for bus
max. 300 m
max. 238 m
max. 174 m
max. 116 m
72 mm / 4 modules
Screw terminal
0.5 ... 4 mm²
0.5 ... 4 mm²
0.5 ... 2.5 mm²
TP 1
S mode
DC 21 ... 32 V SELV
typical 150 mW
Connection terminal
6.2 Troubleshooting
Display shows Er, connected DALI devices have no function, no operation possible
Cause: Mains voltage on DALI cable.
Installation error. Disconnect device and connected DALI devices from mains voltage and
disconnect bus voltage. Correct installation.
Display shows bc in manual mode, control of individual luminaires not possible.
Cause: The device has not been programmed.
Program device, put DALI system into operation.
Individual DALI devices have no function
Cause 1: Load is defective, e.g. lamp.
Exchange load.
Cause 2: DALI device is defective.
Exchange defective device.
Switch on voltage.
Press c and ALL OFF buttons together for at least 10 seconds.
The device detects the exchanges DALI device and loads in the necessary data. The
display (4) shows LE.
i Simultaneous exchange of multiple DALI devices is only possible with commissioning
software and project data.
Manual control with button field not possible
Cause 1: Manual control has not been programmed.
Program manual control.
Cause 2: Manual control via bus disabled.
Enable manual control.
DALI group cannot be operated
Cause: DALI group disabled via bus or manual operation.
Cancel disabling.
None of the DALI groups can be operated.
Cause 1: All DALI groups disabled via bus or manual operation.
Cancel disabling.
Cause 2: Continuous manual mode switched on.
Deactivating permanent manual control.
82559913
J:0082559913
7/8
16.08.2010
DALI gateway
Cause 3: Application software has been stopped, programming LED is flashing.
Perform reset: Disconnect device from bus, switch on again after approx. 5 seconds.
Cause 4: Application software missing or faulty.
Check programming and correct.
6.3 Accessories
Connection cover
Art.-No.: 2050 K
6.4 Warranty
We reserve the right to make technical and formal changes to the product in the interest of
technical progress.
We provide a warranty as provided for by law.
Please send the unit postage-free with a description of the defect to our central customer
service office:
ALBRECHT JUNG GMBH & CO. KG
Service Center
Kupferstr. 17-19
D-44532 Lünen
Service-Line: +49 (0) 23 55 . 80 65 51
Telefax: +49 (0) 23 55 . 80 61 89
[email protected]
General equipment
Service-Line: +49 (0) 23 55 . 80 65 55
Telefax: +49 (0) 23 55 . 80 62 55
[email protected]
KNX equipment
Service-Line: +49 (0) 23 55 . 80 65 56
Telefax: +49 (0) 23 55 . 80 62 55
[email protected]
The Πsymbol is a free trade symbol, which is solely intended for the authorities and does not
guarantee any properties.
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
D-58579 Schalksmühle
Telefon: +49.23 55.8 06-0
Telefax: +49.23 55.8 06-1 89
E-mail: [email protected]
Internet: www.jung.de
www.jung-katalog.de
82559913
J:0082559913
8/8
16.08.2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
