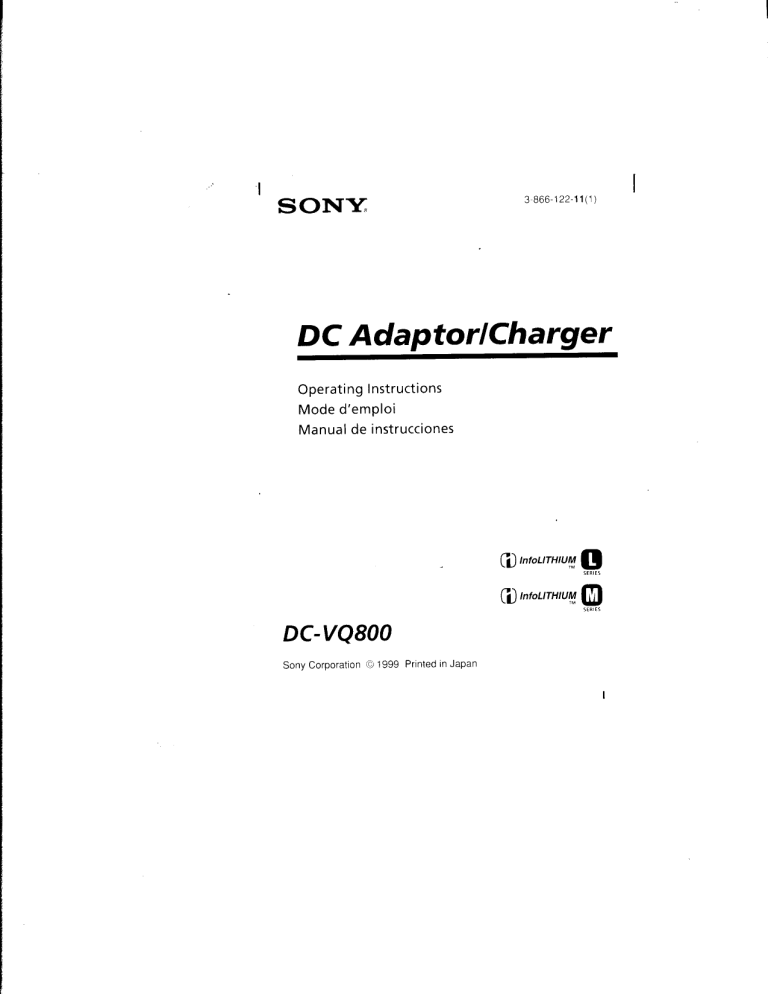

SONY. 3-866-122-11(1)
DC Adaptor/Charger
Operating Instructions
Mode d'emploi
Manual de instrucciones
(1) infoLITHIUM
SERIES
(q) infoLITHIUM ()
DC-VQ800
Sony Corporation © 1999 Printed in Japan
El
>>
Owner's Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Reter to these numbers whenever vou call upon vour Sony dealer regarding
this product.
Model No. DC-VOSOU Serial No.
WARNING,
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER {OR BACK)
NO USER-SERVICEABLE PARTS INSIDE,
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
This symbol is intended to alert the user to the presence
of uninsulated “Dangerous voltage” within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
This symbol is intended to dert the user to the presence
of important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance. -
CAUTION
You are cautioned that any changes or modifications not expressly
approved in this manual could void our authority to operate this
equipment.
The Graphical Symbols with Supplemental Marking is located on the
bottom of the unit.
Note:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interterence
ina residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur ina
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
_ Consult the dealer or an experienced radio/ TV technician for help.
For the customers in Canada
THIS APPARATUS COMPLIES WITH THE CLASS B LIMITS FOR RADIO
NOISE EMISSIONS SET OUT IN RADIO INTERFERENCE
REGULATIONS.
Sony @ÿ'ine http://www.world.sony.com/
Printed on recycled paper
NORMAL
НН TVA
To remove
To remove
A NE ME Te RE
EIA E EN RR
Ci ет,
Thank vou for purchasing the Sony DC adaptor/charger.
Before operating the unit, please read this manual thoroughly and retain it
for future reference.
The DC-VQ800 car battery charger (only for negative (-) grounded cars) can
be used by connecting to the cigarette lighter socket of a car as follows:
* to charge a lithium ion type battery pack.
The following functions are available with the InfoLITHIUM battery pack:
— Quickly charging
— Remaining charge time display
* to supply power to the Sony video equipment.
What is the “InfoLITHIUM”
The “InfoLITHIUM” is a lithium ion battery pack which can exchange data
with compatible video equipment about its battery consumption. Sony
recommends that you use the “InfoLITHIUM” battery pack with video
equipment having the () infoLimHiuM mark.
FE _— —_—_—_—_—_— "—" >=
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
ans "_ _— "—
Notes on Use
About the remaining battery time
While charging the battery pack, this unit will show the remaining battery
time with your video equipment, etc. on the following conditions.
e Using the InfoLITHIUM battery pack
e Using the video equipmet having the (f) infourrHiUM mark
Make sure that you use the battery pack having the (ig) mfoLITHIUM mark.
"Consult the operating instructions supplied with your video equipment if it
is applied to InfoLITHIUM.
Though the following models are applied to infoLITHIUM, the
remaining battery time is not displayed on this unit.
DCR- PC7/PC7E/PC10/PC10E/SC100/SC100E/ TRV7/ IRV7E
CCD- TR555/ TR555E/ TR610E/ TR710/ TR710E/ TR760E / TR790E / TR810E/
TR820E/TR825E/TR910/TR910E/TR920E/TR930/TR1 100E/
TR2200E / TR2300/ TR2300E / TR3100E / TR3300/ TR3300E/ TR3400/
TRV31/TRV31E/TRV41/TRV41E/TRV51 /TRVS1E/TRV54E/
TRV56E/TRV61E/TRV62/TRV64E/TRV72/TRV81 /TRV81E/
TRV82/TRV91E/TRV94/TRV94E/TRV101 /TRV101E/
SC55/SC55E/SC65/SC65E
GV-A500/ A500E
If you use the video equipmet having the (0) InfoLITHIUM mark, the remaining battery
time display of the battery pack being charged corresponds to the video equipmet
having the (1) InfoLITHIUM mark which is last attached to the battery pack.
Charging
Use only a lithium ion type battery pack. This unit cannot be used to
charge a Ni-Cd/Nickel hydrogen type battery pack.
* Attach the battery pack firmly.
e Charge the battery pack on a flat surface without vibration.
Charging temperature
The temperature range for charging is 0°C to 40°C (32°F to 104°F).
However, to provide maximum battery efficiency, the recommended
temperature range when charging is 10°C to 30°C (50°F to 86°F).
Others
* Use this car battery charger only for cars which use a 12 or 24 volt battery.
* There are cars which are negatively grounded and there are others which
are positively grounded.
This car battery charger is for negatively grounded cars oniy.
* Use the unit with leaving the car engine going. If you use the unit with the
car engine stopped, the car battery may become unusable.
* This unit is not disconnected form the power source as long as it is
connected to the cigaerette lighter socket of a car.
« Unplug the car battery cord from the cigaerette lighter socket when not in
use. To disconnect the cord, pull it out by the plug. Never pull the cord
itself.
« Do not operate the unit with a damaged cord or if it has been dropped or
damaged.
* Be sure that nothing metallic comes into contact with the metal parts of
the unit or connecting plate. If it does, a short may occur and the unit
may be damaged.
* Always keep the metal contacts clean.
* Do not disassemble or convert the unit.
* Do not apply mechanical shock or drop the unit.
e While the unit is in use, it gets warm. But this is normal.
* Keep the unit away from AM receivers, because it will disturb AM
reception.
* Do not place the unit in a location where it will be in direct sunlight such
as on the dashboard.
If any difficulty should arise, unplug the unit and contact your nearest Sony
dealer.
Specifications
Power requirements 12/24 Y DC
(12/24 Y, only for negative groundedcars)
Output voltage DC OUT:
8.4 V, 2.0 A in operating mode
Battery charge terminal:
8.4 V, 1.4 À in charge mode
Application Sony battery pack NP-FM50/FM70/FM90/
F530/F550/F730/F750/F930/ F950
Operating temperature 0°C to 40°C (32°F to 104°F)
Storage temperature —20%C to 60°C (-4°F to 140°F)
Dimensions Approx. 136 x 48 x 90 mm (w/h/d)
(5'/,x1"%/ x 3'/, inches)
including projecting parts
Mass Approx. 320 g (11.3 02)
Supplied accsesories Connecting cord DK-415 (1), DK-215 (1)
Design and specifications are subject to change without notice.
(NIDEOACC This mark indicates that this product is a genuine
N `% accessory for Sony video products. When purchasing
Sony video products, Sony recommends that you
purchase accessories with this “GENUINE VIDEO
ACCESSORIES” mark.
o cn
o
O
=
+
ln
S,
=
Q
ma
>
D
©
Q
+
wn
See illustration JA.
Terminal shutter (InfoLITHIUM L series)
Terminal shutter (InfoLITHIUM M series)
DC OUT connector
CHARGE lamp
Mode change switch
DISPLAY CHANGE button
Display window
Noja]
Display window
8] InfoLITHIUM indicator
9] WARNING indicator
10l TIME TO CHG (charge) indicator
11] Time indicator
12 BATTERY LIFE (battery remaining time) indicator
13 VTR/CAMERA indicator
14 Full charge indicator
15 Remaining battery indicator
DL.
To Charge the Battery Pack
See illustration В.
1 Set the mode change switch to CHARGE.
2 Connect the power cord to this unit.
3 Connect the power cord to the cigarette lighter socket.
The beep sounds and the display window lights up.
4 Install the battery pack.
Charging begins. When the remaining battery indicator becomes 17]
and the CHARGE lamp lights up, normal charge is completed. For full
charge, which allows you to use the battery slightly longer than “normal
charge”, leave the battery pack attached until the CHARGE lamp goes
out.
Remove the battery pack when required. It can be used even if the
charging is not completed.
Remaining battery indicator
Normal charge Full charge
FULL
To Install the battery pack
InfoLITHIUM L series (NP-F550, etc.) (ill. (3-1)
O Place the battery pack on this unit with the < mark facing the
terminal shutter (L series).
O Slide the battery pack in the direction of the arrow.
Press the battery pack until the terminal shutter enters completely
into this unit.
InfoLITHIUM M series (NP-FM50, etc.) (ill. E)-[2))
O Place the battery pack on this unit with the » mark facing the
terminal shutter (M series).
O Slide the battery pack in the direction of the arrow.
Press the battery pack until the terminal shutter lifts completely.
Note
When you install the battery pack, be sure not to strike it to the terminal of
the DC adaptor/charger.
Charging time
The following table shows the charging time for the battery pack which is
discharged completely.
Battery pack Charging time Battery pack Charging time
(InfoLITHIUM L series) (InfoLITHIUM M series)
NP-F550 115 (55) “ NP-FM50 105 (45)
NP-F750 170 (110) NP-FM70 150 (90)
NP-F950 225 (165) NP-FM90 195 (135)
* Approximate minutes to charge an empty battery pack fully (Full charge).
* Approximate minutes in parentheses indicate the time when you charge
normally (Normal charge).
* To ascertain the battery life, refer to the instruction manual of the video
equipment which you use.
* The charging time may differ depending on the condition of the battery
pack or the temperature of the environment.
Notes
* When the mode change switch is set to VTIR/CAMERA during charging,
charging stops.
* If the CHARGE lamp does not light or flash, check that the battery pack is
correctly attached to the DC adaptor /charger. If it is not attached, it will
not be charged.
“
When the CHARGE lamp flashes
If a problem occurs during charging, the CHARGE lamp flashes and
WARNING appears on the display.
Check through the following chart.
Remove the battery pack from this unit, then install the same battery
pack again.
|
t Y
If the CHARGE lamp flashes If the CHARGE lamp lights and
again: does not flash again:
Install another battery pack. If the CHARGE lamp goes out
because the charging time has
passed, there is no problem.
| Y
If the CHARGE lamp flashes If the CHARGE lamp lights and
again: does not flash again:
The problem is with this unit. If the CHARGE lamp goes out
because the charging time has
passed, the problem is with the
battery pack first installed.
|
Please contact your nearest Sony dealer in connection with the product
with the problem.
To remove the battery pack
NP-F550, etc. (ill. E-[1))
Slide the battery pack in the direction of the arrow,then lift it straight out.
NP-FM5O0, etc. (ill. E)-[21)
Slide the battery pack in the direction of the arrow,then lift it straight out.
To Check Charging
While charging, you can check the charging time on the display. After
starting charging in a minute, BATTERY LIFE lights up on the display.
Press DISPLAY CHANGE while charging.
Each time you press DISPLAY CHANGE, the display changes as follows.
InfoLITHIUM The remaining battery time
Г” BATTERY LIFE when the battery pack being
Cu charged is attached to your
“m1 . ,
Im | InfoLITHIUM video equipment
| The time is not displayed when the
DISPLAY » . .
CHANGE remaining battery time is less than 5
minutes.
InfolITHIUM The remaining time until normal
charge is completed
TIME TO CHG mami
NORMAL И т Na
DISPLAY
} 5
InfoLITHIUM The remaining time until full
charge is completed
TIME TO CHG | U
FULL в Эт 1 4]
DISPLAY
CHANGE
О
Notes
* The time display shows the approximate time when charging at 10°C -
30°C. The time display may differ from the actual charging time
depending on using conditions and circumstances.
* The time display may show “—- —~" in the following cases. However, the
unit is not malfunctioning,
— The remaining battery time is less than 5 minutes.
— There is a difference between the displayed time and actual charging
time. Even if this happens, continue charging.
Full charge requires about 1 hour after normal charge is completed. If you
remove the battery pack between normal charge and full charge, the
charging time may not be displayed properly in the next charging.
e If the charging time is not displayed properly, fully charge the battery
pack. The charging time will be displayed properly.
* When you attach a fully charged battery pack to this unit, “TIME TO CHG
FULL 1h” may appear on the display. However, the unit is not
malfunctioning.
* The remaining battery time may not be displayed depending on using
conditions and circumstances of your video camera recorder and of the
battery. See “ About the remaining time” for more details.
* You may wait for a while after pressing DISPLAY CHANGE until the
display shows the time indication.
* To display the remaining battery time of a new battery, attach it to your
video camera recorder and use it for about 20 seconds. Then, charge the
battery with this unit.
E
To Operate Video Equipment
See illustration (€.
Use the supplied DK-415 or DK-215 connecting cord.
For details of the connection, refer to the instruction manual of your video
equipment.
1 Set the mode change switch to VTR/CAMERA.
2 Connect the DC cord to the cigarette lighter socket.
3 Connect the connecting cord ® to the DC QUT connector of this
unit.
4 Connect the connecting cord to the video equipment.
When using the connecting cord DK-415
(DCR-TRV9 etc.) (ill.[€]-[1])
While pressing the connecting plate (8), slide it down.
To remove the connecting plate, slide it up while pressing the battery
release lever ©.
When using the connecting cord DK-215
(DCR-TRV10 etc.) (ii.[§-[2))
Open the cover, and insert the connecting plug ©).
To remove the connecting plug, pull it out.
Notes
* If you set the mode change switch to CHARGE while operating the video
equipment, the power supply to the video equipment stops.
* You cannot charge the battery pack attached to this unit while supplying
the power to the video equipment.
* Keep this unit away from the video equipment if the picture is disturbed.
Fuse Replacement
If this unit is not working properly, check to see if the fuse has blown out.
If the fuse has blown out, replace it in the following way.
1 Twist the end of the plug and remove it.
3 Insert the new fuse and twist the end of the plug and tighten.
Notes
* Replace the fuse with a fuse of the same voltage (4 A, 125 V).
* If the car's cigarette lighter socket is dirty with ash, etc., the plug part will
become hot due to a poor connection. Be sure to clean it before using.
* When replacing the fuse, do not substitute anything for the specified fuse.
+ If the fuse blows again soon after replacement, consult your nearest Sony
dealer.
Please contact your car dealer about the polarity that your car is grounded
or the voltage of your car battery, etc.
NORMAL
itn m A
Pour retirer
Para extraer
Pour retirer
Para extraer
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
