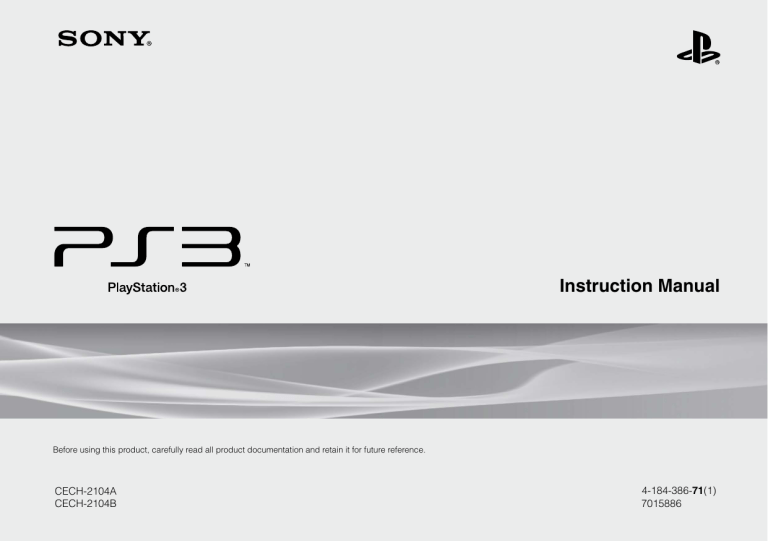

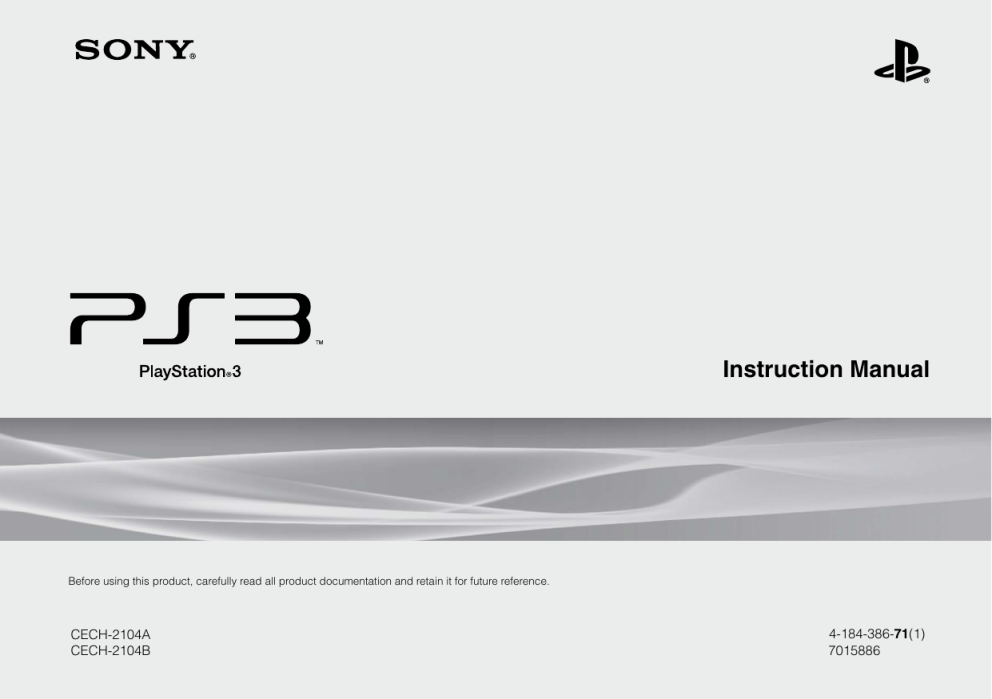

Instruction Manual
Before using this product, carefully read all product documentation and retain it for future reference.
CECH-2104A
CECH-2104B
4-184-386-71(1)
7015886
WARNING
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
Caution
Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
The use of optical instruments with this product will
increase eye hazard.
CLASS 1 LASER PRODUCT
LASER KLASSE 1 PRODUKT
This appliance is classified as a CLASS 1 LASER product under
IEC60825-1+A2:2001.
This equipment has been tested and found to comply with the limits set out in the
R&TTE Directive using a connection cable shorter than 3 metres. Do not use
cables longer than 3 metres.
The manufacturer of this product is Sony Computer Entertainment Inc., 2-6-21
Minami-Aoyama, Minato-ku Tokyo, 107-0062 Japan. The Authorised
Representative for EMC and product safety is Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
Distributed in Europe by Sony Computer Entertainment Europe Ltd, 10 Great
Marlborough Street, London, W1F 7LP.
Seizures induced by light stimulation (Photosensitive
Epilepsy)
If you have an epileptic condition or have had seizures, consult your doctor prior
to playing. Some individuals may experience eye soreness, altered vision,
migraine, muscle twitching, convulsion, blackout, loss of awareness or
disorientation when exposed to flashing or flickering lights or other light
stimulation on a television screen or while playing video games. If you experience
any of the above symptoms while playing, discontinue use immediately and
consult your doctor.
Stop playing immediately when you experience the following symptoms
In addition to the above symptoms, whilst playing if you have a headache,
dizziness, nausea, fatigue, similar symptoms to motion sickness, or if you feel a
discomfort or pain in any body part such as eyes, ears, hands, arms, feet,
discontinue use immediately. If the condition persists, seek medical attention.
Radio waves
Radio waves may affect electronic equipment or medical devices (for example,
pacemakers), which may cause malfunctions and possible injuries.
If you use a pacemaker or other medical device, consult your physician or the
manufacturer of your medical device before using the wireless networking
feature (Bluetooth® and wireless LAN).
Do not use the wireless networking feature in the following locations:
– Areas where wireless network use is prohibited, such as in hospitals. Abide
by medical institution regulations when using the system on their premises.
– Areas near fire alarms, automatic doors and other types of automated
equipment.
System software
About national export control
This product may fall within the scope of national export control legislation. You
must comply fully with the requirements of such legislation and of all other
applicable laws of any jurisdiction in relation to this product.
GB
WARNING
The System Software included within this product is subject to a limited licence
from Sony Computer Entertainment Inc. Refer to
http://www.scei.co.jp/ps3-eula for further details.
Table of contents
WARNING.......................................................................................... 2
Precautions........................................................................................ 5
Online information about the PS3™ system.................................... 10
XMB™ (XrossMediaBar) menu........................................................ 11
Connecting to the Internet......................................................... 32
Using the Internet browser..............................................................32
Viewing the user’s guide.................................................................32
Creating a PlayStation®Network account........................................32
PS3™ system updates.............................................................. 33
Part names................................................................................ 12
Getting started........................................................................... 13
Connection methods.......................................................................13
Performing initial setup of the system software...............................15
Video output on the PS3™ system.................................................16
Connecting digital audio devices....................................................20
Turning the PS3™ system on and off........................................ 21
Using the wireless controller...................................................... 22
Playing content.......................................................................... 24
Blu-ray Disc (BD)/DVD/CD..............................................................24
Playing content on USB devices.....................................................25
File formats that can be played or viewed.......................................25
Playing games........................................................................... 26
Game compatibility.........................................................................26
Playing games................................................................................26
Controller settings...........................................................................26
Saved data for PlayStation®3 format software................................26
Saved data for PlayStation® format software..................................27
Adjusting network settings......................................................... 28
Adjusting network settings (wired)..................................................29
Adjusting network settings (wireless)..............................................29
Adjusting custom settings...............................................................31
Using the on-screen keyboard................................................... 34
Parental control......................................................................... 35
Replacing the hard disk............................................................. 36
Backing up data..............................................................................36
Removing the hard disk..................................................................37
Replacing the hard disk..................................................................38
Reinstalling the system software....................................................39
Restoring data that has been backed up........................................40
Restoring the PS3™ system..................................................... 41
Before disposing of or transferring the PS3™ system....................41
Before requesting service.......................................................... 43
Specifications................................................................................... 48
GUARANTEE................................................................................... 51
Copyright and trademarks................................................................ 53
Precautions
Safety
Observe all warnings, precautions and instructions.
Regularly inspect the AC power cord for damage and for dust build-up around
the power plug or electrical outlet.
Stop use, unplug the AC power cord from the electrical outlet and disconnect
any other cables immediately if the device functions in an abnormal manner,
produces unusual sounds or smells or becomes too hot to touch.
Contact the appropriate PlayStation® customer service helpline which can be
found within every PlayStation®3 software manual.
Do not use the system or accessories near water.
Do not allow liquid, small particles or other foreign objects to get into the
system or accessories.
Do not touch the connectors of the system or accessories.
Do not expose the system or accessories to dust, smoke or steam. Also, do not
place the system in an area subject to excessive dust or cigarette smoke. Dust
build-up or cigarette smoke residue on the internal components (such as the
lens) may cause the system to malfunction.
Do not expose the system or accessories to high temperatures, high humidity
or direct sunlight.
Do not place the system or accessories on surfaces that are unstable, tilted or
subject to vibration.
Use in a well-lit area and keep a safe distance from the TV screen.
Do not set the system other than in the vertical or horizontal position. When
setting the system in the vertical position, use the vertical stand (sold
separately) for this model of the system. Also, do not change the position while
the system is turned on.
Avoid prolonged use of the PS3™ system. Take a 15-minute break during each
hour of play.
Be careful when carrying the system. If you do not have a good grip, the
system may drop causing potential damage or injury.
Avoid playing when you are tired or need sleep.
Do not move or change the position of the system with a disc inserted. The
vibration may result in scratching of the disc or the system.
Use and handling
Stop using the system immediately if you begin to feel tired or if you experience
discomfort or pain in your hands or arms while operating the Wireless
Controller. If the condition persists, consult a doctor.
If you experience any of the following health problems, discontinue use of the
system immediately. If symptoms persist, consult a doctor.
– Dizziness, nausea, fatigue or symptoms similar to motion sickness
– Discomfort or pain in a part of the body, such as eyes, ears, hands or arms
Keep the system and accessories, including cable ties and fasteners, out of the
reach of small children.
Do not connect cables other than a USB cable while the system is turned on
(power indicator lit solid green).
GB
Precautions
This product has been designed with the highest concern for safety. However, any
electrical device, if used improperly, has the potential for causing fire, electrical
shock or personal injury. To help ensure accident-free operation, follow these
guidelines:
Do not touch the system or connected cables or accessories during an
electrical storm.
Do not turn off the system while data is being saved on or loaded from the hard
disk.
Do not stand on or put objects on the system, and do not stack the system with
other devices.
Do not place the system and connected accessories on the floor or in a place
where they may cause someone to trip or stumble.
Do not allow bodily contact with the system or air from the system vents for an
extended period of time while in use. Extended contact under these conditions
may cause low-temperature burns.
Precautions
When connecting the system to a plasma or projection* TV, do not leave a still
image on the TV screen for an extended period of time, as this may leave a
faint image permanently on the screen.
* Except LCD screen types
Parents are encouraged to monitor children in online activities to ensure safe
and responsible Internet usage. Refer to http://www.ps-playsafeonline.com for
further details.
Notes on safety when using the DUALSHOCK®3
Wireless Controller*
Do not use the vibration function if you have any ailment or injury to the bones,
joints or muscles of your hands or arms. If you have an ailment or an injury, do
not play such titles using the DUALSHOCK®3 Wireless Controller unless you
have set the vibration function to [Off].
When using the motion sensor function of the Wireless Controller, be cautious of
the following points. If the controller hits a person or object, this may cause
accidental injury or damage.
– Before using the motion sensor function, make sure you have enough space
to move around.
– Firmly grip the Wireless Controller to prevent it from slipping out of your grasp
and causing damage or injury.
– When using the Wireless Controller with a USB cable, ensure that the cable
cannot hit a person or any object, and do not pull the cable out of the PS3™
system whilst playing.
* These notes also apply to other controllers.
Vents
Do not block any vents. To maintain good ventilation, follow the guidelines below:
Place the system at least 10 cm away from a wall surface.
Do not place on a carpet or rug with long fibres.
Do not place in a narrow or cramped space.
Do not cover with cloth.
Do not allow dust to build up on the vents.
AC power cord use
To help ensure safe operation, regularly inspect the AC power cord. If
damaged, stop use immediately and contact the appropriate PlayStation®
customer service helpline which can be found within every PlayStation®3
software manual.
Do not use a power cord other than the supplied AC power cord. Do not modify
the cord.
Do not touch the plug of the AC power cord with wet hands.
Protect the AC power cord from being walked on or pinched particularly at
plugs, expansion receptacles and the point where the cord exits from the
system.
Do not place heavy items on the cord.
Do not place the AC power cord near heating equipment and do not expose
the cord to heat.
Do not allow dust or foreign matter to build up around the AC IN connector.
Before connecting or plugging in the AC power cord, check that there is no
dust or foreign matter in or on the power plug or connecting end of the cord,
the electrical outlet or the AC IN connector on the system rear. If the plug or
connector becomes dirty, wipe off with a dry cloth before connecting.
Unplug the AC power cord from the electrical outlet before cleaning or moving
the system, or when you do not intend to use the system for an extended period
of time. When disconnecting, grasp the power cord by the plug and pull
straight out of the electrical outlet. Never pull by the cord and do not pull out at
an angle.
Do not connect the AC power cord to a voltage transformer or inverter.
Connecting the AC power cord to a voltage transformer for overseas travel or
an inverter for use in an automobile may cause heat to build up in the system
and may cause burns or a malfunction.
Never disassemble or modify the system or accessories
Network
A broadband Internet connection is required to connect to a network.
User is responsible for Internet service fees. For details, refer to the information
provided in your service contract or contact your Internet service provider.
Use only an Ethernet cable compatible with 10BASE-T, 100BASE-TX or
1000BASE-T networks. Do not use a cord for a standard residential telephone
line or cables of types other than those mentioned here. Using the wrong type
of cord or cable can cause more electrical current than necessary to flow
through the LAN connector, which may lead to heat build-up, fire or
malfunction.
Wireless networking feature
The 2.4 GHz range of radio waves used by the wireless networking feature of
this product is a range shared by various devices. This product has been
designed to minimise the effect of other devices using the same range.
However, in some cases interference from other devices may reduce the
connection speed, shorten the signal range or cause the connection to be
terminated unexpectedly.
Moisture condensation
If the system or disc is brought directly from a cold location to a warm one,
moisture may condense on the lens inside the system or on the disc. Should this
occur, the system may not operate properly. In this case, remove the disc and
turn off and unplug the system. Do not put the disc back in until the moisture
evaporates (this may take several hours). If the system still does not operate
properly, contact the appropriate PlayStation® customer service helpline which
can be found within every PlayStation®3 software manual.
GB
Precautions
Use the PS3™ system and accessories according to the instructions in the
product documentation. No authorisation for the analysis or modification of the
system or accessories, or the analysis and use of its circuit configurations, is
provided. Unauthorised modification of the system or accessories will void your
warranty. There are no user serviceable components inside the PS3™ system (the
supplied hard disk may be removed but not disassembled or modified).
Additionally, there is a risk of exposure to laser radiation as well as to electrical
shock.
When using the PS3™ system’s scan function to select a wireless LAN access
point, access points that are not intended for public use may be displayed.
Only connect to an access point that you are authorised to use, or one that is
available through a public wireless LAN or hotspot service.
Cleaning
For safety reasons, before cleaning the system or connected accessories,
disconnect the AC power cord from the electrical outlet.
Exterior surfaces (plastic cover of system and Wireless
Controller)
Follow the instructions below to help prevent the product exterior from
deteriorating or becoming discoloured.
Wipe with a soft, dry cloth.
Do not apply insecticides or other volatile substances.
Do not place any rubber or vinyl materials on the product exterior for an
extended period of time.
Do not use solvents or other chemicals. Do not wipe with a chemically-treated
cleaning cloth.
Precautions
Vents
Cleaning method
When dust accumulates in the system vents, remove the dust with a low-powered
vacuum cleaner.
Clean discs with a soft cloth, lightly wiping from the centre
outwards.
Connectors
Do not use solvents, record cleaners, anti-static spray or other
chemicals as these can damage the discs.
Do not use when the connectors of the system or the AC power cord are not
clean. If used when dirty, the flow of electrical current may be obstructed.
Remove the dirt with a dry cloth.
Discs
Note on compatibility
Some media may have region or territorial restrictions and may not work with your
system. See media packaging for details.
Handling
Do not touch the disc surface when handling a disc; hold it by the edges.
Do not stick paper or tape onto discs and do not write on discs.
Fingerprints, dust, dirt or scratches on the disc can distort the picture or reduce
sound quality. Always handle carefully and check that discs are clean before
use.
Storage
Do not expose discs to high temperatures, high humidity or direct sunlight.
When discs will not be used for an extended period of time, store them in their
cases. Stacking uncased discs or storing them at an angle can cause them to
warp.
GB
Precautions
Online information about the PS3™ system
Friends
This manual explains hardware features and provides basic information about how to
set up and operate the PS3™ system, including warnings and precautions for the safe
and proper use of the system. You can also access the following information available
on the Internet.
Online user’s guide
a
ccess from : eu.playstation.com/manuals
This guide contains detailed information about using the PS3™ system.
System software updates
h
ttp://eu.playstation.com/ps3
The official site for PlayStation®3 products provides the latest information about software titles and
hardware accessories.
Support
PlayStation®Network
Using PlayStation®Network services
Network
h
ttp://eu.playstation.com/ps3
This site provides the latest information about system software updates.
PlayStation®3 official site
Chatting and exchanging messages
Connecting to the Internet
Game
Playing games
h
ttp://eu.playstation.com/help-support
The official site for PlayStation® product support provides the latest questions and answers about
your product.
Video
Playing video
Check that you have all of the following items. If any items are missing, contact the
appropriate PlayStation® customer service helpline which can be found within
every PlayStation®3 software manual.
PlayStation®3 system
Printed materials
AC Power Cord
AV Cable
Music
Playing music
DUALSHOCK®3 Wireless Controller
Euro-AV Connector Plug
Displaying images
USB Cable
Settings
Adjusting PS3™ system settings
Users
10
Information about system functionality and images published in this document may vary from
those for your PS3™ system, depending on the system software version in use.
Selecting users to log in to the PS3™
system
XMB™ (XrossMediaBar) menu
The PS3™ system includes a user interface called XMB™
(XrossMediaBar).
Category
Item
Directional buttons:
Used to select on-screen categories/items
PS button:
Displays the XMB™ menu
Turns the system on/off
1
Select a category using the
or button.
2
Select an item using the
or
button.
3
button to confirm the
Press the
selected item.
button: Displays the options menu/control panel
Selecting an icon and pressing the
button will display the options menu.
Pressing the
button during content
playback will display the control panel.
button:
Confirms the selected item
button:
Icons
Options menu
Control panel
Cancels an operation
11
Part names
System front / rear
DUALSHOCK®3 Wireless Controller
Port indicators
Disc slot
USB connector
L2 button
L1 button
R2 button
R1 button
Directional
buttons
button
button
button
button
Left stick/
L3 button*
Right stick/
R3 button*
Power button
Eject button
WLAN access indicator
HDD access indicator
USB connectors
LAN connector
HDMI OUT connector
SELECT button
START button
PS button
* The L3 and R3 buttons function when the sticks are pressed.
Vent
AC IN connector
AV MULTI OUT connector
DIGITAL OUT (OPTICAL)
connector
Caution
Do not use the system in a closed cabinet or other locations where heat may
build up. Doing so may cause the system to overheat and may lead to fire,
injury or malfunction.
If the system’s internal temperature becomes elevated, the power indicator
will flash alternately in red and green. In this case, turn off the system
(
page 21) and leave it unused for a while. After the system cools down,
move it to a location with good ventilation, and then resume use.
12
Notices
Do not place the system in an area subject to excessive dust or cigarette
smoke. Dust build-up or cigarette smoke residue on the internal
components (such as the lens) may cause the system to malfunction.
Do not move or change the position of the system while the power indicator
is lit solid green or flashing green. The vibration that occurs as a result of
moving the system may cause data loss or corruption, or damage to the
system.
Hint
When placing the system in a vertical position, use the vertical stand (sold
separately).
Getting started
Connection methods
GB
Getting started
Connect your system to a TV
You can use any of the following methods to connect your system to a TV.
Video output in SD (Standard Definition) resolution
HDMI OUT
connector
AV MULTI OUT
connector
AV MULTI OUT
connector
Euro-AV Connector
AV Cable
TV
Video output in HD (High Definition) resolution - component video
Component AV Cable
(sold separately)
COMPONENT VIDEO IN AUDIO IN
Y PB/CB PR/CR L
R
AV MULTI OUT
connector
TV
Video output in HD (High Definition) resolution - HDMI™
If video is not displayed on the screen
If you change the type of cable used to connect the
system to a TV, video may not appear on the screen. If
video does not appear, turn off the system and then
turn it on again by pressing the power button for at
least five seconds (until the system beeps twice). The
video output setting will be reset and video will be
output at standard definition (SD) resolution.
HDMI OUT
connector
HDMI Cable (sold separately)
TV
Hints
For details about video output cable types and supported video modes, see "Video output on the
page 16) and "Video output cable types" (
page 17).
PS3™ system" (
You can connect audio devices that support digital audio playback, such as an AV receiver for home
entertainment use. For details, see "Connecting digital audio devices" (
page 20).
13
Getting started
Connect an Ethernet cable (sold separately)
Use an Ethernet cable to connect the system to the Internet.
Hint
LAN connector
AC IN connector
You can use a wireless network connection to connect to the Internet without using an Ethernet cable.
page 28).
For details, see "Adjusting network settings" (
Caution
Do not connect a standard telephone line or other types of cords or cables that are not compatible
with the system directly to the LAN connector on the system, as this may cause heat build-up, fire
or malfunction.
Connect the AC power cord
After plugging the AC power cord into the electrical outlet, the power indicator on the
PS3™ system will light up in solid red ( page 21).
Some regions and countries may use a
different electrical outlet plug from the
one illustrated.
Caution
Do not plug the AC power cord for the system into an electrical outlet until you have made all other
connections.
14
Performing initial setup of the system software
5
Perform initial setup.
GB
After turning on the system, perform initial setup.
2
Getting started
1
Turn on the TV, and then switch the video input of the TV to
match the input connector used by the PS3™ system.
Press the power button.
The power indicator turns green and the picture is displayed on the TV
screen.
Power indicator
Power button
3
4
Follow the on-screen instructions to enter settings for system language, time
zone, date and time, and user name.
Connect the wireless controller to the system using a USB
cable.
The screen for setting up the Internet connection will be displayed. When
connecting using an Ethernet cable, basic settings will be selected
automatically if you follow the on-screen instructions. When connecting over
a wireless LAN, follow the instructions in "Adjusting network settings
page 29) to set up the connection.
(wireless)" (
Press the PS button on the controller.
After the settings have been completed, the XMB™ menu (
be displayed on the TV screen.
The system will recognise the controller. After it has recognised the controller,
the initial setup screen will be displayed.
page 11) will
Hints
When using an HDMI cable to connect the system to the TV, a screen for
changing the video output resolution will be displayed during initial setup. If you
select [Yes] on the screen and then press the
button, the optimal output
resolution will be selected automatically.
page 34).
For details on entering text, see "Using the on-screen keyboard" (
(Settings) or
Settings entered during initial setup can be changed under
(Users). For details, refer to the online user’s guide
(access from : eu.playstation.com/manuals).
15
Getting started
Video output on the PS3™ system
The PS3™ system can output two types of resolution: HD and SD. Refer to the instruction manual for the TV in use to check which video mode is
supported.
HD (High Definition)
Video mode *1
Aspect ratio
SD (Standard Definition)
1080p
1080i
720p
576p
576i *2
16:9
16:9
16:9
16:9
4:3
16:9
4:3
*1 This number indicates the number of scan lines. Note that "i" stands for "interlace" and "p" stands for "progressive". Using progressive results in high-quality video with
minimal flickering.
*2 The video output setting on the system will display as [Standard (PAL)].
Screens showing the difference in resolution
HD screen
16
SD screen
Video output cable types
Cable type
Input connector on the TV
HDMI Cable*²
(sold separately)
HDMI IN connector
Component AV Cable
(sold separately)
Component VIDEO IN
connector
S VIDEO Cable
(sold separately)
S VIDEO IN connector
AV Cable
(supplied)
VIDEO IN connector
(composite)
AV Cable
(supplied)
Euro-AV Connector Plug
(supplied)
Euro-AV connector
(SCART)
Supported video modes*¹
1080p / 1080i / 720p / 576p
COMPONENT VIDEO IN
Y
PB/CB PR/CR
AUDIO IN
L
R
GB
Getting started
The resolution displayed on the TV varies depending on the input connectors on the TV and the type of cable in use. Select a cable to match the TV
in use.
1080p / 1080i / 720p / 576p / 576i*3
S VIDEO
L-AUDIO-R
VIDEO
L-AUDIO-R
576i*3
576i*3
576i*3
*1 Depending on the type of TV or content to be played, some video modes may not be supported.
*2 Connect the system to the TV using an HDMI cable (sold separately). An HDMI cable can output both video and audio and enables you to enjoy digital-quality
video and audio.
*3 The video output setting on the system will display as [Standard (PAL)].
17
Getting started
3
Adjusting video output settings
Depending on the type of cables and the connectors used, you may
need to adjust the PS3™ system's video output settings to display
video at HD resolutions (
page 16) on a TV.
Confirm the screen, and then press the
button.
If you changed the connector in step 2, a screen for confirming the change
will be displayed.
4
Confirm the settings, select [Yes], and then press the
button.
If you changed the connector in step 2, a screen for confirming the settings
will be displayed.
If video is not displayed
Switch the video input of the TV to match the input connector used to
connect to the system.
Turn off the system, and then turn it on again by pressing the power button
for at least five seconds (until the system beeps twice). The video output
setting will be reset and video will be output at standard definition (SD)
resolution.
1
2
Select
(Settings)
(Display Settings)
Settings], and then press the
button.
Select the input connector (
then press the button.
[Video Output
page 17) in use on the TV, and
5
Select the resolutions supported by the TV, and then press the
button.
The resolution displayed on the TV varies depending on the input connector
page 17). The highest resolution you
and the type of cable used (
selected will be used for video output.
Depending on the connector selected in step 2, this screen may not be
displayed.
If you select [HDMI], you will have the option to choose [Automatic] or
[Custom] on the next screen. In most cases, select [Automatic], and video
output settings will be completed automatically.
18
If you select [AV MULTI / SCART], you must choose the type of output signal
on the next screen. In most cases, select [Y Pb/Cb Pr/Cr].
6
Confirm the settings, select [Yes], and then press the
button.
7
Continue on to adjust audio output settings. Adjust settings to match the TV
or audio device in use.
GB
If you select [HDMI], you will have the option to choose [Automatic] or
[Manual] on the next screen. In most cases, select [Automatic].
Select the type of TV, and then press the
button.
If you selected [Standard (PAL)] or [576p] in step 5, a screen for selecting the
TV screen size will be displayed. Adjust the setting to match the TV in use.
If you selected [720p] or a higher resolution in step 5, the TV type will
automatically be set to 16:9 and the screen for selecting the TV screen size
will not be displayed.
8
Adjust audio output settings.
Getting started
Depending on the connector selected in step 2 and the resolutions selected
in step 5, this screen may not be displayed.
9
If using a cable other than an HDMI cable to output audio from the TV, select
[Audio Input Connector / SCART / AV MULTI]. If using an optical digital cable
to output audio, select [Digital Out (Optical)] and choose the output format
on the next screen.
10 Confirm the settings, and then press the
button.
The audio output settings will be saved on the system.
Confirm the settings, and then press the
button.
The video output settings will be saved on the system.
Hint
You can adjust audio output settings under
[Audio Output Settings].
(Settings)
(Sound Settings)
19
Getting started
Connecting digital audio devices
Examples when connecting an audio device
You can connect audio devices that support digital audio playback,
such as an AV receiver for home entertainment use.
An HDMI cable or optical digital cable can be used to connect an
audio device to the PS3™ system.
HDMI cable
Audio output on the PS3™ system
Optical digital cable
The supported channels may vary depending on the output connector
to be used.
PS3™ system output connectors
Channels that can be used for output
2 Ch.
5.1 Ch.
7.1 Ch.
AV MULTI OUT connector
DIGITAL OUT (OPTICAL) connector
HDMI OUT connector
HDMI cable
(sold separately)
Optical digital
cable for audio
(sold separately)
Hints
(Settings)
When connecting a digital audio device to the system, go to
(Sound Settings) [Audio Output Settings], and then adjust the settings as
necessary for the audio device.
(Settings)
For simultaneous audio output from multiple connectors, go to
(Sound Settings) [Audio Multi-Output], and set the option to [On].
Digital audio device
The system can output both audio and video through an HDMI cable. If both
the TV and the audio device have HDMI connectors, you can output the TV
picture to the TV through a connected audio device.
If a device is connected to the PS3™ system via an HDMI cable, do not turn off
the device while the system is turned on (power indicator is lit solid green), as
doing so may cause sound distortion or produce abnormal sounds.
HDMI cable
(sold separately)
TV
20
Video output cable for the
page 17)
TV in use (
TV
Turning the PS3™ system on and off
Turning on the system
1
Turning off the system
1
Press the power button.
The power indicator lights up in solid red.
Power indicator:
solid red
Power indicator:
solid green
Power button
Power button
2
Press the PS button on the controller.
After the controller number is assigned, you can use the controller to operate
the system.
Notice
When the power indicator is lit solid green or flashing green, be sure to abide
by the notices below. If you do not, data loss or corruption, or damage to the
system may occur.
PS button
Do not unplug the AC power cord from the electrical outlet.
Do not move or change the position of the system.
Turning the PS3™ system on and off
The power indicator lights up in solid green to indicate that the system is
turned on.
GB
Press the power button.
Hints
Power indicator status
You can check the power indicator on the PS3™ system to see the
current status of the system.
Before using a wireless controller, you must first pair it with the system
page 22).
(
You can also turn the PS3™ system on and off using the PS button on the
wireless controller. If you use the PS button to turn on the system, the controller
number will be assigned at the same time. To turn off the system, press the PS
button for more than one second, and then follow the on-screen instructions.
Solid green
System on
You can also turn off the PS3™ system from the XMB™ menu. Select
(Users)
(Turn Off System).
Flashing green
System turning off
Solid red
System off (in standby mode)
If you will not be using the system for a long period of time, check that the
power indicator is lit solid red, and then unplug the AC power cord from the
electrical outlet.
21
Using the wireless controller
Step 2: Assign a controller number
Preparing for use
To use a wireless controller, you must first register or "pair" the controller
with the PS3™ system and assign a number to the controller.
Step 1: Pair the system and the controller.
Each time you turn on the system, a number must be assigned to the
controller.
Press the PS button.
All of the port indicators flash.
1
When using for the first time
When using with a different PS3™ system
2
3
4
When the controller has been assigned a
number, the port indicators for the assigned
number turn solid red.
1
Step 2: Assign a controller number.
2
3
4
Every time the system is turned on
Step 1: Pair the system and the controller
When using the controller for the first time or when using with a different
PS3™ system, you must first pair the devices. If you turn on the system
and connect the controller using a USB cable, the pairing will be
completed automatically.
USB cable (supplied)
Check that the system is turned on
(power indicator is lit solid green).
You can connect up to 7 controllers at one time. The controller number
is shown by the number above the port indicators. For numbers 5-7,
add the numbers of the lit indicators.
Example: Controller number 5 has been assigned.
1
2
3
4
1
Hints
Pairing and assigning controller numbers can only be done when the system is
turned on (power indicator is lit solid green).
When a paired controller is used with another PS3™ system, the pairing with
the original system is cleared. Pair the controller with the system again if the
controller has been used with another system.
If the controller or the system is turned off, the port indicators on the controller
will turn off and the assigned number will be cleared.
22
Using the controller wirelessly
If you press and hold down the PS button for more than one second,
you can check the battery charge level on the screen.
Hints
The USB cable can be connected or disconnected while the controller and the
system are turned on.
If the controller does not function, press the PS button, and then reassign the
controller number.
Charging the controller
Charge Level
With the system turned on (power indicator is lit solid green), connect
the controller to the system using a USB cable. The port indicators of
the controller flash slowly and charging begins. When charging has
completed, the port indicators stop flashing.
The battery has plenty of charge.
The battery has started losing its charge.
Hints
The battery charge level is low.
The controller can be used while charging.
Charge in an environment where the temperature range is between
10°C - 30°C. Charging may not be as effective when performed in other
environments.
The controller cannot be charged when the system is off (in standby mode).
GB
Using the wireless controller
If you disconnect the USB cable, you can use the controller wirelessly.
To use it wirelessly, the controller’s battery must be charged.
Battery charge level
The battery has no charge. The port indicators on the controller flash
rapidly. Charge the controller.
Hint
Depending on the environment or the conditions of use, the remaining charge
level may not display correctly and the battery duration may vary.
23
Playing content
Blu-ray Disc (BD)/DVD/CD
1
Insert the disc.
The eject indicator turns solid blue to indicate that the disc
is inserted.
2
An icon is displayed in the XMB™ menu, and playback of the
disc begins.
If the disc does not automatically start, select the icon for the disc from the
button.
XMB™ menu, and then press the
Insert the disc with the
label side facing up.
Notices
Discs that are not compatible with the system cannot be
played.
To play commercially available BD video software, in
some cases the encryption key* may need to be
renewed. The encryption key can be renewed when the
system software is updated (
page 33).
* AACS (Advanced Access Control System) key
24
Ejecting a disc
Stop playback, and then press the eject button.
Eject indicator
Eject button
Playing content on USB devices
Notices
1
Connect the USB device.
Do not remove USB devices or turn off the system while data is being
saved, loaded or deleted. Doing so may cause data loss or corruption.
When using a USB flash drive with a write-protect switch, do not operate
the switch when the device is connected to the system. Doing so may
cause data loss or corruption.
File formats that can be played or viewed
An icon is displayed on the screen.
GB
Playing content
You can connect external devices, such as devices that are compatible
with USB Mass Storage Class, using a USB cable. Devices can be
connected while the system is turned on. Refer also to the instructions
supplied with the device.
File formats that can be played or viewed on this system include
ATRAC™, MP3, AAC, JPEG and MPEG-4. For the latest information,
refer to the online user’s guide
(access from : eu.playstation.com/manuals).
Hints
External device such as a digital camera
2
Select the icon, and then press the
A list of playable content is displayed.
button.
Only files that are playable or viewable on the PS3™ system are displayed in
the column for the compatible category (Example: Image data is displayed
under
(Photo)).
Depending on the storage media, only a subset of the folders on the media
may be displayed. If you select [Display All] from the options menu
(
page 11), all folders saved on the media will be displayed.
Notice
You should where possible make periodic back-ups of data stored on the
hard disk drive as a precaution against possible loss or corruption. If for any
reason software or data loss or corruption occurs, it is not possible to restore
or repair the software or data. Note that SCEE will not be liable for any loss or
corruption of data, files or software.
25
Playing games
Quitting a game
Game compatibility
PlayStation®3 format software
Can be played on this system
PlayStation® format software
Can be played, but may not always
perform correctly
PlayStation®2 format software
Cannot be played on this system
During gameplay, press the PS button on the Wireless Controller. Then
select
(Game)
(Quit Game) to quit the game.
Hint
Depending on the type of software, such as PlayStation® format software,
(Quit Game) may not be displayed when the PS button is pressed. In this
case, select [Quit Game] from the screen that is displayed.
Controller settings
Playing games
Starting a game
When you insert the disc, the game starts automatically.
You can change controller settings by selecting
(Accessory Settings).
(Settings)
Reassign
Controllers
If a controller port or number is specified by the software,
you can use this setting to assign the appropriate controller
port or number.*
Controller
Vibration Function
You can set the vibration function to on or off. It is set to [On]
by default.
* You cannot assign controller port 2-D using this system.
Hint
You can change settings for the controller during gameplay by pressing the
(Settings)
(Accessory Settings) in the XMB™ screen,
PS button. Select
or select [Controller Settings] from the screen that is displayed.
Saved data for PlayStation®3 format software
Insert the disc with the
label side facing up.
26
Saved data for PlayStation®3 format software is saved on the system’s
hard disk. The data is displayed under
(Game)
(Saved Data
Utility).
Hints
Saved data for PlayStation® format software
Notice
This system does not support playback of PlayStation®2 format software. Even
if you create an internal memory card for PlayStation®2 format software, you
will not be able to use it to play games.
You can assign slots during gameplay. Press the PS button on the wireless
controller, and then select [Assign Slots] from the screen that is displayed.
GB
Playing games
To save data from PlayStation® format software, you must create the
internal memory cards on the hard disk and assign the cards to slots.
Depending on the software, slots may be preassigned. For details, refer to the
instructions supplied with the software.
Creating internal memory cards
1
2
3
Select
(Game)
(Memory Card Utility (PS/PS2)), and
then press the
button.
Select
(Create New Internal Memory Card), and then press
the
button.
Select [Internal Memory Card (PS)], and then press the
button.
Follow the on-screen instructions to complete the operation.
Assigning slots
1
2
Select
(Game)
(Memory Card Utility (PS/PS2)), and
then press the
button.
Select the internal memory card that you want to use, and then
press the
button.
Select [Assign Slots], and then assign [Slot 1] or [Slot 2].
27
Adjusting network settings
Example of a network configuration (wired)
Example of a network configuration (wireless)
A wired network configuration requires items , and .
Network gateway device
such as a DSL modem*1*2
Router*3
A wireless network configuration requires items and .
Network gateway device
Wireless router
such as a DSL modem*1*2
(access point) *3*4
To the Internet line
To the Internet line
Ethernet cable
PC
PC
*1 The connection method may vary depending on the environment in use. For example, you may be able to connect Ethernet cables directly into the wall outlet in
housing complex units that have preinstalled LAN ports. If you are using such a network environment, you do not need a network gateway device.
*2 Dial-up Internet is not recommended.
*3 A router is a device that enables multiple devices to be connected to one Internet line. A router is necessary if a PC and a PS3™ system will be connected to the
Internet at the same time using one Internet connection. A router is not necessary if the DSL or cable modem or other network device has built-in router functionality.
*4 A wireless router is a device that adds access point functionality to a router.
28
Adjusting network settings (wired)
1
Select
(Settings)
(Network Settings) [Internet
Connection Settings], and then press the
button.
1
2
A message stating that the Internet connection will be terminated is
displayed.
3
Select [Yes], and then press the
4
Select [Easy], and then press the
button.
button.
Basic settings are adjusted automatically, and a list of the settings is
displayed. If the list is not displayed, you must adjust custom settings. Refer
to the instructions supplied by your Internet service provider to adjust the
page 31).
custom settings (
5
Check that an Ethernet cable is not connected to the system.
Select
(Settings)
(Network Settings) [Internet
Connection Settings], and then press the
button.
A message stating that the Internet connection will be terminated is
displayed.
3
Select [Yes], and then press the
4
Select [Easy], and then press the
GB
Adjusting network settings
2
Connect an Ethernet cable (sold separately) to the system.
Adjusting network settings (wireless)
button.
button.
Basic settings are adjusted automatically.
5
Select [Wireless], and then press the
button.
Perform the Internet connection test.
If the connection is successful, you will be able to connect to the Internet.
29
Adjusting network settings
6
Adjust wireless LAN settings.
Select the access point that you want to use. You can usually select [Scan]
and choose an access point within range of your system.
Scan
System scans for a nearby access point. Select the
access point that you want to use.
Enter Manually
Specify the access point by entering its SSID manually.
Automatic
Use the automatic setting feature of the access point.
You can follow the on-screen instructions to complete
the required settings automatically.
AOSS™
Buffalo, Inc.
7
Adjust the security settings for the wireless network.
Enter the encryption key for the access point. If you selected [Automatic] in
step 6, this screen will not be displayed.
None
WEP
WPA-PSK/
WPA2-PSK
8
Encryption key is not set.
Enter the encryption key. The encryption key field will
display an asterisk (*) for each character you enter.
Check the settings.
A list of the settings is displayed. If the list is not displayed, you must adjust
custom settings. Refer to the instructions supplied by your Internet service
page 31).
provider to adjust the custom settings (
9
Perform the Internet connection test.
If the connection is successful, you will be able to connect to the Internet.
30
Hints
SSID and WEP/WPA keys are types of security information that are required
when connecting to an access point. If you do not have this information,
contact the person who set up or maintains the access point.
Depending on the access point you use, you may need the MAC address for
the PS3™ system when connecting to the Internet. You can find the MAC
address for the PS3™ system by going to
(Settings)
(System
Settings) [System Information].
When connecting to the Internet wirelessly, signal interference may occur
depending on the usage condition of the wireless network devices. If the
Internet data transfer speed is decreased or the wireless controller does not
function properly, try using a wired Internet connection.
Adjusting custom settings
Specify the MTU value used when transmitting data. You can usually
select [Automatic].
Proxy Server
Ethernet operation mode
Specify the proxy server to be used. You can usually select [Do Not Use].
Specify the Ethernet data transfer rate and operation method. You can
usually select [Auto-Detect].
UPnP
IP Address Setting
Specify the method for obtaining an IP address when connecting to the
Internet. The method varies depending on the Internet service provider
you use.
Automatic
Use the IP address allocated by the DHCP server.
Manual
Enter the IP address manually.
PPPoE
Connect to the Internet using PPPoE. Enter the user name
and password supplied by your Internet service provider.
Enable or disable UPnP (Universal Plug and Play). You can usually
select [Enable].
Hint
If [UPnP] is set to [Disable], online communication may be restricted when using
the voice / video chat feature or communication features in games.
GB
Adjusting network settings
In certain network environments, some settings may not be adjusted
automatically by selecting [Easy]. Refer to the information below and
also follow the on-screen instructions to adjust custom settings.
MTU
DHCP host name
Specify the DHCP server host name. You can usually select [Do Not Set].
DNS Setting
Specify the DNS server. The method varies depending on the Internet
service provider you use.
Automatic
System acquires the DNS server address automatically.
Manual
Enter the DNS server address manually. Enter the IP
addresses of the primary and secondary DNS servers that
are supplied by your Internet service provider.
31
Connecting to the Internet
If network settings are already completed, the PS3™ system will
automatically connect to the Internet when the system is turned on. The
connection will remain active as long as the system is on.
Using the Internet browser
1
Select
(Network)
the
button.
(Internet Browser), and then press
Viewing the user’s guide
You can use the Internet browser to view the online user’s guide for the
PS3™ system. Select
(Network)
(Online Instruction Manuals),
and then press the
button.
Online user’s guide
a
ccess from : eu.playstation.com/manuals
This guide contains detailed information about using the PS3™ system.
The Internet browser opens. A busy icon is displayed while the page is
loading.
Busy icon
Creating a PlayStation®Network account
By creating a PlayStation®Network account, you can enjoy
communicating with your Friends or download games or videos from
(PlayStation®Store).
(PlayStation®Network)
(Sign Up for
Select
PlayStation®Network), and then press the
button. The screen for
creating an account will be displayed.
Basic operations of the Internet browser
Directional buttons
Move the pointer to a link.
Right stick
Scroll in the desired direction.
L1 button
Go back to the previous page.
START button
Enter an address.
button
Switch between displaying and not displaying
the menu.
Hints
An Internet connection is required to create an account.
PlayStation®Network service content may vary depending on the region.
32
PS3™ system updates
By updating the PS3™ system software, you can add features and/or
security patches. Frequently update your system to use the latest
version of the system software.
h
ttp://eu.playstation.com/ps3
This site provides the latest information about system software updates.
You can perform an update in any of the ways described below.
Network update
You can update by downloading the update data from the Internet. The
latest update is automatically downloaded.
Select
(Settings)
(System Update)
[Update via Internet].
Update using storage media
Use the update data to overwrite
the existing system software.
The system software is updated.
Notices
During an update, do not turn off the system or remove media. If an update
is cancelled before completion, the system software may become
damaged, and the system may require servicing or exchange.
During an update, the power button on the system and PS button of the
controller are inactive.
Depending on the content, you may not be able to play without first
updating the system software.
After you have updated the system software, you cannot go back to an
earlier version.
You can update using the update data saved on a USB flash drive or
other media.
Select
Media].
(Settings)
(System Update)
GB
PS3™ system updates
System software updates
Update methods
[Update via Storage
Update using disc media
Update data may also be contained in some game discs and other
types of disc media. When you play a disc that contains update data, a
screen will be displayed to guide you through the update process.
Hint
If you cannot perform an update in any of the ways described above, contact
your local Customer Service helpline (listed in PlayStation®3 software manuals).
Checking the system software version
You can check system version information by selecting
(Settings)
(System Settings) [System Information]. The current version is
displayed in the [System Software] field.
33
Using the on-screen keyboard
Text entry field
Cursor
Displays predictive options
Hints
For details about using the on-screen keyboard, refer to the online user’s guide
(access from : eu.playstation.com/manuals).
You can also enter text using a USB keyboard or Bluetooth®-compatible
keyboard (both sold separately). With the on-screen keyboard displayed, press
any key on the connected keyboard to start entering text.
List of keys
Keys that are displayed vary depending on the input mode and other
conditions.
Keys
Operation keys
Displays when
predictive mode is on
Explanation
Inserts a line break
Input mode
display
Moves the cursor
Deletes the character to the left of the cursor
Entering text
Inserts a space
The following steps explain how to enter text, using the word "fun" as an
example.
1
Select [f] on the keyboard, and then press the
Switches the input mode
Confirms characters that have been typed and
then closes the keyboard
button.
Switches to the mini-size keyboard
Repeat this step for the characters [u] and [n].
2
Select [Enter], and then press the
button.
The characters you entered are confirmed.
3
Select [Enter], and then press the
The text is entered and the keyboard closes.
34
button again.
/
Inserts a symbol or emoticon
/
Switches the type of characters to be entered
/
Copies or pastes text
Parental control
Other security settings
You can set parental control limitations on content other than games
under
(Security Settings), as described below.
BD Parental Control
When playing a BD with parental control settings, restrict
playback based on the age you have set. The lower the
setting, the tighter the restriction.
You can set a parental control level for games or Blu-ray Discs or other
content under
(Settings)
(Security Settings).
DVD parental control
A password is required to change parental control settings. You can set
a password under
(Security Settings) [Change Password].
The password is set to "0000" in the default settings.
When playing a DVD with parental control settings, restrict
playback based on the level you have set.
Select from [Off] or one of eight levels.
The lower the number, the tighter the restriction.
Internet Browser
Start Control
Restrict the ability to start the Internet Browser with a
password.
Changing the security settings
Parental control levels for games
You can set the parental control level for games under
(Security
Settings) [Parental Control]. Select from [Off] or one of 11 levels.
Off
Play any content regardless of parental control level.
11-1
Set the parental control level based on the number. Note that the lower
the number, the tighter the restriction.
GB
Parental control
The PS3™ system includes a parental control feature. You can use this
feature to set a password and limit the playback of content restricted by
a parental control level (games, videos and other content). By setting
the parental control level on the system, you can prevent the playback
of restricted content by children.
Hint
Security settings menu options may vary depending on the version of the system
software in use. For the latest information, refer to the online user’s guide
(access from : eu.playstation.com/manuals).
The combination of the parental control levels of both the PS3™ system
and the content determine whether the content can be played.
Example: If the parental control level of the system is set to [7], content
with a level from [1] to [7] can be played on the system.
Refer to http://www.ps-playsafeonline.com for further details.
35
Replacing the hard disk
You can replace the hard disk that is installed in the PS3™ system.
Caution
Remove the hard disk in a location out of the reach of small children to help
prevent accidental swallowing of small parts such as screws.
The inside of the system is hot directly after use. Allow time for the system to
cool down before starting to remove the hard disk.
Notice
You should where possible make periodic back-ups of data stored on the
hard disk as a precaution against possible loss or corruption. If for any reason
software or data loss or corruption occurs or the hard disk must be formatted
during authorised service, it may not be possible to restore or repair the
software or data. Note that SCEE will not be liable for any loss or corruption of
data, files or software.
Be careful not to injure yourself when removing or handling the screw cover
or the hard disk.
Be sure to reattach the screw cover and the HDD bay cover before turning
the PS3™ system on. If these covers are not attached, heat may build up
inside the system.
To attach or remove screws, use an appropriate crosshead screwdriver. If
the size does not match, the groove on the screw’s head may be damaged.
Notices
Depending on the type of service performed, the hard disk that had been in
use prior to servicing may need to be reformatted. Be sure to back up
important data in advance.
To help protect your personal information and prevent misuse of this
information by others, be sure to clear passwords for all
PlayStation®Network accounts and remove the hard disk before submitting
the PS3™ system for service.
Backing up data in a single operation
You can back up data that is saved on the hard disk to a USB mass
storage device in a single operation. Select
(Settings)
(System Settings) [Backup Utility], and then follow the on-screen
instructions to perform this operation.
Hints
In some cases, you may not be able to use the backup utility feature to back up
the system correctly. It is recommended that you create a spare backup for files
that can be moved or copied separately. For details, refer to "Backing up
selected data" (
page 36).
For details on the backup utility feature, refer to the online user’s guide
(access from : eu.playstation.com/manuals).
Backing up selected data
Backing up data
You can back up data that is saved on the hard disk using either of the
following methods.
36
The following file types saved on the system’s hard disk can be copied
or moved to a USB device. Select the file, press the
button, and then
select [Copy] or [Move] from the options menu. For some types of
video files, you may need to select [Back Up] instead.
File type
Back up destination
Saved data from games; video, music
or photo files
USB mass storage device
(USB flash drive, etc.)
Hints
3
Place the system upside down on a soft, dry cloth, and then
open the screw cover.
Use the notch located above the screw cover to slightly pull up the cover.
Then rotate the cover as shown in the diagram. If the cover is hard to pull up,
insert a tool such as a flathead screwdriver in the notch and gently pull the
cover up.
GB
Replacing the hard disk
Some data cannot be copied, moved or backed up.
By using a card reader/writer (USB connector type, sold separately), you can
back up files saved on the hard disk to storage media such as a Memory
Stick™ or an SD Memory Card.
Removing the hard disk
Screw cover
Caution
For safety reasons, be sure to turn off and unplug the system before
attempting to remove the hard disk.
The system may not be stable when placed upside down. Be careful not to
injure yourself when removing the screw.
1
Remove the screw that fastens the hard disk in place, and then
remove the HDD bay cover.
Remove the blue screw with an appropriate crosshead screwdriver.
Slide the HDD bay cover to the left, and then remove the cover.
Press the power button to turn off the system.
The power indicator turns solid red and the system enters standby mode.
2
4
Unplug the AC power cord, and then disconnect the other
cables from the system.
For safety reasons, remove the plug for the power cord from the electrical
outlet, and then detach the other cables.
HDD bay cover
37
Replacing the hard disk
5
Remove the hard disk.
Replacing the hard disk
Pull the handle upwards, and then pull out the hard disk from the system.
Caution
For safety reasons, be sure to turn off and unplug the system before attempting
to replace the hard disk.
When replacing the hard disk, follow the procedure below to remove
the metal frame.
1
Using a crosshead screwdriver, remove the screws (4 places).
2
Hold the hard disk by the edges, and then turn it over.
Notices
The hard disk is a sensitive piece of equipment and should be handled with
care at all times. To help prevent software or data loss or corruption, or
damage to the hard disk, carefully follow the precautions listed below:
Do not throw or drop the system or hard disk, or otherwise expose either
device to strong vibrations or strong physical impact.
Do not allow liquid or small particles to get into the system or hard disk.
Do not touch the connectors or insert foreign objects into the connectors.
Do not place the system or hard disk close to magnetic fields such as those
produced by magnets or loudspeakers. Also, do not place devices that
may be sensitive to magnetic forces (such as a wrist watch or a credit card)
near the hard disk.
Do not put heavy objects on the hard disk.
When handling the hard disk, hold it only by the edges or metal frame.
The hard disk is sensitive to static electricity. Ensure that proper handling
methods are used when installing the hard disk.
Store in a cool, dry location.
38
Grasp firmly by the opening on
either side to prevent slipping.
3
Remove the hard disk from the metal frame.
Reinstalling the system software
4
Place the replacement hard disk on the metal frame for the
PS3™ system’s hard disk, and then attach using the screws
(4 places).
If the system software does not start when the system is turned on
(such as when the hard disk has been replaced), a screen such as the
one shown below is displayed. In this case, you must reinstall the
system software using downloaded update data.
Do not overtighten the screws.
5
GB
Replacing the hard disk
Hint
If you lose the HDD bay cover, screw cover, screws or the metal frame, contact
your local Customer Service helpline (see manual back cover) for availability of
replacement parts.
Install the hard disk in the system.
Refer to the instructions in "Removing the hard disk" (
page 37) and follow
the steps in reverse order when installing. Be sure to fully insert the hard disk
in the HDD bay.
6
Reinstall the system software.
After the hard disk has been replaced, the system software must be
page 39).
reinstalled (
Replacement hard disks
Downloading system software update data
You can use hard disks of the following types with the PS3™ system.
Size
2.5 inch (internal type) *
Interface format
Serial ATA *2
1
* Proper operation is not guaranteed for all models.
1
Using a PC with Internet access, download the system software update
data from the website shown below. Follow the instructions available on
the website to copy the update data from the PC to storage media.
http://eu.playstation.com/ps3
*2 Parallel ATA is not supported.
39
Replacing the hard disk
Hints
Use the latest version of the update data available on the website. You cannot
reinstall the system software using a version that is earlier than the system
software version that had previously been used. If the appropriate update data
for your system is not available at the website, contact your local Customer
Service helpline (see manual back cover).
If you have a game disc or other disc that contains update data, you may be
able to use that disc to reinstall the system software. If you insert the disc in the
PS3™ system and follow the on-screen instructions, you can verify whether the
update data can be used.
If you do not have Internet access from a PC, contact your local Customer
Service helpline (see manual back cover).
Installing the system software
Turn on the PS3™ system, and then insert the storage media containing
the update data. Follow the on-screen instructions to reinstall the
system software.
Notices
Do not turn off the system or remove the storage media during the
installation. If the installation is cancelled before completion, the system
software may become damaged, and the system may require servicing or
exchange.
During the installation, the power button on the system and the PS button
on the wireless controller are not active.
Restoring data that has been backed up
You can restore data that you backed up using either of the following
methods.
40
Restoring data in a single operation
You can restore data that you backed up in a single operation by
selecting
(Settings)
(System Settings) [Backup Utility].
Connect the USB mass storage device that contains the backup data,
and then follow the on-screen instructions to perform this operation.
Hints
In some cases, you may not be able to use the backup utility feature to restore
data correctly.
For details on the backup utility feature, refer to the online user’s guide
(access from : eu.playstation.com/manuals).
Restoring selected data
You can manually restore files using the options menu for the file.
Connect the USB mass storage device that contains the file, select the
file that you want to restore, and then press the
button. Select [Copy]
or [Move] from the options menu.
Hint
Some data cannot be copied, moved or backed up.
Restoring the PS3™ system
Notices
Do not turn off the PS3™ system during this operation. If the operation is
cancelled before completion, the system software may become damaged,
and the system may require servicing or exchange.
During this operation, the power button on the system and the PS button on
the wireless controller are not active.
You cannot use this feature to go back to an earlier version of the system
software.
Restoring default settings
You can restore from the current settings under
(Settings) to the
default settings by selecting
(Settings)
(System Settings)
[Restore Default Settings].
Before disposing of or transferring the PS3™ system
Before disposing of your PS3™ system or giving your PS3™ system to
a third party for any reason, including return (where permitted), be sure
to follow the instructions in "Deleting data on the hard disk drive" and
select [Full Format] to delete all the data on your PS3™ system. This will
help prevent unauthorised access to or use of your credit card or other
personal details.
Notice
SCEE shall not be liable for any direct and indirect, consequential, or special
damages, including any damages that may arise from unauthorised access to
or use of the data.
GB
Restoring the PS3™ system
If you restore the default settings or restore the PS3™ system, changes to
the settings cannot be undone. Data loss or corruption is the responsibility
of the user.
After you complete the operation and restart the system, the initial
setup screen will be displayed. Follow the on-screen instructions to
perform initial setup of the system software ( page 15).
After you complete the operation and restart the system, the initial
setup screen will be displayed. Follow the on-screen instructions to
perform initial setup of the system software ( page 15).
Deleting data on the hard disk drive
You can delete all data on the system’s hard disk and restore from the
current setting under
(Settings) to the default settings by selecting
(Settings)
(System Settings) [Restore PS3™ System].
You can shorten the time required to perform this operation by selecting
[Quick Format] from the list of hard disk format options. It is
recommended that you select [Full Format] when formatting a hard disk
that contains important or sensitive data.
Where you see either symbol on any of our electrical products, batteries or
packaging, it indicates that the relevant electrical product or battery should not
be disposed of as general household waste in Europe. To ensure the correct
waste treatment of the product and battery, please dispose of them in accordance
with any applicable local laws or requirements for disposal of electrical
equipment/batteries. In so doing, you will help to conserve natural resources and
improve standards of environmental protection in treatment and disposal of
electrical waste.
This symbol may be used on batteries in combination with additional chemical
symbols. The chemical symbols for mercury (Hg) or lead (Pb) will appear if the
battery contains more than 0.0005% mercury or more than 0.004% lead.
41
Restoring the PS3™ system
This product contains a battery which is permanently built-in for safety,
performance or data integrity reasons. The battery should not need to be
replaced during the lifetime of the product and should only be removed by skilled
service personnel. To ensure the correct waste treatment of the battery, please
dispose of this product as electrical waste.
42
Before requesting service
Go through this section if you experience difficulty in operating the
PS3™ system. Should any problem persist, contact the appropriate
PlayStation® customer service helpline which can be found within every
PlayStation®3 software manual.
The system does not turn on.
Check that the AC power cord is securely inserted in the system
and the electrical outlet.
There is no picture on the TV screen.
Check that the cable is securely inserted. Try disconnecting the
cable from the PS3™ system or TV and then reconnecting it.
There may be a problem with the AV cable in use. Try using another
cable that is compatible with the PS3™ system.
Adjust the video input on the TV to match the input connector that is
being used to connect to the PS3™ system.
If the video output settings on the system do not match those of the
cable or TV in use, there may be no picture. If the screen goes
blank, turn off the system. Then, with only the system and the TV
connected, press the system’s power button for more than 5
seconds to turn the system back on. The video output settings will
automatically be reset to the standard definition (SD) resolution.
The picture is distorted.
Check that the cable is securely inserted. Try disconnecting the
cable from the PS3™ system or TV and then reconnecting it.
If the system is connected to a VCR, copy protection encoding on
some BDs and DVDs may cause image distortion, or may cause the
image to become lighter or darker. In such cases, connect the
system to the TV directly. You may also see a similar occurrence if
using a combination TV/VCR unit.
If the BD or DVD does not match the region code set in the system,
it cannot be played. For details, see "Region codes" ( page 49).
Some DVDs are preset with parental control restrictions. Enter the
password that was set in
(Security Settings) to temporarily
increase the parental control level.
GB
Before requesting service
Power
The Blu-ray Disc (BD) or DVD cannot be played, or the picture is
distorted.
When outputting DVD content or PlayStation®3 format software in
standard definition (SD) resolution, only discs recorded in the PAL
standard can be played.
If you record video content on DVD-R, DVD-RW, DVD+R or
DVD+RW media using a device such as a DVD recorder, you must
finalise the media before playing it on the PS3™ system. Finalise the
media using the recording device.
Some BDs are preset with parental control restrictions. Enter the
password that was set in
(Security Settings) to change the
parental control level.
The BD may be disc-locked. Enter the password that was set when
the disc was created.
See also the notices under "Playable discs" (
page 49).
Certain BDs cannot be played.
To play commercially available BD video software, in some cases
the encryption key for AACS (Advanced Access Control System)
may need to be renewed. The encryption key can be renewed when
the system software is updated.
43
Before requesting service
The size of the video image and the TV screen do not match.
The settings of the connected TV and the video output settings of
the system may not match. Check the following items:
(Settings)
Check that the system’s settings under
(Display Settings) [Video Output Settings] are correct.
Check that the settings of the connected TV are correct. For
details, refer to the instructions supplied with your TV.
With some video content, the screen size cannot be changed.
The screen colour does not seem right.
If set to the default setting, the background colour changes as the
time, day and month changes.
Audio
There is no sound.
Check that the muting function on the TV or speakers is turned off.
Also check that the volume is at the appropriate level.
If an audio device is connected, check the settings of the device.
For details, refer to the instructions supplied with the audio device.
There may be a problem with the AV cable. Try using another cable
that is compatible with the PS3™ system.
Some software do not support digital audio output.
If the system’s audio output settings do not match the cable or
device in use, the system may not produce sound. Check that the
system’s settings under
(Settings)
(Sound Settings)
[Audio Output Settings] are correct.
Some content that support Dolby Digital, DTS, and other formats
may not produce audio from all channels.
44
Music files do not play.
Playback methods may be limited for some music files that are
distributed via the Internet. In such cases, it may not be possible to
play the content on the PS3™ system.
Network
A connection to the network cannot be established.
If using a wired connection, check that the Ethernet cable is
securely connected.
Check that the network settings are correct. Refer to the instructions
supplied by your Internet service provider or in the software manual
to make the correct network settings.
The message [An error occurred during communication with the
server. This is a DNS error. (80710102)] is displayed during the
Internet connection test.
If you connect the system to a modem that does not have a router
feature (bridge modem), you may need to set PPPoE settings.
Select
(Settings)
(Network Settings) [Internet
Connection Settings] [Custom] to start configuring the Internet
connection. Continue adjusting settings until you see the IP address
setting screen. Select [PPPoE], and then enter the user name and
password provided by your Internet service provider.
If you connect your system to a router, complete initial settings on
the router first. After completing the settings on the router, try to
adjust the network settings again by selecting
(Settings)
(Network Settings) [Internet Connection Settings] [Easy] again.
For details about the router settings, refer to the instructions
supplied with your router.
The disc cannot be removed.
Press the eject button for 10 seconds or longer to force the disc to
eject. After removing and before reinserting a disc into the system,
turn off the system, and then turn on the system again to resume
use.
If you are using a wireless connection, the WEP key may be wrong.
Check that you have the correct WEP key, and then enter it again.
The connected device may not be usable with the system.
The message [The PPPoE user name or password is not correct.] is
displayed during the Internet connection test.
Enter the correct user name and password for PPPoE. If you do not
know the user name and password, contact your Internet service
provider.
The Web page does not display properly.
Certain content, such as content that requires specialized software,
may not display properly on some Web pages.
The system does not recognise the USB device, or the USB device
does not operate properly.
Check that the device is inserted correctly.
Try using a different USB connector on the PS3™ system. The
device may not be recognised depending on the combination of
USB connectors in use.
In some cases, the system may not recognise the device if an
external USB hub is used and more than the allotted number of
devices are connected. Try removing unused devices.
GB
Before requesting service
The message [The attempt to obtain an IP address timed out.] is
displayed during the Internet connection test.
If you disconnected the Ethernet cable that is used to connect to a
device such as a PC, and then reconnected it to the system, you
must restart both your system and the modem. After restarting both
devices, update your network settings by selecting
(Settings)
(Network Settings) [Internet Connection Settings] [Easy].
For details about restarting your modem, refer to the instructions
supplied with your modem.
When connecting a USB device, the message [An unknown USB
device has been connected.] is displayed.
The connected device may not be compatible with the system or
software application.
The device may be compatible with specific software only. Use
software that is compatible with the device.
Disc Media and USB Devices
There may be too many USB hubs connected. Try removing a USB
hub.
The system does not recognise the disc.
Remove the disc and reinsert it.
If the disc has a label, insert it with the label side up.
Check whether the disc is scratched or dirty. If dirty, wipe it gently
with a soft cloth.
See also the notices under "Playable discs" (
page 49).
45
Before requesting service
Wireless controller
The wireless controller does not function.
When using the wireless controller, you must pair it with the system
and assign a controller number. With the system turned on (power
indicator is lit solid green), connect the system and the controller
using the USB cable, and then press the PS button on the controller.
The controller number may have been cleared. Press the PS button
on the controller to reassign the number.
With some software, you may need to use a specified controller
number. Refer to the manual for the software in use.
Check the charge level of the wireless controller battery. When the
controller is used in wireless mode, it will not function if the battery
does not have any charge left. Charge the battery by connecting
the controller to the system with the USB cable.
If you cannot use the controller even after checking the items
above, try resetting the wireless controller by pushing the reset
button on the controller rear with a thin-tipped object such as a pen.
Reset button
The wireless controller operates in an abnormal manner.
Try resetting the wireless controller by pushing the reset button on
the controller rear with a thin-tipped object such as a pen.
The wireless controller does not vibrate.
Select
(Settings)
(Accessory Settings) [Controller
Vibration Function], and then try setting [Vibration Function] to [On].
46
The software may not support the vibration function. Refer to the
instruction manual for the software. For software downloaded from
(PlayStation®Store), refer to the compatibility notice information
included in the software’s online description.
The response to button operations is slow.
The response speed may be slow on an LCD display or PC display.
This is not a malfunction.
The battery does not charge or does not fully recharge.
The battery can only be charged when the system is turned on
(power indicator is lit solid green).
See "Wireless controller battery" (
page 50).
The battery charge does not last long.
The battery may be wearing out. Battery duration will gradually
decrease with repeated usage and age. See "Wireless controller
battery" ( page 50).
Even when the wireless controller is not being used, it loses its
charge over time.
The controller’s battery slowly loses its charge even when the
controller is not in use. It is recommended that you charge the
controller frequently.
Other issues
The system makes noise.
When using the system in a location where heat can build up, such
as in an enclosed AV cabinet, on carpet or a cushion, or near a wall
(within 10cm of the wall), the internal fan will rotate rapidly to reduce
the system’s temperature and this may generate increased noise.
Move the system to a location with good ventilation.
You forgot your password for security settings.
If you restore the system using
(Settings)
(System Settings)
[Restore Default Settings], your password will return to "0000".
However, note that all settings other than the password will also be
reset. Once these settings are reset, they cannot be recovered.
The system is warm.
When the system is being used or is turned on, it may become
warm. This is not a malfunction.
The screen freezes during gameplay.
Check whether the disc is scratched or dirty. If dirty, wipe it gently
with a soft cloth.
If you have game data for PlayStation®3 format software installed,
try deleting the game data and reinstalling the software. Select
(Game)
(Game Data Utility), press the
button, and
then delete the game data from the options menu. Next, reinstall the
PlayStation®3 format software. Be careful not to delete the saved
data for the game.
The power indicator is flashing red and green alternately.
The interior of the system has become hot. Check whether the
system is being used in a hot location or whether the vents are
blocked. Continuing to use the system in the above condition will
cause it to stop functioning. Turn the system off and leave it unused
until it cools down. After the system cools down, turn it on again.
The power indicator is flashing red and the system does not
operate.
The temperature inside the system may be too high. Check whether
the system is being used in a hot location or whether the vents are
blocked. Press the power button to stop the flashing, and then leave
the system turned off until it cools down. After it cools down, turn on
the system again.
The system does not recognise content.
The content may be of a format that is not supported by the system.
Content of types not supported by the system will not be
recognised. For information on supported formats, refer to the
online user’s guide (access from : eu.playstation.com/manuals).
GB
Before requesting service
Depending on how a disc is being used, such as when copying an
audio CD to the hard disk or starting software from a disc, disc
noise may be louder than normal.
Furthermore, some software may cause more disc noise than
others.
The screen is frozen. The system does not operate.
Disconnect all accessories such as USB devices from the system,
and then restart the system. Pressing the power button for 15
seconds or longer will force the system to turn off (enter standby
mode). After the system turns off, turn it on again.
47
Specifications
Design and specifications are subject to change without notice. Information about
system functionality and images published in this document may vary from those
for your PS3™ system, depending on the system software version in use.
PlayStation®3 system
CPU
RSX™
LPCM 7.1ch, Dolby Digital,
Dolby Digital Plus, Dolby TrueHD, DTS,
DTS-HD, AAC
Audio output
Memory
256 MB XDR Main RAM,
256 MB GDDR3 VRAM
Hard disk
2.5" Serial ATA
120 GB*1 (CECH-2104A)
250 GB*1 (CECH-2104B)
Inputs/
outputs*2
Hi-Speed USB
(USB 2.0)
2
Ethernet (10BASE-T, 100BASE-TX,
1000BASE-T) × 1
Networking
IEEE 802.11 b/g
Bluetooth® 2.0 (EDR)
Controller
48
AC 220 - 240 V, 50 / 60 Hz
Power consumption
External dimensions
(excluding maximum projecting part)
Approx. 250 W
Approx. 290 × 65 × 290 mm
(width × height × length)
Mass
Approx. 3.0 kg
Operating temperature
5°C - 35°C
*1 Hard disk capacity calculated using base 10 mathematics (1 GB =
1,000,000,000 bytes). The system software for this PS3™ system calculates
capacity using binary mathematics (1 GB = 1,073,741,824 bytes) and
subsequently displays lower capacity and free space. The difference in
displayed values does not indicate a difference in the actual number of bytes.
*2 Usability of all connected devices is not guaranteed.
*3 "Deep Colour", "x.v.Colour" and "HD lossless audio format" are supported.
Wireless Controller (Bluetooth®)
Resolution
BD/DVD/
CD drive
(read only)
Power
Cell Broadband Engine™
GPU
AV output
Laser
Type: Semiconductor, continuous
BDWavelength: 400 - 410 nm
Power: Max. 17.5 mW
DVDWavelength: 655 - 664 nm
Power: Max. 2.6 mW
CDWavelength: 770 - 800 nm
Power: Max. 4.0 mW
1080p, 1080i, 720p, 576p, 576i
HDMI OUT connector*3
1
AV MULTI OUT connector
1
Digital out (optical) connector
1
Maximum read rate
BD × 2 (BD-ROM)
DVD × 8 (DVD-ROM)
CD × 24 (CD-ROM)
DUALSHOCK®3 Wireless Controller
Battery type
Voltage
Battery capacity
Mass
Built-in rechargeable Lithium-Ion battery
DC 3.7 V
610 mAh
Approx. 180 g
*1 Playback of BD-RE ver. 1.0 discs is not supported.
BRAVIA™ Sync
*2 PlayStation®2 format software titles do not perform on this system.
"BRAVIA™ Sync" is a Sony product feature that allows you to use the remote
controls of BRAVIA™ televisions (Sony Corporation products) to operate various
devices that are connected to each other through HDMI cables. BRAVIA™ Sync
uses the control signals that are transferred through the HDMI connections.
To enable the BRAVIA™ Sync feature, go to
(Settings)
(System Settings)
[Control for HDMI], and set the option to [On]. For details, refer to the online
user’s guide (access from : eu.playstation.com/manuals) and the instructions
supplied with the BRAVIA™ products in use.
Hint
Playable discs
BD-ROM
Disc
Region code
DVD
2
ALL
PlayStation® format CD-ROM
BD-R
BD-RE*1
DVD-ROM
DVD+R/RW
DVD-R/RW
AVCHD
DSD Disc
PlayStation® format CD-ROM*2*3
CD
Depending on the disc, a region code that is based on the geographic region
where the disc is distributed may be assigned. This system can play discs
marked with the following region codes.
PlayStation®3 format BD-ROM
PlayStation®3 format BD-ROM
DVD
Region codes
Blu-ray Disc (BD)
This feature can only be used on devices that support the BRAVIA™ Sync feature.
Compatibility with all devices that comply with the HDMI CEC specification is not
guaranteed.
Blu-ray Disc (BD)
*4 Playback of Super Audio CDs is not supported.
GB
Specifications
*3 This product has limited backward compatibility with PlayStation® format
software. Many PlayStation® format software titles operate, but full compatibility
is not guaranteed.
DVD and PlayStation®3 format software
When outputting DVD content or PlayStation®3 format software in SD resolution,
only discs recorded in the PAL standard will definitely be playable. You may not
be able to play discs recorded for other standards (such as NTSC) on this
system (unless an NTSC compatible TV is used).
When playing PlayStation®3 format software in HD resolution, a TV that supports
video playback at 59.94 Hz is required.
CD-DA (audio CD)*4
CD-R/RW
49
Specifications
DVD-R/DVD-RW/DVD+R/DVD+RW discs
Discs that have not been finalised cannot be played.
Notices
Use only circular-shaped discs with the system. Do not use irregularly-shaped
discs (for example, heart- or star-shaped discs). Using irregularly-shaped discs
may cause a malfunction.
Do not use damaged, re-shaped or repaired discs. Use of such discs may
cause a malfunction.
When using an 8 cm disc, insert the disc in the system without an adaptor.
The audio CD playback feature of this system is designed to conform to the
Compact Disc (CD) standard. Some record companies have started marketing
music discs encoded with copyright protection technologies. Some of these
music discs do not conform to the CD standard and may not be playable on
this system.
A DualDisc is a dual-sided disc that combines a DVD side and an audio side.
Note that the audio side is not guaranteed to play because this type of disc
does not conform to the specifications required for an audio Compact Disc
(CD).
Wireless controller battery
Caution
If you come into contact with material from a leaking battery, take the
following actions:
– If the material gets into the eyes, do not rub. Immediately flush the eyes
with clean water and seek medical attention.
– If the material comes into contact with the skin or clothes, immediately
rinse the affected area with clean water. Consult your physician if
inflammation or soreness develops.
Do not allow the battery to come into contact with fire or subject it to extreme
temperatures such as in direct sunlight, in a vehicle exposed to the sun or
near a heat source.
If a device that is not compatible with the HDCP (High-bandwidth Digital
Content Protection) standard is connected to the system using an HDMI cable,
video or audio cannot be output from the system.
Wireless controller battery life
When you use the AV MULTI OUT connector of the system to connect to a TV,
copyright-protected video from a BD or from video files may be output at
resolutions lower than 1080p. Also, these types of video will be output at
resolutions of 576p or lower if recorded at 1080i (50 Hz) or 720p (50 Hz).
Battery life also varies depending on the storage method, usage state,
environment and other factors.
When playing discs with content that was copied fraudulently, abnormal sounds
may be produced or the content may not play correctly.
To continuously enjoy playback of copyright-protected BDs, in some cases the
encryption key for AACS (Advanced Access Control System) may need to be
renewed. To renew the encryption key, the system must be updated.
Some discs may not be playable due to scratches, dust, the quality of
recording, or the characteristics of the recording device.
50
In rare instances, CDs, DVDs, BDs and other media may not operate properly
when played on the PS3™ system. This is primarily due to variations in the
manufacturing process or encoding of the software.
The battery has a limited lifespan. Battery duration will gradually decrease with
repeated usage and age.
Storage
When the wireless controller is not used for an extended period of time, it is
recommended that you fully charge it at least once a year in order to maintain
battery functionality.
GUARANTEE
Thank you for buying this Product. We hope that you enjoy using it.
This Guarantee does not cover your data, any separate software or PlayStation®
games whether or not packaged or included with the Product, or any PlayStation®
accessories or peripheral devices that are not manufactured by or for SCEE.
This Guarantee is given to you, the first user of the Product. It is personal to you
and cannot be used by anyone else.
Sony Computer Entertainment Europe Ltd ("SCEE") guarantees that this Product is
free from defects in materials and workmanship that result in Product failure
during normal usage in accordance with the terms set out in below and will, for a
period of 1 (one) year from the date of original purchase, repair or (at SCEE’s
option) replace any component part of this Product, free of charge, where it is
faulty due to defective materials or workmanship. Replacement will be with a new
or refurbished component or unit, at SCEE’s option, which is guaranteed for the
remainder of the original Guarantee Period.
This Guarantee is in addition to your statutory consumer rights (under applicable
law) and does not affect them in any way.
This Guarantee is given to you as first user by Sony Computer Entertainment
Europe Ltd of 10 Great Marlborough Street, London, W1F 7LP, United Kingdom.
1. If you need to claim under this Guarantee, please call your local Customer
Service helpline (listed in the PlayStation®3 software manuals) for return
instructions.
2. Where SCEE has put this product on the market in the European Economic
Area or Switzerland, this Guarantee is valid in all EU Member States plus
Switzerland, Norway, Iceland and Liechtenstein, provided:
i. the original sales receipt or invoice or other proof of purchase (indicating
the date of purchase and retailer’s name) is presented together with the
defective Product within the Guarantee period (and has not been altered or
defaced since the date of original purchase); and
GB
GUARANTEE
The term "Product" means the PlayStation®3 computer entertainment system ("the
PS3™ system") and any official PlayStation®3 peripherals supplied in the box with
the PS3™ system. The system software pre-installed in the PS3™ system or
subsequently provided via updates or upgrade releases is licensed to you, not
sold, and is for use only as part of the PS3™ system. The terms of such system
software licence are at http://www.scei.co.jp/ps3-eula.
IMPORTANT
ii. the Guarantee seal and the serial number on the Product have not been
damaged, altered, defaced or removed.
3. SCEE may elect at its option to repair or replace the Product with a new or
refurbished component or unit.
4. Repair or replacement will involve installation of the latest software or firmware
updates for the Product.
5. When arranging for warranty service under this Guarantee, our Customer
Service helpline will discuss with you whether you should leave the hard disk
drive ("HDD") included in the PS3™ system on purchase inside the PS3™
system, or remove and retain the HDD prior to the return of the system for
warranty service.
6. If the PS3™ system is returned with the HDD for warranty service, repair or
replacement of the Product will involve reformatting of the HDD. This is the
quickest form of warranty service we can offer.
7. If the PS3™ system is returned without the HDD for warranty service, we will
where possible ensure the repaired or replaced unit has the same unique
internal identification as the returned PS3™ system. Please note this form of
warranty service will take longer than the service described in the previous
paragraph. If for any reason we are unable to rewrite the original system ID
and you wish to receive warranty service, you will need to reformat your HDD
before you are able to use it with your repaired or replaced PS3™ system.
51
GUARANTEE
8. You understand and agree that reformatting of the HDD will result in loss of
your stored data, files or software. To avoid loss or erasure of any software,
data or files you may have stored on the hard disk and which you consider
private or confidential or which you wish to retain, before submitting the
Product for guarantee service you should where possible back these up and
remove them. Clearing your PlayStation®Network password is helpful to protect
your information.
9. You understand that this Guarantee does not cover stored data and you agree
that SCEE is not liable to you for any loss or corruption of your data, files or
software resulting from repair or replacement of the Product under this
Guarantee.
10.You should back up your hard disk regularly to prevent loss or alteration of
data, although some content cannot be backed up and must be reinstalled by
the user.
11.To avoid damage to or loss or erasure of removable external data storage
media or peripherals or non-PS3™ components, you must remove these
before submitting the Product for guarantee service.
12.You may not claim under this Guarantee when the Product is damaged as a
result of:
i. commercial use, accident, fair wear and tear, negligence, abuse, or misuse
(including, without limitation, failure to use this Product for its normal
purpose and/ or in accordance with instructions on proper use and
maintenance, or installation or use in a manner inconsistent with applicable
local technical or safety standards);
ii. use in conjunction with any unauthorised peripheral (including, without
limitation, game enhancement devices, hard disk drives, adaptors and
power supply devices);
iii. any adaptation or adjustment to, or alteration of, the Product carried out for
any reason, and whether properly carried out or not;
iv. maintenance or repair or attempted repair carried out other than by a SCEE
authorised service facility;
v. use in conjunction with unauthorised software, virus infection, or fire, flood
or other natural calamity; or
52
vi. operation or treatment of the Product inconsistent with normal personal or
domestic use or operation outside the Product specifications.
13.You may not claim under this Guarantee where you are in material breach of
your system software licence (see http://www.scei.co.jp/ps3-eula).
14.To the extent permitted by applicable law, this Guarantee will be your sole and
exclusive remedy in relation to defects in this Product and all other guarantees,
warranties, terms and conditions, express or implied by statue or otherwise, in
respect of this Product are excluded and neither SCEE nor any its affiliates or
suppliers, will be liable for any special, incidental, indirect or consequential
loss or damage including loss of data, howsoever arising.
15.SCEE does not warrant or guarantee any third party product or service which
may be offered in connection with the Product.
If this Product needs any repair which is not covered by this Guarantee, please
call your local Customer Service helpline for advice. If your home country is not
one of those listed, please contact your retailer.
Copyright and trademarks
" ", "PlayStation", "DUALSHOCK", "
" and "
trademarks of Sony Computer Entertainment Inc. "
same company.
" are registered
" is a trademark of the
"XMB" and "xross media bar" are trademarks of Sony Corporation and Sony
Computer Entertainment Inc.
"SONY" and " " are registered trademarks of Sony Corporation. "Memory Stick",
", "ATRAC", "BRAVIA" logo, "BRAVIA" and the "x.v.Colour"
"Memory Stick Duo", "
name and logo are trademarks or registered trademarks of Sony Corporation.
"
" and AOSS™ are the trademarks of BUFFALO INC.
© 2006 All Media Guide, LLC
Content and technology provided by All Media Guide®.
"AVCHD" and "AVCHD" logo are trademarks of Panasonic Corporation and Sony
Corporation.
"Blu-ray Disc" and
GB
Copyright and trademarks
Contains Macromedia® Flash® Player technology by Adobe
Copyright © 1995-2008 Adobe Systems Incorporated. All rights reserved. Flash,
Macromedia, and Macromedia Flash are either trademarks or registered
trademarks of Adobe Systems Incorporated in the United States and/or other
countries.
are trademarks.
Copyright © 2004-2006 Cambridge Silicon Radio Ltd.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and
any use of such marks by Sony Computer Entertainment Inc. is under license.
Other trademarks and trade names are those of their respective owners.
53
Copyright and trademarks
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are
used under license.
Manufactured under licence from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
U.S. and foreign patents licensed from Dolby Laboratories.
DLNA and DLNA CERTIFIED are trademarks and/or service marks of Digital
Living Network Alliance.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents
issued & pending.
DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD
Master Audio are trademarks of DTS, Inc.
© 1996-2008 DTS, Inc. All Rights Reserved.
The DVD logo is a trademark.
All of the Japanese fonts and some parts of the Latin fonts in this machine use
characters provided by Fontworks Japan, Inc.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing, LLC.
ATOK is a registered trademark of JUSTSYSTEM CORP. in Japan and other
countries.
54
Anti-Grain Geometry - Version 2.0
Copyright © 2002-2004 Maxim Shemanarev (McSeem)
Permission to copy, use, modify, sell and distribute this software is granted
provided this copyright notice appears in all copies.
This software is provided "as is" without express or implied warranty, and with no
claim as to its suitability for any purpose.
This product includes RSA BSAFE® Cryptographic software from RSA Security
Inc.
RSA, BSAFE are either registered trademarks or trademarks of RSA Security Inc.
in the United States and/or other countries.
RSA Security Inc. All rights reserved.
Java and all Java based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
GB
@(#)fdlibm.h 1.5 95/01/18
Copyright © 1993 by Sun Microsystems, Inc. All rights reserved
Developed at SunSoft, a Sun Microsystems, Inc. business.
Permission to use, copy, modify, and distribute this software is freely granted,
provided that this notice is preserved.
Copyright and trademarks
This product incorporates copyright protection technology that is protected by
U.S. patents and other intellectual property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is intended for home and
other limited viewing uses only unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.
MPEG Layer-3 audio coding technology and patents licenced from Fraunhofer IIS
and Thomson.
Mp3Surround audio coding technology and patents licensed from Fraunhofer IIS,
Thomson, and Agere.
The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum,
Inc.
This product adopts S3TC texture compression technology under licence from S3
Graphics, Co., Ltd.
55
Copyright and trademarks
eZiText® and Zi® are registered trademarks of Zi Corporation.
Portions of this software are copyright © 1996-2008 The FreeType Project
(www.freetype.org). All rights reserved.
This software is based in part on the work of the Independent JPEG Group.
Visit http://www.scei.co.jp/ps3-license/index.html for other licensees and
trademarks.
All other trademarks are the property of their respective owners.
56
Online user’s guide
access from : eu.playstation.com/manuals
This guide contains detailed information about using the PS3™ system.
System software updates
http://eu.playstation.com/ps3
This site provides the latest information about system software updates.
PlayStation®3 official site
http://eu.playstation.com/ps3
The official site for PlayStation®3 products provides the latest information about
software titles and hardware accessories.
Support
http://eu.playstation.com/help-support
The official site for PlayStation® product support provides the latest questions and
answers about your product.
© 2010 Sony Computer Entertainment Inc. All rights reserved.
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
Download PDF
advertisement
